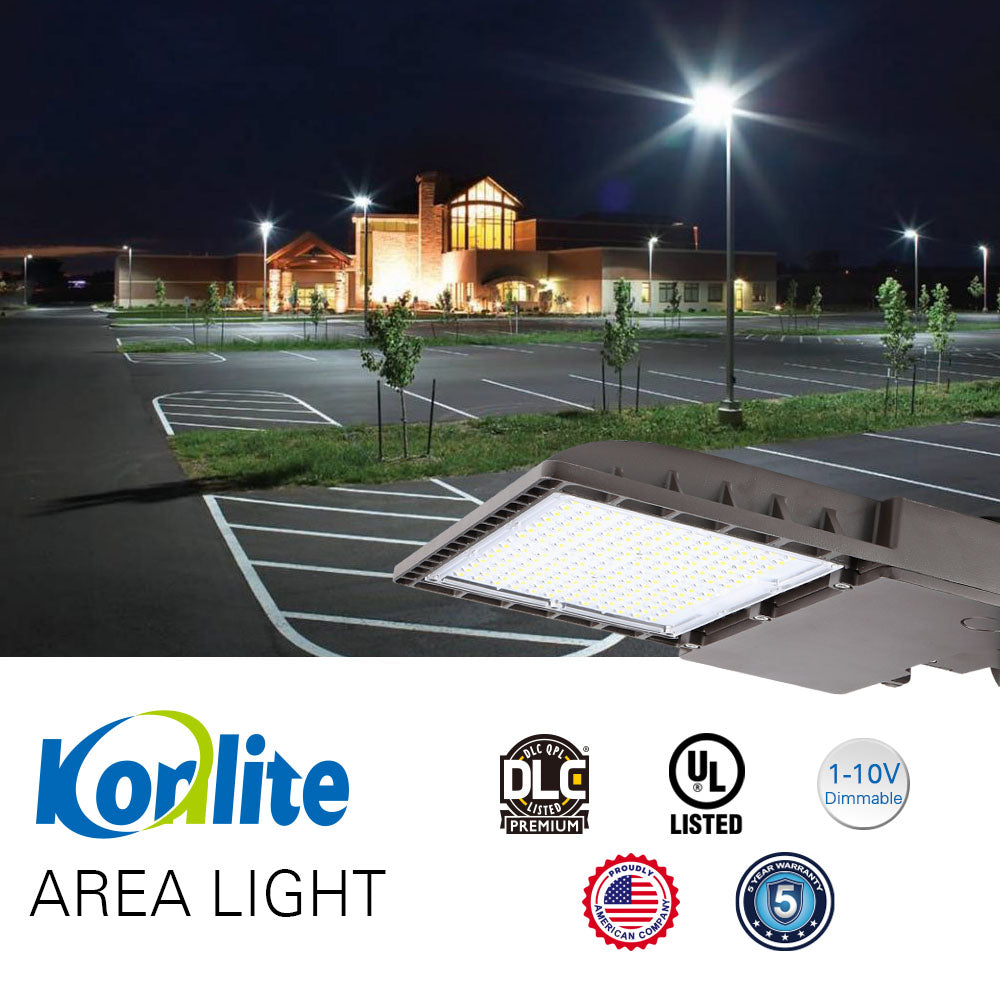

Konlite LED Outdoor Area Light - 70W - Type III - 9,600 Lumens - 5000K - 120-277V - 150W Equal

Konlite SKU: RDAL02040705KDNSFL3D SEARCH CODE: 20-0201
    • Replaces 150W Metal Halide Light

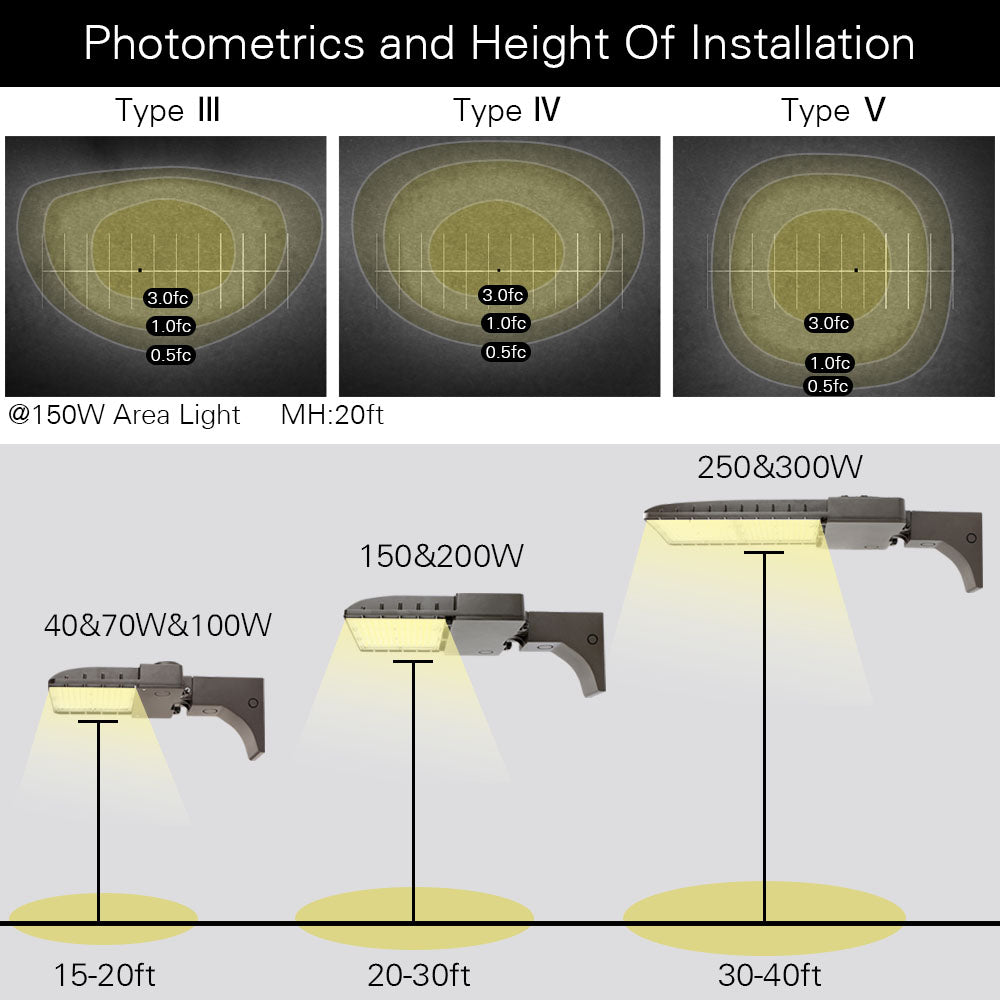

    • Mounting Height from 12 to 18 FT
    • Price Includes One Mounting Bracket
    • 100,000 hours lifespan
    • 5000K Daylight White
    • 9,600 Lumens
    • Distribution: Type 3
    • Certificates: UL, DLC 5.1 Premium
    • 5-Year Warranty
Sale price$129.95
  • Secured payment methods. Revolve LED never stores nor has access to your card information.

  • 90 days return without restocking fee*.

  • $199 Free Shipping on eligible products*

  • Availability: Usually Ships in one to three business days.

The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. Ideal for parking lot, street, flood and other outdoor area applications.

  • Designed for easy one person install
  • Precise optics designed to shape light distribution, maximizing spacing of fixtures
  • Low Profile 3G vibration and compact design minimizes wind load requirements
  • 100,000 hour lifespan
What's in the box
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide

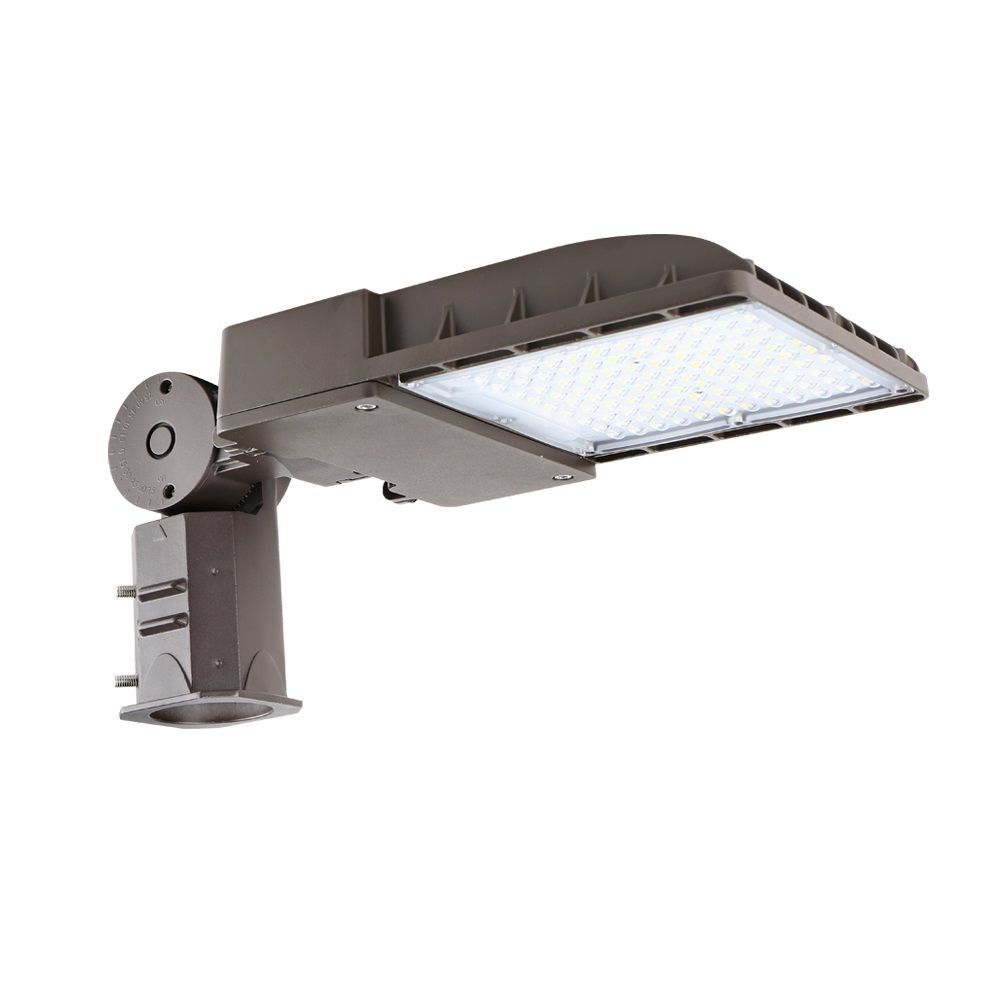

dark bronze 70W slipfitter mount led area light with type 3 lens
Konlite LED Outdoor Area Light - 70W - Type III - 9,600 Lumens - 5000K - 120-277V - 150W Equal
Regular price Sale price $129.95
What's in the box
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide

Product Overview

Ensure the safety of your patrons, employees and the security of your premises with the versatile Konlite AL04 Area Light.  Eliminate maintenance while reducing 65% energy consumption when replacing outdated Metal Halide - HPS fixtures or using in new construction. With a combination of performance, aesthetics, energy efficiency and light control the Konlite AL04 Area Light can be used as pole lights or surface mounts for parking lot (shoebox), street lights or outdoor security lights (floods).

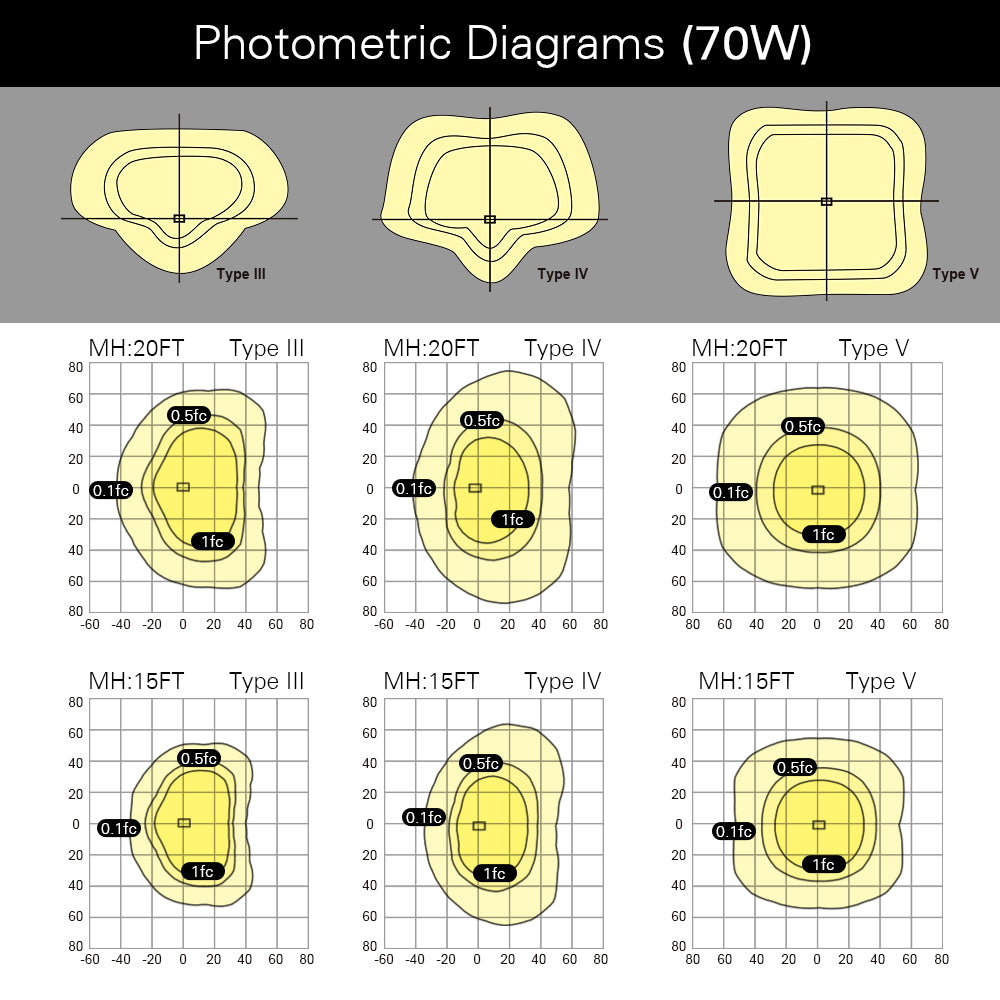

70 Watts, 9,600 Lumens, 5000K, Type III Beam Distribution,  Optional Dusk to Dawn Photocell, 120-277V

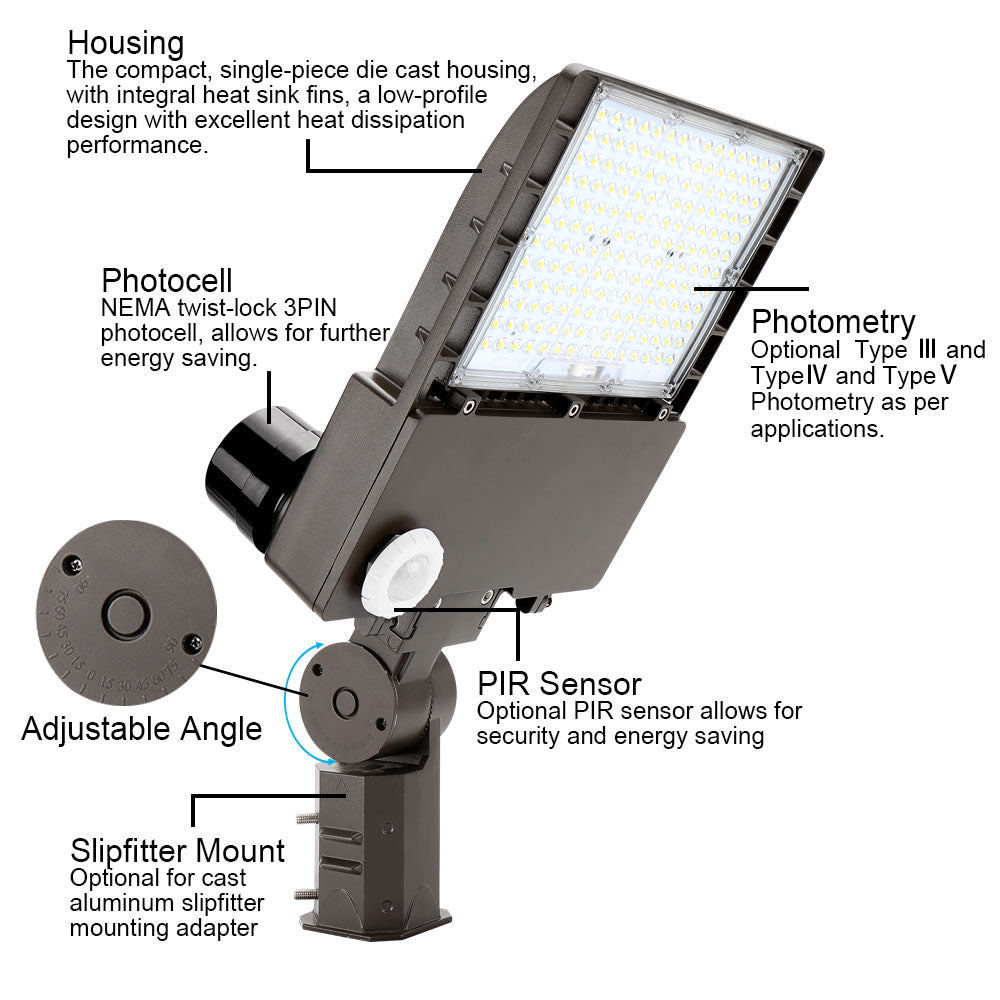

Built to last and withstand harsh elements, the AL04 stylish housing offers separation between the LEDs, the driver circuitry and larger heat sink allowing for longer operating life. Compact and lightweight design with low EPA, 3G rated for vibration. Corrosion resistant, die-cast aluminum housing with powder coat paint finish. The visual comfort optics create a larger luminous surface area resulting in a low glare appearance.

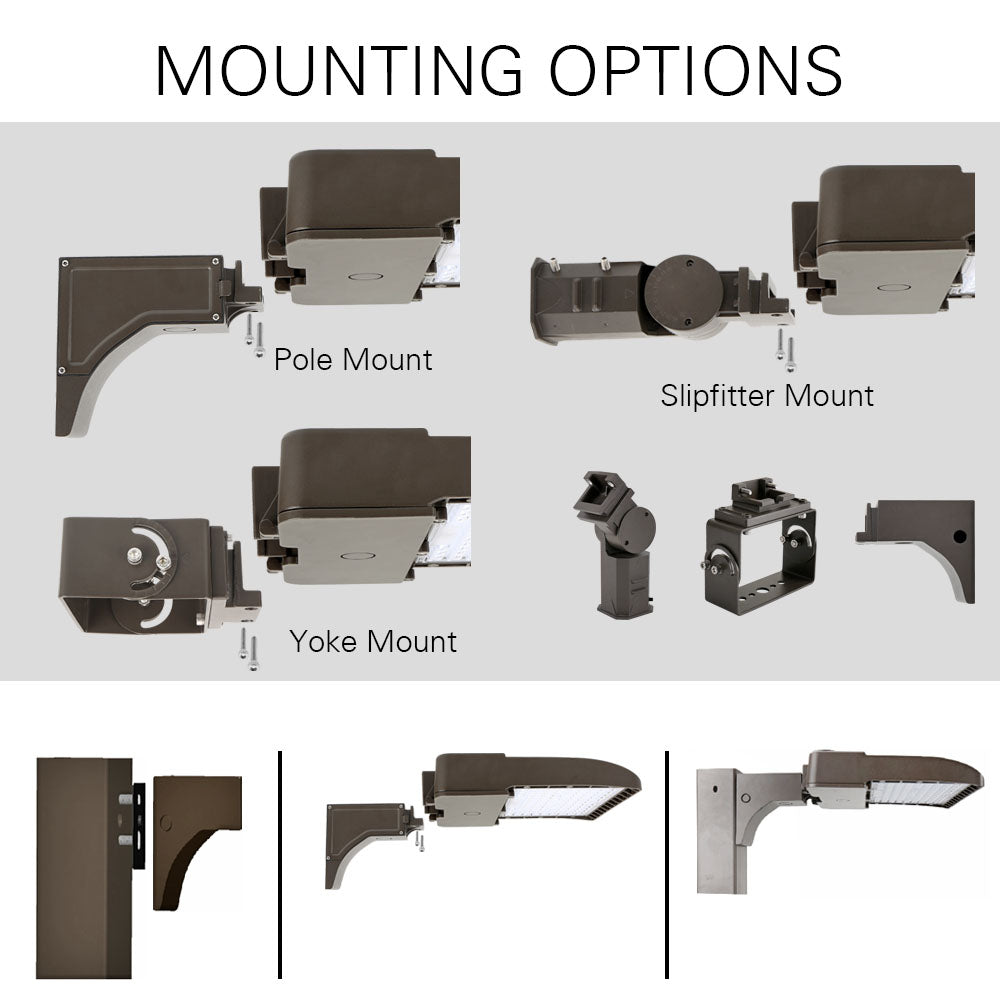

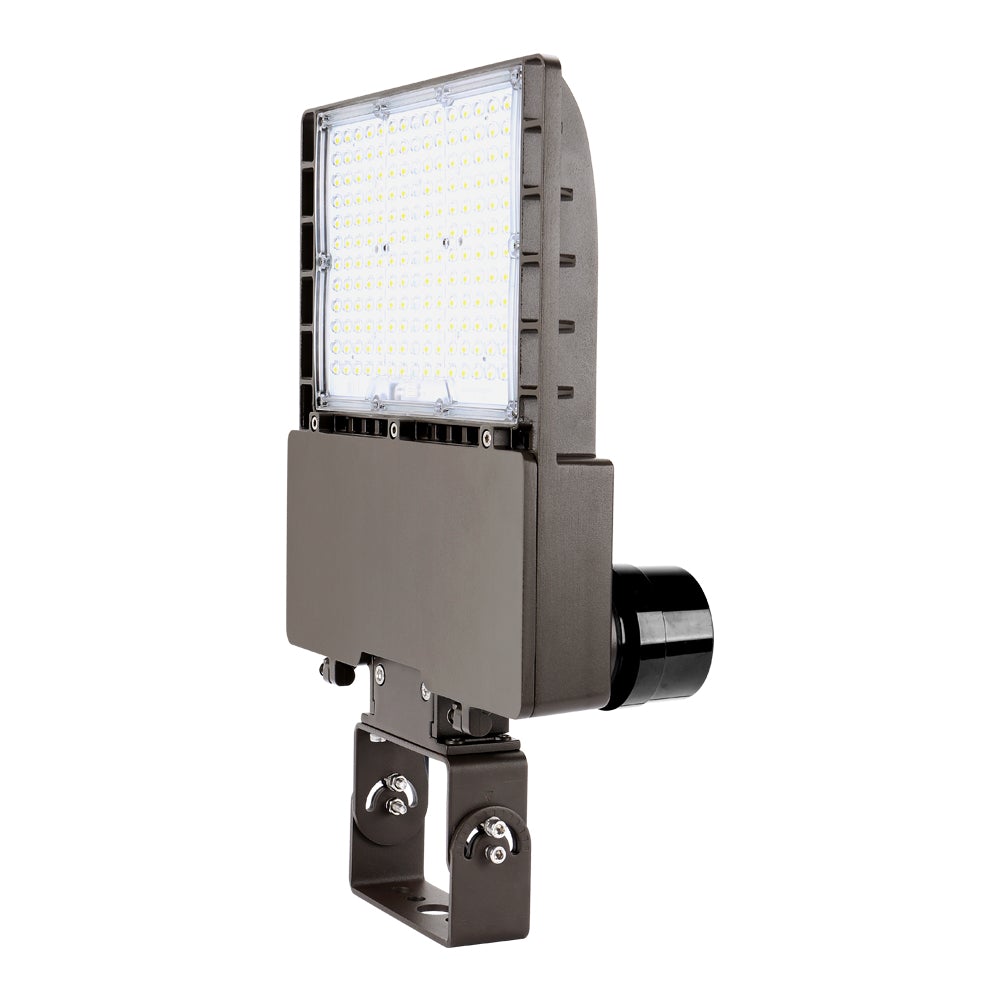

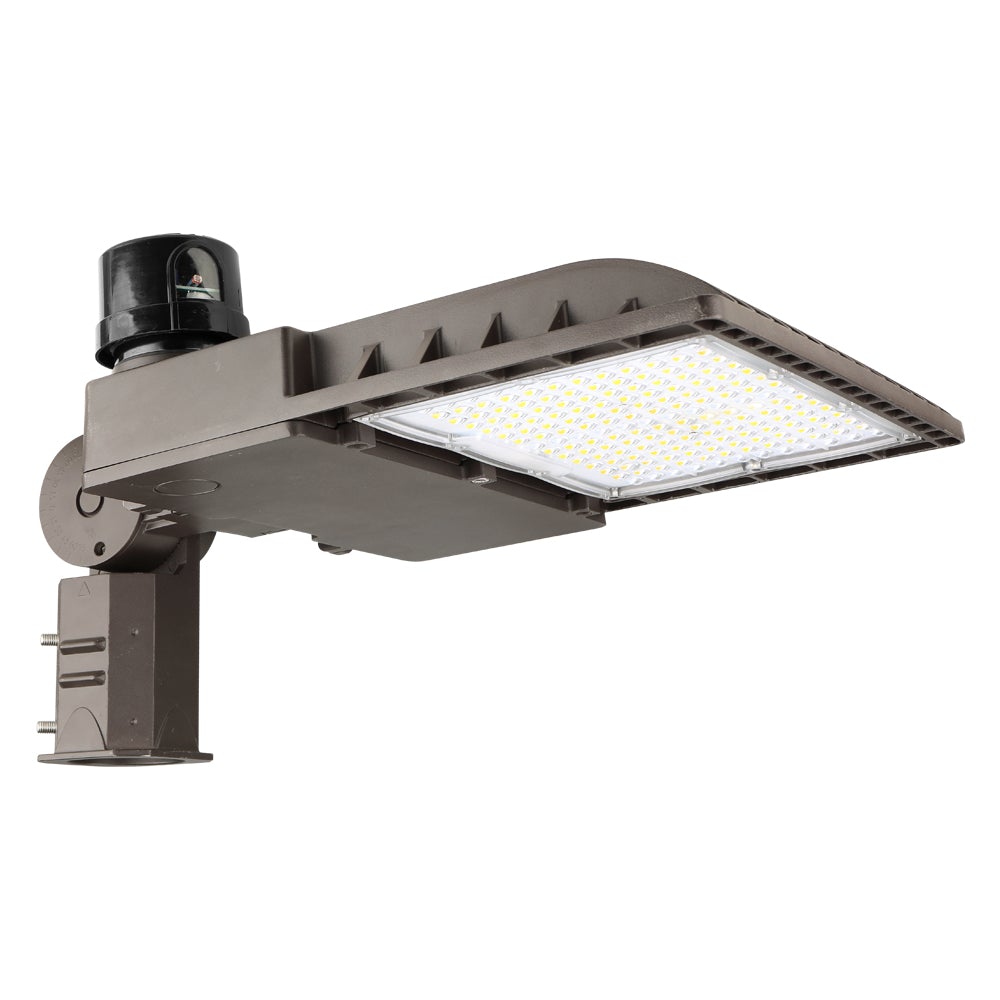

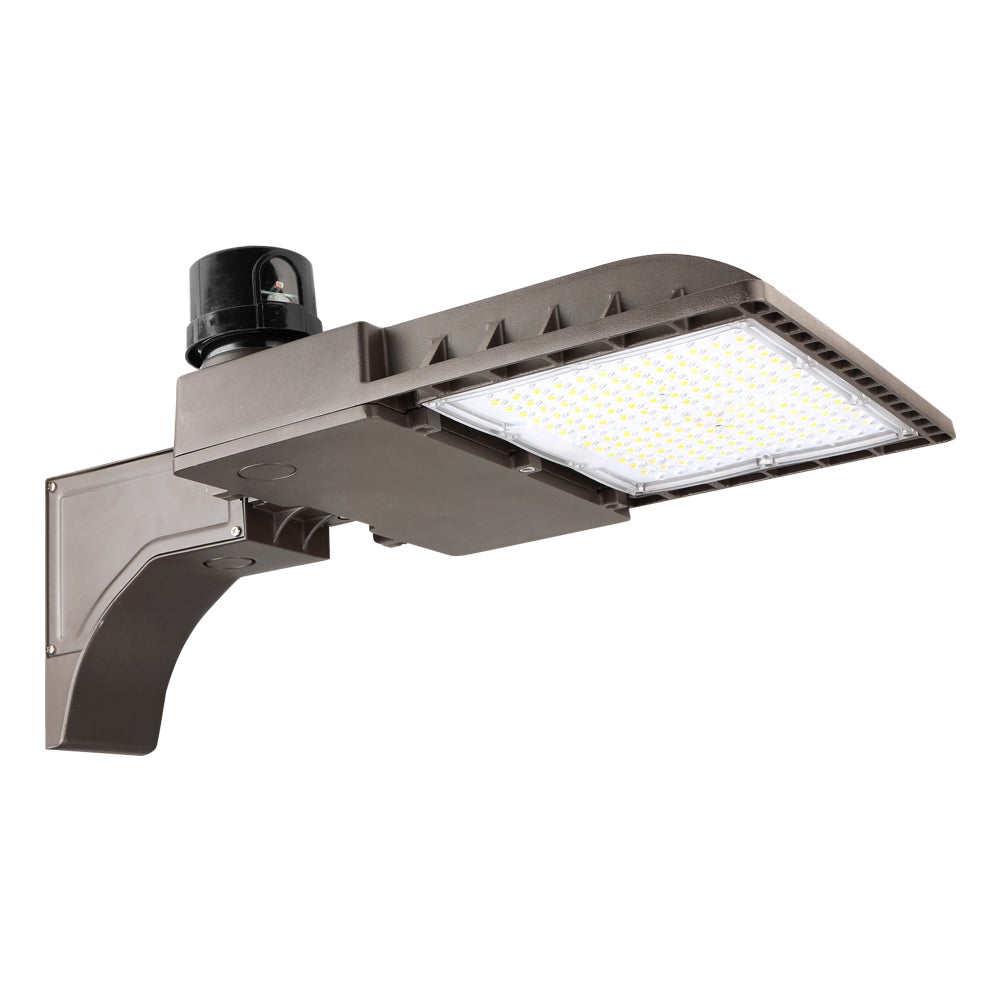

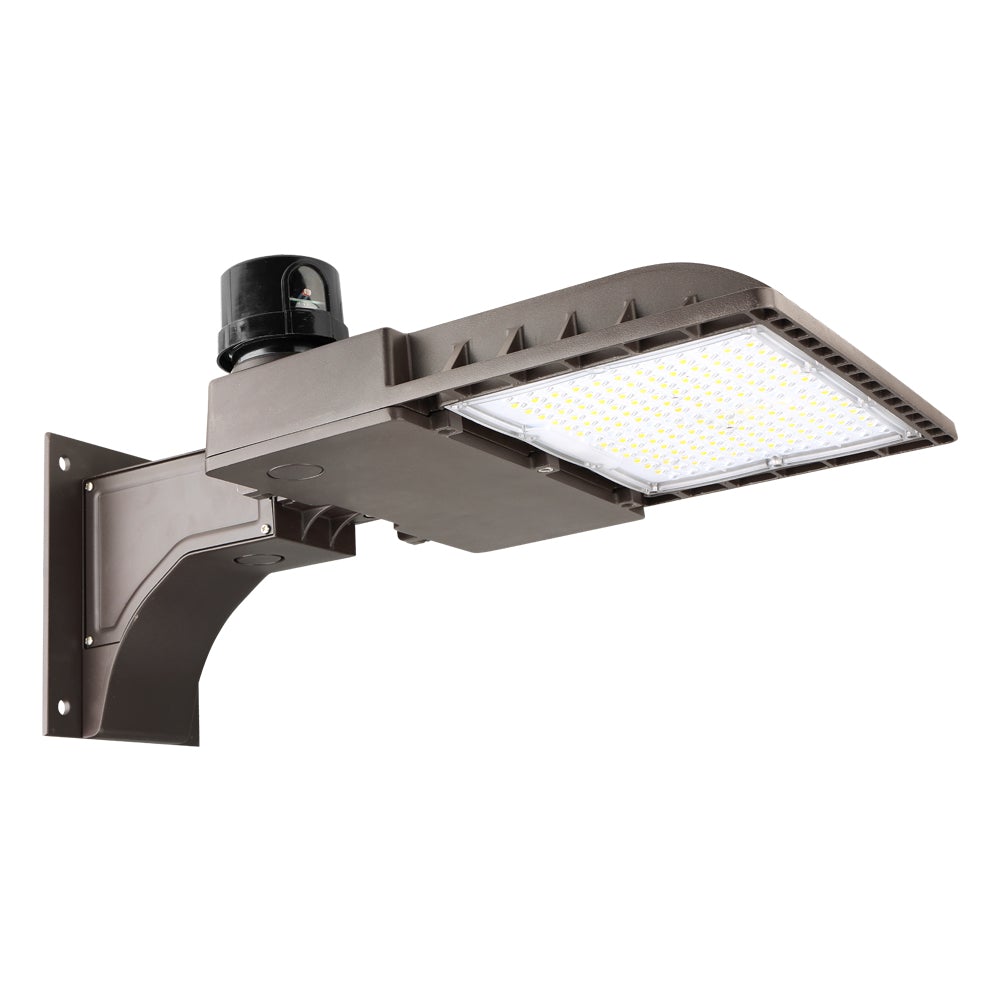

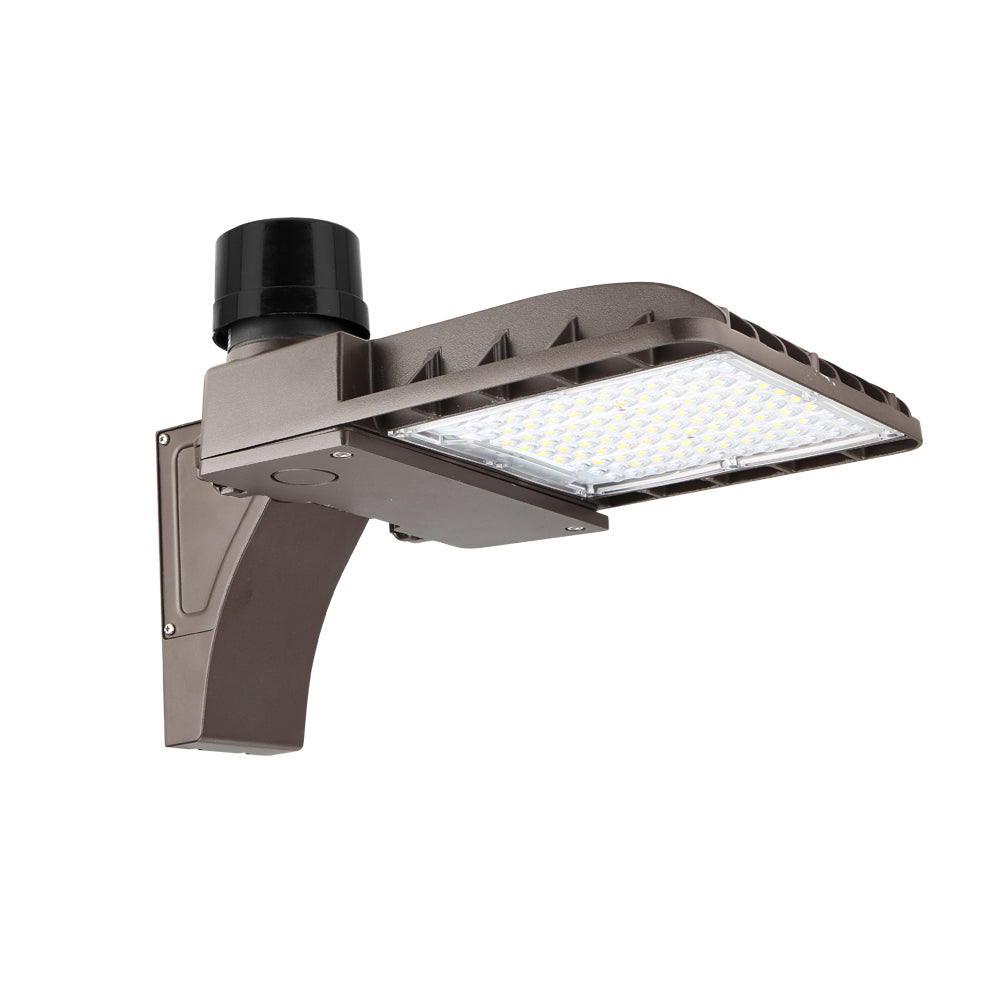

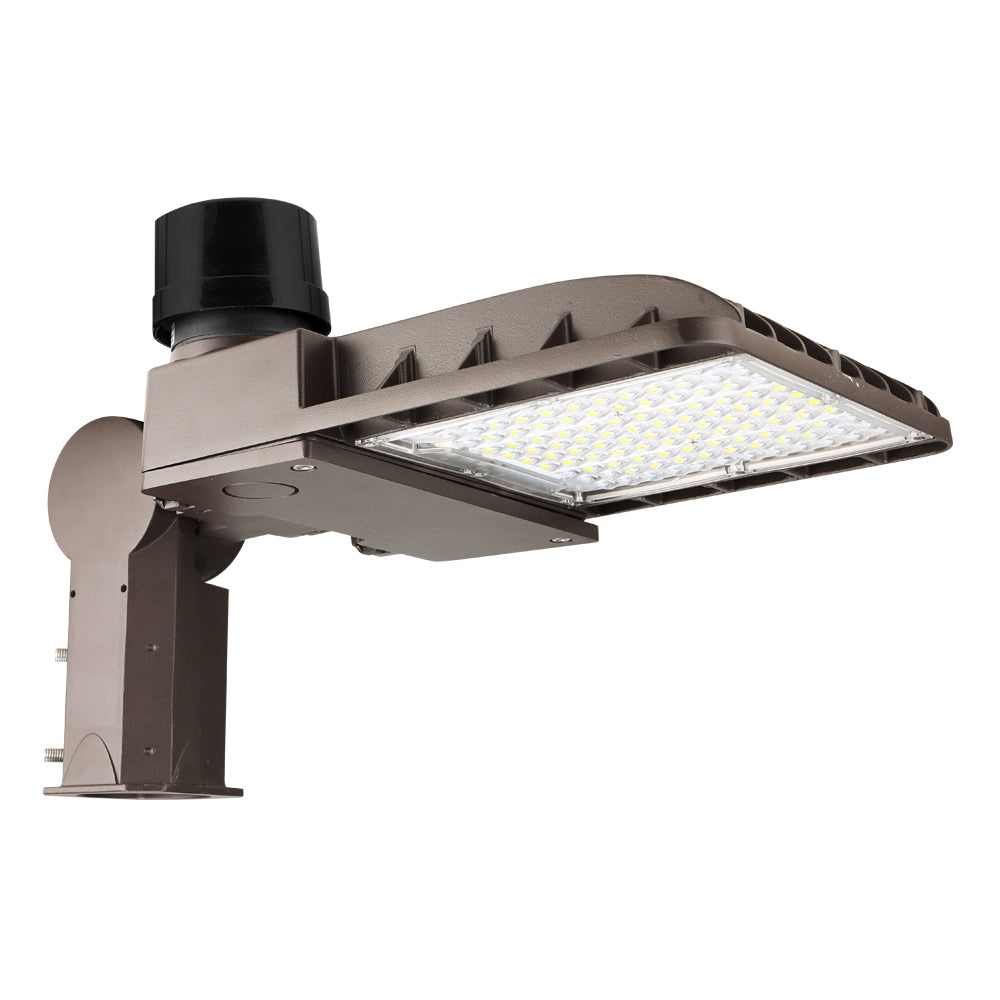

Mounting Options: Extrusion Arm for Round or Square Pole, Slipfitter, Trunnion/Yoke or Wall Mount

UL, DLC for eligible Rebates, 100,000 hour lifespan L70, 5-year warranty

See similar 40-watt, 100-watt, 150-watt and other high wattage versions.

Applications

• Area Lighting • Parking Lots
• Streets

• Building Façade

• Storage Facilities • Flood Lighting
• Boat Docks & Marinas • Billboards
• Warehouses • Metal Buildings
• Roadways & Pathways • Security Lighting
• Sports Complex • Schools & Universities
• Parks & Outdoor Recreation • Car Dealerships



Color Temperature 5000K color temperature
Certifications
US company5 years warrantyUL listed1-10V dimmableDLC PremiumRoHS compliance FCC certificationIP65 rating

Specifications

BrandKonliteDLC Part #RDAL02040705KXXXX
WarrantyLimited 5 YearsUPC717360769910
Input Voltage120-277VOpticalType III
Input Wattage70WEqual to150W MH
Delivered Lumens9,600CRI>70
Efficacy137 LM/WAvailable CCT5000K
Rated Life>100,000 hrsTHD<20%
Power Factor>0.9IP RatingIP65
DimmableCall us for 1-10V Dimming AvailabilityControlsN/A

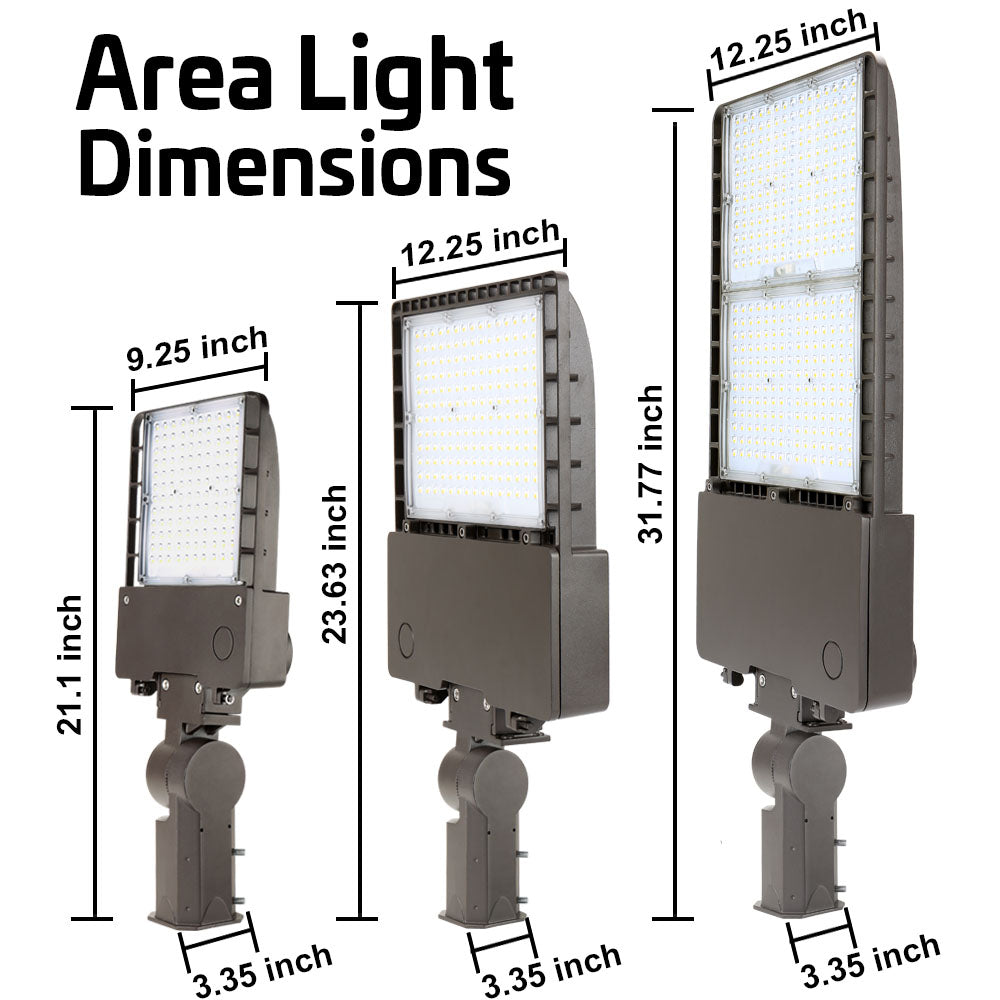

Operating Temperature-30 F to 122 FDimensionsSee Specifications
CertificationsUL, Wet Locations, DLC PremiumWeight10 lbs
