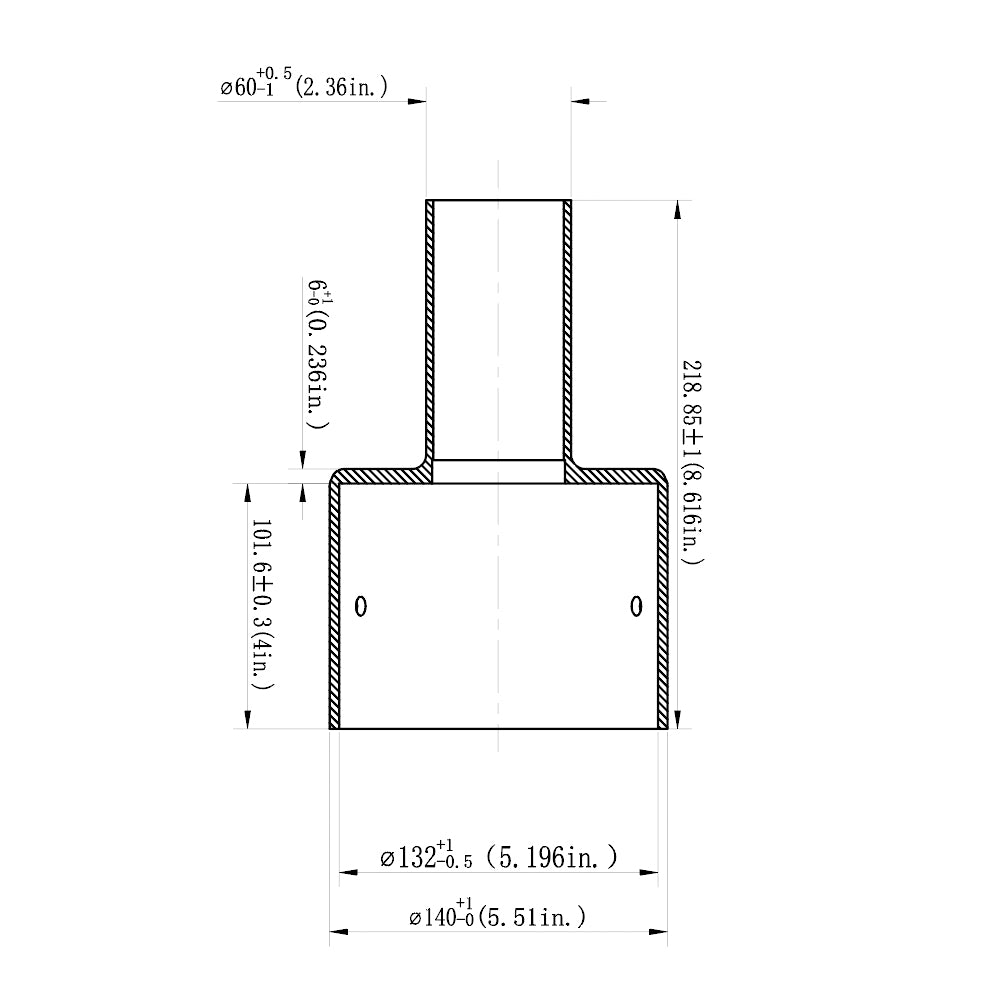

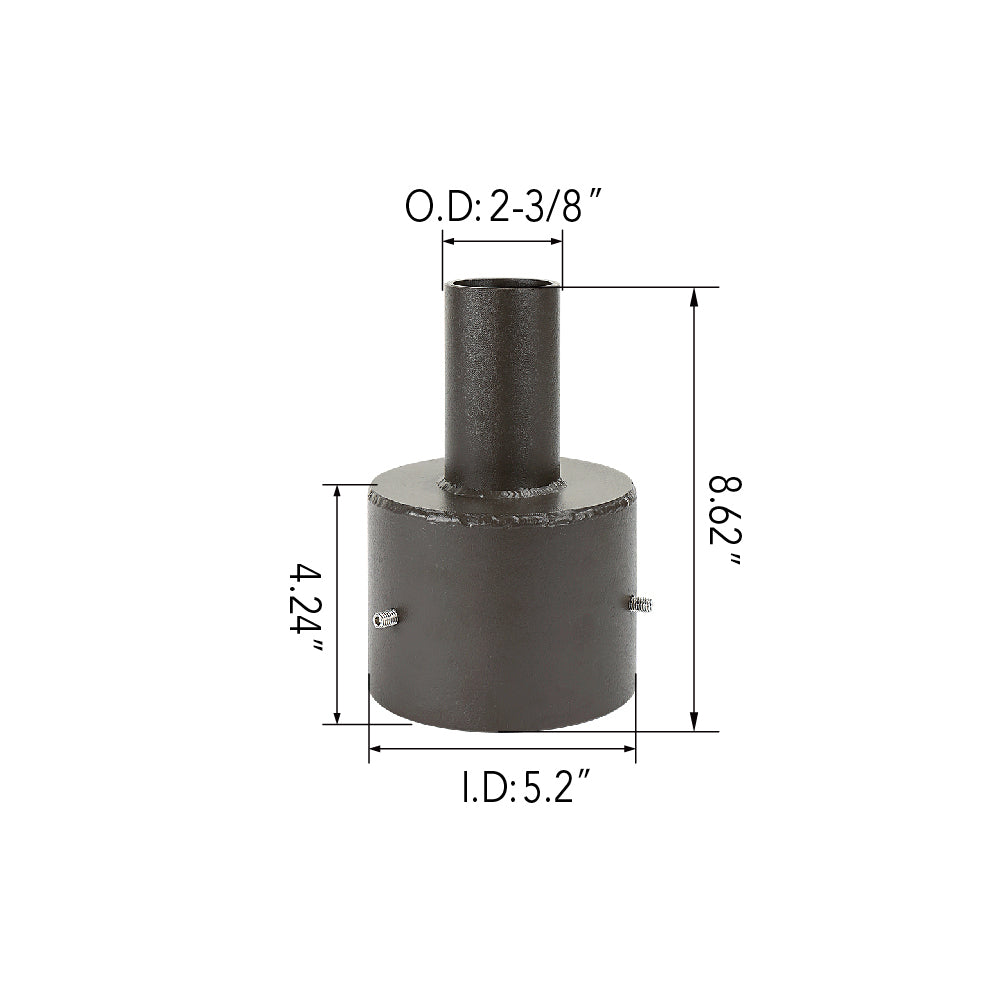

5" Round Pole Mount Tenon Reducer Dimensions

Roll over image to zoom in Click on image to zoom

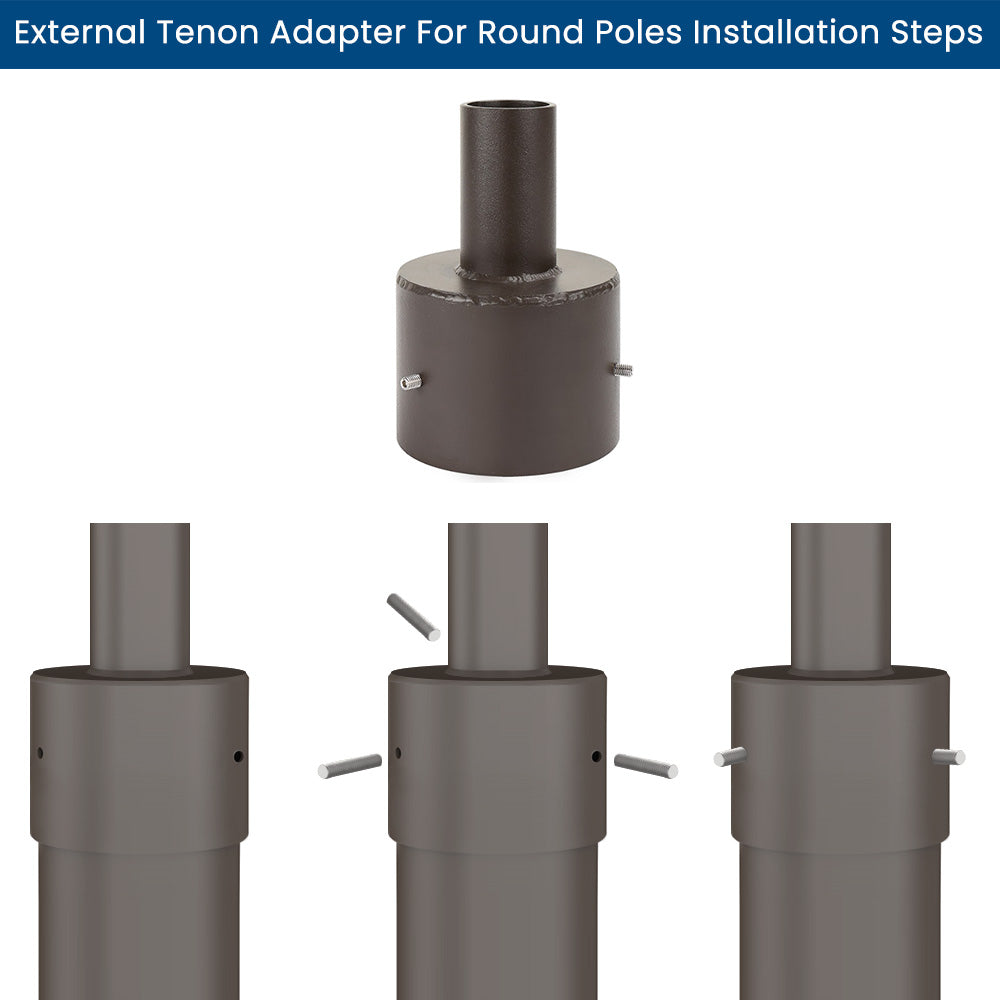

This Tenon adapter is used with Round, non-tapered steel and aluminum poles. Furnished with three 3/8" hex head stainless-steel bolts. Vertical tenon measures 2-3/8" O.D., and is made of steel tubing. Fixtures mounted to this bracket
can be adjusted both vertically and horizontally.

Mounting Hardware included
Total Tenon Height is 8.76 Inches
Dark Bronze Finish

5" Round Pole Mount Tenon Reducer

Revolve LED SKU: RDAF-5SQR-SP-D SEARCH CODE: 20-0009

Heavy Duty Steel
Dark Bronze Finish
Mount Outside of a 5" Round Pole
2-3/8" O.D. Vertical tenon

$48.95

Quantity:

Secured payment methods. Revolve LED never stores nor has access to your card information.
90 days return without restocking fee*.
$199 Free Shipping on eligible products*
Availability: Usually Ships in one to three business days.

Mounting Hardware included
Total Tenon Height is 8.76 Inches
Dark Bronze Finish

5" Round Pole Mount Tenon Reducer

$48.95

This Tenon adapter is used with Round, non-tapered steel and aluminum poles. Furnished with three 3/8" hex head stainless-steel bolts. Vertical tenon measures
2-3/8" O.D., and is made of steel tubing. Fixtures mounted to this bracket
can be adjusted both vertically and horizontally.

Performance

Brand	Konlite	MPN	RDAF-5SQR-SP-D
Weight	3 Lbs	UPC	717360778837
Height	8.76 Inch	Round Pole	5 Inch
Material	Steel	Outside Diameter (O.D)	2-3/8 Inch
Mounting	2-3/8 in. I.D. Slip Fitter/5 in. Round Pole	Fixture Type	Area Light
