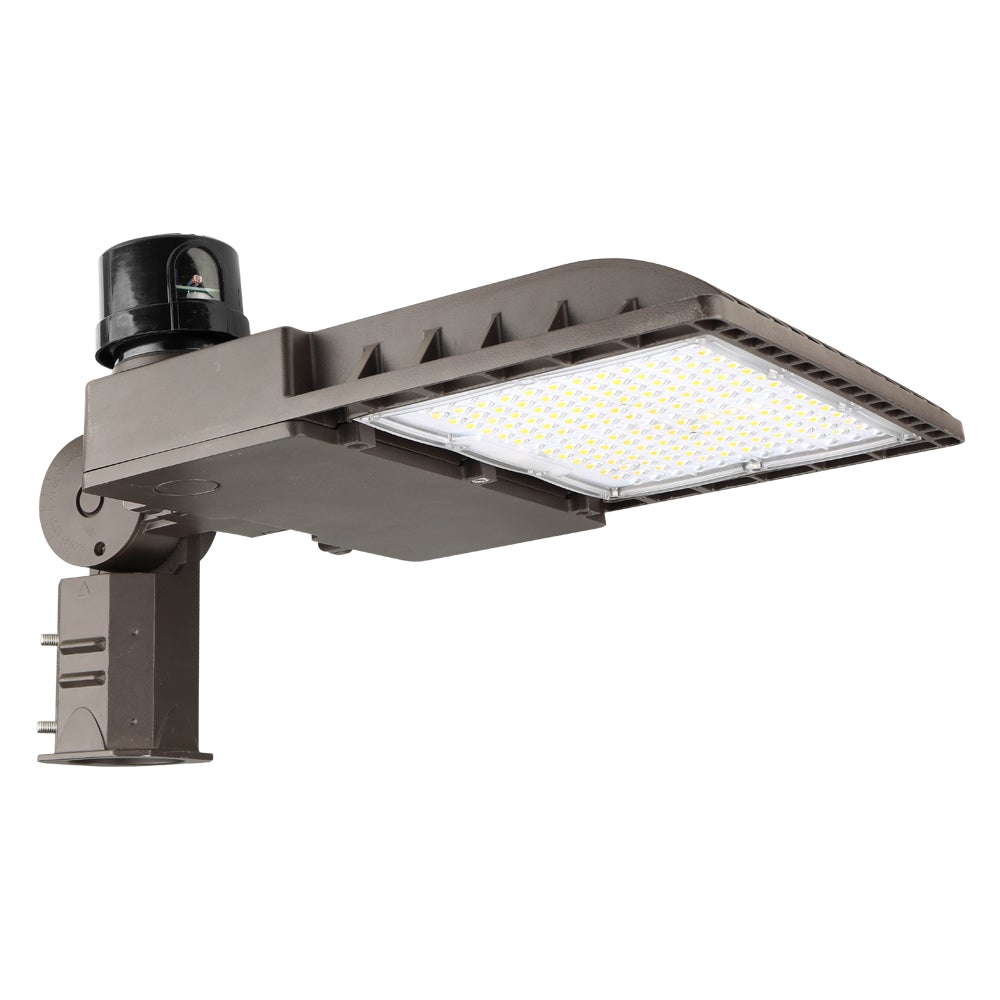

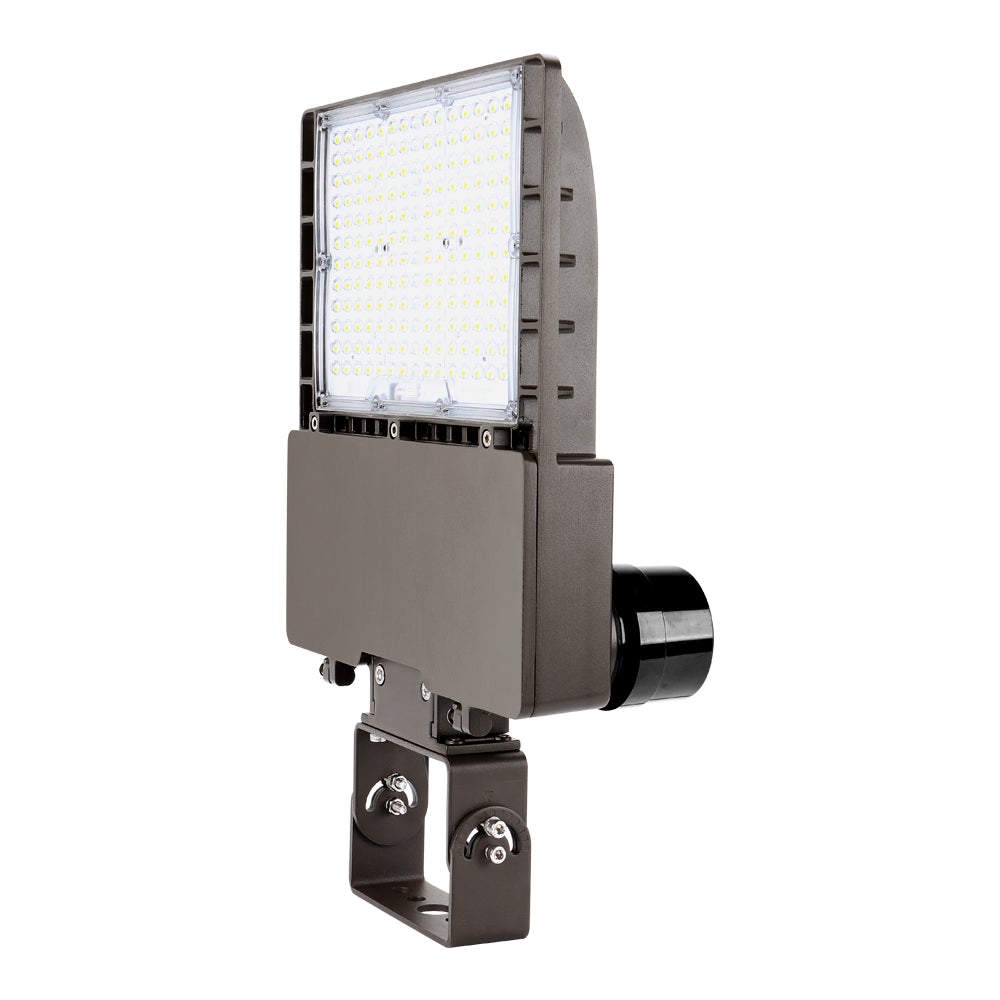

Konlite LED Outdoor Area Light - 40W - Type III - 120-277V - 5500 Lumens - 5000K - 100W Equal

Product Search Code: 20-0106
KonliteSKU: RDAL02040405KDNSFL3D

The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. Ideal for parking lot, street, flood and other outdoor area applications.

  • Designed for easy one person install
  • Precise optics designed to shape light distribution, maximizing spacing of fixtures
  • Low Profile 3G vibration and compact design minimizes wind load requirements
  • 100,000 hour lifespan, Seven year warranty
$114.95


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

What's in the box

1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide

The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. Ideal for parking lot, street, flood and other outdoor area applications.

  • Designed for easy one person install
  • Precise optics designed to shape light distribution, maximizing spacing of fixtures
  • Low Profile 3G vibration and compact design minimizes wind load requirements
  • 100,000 hour lifespan, Seven year warranty

What's in the box

1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A

Product Overview

Ensure the safety of your patrons, employees and the security of your premises with the versatile Konlite AL04 Area Light.  Eliminate maintenance while reducing 65% energy consumption when replacing outdated Metal Halide - HPS fixtures or using in new construction. With a combination of performance, aesthetics, energy efficiency and light control the Konlite AL04 Area Light can be used as pole lights or surface mounts for parking lot (shoebox), street lights or outdoor security lights (flood).

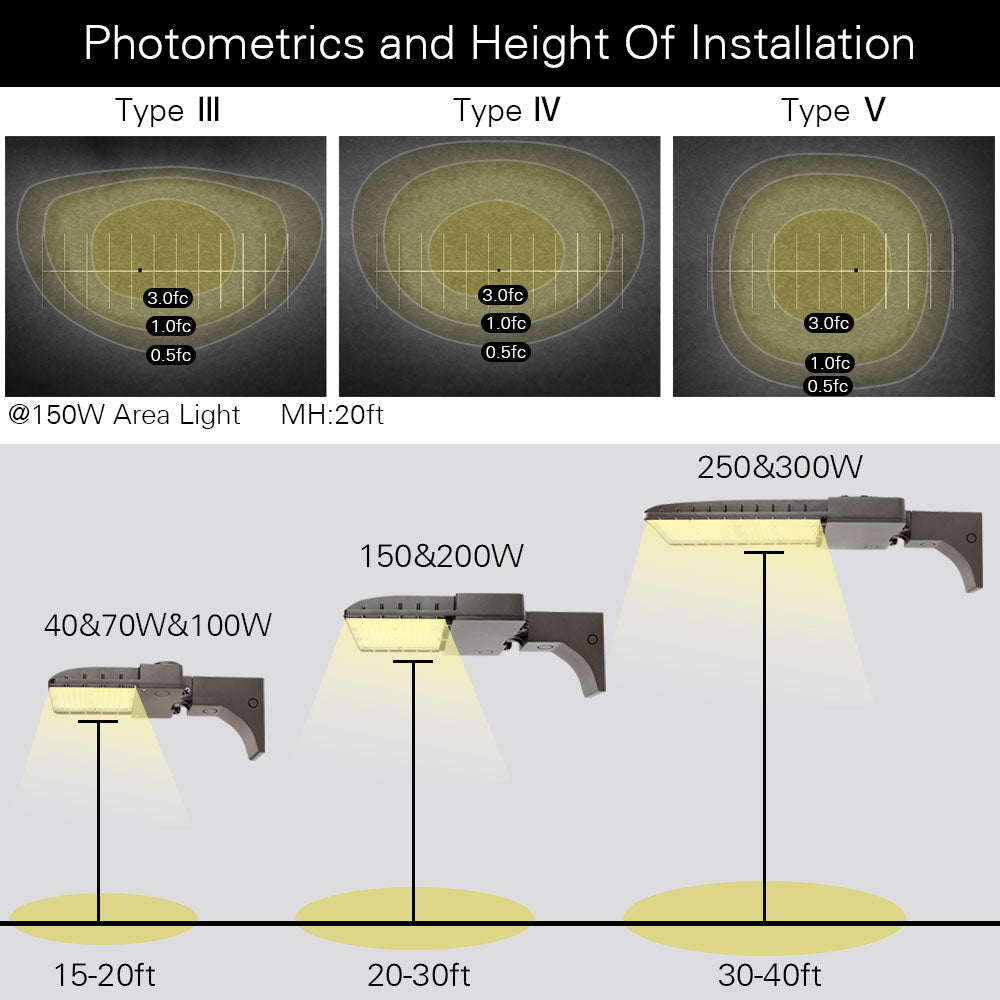

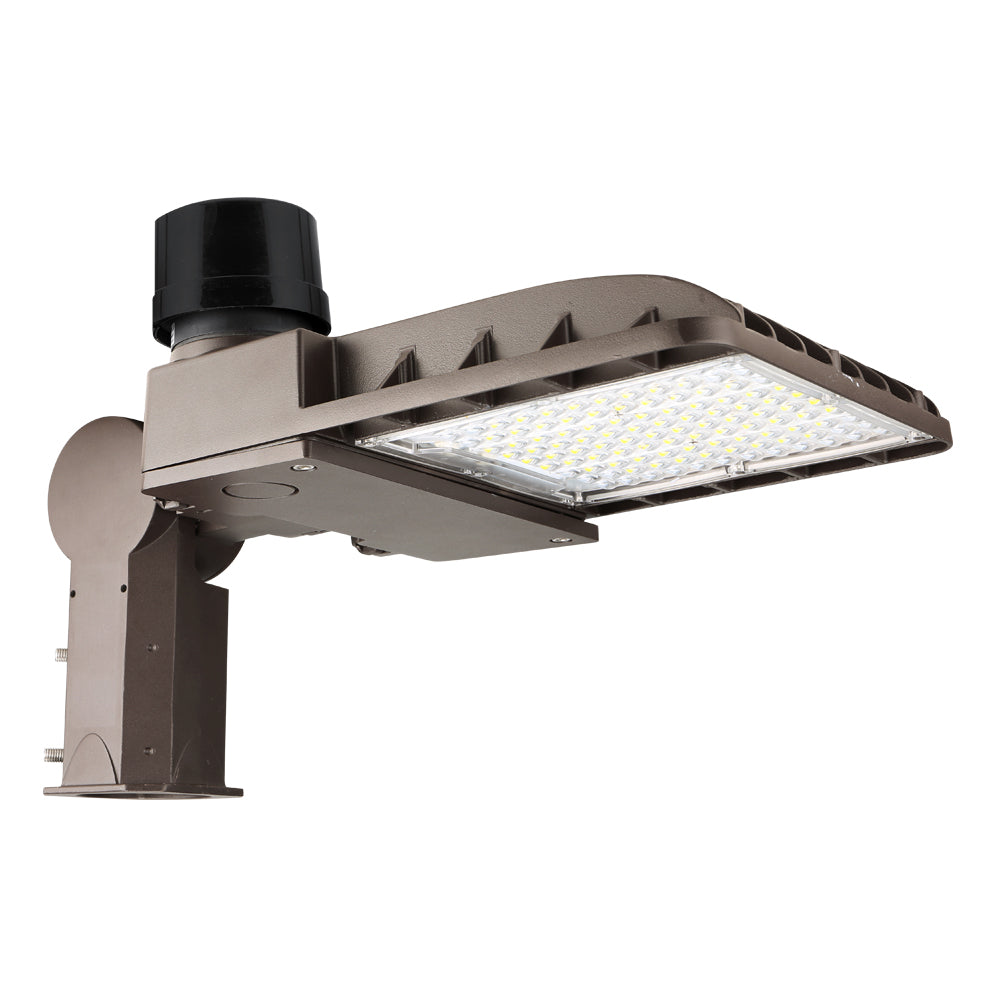

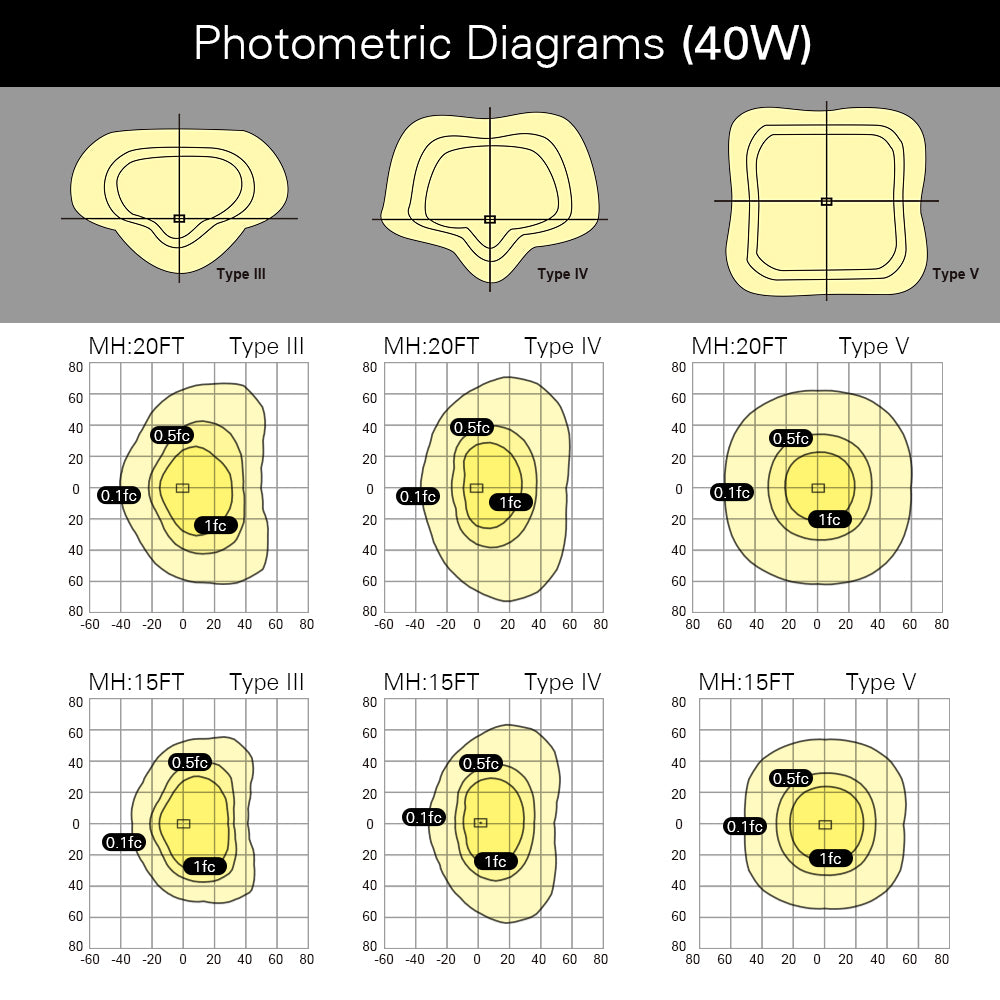

40 watt, 5500 Lumens, 5000K, Type III Beam Distribution, 1-10V Dim, Optional Dusk to Dawn Photocell, 120-277V

Built to last and withstand harsh elements, the AL04 stylish housing offers separation between the LEDs, the driver circuitry and larger heat sink allowing for longer operating life. Compact and lightweight design with low EPA, 3G rated for vibration. Corrosion resistant, die-cast aluminum housing with powder coat paint finish. The visual comfort optics create a larger luminous surface area resulting in a low glare appearance.

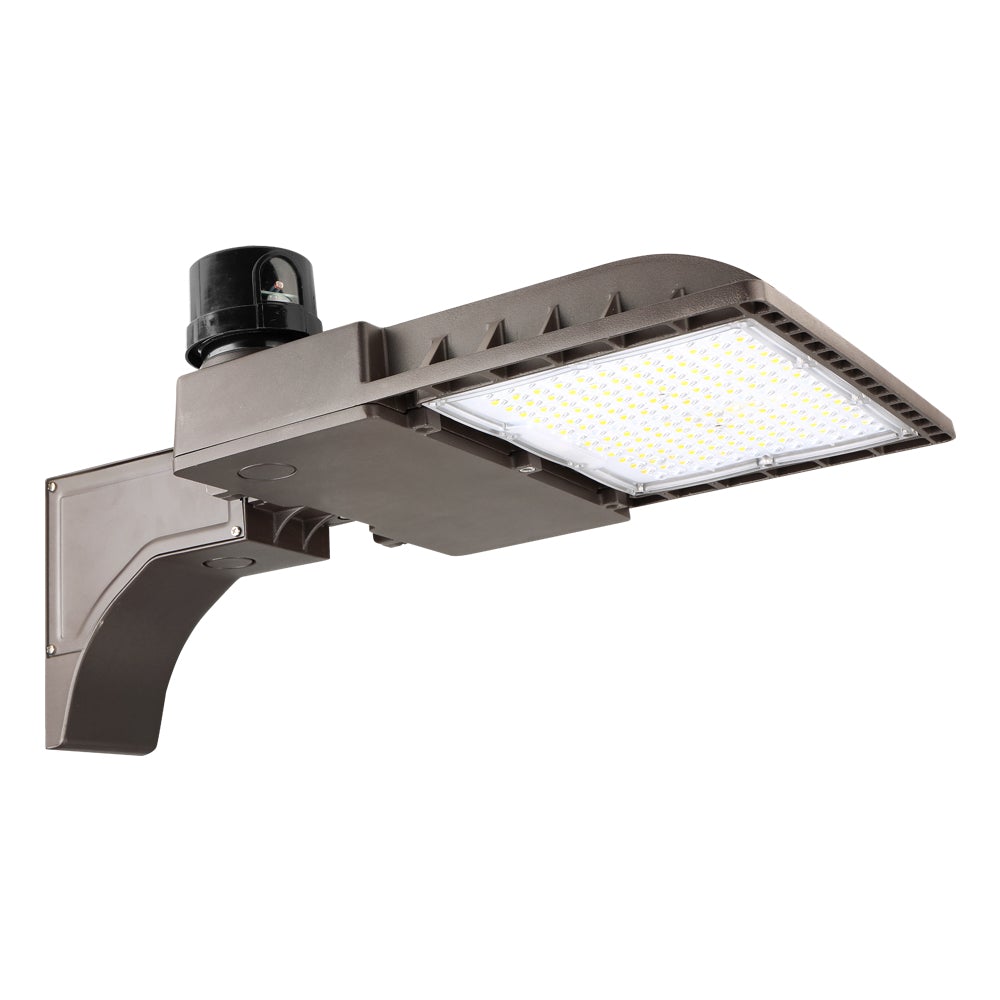

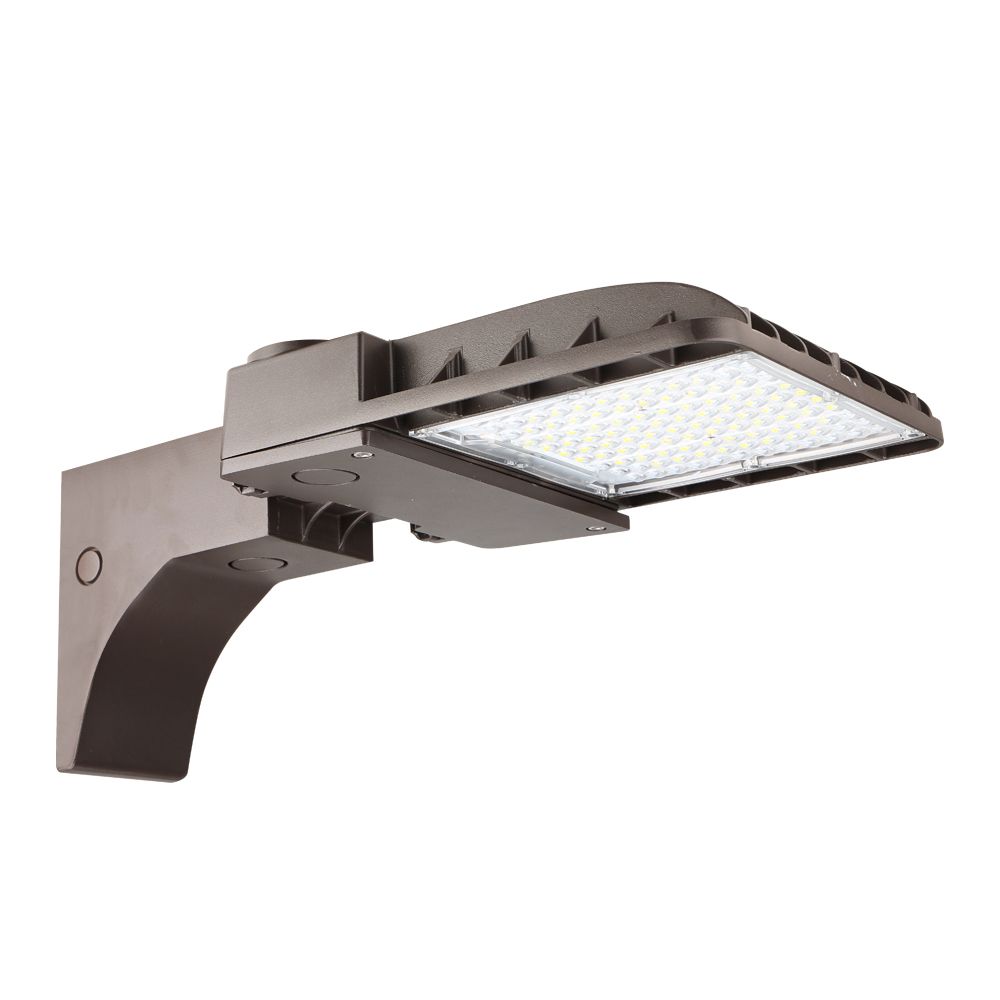

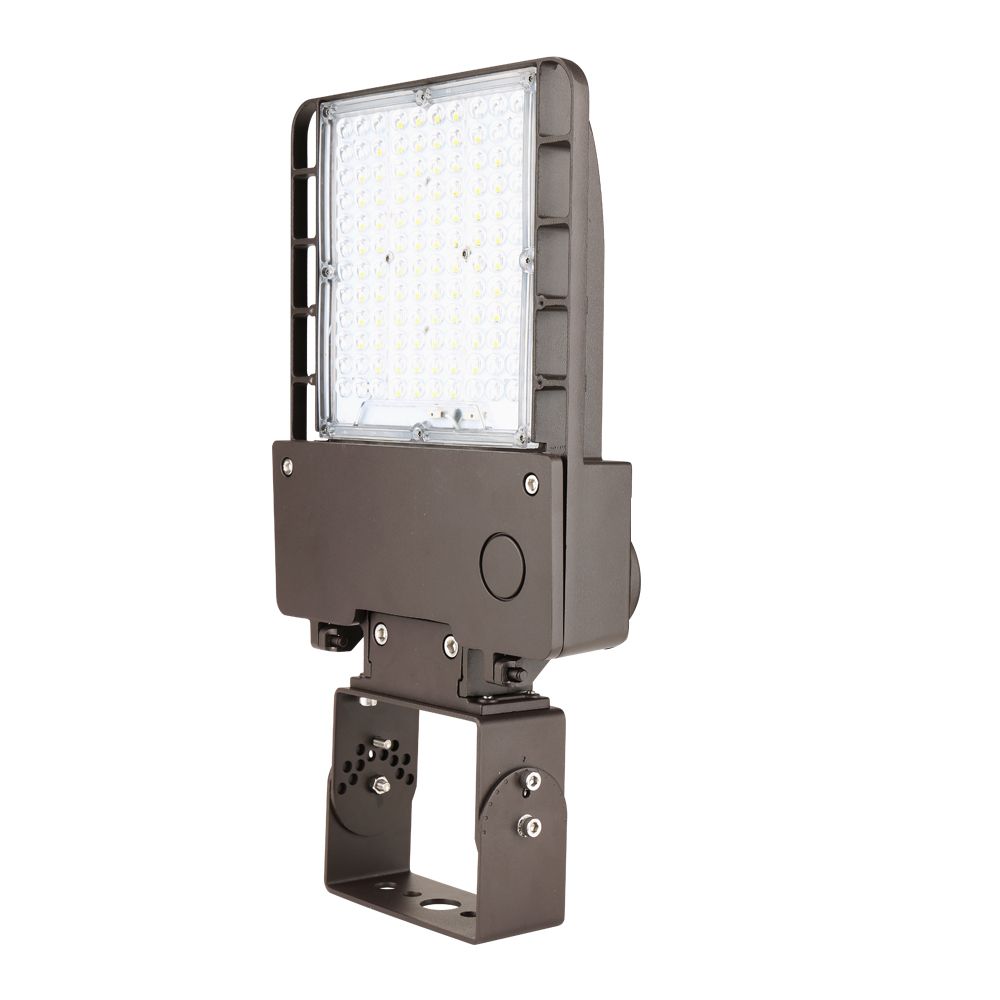

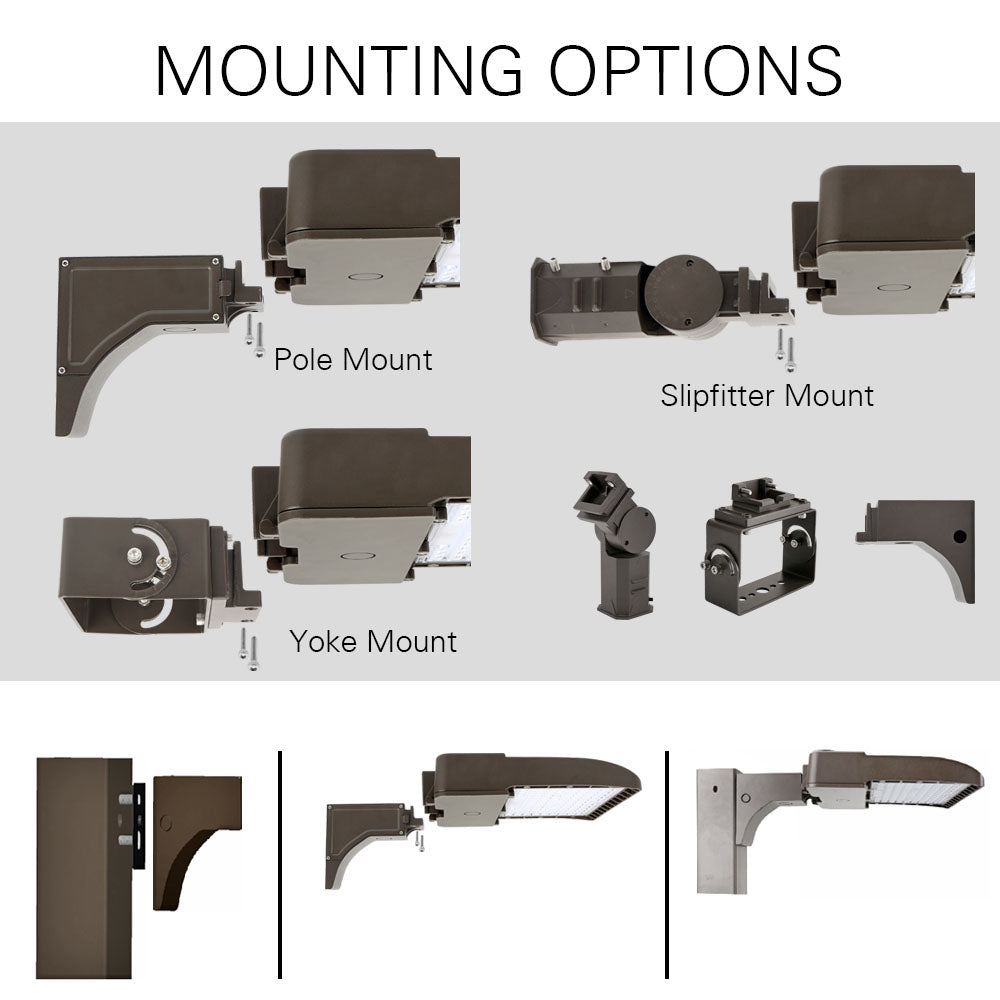

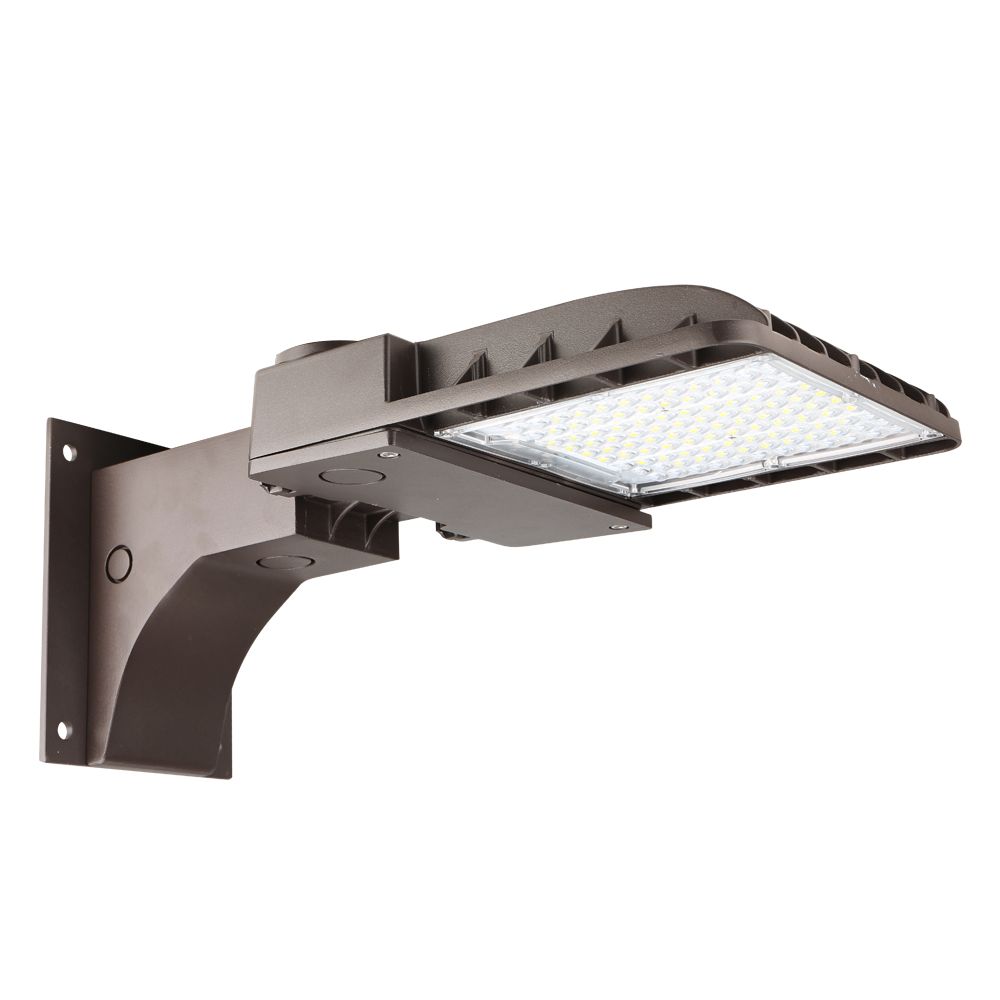

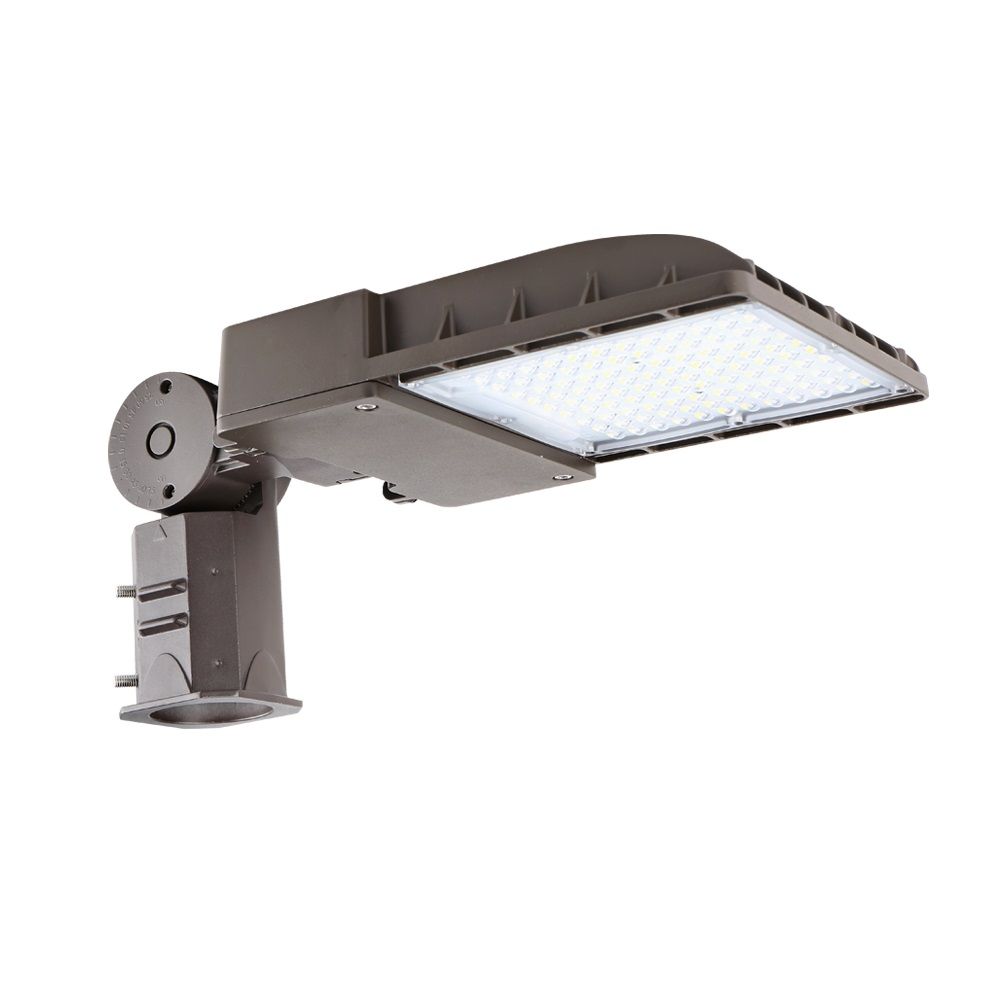

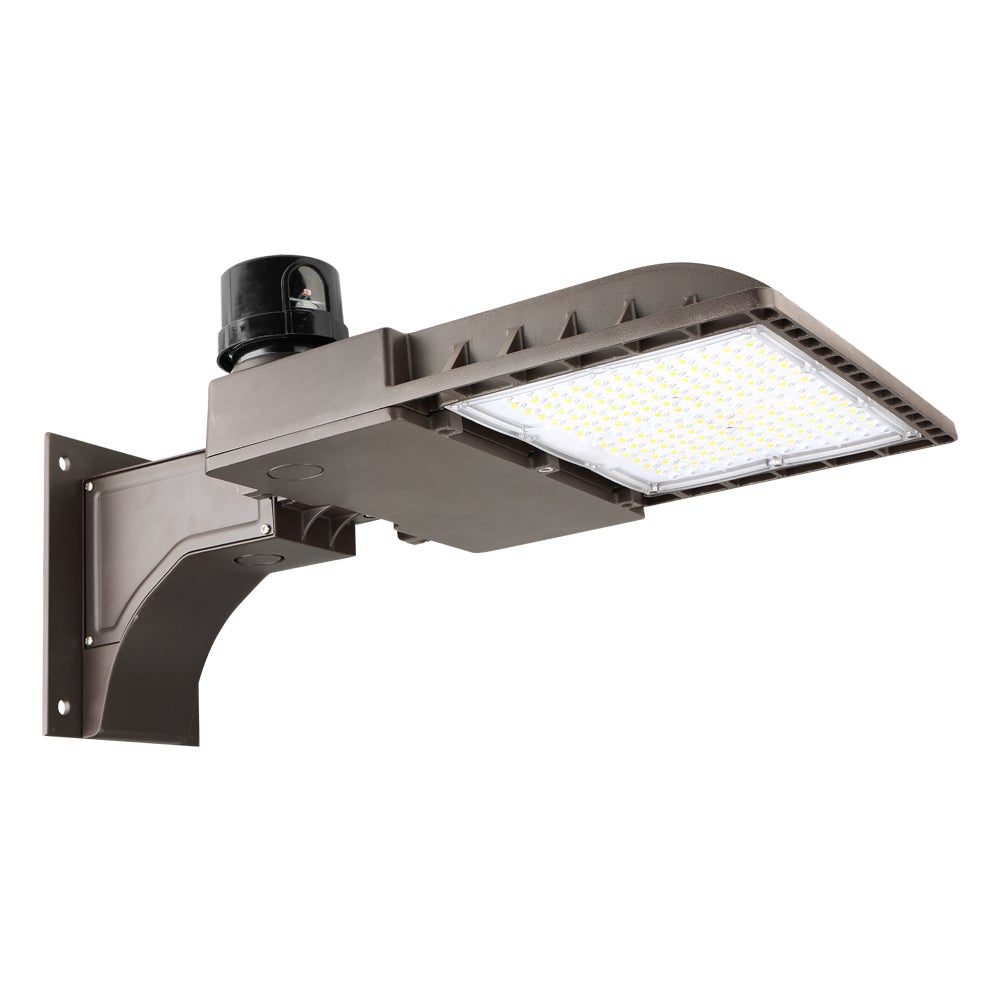

Mounting Options: Extrusion Arm for Round or Square Pole, Slipfitter, Trunnion/Yoke or Wall Mount

UL, DLC for eligible Rebates, 100,000 hour lifespan L70, 7 year warranty

See similar 70-watt, 100-watt, 150-watt and other high wattage versions.

Applications

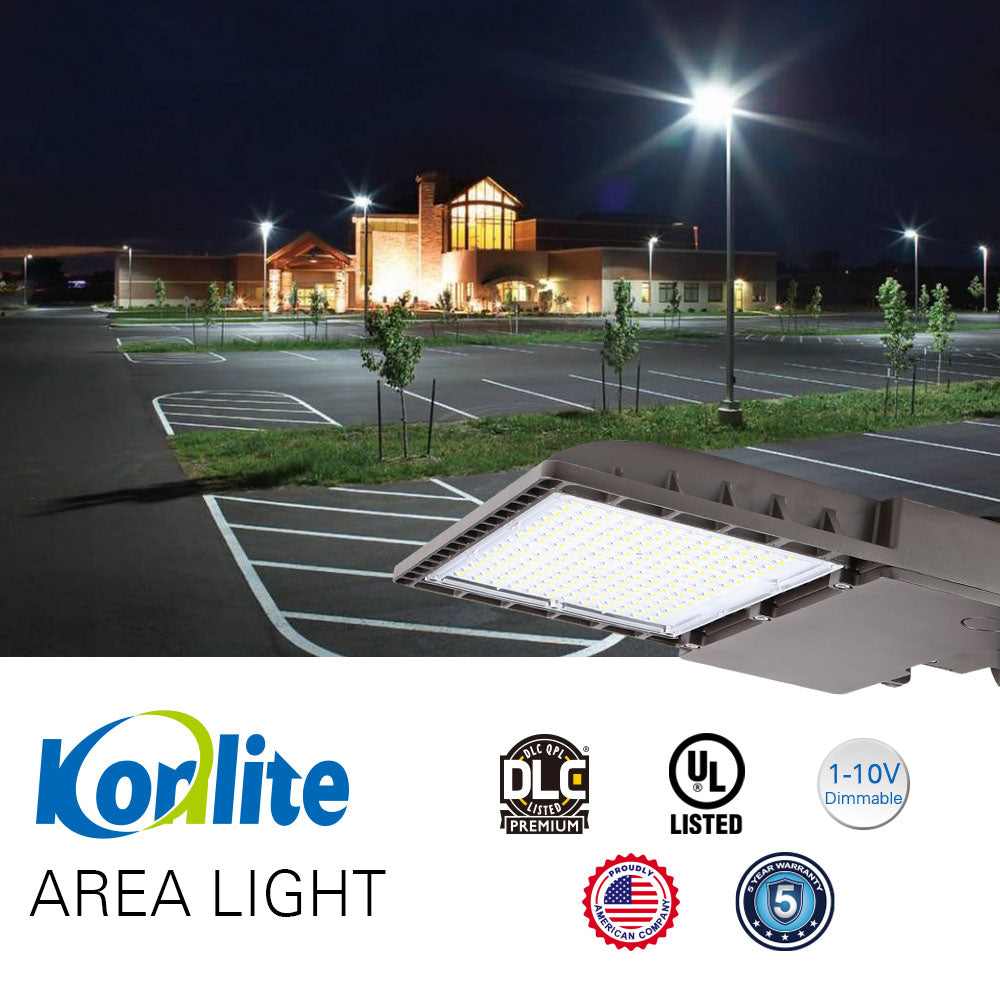

•Area Lighting •Parking Lots
•Streets

•Building Façade

•Storage Facilities •Flood Lights
•Boat Docks & Marinas • Billboards
•Warehouses •Metal Buildings
•Roadways & Pathways •Security Lightning
•Sports Complex •Schools & Universities
•Parks & Outdoor Recreation •Car Dealerships
Color Temperature5000K color temperature
Certifications
US company7 years warranty1-10V dimmableETL listedDLC PremiumRoHS compliance FCC certificationIP65 rating

Specifications

BrandKonliteDLC Part #MAL0440W27V50KXXXXT3
WarrantyLimited 7 YearsUPC717360769798
Input Voltage120-277VBeamType III
Input Wattage40WEqual to100W-150W
Delivered Lumens5,500LMCRI>70
Efficacy135 LM/WAvailable CCT5000k
Rated Life>100,000 hrsTHD<20%
Power Factor>0.9IP RatingIP65
Dimmable1-10VControlsN/A

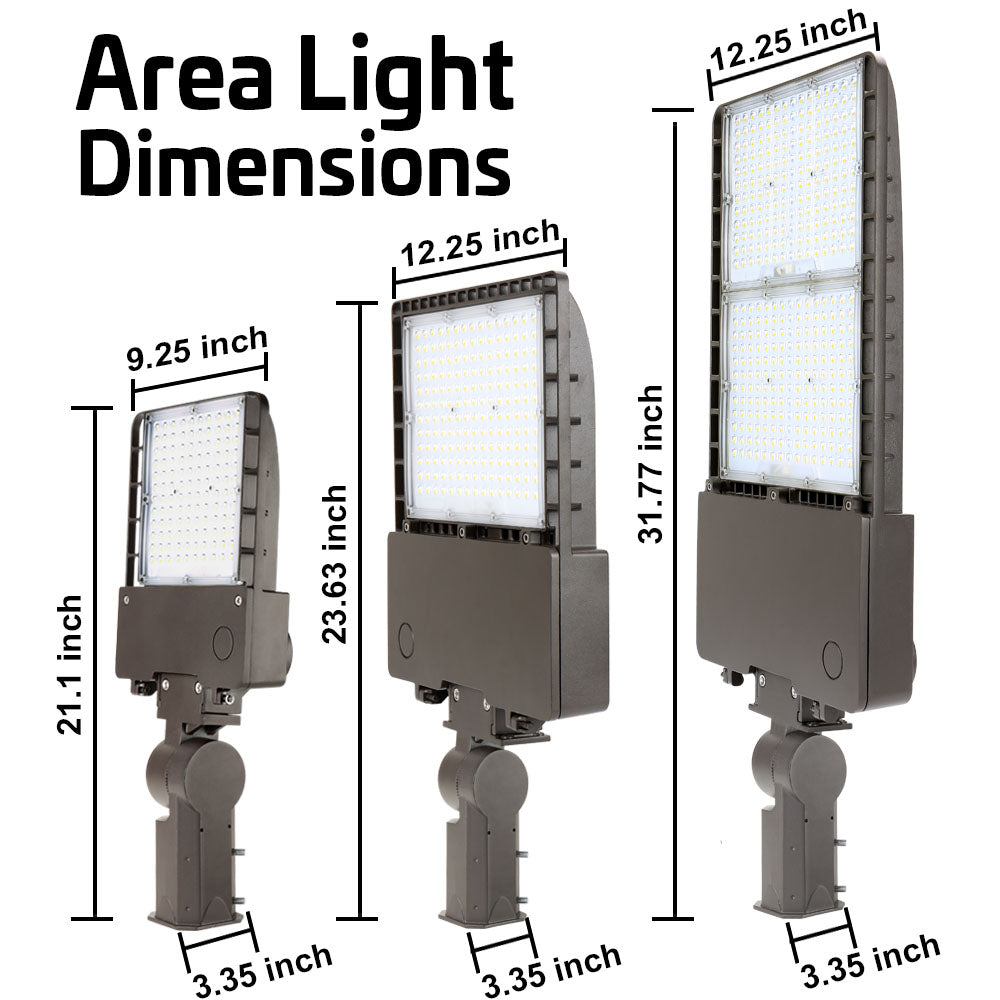

Operating Temperature-30 F to 122 FDimensionsSee Specifications
CertificationsUL, Wet Locations, DLC PremiumWeight9 lbs

Accessories

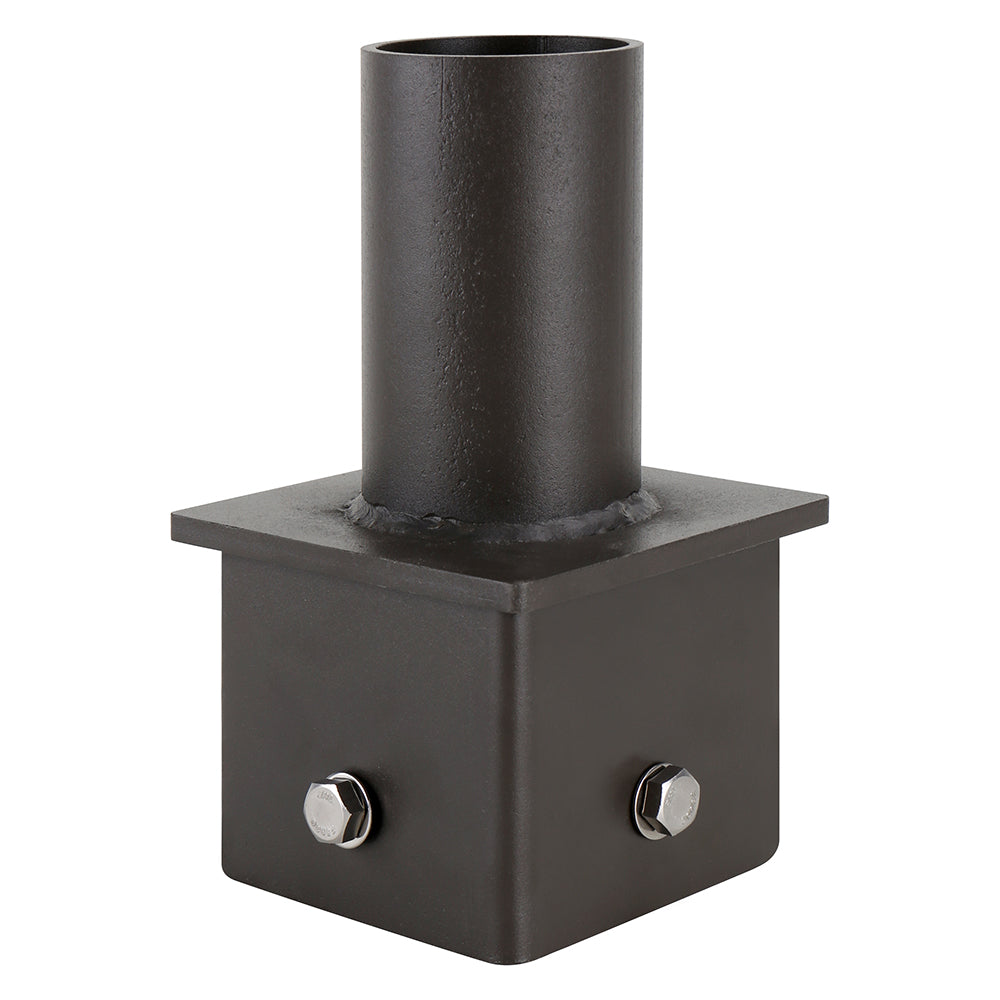

4" Square Pole Mount Tenon Adapter
$31.95

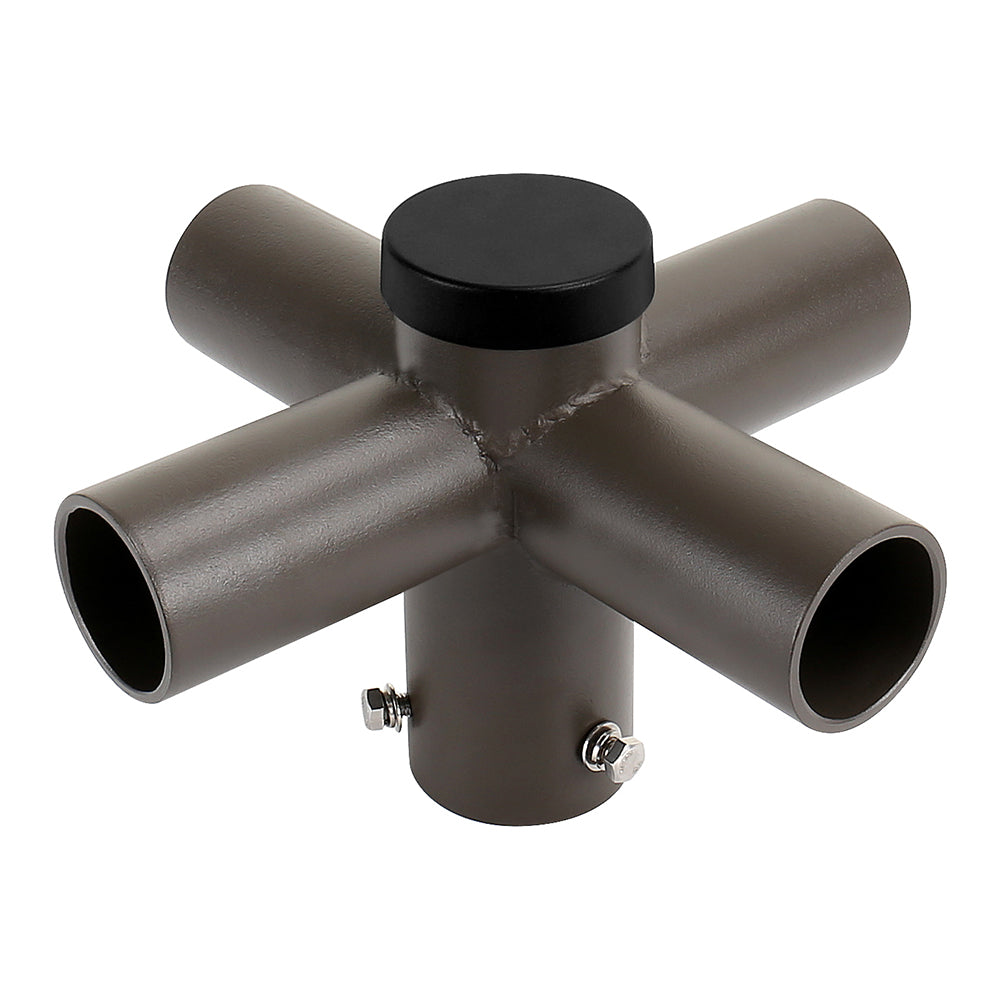

Quad Spoke 90° Tenon Adapter
Quad Spoke 90° Tenon Adapter
SKU:RDAF-R60-SP4-90-D
$52.95

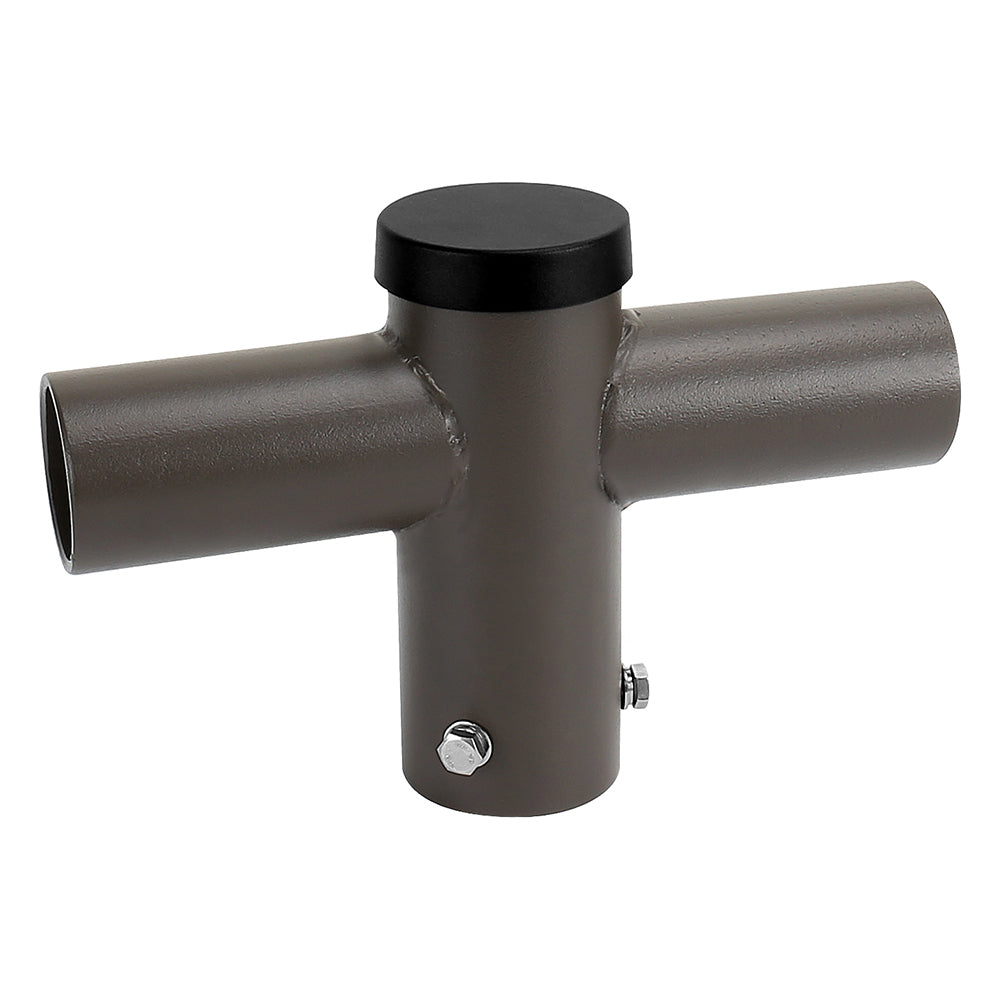

Twin Spoke 180° Tenon Adapter
Twin Spoke 180° Tenon Adapter
SKU:RDAF-R60-SP2-180-D
$36.95

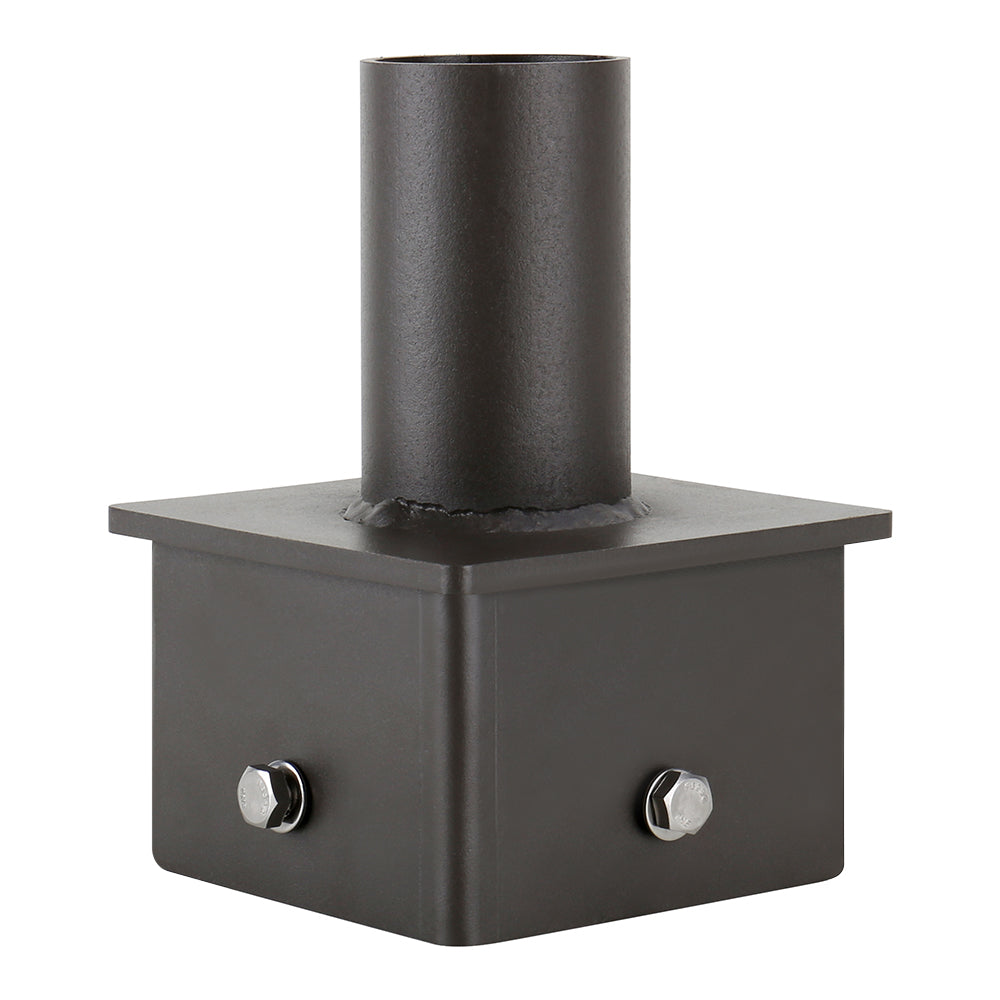

5" Square Pole Mount Tenon Adapter
$34.95

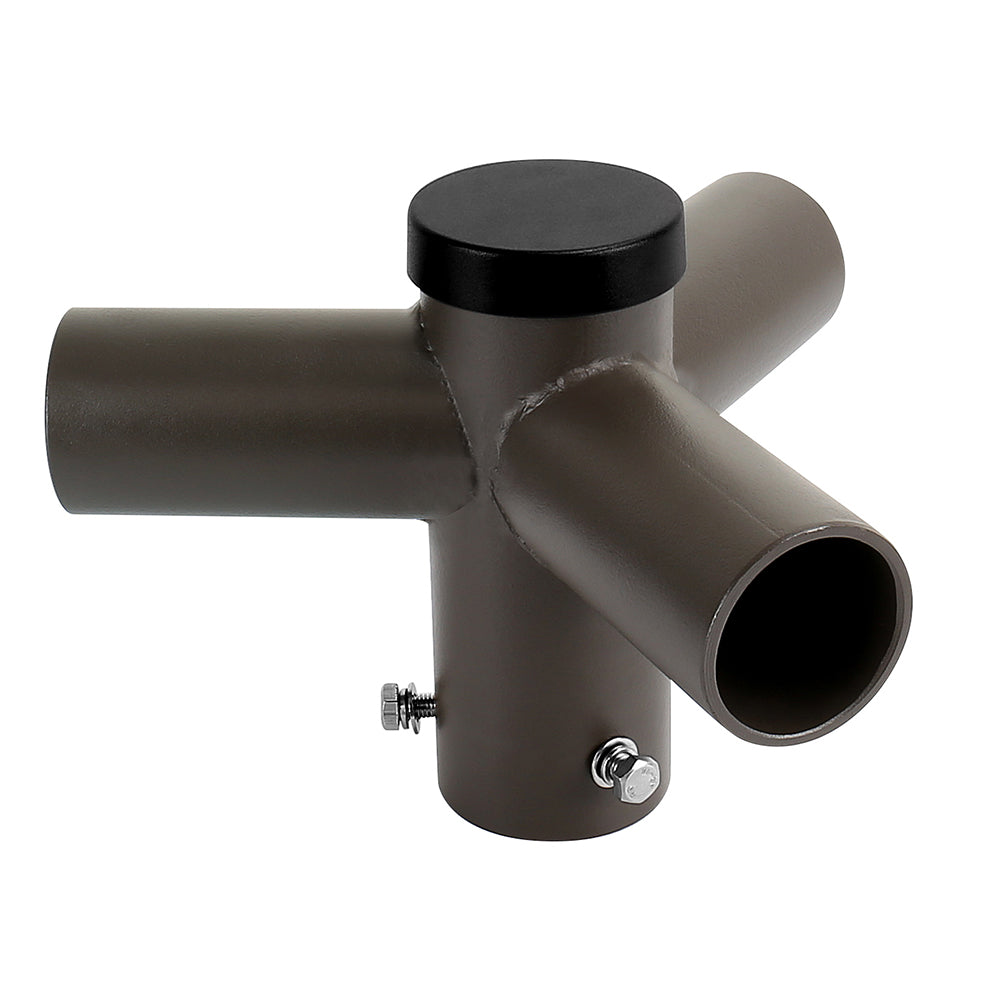

Triple Spoke 120° Tenon Adapter
Triple Spoke 120° Tenon Adapter
SKU:RDAF-R60-SP3-120-D
$36.95

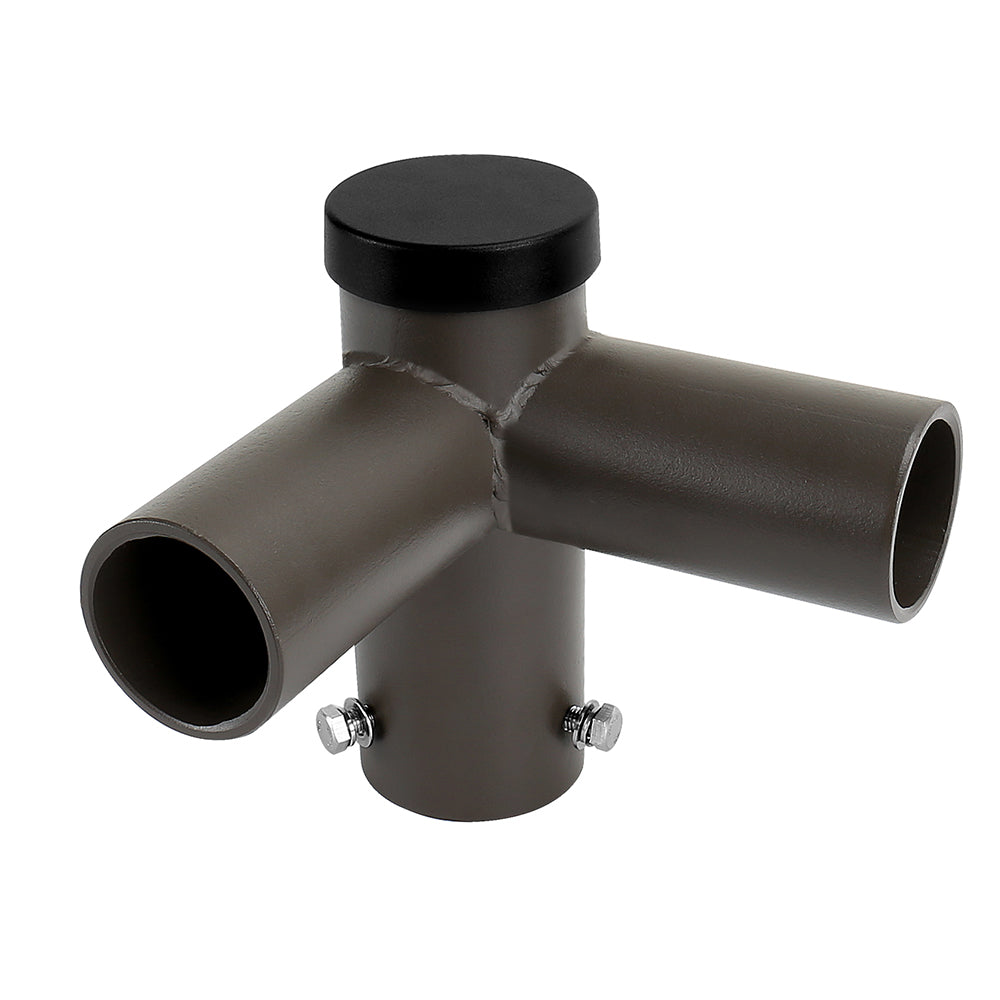

Twin Spoke 90° Tenon Adapter
Twin Spoke 90° Tenon Adapter
SKU:RDAF-R60-SP2-90-D
$36.95

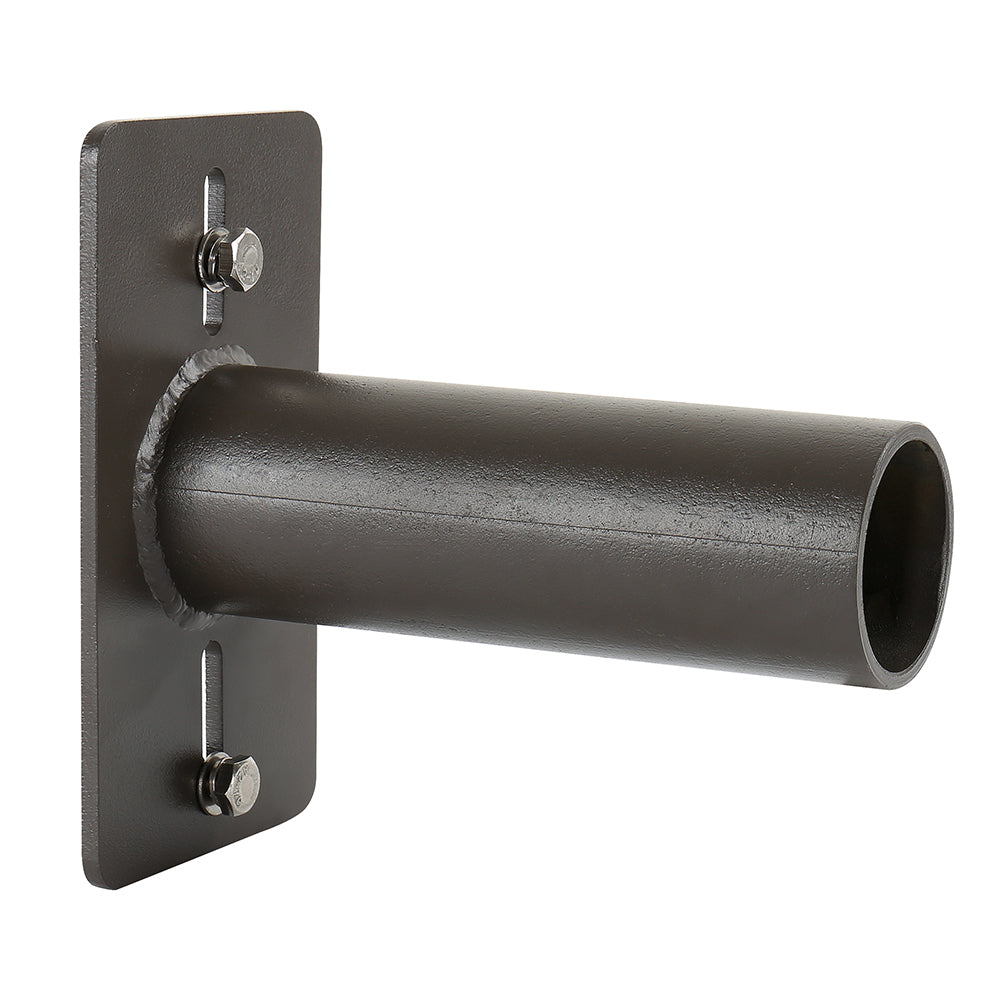

Wall and Square Pole Mount Tenon Bracket
$32.95

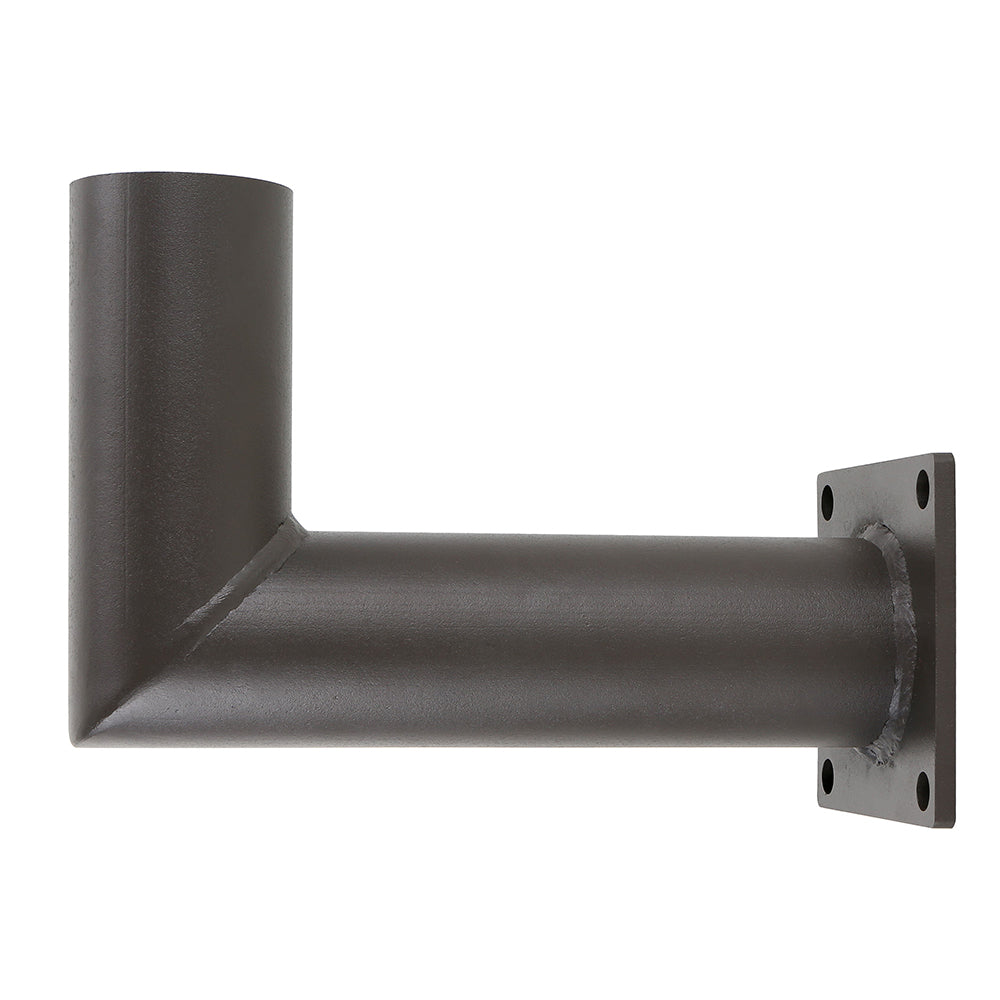

90° Wall Mount Tenon Bracket
$36.95

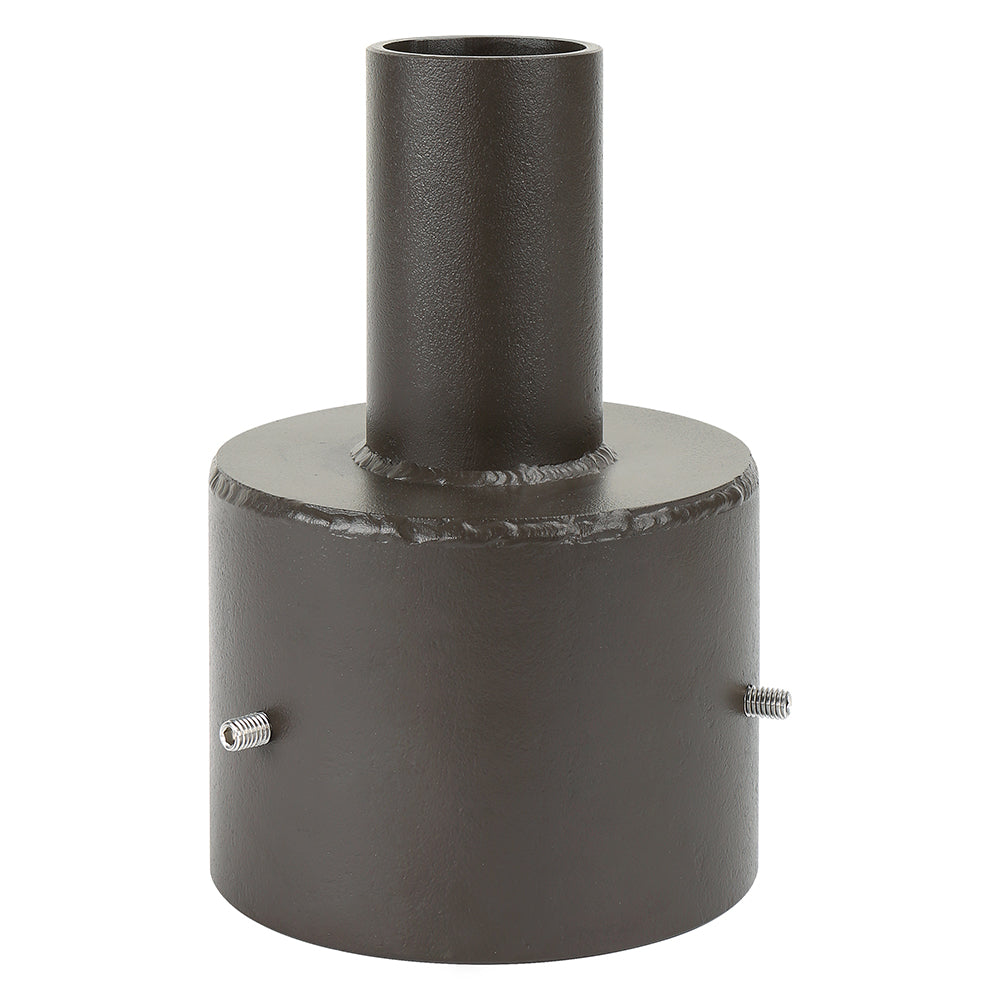

5" Round Pole Mount Tenon Reducer
$48.95

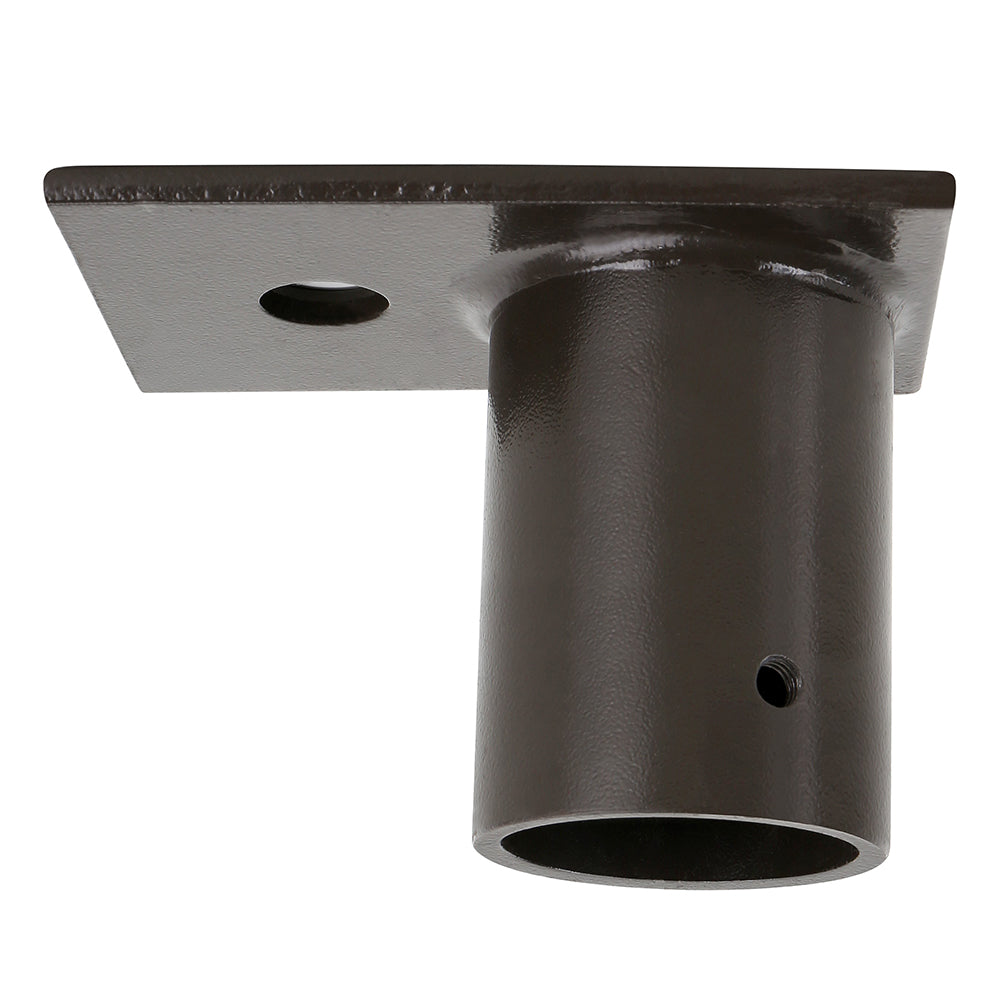

Pole Top Tenon and Trunnion Adapter
$32.95

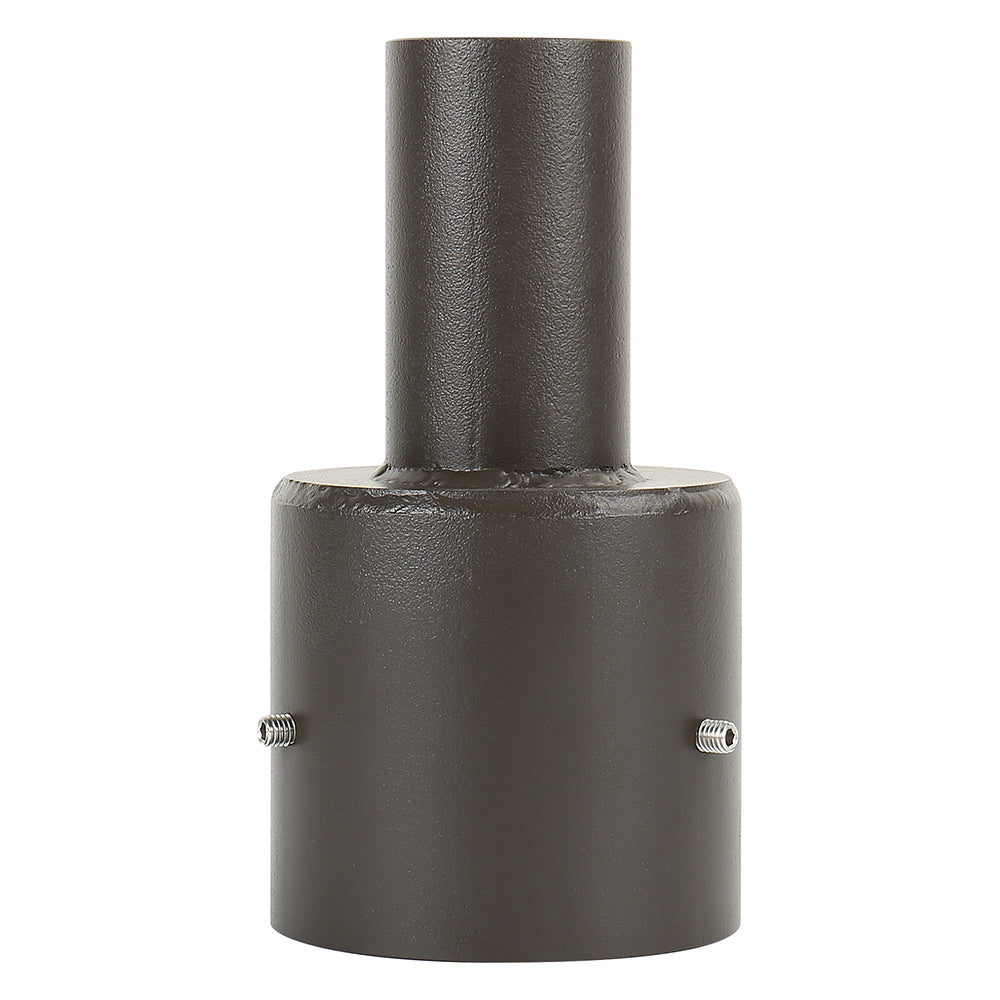

4" Round Pole Mount Tenon Reducer
$42.95

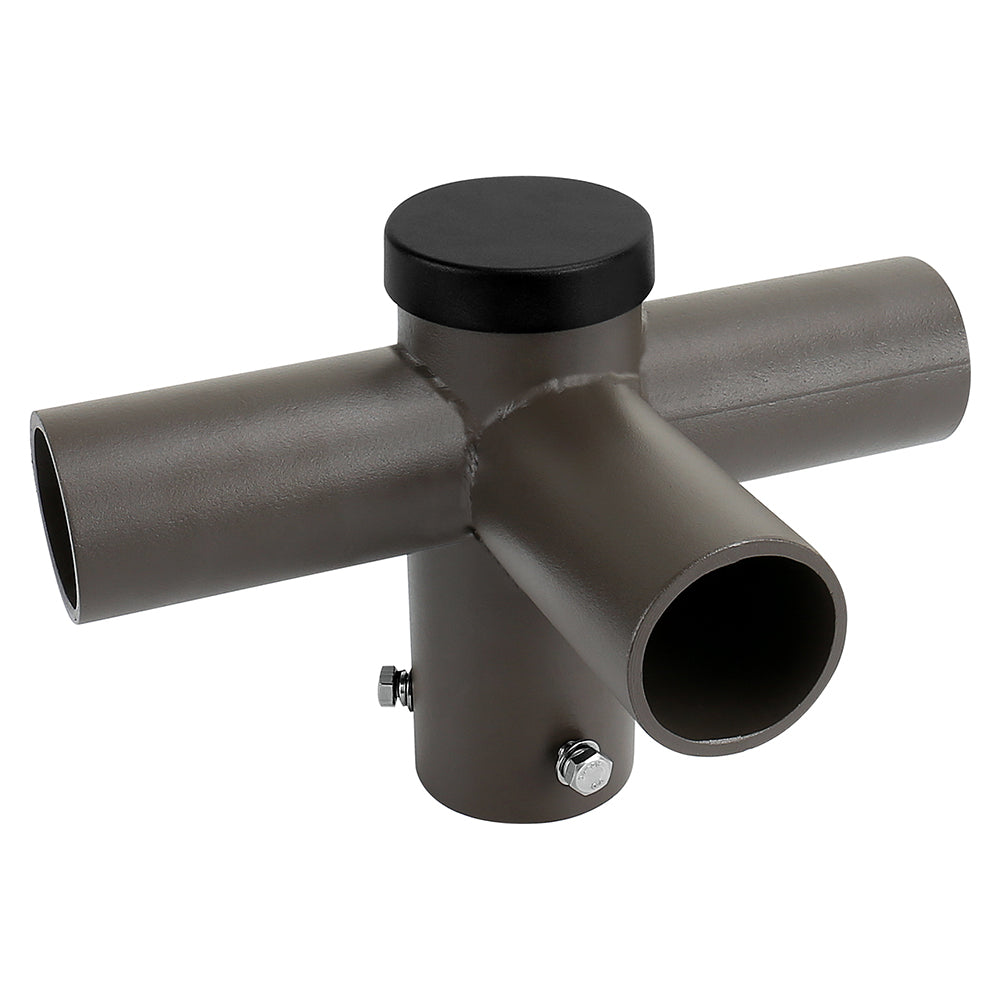

Triple Spoke 90° Tenon Adapter
Triple Spoke 90° Tenon Adapter
SKU:RDAF-R60-SP3-90-D
$46.95
