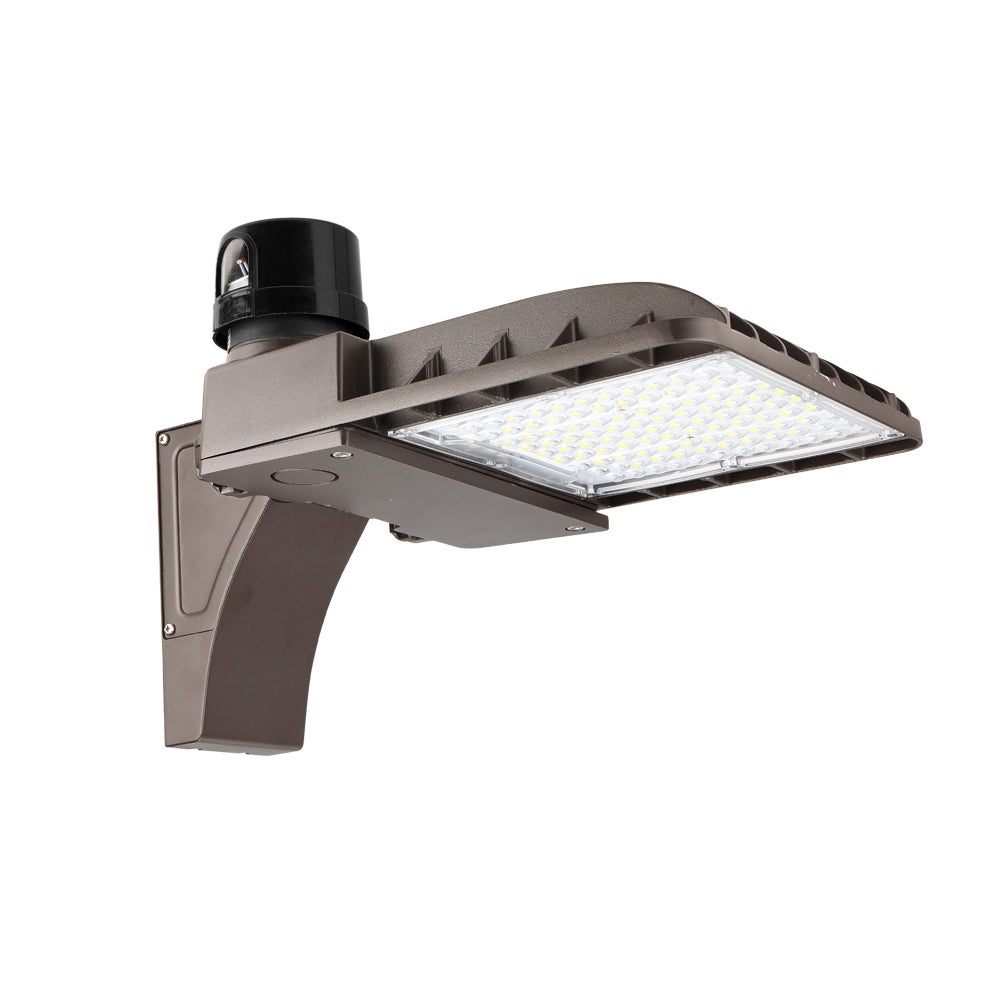

Konlite LED Outdoor Area Light - 100W - Type III - 13,800 Lumens - 5000K - 120-277V - 320W Equal

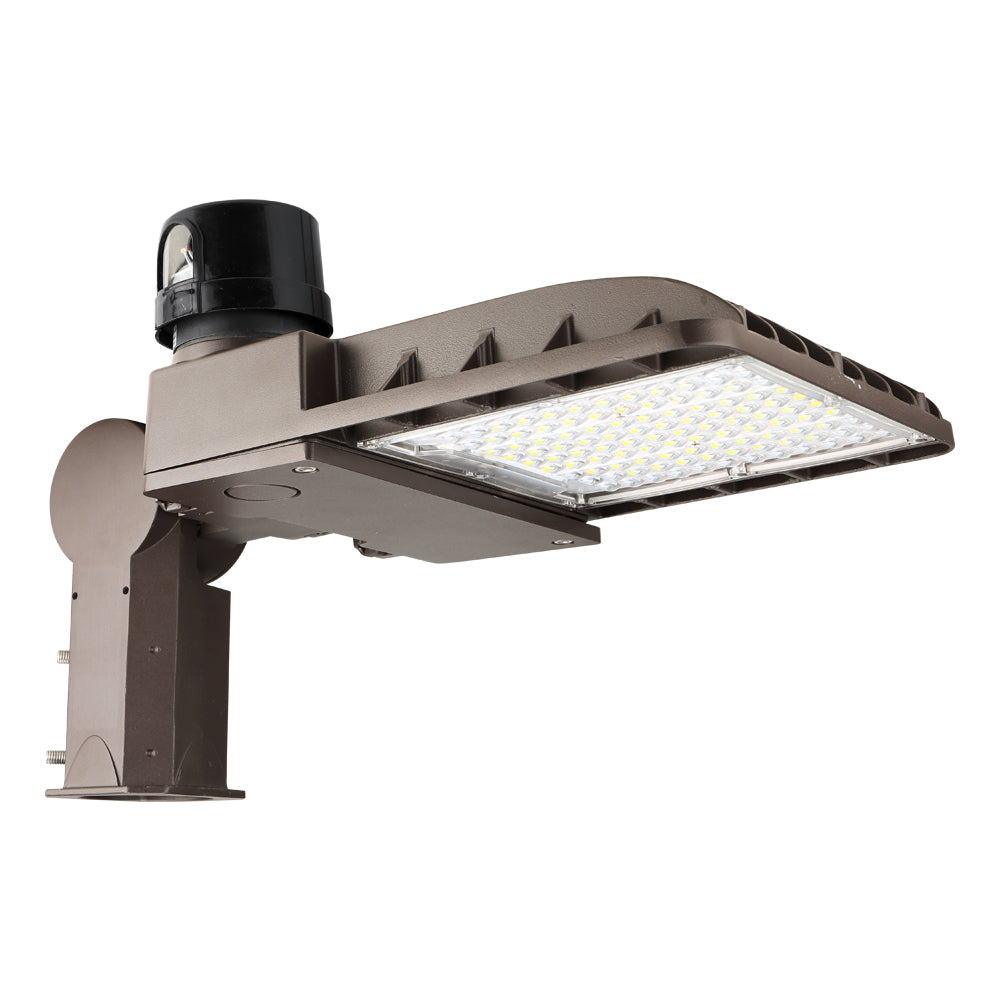

The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. It can be used as dusk to dawn light with optional photocell. Ideal for parking lot, street, flood and other outdoor area applications.
- Designed for easy one person install
- Precise optics designed to shape light distribution, maximizing spacing of fixtures
- Low Profile 3G vibration and compact design minimizes wind load requirements
- 100,000 hour lifespan, Five year warranty
- Secured payment methods. Revolve LED never stores nor has access to your card information.
- 90 days return without restocking fee*.
![$199 Free Shipping*]()
$199 Free Shipping on eligible products*![Availability: Usually Ships in one to three business days]()
Availability: Usually Ships in one to three business days.
Product Overview

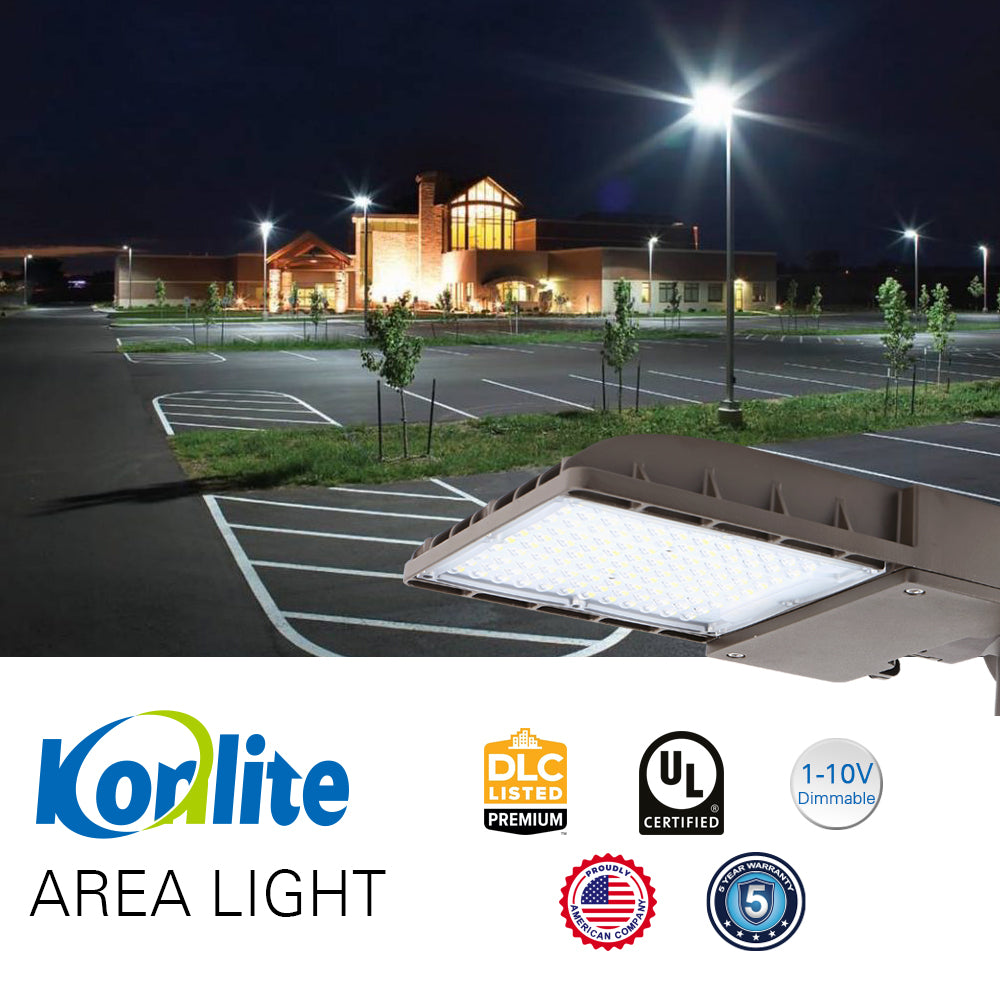

Ensure the safety of your patrons, employees and the security of your premises with the versatile Konlite AL04 Area Light. Eliminate maintenance while reducing 65% energy consumption when replacing outdated Metal Halide - HPS fixtures or using in new construction. With a combination of performance, aesthetics, energy efficiency and light control the Konlite AL04 Area Light can be used as pole lights or surface mounts for parking lot (shoebox), street lights or outdoor security lights (floods).

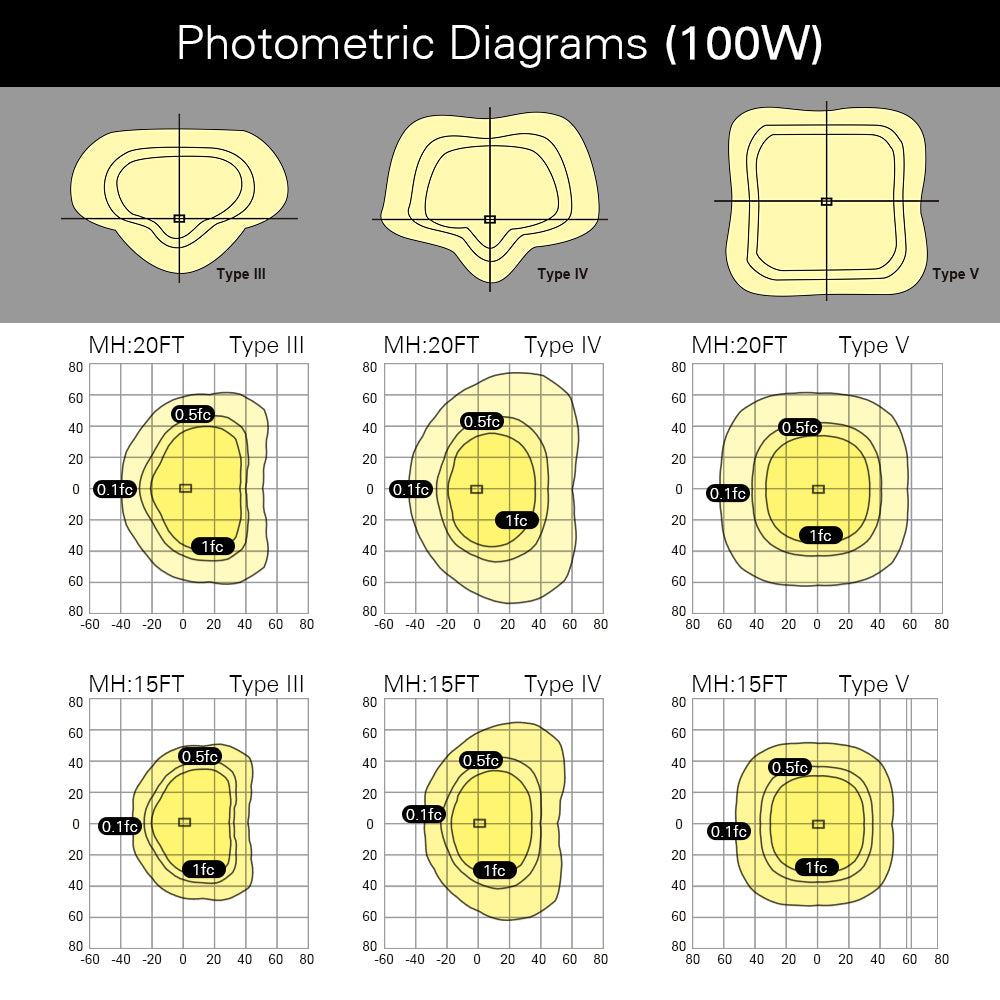

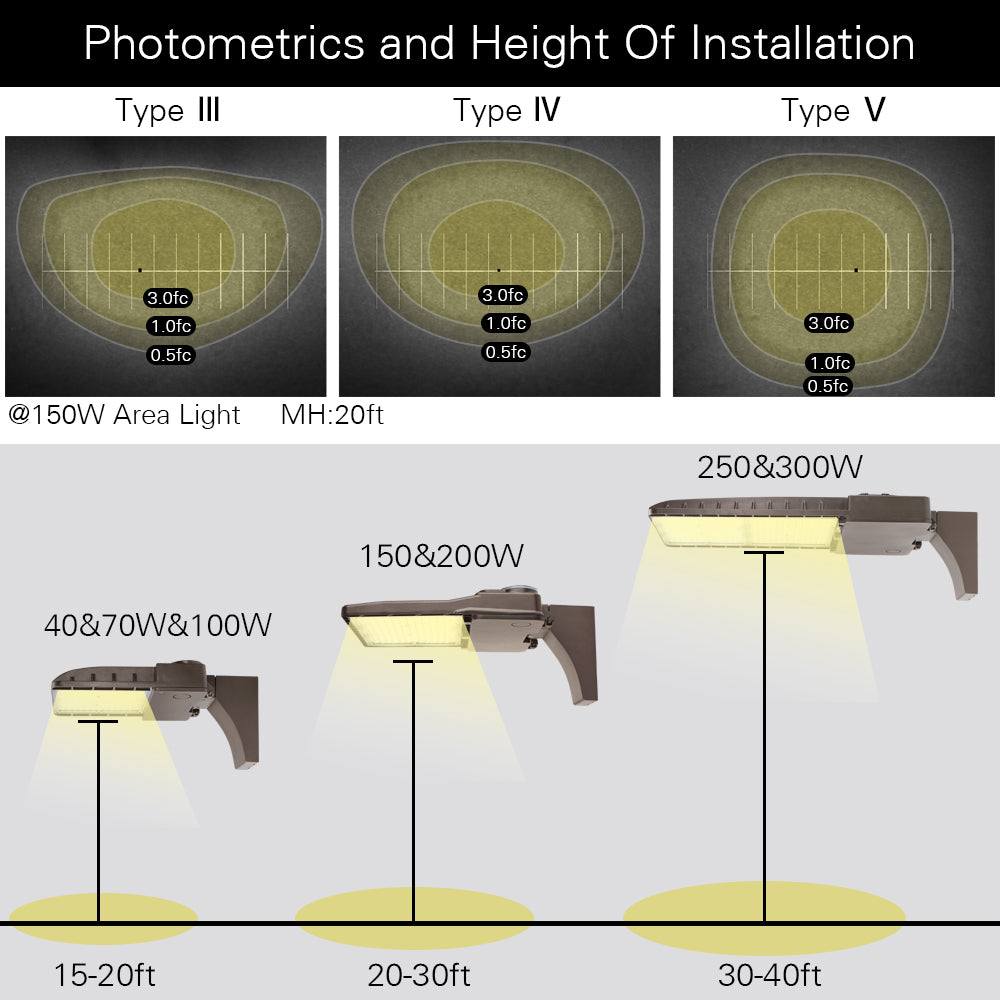

100 Watts, 13,800 Lumens, 5000K, Type III Beam Distribution, Optional Dusk to Dawn Photocell, 120-277V

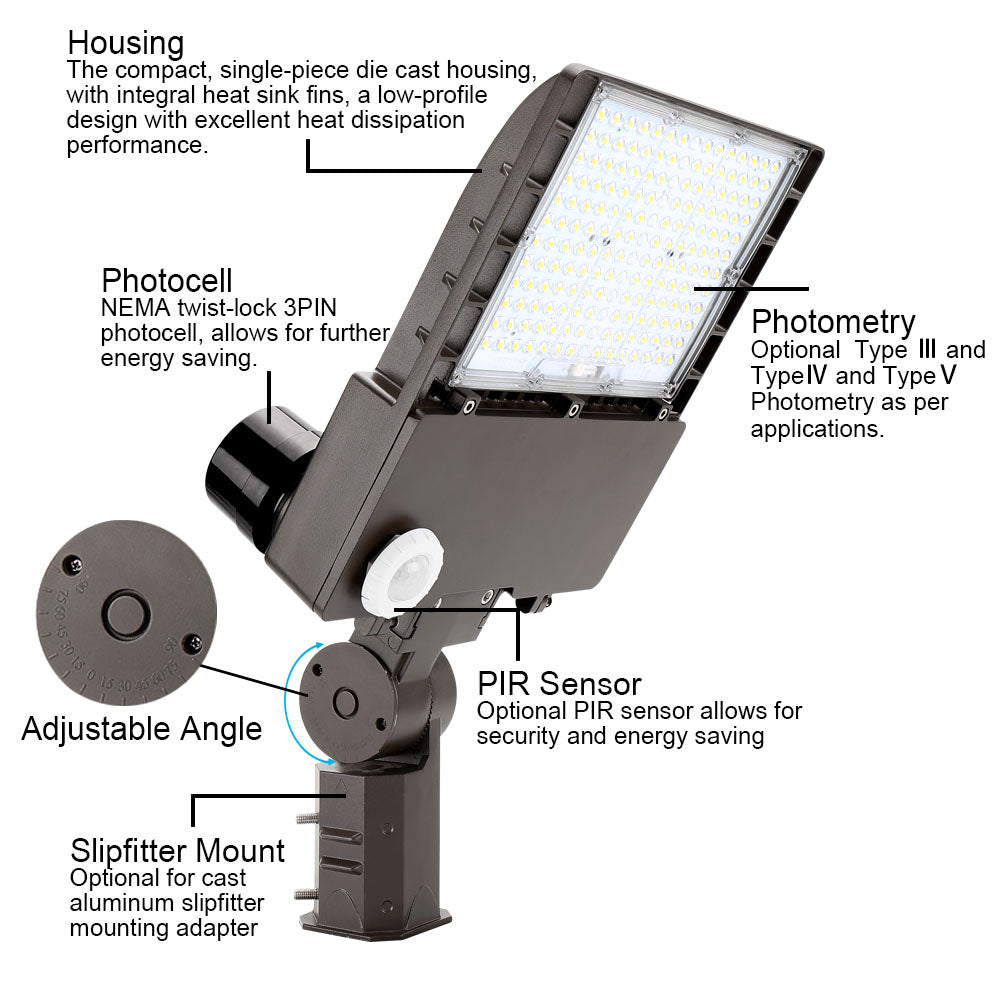

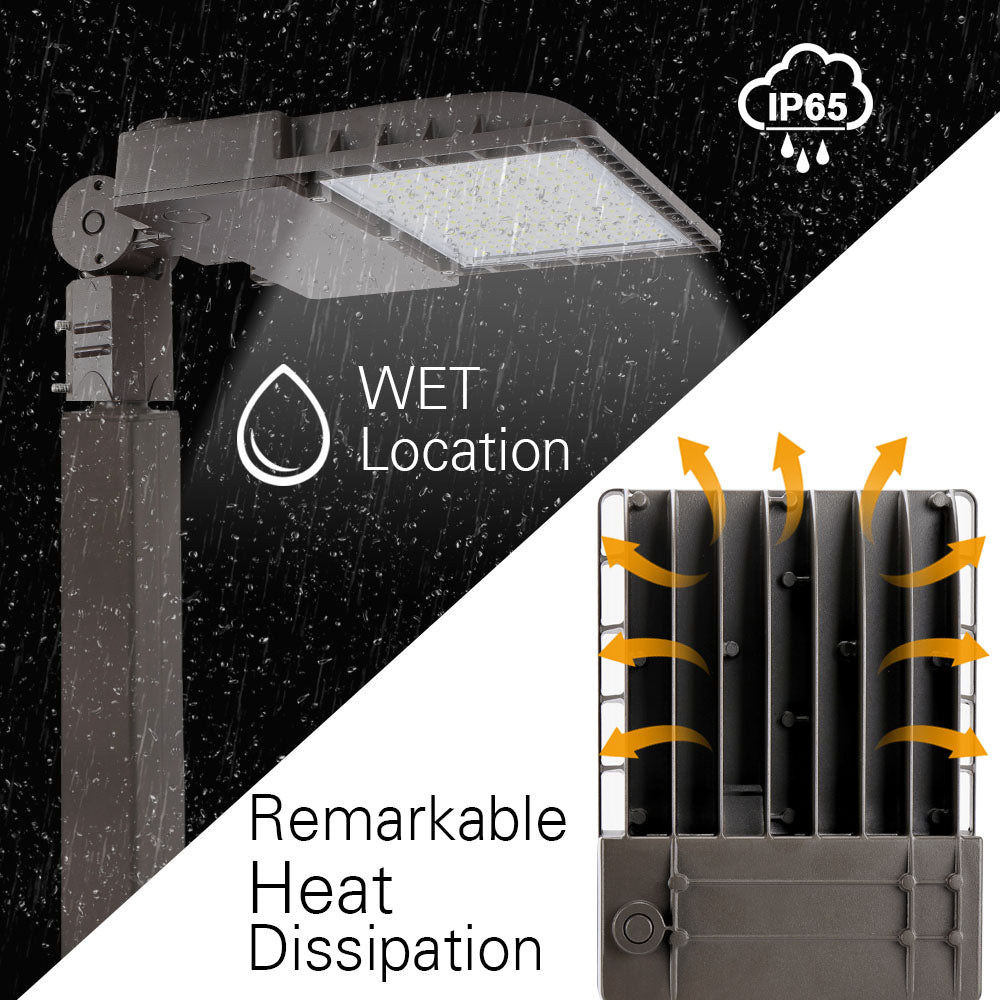

Built to last and withstand harsh elements, the AL04 stylish housing offers separation between the LEDs, the driver circuitry and larger heat sink allowing for longer operating life. Compact and lightweight design with low EPA, 3G rated for vibration. Corrosion resistant, die-cast aluminum housing with powder coat paint finish. The visual comfort optics create a larger luminous surface area resulting in a low glare appearance.

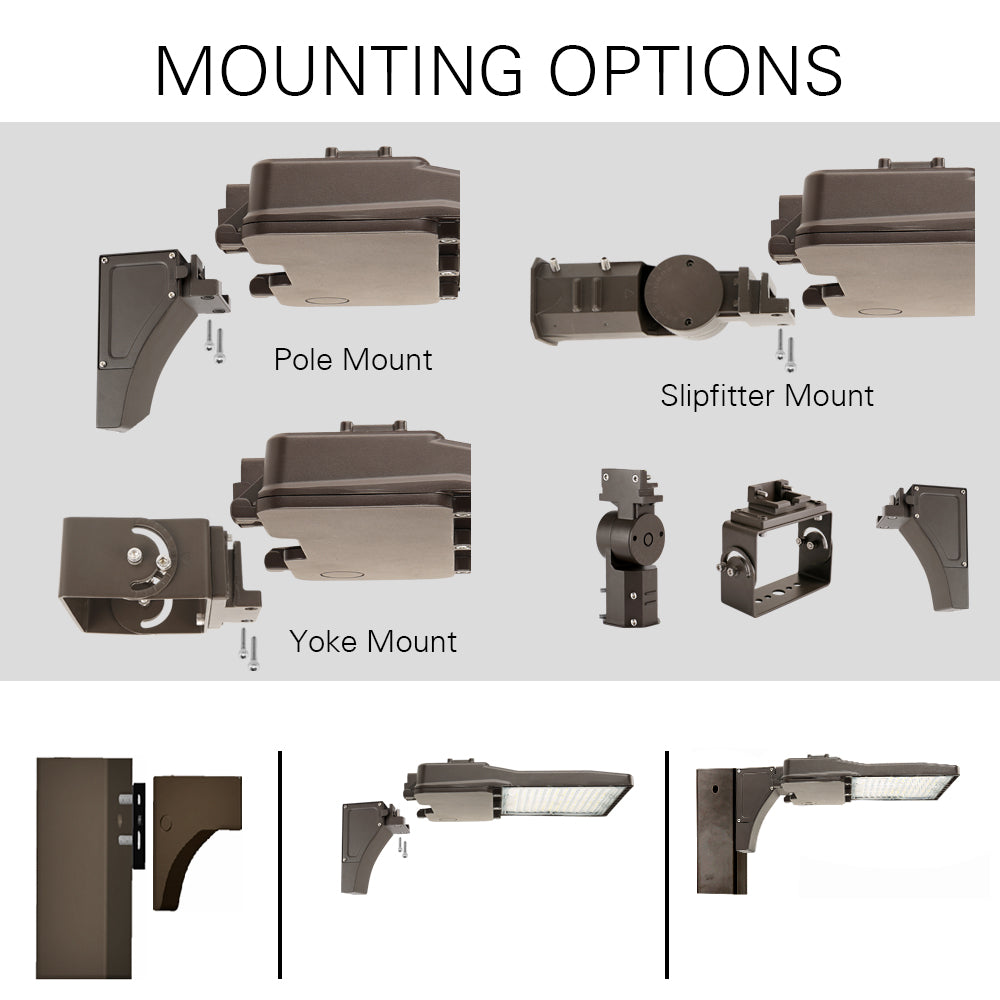

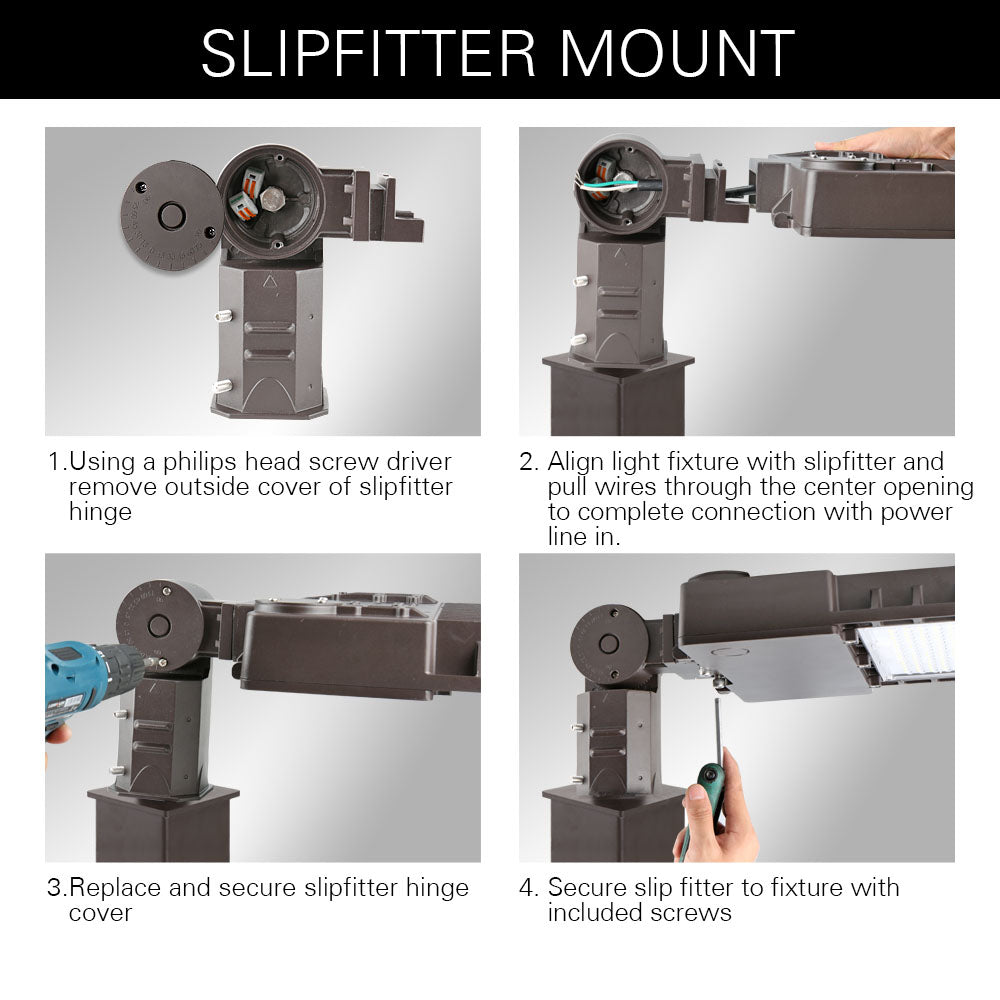

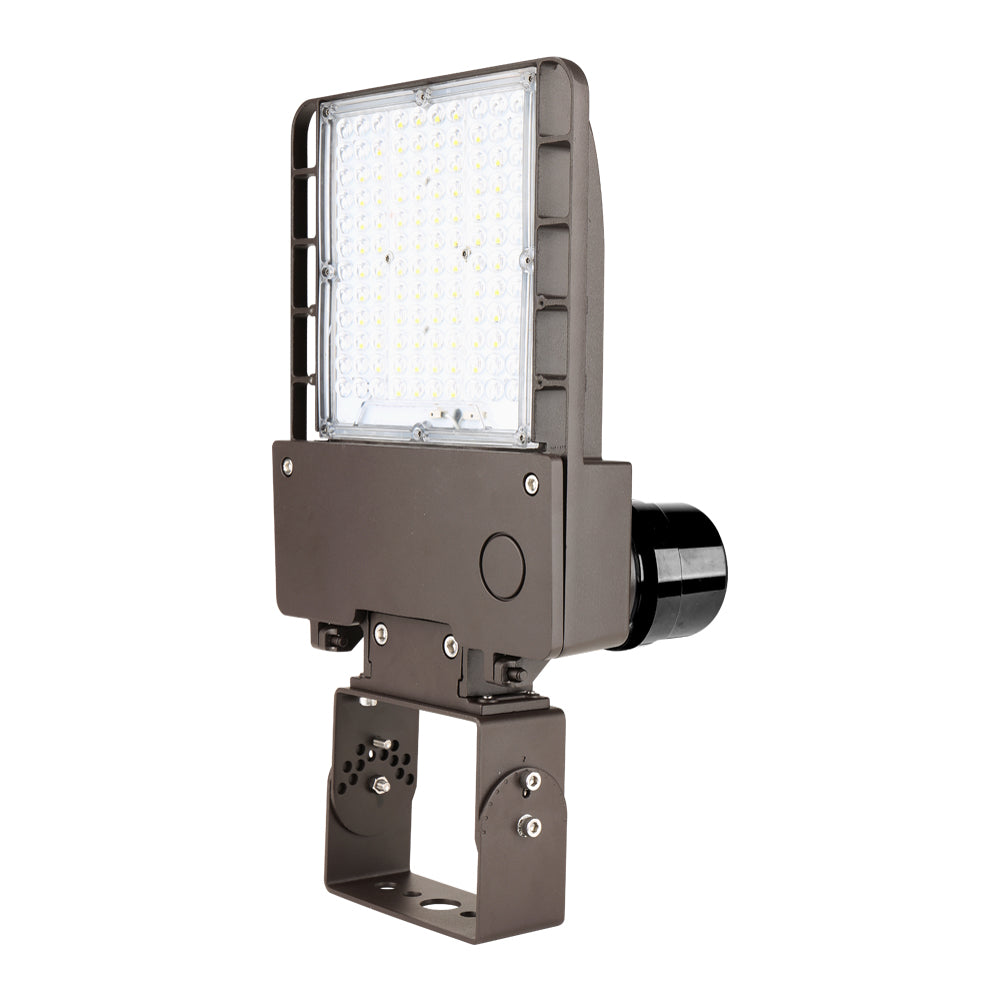

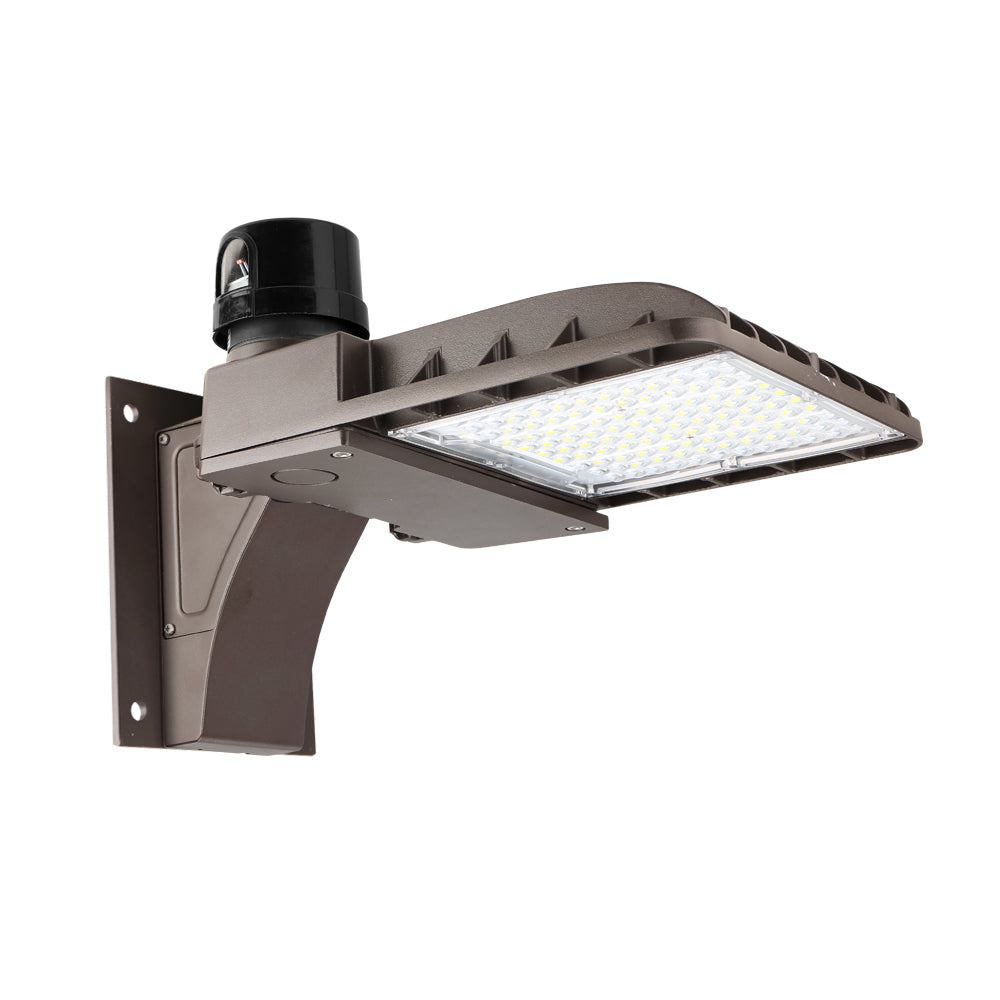

Mounting Options: Extrusion Arm for Round or Square Pole, Slipfitter, Trunnion/Yoke or Wall Mount
UL, DLC for eligible Rebates, 100,000 hour lifespan L70, 5-year warranty
See similar 40-watt, 70-watt, 150-watt and other high wattage versions.
Applications
| • Area Lighting | • Parking Lots |
| • Streets |
• Building Façade |
| • Storage Facilities | • Underpasses & Tunnel |
| • Boat Docks & Marinas | • Billboards |
| • Warehouses | • Metal Buildings |
| • Roadways & Pathways | • Stadiums |
| • Outdoor Recreations | • Outdoor Common Areas |
| • Parks | • Car Dealerships |
Specifications
| Brand | Konlite | DLC Part # | RDAL02041005KXXXX |
| Warranty | Limited 5 Years | UPC | 752480730358 |
| Input Voltage | 120-277V | Optical | Type III |
| Input Wattage | 100W | Equal to | 320W MH |
| Delivered Lumens | 13,800 | CRI | >70 |
| Efficacy | 138 LM/W | Available CCT | 5000K |
| Rated Life | >100,000 hrs | THD | <20% |
| Power Factor | >0.9 | IP Rating | IP65 |
| Dimmable | Call us for 1-10V Dimming Availability | Controls | Optional Dusk to Dawn Photocell |

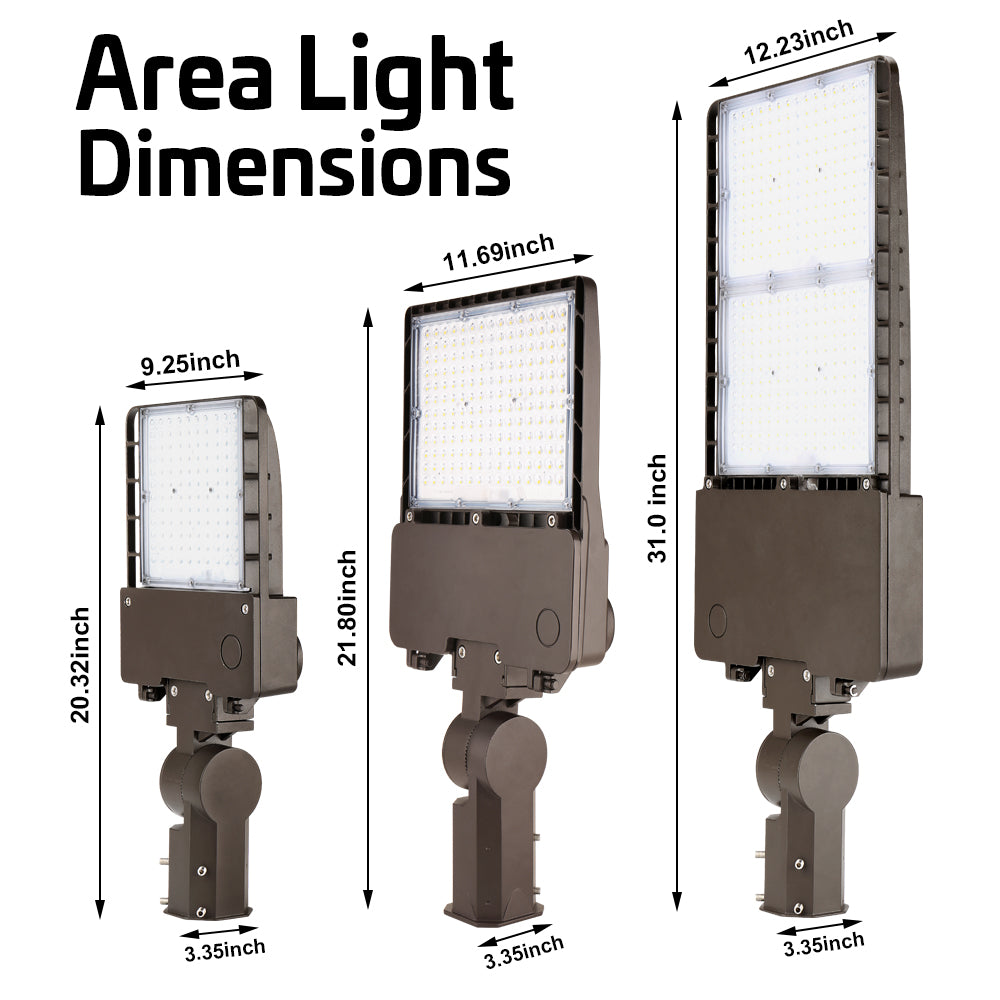

| Operating Temperature | -40 F to 113 F | Dimensions | See Specifications |
| Certifications | UL, Wet Locations, DLC Premium | Weight | 11 lbs |
