90° Wall Mount Tenon Bracket

Product Search Code: 20-0007
Revolve LEDSKU: RDAF-WM-SP-D

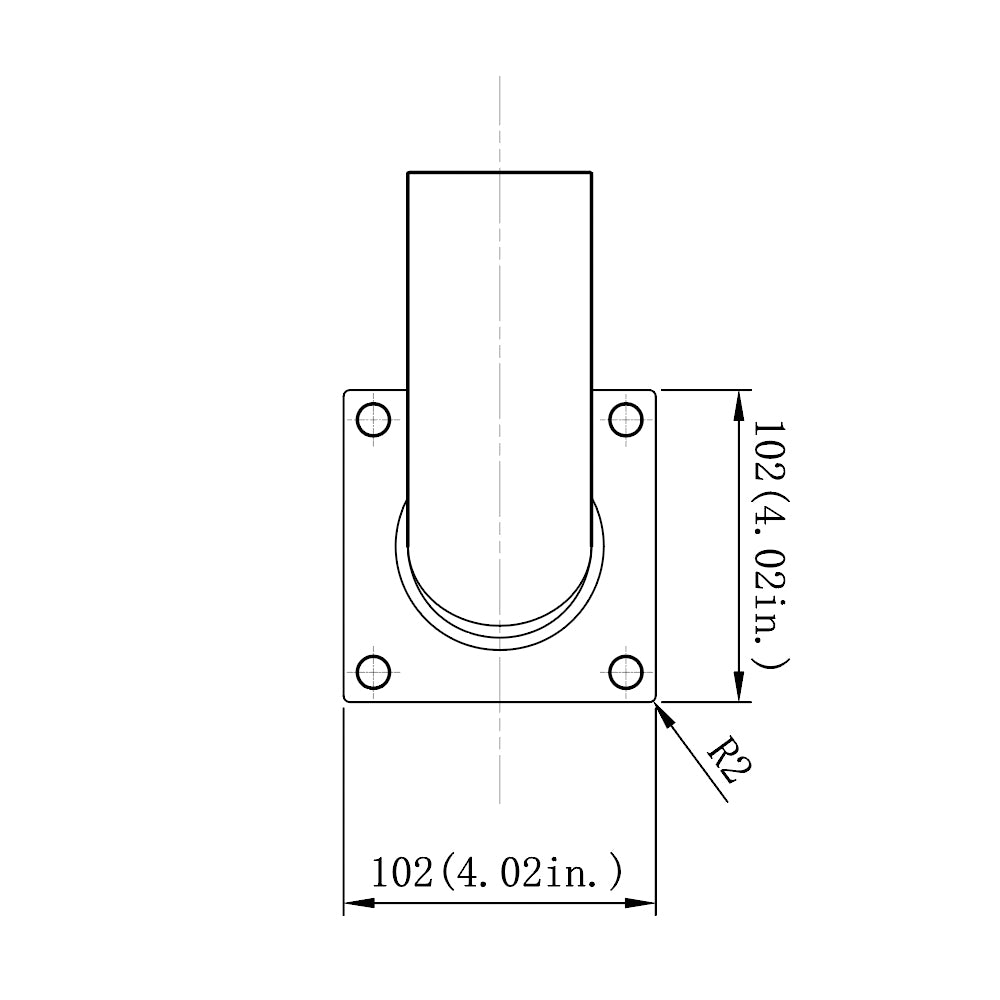

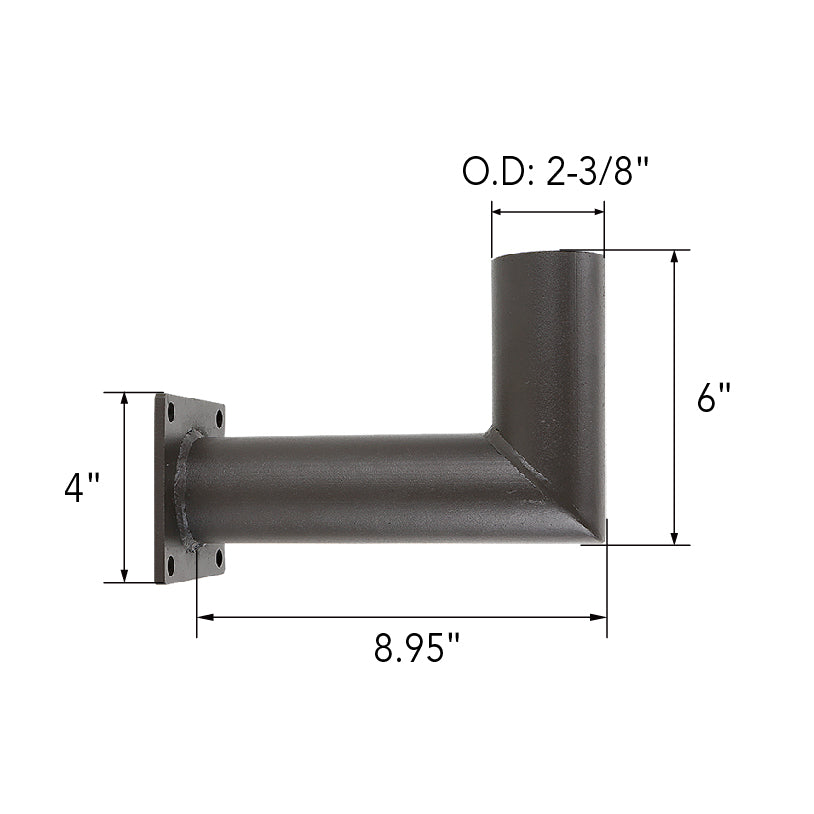

The 90˚ wall mount bracket with 2-3/8" tenon attaches a Konlite floodlight to almost any surface: wall, roof, or wood pole. Provides wiring access and abuilt-in 2-3/8" O.D. tenon to mount a fixture with our adjustable slipfitter. Suggested 3/8" diameter bolts for mounting. Mounting holes are spaced 3-1/4" apart.

  • Mounting Hardware included
  • Attaches to Any Flat Surfaces
  • Dark Bronze Finish
$36.95


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

The 90˚ wall mount bracket with 2-3/8" tenon attaches a Konlite floodlight to almost any surface: wall, roof, or wood pole. Provides wiring access and abuilt-in 2-3/8" O.D. tenon to mount a fixture with our adjustable slipfitter. Suggested 3/8" diameter bolts for mounting. Mounting holes are spaced 3-1/4" apart.

  • Mounting Hardware included
  • Attaches to Any Flat Surfaces
  • Dark Bronze Finish
Product Details
Downloads
Reviews
Reviews
Q&A

The 90˚ wall mount bracket with 2-3/8" tenon attaches a Konlite flood or area light to almost any surface: wall, roof, or wood pole. Provides wiring access and a built-in 2-3/8" O.D. tenon to mount a fixture with our adjustable slipfitter. Suggested 3/8" diameter bolts for mounting. Mounting holes are spaced 3-1/4" apart.

Performance

Brand

Konlite

MPN

RDAF-WM-SP-D

Weight

3.5 Lbs

UPC

717360778851

Height

6 In

Mount Bracket

 Yoke

Length

7.76 In

Outside Diameter (O.D)

2-3/8 In

Mounting

2-3/8 in. O.D. Tenon/Wall Mount

Fixture Type

Area/Flood Light
