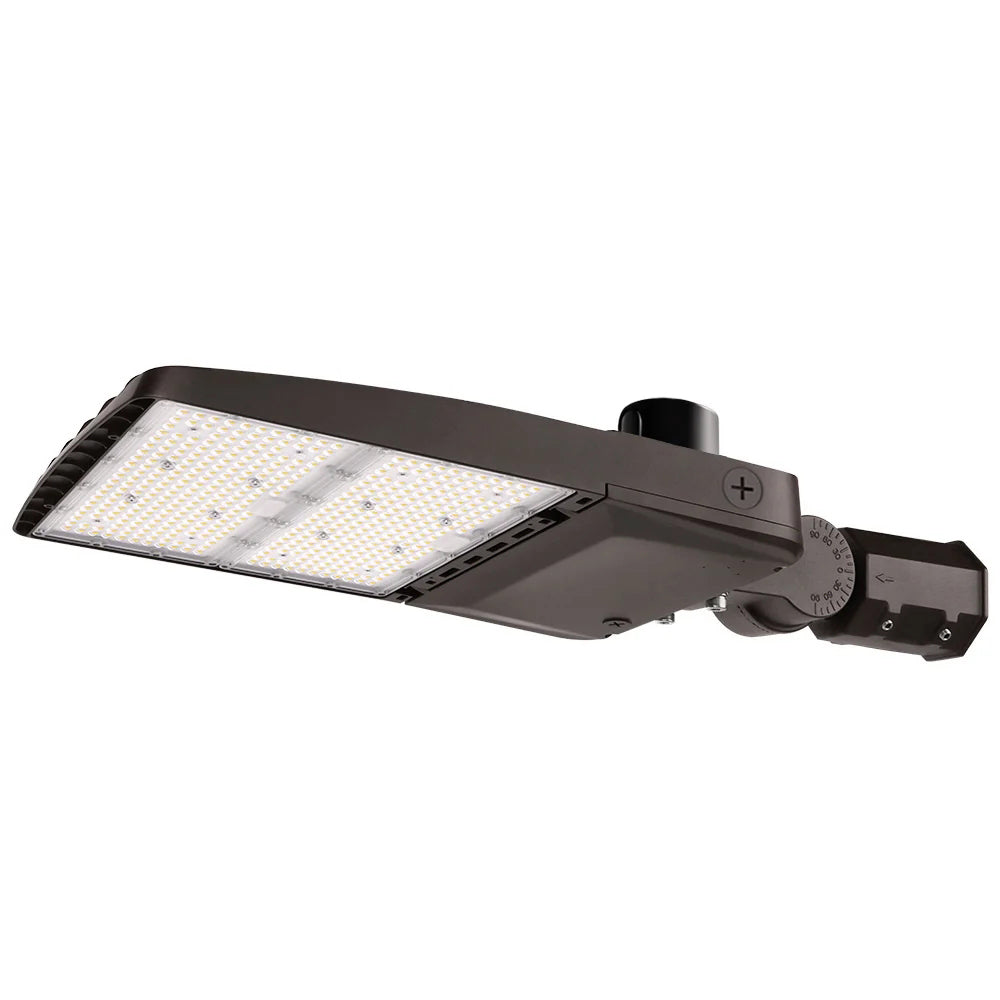

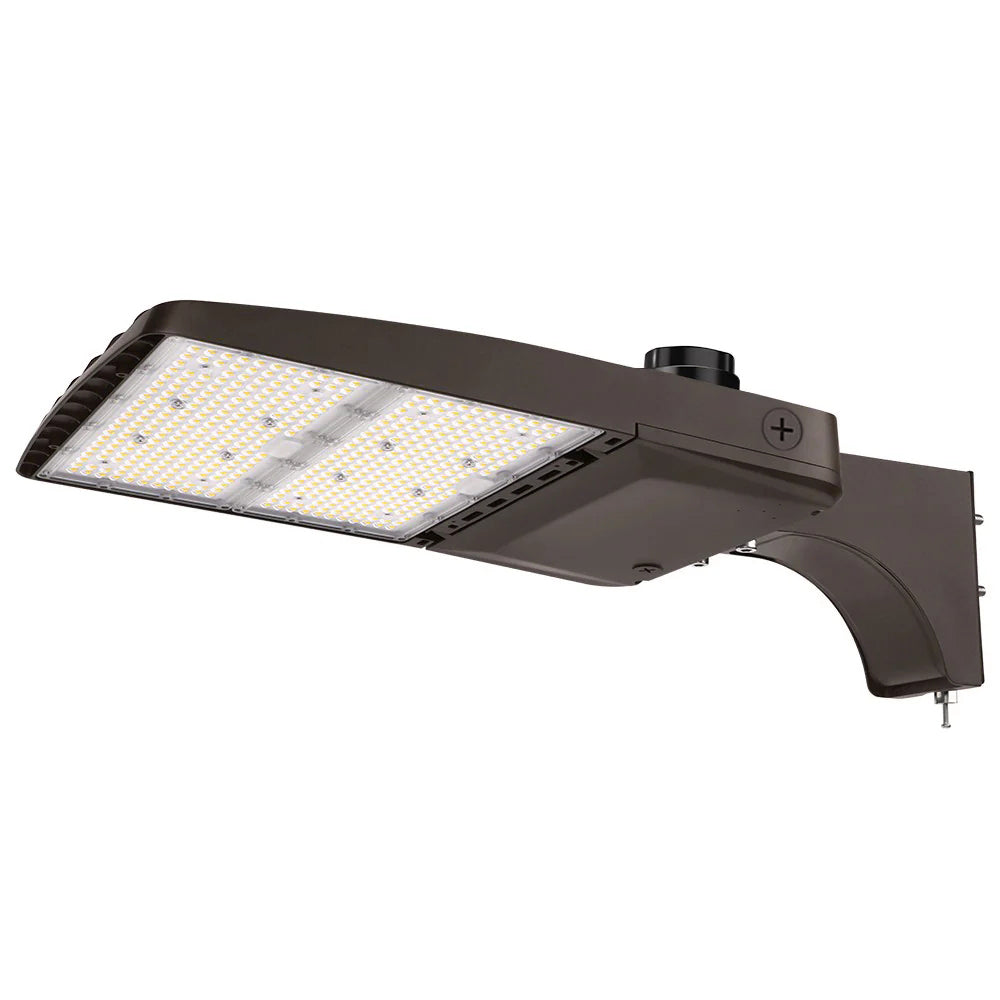

Konlite Vela III LED Parking Lot Light - 310W/280W/260W/240W Selectable - Up to 46,600 Lumens - Type III - 120-277V - 5000K - 1000W Equal

Product Search Code: 20-0403
KonliteSKU: KVLHMW50KLV3SF
$289.99 $254.65



Illuminate your parking lots, pole lights, campuses, public parks, building areas, arenas and roadways with this Konlite Vela series LED Parking Lot, LED Shoebox light. This sleek and modern LED light delivers superior illumination, energy saving and easy installation.

  • 4-phase lumen electability across 3 housing sizes of Vela I, II  & III (this one).
  • High luminaire efficacy, up to 160lm/W at maximum output
  • Designed for easy one-person installation.
  • 100,000 hour lifespan. 5-year warranty
show more
$289.99 $254.65


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

Illuminate your parking lots, pole lights, campuses, public parks, building areas, arenas and roadways with this Konlite Vela series LED Parking Lot, LED Shoebox light. This sleek and modern LED light delivers superior illumination, energy saving and easy installation.

  • 4-phase lumen electability across 3 housing sizes of Vela I, II  & III (this one).
  • High luminaire efficacy, up to 160lm/W at maximum output
  • Designed for easy one-person installation.
  • 100,000 hour lifespan. 5-year warranty
What's in the box
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide

Product Overview

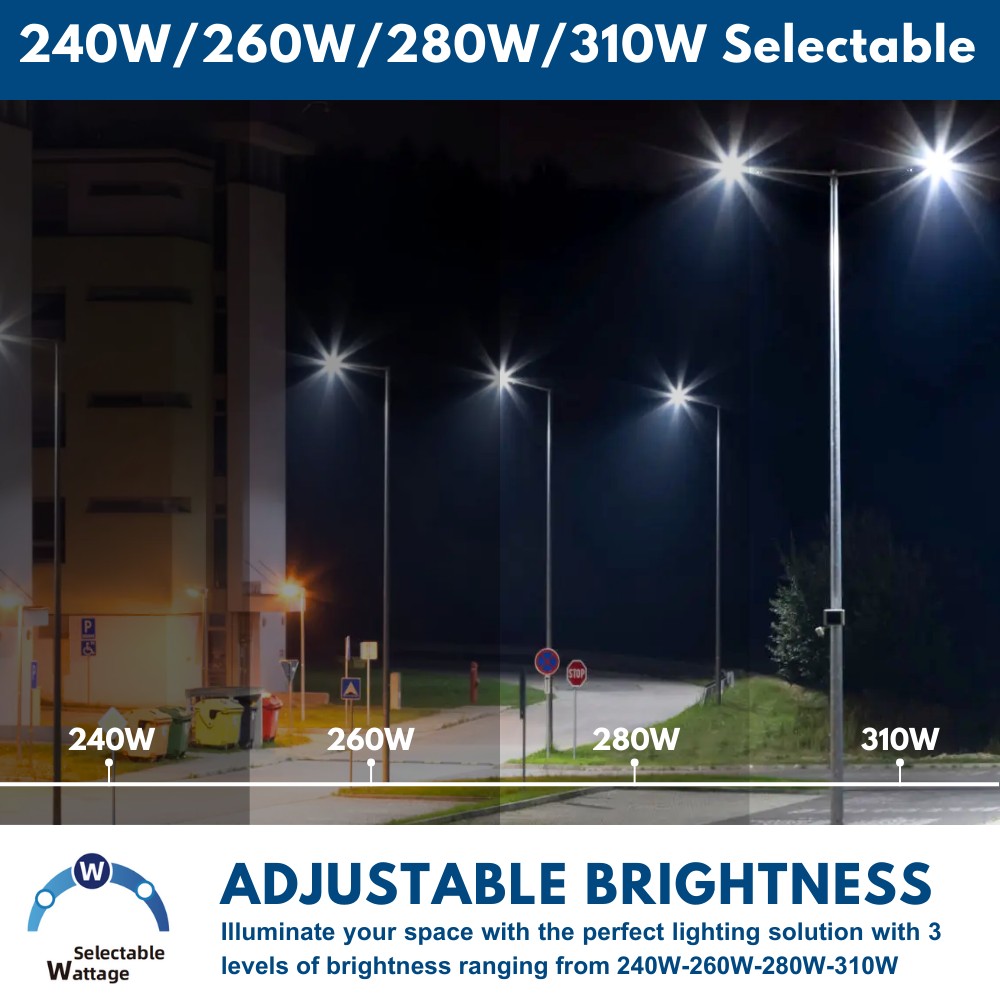

Upgrade your outdoor lighting with the Konlite VELA III LED Parking Lot Light, the best LED pole mount light for up to a 1000 watt equivalent LED parking lot light. With a 4-way switch, you can choose from four field-selectable wattage/brightness settings ( 310W/46,600 Lm preset, 280W/42,100 Lm, 260W/39,100 Lm, 240W/34,900 Lm), to meet your specific lighting needs.

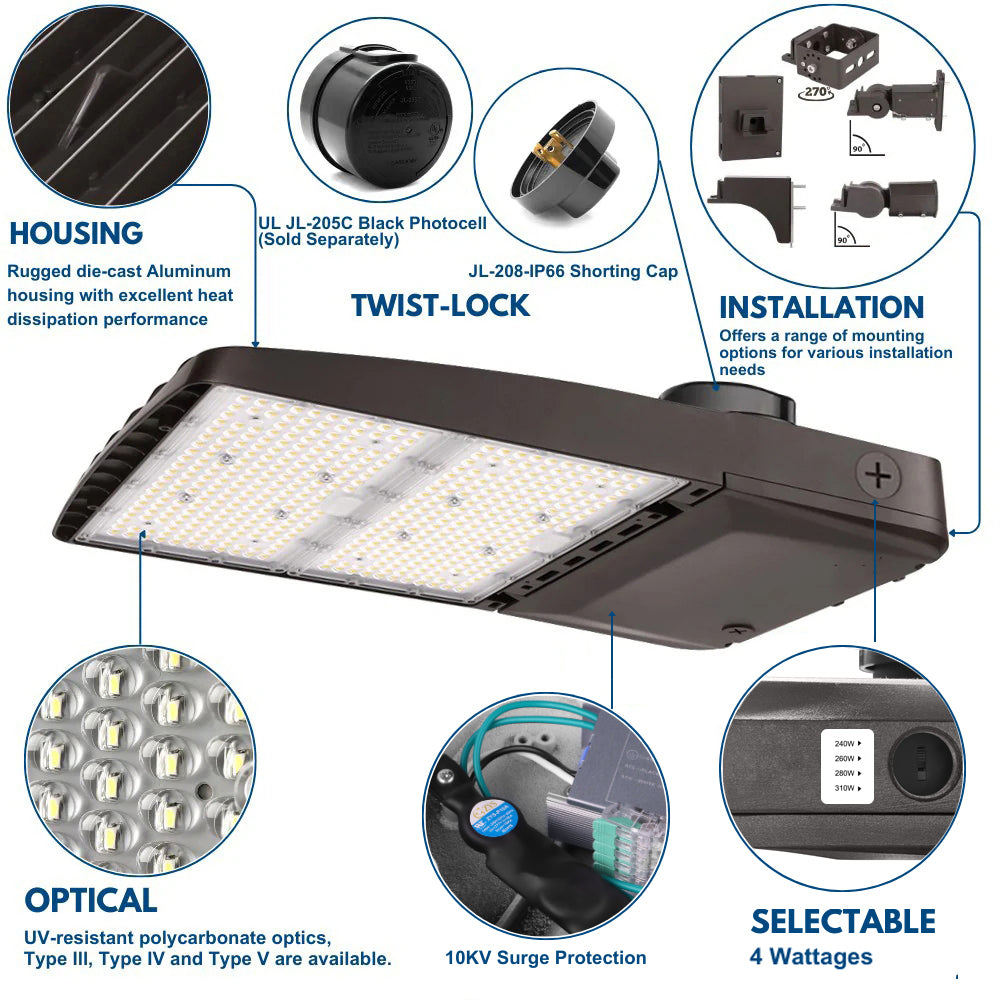

Increase safety and security for your buildings and lots with this LED parking lot light and pole light, which provides excellent light distribution with high-output LEDs and custom optics, resulting in 160 Lumens per Watt Efficiency. This VELA III LED light offers a type III beam distribution, UV-resistant polycarbonate optical lens, and 1-10V dimming with 5000K CCT.

This LED light is compatible with dusk-to-dawn photocell and PIR motion sensor (call for motion sensor availability), making it a smart and energy-efficient lighting solution. It offers up to 65% energy savings, long service life, and quick return on investment.

With its IP65 corrosion-proof die-cast aluminum housing and mounting brackets, the VELA III LED light is built to withstand all weather elements. It offers built-in 10KV surge protection and a Bronze finish, ensuring a reliable and long-lasting lighting solution.

Certified for quality, the Konlite VELA III LED Parking Lot Light is DLC 5.1 Premium for eligible rebates, UL certified, and boasts a 100,000-hour lifespan and 5-year warranty. The lightweight design and low EPA rating with a 1.5G vibration load per ANSI C136.31 make this LED light easy to install and a top choice for one-to-one replacement of HID/HPS or new construction projects.

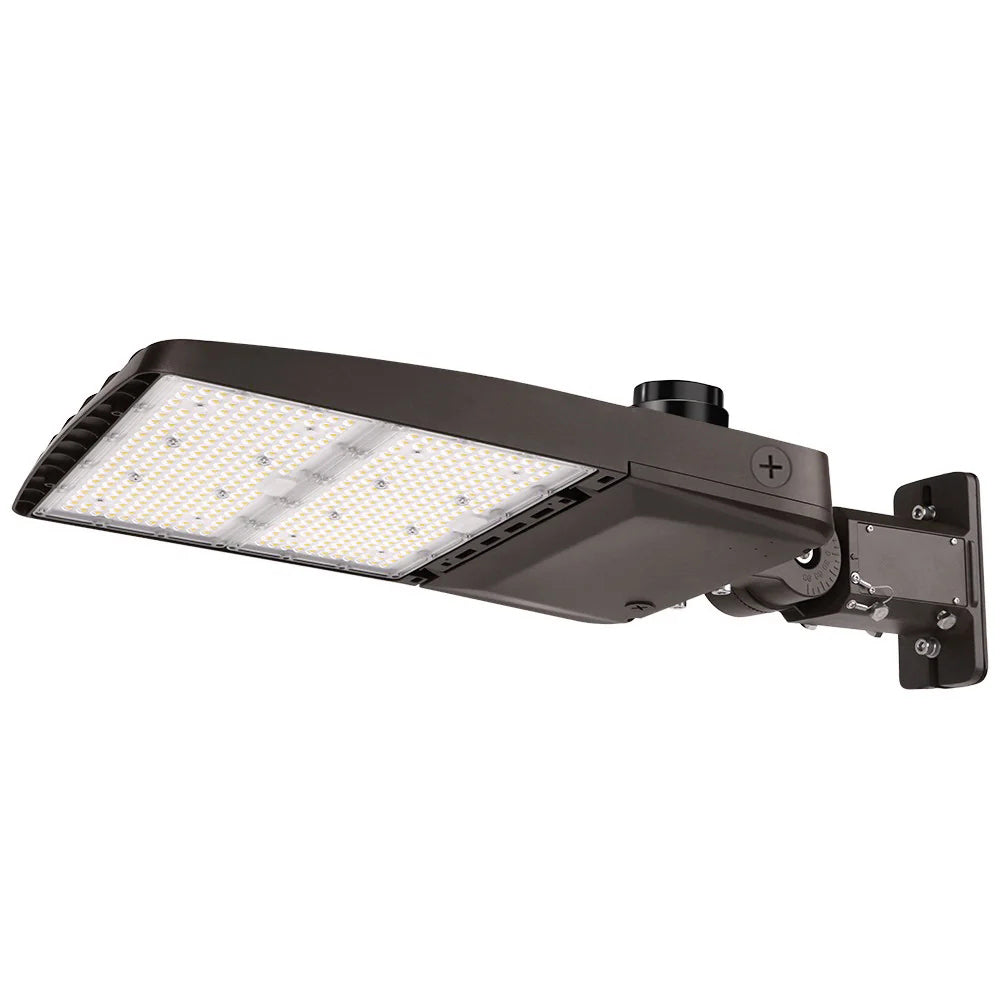

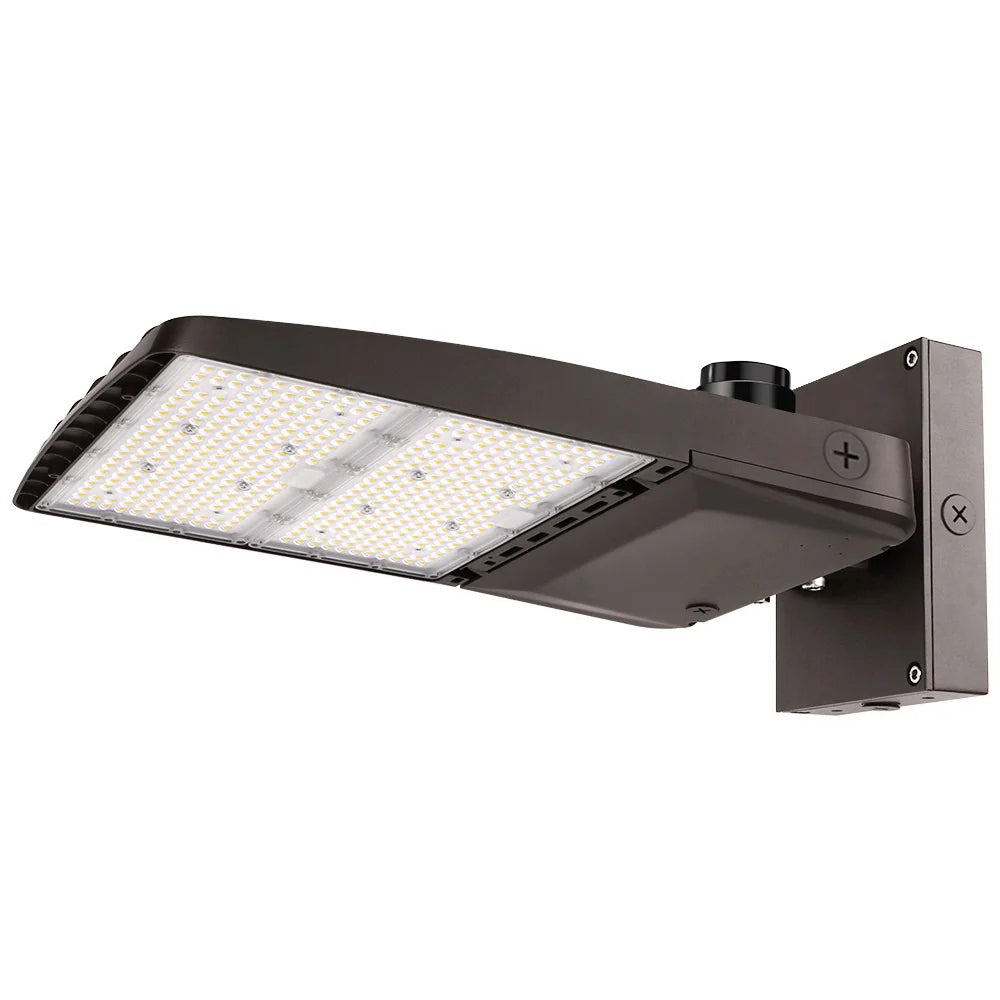

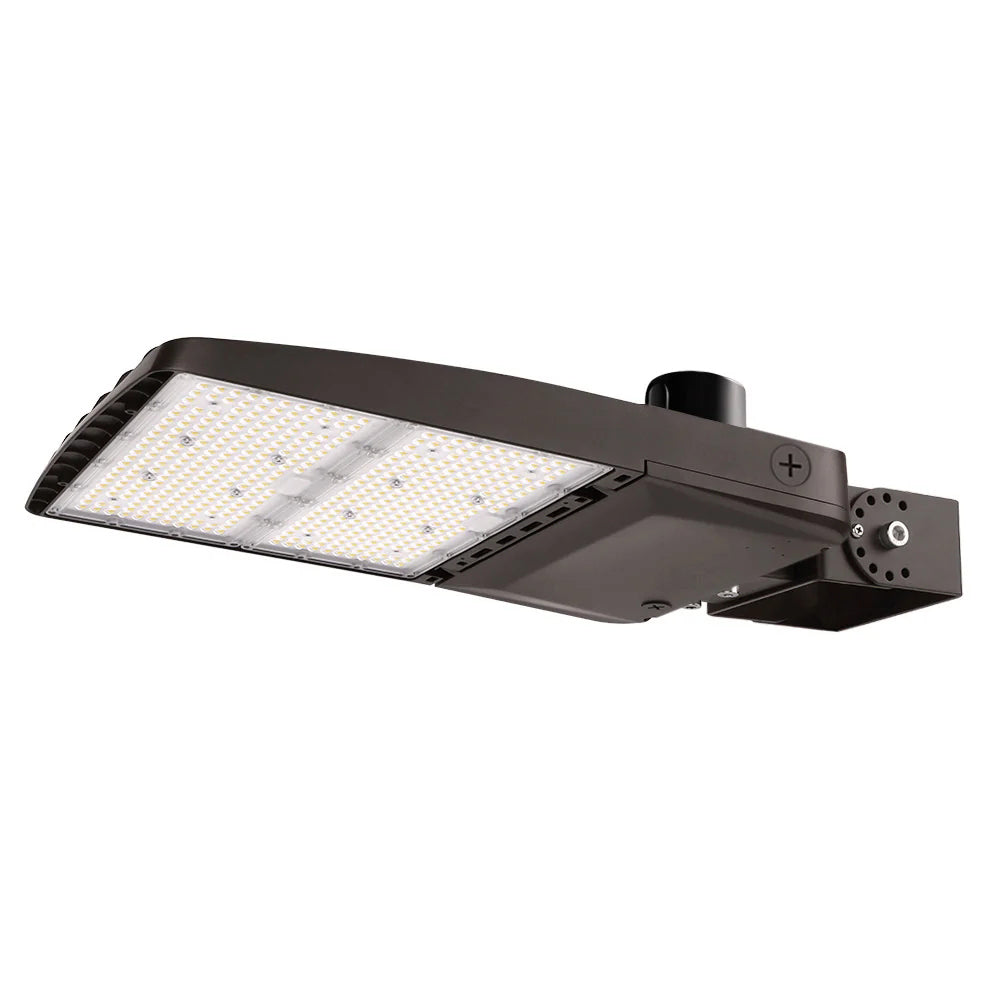

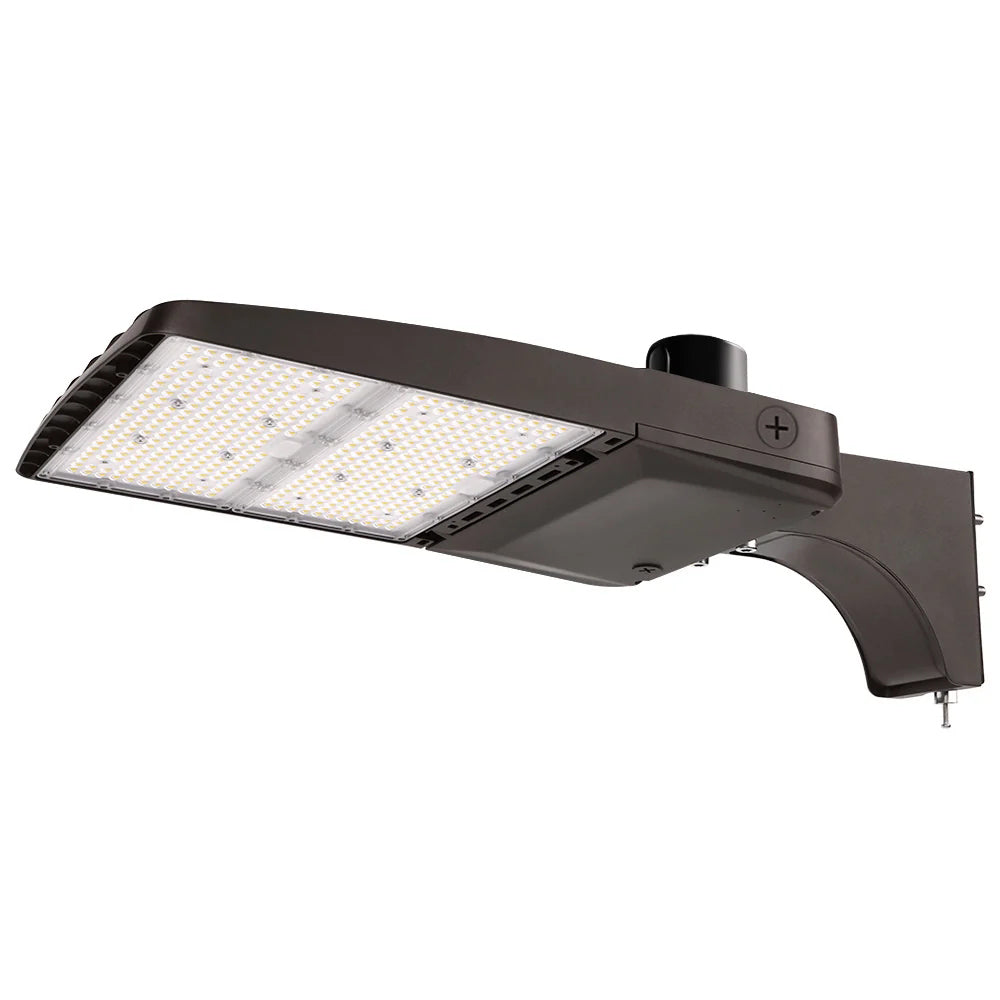

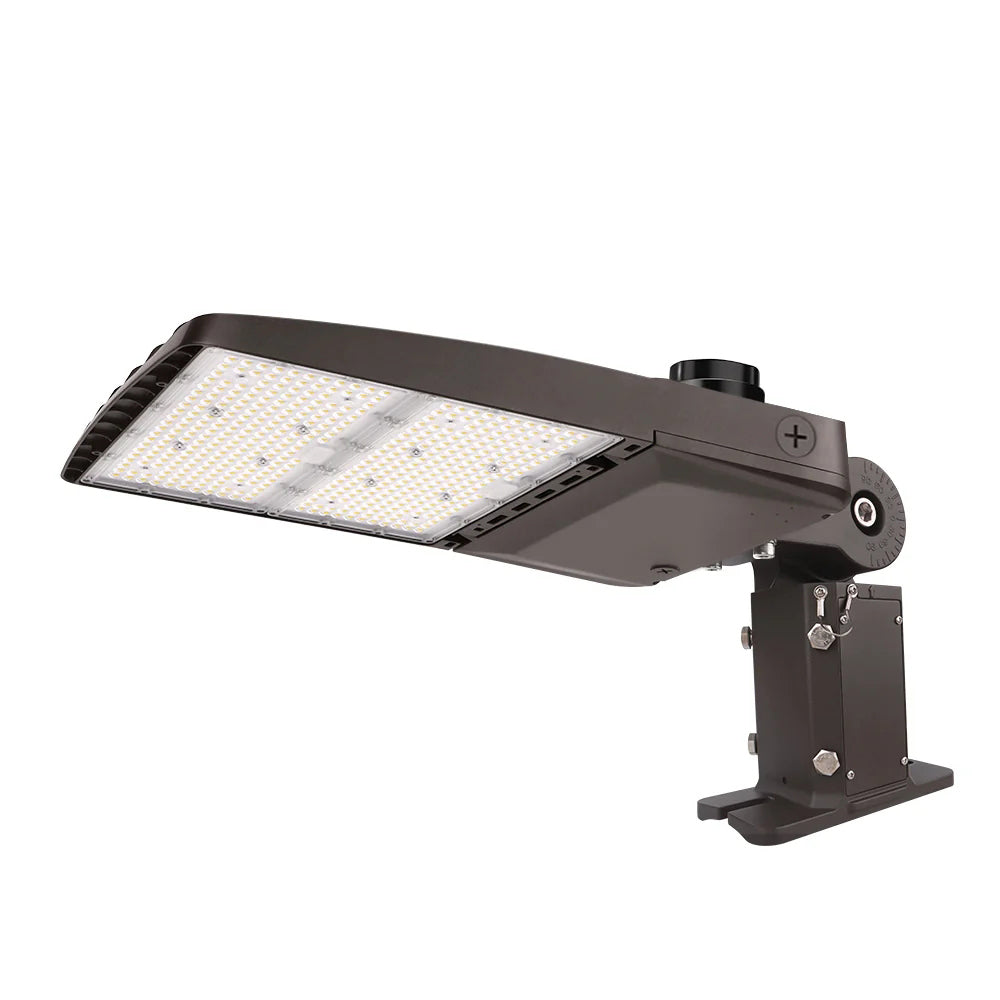

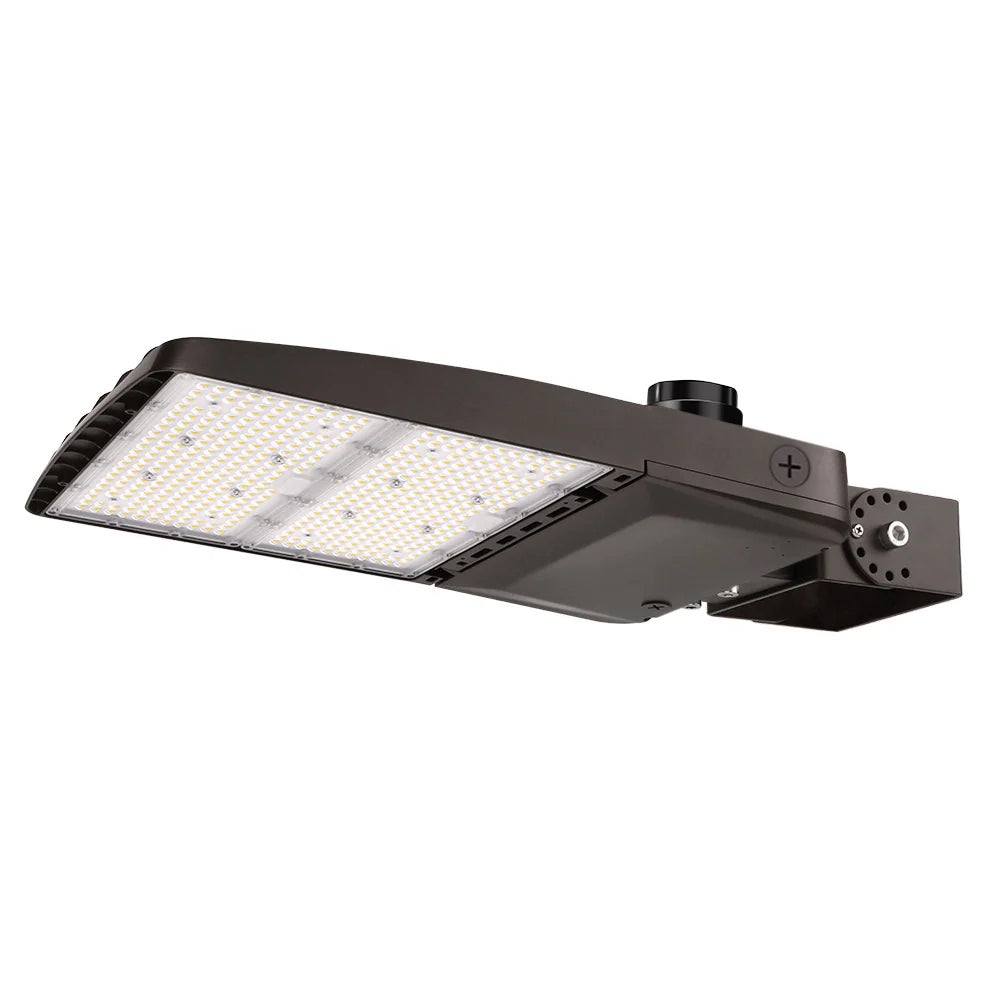

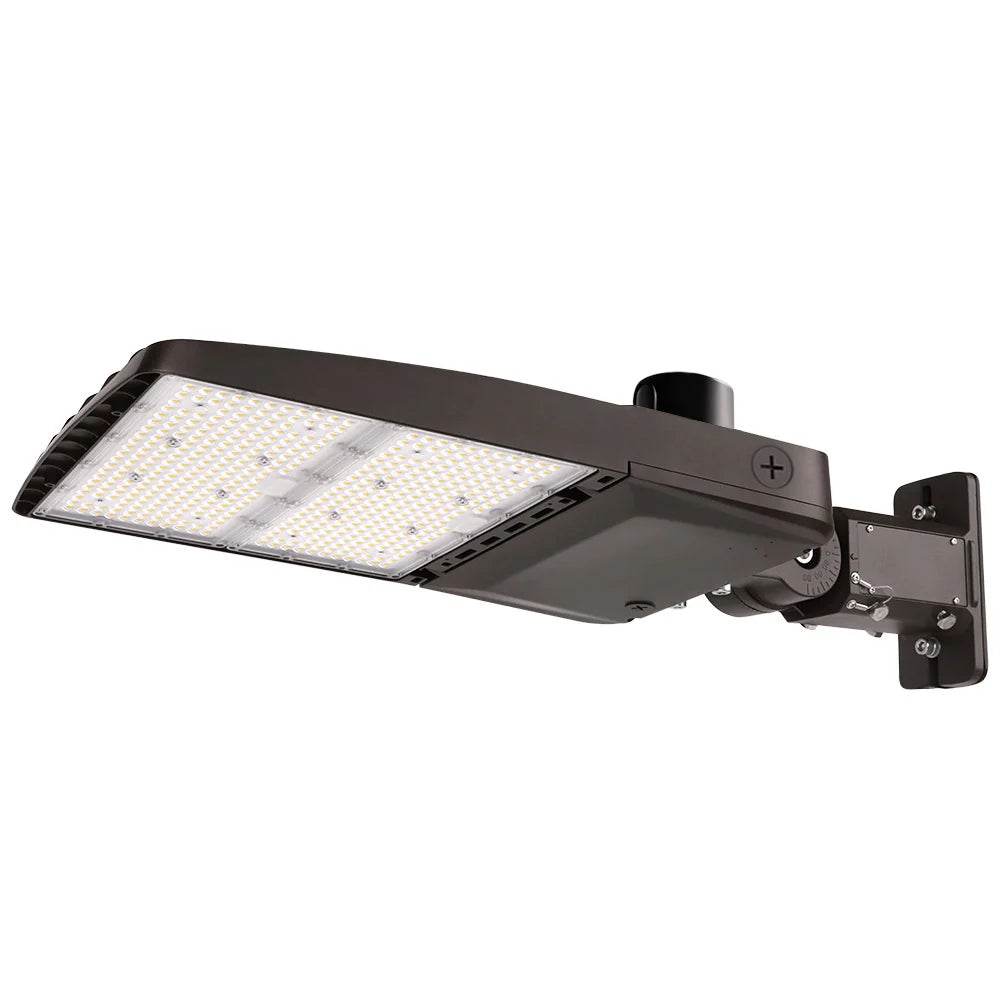

The VELA III LED light offers four mounting options, including extrusion arm, U-bracket/Tennon, slip-fitter, and universal bracket (all-in-one slip fitter and pole mount extrusion arm), making it versatile for different applications

This is a120-277 Volt version. 270-480 Volt available for  150-watt and 310-watt versions.

See similar VELA I(150W/120W/100W/80W), VELA II(240W/220W/200W/170W) versions.

Applications

•Area Lighting •Parking Lots
•Streets

•Building Façade

•Storage Facilities •Underpasses & Tunnel
•Boat Docks & Marinas • Billboards
•Outdoor event spaces •Industrial yards
•Roadways & Pathways •Security Lighting
•Sports Complex •Schools & Universities
•Parks •Car Dealerships
Color Temperature 5000K color temperature
Certifications
US company5 years warrantyUL listed1-10V dimmableDLC PremiumRoHS compliance FCC certificationIP65 rating

Specifications

BrandKonliteDLC Part #KVLHMW50KLV3SF
WarrantyLimited 5 YearsUPC659359712432
Input Voltage120-277VOpticalType III
Input Wattage310W/280W/260W/240WEqual to1000W/900W/800W/750W MH
Delivered Lumens46K/42K/39K/35K LumensCRI>70
Efficacy160 lm/WAvailable CCT5000K
Rated Life>100,000 hrsTHD<20%
Power Factor>0.9IP RatingIP65
DimmableCall us for 1-10V Dimming AvailabilityControlsOptional Dusk to Dawn Photocell

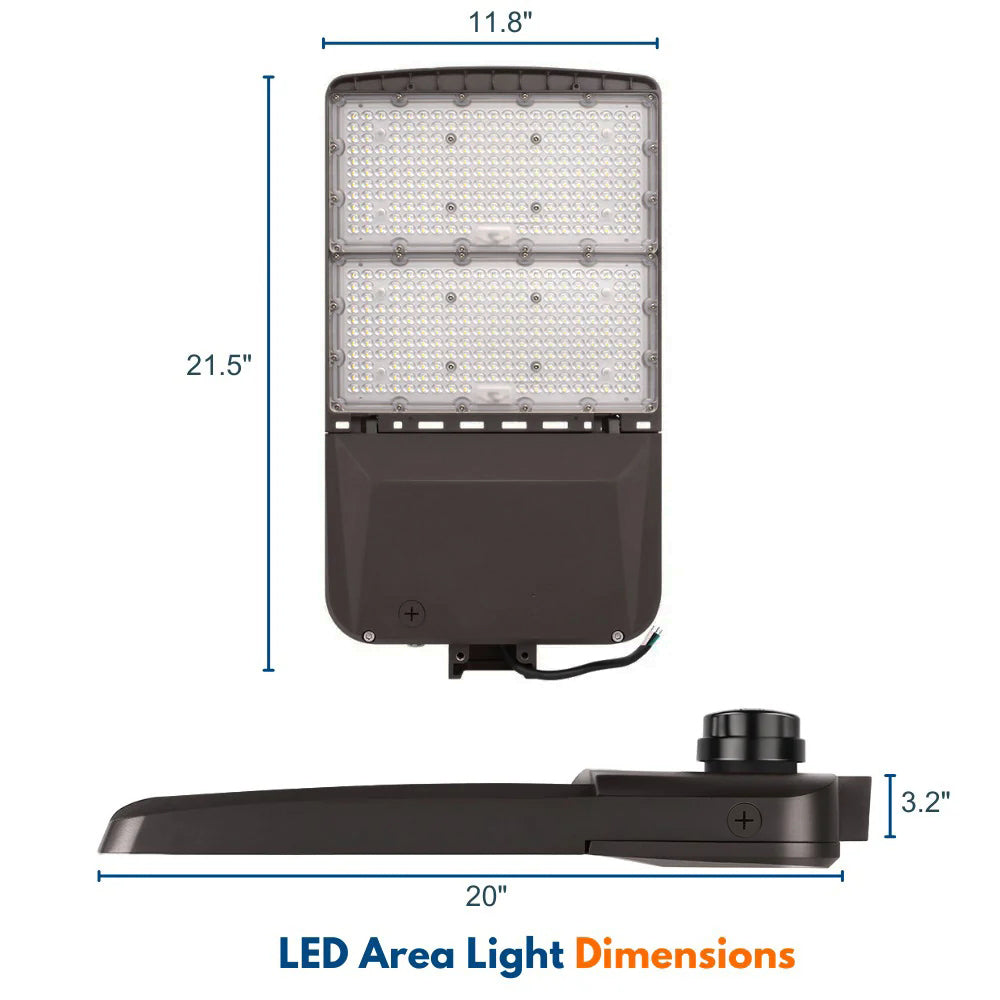

Operating Temperature-40 °F to 113 °FDimensionsSee Specifications
CertificationsUL, Wet Locations, DLC PremiumWeight15 lbs

Konlite Vela LED Parking Lot Light Video

Video of Konlite Vela LED Parking Lot Light - 310W/280W/260W/240W Selectable - Up To 46,600 Lumens
