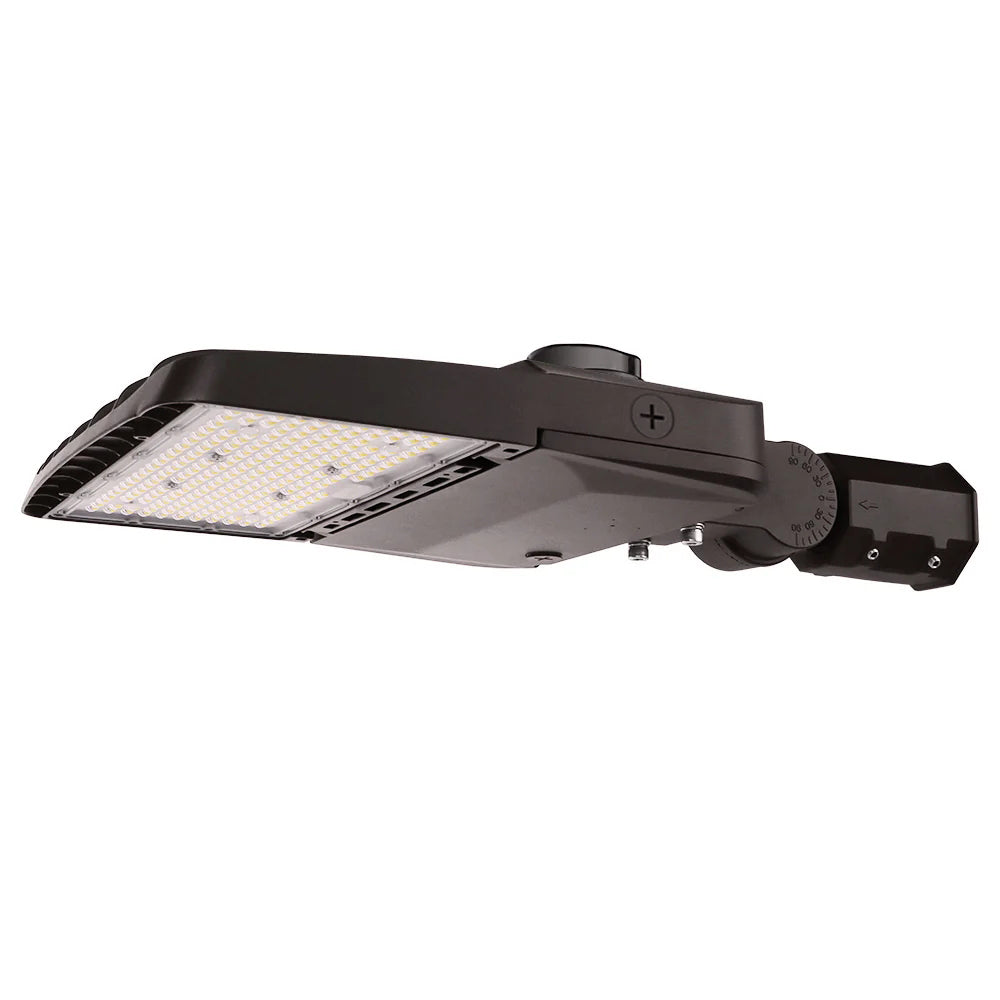

Konlite Vela I LED Parking Lot Light - 150W/120W/100W/80W Selectable - Up to 23,000 Lumens - Type III - 120-277V - 5000K - 400W Equal
- Replaces 400W Metal Halide Light
- 10KV Surge Protection
- Price Includes One of the Mounting Brackets
- Certificates: UL, DLC 5.1 Premium
- 5-Year Warranty
- Watts and Lumens Selectable:
- 150W = 23,047 (Preset)
- 120W = 18,438
- 100W = 15,372
- 80W = 12,307
- Replaces 400W Metal Halide Light
- 10KV Surge Protection
- Price Includes One of the Mounting Brackets
- Certificates: UL, DLC 5.1 Premium
- 5-Year Warranty
- Watts and Lumens Selectable:
- 150W = 23,047 (Preset)
- 120W = 18,438
- 100W = 15,372
- 80W = 12,307
Illuminate your parking lots, pole lights, campuses, public parks, building areas, arenas and roadways with this Konlite Vela series LED Parking Lot, LED Shoebox light. This sleek and modern LED light delivers superior illumination, energy saving and easy installation.
- 4-phase lumen electability across 3 housing sizes of Vela I ( this one ), II & III.
- High luminaire efficacy, up to 160lm/W at maximum output
- Designed for easy one-person installation.
- 100,000 hour lifespan. 5-year warranty
- Secured payment methods. Revolve LED never stores nor has access to your card information.
- 90 days return without restocking fee*.
![$199 Free Shipping*]()
$199 Free Shipping on eligible products*![Availability: Usually Ships in one to three business days]()
Availability: Usually Ships in one to three business days.
Product Overview

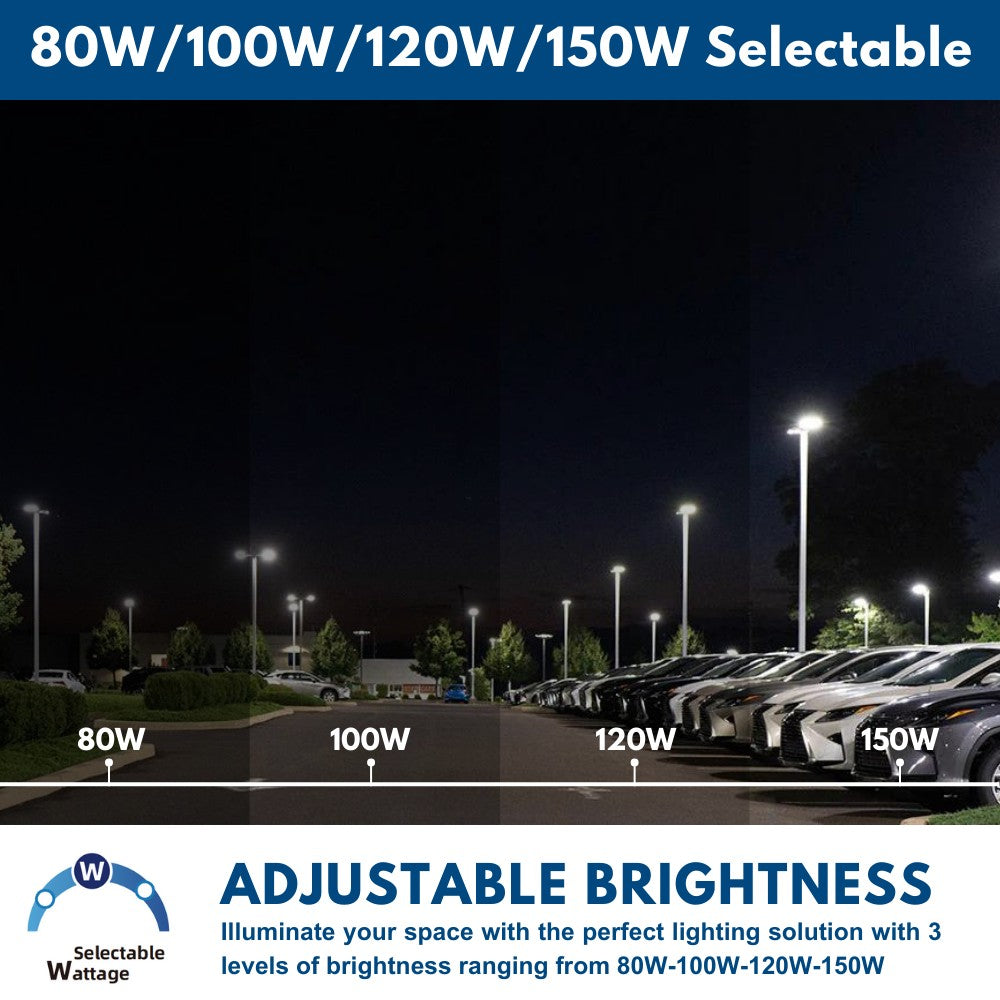

Upgrade your outdoor lighting with the Konlite VELA I LED Parking Lot Shoebox Light, designed for superior illumination and energy savings. With a 4-way switch, this LED light allows you to choose from four field-selectable wattage/brightness settings (150W/23,047 Lm preset, 120W/18,438 Lm, 100W/15,372 Lm, 80W/12,307 Lm) to meet your specific lighting needs.
Increase safety and security for your buildings and lots with this LED parking lot light and pole light, which provides excellent light distribution with high output LEDs and custom optics, resulting in 155 Lumens per Watt Efficiency. The VELA I LED light offers a type III beam distribution standard, UV-resistant polycarbonate optical lens, and 1-10V dimming with 5000K CCT.

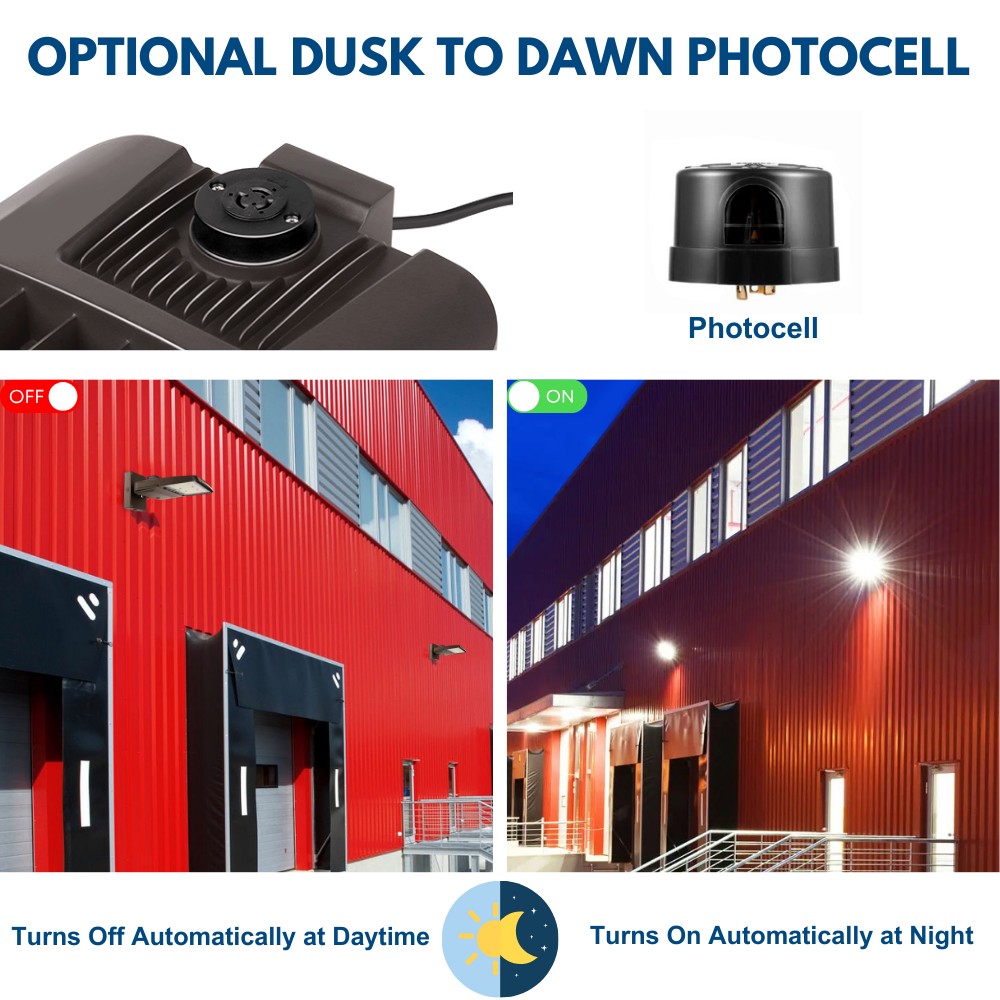

This LED light is compatible with dusk-to-dawn photocell and PIR motion sensor (please call for motion sensor availability), making it a smart and energy-efficient lighting solution. It offers up to 65% energy savings, long service life, and quick return on investment.

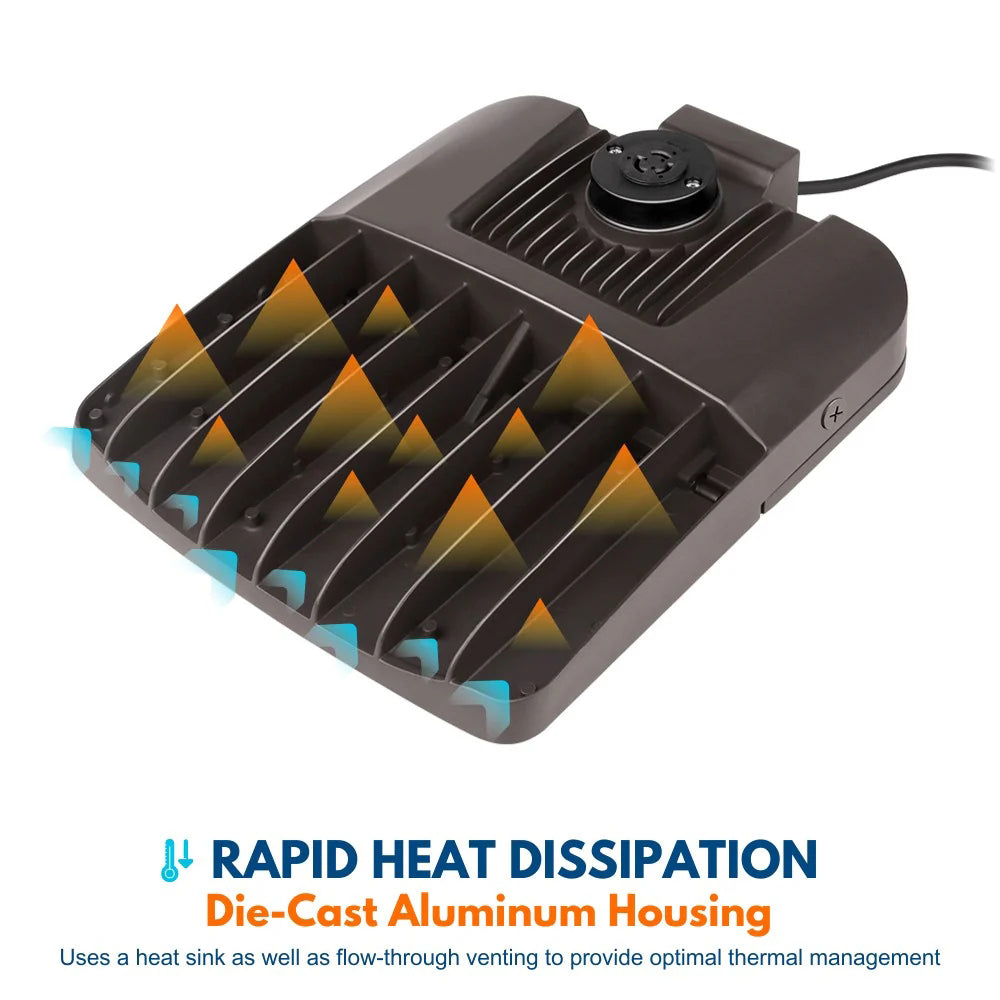

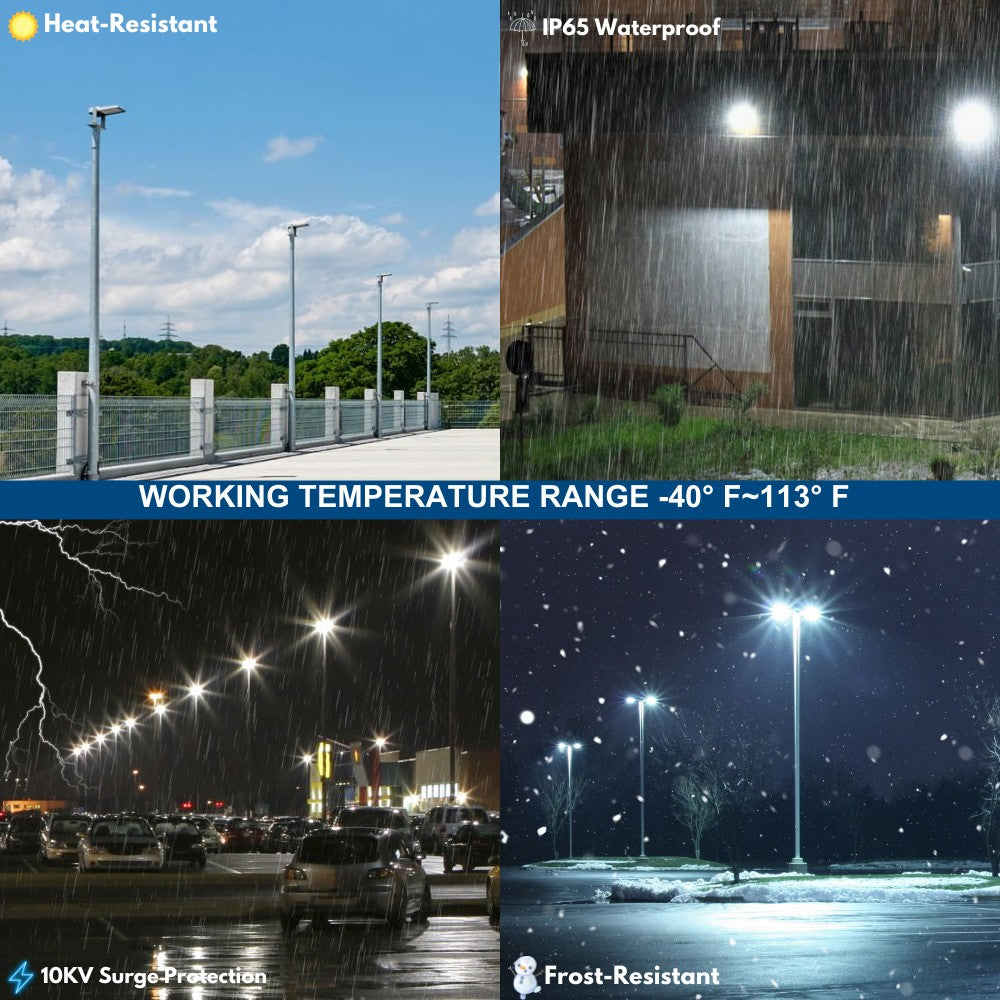

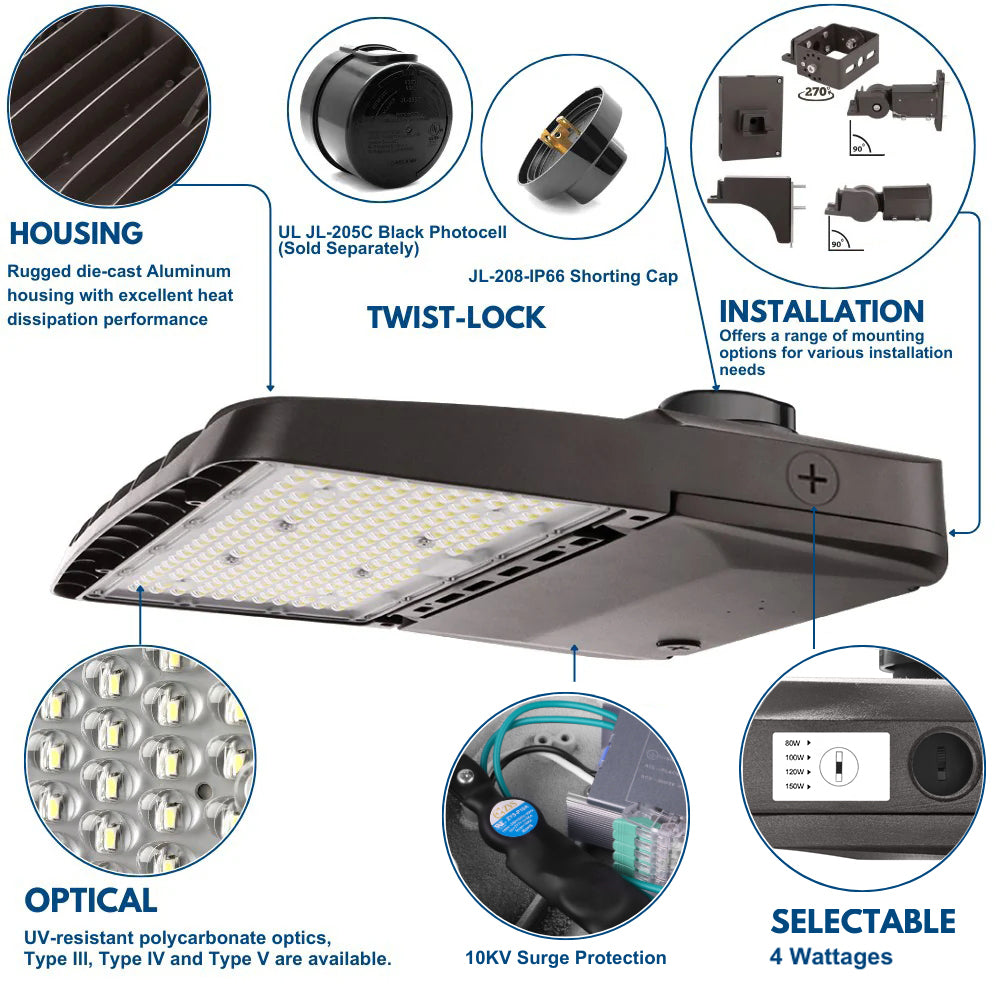

With its IP65 corrosion-proof die-cast aluminum housing and mounting brackets, the VELA I LED light is built to withstand all weather elements. It offers built-in 10KV surge protection, ensuring a reliable and long-lasting lighting solution.
Certified for quality, the Konlite VELA I LED Parking Lot Shoebox Light is DLC 5.1 Premium for eligible rebates, UL certified, and boasts a 100,000-hour lifespan. The lightweight design and low EPA rating with a 1.5G vibration load per ANSI C136.31 make this LED light easy to install and a top choice for one-to-one replacement HID/HPS of from 250 Watt to 400 Watt equivalent or new construction projects.
Enhance your parking lot's efficiency and security with the Revolve LED Parking Lot PIR Motion Sensor. The motion sensor kits SKU is KVLH-HD09VR-PH. This cutting-edge sensor is designed to seamlessly integrate with your existing LED lighting setup, providing optimal motion detection to illuminate areas only when needed.

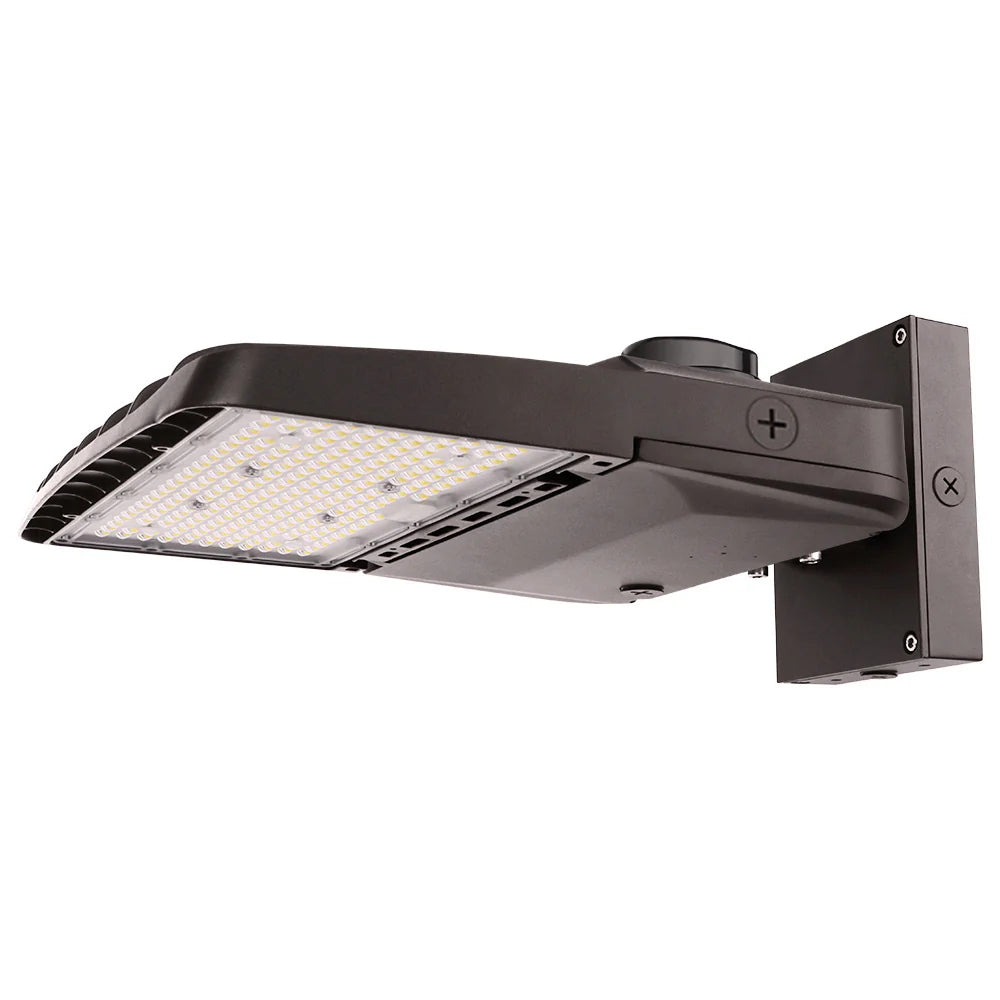

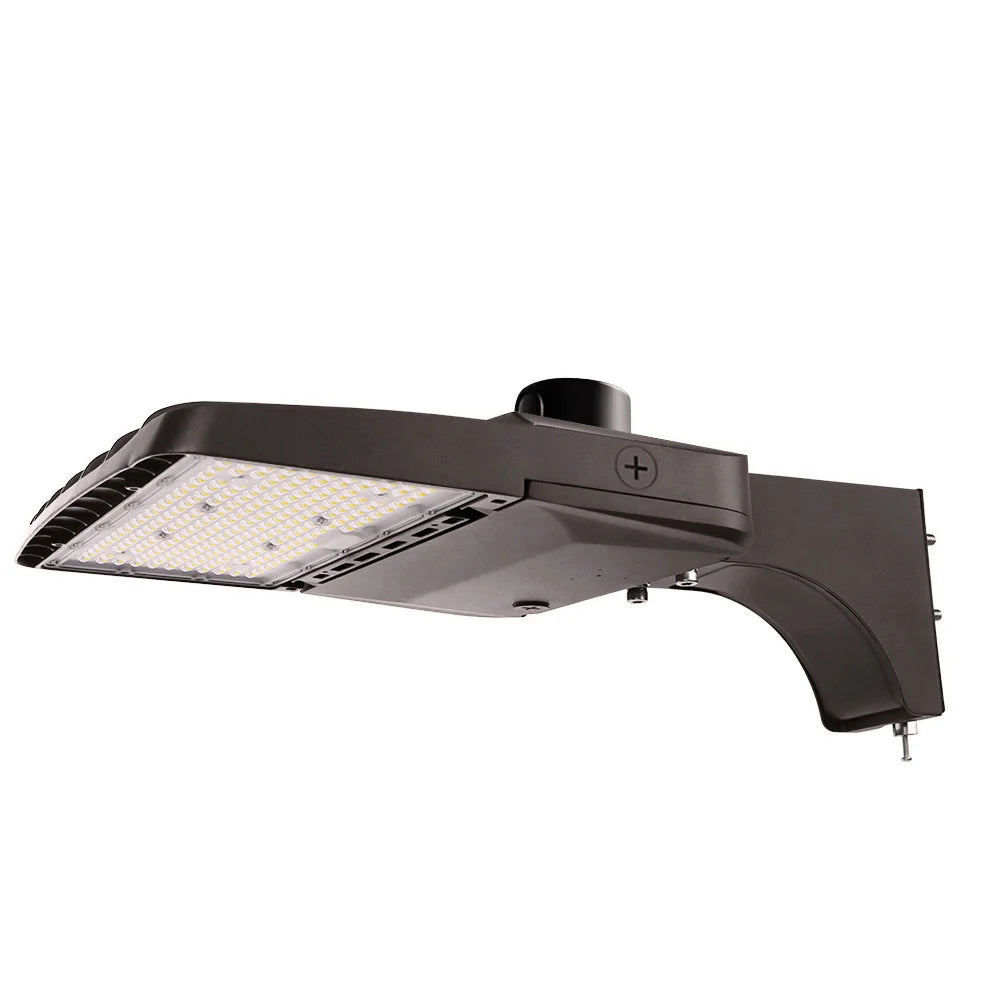

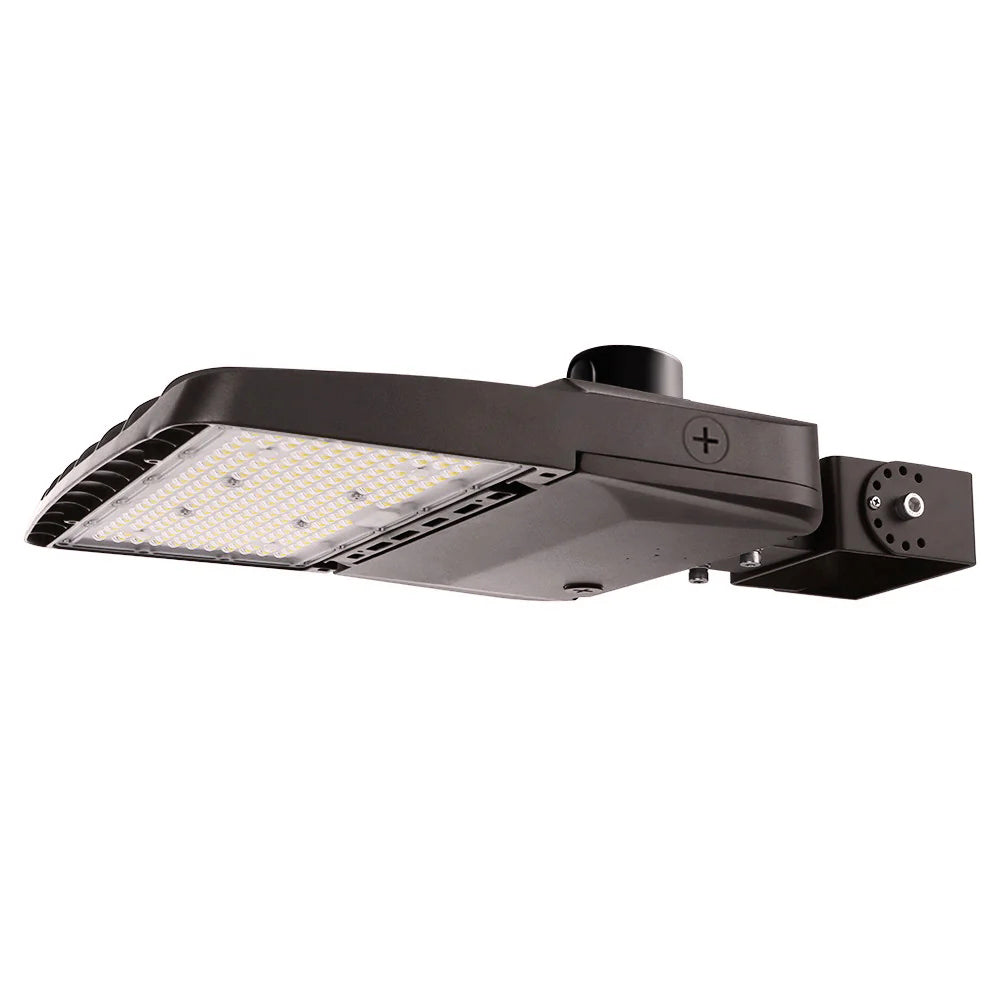

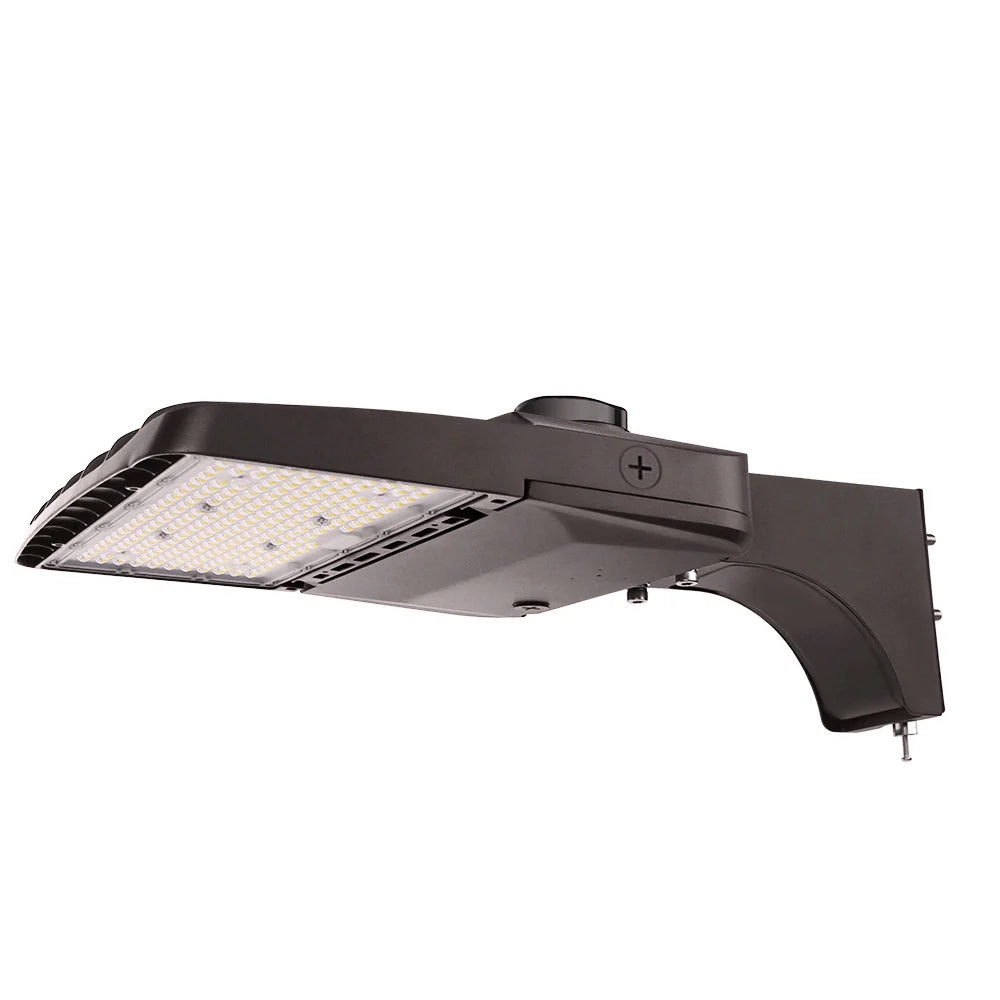

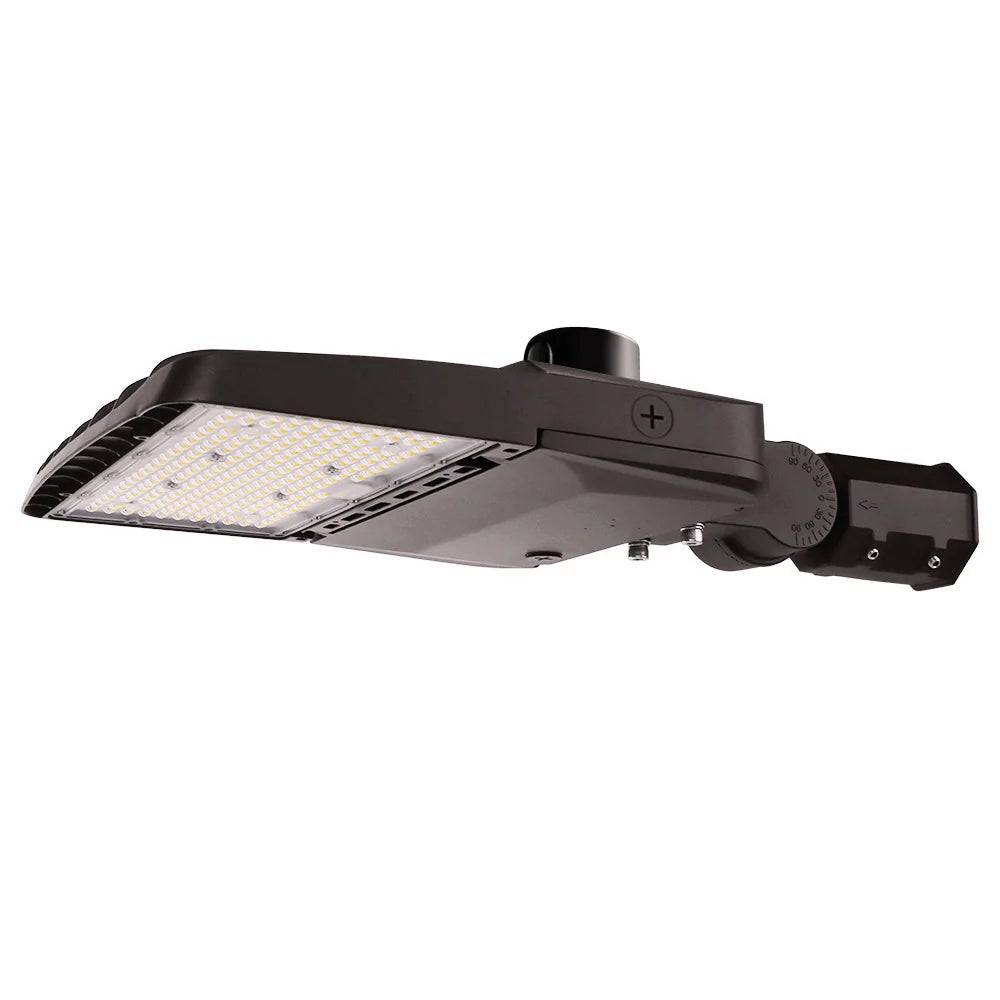

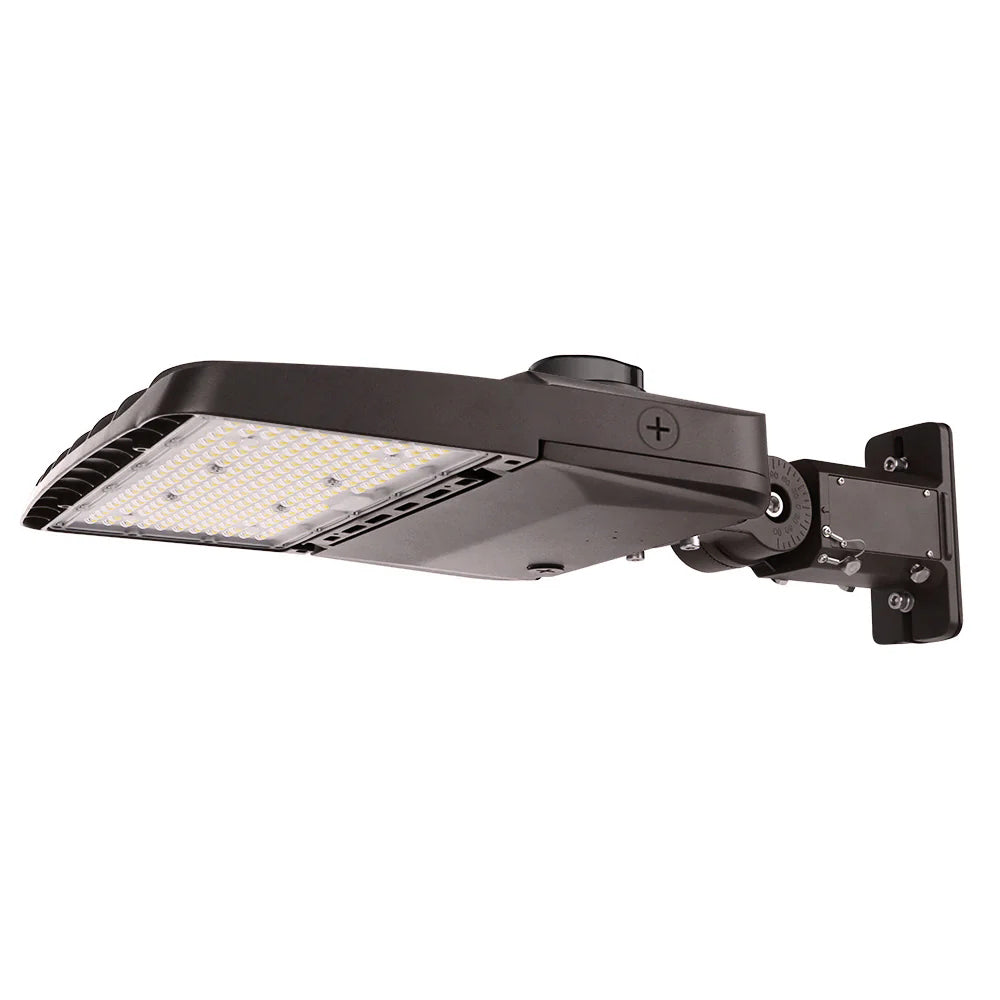

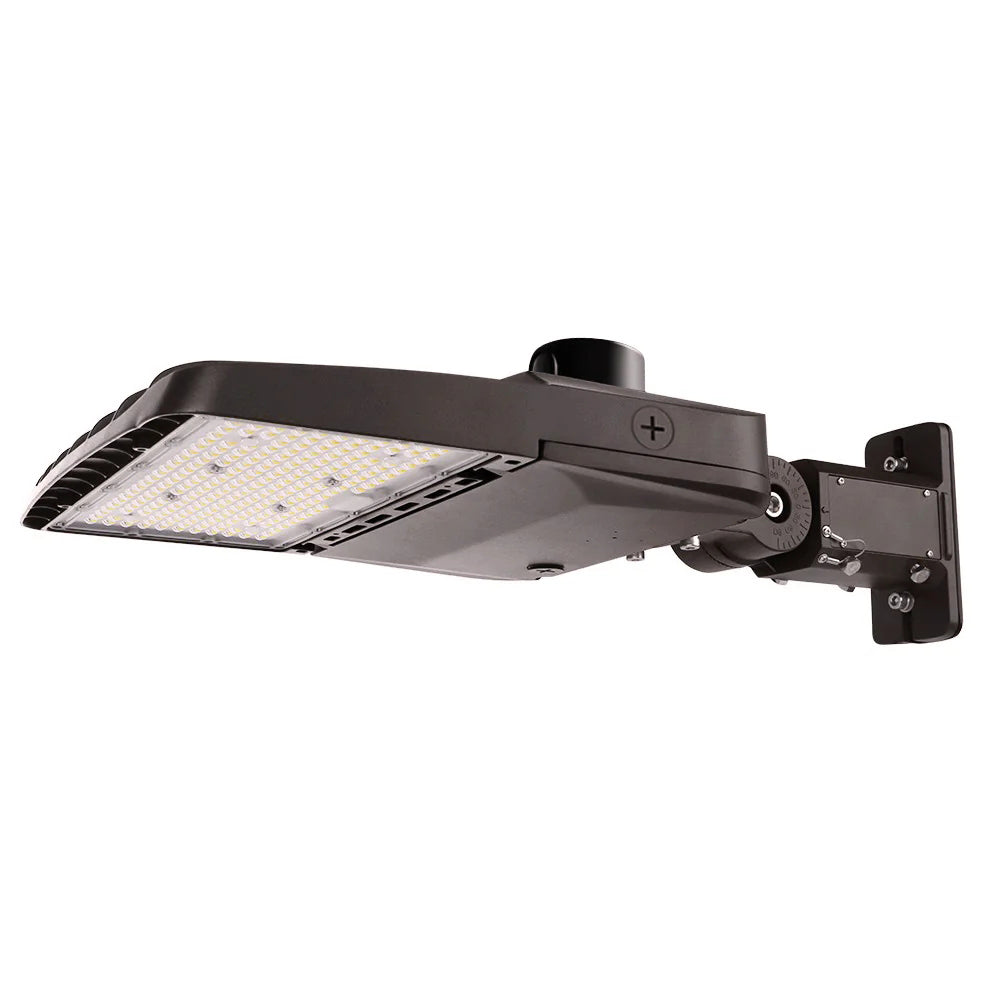

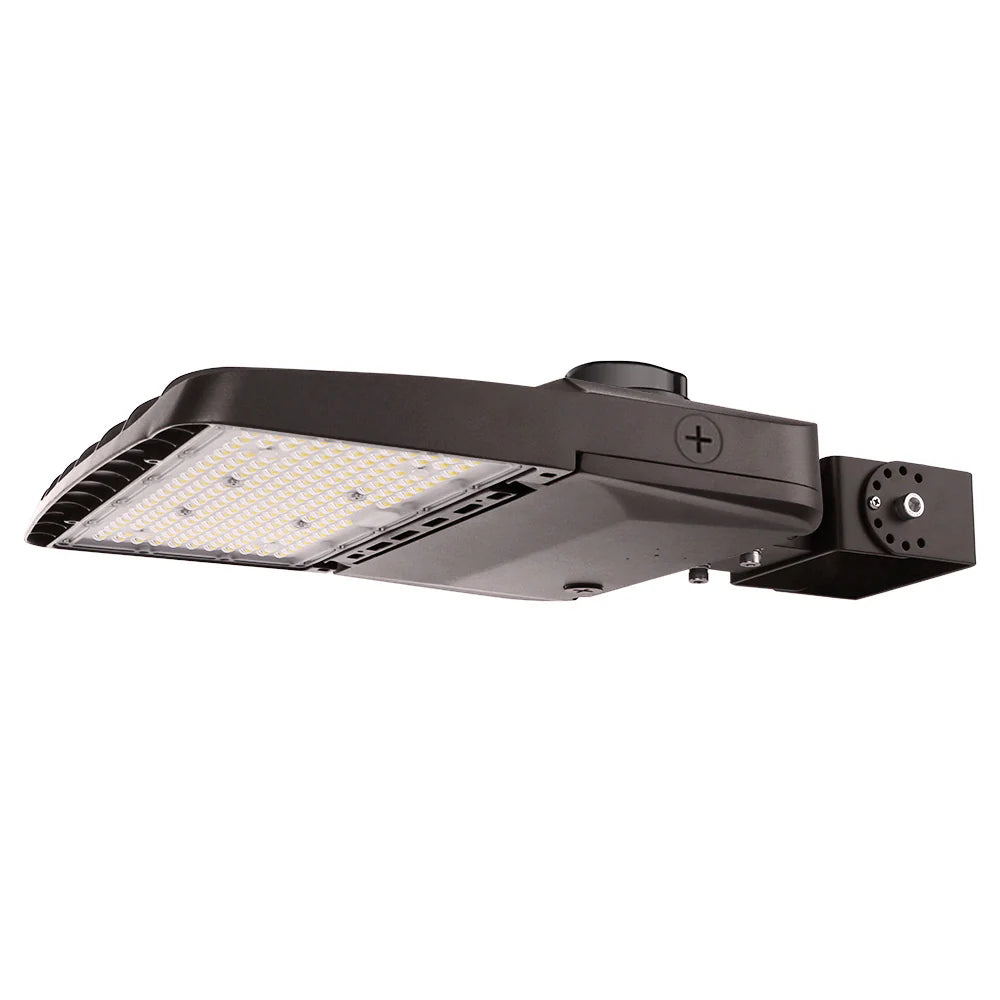

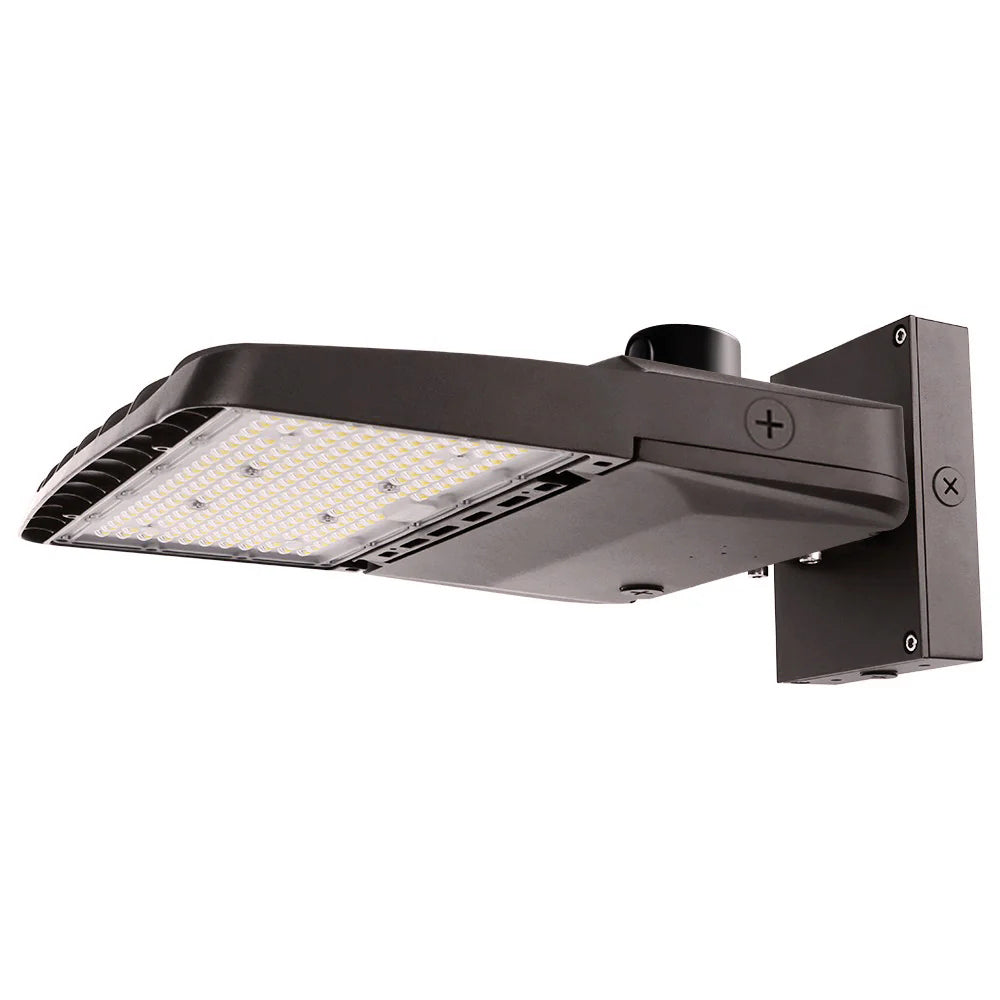

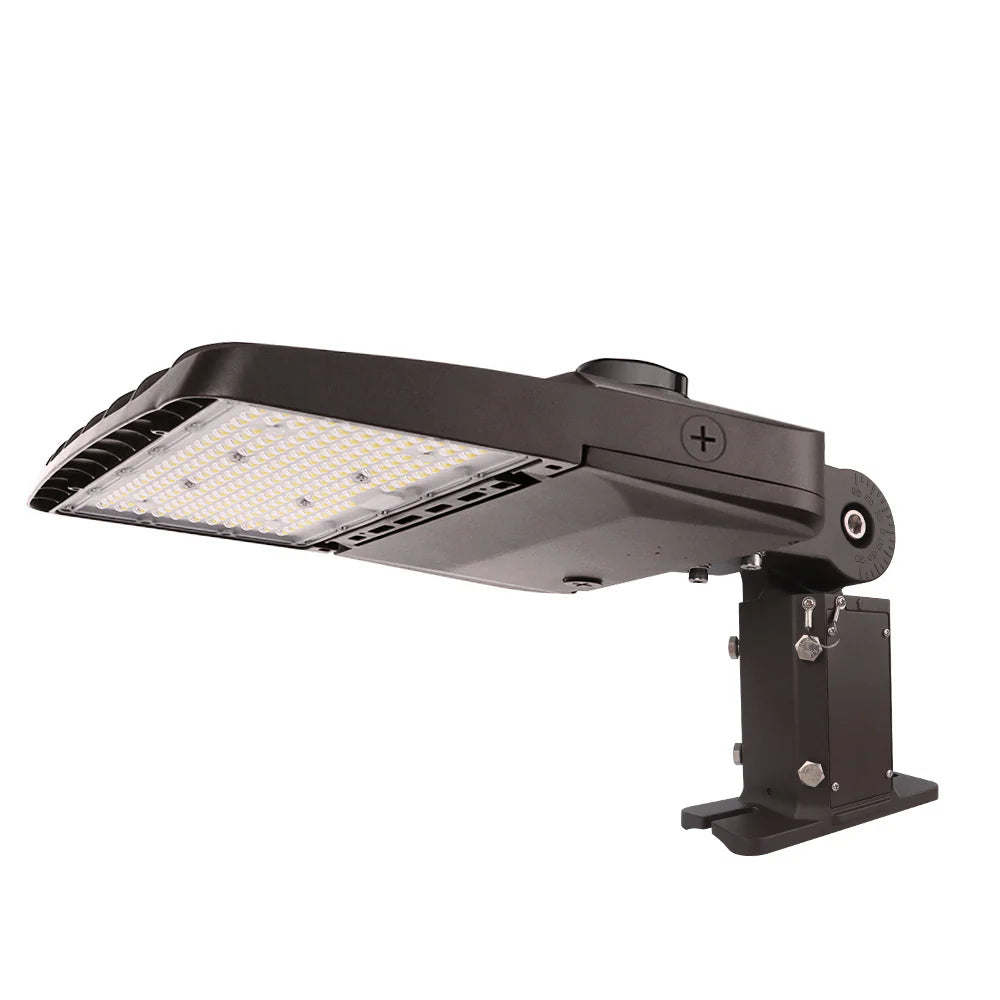

The VELA II LED light offers five mounting options, including extrusion arm, Yoke/trunnion, slip-fitter, wall mount and universal bracket (all-in-one slip fitter and pole mount extrusion arm), making it versatile for different applications
270-480V available for 150-watt and 310-watt versions.
See similar VELA II(240W/220W/200W/170W), VELA III(310W/280W/260W/240W) versions.
Applications
| • Area Lighting | • Parking Lots |
| • Streets |
• Building Façade |
| • Storage Facilities | • Underpasses & Tunnel |
| • Boat Docks & Marinas | • Billboards |
| • Outdoor event spaces | • Industrial yards |
| • Roadways & Pathways | • Security Lighting |
| • Sports Complex | • Schools & Universities |
| • Parks | • Car Dealerships |
Specifications
| Brand | Konlite | DLC Part # | KVLLMW50KLV3SF |
| Warranty | Limited 5 Years | UPC | 659359510793 |
| Input Voltage | 120-277V | Optical | Type III |
| Input Wattage | 150W/120W/100W/80W | Equal to | 400W/320W/250W MH |
| Delivered Lumens | 23K/18K/15K/12K Lumens | CRI | >70 |
| Efficacy | 160 lm/W | Available CCT | 5000K |
| Rated Life | >100,000 hrs | THD | <20% |
| Power Factor | >0.95 | IP Rating | IP65 |
| Dimmable | Call us for 1-10V Dimming Availability | Controls | Optional Dusk to Dawn Photocell |

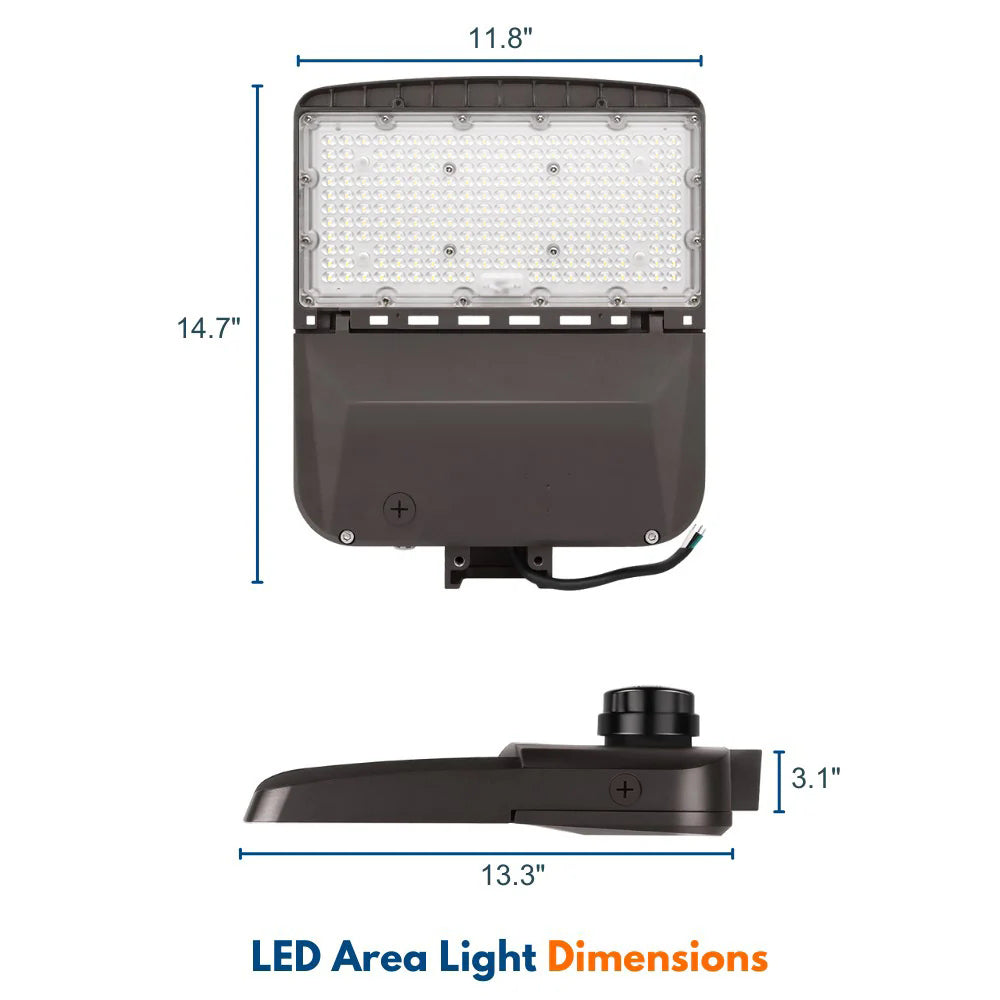

| Operating Temperature | -40 °F to 113 °F | Dimensions | See Specifications |
| Certifications | UL, Wet Locations, DLC Premium | Weight | 11 lbs |
Konlite Vela LED Parking Lot Light Video
Video of Konlite Vela LED Parking Lot Light - 150W/120W/100W/80W Selectable - Up To 23,000 Lumens
 | Download Specifications |
| Installation Guide |
| Download IES: 150W | 120W | 100W | 80W |
