Vela LED Parking Lot Light - 277-480V - 150W/120W/100W/80W - 50K/40K/30K - 23,000 Lumens - Type III - 400W Equal
The Konlite Vela LED Parking Lot light delivers superior illumination, energy saving and easy installation. Sleek and modern low profile design combined with rugged construction make the Vela series a top choice for Parking lots, Pole lights, Campuses, Public Parks, Building Areas, Arenas and Roadways.
- High luminaire efficacy, up to 160lmper Watt at maximum output
- Designed for easy one person installation
- 277-480V, 100,000 hour lifespan. 5-year warranty
- Secured payment methods. Revolve LED never stores nor has access to your card information.
- 90 days return without restocking fee*.
![$199 Free Shipping*]()
$199 Free Shipping on eligible products*![Availability: Usually Ships in one to three business days]()
Availability: Usually Ships in one to three business days.
Konlite VELA Series LED Area Light
High Performance- Designed for easy installation- 4 Mounting Options
One of the most important safety considerations for night time lighting is visibility. Increase safety and security to your buildings and lots when LED lighting clears pathways, hazards and deters crime.
You can now select your brightness and efficiency during installation to ensure the brightness meets the application and provides the amount of light you want and need for your area. Great for multi-zone facilities and helps eliminate back light waste. Provides up to 65% energy savings, long service life and quick return of investment. With a 4-way switch, you can choose from four field-selectable wattage/brightness settings ( 150W/23,000 Lm preset, 120W/18,400 Lm, 100W/15,300 Lm, 80W/12,300 Lm), to meet your specific lighting needs.
The high output LEDs and custom optics provide excellent light distribution with 160 Lumens per Watt efficiency. Type III Beam Distribution, UV resistant polycarbonate optical lens. CCT color 5000K, 4000K and 3000K selectable.

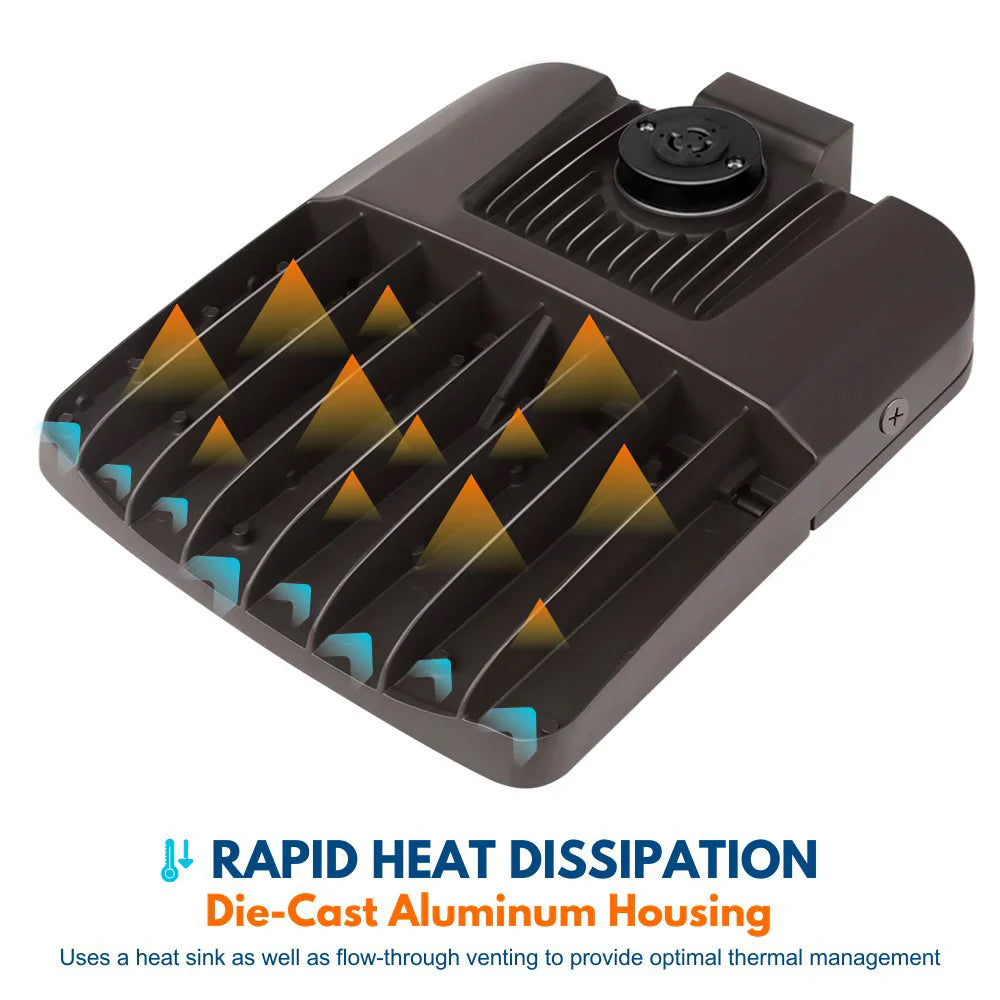

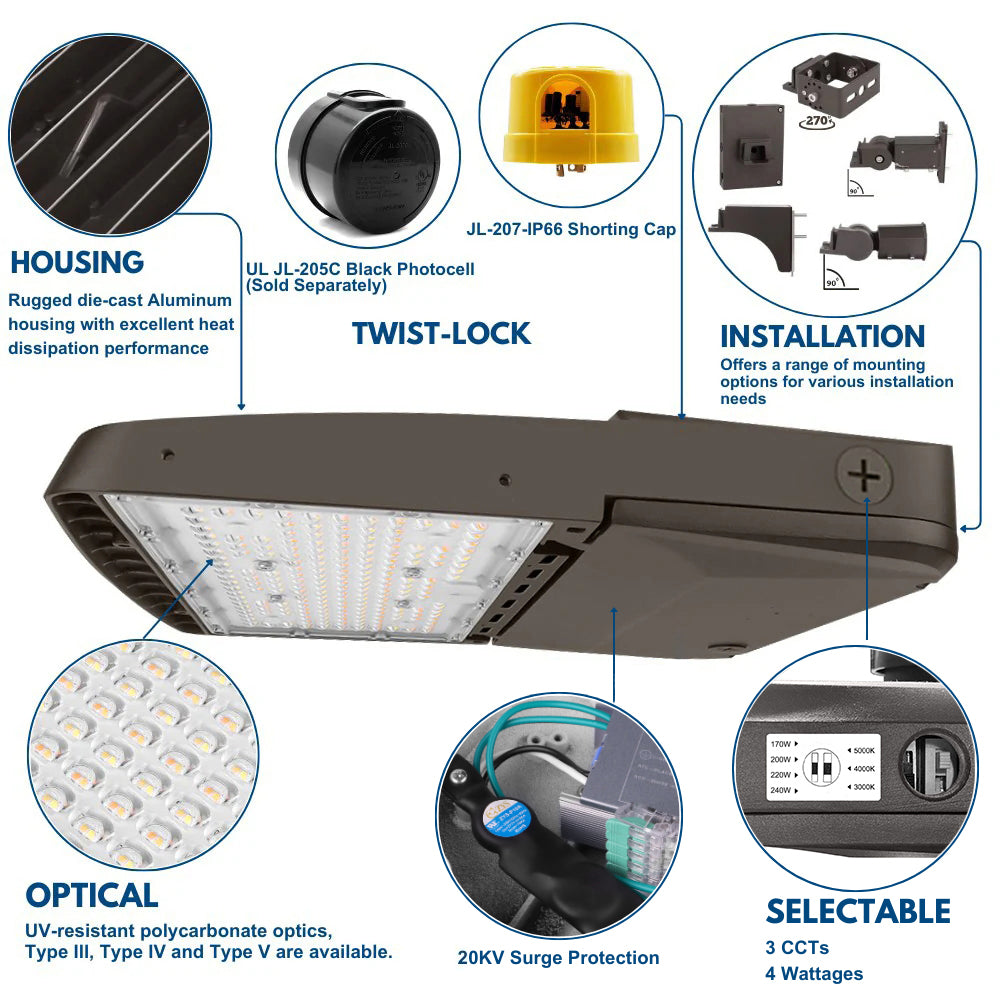

With IP65 Corrosion proof Die-cast aluminum housing and mounting brackets and built-in 10KV surge protection, it is built to withstand all weather elements, Bronze finish. The sleek and modern aesthetics combined with rugged construction make the VELA area light ideal for one to one replacement of HID/HPS or new construction projects.
Enhance your parking lot's efficiency and security with the Revolve LED Parking Lot PIR Motion Sensor. The motion sensor kits SKU is KVLH-HD09VR-PH. This cutting-edge sensor is designed to seamlessly integrate with your existing LED lighting setup, providing optimal motion detection to illuminate areas only when needed.
Low EPA, Lightweight design, 1.5G vibration load per ANSI C136.31.
Certified Quality: DLC 5.1 Premium for eligible rebates, UL, 100,000 hr. life span, 5-year warranty.

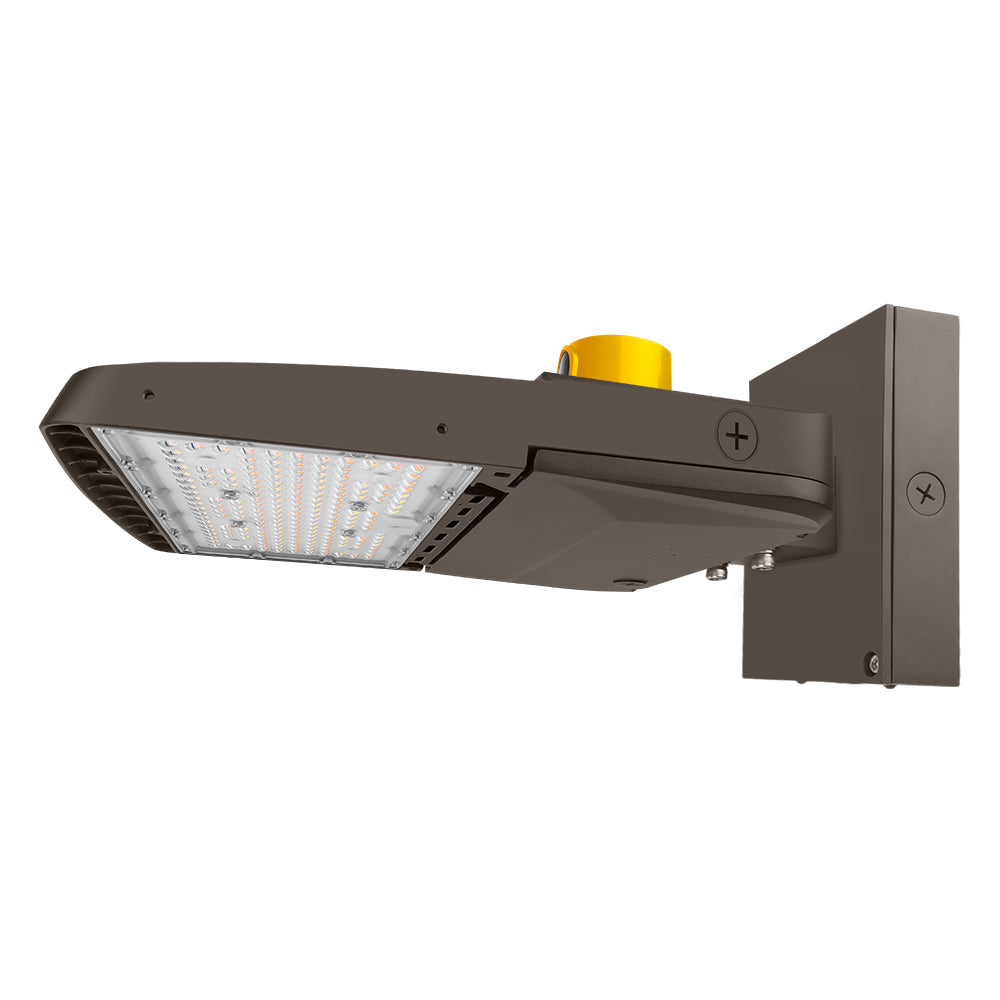

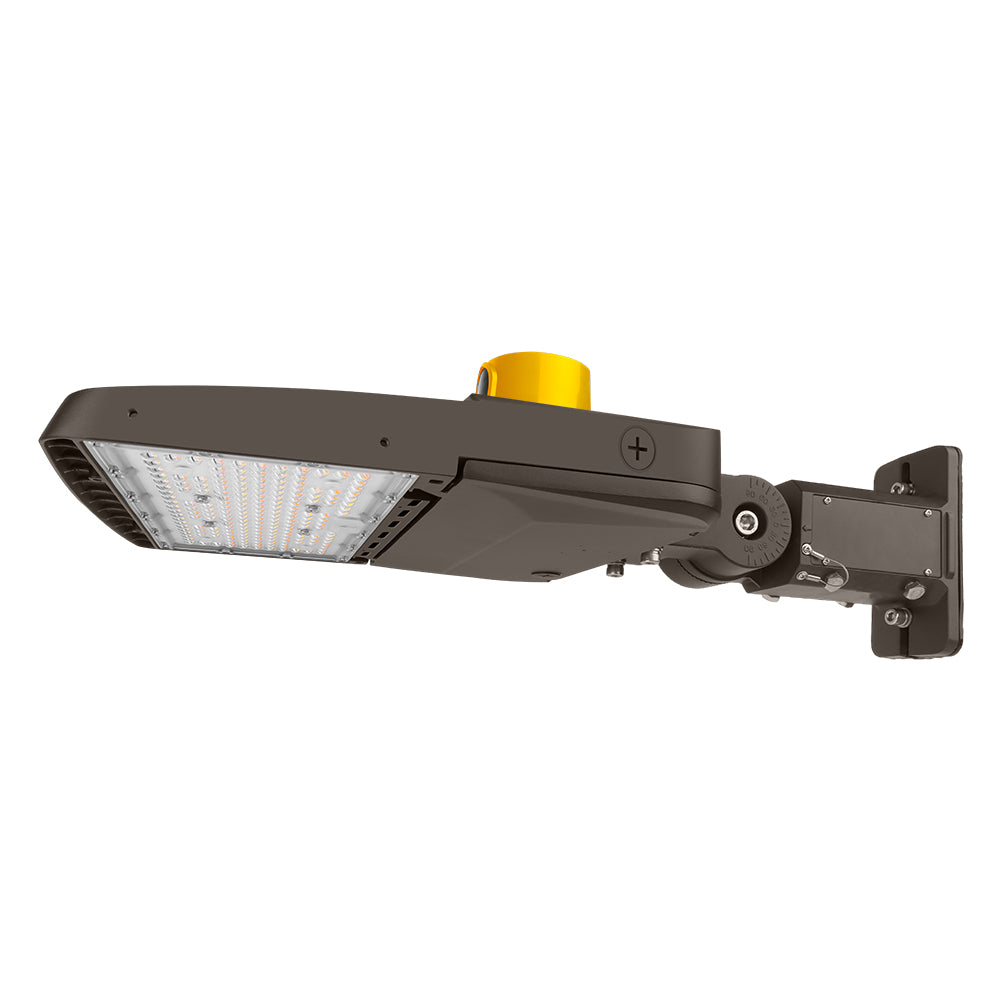

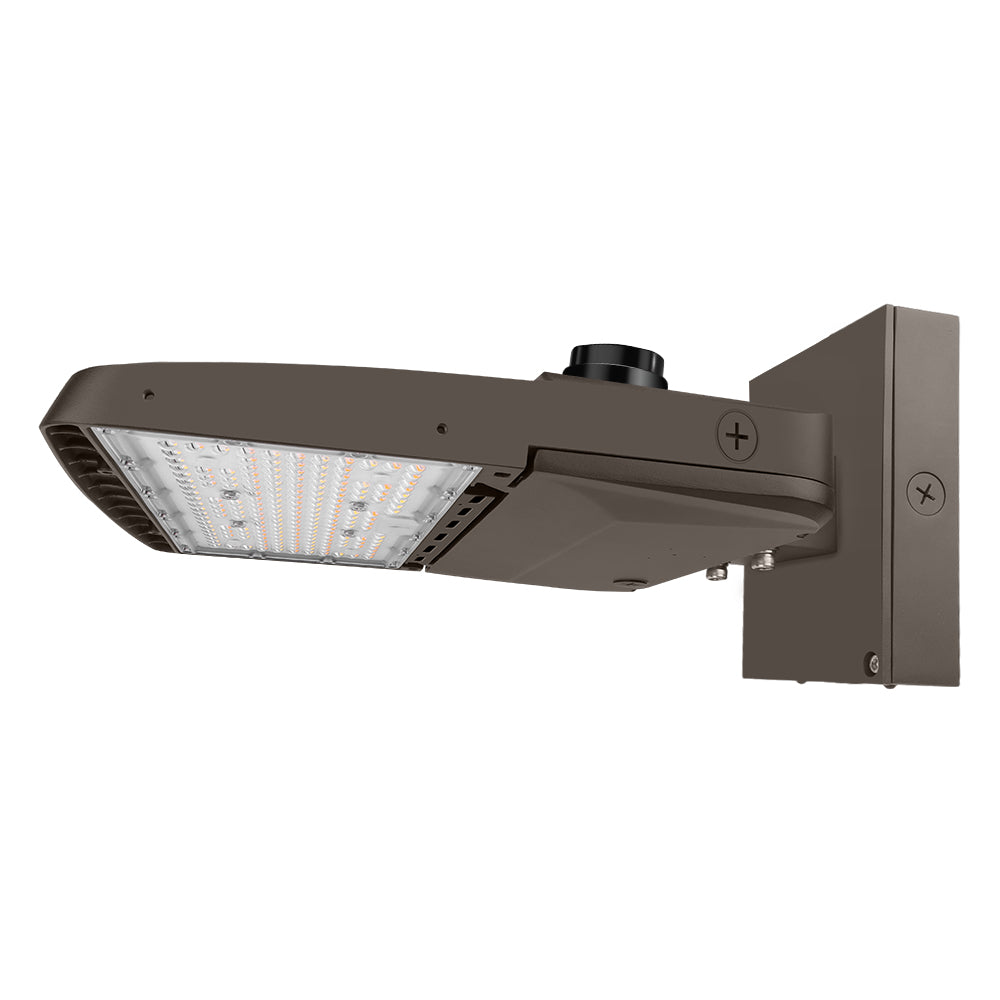

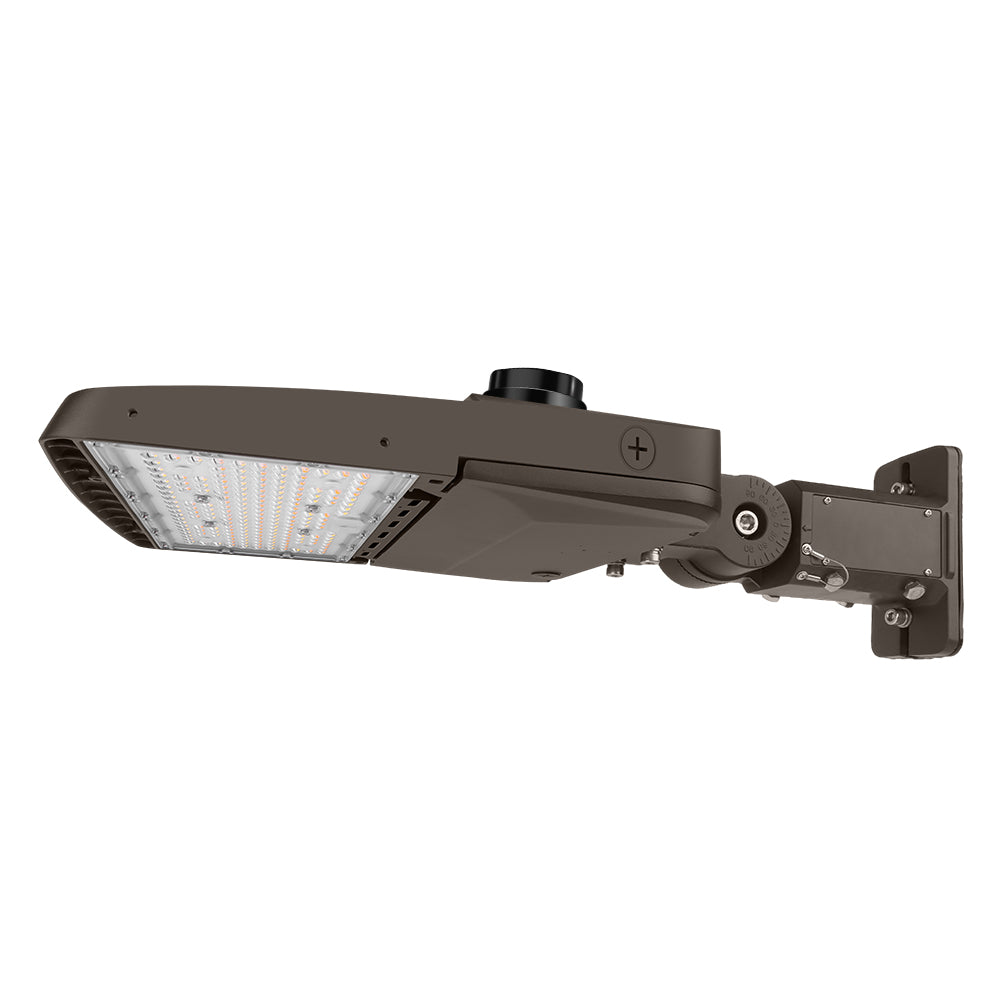

The Konlite VELA series LED Parking Lot Light can be mounted directly on round or square pole, wall or surface.
Mounting options:

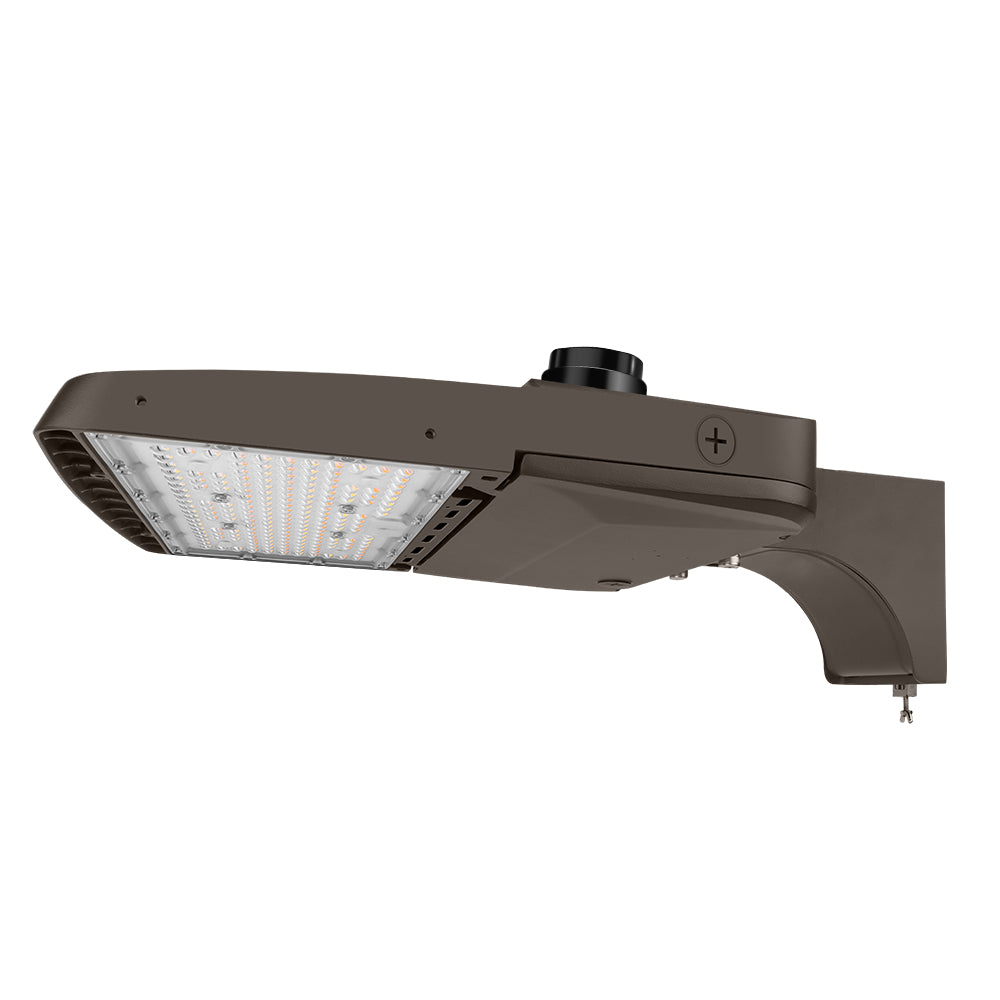

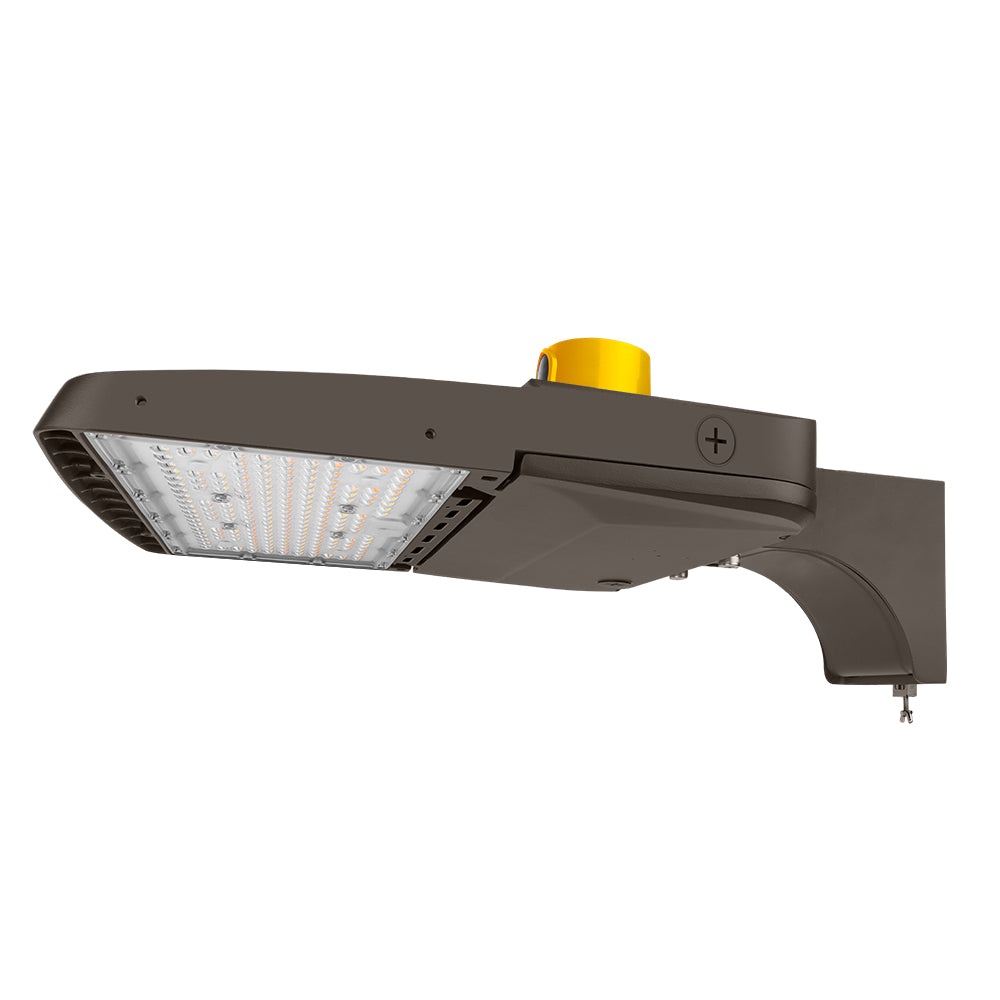

Extrusion Arm
U-Bracket / Tennon

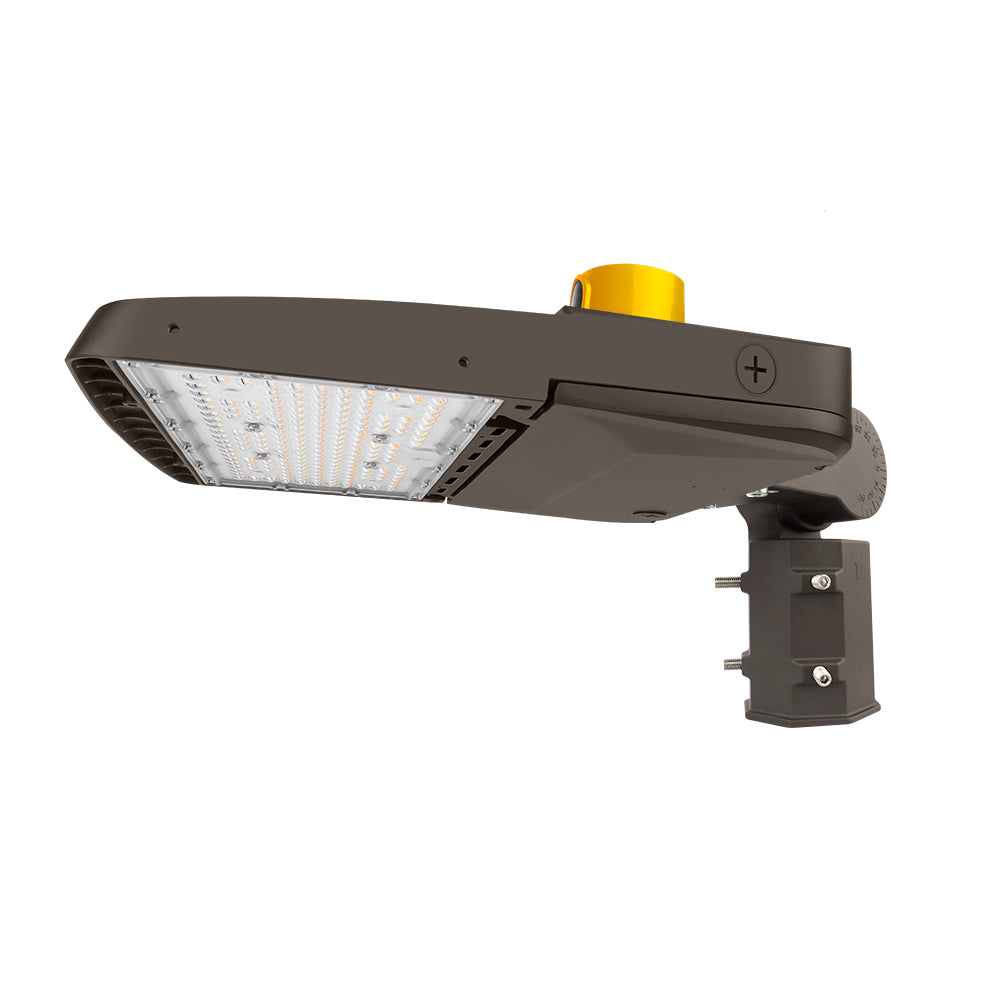

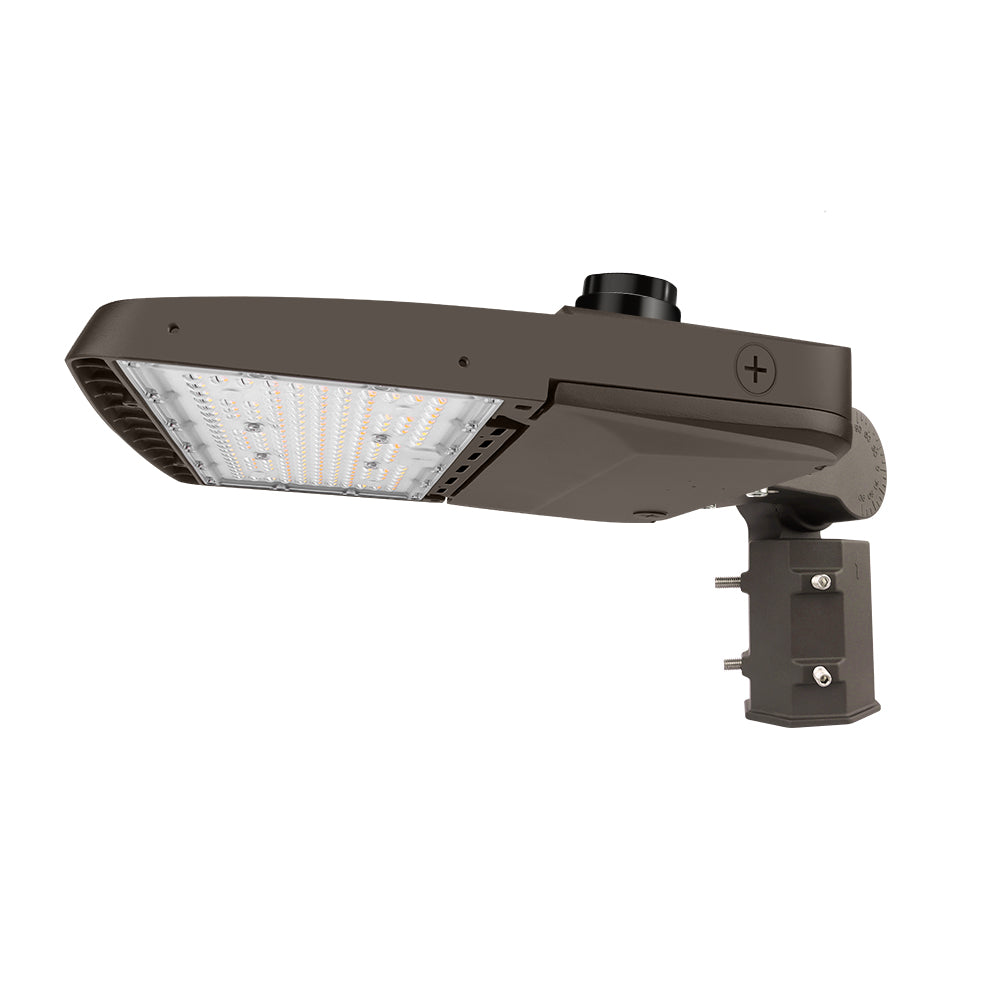

Slip-fitter
Universal Bracket: All-in-one Slip Fitter and Pole Mount Extrusion Arm
See similar 310W versions.
Applications
| • Area Lighting | • Parking Lots |
| • Streets |
• Building Façade |
| • Storage Facilities | • Underpasses & Tunnel |
| • Boat Docks & Marinas | • Billboards |
| • Warehouses | • Metal Buildings |
| • Roadways & Pathways | • Security Lighting |
| • Sports Complex | • Schools & Universities |
| • Parks | • Car Dealerships |
Specifications
| Brand | Konlite | DLC Part # | XALH150WHV50KT3[SF,PA,TR,AA,UB,WM] |
| Warranty | Limited 5 Years | DLC Partner | XSY |
| Input Voltage | 277-480V | Optical | Type III |
| Input Wattage | 150W/120W/100W/80W | Equal to | 400W MH |
| Delivered Lumens | 23,047 Lumens Max | CRI | >70 |
| Efficacy | 160 lm/W | Available CCT | 5000K/4000K/3000K |
| Rated Life | >100,000 hrs | THD | <20% |
| Power Factor | >0.9 | IP Rating | IP65 |

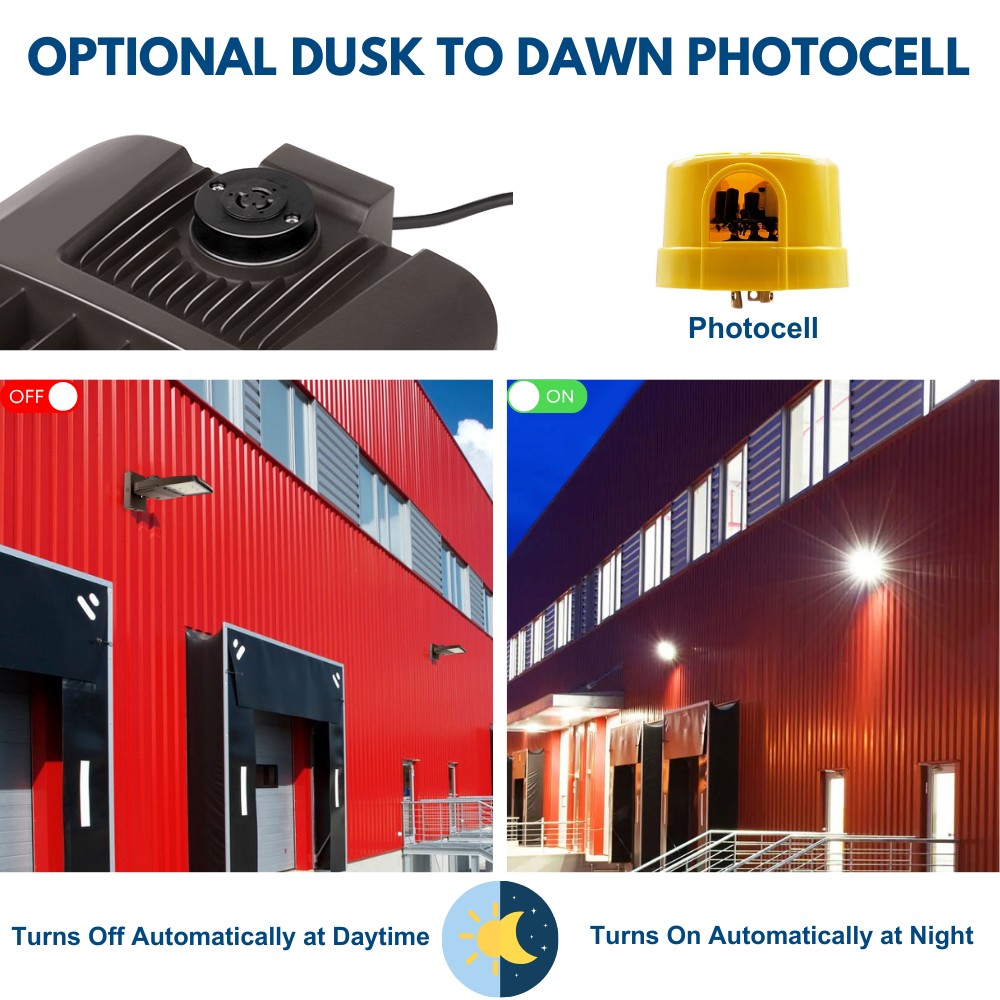

| Dimmable | N/A | Controls | 480V Photo Cell |

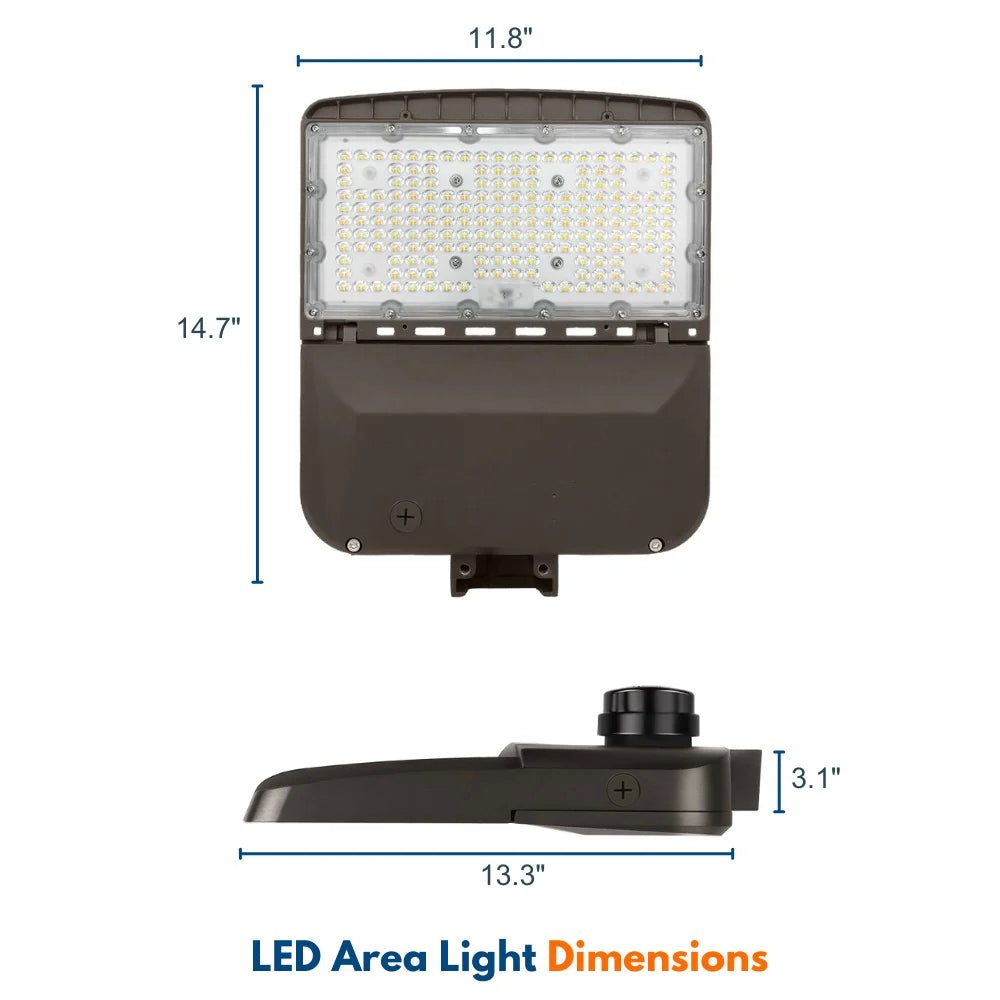

| Operating Temperature | -40 °F to 113 °F | Dimensions | See Specifications |
| Certifications | UL, Wet Locations, DLC Premium | Weight | 11.26 lbs |
Konlite Vela LED Parking Lot Light Video
Video of Konlite Vela LED Parking Lot Light - 150W - 270-480V - 22,600 Lumens
 | Download Specifications |
| Download Installation Guide |
| Download IES: 150W | 120W | 100W | 80W |
