Konlite Vela I LED Parking Lot Light - 150W/120W/100W/80W Selectable - Up to 23,000 Lumens - Type III - 120-277V - 5000K - 400W Equal

Product Search Code: 20-0401
KonliteSKU: KVLLMW50KLV3SF
$189.99 $159.86

    • Replaces 400W Metal Halide Light
    • 10KV Surge Protection
    • Price Includes One of the Mounting Brackets
    • Certificates: UL, DLC 5.1 Premium
    • 5-Year Warranty
    • Watts and Lumens Selectable:
      • 150W = 23,047 (Preset)
      • 120W = 18,438
      • 100W = 15,372
      • 80W = 12,307

    • Replaces 400W Metal Halide Light
    • 10KV Surge Protection
    • Price Includes One of the Mounting Brackets
    • Certificates: UL, DLC 5.1 Premium
    • 5-Year Warranty
    • Watts and Lumens Selectable:
      • 150W = 23,047 (Preset)
      • 120W = 18,438
      • 100W = 15,372
      • 80W = 12,307

Illuminate your parking lots, pole lights, campuses, public parks, building areas, arenas and roadways with this Konlite Vela series LED Parking Lot, LED Shoebox light. This sleek and modern LED light delivers superior illumination, energy saving and easy installation.

  • 4-phase lumen electability across 3 housing sizes of Vela I ( this one ), II  & III.
  • High luminaire efficacy, up to 160lm/W at maximum output
  • Designed for easy one-person installation.
  • 100,000 hour lifespan. 5-year warranty
show more
$189.99 $159.86


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

Illuminate your parking lots, pole lights, campuses, public parks, building areas, arenas and roadways with this Konlite Vela series LED Parking Lot, LED Shoebox light. This sleek and modern LED light delivers superior illumination, energy saving and easy installation.

  • 4-phase lumen electability across 3 housing sizes of Vela I ( this one ), II  & III.
  • High luminaire efficacy, up to 160lm/W at maximum output
  • Designed for easy one-person installation.
  • 100,000 hour lifespan. 5-year warranty
What's in the box
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Shorting Cap or 1 Dusk to Dawn Photocell - 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Shorting Cap or 1 Dusk to Dawn Photocell - 1 Installation Guide

Product Overview

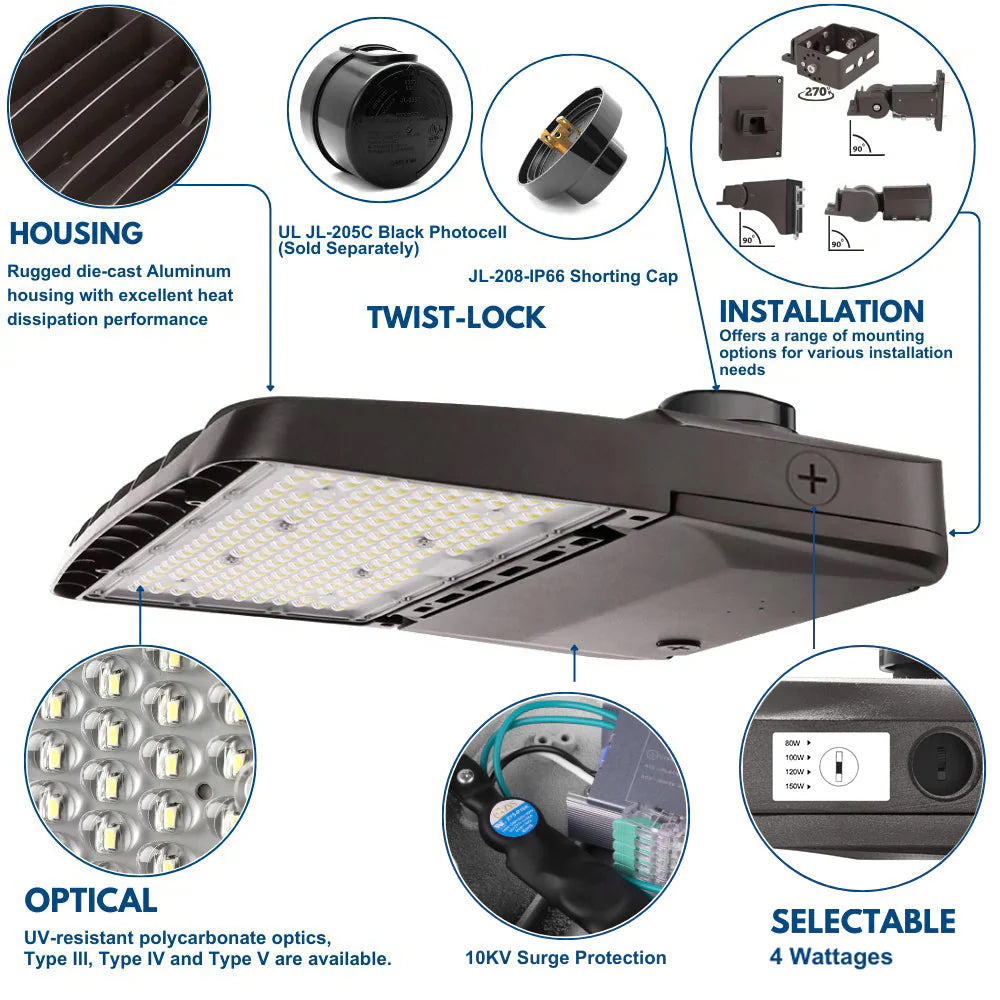

Upgrade your outdoor lighting with the Konlite VELA I LED Parking Lot Shoebox Light, designed for superior illumination and energy savings. With a 4-way switch, this LED light allows you to choose from four field-selectable wattage/brightness settings (150W/23,047 Lm preset, 120W/18,438 Lm, 100W/15,372 Lm, 80W/12,307 Lm) to meet your specific lighting needs.

Increase safety and security for your buildings and lots with this LED parking lot light and pole light, which provides excellent light distribution with high output LEDs and custom optics, resulting in 155 Lumens per Watt Efficiency. The VELA I LED light offers a type III beam distribution standard, UV-resistant polycarbonate optical lens, and 1-10V dimming with 5000K CCT.

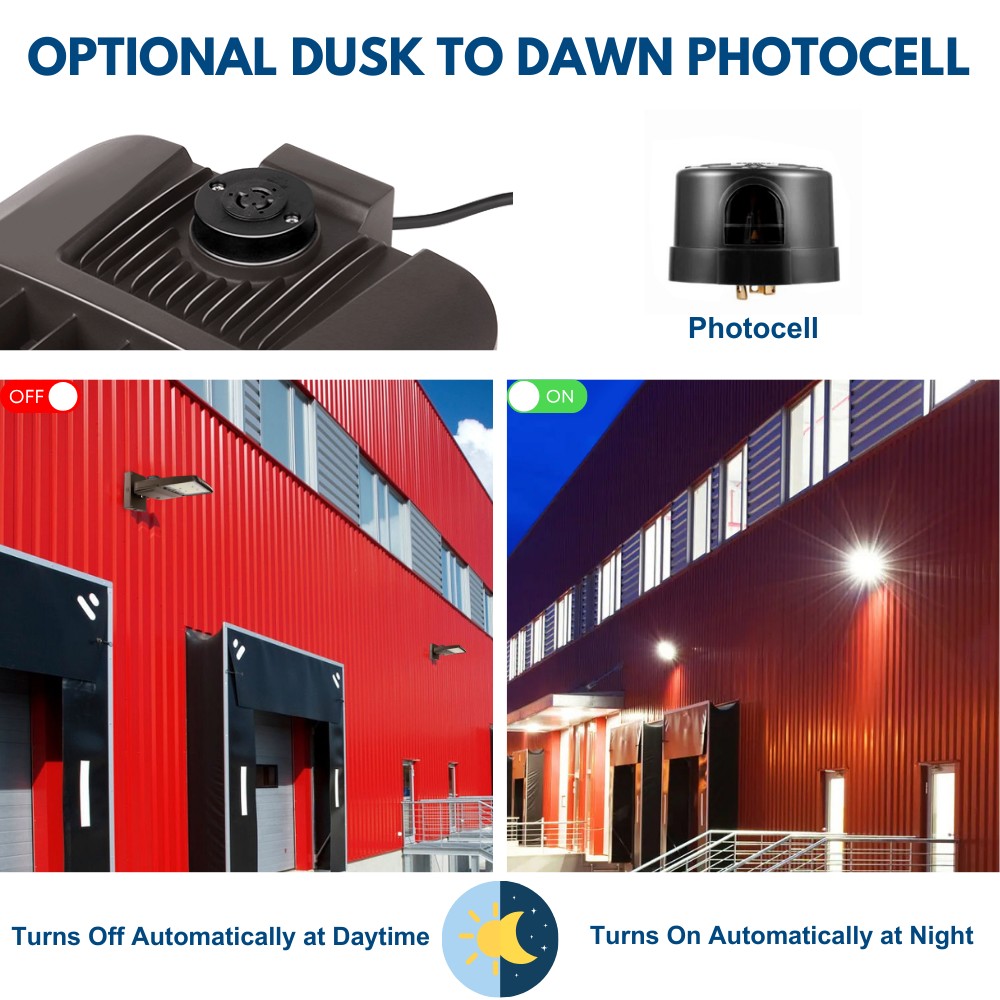

This LED light is compatible with dusk-to-dawn photocell and PIR motion sensor (please call for motion sensor availability), making it a smart and energy-efficient lighting solution. It offers up to 65% energy savings, long service life, and quick return on investment.

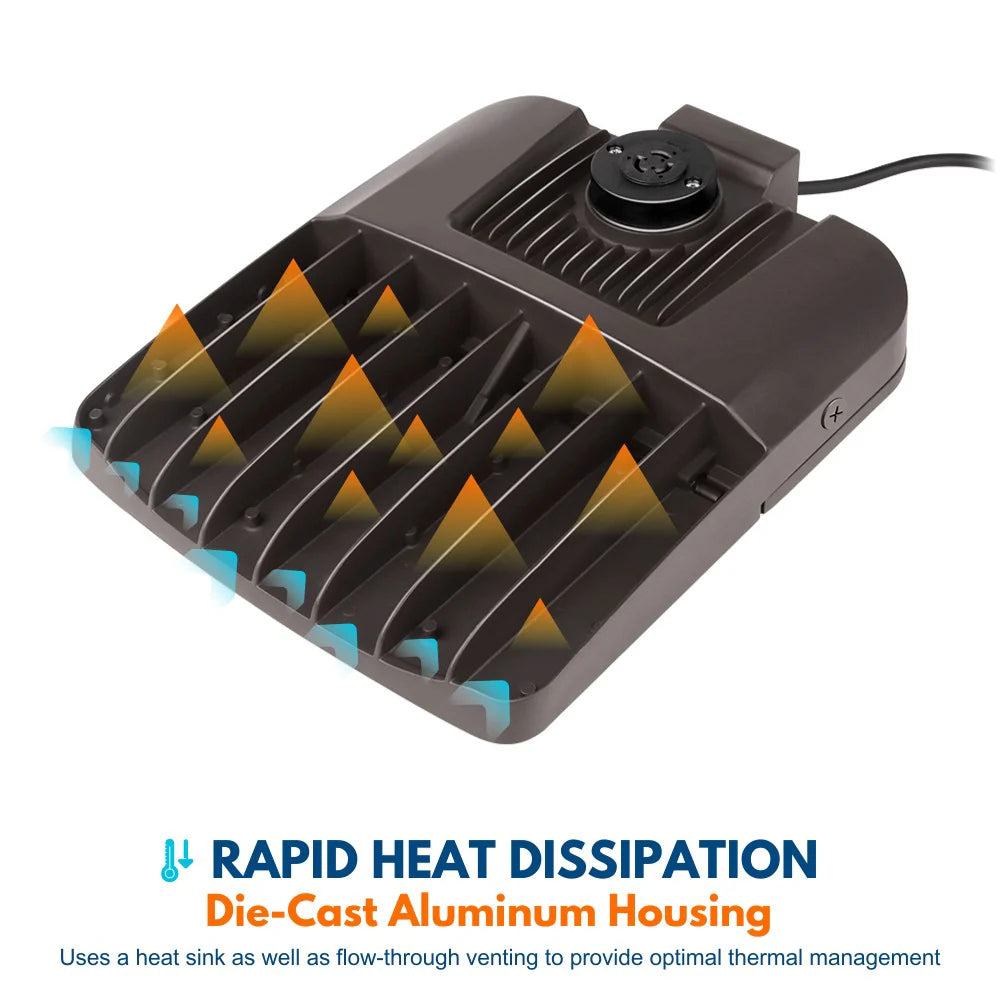

With its IP65 corrosion-proof die-cast aluminum housing and mounting brackets, the VELA I LED light is built to withstand all weather elements. It offers built-in 10KV surge protection, ensuring a reliable and long-lasting lighting solution.

Certified for quality, the Konlite VELA I LED Parking Lot Shoebox Light is DLC 5.1 Premium for eligible rebates, UL certified, and boasts a 100,000-hour lifespan. The lightweight design and low EPA rating with a 1.5G vibration load per ANSI C136.31 make this LED light easy to install and a top choice for one-to-one replacement HID/HPS of from 250 Watt to 400 Watt equivalent or new construction projects.

Enhance your parking lot's efficiency and security with the Revolve LED Parking Lot PIR Motion Sensor. The motion sensor kits SKU is KVLH-HD09VR-PH. This cutting-edge sensor is designed to seamlessly integrate with your existing LED lighting setup, providing optimal motion detection to illuminate areas only when needed.

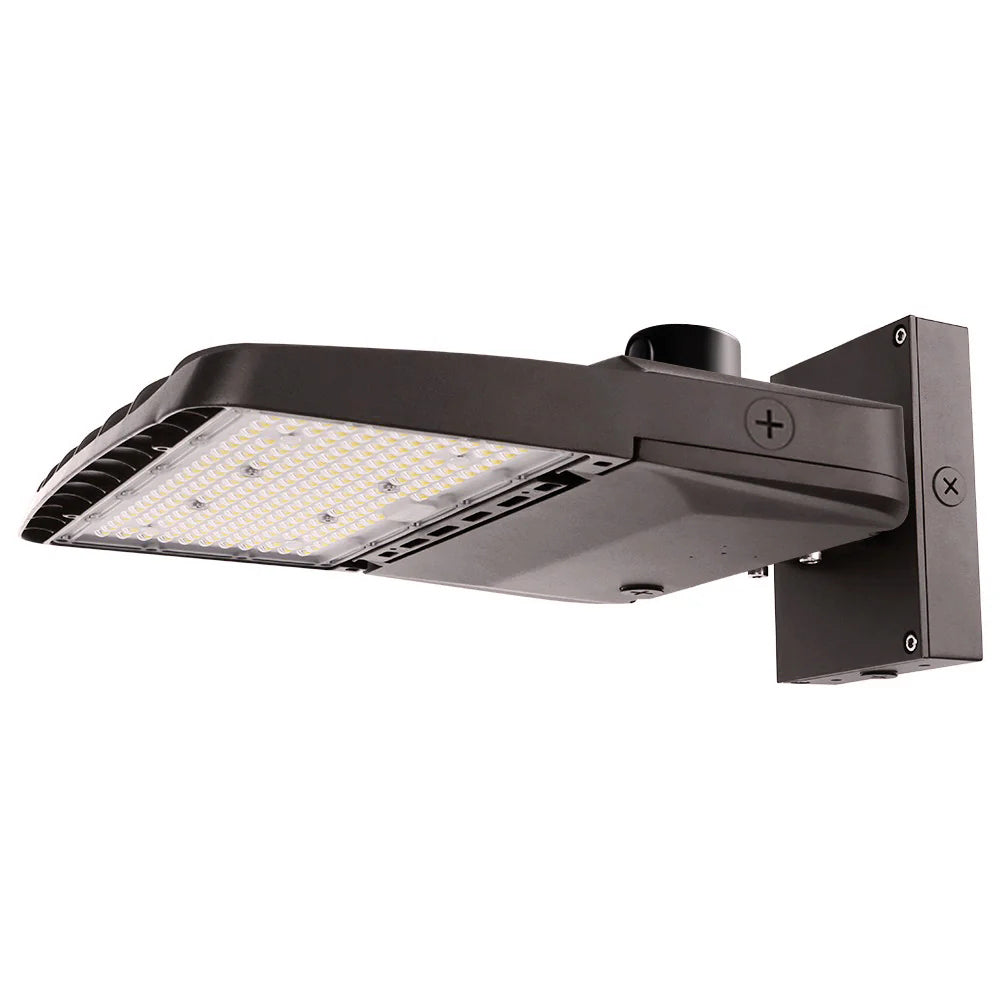

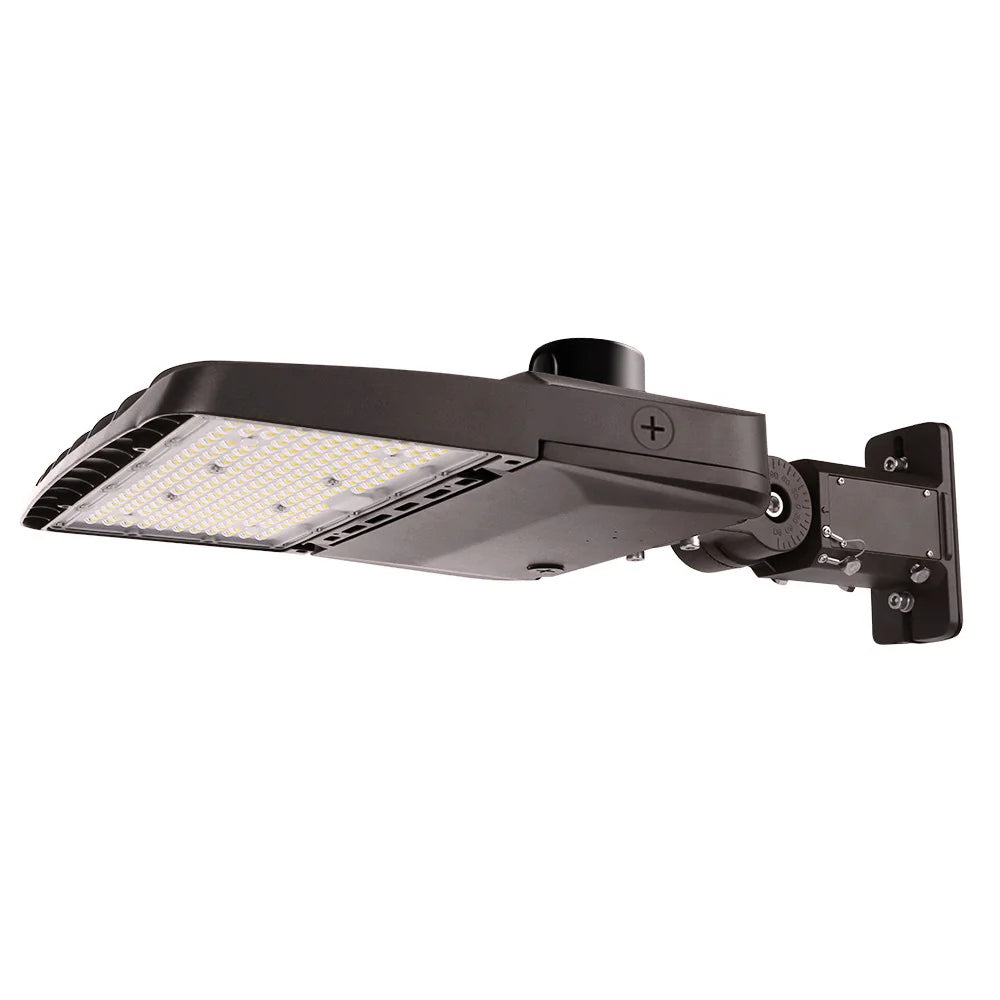

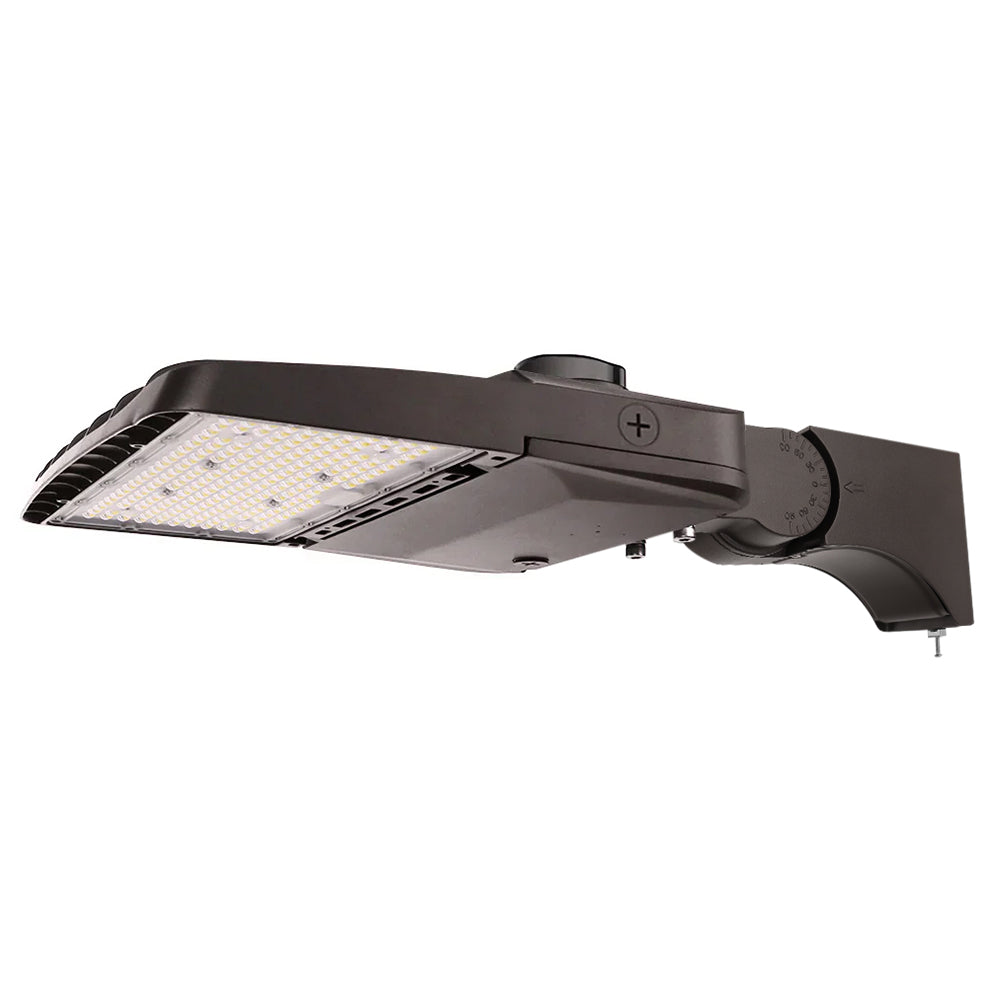

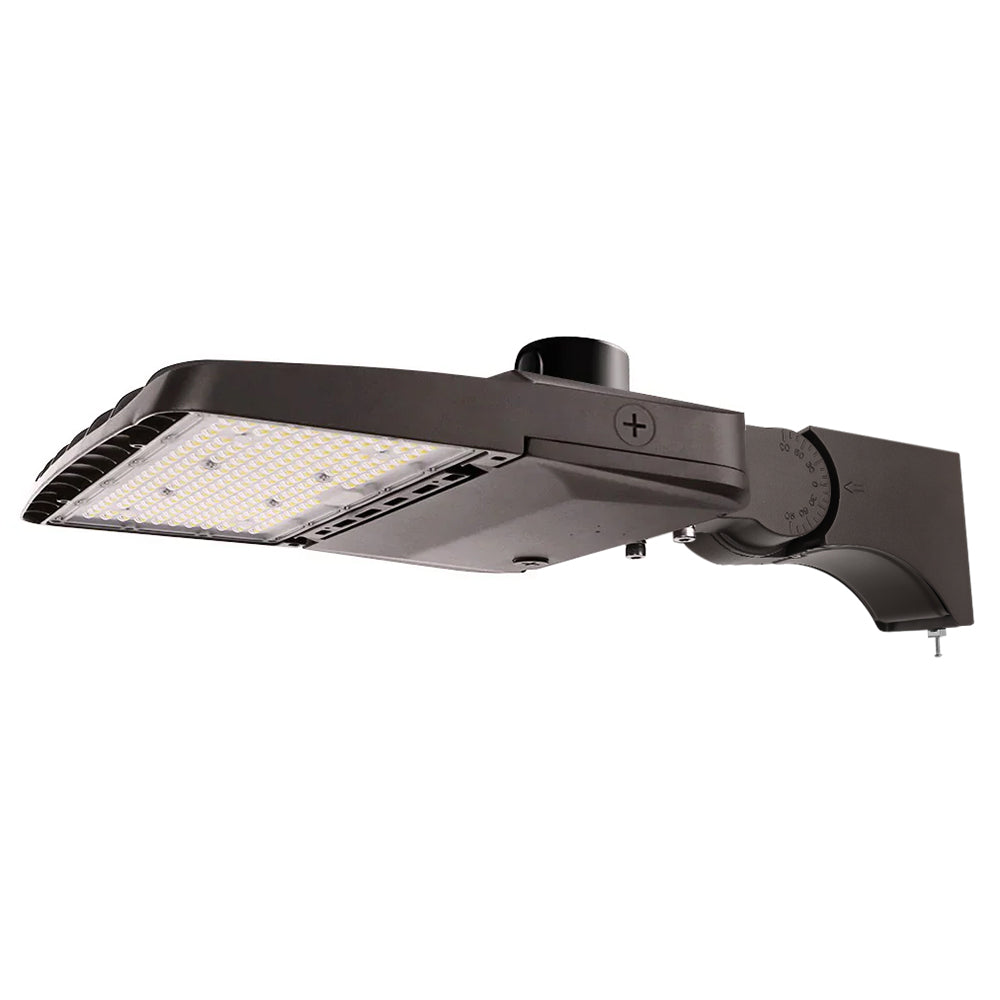

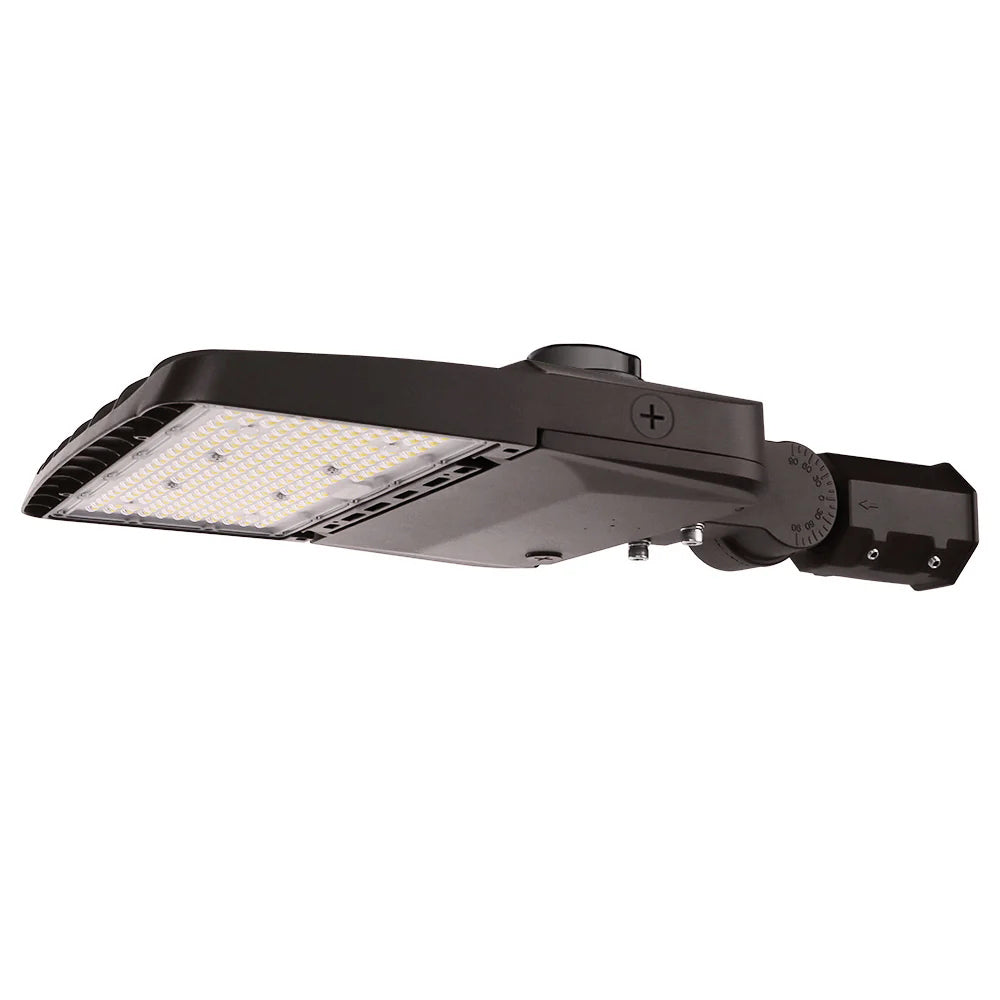

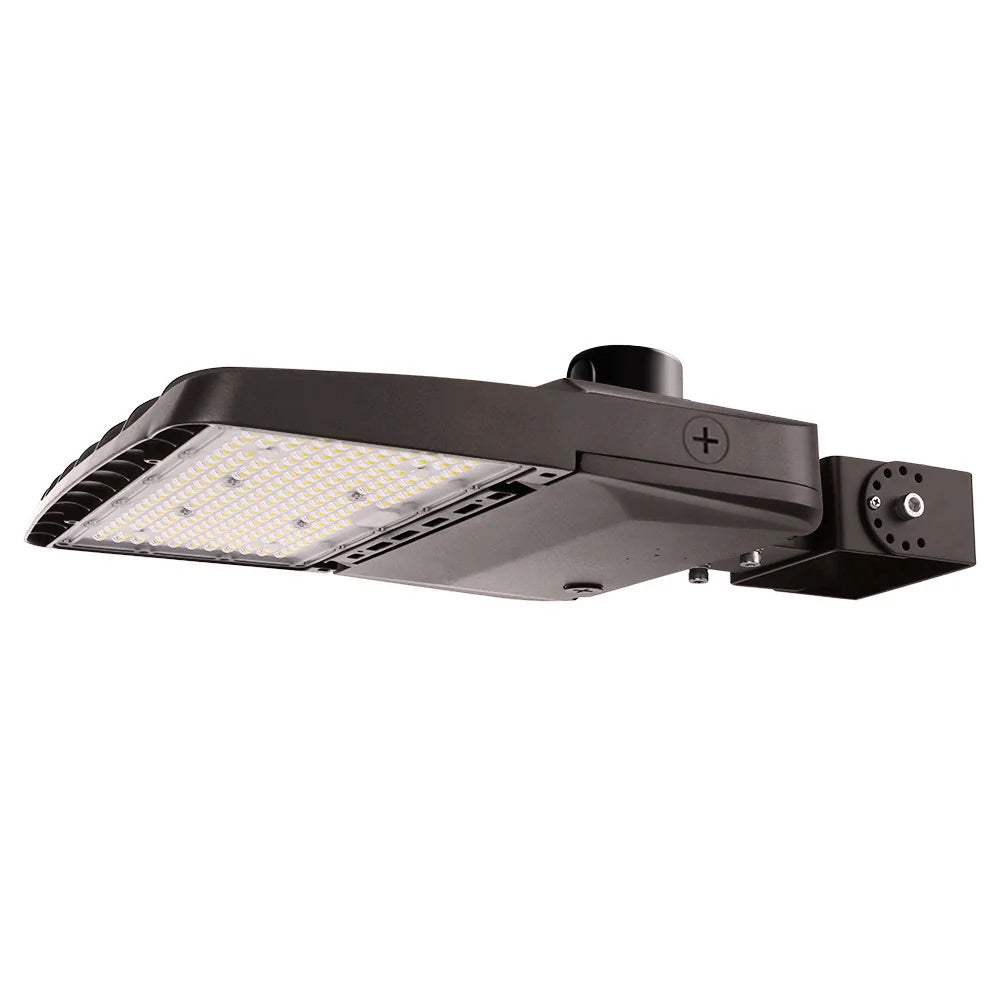

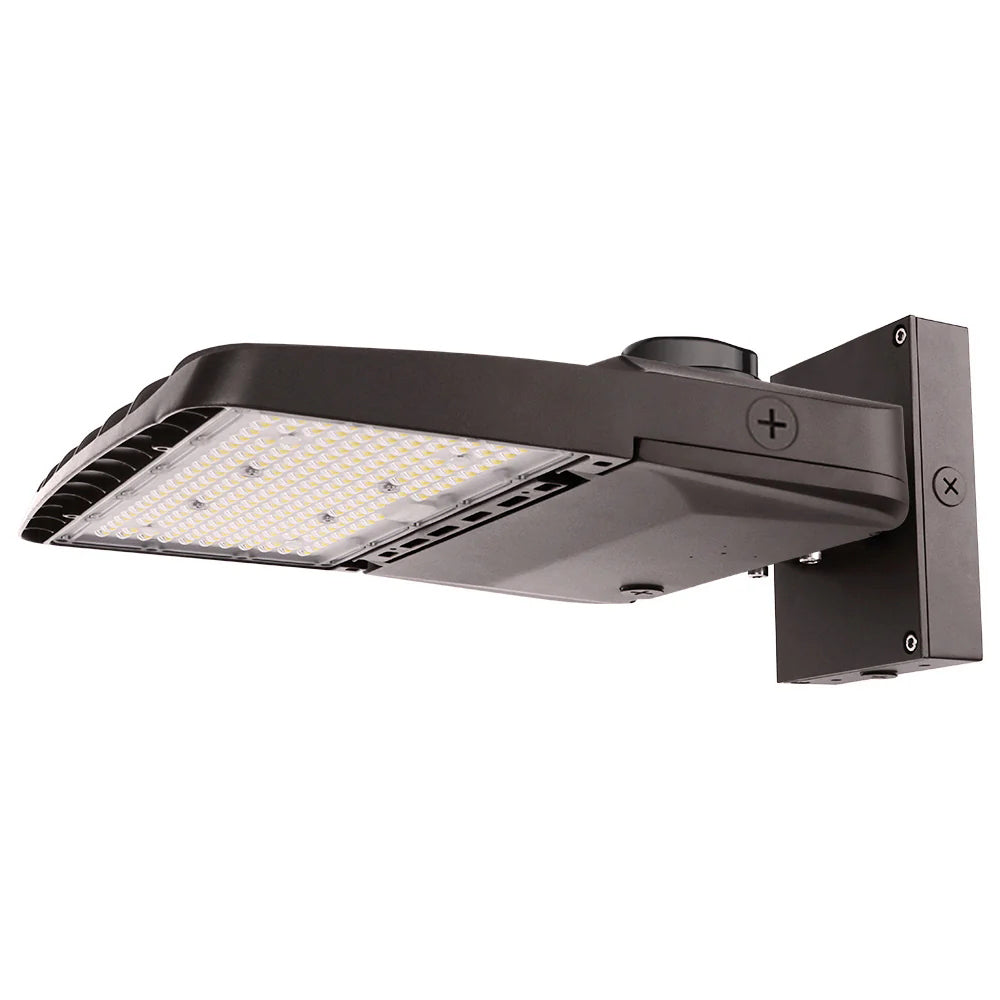

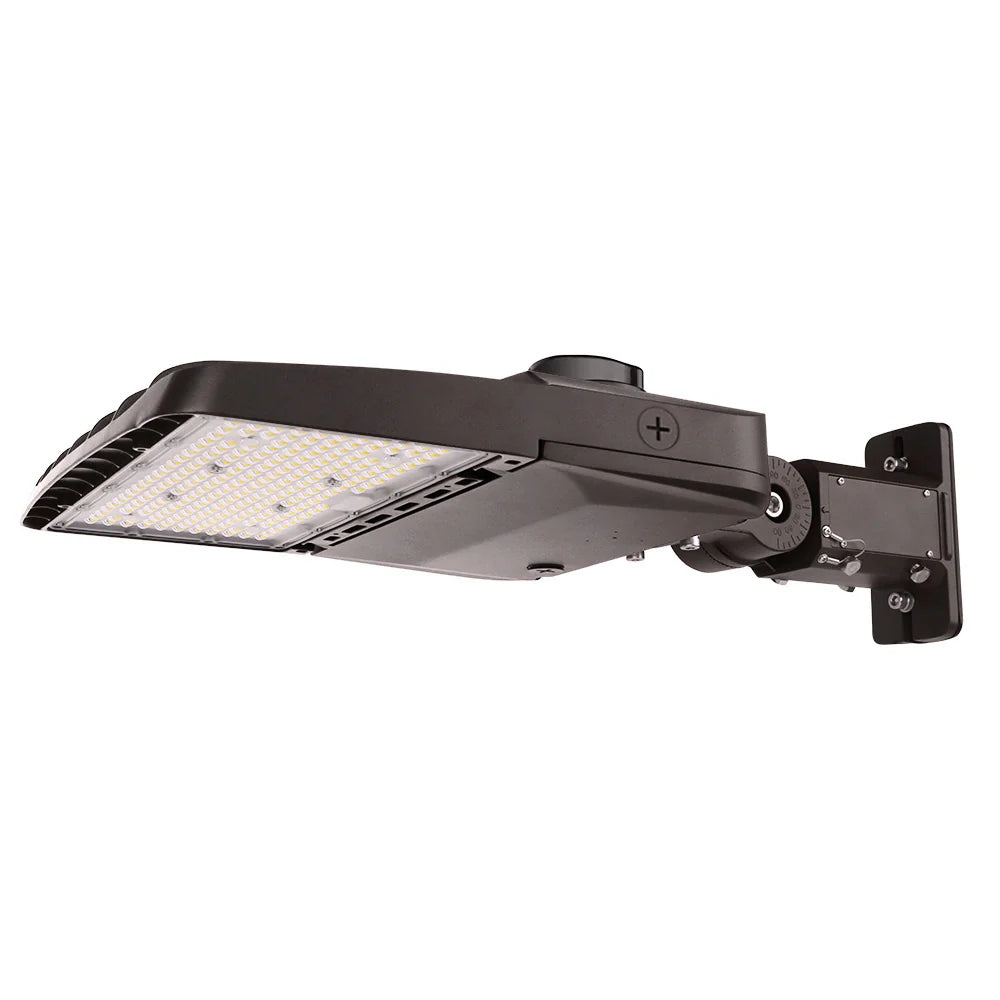

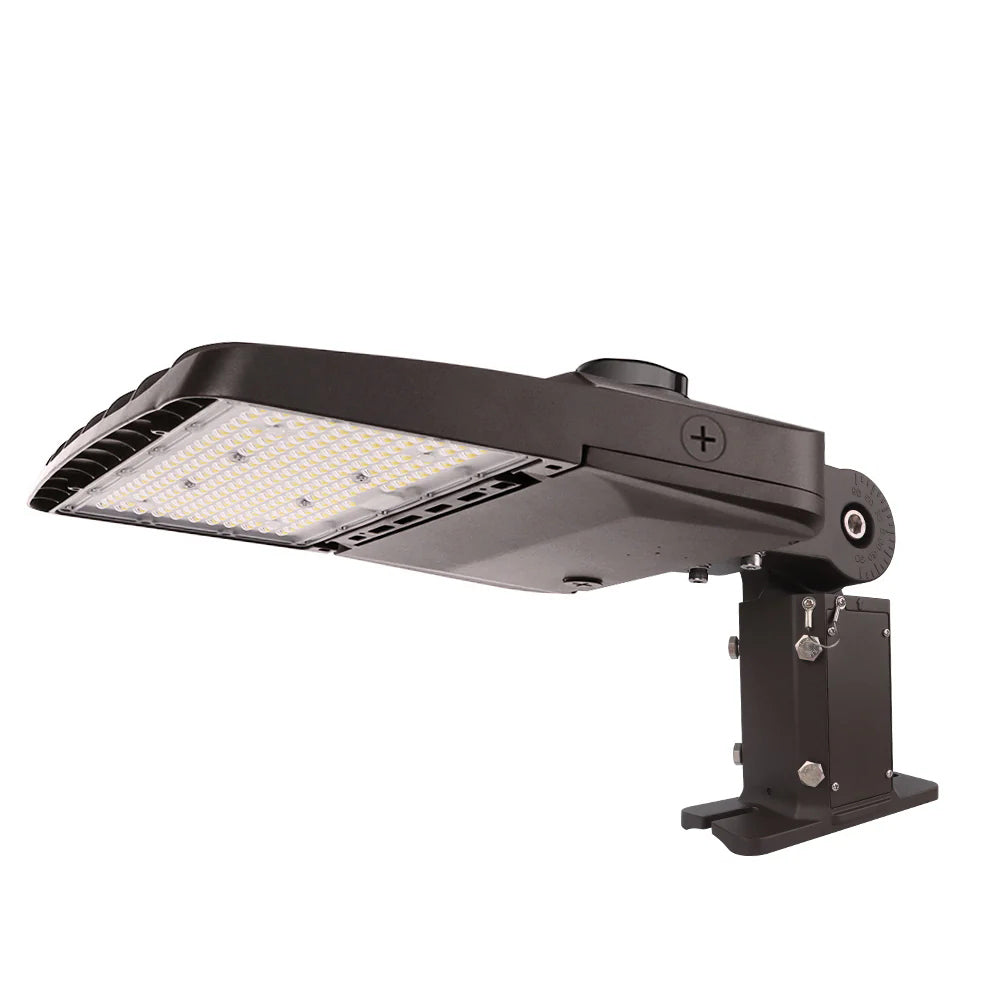

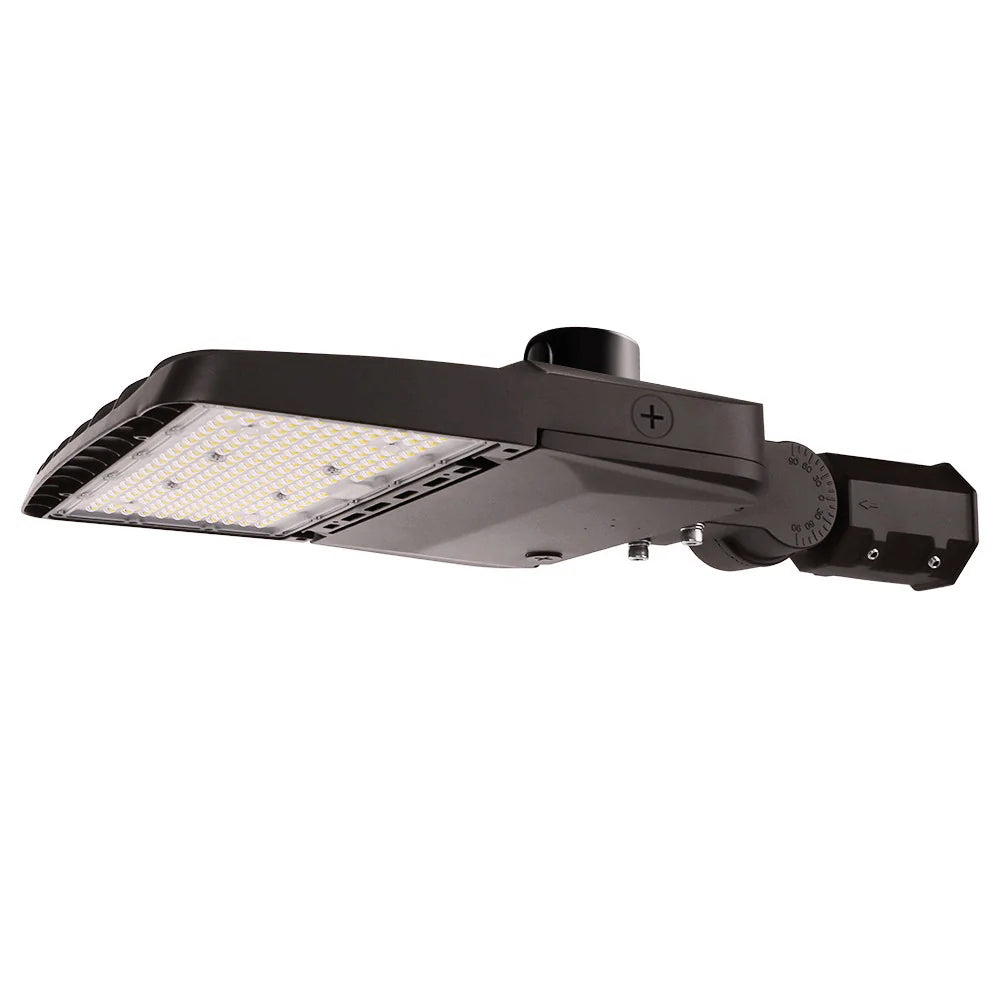

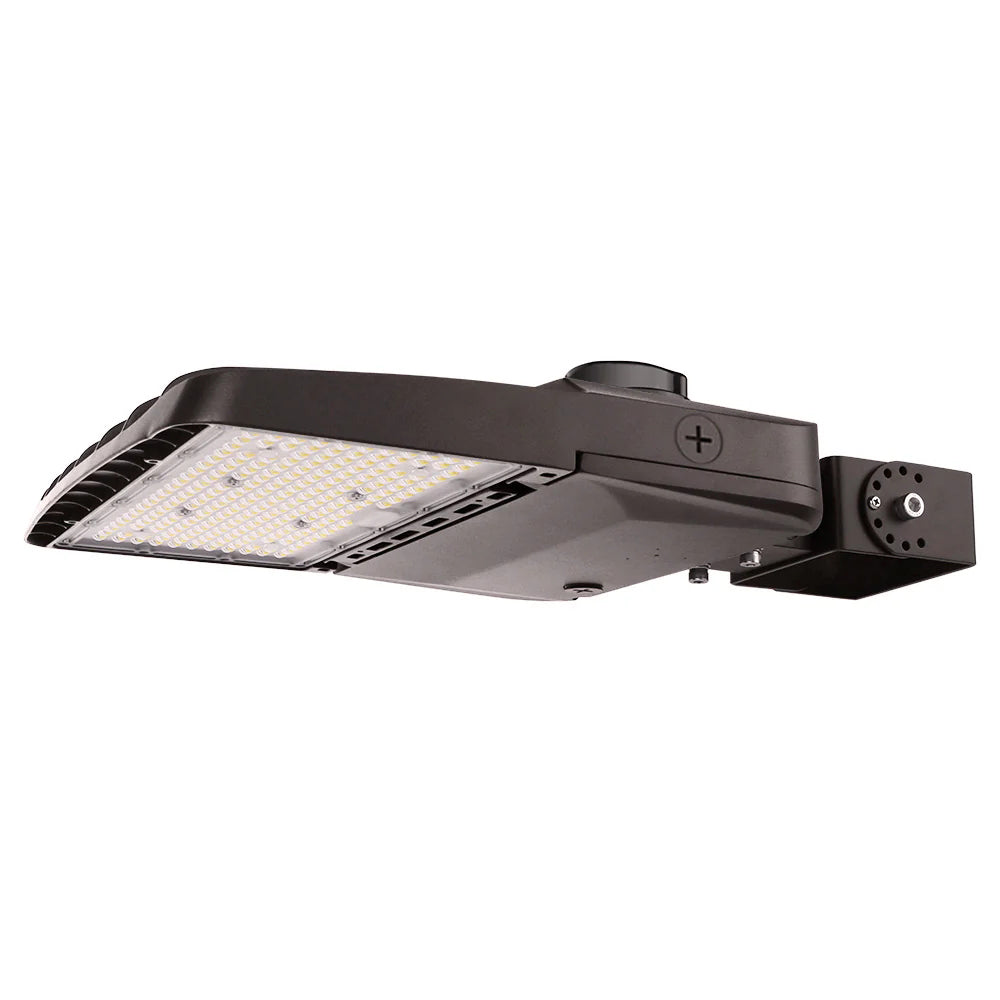

The VELA II LED light offers five mounting options, including extrusion arm, Yoke/trunnion, slip-fitter, wall mount and universal bracket (all-in-one slip fitter and pole mount extrusion arm), making it versatile for different applications

270-480V available for 150-watt and 310-watt versions.

See similar VELA II(240W/220W/200W/170W), VELA III(310W/280W/260W/240W) versions.

Applications

• Area Lighting • Parking Lots
• Streets

• Building Façade

• Storage Facilities • Underpasses & Tunnel
• Boat Docks & Marinas • Billboards
• Outdoor event spaces • Industrial yards
• Roadways & Pathways • Security Lighting
• Sports Complex • Schools & Universities
• Parks • Car Dealerships
Color Temperature 5000K color temperature
Certifications
US company5 years warrantyUL listed1-10V dimmableDLC PremiumRoHS compliance FCC certificationIP65 rating

Specifications

BrandKonliteDLC Part #KVLLMW50KLV3SF
WarrantyLimited 5 YearsUPC659359510793
Input Voltage120-277VOpticalType III
Input Wattage150W/120W/100W/80WEqual to400W/320W/250W MH
Delivered Lumens23K/18K/15K/12K LumensCRI>70
Efficacy160 lm/WAvailable CCT5000K
Rated Life>100,000 hrsTHD<20%
Power Factor>0.95IP RatingIP65
DimmableCall us for 1-10V Dimming AvailabilityControlsOptional Dusk to Dawn Photocell

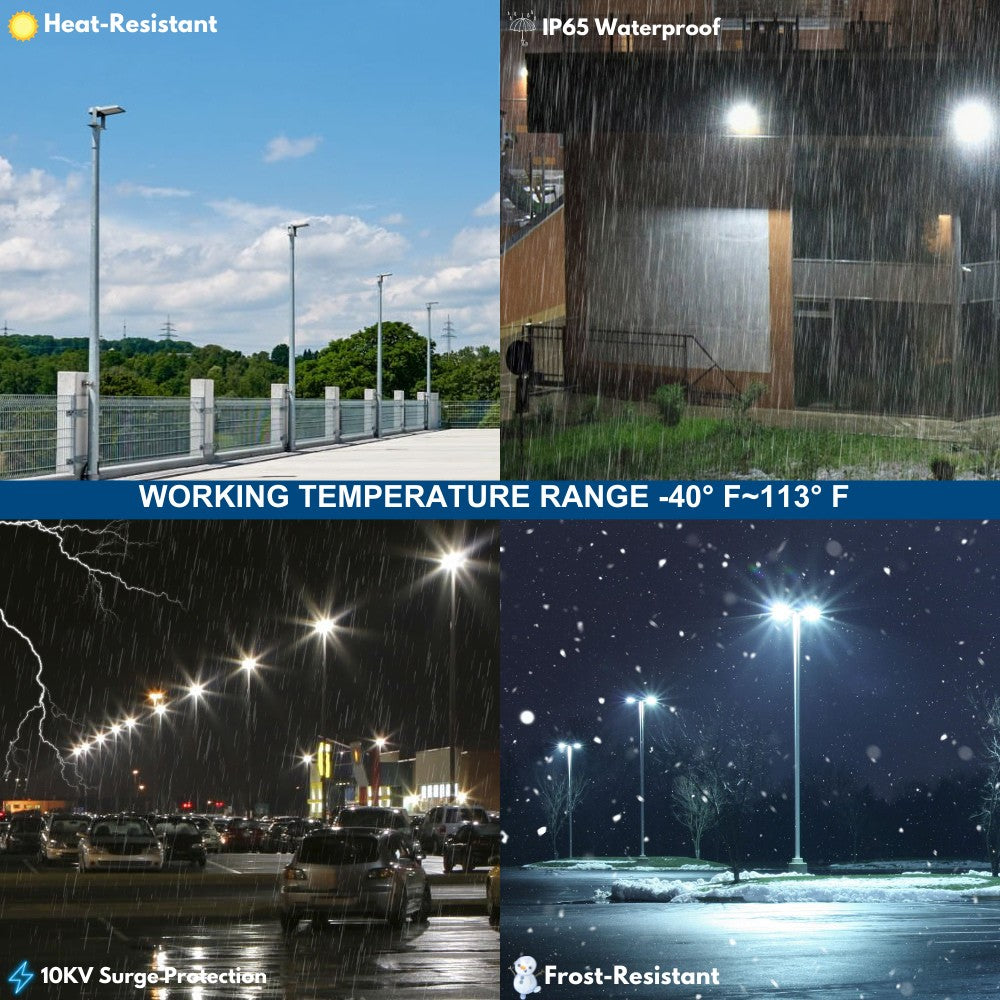

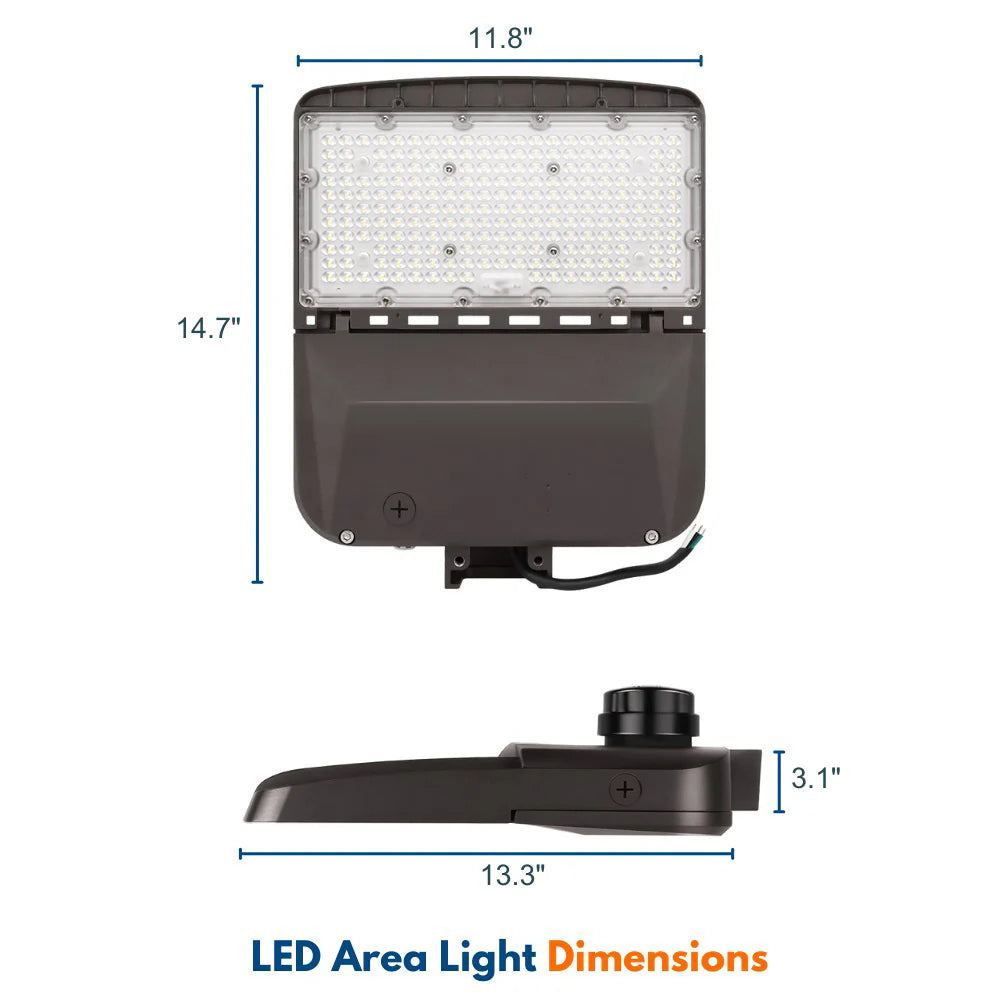

Operating Temperature-40 °F to 113 °FDimensionsSee Specifications
CertificationsUL, Wet Locations, DLC PremiumWeight11 lbs

Konlite Vela LED Parking Lot Light Video

Video of Konlite Vela LED Parking Lot Light - 150W/120W/100W/80W Selectable - Up To 23,000 Lumens
