Product Overview

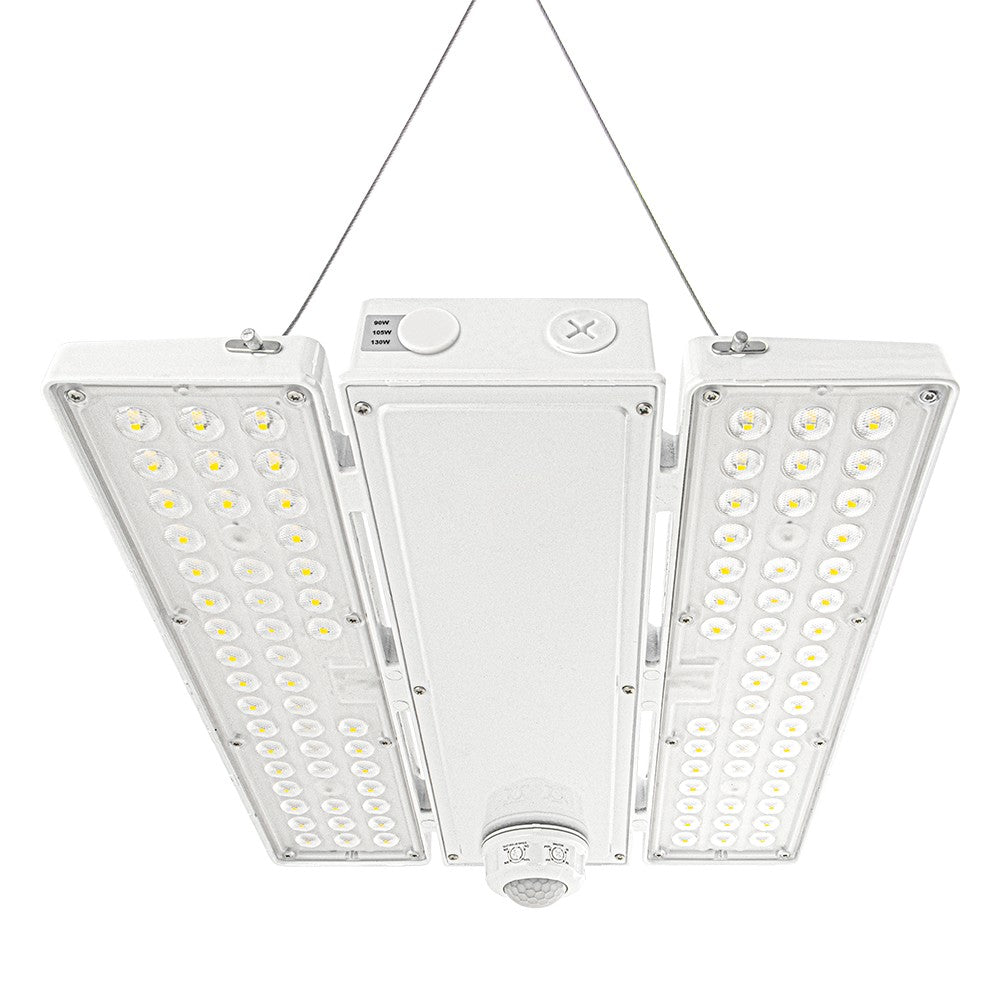

Experience the affordability and exceptional performance of the Konlite PAVO series LED High Bay Light, featuring a compact and durable housing that delivers industry-leading performance. This 320-watt Metal Halide or HID replacement ensures substantial energy savings and improved efficiency. The compact design guarantees easy handling and quick installation, making it the perfect choice for modern lighting upgrades.

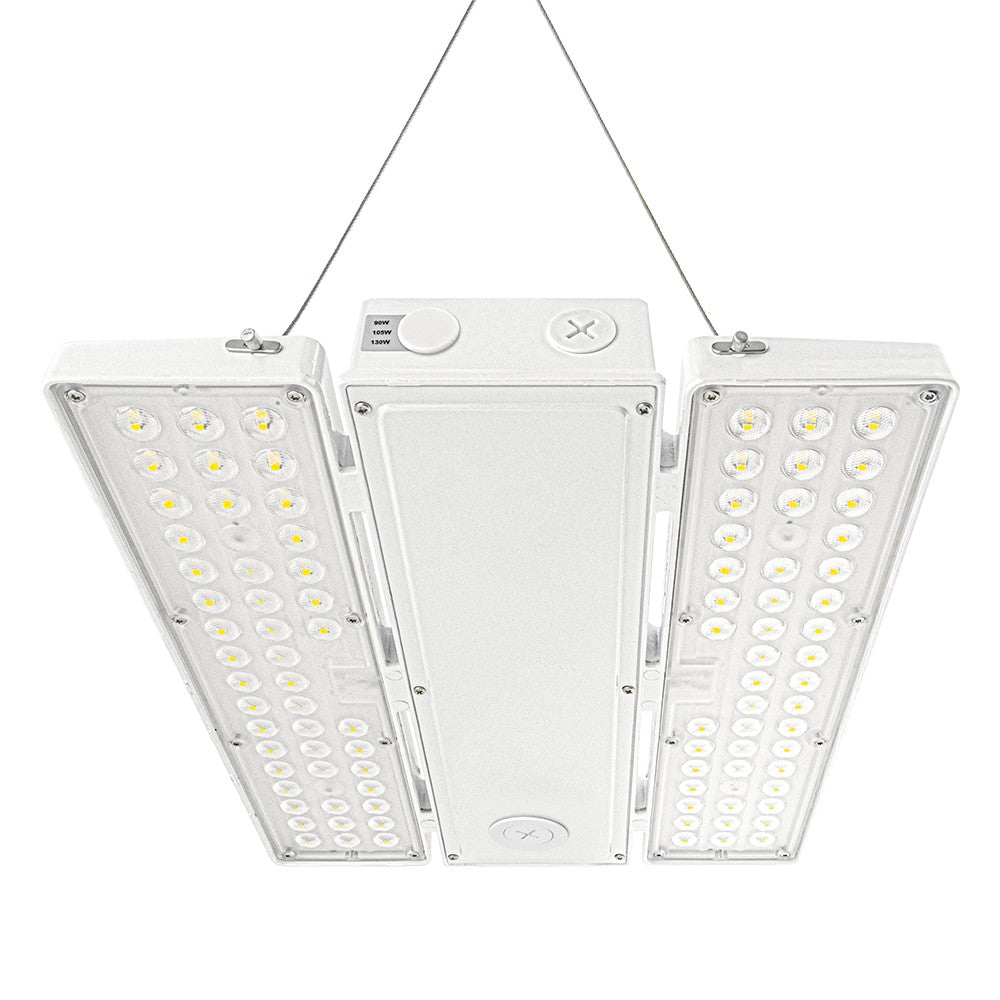

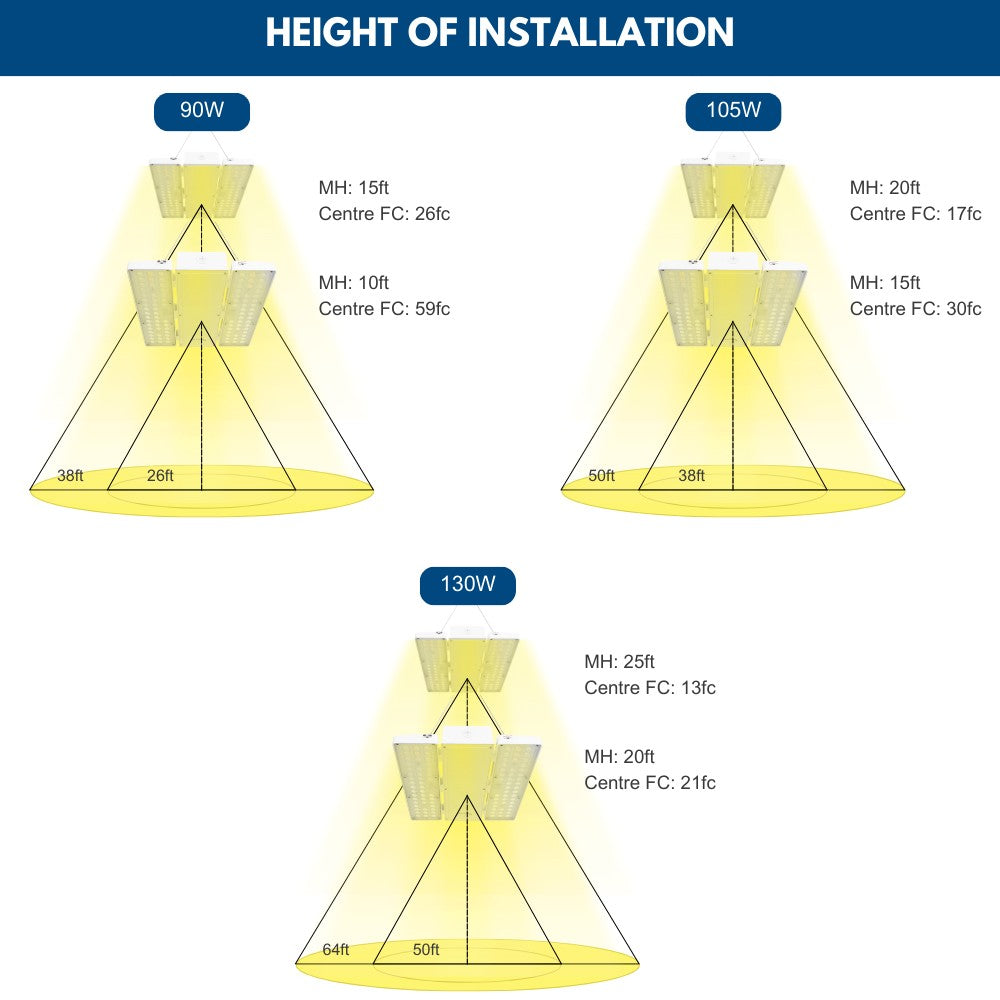

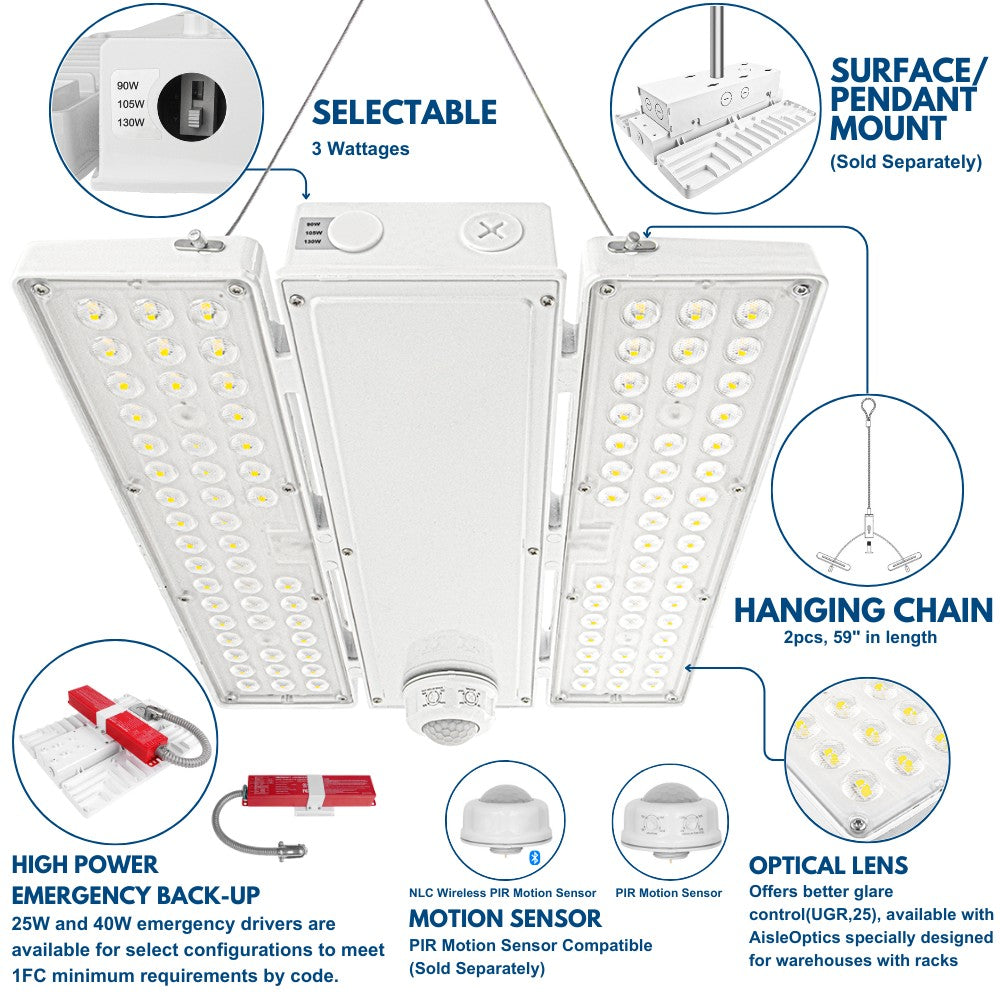

The PAVO I high bay light provides wattage-selectable flexibility, which can be adjusted on-site via a 3-step switch located on the side of the fixture. Operating on 120-277V, it emits a 5000K commercial bright white light with three field-selectable brightness settings:
- 130w / 20,020 Lumens
- 105w / 15,400 Lumens
- 90w / 13,200 Lumens
(Preset at 130 watts)

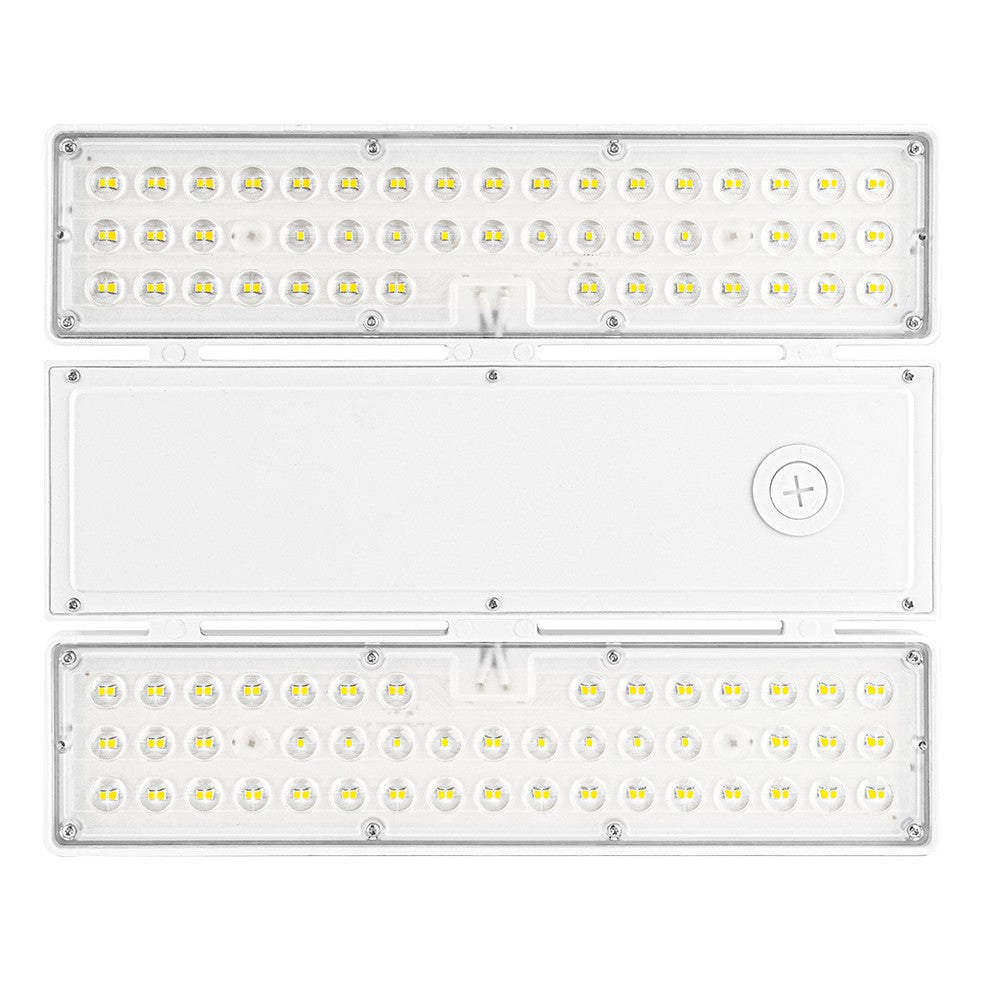

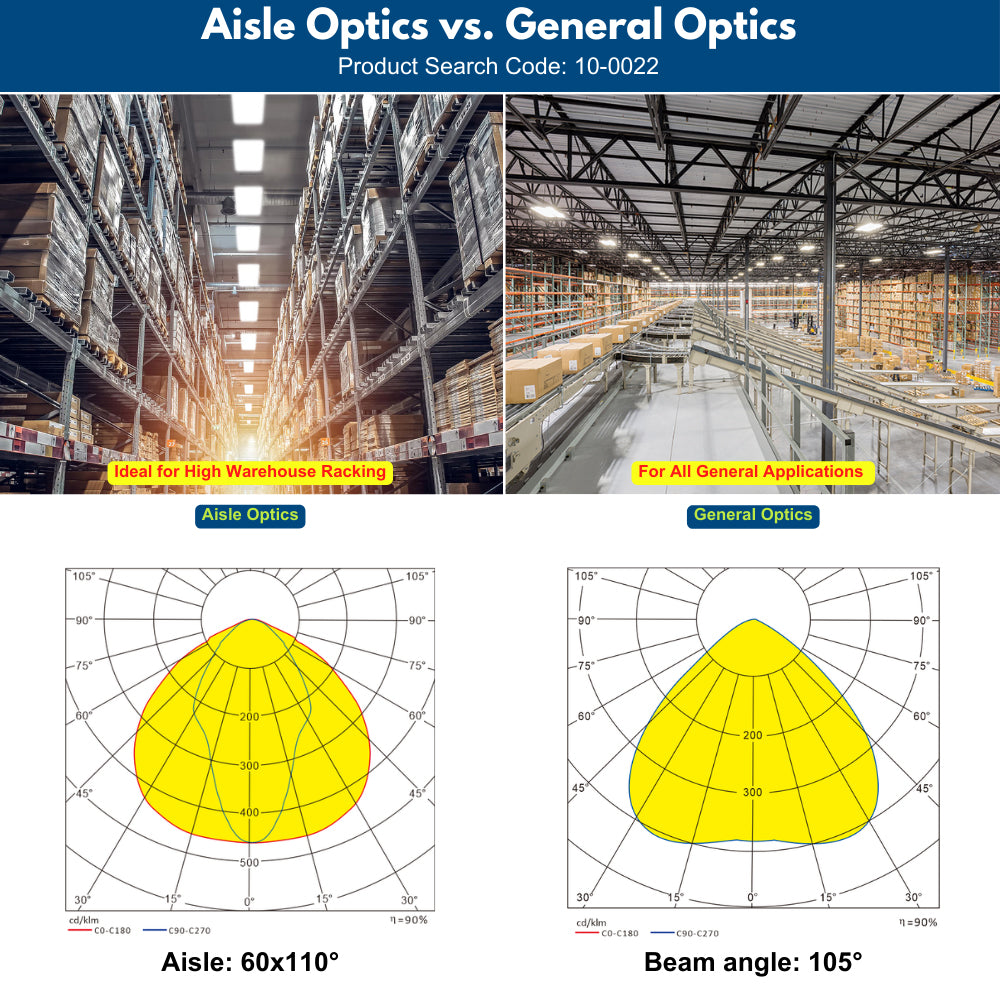

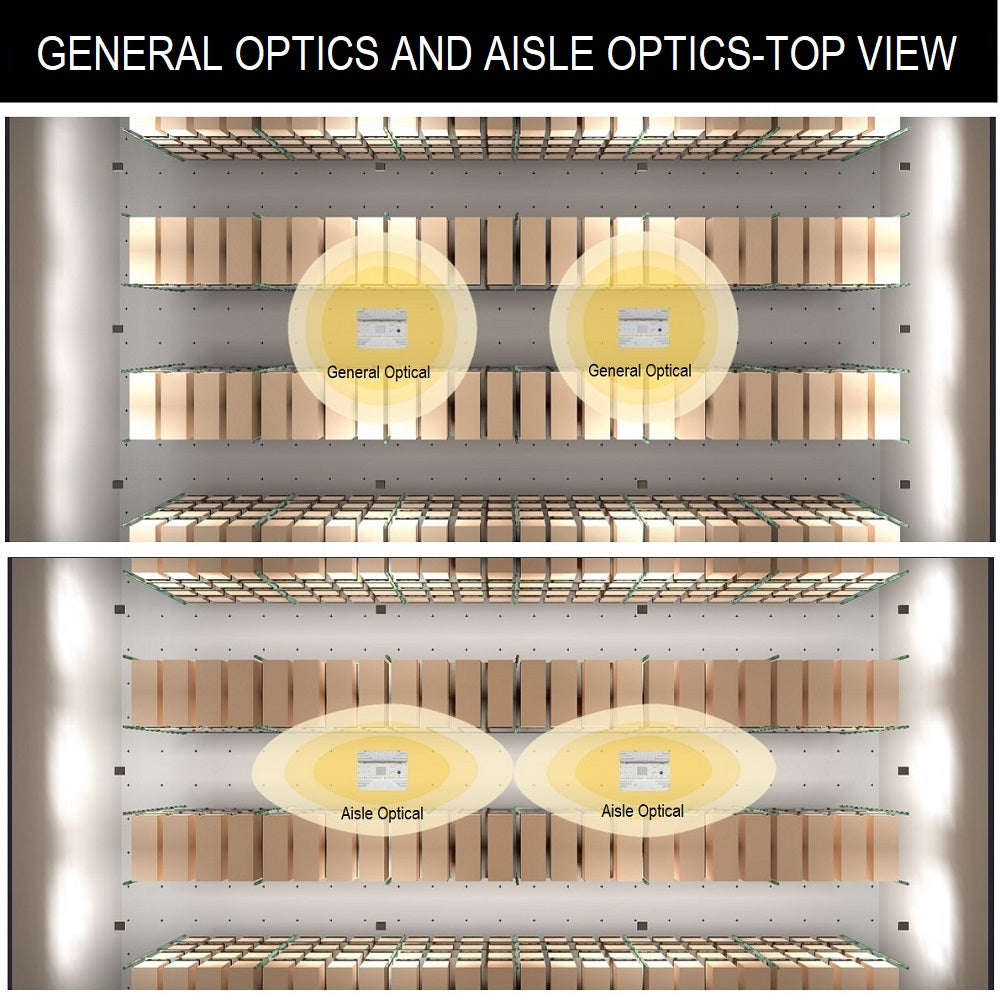

This LED High Bay Light is equipped with an optical lens, offering superior glare control and higher efficacy compared to ordinary diffusers. For warehouse applications with tall racks, the optional Aisle Optic is an ideal solution to maximize light usage efficiency and achieve significant energy savings.

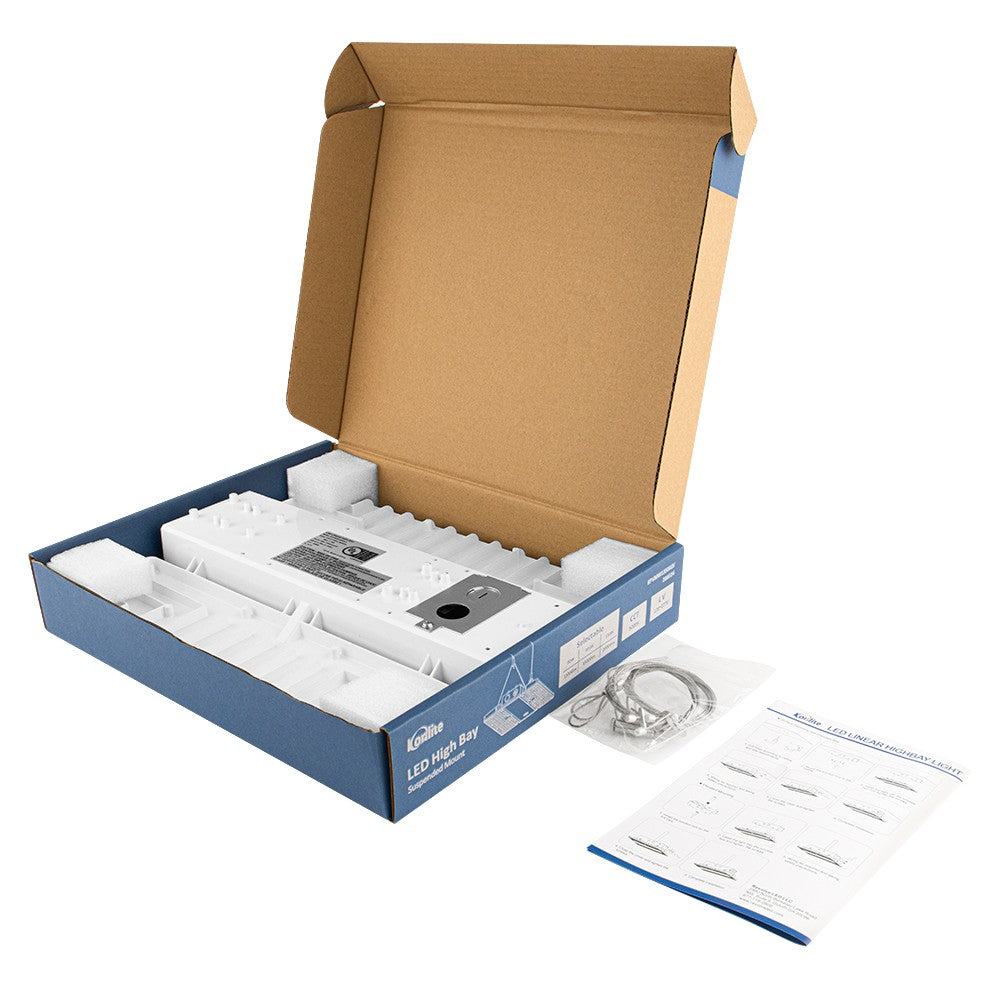

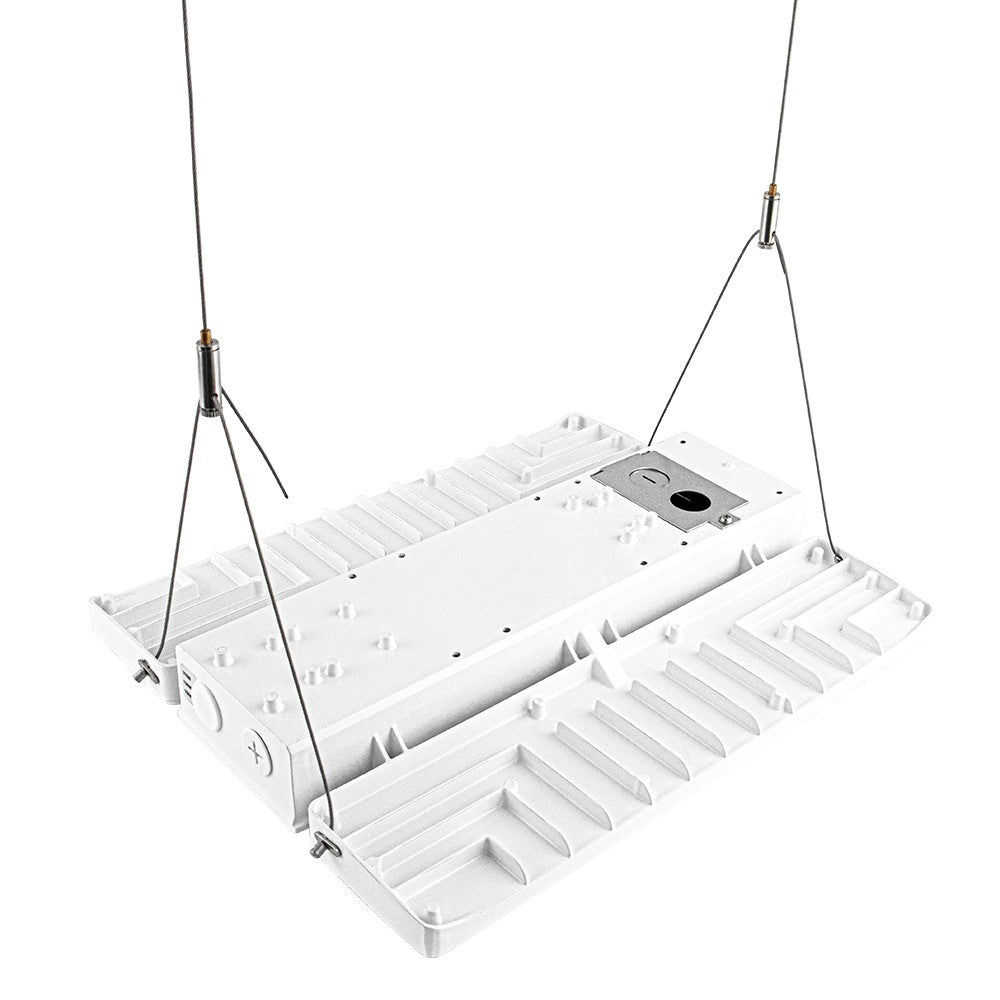

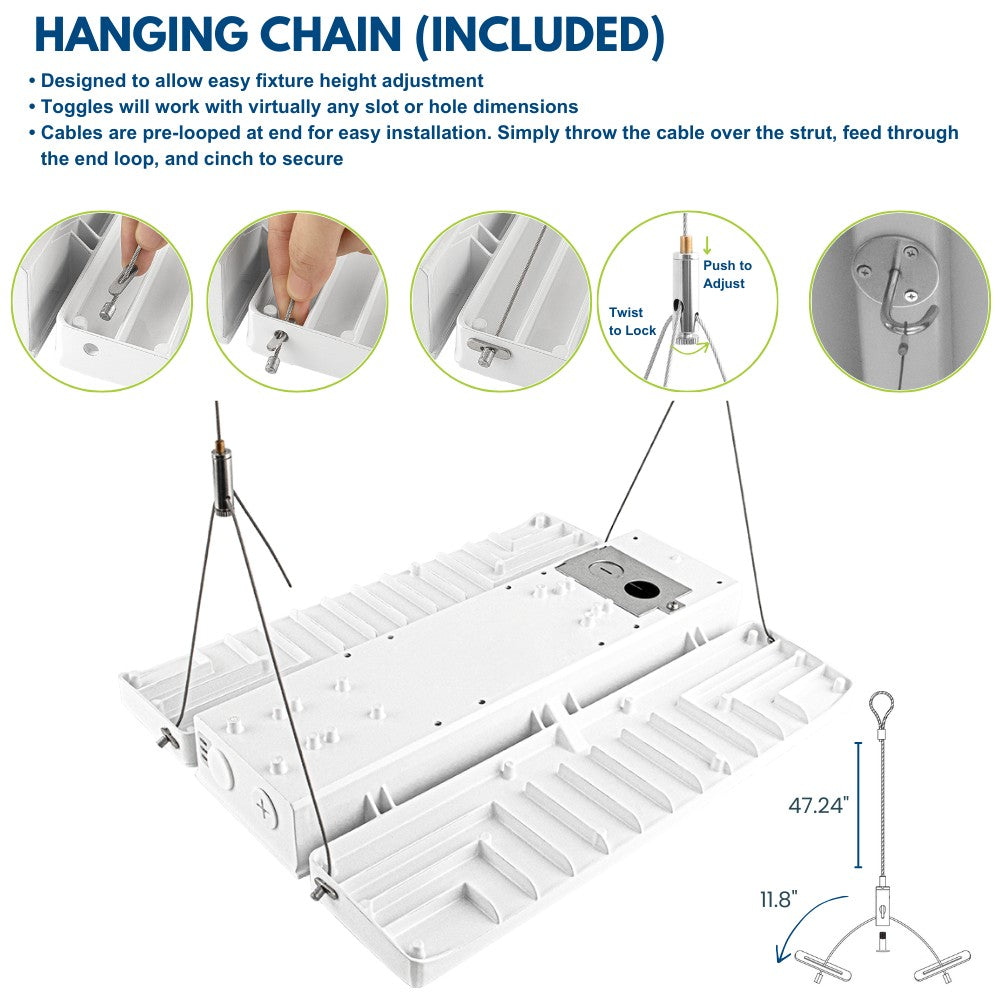

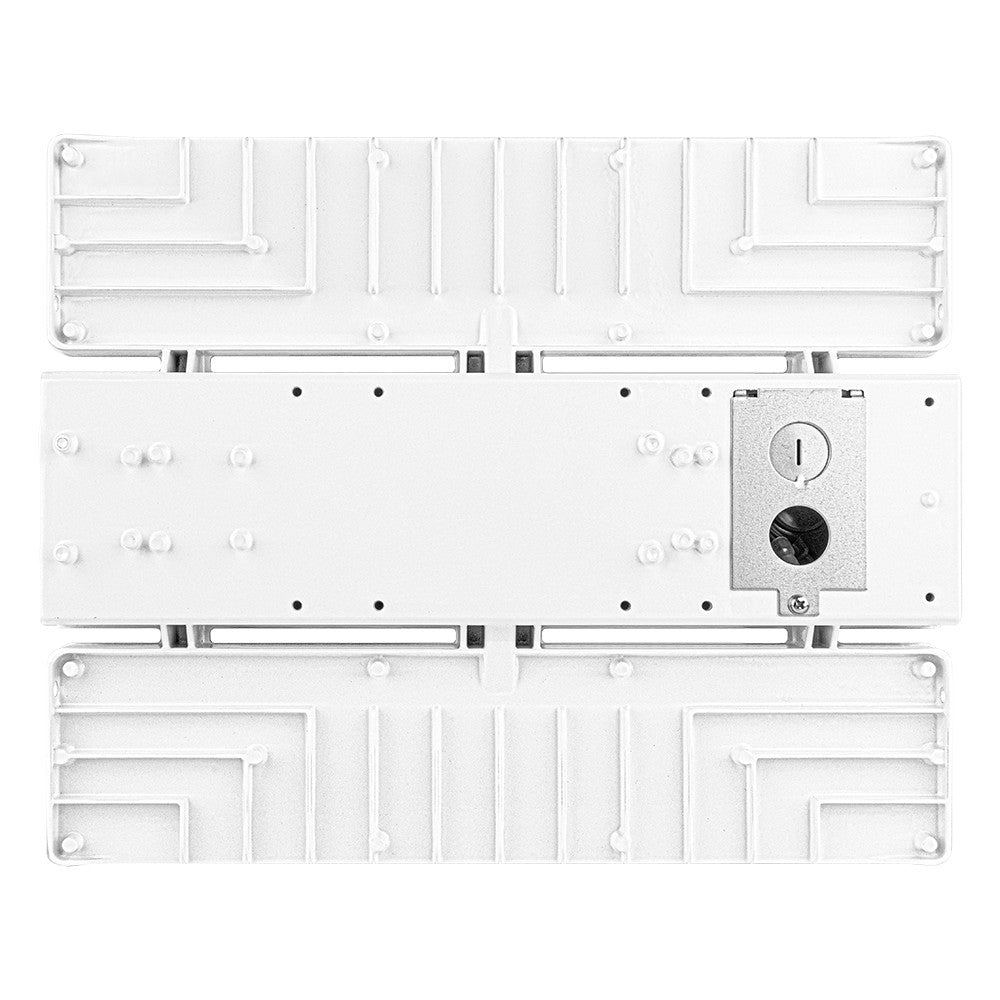

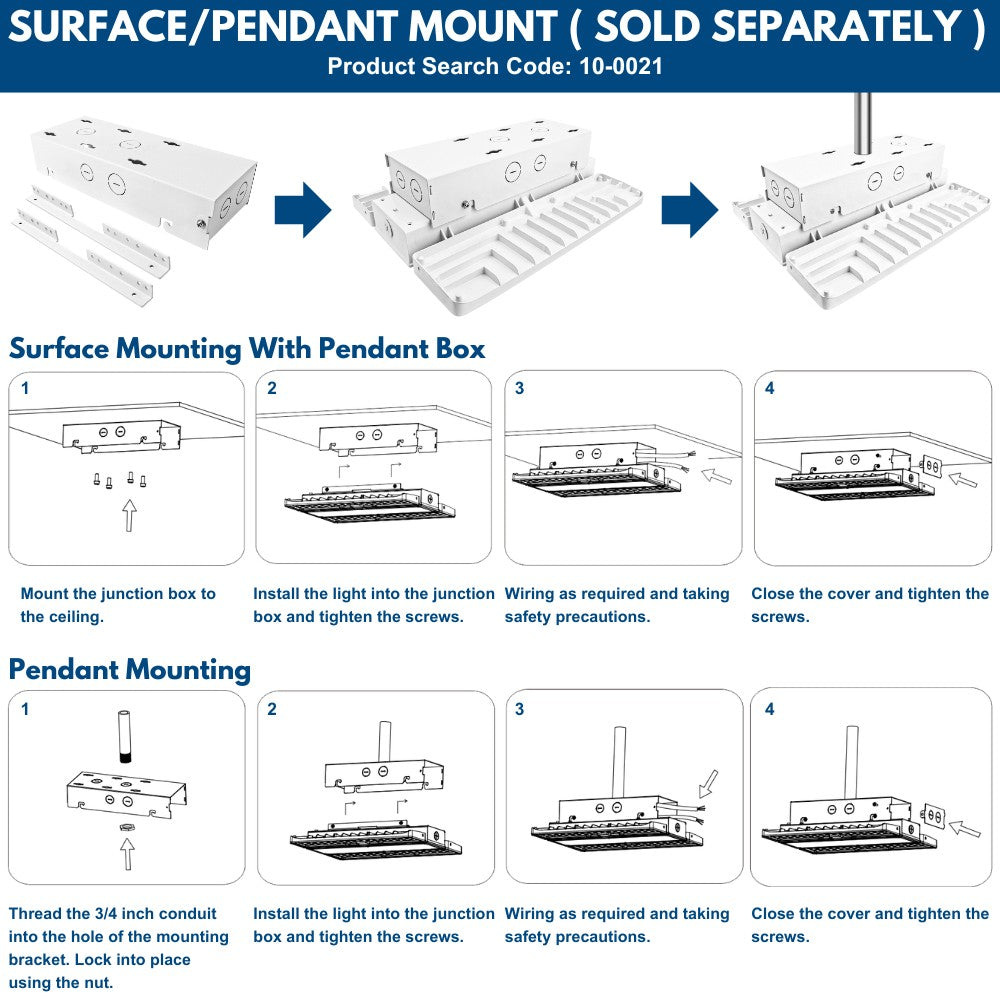

One set of 3 foot long suspension chains are included, with optional Surface Mount and Pendant Mount available for a versatile range of installation options. Transform your industrial or commercial space with the Konlite PAVO series LED High Bay Light, providing unparalleled performance, energy efficiency, and advanced lighting technology to meet all your illumination requirements while serving as a reliable 320-watt Metal Halide or HID replacement.
Upgrade your lighting control system with Haisen Blue Network Lighting Controls (NLC) and discover the ultimate in flexibility, affordability, and ease of use. Perfect for businesses and facilities of all sizes, the DLC qualified NLC system empowers you to take full command of your lighting environment, enhancing efficiency and ambiance with just a few simple clicks. Simply select NLC Bluetooth sensor with PAVO High Bay Lights, ensuring a smooth and efficient control experience right out of the box.
See similar 155W/130W/115W, 210W/180W/155W and 310W/270W/240W versions.

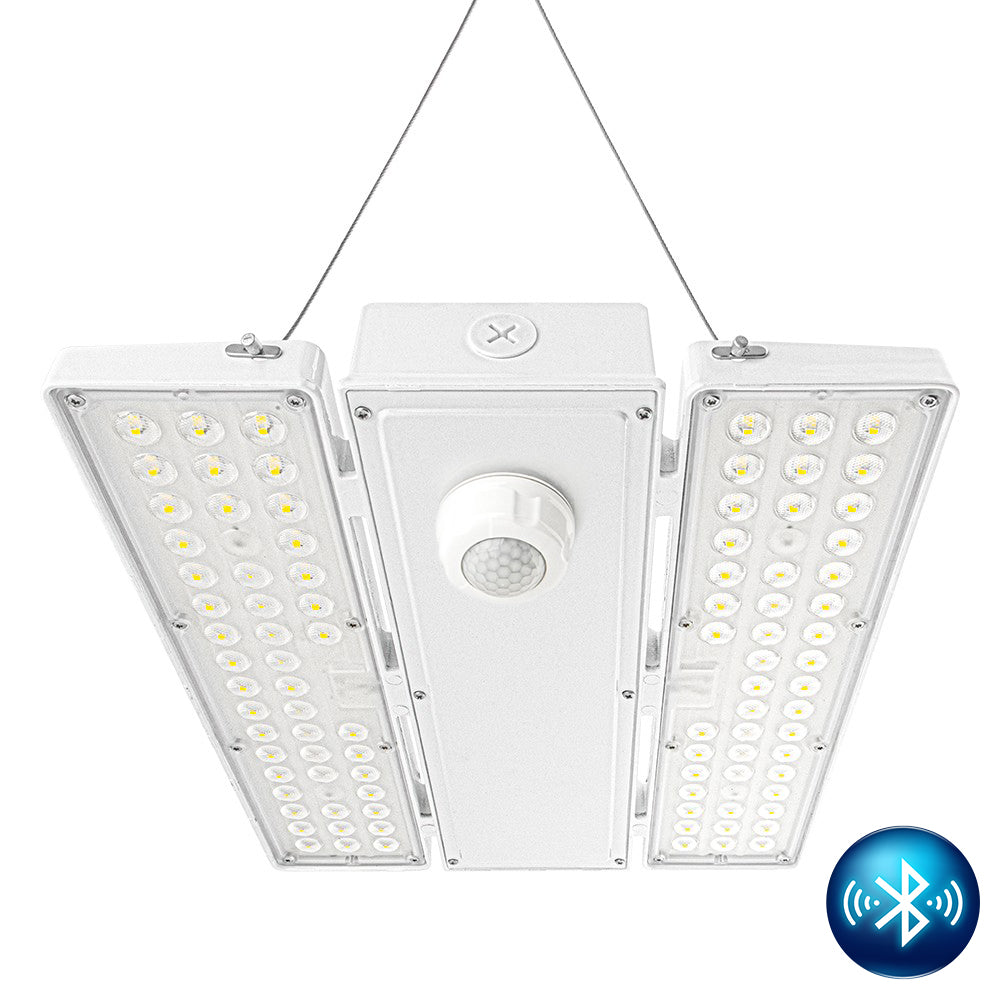

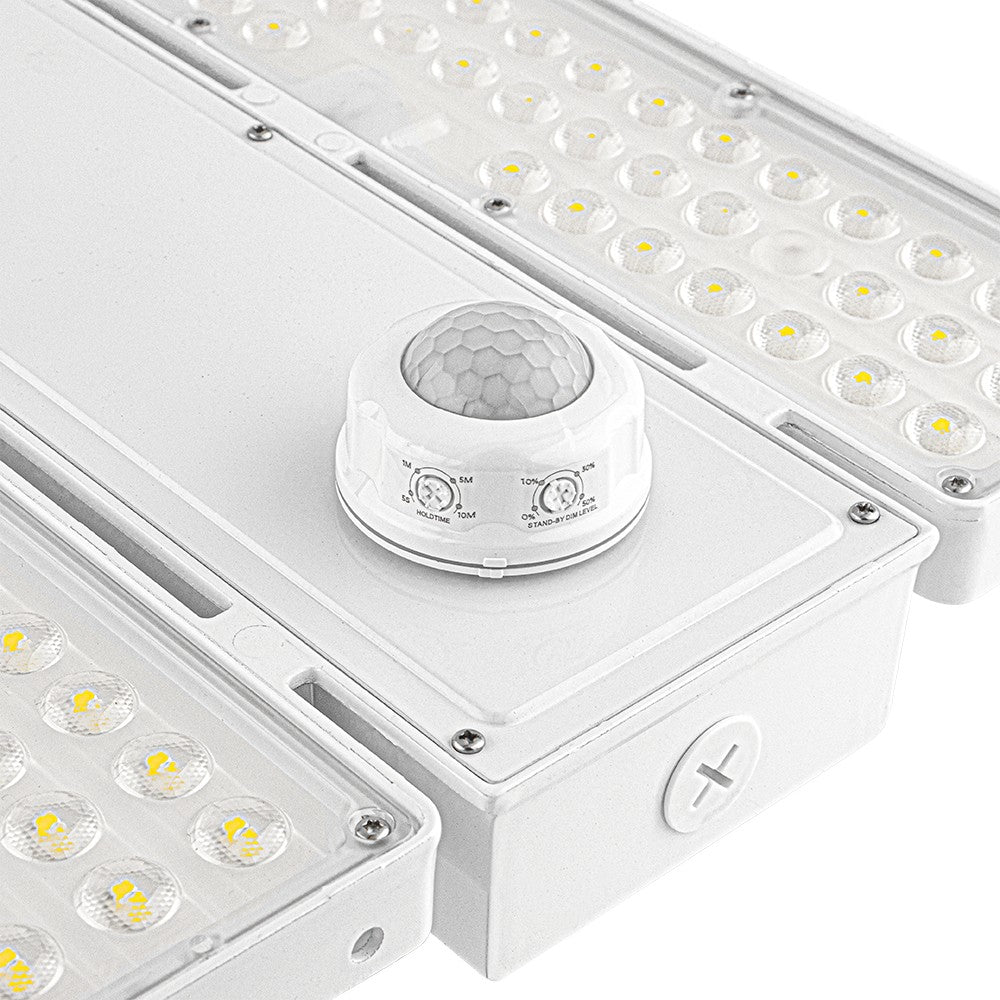

*Default setting for optional motion sensor is set to turn off fixture after 5 seconds of inactivity. Optional remote control is required to program the motion sensor.
Applications
| •Warehouses | •Workshops |
| •Convention Centers | •High Bays |
| •Storage Facilities | •Distribution Centers |
| •Factories | •Supermarkets |
| •Retails | •Gymnasiums |
Specification
| Brand | Konlite | MPN | KPVMW1350KLV |
| Warranty | Limited 5 Years | UPC | 659675287515 |
| Input Voltage | 120-277V | Beam | 106° |
| Input Wattage | 90W/105W/130W | Equal To | 250W MH or 6x32-T8/4x54-T5 |
| Delivered Lumens | 13,200lm/15,400lm/20,020lm | CRI | 80 |
| Efficacy | Up to 156 LM/W | Available CCT | 5000K |
| Rated Life | >50,000 hrs | Power Factor | ≥0.95 |
| THD | ≤15% | IP Rating | N/A |
| Dimmable | 0-10V(Dimmer NOT included, Separate Wiring Required) | Mounting | Suspension Chain, Surface, Pendant |

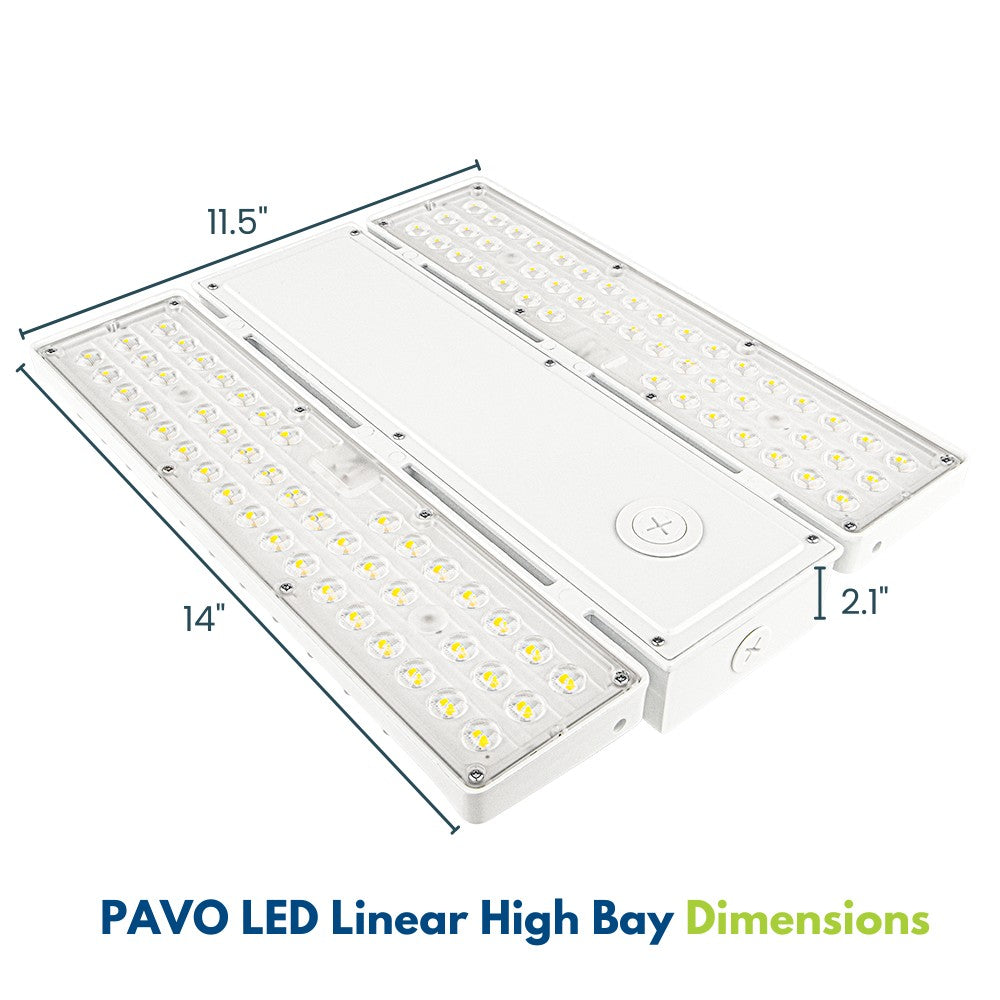

| Operating Temperature | -40° F to 122° F | Dimensions | 14''X11.5''X2.1'' |
| Certifications | UL, Dry Locations, DLC Premium | Weight | 6 Lbs |
Occupancy Sensor Specification
| Brand | Haisen | MPN | HD09VCR-PH / HD09VCR-PHB ( Network Lighting Controls ) |
| Control | On/off / 1-10V Dimming | Setting tools | Rotating Switch or Remote Control (HD05R). For Network Lighting Controls (NLC), controlled with “Haisen Blue” APP at iOS or Android smartphones |
| Detection area | 25%/50%/75%/100% (R.C) | Hold time | 5s/1min/5min/10min (Rotating Switch) 5s/30s/1min/3min/5min/10min/20min/30min (R.C) |
| Stand-by period | 0s/10s/30s/1min/5min/10min/30min/+∞ (R.C) | Stand-by dimming level | 0%/10%/30%/50% (Rotating Switch) 10%/20%/30%/50% (R.C) |
| Input Range | 12VDC | Daylight threshold | Disable / 11 settings from 2Lux to 400Lux (R.C) |
| Operating Voltage | 10.5-15V DC | Detection range | Max. 45.92ft |
| Mounting height | Max. 39.37 ft | IP rating | IP65 |
*Stand-By Period need to be set to 0s while using with dimmer switch.
Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
