Product Overview

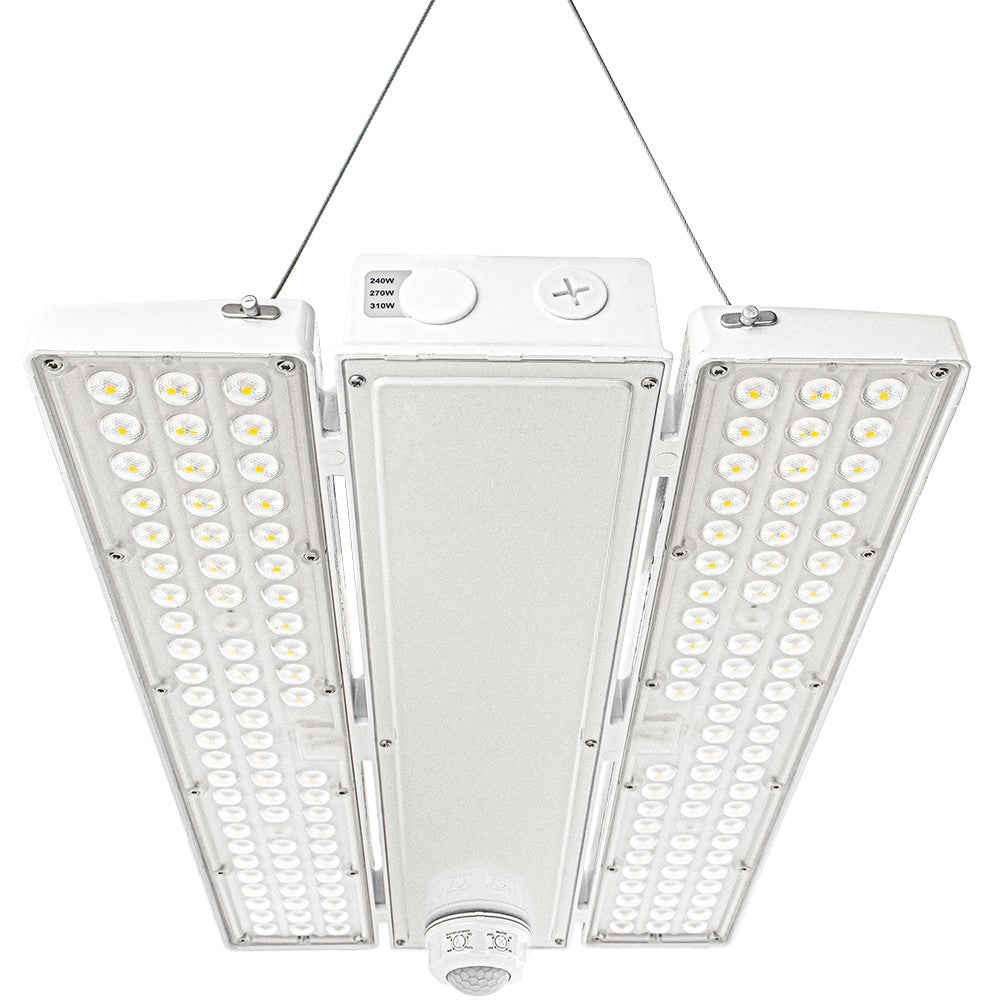

Upgrade your industrial or commercial lighting with our high-performance Konlite PAVO series LED High Bay Light, designed with budget-consciousness and compact housing in mind, while still offering industry-leading performance. This linear LED high bay light effectively replaces 1000-watt Metal Halide or HID lights, providing significant energy savings and improved efficiency.

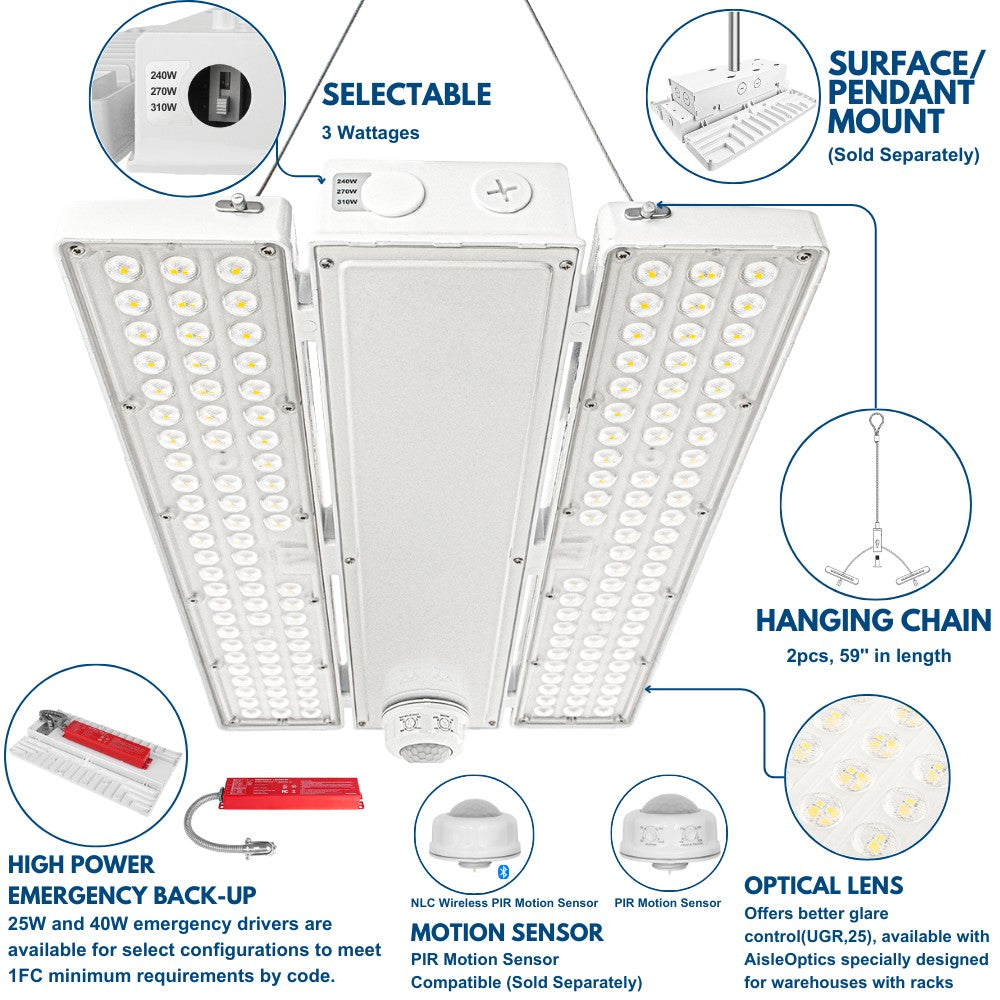

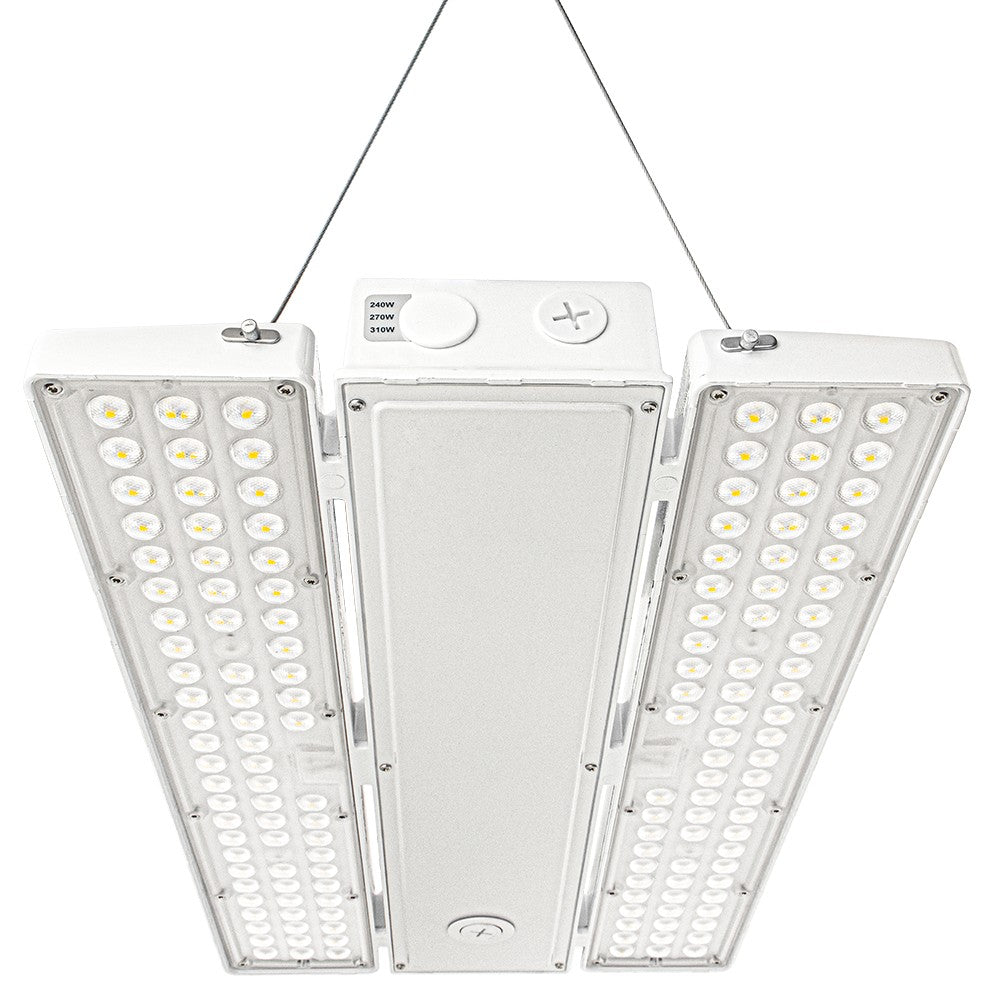

The compact design ensures easy handling and quicker installation, making it the ideal choice for modern, efficient lighting. Our linear high bay LED light features wattage-selectable flexibility, which can be adjusted on-site via a 3-step switch located on the side of the fixture. Operating on 120-277V, it emits a 5000K commercial bright white light with three field-selectable brightness settings:
310w / 46,500 Lumens
270w / 40,500 Lumens
240w / 36,000 Lumens
(Preset at 310 watts)

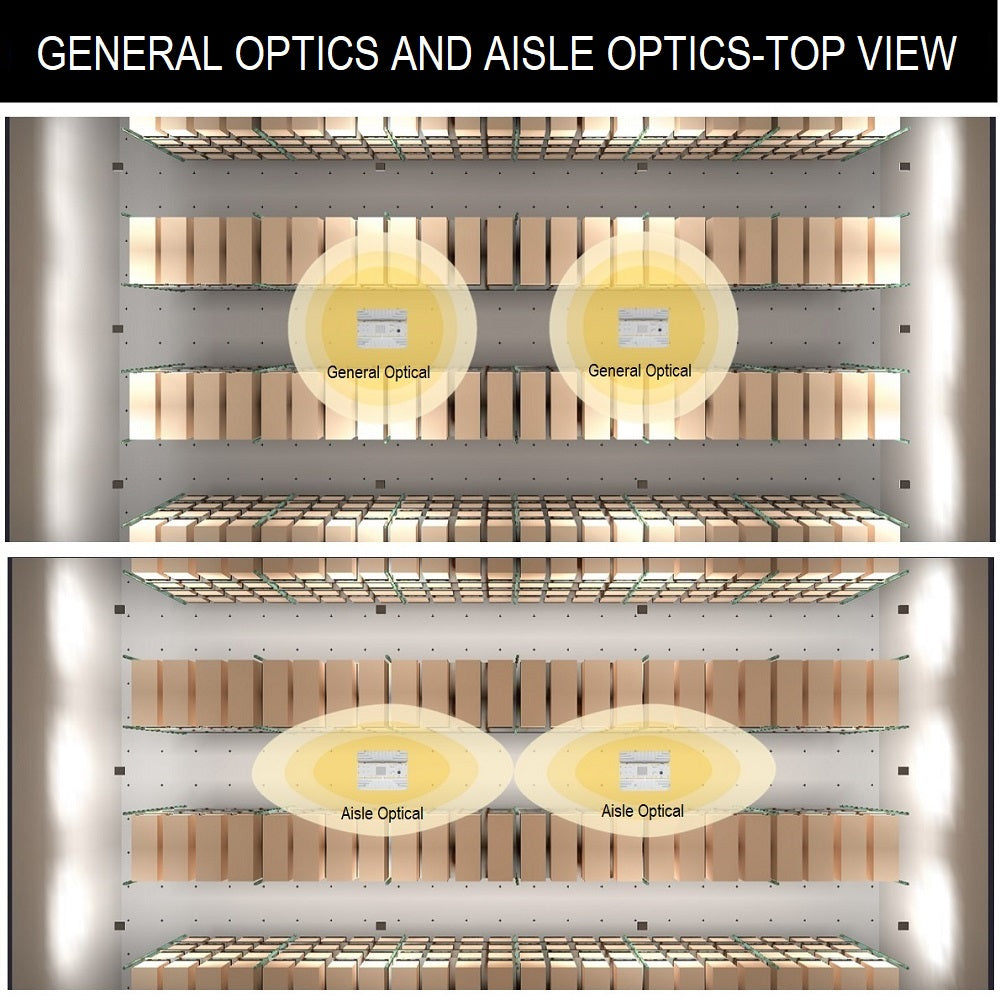

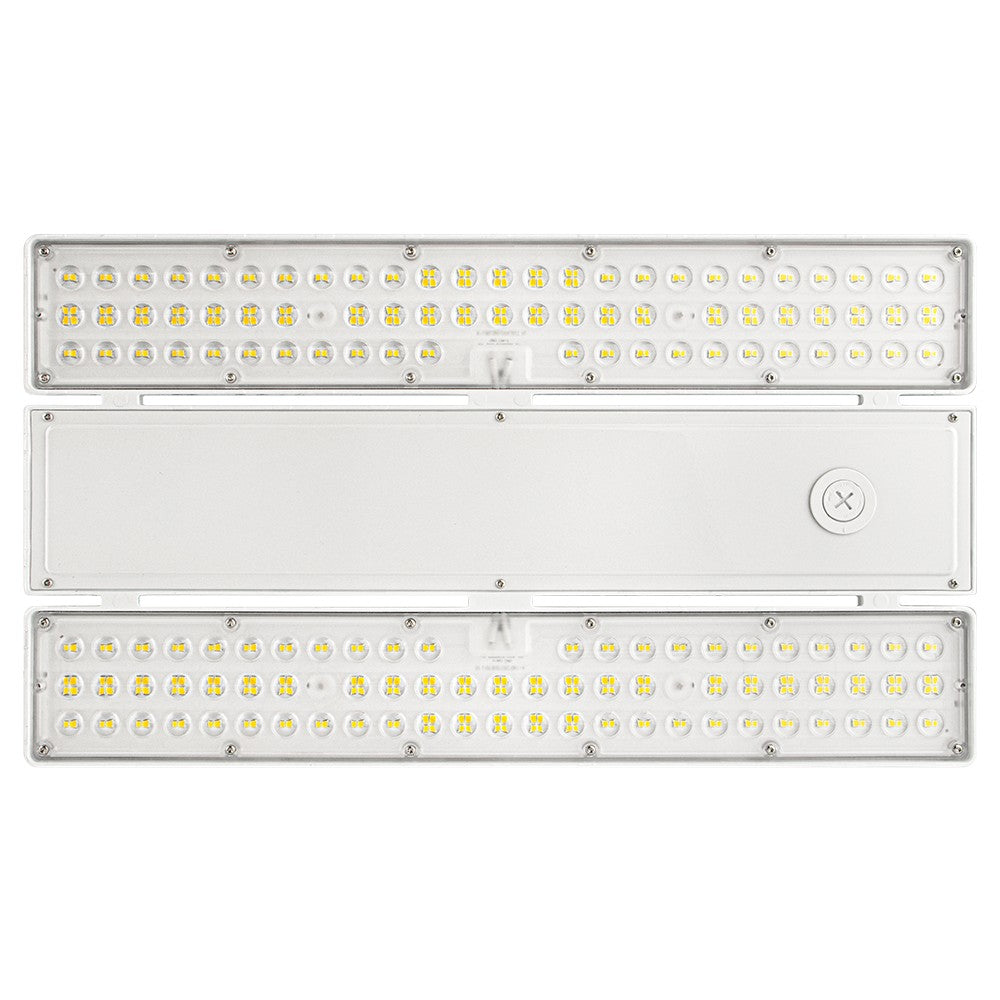

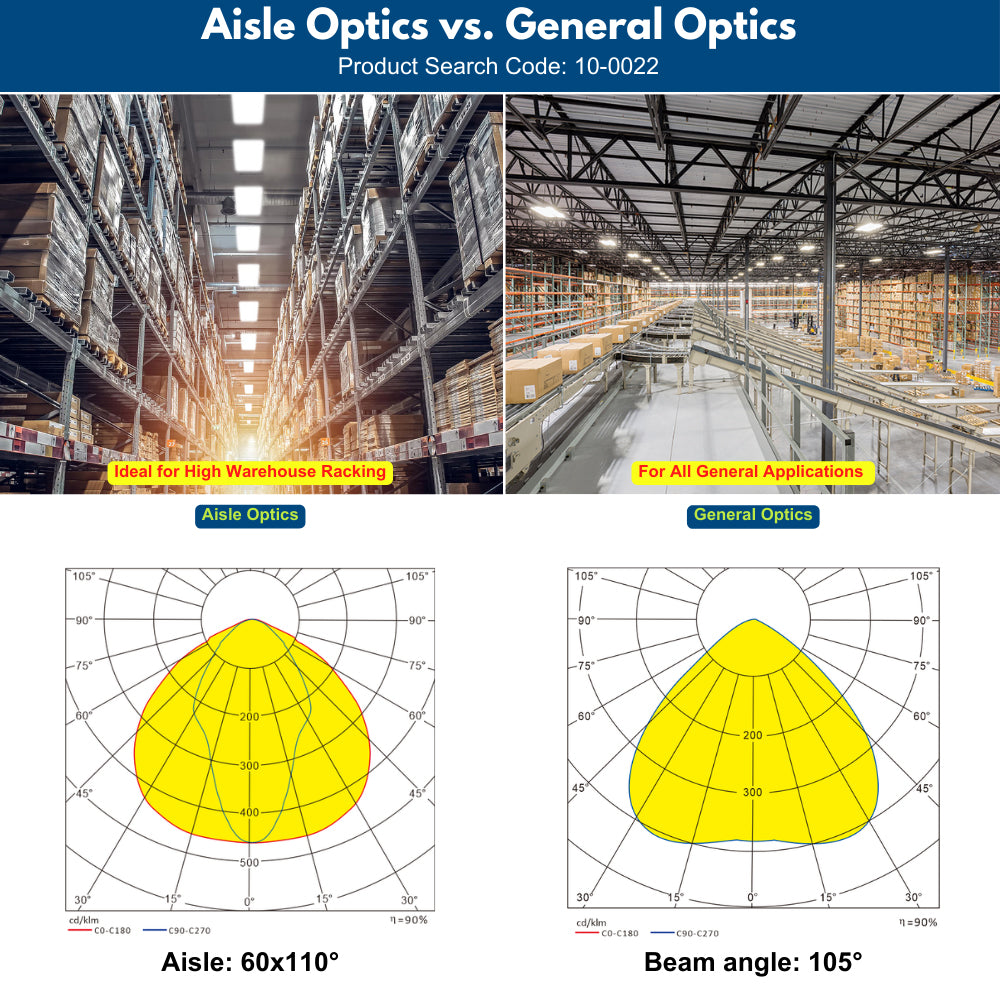

Equipped with an optical lens instead of an ordinary diffuser, this 2 foot linear high bay LED light offers superior glare control and higher efficacy. For warehouse applications with tall racks, the optional Aisle Optic is an ideal solution to maximize light usage efficiency and achieve greater energy savings.

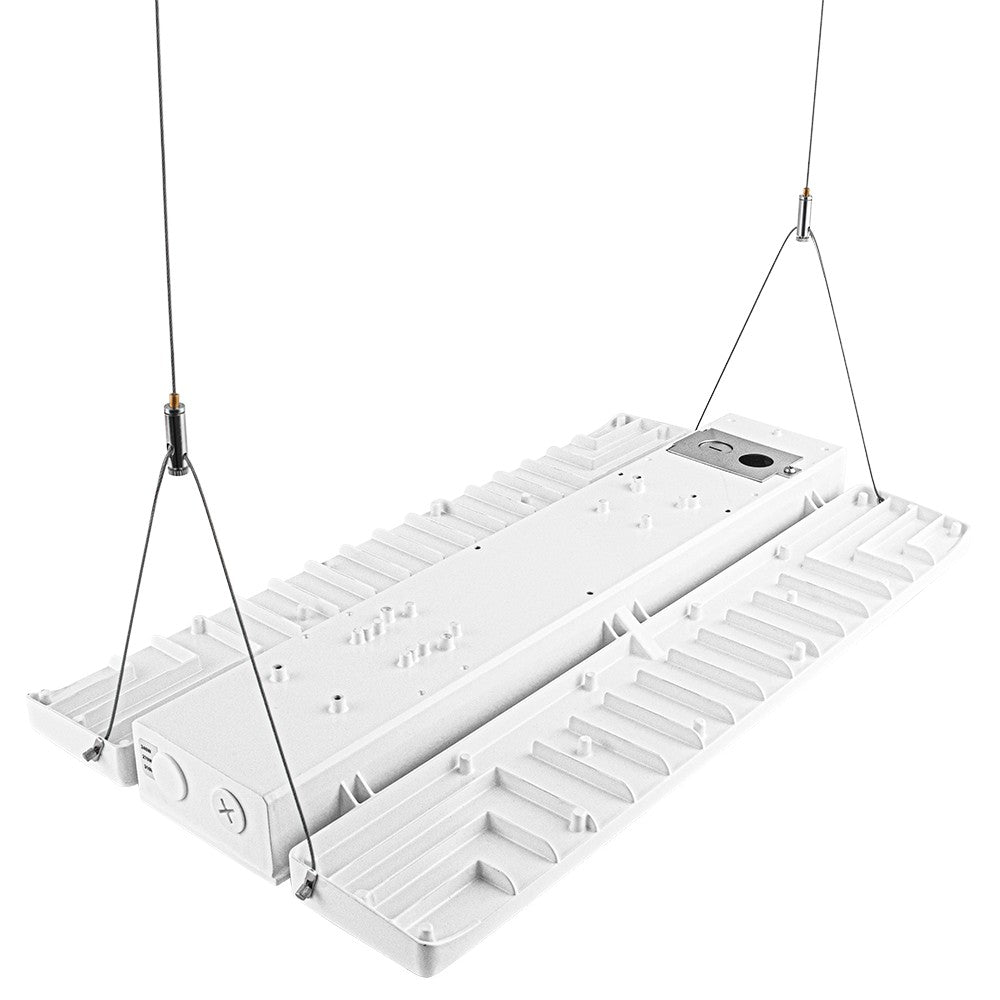

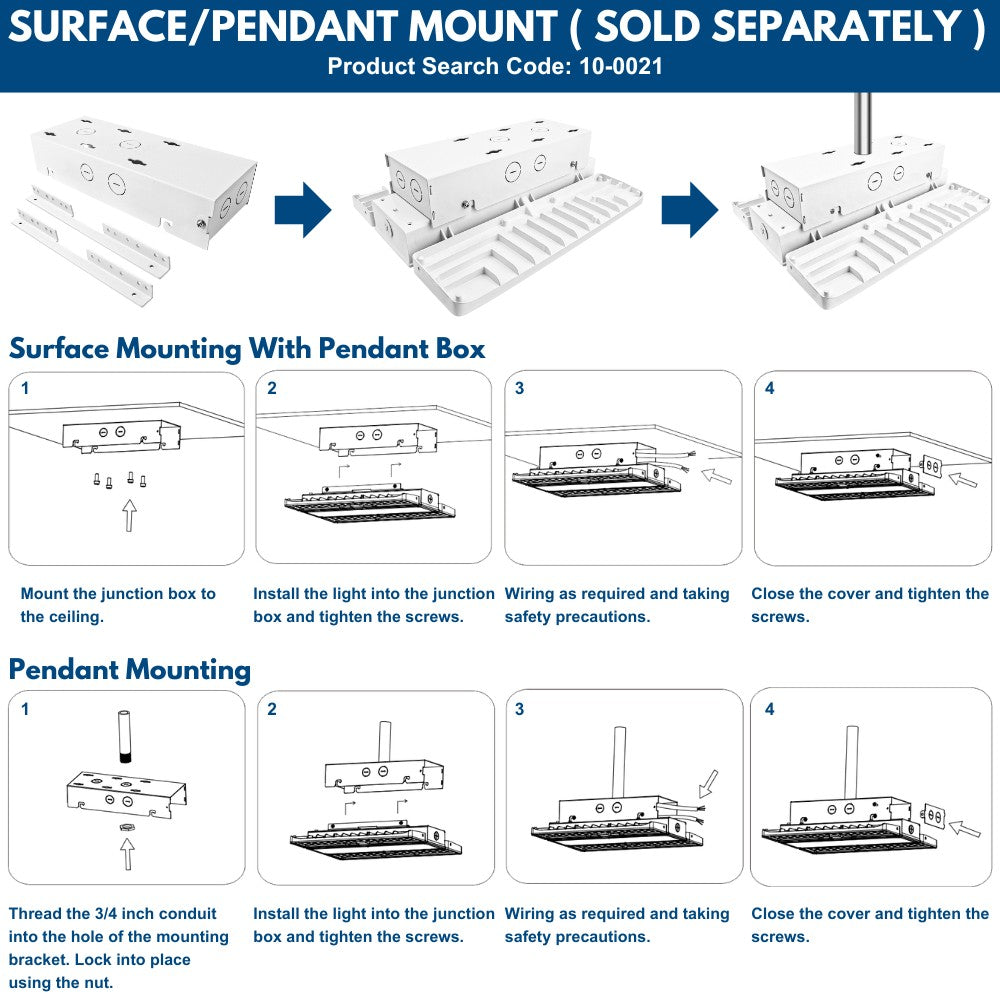

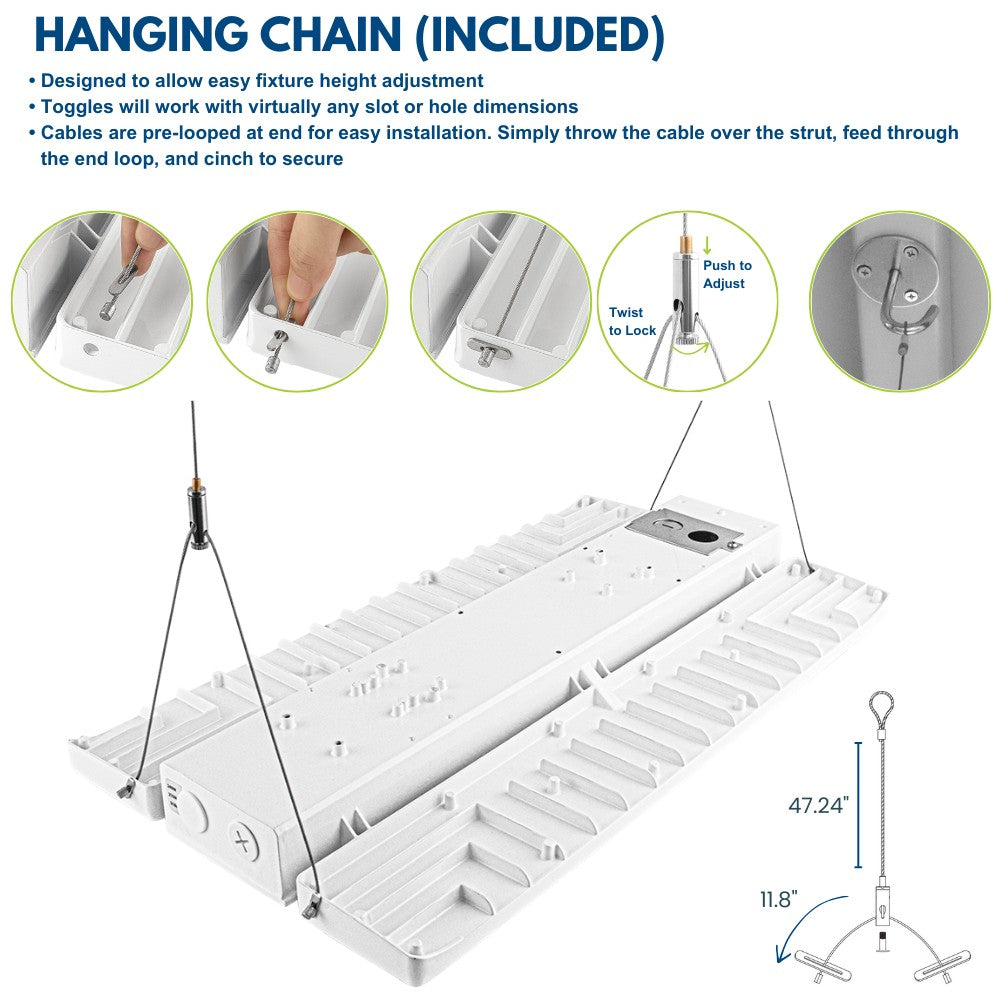

PAVO LED high bay light includes one set of three foot suspension chains, with optional Surface Mount and Pendant Mount also available for versatile installation options. Transform your industrial or commercial space with our cutting-edge linear LED high bay light, delivering exceptional energy efficiency, customizable brightness settings, and advanced lighting technology to meet all your illumination needs while replacing outdated 1000-watt Metal Halide or HID systems.

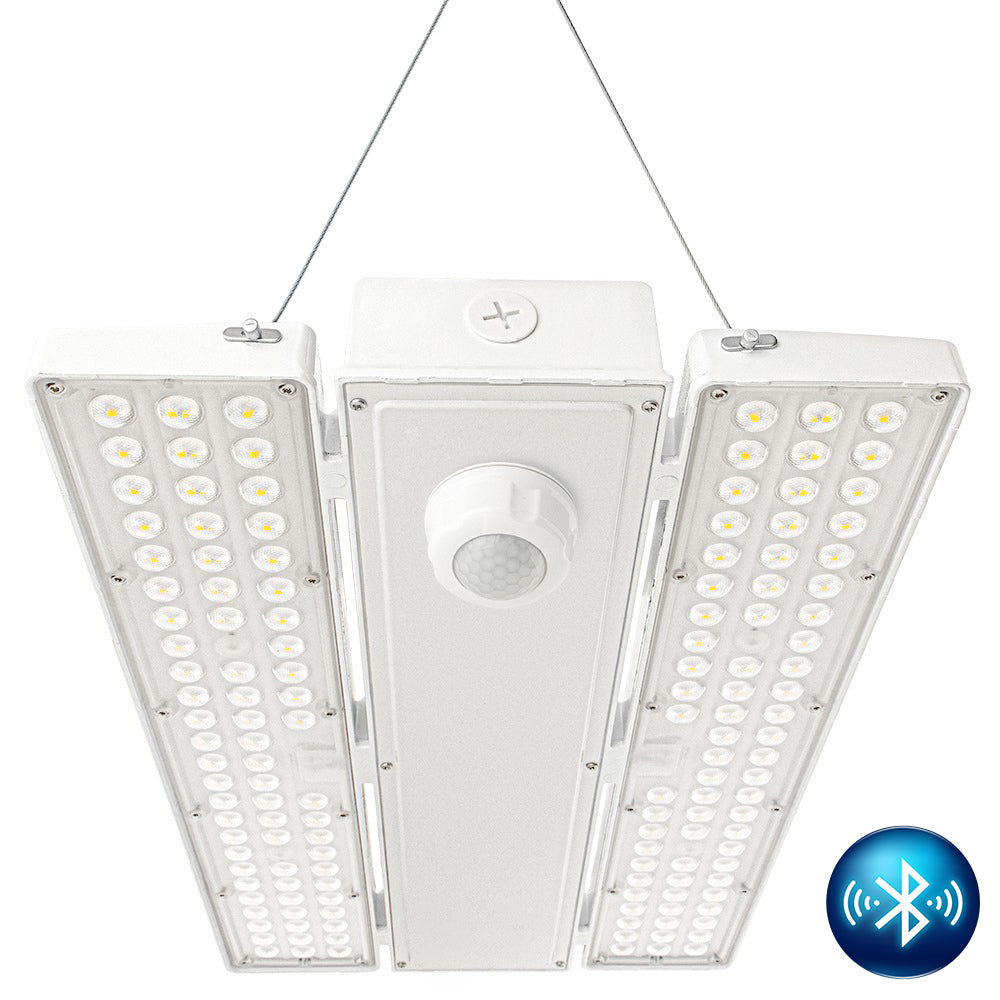

Upgrade your lighting control system with Haisen Blue Network Lighting Controls (NLC) and discover the ultimate in flexibility, affordability, and ease of use. Perfect for businesses and facilities of all sizes, the DLC qualified NLC system empowers you to take full command of your lighting environment, enhancing efficiency and ambiance with just a few simple clicks. Simply select NLC Bluetooth sensor with PAVO High Bay Lights, ensuring a smooth and efficient control experience right out of the box.
See similar 155W/130W/115W, 210W/180W/155W and 420W/360W/310W versions.

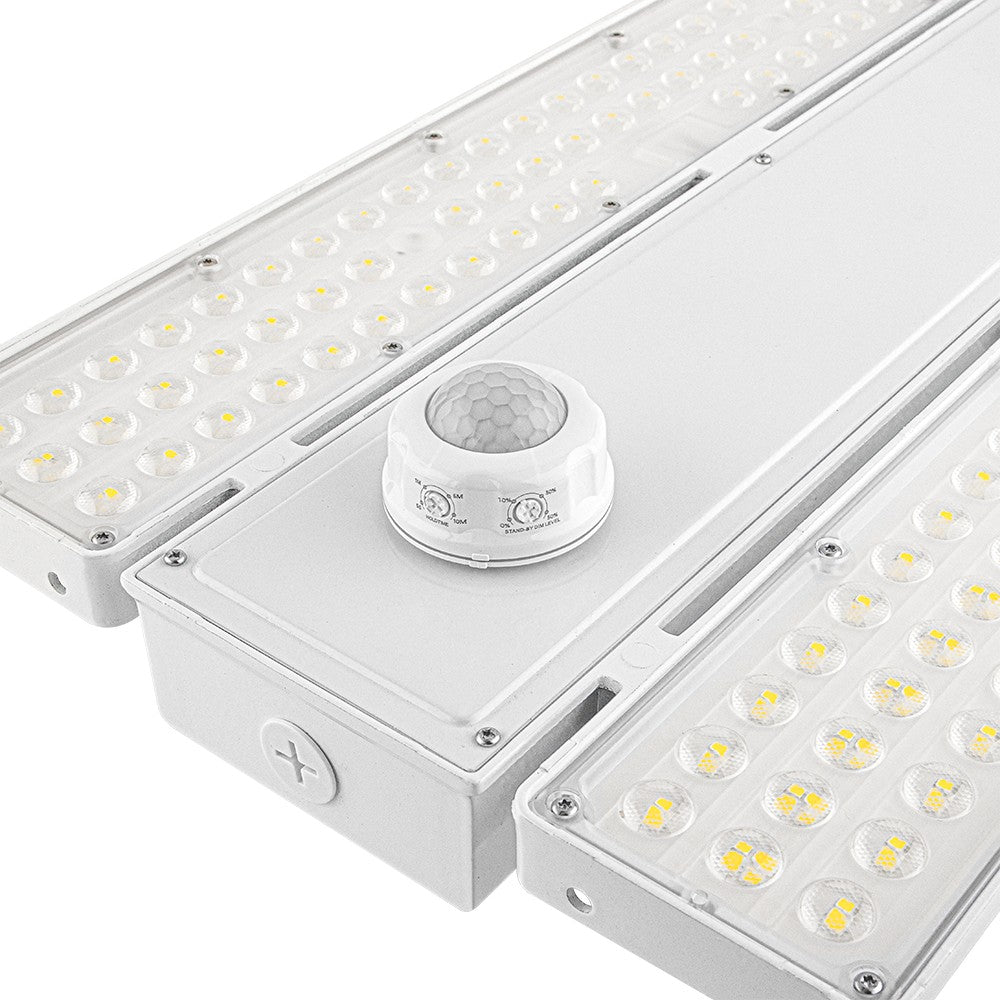

*Default setting for optional motion sensor is set to turn off fixture after 5 seconds of inactivity. Optional remote control is required to program the motion sensor.
Applications
| •Warehouses | •Workshops |
| •Convention Centers | •High Bays |
| •Storage Facilities | •Distribution Centers |
| •Factories | •Supermarkets |
| •Retails | •Gymnasiums |
Specification
| Brand | Konlite | MPN | KPVMW3150KLV |
| Warranty | Limited 5 Years | UPC | 659675090689 |
| Input Voltage | 120-277V | Beam | 106° |
| Input Wattage | 310W/270W/240W | Equal To | 1000W MH or 8x32-T8/8x54-T5 |
| Delivered Lumens | 46,500lm/40,500lm/36,000lm | CRI | ≥80 |
| Efficacy | Up to 156 LM/W | Available CCT | 5000K |
| Rated Life | >50,000 hrs | Power Factor | ≥0.95 |
| THD | ≤15% | IP Rating | N/A |
| Dimmable | 0-10V(Dimmer NOT included, Separate Wiring Required) | Mounting | Suspension Chain, Surface, Pendant |

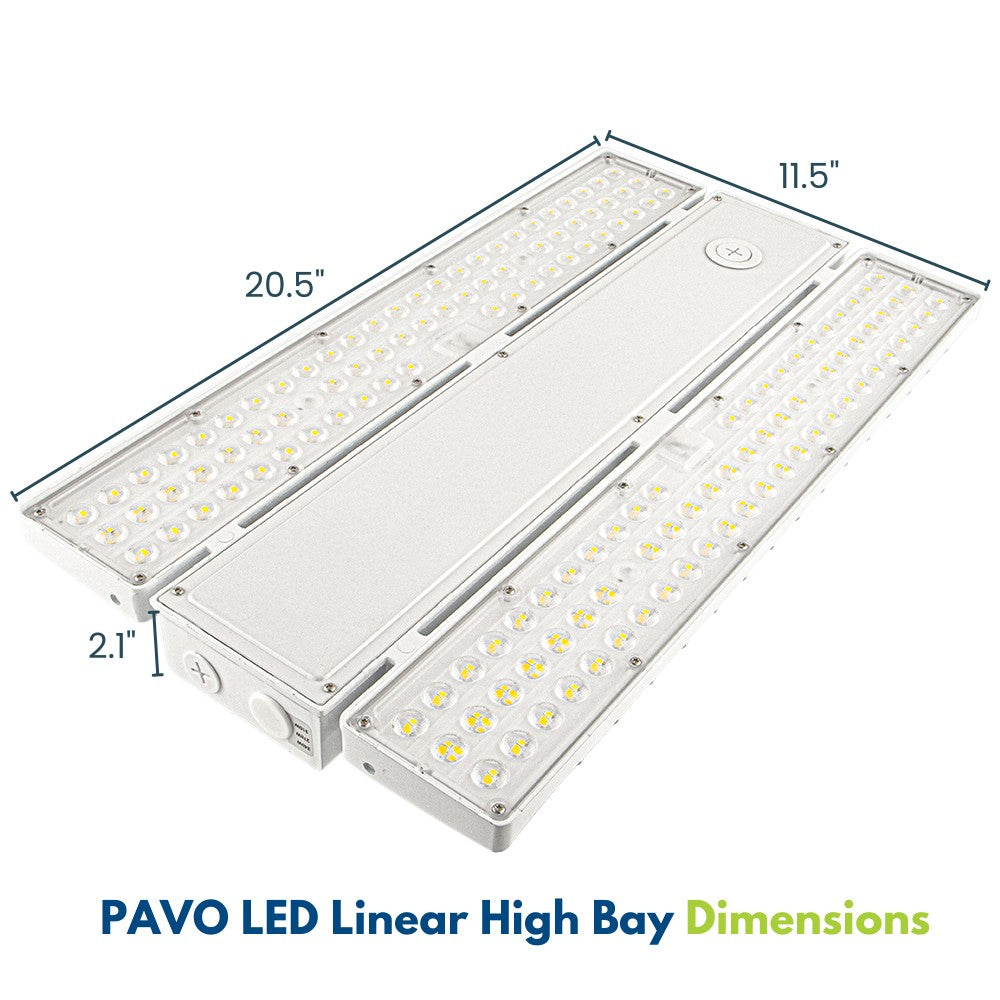

| Operating Temperature | -40° F to 122° F | Dimensions | 20.5''X11.5''X2.1'' |
| Certifications | UL, Dry Locations, DLC Premium | Weight | 11 Lbs |
Occupancy Sensor Specification
| Brand | Haisen | MPN | HD09VCR-PH / HD09VCR-PHB ( Network Lighting Controls ) |
| Control | On/off / 1-10V Dimming | Setting tools | Rotating Switch or Remote Control (HD05R). For Network Lighting Controls (NLC), controlled with “Haisen Blue” APP at iOS or Android smartphones |
| Detection area | 25%/50%/75%/100% (R.C) | Hold time | 5s/1min/5min/10min (Rotating Switch) 5s/30s/1min/3min/5min/10min/20min/30min (R.C) |
| Stand-by period | 0s/10s/30s/1min/5min/10min/30min/+∞ (R.C) | Stand-by dimming level | 0%/10%/30%/50% (Rotating Switch) 10%/20%/30%/50% (R.C) |
| Input Range | 12VDC | Daylight threshold | Disable / 11 settings from 2Lux to 400Lux (R.C) |
| Operating Voltage | 10.5-15V DC | Detection range | Max. 45.92ft |
| Mounting height | Max. 39.37 ft | IP rating | IP65 |
*Stand-By Period need to be set to 0s while using with dimmer switch.
Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
