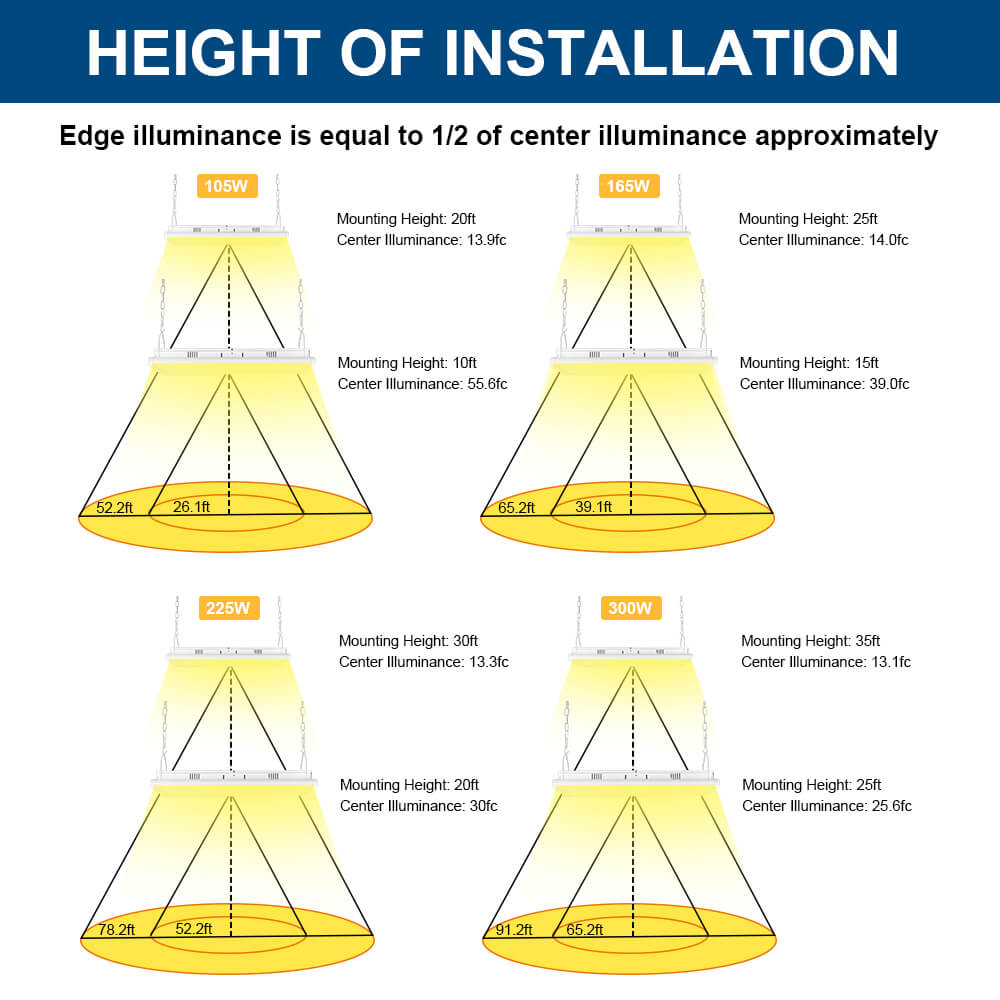

Linear highbay installation Height recommendations

3 different ways in highbay installations

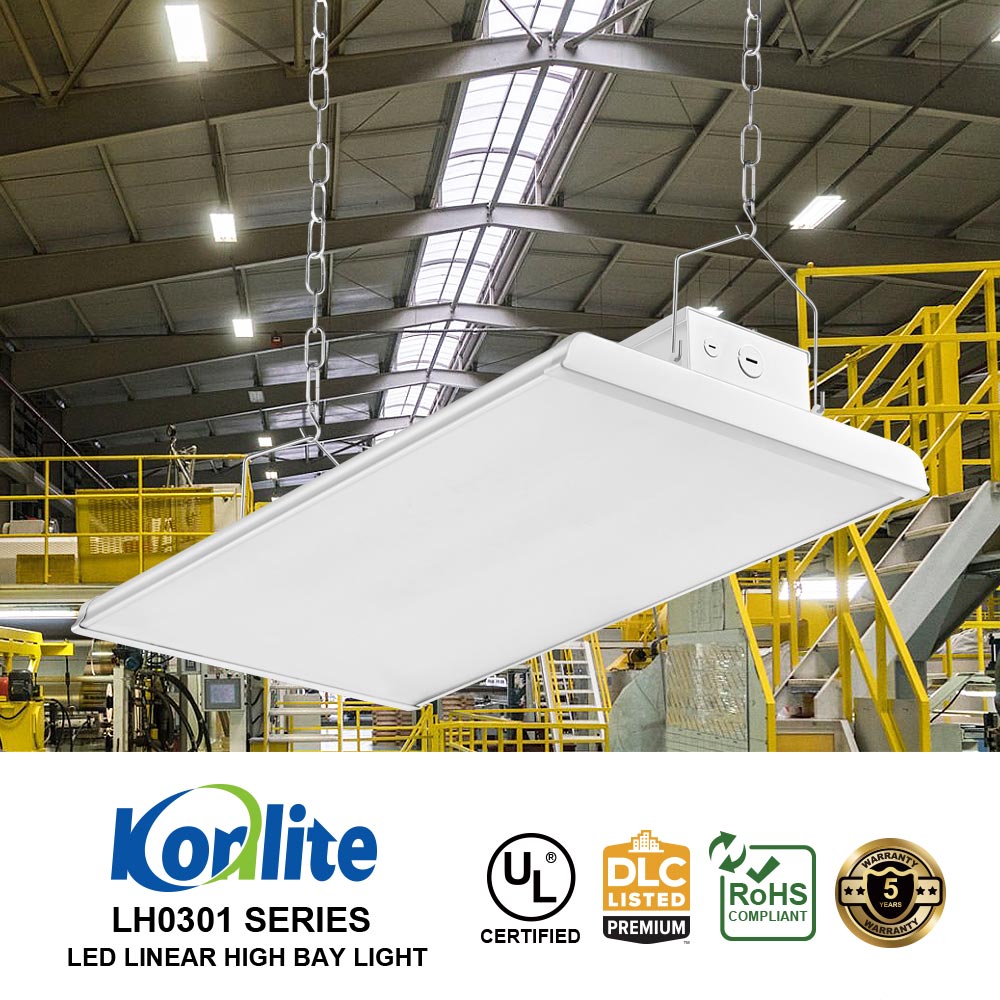

UL and DLC certified LED highbay installed in a warehouse

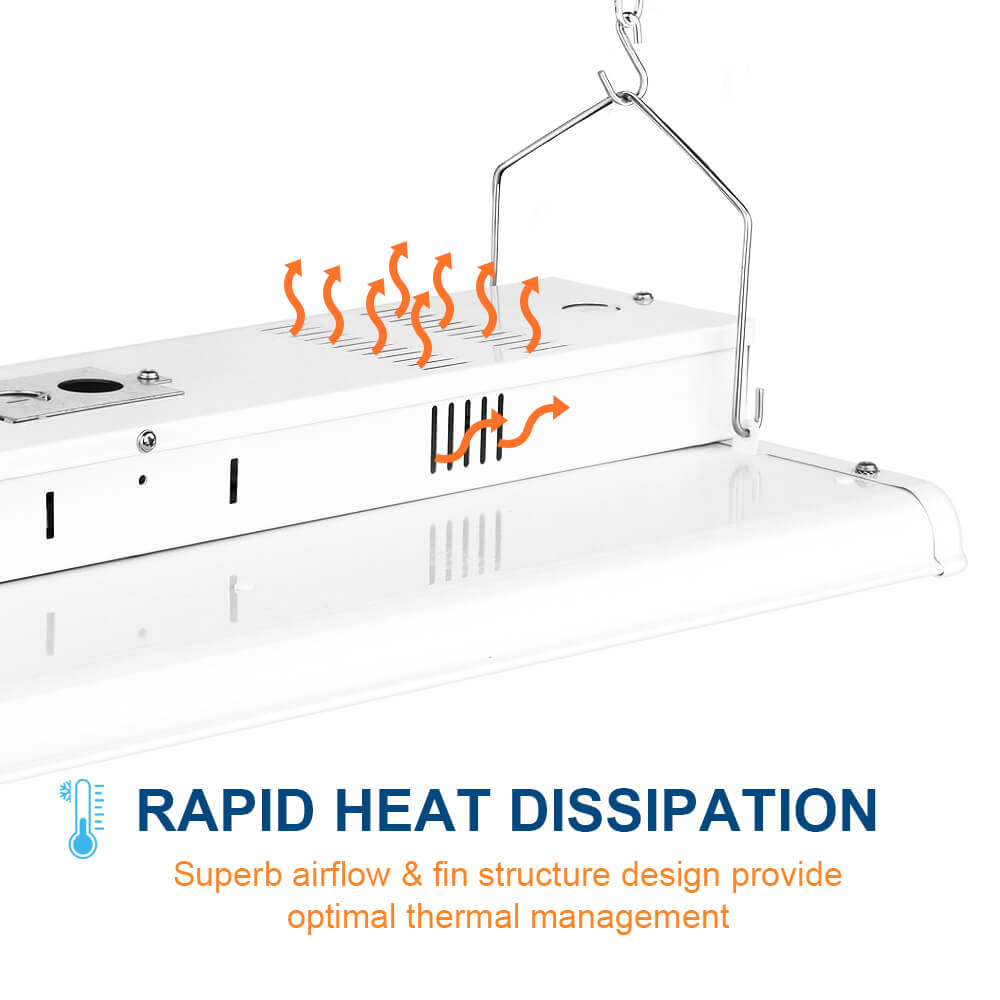

LED Linear Highbay heat dissipation and mounting option

Roll over image to zoom in

Same day shipping from Atlanta Warehouse

IN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.

Konlite Linear LED Bay Ceiling Light - 105W - 1x2FT - 120-277V - 14700 Lumens - 5000K - 250W Equal

Name: Konlite Linear LED Bay Ceiling Light - 105W - 1x2FT - 120-277V - 14700 Lumens - 5000K - 250W Equal
Brand: Konlite
SKU: RKLH0301105W5KDNCHL
Price: 79.99 USD
Availability: InStock

Product Search Code: 10-0101

KonliteSKU: RKLH0301105W5KDNCHL

$90.99 $79.99

1-10V dimmable

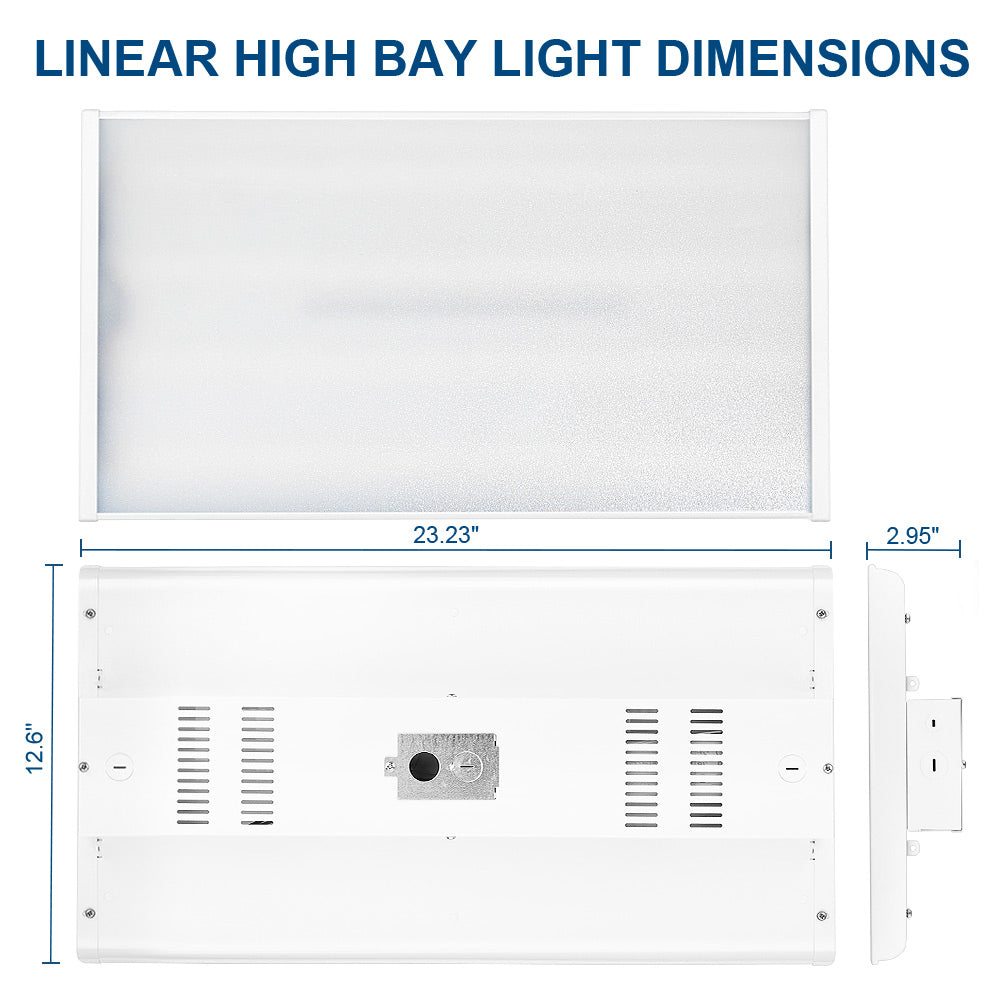

Dimensions: 23.03"L x 12.6"W x 2.87"H
Replaces 4x54W T5HO, 250W HID/MH
Certificates: UL, DLC Premium 5.1
CCT: 5000K Day White
Warranty: 5 Years

Mount Option:

Controls:

Variant

Quantity

(45)

1-10V dimmable
Dimensions: 23.03"L x 12.6"W x 2.87"H
Replaces 4x54W T5HO, 250W HID/MH
Certificates: UL, DLC Premium 5.1
CCT: 5000K Day White
Warranty: 5 Years

This high-performance Konlite LH03 LED Linear Bay Light Series is ideal for new construction or replacement of 250W-300W. Delivers top energy savings and maintenance free durability for a wide range of applications.

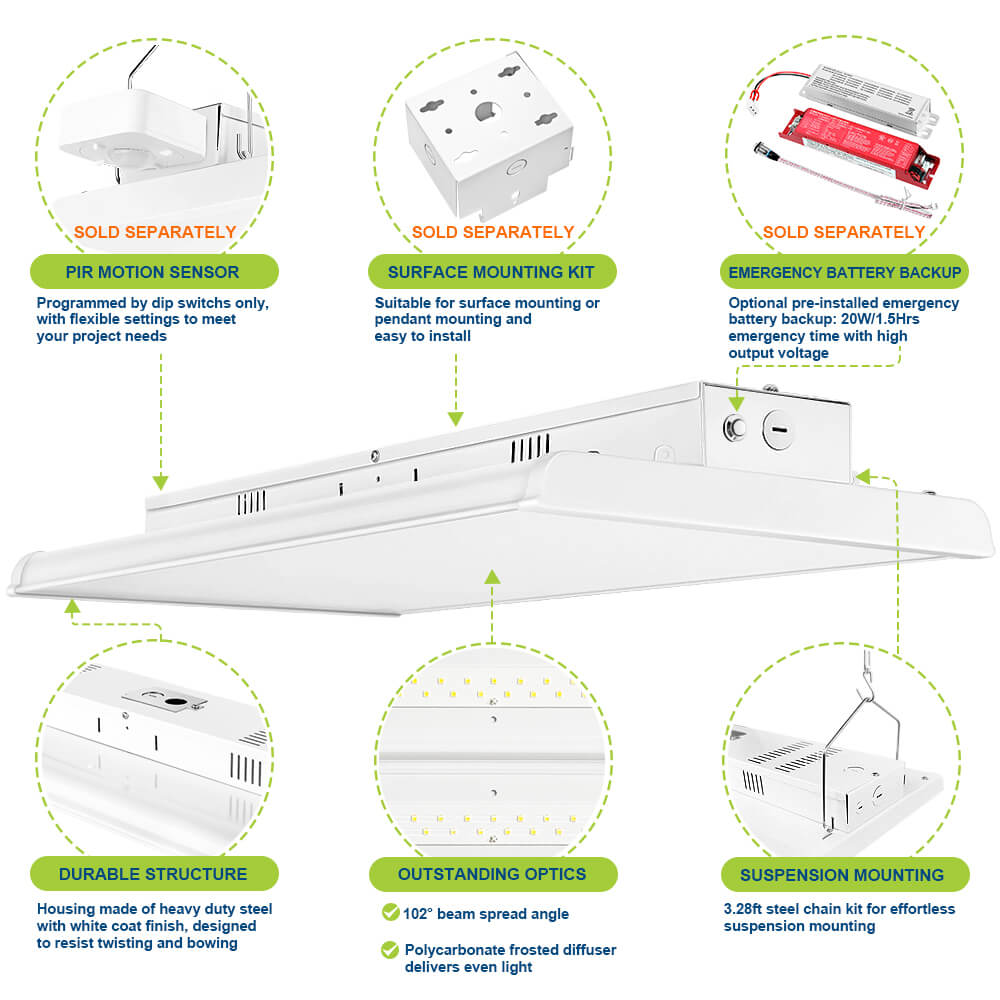

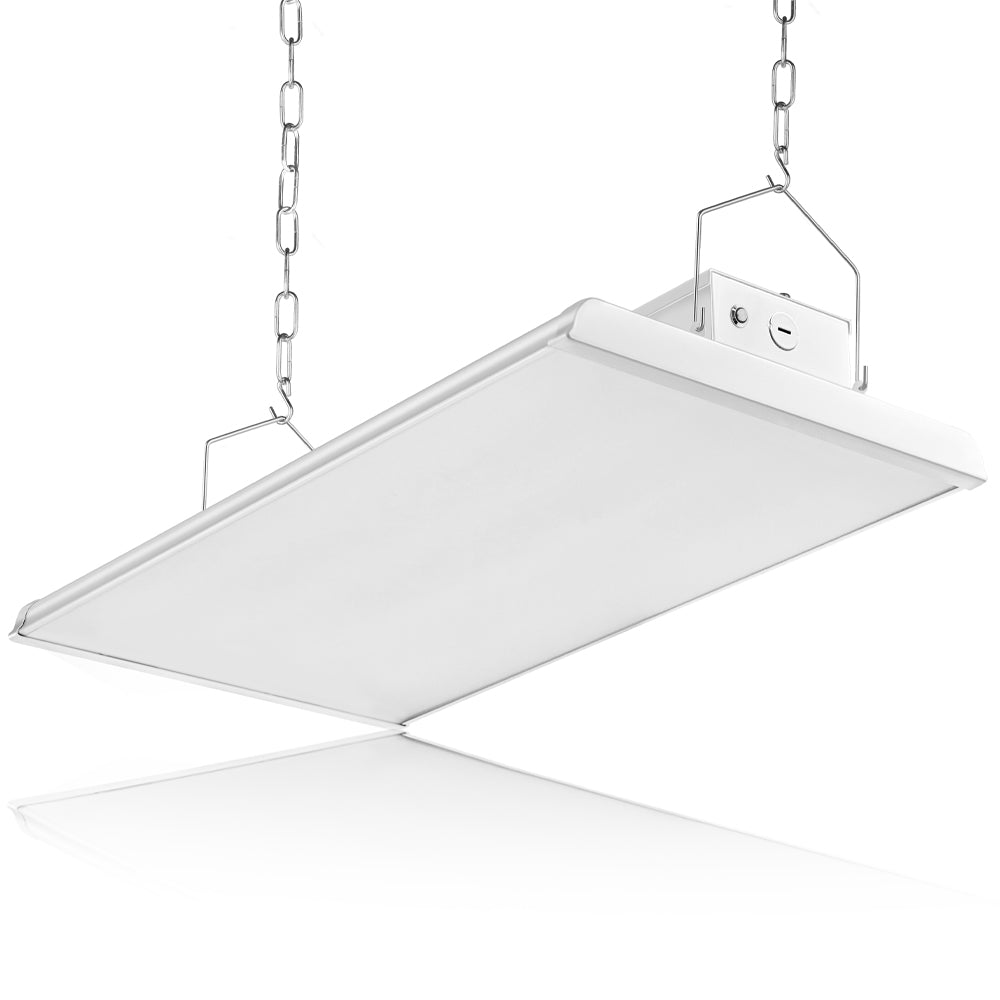

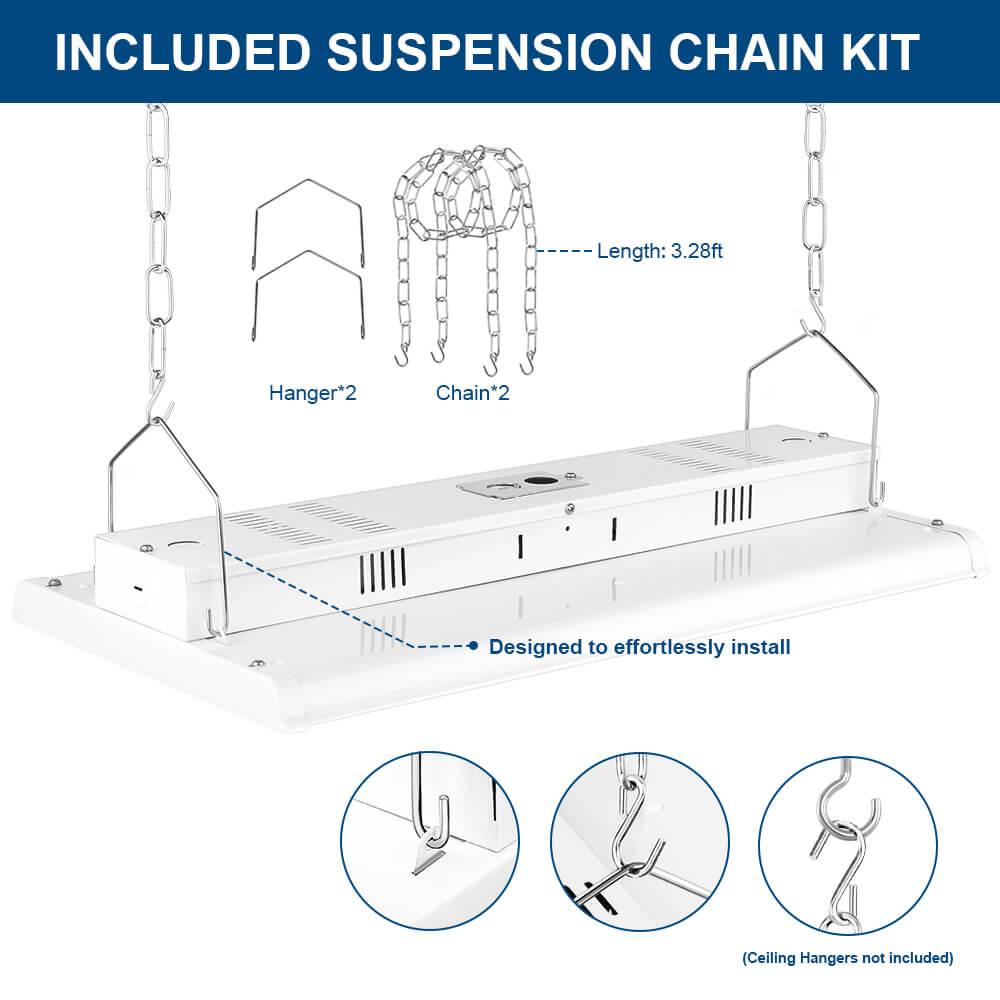

Designed for quick, easy installation-Each unit comes with V Hook and hanging chain

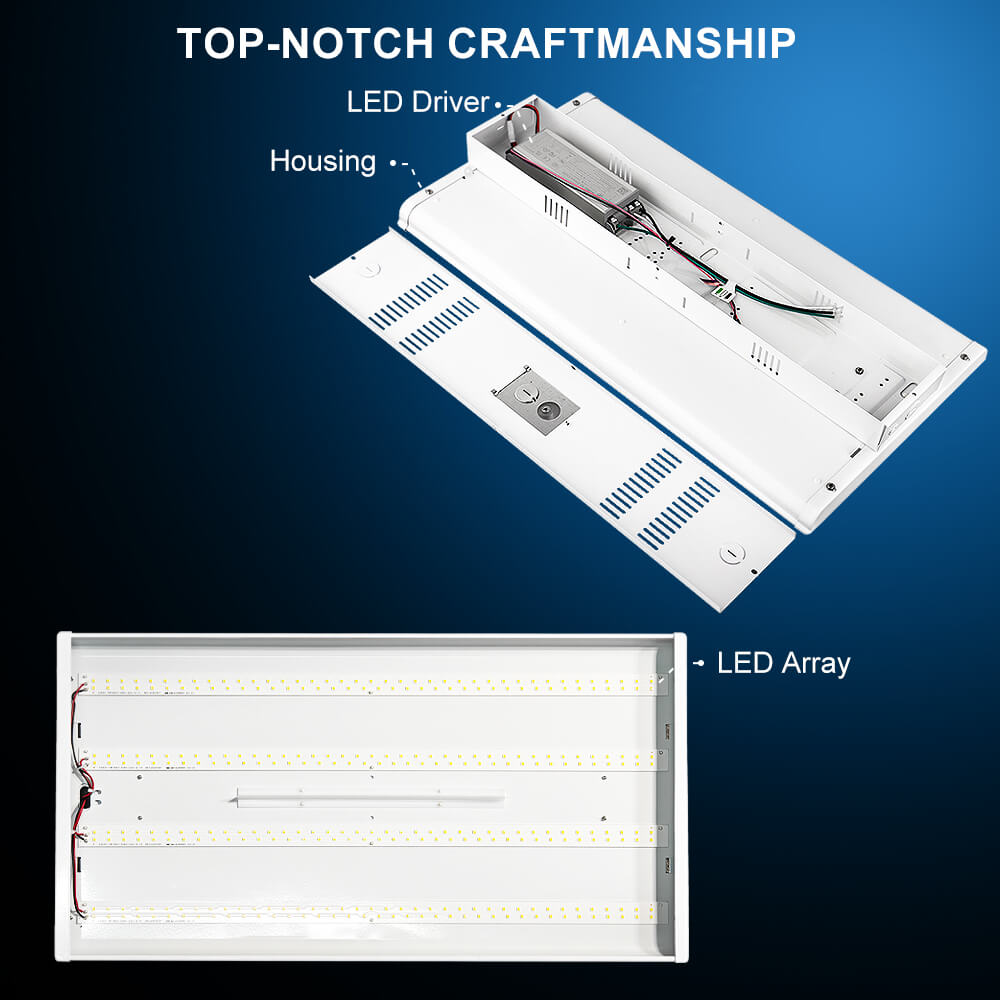

Assembly made of heavy duty gauge steel, rigidly designed to resist twisting and bowing
Optional motion sensor with daylight sensing function to maximize power savings
DLC Premium certified qualifying for maximum rebates where applicable

$90.99 $79.99

Mount Option:

Controls:

Variant

Quantity

Secured payment methods. Revolve LED never stores nor has access to your card information.
90 days return without restocking fee*.
$199 Free Shipping on eligible products*
Availability: Usually Ships in one to three business days.

Designed for quick, easy installation-Each unit comes with V Hook and hanging chain
Assembly made of heavy duty gauge steel, rigidly designed to resist twisting and bowing
Optional motion sensor with daylight sensing function to maximize power savings
DLC Premium certified qualifying for maximum rebates where applicable

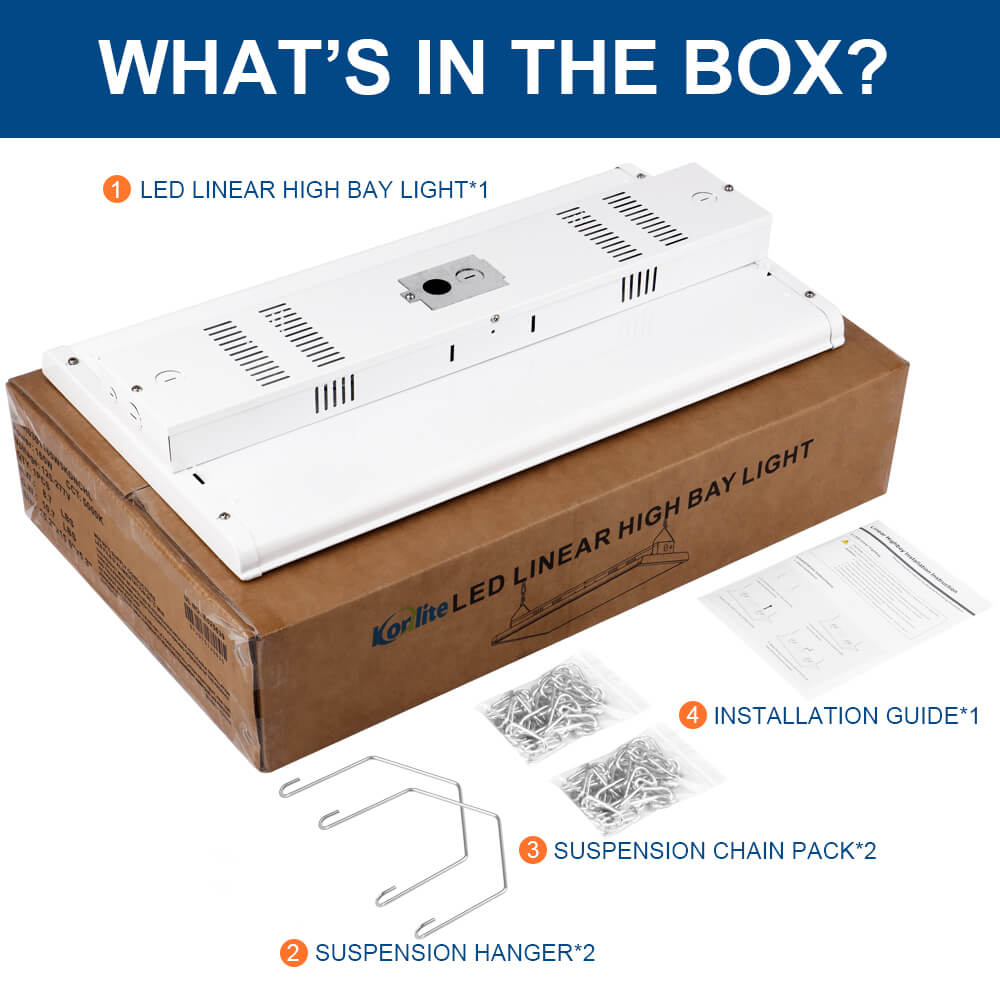

What's in the box

1 Lighting Fixture - 2 Set V-Hook & Chain -1 Installation Guide

Product Details

Downloads

Reviews

Q&A

1 Lighting Fixture - 2 Set V-Hook & Chain -1 Installation Guide

Product Overview

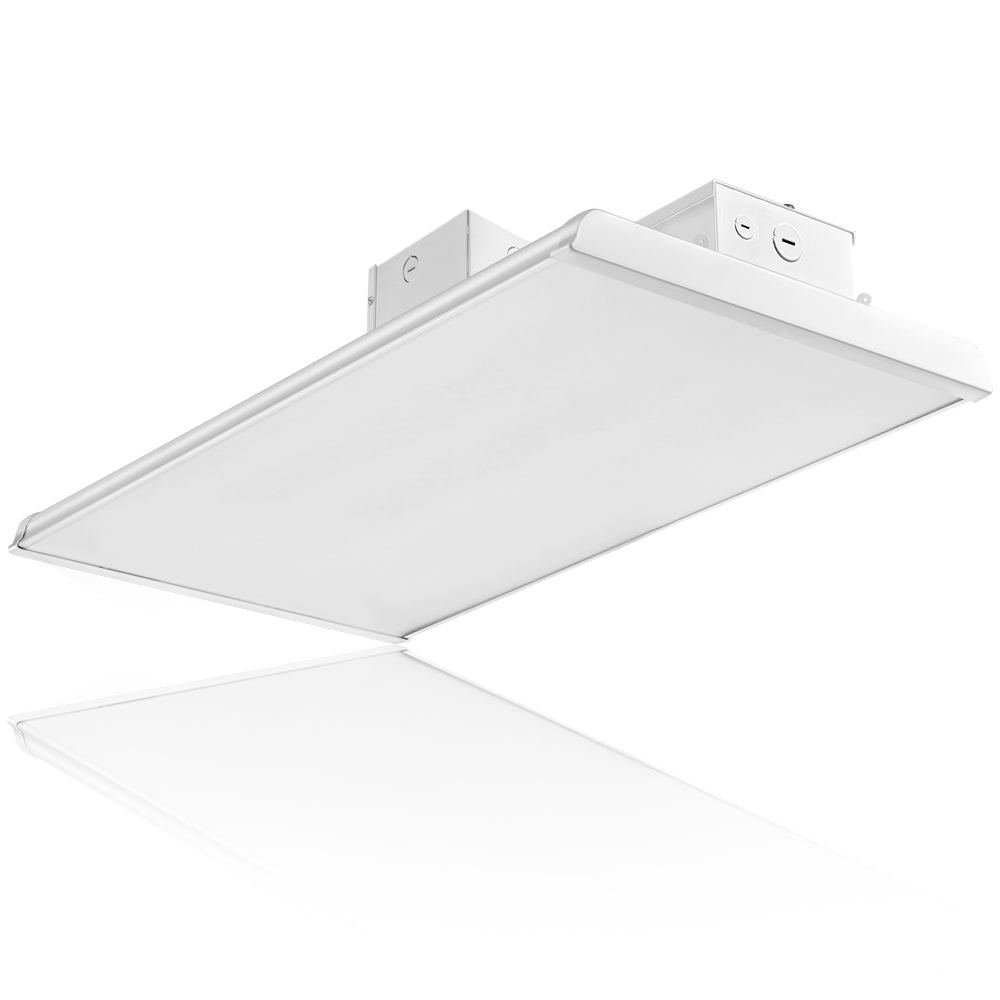

This 2ft Linear LED bay ceiling light is ideal for replacement of 4 F32T8 / F54T5 HO, 250-300 watt HID or new construction general lighting applications. The high performance compact design allows for easy installation.

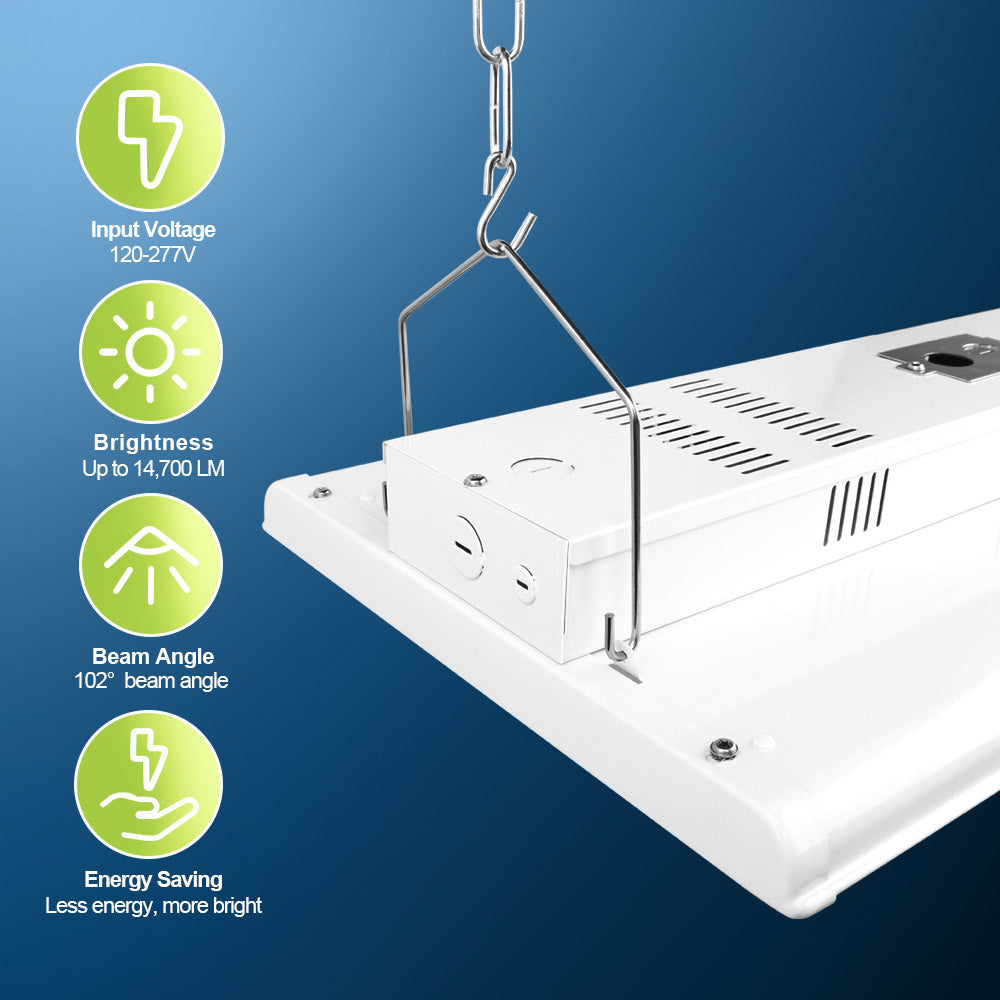

105 watts, 14,700 lumens, 120-277V, 5000K Commercial Bright White

Frosted polycarbonate diffuser creates even and glare free light distributed broadly at a 120° beam angle.

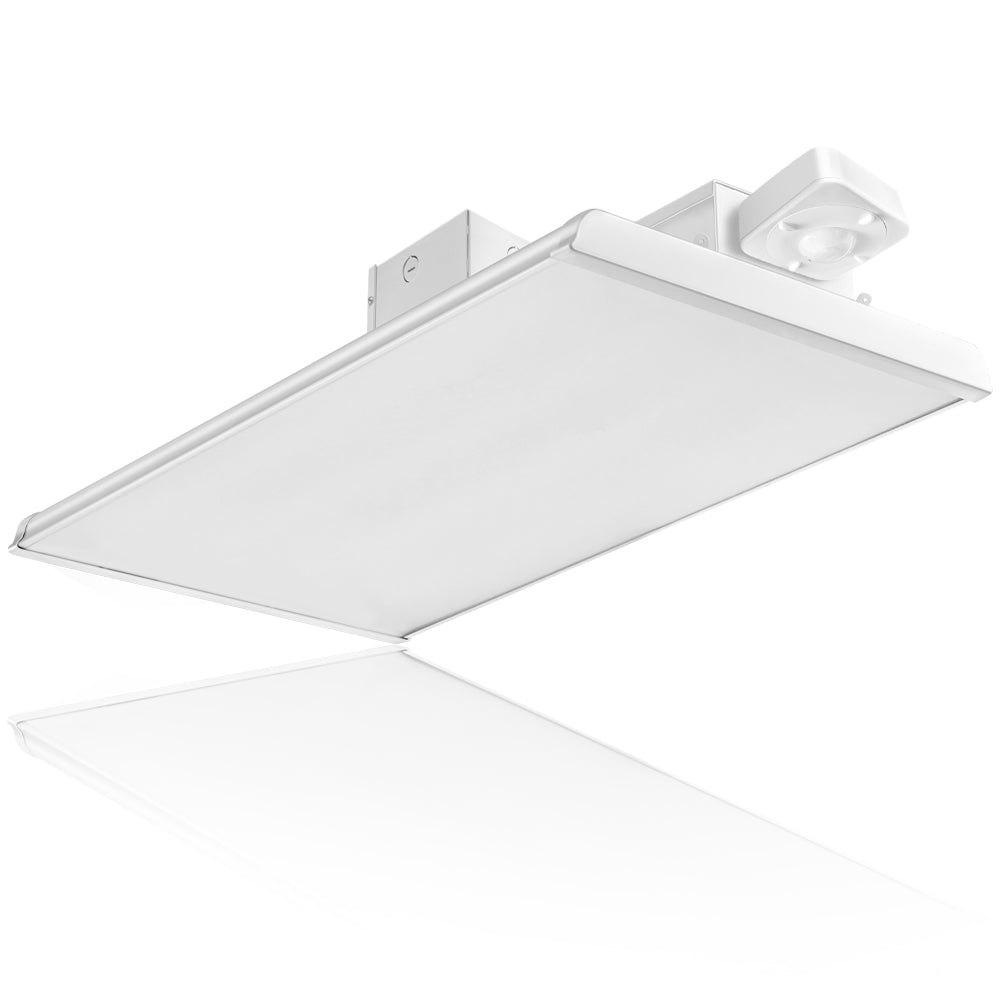

Available motion sensor has built-in daylight sensing capability. Remote control required to make setting adjustments*.

1-10V Dimming, Delivers top energy savings and maintenance free durability for a wide range of applications.

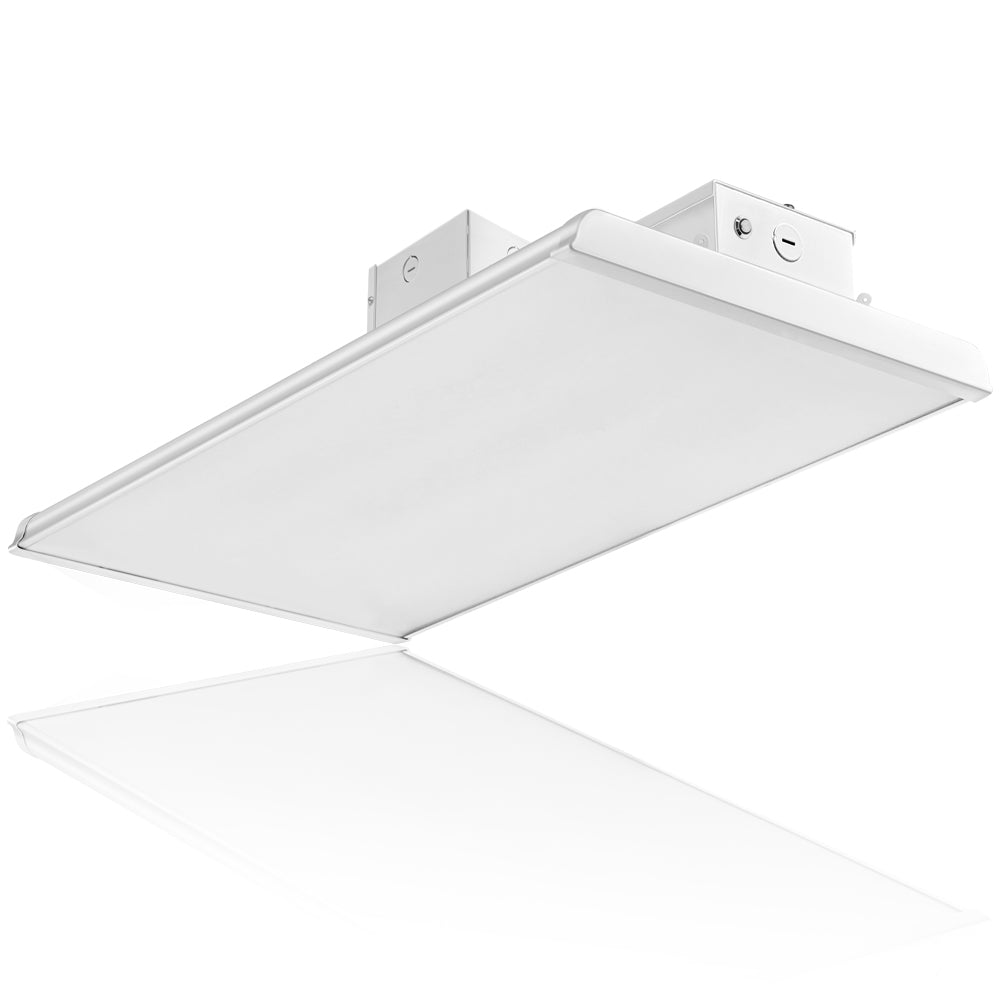

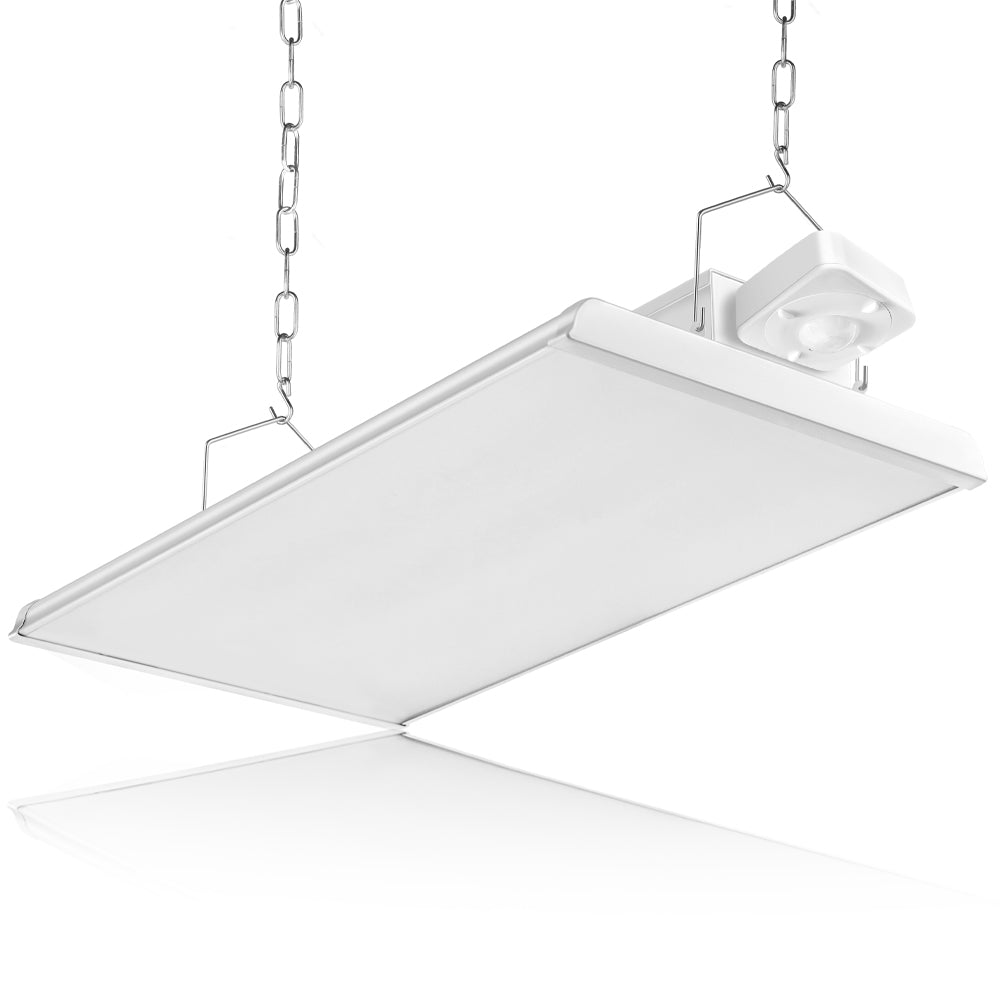

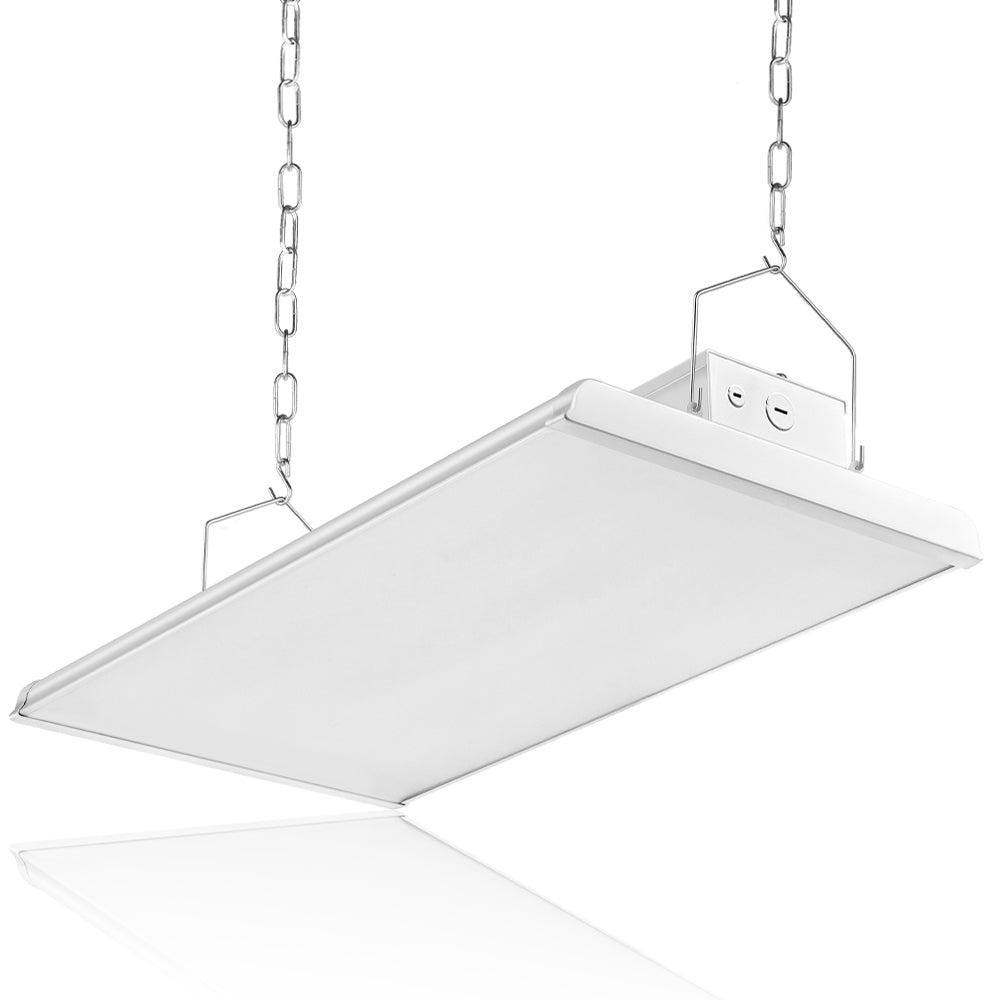

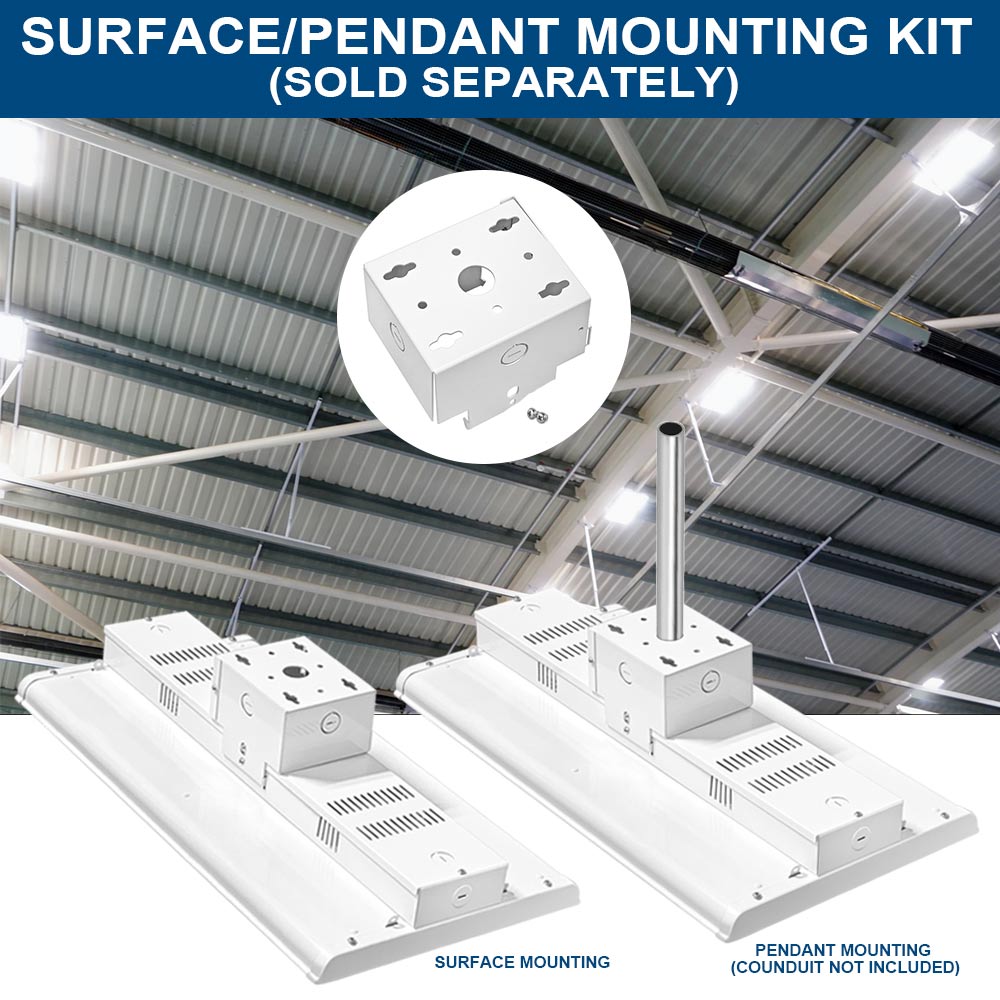

V Hook and hanging chain or Surface Mount Adapter, UL, DLC rebate eligible.

Cost effective and quality solution for: Warehouses and storage, Industrial facilities, Retail centers, Manufacturing, Sports facilities and Gymnasiums.

See similar 165-watt, 225-watt Highbay versions.

*Default setting for optional motion sensor is set to turn off fixture after 5 seconds of inactivity.

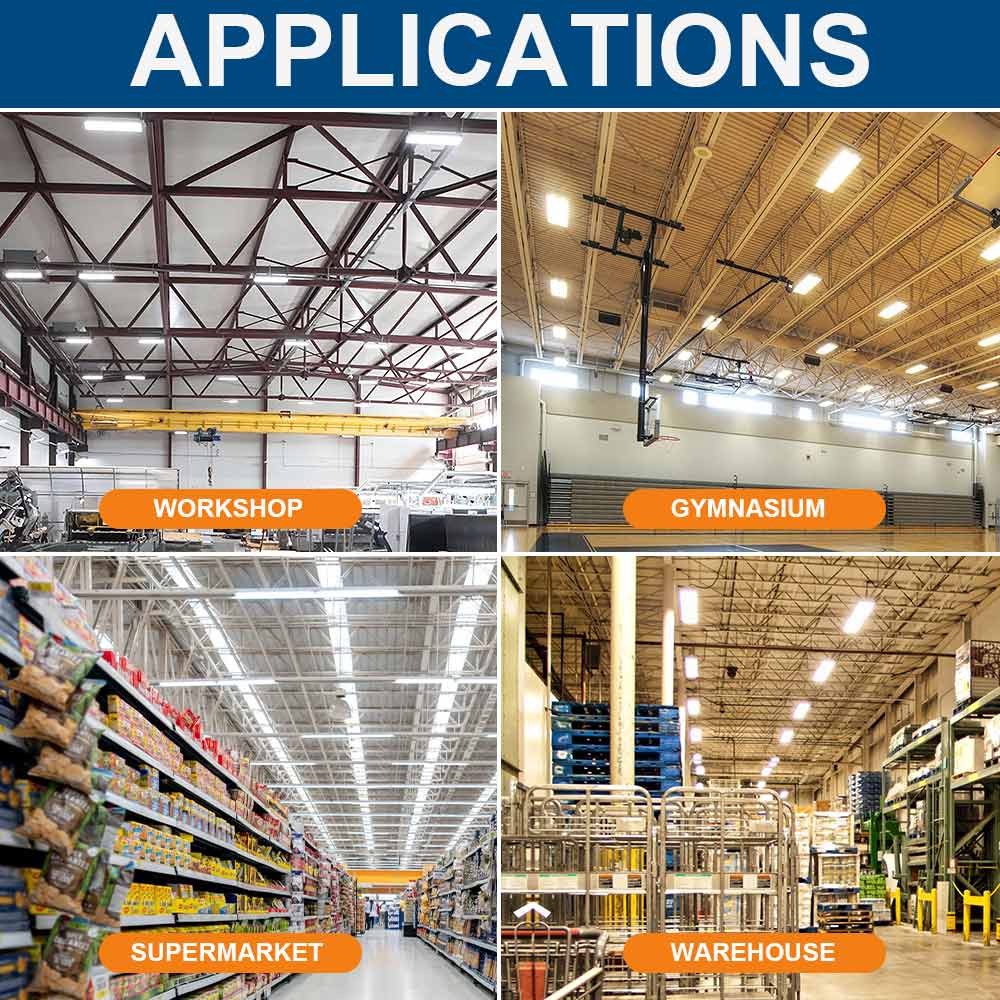

Applications

•Warehouses	•Workshops
•Convention Centers	•Low Bays
•Storage Facilities	•Distribution Centers
•Factories	•Supermarkets
•Retail	•Gymnasiums

Color Temperature 5000K color temperature

Certifications

Specification

Brand	Konlite	MPN	RKLH0301105W5KDNCHL
Warranty	Limited 5 Years	UPC	672975120818
Input Voltage	120-277V	Beam	120°
Input Wattage	105W	Equal To	250W - 300W or 4 lamp T8/T5
Delivered Lumens	14,700	CRI	80
Efficacy	140 LM/W	Available CCT	5000k
Rated Life	>50,000 hrs	Power Factor	0.9
THD	15%	IP Rating	IP54
Dimmable	1-10V	Mounting	V-Hook & Chain, Surface, Pendant
Operating Temperature	-30F to 122F	Dimensions	23.03”X12.6”X2.87
Certifications	UL, Damp Locations, DLC Premium	Weight	11 Lbs

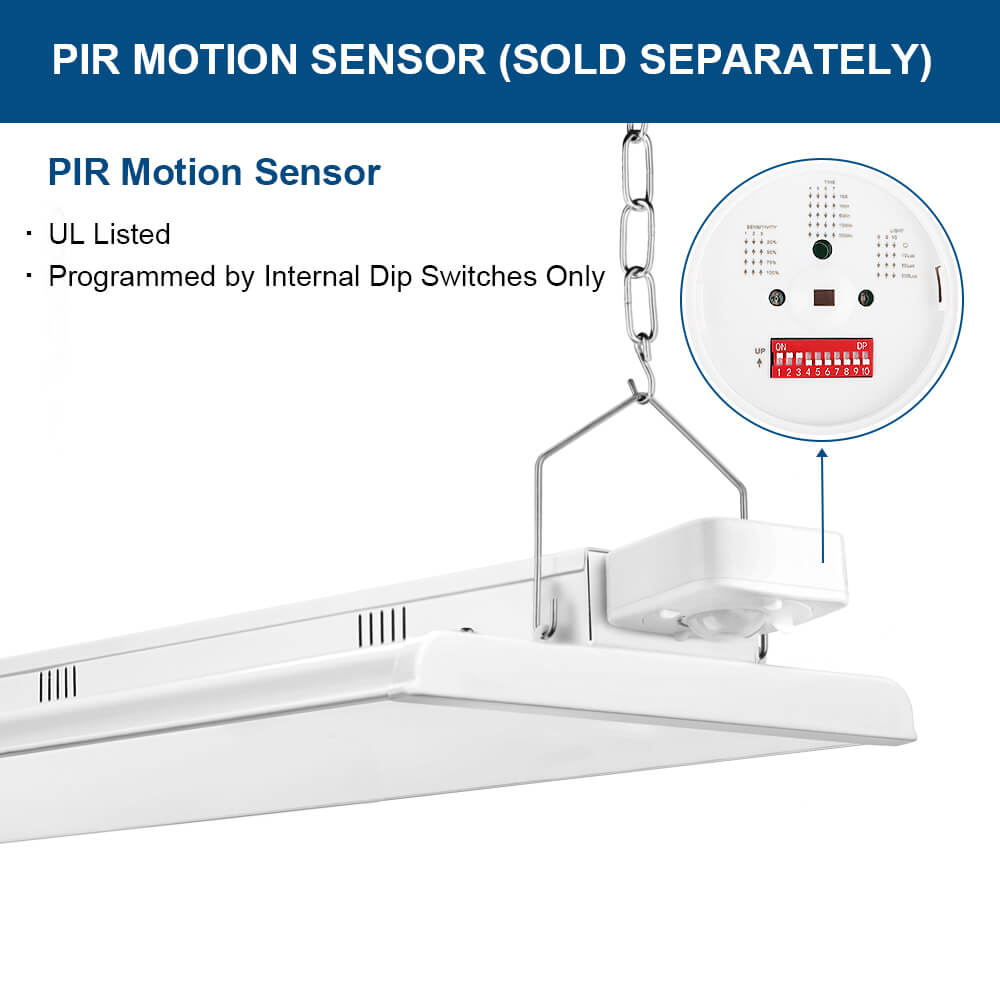

Motion Sensor Specification

Brand	Haisen	MPN	HD406VRH-D
Control	On/off / 1-10V Dimming	Setting tool	Remote control (HD05R)
Detection area	25%/50%/75%/100%	Hold time	5s/30s/1min/3min/5min/10min/20min/30min
Stand-by period	0s/10s/30s/1min/5min/10min/30min/+∞	Stand-by dimming level	10%/20%/30%/50%
Motion detection	0.5~1.5m/s	Daylight threshold	Disable /2Lux/10Lux/30Lux/50Lux/80Lux/120Lux
Mounting height	Max. 50ft	Detection range	Max. 45ft
Operating Voltage	120-277V, 50Hz/60Hz	IP rating	IP65

Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
