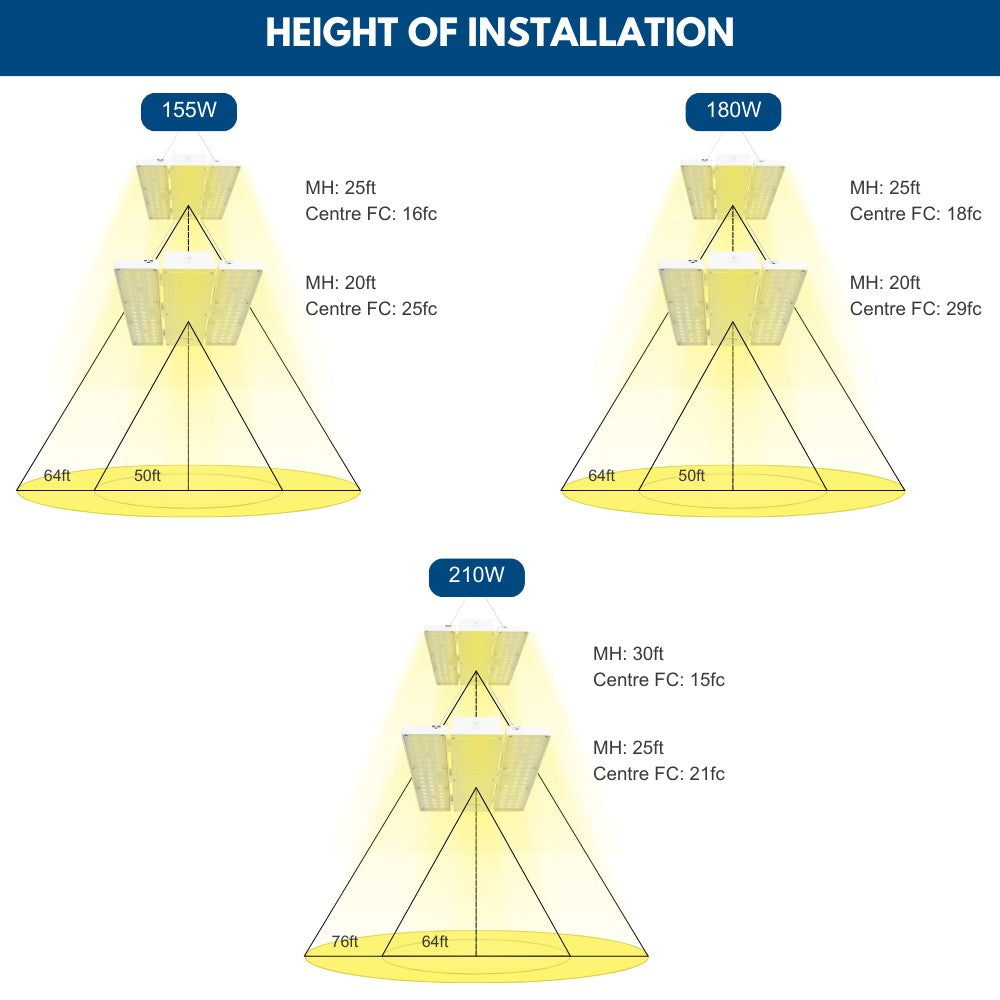

Suggested installation height and footcandle

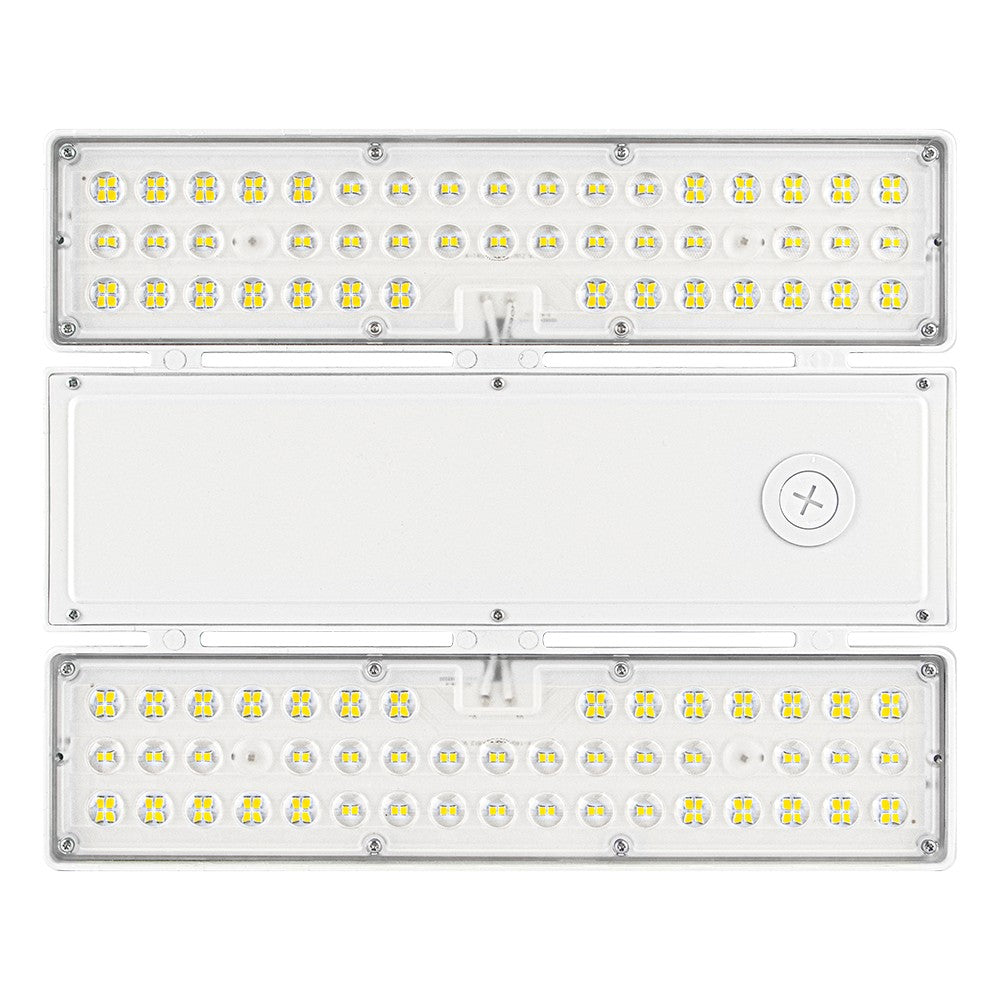

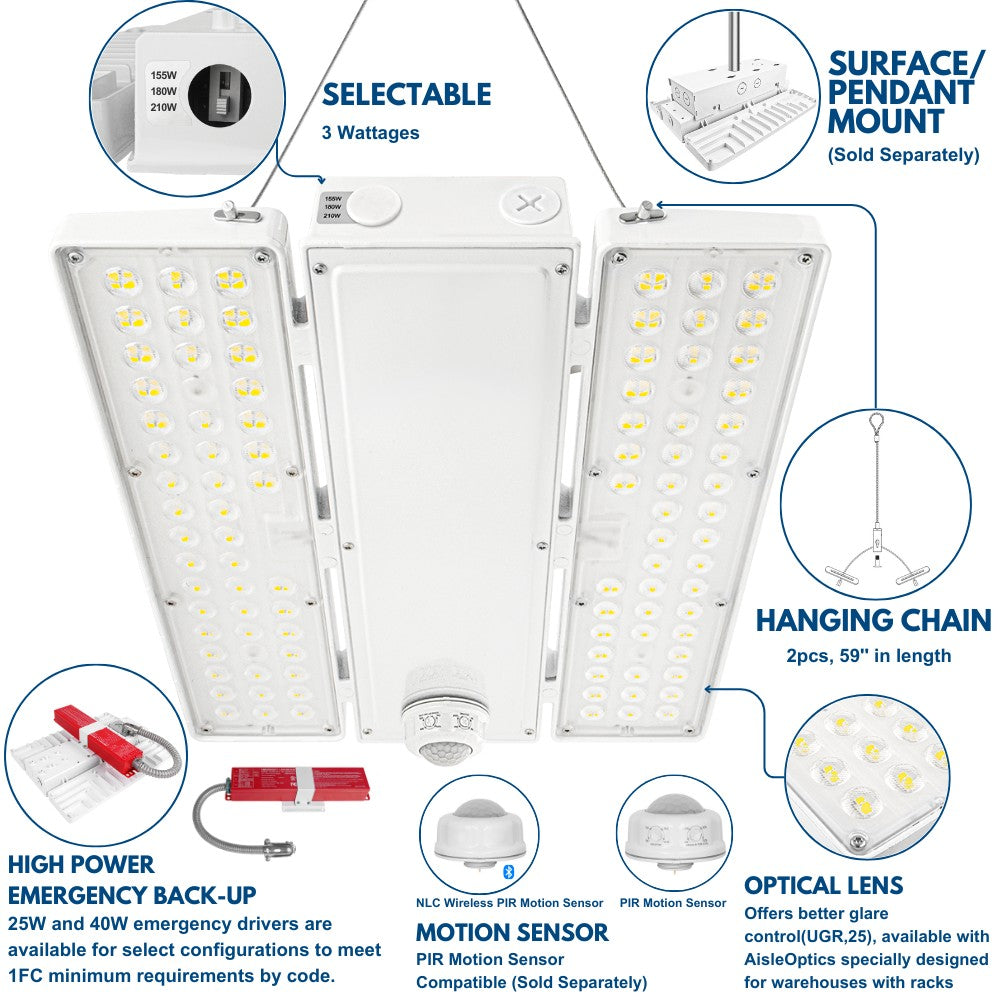

Details of PAVO led high bay light

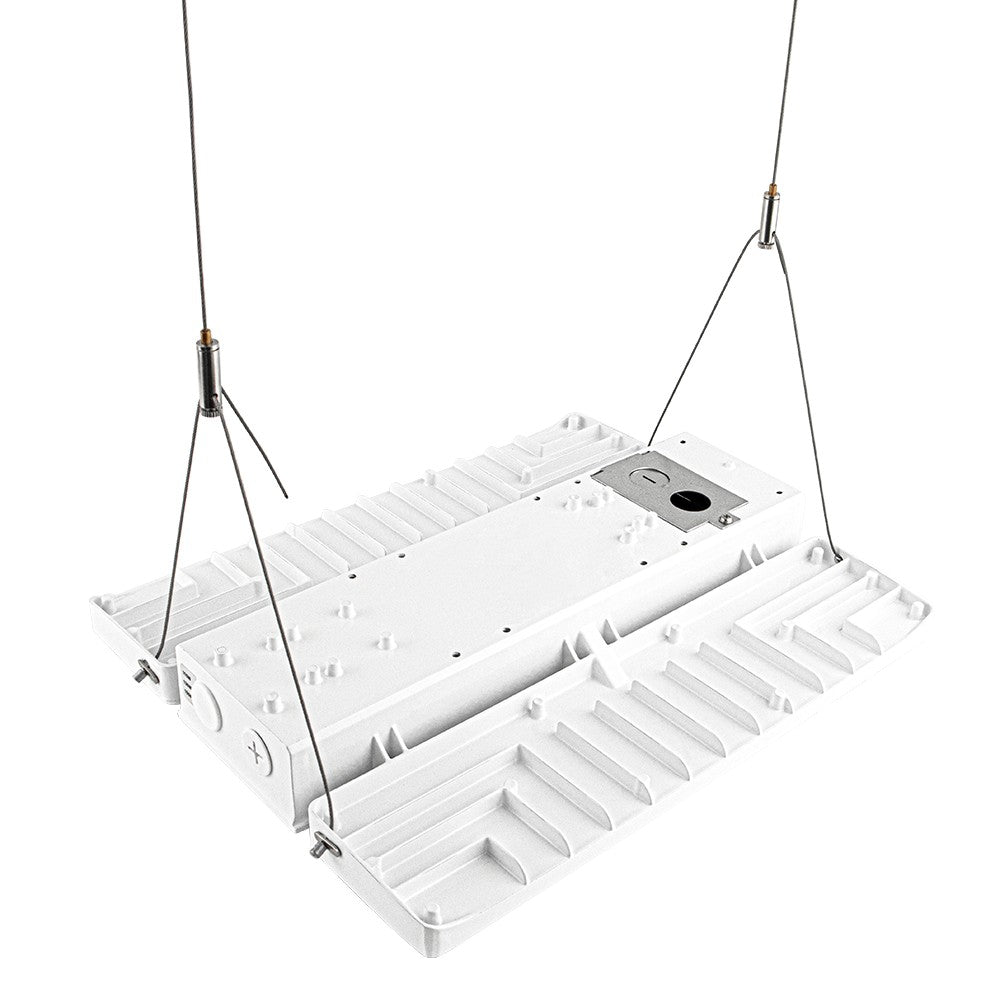

Hanging Chains of Konlite LED High Bay lights PAVO series
Surface and pendant mount methods of PAVO high bay lights
Dimensions of Konlite LED High Bay lights PAVO series - 210W

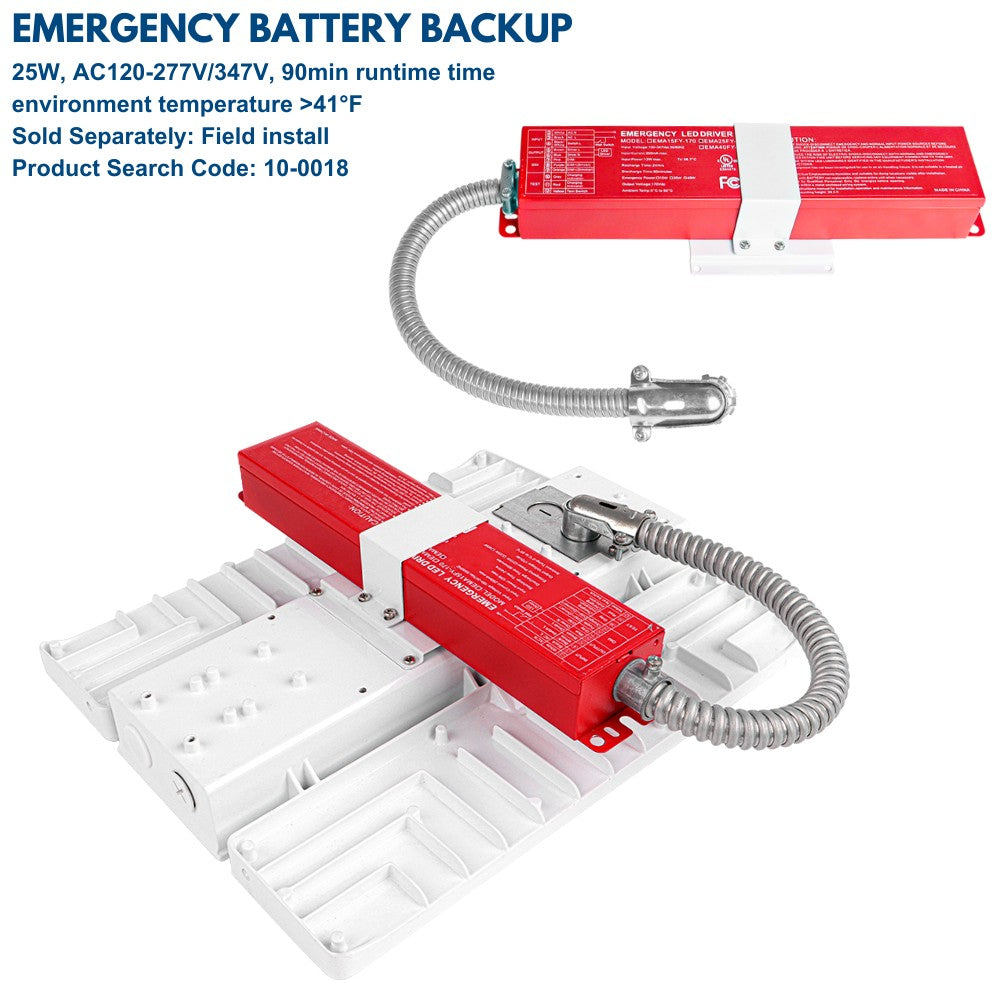

PAVO series led linear high bay with emergency battery backup
Konlite LED High Bay lights PAVO series with motion sensor

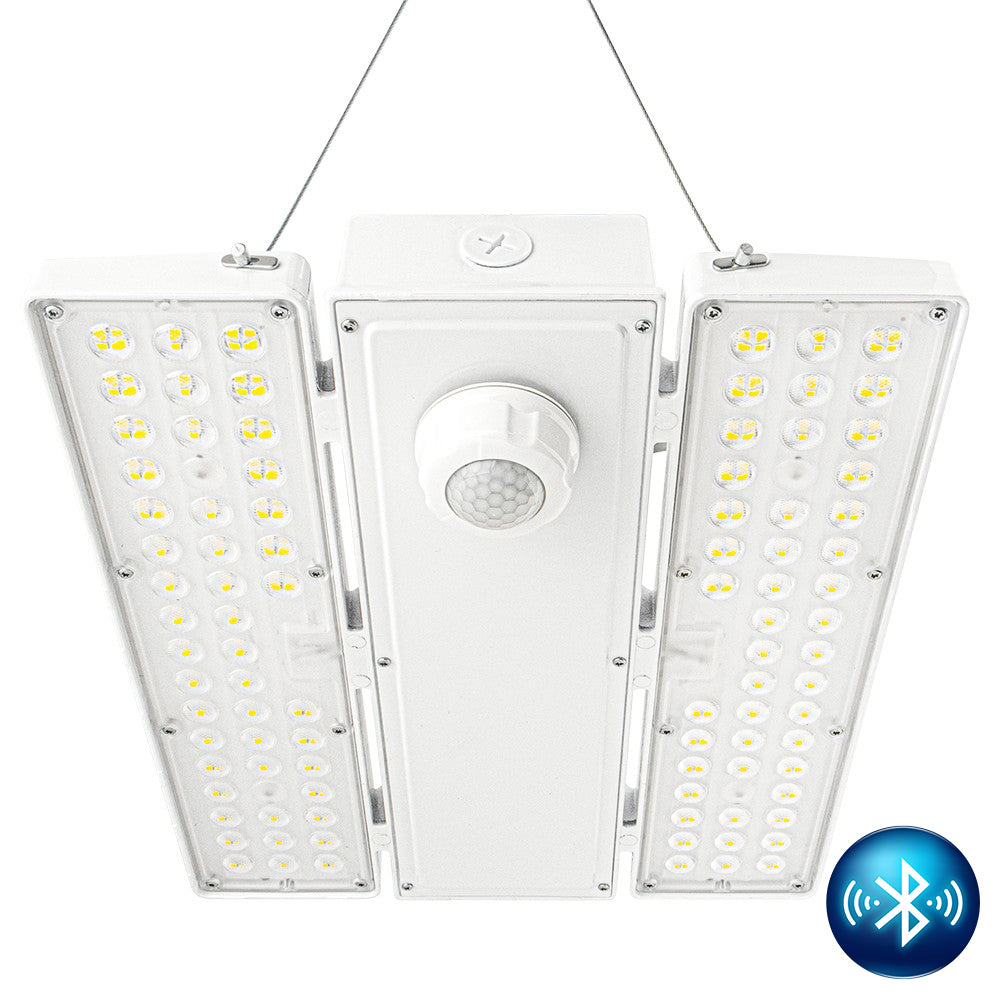

Konlite LED High Bay lights PAVO series with blue tooth motion sensor

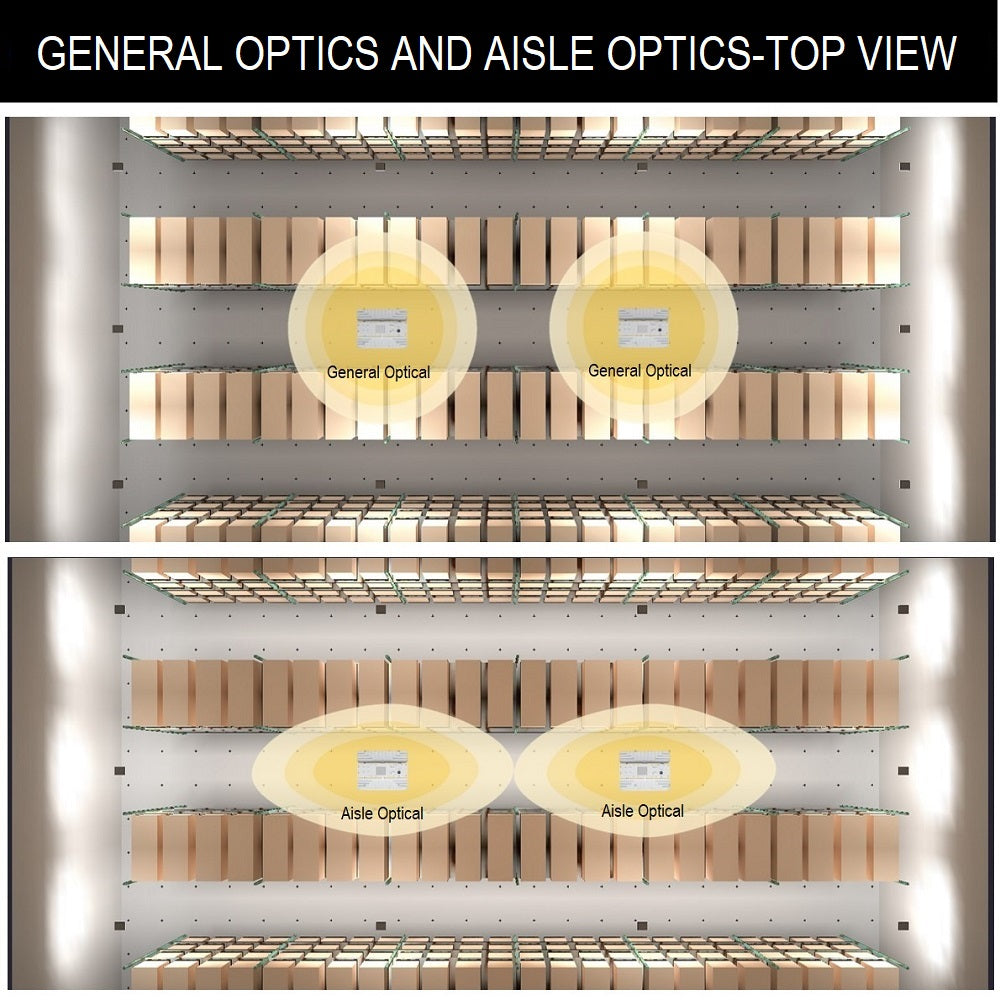

Difference between aisle optical and general optical linear high bay
Konlite LED High Bay lights PAVO series
Highbay light with aisle optical vs. general optical lens

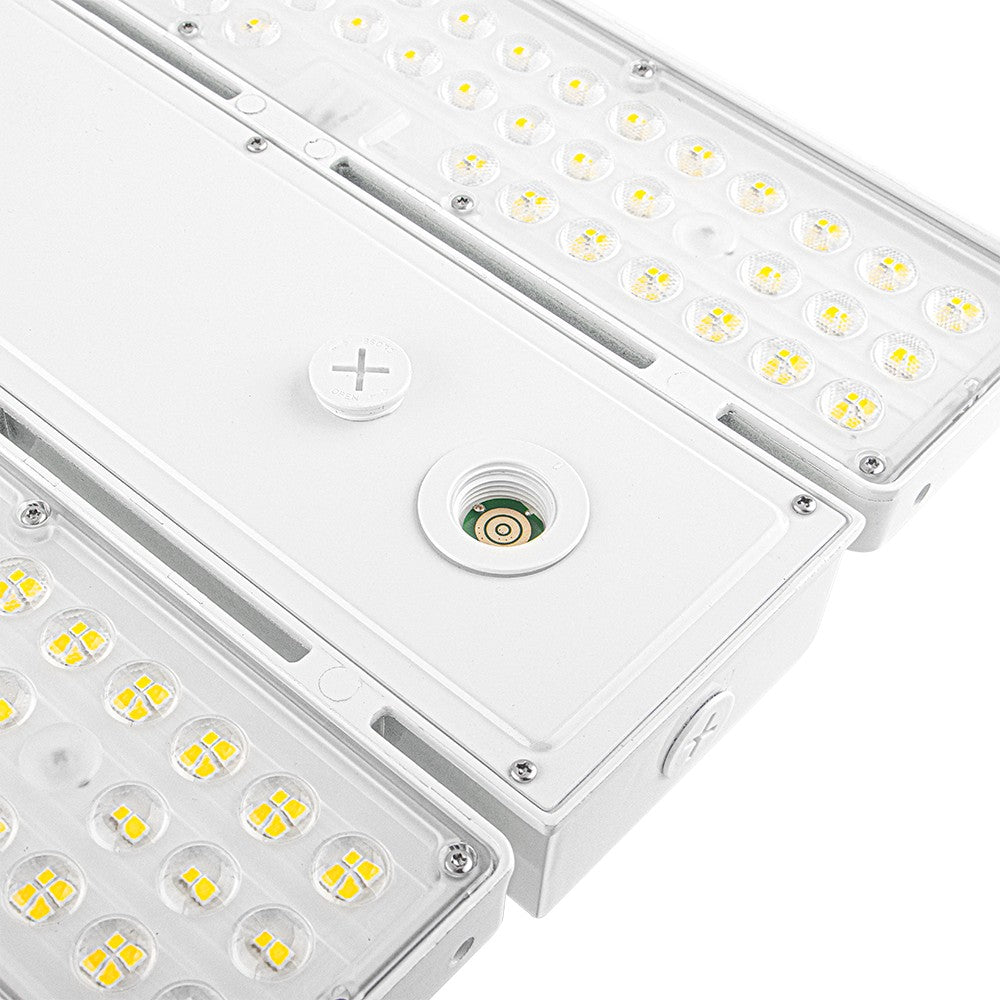

Motion Sensor Receptacle of Konlite LED High Bay lights PAVO series
Close Look of Konlite LED High Bay lights PAVO series with motion sensor

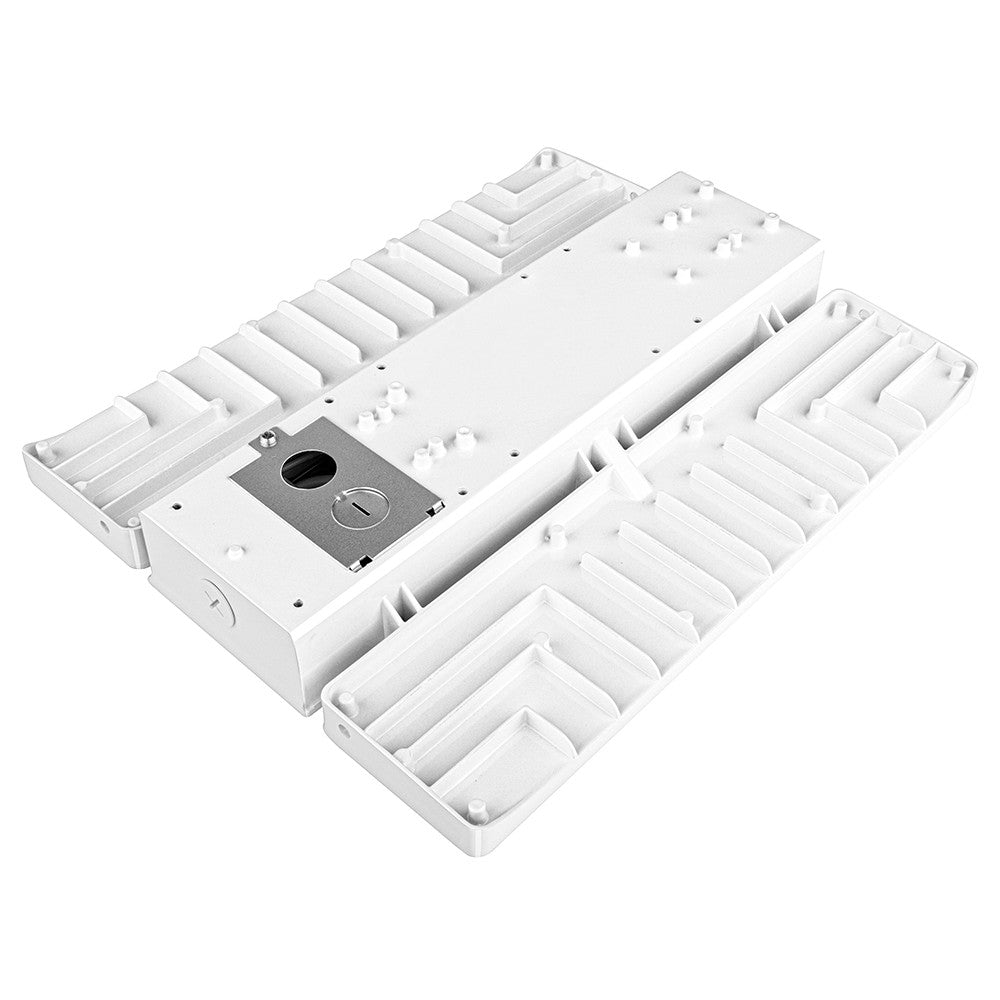

Backview of Konlite LED High Bay lights PAVO series
Back View of Konlite LED High Bay lights PAVO series
Front View of Konlite LED High Bay lights PAVO series
Box of Konlite LED High Bay lights PAVO series
Roll over image to zoom in Click on image to zoom
Konlite LED High Bay lights PAVO series - 210WSuggested installation height and footcandleDetails of PAVO led high bay lightHanging Chains of Konlite LED High Bay lights PAVO seriesSurface and pendant mount methods of PAVO high bay lightsDimensions of Konlite LED High Bay lights PAVO series - 210WPAVO series led linear high bay with emergency battery backupKonlite LED High Bay lights PAVO series with motion sensorKonlite LED High Bay lights PAVO series with blue tooth motion sensorDifference between aisle optical and general optical linear high bayKonlite LED High Bay lights PAVO seriesHighbay light with aisle optical vs. general optical lensMotion Sensor Receptacle of Konlite LED High Bay lights PAVO seriesClose Look of Konlite LED High Bay lights PAVO series with motion sensorBackview of Konlite LED High Bay lights PAVO seriesBack View of Konlite LED High Bay lights PAVO seriesFront View of Konlite LED High Bay lights PAVO seriesBox of Konlite LED High Bay lights PAVO series

This Konlite Pavo series compact LED Linear High Bay is ideal for new construction or replacement of 600W HID, 4x54 T5 or 8x54 T5 Lamp fixture. Delivers top energy savings and maintenance free durability for a wide range of applications.

  • Die-cast aluminum housing, provides a sturdy structure and excellent thermal management
  • Compact design makes handling easier and quick installation
  • Whole series offer wattage selectable flexibility, can be on-field selected
  • Plug-in motion sensor easy and fast install
  • DLC Premium certified qualifying for maximum rebates where applicable
What's in the box
1 Lighting Fixture - 1 Suspension Chain -1 Installation Guide
Same day shipping from Atlanta WarehouseIN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.

PAVO III LED High Bay Light - 210W/180W/155W Selectable - 31,290 Lumens - 120-277V - 5000K - 600W Equal

Konlite SKU: KPVMW2150KLV SEARCH CODE: 10-0303

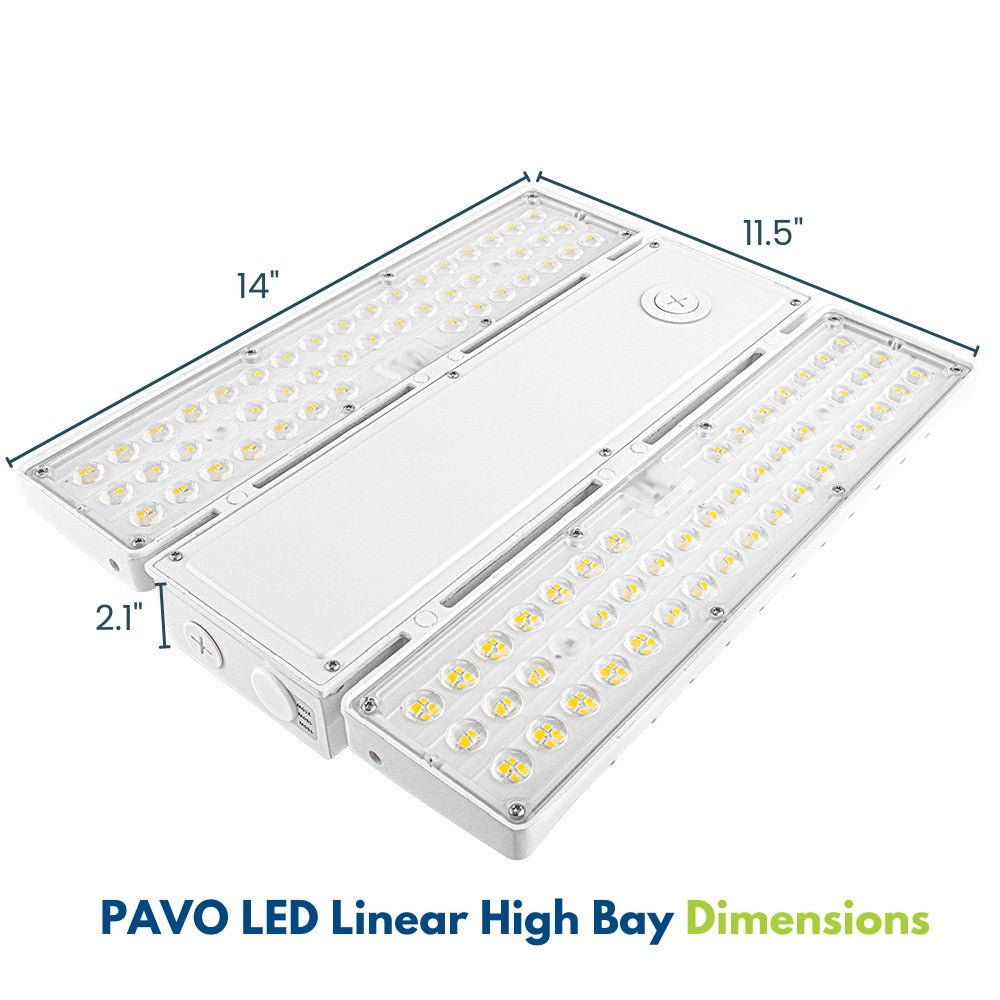

    • Dimensions: 14"L x 11.5"W x 2.1"H
    • 0-10V Dimmable
    • CCT: 5000K Daylight White
    • Certificates: UL, DLC Premium 5.1
    • 5 Years Warranty
    • Replaces 400-600W HID/MH
    • Lumens Selectable:
      • 210w = 31,290 (Preset)
      • 180w = 27,360
      • 155w = 23,710
$129.95 $98.65

  • Secured payment methods. Revolve LED never stores nor has access to your card information.

  • 90 days return without restocking fee*.

  • $199 Free Shipping on eligible products*

  • Availability: Usually Ships in one to three business days.

This Konlite Pavo series compact LED Linear High Bay is ideal for new construction or replacement of 600W HID, 4x54 T5 or 8x54 T5 Lamp fixture. Delivers top energy savings and maintenance free durability for a wide range of applications.

  • Die-cast aluminum housing, provides a sturdy structure and excellent thermal management
  • Compact design makes handling easier and quick installation
  • Whole series offer wattage selectable flexibility, can be on-field selected
  • Plug-in motion sensor easy and fast install
  • DLC Premium certified qualifying for maximum rebates where applicable
What's in the box
1 Lighting Fixture - 1 Suspension Chain -1 Installation Guide
Konlite LED High Bay lights PAVO series - 210W
PAVO III LED High Bay Light - 210W/180W/155W Selectable - 31,290 Lumens - 120-277V - 5000K - 600W Equal
$129.95 $98.65
What's in the box
1 Lighting Fixture - 1 Suspension Chain -1 Installation Guide

Product Overview

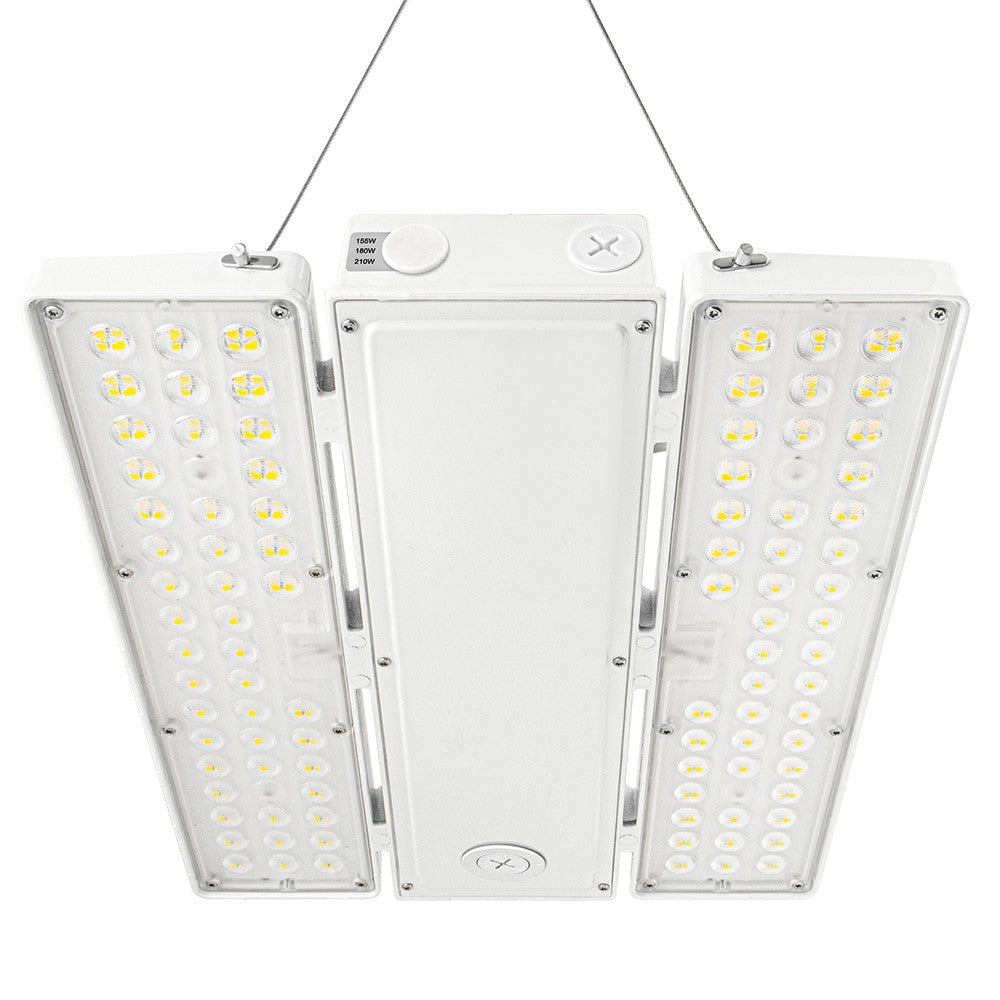

This Konlite PAVO III LED Linear High Bay Light is a budget-friendly solution that combines a compact and sturdy housing with exceptional performance. Designed to replace 600-watt Metal Halide or HID systems, this high bay light delivers significant energy savings and improved efficiency. Its compact design ensures easy handling and quick installation, making it the perfect choice for modern lighting upgrades.

This linear high bay LED light offers wattage-selectable flexibility, which can be adjusted on-site via a 3-step switch located on the side of the fixture. Operating on 120-277V, it emits a 5000K commercial bright white light with three field-selectable brightness settings:

210w / 31,290 Lumens
180w / 27,360 Lumens
155w / 23,710 Lumens
(Preset at 210 watts)

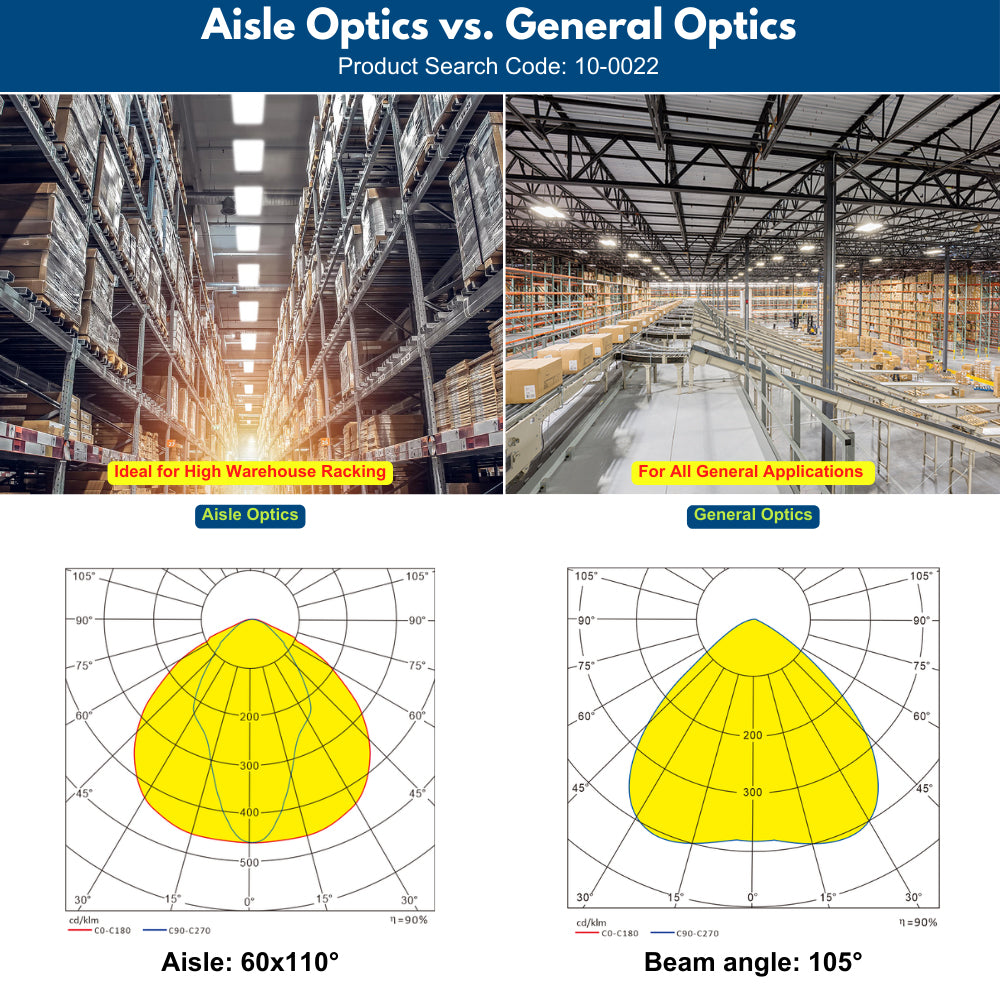

Equipped with an optical lens instead of an ordinary diffuser, our linear LED high bay light provides superior glare control and increased efficacy. The optional Aisle Optic is an ideal solution for warehouse applications with tall racks, maximizing light usage efficiency and delivering greater energy savings.

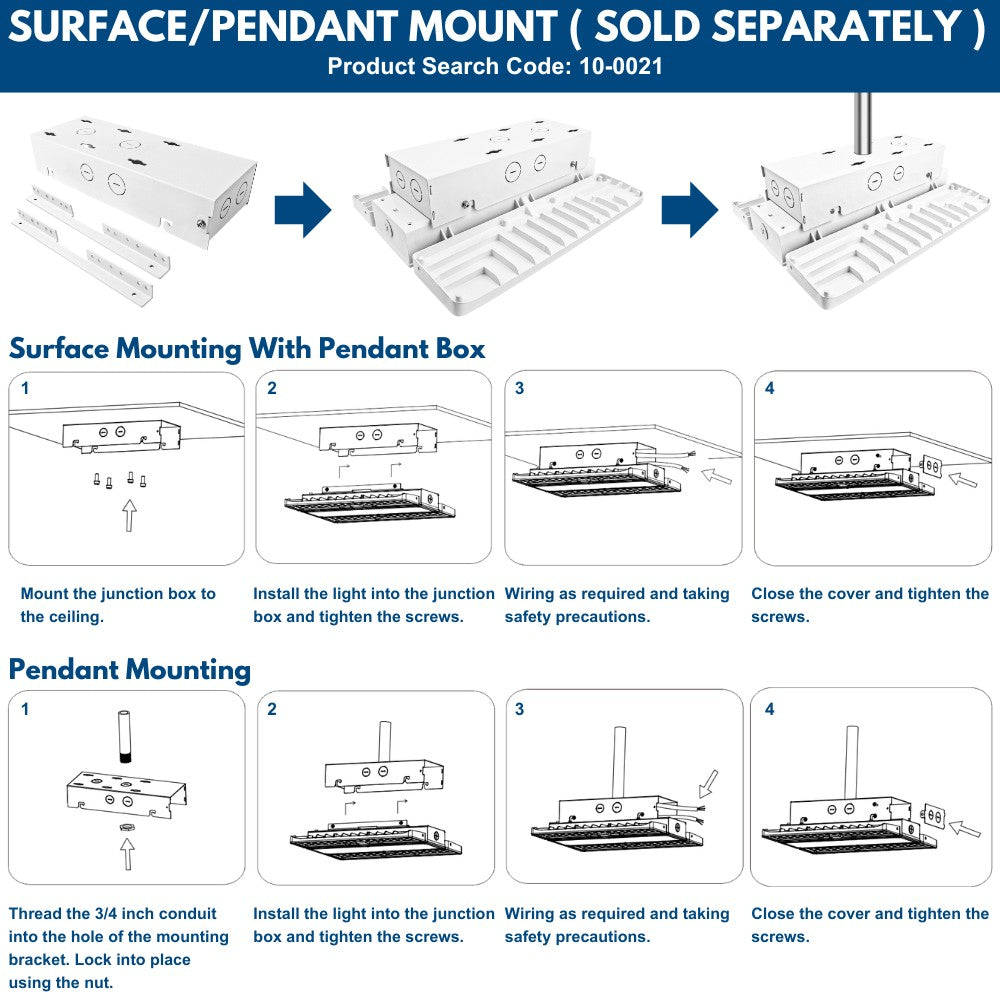

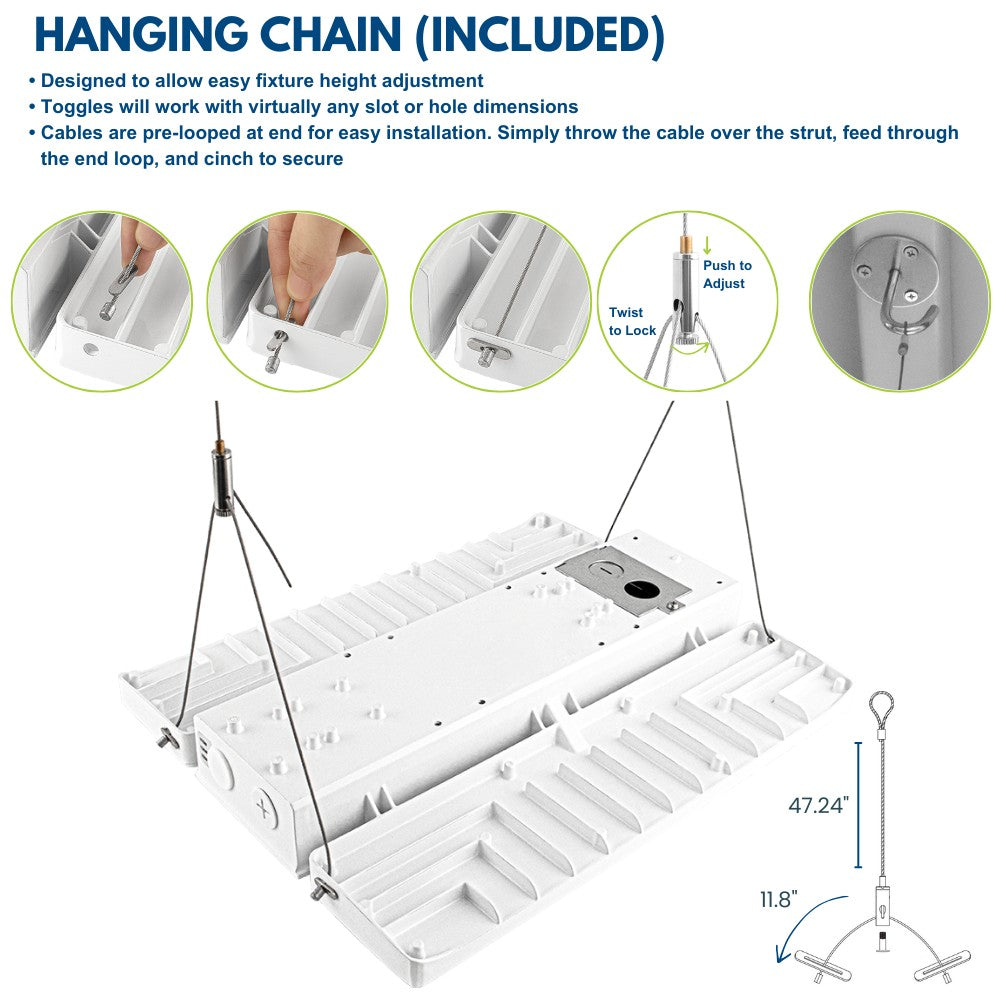

PAVO III high bay light comes with one set of 3 foot suspension chains, with optional Surface Mount and Pendant Mount also available for versatile installation options. Experience the benefits of advanced lighting technology with our Konlite PAVO series LED Linear High Bay Light, the perfect energy-efficient replacement for 600-watt Metal Halide or HID systems in industrial or commercial spaces.



See similar 130W/105W/90W, 155W/130W/155W  and 310W/270W/240W  versions.

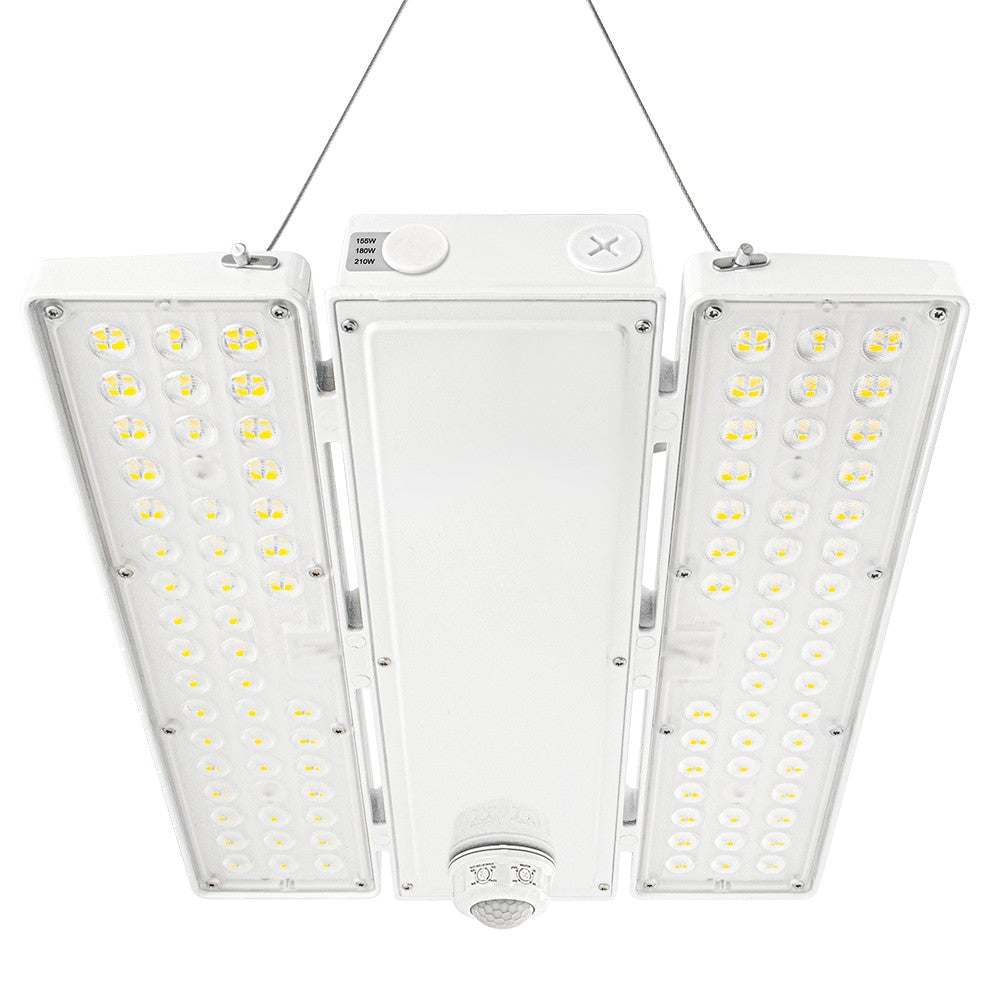

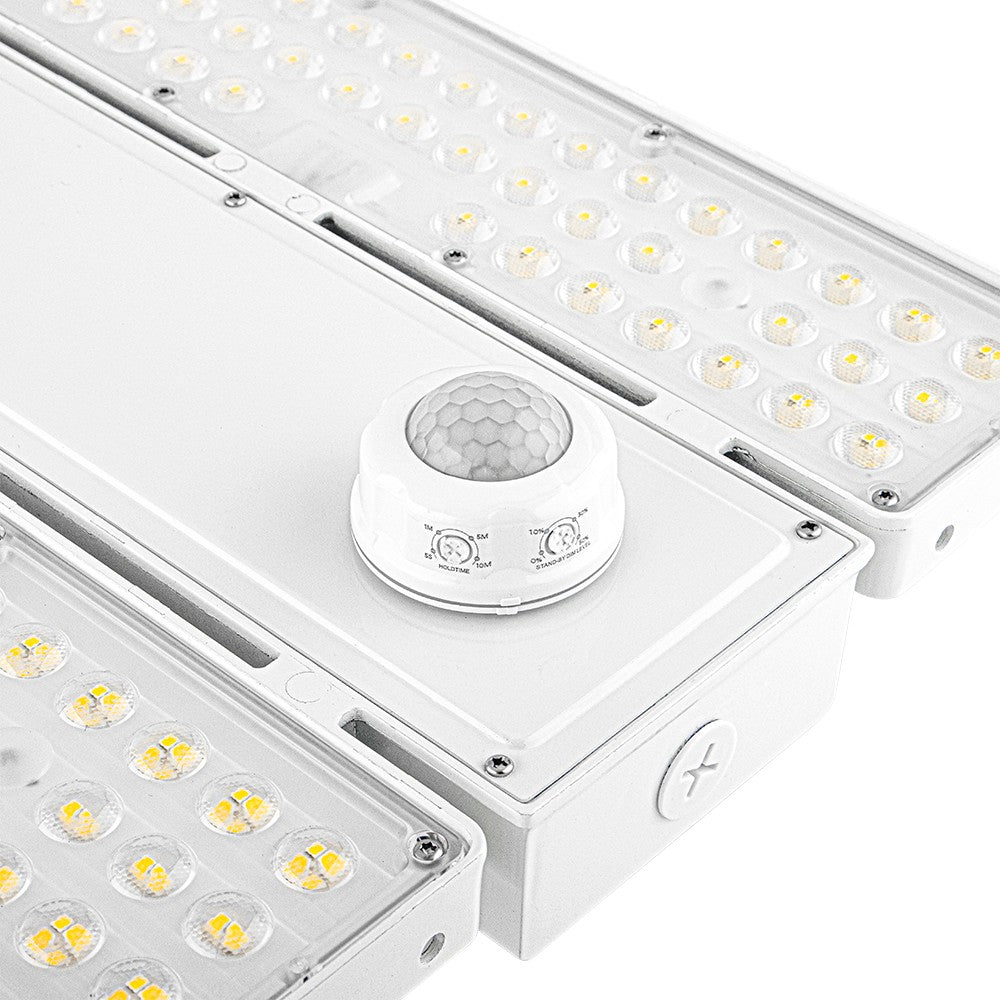

*Default setting for optional motion sensor is set to turn off fixture after 5 seconds of inactivity.  Optional remote control is required to program the motion sensor.



Applications

•Warehouses •Workshops
•Convention Centers •Low Bays
•Storage Facilities •Distribution Centers
•Factories •Supermarkets
•Retails •Gymnasiums
Color Temperature 5000K color temperature
Certifications
US company5 years warrantyUL listed0-10v dimmableDLC PremiumRoHS compliance FCC certification

Specification

BrandKonliteMPNKPVMW2150KLV
WarrantyLimited 5 YearsUPC
Input Voltage120-277VBeam106°
Input Wattage210W/180W/155WEqual To600W MH or 6x54-T5/8x54-T5
Delivered Lumens23,710lm/27,360lm/31,290lmCRI≥80
EfficacyUp to 156 LM/WAvailable CCT 5000K
Rated Life>50,000 hrsPower Factor≥0.95
THD≤15%IP RatingN/A
Dimmable0-10V(Dimmer NOT included, Separate Wiring Required)MountingSuspension Chain, Surface, Pendant
Operating Temperature-40° F to 122° FDimensions14''X11.5''X2.1''
CertificationsUL, Dry Locations, DLC PremiumWeight8 Lbs
