Product Overview

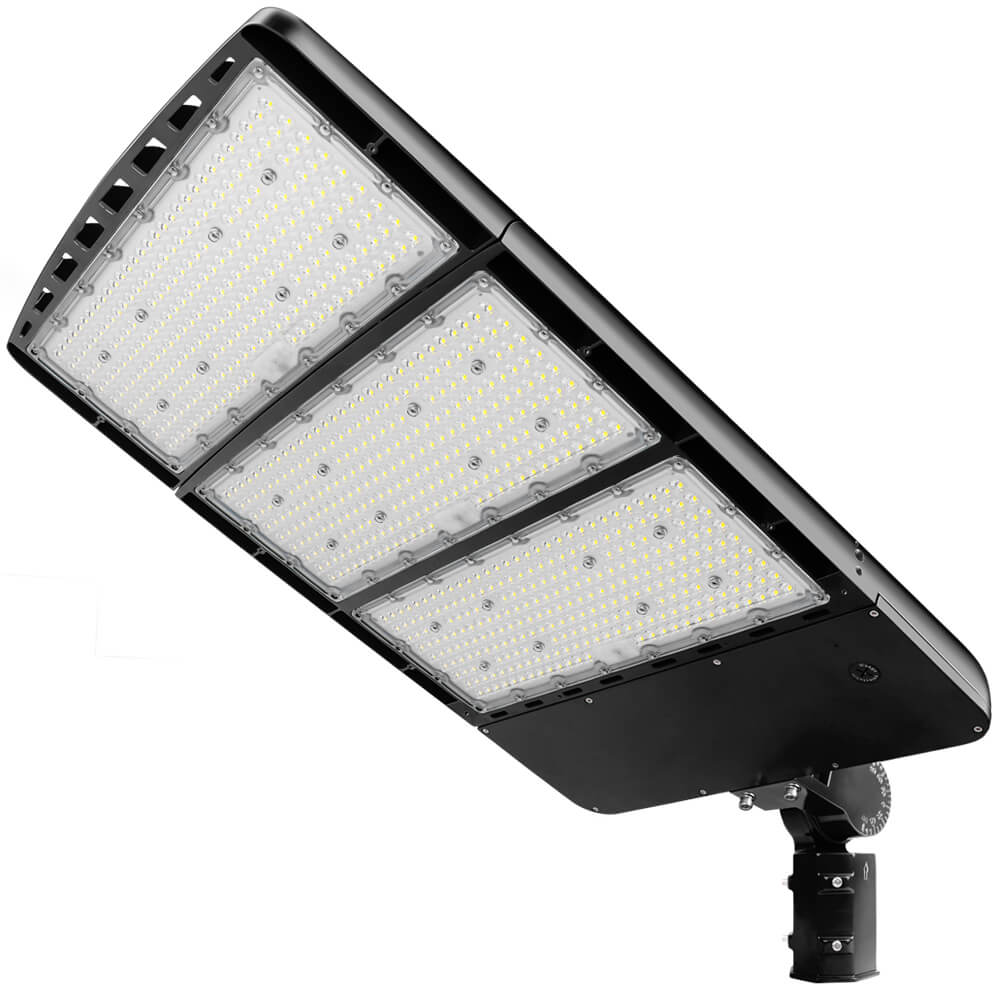

Built for elite tennis court lighting, pickleball court lighting, and professional sports facilities, the Konlite Spica Black Finish LED Sports Light – 600W combines premium aesthetics with high-output performance. Designed to match the black poles and fencing commonly found on courts across the USA, this model features a sleek architectural black housing and advanced Narrow Asymmetric optics for powerful, focused illumination.

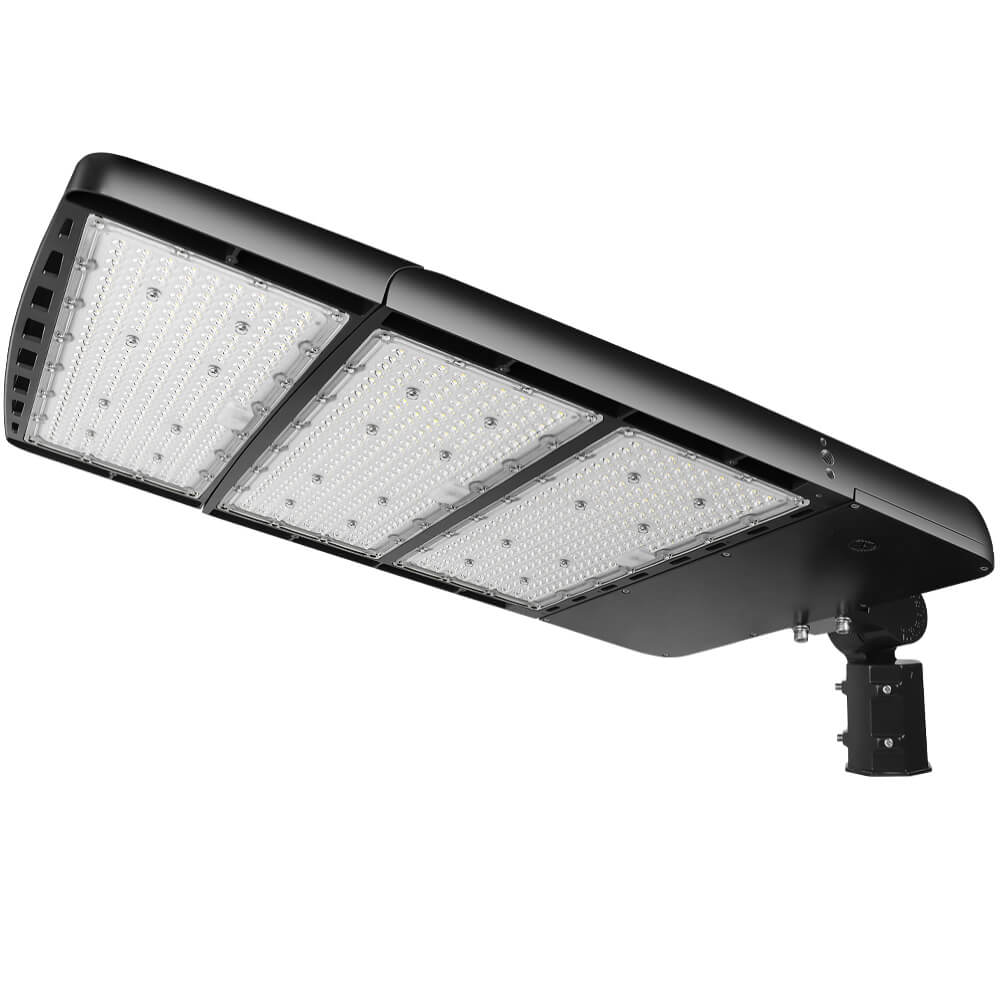

The Narrow Asymmetric beam pattern is engineered for longer throw distances and precise light placement, making it ideal for pole-mounted sports lighting where controlled forward projection is critical. It helps maximize light on the playing surface while reducing spill light, glare, and wasted output beyond the court boundaries.
With selectable wattage settings of 600W / 480W / 360W, this fixture delivers up to 103,800 lumens at 5000K, making it a premium LED replacement for traditional 1000W–1500W HID sports lights. The result is brighter courts, improved ball tracking, fewer shadows, and lower operating costs.
Designed for demanding outdoor environments, the Spica Series includes an IP66 waterproof housing, 20kV surge protection, IK08 impact rating, and UL Listed / DLC Premium certifications for dependable long-term performance.

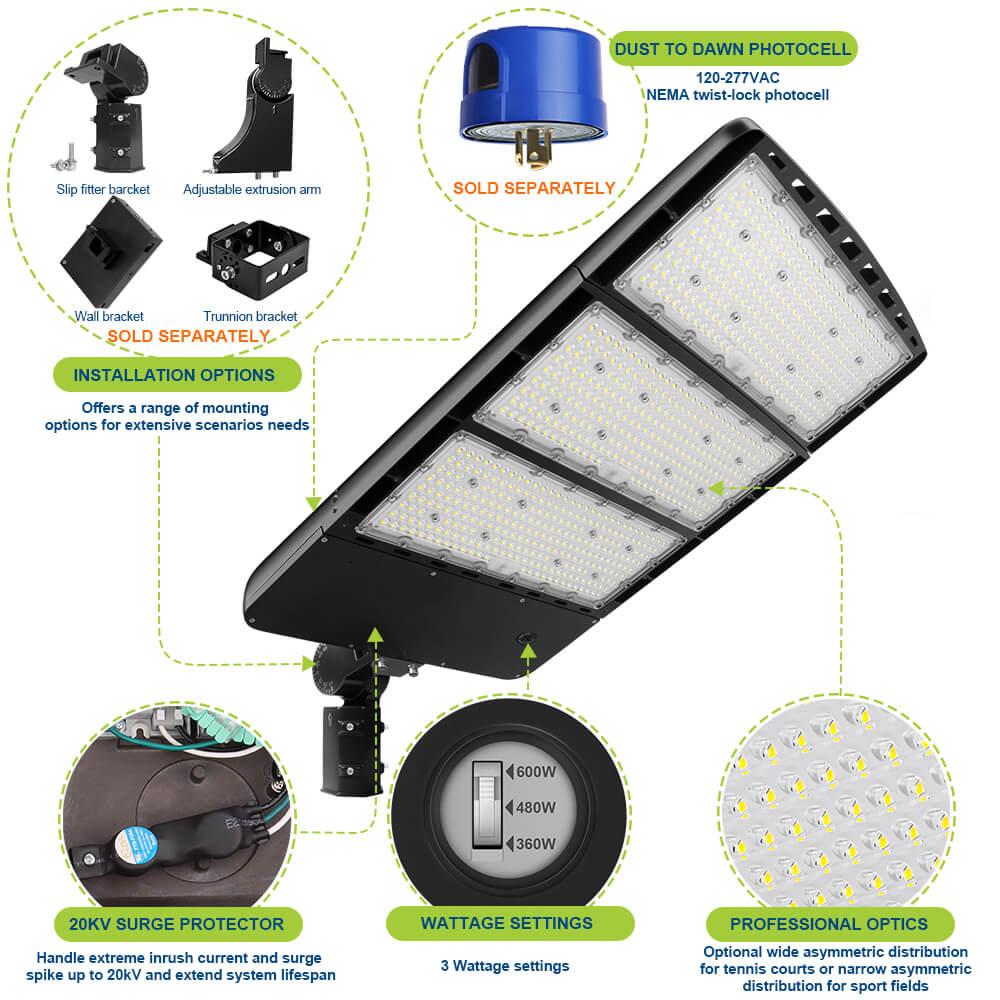

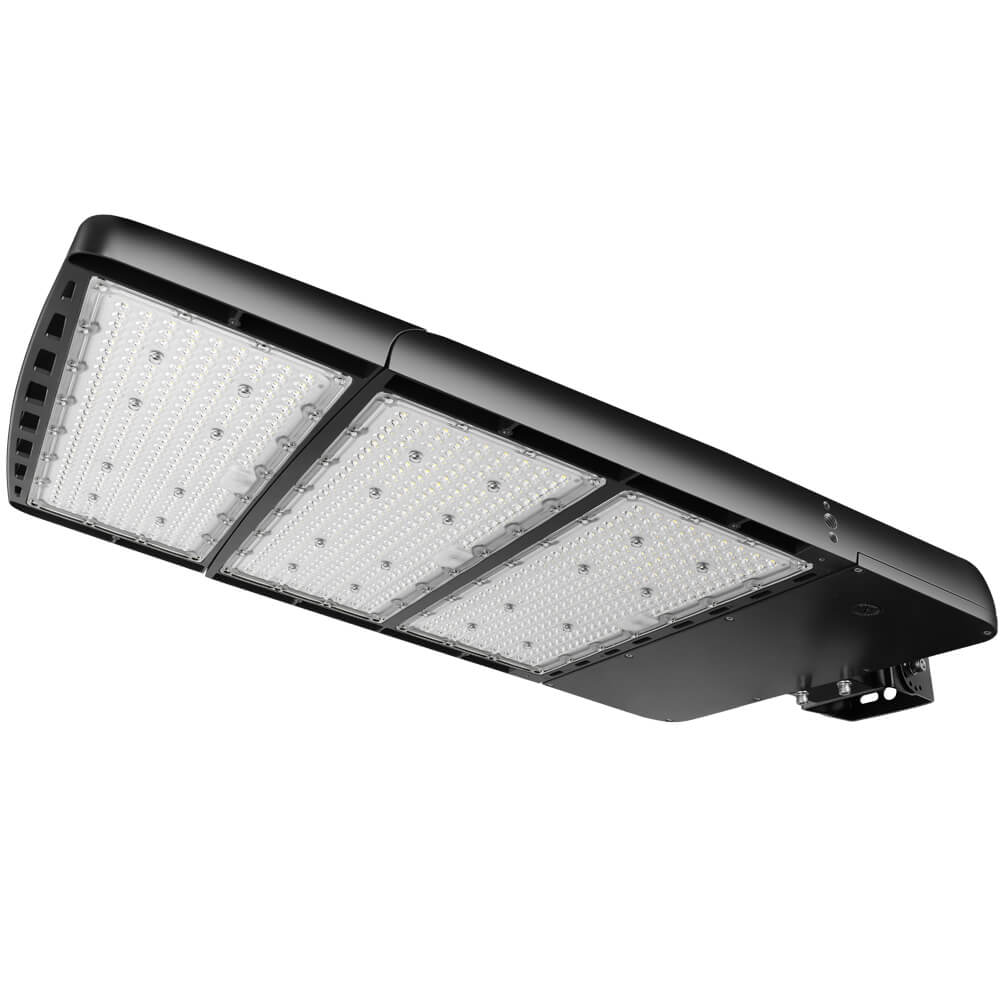

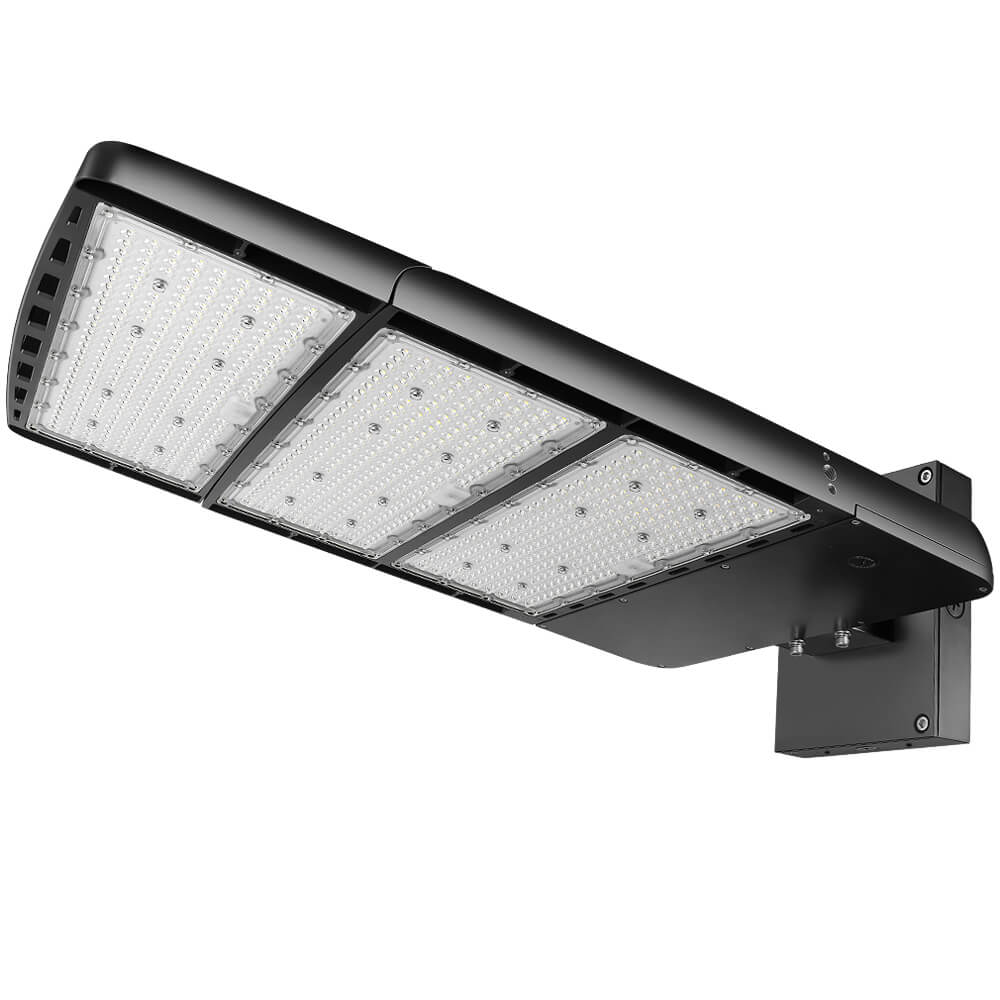

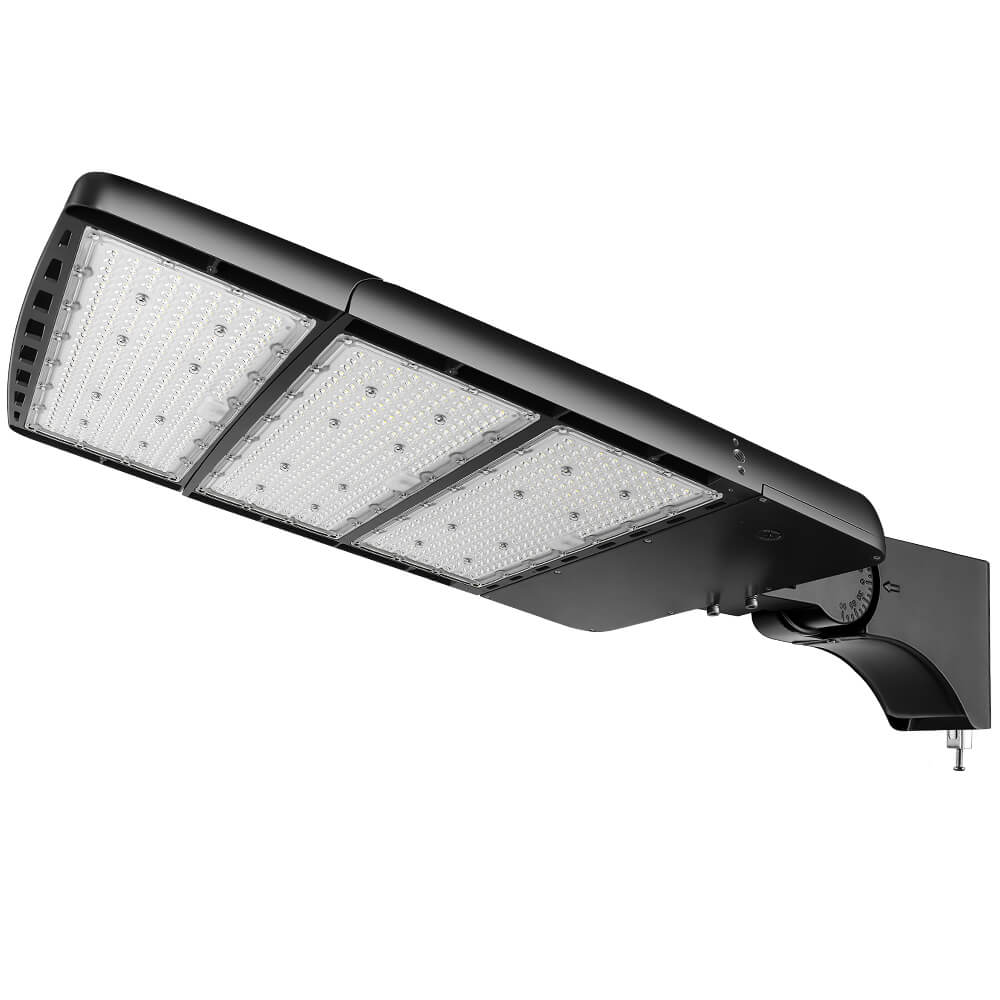

Multiple mounting options—including slip fitter, trunnion, yoke, extrusion arm, and universal mount—allow easy retrofitting or new installation on tennis court poles, sports complexes, campuses, and municipal facilities.
Perfect for USTA tournament courts, universities, private clubs, HOA communities, parks, schools, and competitive pickleball venues, the Konlite Spica 600W Narrow Asymmetric Sports Light delivers professional lighting performance with modern architectural styling.
Key Features
- 600W / 480W / 360W wattage selectable
- Up to 103,800 lumens output
- Narrow Asymmetric optic for long throw court lighting
- Reduced spill light and improved glare control
- Black architectural finish for modern courts
- IP66 waterproof + IK08 impact rated
- 20kV surge protection standard
- UL Listed / DLC 5.1 Premium
- 120-277V or 277-480V available
- Multiple mounting brackets available
- 7-year warranty
See similar 400-watt version.
Free Lighting Design
Not sure how many fixtures you need or what wattage or lighting distribution to select?
Contact us for a free professional lighting layout—we’ll design the perfect package for your court and ensure optimal performance.
Applications
| • Tennis Courts | • Pickleball Courts |
| • Paddle Courts | • Training Centers & Clubs |
| • Soccer Fields | • Golf Range |
| • Speedway | • Stadium Lighting |
| • Sports Complex | • Community Parks |
| • Arenas | • Open area High Mast lighting |
| • Schools & Universities | • Natatoriums |
Specifications:
| Brand | Konlite | DLC Part # | KSPHW5KNLBXX |
| Warranty | Limited 7 Years | UPC | 605547954252 |
| Input Voltage | 120-277V, 277-480V | Optical | Narrow Asymmetric |
| Input Wattage | 600W/480W/360W | Equal to | 1000W MH |
| Delivered Lumens | 103,800/84,950/64,800 | CRI | >70 |
| Efficacy | 174 LM/W | Available CCT | 5000K |
| Rated Life | >100,000 hrs | THD | <20% |
| Power Factor | >0.9 | IP Rating | IP66 |
| Dimmable | N/A | Controls | N/A |

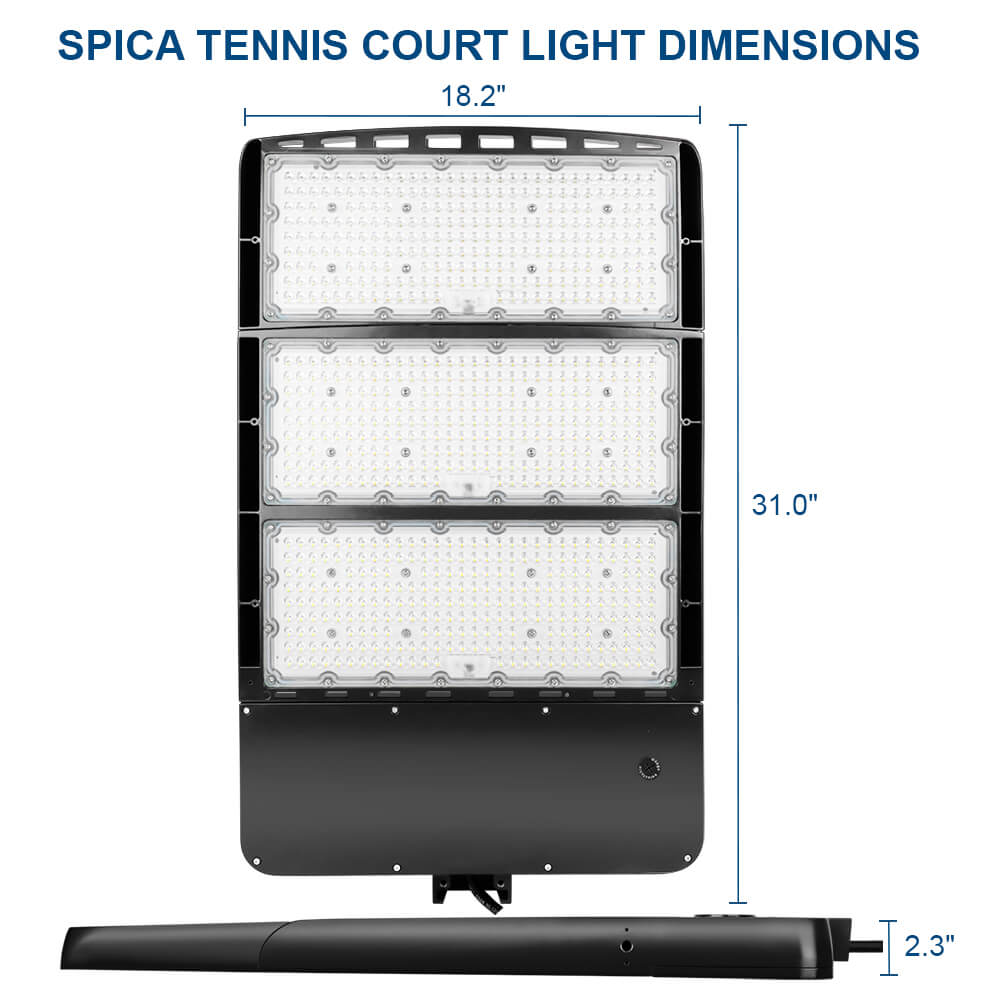

| Operating Temperature | -40 F to 113 F | Fixture Dimensions | 31''x18.2''x2.3'' |
| Certifications | UL, Wet Locations, DLC Premium | Unit Weight | 23.15 lbs |
 | Download Specifications |
| Installation Guide |
| Download IES files: 600W-5000K, 480W-5000K, 360W-5000K. |
