Product Overview

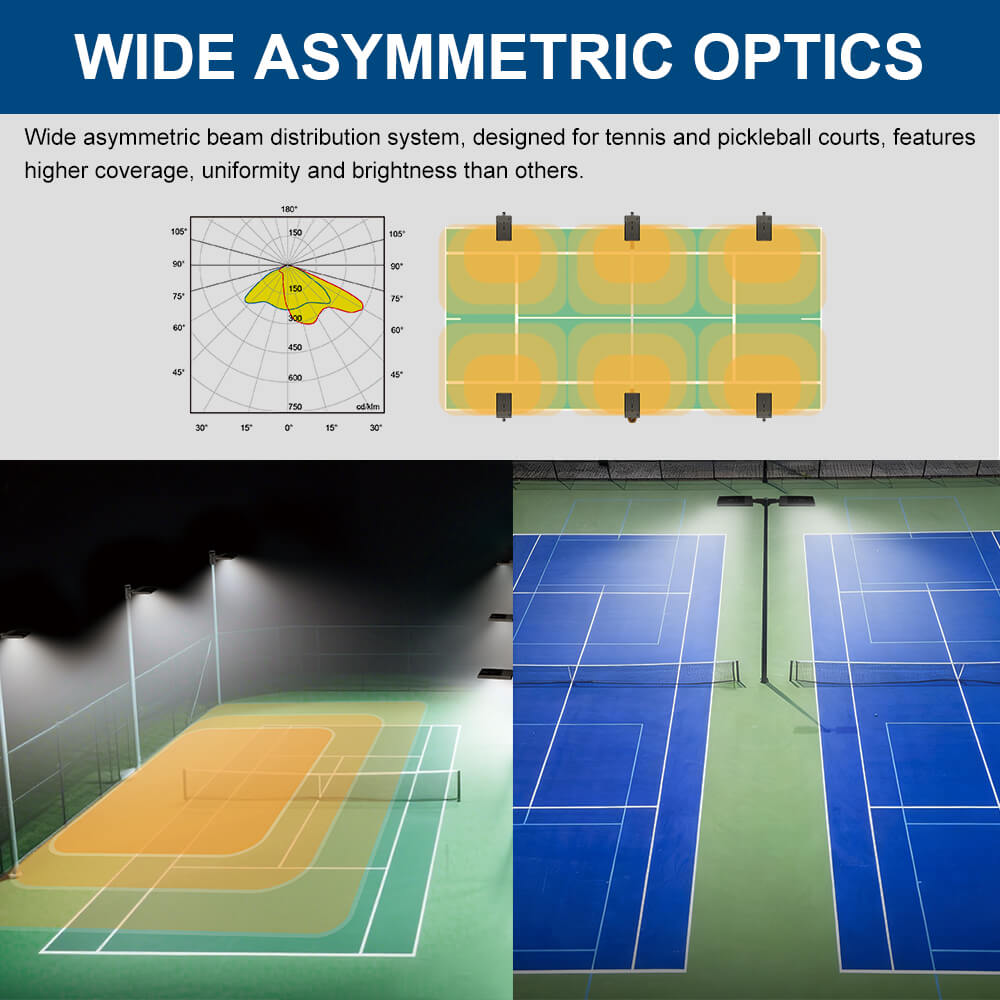

Designed specifically for precision court illumination, the Konlite Spica Series with Wide Asymmetric distribution delivers exceptional uniformity across tennis and pickleball courts. The beam pattern—shown in the Wide Asymmetric Intensity Distribution Diagram pushes light forward and outward, keeping the playing surface bright while minimizing glare for athletes.
With wattage-selectable performance (600/480/360W), outputs up to 103,800 lumens, and optimized optical control, this fixture replaces traditional HID systems while dramatically improving court visibility. Players gain clear ball tracking, reduced shadows, and an evenly lit environment essential for competitive play.

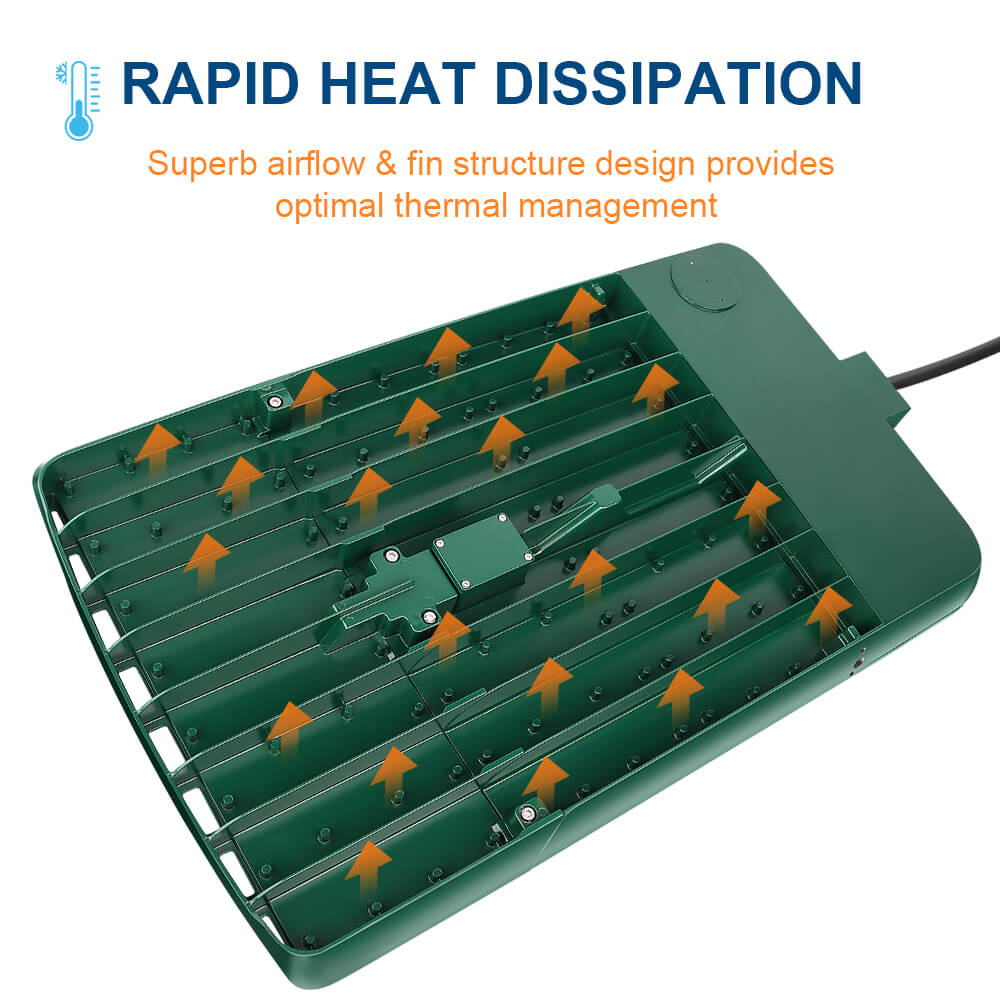

The IP66-rated sealed housing, 20kV surge protection, and UL/DLC 5.1 Premium qualifications make it ideal for year-round outdoor installation.
Whether lighting private tennis courts, community recreation centers, or dedicated pickleball facilities, the Wide Asymmetric Spica Series provides performance exactly tailored to rectangular court geometry.
Key Features (Tennis/Pickleball Version)
-
Wide Asymmetric optic ideal for courts
-
Excellent uniformity across full court area
-
Reduced glare for athletes and spectators
-

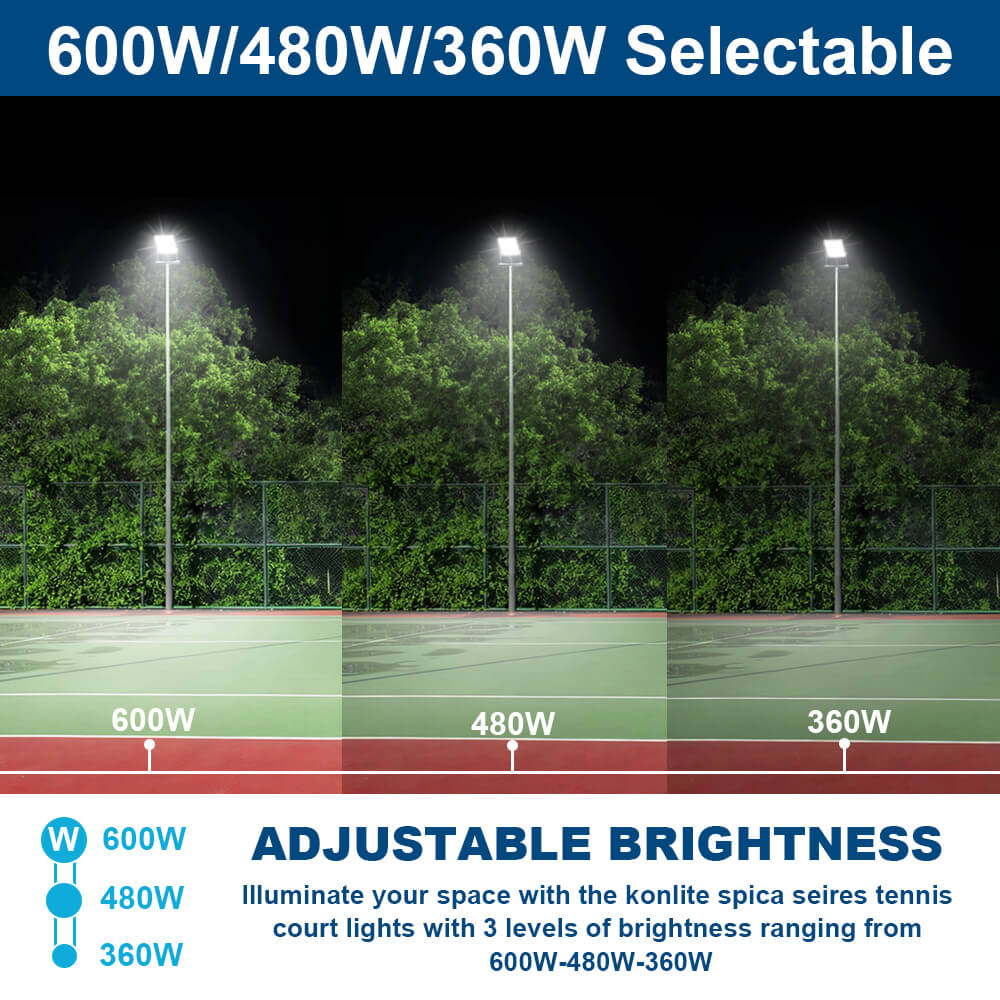

Wattage selectable for tailored brightness
-
Up to 103,800 lumens max output
-

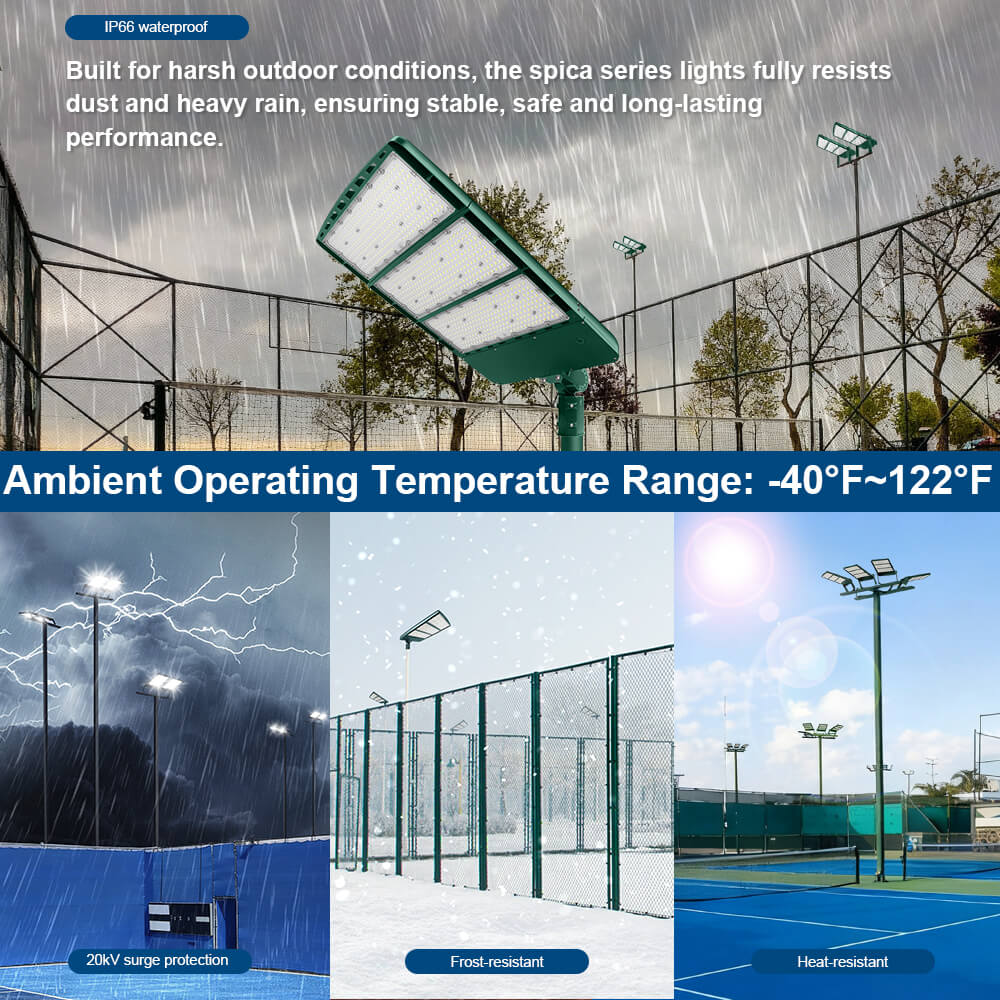

IP66 weatherproof + 20kV surge protector
-
UL Listed, DLC 5.1 Premium
-

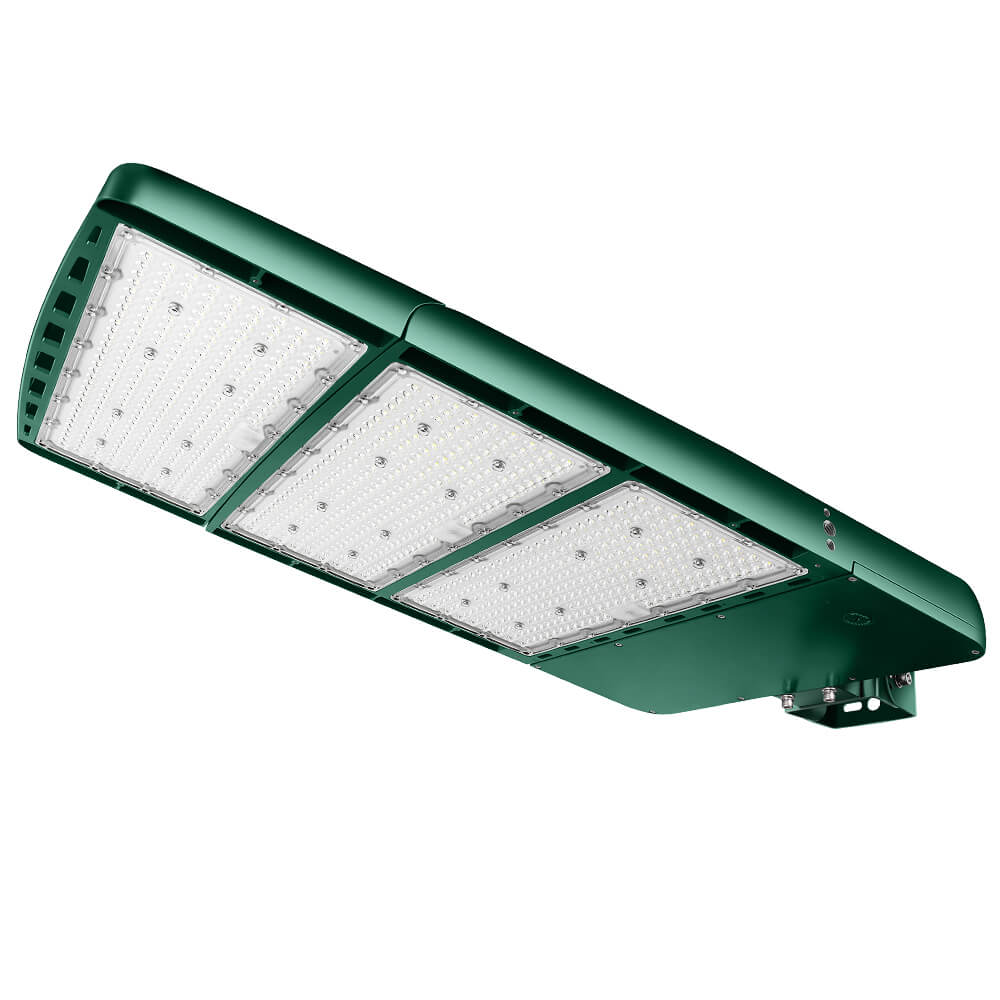

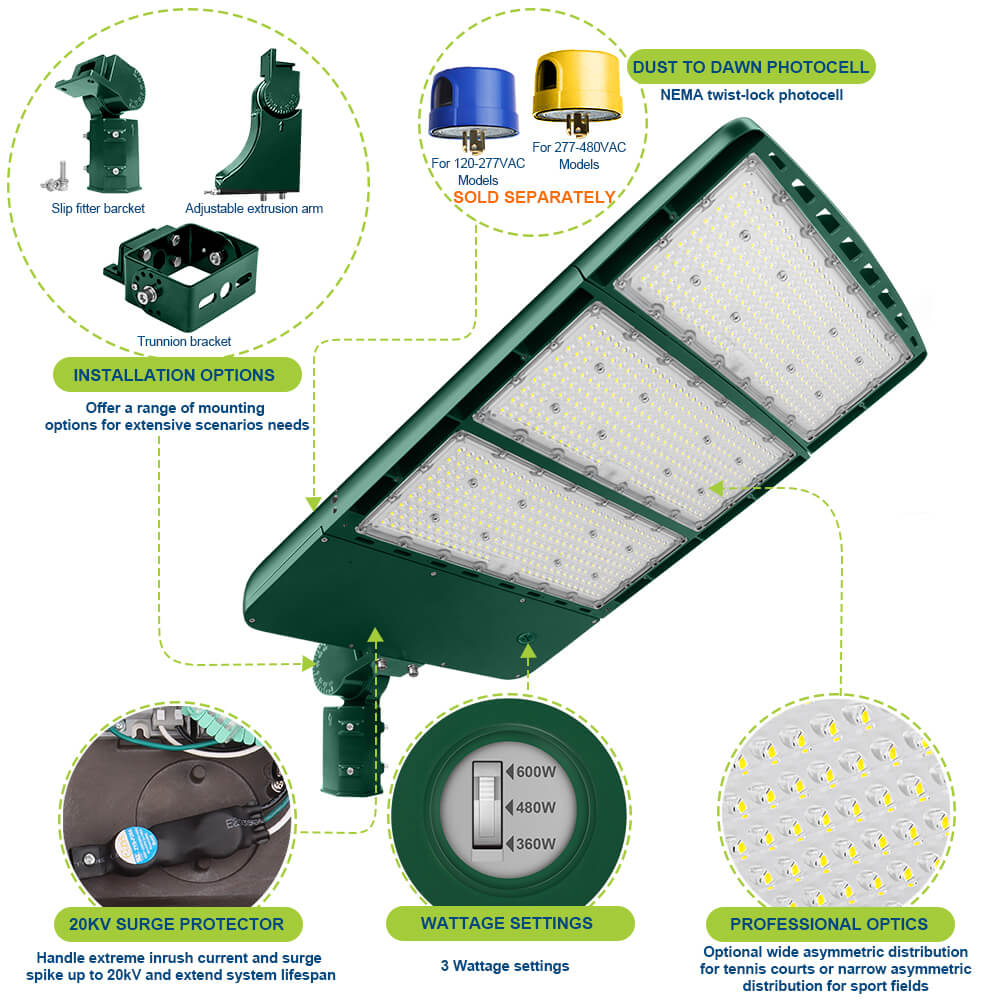

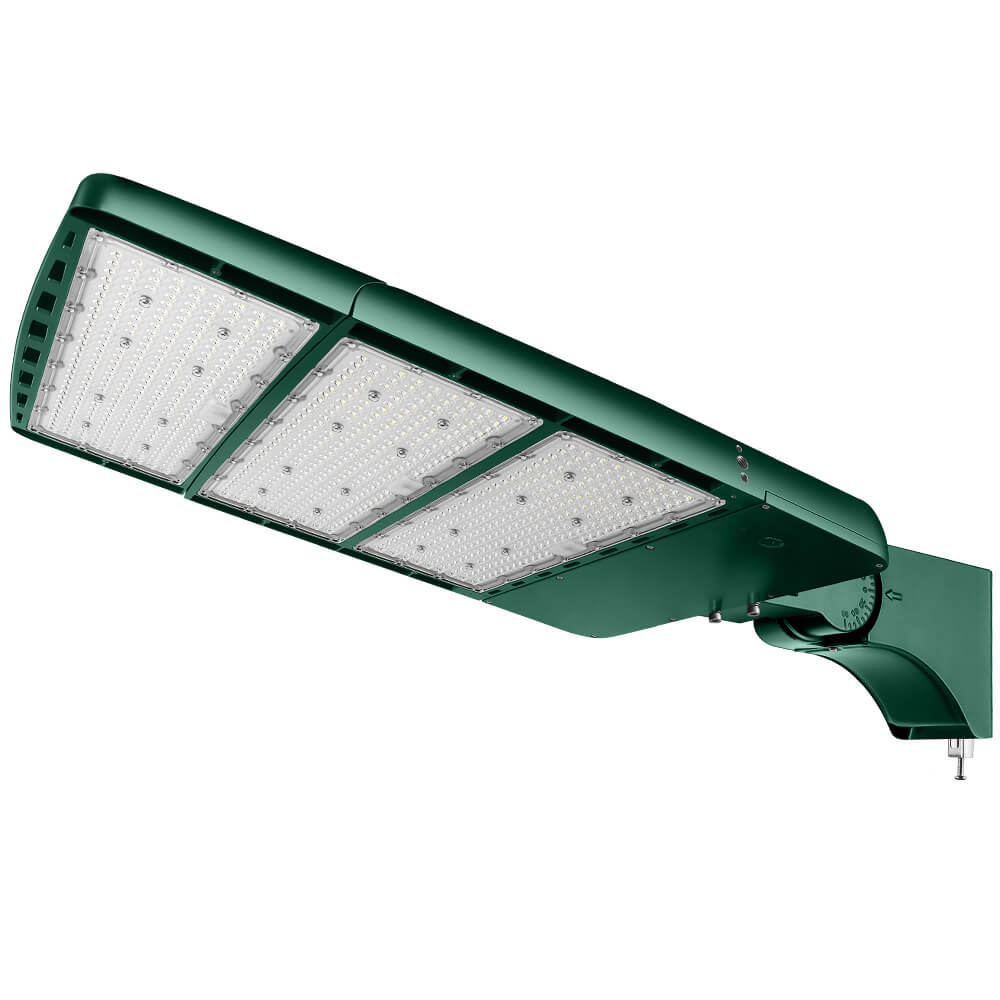

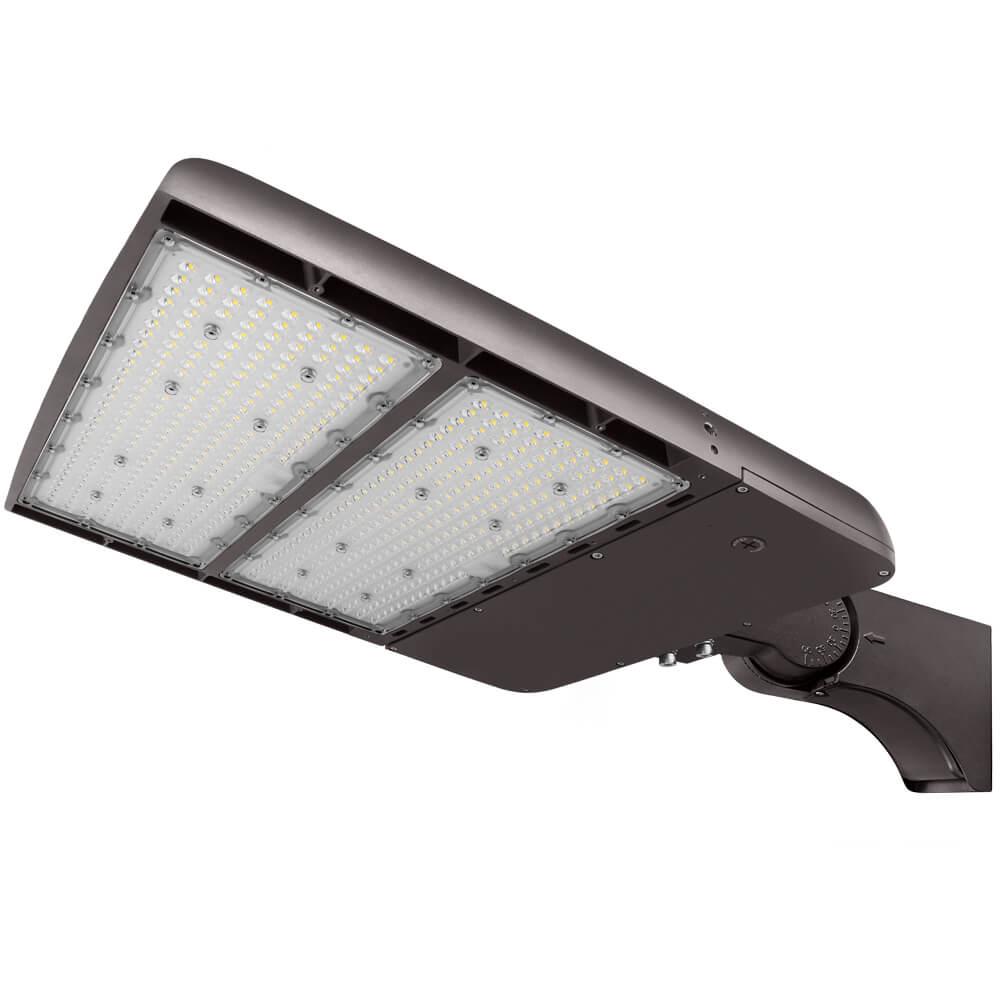

Multiple mounting options for precise aiming

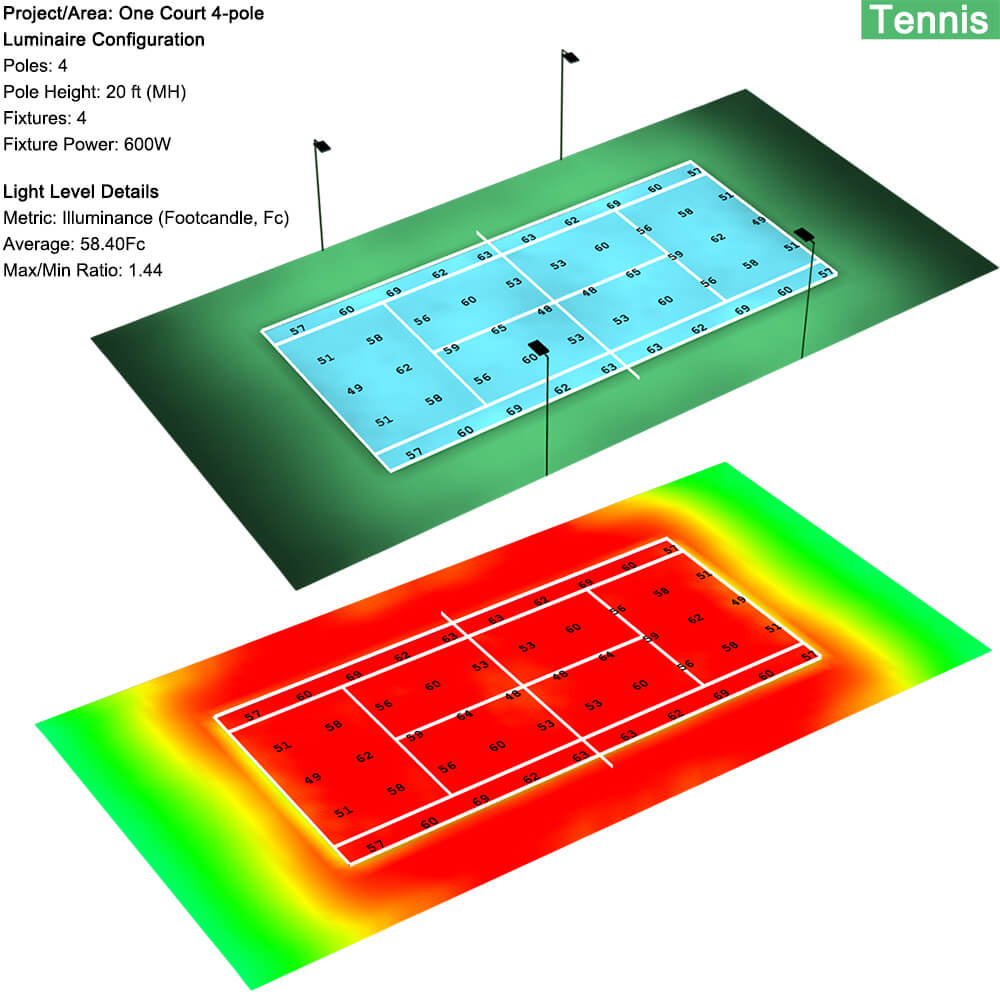

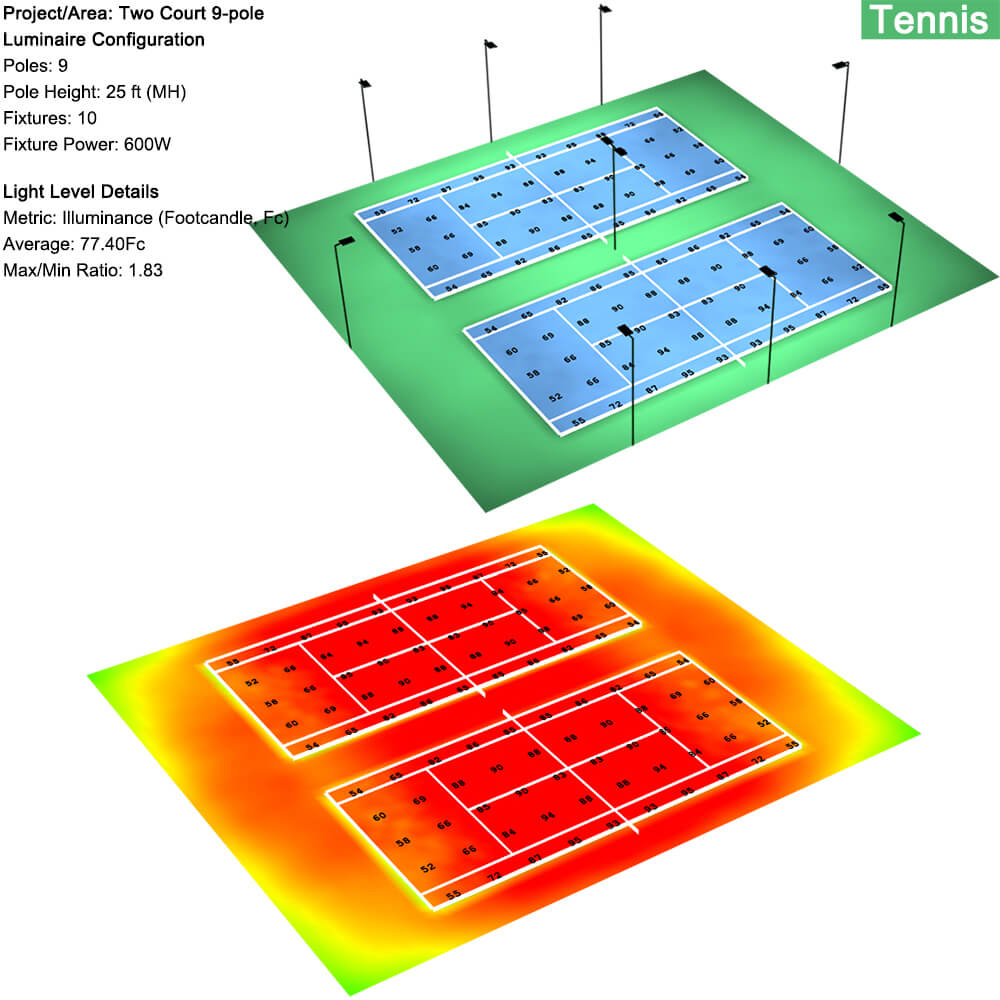

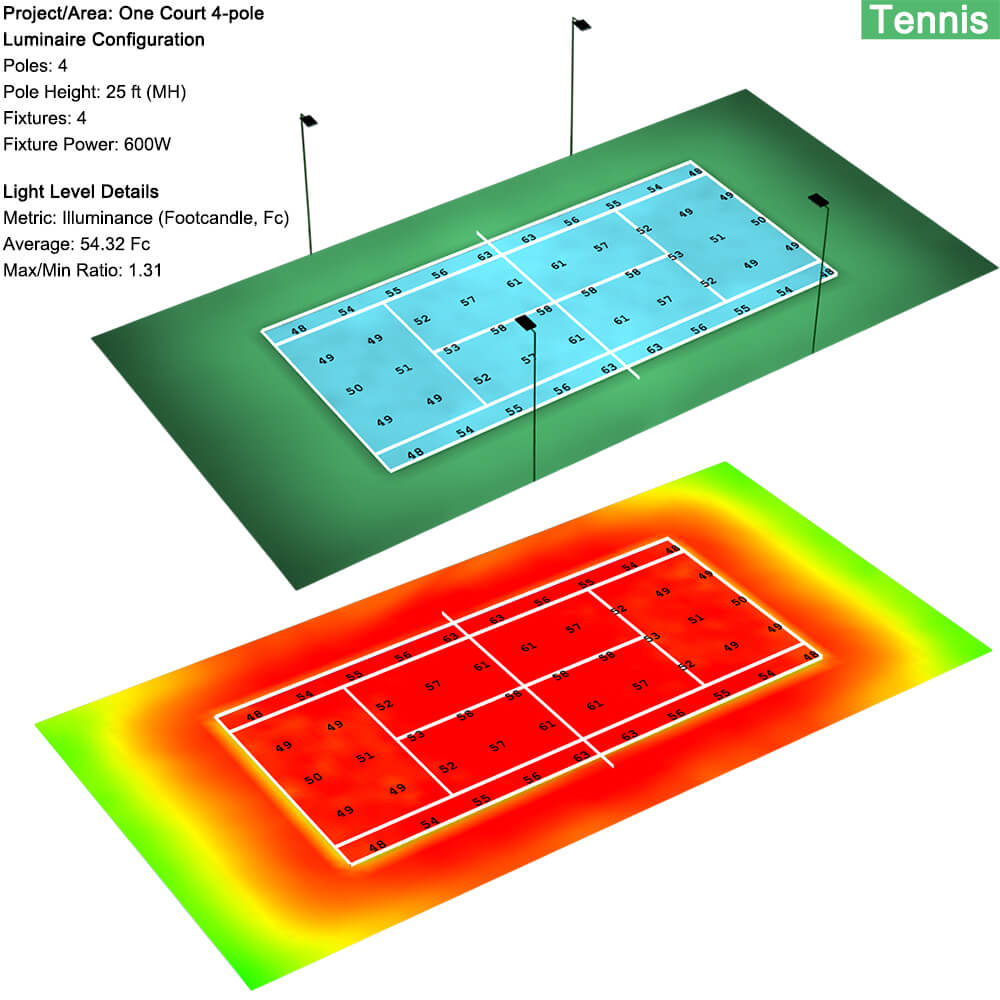

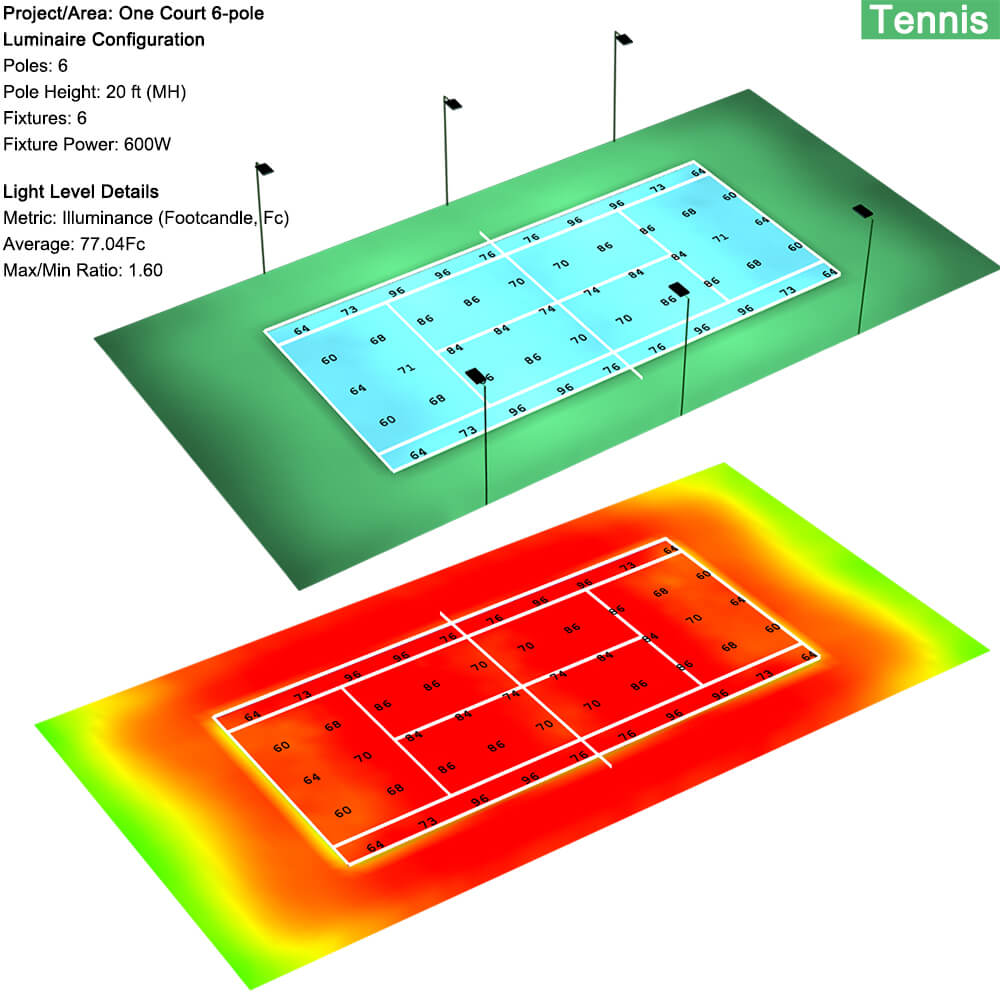

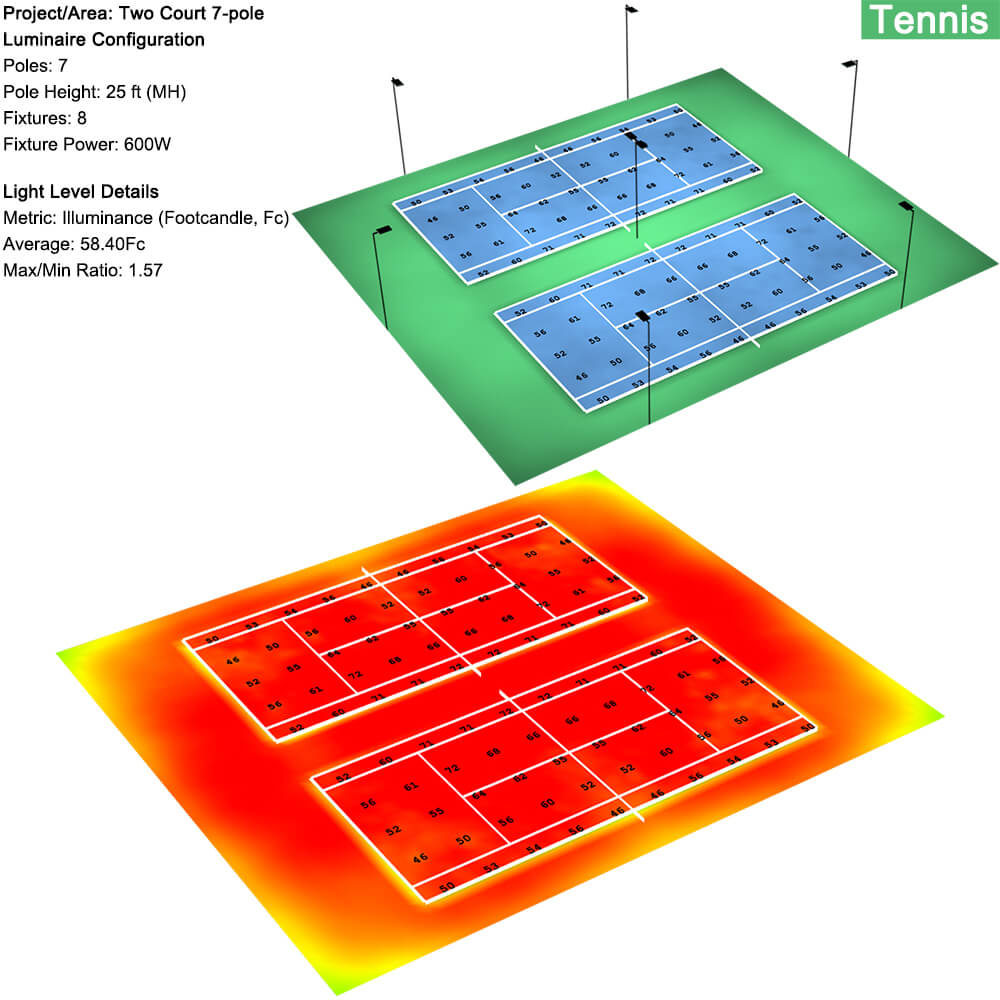

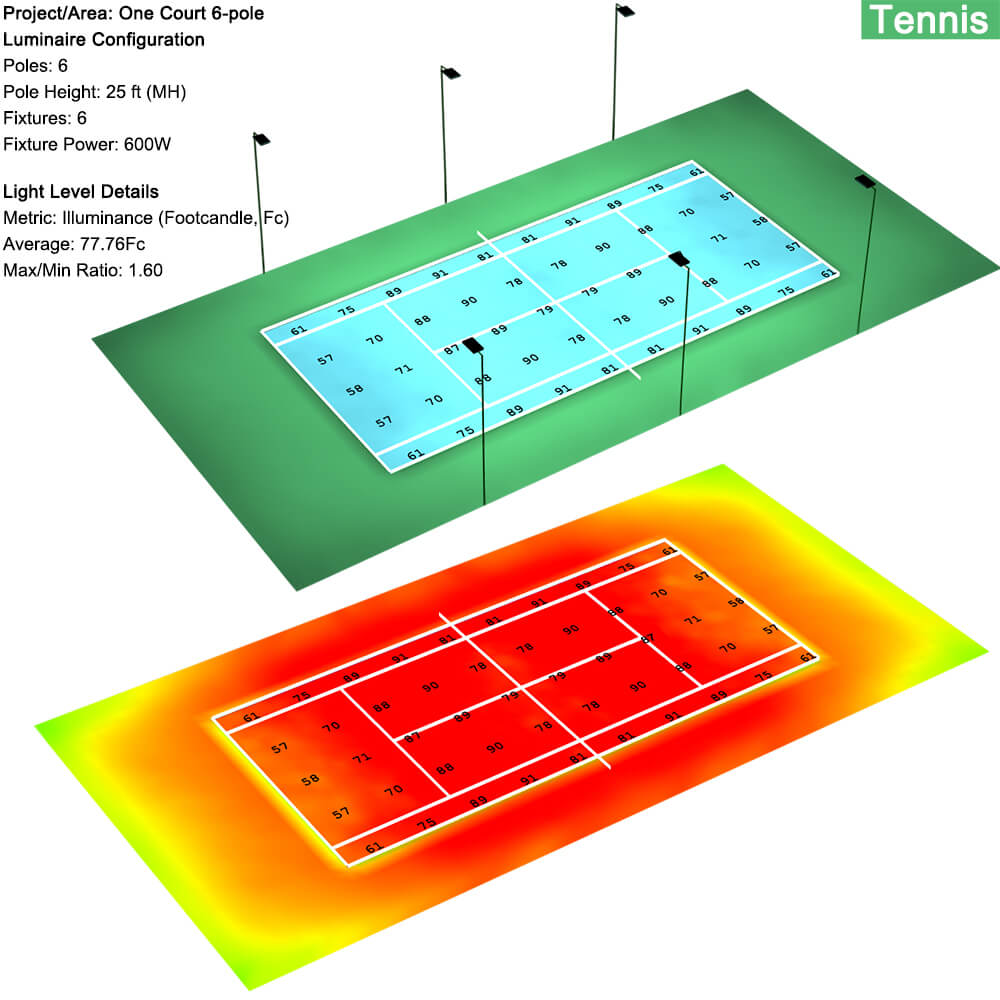

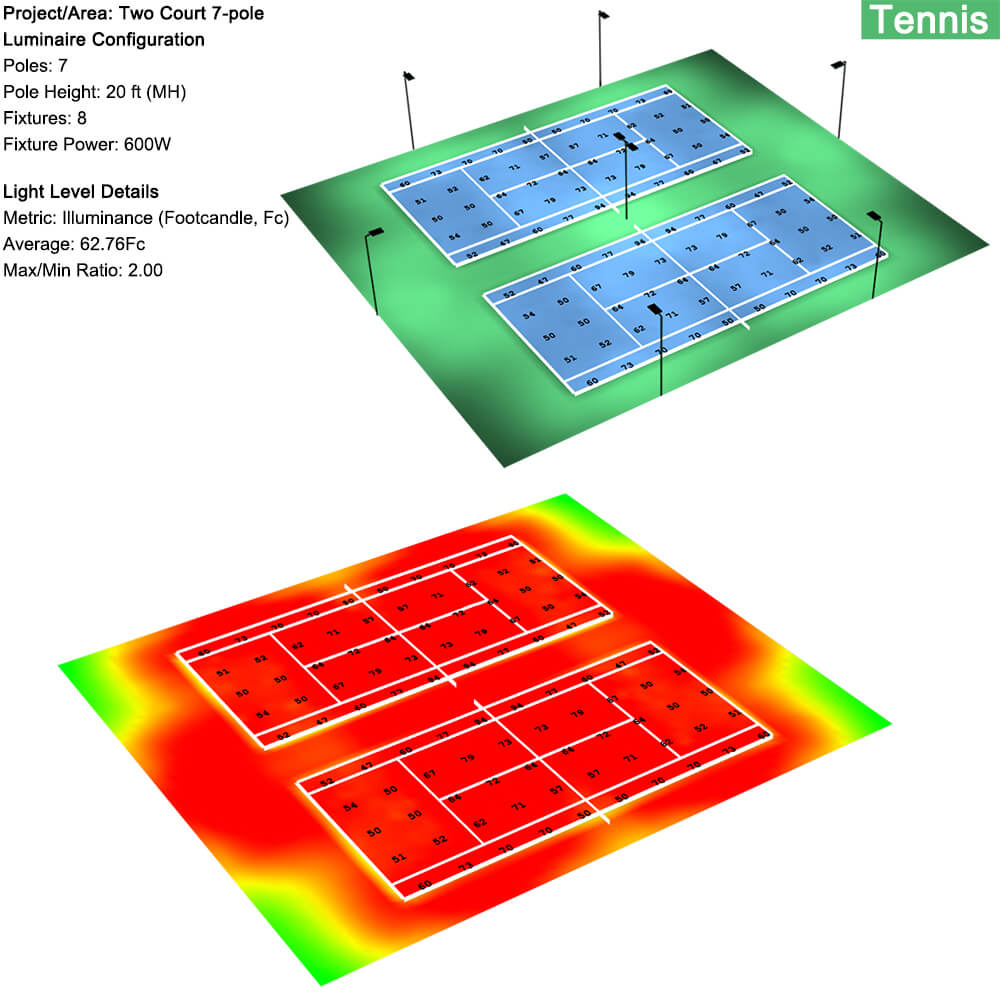

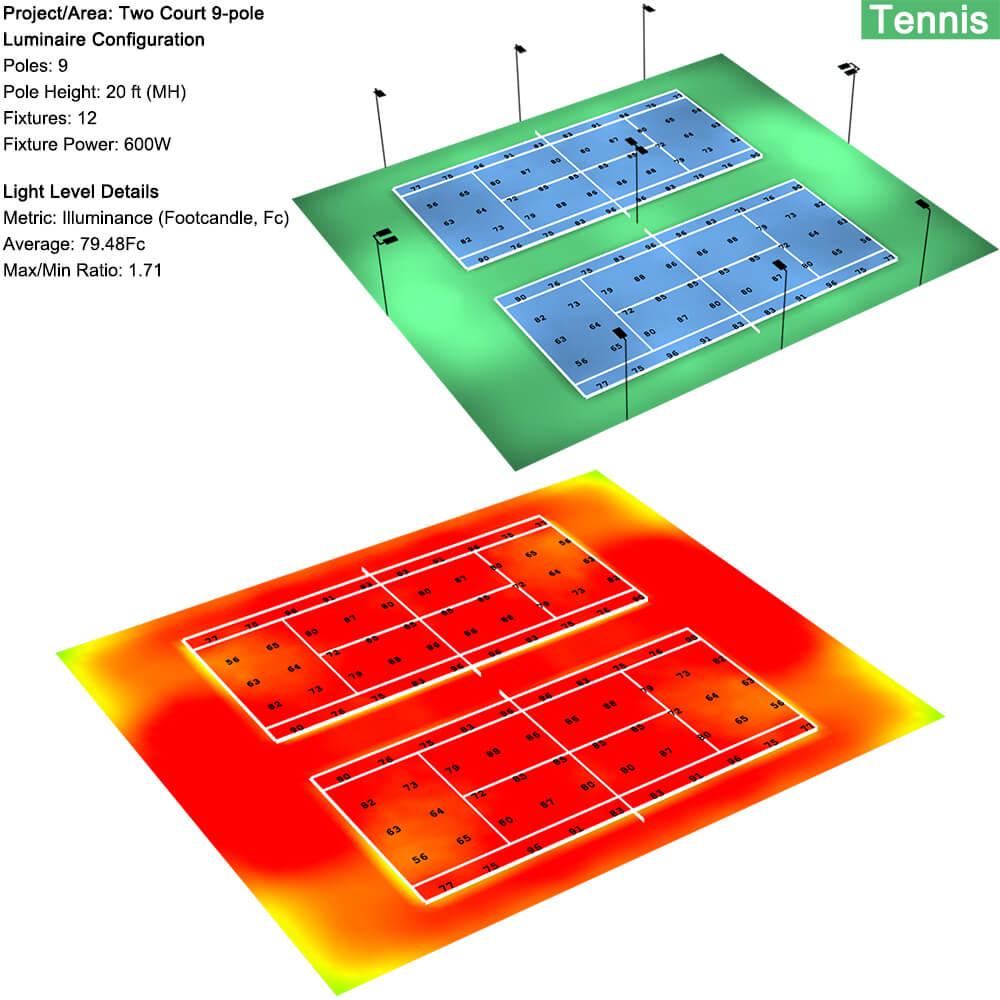

Free Lighting Design
Not sure how many fixtures you need or what wattage or lighting distribution to select?
Contact us for a free professional lighting layout—we’ll design the perfect package for your court and ensure optimal performance.
Applications
| • Tennis Courts | • Pickleball Courts |
| • Paddle Courts | • Training Centers & Clubs |
| • Soccer Fields | • Golf Range |
| • Speedway | • Stadium Lighting |
| • Sports Complex | • Community Parks |
| • Arenas | • Open area High Mast lighting |
| • Schools & Universities | • Natatoriums |
Specifications:
| Brand | Konlite | DLC Part # | KSPHW5KWLGXX |
| Warranty | Limited 10 Years | UPC | 659675139418 |
| Input Voltage | 120-277V or 277-480V | Optical | Wide Asymmetric |
| Input Wattage | 600W/480W/360W | Equal to | 1500W MH |
| Delivered Lumens | 103,800/84,950/64,800 | CRI | >70 |
| Efficacy | 170 LM/W | Available CCT | 5000K |
| Rated Life | >100,000 hrs | THD | <20% |
| Power Factor | >0.9 | IP Rating | IP66 |
| Dimmable | N/A | Controls | N/A |

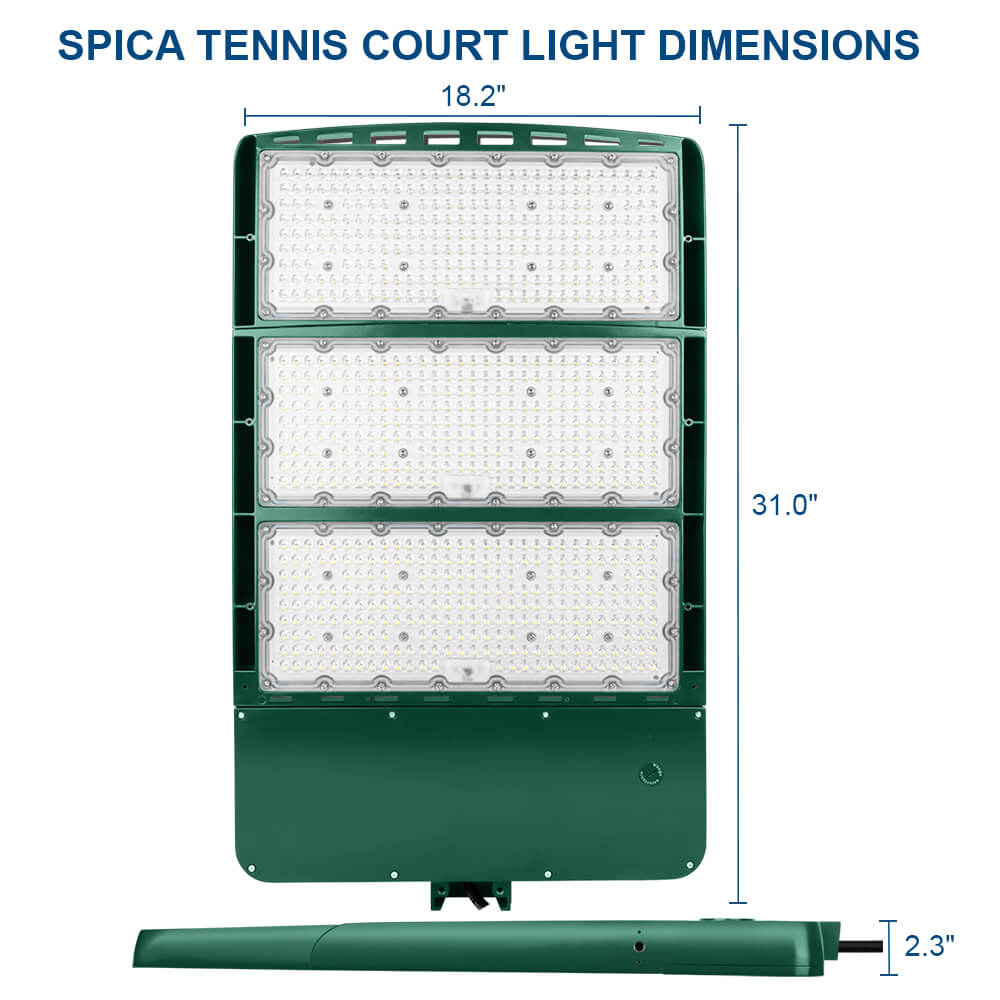

| Operating Temperature | -40 F to 113 F | Fixture Dimensions | 31''x18.2''x2.3'' |
| Certifications | UL, Wet Locations, DLC Premium | Unit Weight | 23.15 lbs |
 | Download Specifications |
| Installation Guide |
| Download IES files: 600W-5000K, 480W-5000K, 360W-5000K. |
