Product Overview

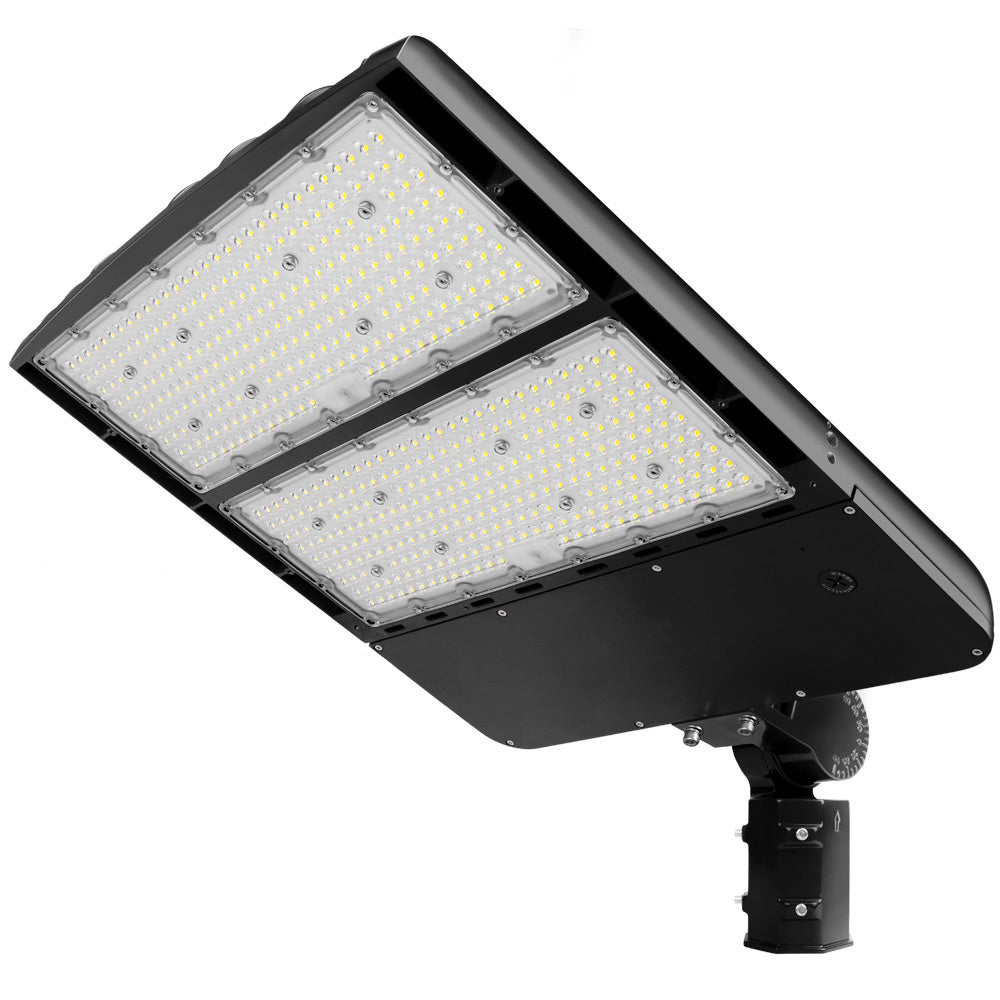

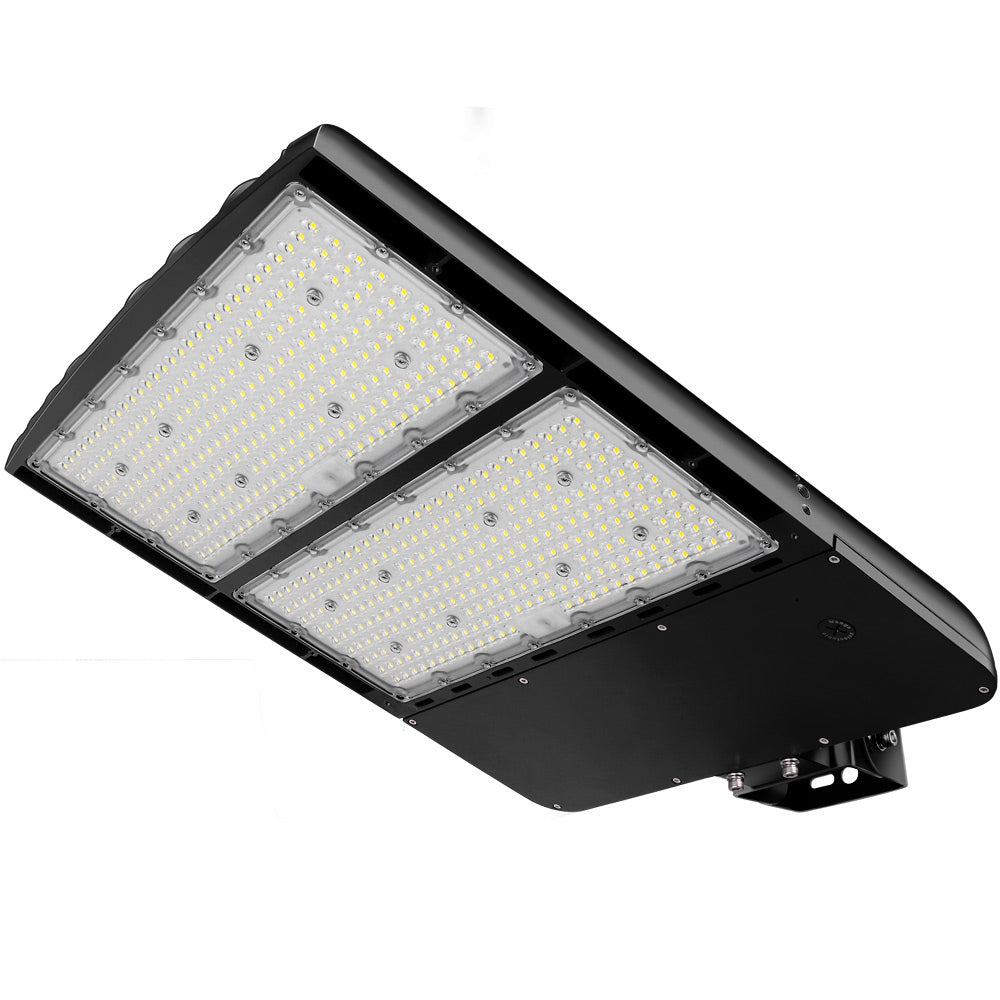

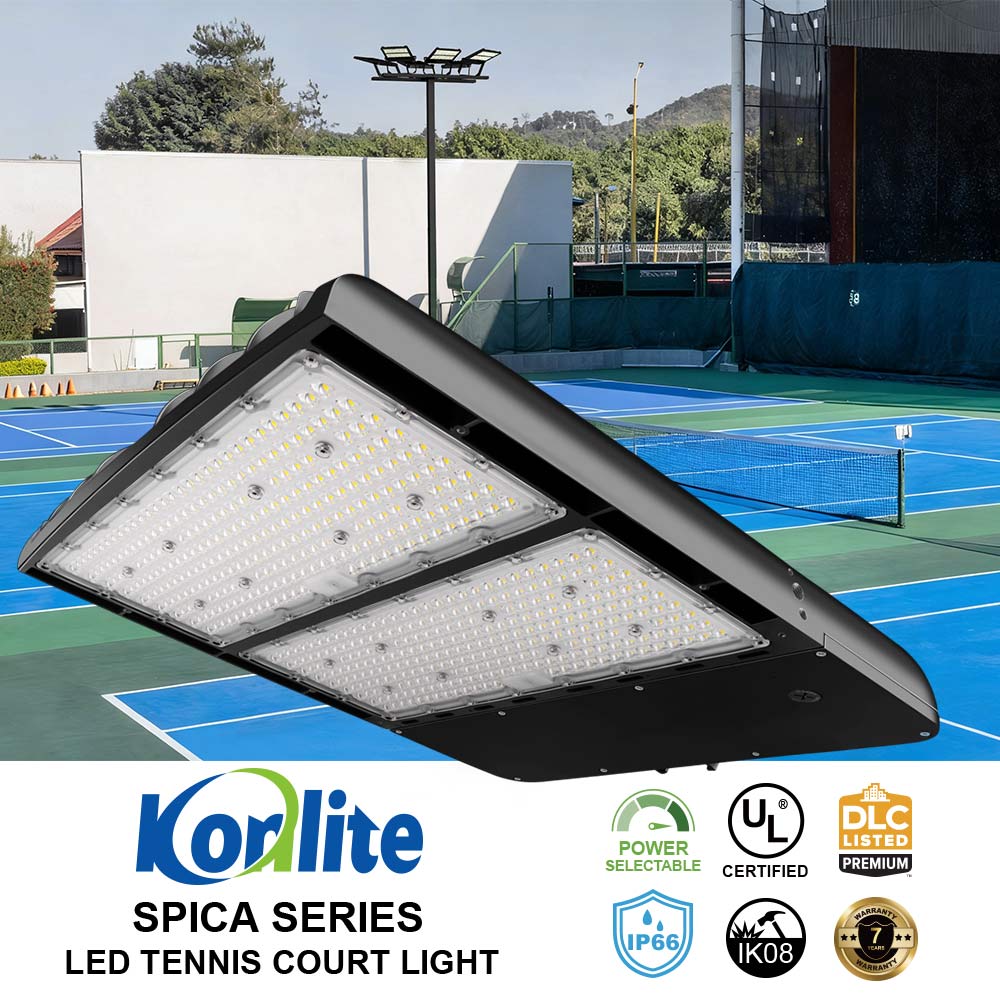

Designed for premium tennis court lighting and pickleball court lighting, the Konlite Spica Black Finish LED Sports Light combines a sleek architectural appearance with optics engineered for rectangular playing surfaces. Finished in durable black to match the poles and fencing commonly found on courts throughout the USA, this model features a Narrow Asymmetric beam pattern that delivers focused forward throw with controlled side spread for precise court illumination.
The Narrow Asymmetric optic is ideal for installations requiring longer projection distances, tighter aiming control, and reduced spill light beyond the court perimeter. It helps improve ball visibility, reduce shadows, and create strong light levels where players need it most while minimizing wasted light.
With selectable wattages of 400W / 320W / 240W and outputs up to 69,600 lumens, the Spica Series is an efficient replacement for traditional HID sports lighting systems. It provides professional-grade performance with lower energy use and reduced maintenance costs.

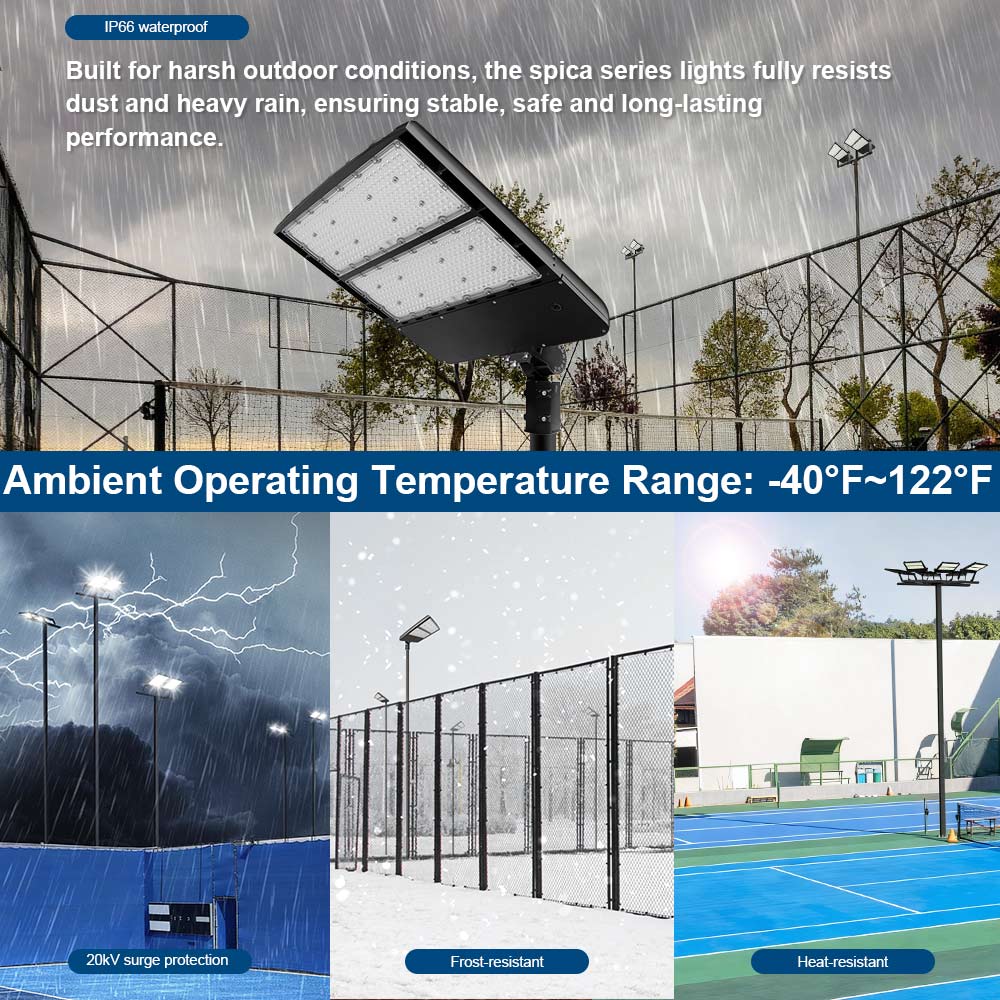

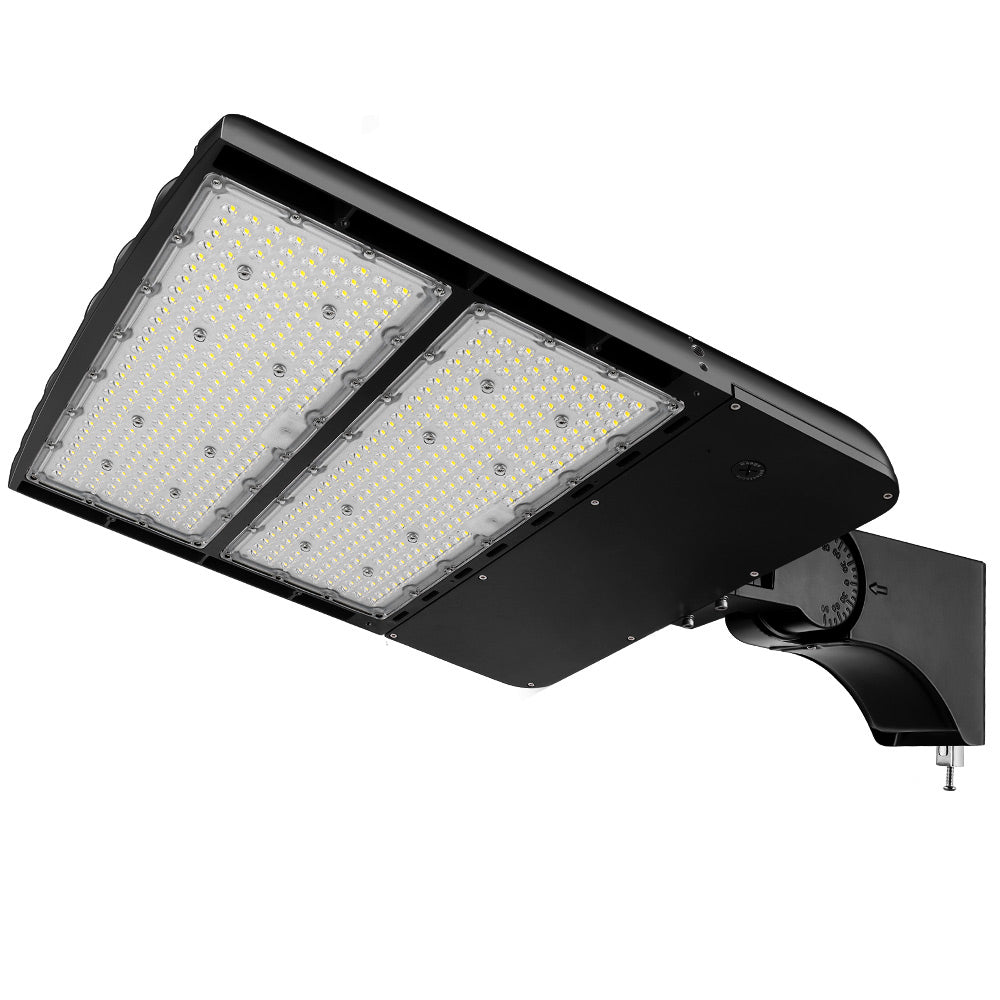

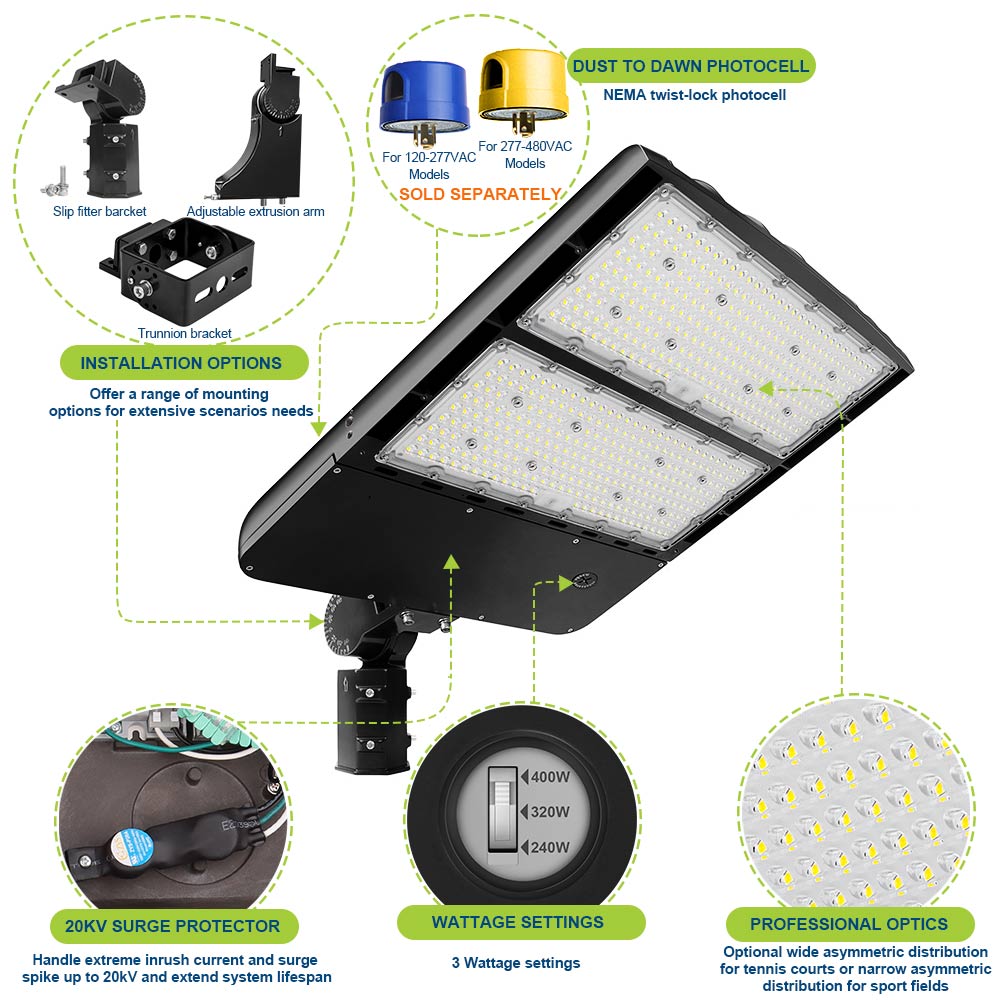

Built for demanding outdoor environments, the fixture includes an IP66-rated housing, 20kV surge protection, and UL Listed / DLC Premium certifications for long-term reliability. Multiple mounting options—including slip fitter, trunnion, yoke, extrusion arm, and universal mount—allow flexible installation on tennis court poles, pickleball facilities, and sports field structures.
Ideal for USTA courts, HOA communities, schools, parks, private clubs, and sports complexes, the Konlite Spica Black Finish Narrow Asymmetric Sports Light offers powerful, targeted lighting with a modern professional look.
Key Features
- Narrow Asymmetric optic for focused court/sport field lighting
- Excellent forward throw for longer pole setbacks
- Reduced spill light outside court area
- Improved player visibility and ball tracking

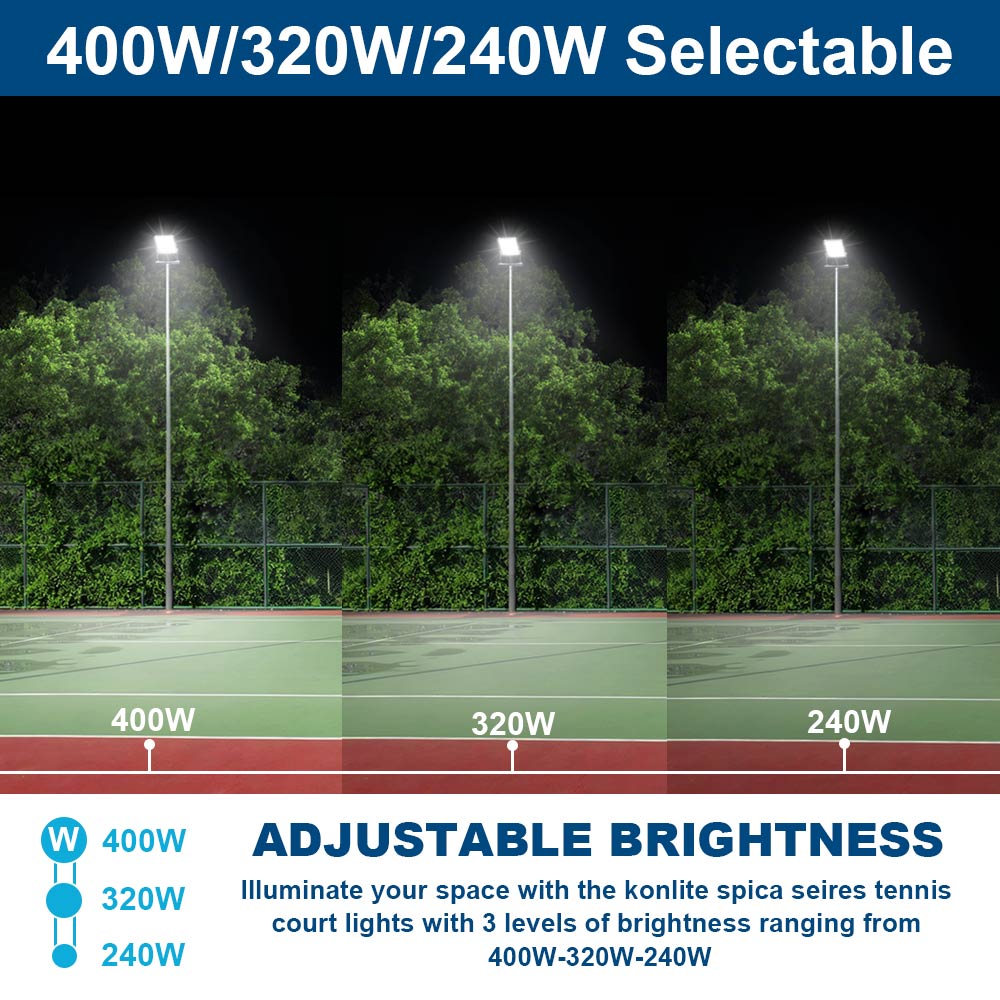

- Wattage selectable: 400W / 320W / 240W
- Up to 69,600 lumens output
- IP66 weatherproof construction
- 20kV surge protection included
- UL Listed / DLC Premium certified
- Multiple mounting options for precise aiming

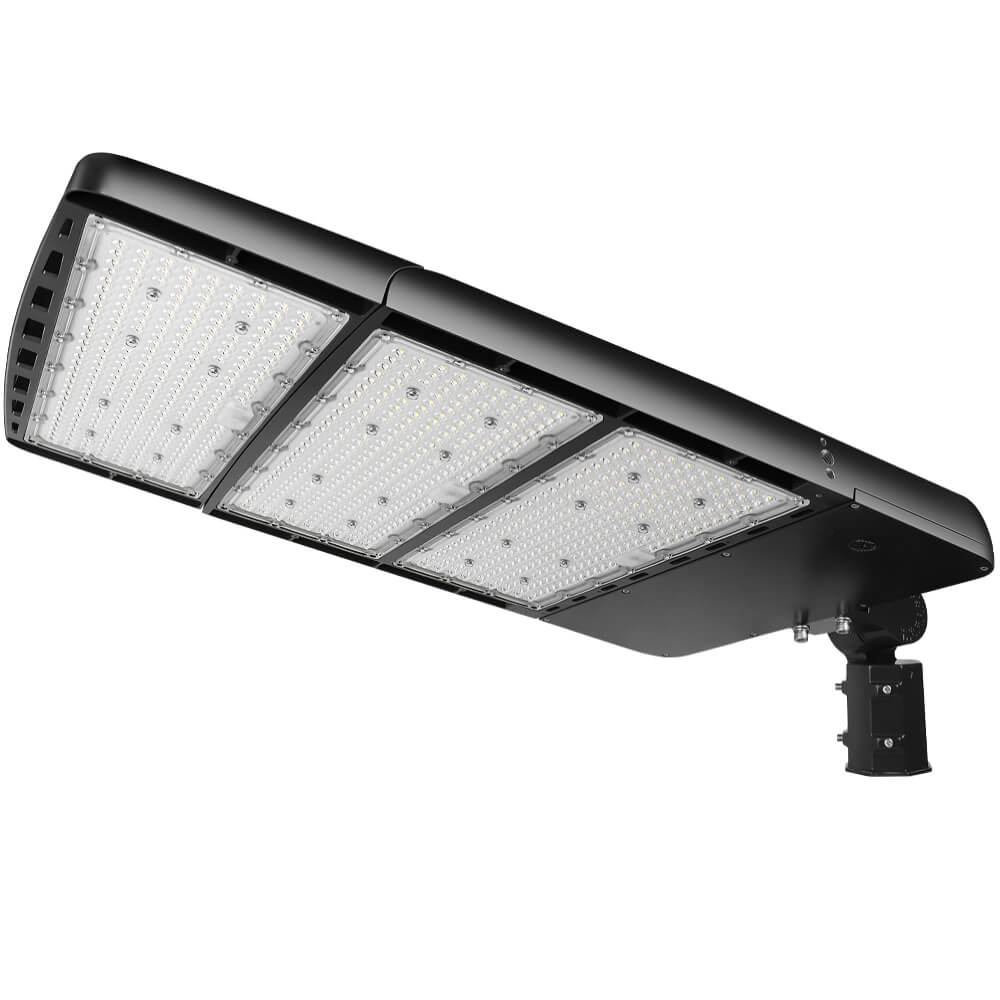

See similar 600-watt version.
Free Lighting Design
Not sure how many fixtures you need or what wattage or lighting distribution to select?
Contact us for a free professional lighting layout—we’ll design the perfect package for your court and ensure optimal performance.
Applications
| • Tennis Courts | • Pickleball Courts |
| • Paddle Courts | • Training Centers & Clubs |
| • Soccer Fields | • Golf Range |
| • Speedway | • Stadium Lighting |
| • Sports Complex | • Community Parks |
| • Arenas | • Open area High Mast lighting |
| • Schools & Universities | • Natatoriums |
Specifications:
| Brand | Konlite | DLC Part # | KSPLW5KNLBXX |
| Warranty | Limited 7 Years | UPC | 605547821530 |
| Input Voltage | 120-277V, 277-480V | Optical | Narrow Asymmetric |
| Input Wattage | 400W/320W/240W | Equal to | 1000W MH |
| Delivered Lumens | 69,600/56,550/43,050 | CRI | >70 |
| Efficacy | 174 LM/W | Available CCT | 5000K |
| Rated Life | >100,000 hrs | THD | <20% |
| Power Factor | >0.9 | IP Rating | IP66 |
| Dimmable | N/A | Controls | N/A |

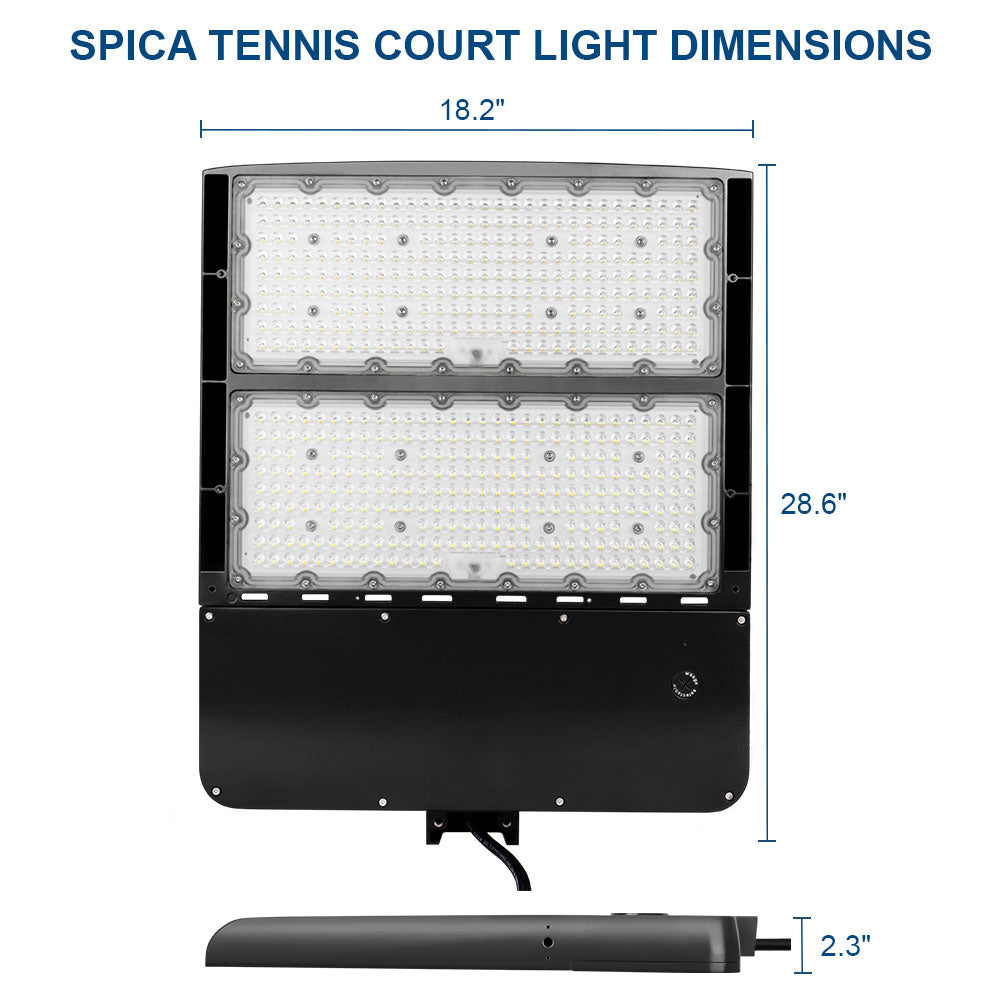

| Operating Temperature | -40 F to 113 F | Fixture Dimensions | 28.6''x18.2''x2.3'' |
| Certifications | UL, Wet Locations, DLC Premium | Unit Weight | 19.84 lbs |
 | Download Specifications |
| Installation Guide |
| Download IES files: 400W-5000K, 320W-5000K, 240W-5000K. |
