Product Overview

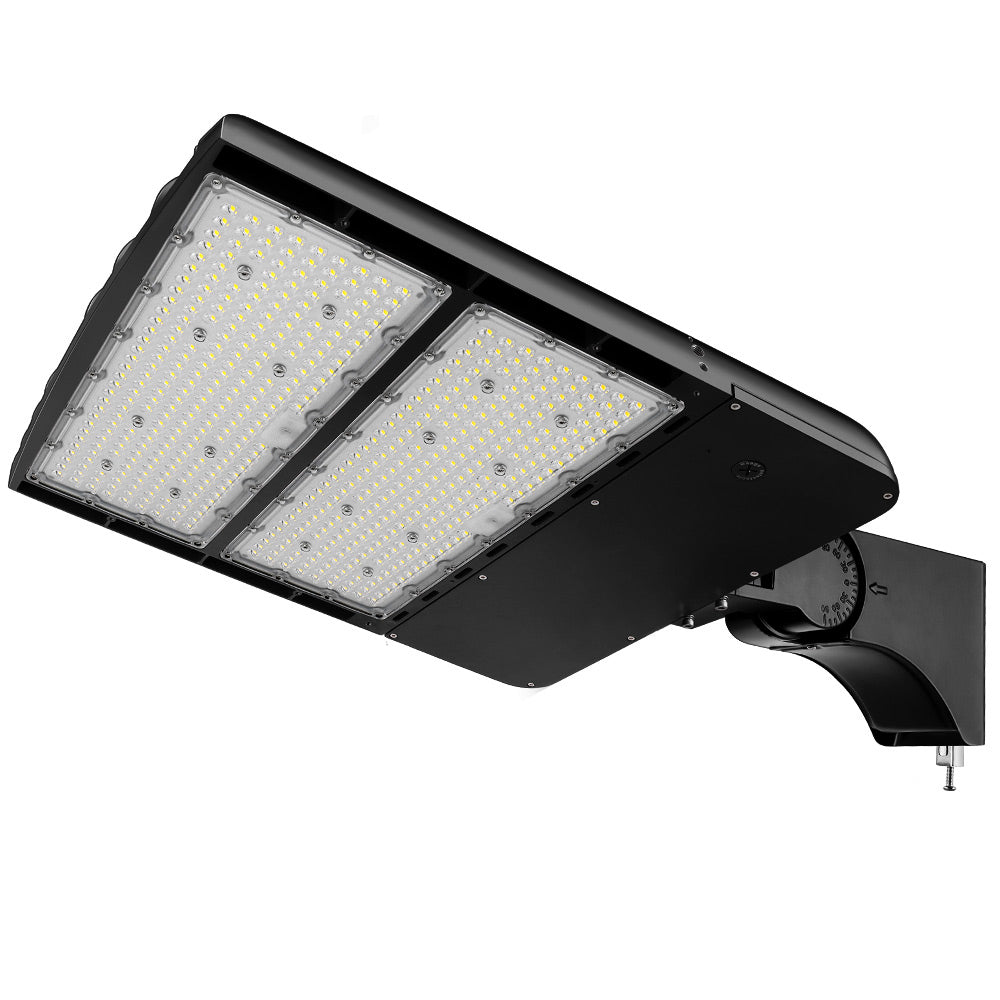

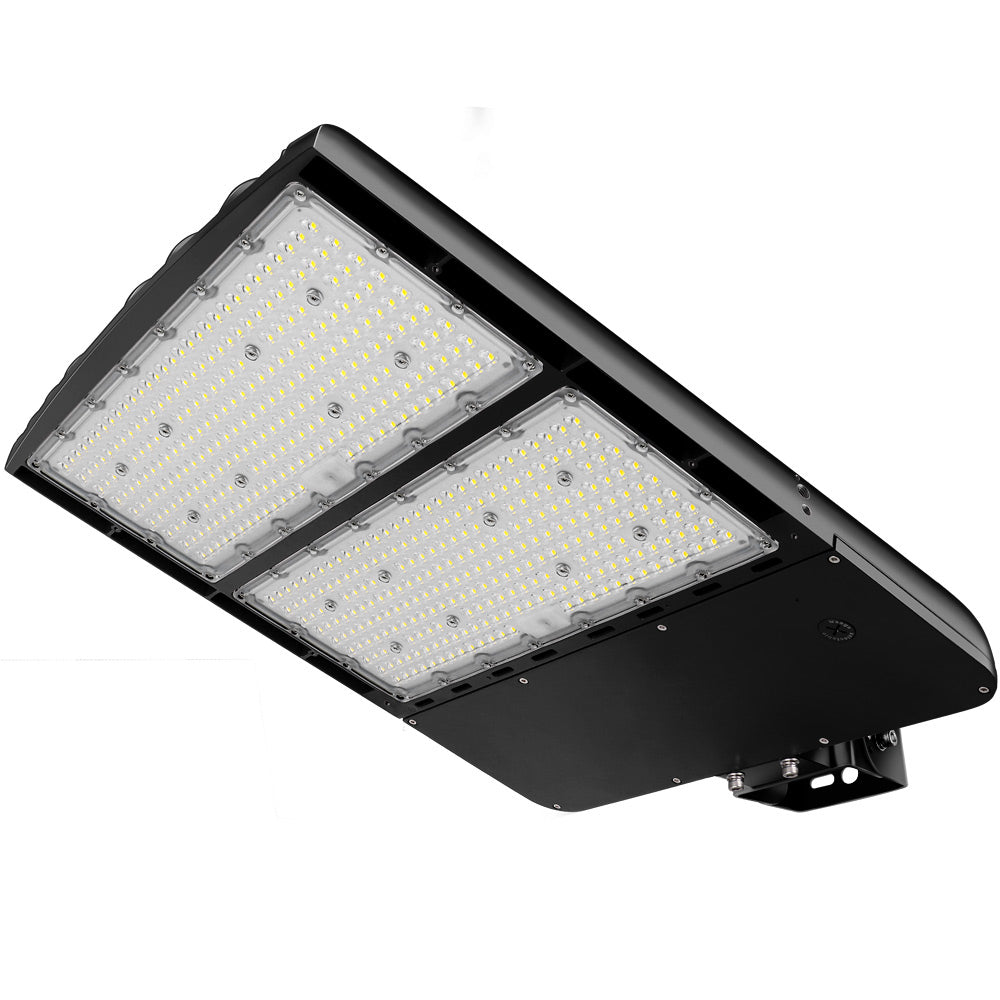

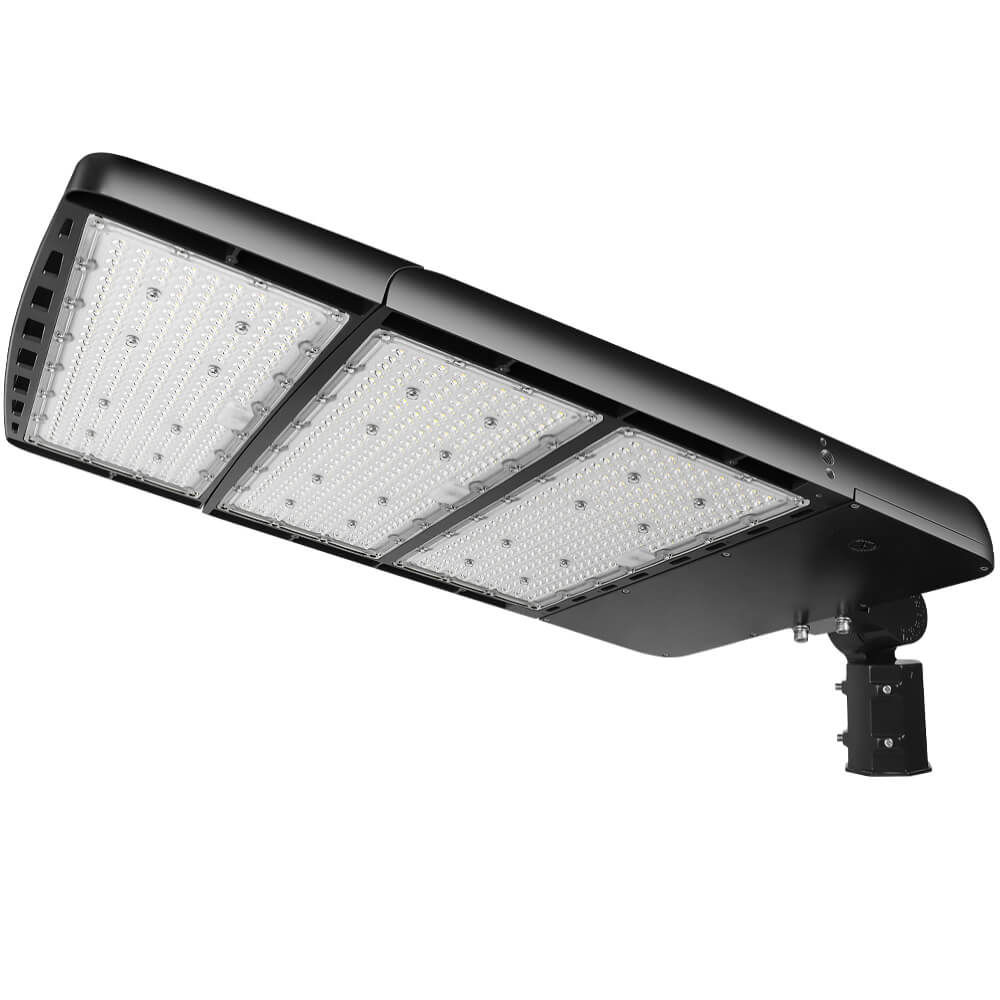

Engineered for professional tennis court lighting and pickleball court lighting, the Konlite Spica Black Finish LED Sports Light is designed to complement the black poles and fencing commonly used on courts across the USA. Featuring a sleek architectural black housing and advanced Wide Asymmetric optics, this fixture delivers bright, even illumination across the playing surface while reducing glare and spill light outside the court.
Built specifically for rectangular court layouts, the Spica Series projects light forward and outward to improve visibility, enhance ball tracking, and minimize shadows during play. The wattage-selectable design (400W / 320W / 240W) produces up to 69,600 lumens, making it an energy-efficient replacement for traditional metal halide sports lights.

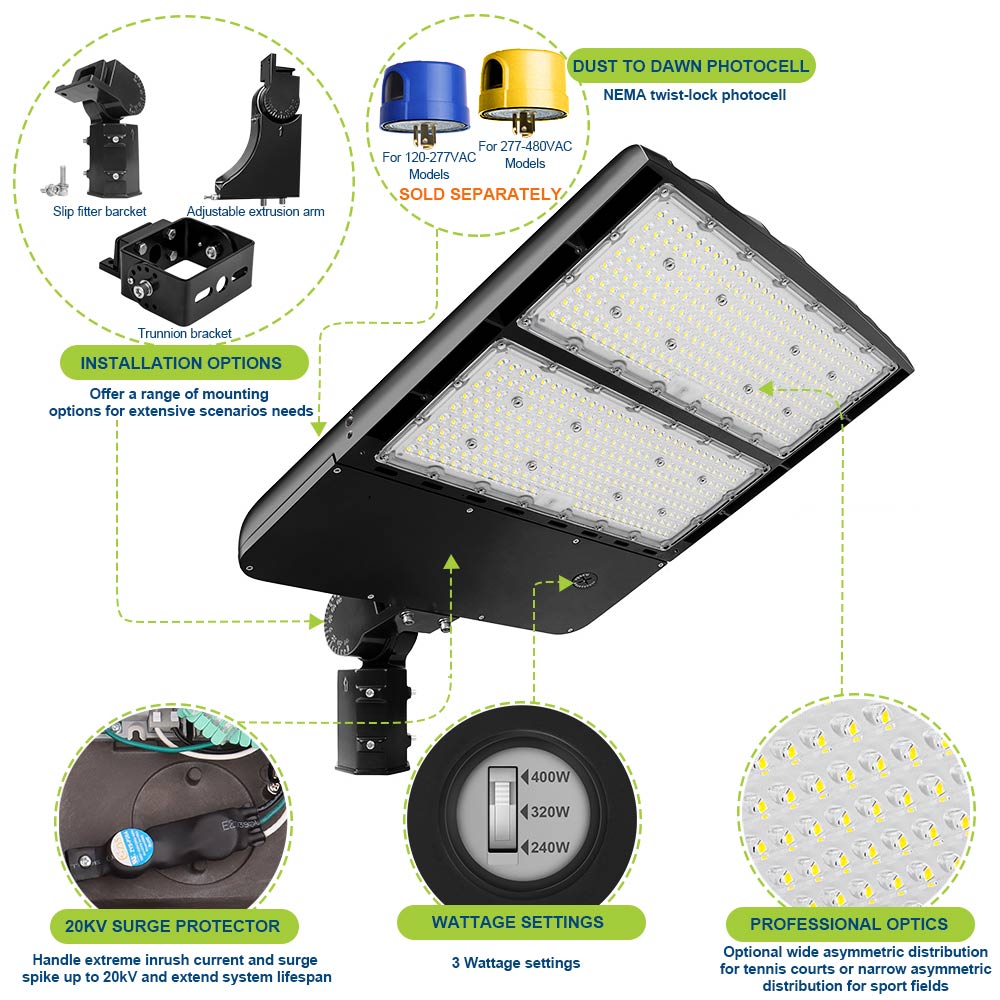

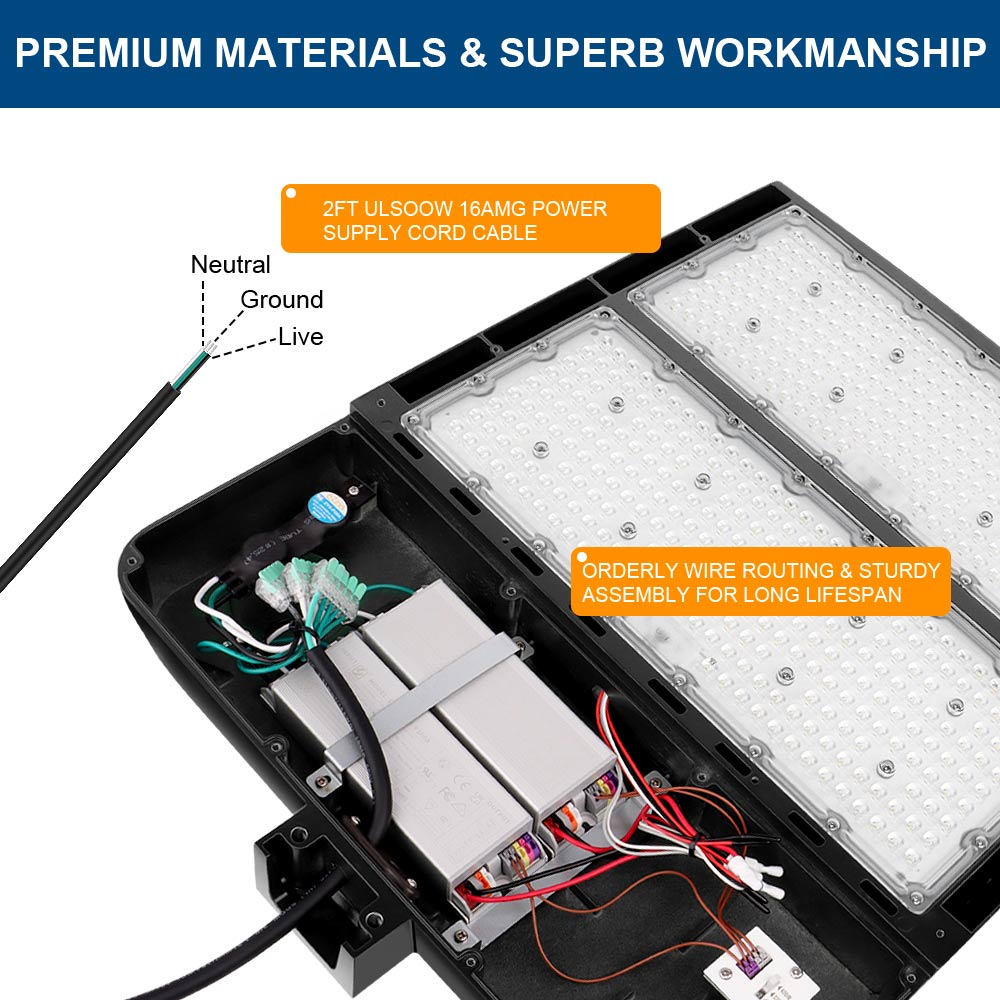

Constructed for long-term outdoor performance, the fixture features an IP66 waterproof housing, 20kV surge protection, and UL / DLC Premium certifications. Multiple mounting options—including slip fitter, trunnion, yoke, extrusion arm, and universal mount—allow easy installation on existing tennis court poles and sports lighting structures.
Ideal for USTA tennis courts, HOA communities, schools, parks, private clubs, and pickleball complexes, the Konlite Spica Black Finish Sports Light combines premium aesthetics with high-performance court lighting.
Key Features (Tennis/Pickleball Version)
-

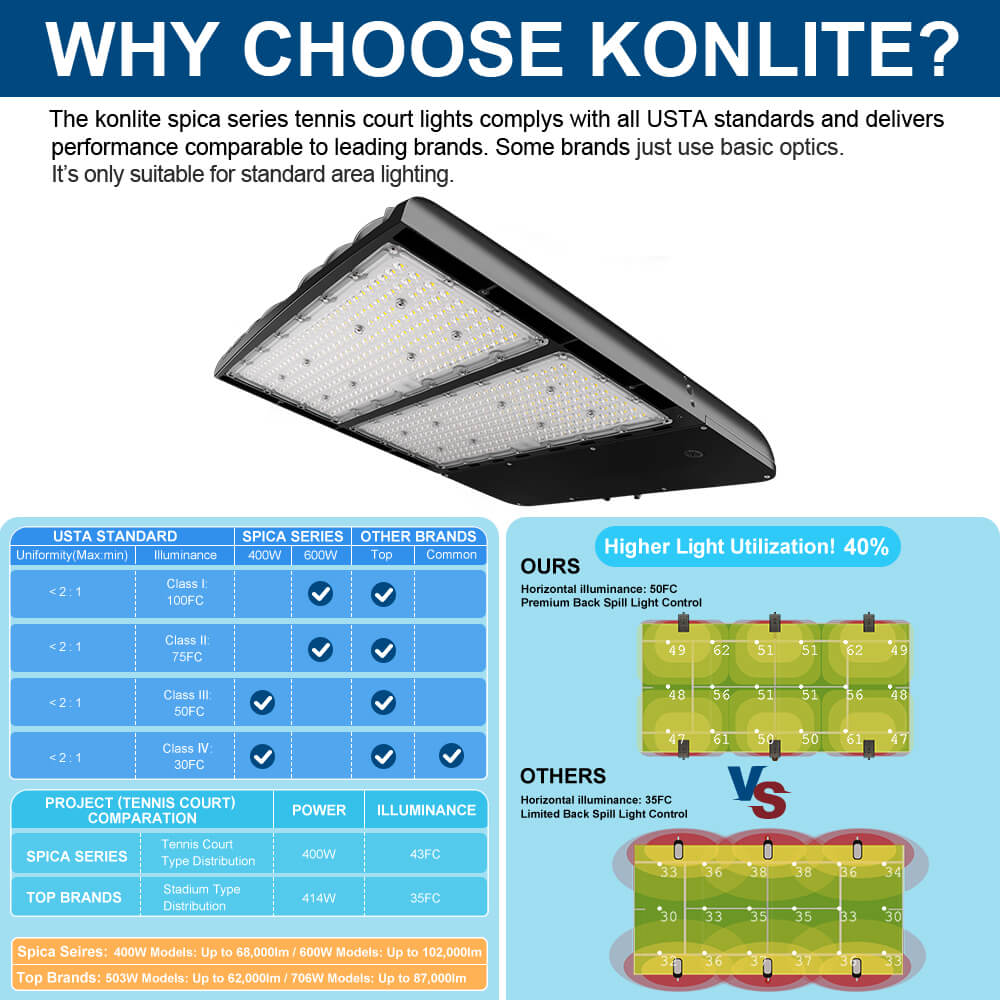

Wide Asymmetric optic ideal for USTA courts
-
Excellent uniformity across full court area
-
Reduced glare for athletes and spectators
-

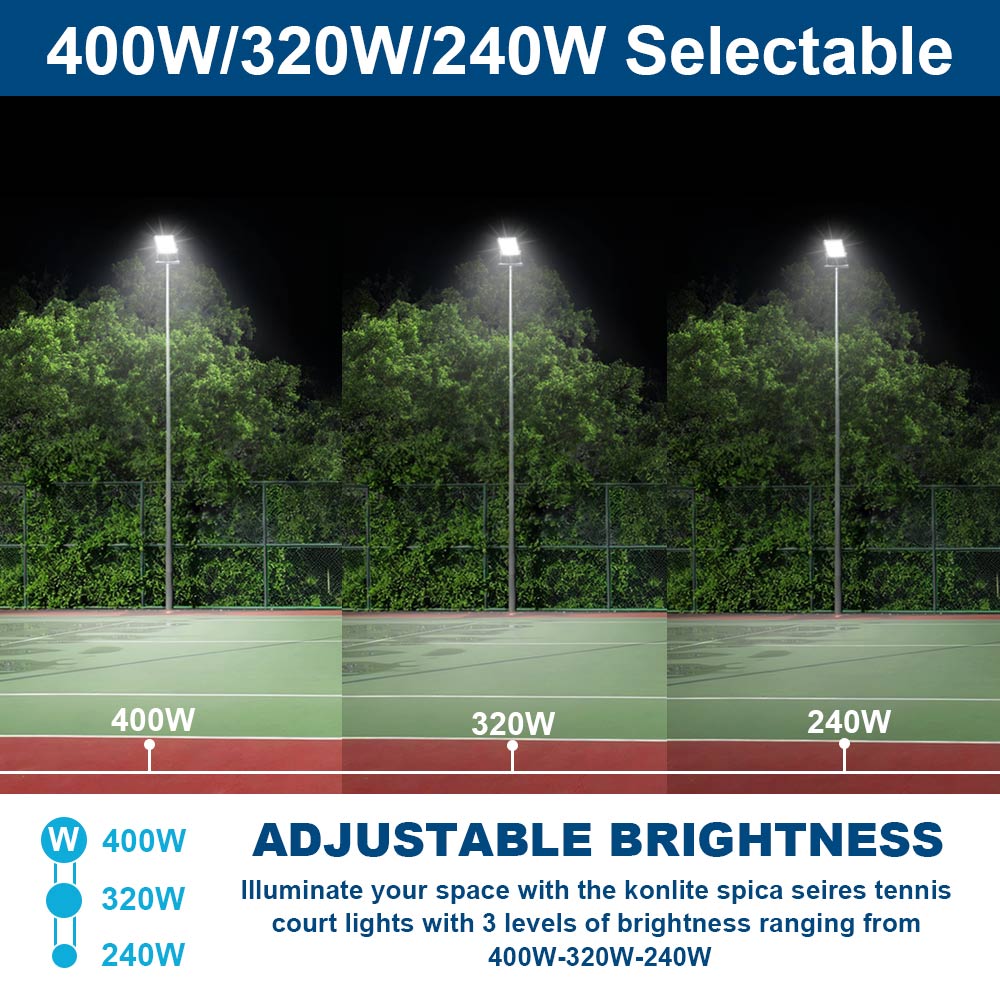

Wattage selectable for tailored brightness
-
Up to 69,600 lumens max output
-

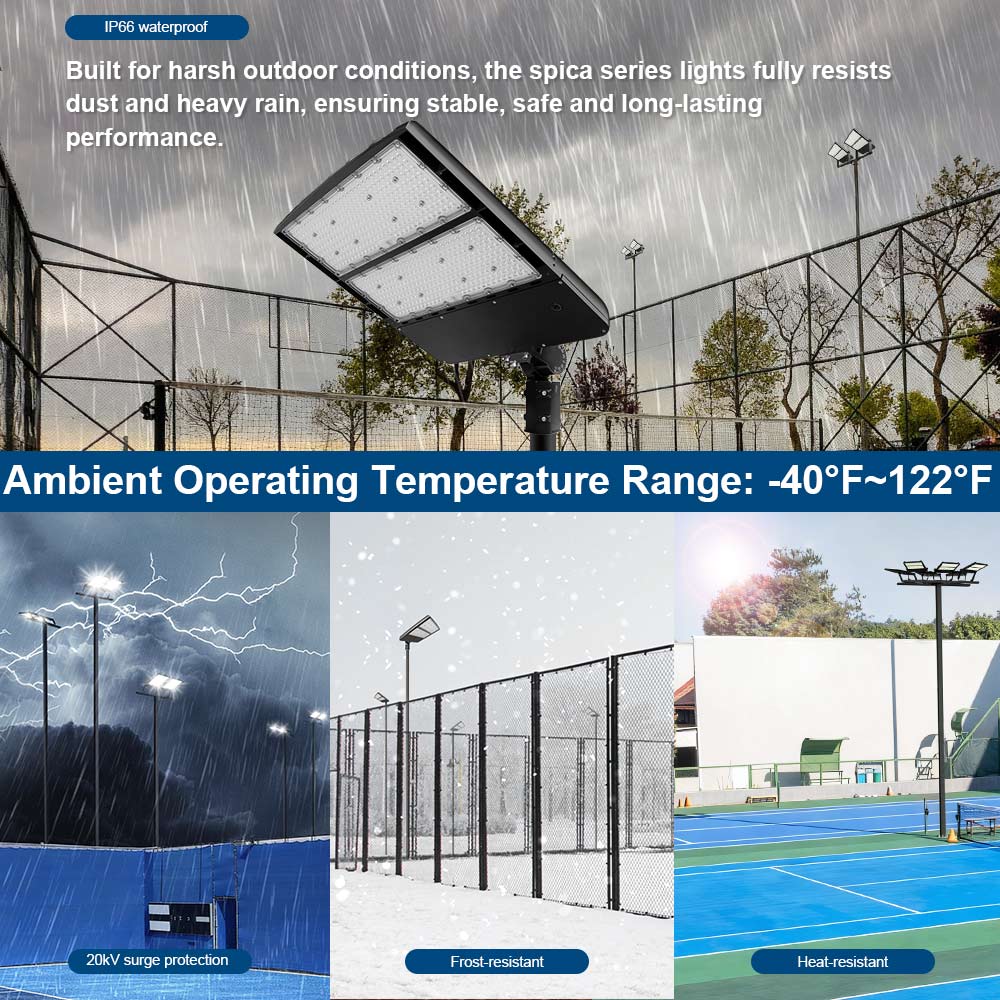

IP66 weatherproof + 20kV surge protector
-
UL Listed, DLC 5.1 Premium
-

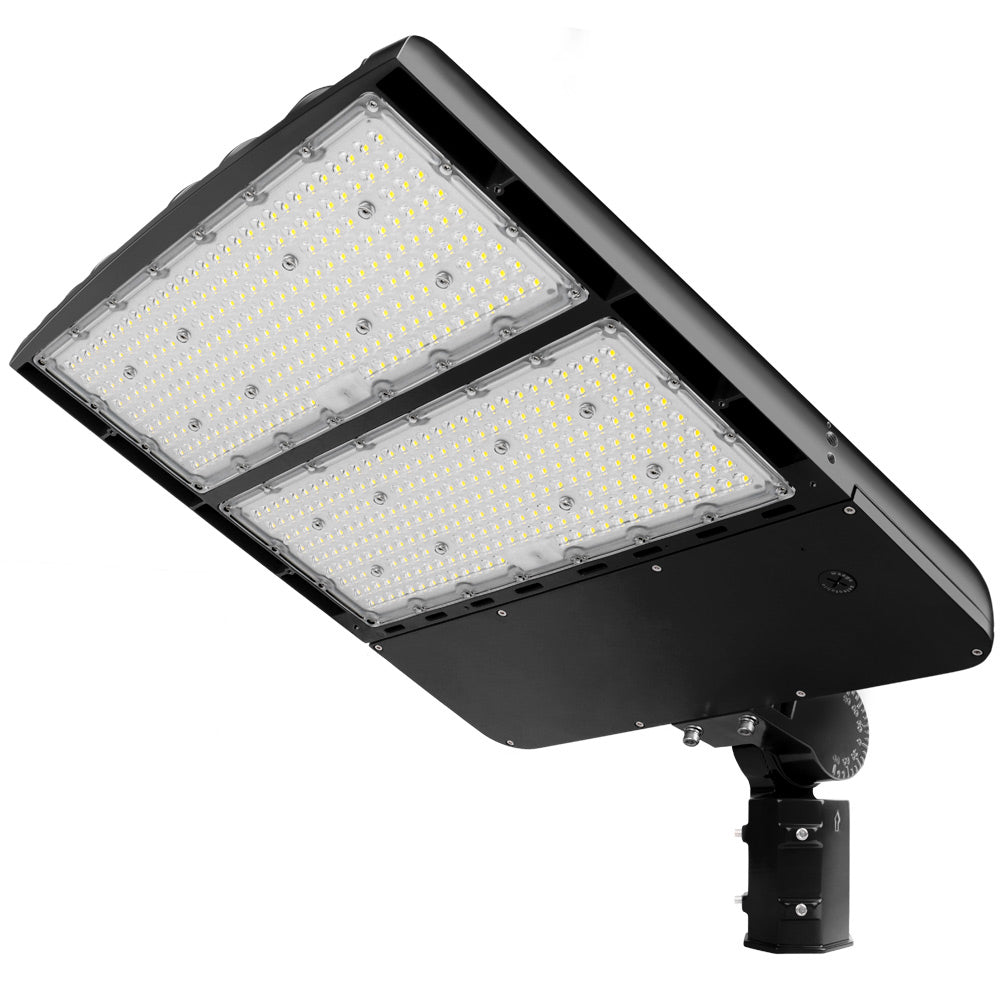

Multiple mounting options for precise aiming
Free Lighting Design
Not sure how many fixtures you need or what wattage or lighting distribution to select?
Contact us for a free professional lighting layout—we’ll design the perfect package for your court and ensure optimal performance.
Applications
| • Tennis Courts | • Pickleball Courts |
| • Paddle Courts | • Training Centers & Clubs |
| • Soccer Fields | • Golf Range |
| • Speedway | • Stadium Lighting |
| • Sports Complex | • Community Parks |
| • Arenas | • Open area High Mast lighting |
| • Schools & Universities | • Natatoriums |
Specifications:
| Brand | Konlite | DLC Part # | KSPLW5KWLBXX |
| Warranty | Limited 7 Years | UPC | 605547661358 |
| Input Voltage | 120-277V, 277-480V | Optical | Wide Asymmetric |
| Input Wattage | 400W/320W/240W | Equal to | 1000W MH |
| Delivered Lumens | 69,600/56,550/43,050 | CRI | >70 |
| Efficacy | 174 LM/W | Available CCT | 5000K |
| Rated Life | >100,000 hrs | THD | <20% |
| Power Factor | >0.9 | IP Rating | IP66 |
| Dimmable | N/A | Controls | N/A |

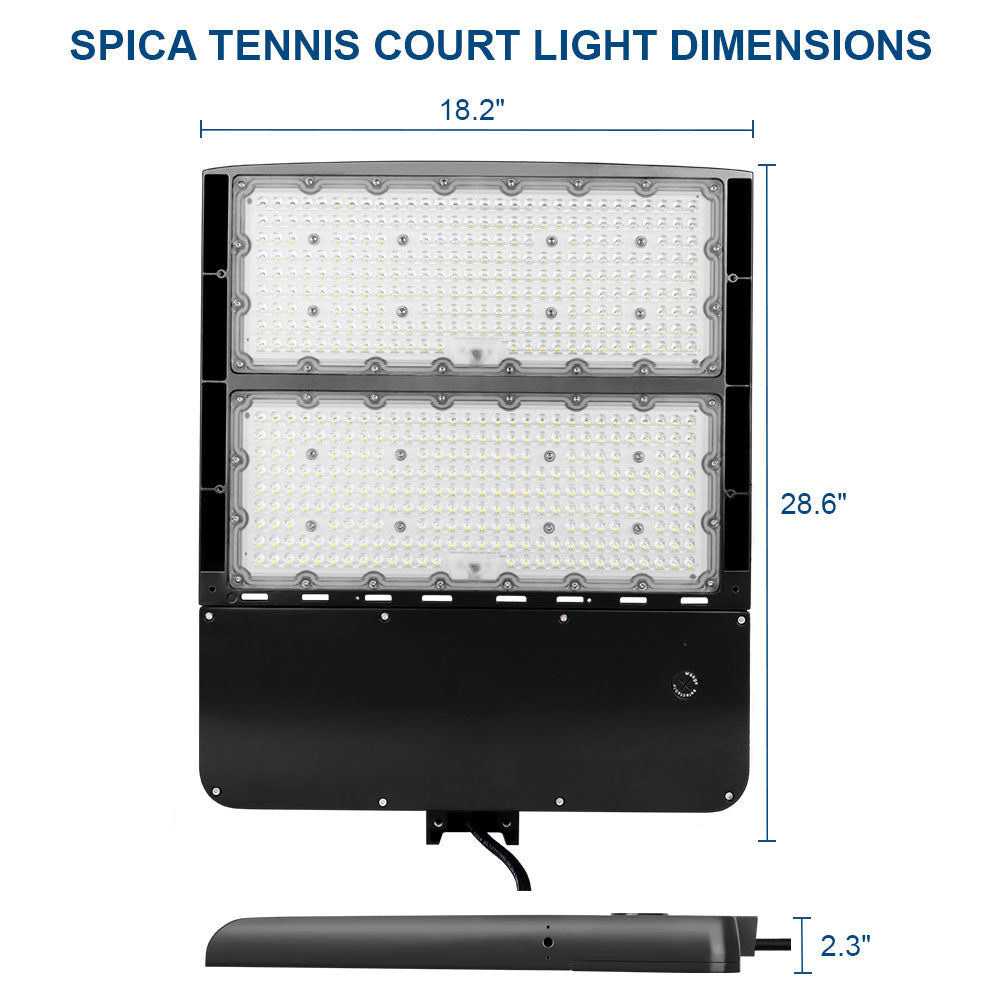

| Operating Temperature | -40 F to 113 F | Fixture Dimensions | 28.6''x18.2''x2.3'' |
| Certifications | UL, Wet Locations, DLC Premium | Unit Weight | 19.84 lbs |
 | Download Specifications |
| Installation Guide |
| Download IES files: 400W-5000K, 320W-5000K, 240W-5000K. |
