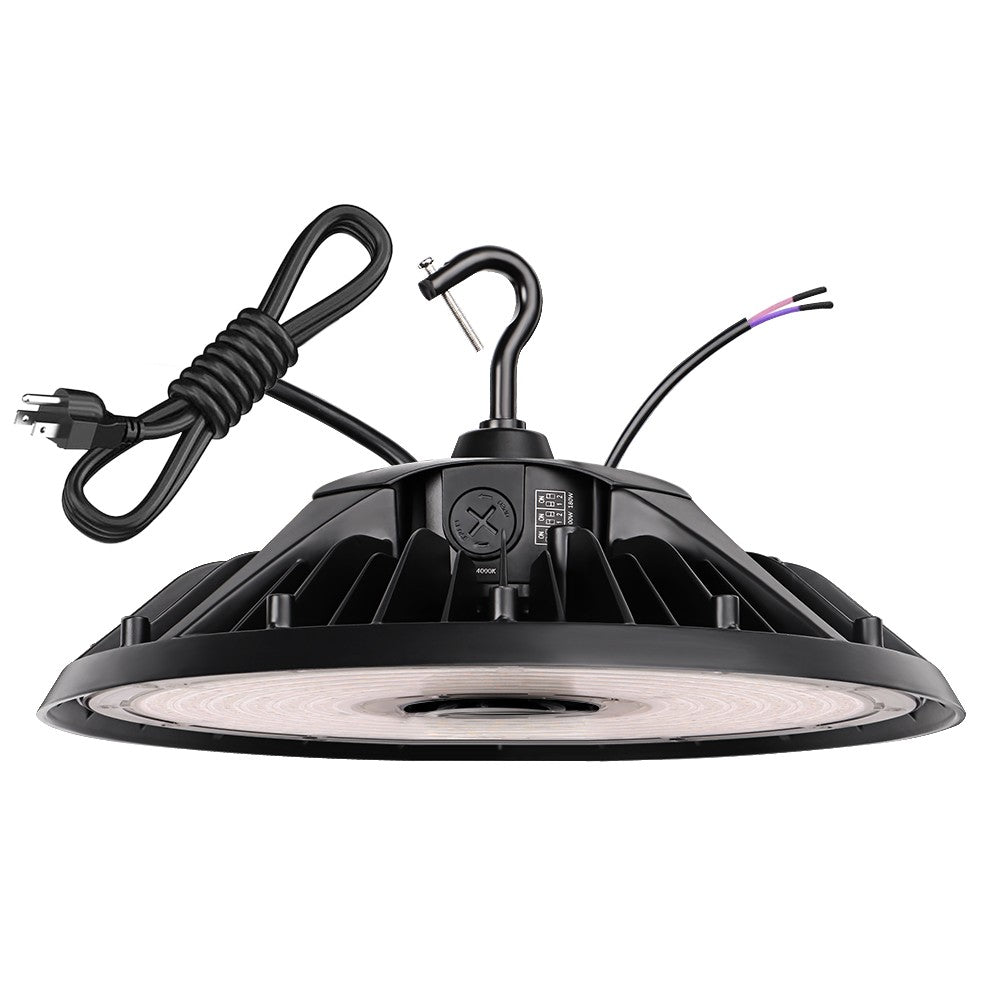

Upgrade your space and reduce operating costs with the energy efficient Konlite RH03 MAX series round LED bay lights. This compact design is easy to install, meets any budget and a Contractor favorite for retrofit or new construction.
Selectable wattage and color temperature take the risk out of purchasing. A low/high bay light that is too dim or too bright can affect the daily operations of the space- from employee productivity to safety. You can now select your brightness and efficiency during install to assure the brightness meets the application and provides the amount of light you want and need for your area. Great for multi-zone facilities.

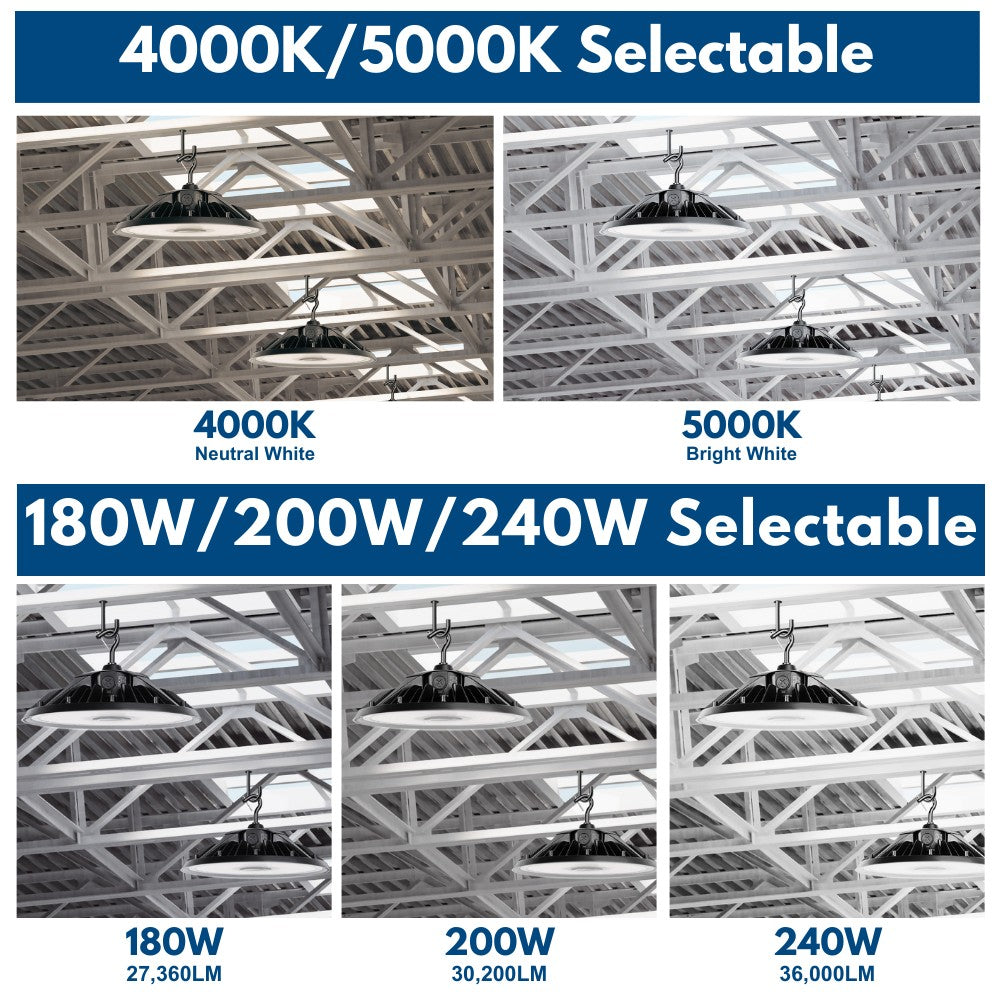

Four Field Selectable brightness Settings:
180w / 27,000 Lm, 200w / 30,000 Lm, 220w / 33,000 Lm, 240w / 36,000 Lm. Preset at: 240 watts.
5000K and 4000K CCT tunable, Excellent color rendition compared to HID/HPS with uniform 120° broad beam illumination.

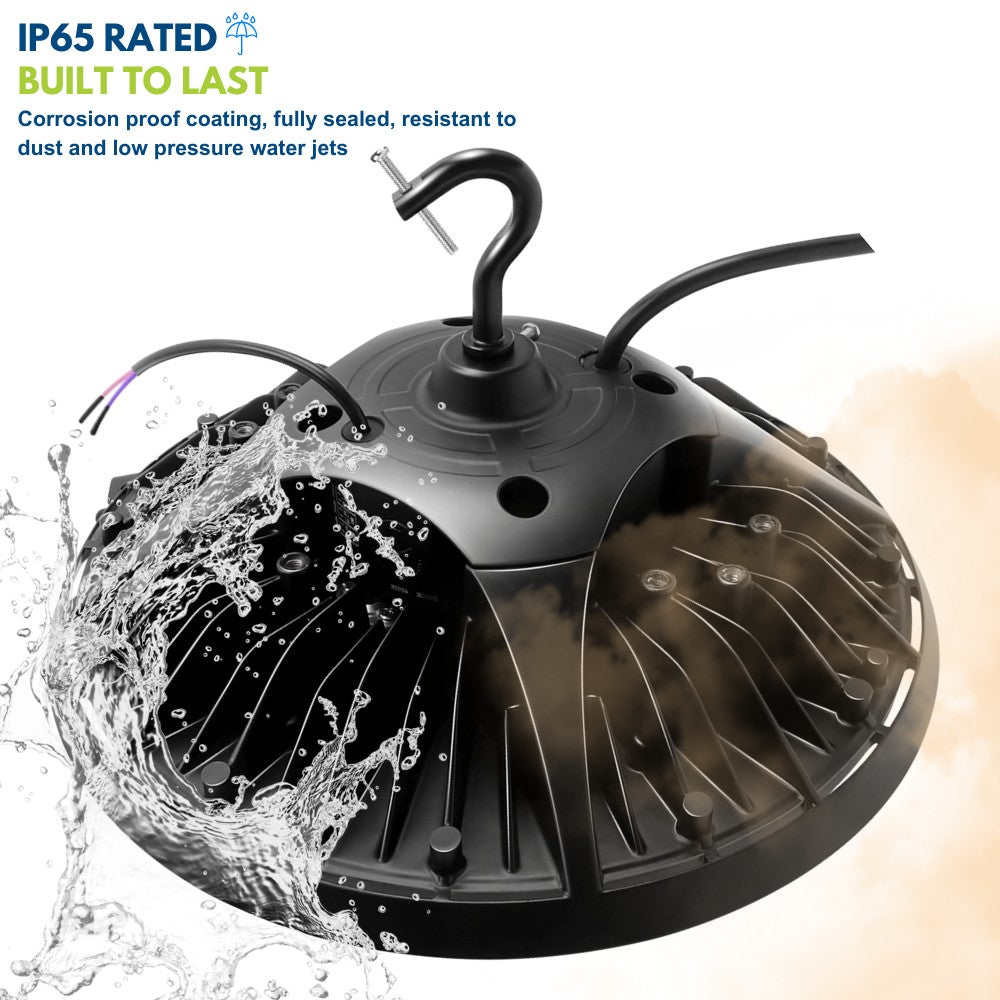

120-277V, Built in 4K surge protector, 8’ Quick Connect Cord, 0-10V Dimming, IP65 rated; Corrosion proof aluminum coating, fully sealed for dust and moisture intrusion.
Certified Quality: DLC 5.1 Premium for eligible rebates, UL, 5 year warranty.

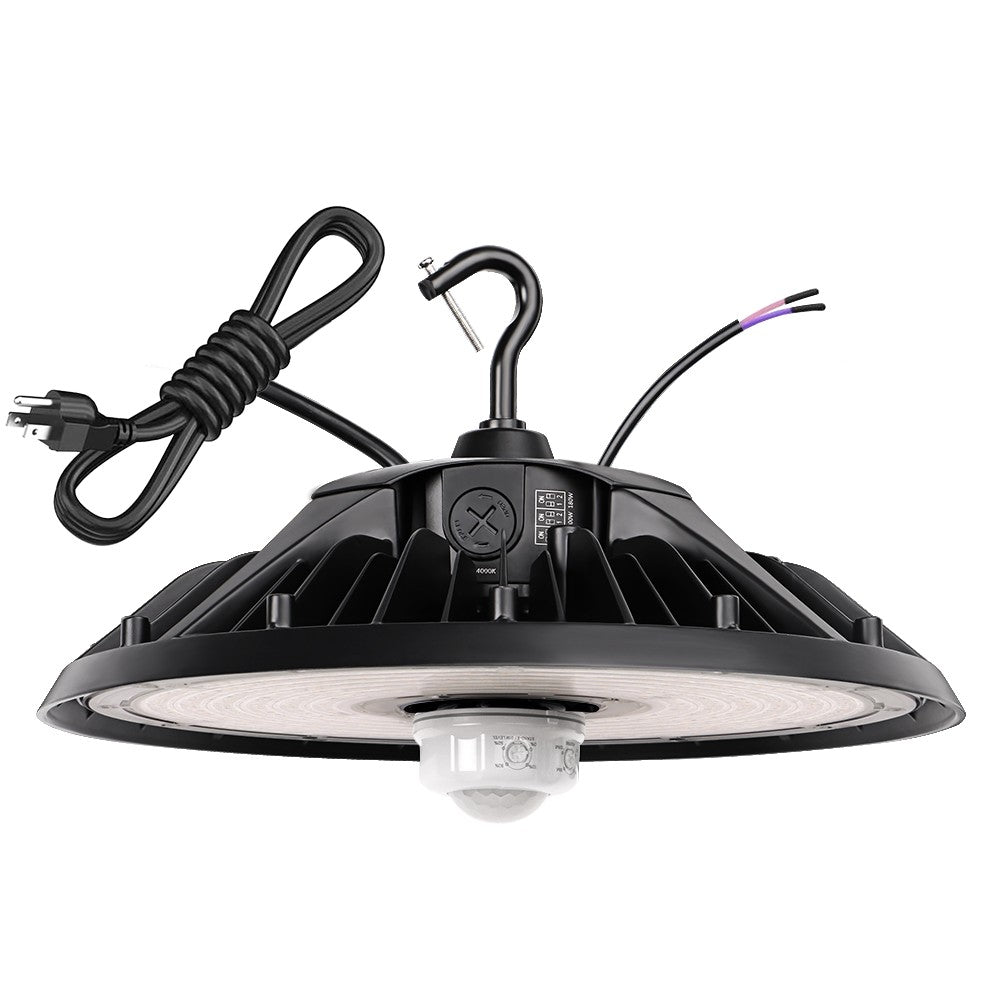

Increase savings with the optional integrated PIR sensor. Set and adjust the controls via Remote Control: Brightness, Sensitivity, Hold-time, Daylight Harvesting and Stand by dimming level. Requires (1) HD05R Remote.
Delivers top energy savings and maintenance free durability for a wide range of applications.
See similar Low-watt Highbay version.
|•Convention Centers||•Automotive Centers|
|•Storage Facilities||•Distribution Centers|
|Warranty||Limited 5 Years||UPC|
|Input Wattage||180w/200w/220w/240w||Equal To||500w/600w/750w/1000w|
|Efficacy||150 LM/W||Available CCT||5000K/4000K|
|Rated Life||>50,000 hrs||Power Factor||>0.88|
|Dimmable||0-10V||Controls||optional PIR Motion Sensor|

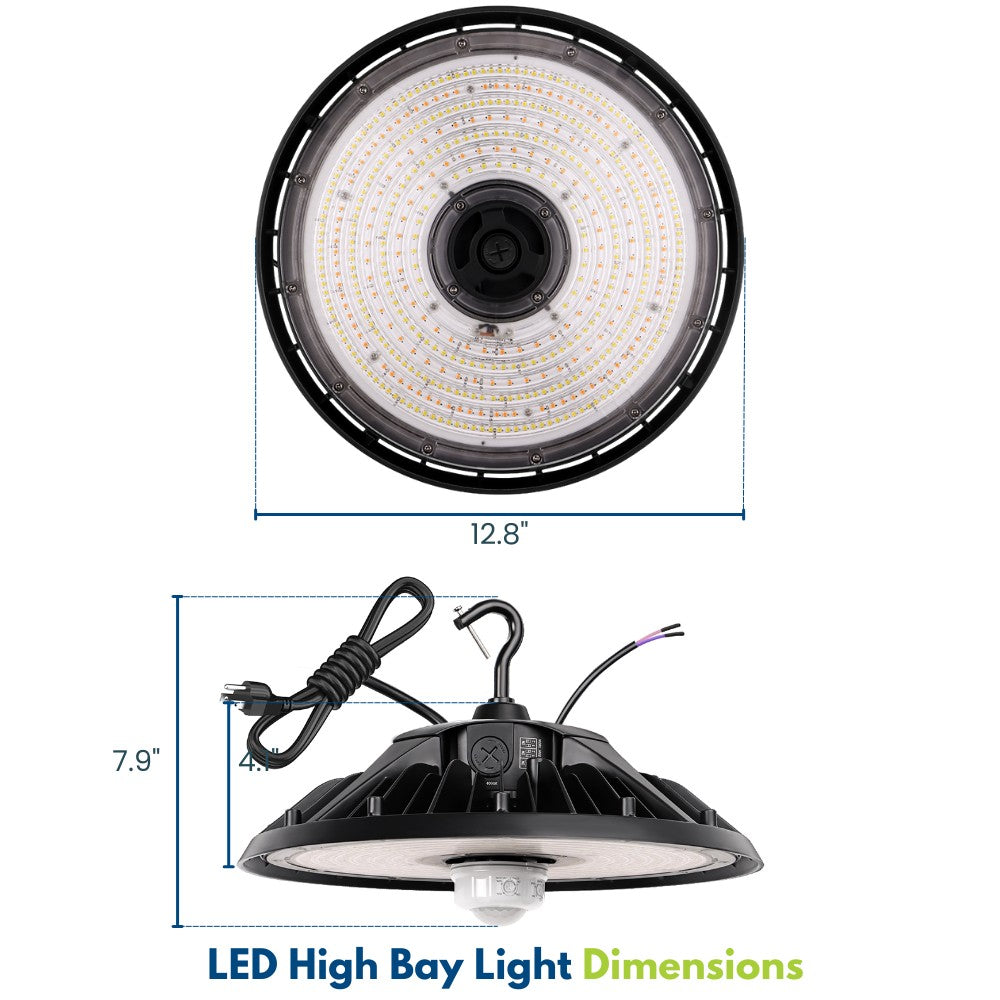

|Operating Temperature||-40F to 113F||Diameter||12.4"|
|Certifications||UL, Damp Locations, DLC Premium||Weight||10.5 Lbs|

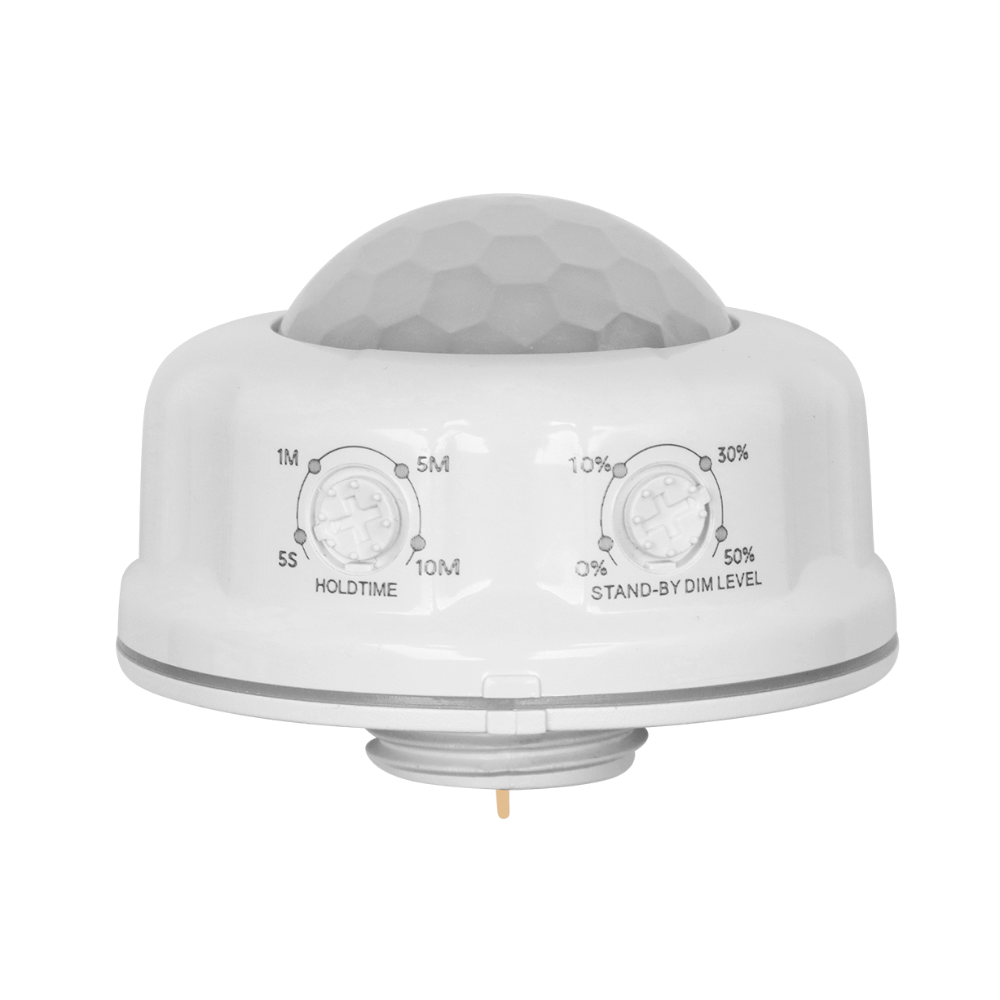

Motion Sensor Specification
|Control||On/off / 1-10V Dimming||Setting tool||Rotating Switch or Remote Control (HD05R)|
|Detection area||25%/50%/75%/100% (R.C)||Hold time|
5s/1min/5min/10min (Rotating Switch)
|Stand-by period||0s/10s/30s/1min/5min/10min/30min/+∞ (R.C)||Stand-by dimming level|
0%/10%/30%/50% (Rotating Switch)
|Input Range||12VDC||Daylight threshold||Disable / 11 settings from 2Lux to 400Lux (R.C)|
|Operating Voltage||10.5-15V DC||Detection range||Max. 45.92ft|

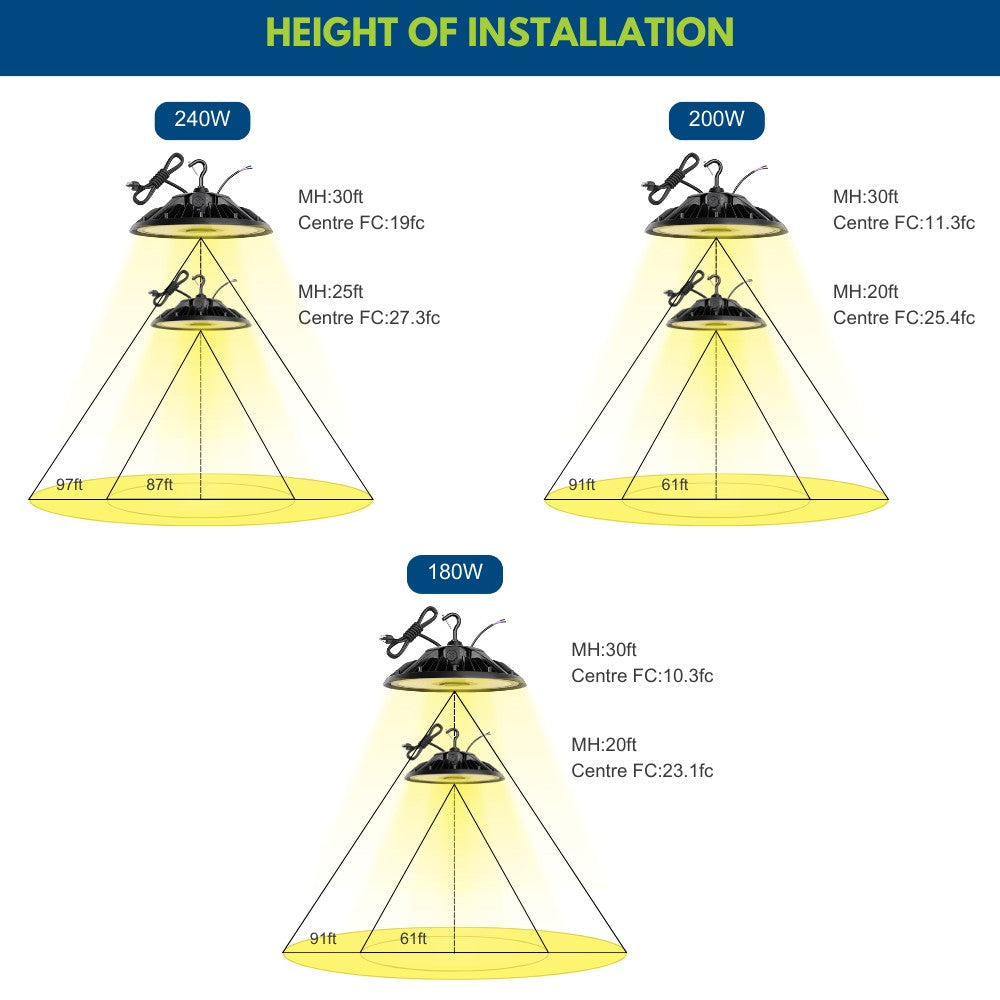

|Mounting height||Max. 39.37 ft||IP rating||IP65|
*Stand-By Period need to be set to 0s while using with dimmer switch.
*Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
