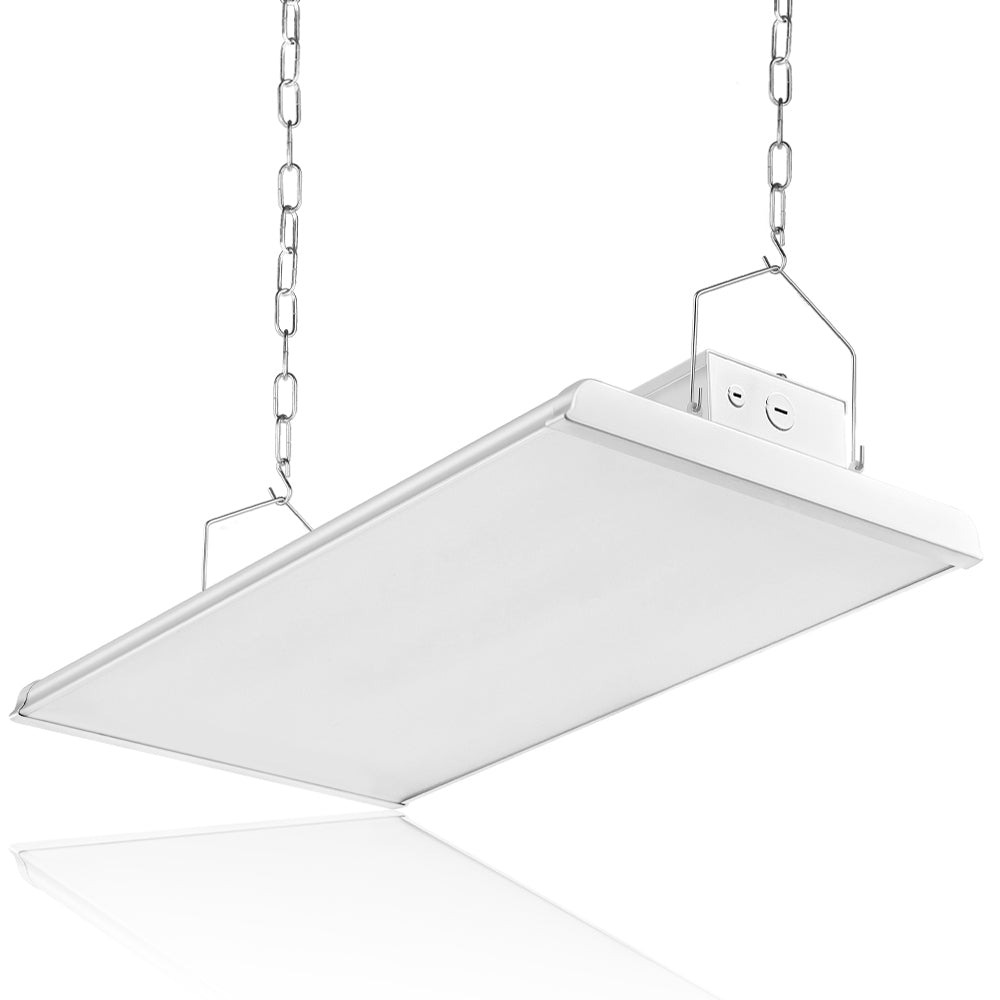

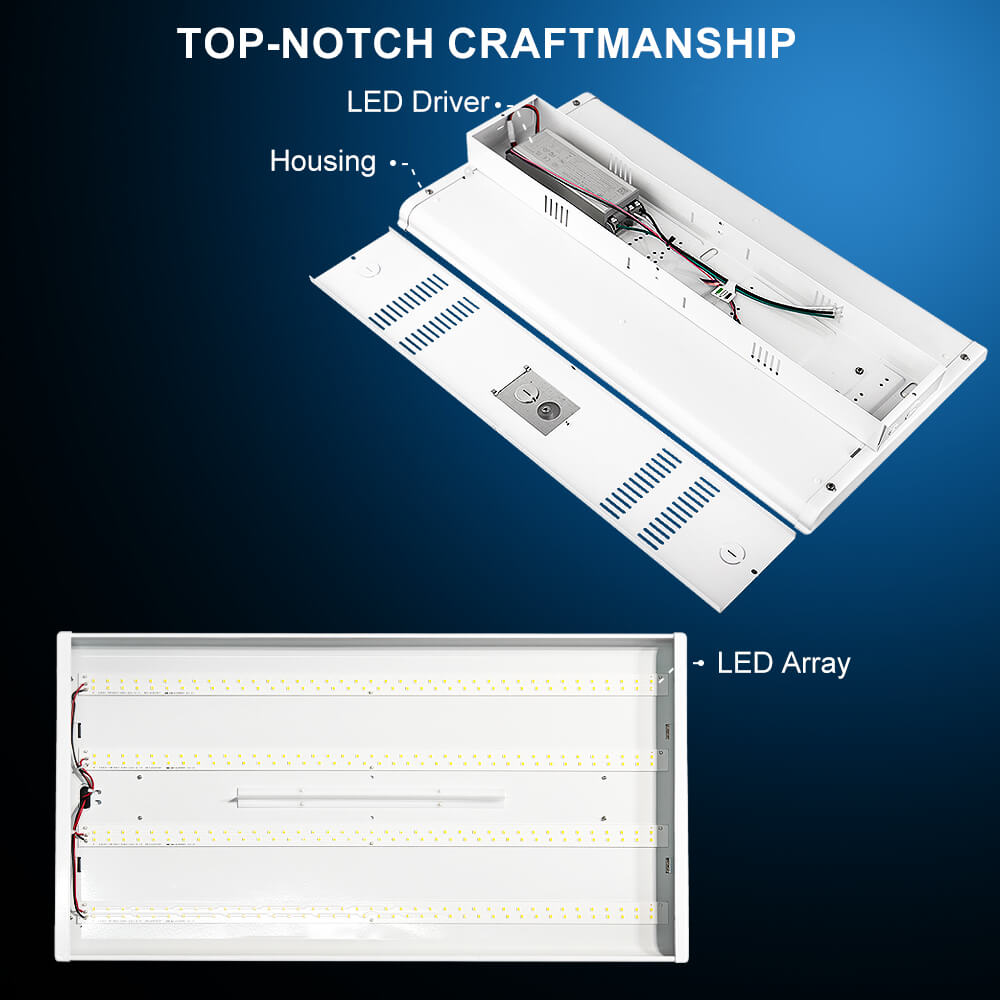

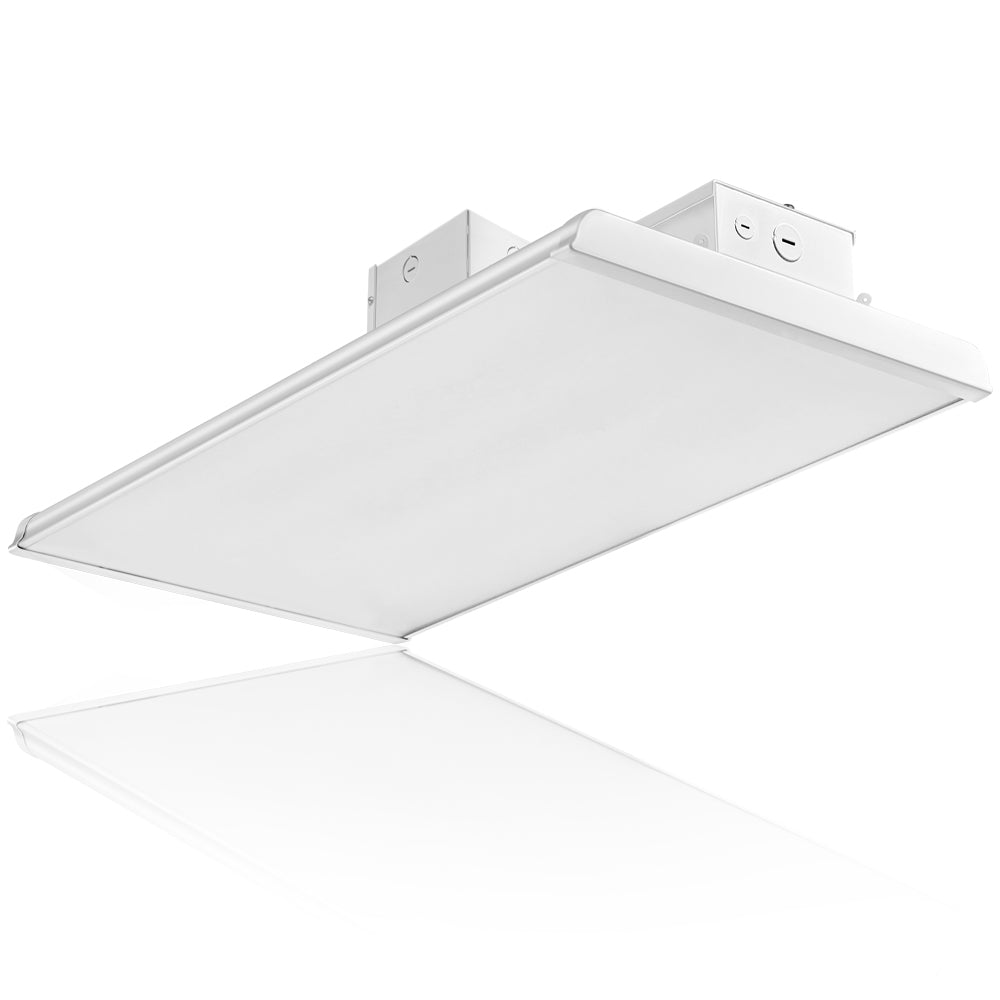

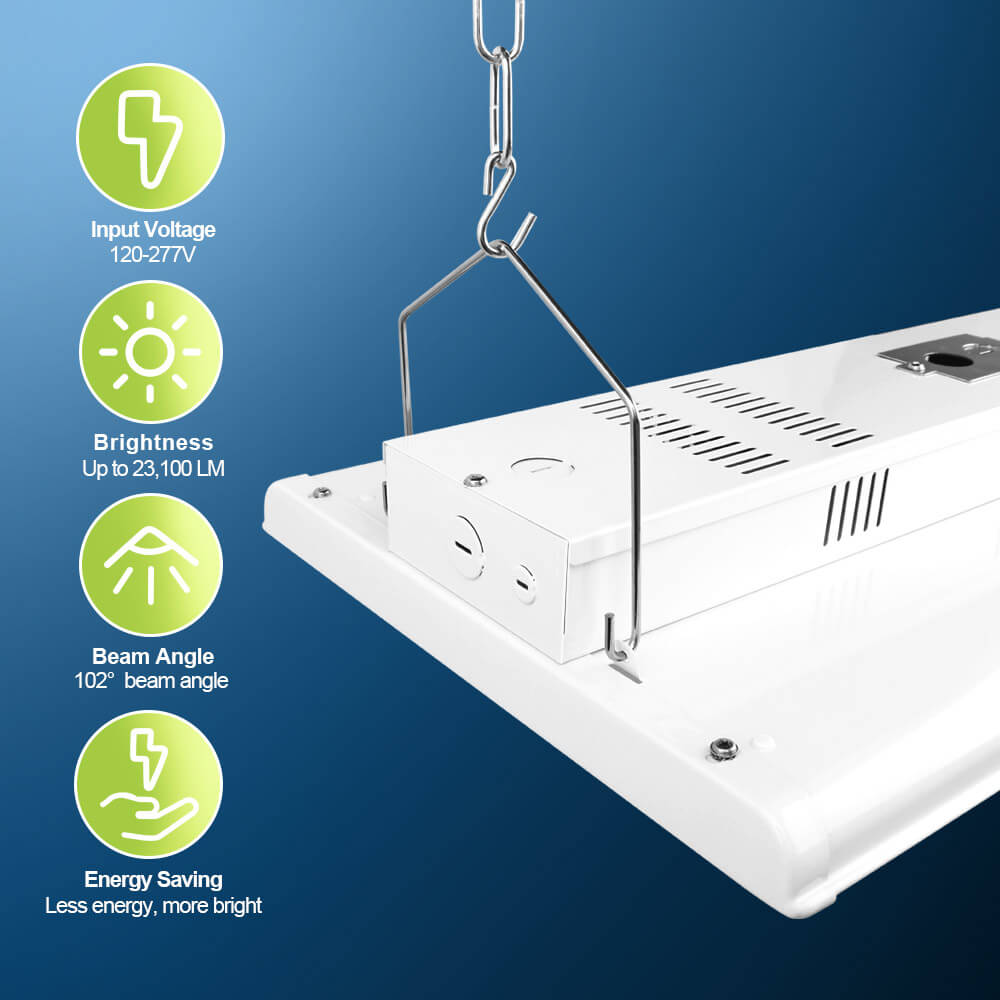

This 2ft Linear LED bay ceiling light is ideal for replacement of 4-6 F32T8 / F54T5 HO, 400W watt HID or new construction general lighting applications. The high performance compact design allows for easy installation.
165 watts, 23,100 lumens, 120-277V, 5000K Commercial Bright White

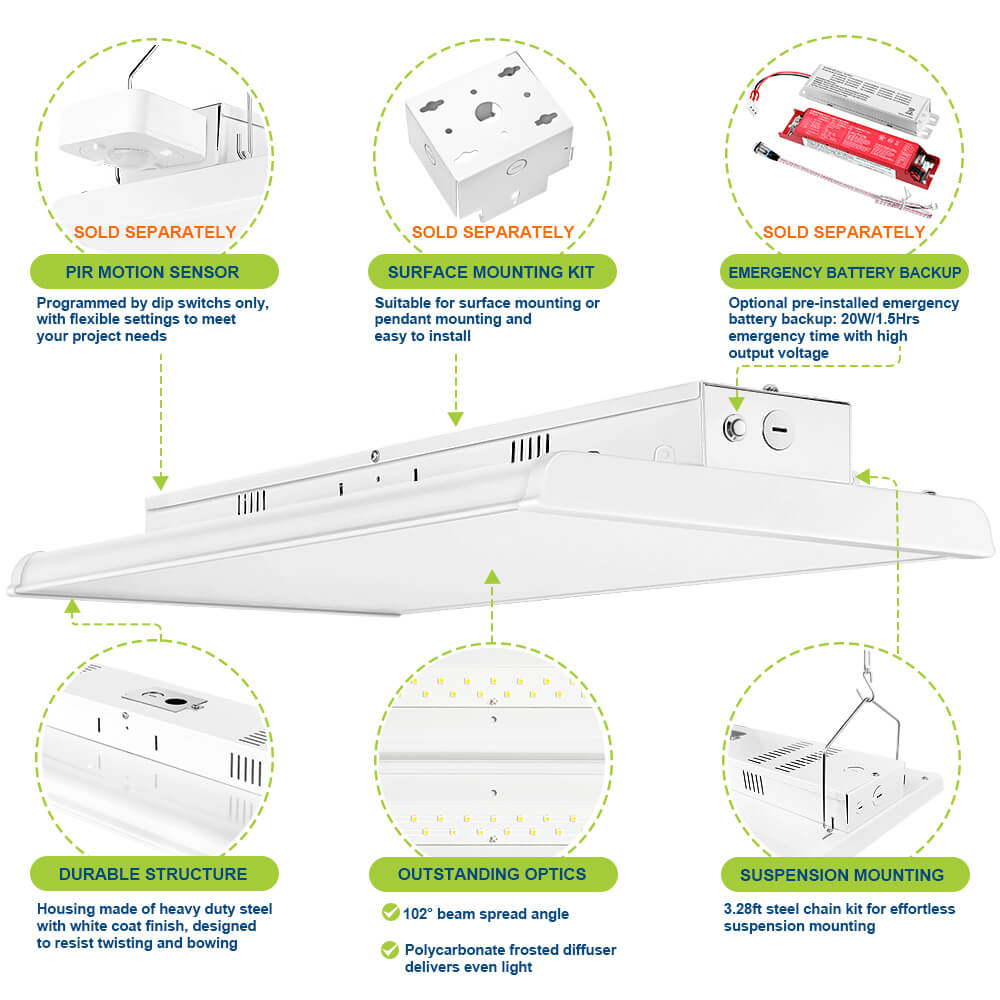

Frosted polycarbonate diffuser creates even and glare free light distributed broadly at a 120° beam angle.
Available motion sensor has built-in daylight sensing capability. Remote control required to make setting adjustments*.
1-10V Dimming, Delivers top energy savings and maintenance free durability for a wide range of applications.

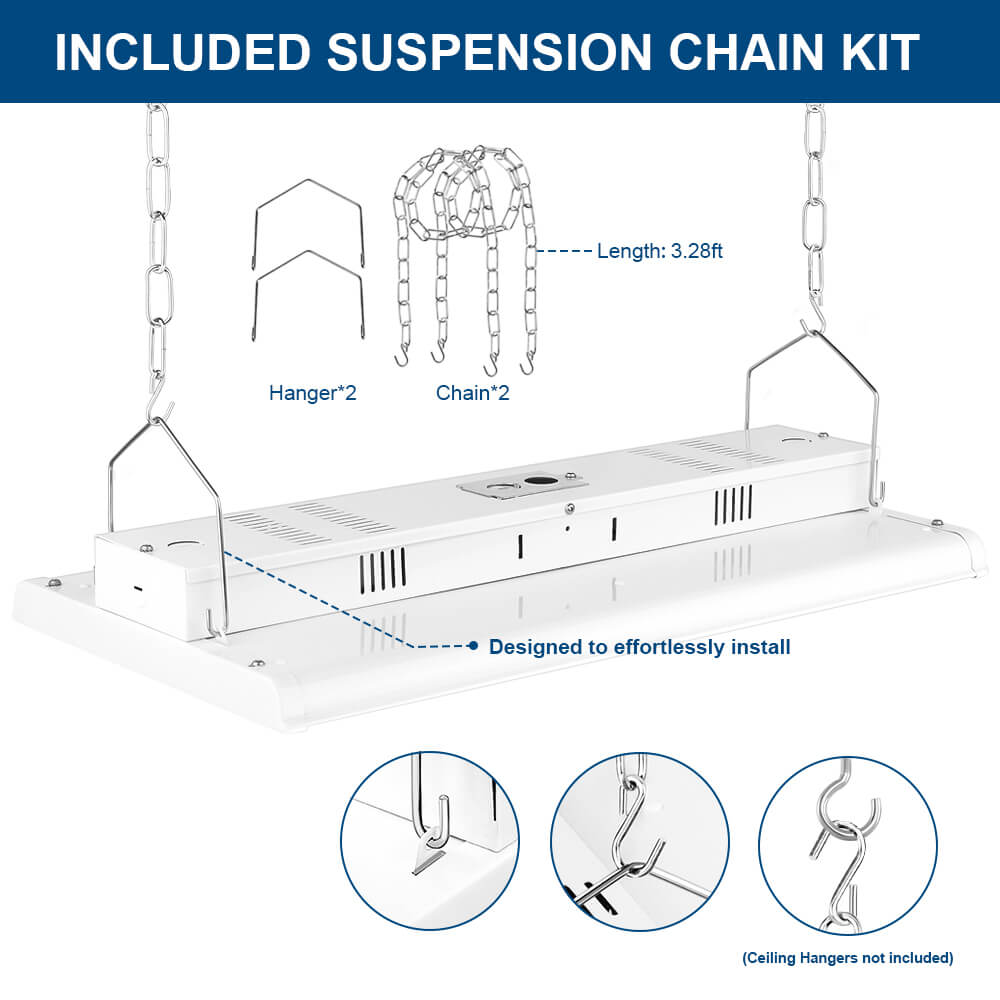

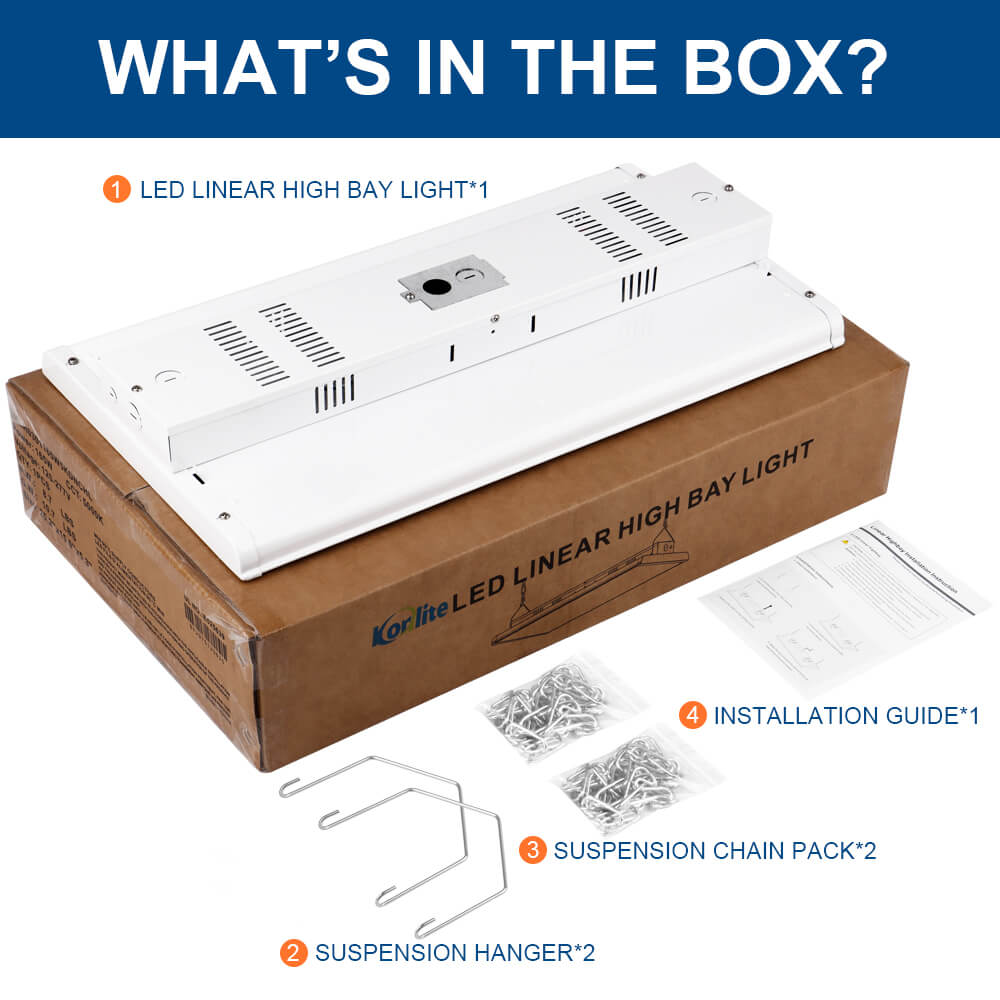

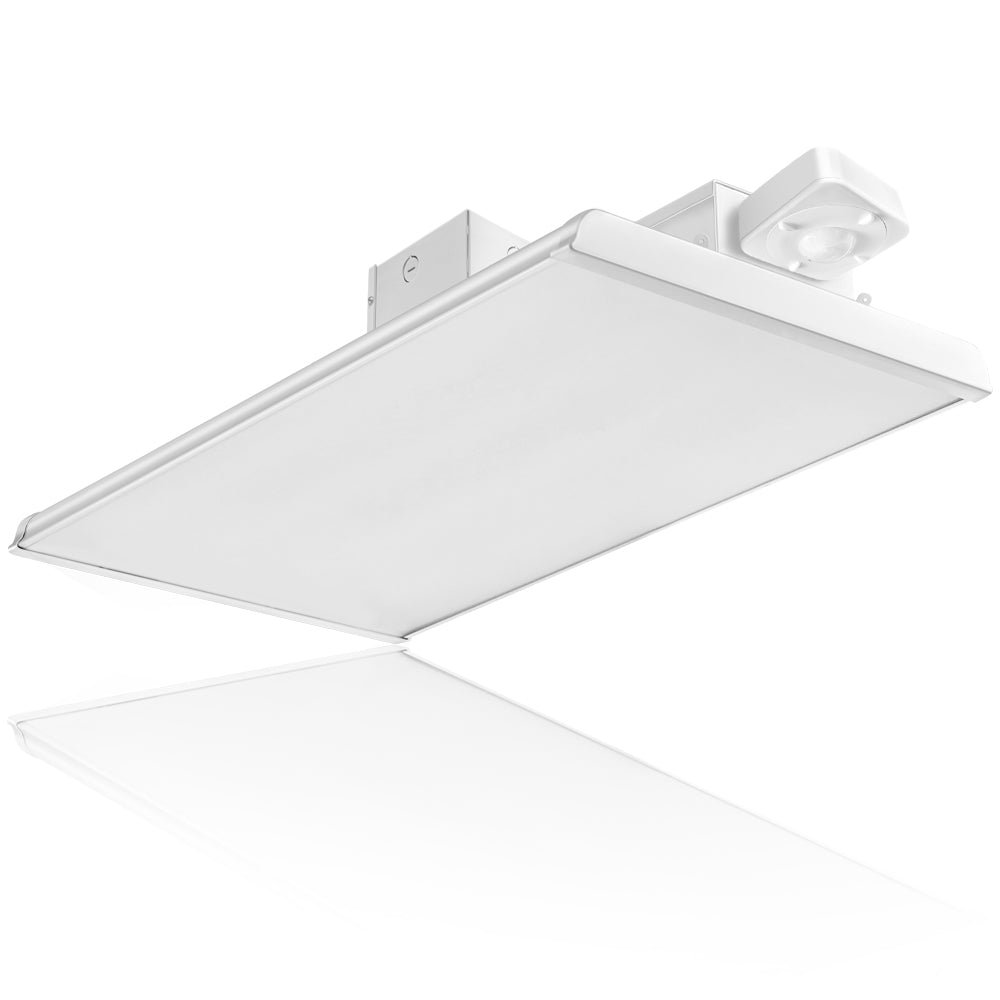

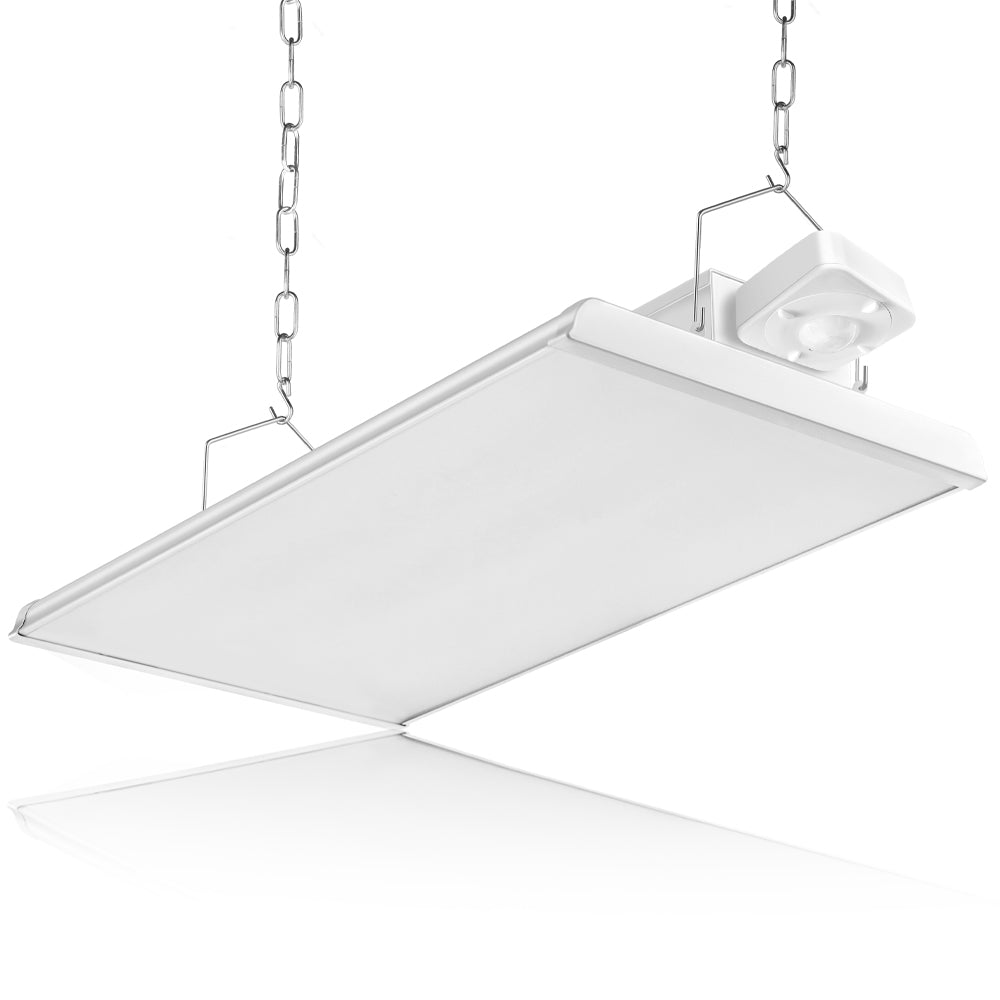

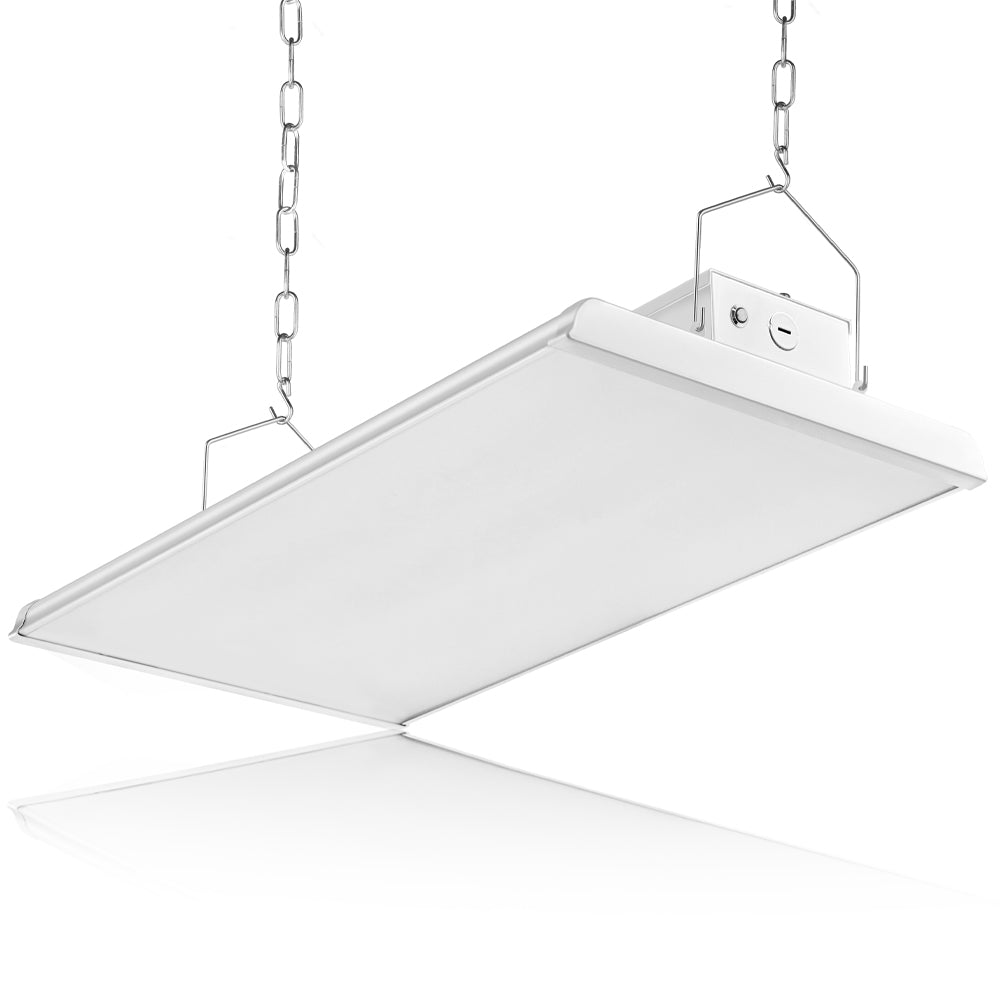

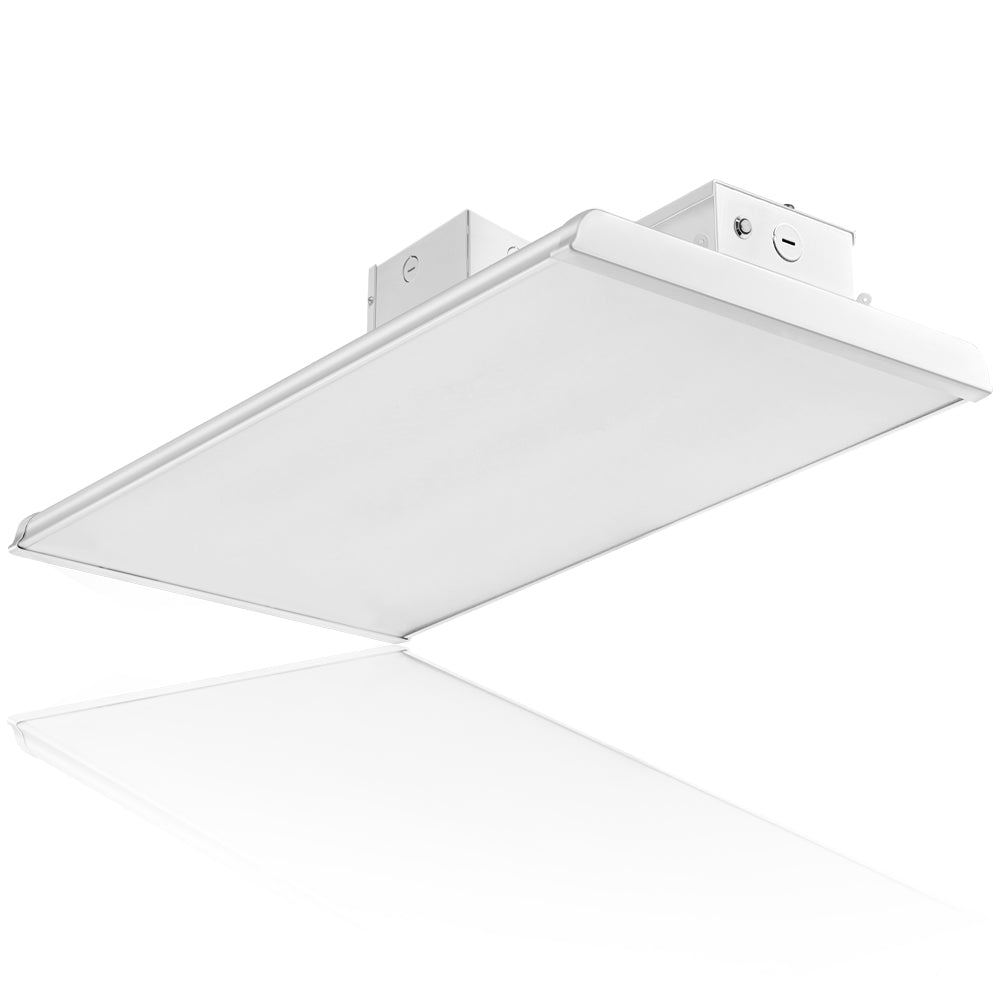

V Hook and hanging chain or Surface Mount Adapter, UL, DLC rebate eligible.

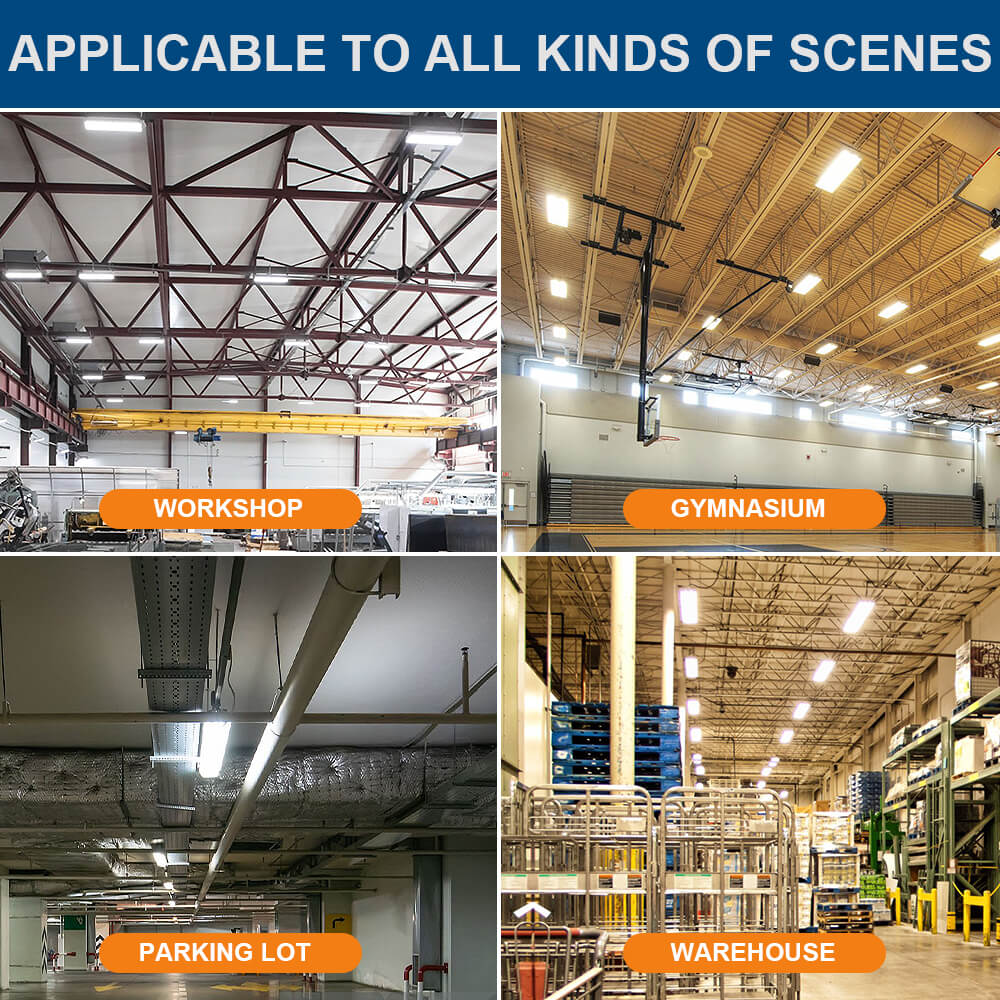

Cost effective and quality solution for: Warehouses and storage, Industrial facilities, Retail centers, Manufacturing, Sports facilities and Gymnasiums.
*Default setting for optional motion sensor is set to turn off fixture after 5 seconds of inactivity.
|•Convention Centers||•Low Bays|
|•Storage Facilities||•Distribution Centers|
|Warranty||Limited 5 Years||UPC||672975120825|
|Input Wattage||165W||Equal To||400W or 4-6 lamp T8/T5|
|Efficacy||140 LM/W||Available CCT||5000k|
|Rated Life||>50,000 hrs||Power Factor||0.9|

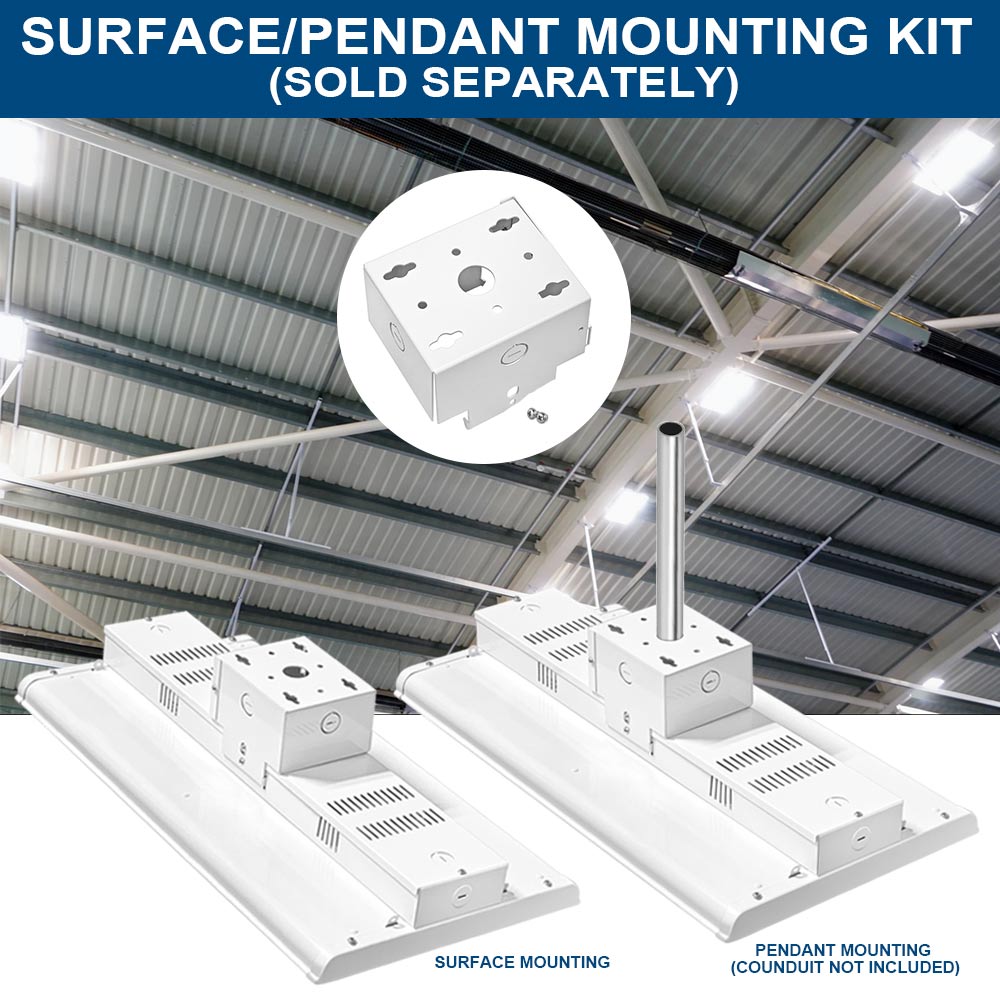

|Dimmable||1-10V||Mounting||V-Hook & Chain, Surface, Pendant|

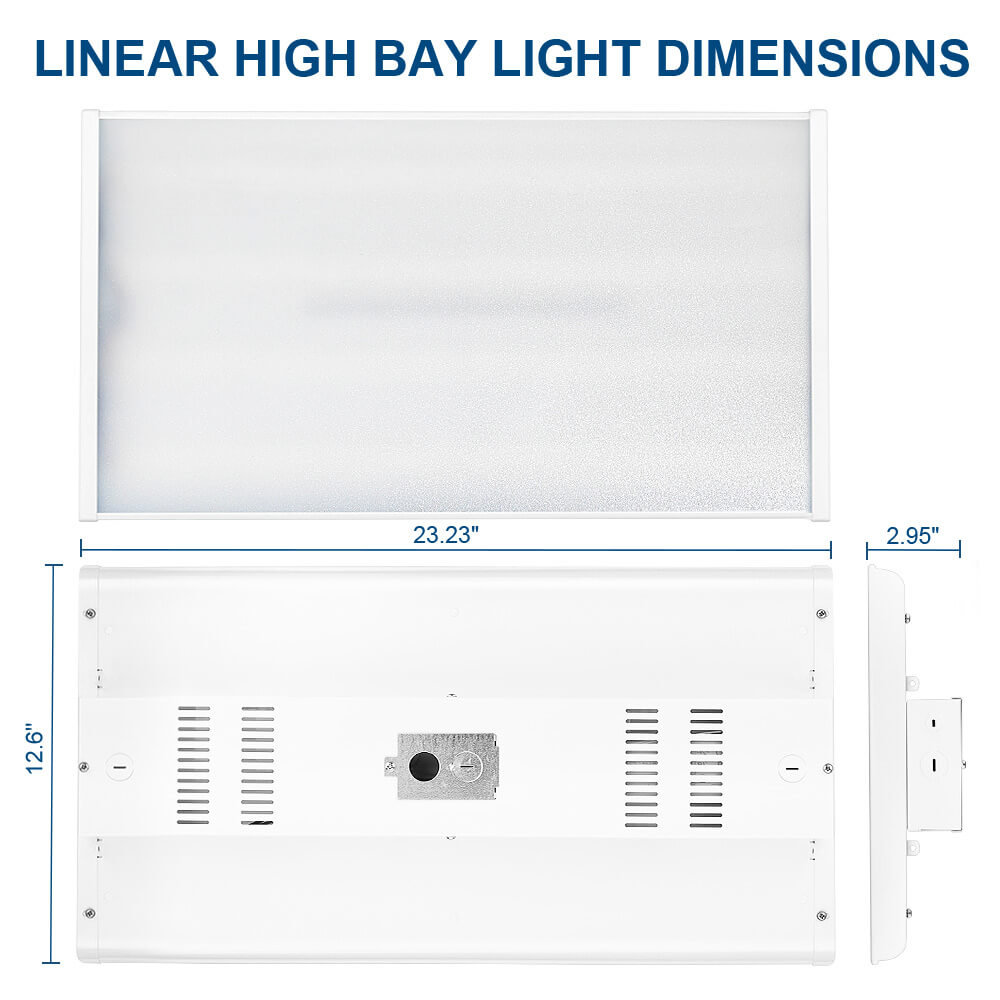

|Operating Temperature||-30F to 122F||Dimensions||23.03”X12.6”X2.87|

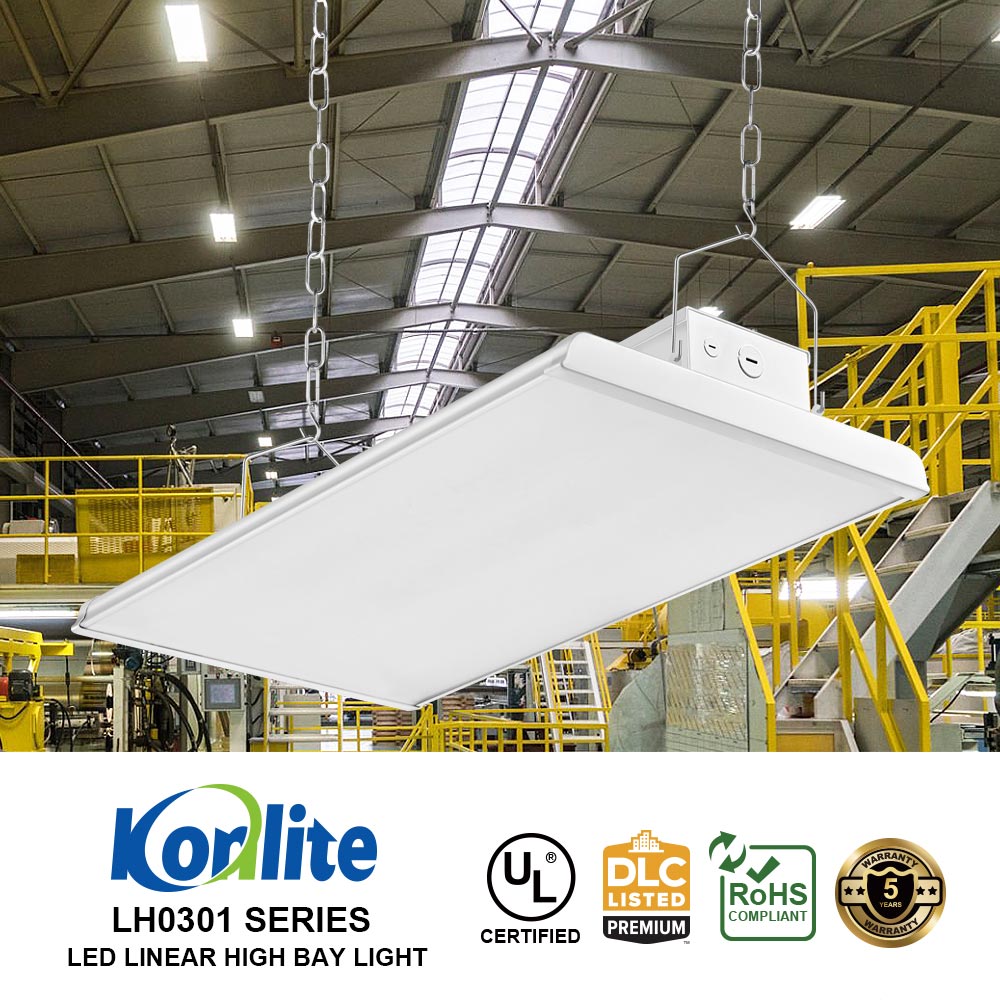

|Certifications||UL, Damp Locations, DLC Premium||Weight||11 Lbs|

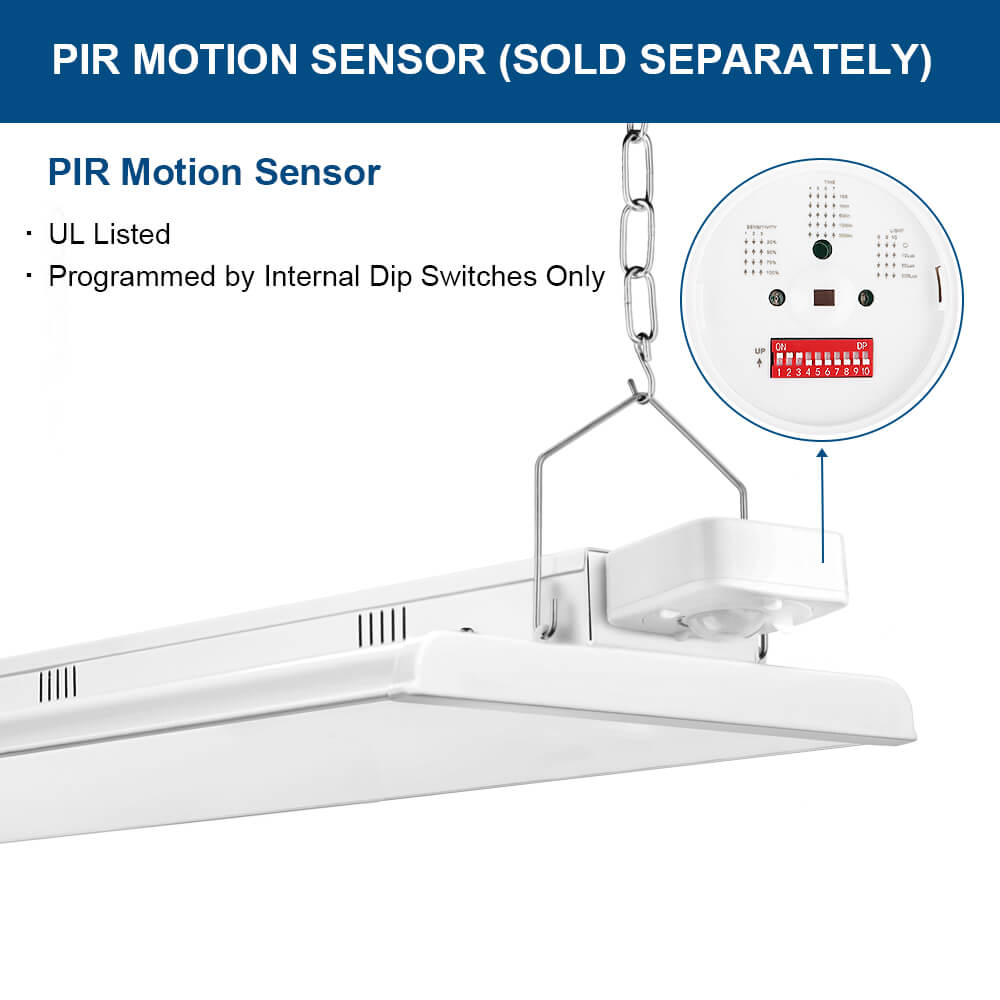

Motion Sensor Specification
|Control||On/off / 1-10V Dimming||Setting tool||Remote control (HD05R)|
|Detection area||25%/50%/75%/100%||Hold time||5s/30s/1min/3min/5min/10min/20min/30min|
|Stand-by period||0s/10s/30s/1min/5min/10min/30min/+∞||Stand-by dimming level||10%/20%/30%/50%|
|Motion detection||0.5~1.5m/s||Daylight threshold||Disable /2Lux/10Lux/30Lux/50Lux/80Lux/120Lux|

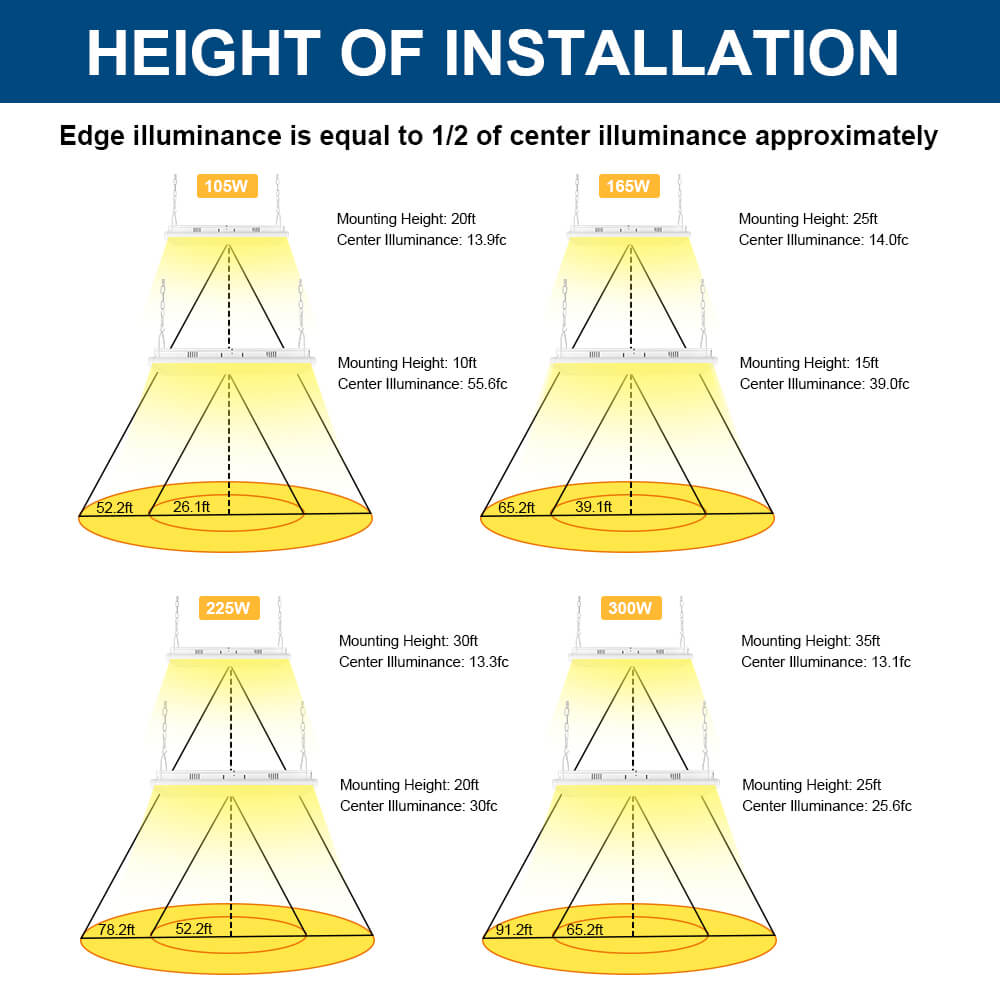

|Mounting height||Max. 50ft||Detection range||Max. 45ft|
|Operating Voltage||120-277V, 50Hz/60Hz||IP rating||IP65|
Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
