LED Area Light, Pole or Flood, 100W, 14584 Lumens

Roll over image to zoom in

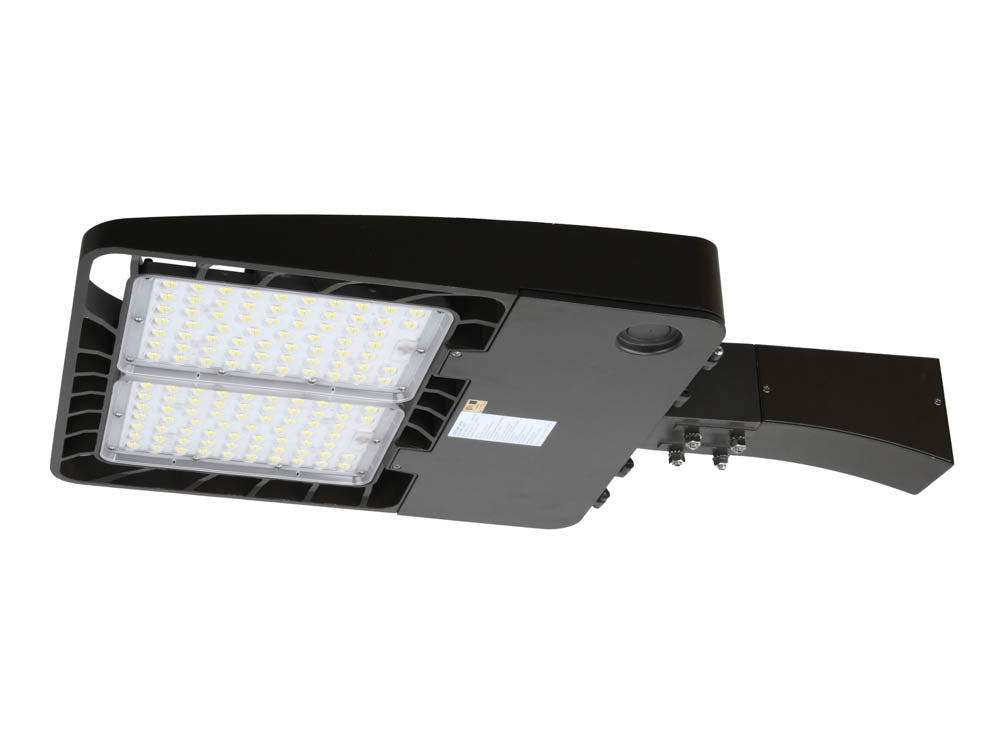

LED Outdoor Area or Flood Light - 366W - 50505 Lumens - 120-277V - 5000K - 1000W Equal

Name: LED Outdoor Area or Flood Light - 366W - 50505 Lumens - 120-277V - 5000K - 1000W Equal
Brand: Energetic Lighting
SKU: E3SB350L3-750-S-SF
Price: 498.48 USD
Availability: InStock

Product Search Code: 75049

Energetic LightingSKU: E3SB350L3-750-S-SF

$498.48

Mounting Options:

Controls:

Variant

Quantity

This area light from Energetic has a tested efficacy of 140 LM/W, offered across the family wattages from 100W through 350W. An ideal out door lighting fixture for replacing legacy fixtures from 250W to 1000W MH.

Title 24 Complaint
Full cutoff light profile
10 KA SPD surge protection

$498.48

Mounting Options:

Controls:

Variant

Quantity

Secured payment methods. Revolve LED never stores nor has access to your card information.
90 days return without restocking fee*.
$199 Free Shipping on eligible products*
Availability: Usually Ships in one to three business days.

Title 24 Complaint
Full cutoff light profile
10 KA SPD surge protection

Product Details

Downloads

Reviews

Q&A

Product Overview

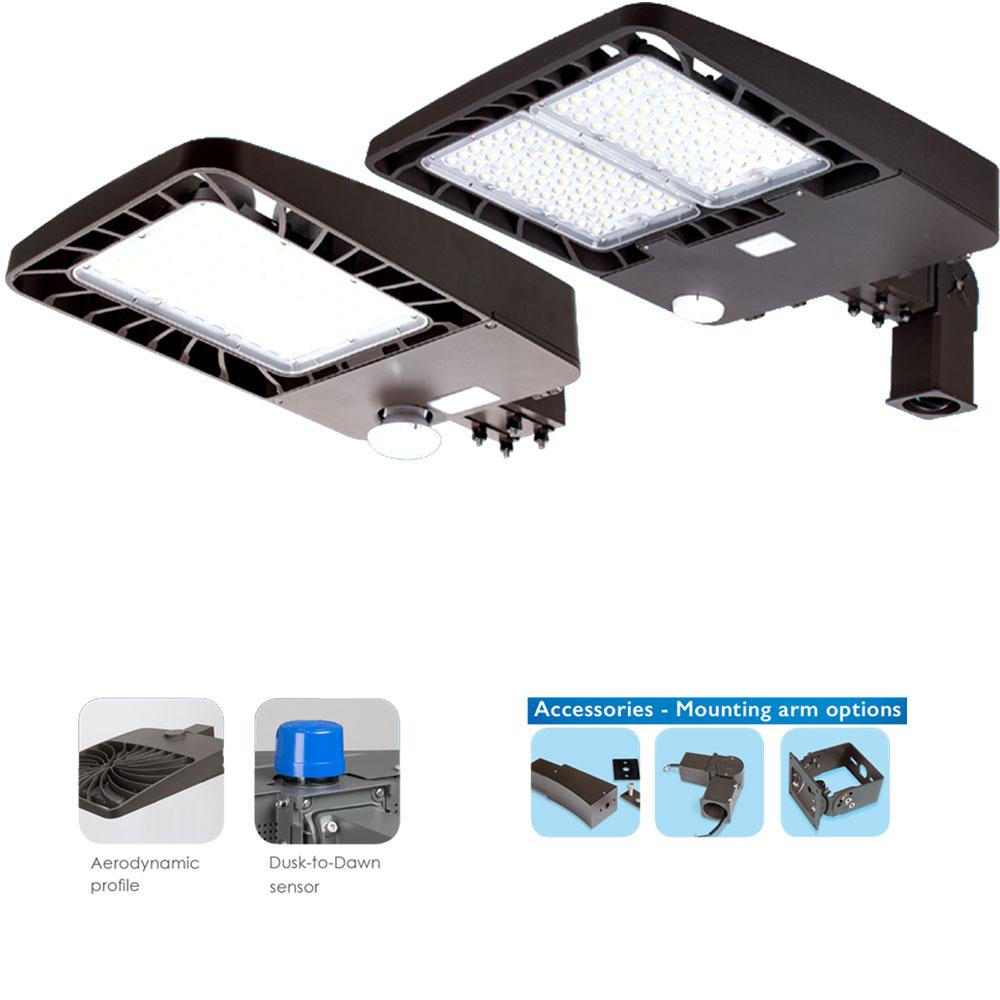

Ensure the safety of your patrons, employees and the security of your premises with the versatile Energetic Lighting Led Area light pole or flood. An excellent choice as LED pole light. Eliminate maintenance while reducing up to 70% energy consumption for replacement of HID fixtures or new construction. Multiple mounting options available, 0-10V Dimming. Increase energy savings with the optional Dusk to Dawn Photocell. 50,505 Lumens.

Applications

• Area Lighting	• Parking Lots
• Streets	• Building Façade
• Storage Facilities	• Underpasses & Tunnel Lighting
• Boat Docks & Marinas	• Billboards
• Warehouses	• Metal Buildings
• Roadways & Pathways	• Stadiums
• Outdoor courts (basketball, tennis, badminton)	• Playgrounds & Football Fields
• Parks	• Car Dealerships
• Outdoor Common Areas

Color Temperature 5000K color temperature

Certifications

Specifications

Order Number	75041	75043	75045	75047	75049
Model Number	E3SB100L3-750	E3SB150L3-750	E3SB240L3-750	E3SB300L3-750	E3SB350L3-750
Configuration	with Photocell	with Photocell	with Photocell	with Photocell	with Photocell
Body Color/Finish	Dark Brown	Dark Brown	Dark Brown	Dark Brown	Dark Brown
Optical Distribution	Type 3	Type 3	Type 3	Type 3	Type 3
Lumen Output	14584 LM	22388 LM	36435 LM	44640 LM	50505 LM
Luminous Efficacy	147 LM/W	144 LM/W	143 LM/W	141 LM/W	138 LM/W
Input Power	100 W	156 W	254 W	315 W	366 W
Equivalent Wattage	equiv. 320W MH	equiv. 400W MH	equiv. 750W MH	equiv. 1000W MH	equiv. 1000W MH
Input Voltage	120-277 Vac	120-277 Vac	120-277 Vac	120-277 Vac	120-277 Vac
Power Factor	0.89	0.91	0.94	0.91	0.92
THD	0.23	0.17	0.13	0.17	0.16
Color Temp (CCT)	5000 K	5000 K	5000 K	5000 K	5000 K
Color Rend (CRI)	70	70	70	70	70
Lifetime Rating	50000 hours	50000 hours	50000 hours	50000 hours	50000 hours
Warranty	5 Years	5 Years	5 Years	5 Years	5 Years
Dimmability	0-10v	0-10v	0-10v	0-10v	0-10v
Operating Temp	-40 to 104 (°F)	-40 to 104 (°F)	-40 to 104 (°F)	-40 to 104 (°F)	-40 to 104 (°F)
Environment	Wet Location	Wet Location	Wet Location	Wet Location	Wet Location
DLC	DLC Premium	DLC Premium	DLC Premium	DLC Premium	DLC Premium
Safety Cert	UL	UL	UL	UL	UL
Weight	11 LBS	11 LBS	19 LBS	19 LBS	19 LBS
Dimensions	17.0"x10.2"x3.6"	17.0"x10.2"x3.6"	19.3"x17.0"x3.6"	19.3"x17.0"x3.6"	19.3"x17.0"x3.6"
