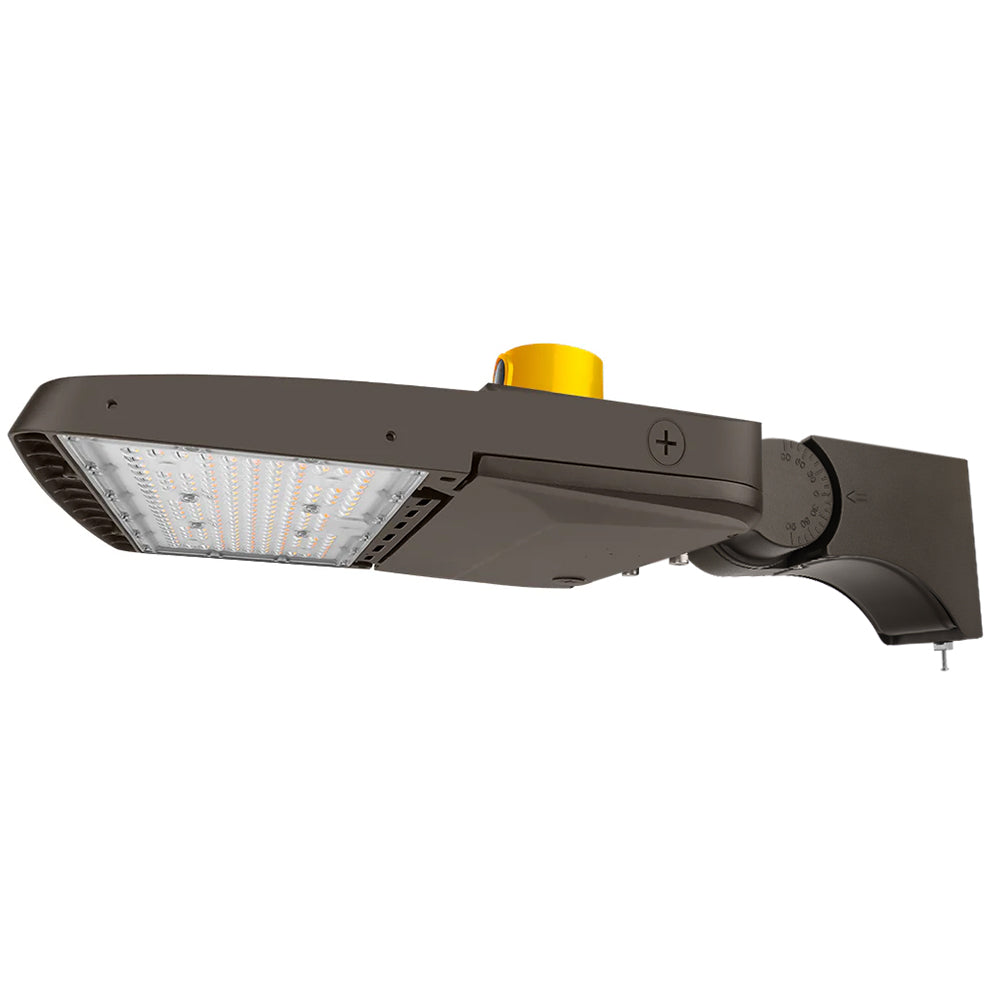

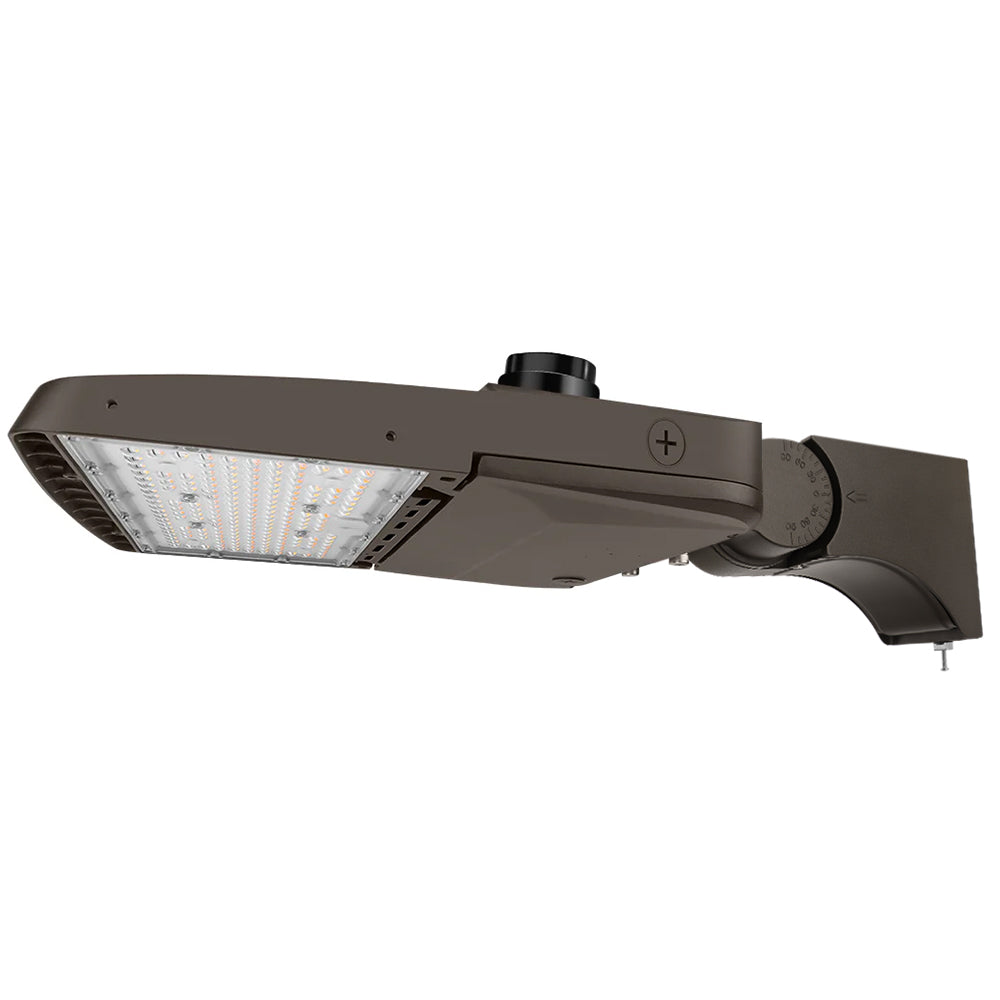

Konlite Vela Series LED Area Light - 150W -22,600 Lumens - Type III - 270-480V - 5000K - 400W Equal

Product Search Code: 20-0405
KonliteSKU: KVLLMW50KHV3SF

The Konlite Vela LED Area light delivers superior illumination, energy saving and easy installation.  Sleek and modern low profile design combined with rugged construction make the Vela series a top choice for Parking lots, Pole lights, Campuses, Public Parks, Building Areas, Arenas and Roadways.

  • High luminaire efficacy, up to 160lm/W at maximum output
  • Designed for easy one person installation
  • 270-480V, 100,000 hour lifespan. 5 year warranty
$234.65


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

What's in the box

1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide

The Konlite Vela LED Area light delivers superior illumination, energy saving and easy installation.  Sleek and modern low profile design combined with rugged construction make the Vela series a top choice for Parking lots, Pole lights, Campuses, Public Parks, Building Areas, Arenas and Roadways.

  • High luminaire efficacy, up to 160lm/W at maximum output
  • Designed for easy one person installation
  • 270-480V, 100,000 hour lifespan. 5 year warranty

What's in the box

1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A

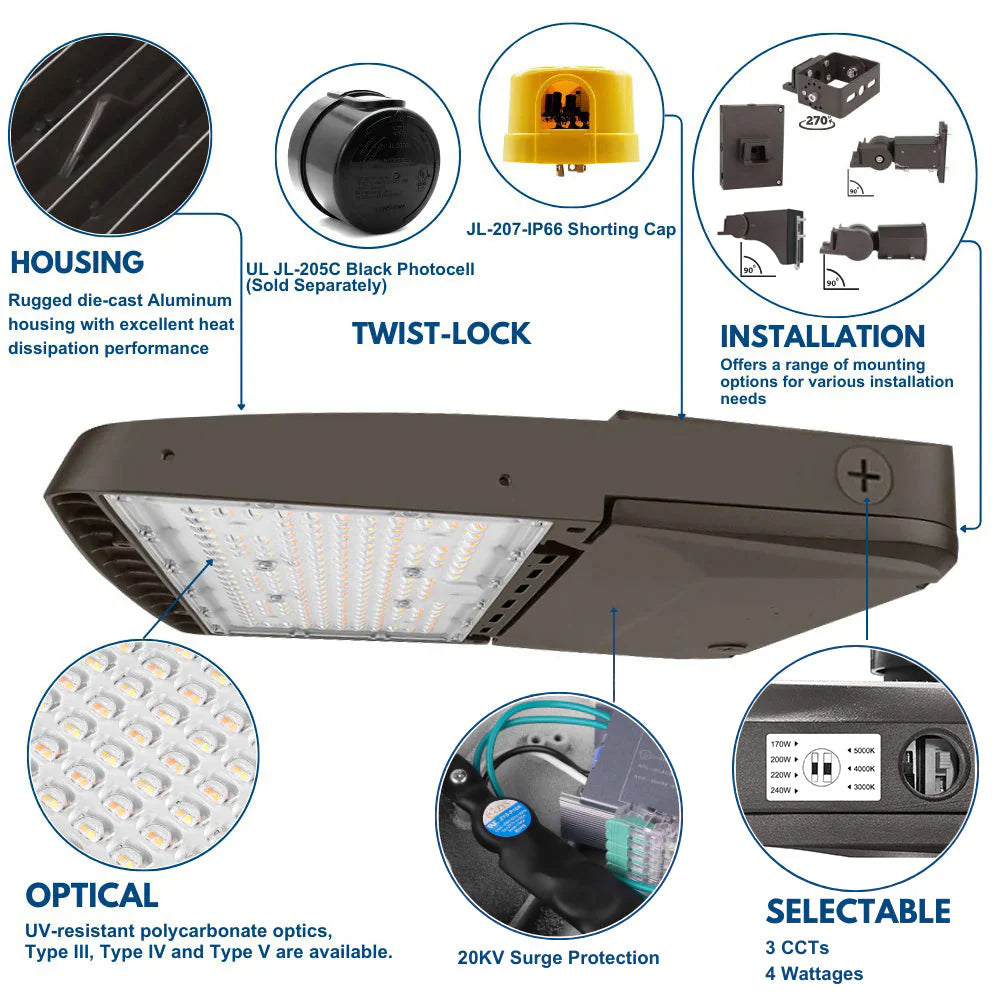

Konlite VELA Series LED Area Light

High Performance- Designed for easy installation- 4 Mounting Options

One of the most important safety considerations for night time lighting is visibility. Increase safety and security to your buildings and lots when LED lighting clears pathways, hazards and deters crime.

You can now select your brightness and efficiency during installation to ensure the brightness meets the application and provides the amount of light you want and need for your area. Great for multi-zone facilities and helps eliminate back light waste. Provides up to 65% energy savings, long service life and quick return of investment.

The high output LEDs and custom optics provide excellent light distribution with 160 Lumens per Watt Efficiency. Type III Beam Distribution standard, UV resistant polycarbonate optical lens.  0-10V Dimming. 5000K CCT.

With IP65 Corrosion proof Die-cast aluminum housing and mounting brackets and built-in 10KV surge protection, it is built to withstand all weather elements, Bronze finish.  The sleek and modern aesthetics combined with rugged construction make the VELA area light ideal for one to one replacement of HID/HPS or new construction projects.

Low EPA, Lightweight design, 1.5G vibration load per ANSI C136.31.

Certified Quality: DLC 5.1 Premium for eligible rebates, UL, 100,000 hr. life span, 5 year warranty.

The Konlite VELA series LED Area Light can be mounted directly on round or square pole, wall or surface.

Mounting options:

Extrusion Arm

U-Bracket / Tennon

Slip-fitter

Universal Bracket: All-in-one Slip Fitter and Pole Mount Extrusion Arm


 See similar 310W versions.

Applications

•Area Lighting •Parking Lots
•Streets

•Building Façade

•Storage Facilities •Underpasses & Tunnel
•Boat Docks & Marinas • Billboards
•Warehouses •Metal Buildings
•Roadways & Pathways •Security Lighting
•Sports Complex •Schools & Universities
•Parks •Car Dealerships
Color Temperature5000K color temperature
Certifications
US company5 years warrantyUL listed1-10V dimmableDLC PremiumRoHS compliance FCC certification

Specifications

BrandKonliteDLC Part #KVLLMW50KHV3SF
WarrantyLimited 5 YearsUPC
Input Voltage270-480VOpticalType III
Input Wattage150WEqual to400W
Delivered Lumens22650 LumensCRI>70
Efficacy160 lm/WAvailable CCT5000K
Rated Life>100,000 hrsTHD<20%
Power Factor>0.9IP RatingIP65
Dimmable1-10VControlsN/A
Operating Temperature-40 °F to 113 °FDimensionsSee Specifications
CertificationsUL, Wet Locations, DLC PremiumWeight11.26 lbs
