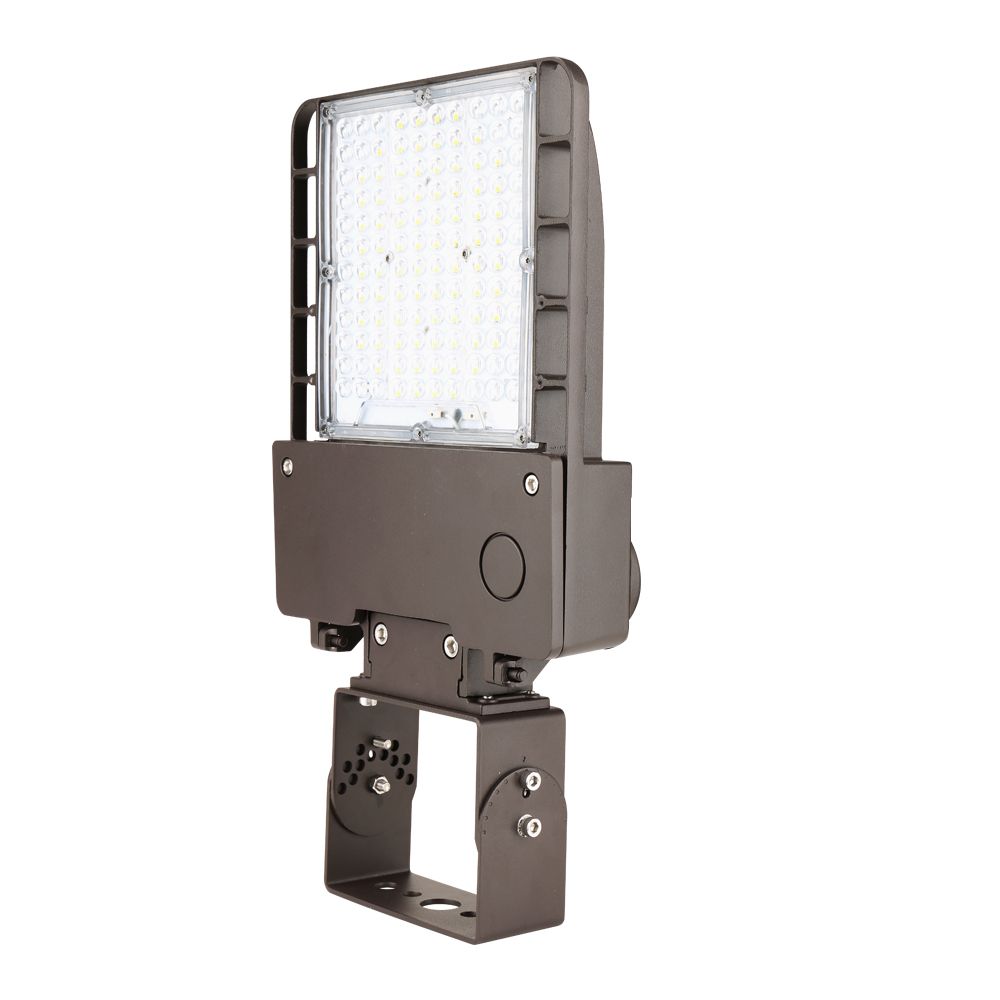

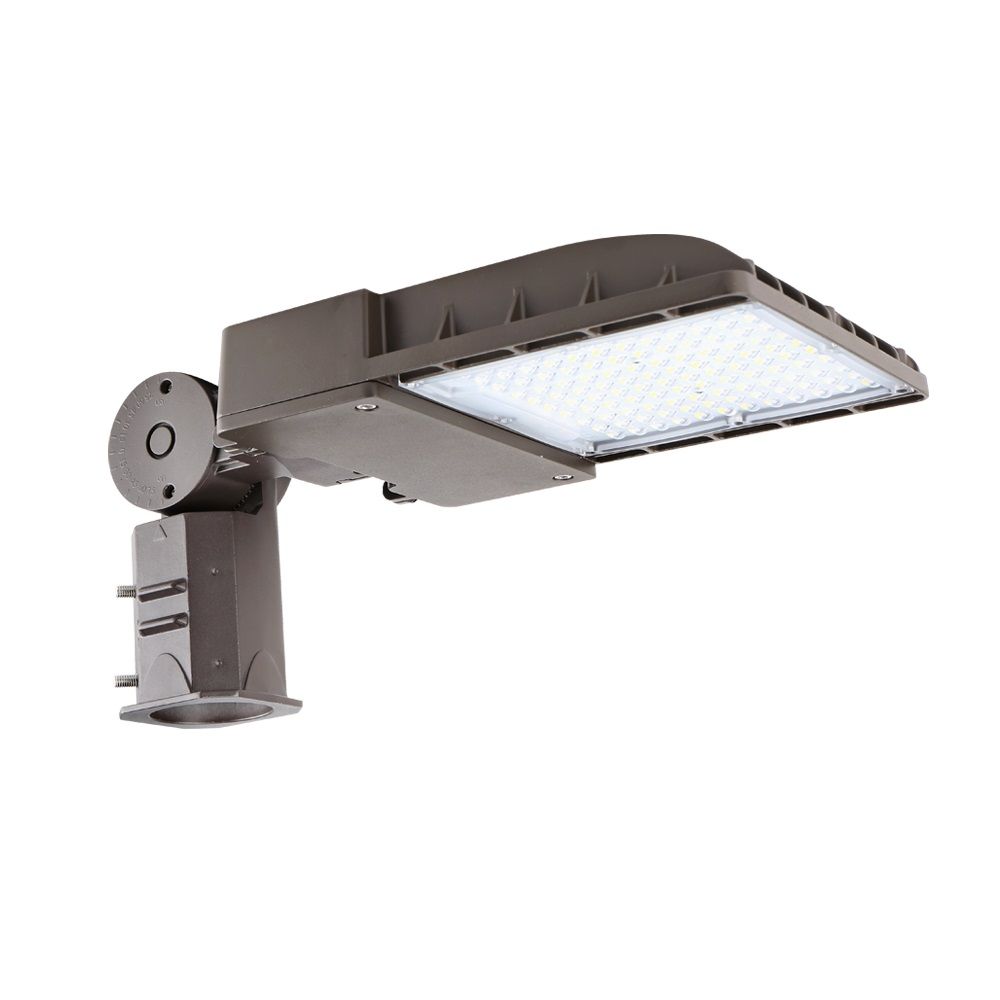

Konlite LED Outdoor Area Light - 70W - Type V - 9,800 Lumens - 5000K - 120-277V - 150W Equal

Product Search Code: 20-0235
KonliteSKU: RDAL02040705KDNSFL5D
$136.95



The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. Ideal for parking lot, street, flood and other outdoor area applications.

  • Designed for easy one person install
  • Precise optics designed to shape light distribution, maximizing spacing of fixtures
  • Low Profile 3G vibration and compact design minimizes wind load requirements
  • 100,000 hour lifespan
show more
$136.95


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. Ideal for parking lot, street, flood and other outdoor area applications.

  • Designed for easy one person install
  • Precise optics designed to shape light distribution, maximizing spacing of fixtures
  • Low Profile 3G vibration and compact design minimizes wind load requirements
  • 100,000 hour lifespan
What's in the box
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide

Product Overview:

Ensure the safety of your patrons, employees and the security of your premises with the versatile Konlite AL04 Area Light.  Eliminate maintenance while reducing 65% energy consumption when replacing outdated Metal Halide - HPS fixtures or using in new construction. With a combination of performance, aesthetics, energy efficiency and light control the Konlite AL04 Area Light can be used as pole lights or surface mounts for parking lot (shoebox), street lights or outdoor security lights (floods).

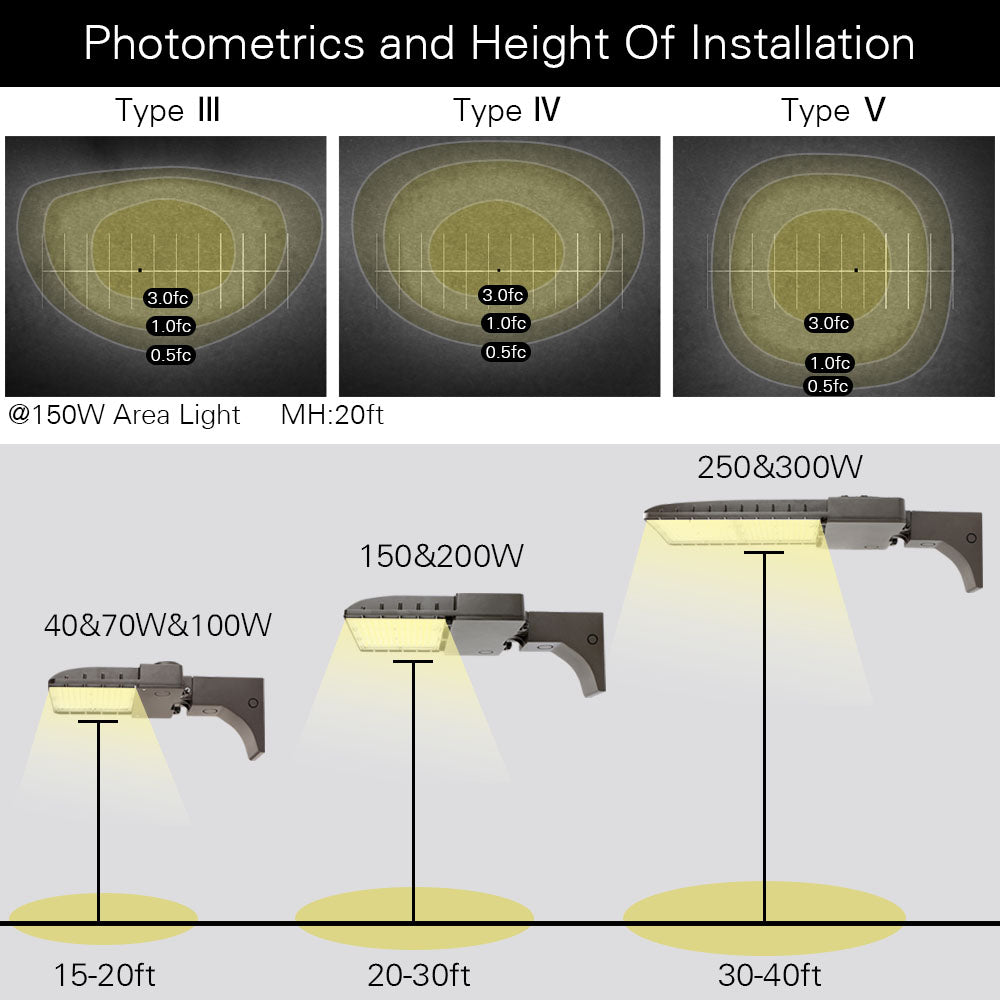

70 Watts, 9800 Lumens, 4000K, Type V Beam Distribution, Optional Dusk to Dawn Photocell, 120-277V

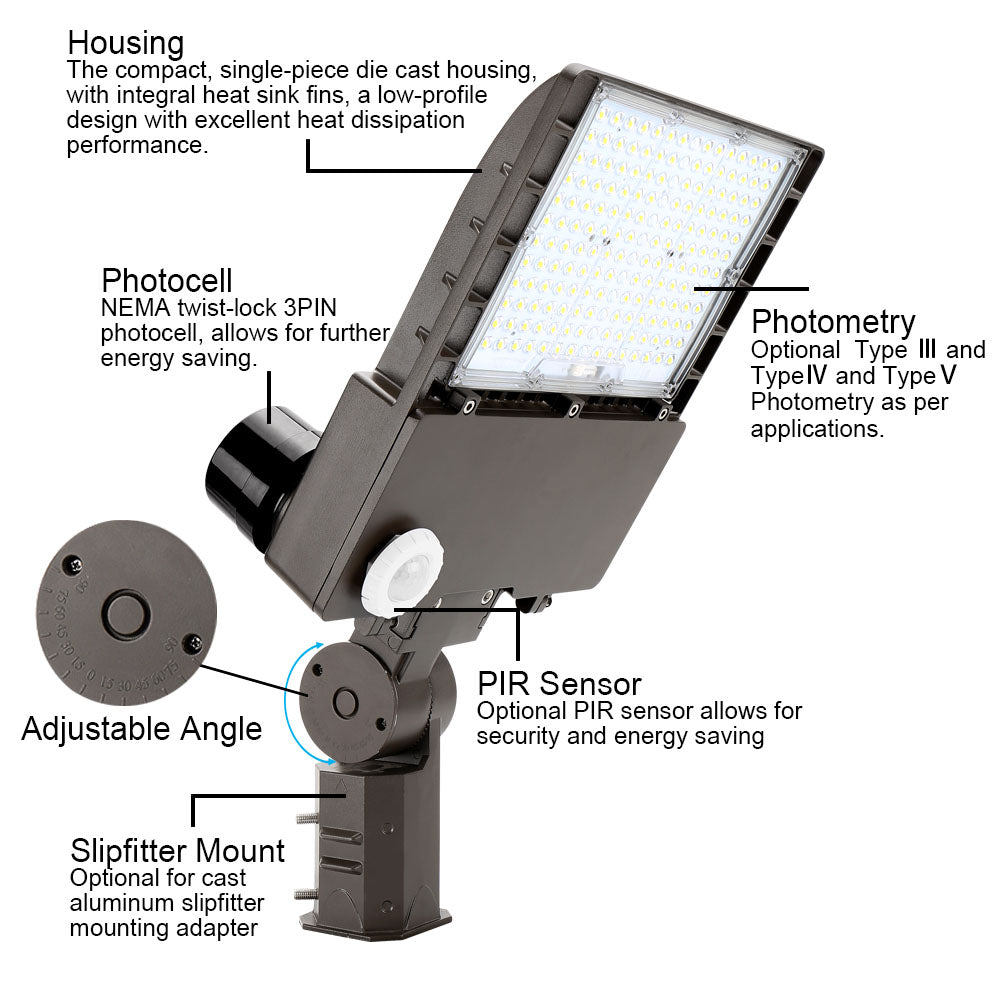

Built to last and withstand harsh elements, the AL04 stylish housing offers separation between the LEDs, the driver circuitry and larger heat sink allowing for longer operating life. Compact and lightweight design with low EPA, 3G rated for vibration. Corrosion resistant, die-cast aluminum housing with powder coat paint finish. The visual comfort optics create a larger luminous surface area resulting in a low glare appearance.

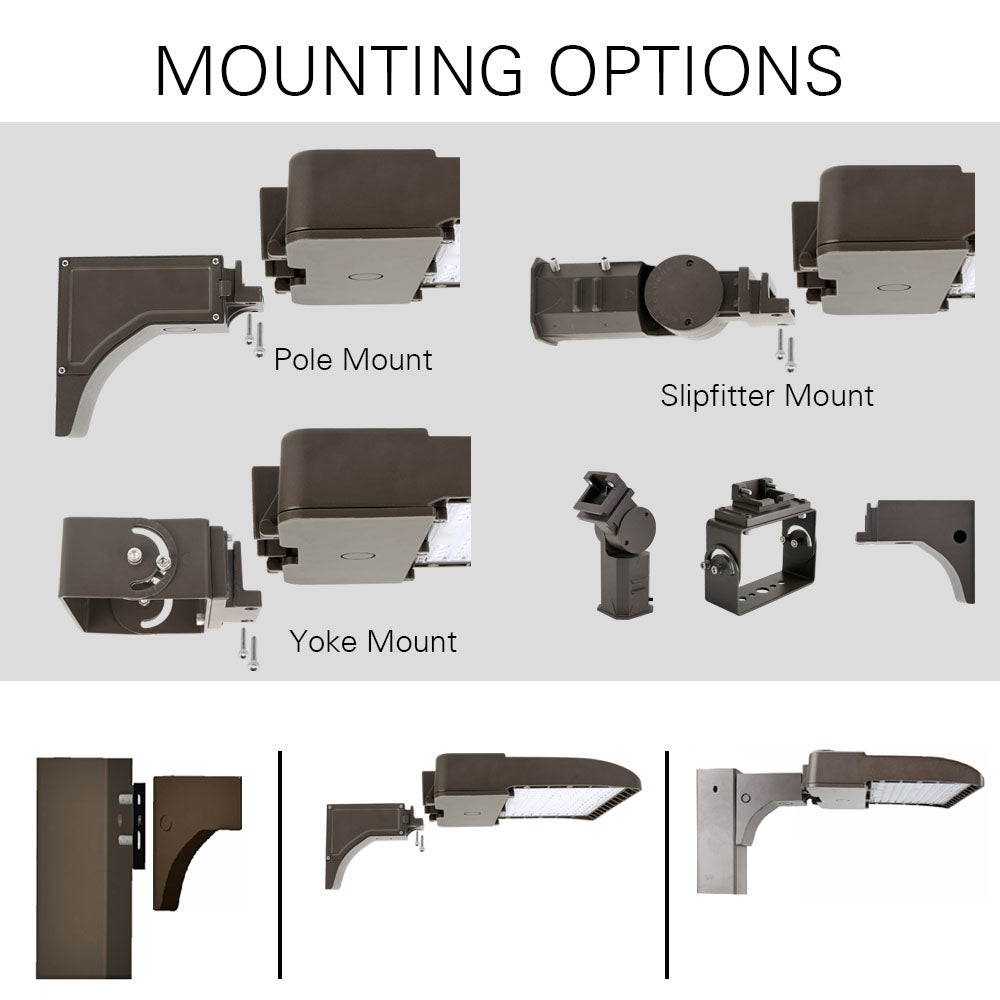

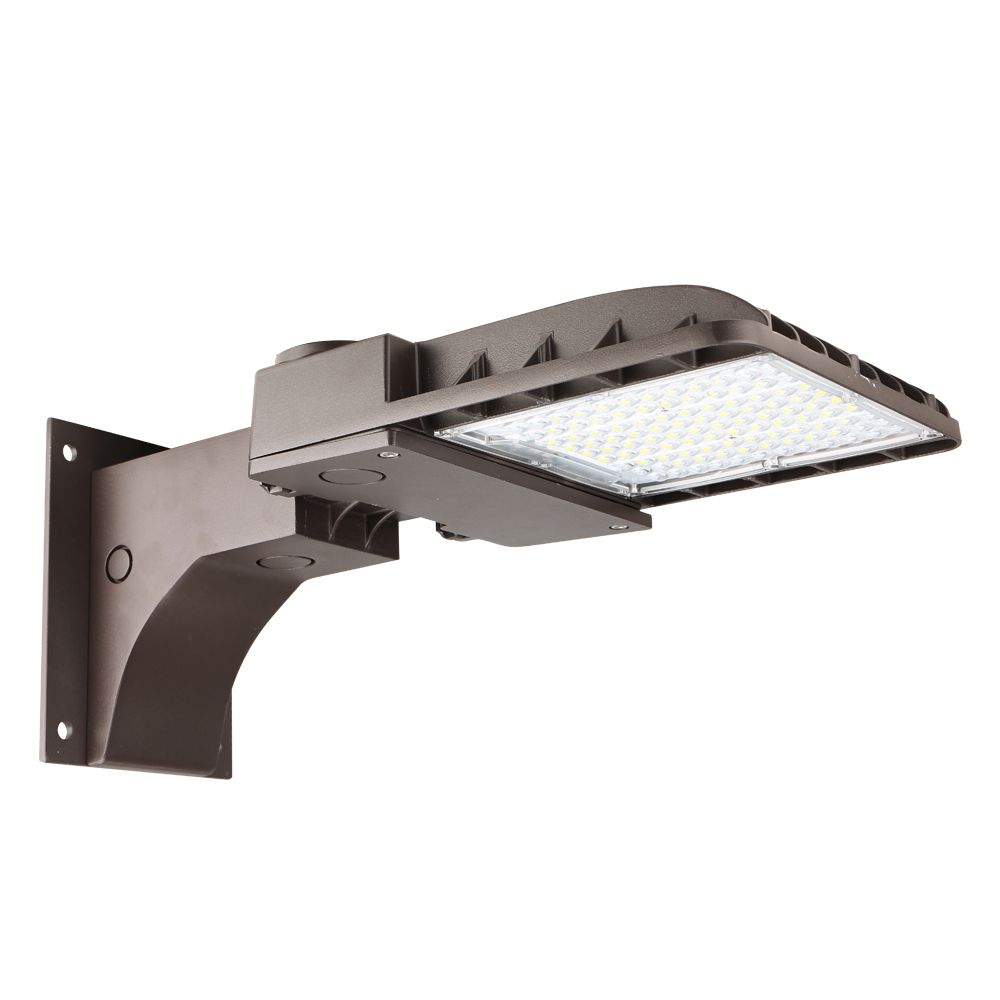

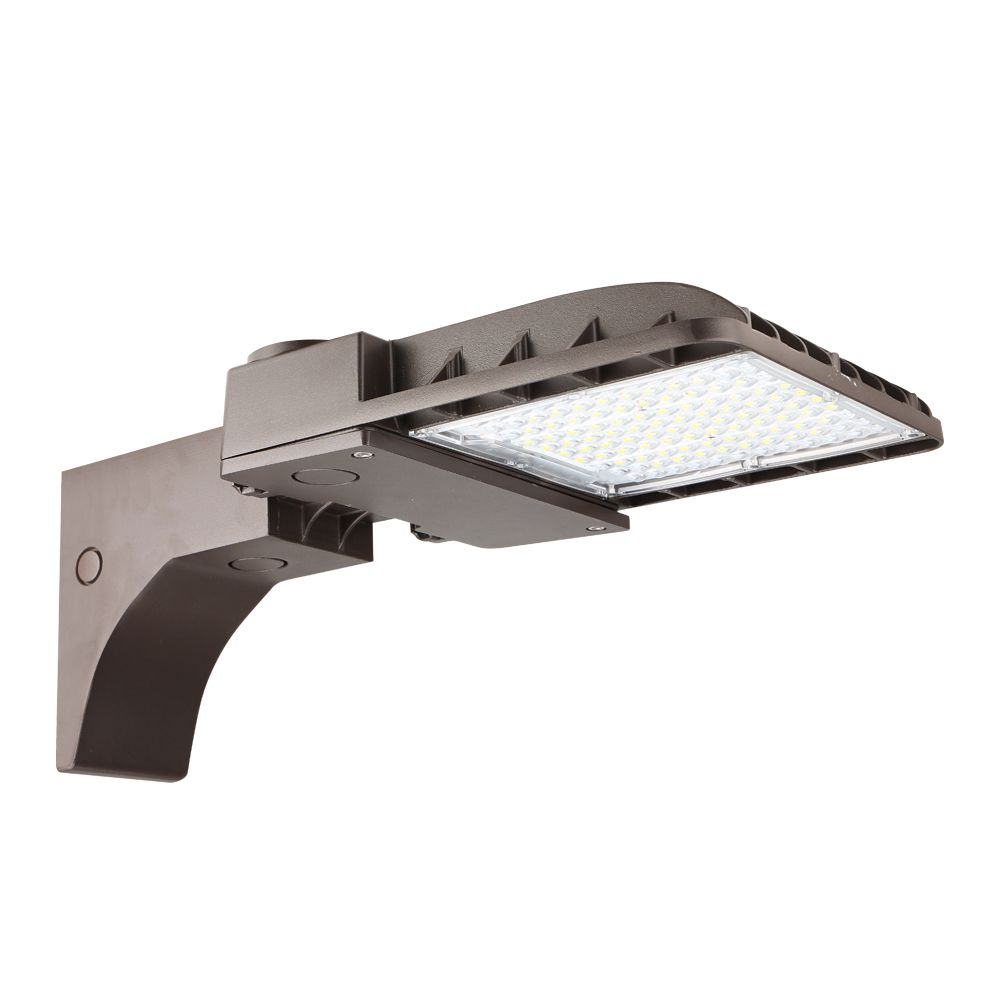

Mounting Options: Extrusion Arm for Round or Square Pole, Slipfitter, Trunnion/Yoke or Wall Mount

UL, DLC for eligible Rebates, 100,000 hour lifespan L70, 5-year warranty

Performance:

Brand

Konlite

MPN

RDAL02040705KXXXXX

Warranty

Limited 5 Years

UPC

717360769996

Input Voltage

120-277V

Optical

Type V

Input Wattage

70W

Equal to

150W MH

Delivered Lumens

9,800

CRI

>70

Efficacy

140 LM/W

Available CCT

5000K

Rated Life

>100,000 hrs

THD

<20%

Power Factor

>0.9

IP Rating

IP65

Dimmable

Call us 1-10V availabity

Controls

N/A

Operating Temperature

-30 F to 122 F

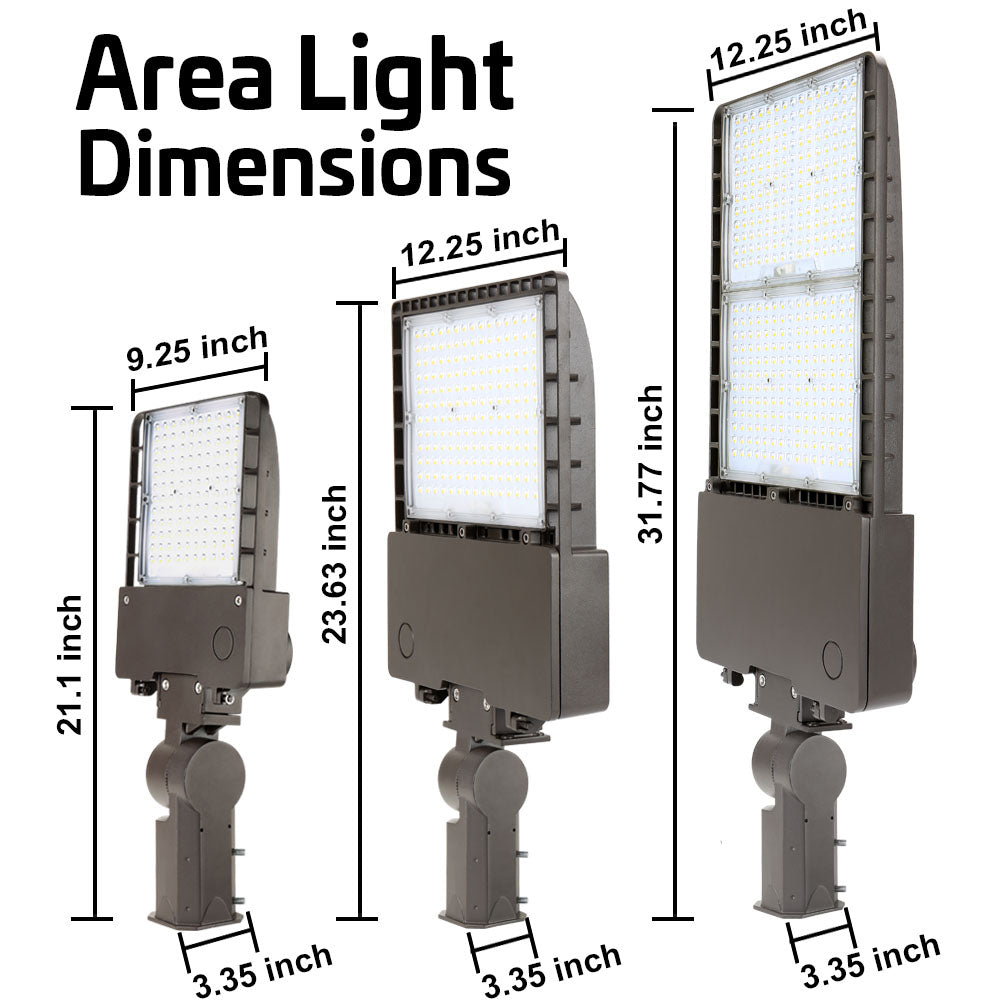

Dimensions

See Specifications

Certifications

UL, Wet Locations, DLC Premium

Weight

10 lbs

Color Temperature 5000K color temperature
Certifications
US company5 years warrantyUL listed1-10V dimmableDLC PremiumFCC certificationIP65 rating
