Product Overview

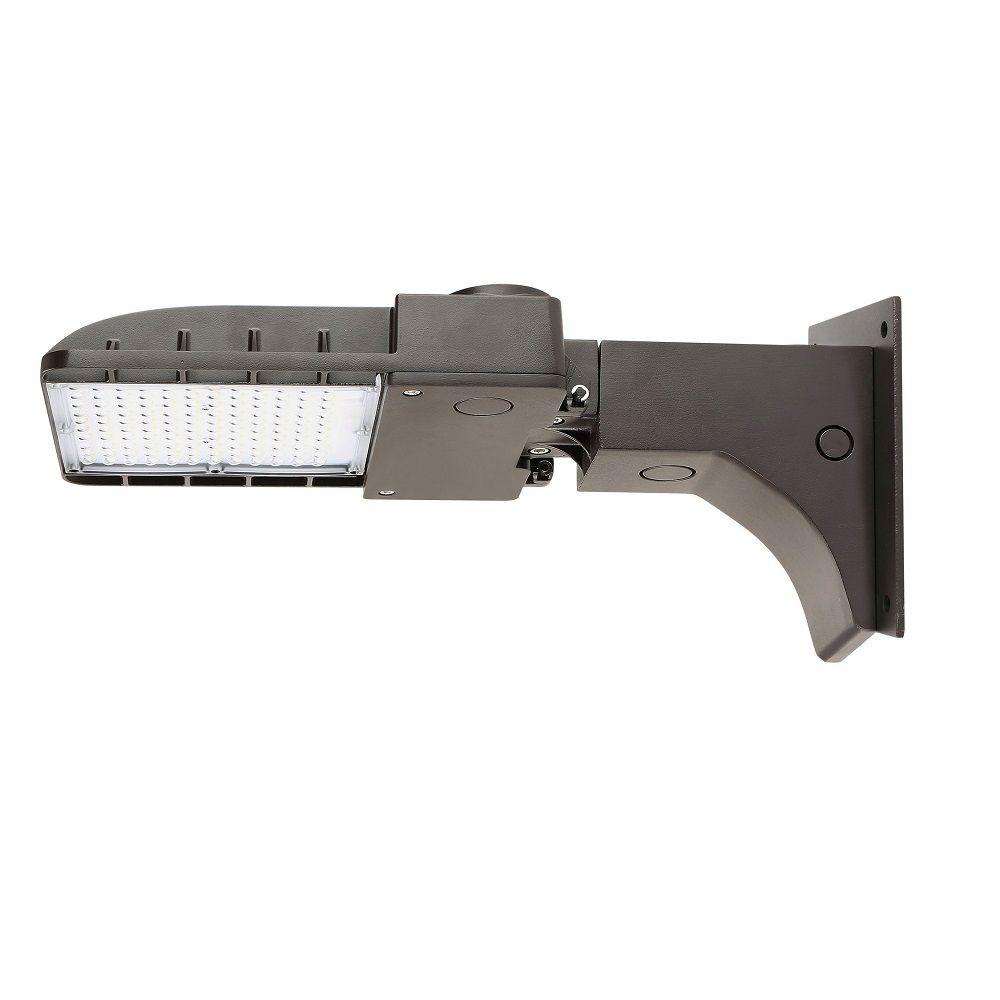

Ensure the safety of your patrons, employees and the security of your premises with the versatile Konlite AL04 Area Light. Eliminate maintenance while reducing 65% energy consumption when replacing outdated Metal Halide - HPS fixtures or using in new construction. With a combination of performance, aesthetics, energy efficiency and light control the Konlite AL04 Area Light can be used as pole lights or surface mounts for parking lot (shoebox), street lights or outdoor security lights (floods).

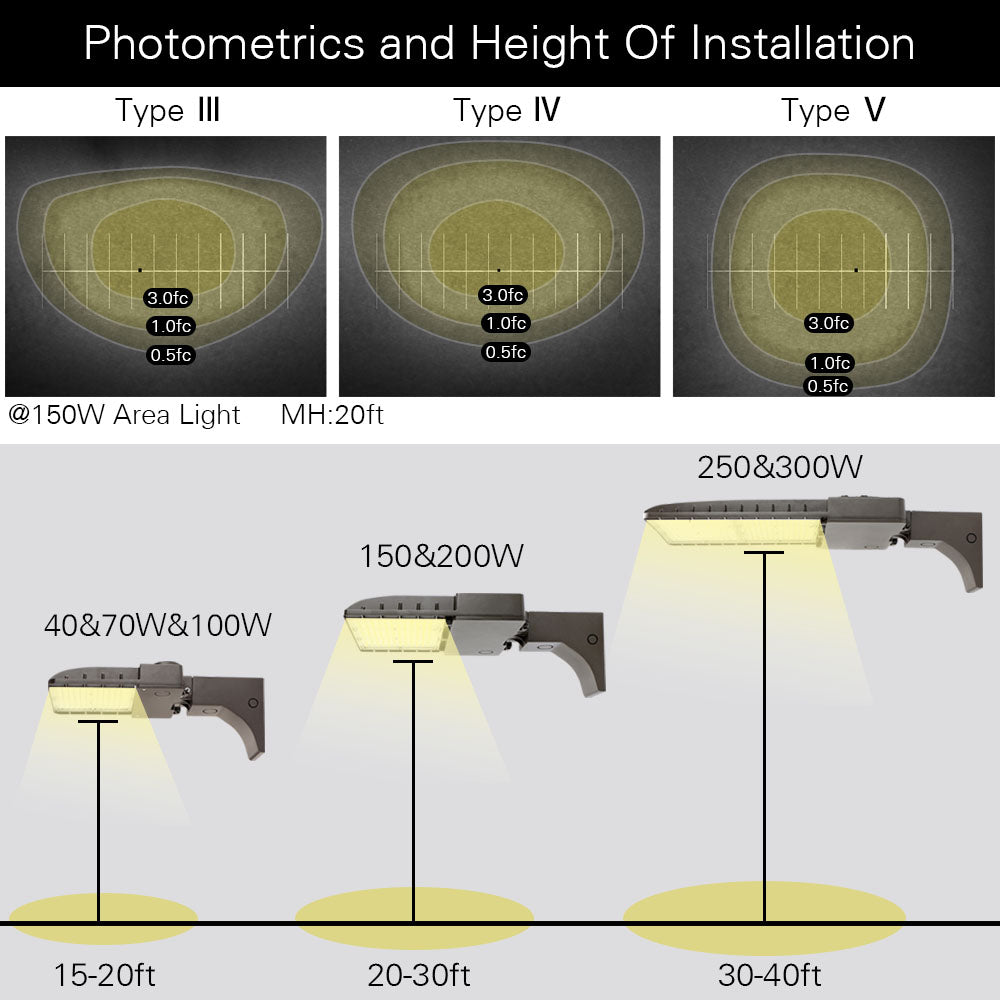

100 Watts, 13,800 Lumens, 4000K, Type V Beam Distribution, 120-277V

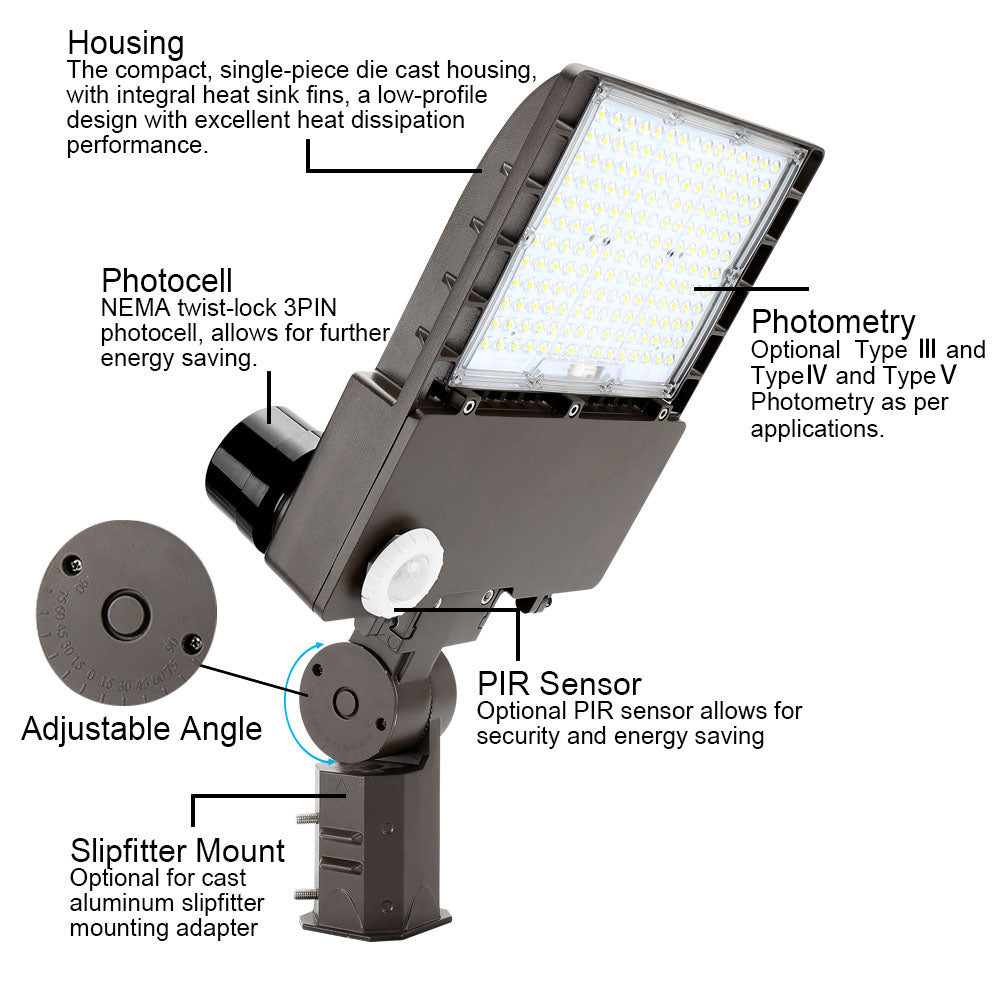

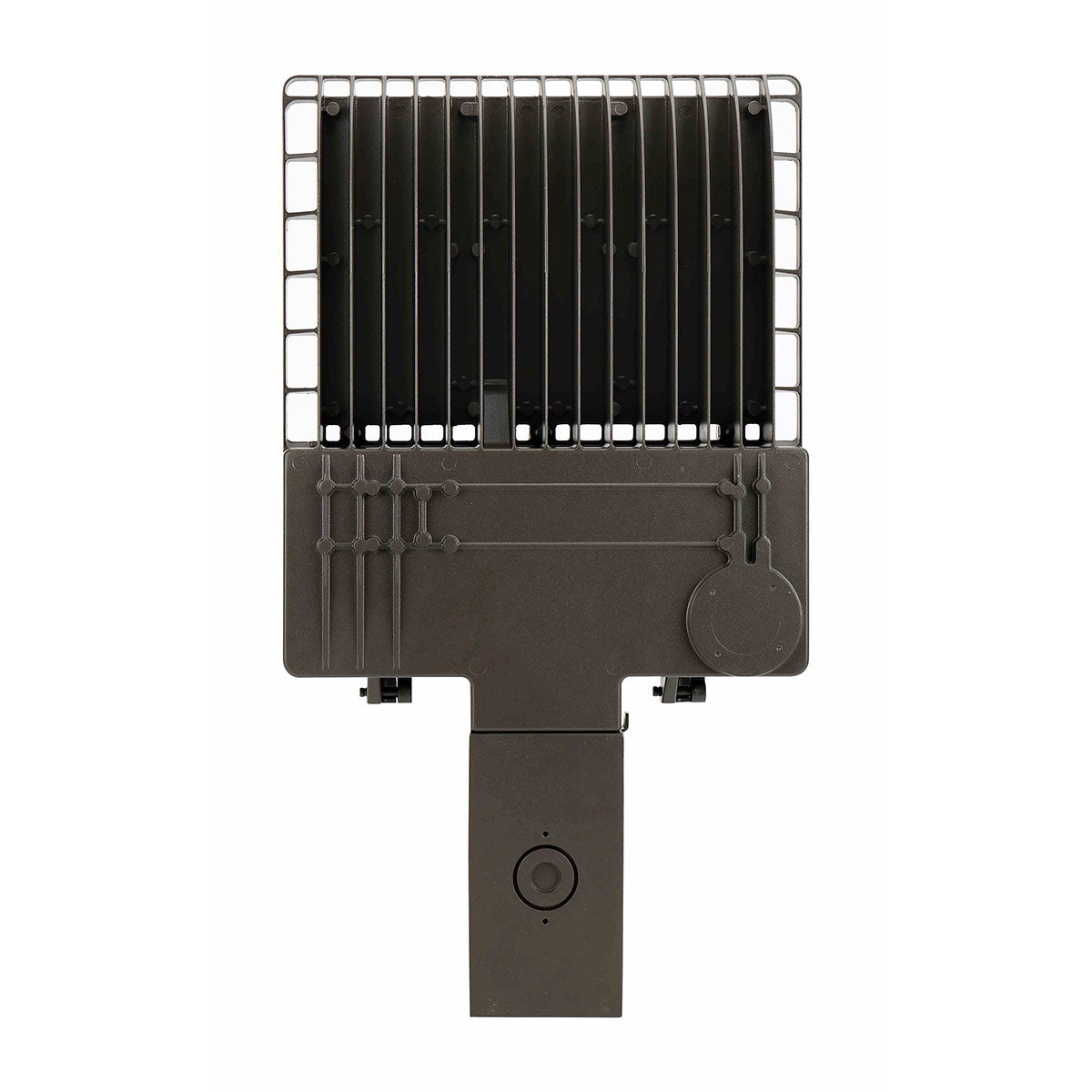

Built to last and withstand harsh elements, the AL04 stylish housing offers separation between the LEDs, the driver circuitry and larger heat sink allowing for longer operating life. Compact and lightweight design with low EPA, 3G rated for vibration. Corrosion resistant, die-cast aluminum housing with powder coat paint finish. The visual comfort optics create a larger luminous surface area resulting in a low glare appearance.

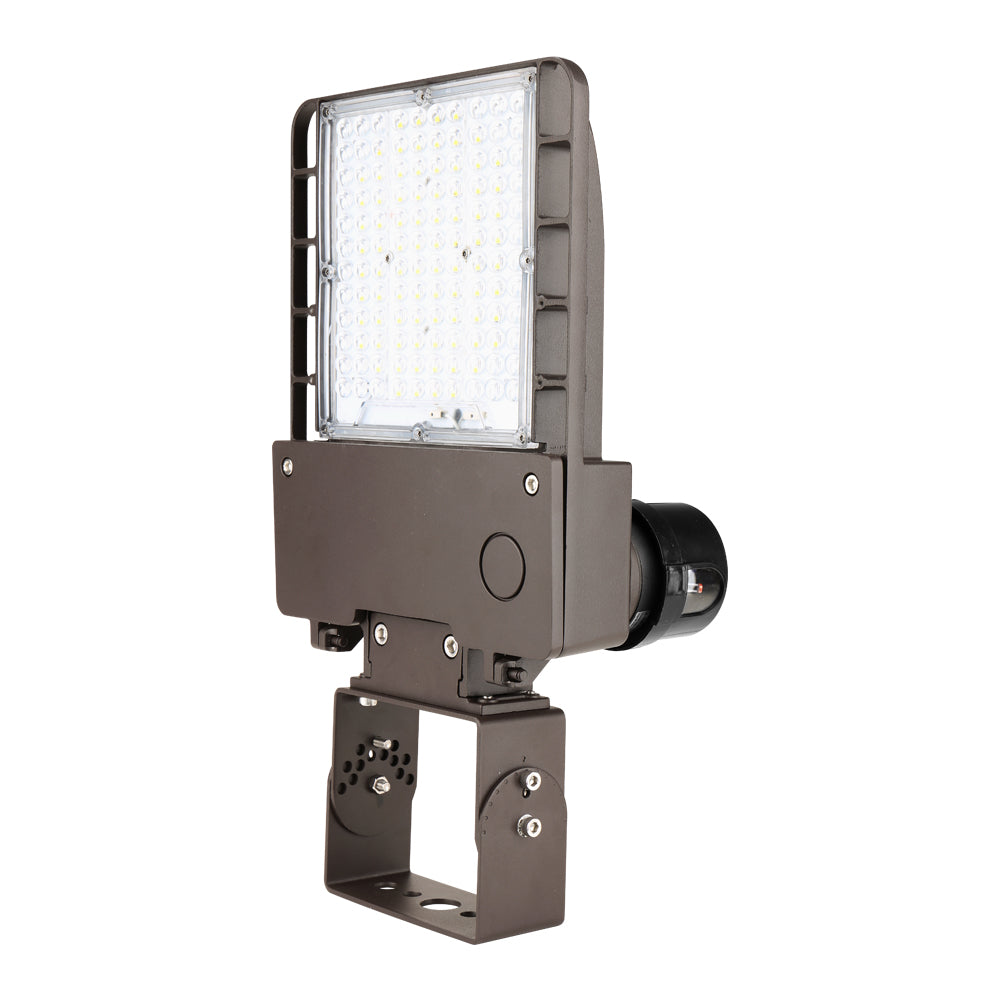

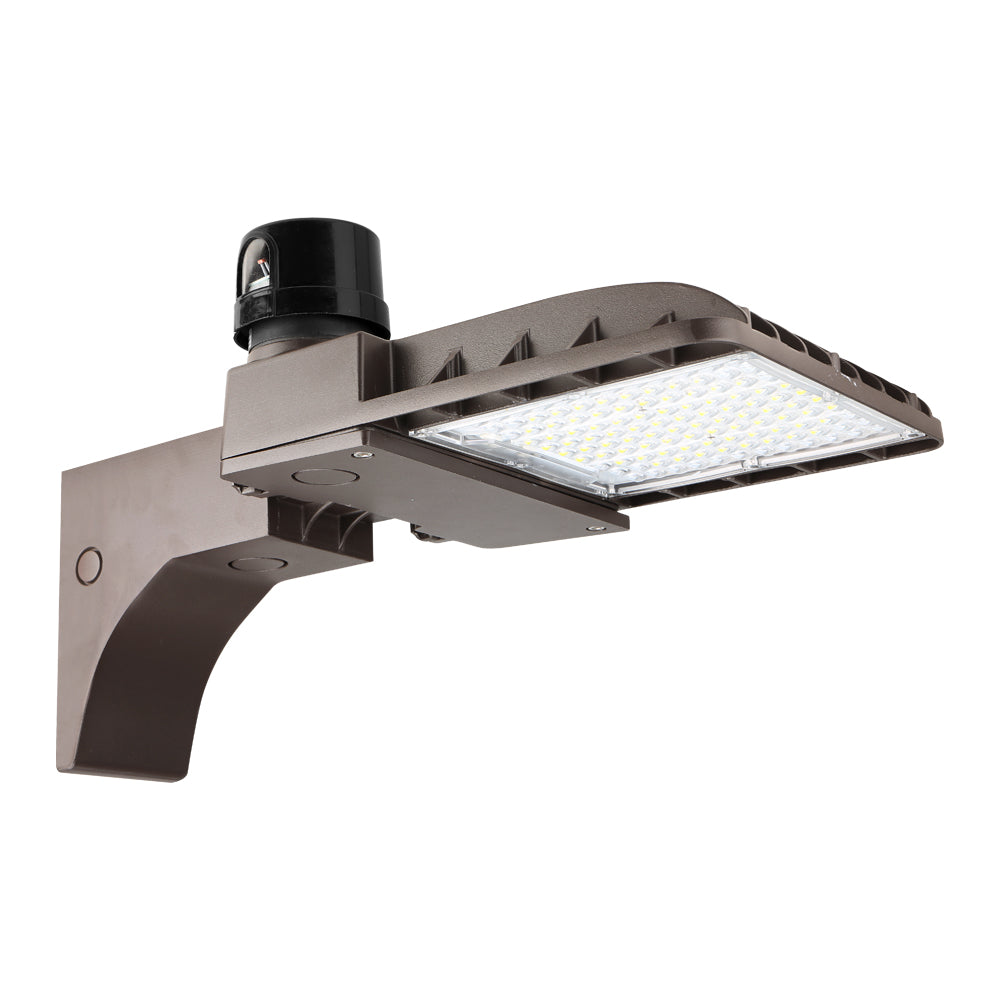

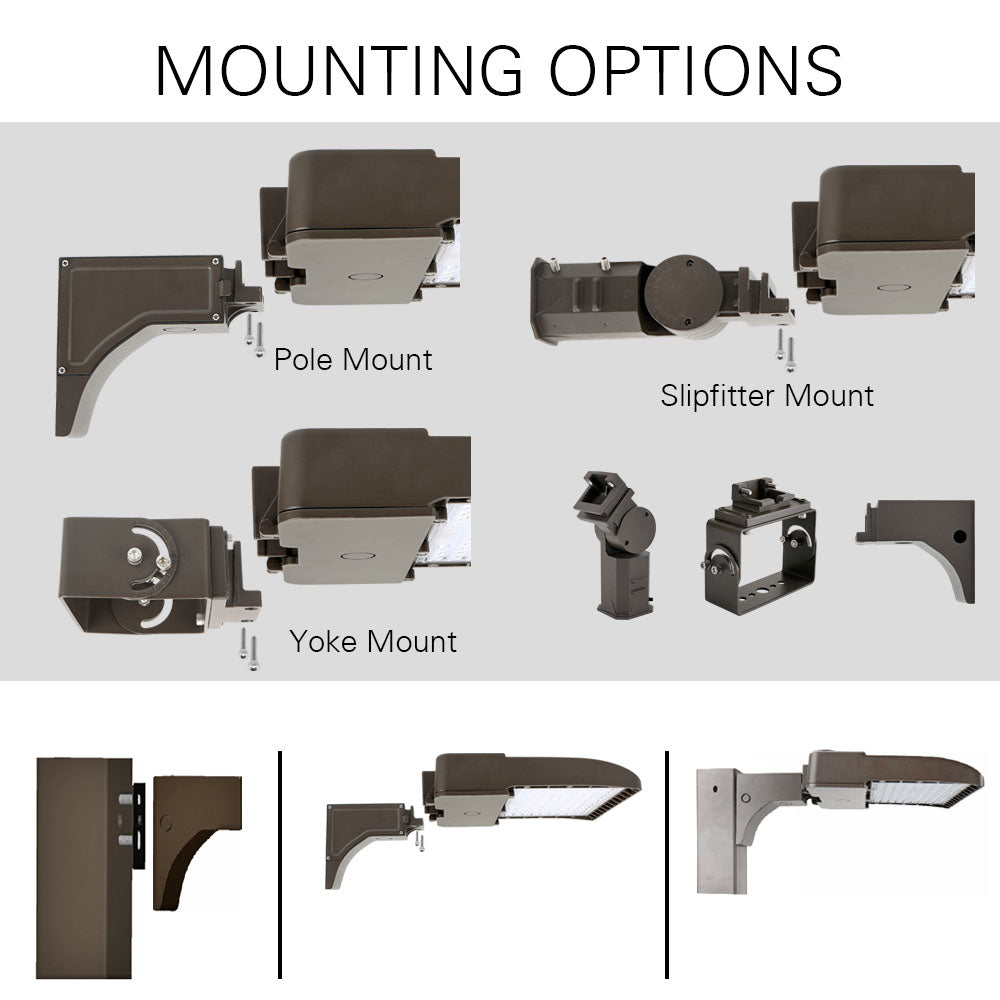

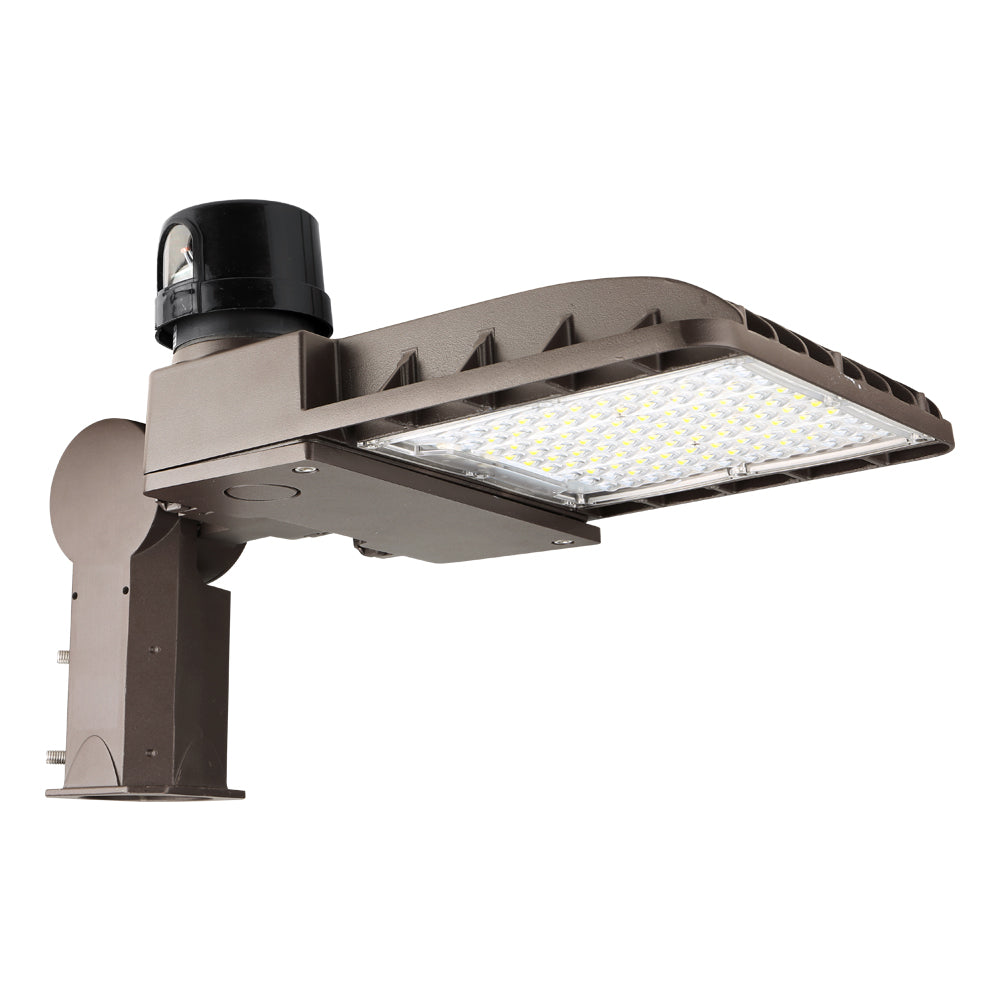

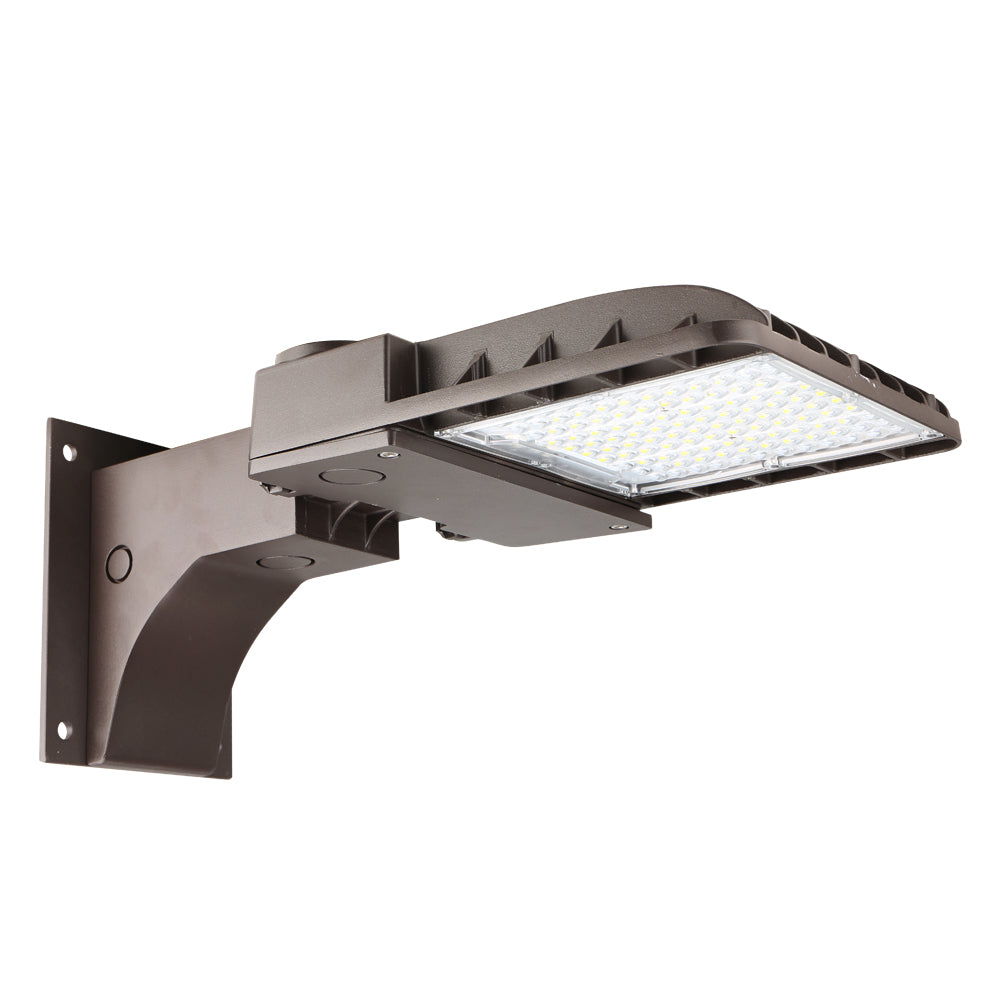

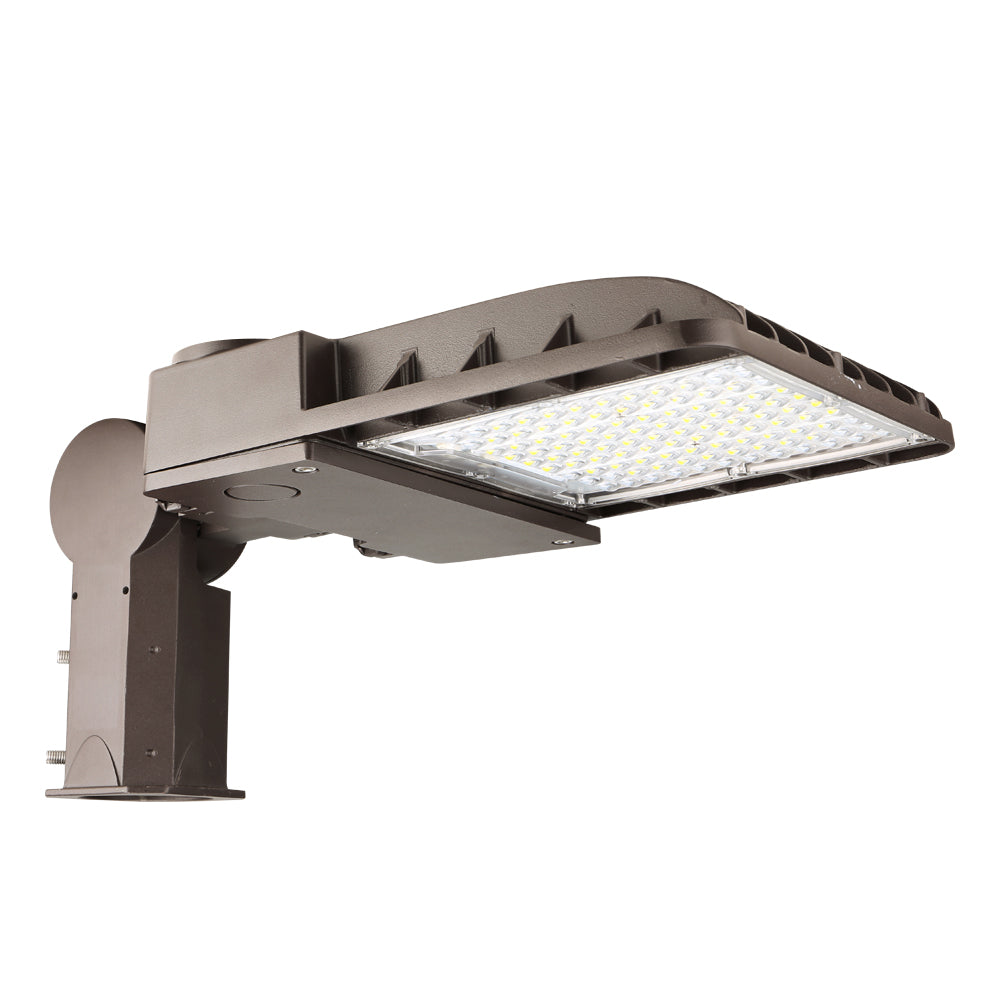

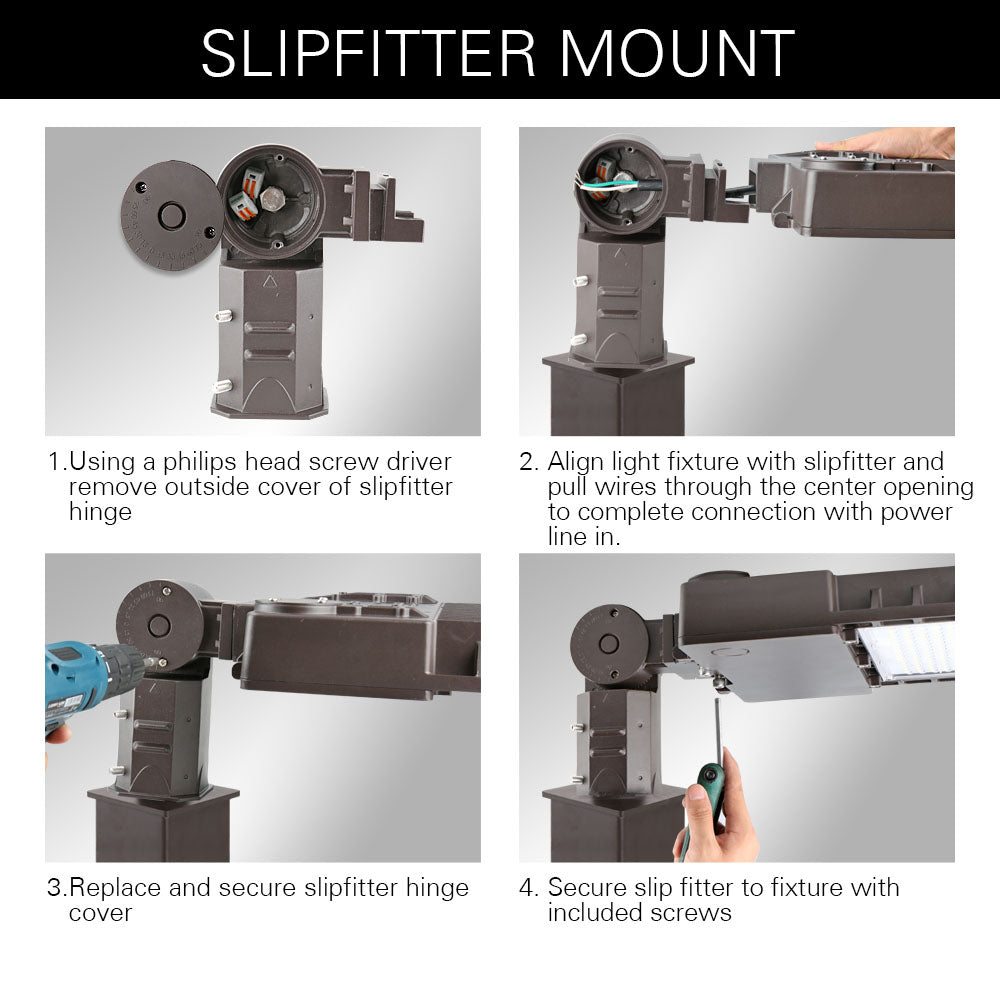

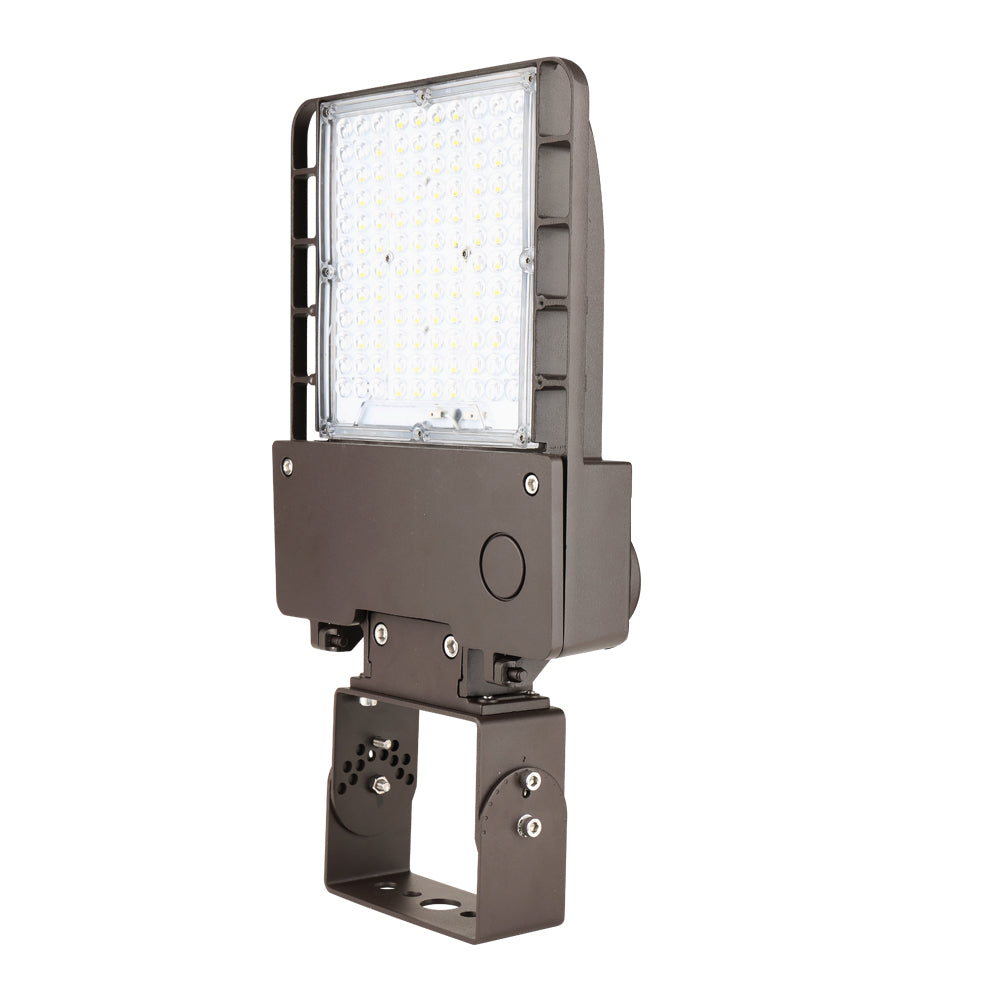

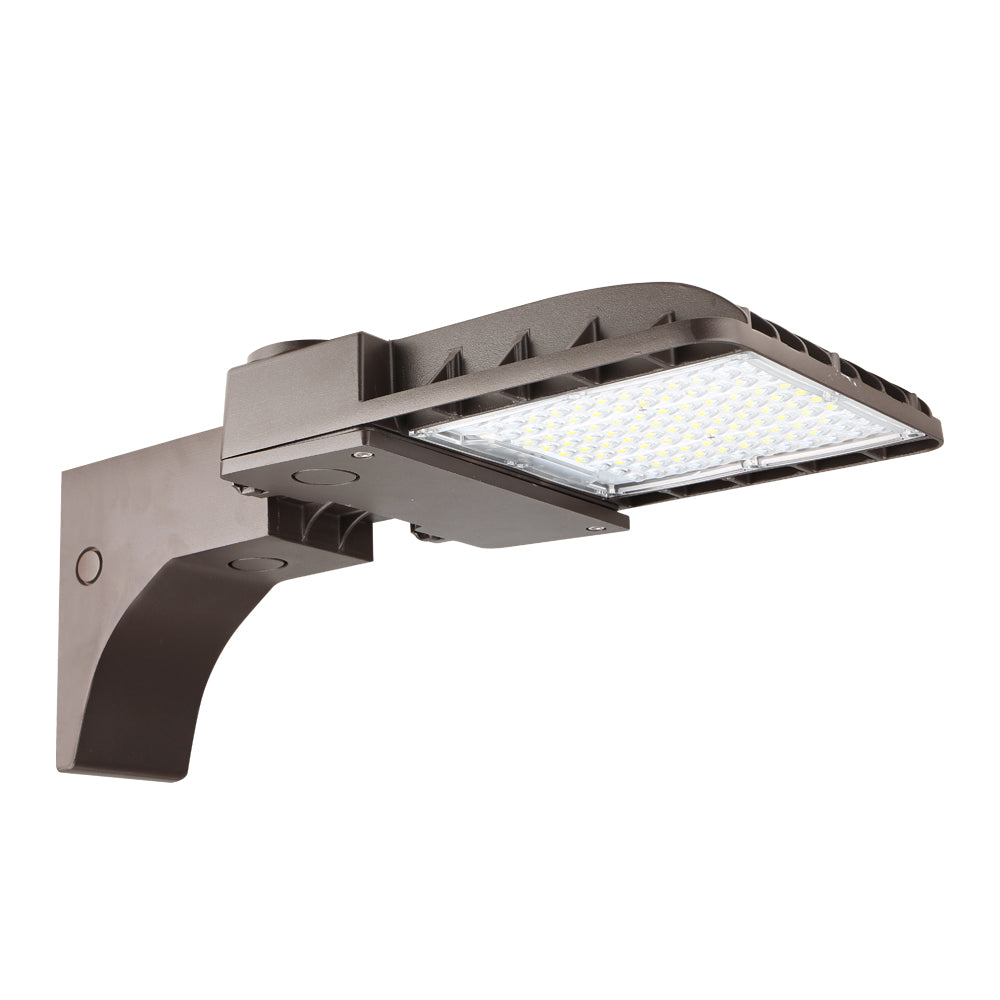

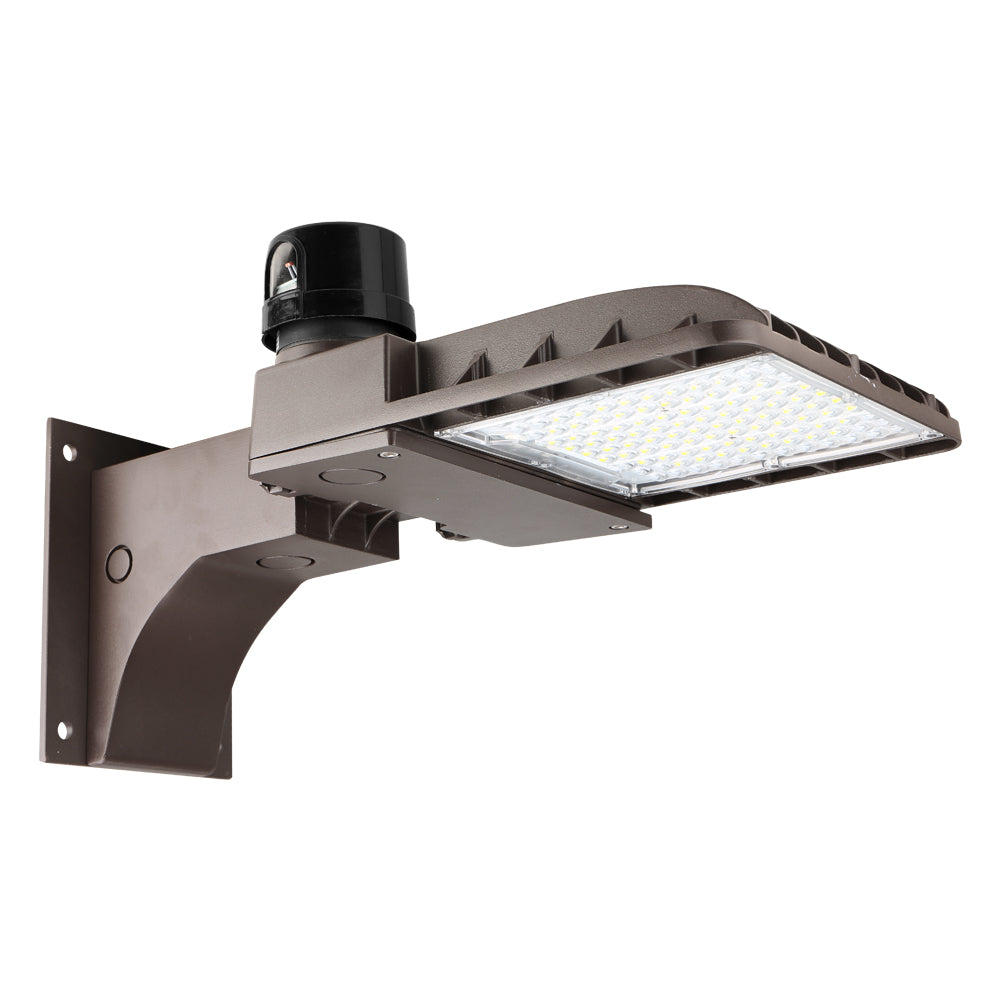

Mounting Options: Extrusion Arm for Round or Square Pole, Slipfitter, Trunnion/Yoke or Wall Mount
UL, DLC for eligible Rebates, 100,000 hour lifespan L70, 5-year warranty
Applications
• Area Lighting | • Parking Lots |
• Streets |
• Building Façade |
• Storage Facilities | • Underpasses & Tunnel |
• Boat Docks & Marinas | • Billboards |
• Warehouses | • Metal Buildings |
• Roadways & Pathways | • Stadiums |
• Outdoor Recreations | • Outdoor Common Areas |
• Parks | • Car Dealerships |
Specifications
Brand | Konlite | MPN | RDAL02041004KXXXXX |
Warranty | Limited 5 Years | UPC | 752480729017 |
Input Voltage | 120-277V | Optical | Type V |
Input Wattage | 100W | Equal to | 320W MH |
Delivered Lumens | 13,800 | CRI | >70 |
Efficacy | 138 LM/W | Available CCT | 4000K |
Rated Life | >100,000 hrs | THD | <20% |
Power Factor | >0.9 | IP Rating | IP65 |

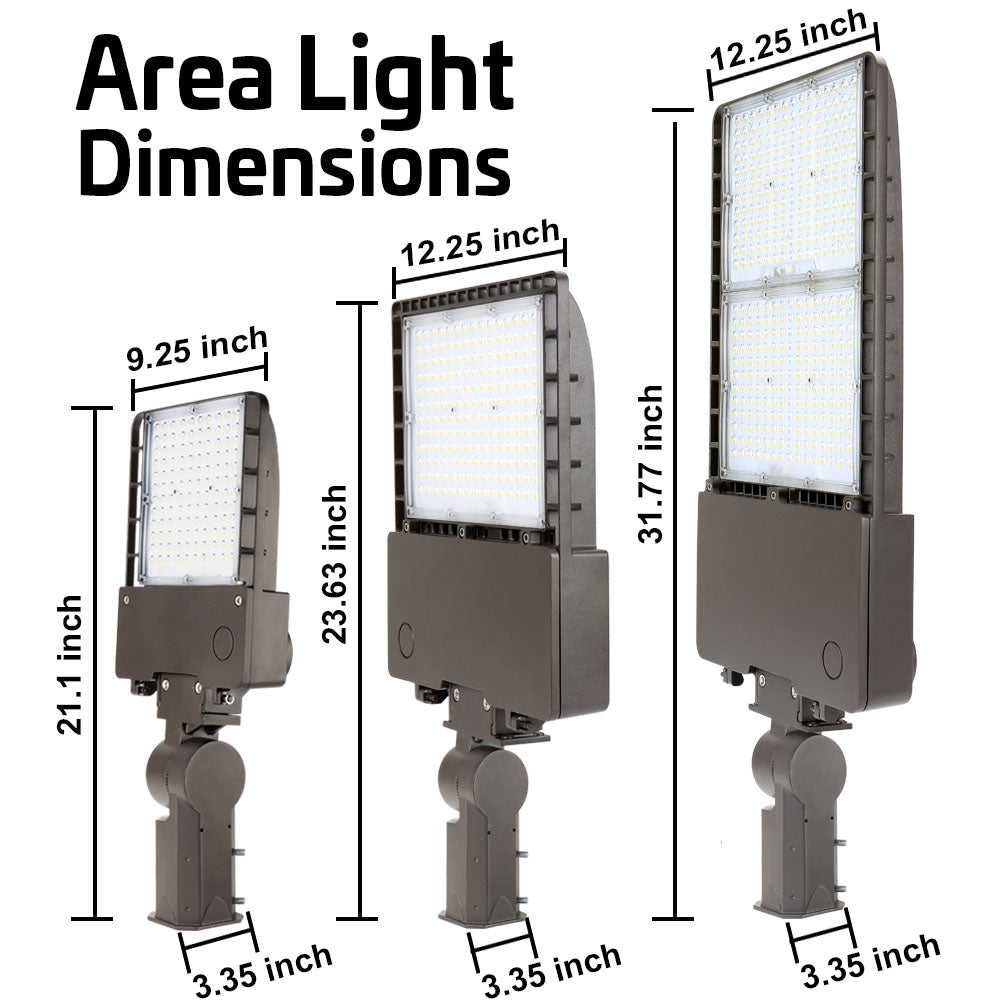

Operating Temperature | -40 F to 113 F | Dimensions | See Specifications |
Certifications | UL, Wet Locations, DLC Premium | Weight | 10 lbs |
