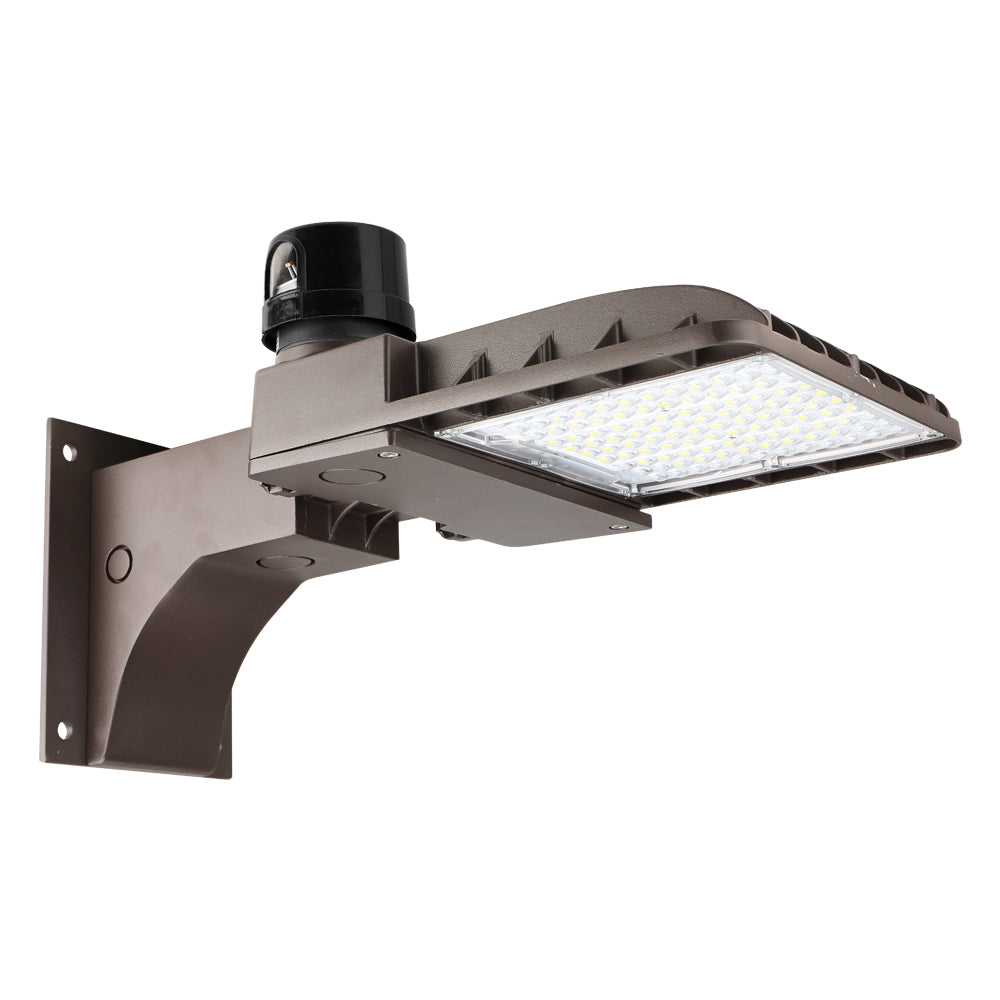

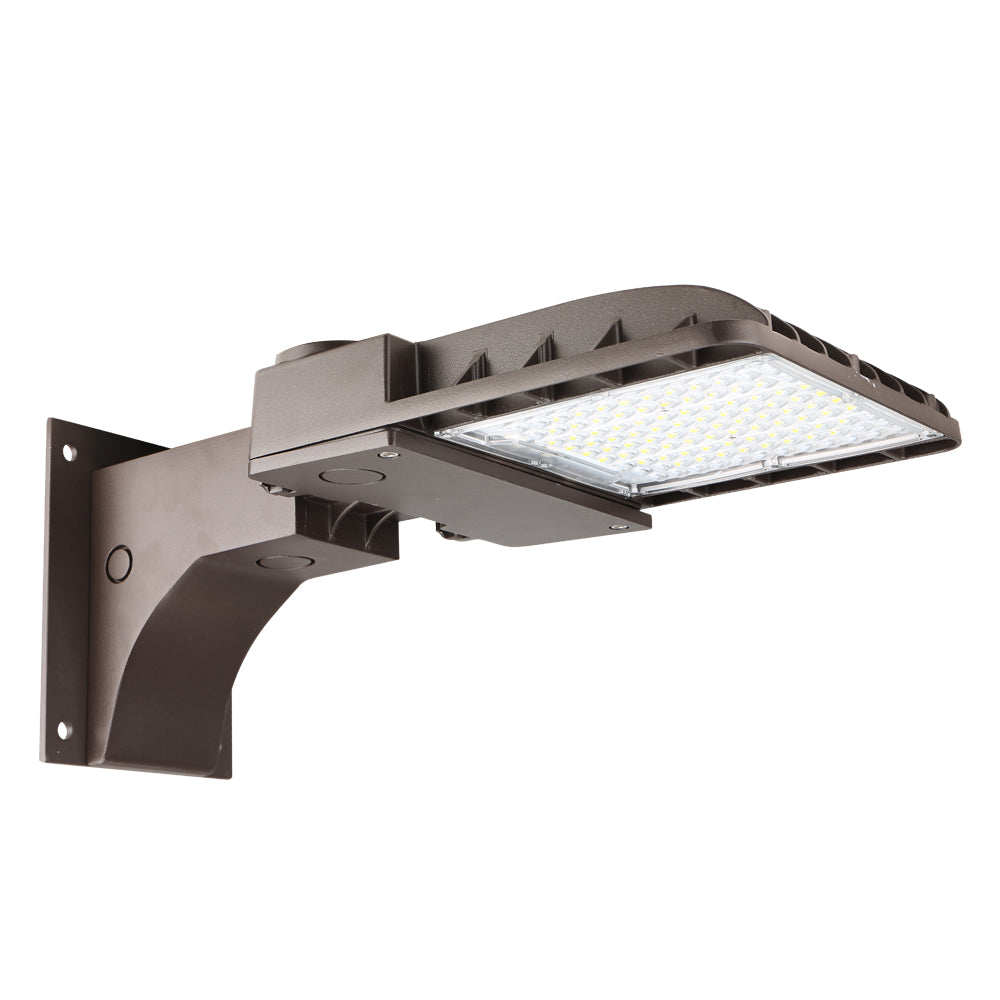

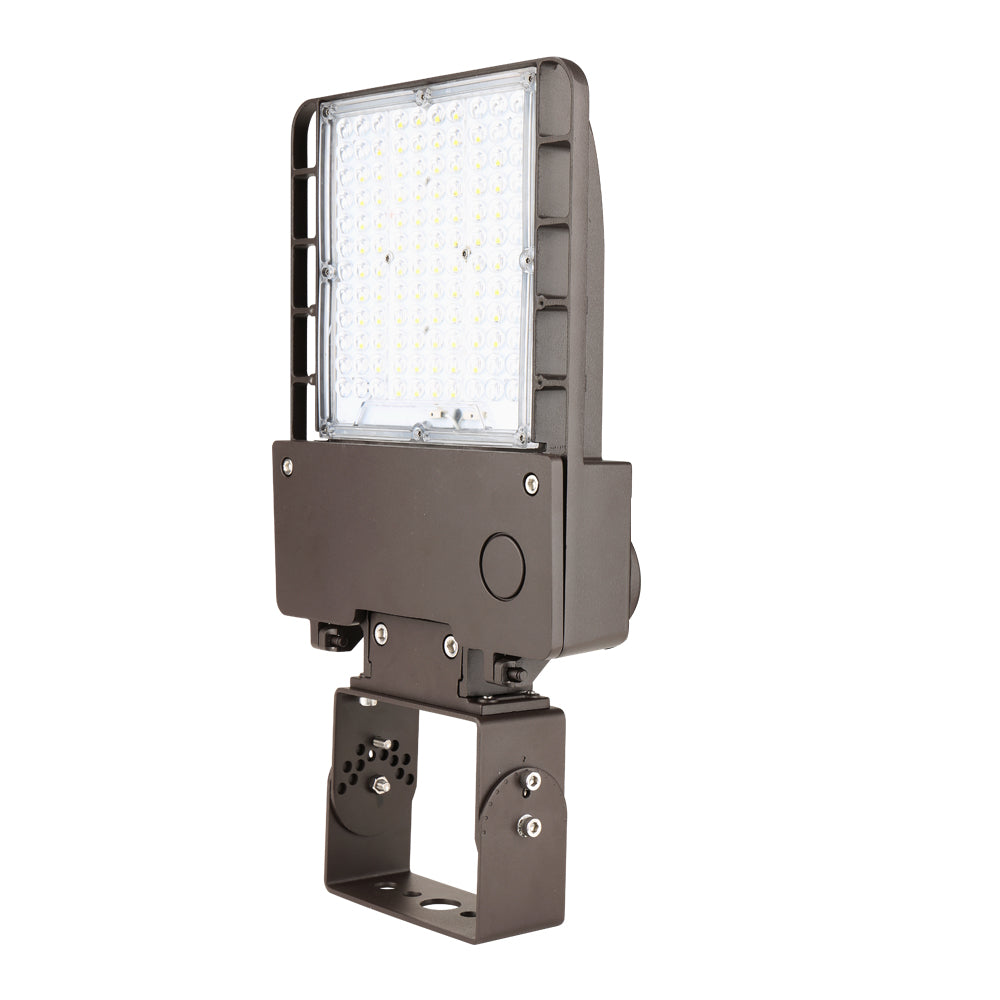

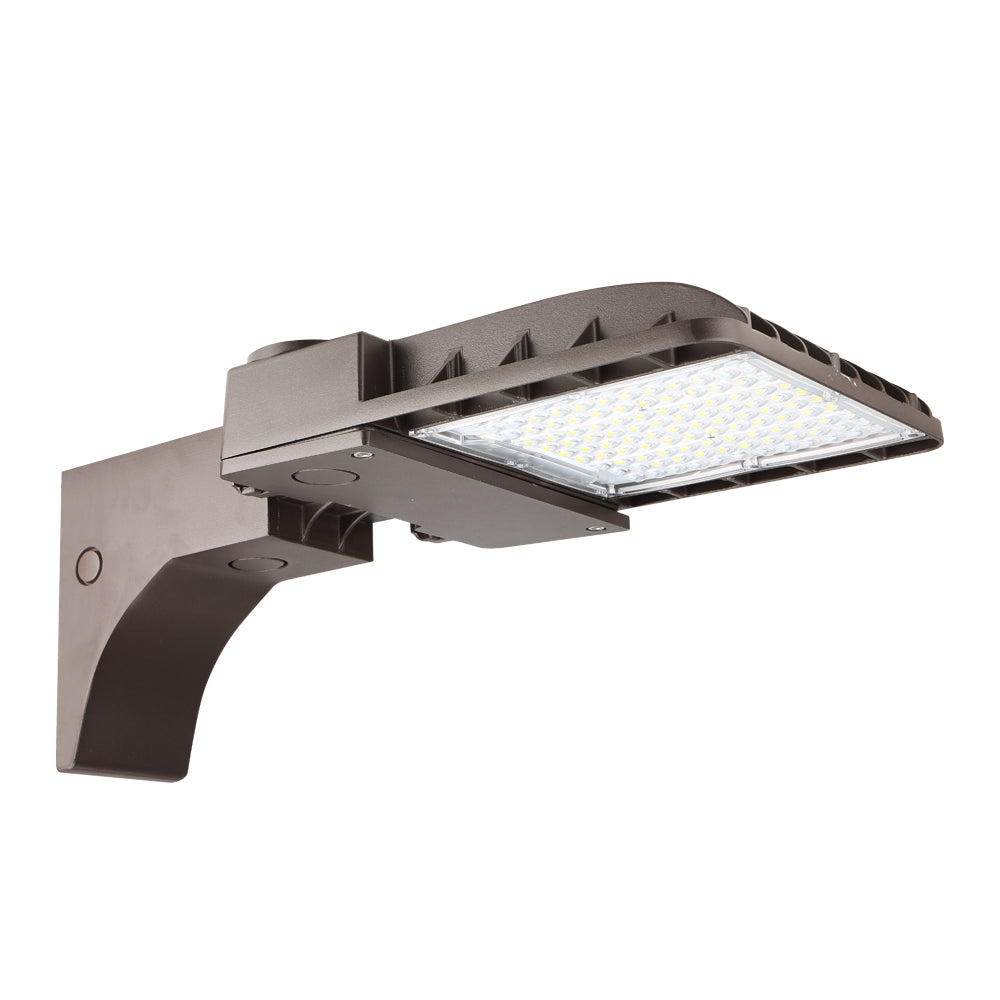

Konlite LED Outdoor Area Light - 100W - Type IV - 13,200 Lumens - 4000K - 120-277V - 320W Equal

Konlite SKU: RDAL02041004KDNSFL4D SEARCH CODE: 20-0205
    • Replaces 320W Metal Halide Light
    • Price Includes One Mounting Bracket
    • Input Voltage: 120-277V
    • 4000K Neutral White
    • 100,000 hours lifespan
    • Distribution: Type 4
    • Certificates: UL, DLC 5.1 Premium
    • 5-Year Warranty
Sale price$169.95
  • Secured payment methods. Revolve LED never stores nor has access to your card information.

  • 90 days return without restocking fee*.

  • $199 Free Shipping on eligible products*

  • Availability: Usually Ships in one to three business days.

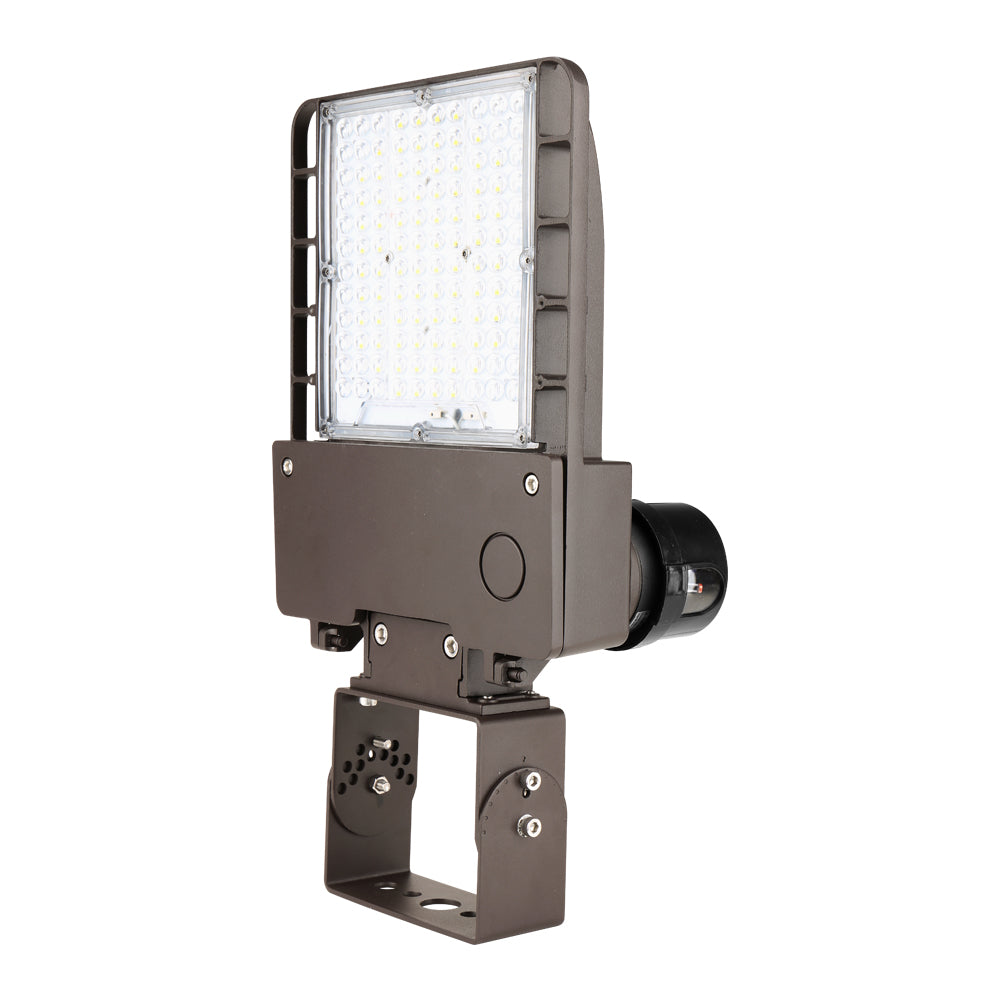

The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. It can be used as dusk to dawn light with optional photocell. Ideal for parking lot, street, flood and other outdoor area applications.

  • Designed for easy one person install

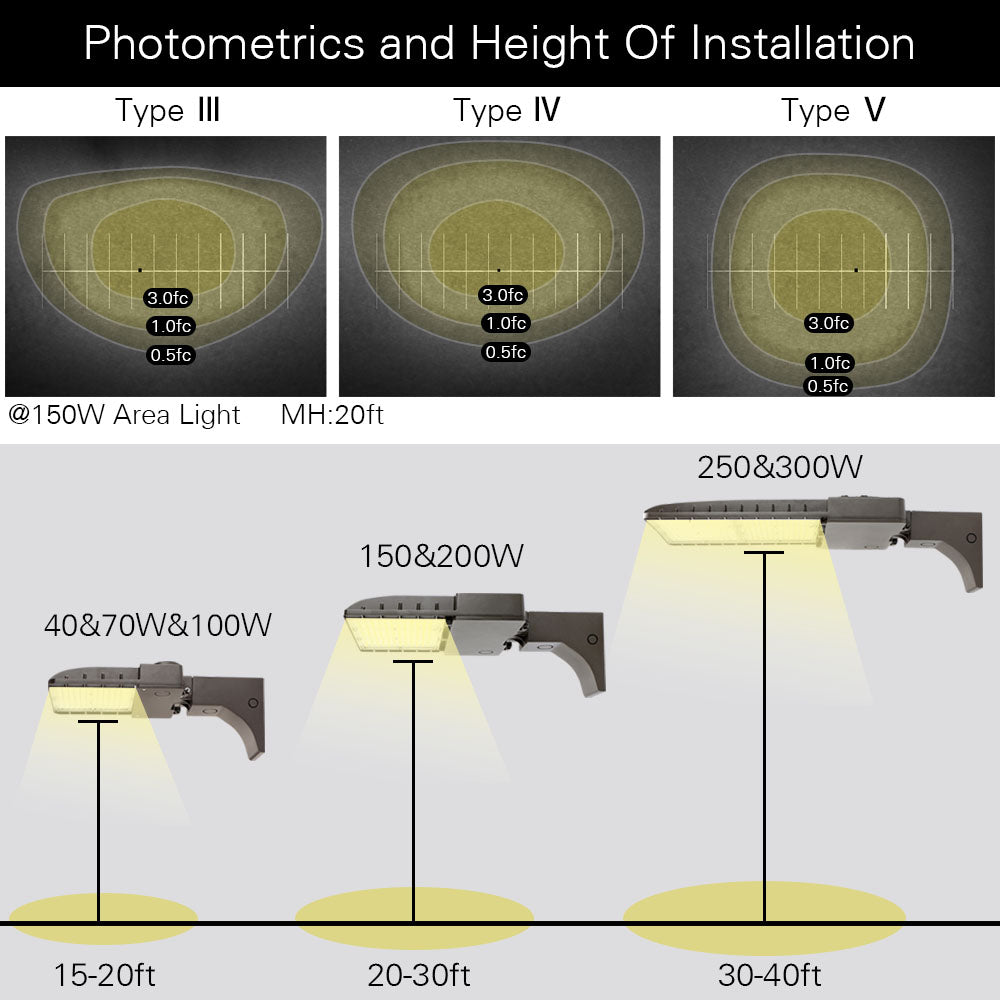

  • Precise optics designed to shape light distribution, maximizing spacing of fixtures
  • Low Profile 3G vibration and compact design minimizes wind load requirements
  • 100,000 hour lifespan, Five year warranty
What's in the box
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Instillation Guide
Konlite LED Outdoor Area Light - 100W - Type IV
Konlite LED Outdoor Area Light - 100W - Type IV - 13,200 Lumens - 4000K - 120-277V - 320W Equal
Regular price Sale price $169.95
What's in the box
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Instillation Guide

Product Overview

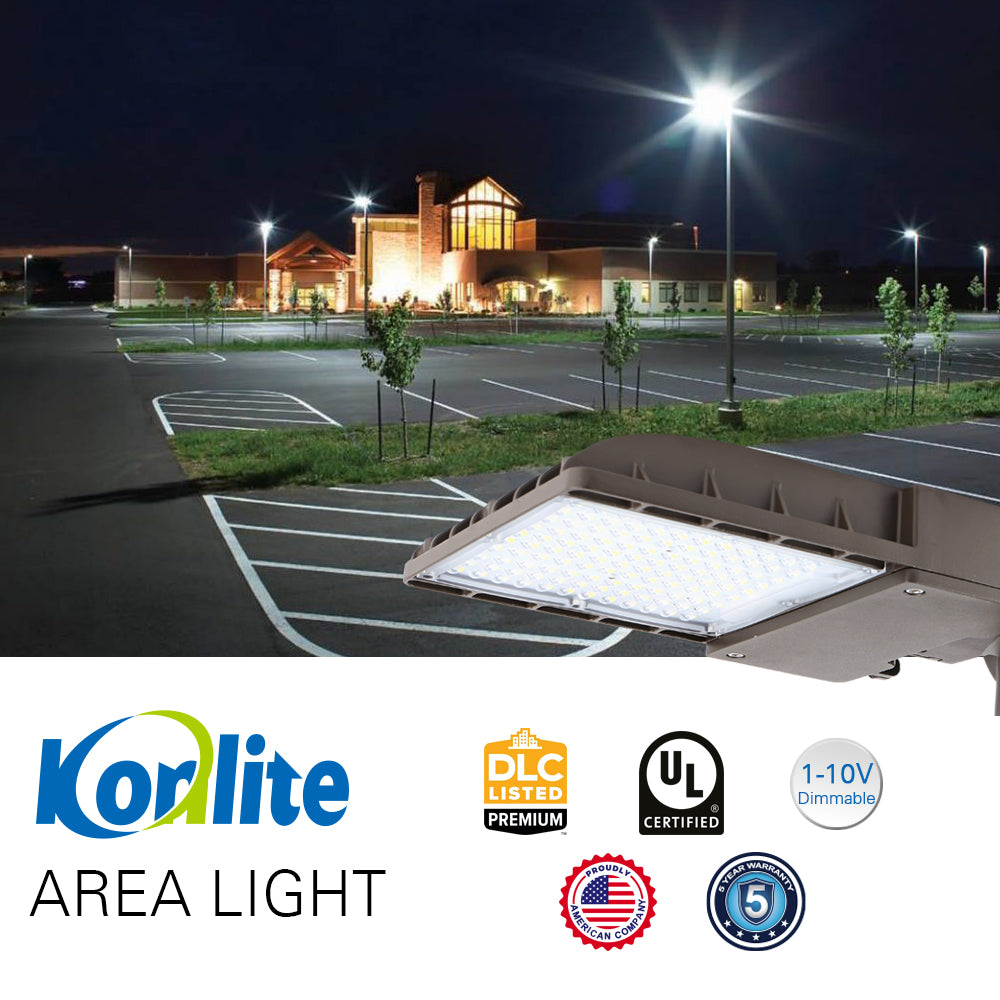

Ensure the safety of your patrons, employees and the security of your premises with the versatile Konlite AL04 Area Light.  Eliminate maintenance while reducing 65% energy consumption when replacing outdated Metal Halide - HPS fixtures or using in new construction. With a combination of performance, aesthetics, energy efficiency and light control the Konlite AL04 Area Light can be used as pole lights or surface mounts for parking lot (shoebox), street lights or outdoor security lights (floods).

100 Watts, 13,200 Lumens, 4000K, Type IV Beam Distribution, 120-277V

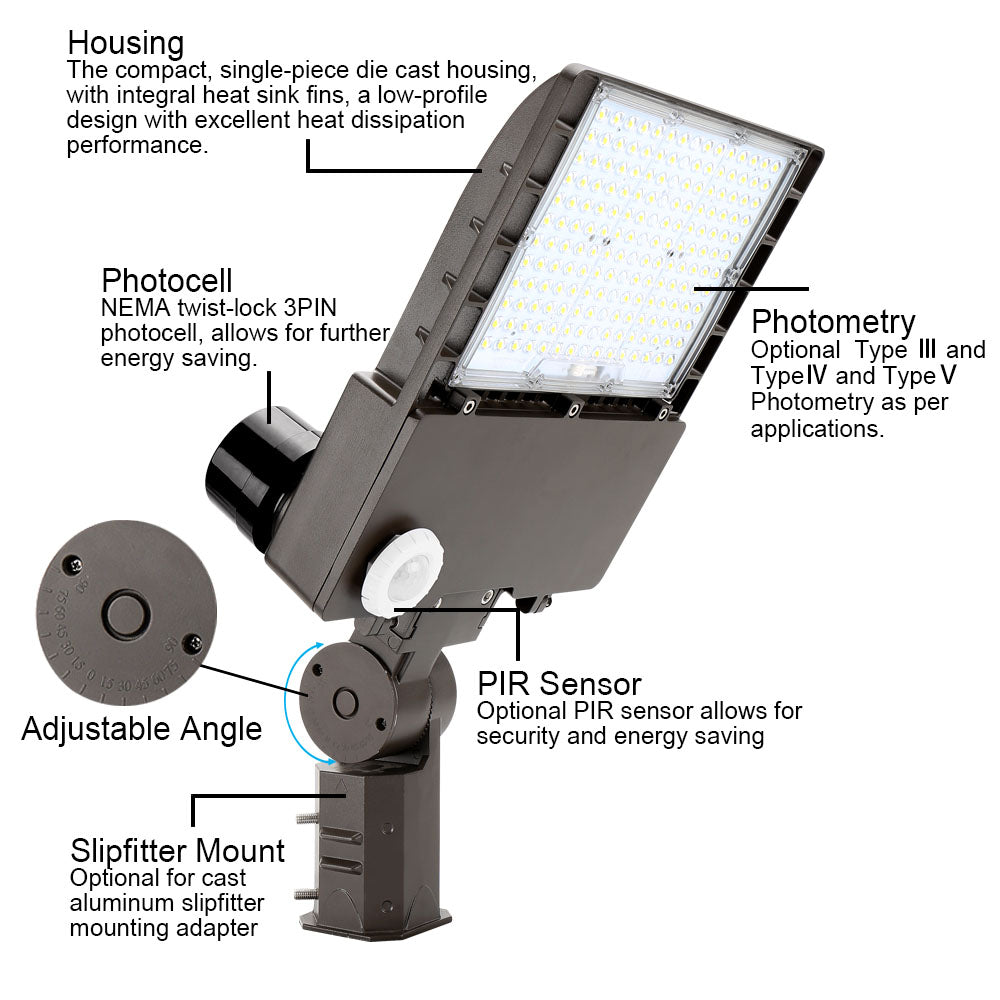

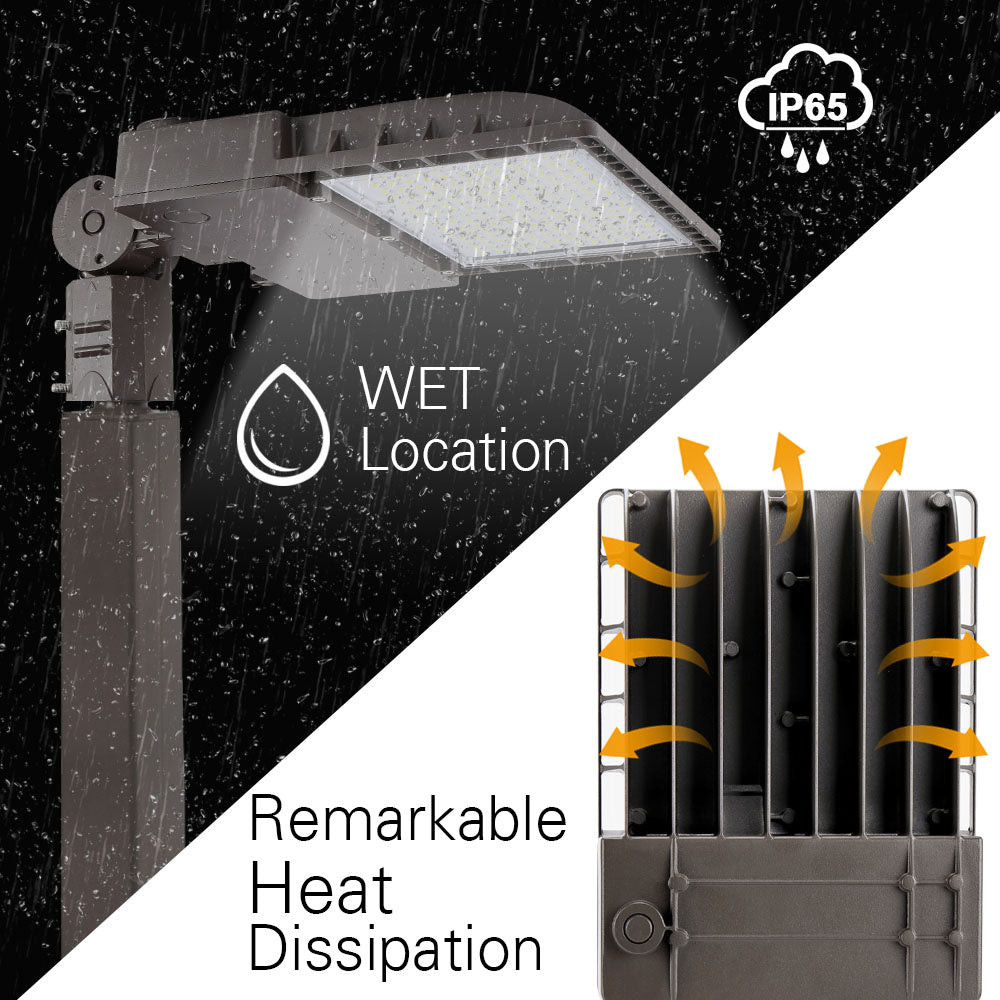

Built to last and withstand harsh elements, the AL04 stylish housing offers separation between the LEDs, the driver circuitry and larger heat sink allowing for longer operating life. Compact and lightweight design with low EPA, 3G rated for vibration. Corrosion resistant, die-cast aluminum housing with powder coat paint finish. The visual comfort optics create a larger luminous surface area resulting in a low glare appearance.

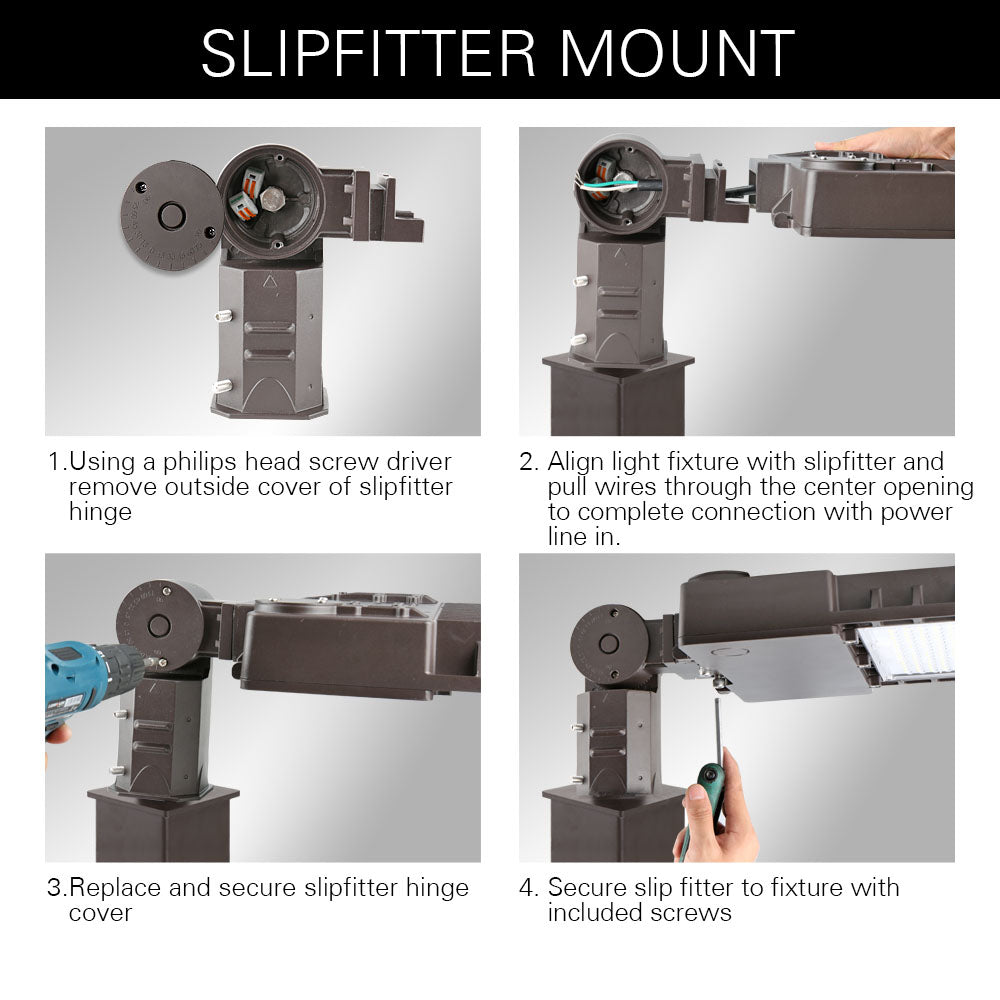

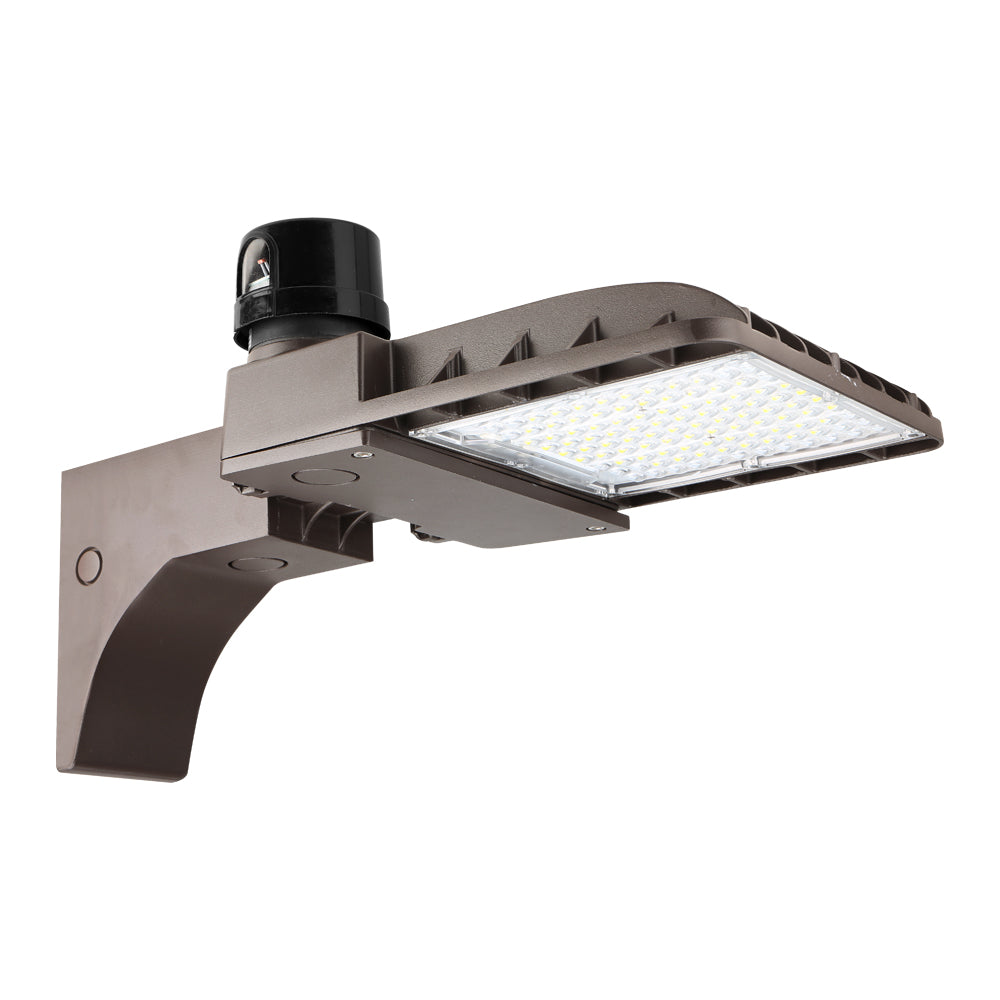

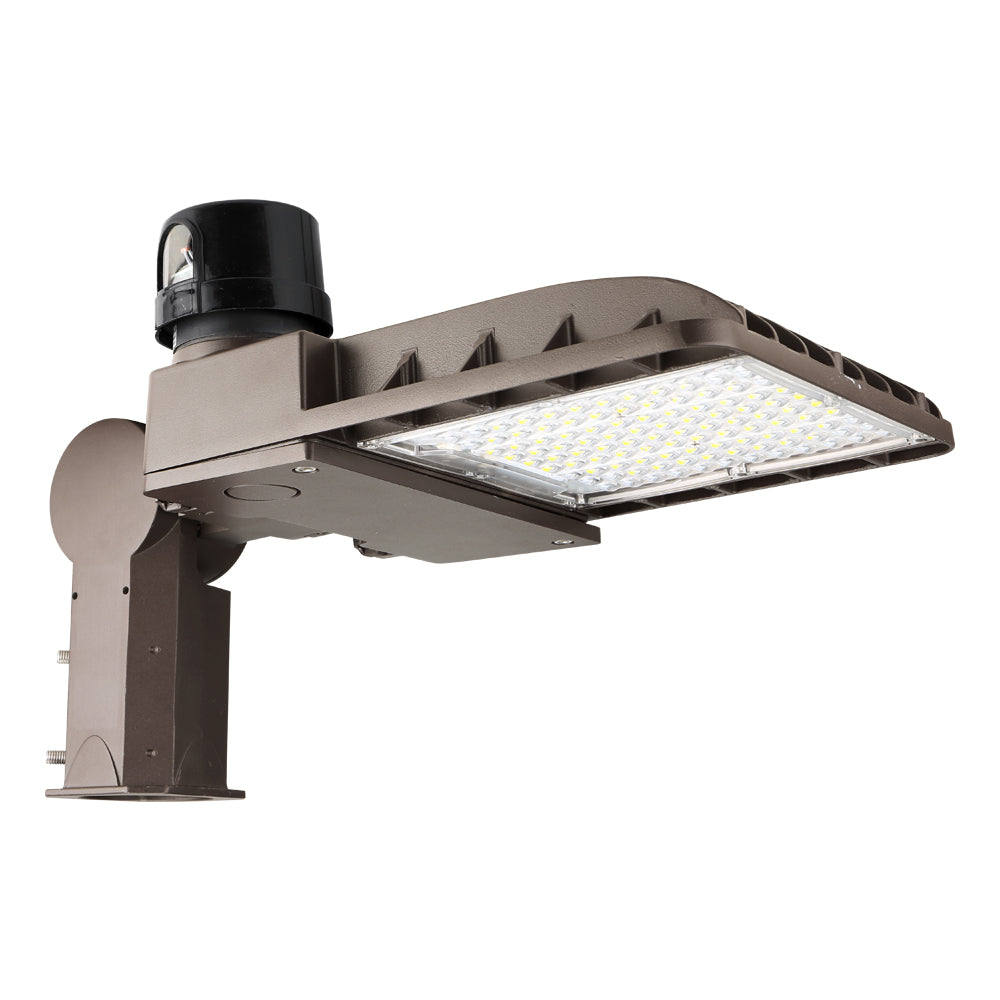

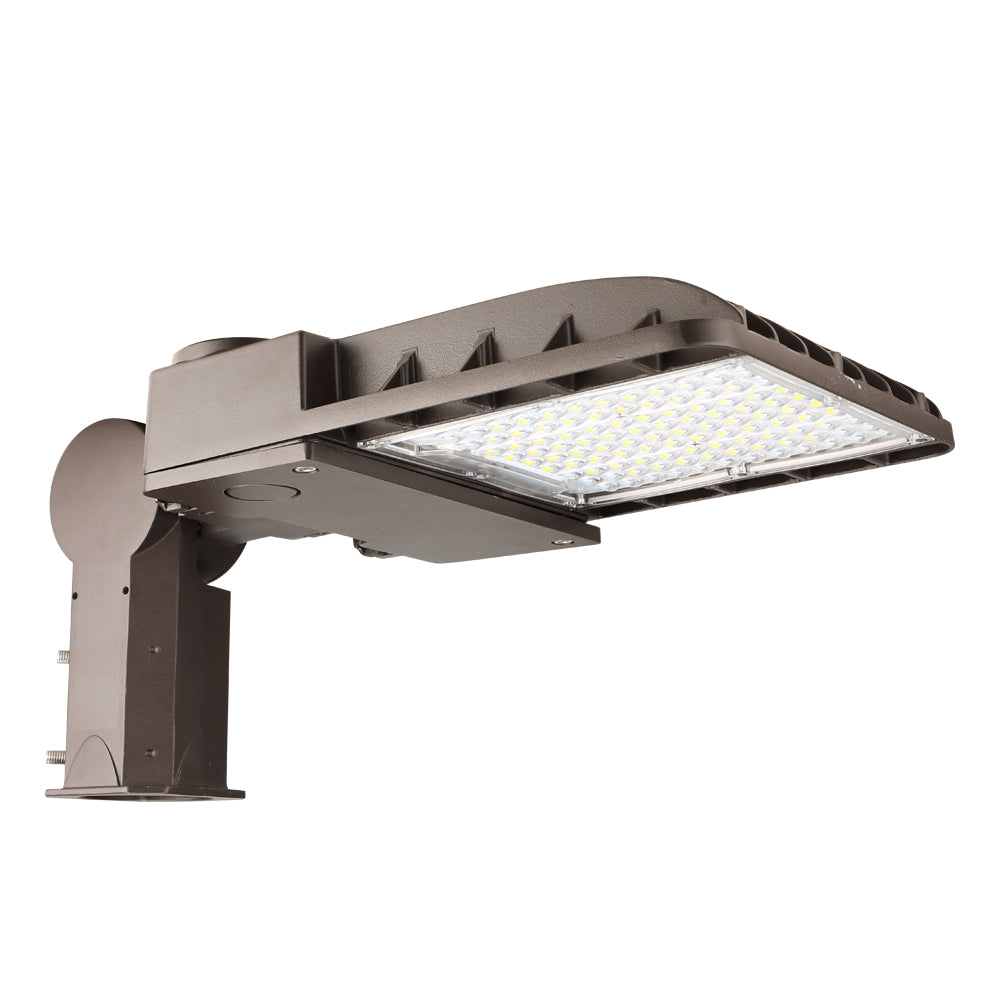

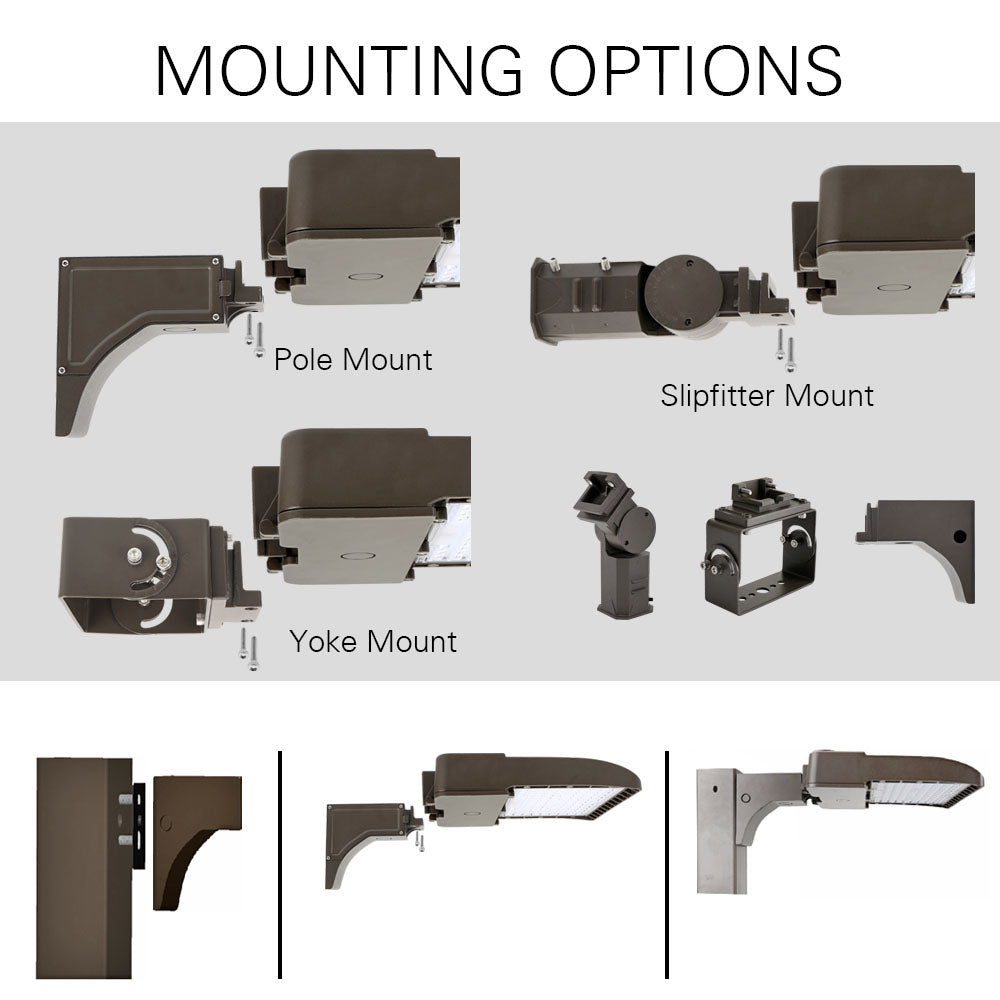

Price includes one of the mounting Options: Extrusion Arm for Round or Square Pole, Slipfitter, Trunnion/Yoke or Wall Mount

UL, DLC for eligible Rebates, 100,000 hour lifespan L70, 5-year warranty

Applications



• Area Lighting • Parking Lots
• Streets

• Building Façade

• Storage Facilities • Underpasses & Tunnel
• Boat Docks & Marinas • Billboards
• Warehouses • Metal Buildings
• Roadways & Pathways • Stadiums
• Outdoor Recreations • Outdoor Common Areas
• Parks • Car Dealerships
Color Temperature 4000K color temperature
Certifications
US company5 years warrantyUL listedDLC PremiumRoHS compliance FCC certificationIP65 rating

Specifications

BrandKonliteMPNRDAL02041004KXXXXX
WarrantyLimited 5 YearsUPC752480729093
Input Voltage120-277VOpticalType IV
Input Wattage100WEqual to320W MH
Delivered Lumens13,200CRI>70
Efficacy132 LM/WAvailable CCT4000K
Rated Life>100,000 hrsTHD<20%
Power Factor>0.9IP RatingIP65

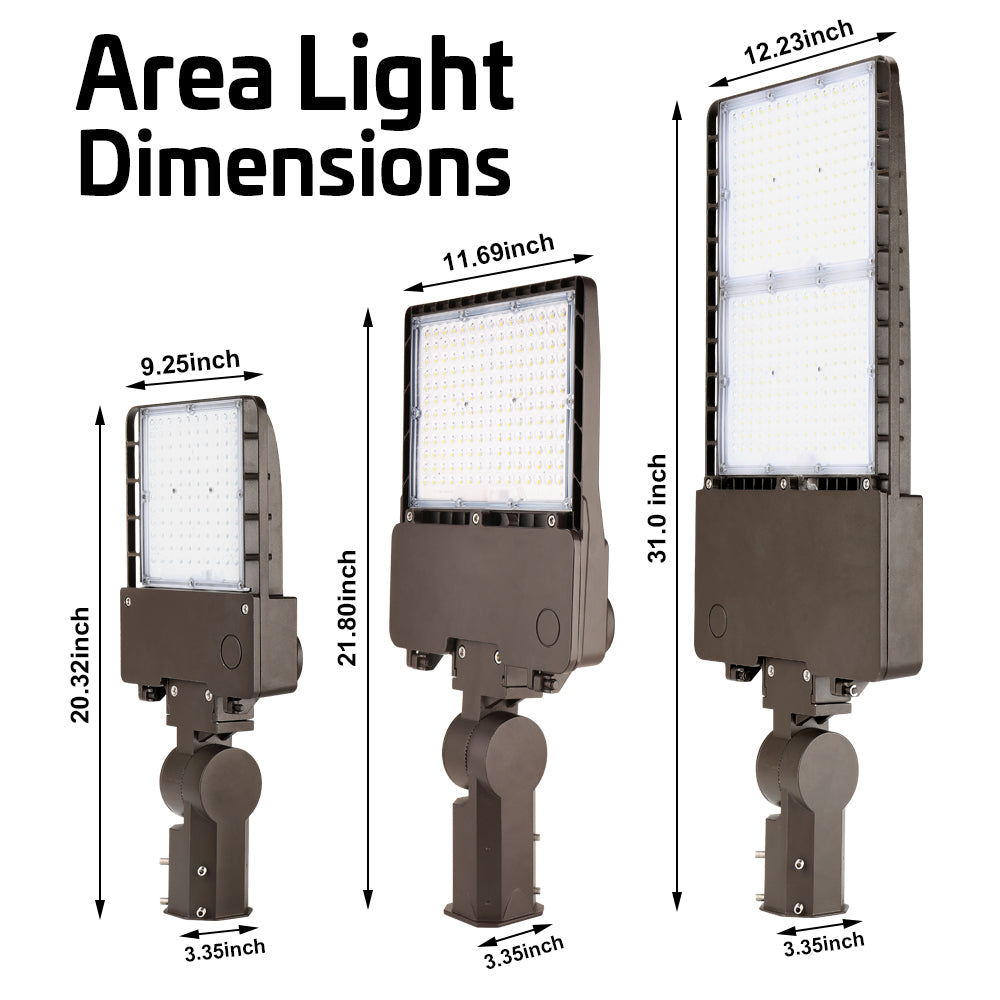

Operating Temperature-40 F to 113 FDimensionsSee Specifications
CertificationsUL, Wet Locations, DLC PremiumWeight10 lbs
