Konlite LED Outdoor Area Light - 100W - Type III - 13,800 Lumens - 5000K - 120-277V - 320W Equal

Konlite SKU: RDAL02041005KDNSPL3D SEARCH CODE: 20-0202
    • Replaces 320W Metal Halide Light
    • Price Includes One Mounting Bracket
    • 100,000 hours lifespan
    • 5000K Daylight White
    • 13,800 Lumens
    • Distribution: Type 3
    • Certificates: UL, DLC 5.1 Premium
    • 5-Year Warranty
Sale price$139.95
  • Secured payment methods. Revolve LED never stores nor has access to your card information.

  • 90 days return without restocking fee*.

  • $199 Free Shipping on eligible products*

  • Availability: Usually Ships in one to three business days.

The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. It can be used as dusk to dawn light with optional photocell. Ideal for parking lot, street, flood and other outdoor area applications.

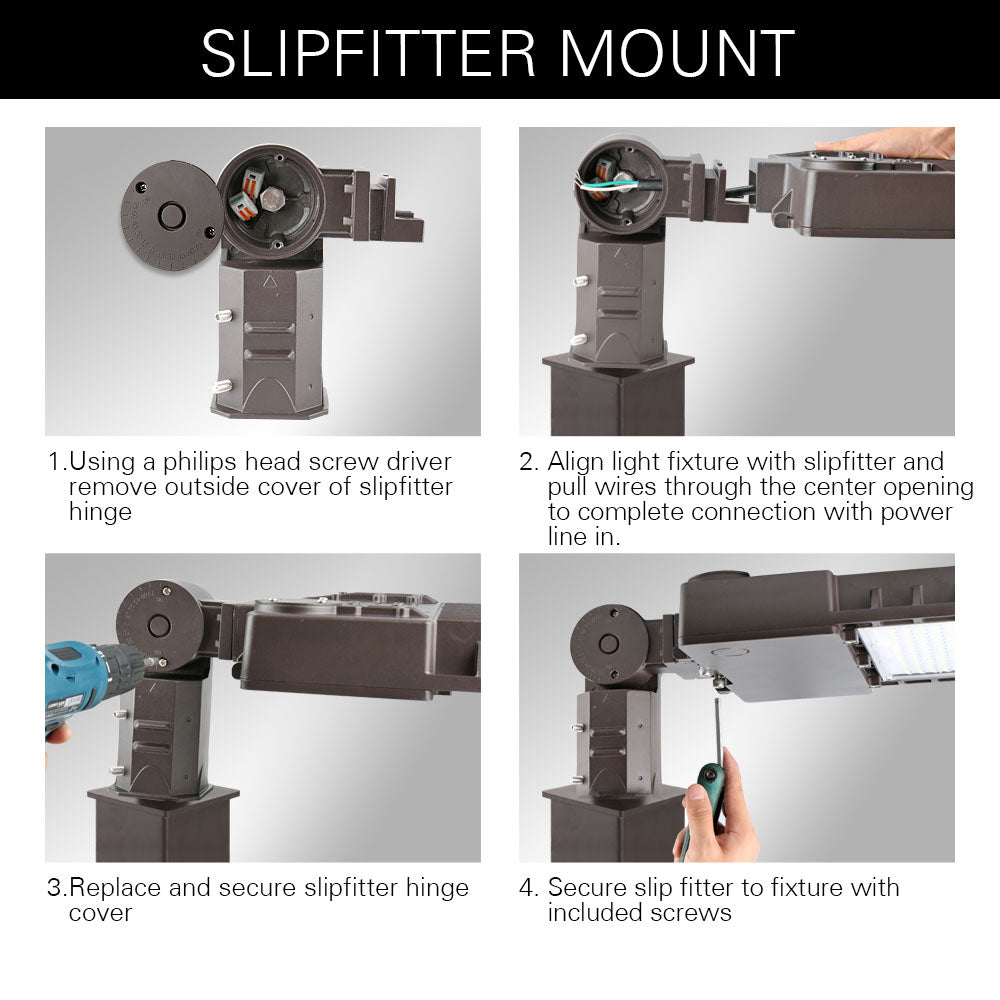

  • Designed for easy one person install
  • Precise optics designed to shape light distribution, maximizing spacing of fixtures
  • Low Profile 3G vibration and compact design minimizes wind load requirements
  • 100,000 hour lifespan, Five year warranty
What's in the box
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Instillation Guide

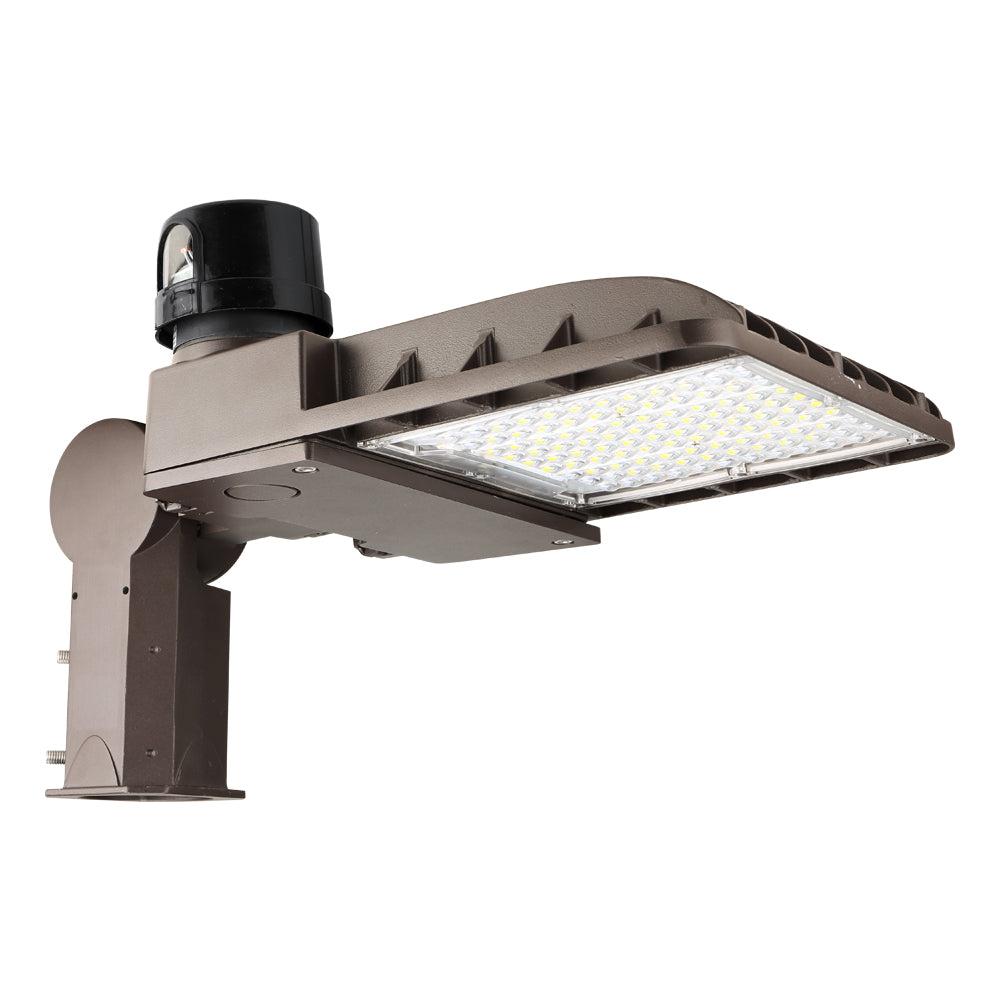

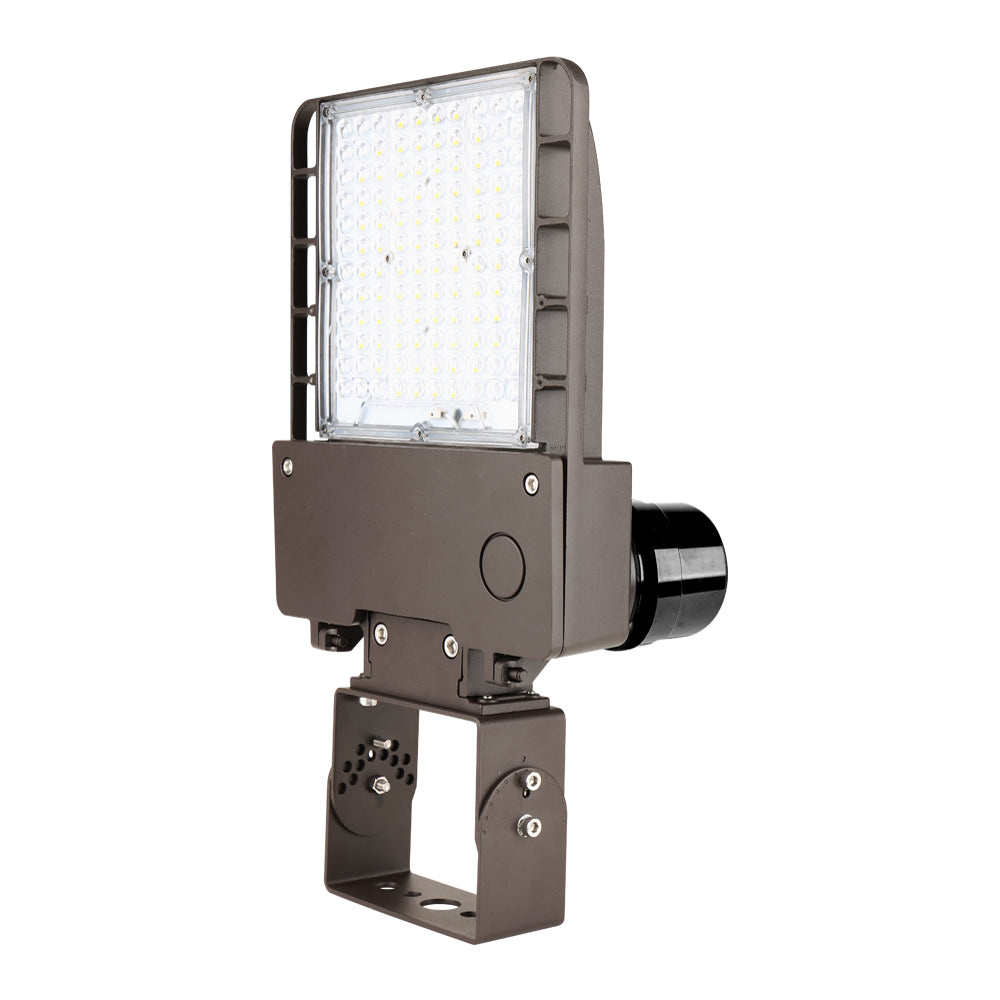

dark bronze 100W slipfitter mount led area light with type 3 lens
Konlite LED Outdoor Area Light - 100W - Type III - 13,800 Lumens - 5000K - 120-277V - 320W Equal
Regular price Sale price $139.95
What's in the box
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Instillation Guide

Product Overview

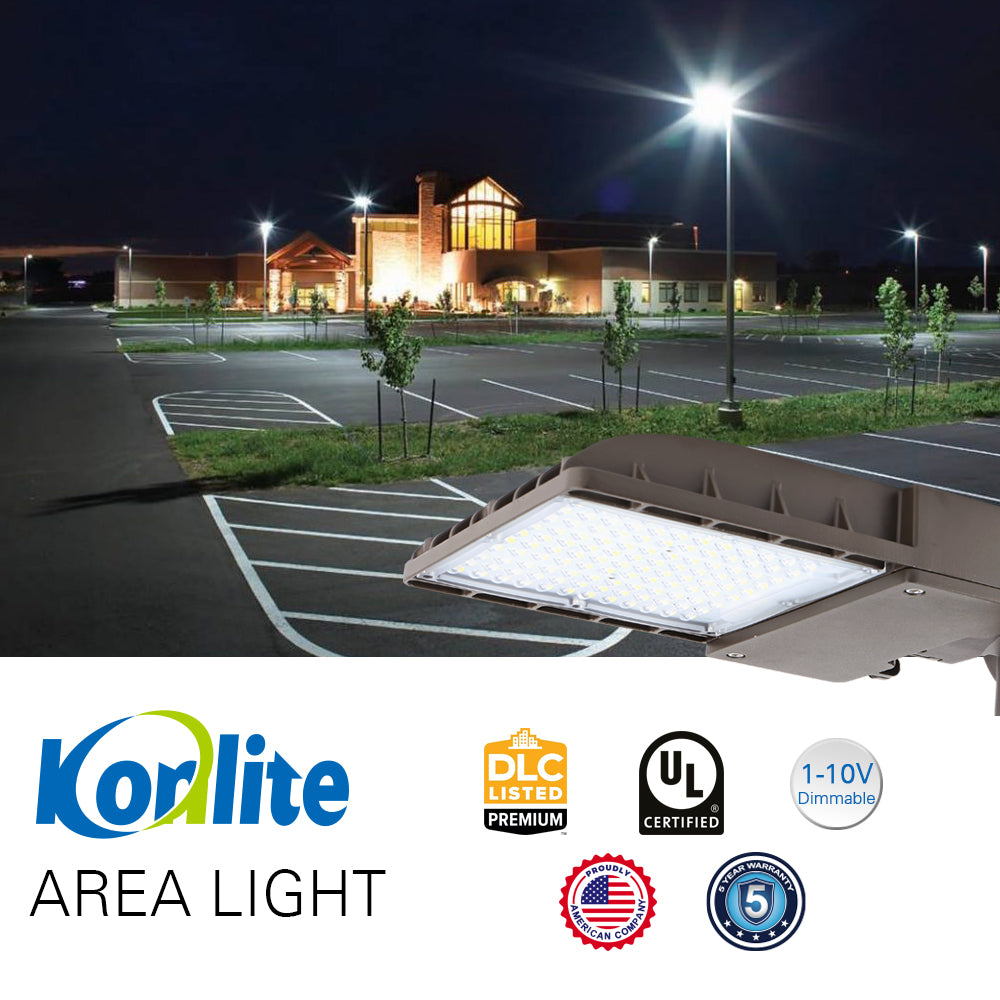

Ensure the safety of your patrons, employees and the security of your premises with the versatile Konlite AL04 Area Light.  Eliminate maintenance while reducing 65% energy consumption when replacing outdated Metal Halide - HPS fixtures or using in new construction. With a combination of performance, aesthetics, energy efficiency and light control the Konlite AL04 Area Light can be used as pole lights or surface mounts for parking lot (shoebox), street lights or outdoor security lights (floods).

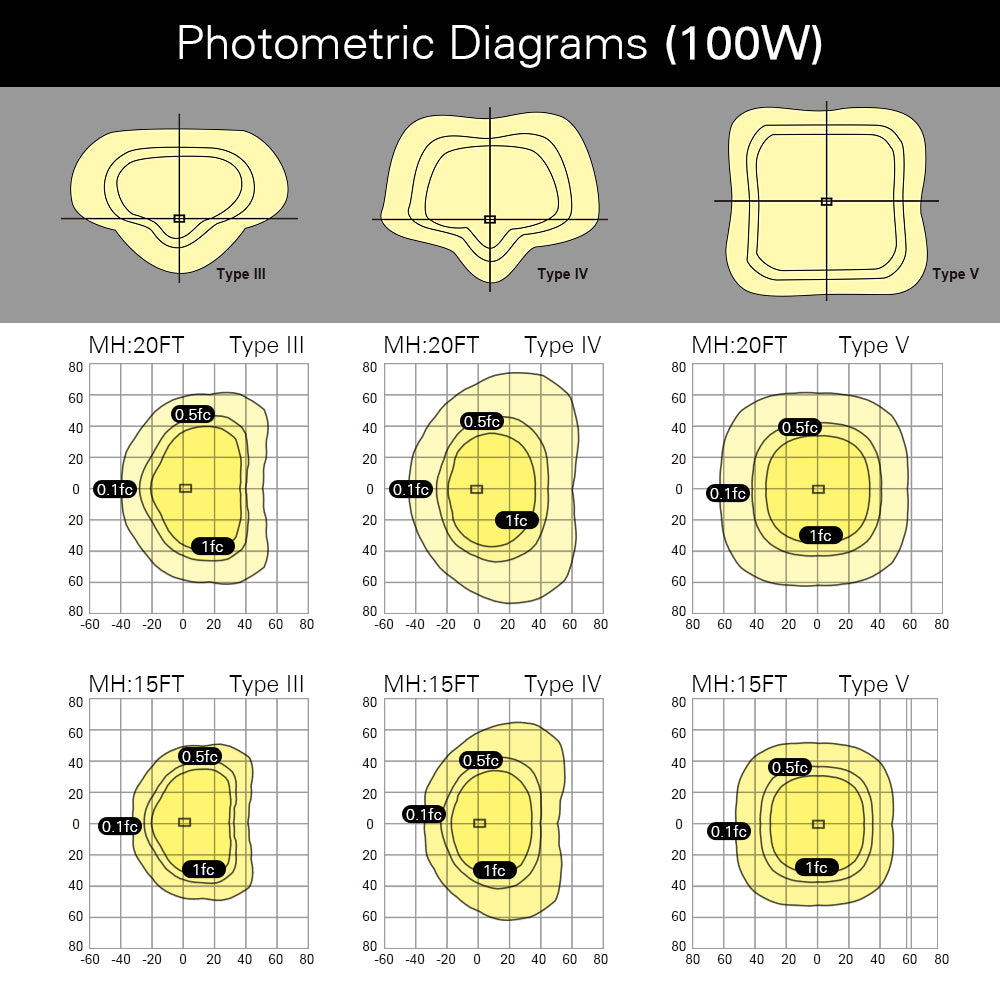

100 Watts, 13,800 Lumens, 5000K, Type III Beam Distribution, Optional Dusk to Dawn Photocell, 120-277V

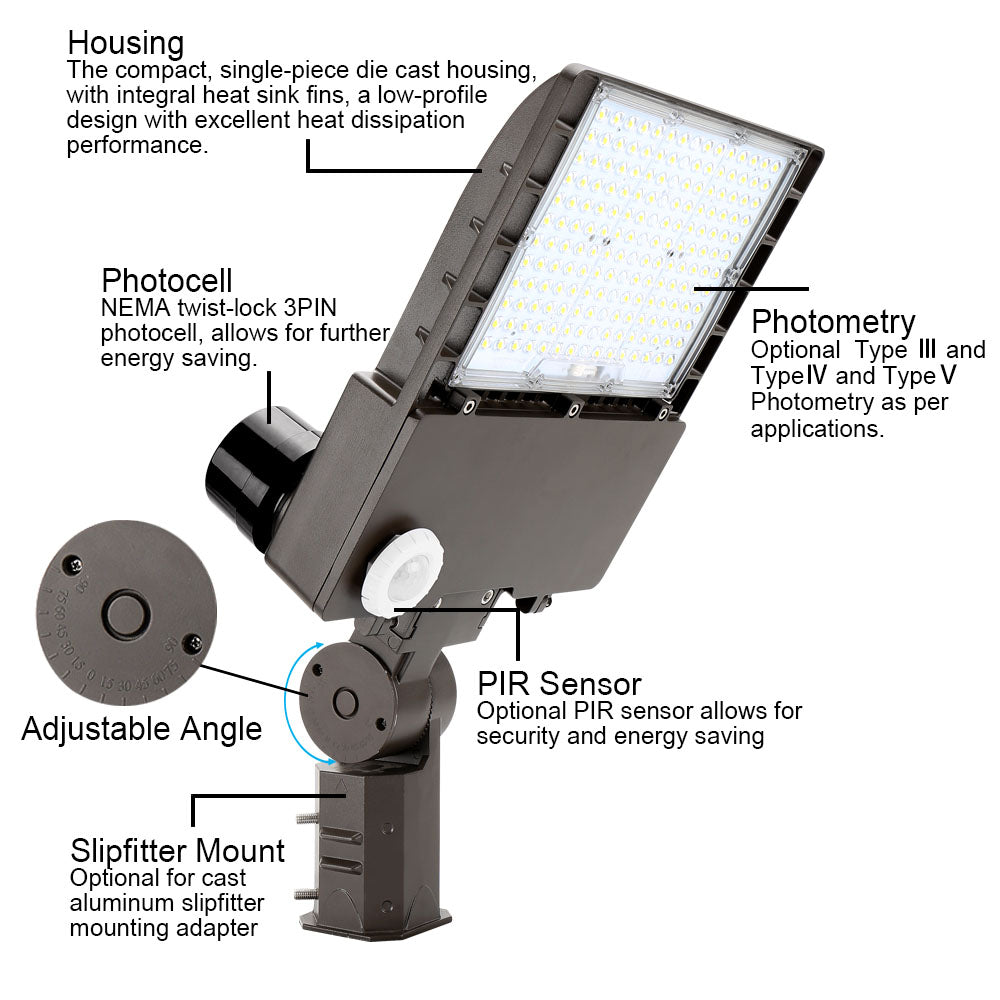

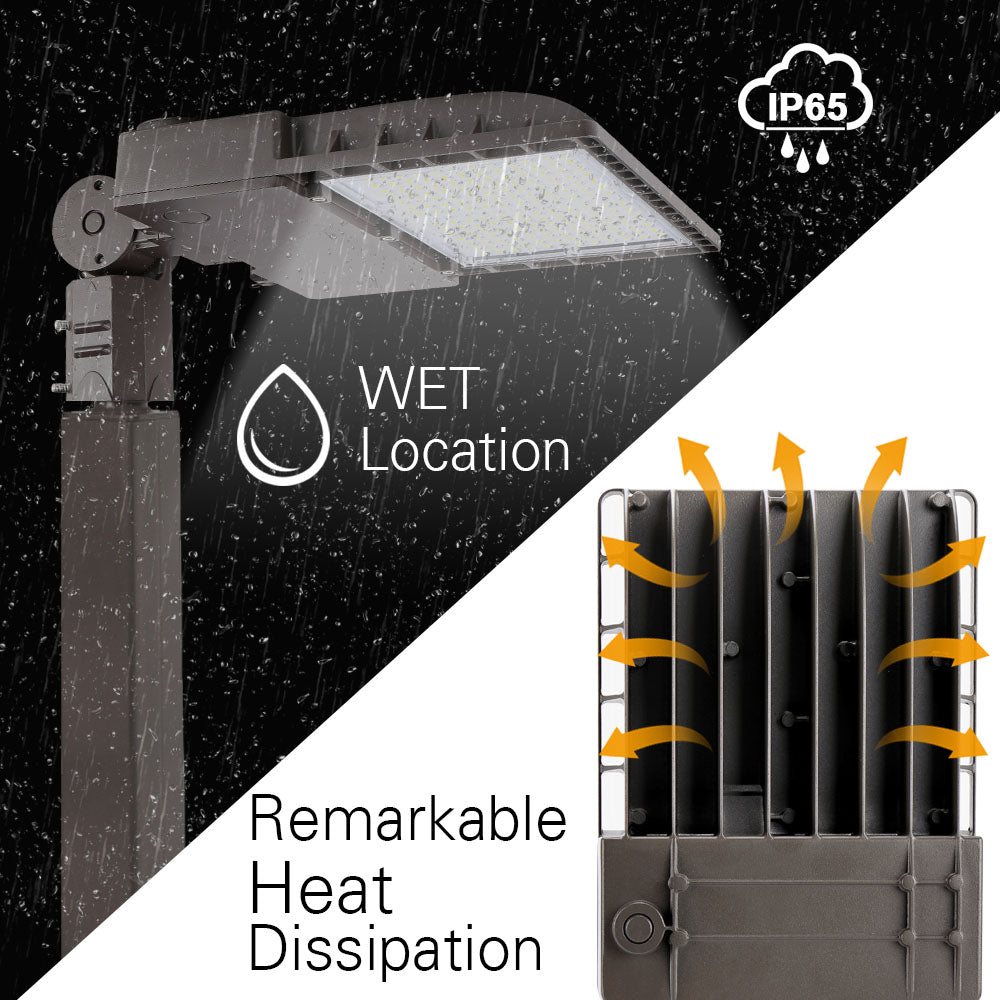

Built to last and withstand harsh elements, the AL04 stylish housing offers separation between the LEDs, the driver circuitry and larger heat sink allowing for longer operating life. Compact and lightweight design with low EPA, 3G rated for vibration. Corrosion resistant, die-cast aluminum housing with powder coat paint finish. The visual comfort optics create a larger luminous surface area resulting in a low glare appearance.

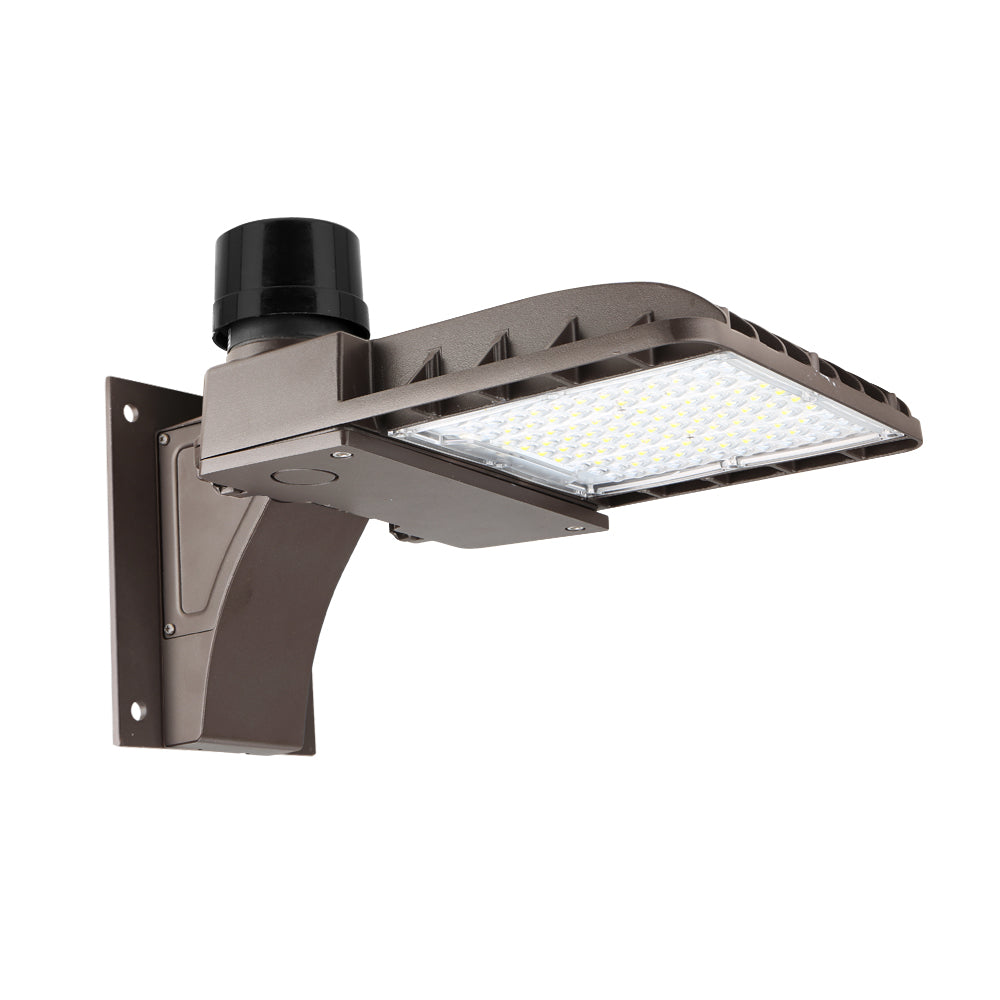

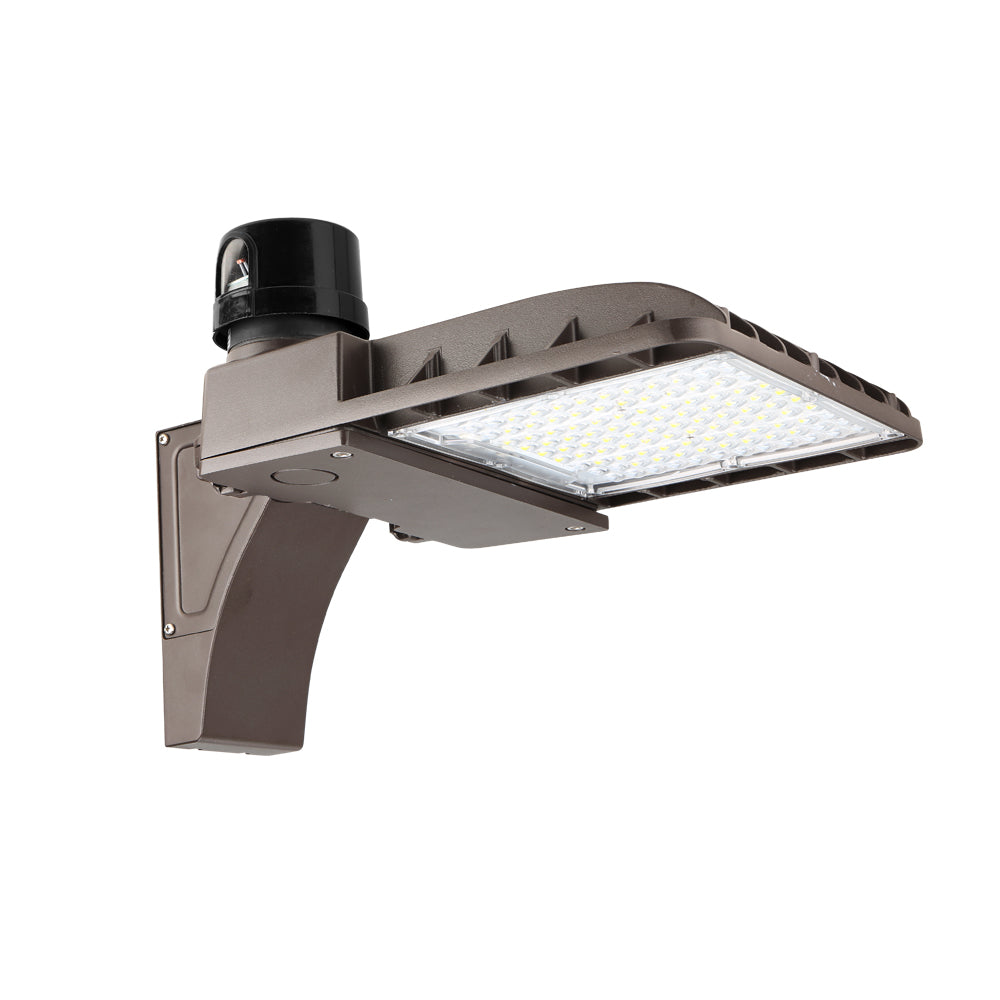

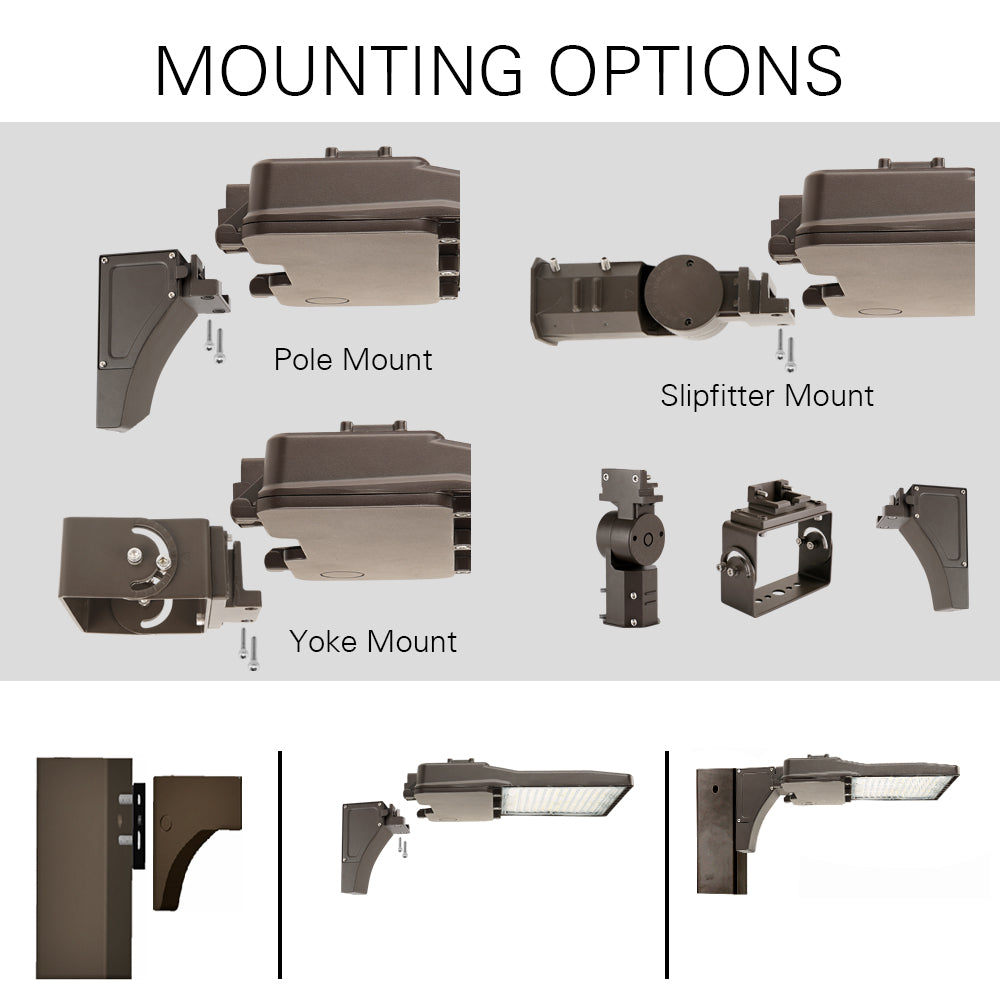

Mounting Options: Extrusion Arm for Round or Square Pole, Slipfitter, Trunnion/Yoke or Wall Mount

UL, DLC for eligible Rebates, 100,000 hour lifespan L70, 5-year warranty

See similar 40-watt, 70-watt, 150-watt and other high wattage versions.

Applications



• Area Lighting • Parking Lots
• Streets

• Building Façade

• Storage Facilities • Underpasses & Tunnel
• Boat Docks & Marinas •  Billboards
• Warehouses • Metal Buildings
• Roadways & Pathways • Stadiums
• Outdoor Recreations • Outdoor Common Areas
• Parks • Car Dealerships



Color Temperature 5000K color temperature
Certifications
US company5 years warrantyUL listed1-10V dimmableETL listedDLC PremiumRoHS compliance FCC certificationIP65 rating

Specifications

BrandKonliteDLC Part #RDAL02041005KXXXX
WarrantyLimited 5 YearsUPC752480730358
Input Voltage120-277VOpticalType III
Input Wattage100WEqual to320W MH
Delivered Lumens13,800CRI>70
Efficacy138 LM/WAvailable CCT5000K
Rated Life>100,000 hrsTHD<20%
Power Factor>0.9IP RatingIP65
DimmableCall us for 1-10V Dimming AvailabilityControlsOptional Dusk to Dawn Photocell

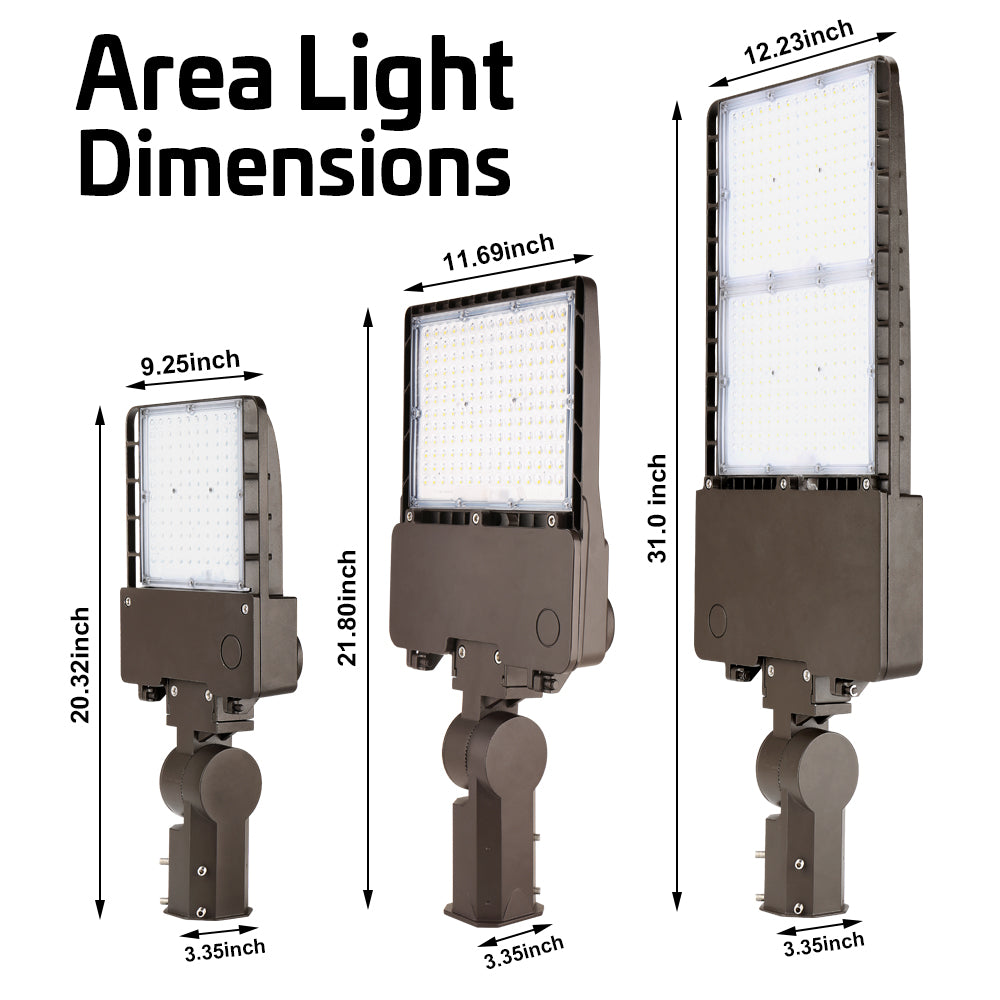

Operating Temperature-40 F to 113 FDimensionsSee Specifications
CertificationsUL, Wet Locations, DLC PremiumWeight11 lbs
