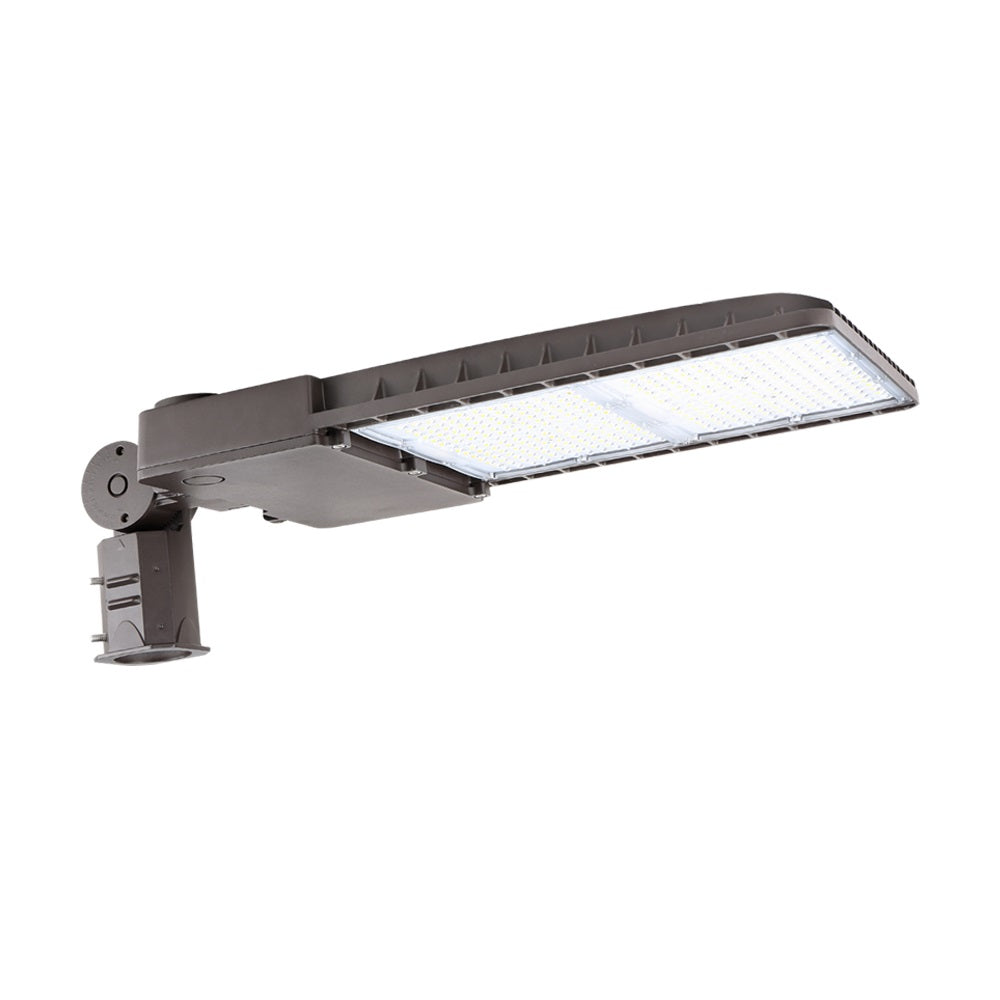

250W slipfitter mount led parking lot light with type V lens

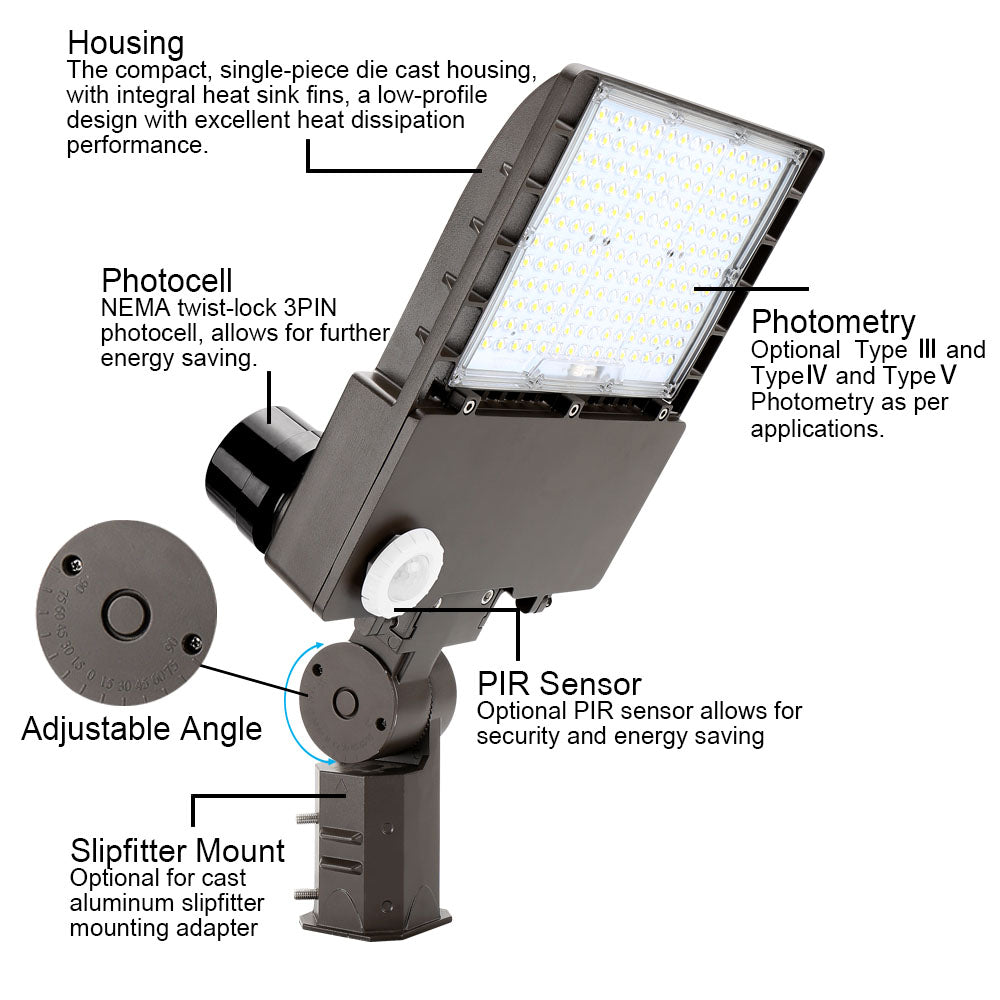

250W slipfitter mount led parking lot light details

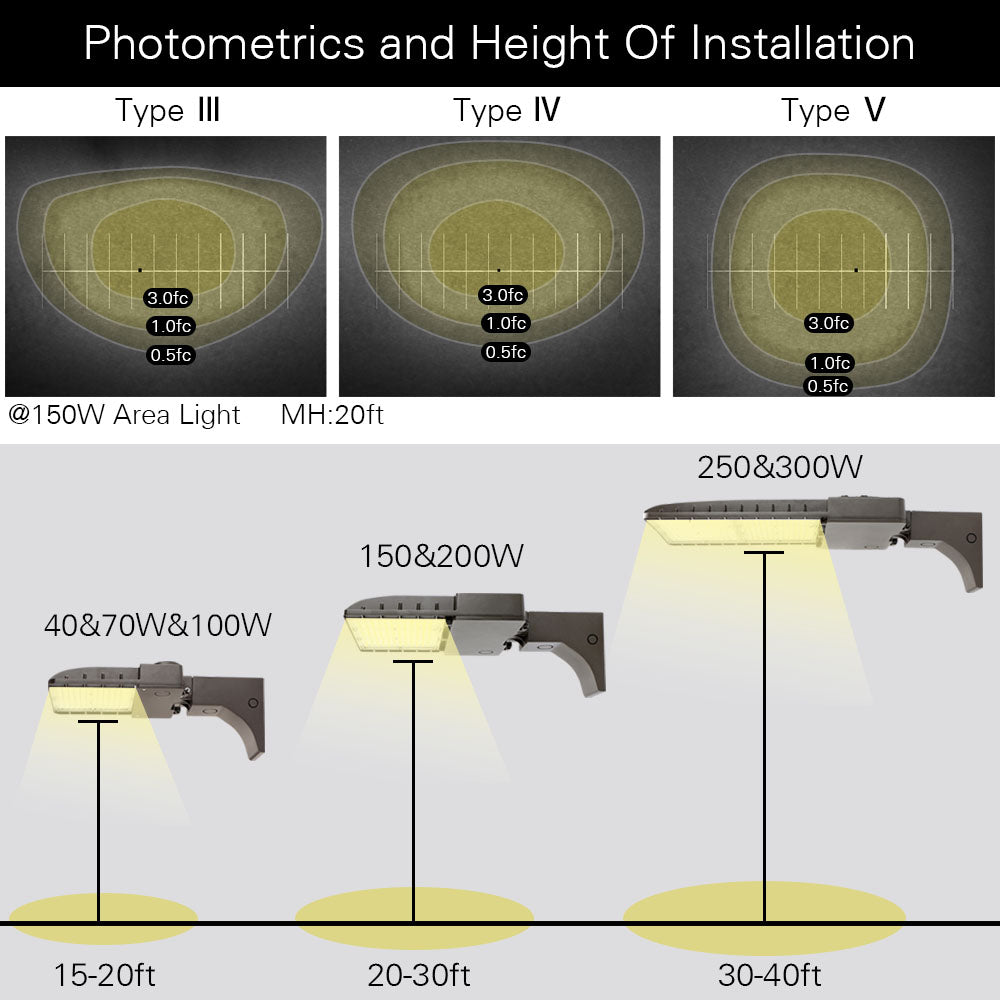

various wattage Konlite led area lights luminaire photometrics and installation heights

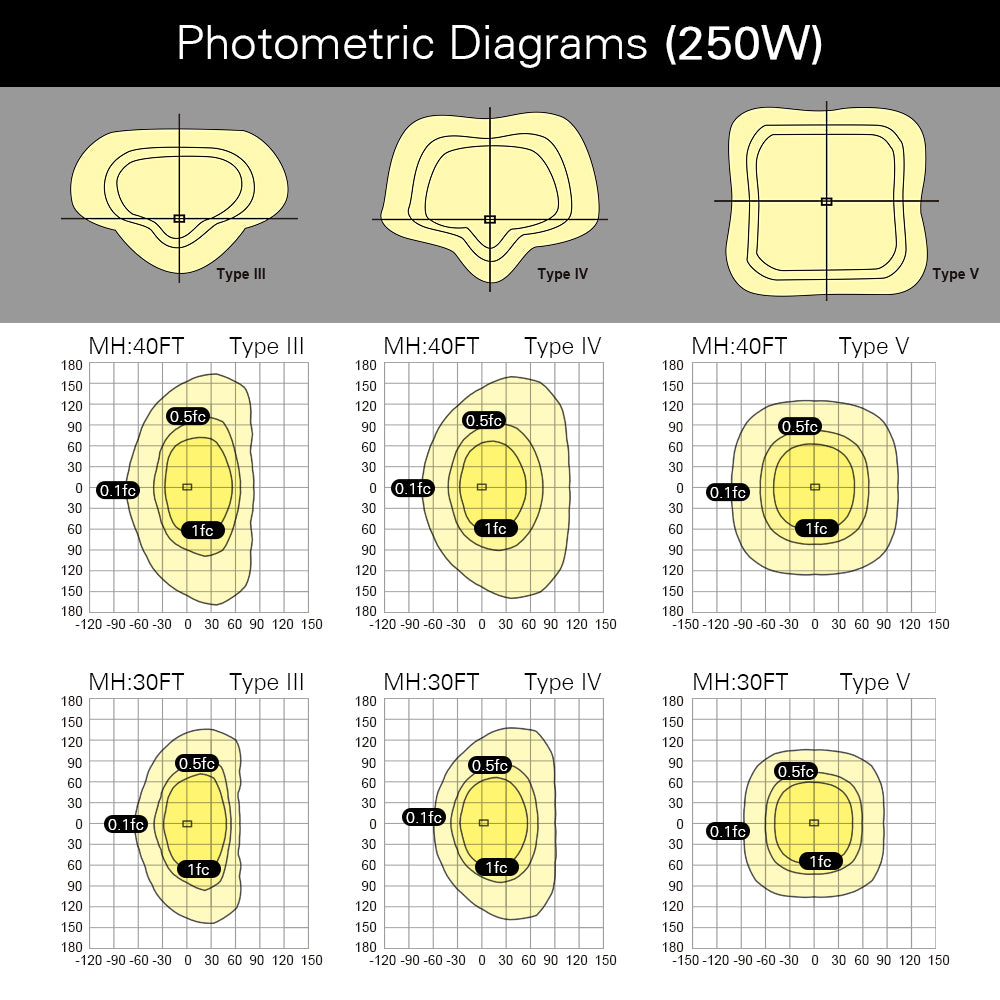

250W LED Area Light Photometric Diagrams

LED parking lot light slipfitter mount installations guides

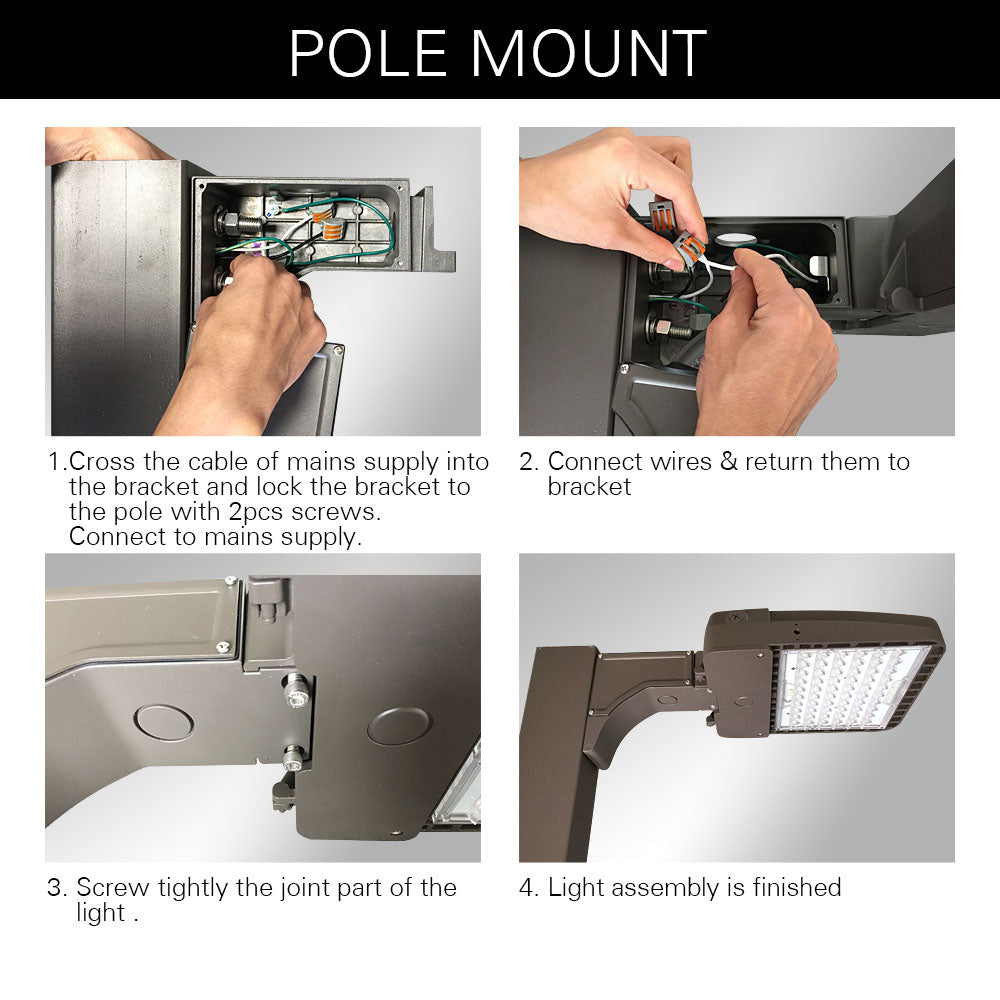

LED parking lot light pole mount installations guides

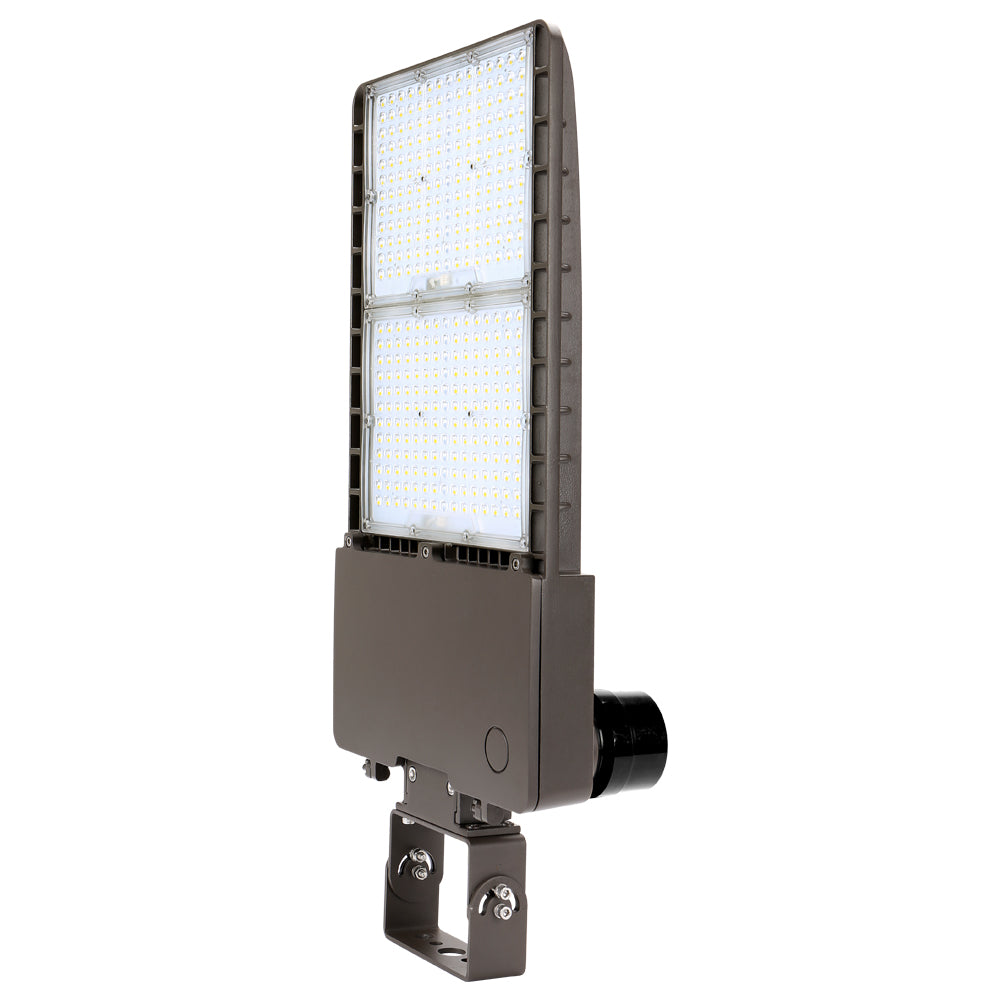

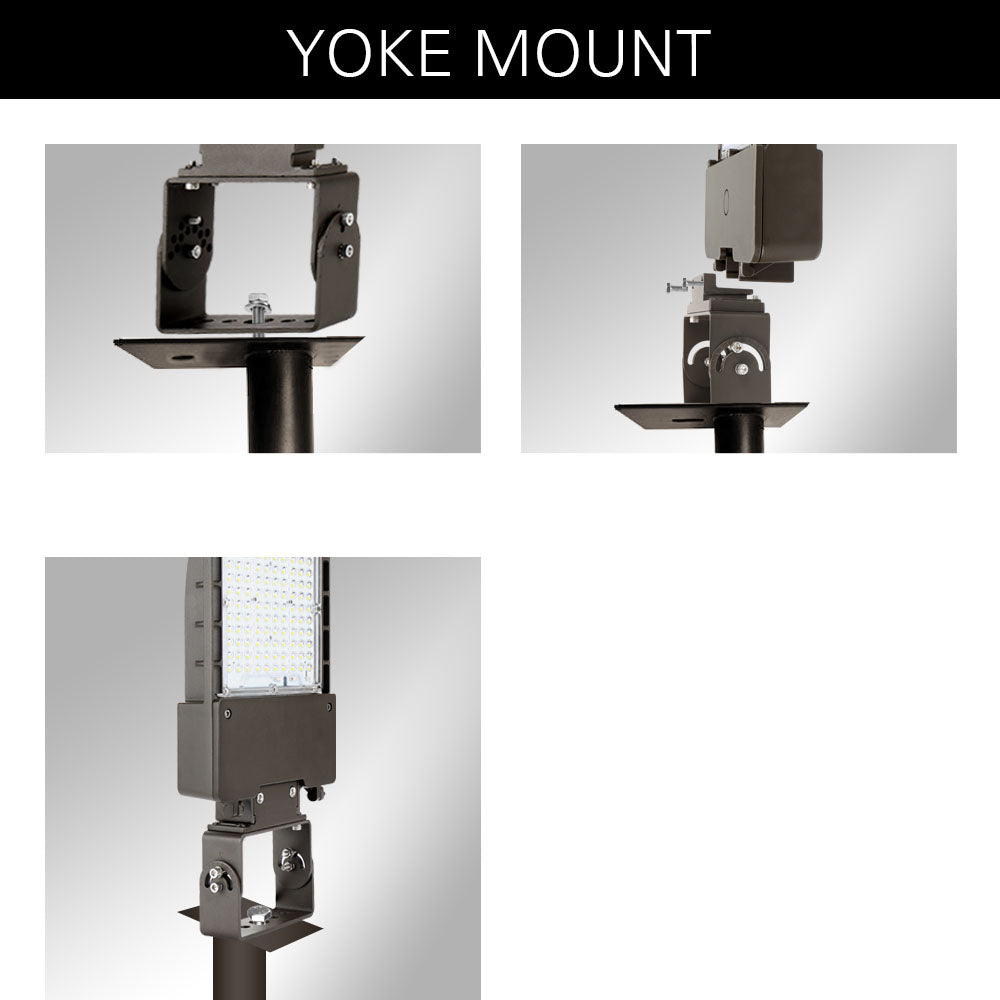

LED parking lot light yoke mount installations guides

mounting brackets for led flood lights including pole mount slipfiiter Trunnion and yoke mounts

ip65 rated led parking lot light with great heat dissipation stands in rain

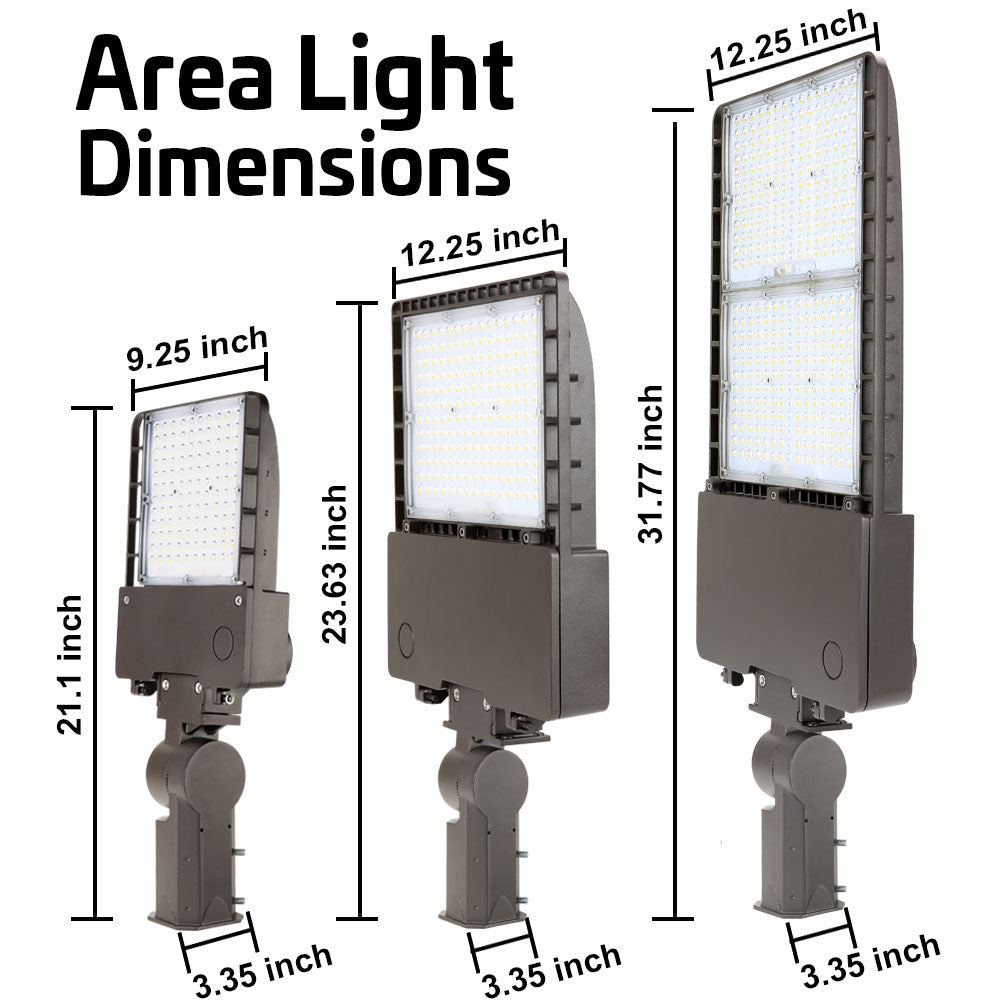

the dimensions of Konlite LED Area light on slipfitters for all sizes

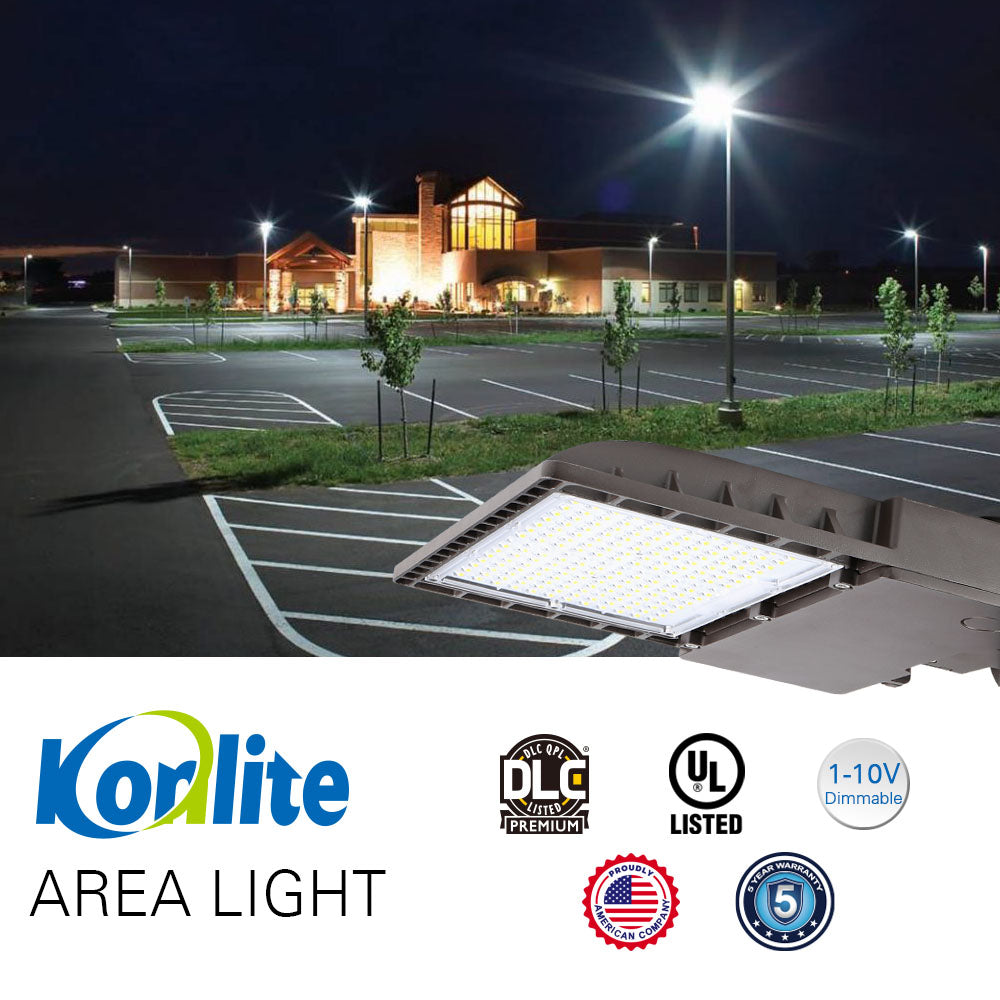

UL and DLC certified Konlite led pole lights illuminate a parting lot of commercial buildings

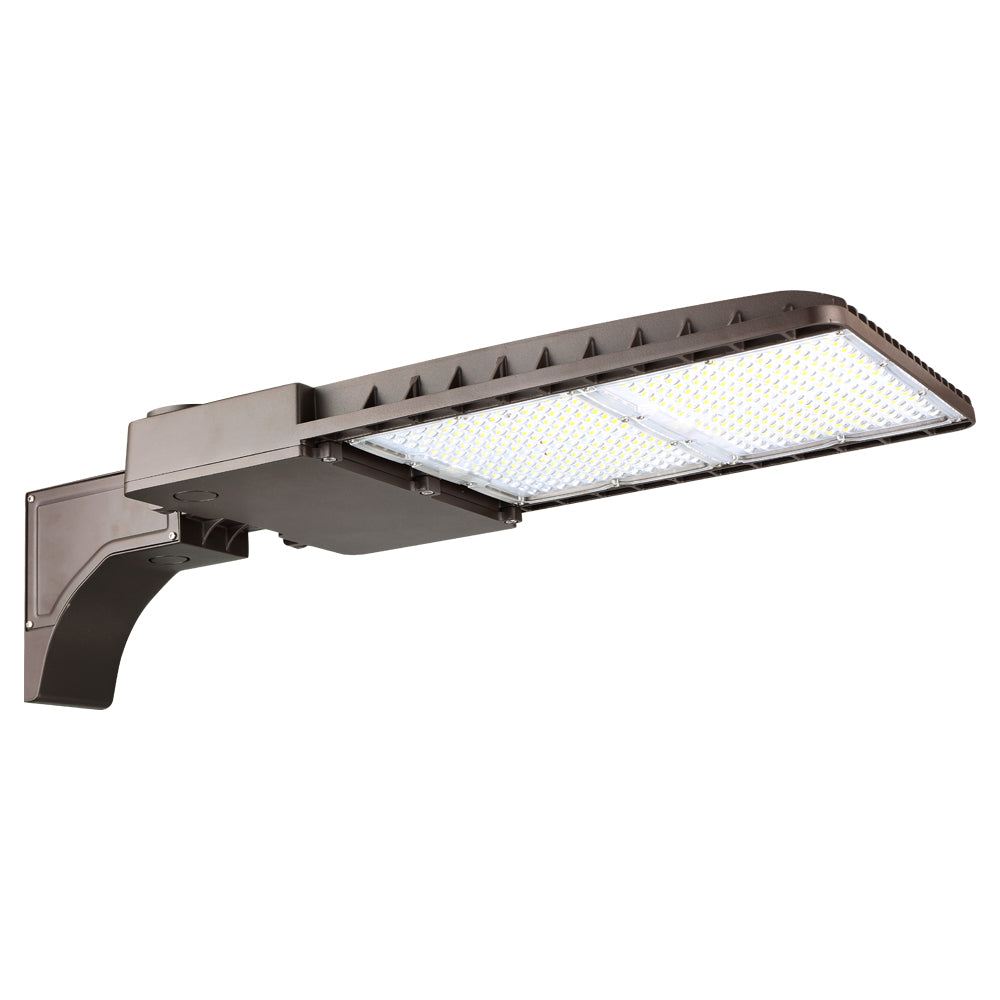

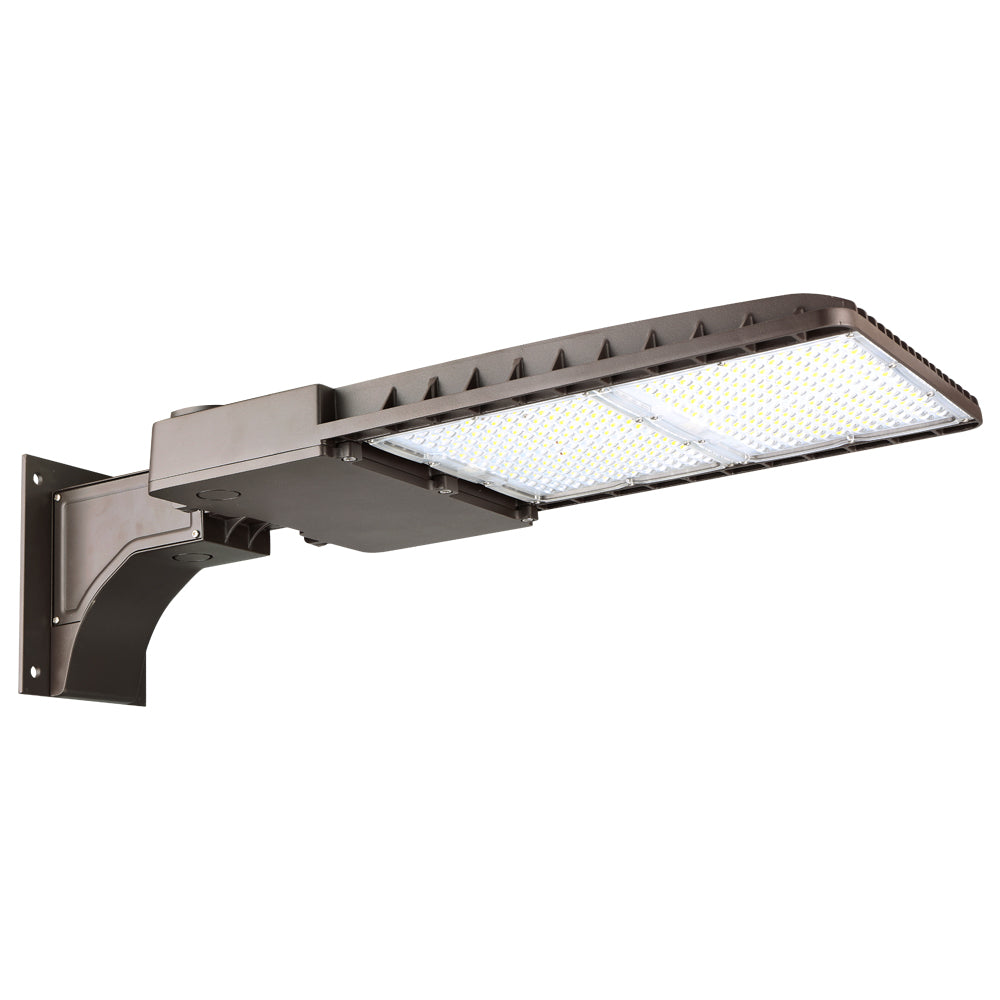

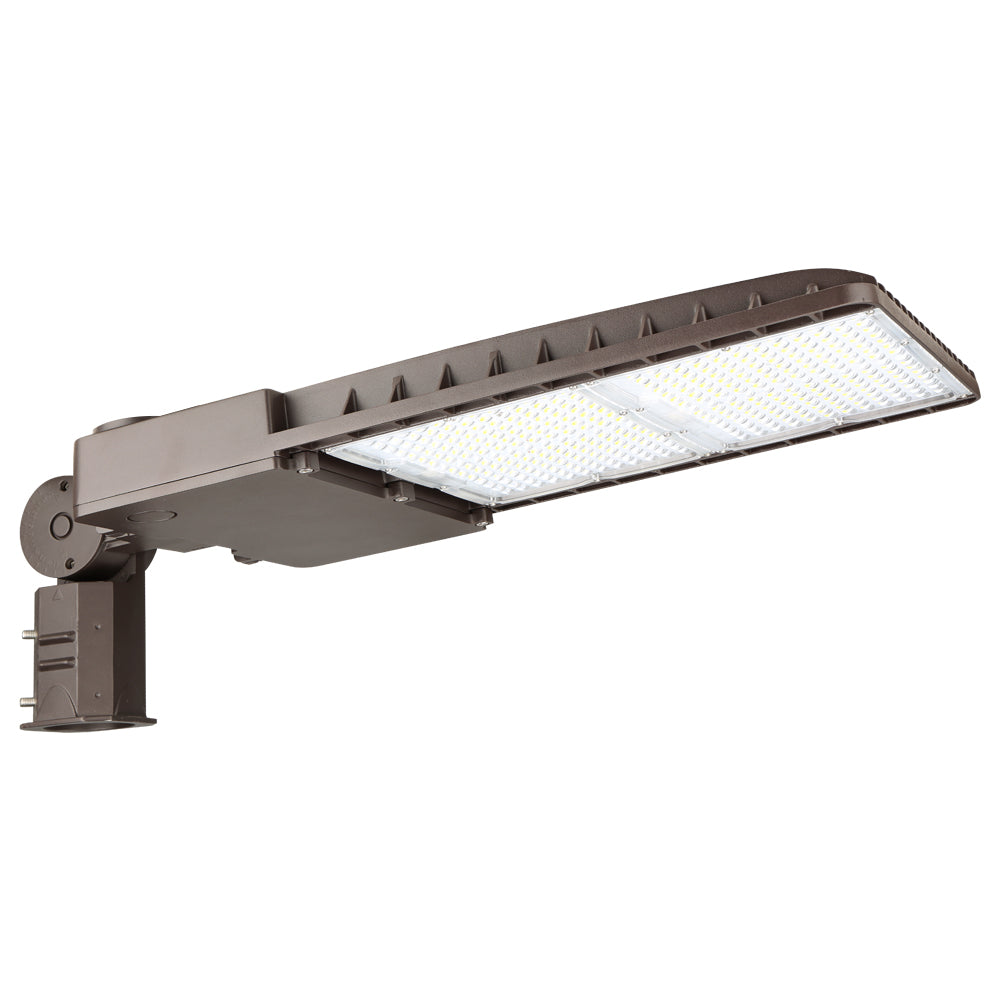

250W Konlite LED Outdoor Parking lot Light

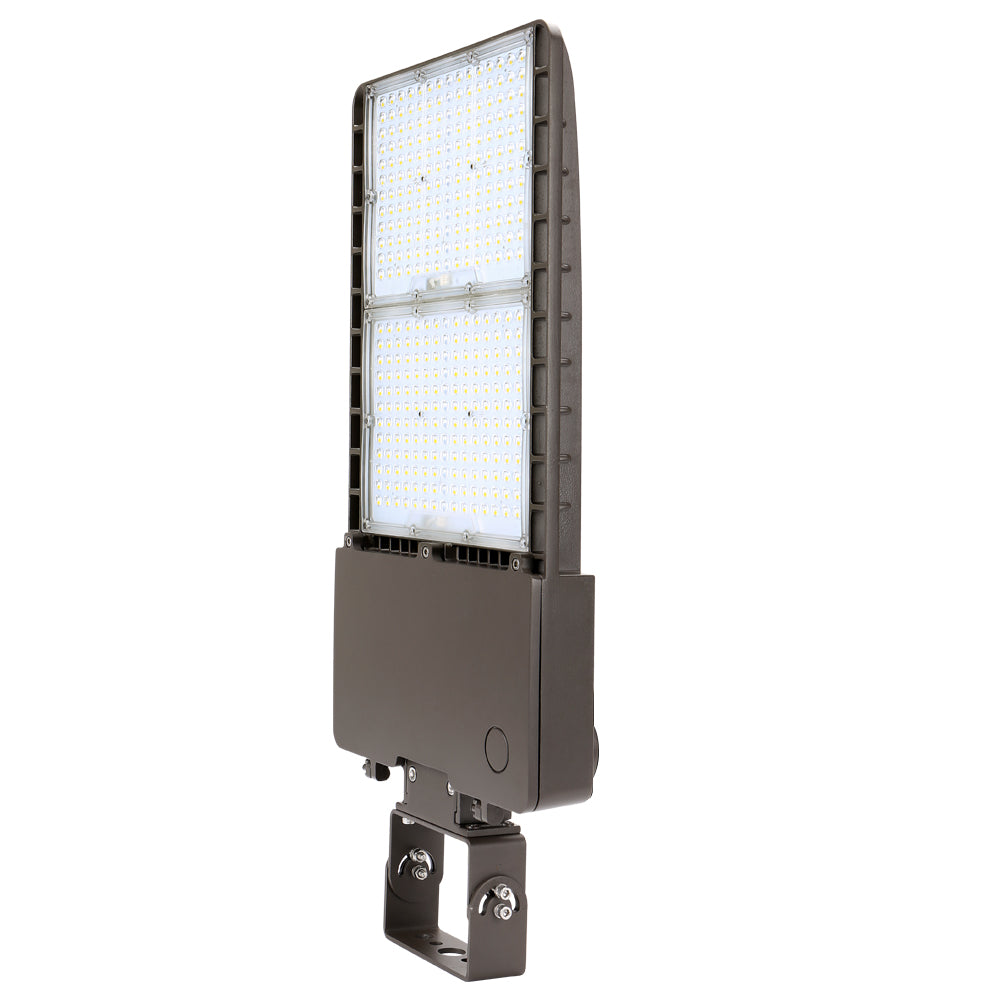

front view of konlite led area light 250w

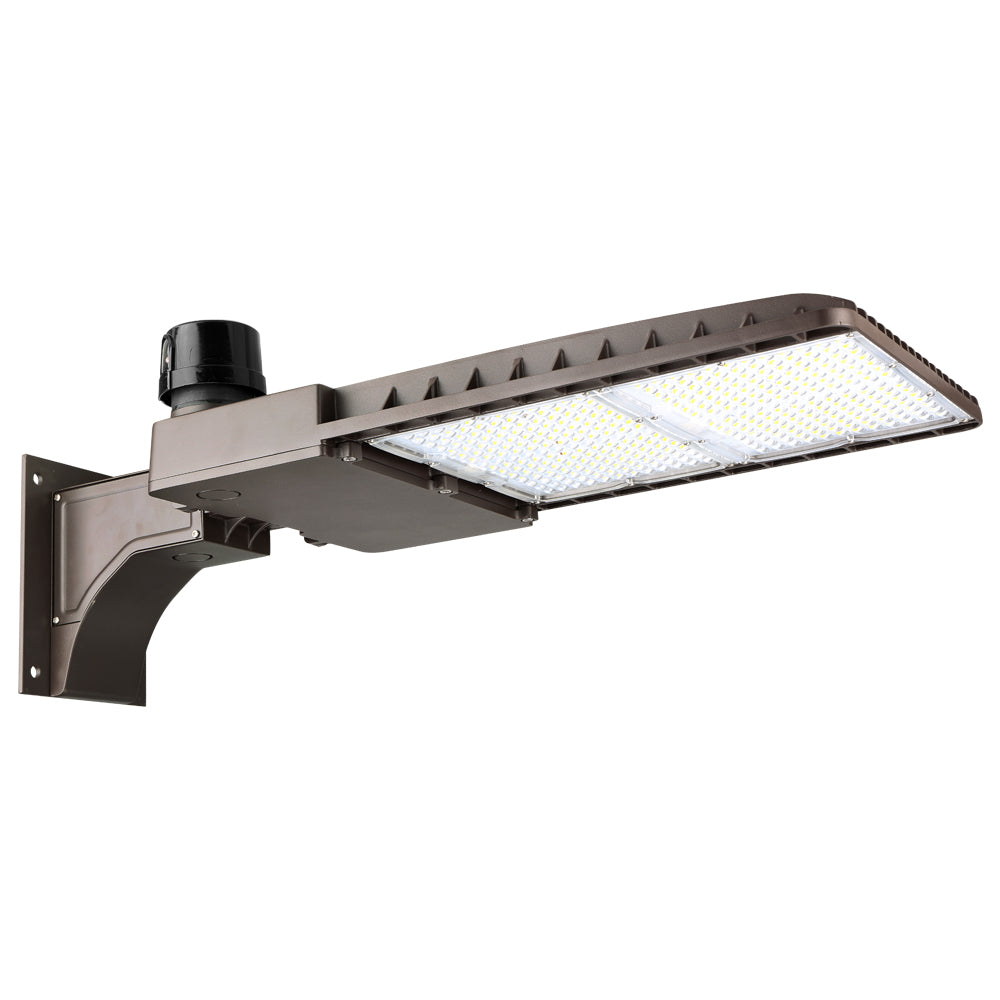

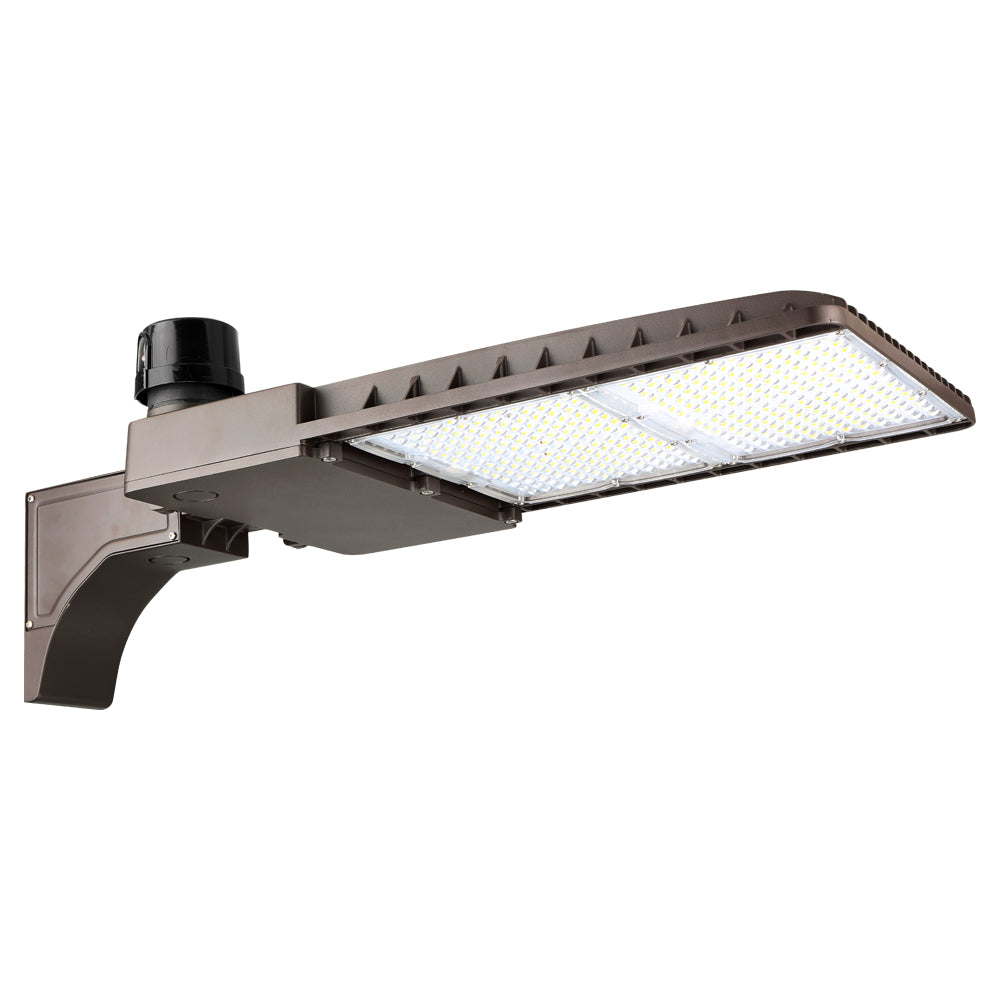

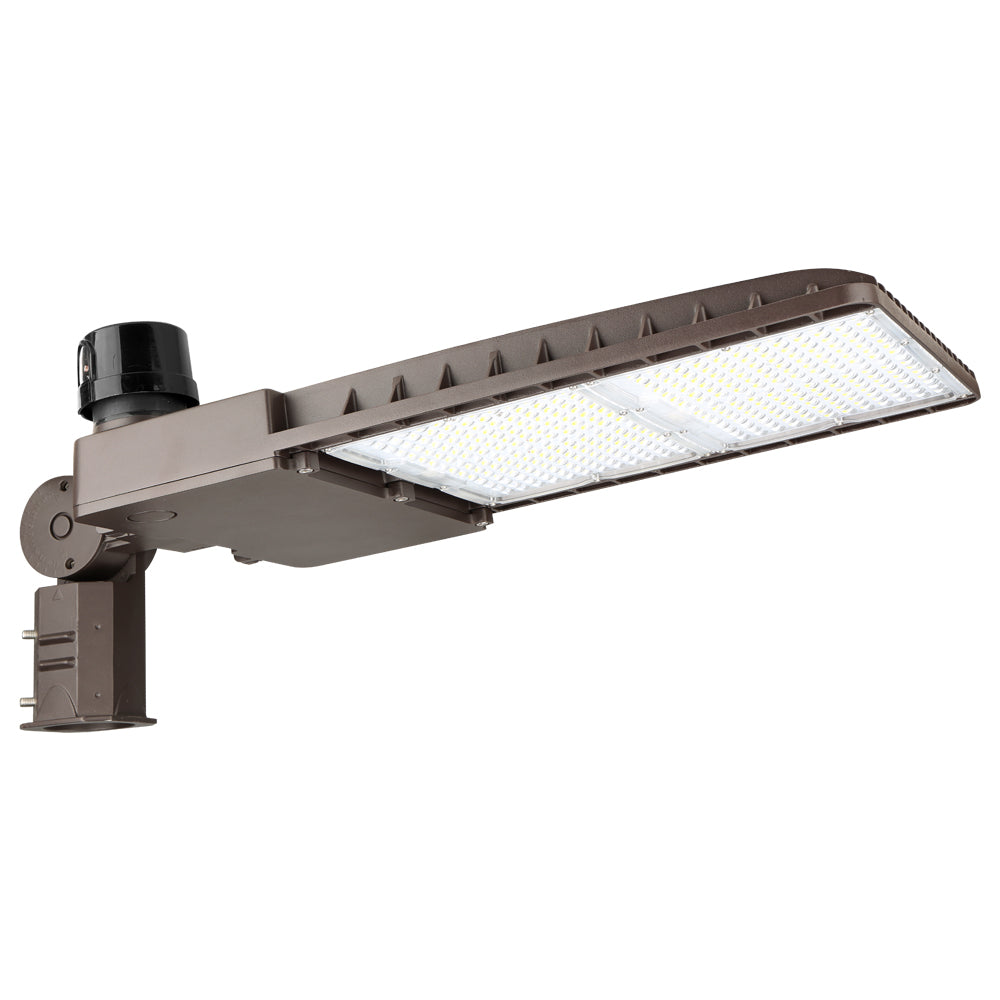

250W Konlite LED Outdoor Parking lot Light with dusk to dawn photocell

Roll over image to zoom in

Konlite LED Area Light - 250W - Type V - 35,250 Lumens - 5000K - 120-277V - 1000W Equal

Name: Konlite LED Area Light - 250W - Type V - 35,250 Lumens - 5000K - 120-277V - 1000W Equal
Brand: Konlite
SKU: RDAL02042505KDNSFL5D
Price: 284.95 USD
Availability: InStock

Product Search Code: 20-0230

KonliteSKU: RDAL02042505KDNSFL5D

$369.95 $284.95

Mounting Options:

Controls:

Variant

Quantity

The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. It can be used as dusk to dawn light with optional photocell. Ideal for parking lot, street, flood and other outdoor area applications.

Designed for easy one person install
Precise optics designed to shape light distribution, maximizing spacing of fixtures
Low Profile 3G vibration and compact design minimizes wind load requirements
100,000 hour lifespan

$369.95 $284.95

Mounting Options:

Controls:

Variant

Quantity

Secured payment methods. Revolve LED never stores nor has access to your card information.
90 days return without restocking fee*.
$199 Free Shipping on eligible products*
Availability: Usually Ships in one to three business days.

Designed for easy one person install
Precise optics designed to shape light distribution, maximizing spacing of fixtures
Low Profile 3G vibration and compact design minimizes wind load requirements
100,000 hour lifespan

What's in the box

1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide

Product Details

Downloads

Reviews

Q&A

1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide

Product Overview

Ensure the safety of your patrons, employees and the security of your premises with the versatile Konlite AL04 Area Light. Eliminate maintenance while reducing 65% energy consumption when replacing outdated Metal Halide - HPS fixtures or using in new construction. With a combination of performance, aesthetics, energy efficiency and light control the Konlite AL04 Area Light can be used as pole lights or surface mounts for parking lot (shoebox), street lights or outdoor security lights (floods).

250 Watts, 35,250 Lumens, 5000K, Type III Beam Distribution, Optional Dusk to Dawn Photocell, 120-277V

Built to last and withstand harsh elements, the AL04 stylish housing offers separation between the LEDs, the driver circuitry and larger heat sink allowing for longer operating life. Compact and lightweight design with low EPA, 3G rated for vibration. Corrosion resistant, die-cast aluminum housing with powder coat paint finish. The visual comfort optics create a larger luminous surface area resulting in a low glare appearance.

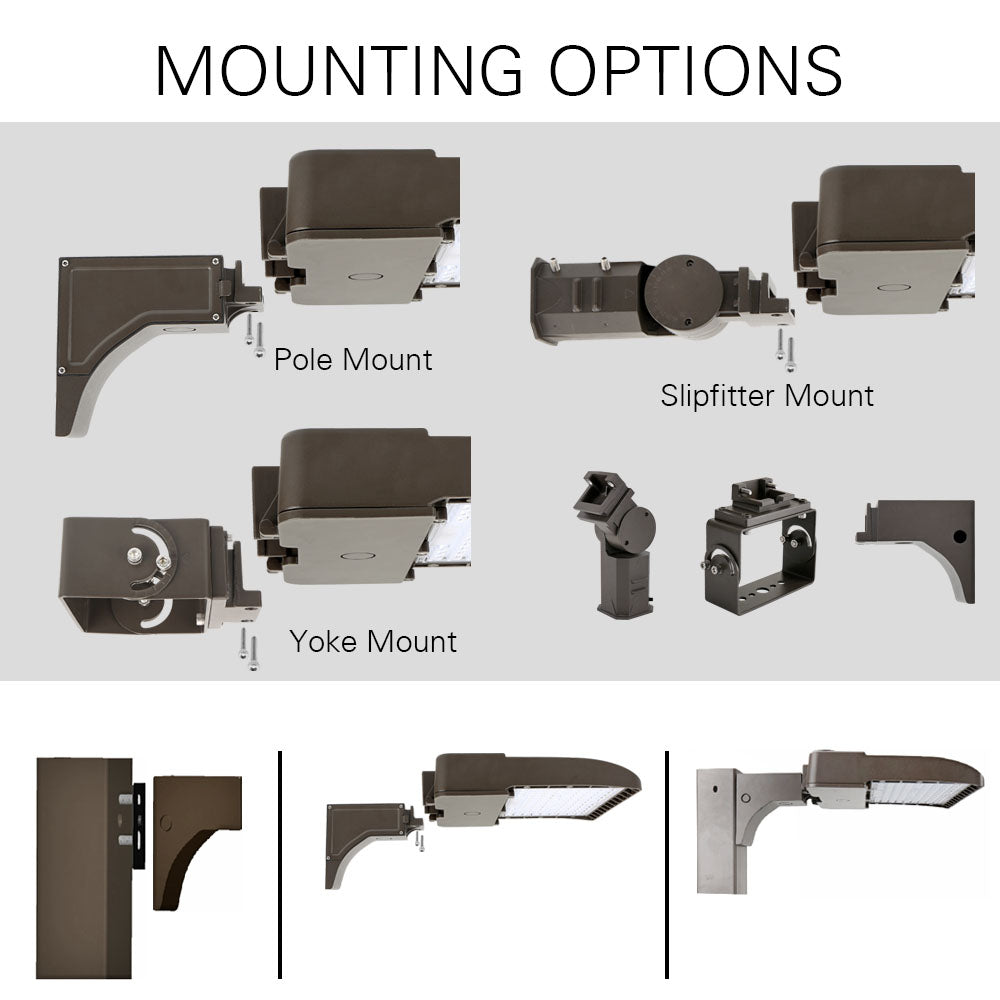

Mounting Options: Extrusion Arm for Round or Square Pole, Slipfitter, Trunnion/Yoke or Wall Mount

UL, DLC for eligible Rebates, 100,000 hour lifespan L70, 5-year warranty

Performance:

Brand	Konlite	MPN	RDAL02042505KDNSFL5D
Warranty	Limited 5 Years	UPC	717360770404
Input Voltage	120-277V	Optical	Type V
Input Wattage	250W	Equal to	1000W MH
Delivered Lumens	35,250	CRI	>70
Efficacy	141 LM/W	Available CCT	5000K
Rated Life	>100,000 hrs	THD	<20%
Power Factor	>0.9	IP Rating	IP65
Dimmable	No	Controls	N/A
Operating Temperature	-40 F to 113 F	Dimensions	See Specifications
Certifications	UL, Wet Locations, DLC Premium	Weight	16.39 lbs
