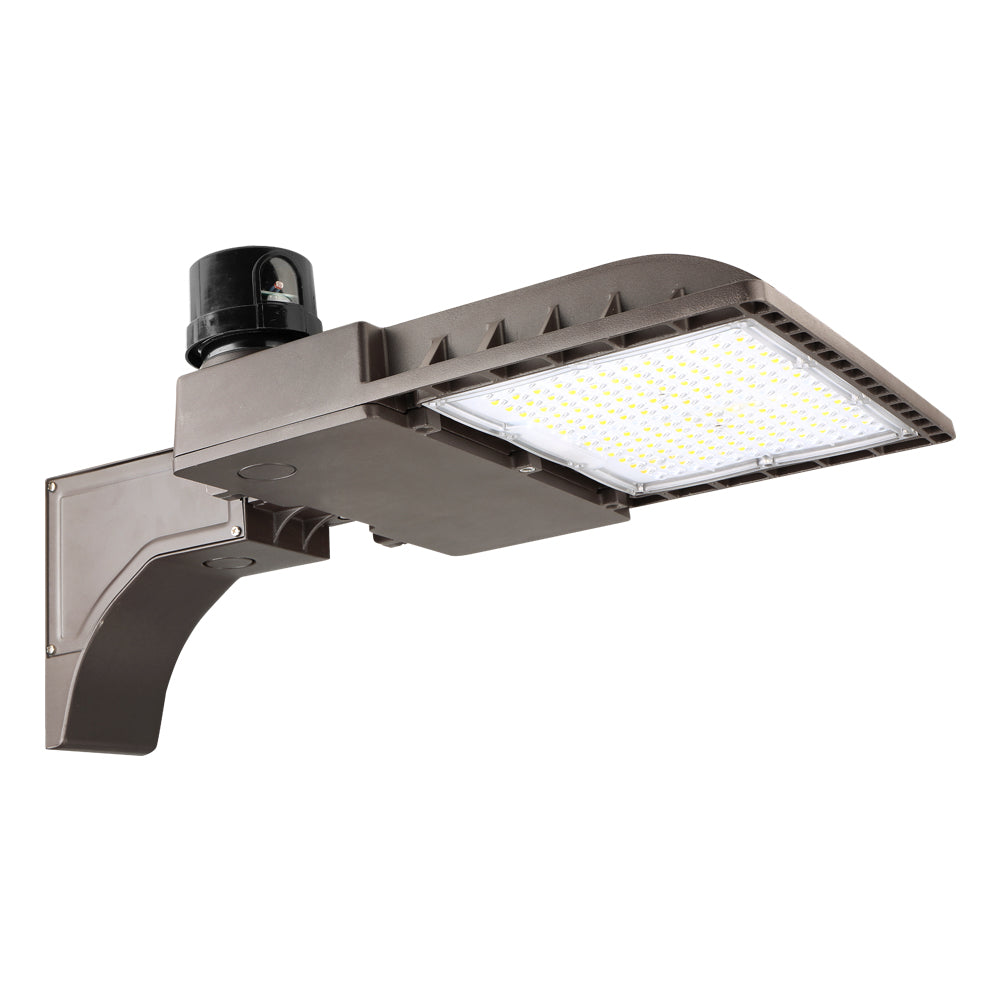

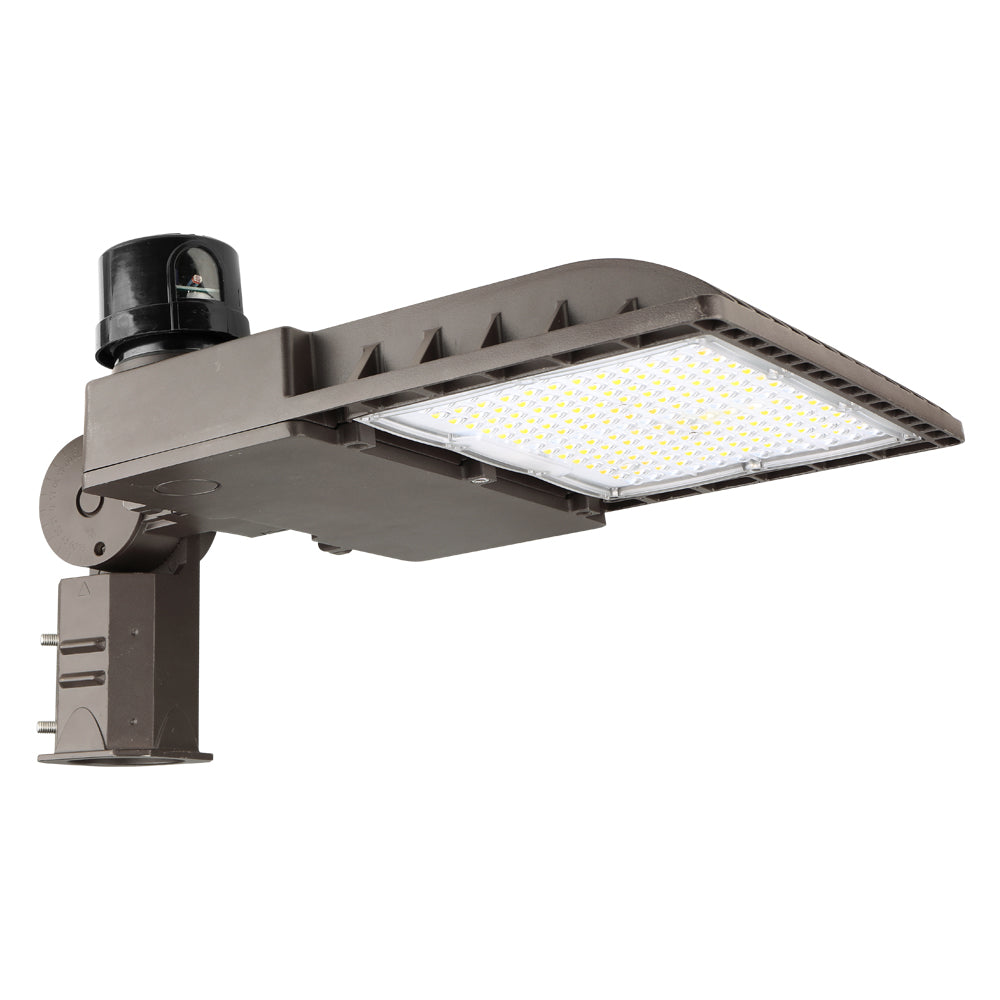

Konlite LED Area Light - 200W - Type III - 120-277V - 26000 Lumens - 5000K - 600W Equal

Product Search Code: 20-0215
KonliteSKU: RDAL02042005KDNSFL3D

The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. It can be used as dusk to dawn light with optional photocell. Ideal for parking lot, street, flood and other outdoor area applications.

  • Designed for easy one person install
  • Precise optics designed to shape light distribution, maximizing spacing of fixtures
  • Low Profile 3G vibration and compact design minimizes wind load requirements
  • 100,000 hour lifespan
$228.95


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

What's in the box

1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide

The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. It can be used as dusk to dawn light with optional photocell. Ideal for parking lot, street, flood and other outdoor area applications.

  • Designed for easy one person install
  • Precise optics designed to shape light distribution, maximizing spacing of fixtures
  • Low Profile 3G vibration and compact design minimizes wind load requirements
  • 100,000 hour lifespan

What's in the box

1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A

Product Overview

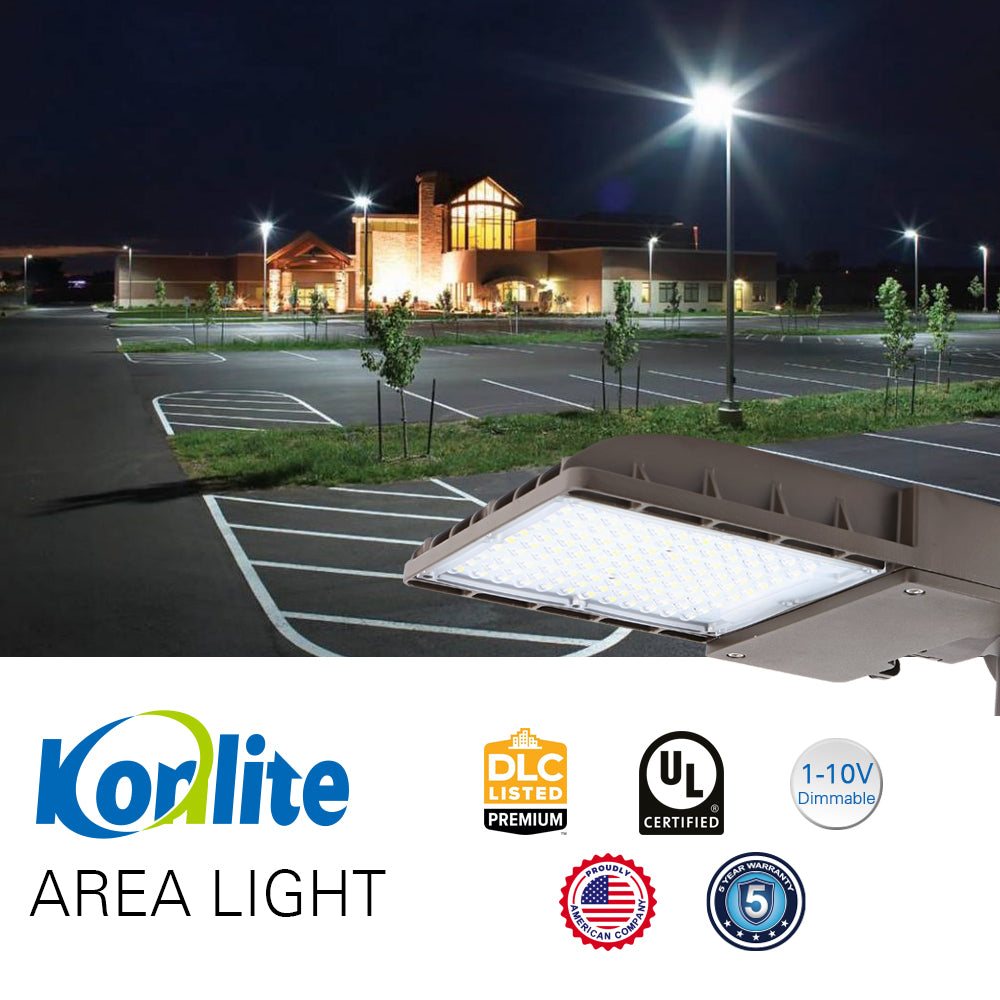

Ensure the safety of your patrons, employees and the security of your premises with the versatile Konlite AL04 Area Light.  Eliminate maintenance while reducing 65% energy consumption when replacing outdated Metal Halide - HPS fixtures or using in new construction. With a combination of performance, aesthetics, energy efficiency and light control the Konlite AL04 Area Light can be used as pole lights or surface mounts for parking lot (shoebox), street lights or outdoor security lights (floods).

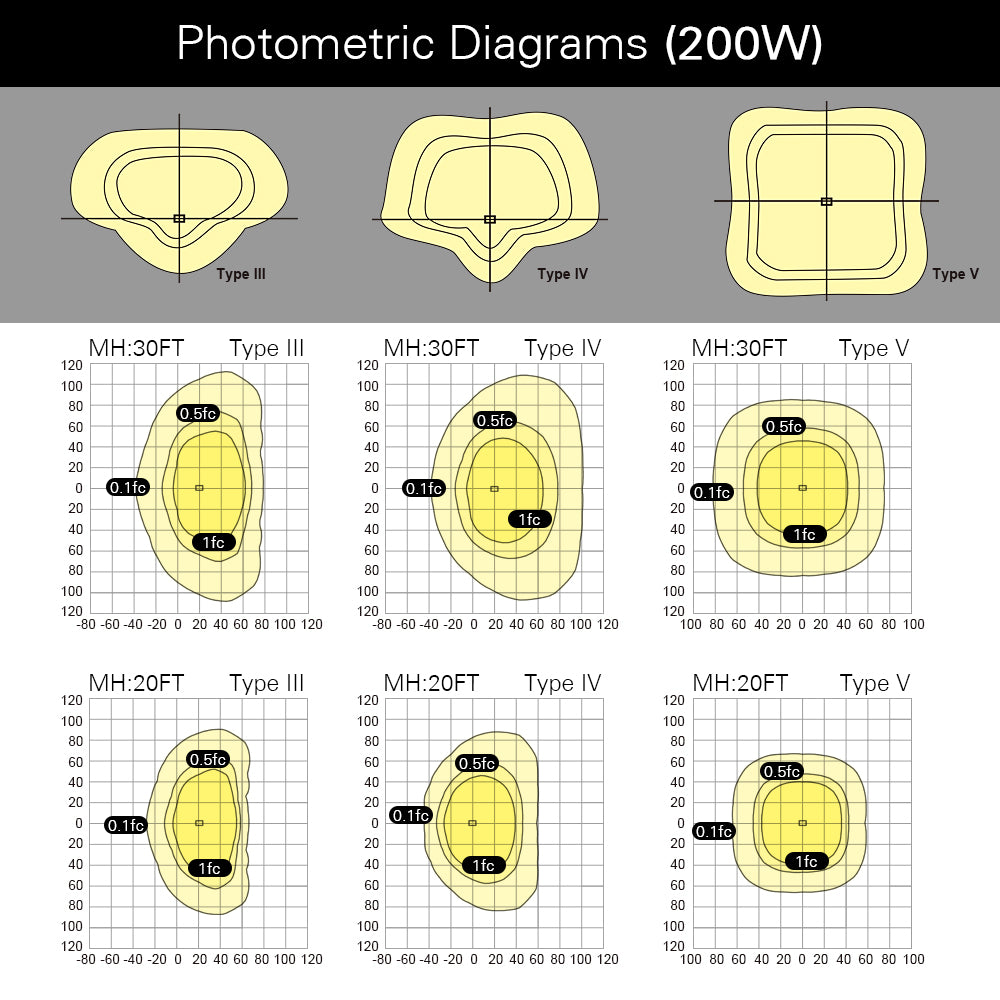

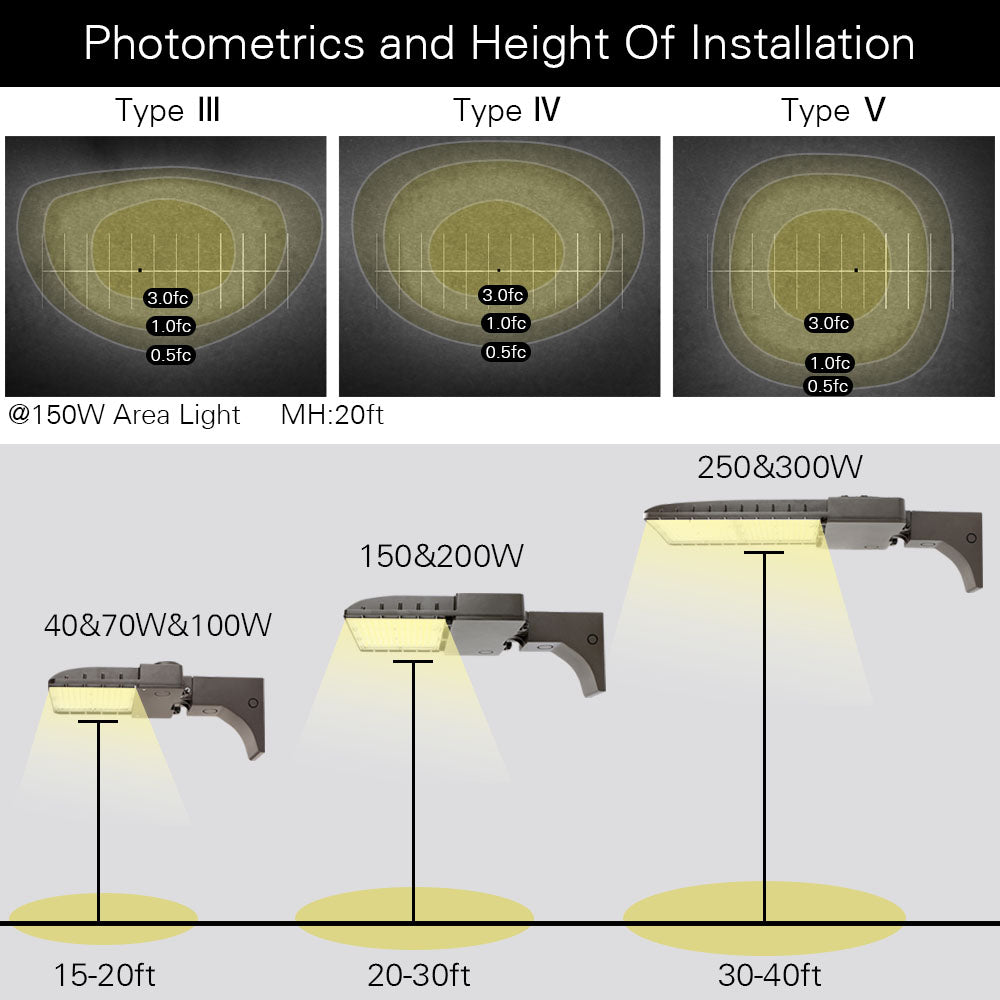

200 watt, 26,000 Lumens, 5000K, Type III Beam Distribution, Optional Dusk to Dawn Photocell, 120-277V

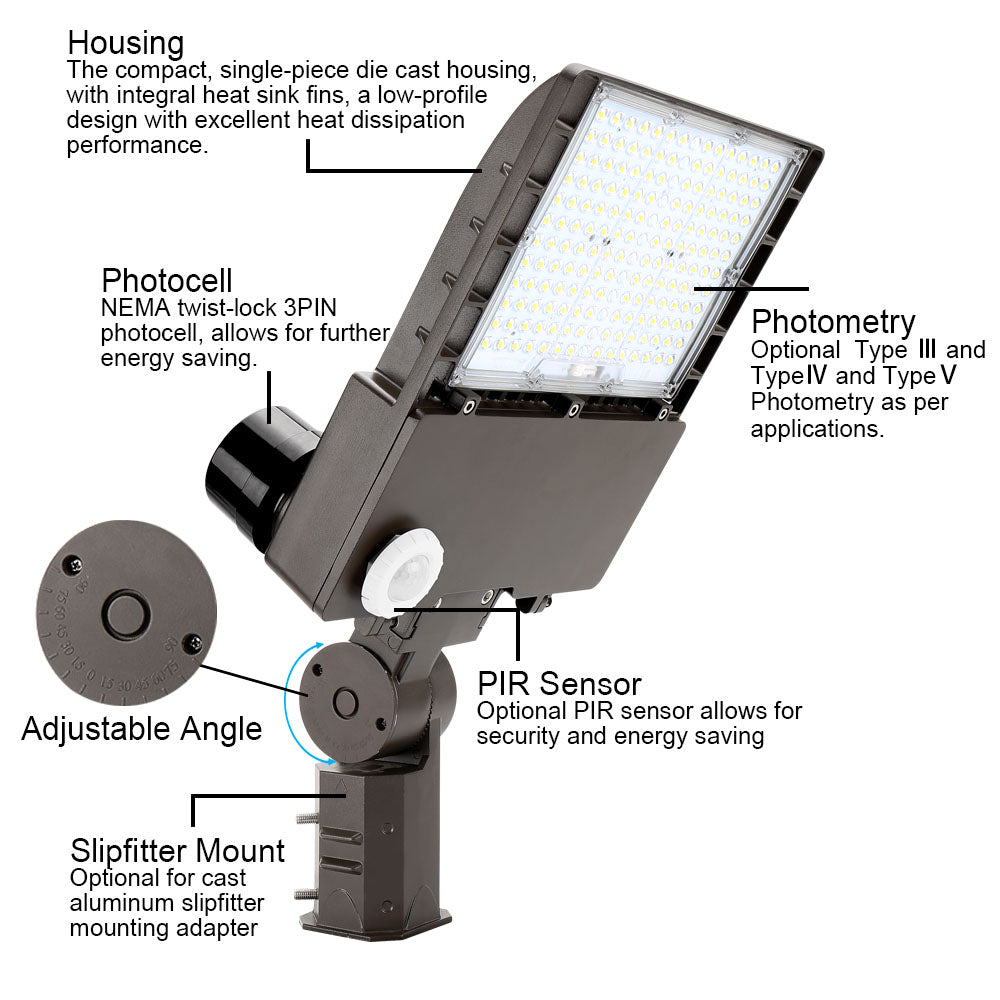

Built to last and withstand harsh elements, the AL04 stylish housing offers separation between the LEDs, the driver circuitry and larger heat sink allowing for longer operating life. Compact and lightweight design with low EPA, 3G rated for vibration. Corrosion resistant, die-cast aluminum housing with powder coat paint finish. The visual comfort optics create a larger luminous surface area resulting in a low glare appearance.

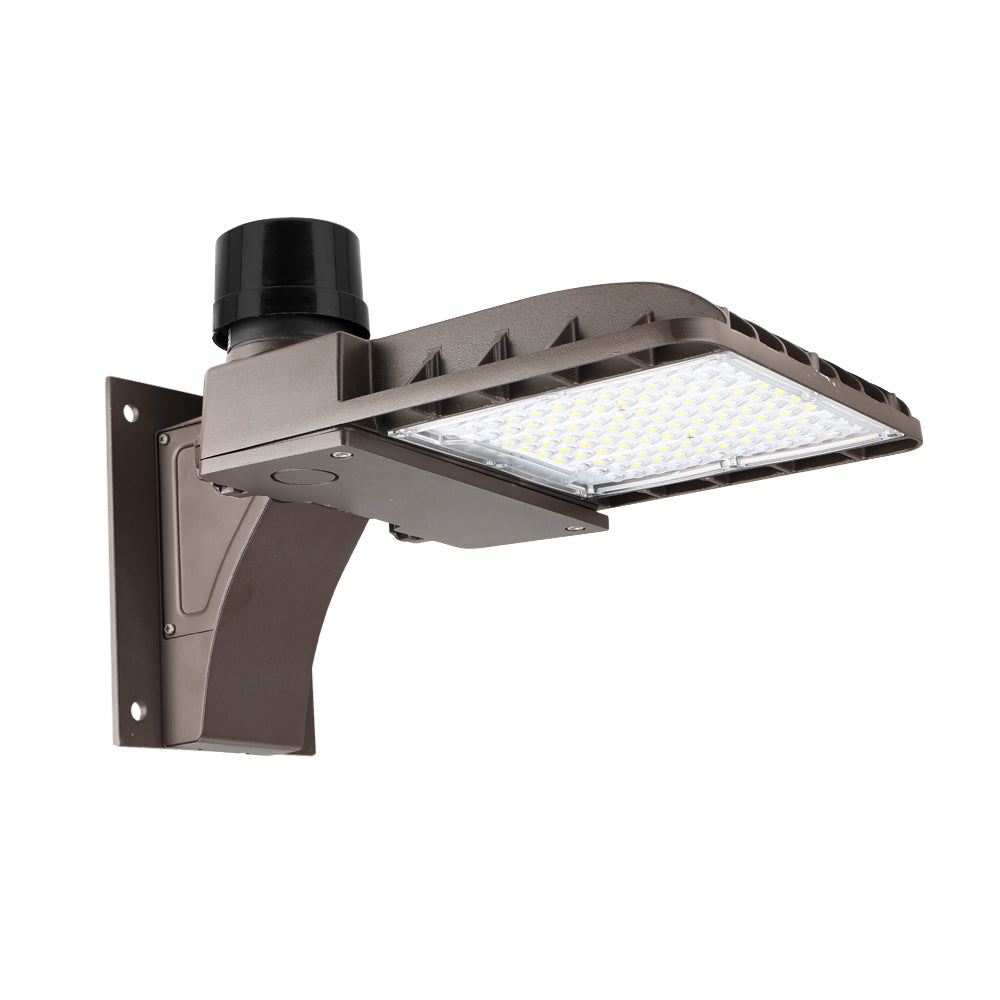

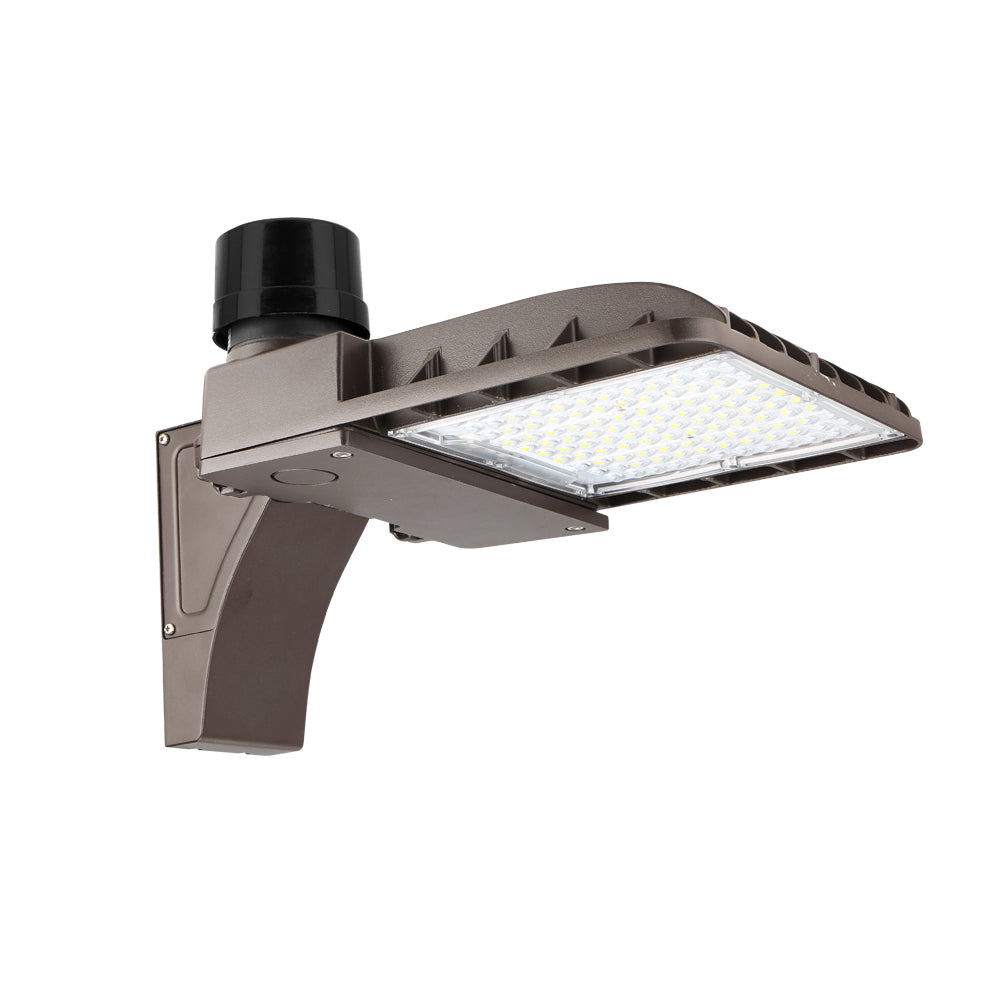

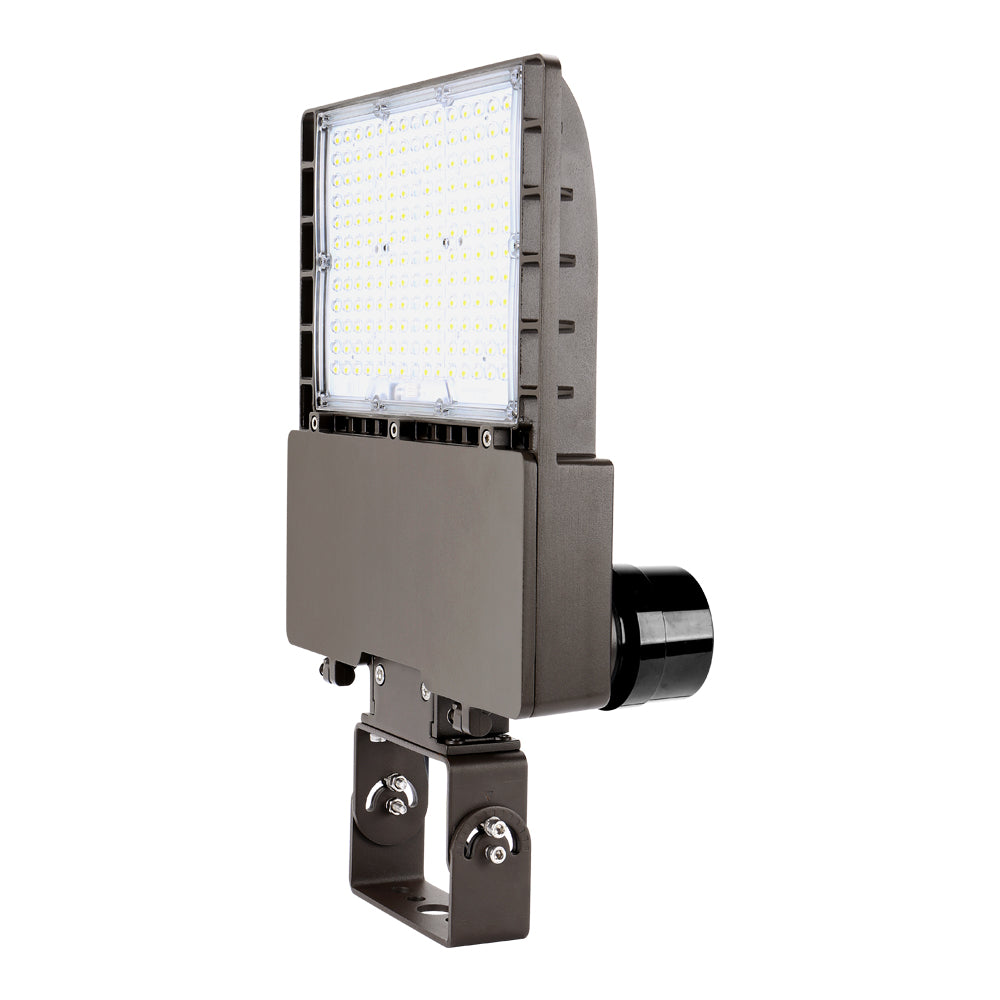

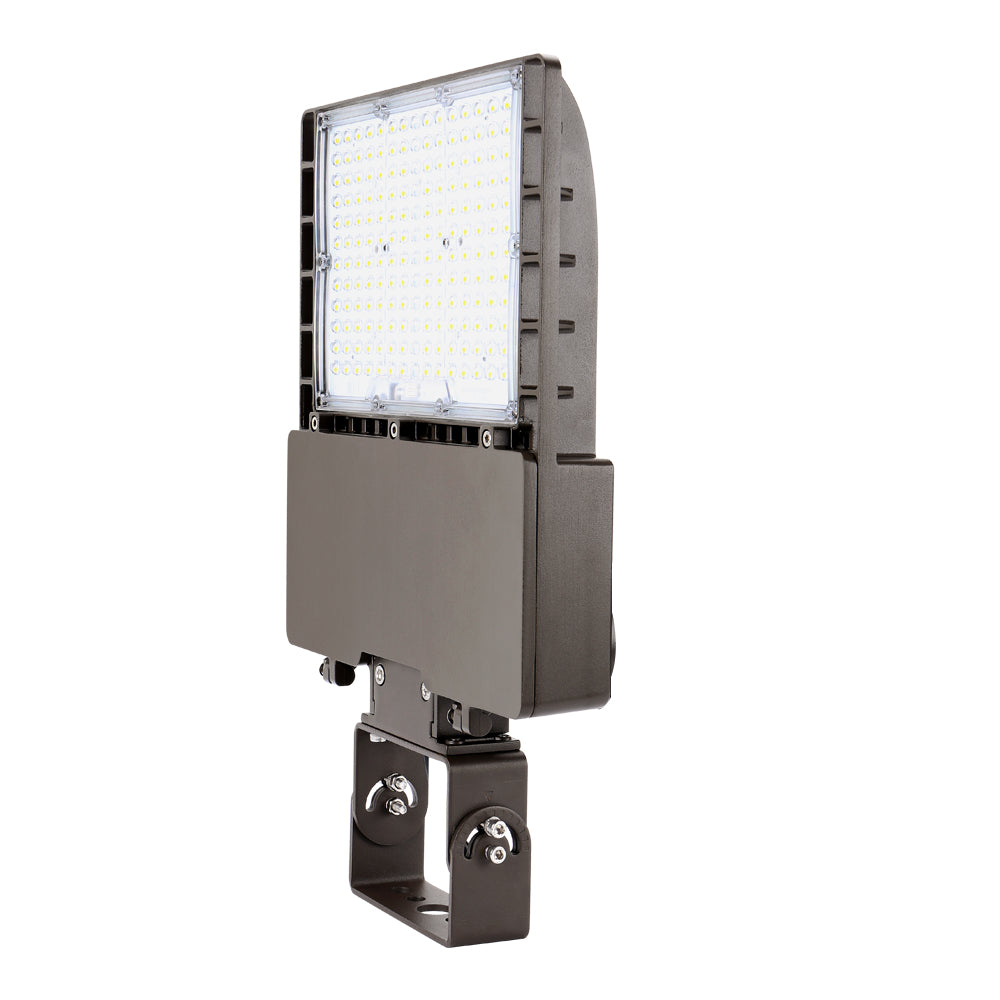

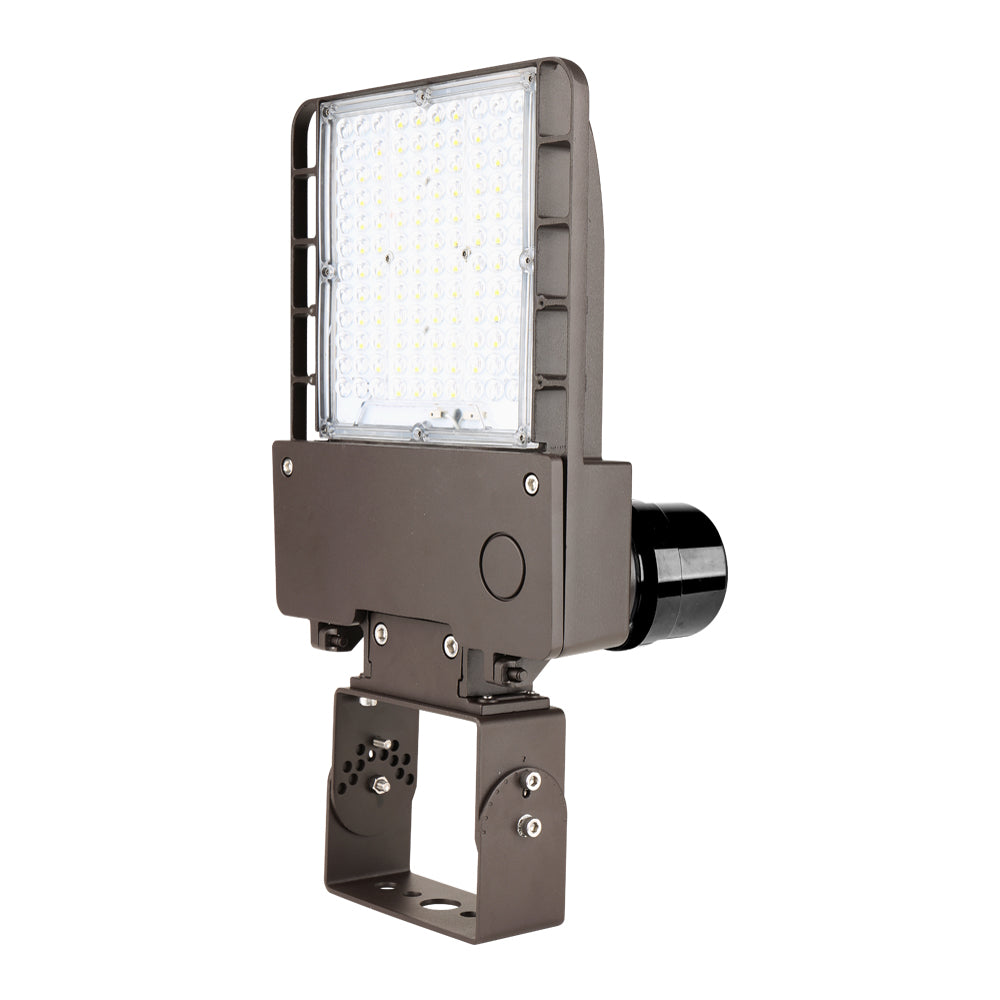

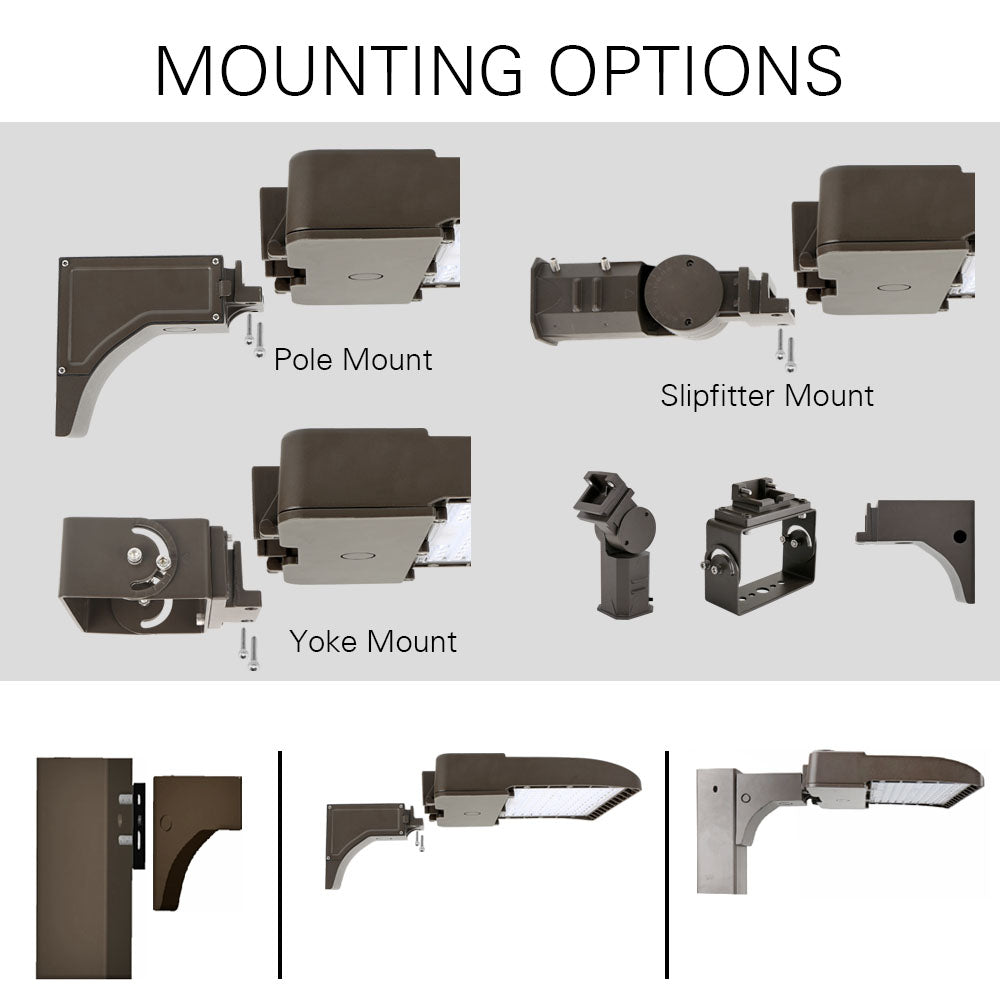

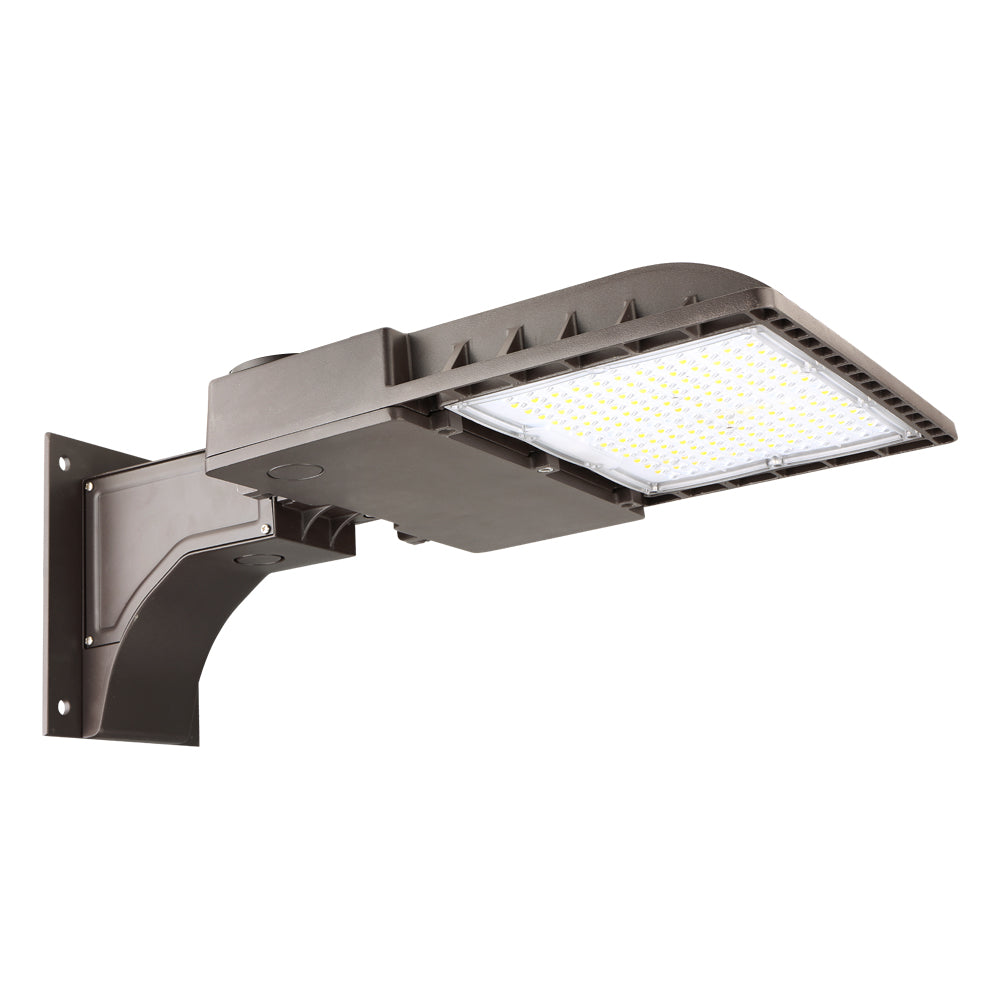

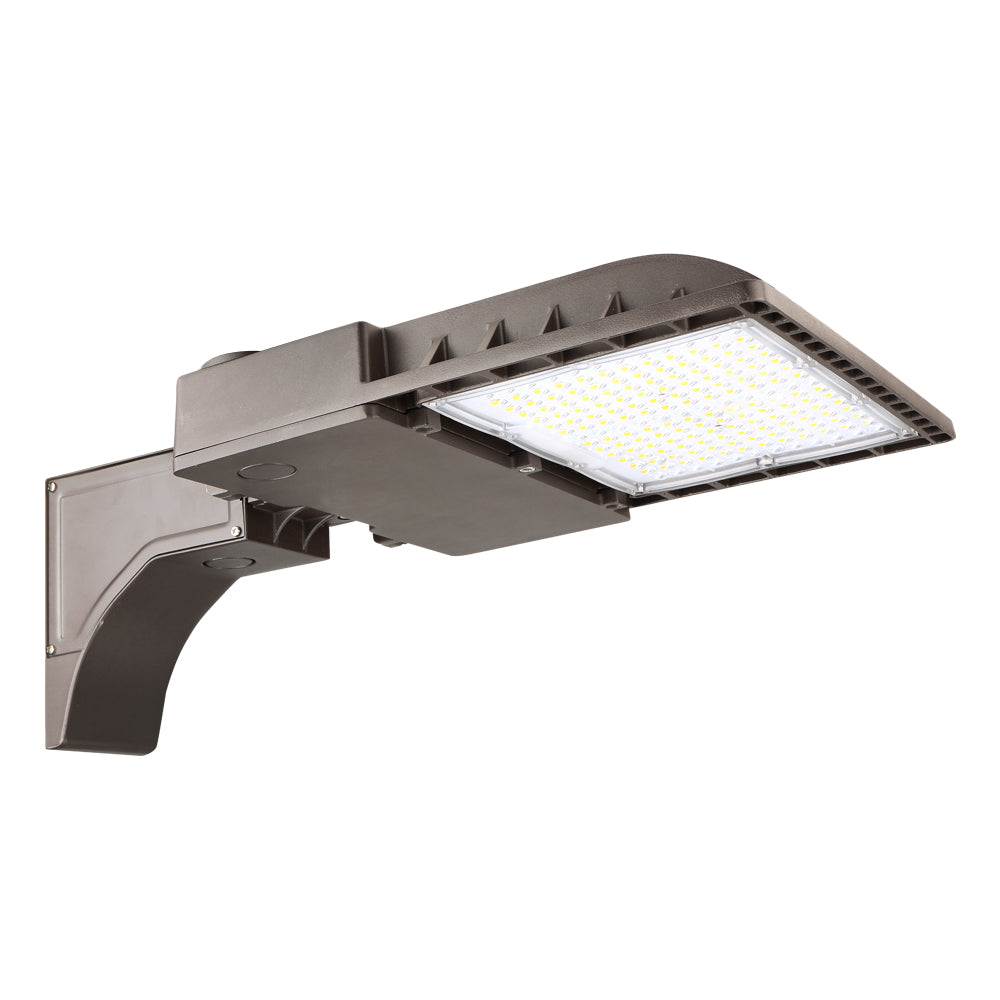

Mounting Options: Extrusion Arm for Round or Square Pole, Slipfitter, Trunnion/Yoke or Wall Mount

UL, DLC for eligible Rebates, 100,000 hour lifespan L70, 7 year warranty

See similar 100-watt, 150-watt, 250-watt, 300-watt and other wattage versions.

Applications

•Area Lighting •Parking Lots
•Streets

•Building Façade

•Storage Facilities •Underpasses & Tunnel
•Boat Docks & Marinas • Billboards
•Warehouses •Metal Buildings
•Roadways & Pathways •Security Lighting
•Sports Complex •Schools & Universities
•Parks •Car Dealerships
Color Temperature5000K color temperature
Certifications
US company7 years warrantyUL listed1-10V dimmableRoHS compliance FCC certificationIP65 rating

Performance:

BrandKonliteDLC Part #MAL04200W27V50KXXXXT3
WarrantyLimited 7 YearsUPC752480729833
Input Voltage120-277VOpticalType III
Input Wattage200WEqual to600W
Delivered Lumens26,000CRI>70
Efficacy130 LM/WAvailable CCT4000K/5000K
Rated Life>100,000 hrsTHD<20%
Power Factor>0.9IP RatingIP65
DimmableNoControlsDusk to Dawn Photocell

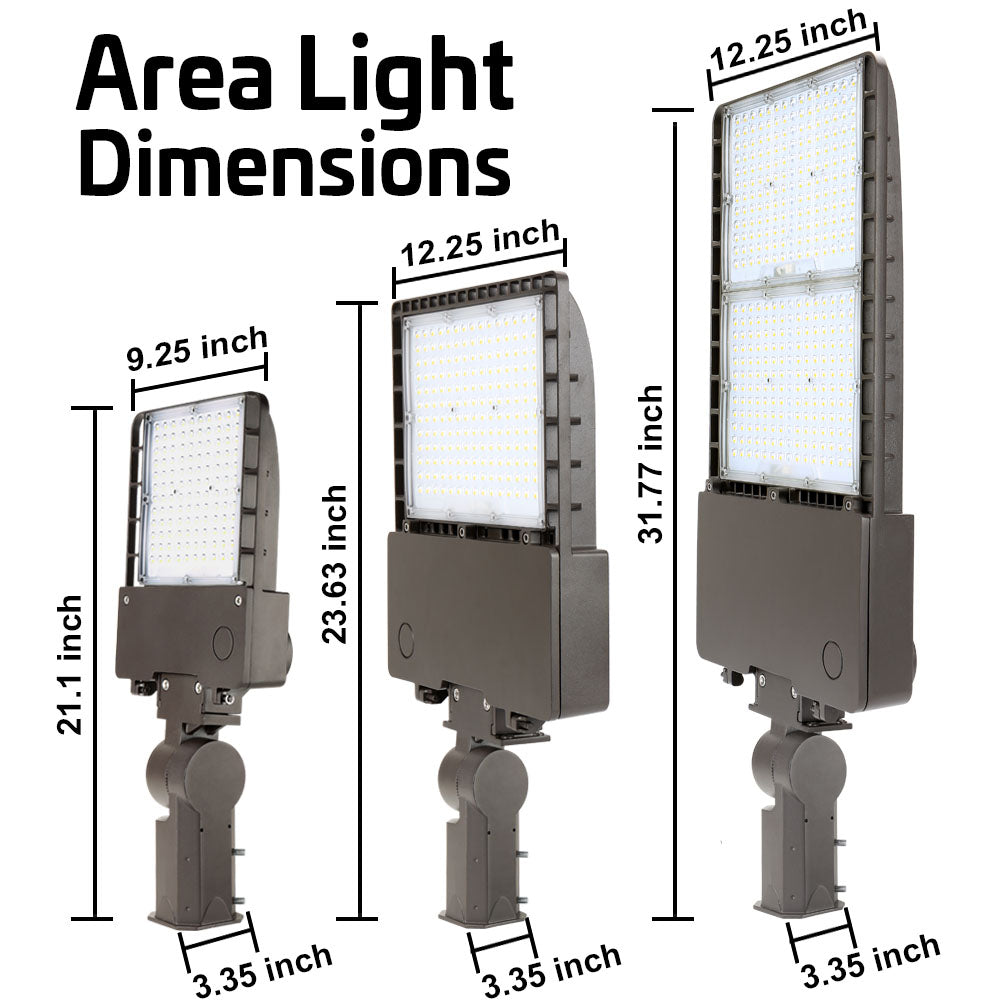

Operating Temperature-40 F to 113 FDimensionsSee Specifications
CertificationsUL, Wet Locations, DLC PremiumWeight11.72 lbs
