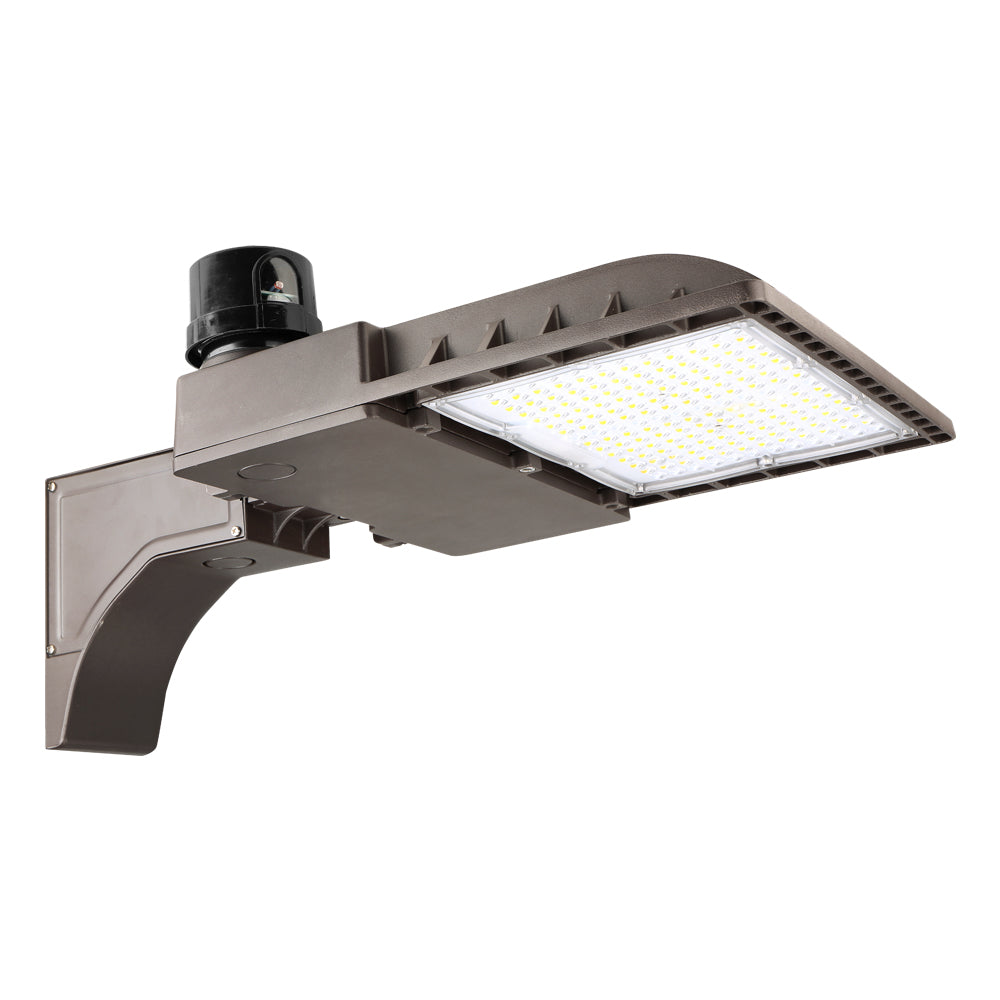

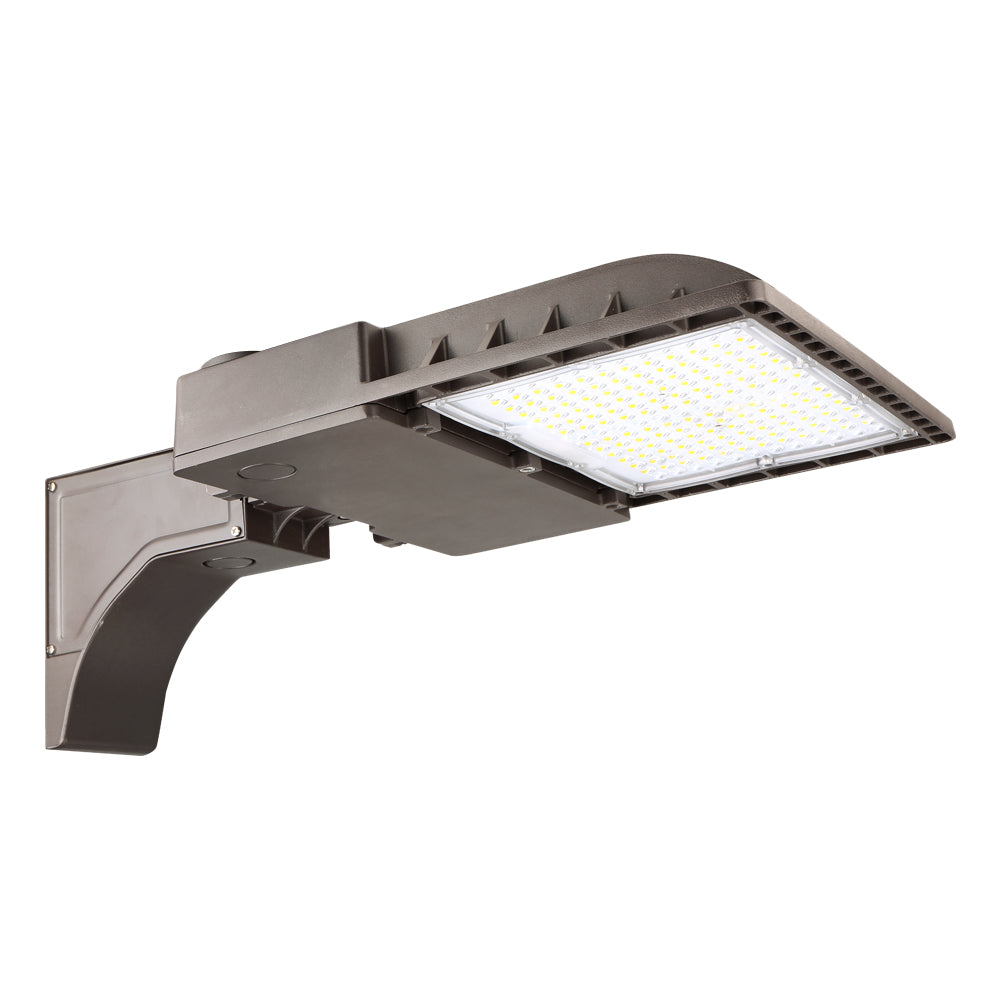

Konlite LED Area Light - 200W - Type V - 26,000 Lumens - 5000K - 120-277V - 750W Equal

Konlite SKU: RDAL02042005KDNSFL5D SEARCH CODE: 20-0216
    • Replaces 750W Metal Halide Light
    • Price Includes One Mounting Bracket
    • Input Voltage: 120-277V
    • 5000K Daylight White
    • 100,000 hours lifespan
    • Distribution: Type 5
    • Certificates: UL, DLC 5.1 Premium
    • 5-Year Warranty
Sale price$238.95
  • Secured payment methods. Revolve LED never stores nor has access to your card information.

  • 90 days return without restocking fee*.

  • $199 Free Shipping on eligible products*

  • Availability: Usually Ships in one to three business days.

The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. It can be used as dusk to dawn light with optional photocell. Ideal for parking lot, street, flood and other outdoor area applications.

  • Designed for easy one person install

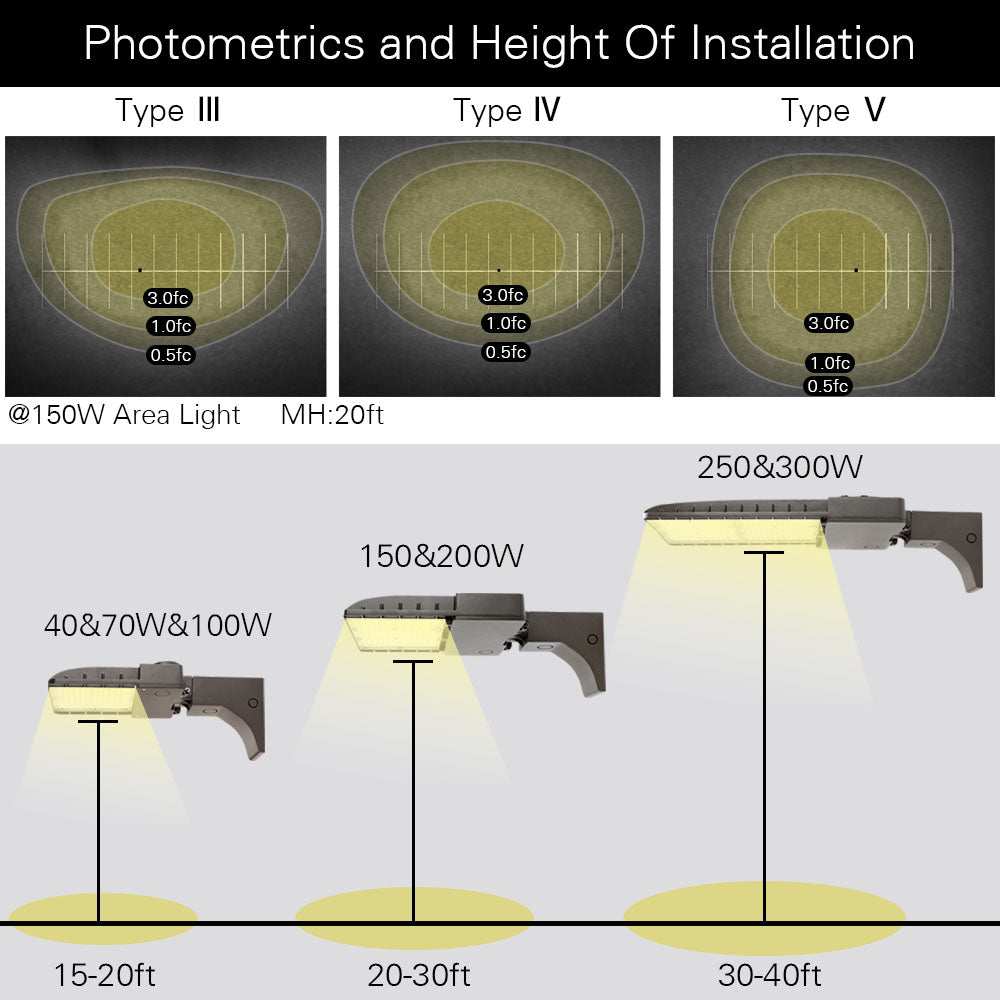

  • Precise optics designed to shape light distribution, maximizing spacing of fixtures
  • Low Profile 3G vibration and compact design minimizes wind load requirements
  • 100,000 hour lifespan
What's in the box
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide
5000K 200W slipfitter mount led pole light with type V lens
Konlite LED Area Light - 200W - Type V - 26,000 Lumens - 5000K - 120-277V - 750W Equal
Regular price Sale price $238.95
What's in the box
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Installation Guide

Product Overview

Ensure the safety of your patrons, employees and the security of your premises with the versatile Konlite AL04 Area Light.  Eliminate maintenance while reducing 65% energy consumption when replacing outdated Metal Halide - HPS fixtures or using in new construction. With a combination of performance, aesthetics, energy efficiency and light control the Konlite AL04 Area Light can be used as pole lights or surface mounts for parking lot (shoebox), street lights or outdoor security lights (floods).

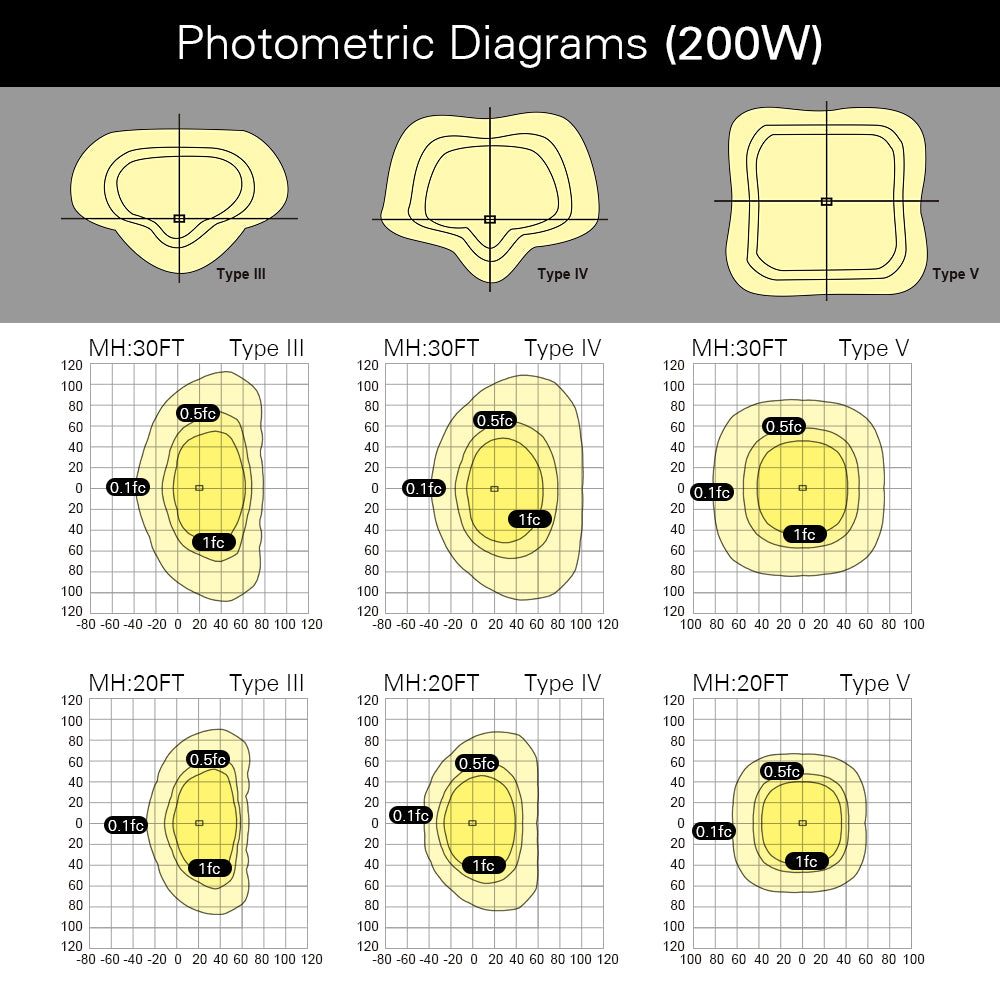

200 Watts, 26,500 Lumens, 5000K, Type V Beam Distribution, Optional Dusk to Dawn Photocell, 120-277V

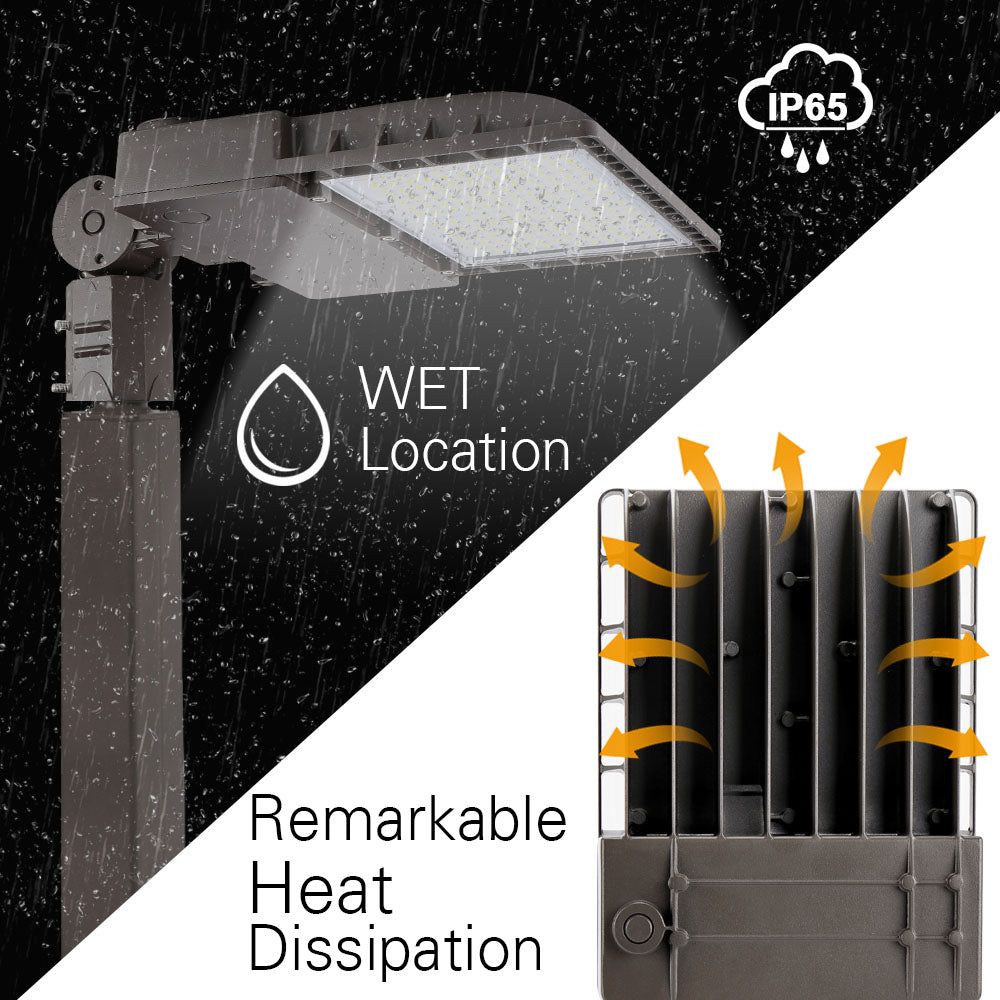

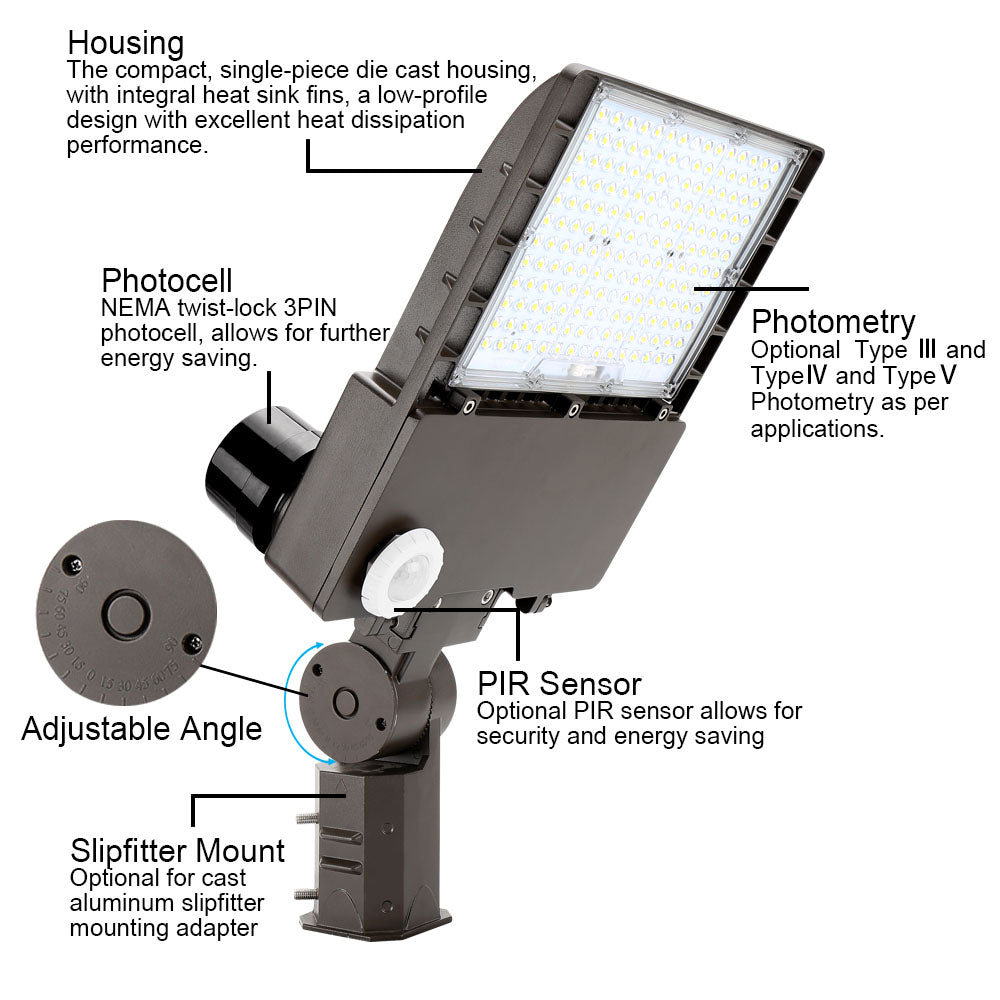

Built to last and withstand harsh elements, the AL04 stylish housing offers separation between the LEDs, the driver circuitry and larger heat sink allowing for longer operating life. Compact and lightweight design with low EPA, 3G rated for vibration. Corrosion resistant, die-cast aluminum housing with powder coat paint finish. The visual comfort optics create a larger luminous surface area resulting in a low glare appearance.

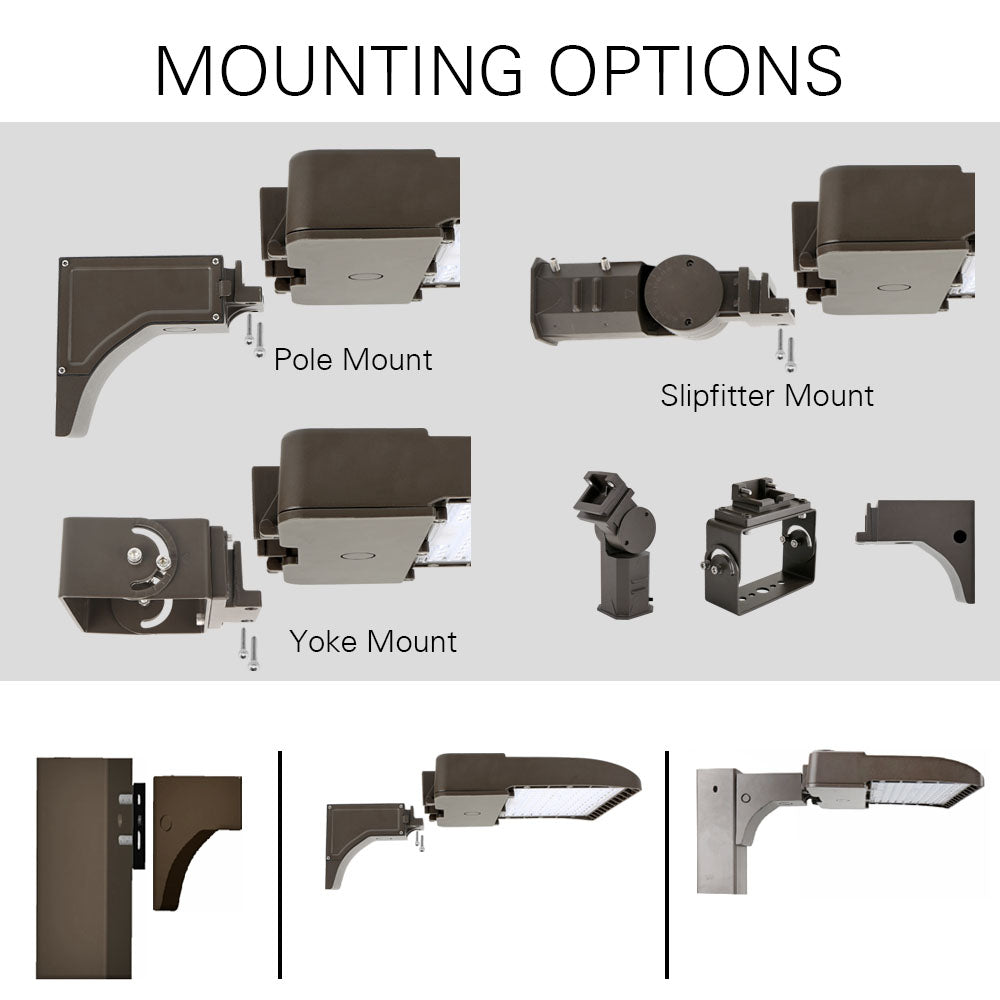

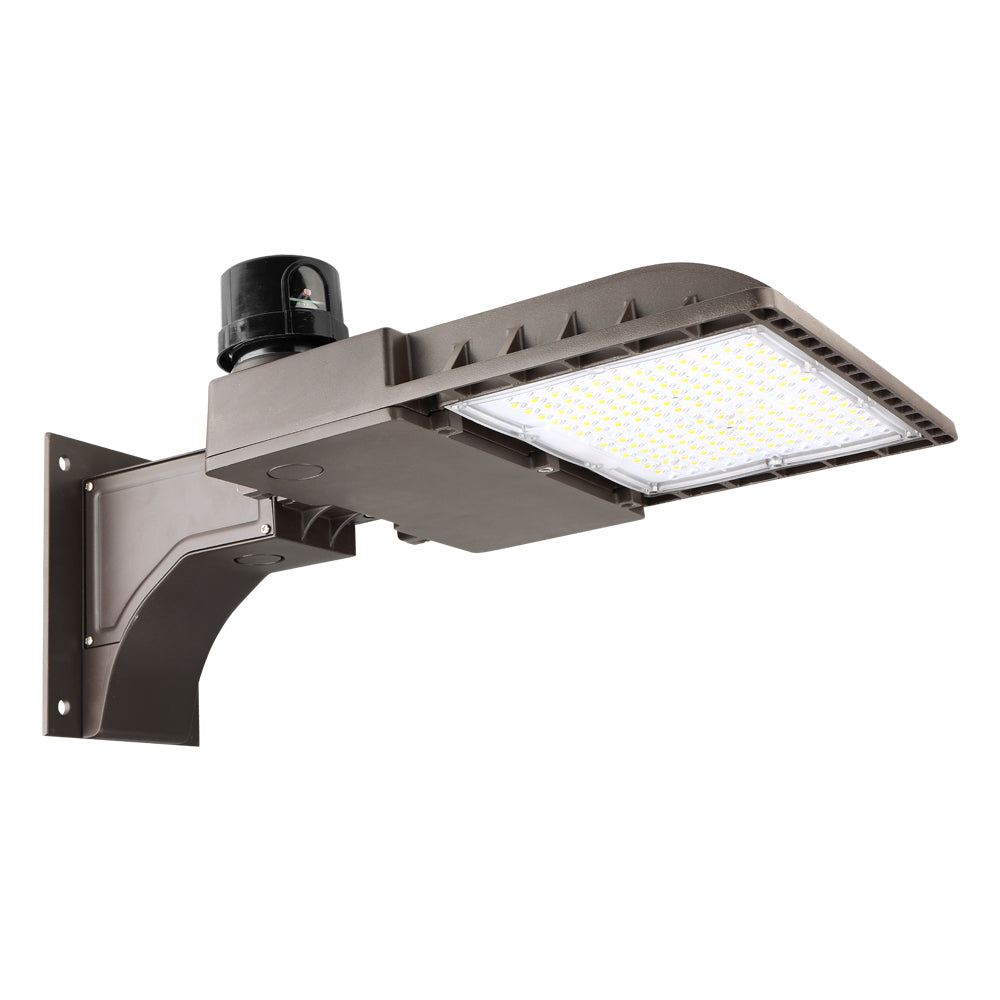

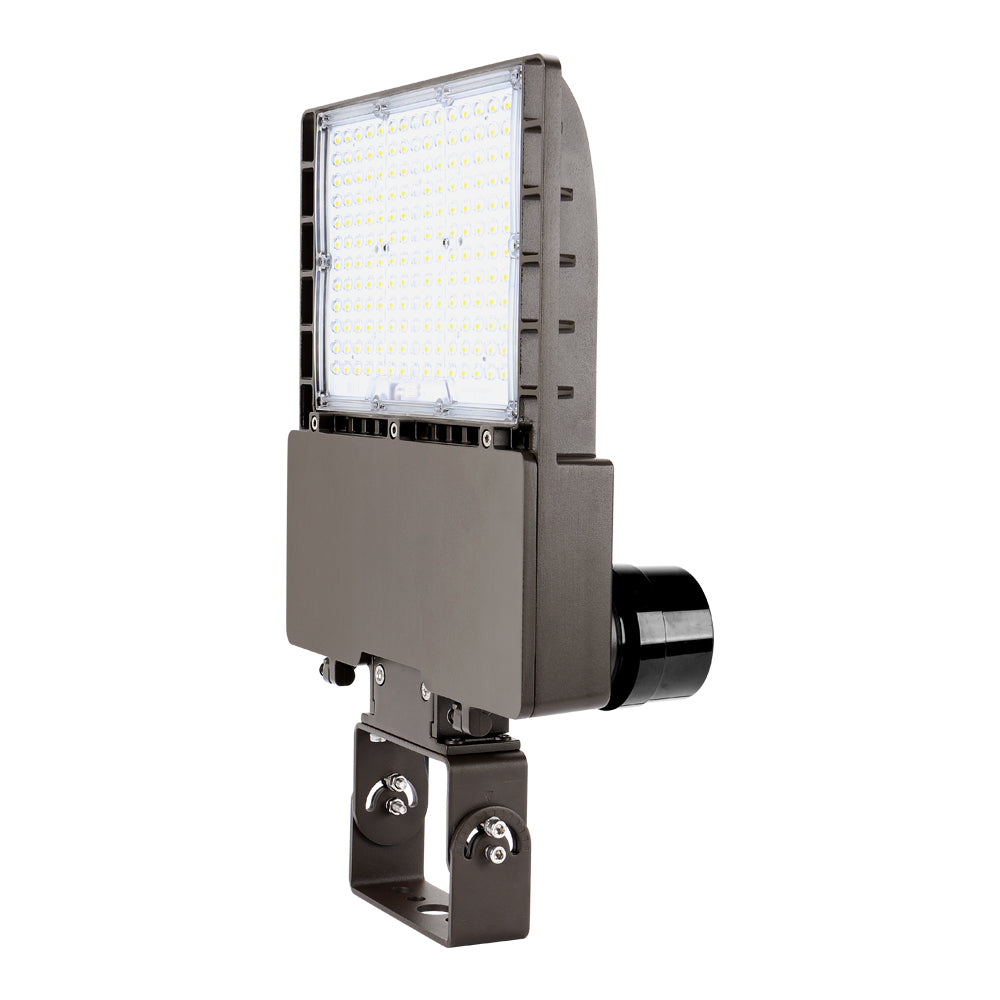

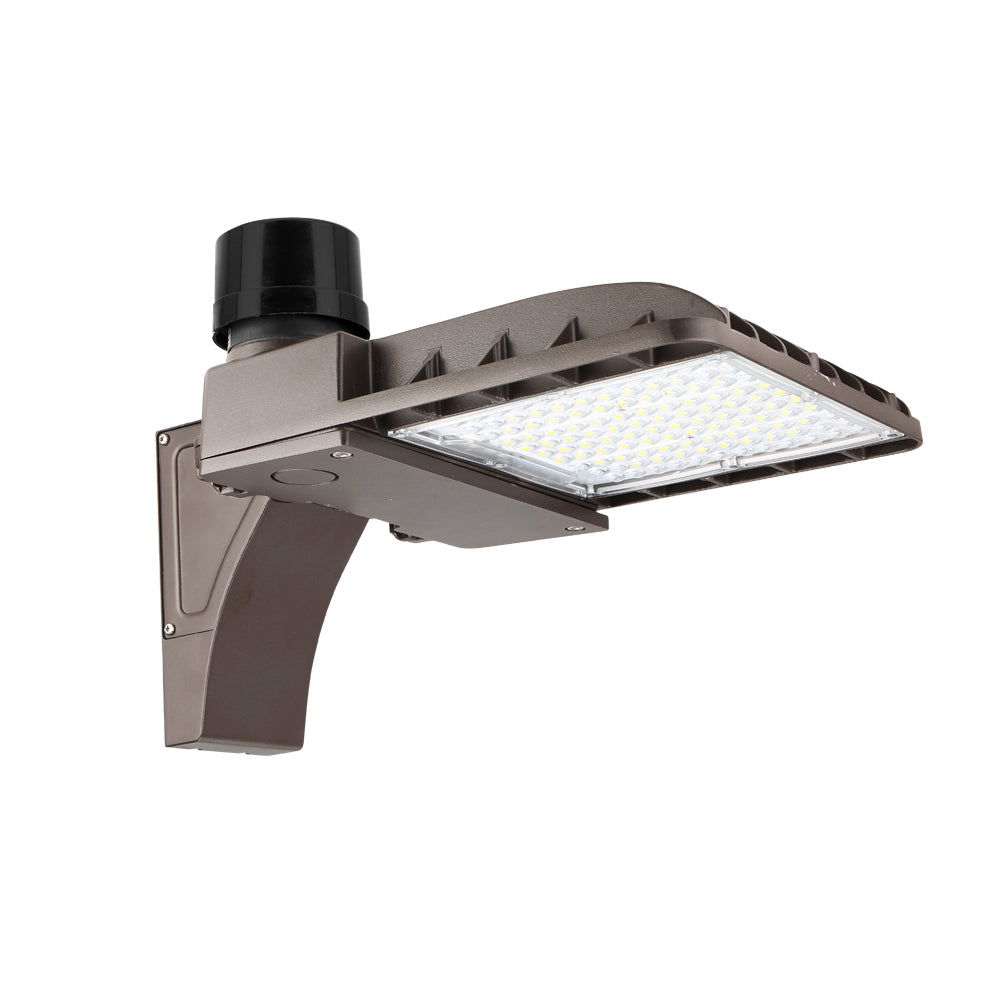

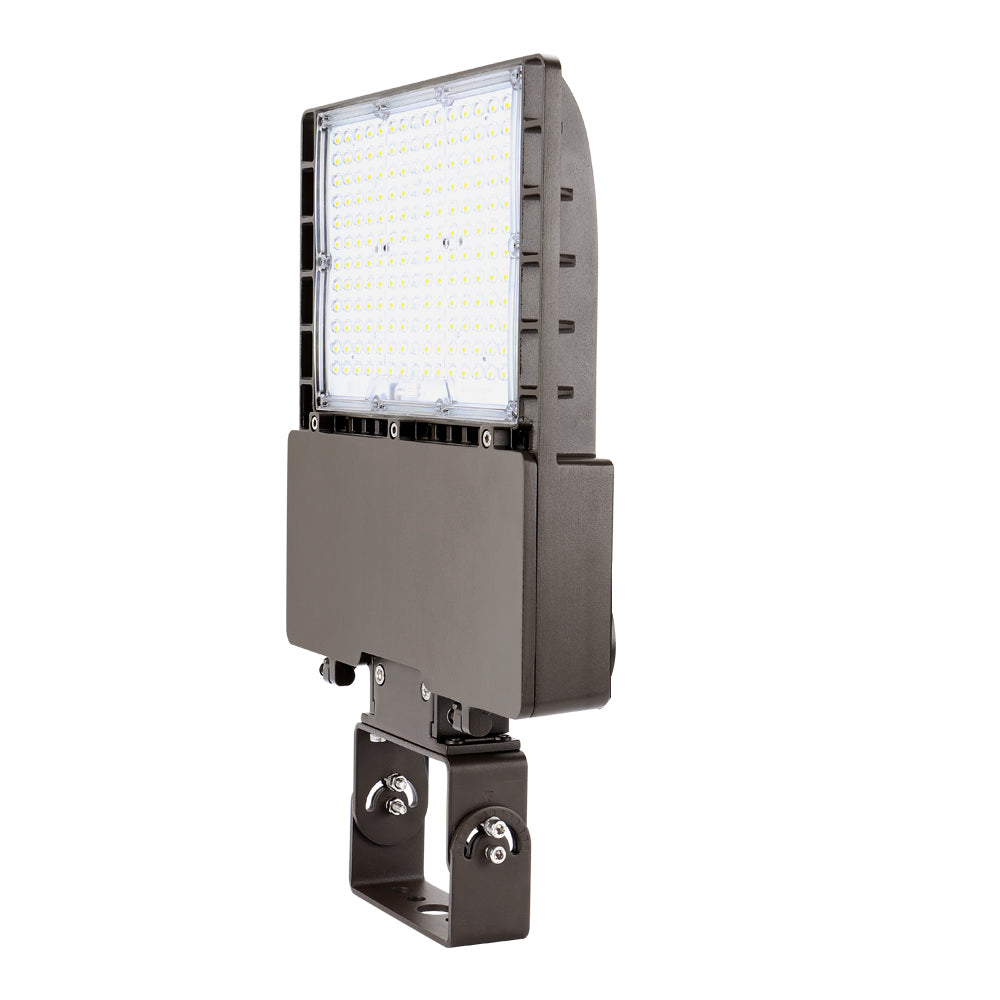

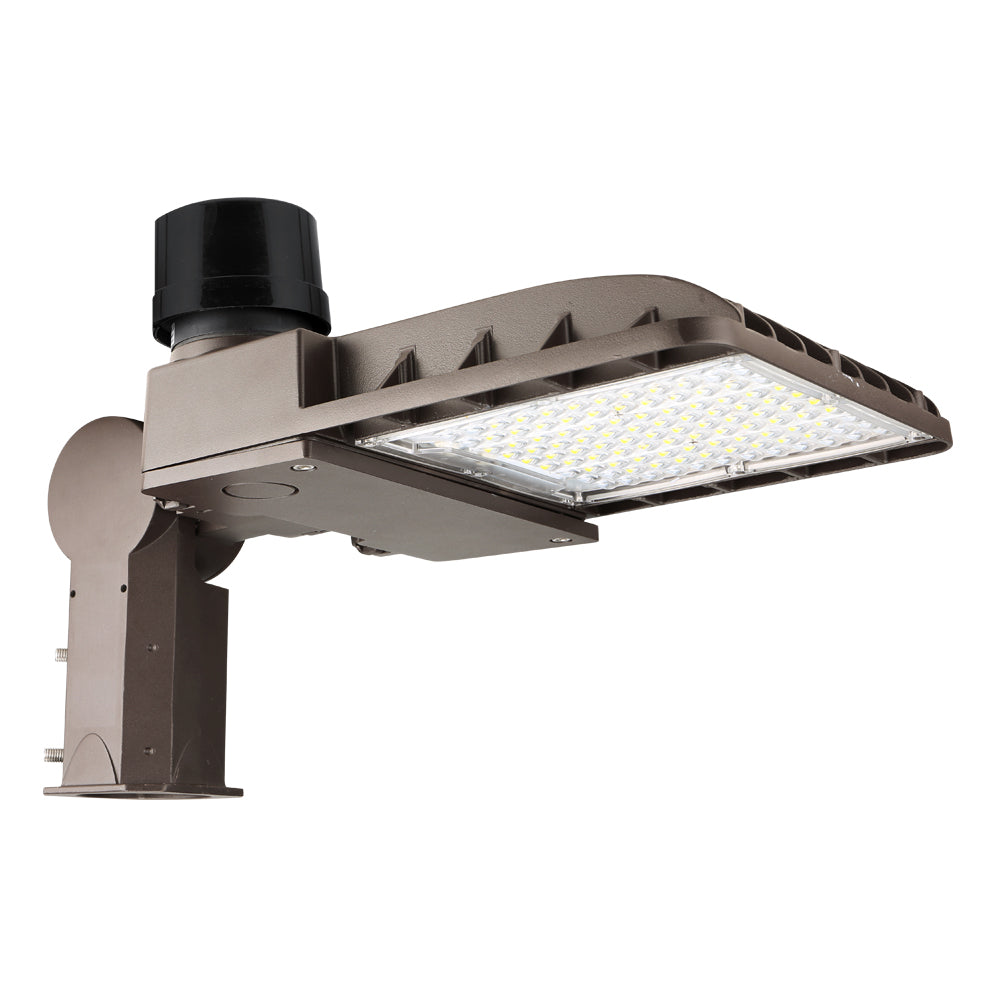

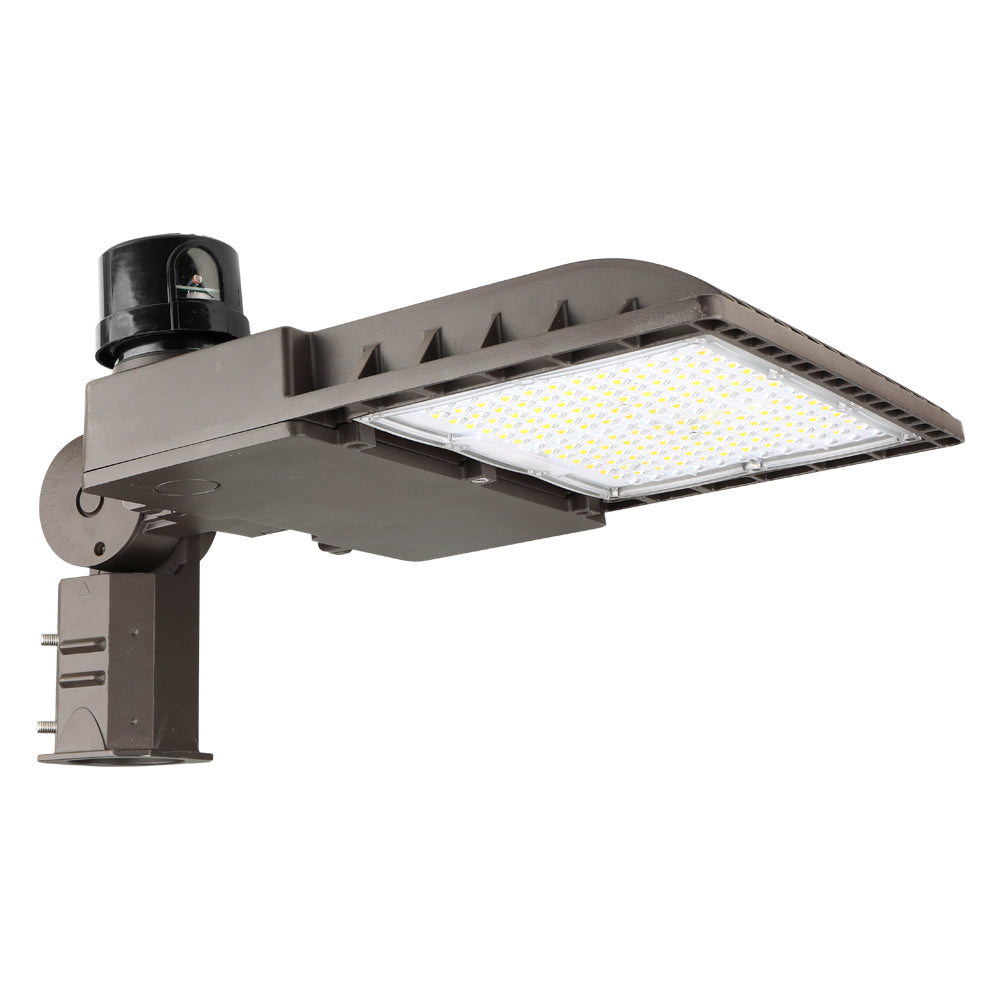

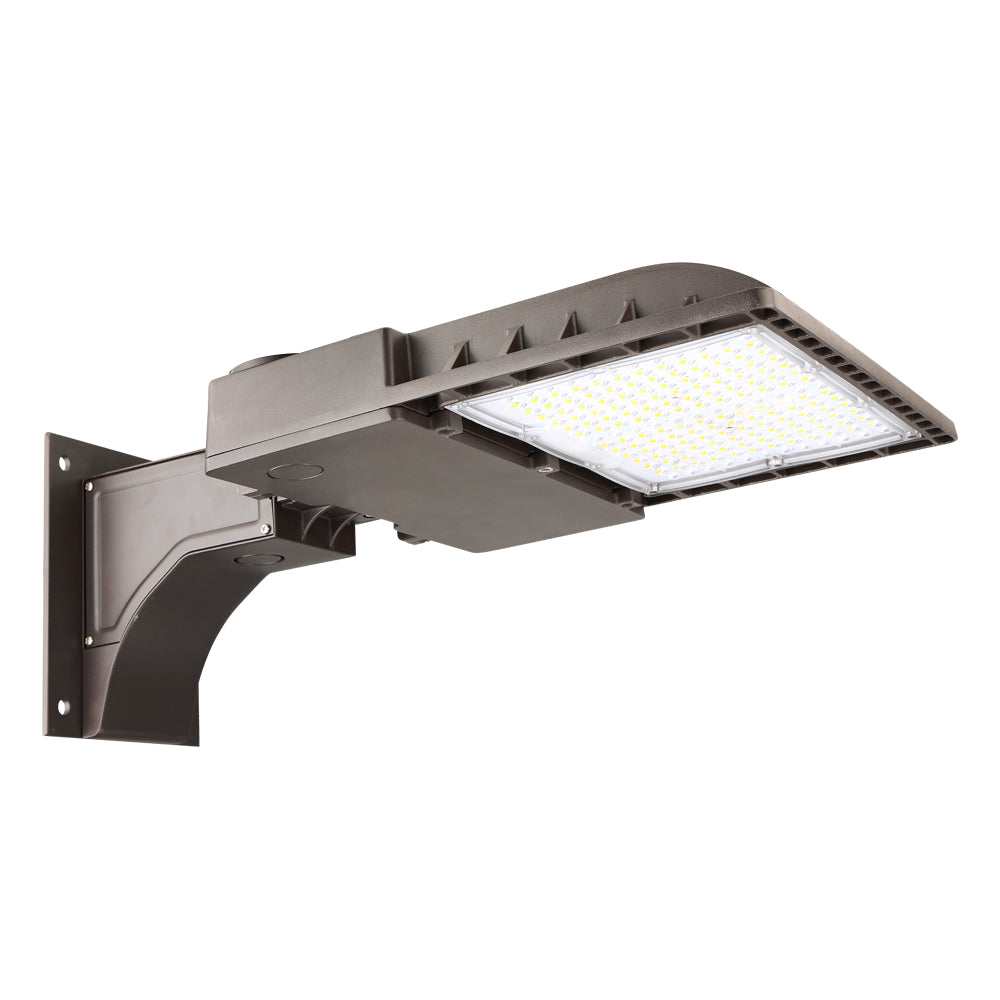

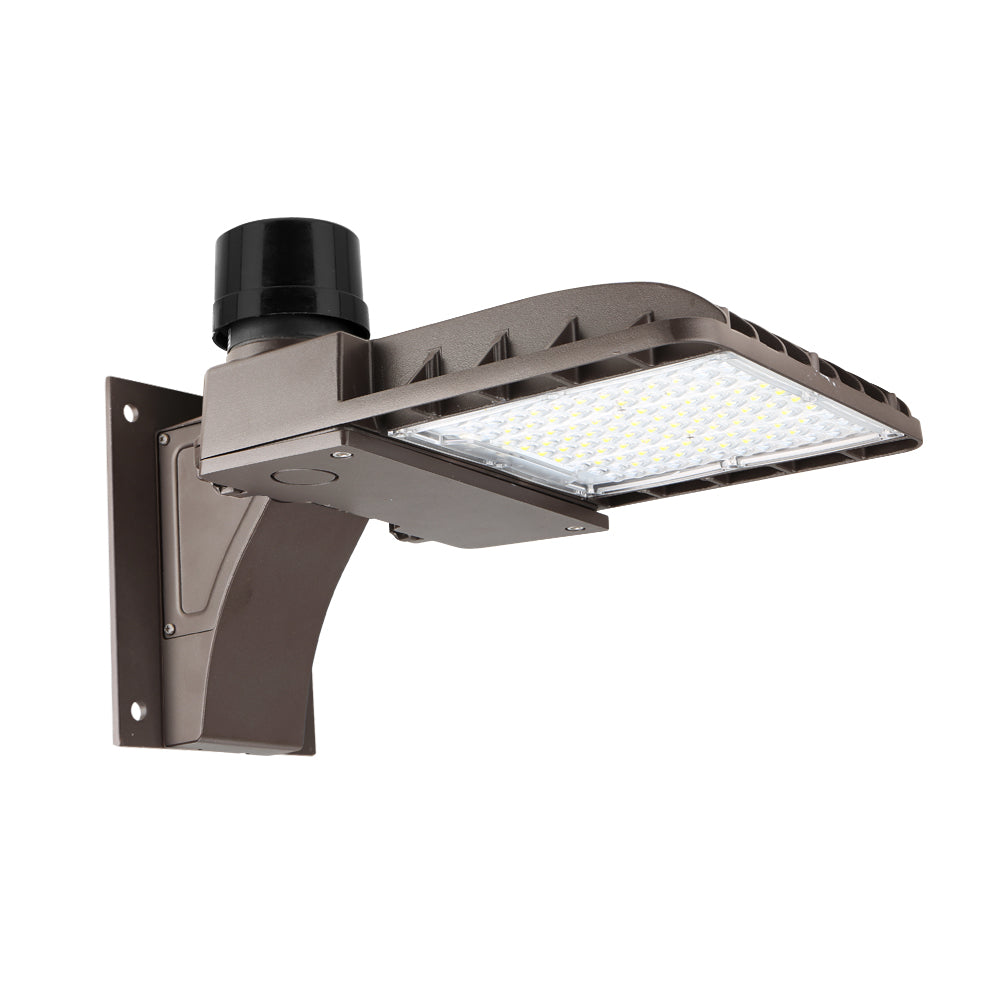

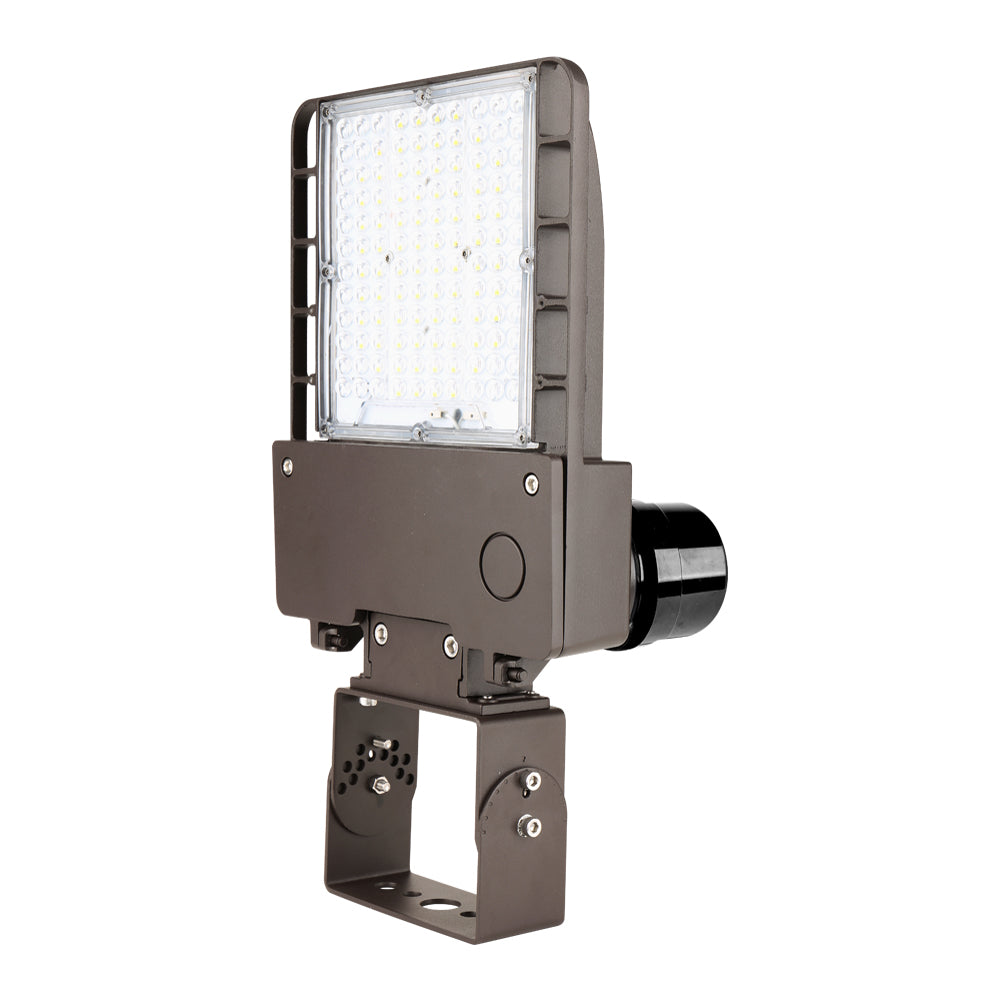

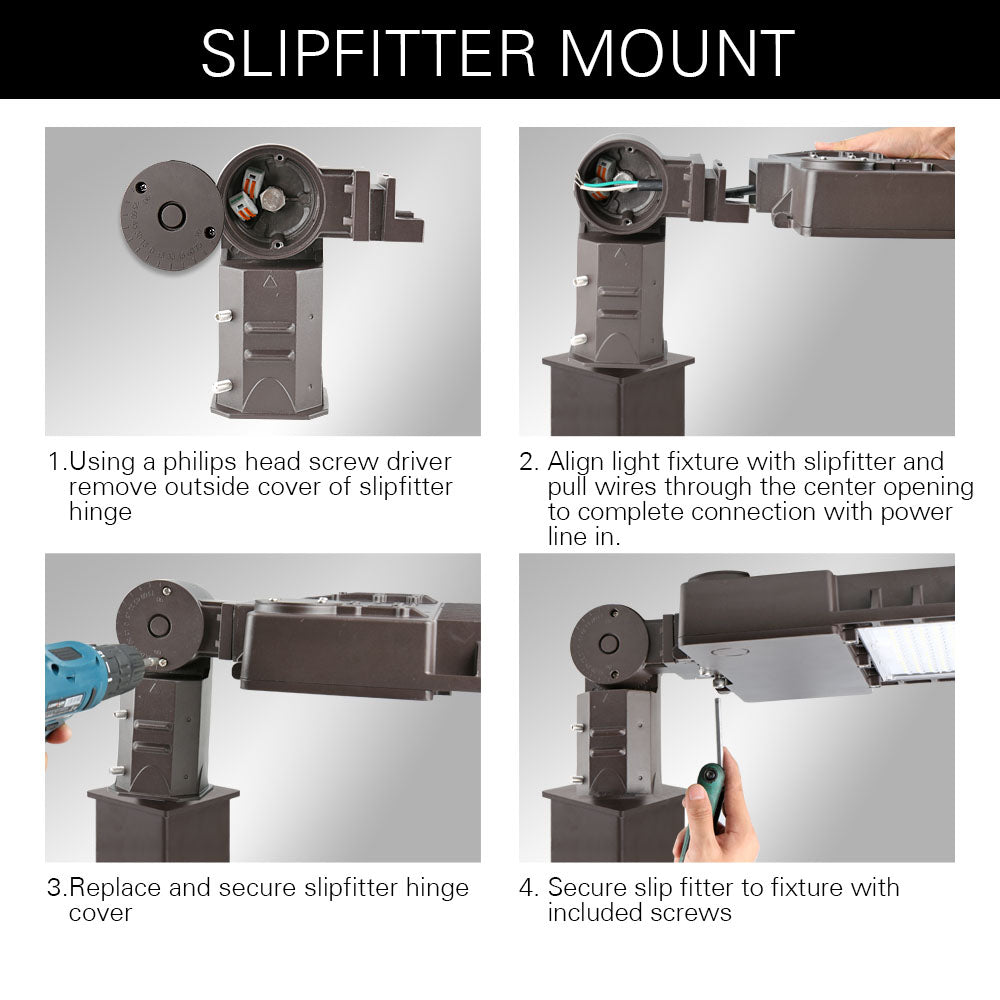

Mounting Options: Extrusion Arm for Round or Square Pole, Slipfitter, Trunnion/Yoke or Wall Mount

UL, DLC for eligible Rebates, 100,000 hour lifespan L70, 5-year warranty

See similar 100-watt, 150-watt300-watt versions.

Applications

• Area Lighting • Parking Lots
• Streets

• Building Façade

• Facilities • Underpasses & Tunnel
• Boat Docks & Marinas • Billboards
• Warehouses • Metal Buildings
• Roadways & Pathways • Security Lighting
• Sports Complex • Schools & Universities
• Parks • Car Dealerships
Color Temperature 5000K color temperature
Certifications
US company5 years warrantyUL listed1-10V dimmableDLC PremiumRoHS compliance FCC certificationIP65 rating

Specifications

BrandKonliteDLC Part #RDAL02042005KXXXXXX
WarrantyLimited 5 YearsUPC752480729888
Input Voltage120-277VOpticalType V
Input Wattage200WEqual to750W MH
Delivered Lumens26,000CRI>70
Efficacy130 LM/WAvailable CCT5000K
Rated Life>100,000 hrsTHD<20%
Power Factor>0.9IP RatingIP65
DimmableNoControlsDusk to Dawn Photocell

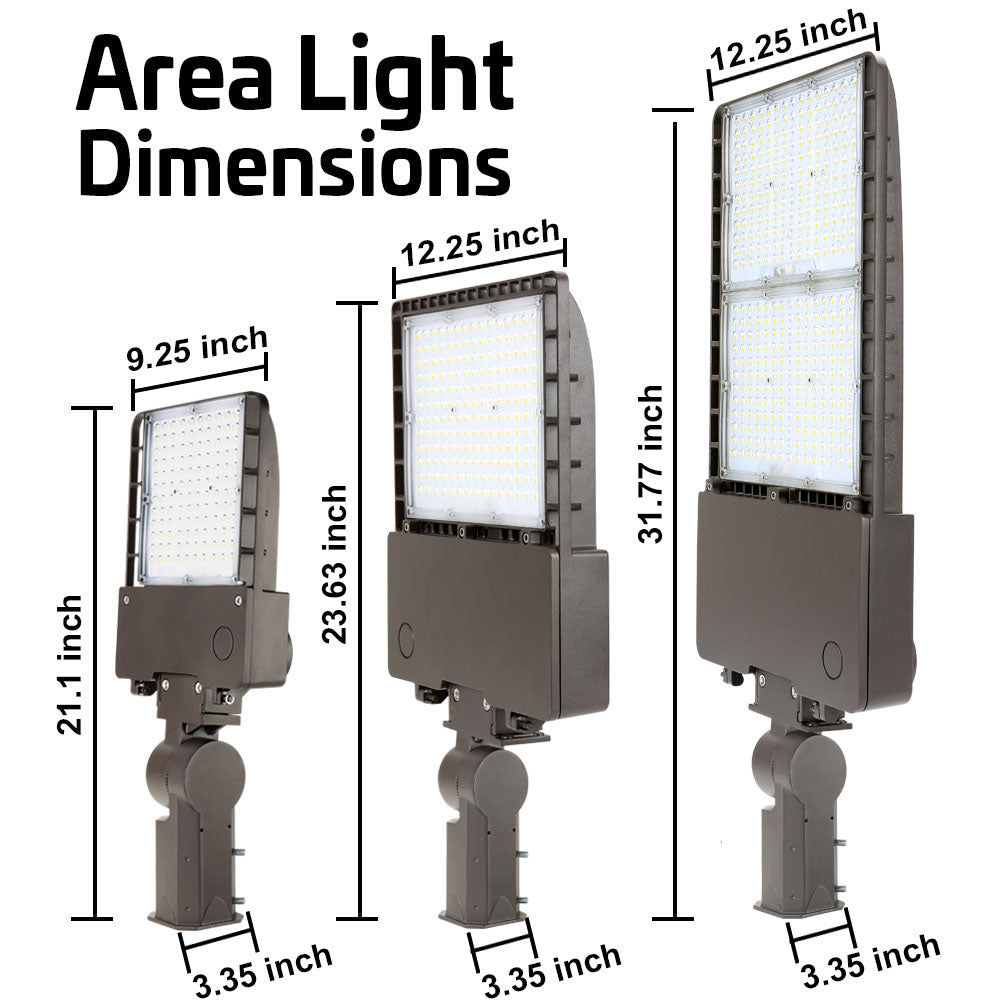

Operating Temperature-40 F to 113 FDimensionsSee Specifications
CertificationsUL, Wet Locations, DLC PremiumWeight11.72 lbs
