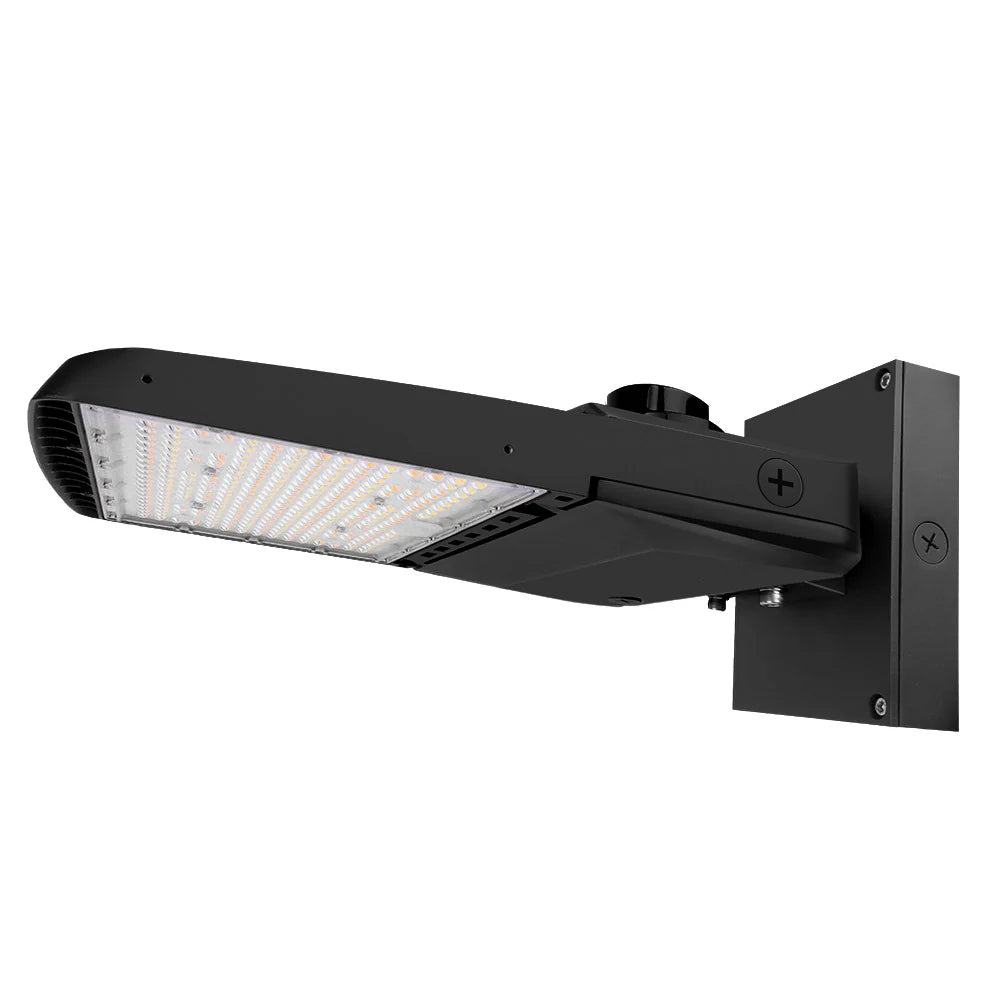

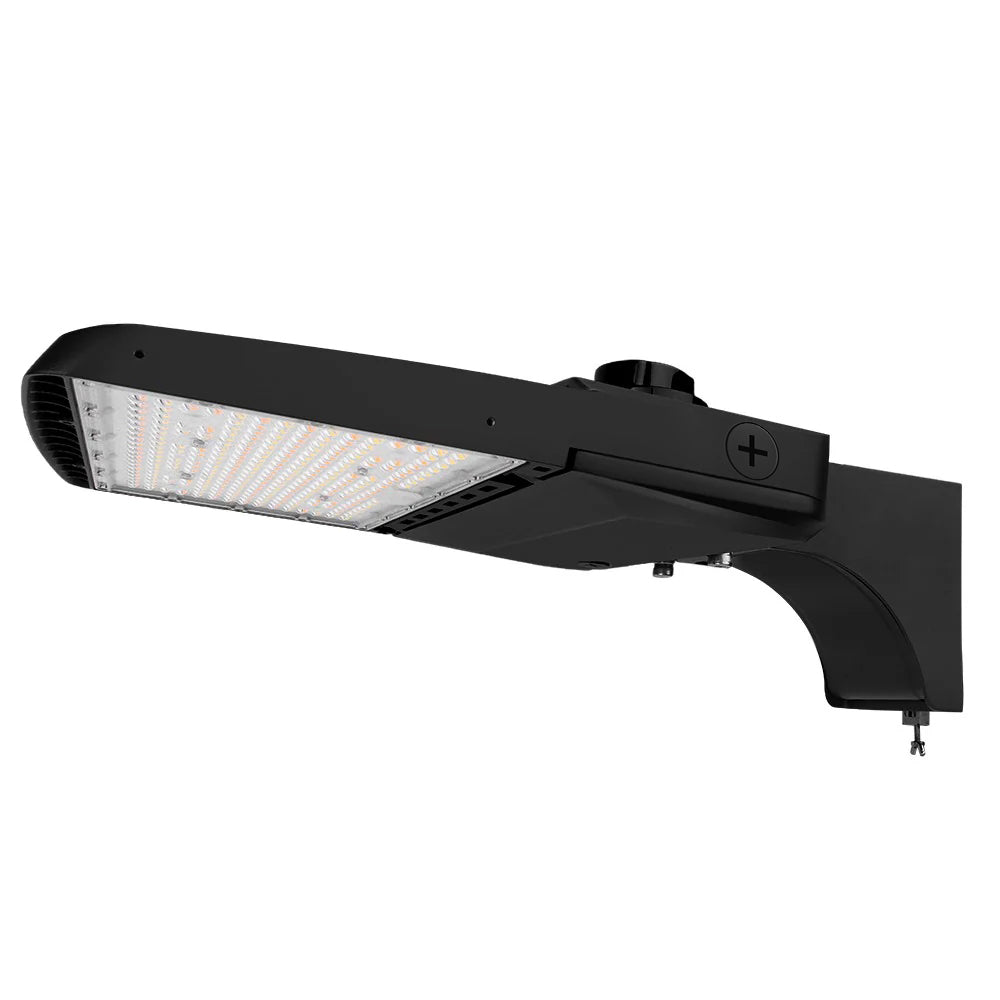

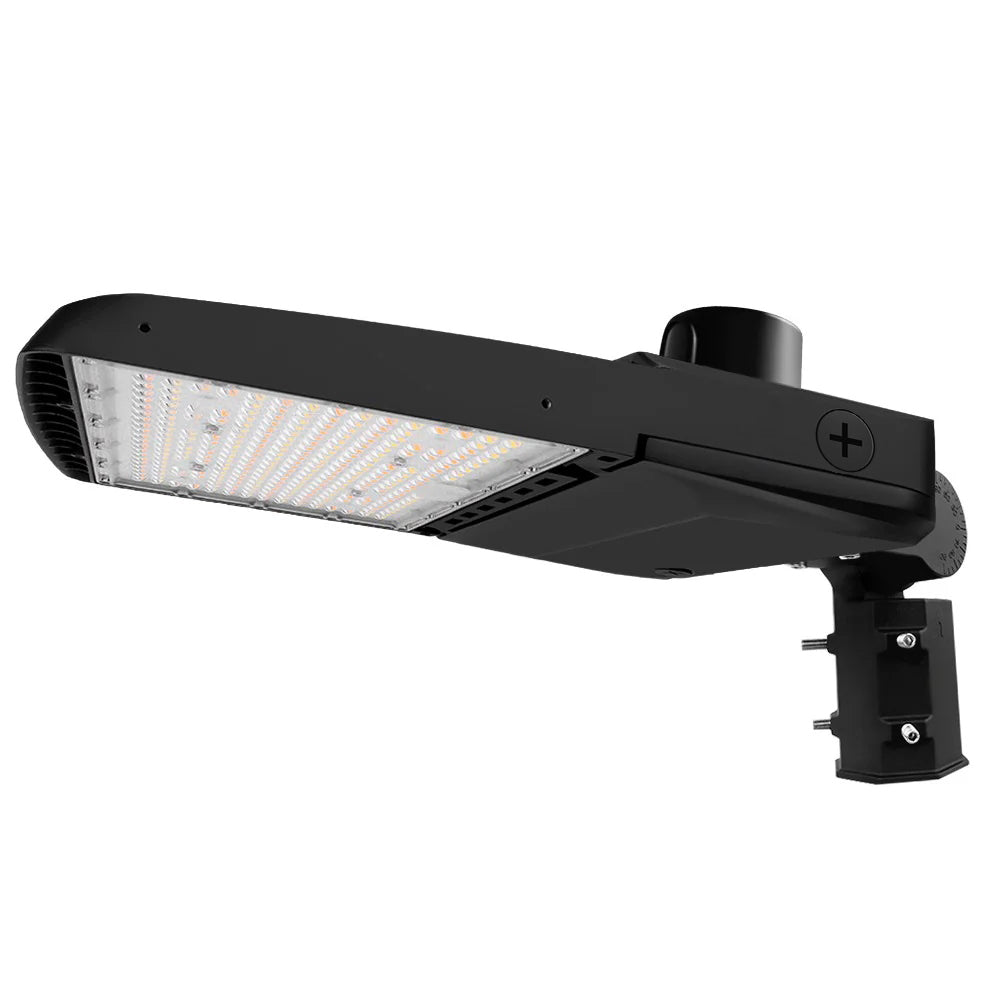

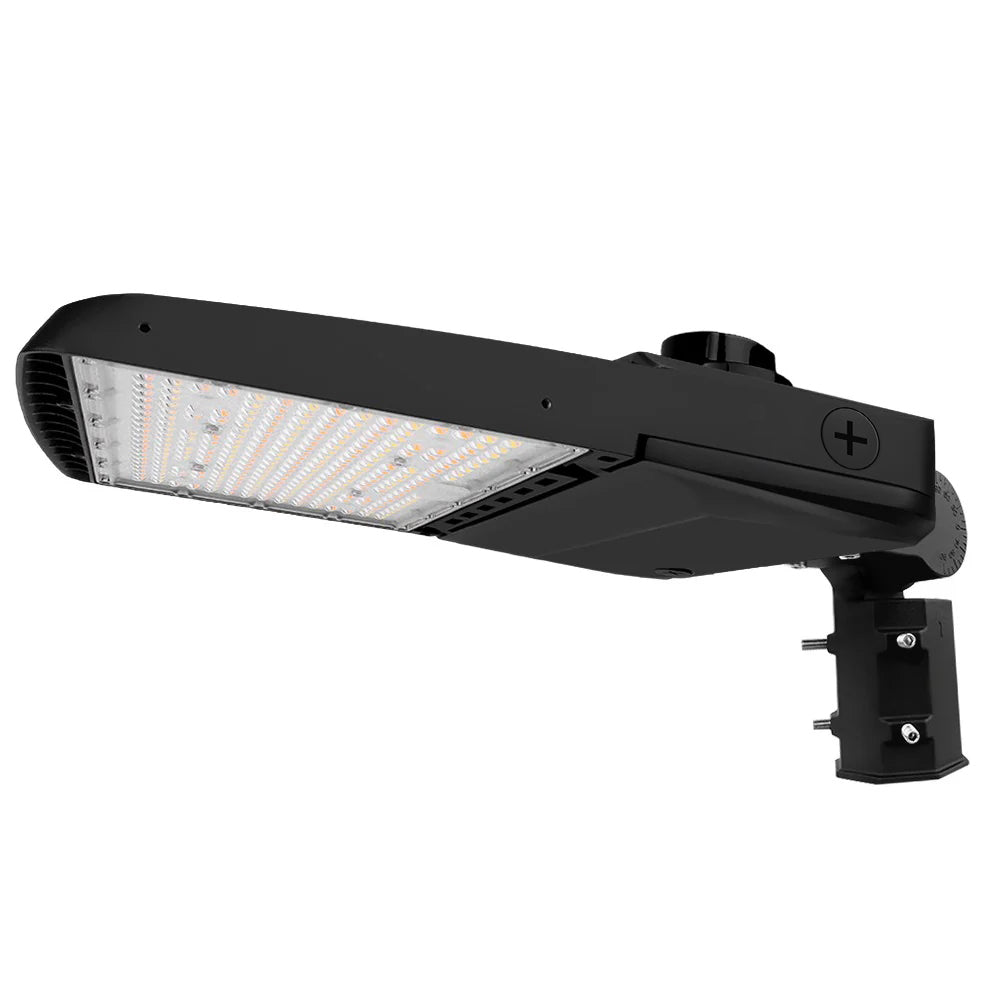

Vela II LED Parking Lot Light - Black Finish - 240W - 34,888 Lumens - 4 Watts Selectable - 3 CCT - Type III - 120-277V - 1000W Equal

Product Search Code: 20-0415
KonliteSKU: KVLMMWMCLV3SFB
$259.99 $239.81

    • Replaces up to 1000W Metal Halide Light
    • 10KV Surge Protection

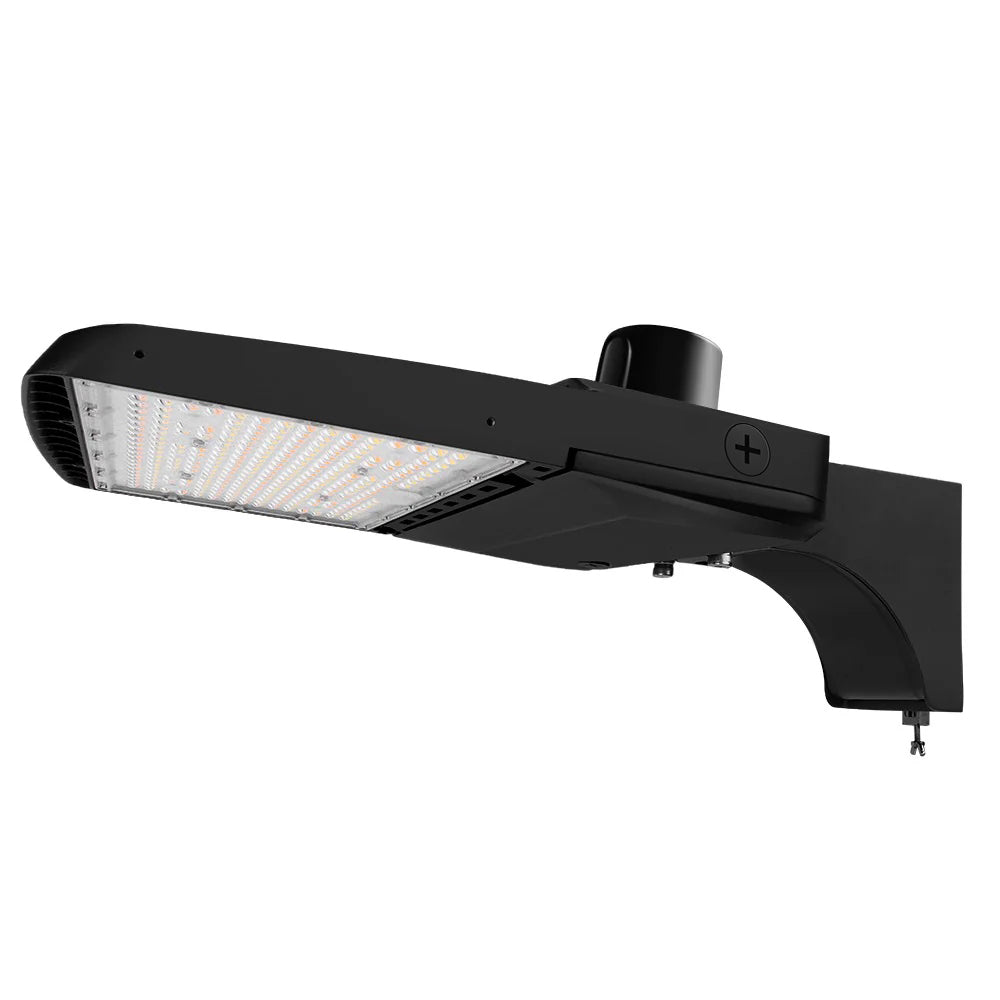

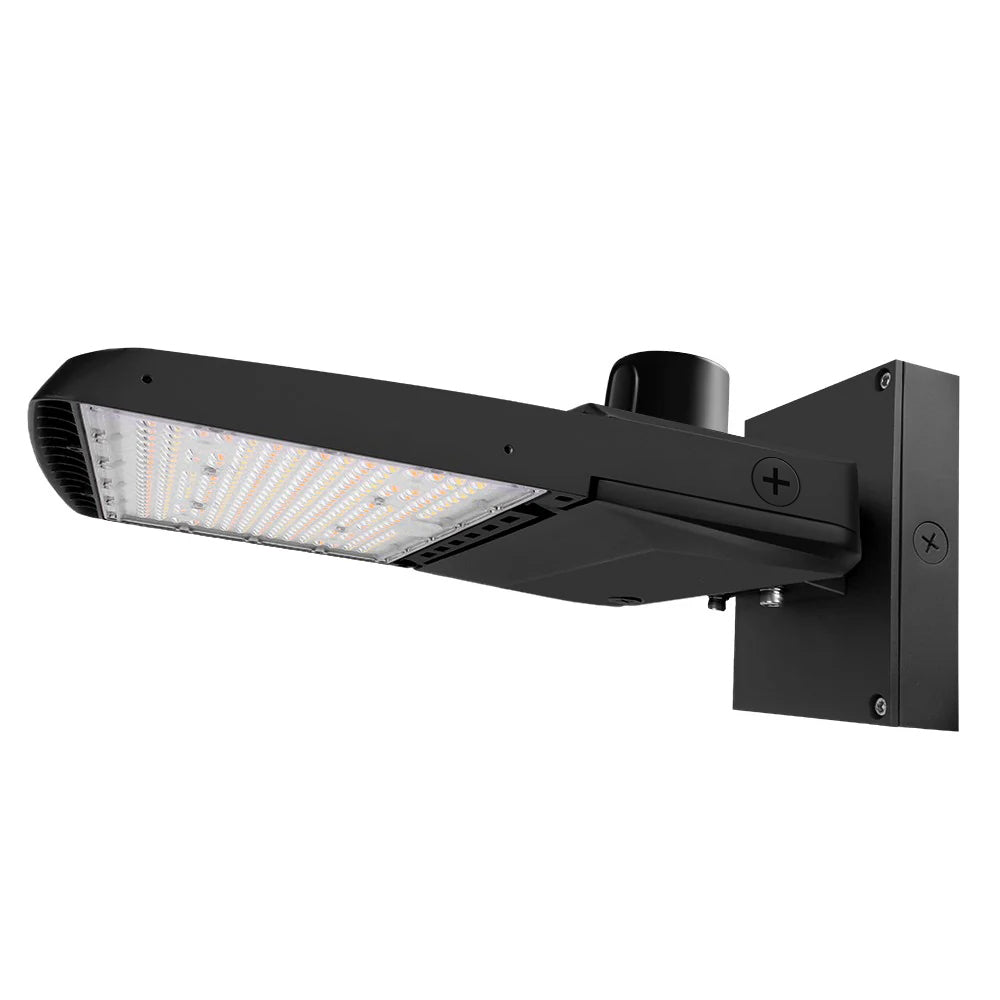

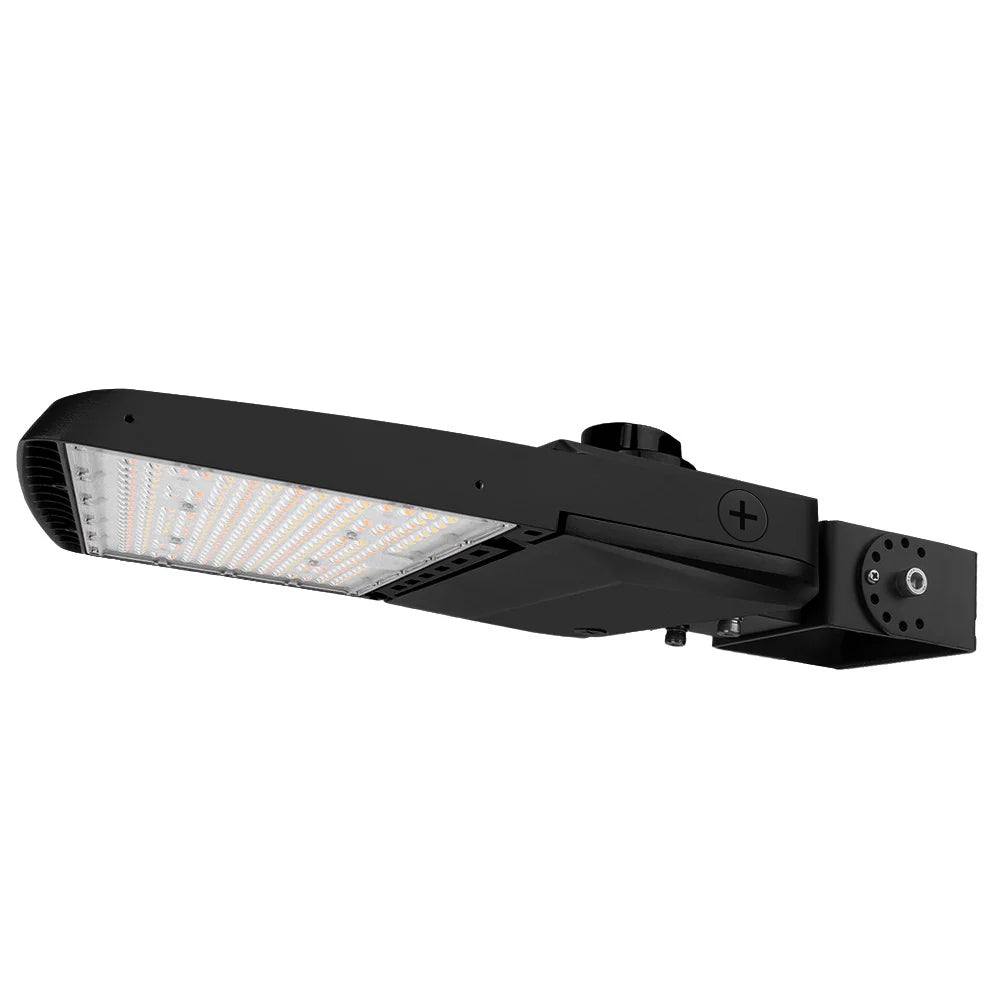

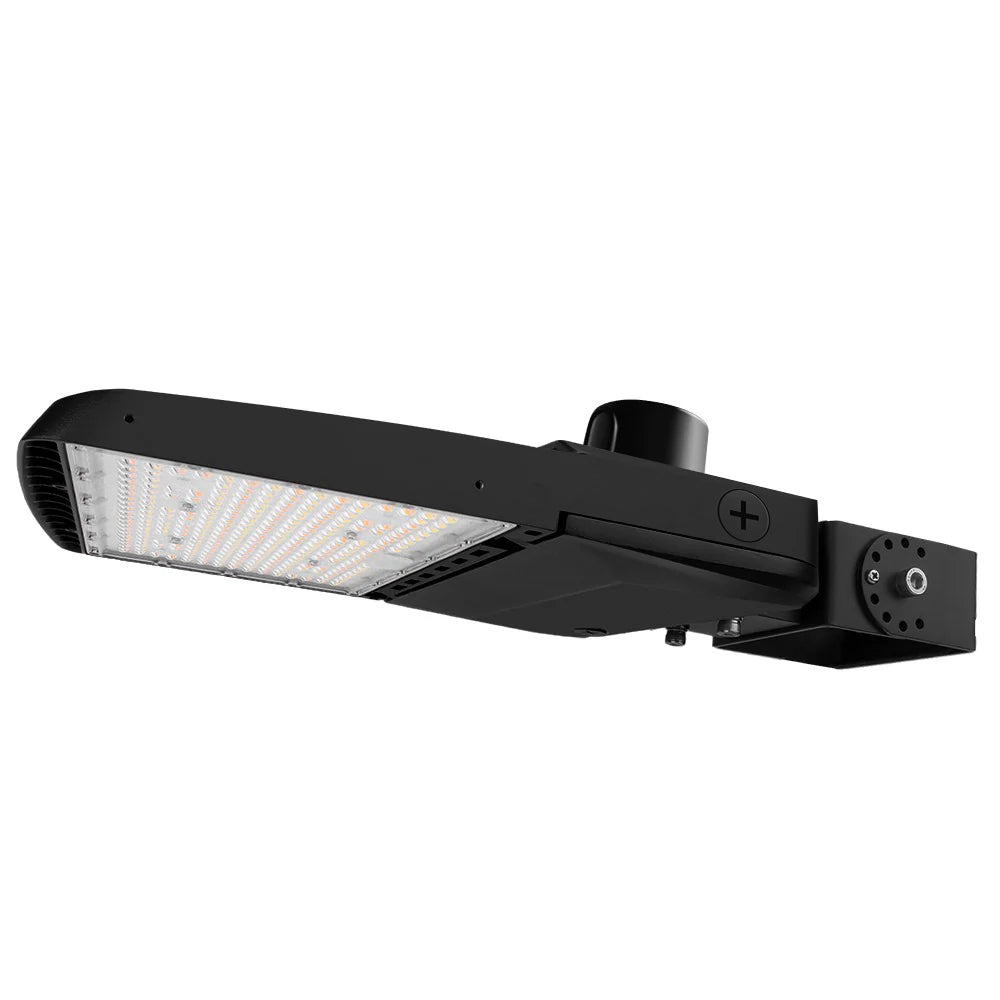

    • Price Includes One of the Mounting Brackets
    • Certificates: UL, DLC 5.1 Premium
    • 5-Year Warranty
    • Three CCT Field Selectable: 3000K, 4000K or 5000K (Preset)
    • Watts and Lumens Selectable:
      • 240W = 34,8888 (Preset)
      • 220W = 31,993
      • 200W = 29,097
      • 170W = 24,701

    • Replaces up to 1000W Metal Halide Light
    • 10KV Surge Protection
    • Price Includes One of the Mounting Brackets
    • Certificates: UL, DLC 5.1 Premium
    • 5-Year Warranty
    • Three CCT Field Selectable: 3000K, 4000K or 5000K (Preset)
    • Watts and Lumens Selectable:
      • 240W = 34,8888 (Preset)
      • 220W = 31,993
      • 200W = 29,097
      • 170W = 24,701

Illuminate your parking lots, pole lights, campuses, public parks, building areas, arenas and roadways with this Konlite Vela series LED Parking Lot, LED Shoebox light. This sleek and modern LED light delivers superior illumination, energy saving and easy installation.

  • 4-phase lumen electability across 3 housing sizes of Vela I, II (this one) & III.
  • High luminaire efficacy, up to 160lm/W at maximum output
  • Designed for easy one-person installation.
  • 100,000 hour lifespan. 5-year warranty
show more
$259.99 $239.81


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

Illuminate your parking lots, pole lights, campuses, public parks, building areas, arenas and roadways with this Konlite Vela series LED Parking Lot, LED Shoebox light. This sleek and modern LED light delivers superior illumination, energy saving and easy installation.

  • 4-phase lumen electability across 3 housing sizes of Vela I, II (this one) & III.
  • High luminaire efficacy, up to 160lm/W at maximum output
  • Designed for easy one-person installation.
  • 100,000 hour lifespan. 5-year warranty
What's in the box
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Shorting Cap or 1 Dusk to Dawn Photocell - 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A
1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Shorting Cap or 1 Dusk to Dawn Photocell - 1 Installation Guide

Product Overview

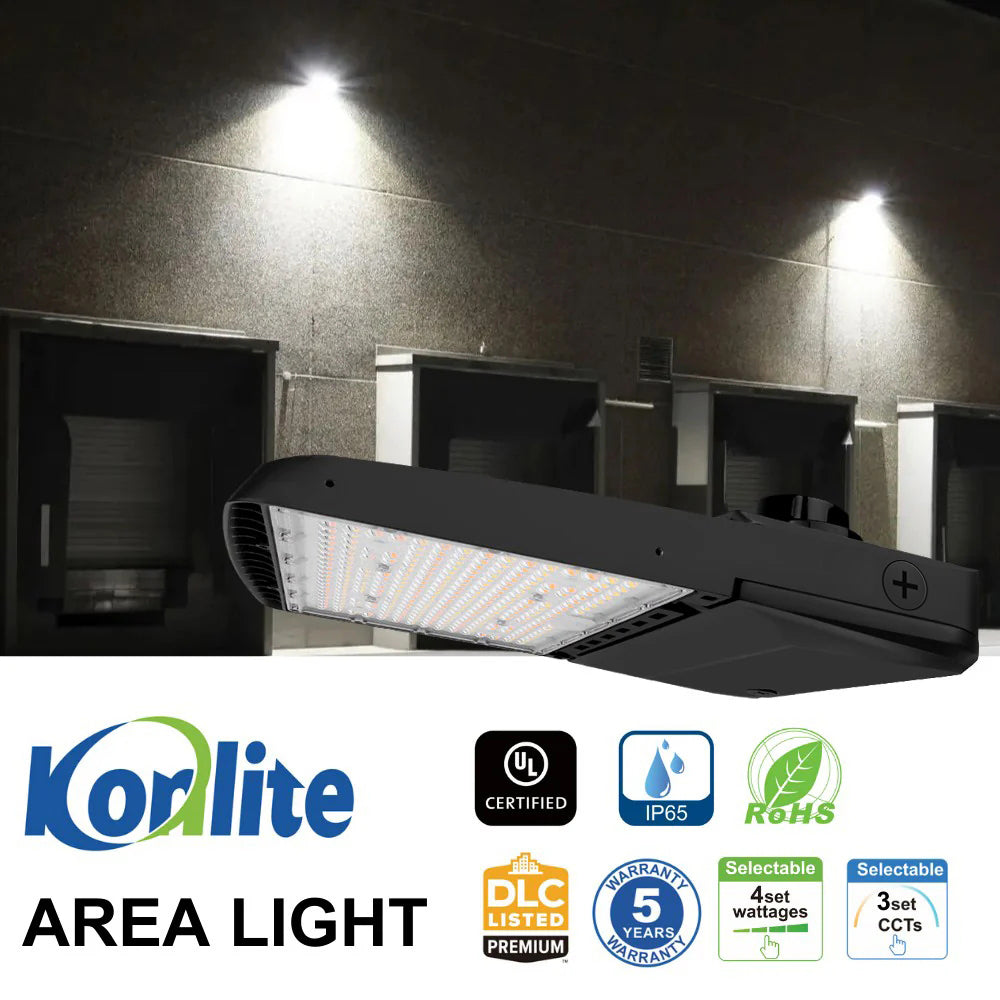

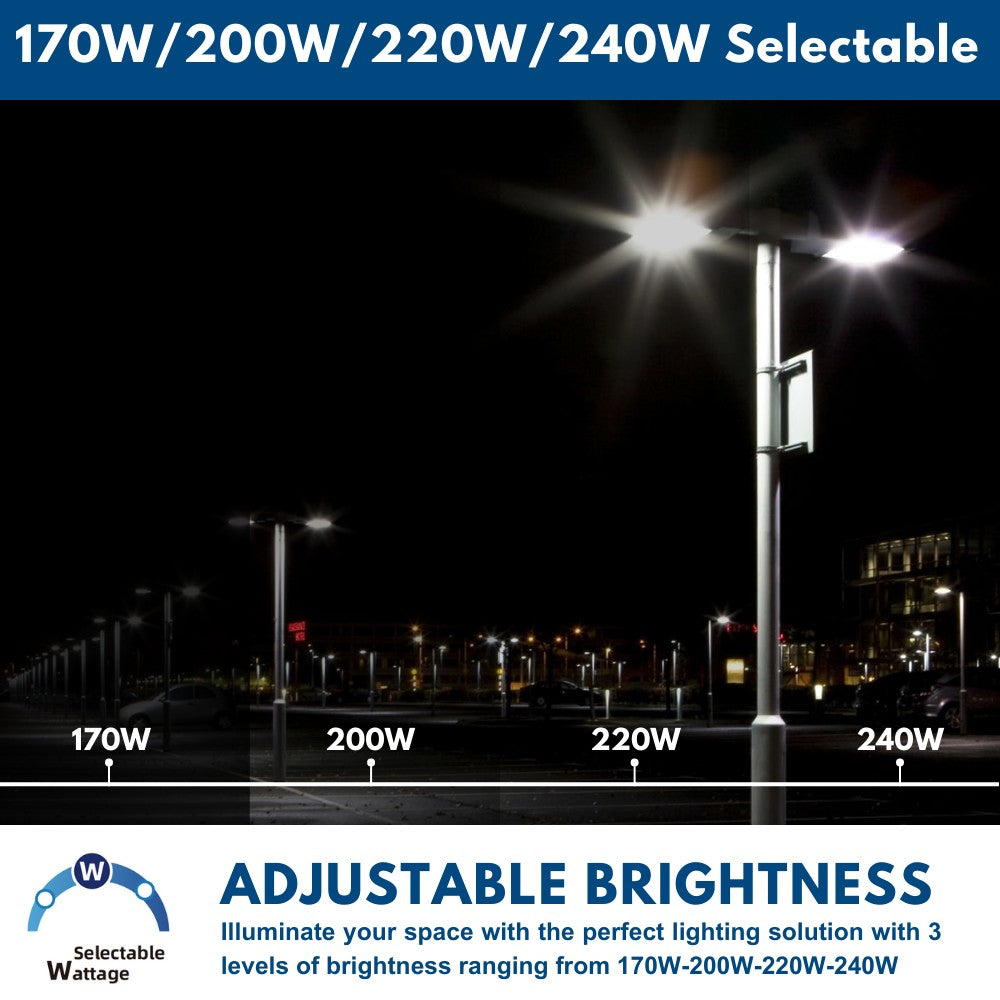

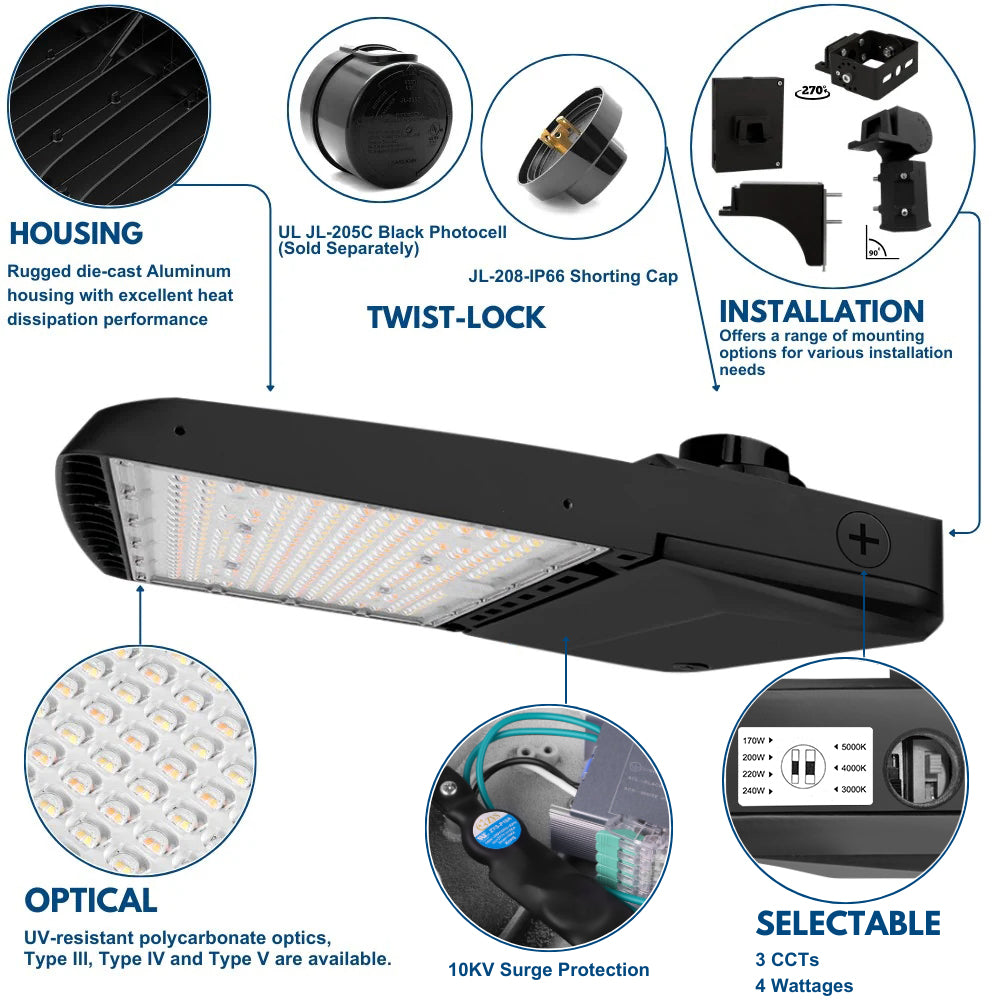

Upgrade your outdoor lighting with the Konlite Black VELA II LED Parking Lot Shoebox Light, designed for superior illumination and energy savings. This LED light is a 1,000 Watt equivalent and offers a 4-way switch with four field-selectable wattage/brightness settings (240W/34,888 Lm Preset, 220W/31,993 Lm, 200W/29,097 Lm, 170W/24,701 Lm) to meet your specific lighting needs.

Increase safety and security for your buildings and lots with this LED parking lot light and pole light, which provides excellent light distribution with high output LEDs and custom optics, resulting in 155 Lumens per Watt Efficiency. The VELA II LED light offers a type III beam distribution standard, UV-resistant polycarbonate optical lens, and 1-10V dimming with 5000K CCT.

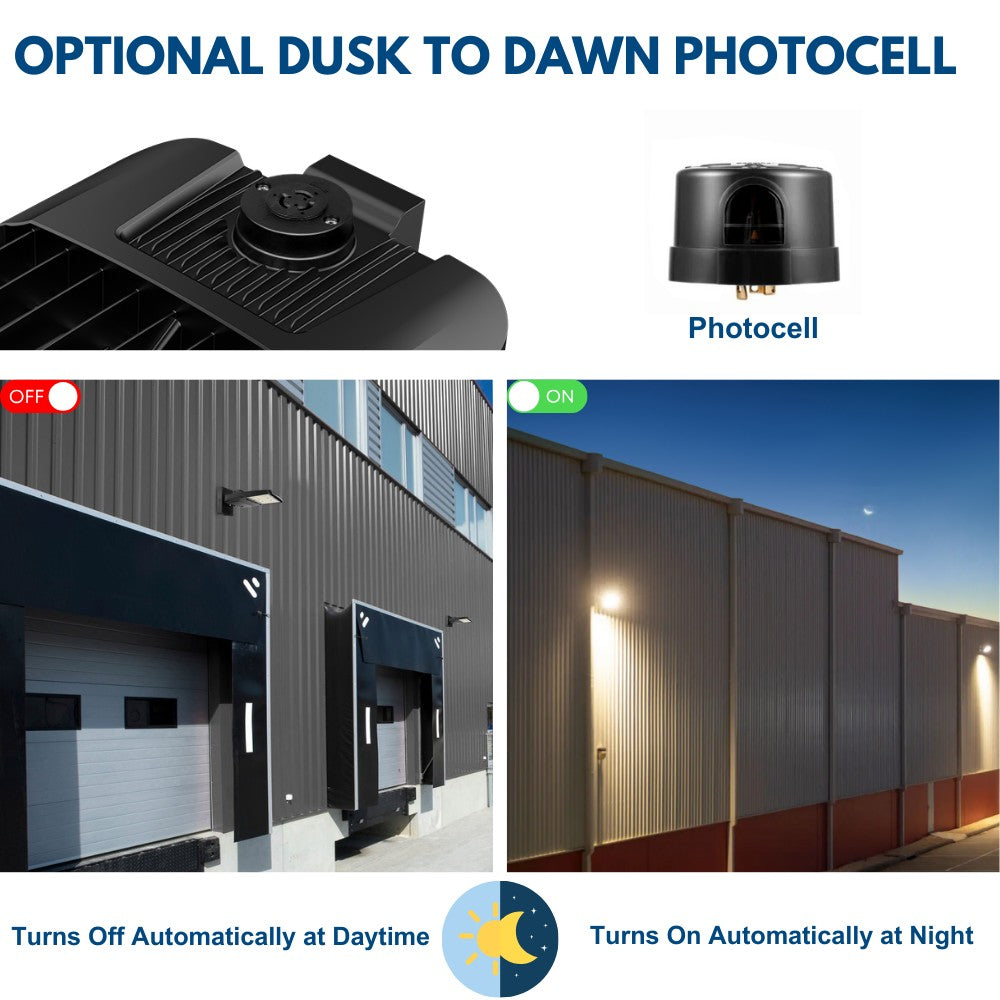

This LED light is compatible with dusk-to-dawn photocell and PIR motion sensor (please call for motion sensor availability), making it a smart and energy-efficient lighting solution. It offers up to 65% energy savings, long service life, and quick return on investment.

With its IP65 corrosion-proof die-cast aluminum housing and mounting brackets, the VELA II LED light is built to withstand all weather elements. It offers built-in 10KV surge protection, ensuring a reliable and long-lasting lighting solution.

Certified for quality, the Konlite VELA II LED Parking Lot Shoebox Light is DLC 5.1 Premium for eligible rebates, UL certified, and boasts a 100,000-hour lifespan. The lightweight design and low EPA rating with a 1.5G vibration load per ANSI C136.31 make this LED light easy to install and a top choice for one-to-one replacement of HID/HPS from 750 Watt to 1000 Watt equivalent or new construction projects.

270-480V available for 150-watt and 310-watt Dark Bronze versions.

 See similar VELA I(150W/120W/100W/80W), VELA III(310W/280W/260W/240W) versions.

Applications

• Area Lighting • Parking Lots
• Streets

• Building Façade

• Storage Facilities • Underpasses & Tunnel
• Boat Docks & Marinas • Billboards
• Outdoor event spaces • Industrial yards
• Roadways & Pathways • Security Lighting
• Sports Complex • Schools & Universities
• Parks • Car Dealerships
Color Temperature Selectable 3,000K, 4,000k & 5,000k color temperature
Certifications
US company5 years warrantyUL listed1-10V dimmableDLC PremiumRoHS compliance FCC certificationIP65 rating

Specifications

BrandKonliteDLC Part #KVLMMW50KLV3SFB
WarrantyLimited 5 YearsUPC
Input Voltage120-277VOpticalType III
Input Wattage240W/220W/200W/170WEqual to1000W/750W MH
Delivered Lumens35K/32K/29K/25K LumensCRI>70
Efficacy160 lm/WAvailable CCT5000K/4000K/3000K
Rated Life>100,000 hrsTHD<20%
Power Factor>0.9IP RatingIP65
DimmableCall us for 1-10V Dimming AvailabilityControlsOptional Dusk to Dawn Photocell

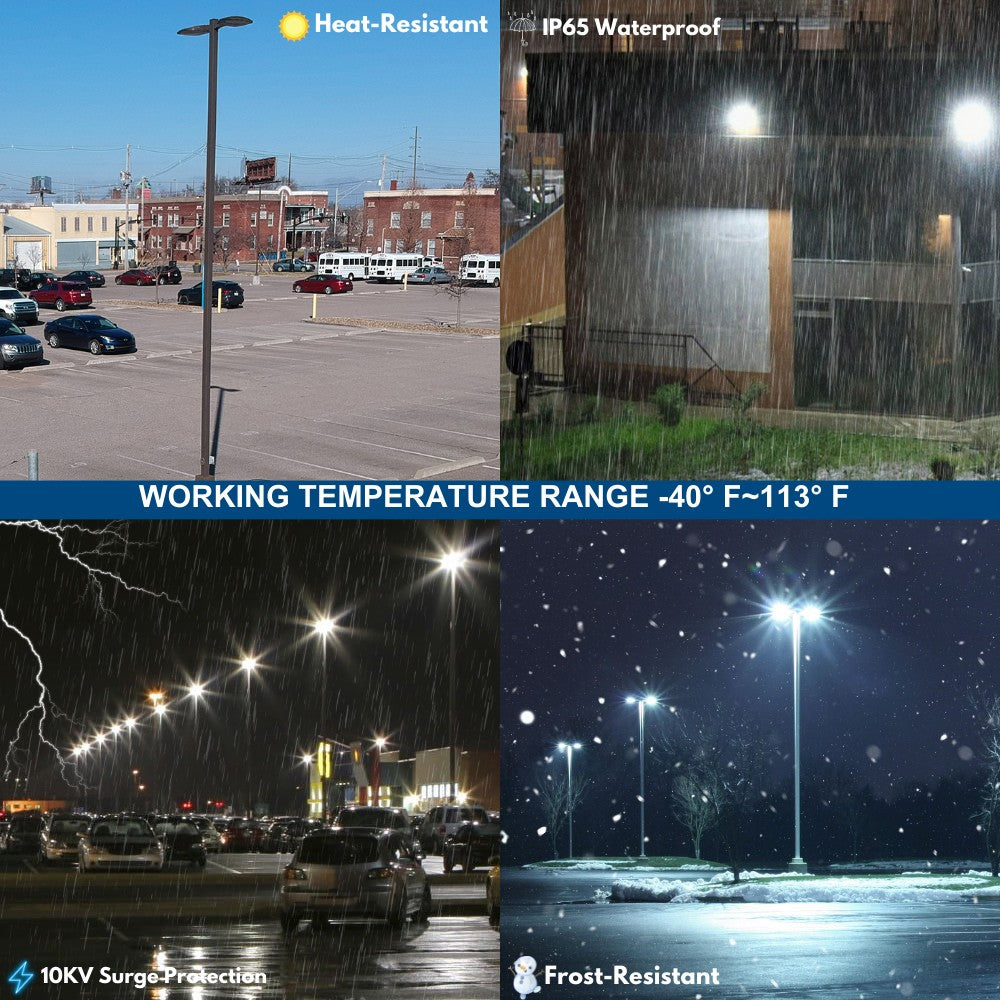

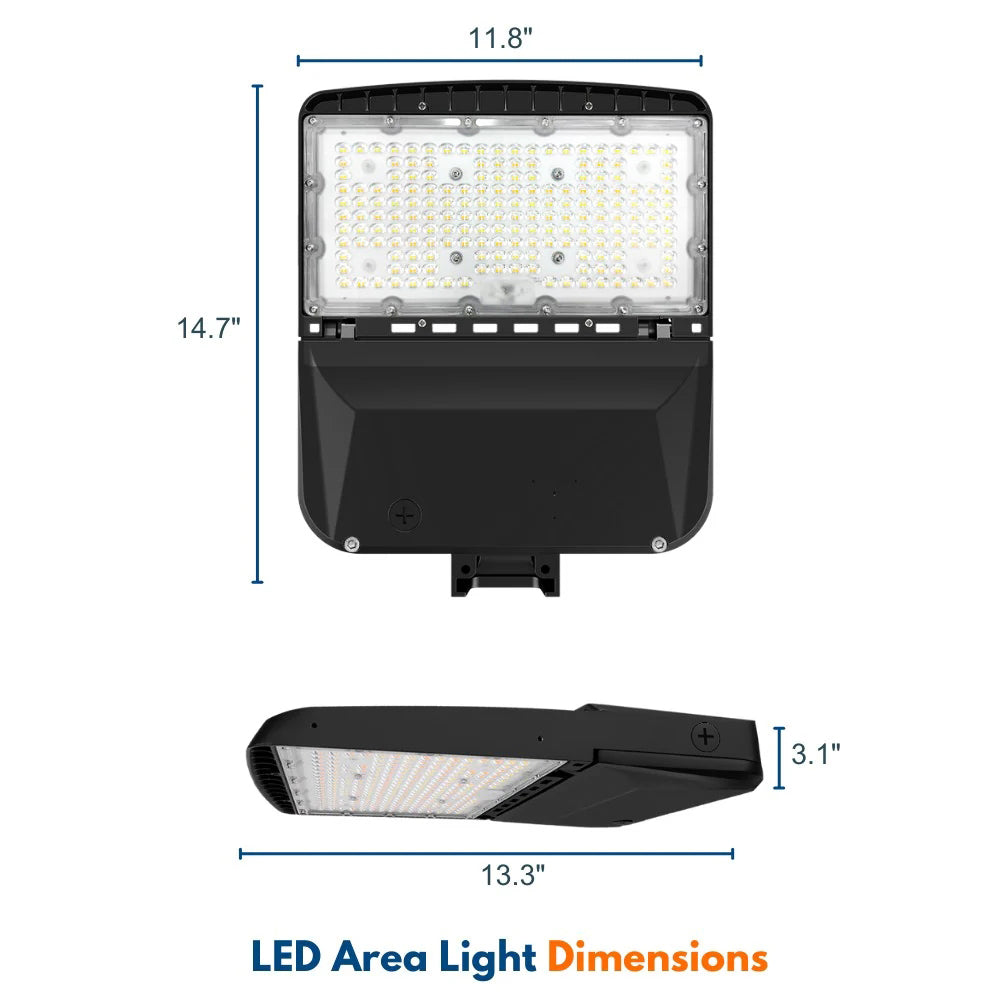

Operating Temperature-40 °F to 113 °FDimensionsSee Specifications
CertificationsUL, Wet Locations, DLC PremiumWeight12 lbs

Konlite Vela LED Parking Lot Light Video

Video of Konlite Vela LED Parking Lot Light - 240W/220W/200W/170W Selectable - Up To 34,888 Lumens
