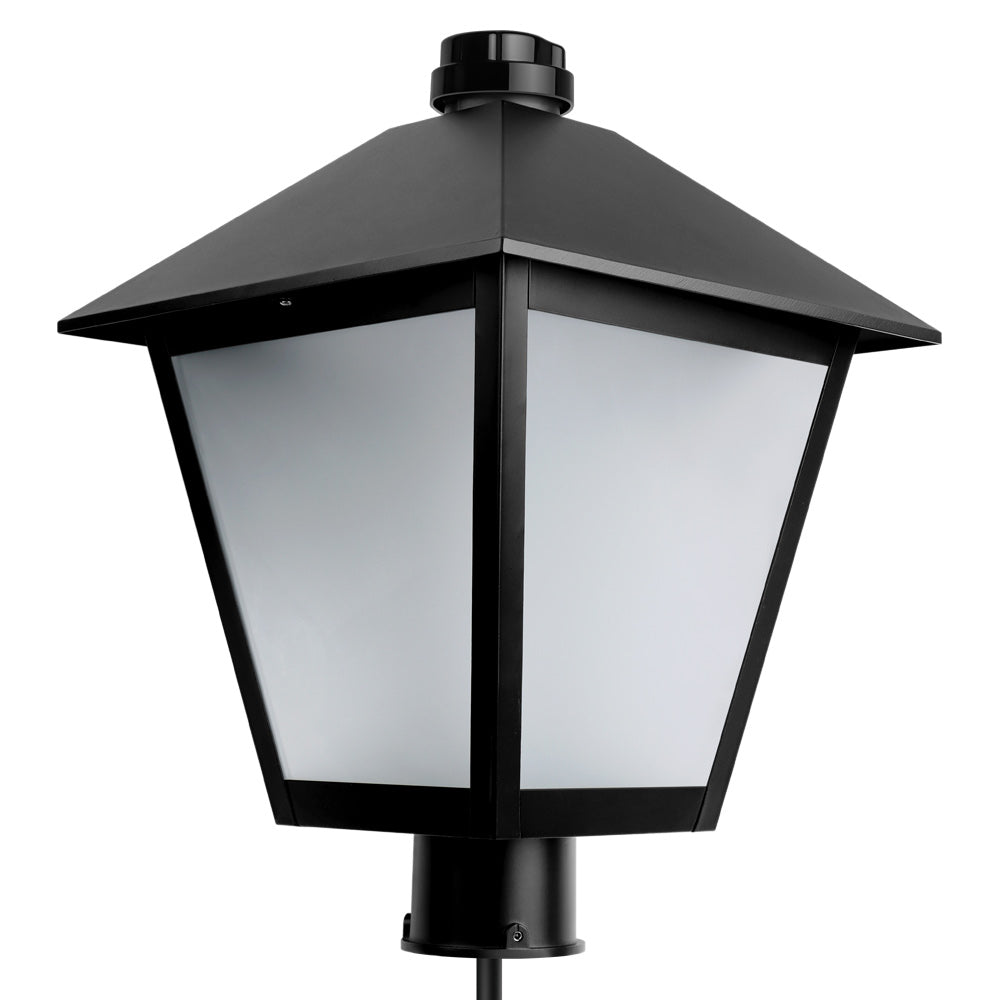

Product Overview
Bring timeless architectural style and modern LED efficiency together with the Konlite PT02 LED Lantern Post Top Light. Designed to enhance streetscapes, parks, residential communities, campuses, pedestrian walkways, and commercial properties, this decorative outdoor fixture delivers exceptional performance while maintaining the classic appearance of a traditional lantern.

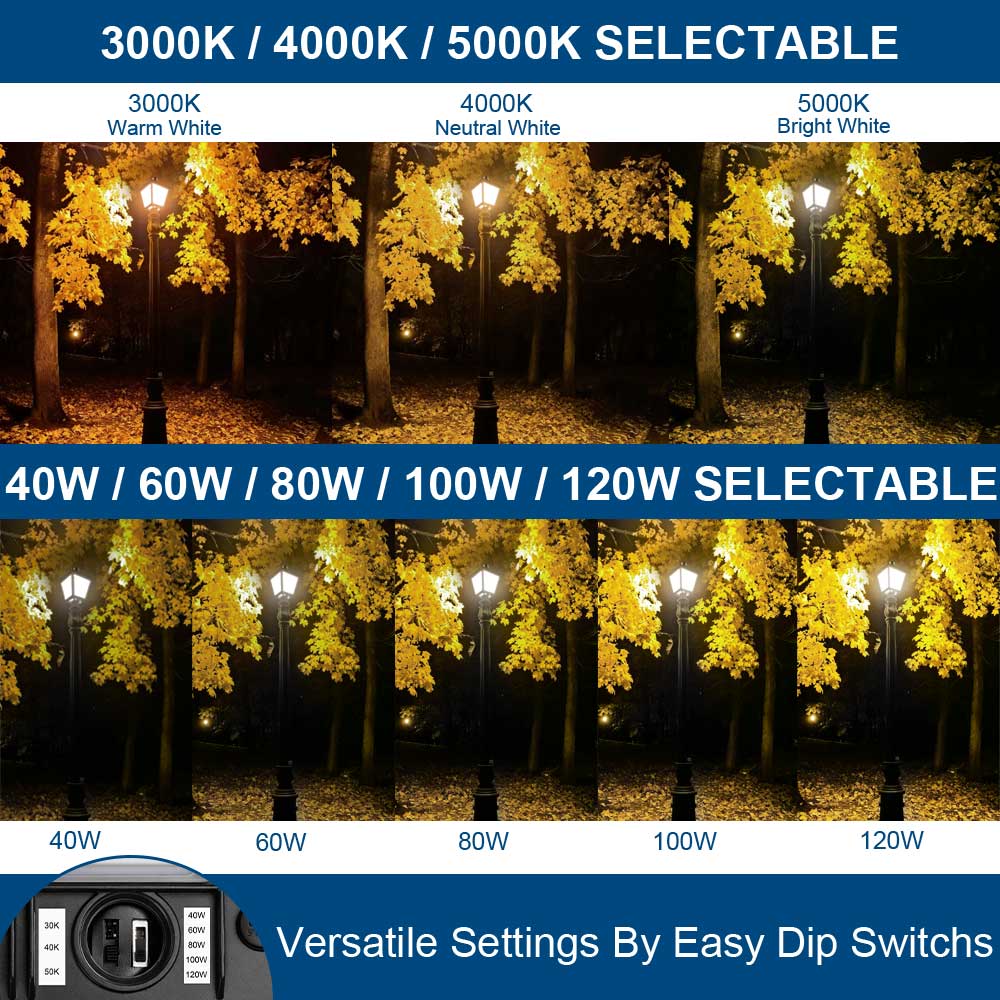

The PT02 features field-selectable wattages of 40W, 60W, 80W, 100W, and 120W, allowing contractors and facility managers to adjust light output to meet project requirements without changing fixtures. Selectable color temperatures of 3000K, 4000K, and 5000K provide flexibility for warm, neutral, or bright white illumination.

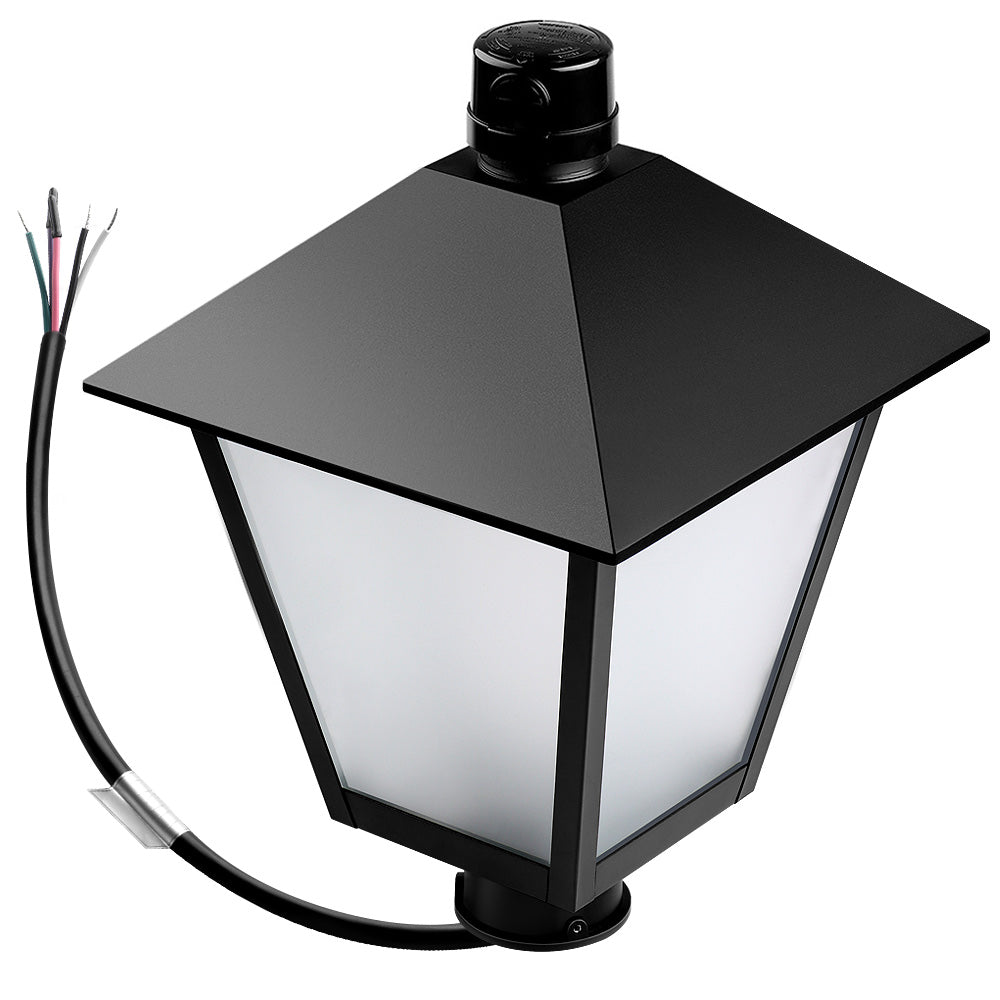

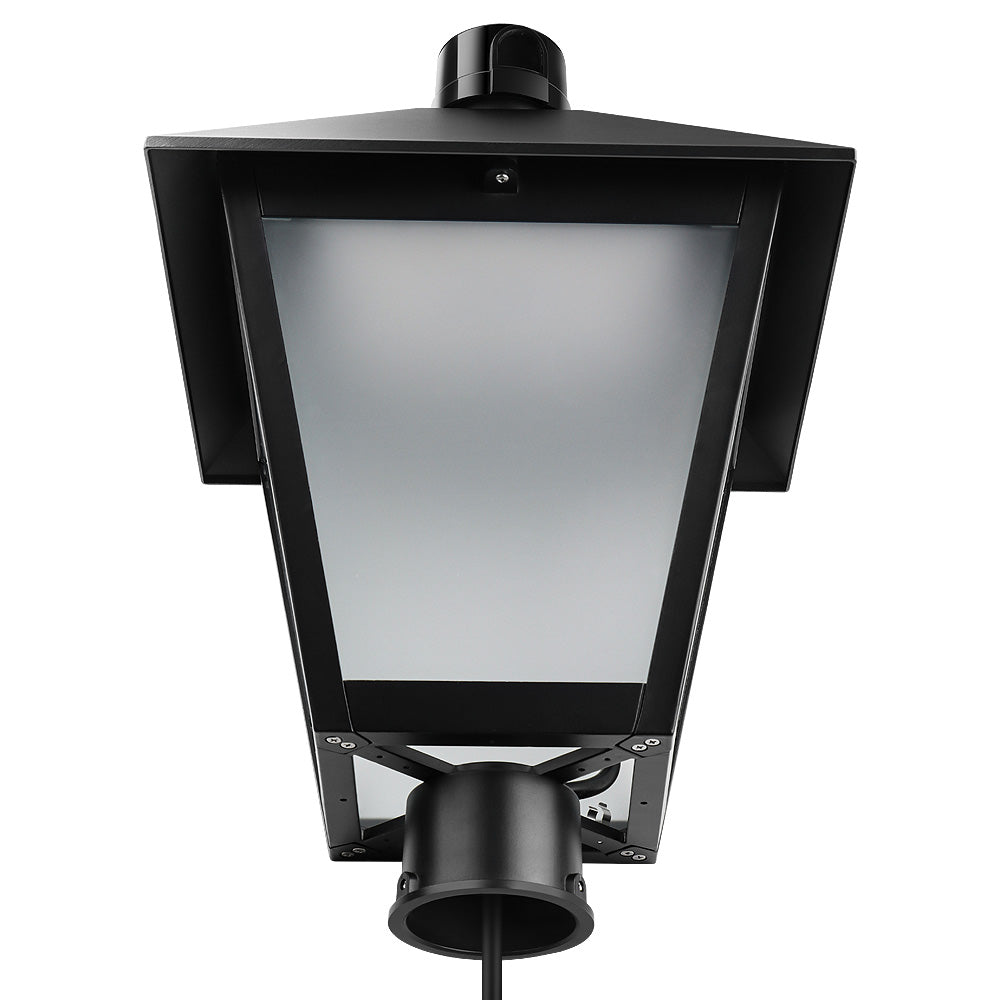

Constructed from corrosion-resistant die-cast aluminum and tempered glass, the PT02 is built to withstand demanding outdoor environments. DLC Premium certification, IP65 weather protection, IK08 impact resistance, and a 100,000-hour LED lifespan make it an ideal long-term lighting solution for municipalities, HOAs, schools, parks, and commercial developments.
Perfect for both retrofit and new construction projects, the PT02 combines decorative aesthetics, energy savings, and reliable performance in one versatile fixture.

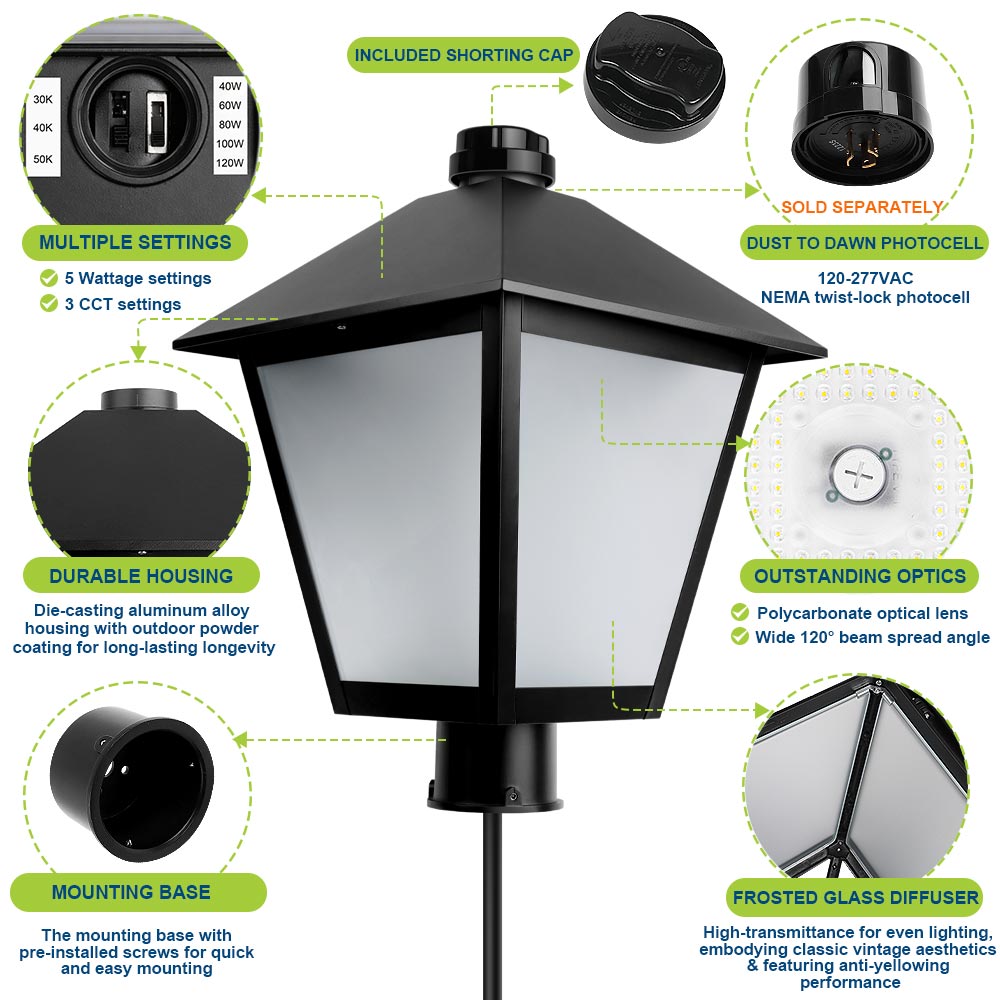

Key Features
• Selectable wattages: 120W / 100W / 80W / 60W / 40W
• Up to 13,056 lumens output
• Selectable CCT: 3000K / 4000K / 5000K
• DLC Premium listed for maximum energy rebates
• IP65 rated for outdoor weather protection
• IK08 impact-resistant construction
• Durable die-cast aluminum housing with tempered glass diffuser
• 0-10V dimmable driver included

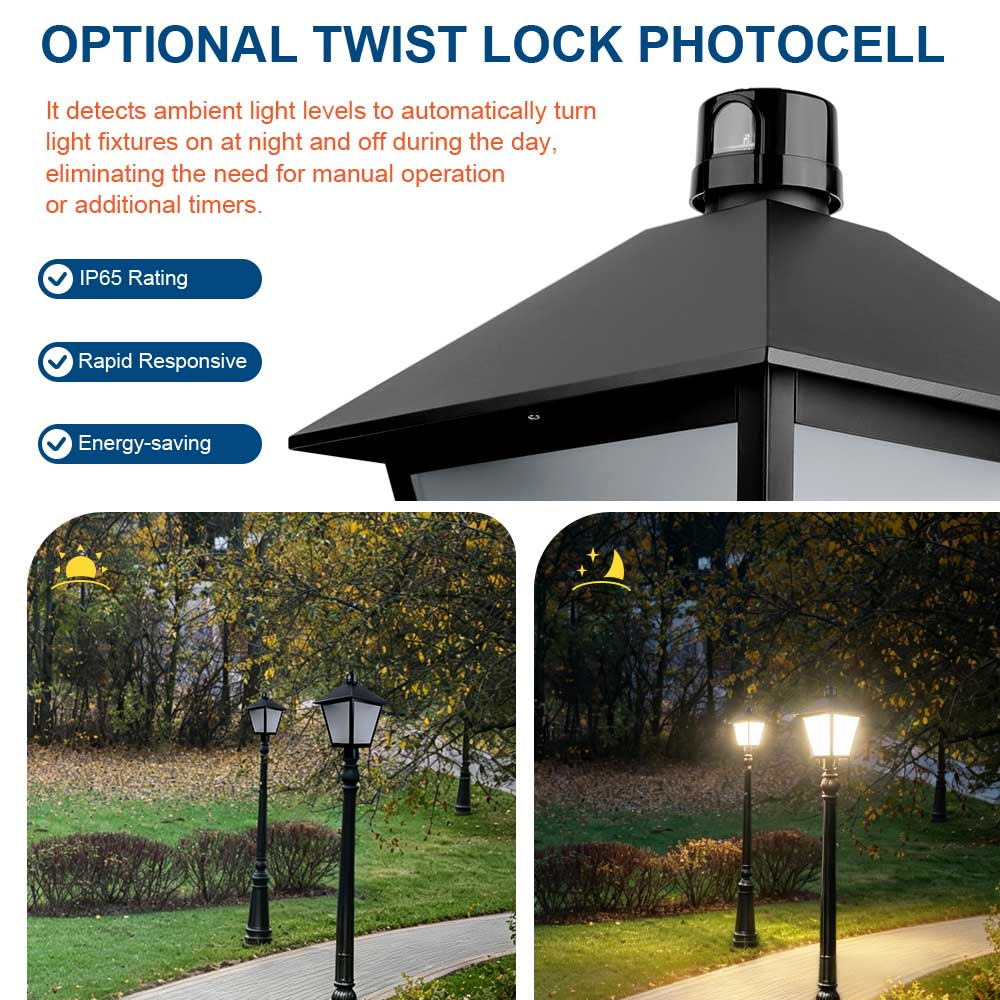

• Optional dust to dawn photocell available
• 100,000-hour LED lifespan reduces maintenance costs

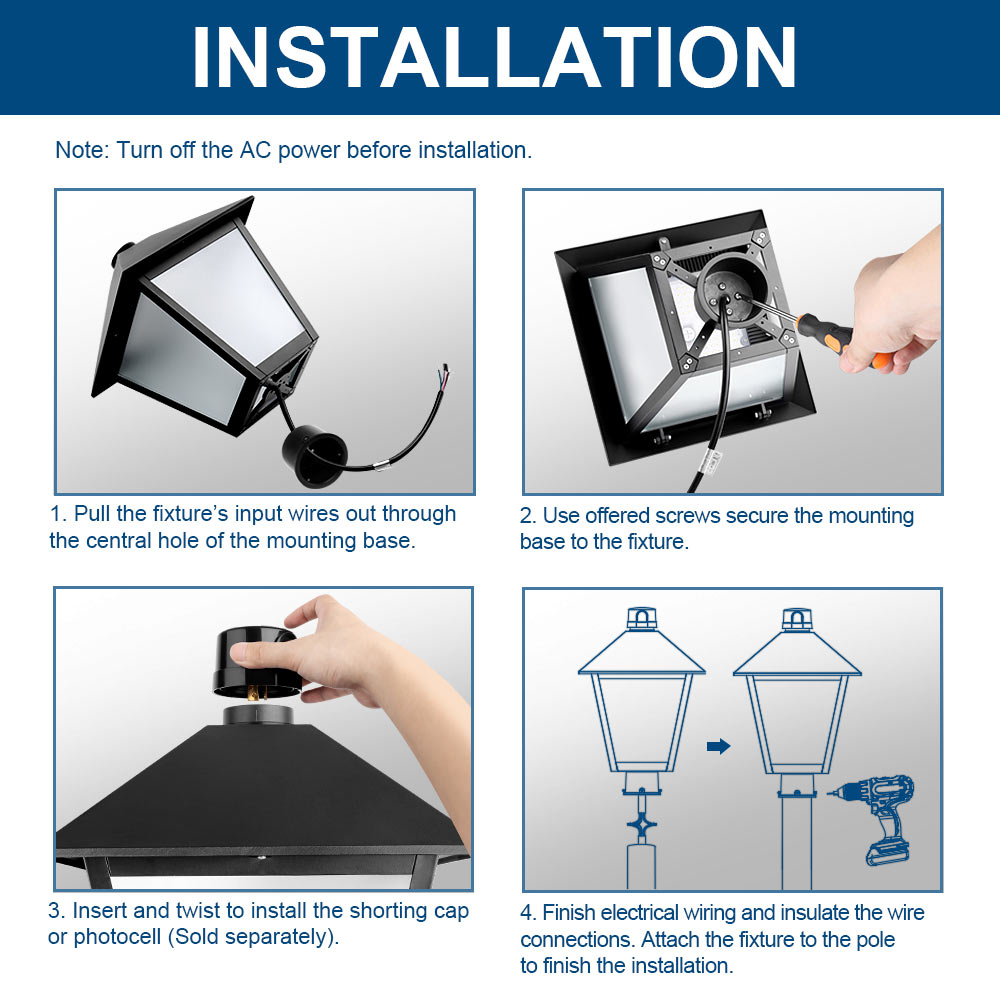

• Fits standard pole-top tenons up to 3" OD

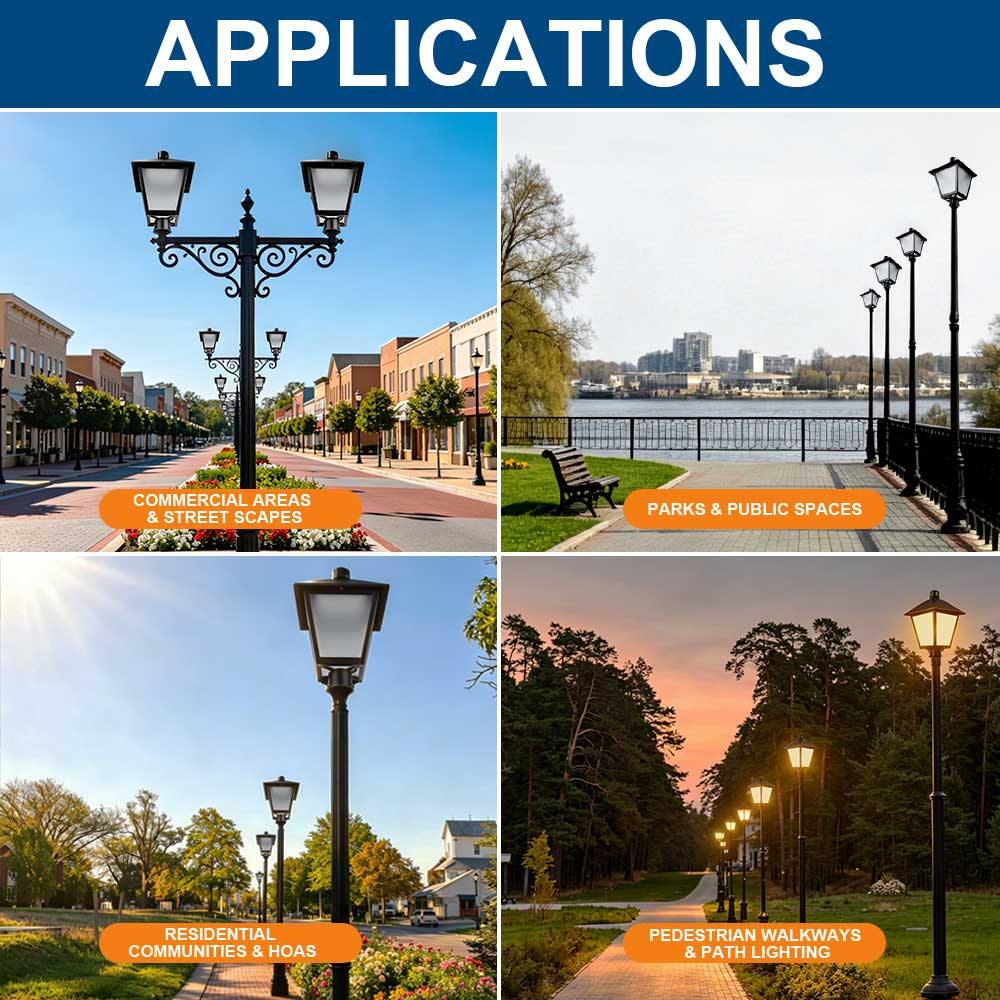

Applications
| • Area Lighting | • Parking Lots |
| •Residential Communities & HOAs |
• Roadways & Pathways |
| • Parks & Recreation Areas | • Car Dealerships |
| • Courtyards & Gardens | • Historic Districts |
| • Apartment Complexes | • Streetscapes |
| • Campus Lighting | • Municipal Lighting Projects |
Specifications
| Brand | Konlite | MPN | RD-SS-PT02-120W-H-T-F |
| Warranty | Limited 5 Years | UPC | 605547513688 |

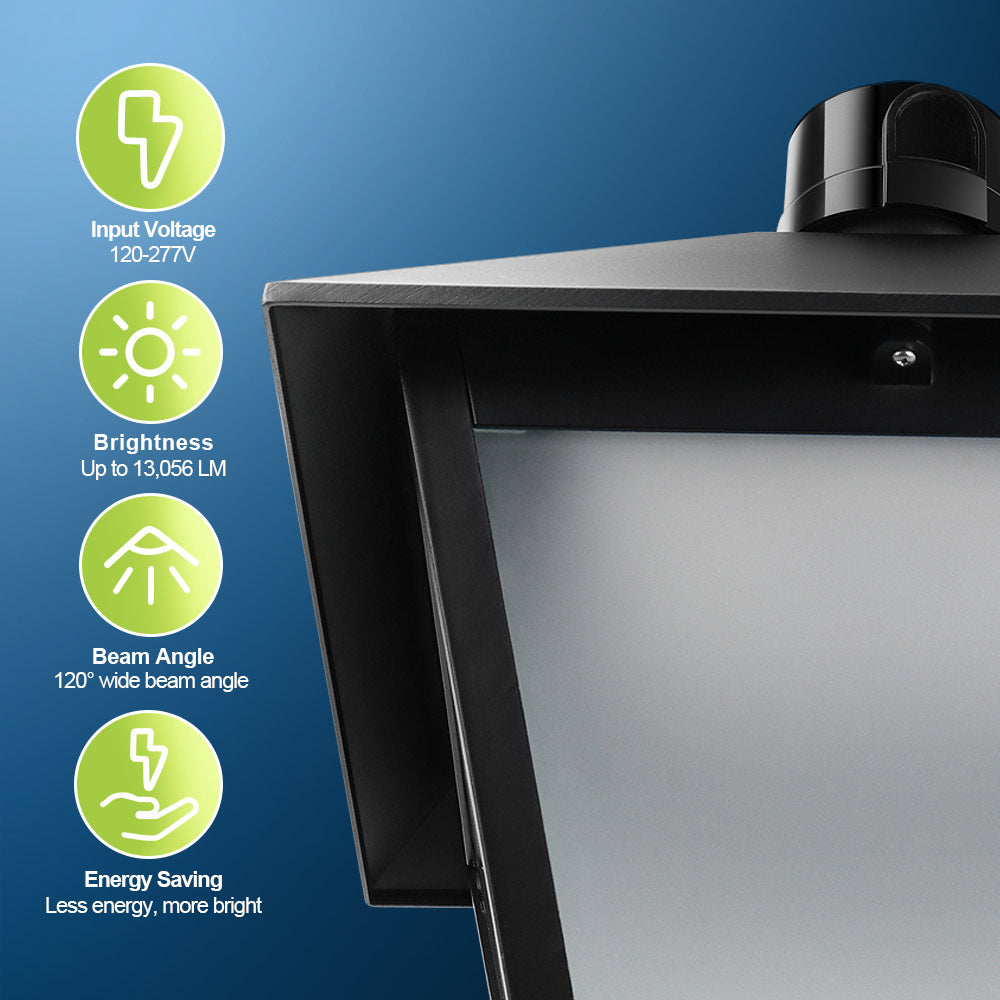

| Input Voltage | 120-277V | Beam | Type V |
| Input Wattage | 120W/100W/80W/60W/40W | Equal to | 320W MH |
| Lumen | 13,056 Max. | CRI | >70 |
| Efficacy | 120 LM/W | Available CCT | 5000K/4000K/3000K |
| LED Rated Life | >100,000 hrs | THD | <18% |
| Power Factor | >0.95 | IP Rating | IP66 |
| Dimmable | 0-10V Dimmable | Controls | Dusk to Dawn Photocell |

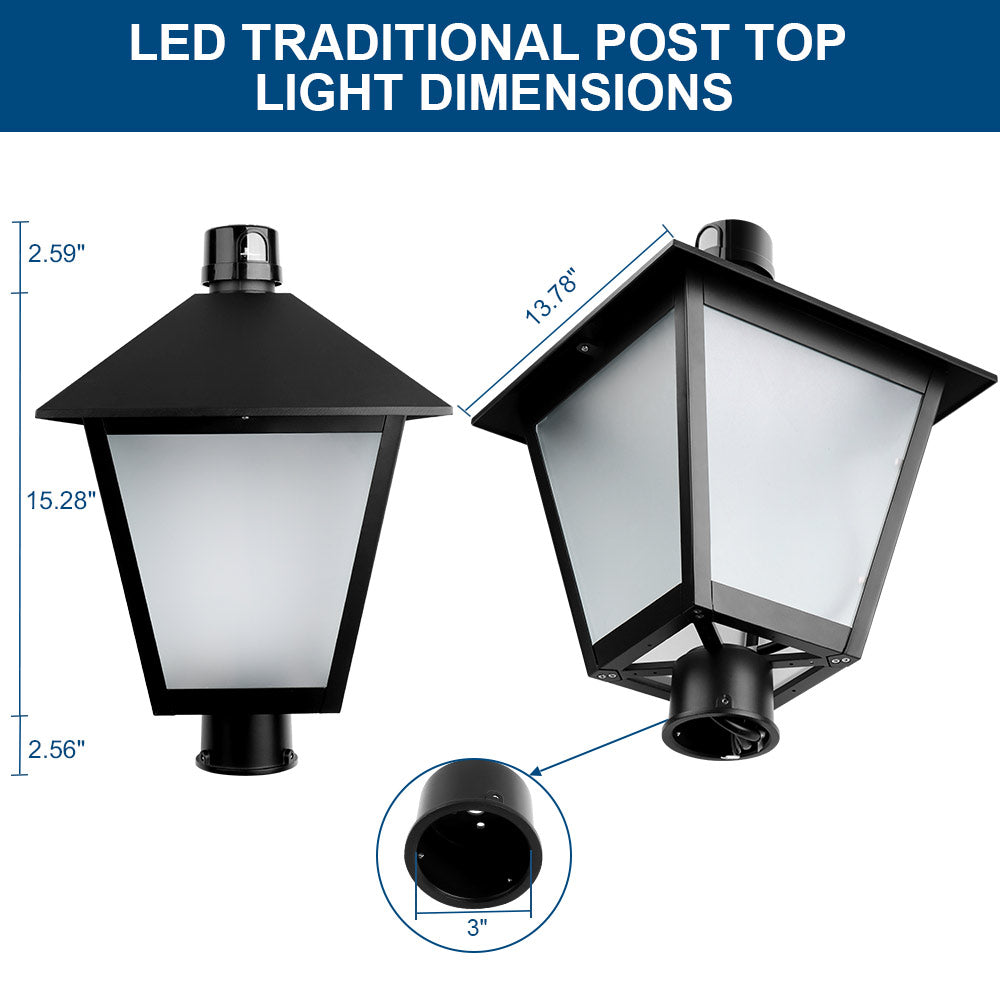

| Operating Temperature | -40 to 122 F | Dimensions | 13.78" x 13.78" x 20.43"H |
| Certifications | UL, Damp Locations, DLC Premium | Weight | 14.22 lbs |
