Product Overview

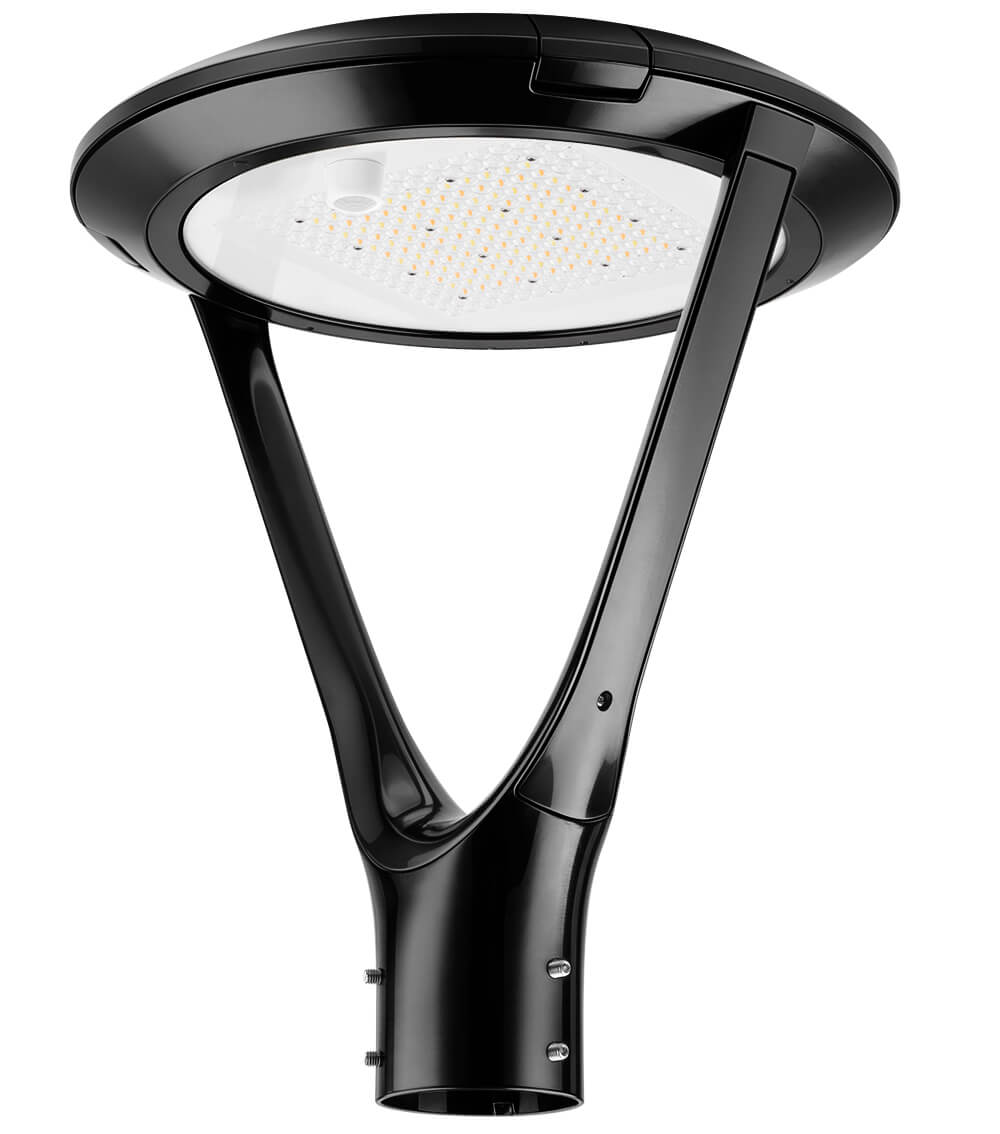

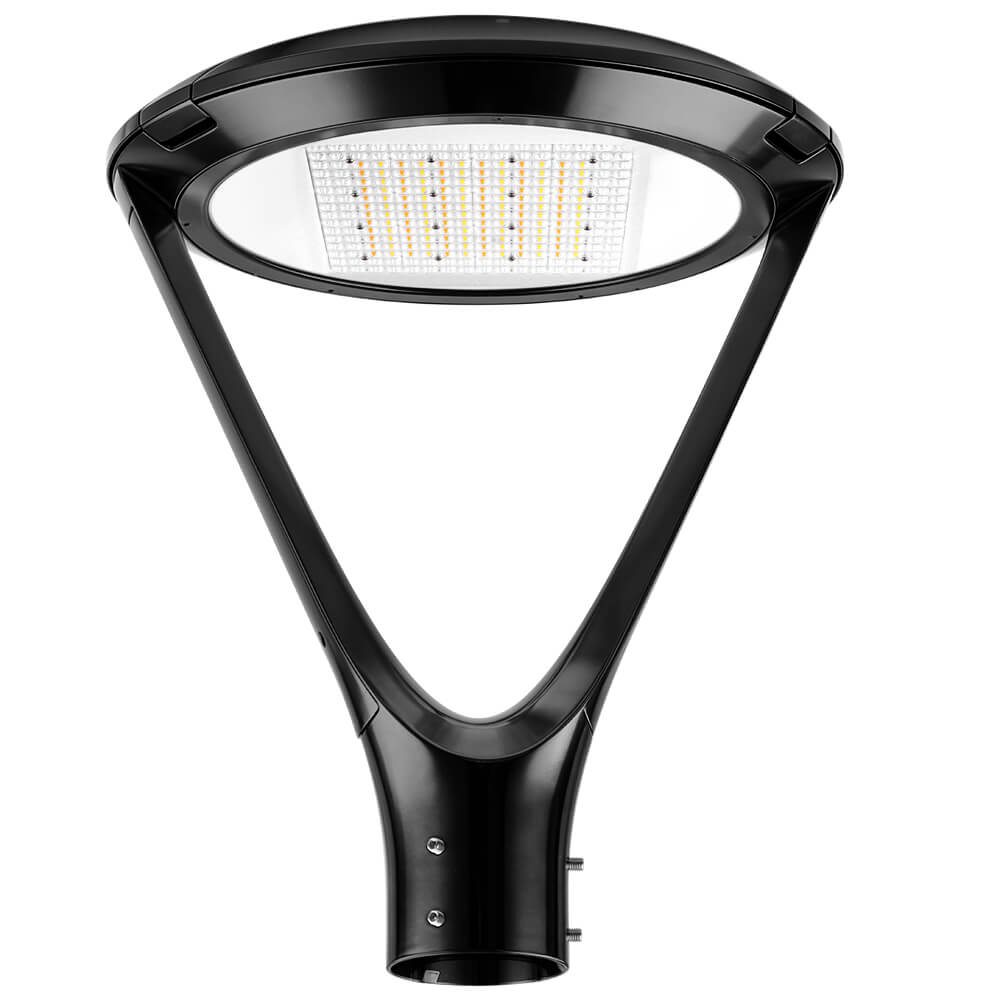

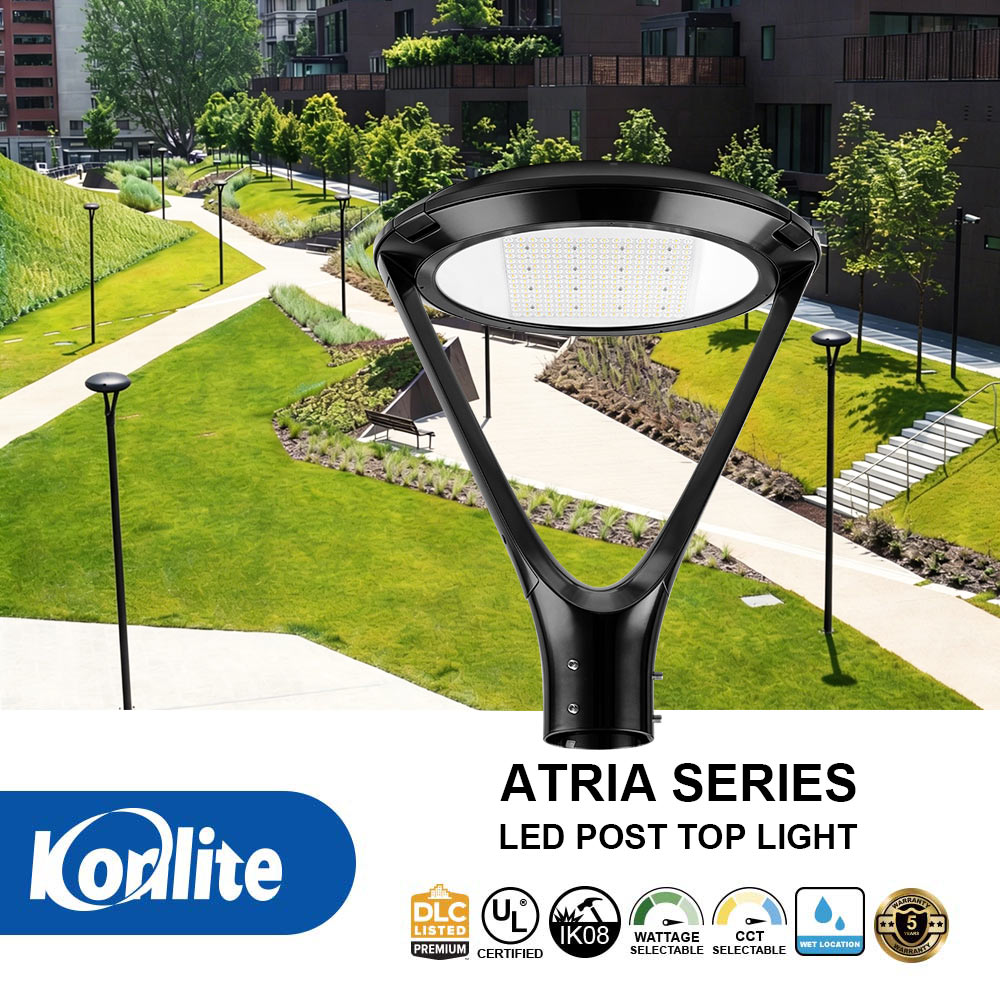

The Konlite Atria Series LED Post Top Light is a commercial-grade architectural outdoor lighting fixture designed for streets, parking lots, pathways, parks, campuses, residential communities, and municipal lighting projects. Combining a modern architectural design with energy-efficient LED technology, it delivers reliable, uniform illumination while enhancing the appearance, safety, and functionality of outdoor spaces.
Designed for both new construction and retrofit applications, the Atria Series offers the flexibility to meet a wide range of commercial lighting requirements. With multiple optical distributions, selectable wattage and color temperature, and a durable die-cast aluminum housing, it provides a versatile, long-lasting solution for area lighting, pedestrian walkways, roadways, and public spaces.

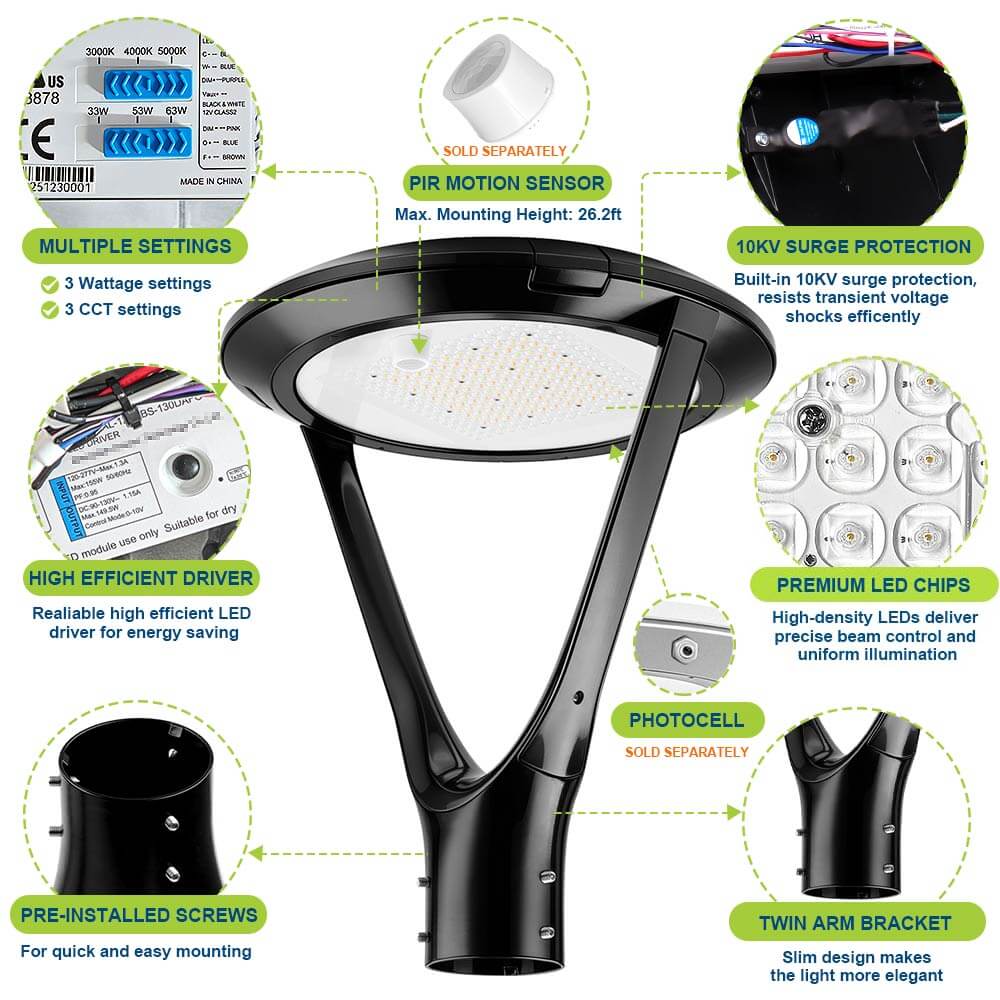

Key Features

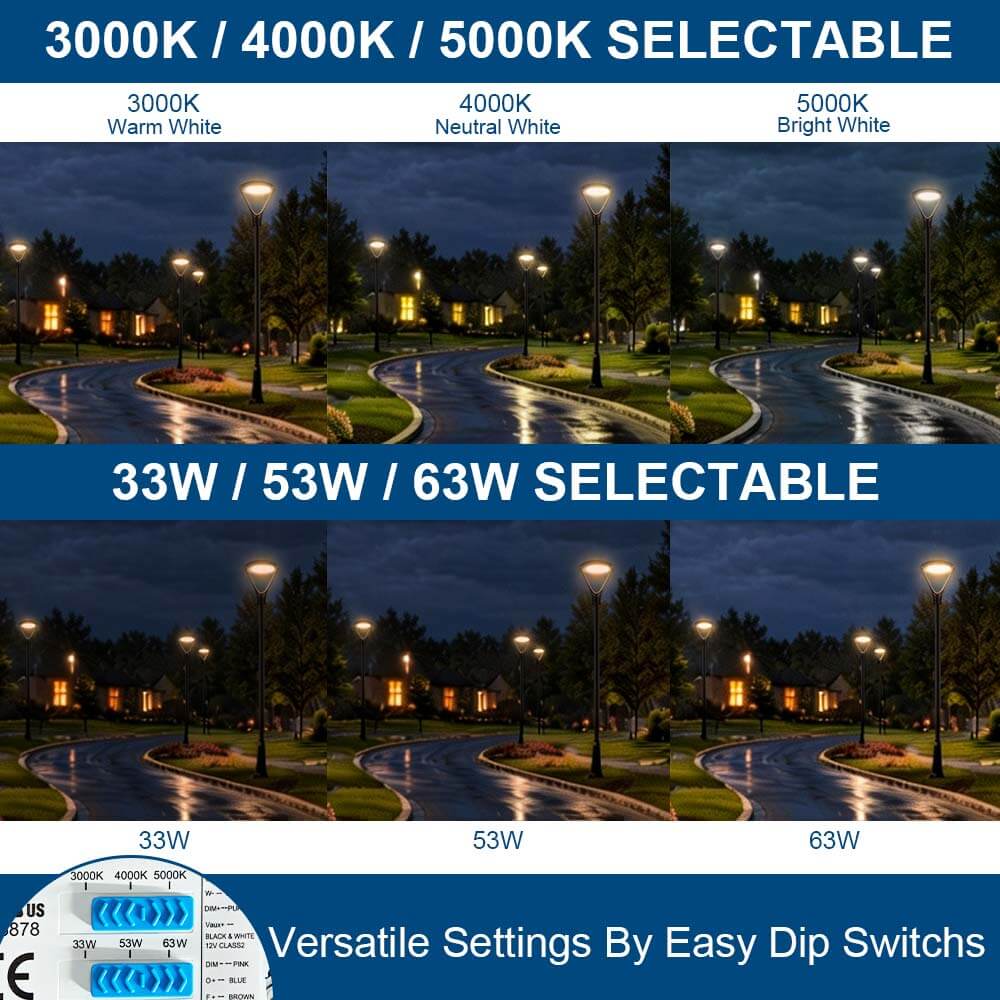

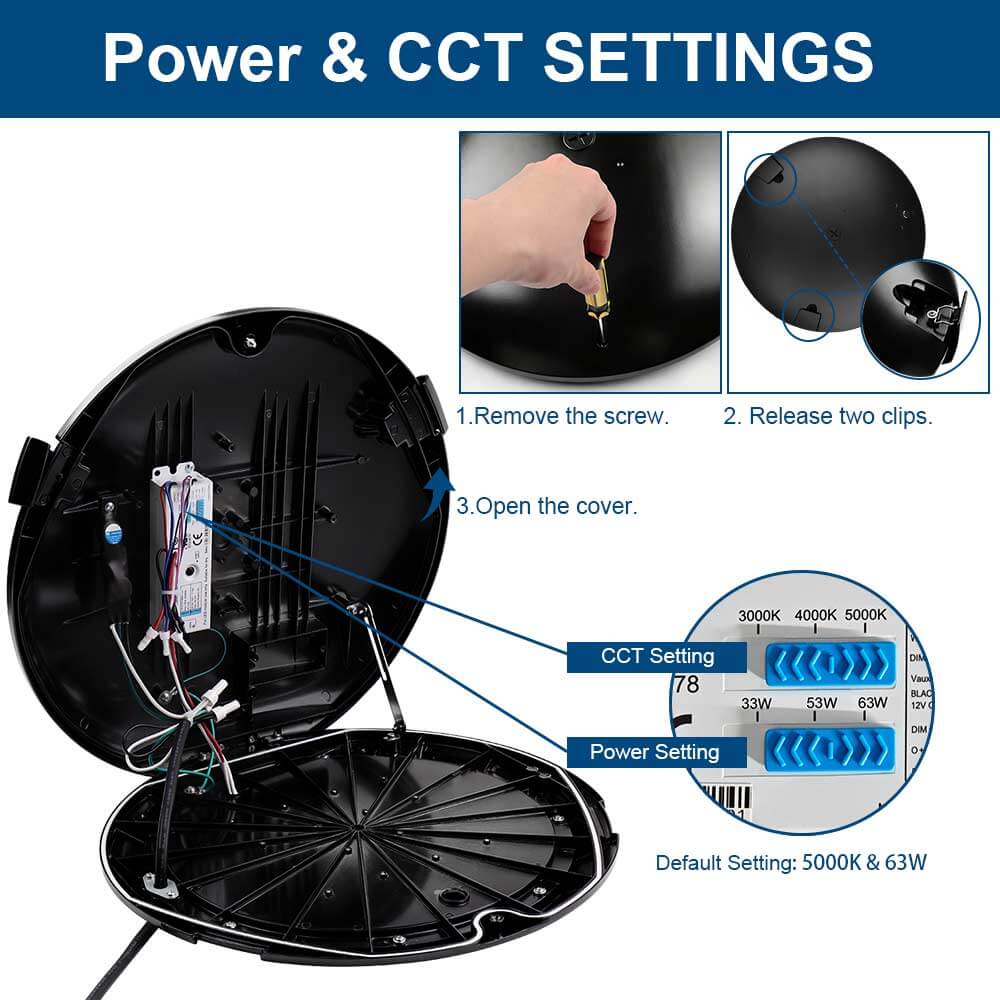

🔹 Selectable Wattage (33W / 53W / 63W)
Adjust the light output in the field to match your project's illumination requirements while maximizing energy savings.
🔹 Selectable Color Temperature (3000K / 4000K / 5000K)
Choose warm, neutral, or daylight white light to achieve the ideal balance of visibility, comfort, and appearance.
🔹 High-Efficiency Performance
Produces up to 9,450 lumens with efficacy reaching 150 lm/W, providing bright, uniform illumination with professional low-glare optics.

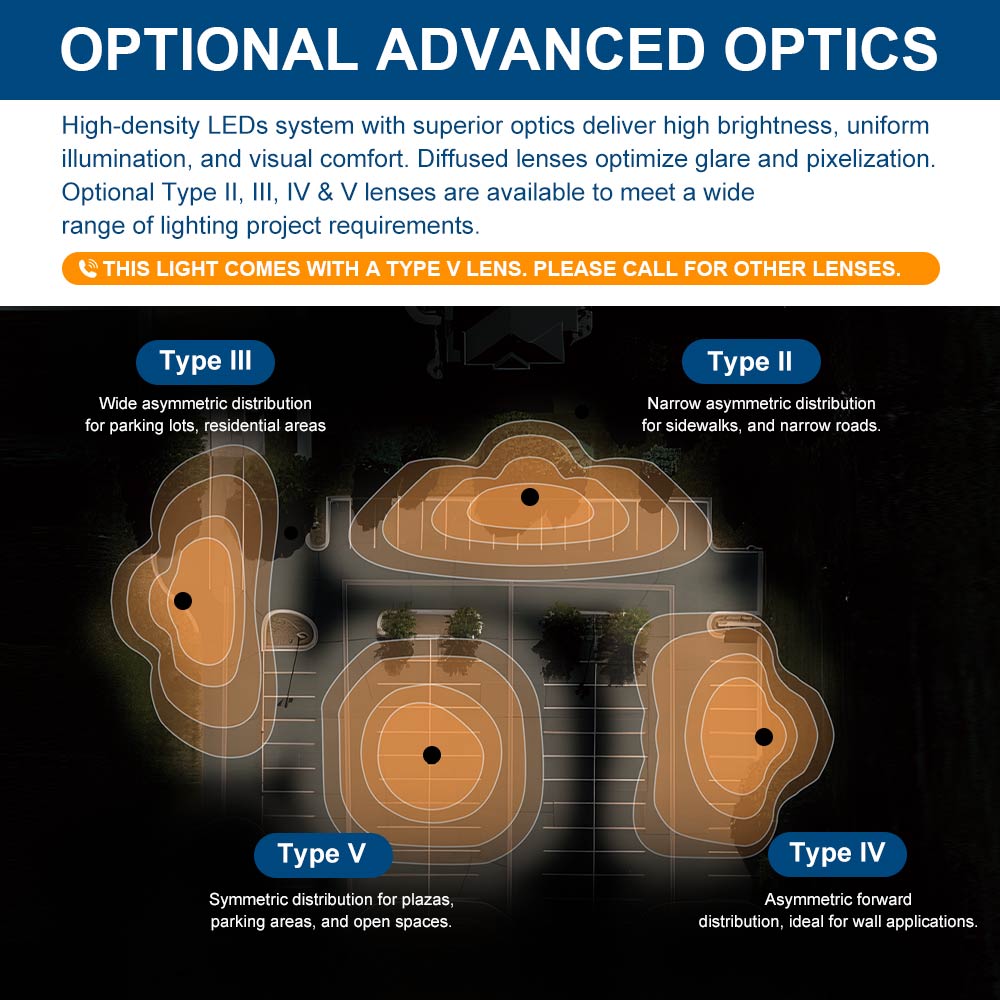

🔹 Multiple Optical Distributions
Available with Type V or Type III light distributions to optimize performance for pathways, roadways, parking lots, plazas, and other outdoor applications.
🔹 Commercial-Grade Construction
Heavy-duty die-cast aluminum housing with a harsh-environment powder-coated finish, tempered glass diffuser, and precision polycarbonate optical lens for long-lasting outdoor durability.
🔹 Fully Sealed & Weather Resistant
Wet Location Rated with a sealed housing that protects against moisture, dust, and environmental contaminants. IK08 impact rated for demanding outdoor installations.
🔹 Reliable Electrical Performance

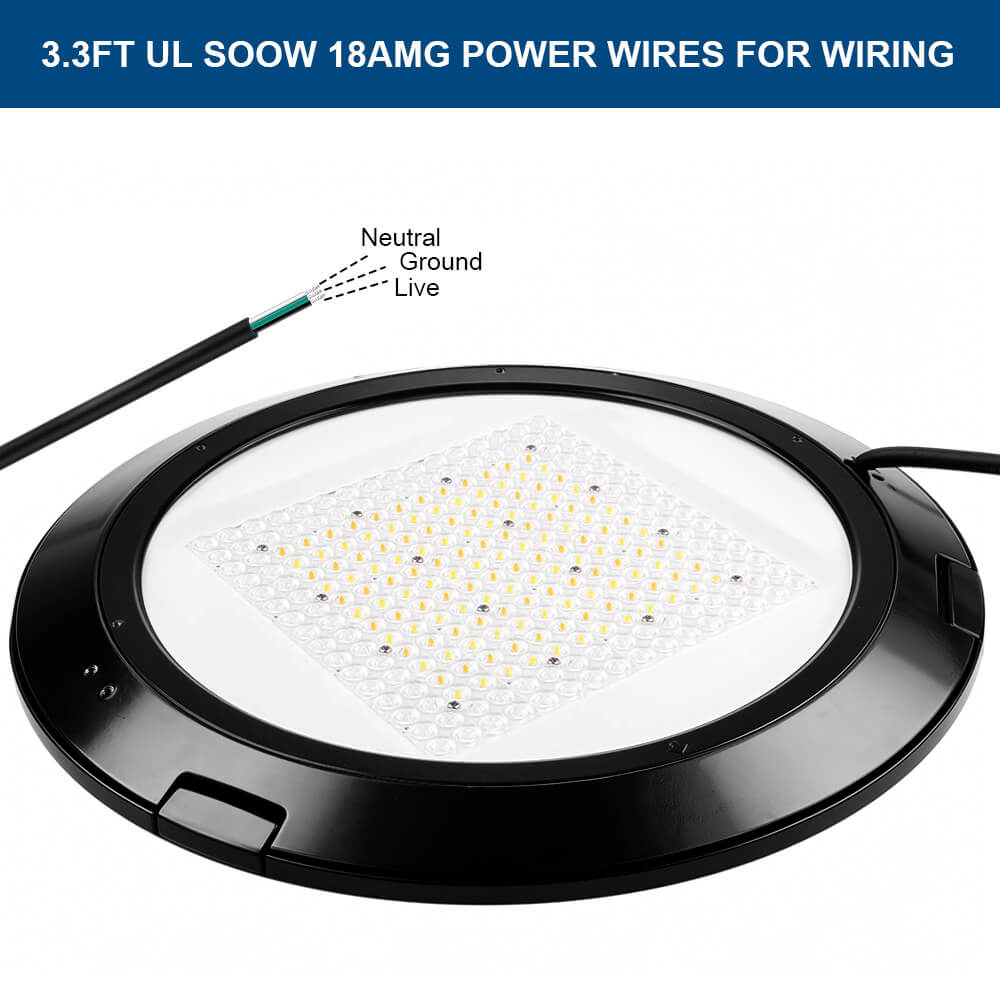

120–277V operation with 10kV surge protection, power factor ≥0.92, THD <10%, and an included 3.3 ft UL-listed power cord.

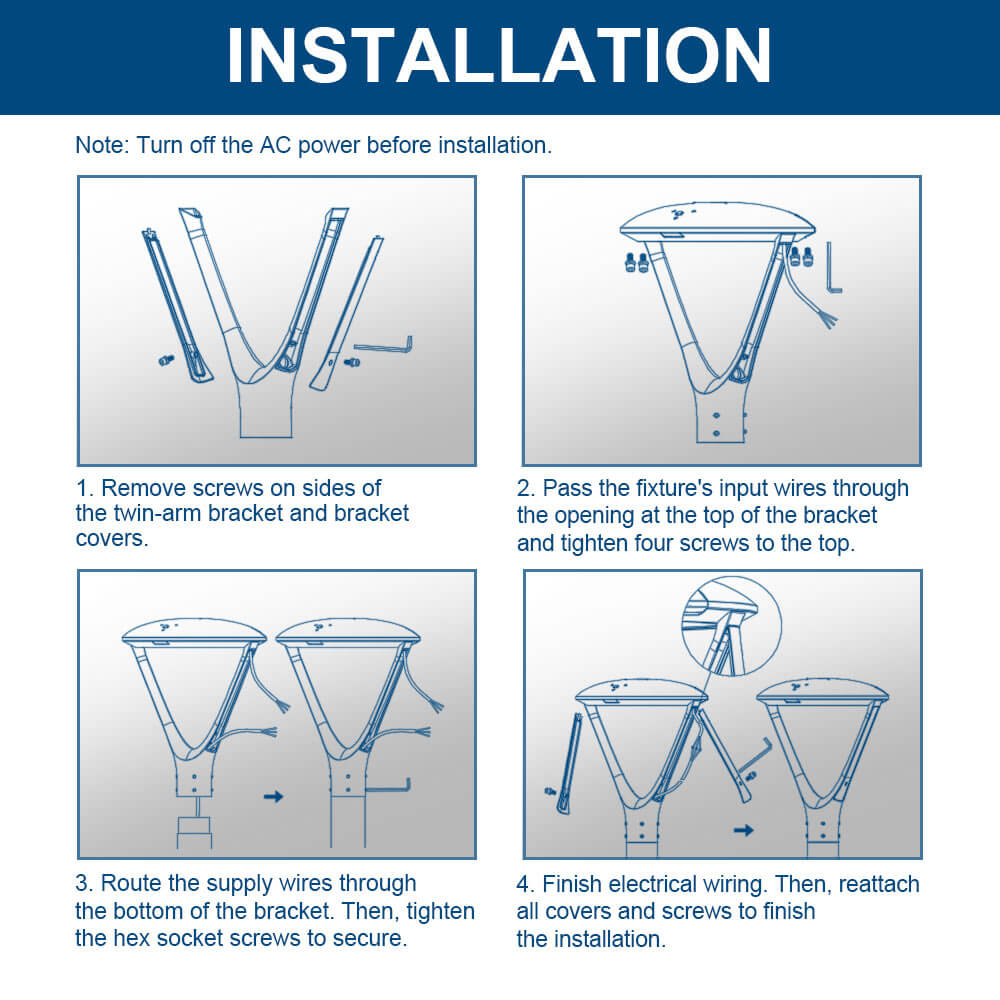

🔹 Easy Installation

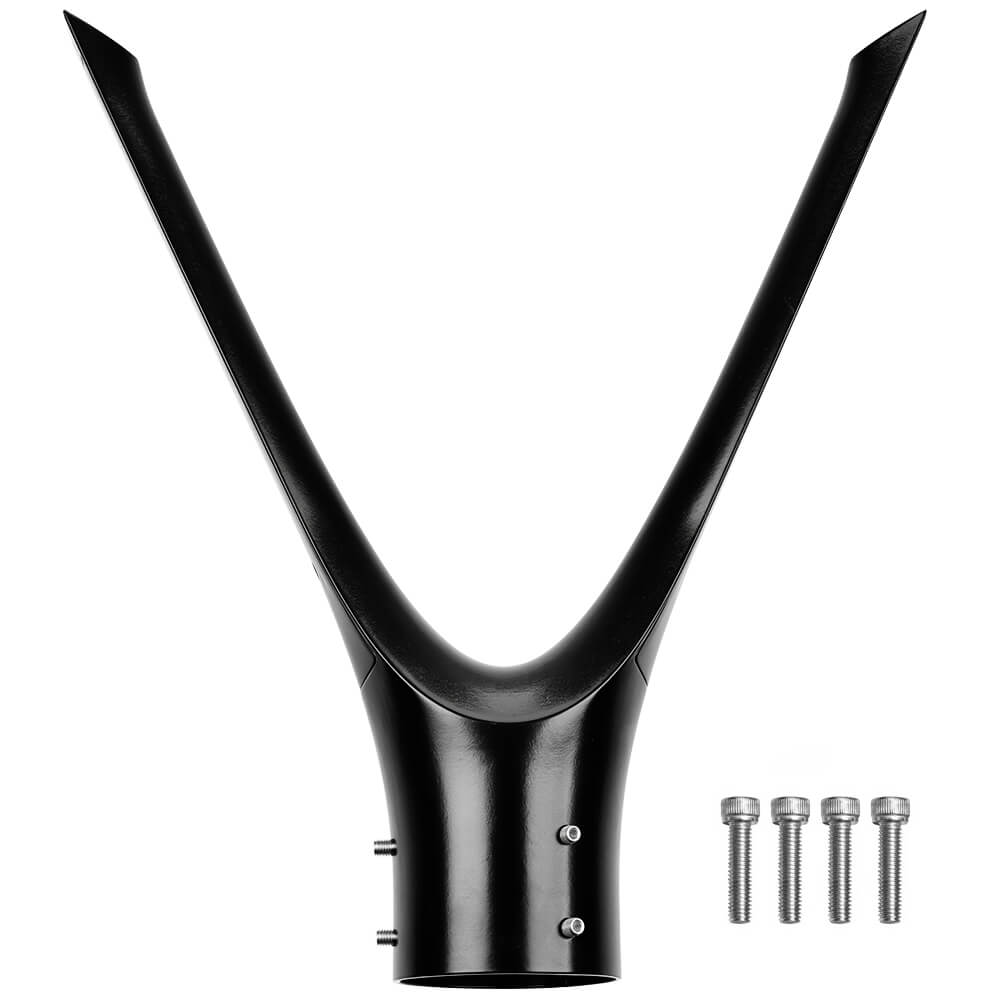

Includes a twin-arm post top mounting kit and mounts directly to tenons up to 3.28 in. outside diameter for fast installation.

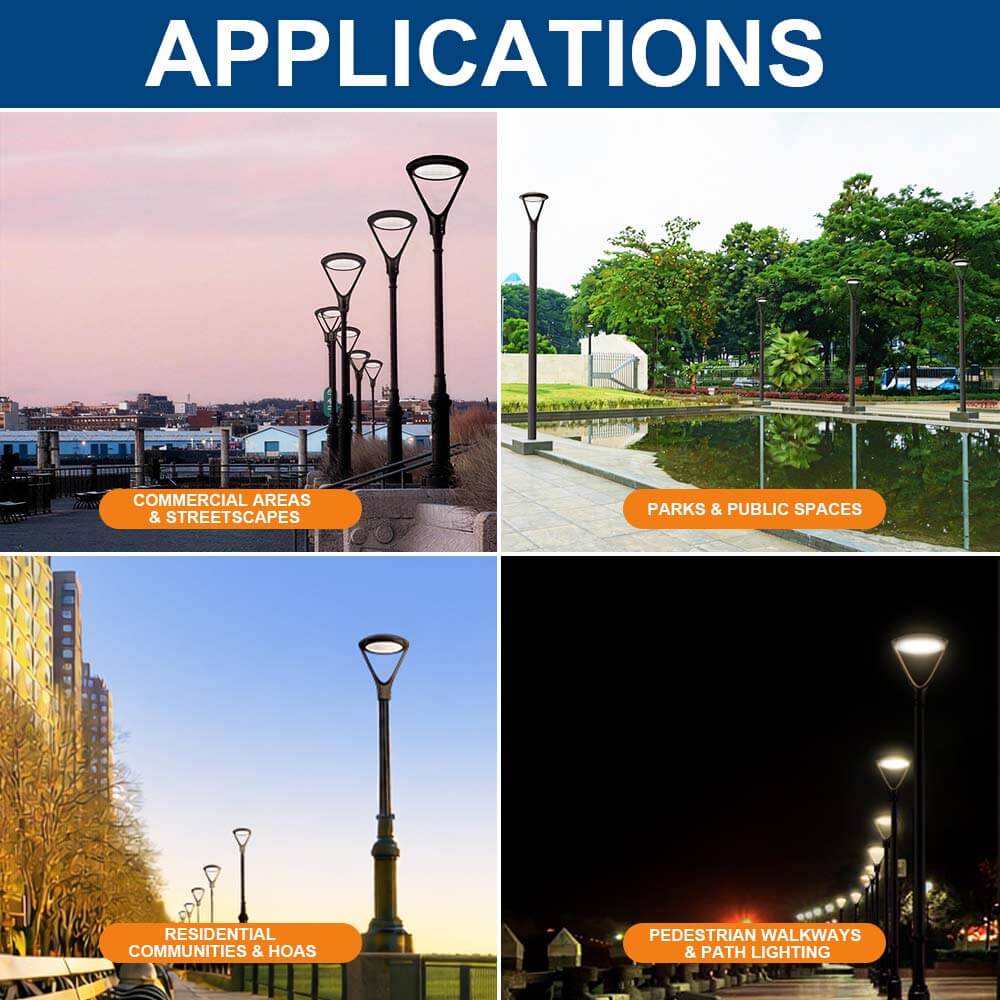

Applications
| • Area Lighting | • Parking Lots |
| • Pathways & Sidewalks |
• Streets & Roadways |
| • Parks & Recreation Areas | • Mixed-Use Developments |
| • Residential Communities & HOAs | • Public Facilities |
| • Courtyards & Gardens | • Historic Districts |
| • Apartment Complexes | • Commercial Developments |
| • Campuses & Schools | • Municipal Lighting Projects |
| • Public Plazas | • Car Dealerships |
Specifications
| Brand | Konlite | MPN | KARLWMCLT5TPB |
| Warranty | Limited 5 Years | UPC | 605547867224 |
| Input Voltage | 120-277V | Beam | Type V/III |
| Input Wattage | 63W/53W/33W | Equal to | 250W MH |
| Lumens | 9,450 Max. | CRI | >70 |
| Efficacy | 150 LM/W Max | Available CCT | 5000K/4000K/3000K |
| Rated Life | >50,000 hrs | THD | <10% |
| Power Factor | >0.92 | IP Rating | IP65 |
| Dimmable | N/A | Controls | Optional Dusk to Dawn Photocell |

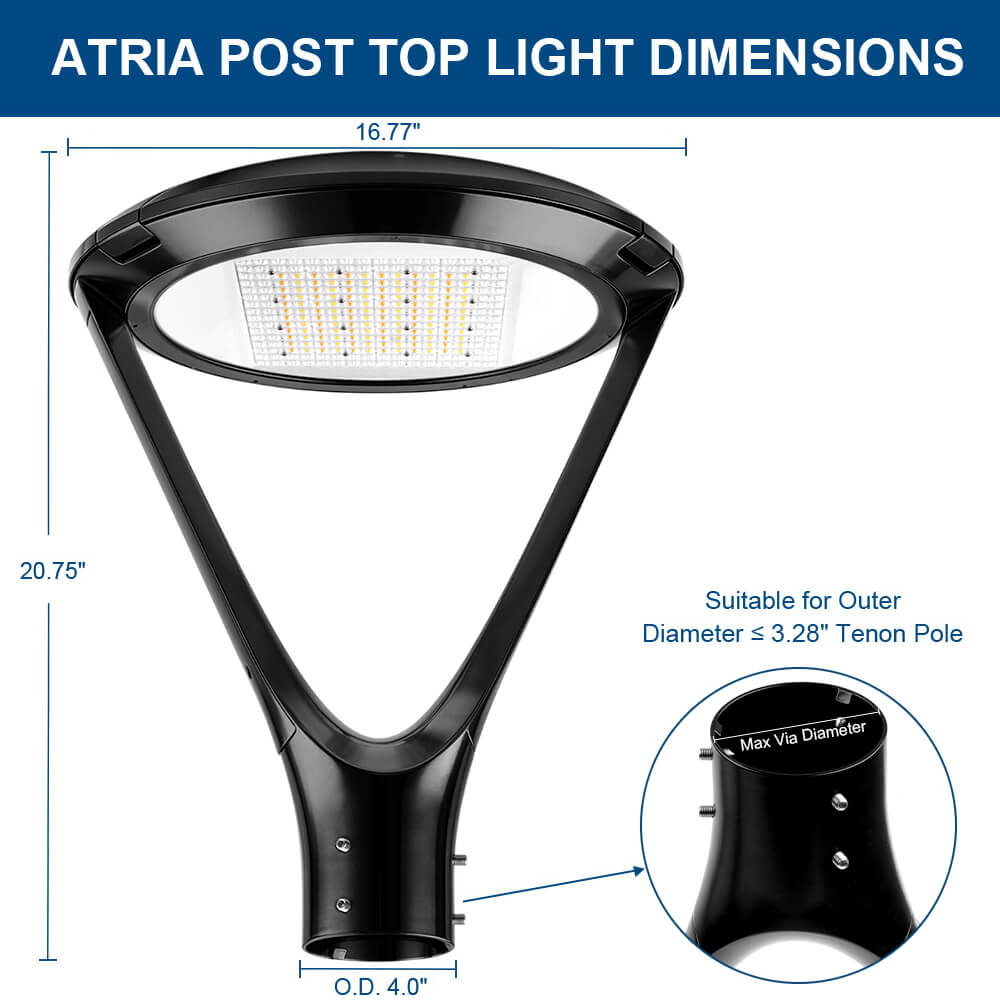

| Operating Temperature | -22 to 113 F | Dimensions | Ø16.77" x 20.75"H |
| Certifications | UL, Wet Locations, DLC Premium | Weight | 12.8 lbs |
