Product Overview

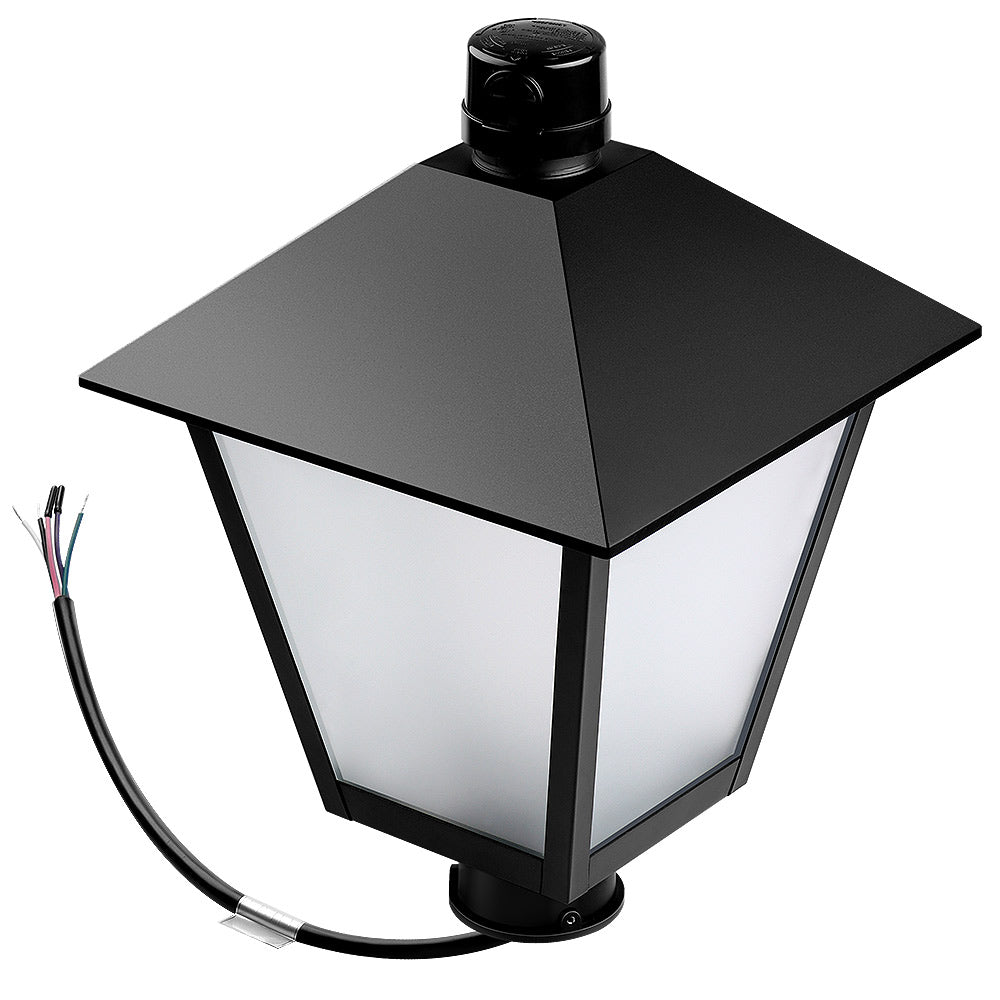

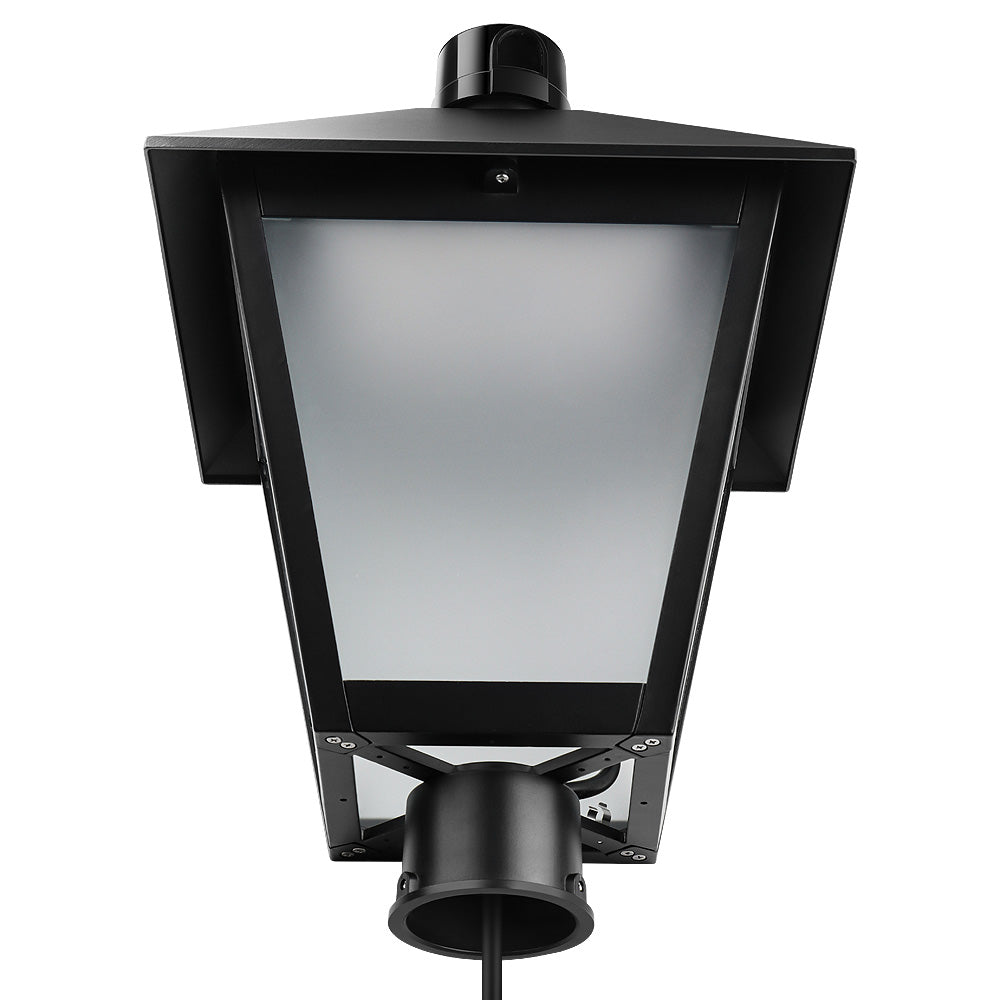

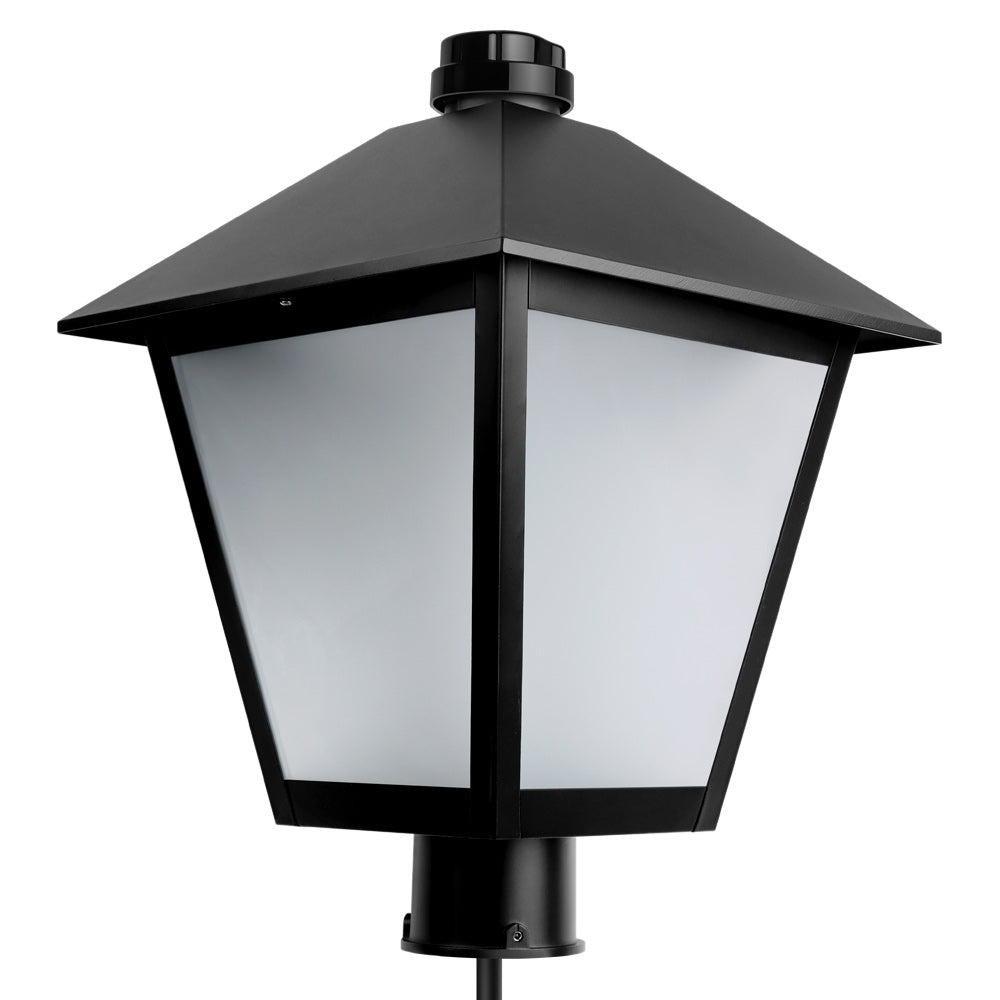

The Konlite PT02 Decorative LED Post Top Lantern provides classic outdoor charm combined with modern LED technology. Designed for pedestrian-scale lighting applications, this elegant lantern-style fixture is perfect for pathways, gardens, parks, residential developments, HOA communities, courtyards, historic districts, and public spaces.
Featuring five selectable wattages ranging from 20W to 60W, the PT02 allows installers to fine-tune light levels on-site while reducing inventory requirements. Selectable color temperatures of 3000K, 4000K, and 5000K provide flexibility to create welcoming, safe, and attractive outdoor environments.
Built with a rugged die-cast aluminum housing and tempered glass diffuser, the PT02 is engineered for years of dependable outdoor service. The fixture is DLC Premium listed, IP65 weatherproof, IK08 impact resistant, and designed for maintenance-free operation with an expected LED lifespan exceeding 100,000 hours.
Whether illuminating neighborhood walkways, community parks, or decorative streetscapes, the PT02 delivers efficient, attractive lighting with the timeless appearance of a traditional lantern.
Key Features
• Selectable wattages: 60W / 50W / 40W / 30W / 20W
• Up to 7,209 lumens output
• Selectable color temperatures: 3000K / 4000K / 5000K
• Decorative lantern-style design
• DLC Premium listed
• IP65 weatherproof construction
• IK08 impact protection

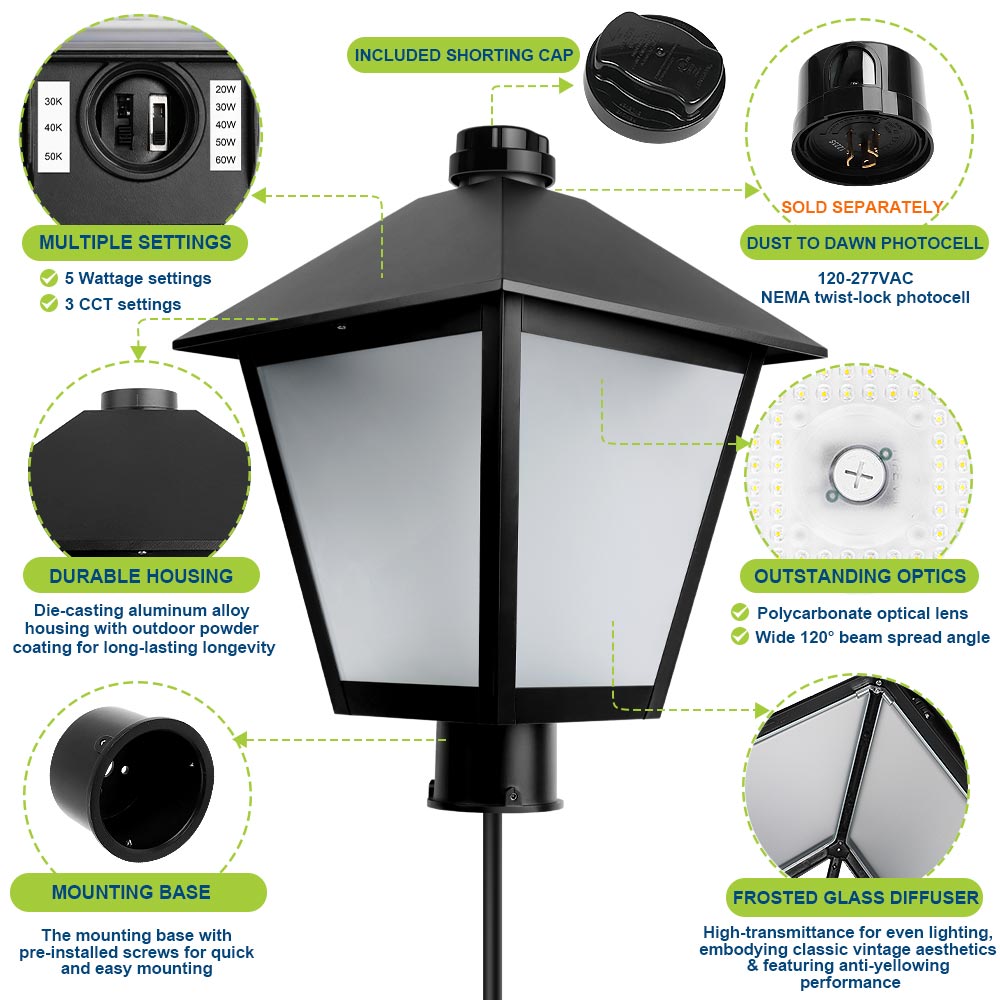

• Die-cast aluminum housing with tempered glass diffuser
• 0-10V dimming standard

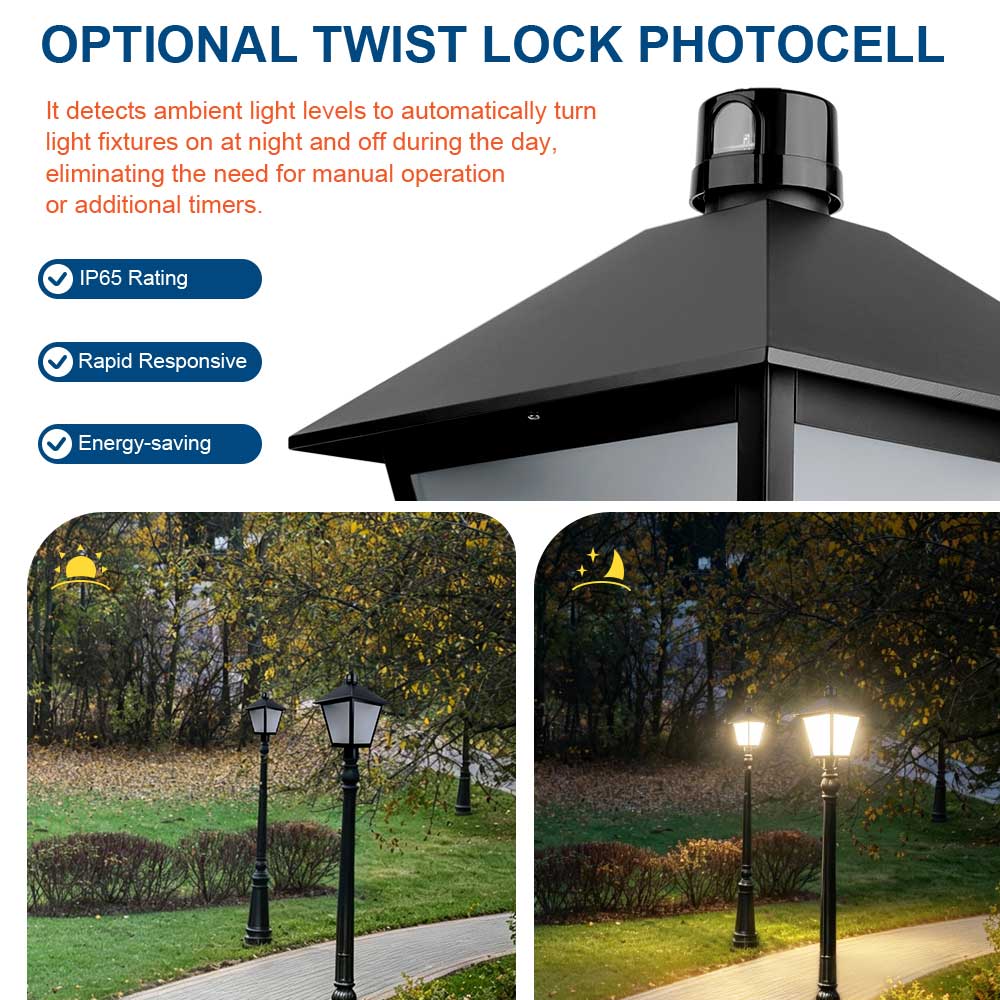

• Optional dusk-to-dawn photocell available

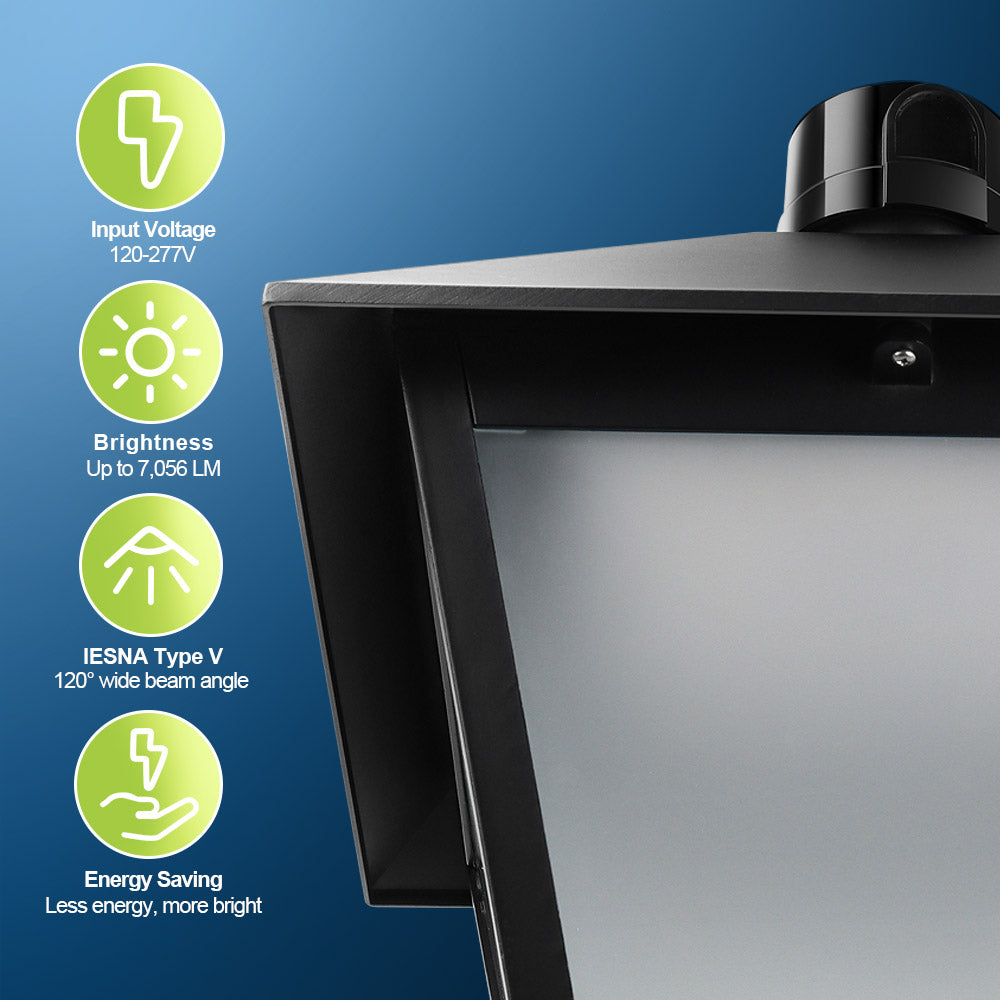

• 120° wide beam distribution
• Fits standard 3-inch OD pole tenons
Applications
| • Area Lighting | • Parking Lots |
| •Residential Communities & HOAs |
• Roadways & Pathways |
| • Parks & Recreation Areas | • Car Dealerships |
| • Courtyards & Gardens | • Historic Districts |
| • Apartment Complexes | • Streetscapes |
| • Campus Lighting | • Municipal Lighting Projects |
Specifications
| Brand | Konlite | MPN | RD-SS-PT02-60W-H-T-F |
| Warranty | Limited 5 Years | UPC | 605547916533 |
| Input Voltage | 120-277V | Beam | Type V |
| Input Wattage | 60W/50W/40W/30W/20W | Equal to | 250W MH |
| Lumen | 7,200 Max. | CRI | >70 |
| Efficacy | 126 LM/W | Available CCT | 5000K/4000K/3000K |
| LED Rated Life | >100,000 hrs | THD | <18% |
| Power Factor | >0.95 | IP Rating | IP66 |
| Dimmable | 0-10V Dimmable | Controls | Dusk to Dawn Photocell |

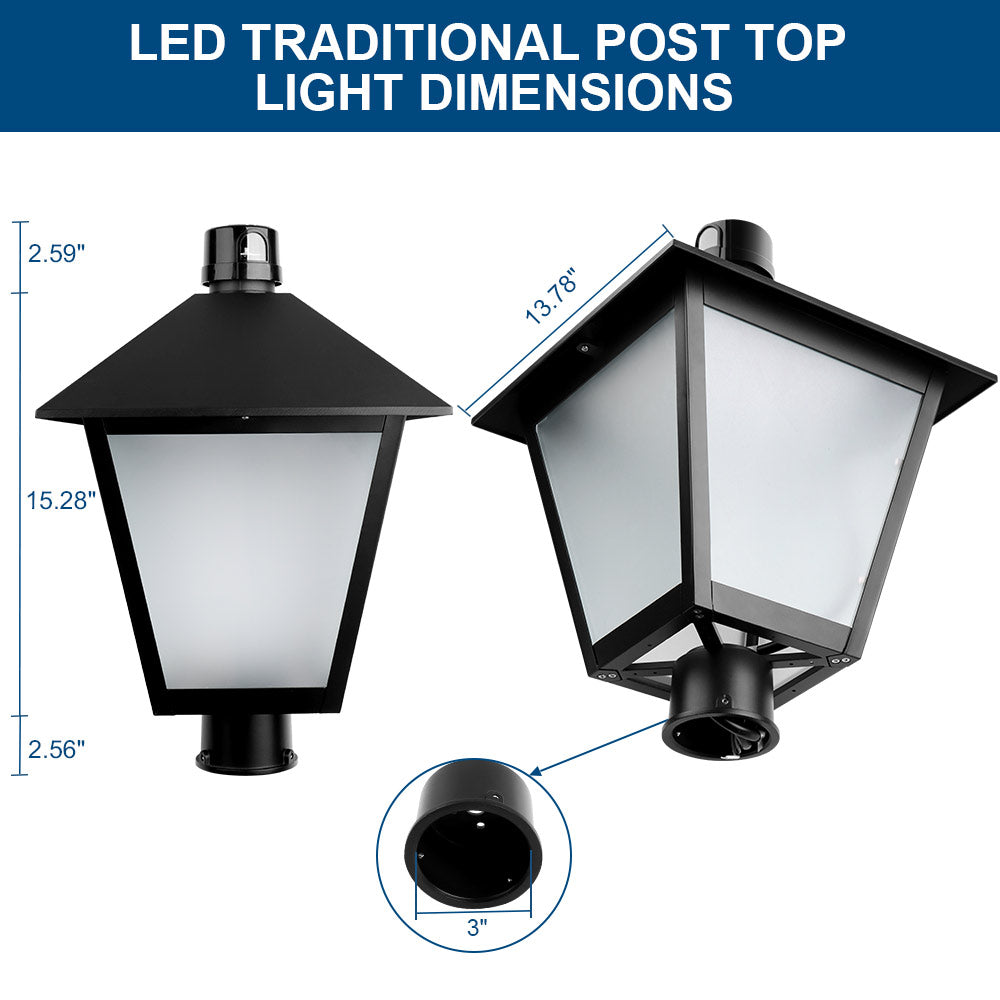

| Operating Temperature | -40 to 122 F | Dimensions | 13.78" X13.78" x 20.43"H |
| Certifications | UL, Damp Locations, DLC Premium | Weight | 14.22 lbs |
