Konlite Linear LED High Bay Light - 300W - 4FT- 120-277V - 42000 Lumens - 5000K - 1000W Equal

Product Search Code: 10-0112
KonliteSKU: RKLH0301300W5KDNCHL
$229.95 $169.99



This high-performance Konlite LED Linear High Bay Series is ideal for new construction or replacement of 1000W. Delivers top energy savings and maintenance free durability for a wide range of applications.

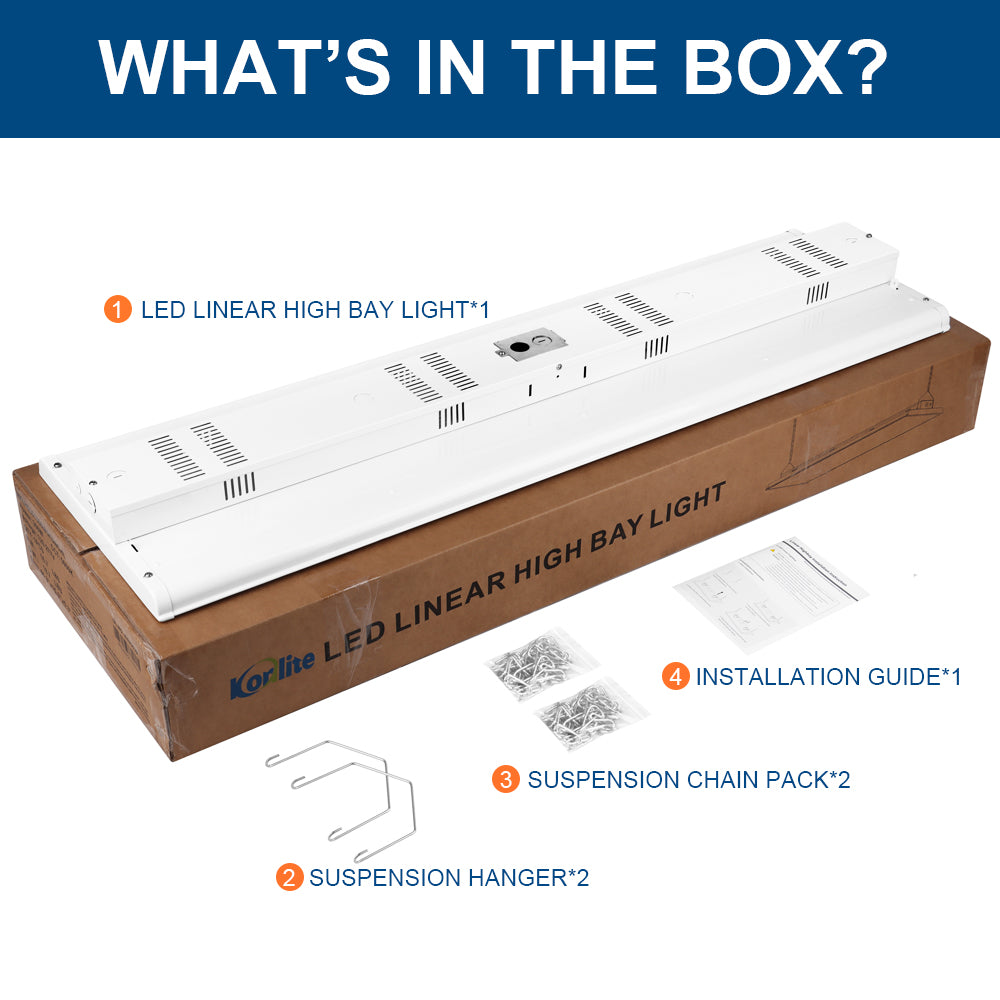

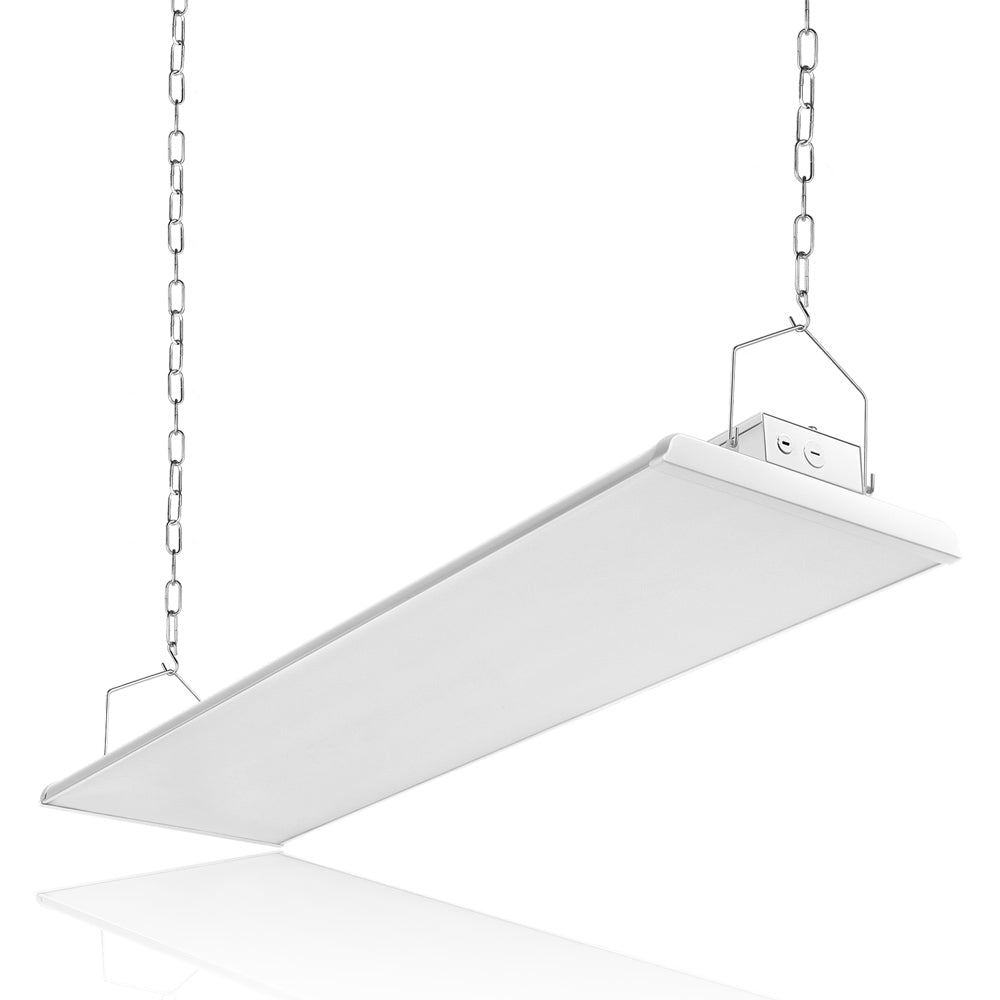

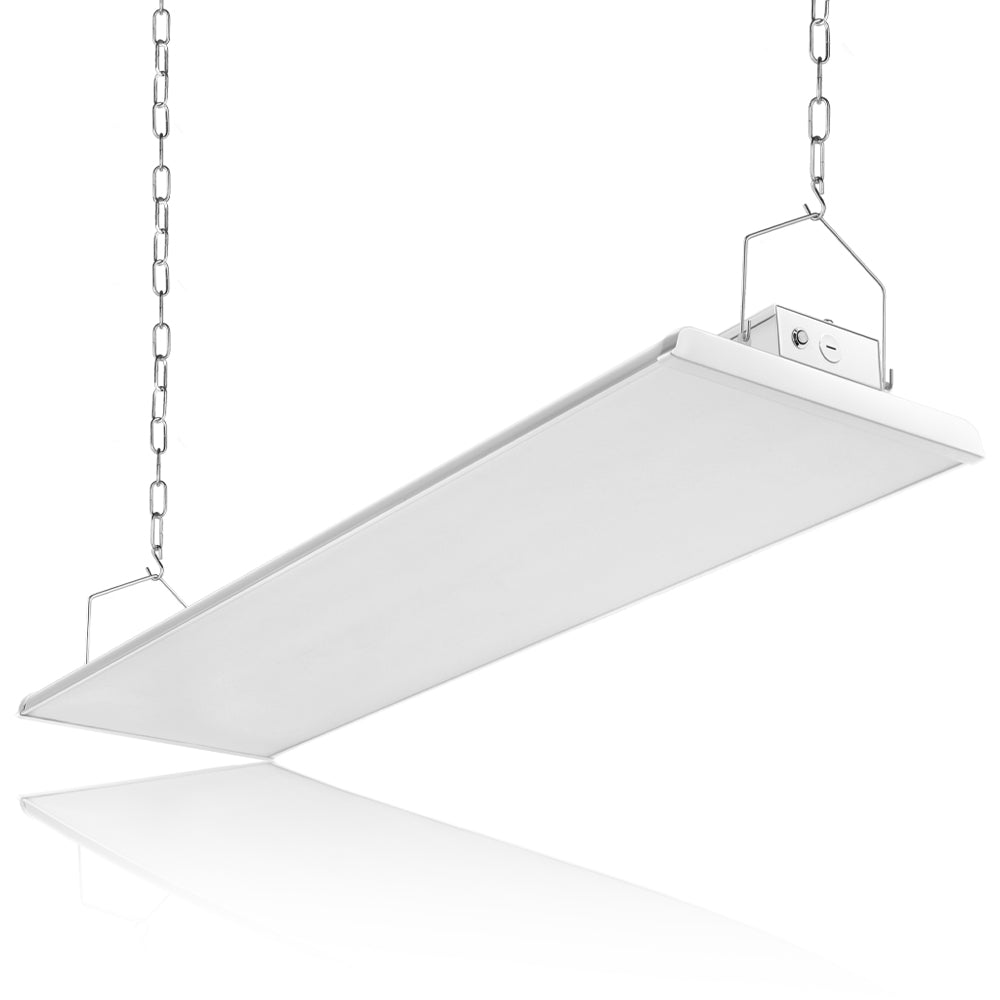

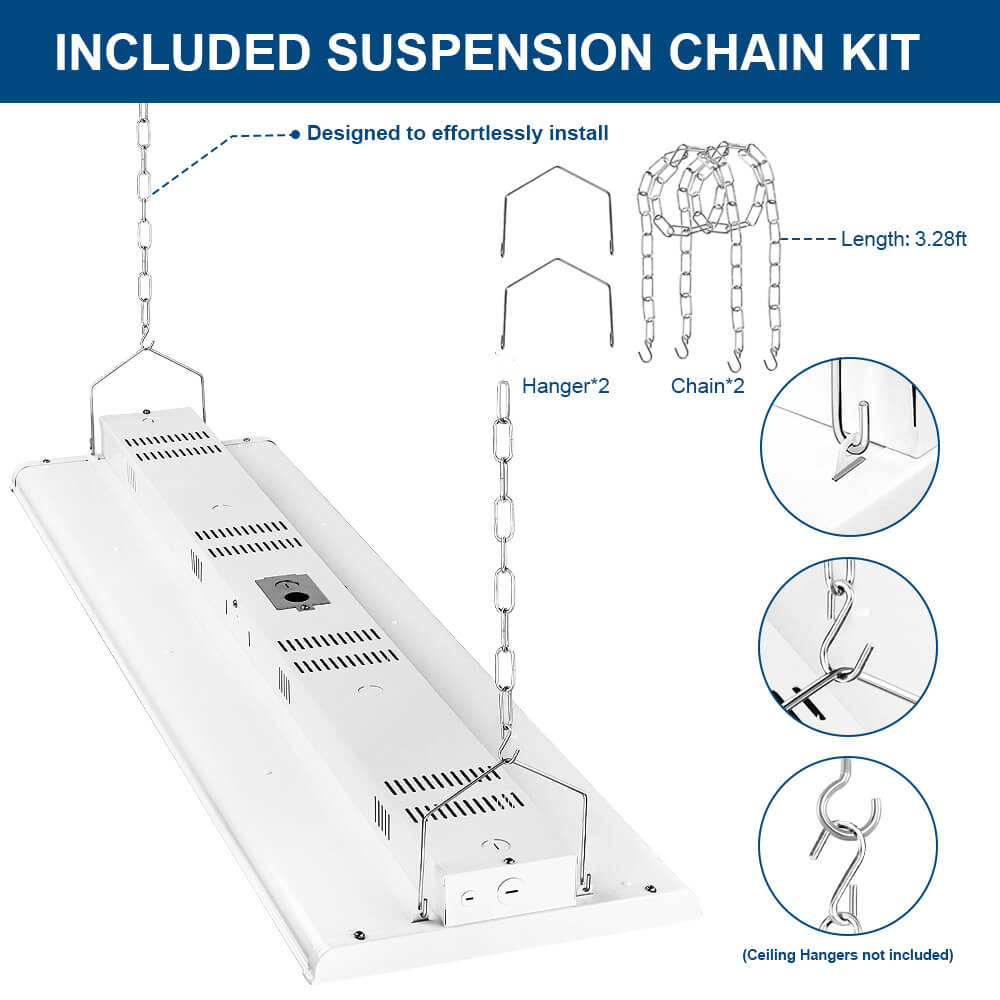

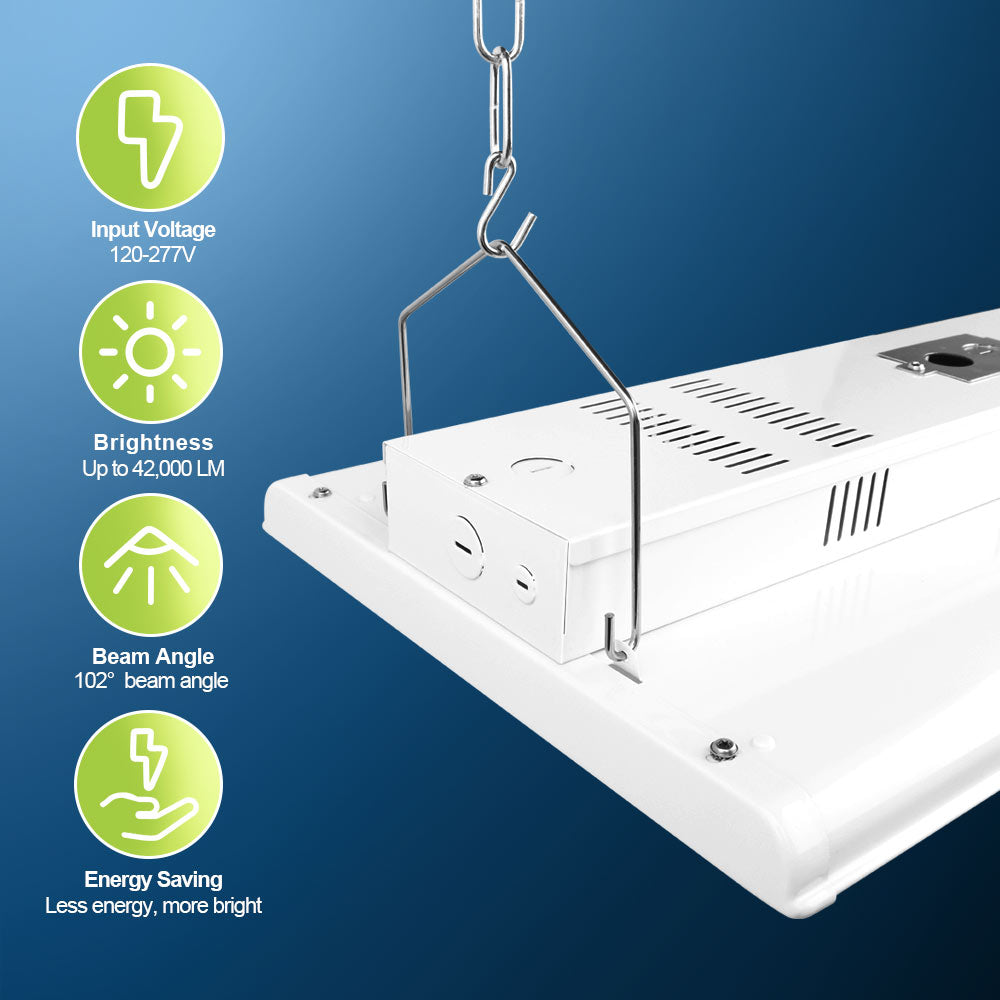

  • Designed for quick, easy installation-Each unit comes with V Hook and hanging chain

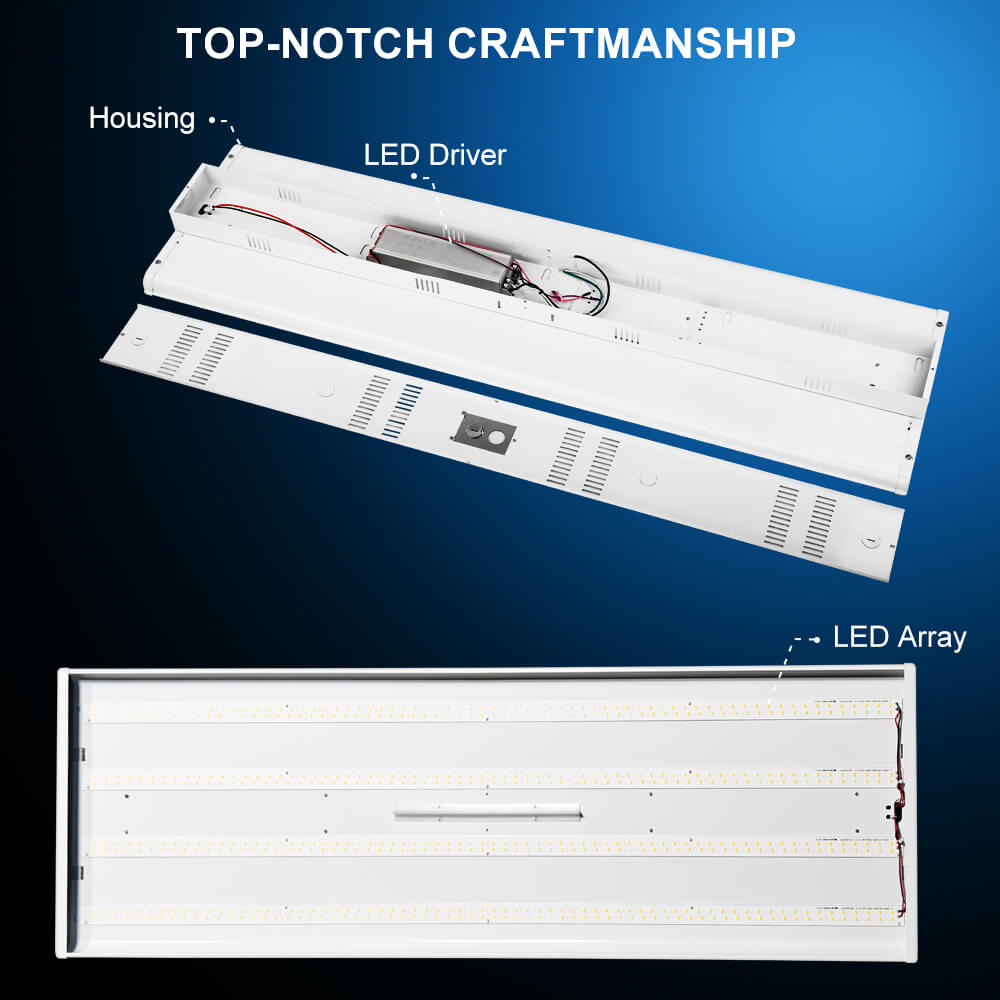

  • Assembly made of heavy duty gauge steel, rigidly designed to resist twisting and bowing
  • Optional motion sensor with daylight sensing function to maximize power savings
  • DLC Premium certified qualifying for maximum rebates where applicable
show more
$229.95 $169.99


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

This high-performance Konlite LED Linear High Bay Series is ideal for new construction or replacement of 1000W. Delivers top energy savings and maintenance free durability for a wide range of applications.

  • Designed for quick, easy installation-Each unit comes with V Hook and hanging chain
  • Assembly made of heavy duty gauge steel, rigidly designed to resist twisting and bowing
  • Optional motion sensor with daylight sensing function to maximize power savings
  • DLC Premium certified qualifying for maximum rebates where applicable
Product Details
Downloads
Reviews
Reviews
Q&A

Product Overview

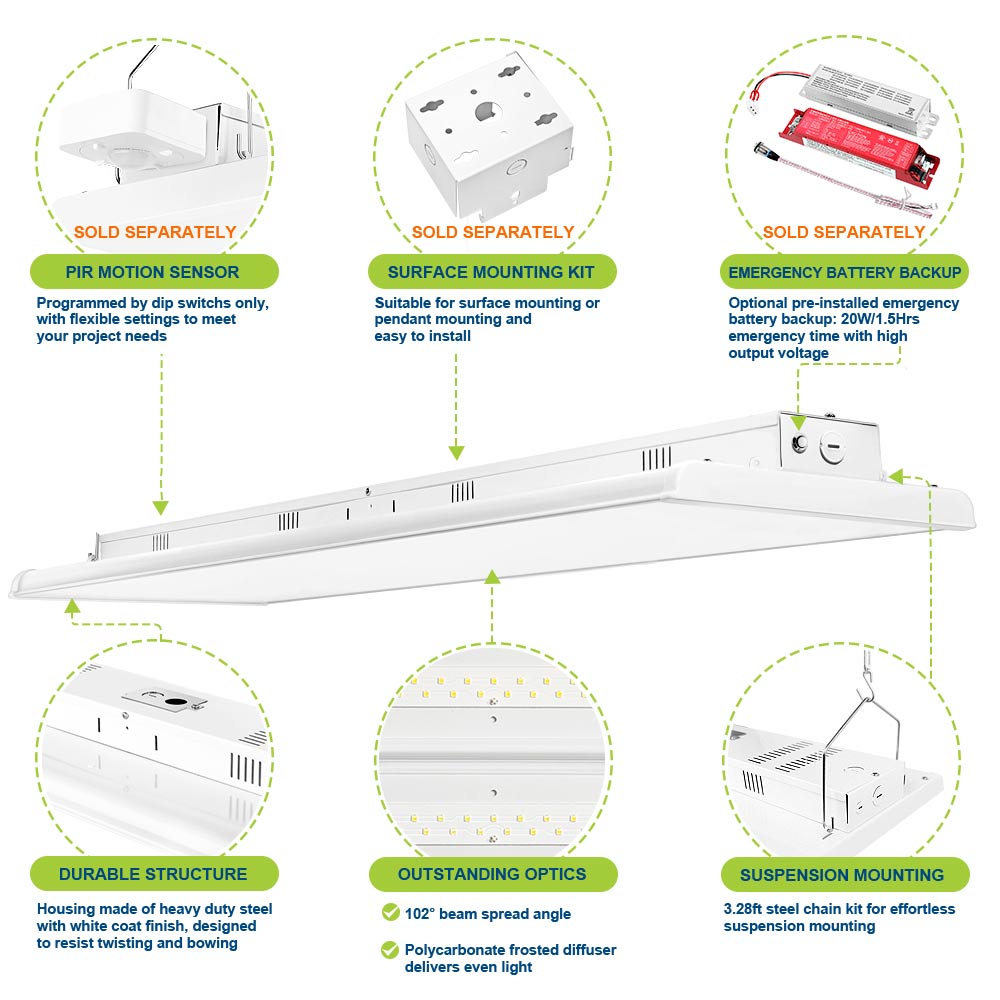

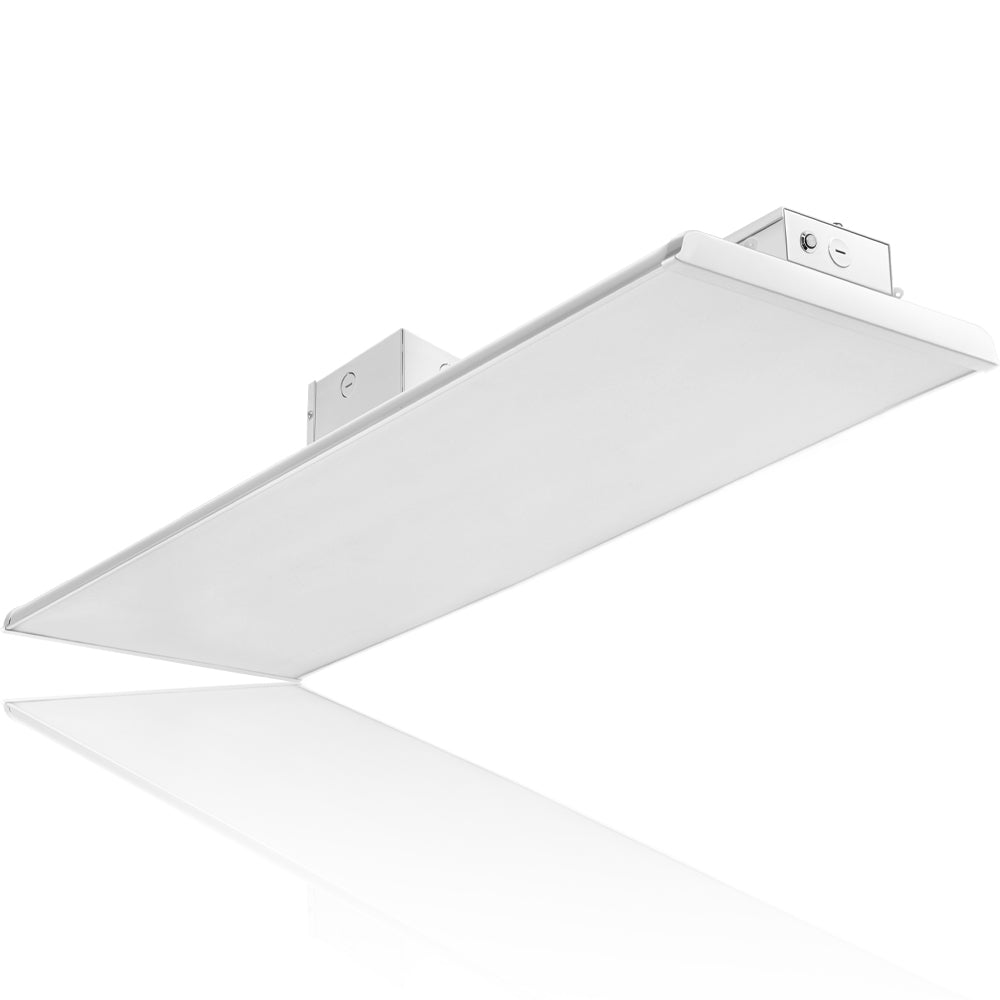

This 4ft LED Linear high bay ceiling light is an ideal replacement for aging T8, T5, 400-1000 watt HID retrofit or new construction general lighting applications. The high performance compact design allows for easy installation.

300 watts, 42,000 lumens, 120-277V, 5000K Commercial Bright White

Delivers top energy savings and maintenance free durability for a wide range of applications. Provides enhanced visibility and safety over traditional lighting.

Frosted polycarbonate diffuser creates even and glare free light distributed broadly at a 120° beam angle.

1-10V Dimming, Delivers top energy savings and maintenance free durability for a wide range of applications.

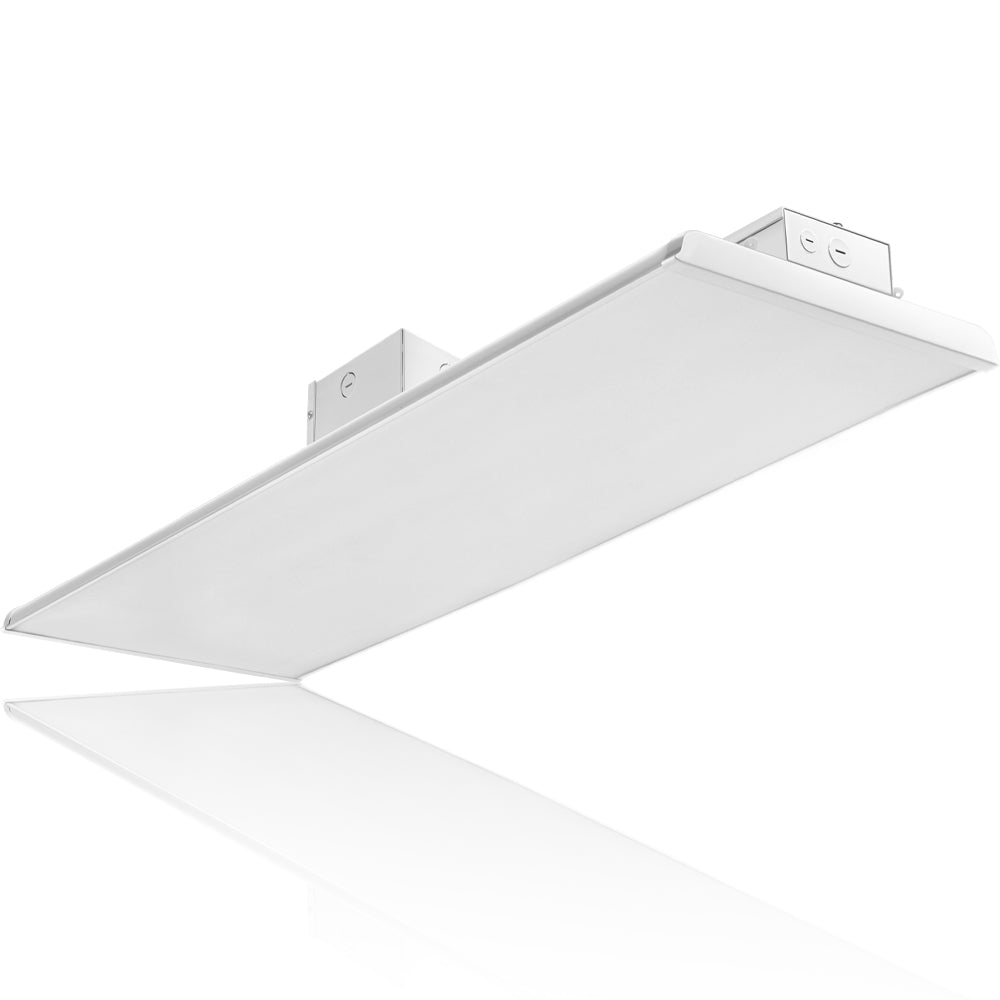

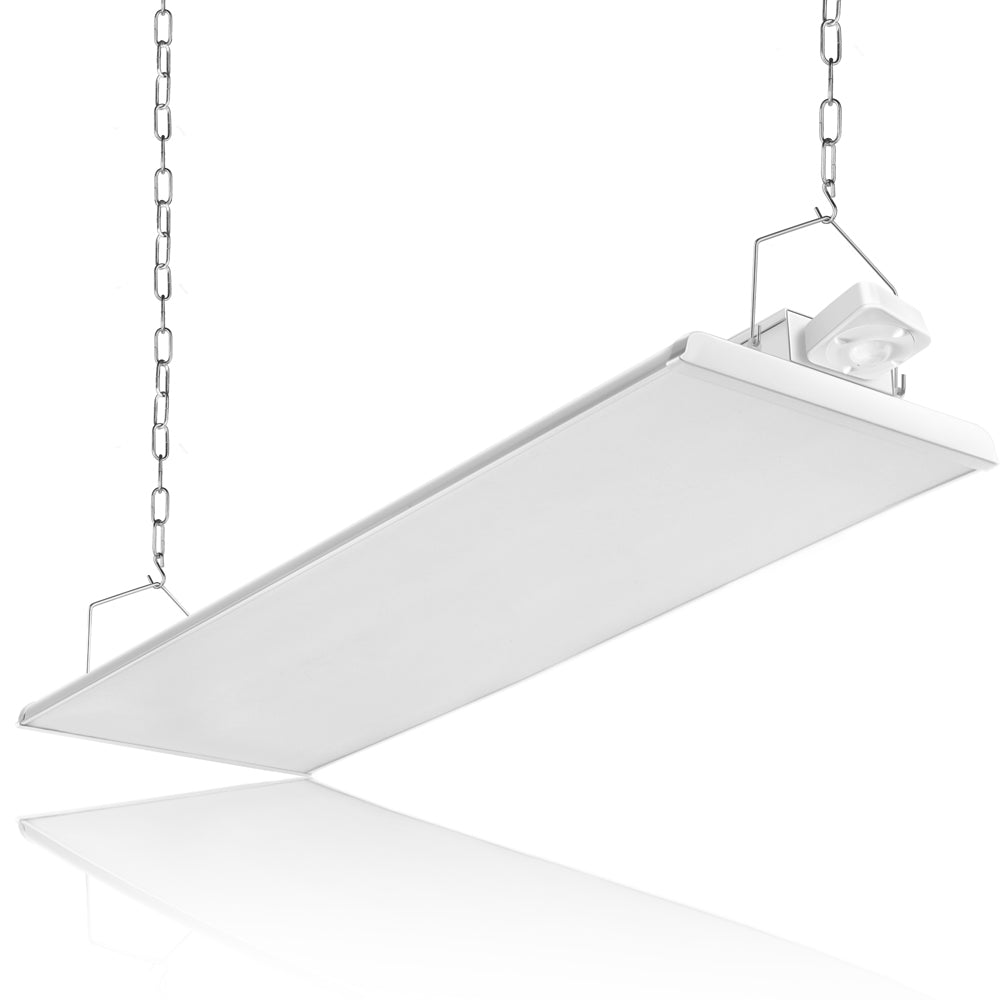

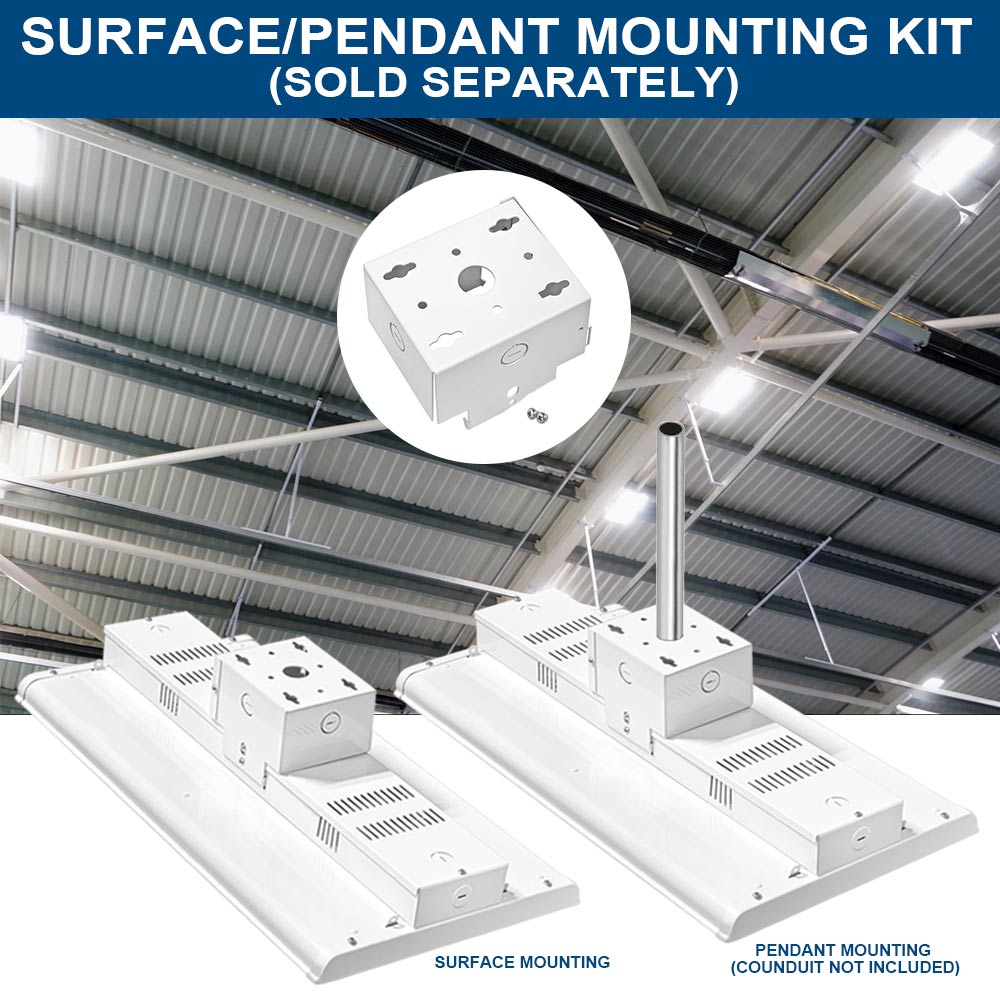

V Hook and hanging chain or Surface Mount Adapter, UL, DLC rebate eligible.

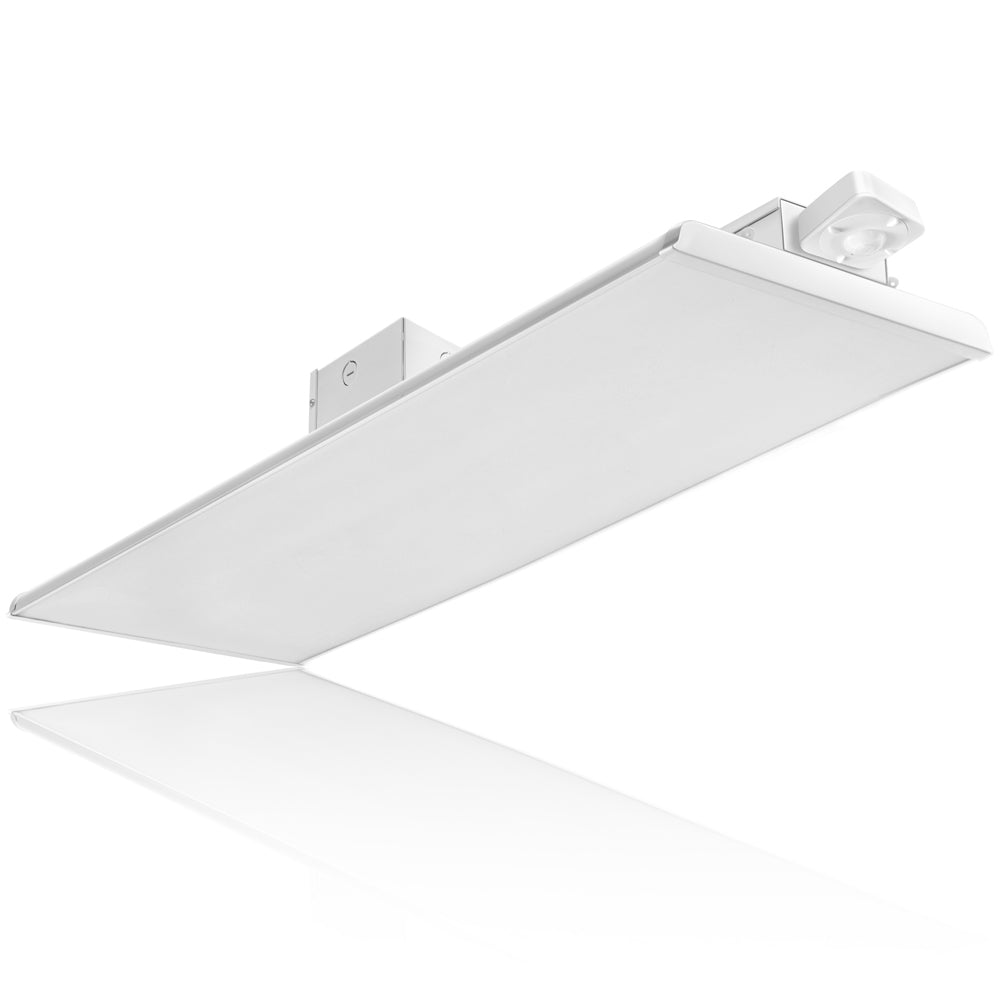

Available motion sensor has built-in daylight sensing capability. Remote control required to make sensor setting adjustments*.

Cost effective and quality solution for: Excellent for aisle optics, Warehouses and storage, Industrial facilities, Retail centers, Auto Centers, Manufacturing, Sports facilities and Gymnasiums.

See similar 225-watt, 165-watt versions.

*Default setting for optional motion sensor is set to turn off fixture after 5 seconds of inactivity, and daylight sensing disabled.

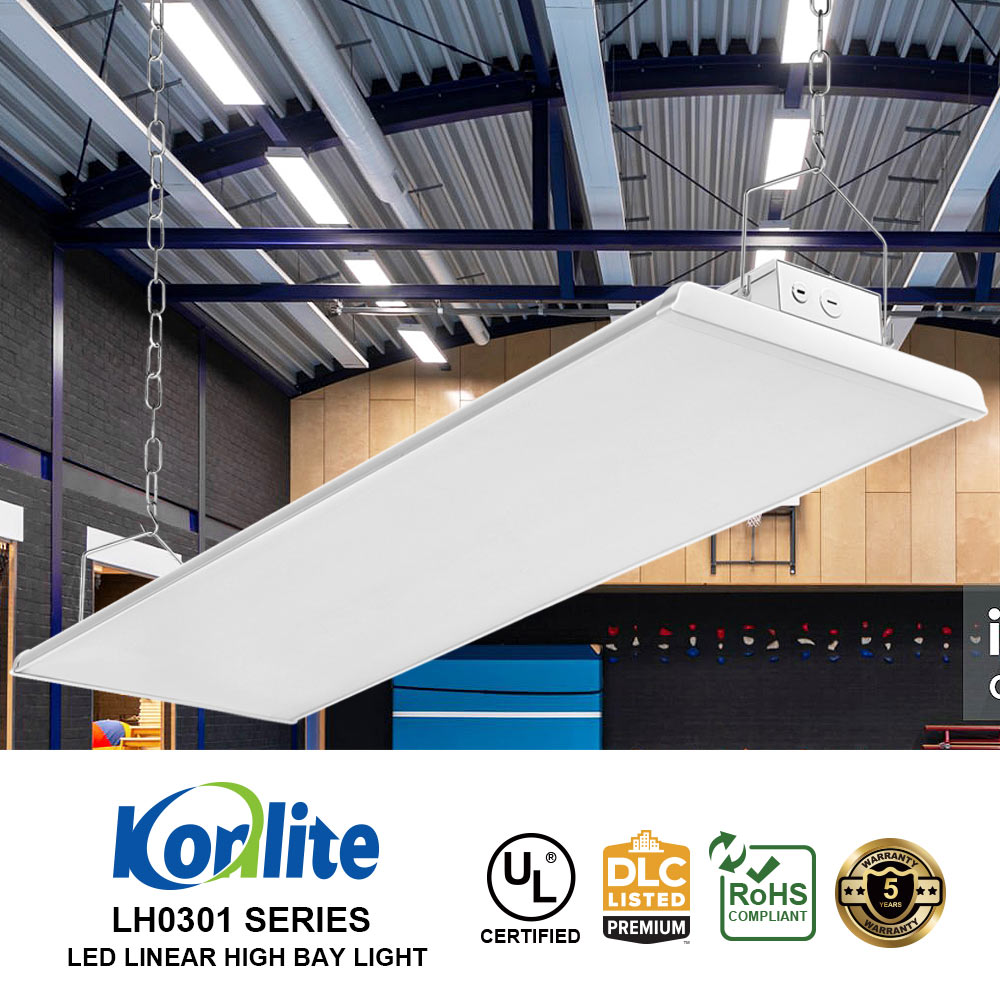

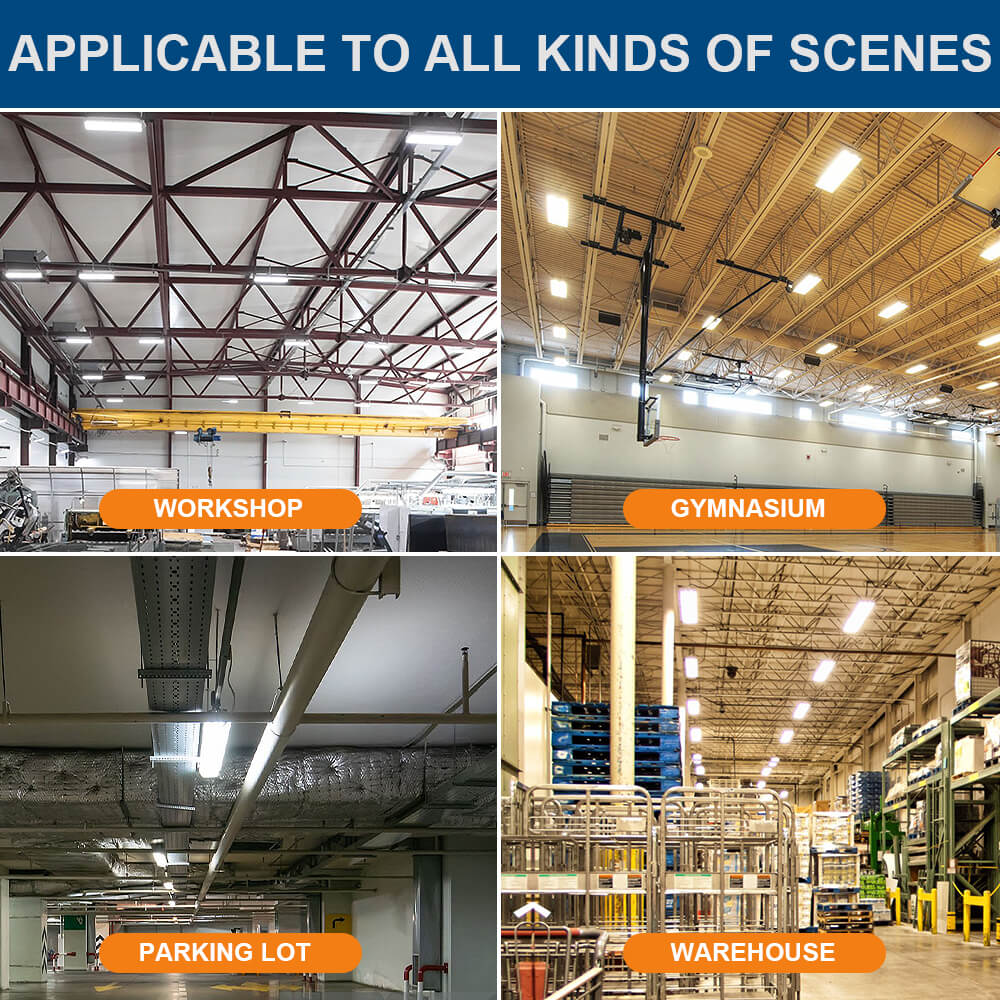

Applications

Warehouses •Workshops
•Convention Centers

•High Bays

•Storage Facilities •Distribution Centers
•Factories •Supermarkets
•Retail •Gymnasiums
Color Temperature 5000K color temperature
Certifications
US company5 years warrantyUL listed1-10V dimmableDLC PremiumRoHS compliance FCC certification

Specification

BrandKonliteMPNRKLH0301300W5KDNCHL
WarrantyLimited 5 YearsUPC752480733946
Input Voltage120-277VBeam120°
Input Wattage300WEqual To750-1000W or 6-8 lamp T8/T5
Delivered Lumens42,000CRI80
Efficacy140 LM/WAvailable CCT5000k
Rated Life>54,000 hrsPower Factor0.9
THD15%IP RatingIP20
Dimmable1-10VMountingV-Hook & Chain, Surface, Pendant

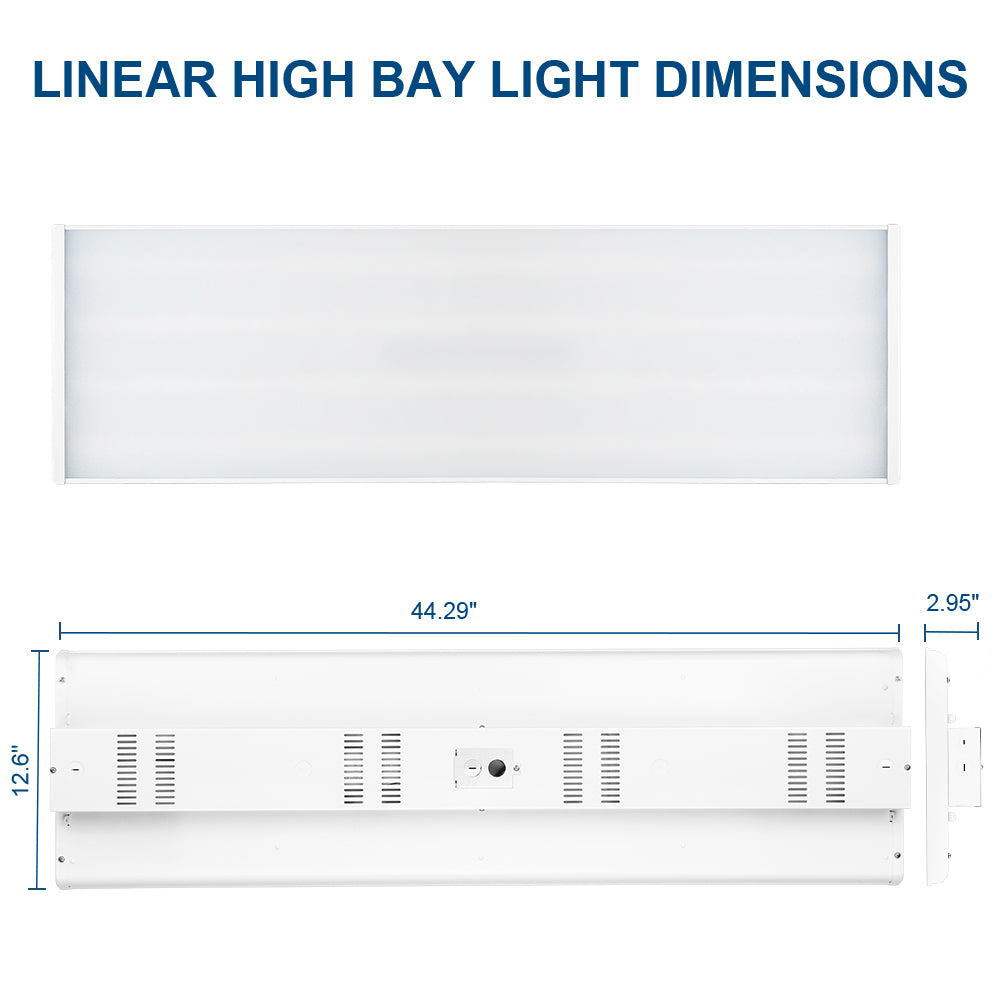

Operating Temperature-30F to 122FDimensions46.06”X12.6”X2.87
CertificationsUL, Damp Locations, DLC Premium

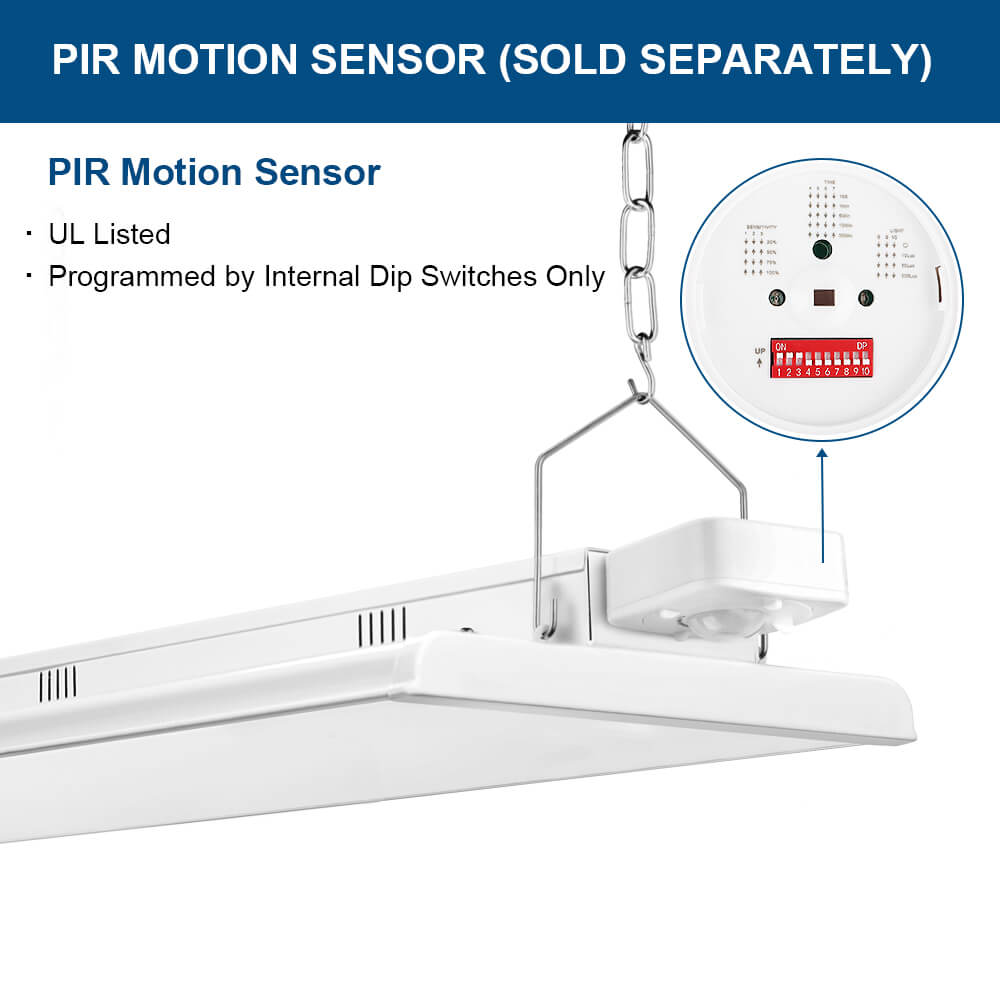

Motion Sensor Specification

BrandHaisenMPNHD406VRH-D
ControlOn/off / 1-10V DimmingSetting toolRemote control (HD05R)
Detection area25%/50%/75%/100%Hold time5s/30s/1min/3min/5min/10min/20min/30min
Stand-by period0s/10s/30s/1min/5min/10min/30min/+∞Stand-by dimming level10%/20%/30%/50%
Motion detection0.5~1.5m/sDaylight thresholdDisable /2Lux/10Lux/30Lux/50Lux/80Lux/120Lux

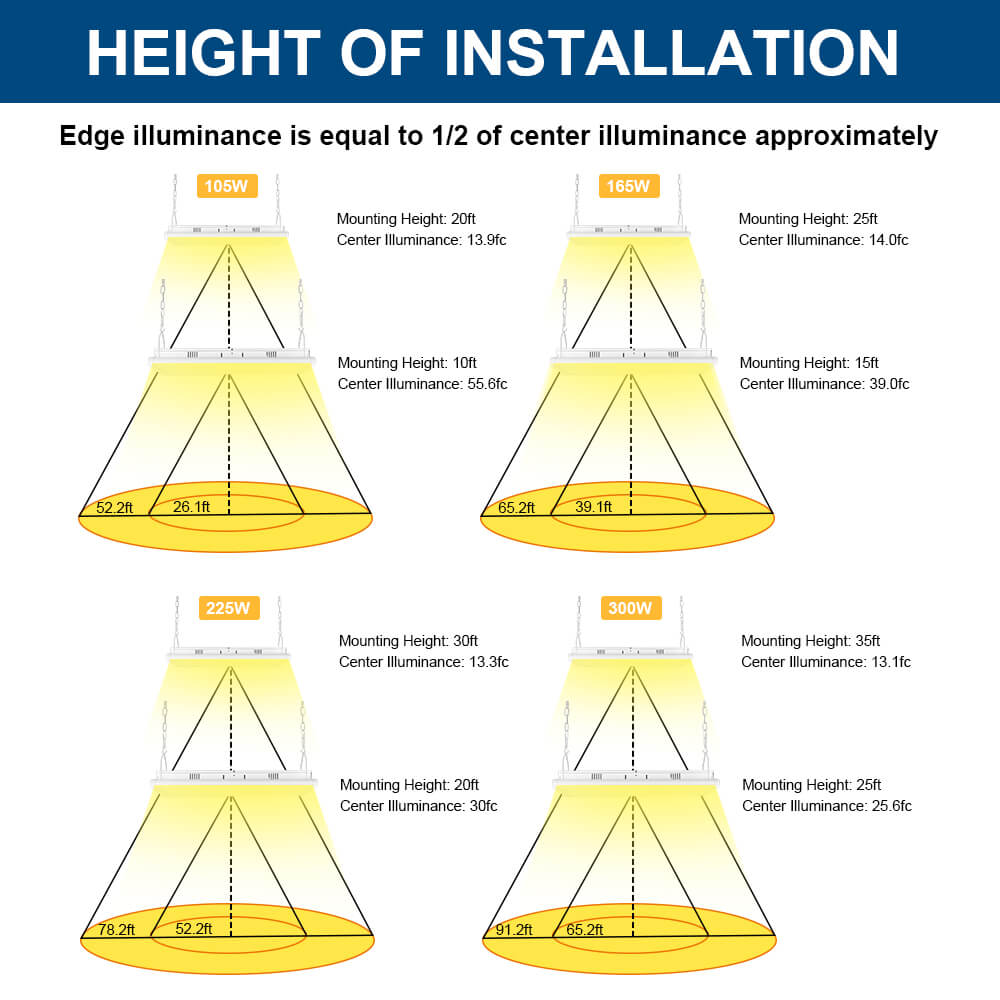

Mounting heightMax. 50ftDetection rangeMax. 45ft
Operating Voltage120-277V, 50Hz/60HzIP ratingIP65

Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
