PAVO IV LED High Bay Light - 310W/270W/240W - 46,500 lumens - 120-277V - 5000K - 1000W Metal Halide Equal

Product Search Code: 10-0304
KonliteSKU: KPVMW3150KLV
$189.95 $149.95

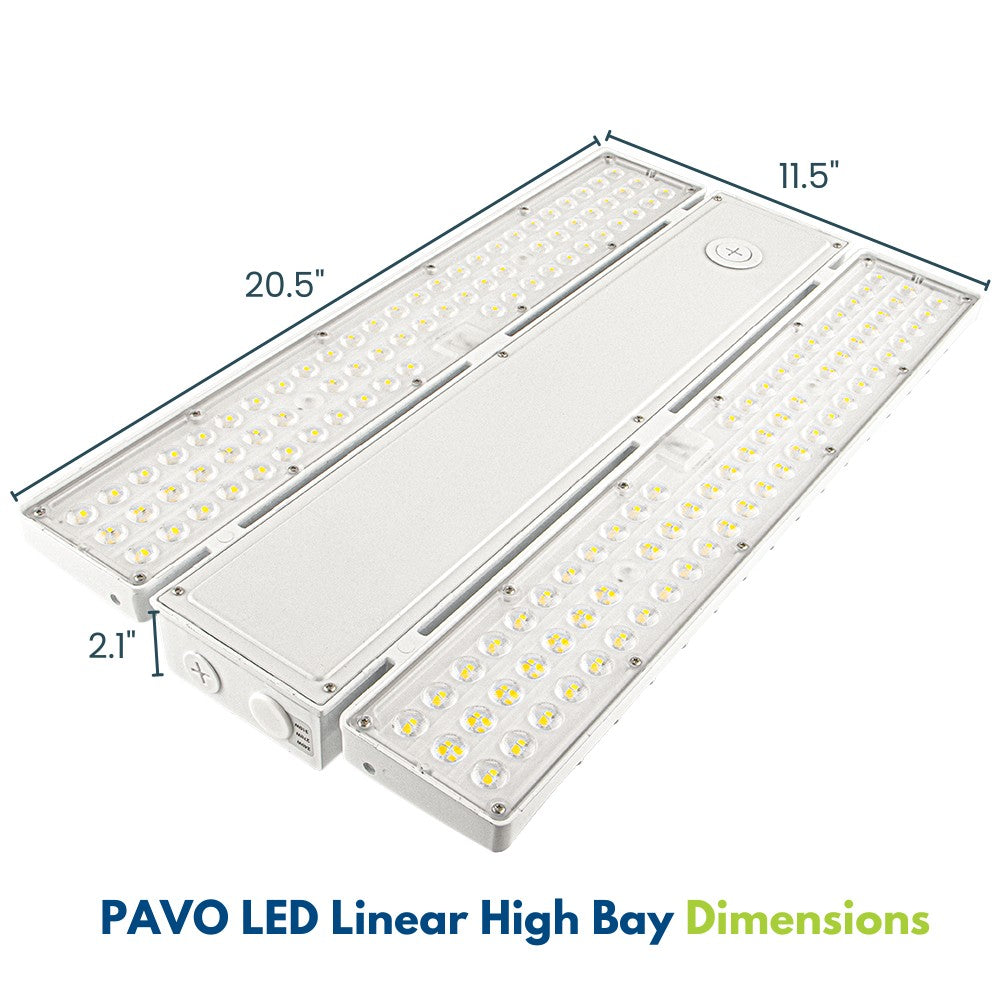

    • Dimensions: 20.5"L x 11.5"W x 2.1"H
    • 0-10V Dimmable
    • CCT: 5000K Daylight White
    • Certificates: UL, DLC Premium 5.1,NLC
    • 5 Years Warranty
    • Replaces 600-1000W HID/MH
    • Lumens Selectable:
      • 310w = 46,500 (Preset)
      • 270w = 40,500
      • 240w = 36,000

    • Dimensions: 20.5"L x 11.5"W x 2.1"H
    • 0-10V Dimmable
    • CCT: 5000K Daylight White
    • Certificates: UL, DLC Premium 5.1,NLC
    • 5 Years Warranty
    • Replaces 600-1000W HID/MH
    • Lumens Selectable:
      • 310w = 46,500 (Preset)
      • 270w = 40,500
      • 240w = 36,000

This Konlite Pavo series compact LED Linear High Bay is ideal for new construction or replacement of 1000W HID, 8x38 T8 or 8x54 T5 Lamp fixture. Delivers top energy savings and maintenance free durability for a wide range of applications.

  • Die-cast aluminum housing, provides a sturdy structure and excellent thermal management
  • Compact design makes handling easier and quick installation

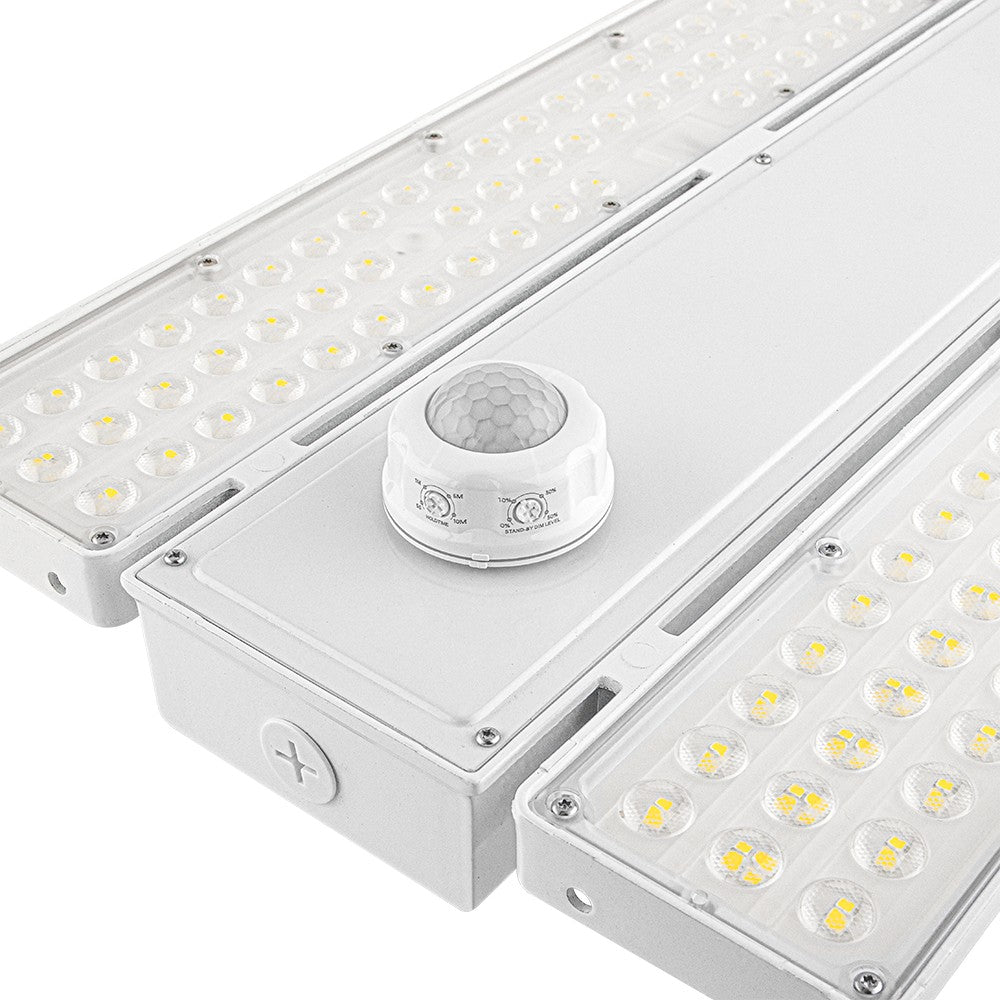

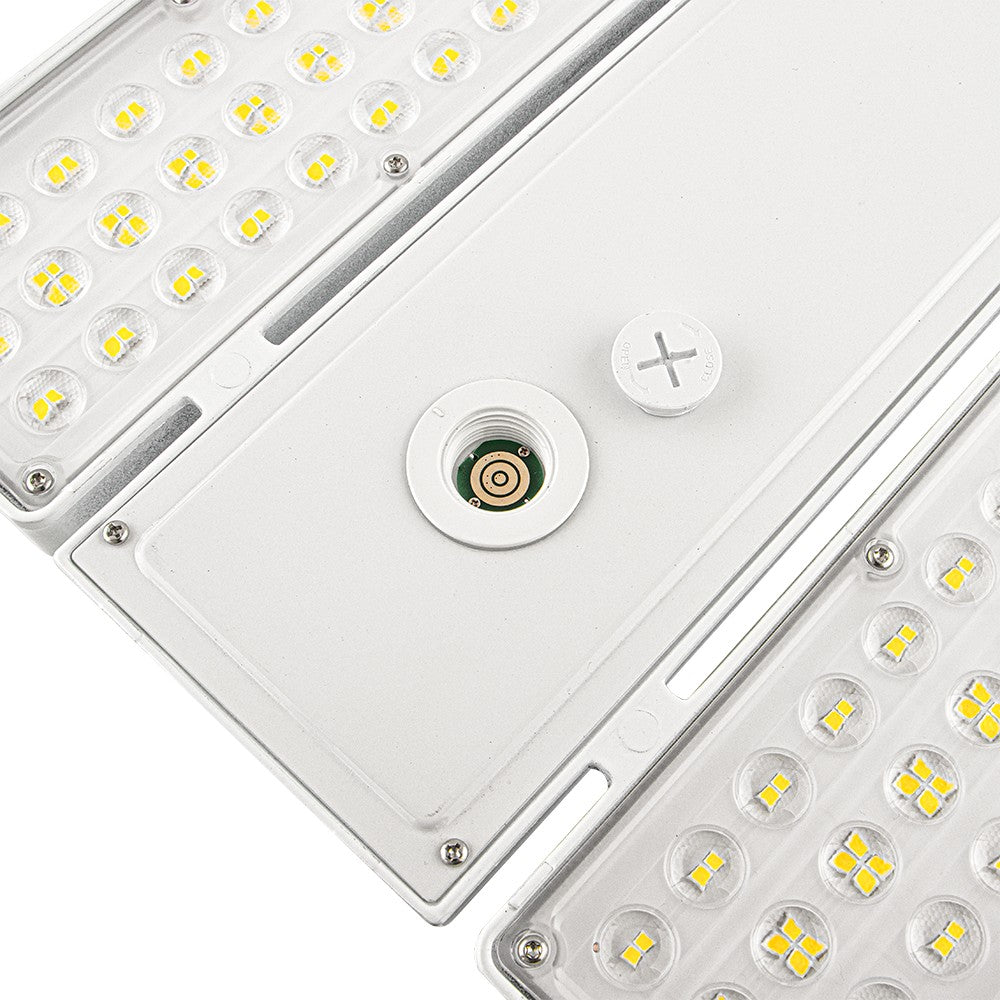

  • Plug-in motion sensor easy and fast install
  • DLC Premium certified, DLC NLC certified qualifying for maximum rebates where applicable
show more
$189.95 $149.95

This product qualifies for the Double Rewards Promotion!   Learn more...
Double Rewards Promotion
  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

This Konlite Pavo series compact LED Linear High Bay is ideal for new construction or replacement of 1000W HID, 8x38 T8 or 8x54 T5 Lamp fixture. Delivers top energy savings and maintenance free durability for a wide range of applications.

  • Die-cast aluminum housing, provides a sturdy structure and excellent thermal management
  • Compact design makes handling easier and quick installation
  • Plug-in motion sensor easy and fast install
  • DLC Premium certified, DLC NLC certified qualifying for maximum rebates where applicable
What's in the box
1 Lighting Fixture - 1 Suspension Chain -1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A
1 Lighting Fixture - 1 Suspension Chain -1 Installation Guide

Product Overview

Upgrade your industrial or commercial lighting with our high-performance Konlite PAVO series LED High Bay Light, designed with budget-consciousness and compact housing in mind, while still offering industry-leading performance. This linear LED high bay light effectively replaces 1000-watt Metal Halide or HID lights, providing significant energy savings and improved efficiency.

The compact design ensures easy handling and quicker installation, making it the ideal choice for modern, efficient lighting. Our linear high bay LED light features wattage-selectable flexibility, which can be adjusted on-site via a 3-step switch located on the side of the fixture. Operating on 120-277V, it emits a 5000K commercial bright white light with three field-selectable brightness settings:

310w / 46,500 Lumens
270w / 40,500 Lumens
240w / 36,000 Lumens
(Preset at 310 watts)

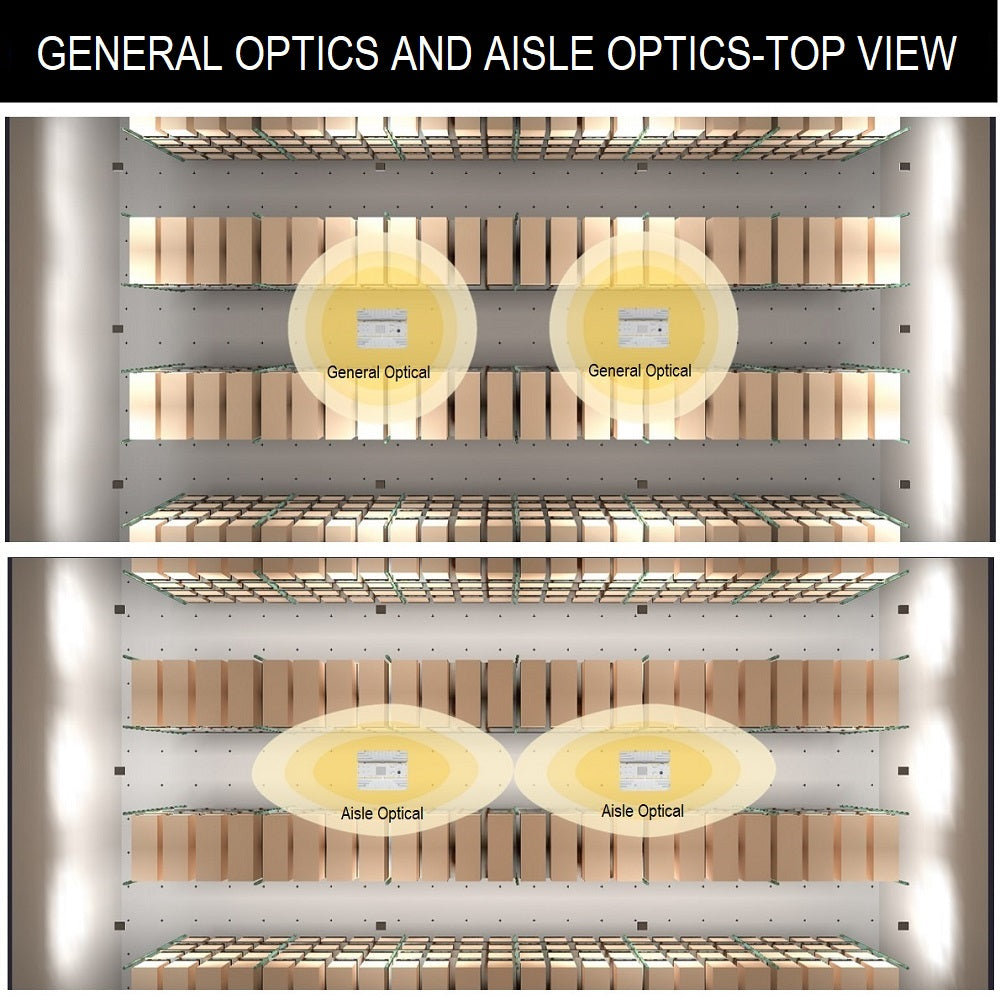

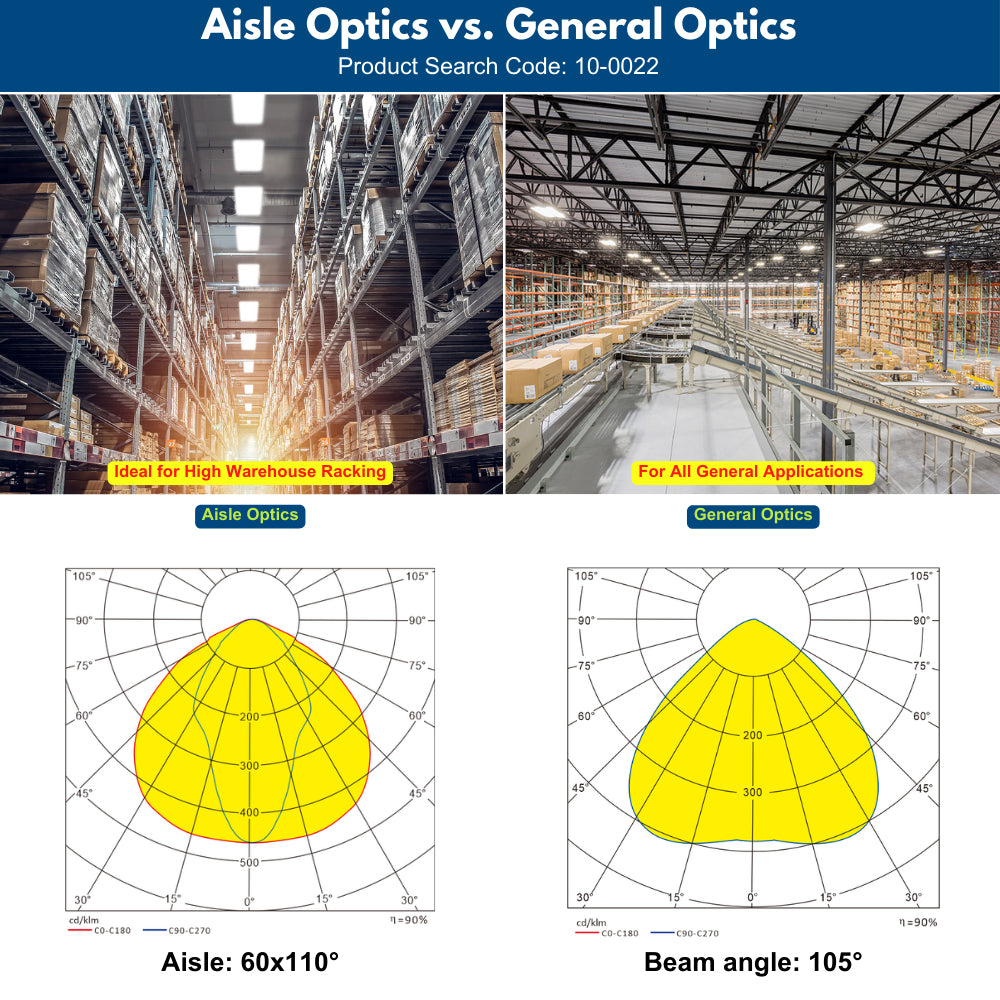

Equipped with an optical lens instead of an ordinary diffuser, this 2 foot linear high bay LED light offers superior glare control and higher efficacy. For warehouse applications with tall racks, the optional Aisle Optic is an ideal solution to maximize light usage efficiency and achieve greater energy savings.

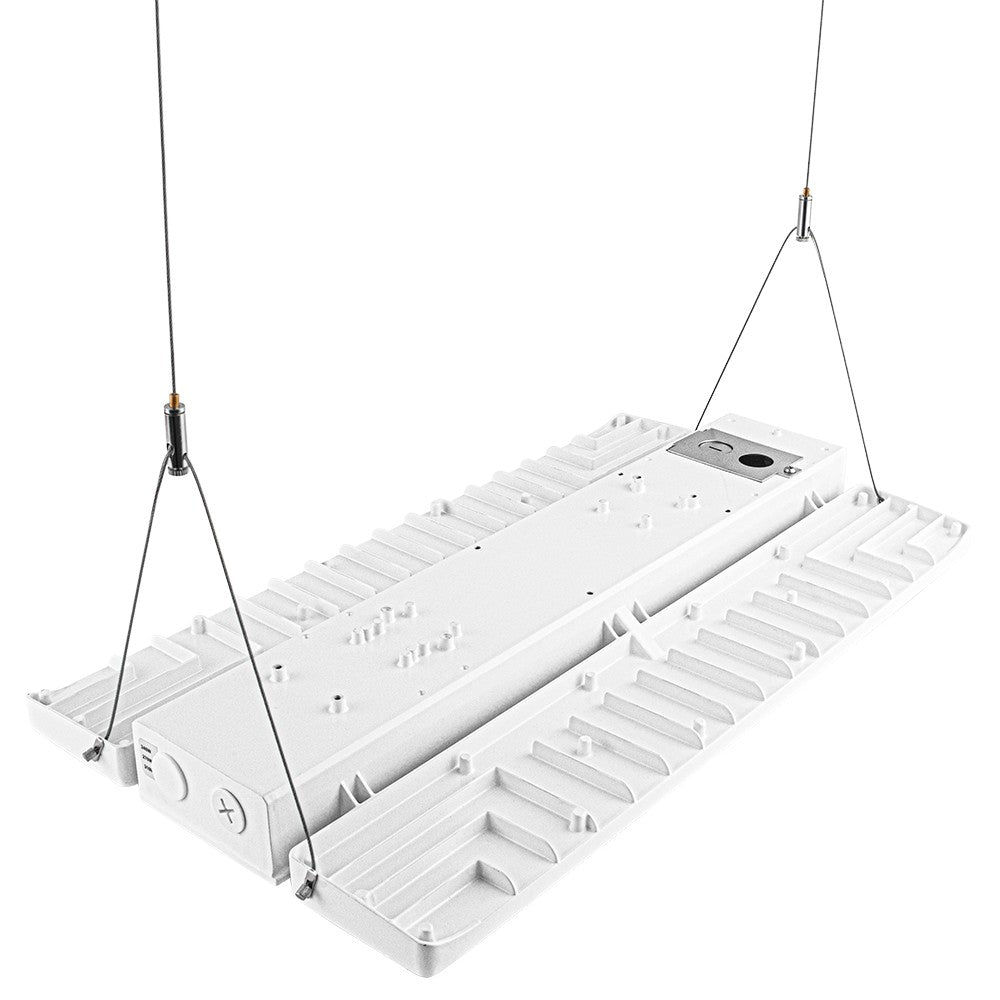

PAVO LED high bay light includes one set of three foot suspension chains, with optional Surface Mount and Pendant Mount also available for versatile installation options. Transform your industrial or commercial space with our cutting-edge linear LED high bay light, delivering exceptional energy efficiency, customizable brightness settings, and advanced lighting technology to meet all your illumination needs while replacing outdated 1000-watt Metal Halide or HID systems.

Upgrade your lighting control system with Haisen Blue Network Lighting Controls (NLC) and discover the ultimate in flexibility, affordability, and ease of use. Perfect for businesses and facilities of all sizes, the DLC qualified NLC system empowers you to take full command of your lighting environment, enhancing efficiency and ambiance with just a few simple clicks. Simply select NLC Bluetooth sensor with PAVO High Bay Lights, ensuring a smooth and efficient control experience right out of the box.

See similar 155W/130W/115W210W/180W/155W  and 420W/360W/310W versions.

*Default setting for optional motion sensor is set to turn off fixture after 5 seconds of inactivity.  Optional remote control is required to program the motion sensor.

Applications

•Warehouses •Workshops
•Convention Centers •High Bays
•Storage Facilities •Distribution Centers
•Factories •Supermarkets
•Retails •Gymnasiums
Color Temperature 5000K color temperature
Certifications
US company5 years warrantyUL listed0-10v dimmableDLC PremiumRoHS compliance FCC certification

Specification

BrandKonliteMPNKPVMW3150KLV
WarrantyLimited 5 YearsUPC659675090689
Input Voltage120-277VBeam106°
Input Wattage310W/270W/240WEqual To1000W MH or 8x32-T8/8x54-T5
Delivered Lumens46,500lm/40,500lm/36,000lmCRI≥80
EfficacyUp to 156 LM/WAvailable CCT               5000K
Rated Life>50,000 hrsPower Factor≥0.95
THD≤15%IP RatingN/A
Dimmable0-10V(Dimmer NOT included, Separate Wiring Required)MountingSuspension Chain, Surface, Pendant
Operating Temperature-40° F to 122° FDimensions20.5''X11.5''X2.1''
CertificationsUL, Dry Locations, DLC PremiumWeight11 Lbs

Occupancy Sensor Specification

BrandHaisenMPNHD09VCR-PH / HD09VCR-PHB ( Network Lighting Controls )
ControlOn/off / 1-10V DimmingSetting tools

Rotating Switch or Remote Control (HD05R).

For Network Lighting Controls (NLC),  controlled

with “Haisen Blue” APP at iOS or Android smartphones

Detection area25%/50%/75%/100% (R.C)Hold time

5s/1min/5min/10min (Rotating Switch)

5s/30s/1min/3min/5min/10min/20min/30min (R.C)

Stand-by period0s/10s/30s/1min/5min/10min/30min/+∞ (R.C)Stand-by dimming level

0%/10%/30%/50% (Rotating Switch)

10%/20%/30%/50% (R.C)

Input Range12VDCDaylight thresholdDisable / 11 settings from 2Lux to 400Lux (R.C)
Operating Voltage10.5-15V DCDetection rangeMax. 45.92ft
Mounting heightMax. 39.37 ftIP ratingIP65

*Stand-By Period need to be set to 0s while using with dimmer switch.

Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
