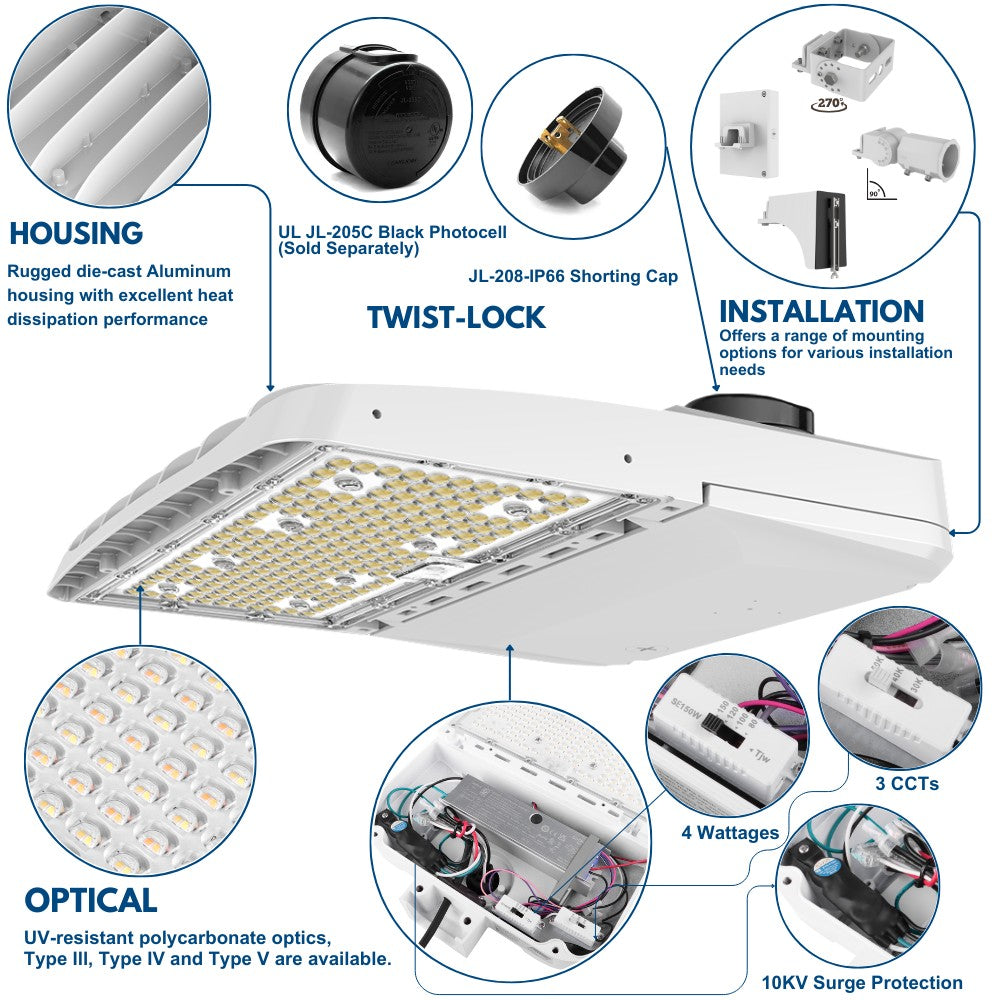

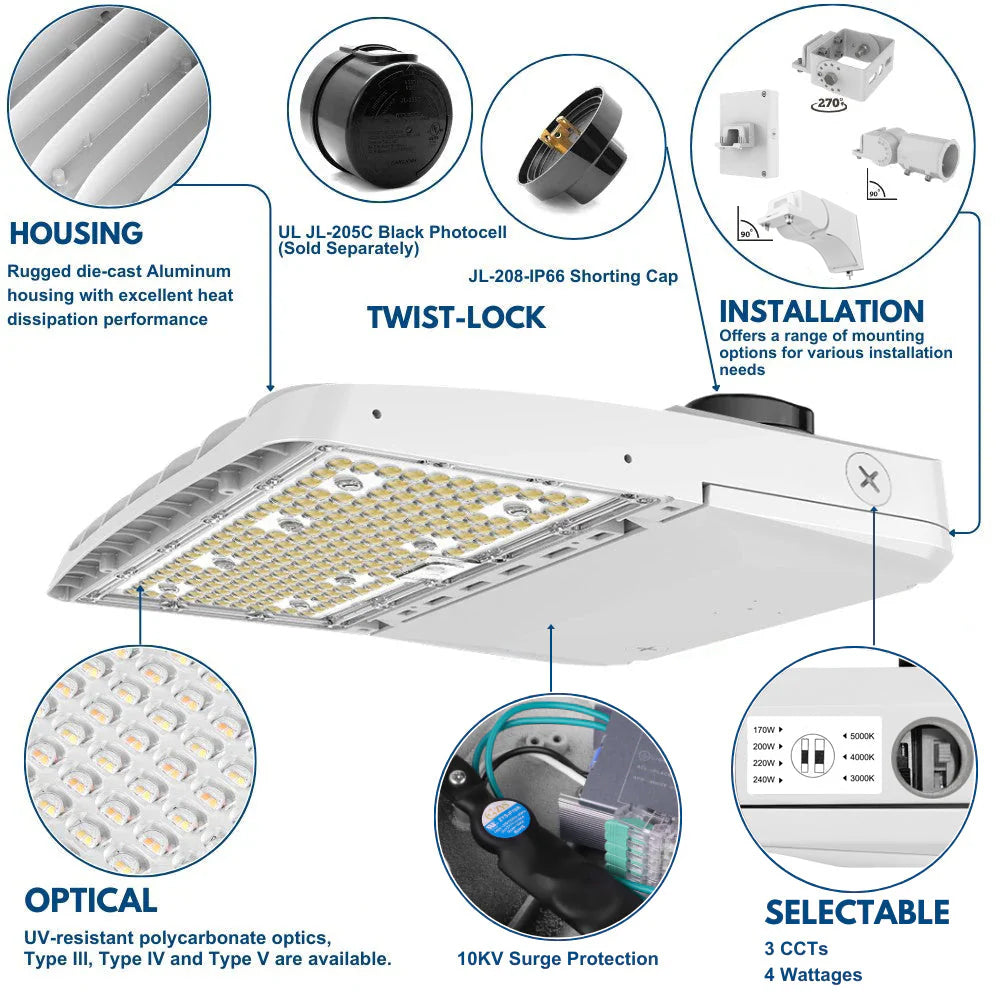

While VELA II Parking Lot light product details

mouting heights and light coverage area of 240W area light Type 3 optics

4 steps wattage selectable area light 240w to 170w

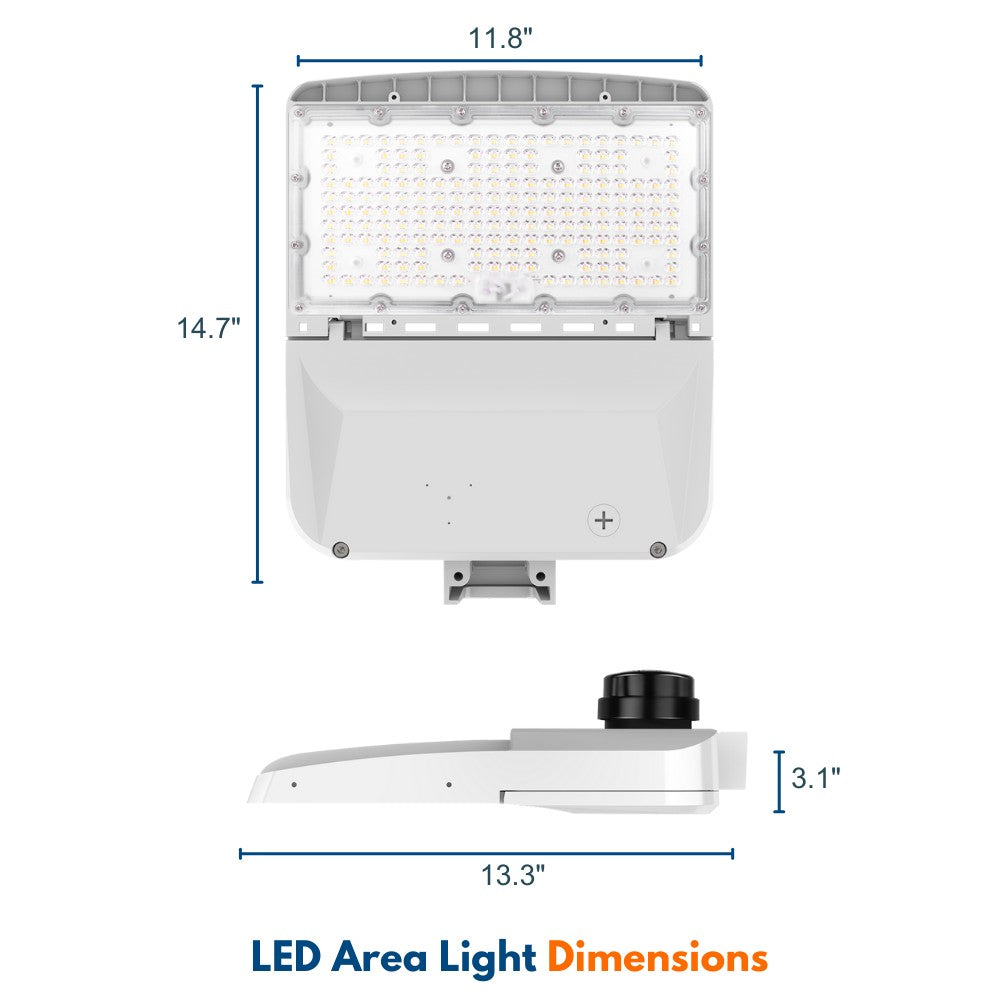

the dimensions of Konlite Vela series led area light

Back view of While VELA II Parking Lot light

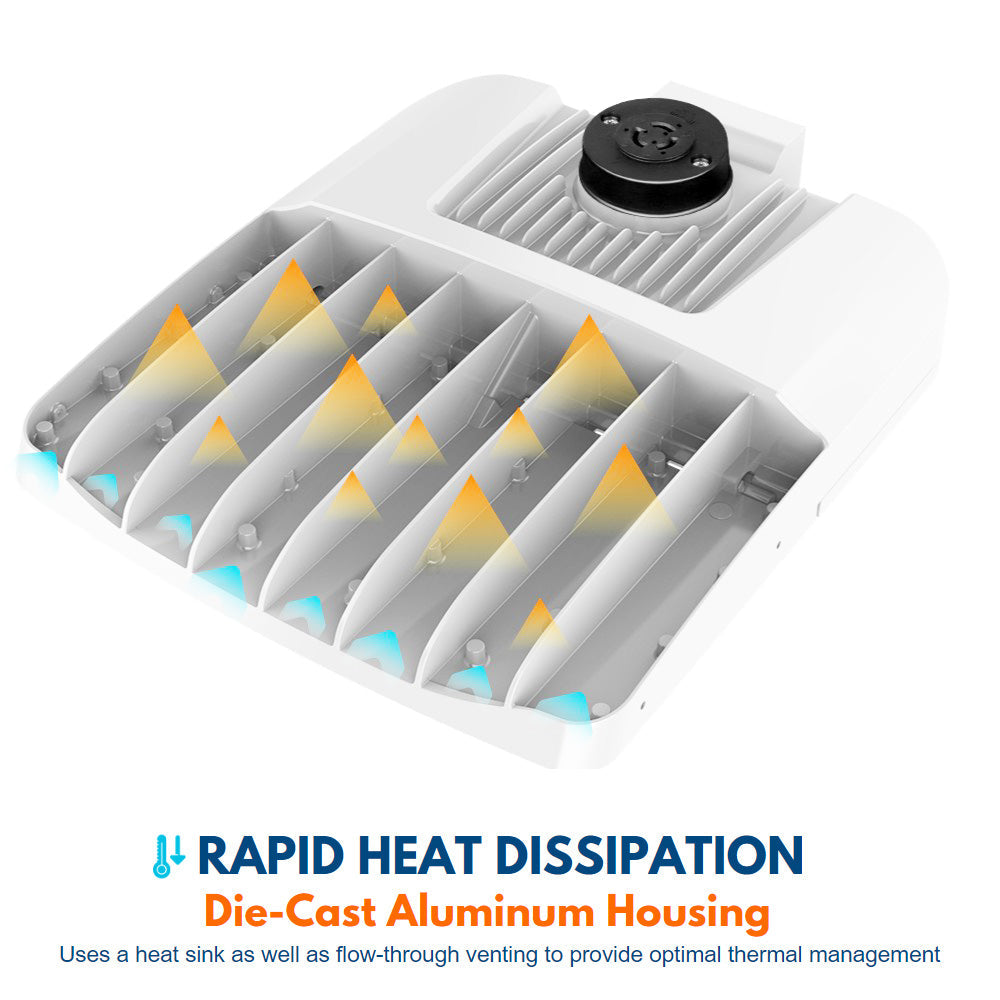

Heavy duty design Konlite Vela LED area lights

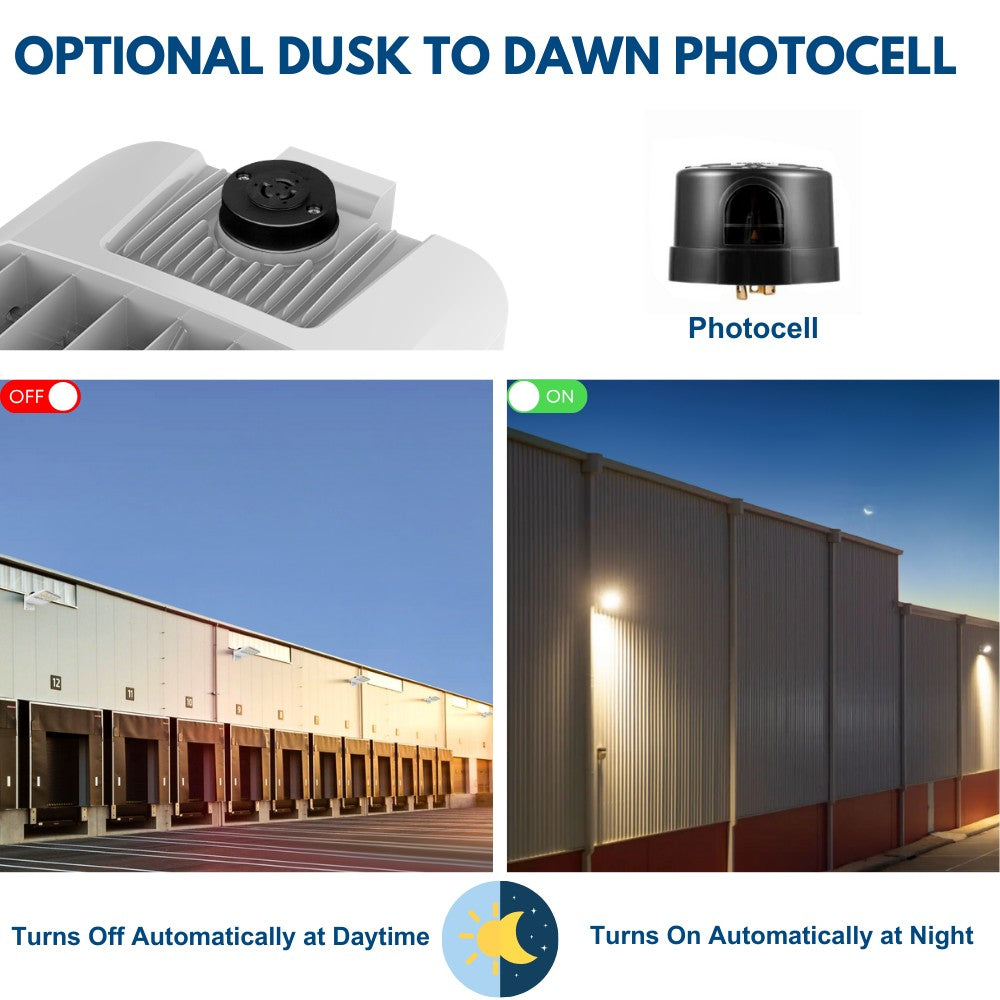

Photocell of While VELA II Parking Lot light

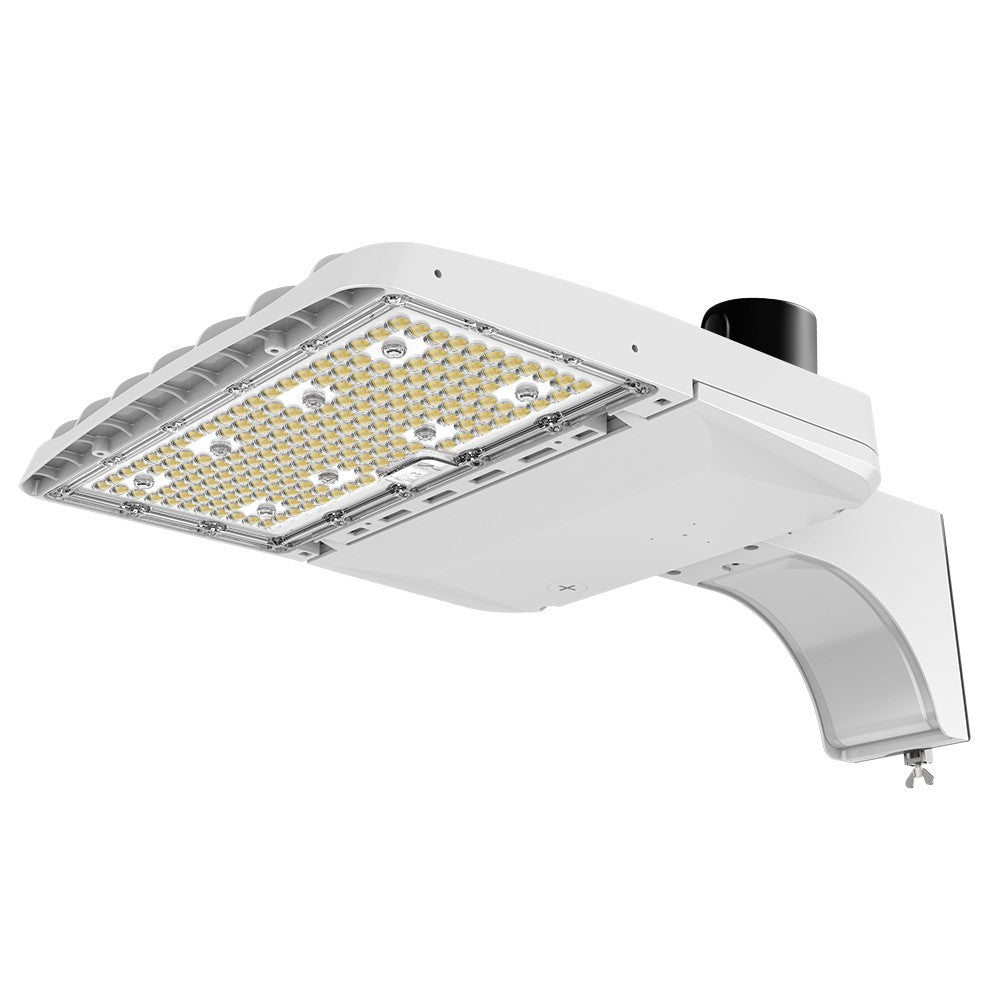

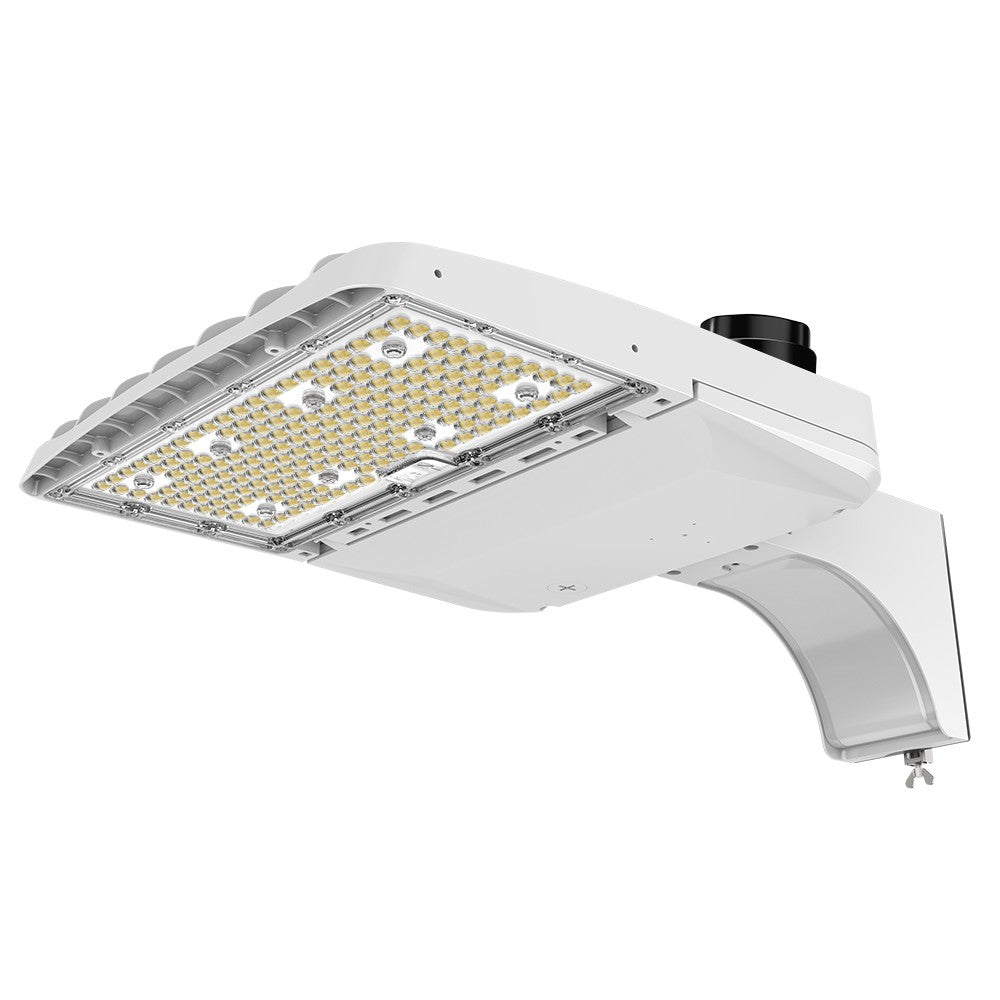

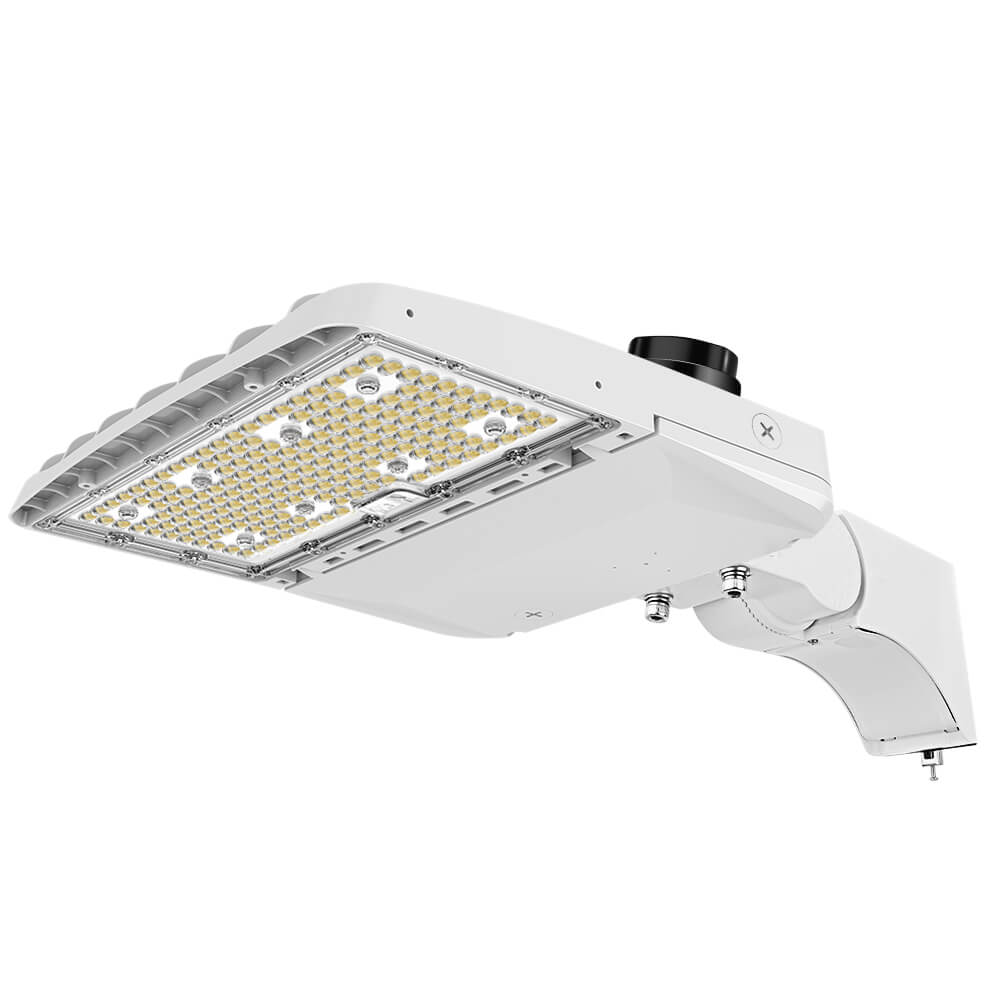

While VELA II Parking Lot light with pole mount arm

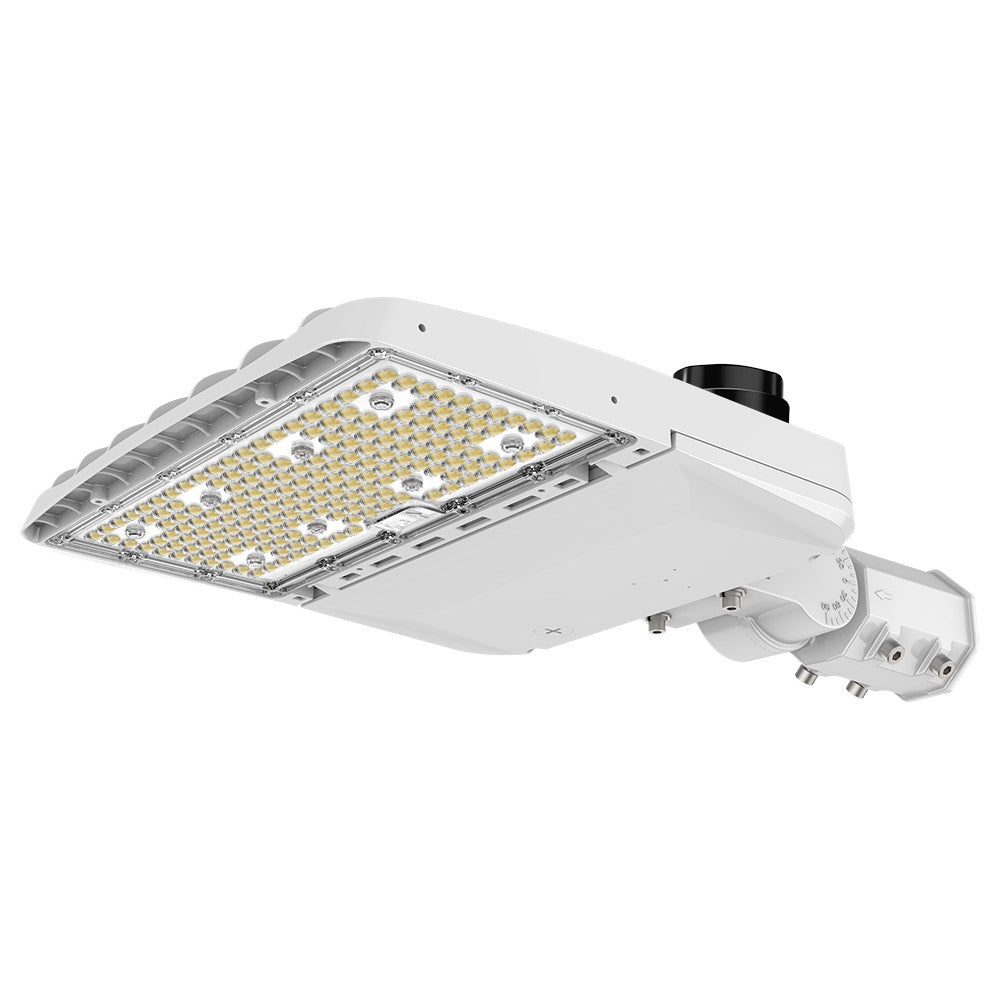

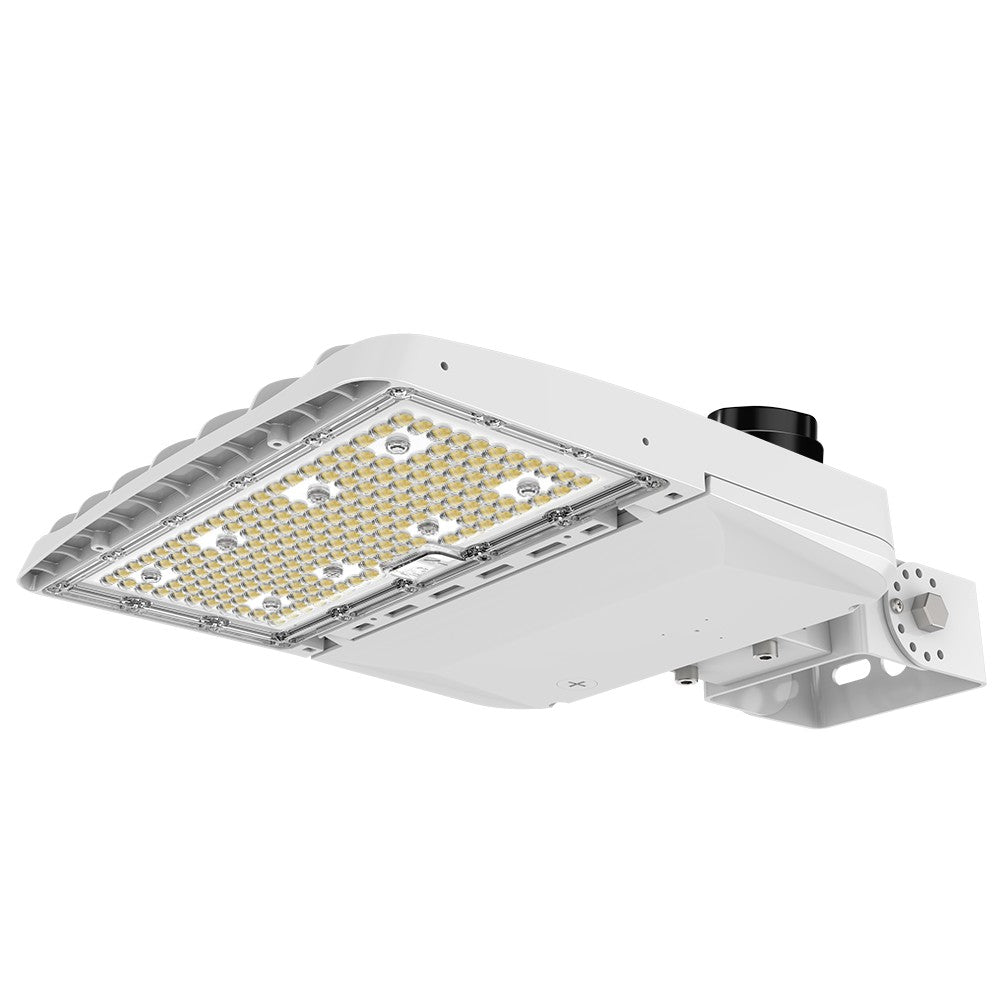

While VELA II Parking Lot light with Yoke mount

While VELA II Parking Lot light with wall mount bracket

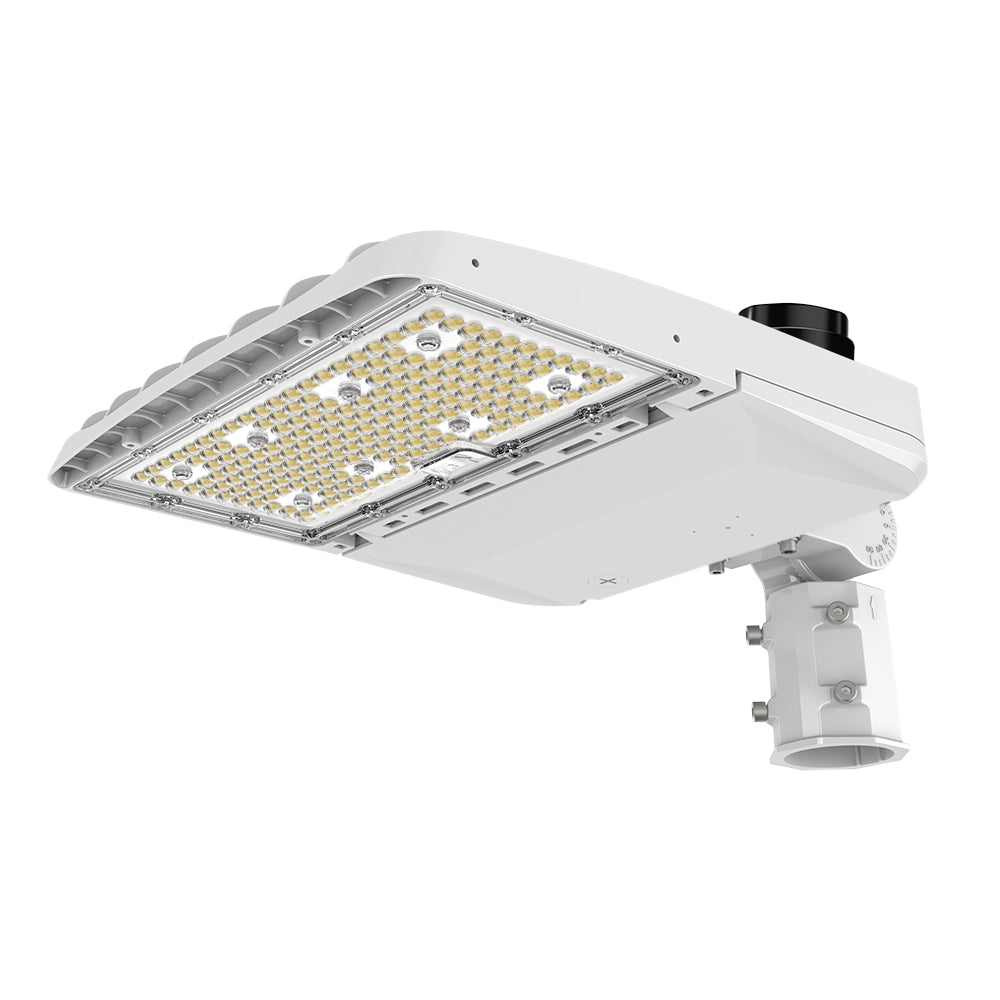

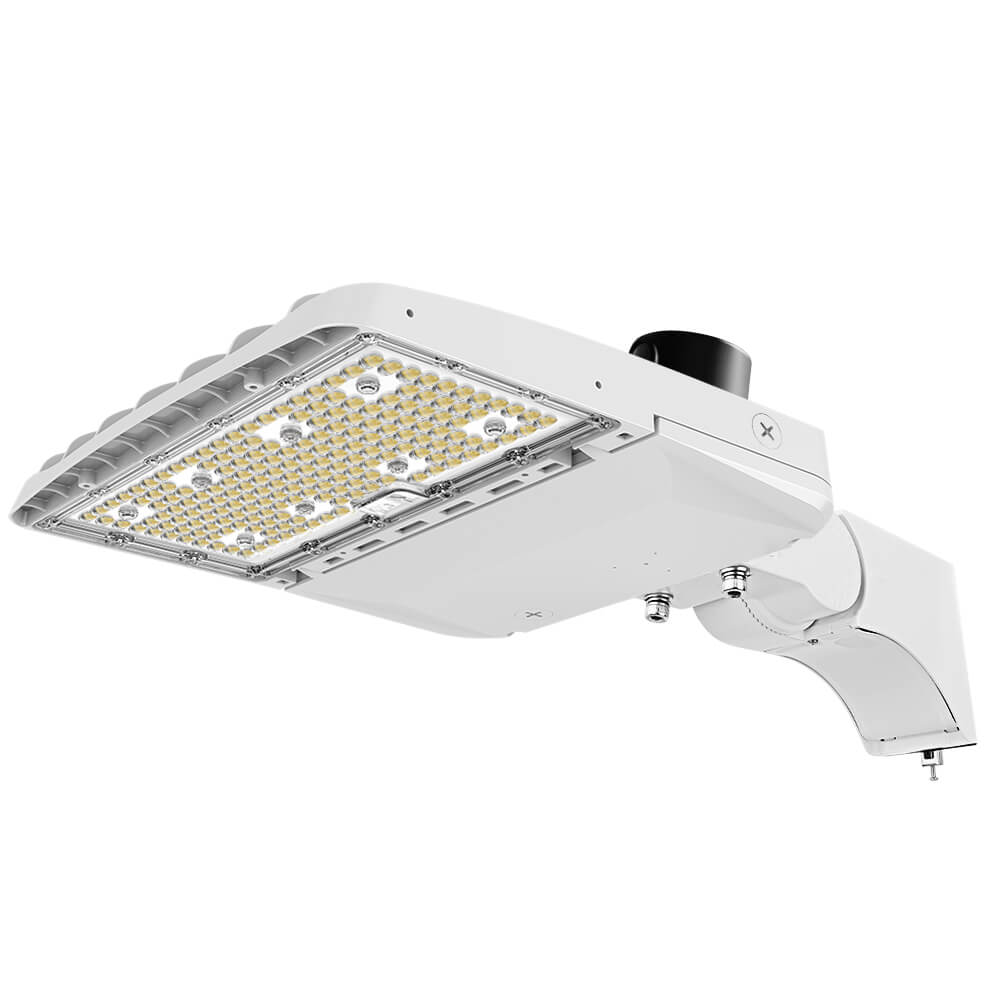

While VELA II Parking Lot light with Pole mount

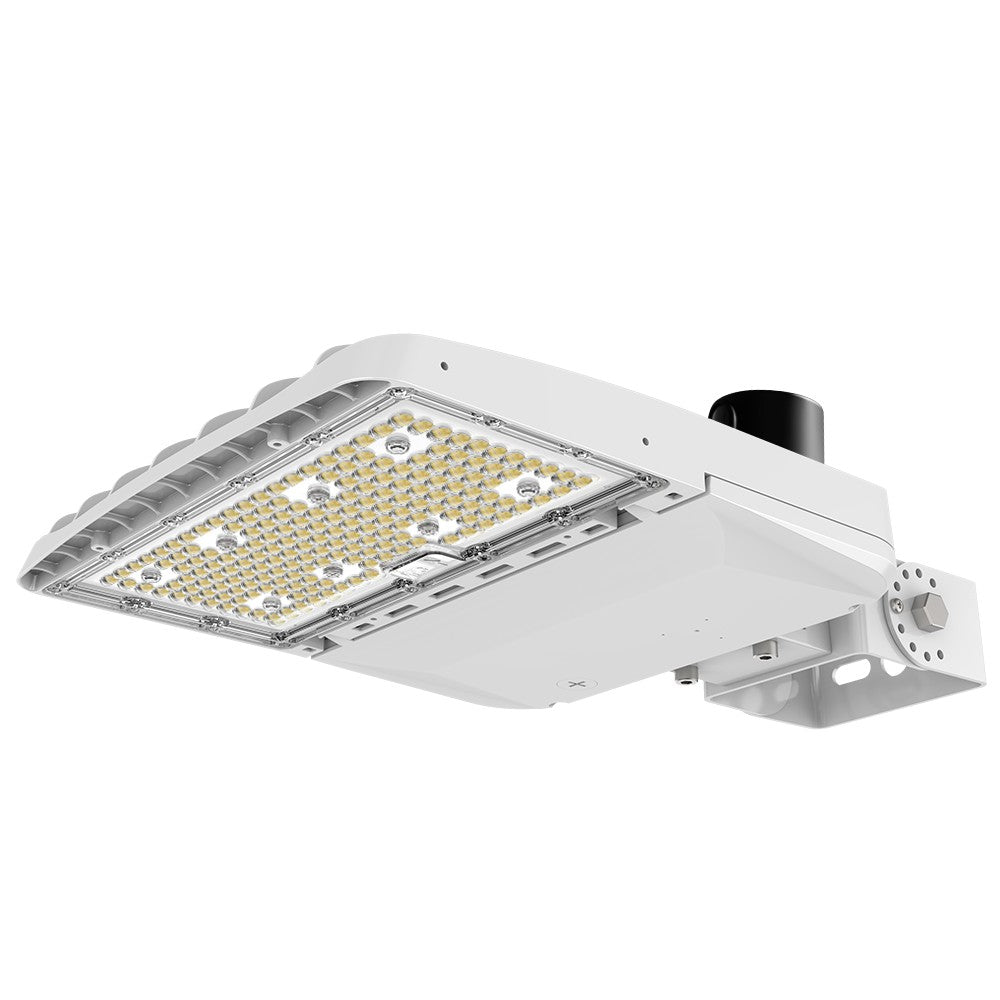

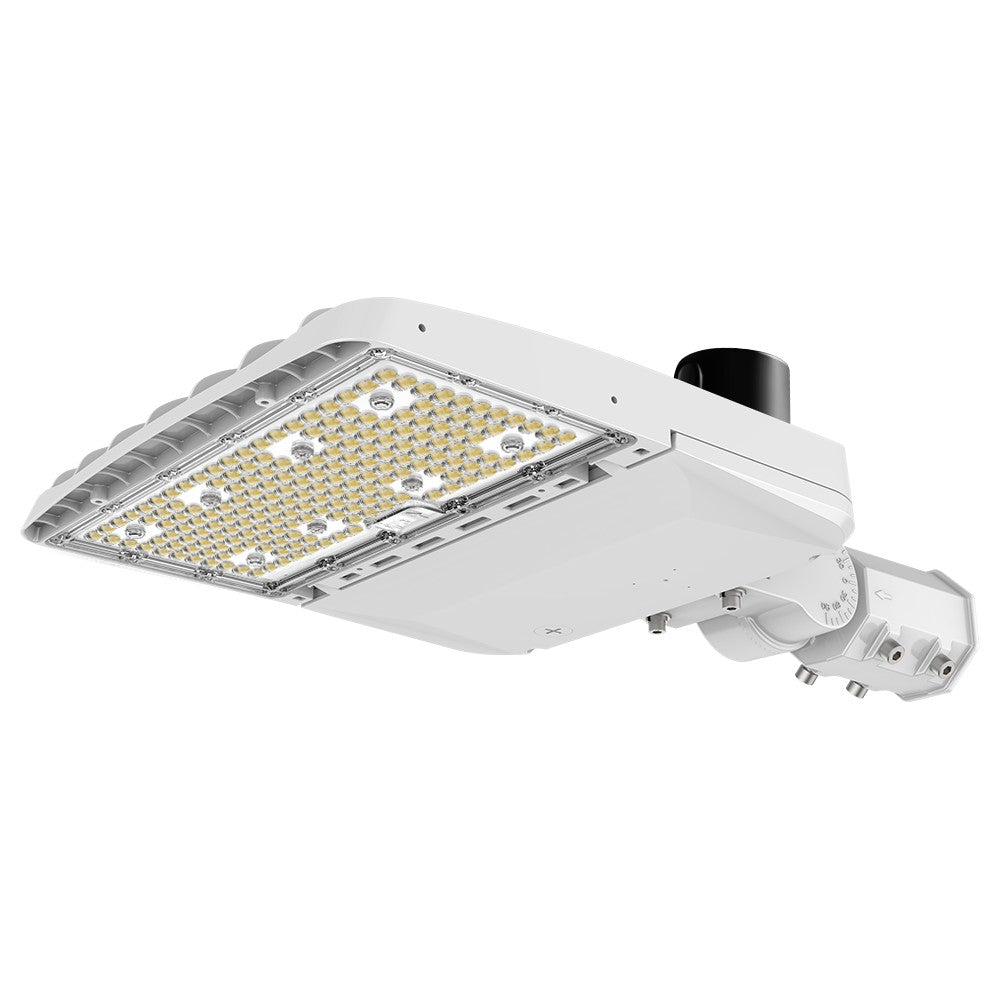

While VELA II Parking Lot light with Yoke mount arm

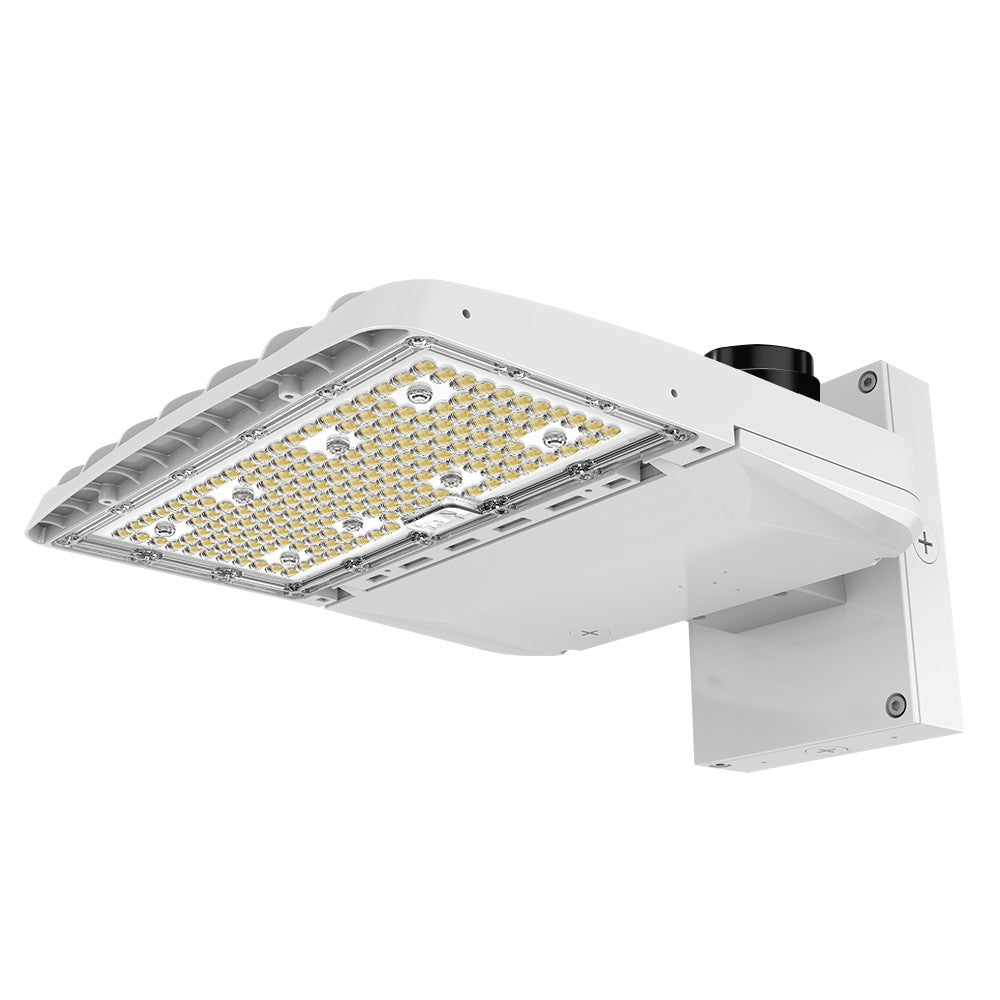

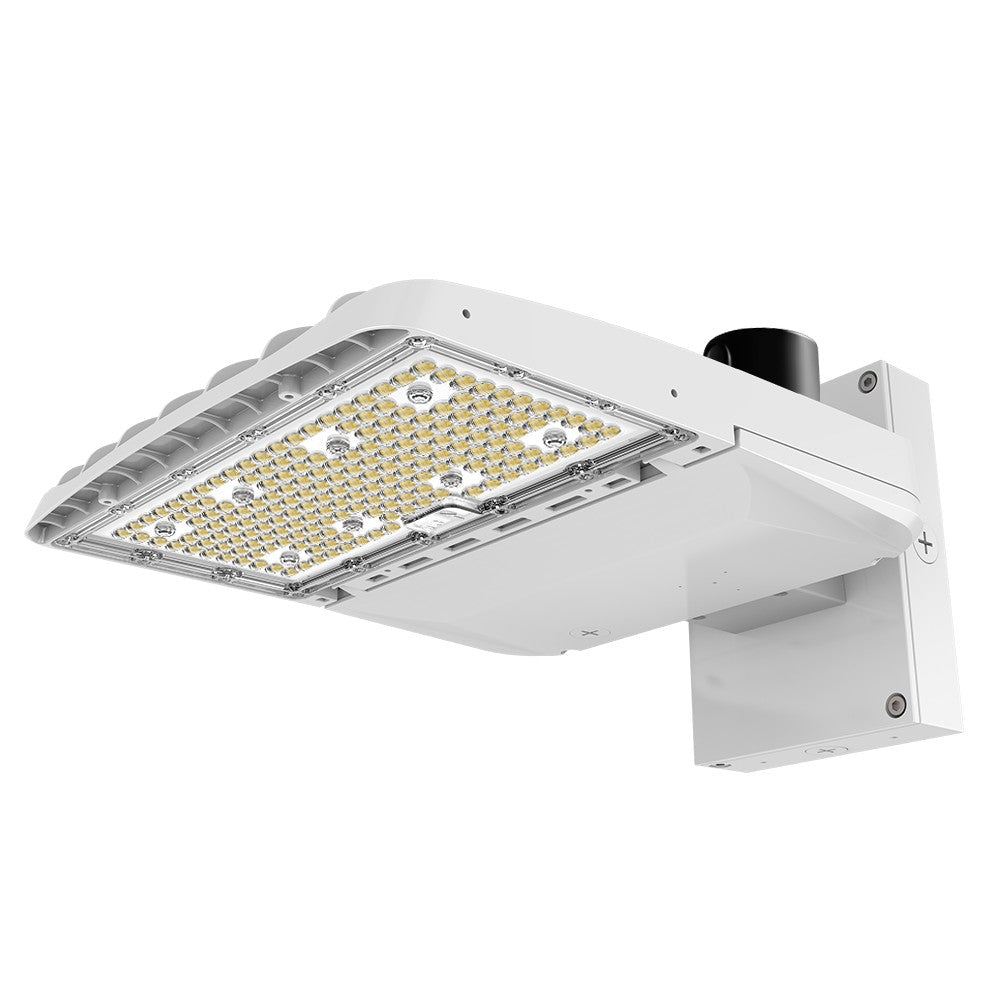

While VELA II Parking Lot light with Wall Mount

Roll over image to zoom in

Same day shipping from Atlanta Warehouse

IN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.

Vela II LED Parking Lot Light - White Finish - 240W/220W/200W/170W Selectable - Up to 34,888 Lumens - 3 CCT - Type III - 120-277V - 1000W Equal

Name: Vela II LED Parking Lot Light - White Finish - 240W/220W/200W/170W Selectable - Up to 34,888 Lumens - 3 CCT - Type III - 120-277V - 1000W Equal
Brand: Konlite
SKU: KVLMMWMCLV3SFW
Price: 239.81 USD
Availability: InStock

Product Search Code: 20-0420

KonliteSKU: KVLMMWMCLV3SFW

$259.99 $239.81

Replaces up to 1,000W Metal Halide Light
10KV Surge Protection
Price Includes One of the Mounting Brackets
Certificates: UL, DLC 5.1 Premium
5-Year Warranty
Three CCT Field Selectable: 3000K, 4000K or 5000K (Preset)
Watts and Lumens Selectable:
- 240W = 34,8888 (Preset)
- 220W = 31,993
- 200W = 29,097
- 170W = 24,701

Mounting Options:

Controls:

Variant

Quantity

Replaces up to 1,000W Metal Halide Light
10KV Surge Protection
Price Includes One of the Mounting Brackets
Certificates: UL, DLC 5.1 Premium
5-Year Warranty
Three CCT Field Selectable: 3000K, 4000K or 5000K (Preset)
Watts and Lumens Selectable:
- 240W = 34,8888 (Preset)
- 220W = 31,993
- 200W = 29,097
- 170W = 24,701

Illuminate your parking lots, pole lights, campuses, public parks, building areas, arenas and roadways with this Konlite Vela series LED Parking Lot, LED Shoebox light. This sleek and modern LED light delivers superior illumination, energy saving and easy installation.

4-phase lumen electability across 3 housing sizes of Vela I, II (this one) & III.
High luminaire efficacy, up to 160lm/W at maximum output
Designed for easy one-person installation.
100,000 hour lifespan. 5-year warranty

$259.99 $239.81

Mounting Options:

Controls:

Variant

Quantity

Secured payment methods. Revolve LED never stores nor has access to your card information.
90 days return without restocking fee*.
$199 Free Shipping on eligible products*
Availability: Usually Ships in one to three business days.

4-phase lumen electability across 3 housing sizes of Vela I, II (this one) & III.
High luminaire efficacy, up to 160lm/W at maximum output
Designed for easy one-person installation.
100,000 hour lifespan. 5-year warranty

What's in the box

1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Shorting Cap or 1 Dusk to Dawn Photocell - 1 Installation Guide

Product Details

Downloads

Reviews

Q&A

1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Shorting Cap or 1 Dusk to Dawn Photocell - 1 Installation Guide

Product Overview

Upgrade your outdoor lighting with the Konlite White VELA II LED Parking Lot Shoebox Light, designed for superior illumination and energy savings. This LED light is a 1,000 Watt equivalent and offers a 4-way switch with four field-selectable wattage/brightness settings (240W/34,888 Lm Preset, 220W/31,993 Lm, 200W/29,097 Lm, 170W/24,701 Lm) to meet your specific lighting needs.

Increase safety and security for your buildings and lots with this LED parking lot light and pole light, which provides excellent light distribution with high output LEDs and custom optics, resulting in 155 Lumens per Watt Efficiency. The VELA II LED light offers a type III beam distribution standard, UV-resistant polycarbonate optical lens, and 1-10V dimming with 5000K CCT.

This LED light is compatible with dusk-to-dawn photocell and PIR motion sensor (please call for motion sensor availability), making it a smart and energy-efficient lighting solution. It offers up to 65% energy savings, long service life, and quick return on investment.

With its IP65 corrosion-proof die-cast aluminum housing and mounting brackets, the VELA II LED light is built to withstand all weather elements. It offers built-in 10KV surge protection, ensuring a reliable and long-lasting lighting solution.

Certified for quality, the Konlite VELA II LED Parking Lot Shoebox Light is DLC 5.1 Premium for eligible rebates, UL certified, and boasts a 100,000-hour lifespan. The lightweight design and low EPA rating with a 1.5G vibration load per ANSI C136.31 make this LED light easy to install and a top choice for one-to-one replacement of HID/HPS from 500 Watt to 750 Watt equivalent or new construction projects.

270-480V available for 150-watt and 310-watt Dark Bronze versions.

Applications

• Area Lighting	• Parking Lots
• Streets	• Building Façade
• Storage Facilities	• Underpasses & Tunnel
• Boat Docks & Marinas	• Billboards
• Outdoor event spaces	• Industrial yards
• Roadways & Pathways	• Security Lighting
• Sports Complex	• Schools & Universities
• Parks	• Car Dealerships

Color Temperature Selectable 3,000K, 4,000k & 5,000k color temperature

Certifications

Specifications

Brand	Konlite	DLC Part #	KVLMMW50KLV3SFW
Warranty	Limited 5 Years	UPC
Input Voltage	120-277V	Optical	Type III
Input Wattage	240W/220W/200W/170W	Equal to	1000W/750W MH
Delivered Lumens	35K/32K/29K/25K Lumens	CRI	>70
Efficacy	160 lm/W	Available CCT	5000K/4000K/3000K
Rated Life	>100,000 hrs	THD	<20%
Power Factor	>0.9	IP Rating	IP65
Dimmable	Call us for 1-10V Dimming Availability	Controls	Optional Dusk to Dawn Photocell
Operating Temperature	-40 °F to 113 °F	Dimensions	See Specifications
Certifications	UL, Wet Locations, DLC Premium	Weight	20 lbs
