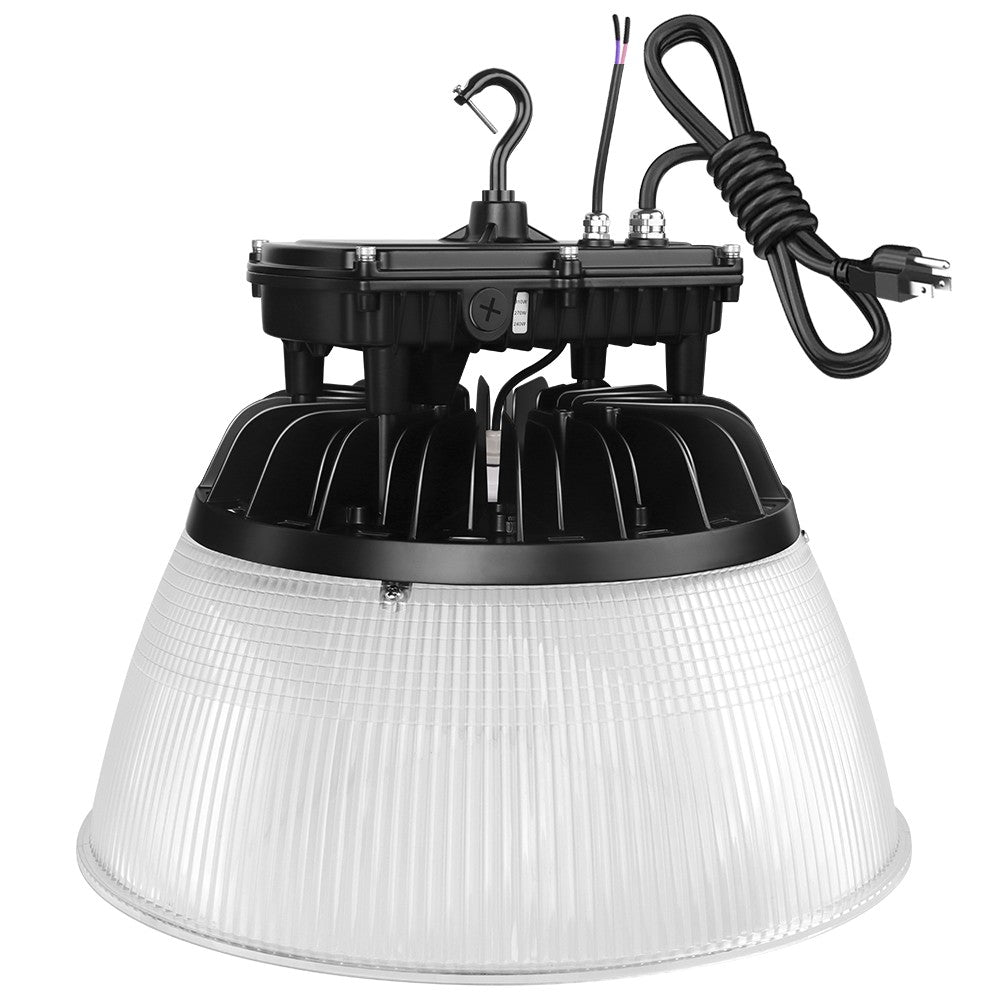

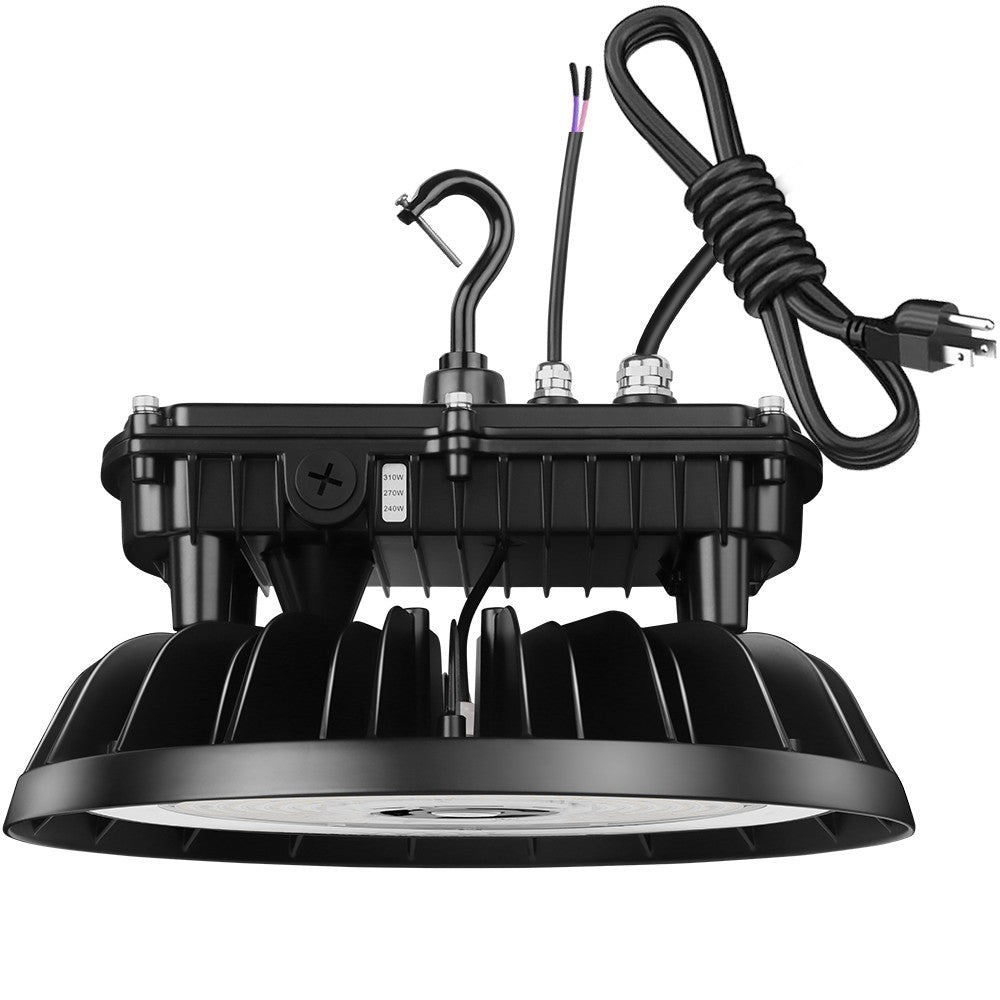

MAX Round UFO LED Bay Light - 310W/270W/240W Selectable - 46500 Lumens - 5000K - 1000W Equal

Product Search Code: 10-0122
KonliteSKU: RKRH0302SMW5KDNLCB
$189.99 $164.95

    • Replaces 1000W Metal Halide
    • 8Ft Power Cord with a Plug
    • CRI>80
    • Plug-N-Play Occupancy Sensor
    • Certificates: UL, DLC Premium 5.1, NLC
    • 5 Years Warranty
    • Watts and Lumens Selectable:
      • 310w = 46,500 (Preset)
      • 270w = 40,500
      • 240w = 36,000

    • Replaces 1000W Metal Halide
    • 8Ft Power Cord with a Plug
    • CRI>80
    • Plug-N-Play Occupancy Sensor
    • Certificates: UL, DLC Premium 5.1, NLC
    • 5 Years Warranty
    • Watts and Lumens Selectable:
      • 310w = 46,500 (Preset)
      • 270w = 40,500
      • 240w = 36,000

This high-performance Konlite RH03 MAX series LED Bay light is ideal for new construction or replacement of 1000w MH/HID/HPS. Delivers top energy savings and maintenance free durability for a wide range of applications.

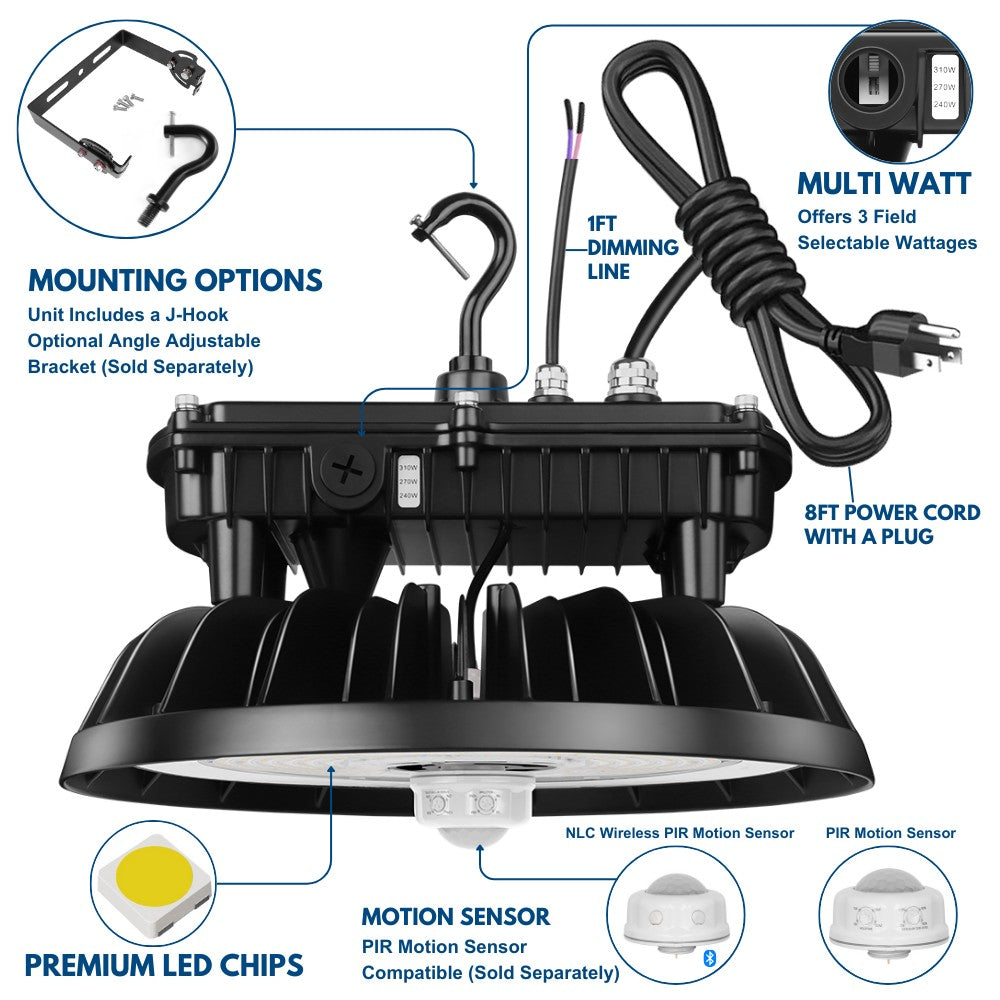

  • Offers 3 Field Selectable Wattage/Brightness Settings.
  • Designed for quick, easy installation-Each unit comes with 8' quick connect cord and plug.

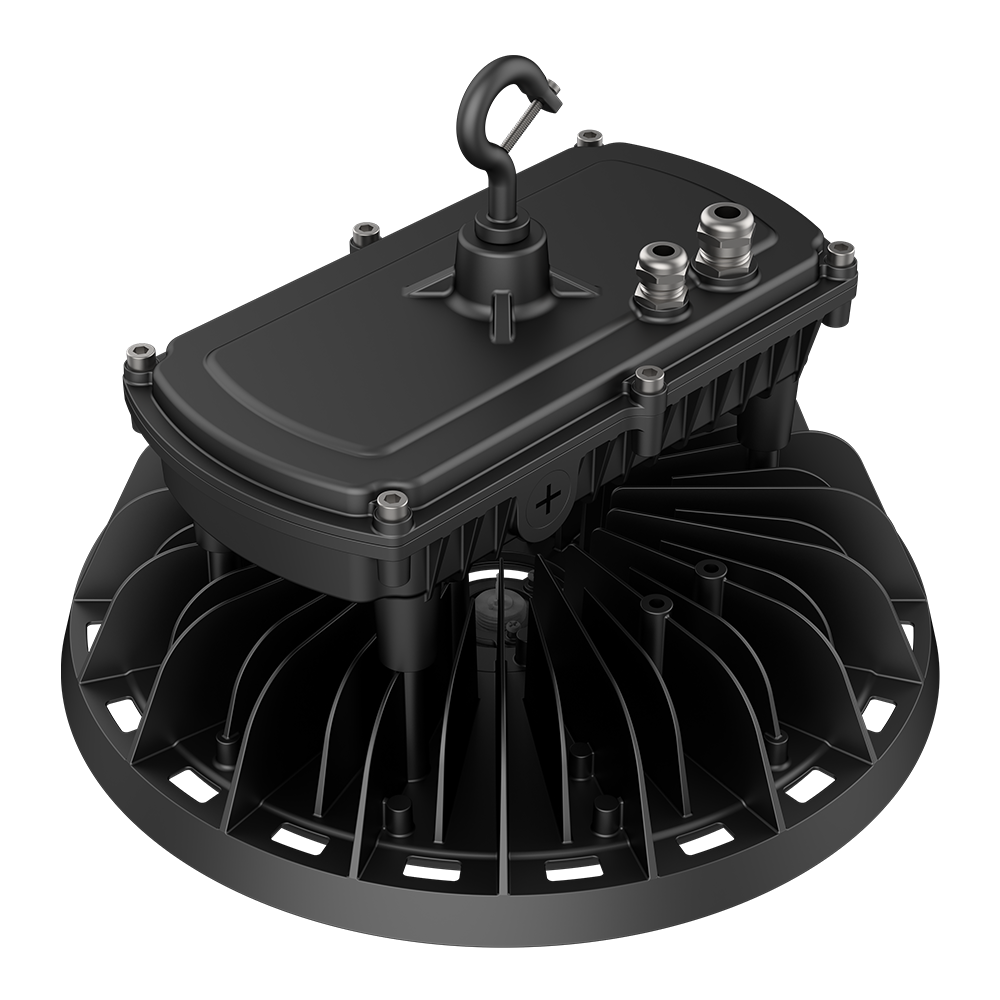

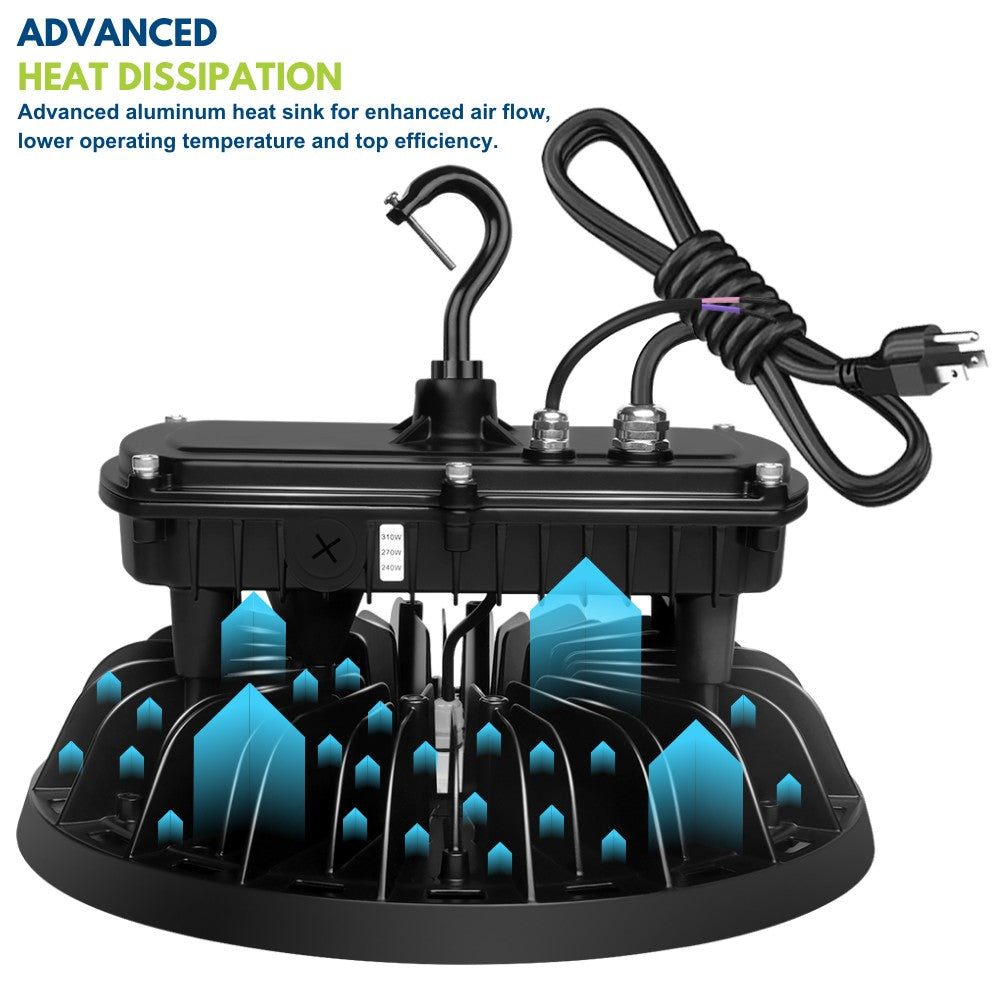

  • Advanced aluminum heat sink for enhanced air flow, lower operating temperature and top efficiency.
show more
$189.99 $164.95

This product qualifies for the Double Rewards Promotion!   Learn more...
Double Rewards Promotion
  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

This high-performance Konlite RH03 MAX series LED Bay light is ideal for new construction or replacement of 1000w MH/HID/HPS. Delivers top energy savings and maintenance free durability for a wide range of applications.

  • Offers 3 Field Selectable Wattage/Brightness Settings.
  • Designed for quick, easy installation-Each unit comes with 8' quick connect cord and plug.
  • Advanced aluminum heat sink for enhanced air flow, lower operating temperature and top efficiency.
What's in the box
1 Lighting fixture - 1 Mount Hook - 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A
1 Lighting fixture - 1 Mount Hook - 1 Installation Guide

Product Overview

Upgrade your space and reduce operating costs with the energy efficient Konlite RH03 MAX series round LED bay lights. This compact design is easy to install, meets any budget and a Contractor favorite for retrofit or new construction.

Selectable wattage takes the risk out of purchasing. A low/high bay light that is too dim or too bright can affect the daily operations of the space- from employee productivity to safety. You can now select your brightness and efficiency during install to assure the brightness meets the application and provides the amount of light you want and need for your area. Great for multi-zone facilities.

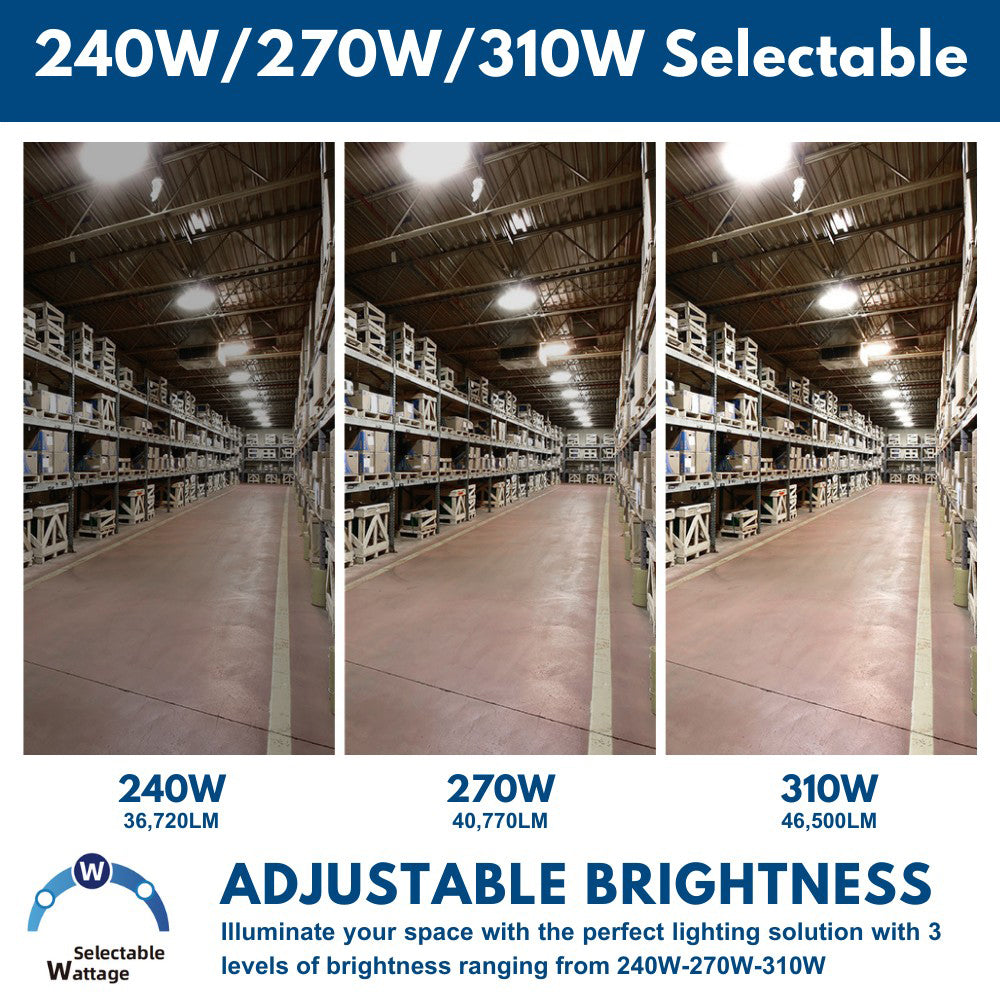

Three Field Selectable brightness Settings:

310w / 46,500 Lm, 270w / 40,500 Lm, 240w / 36,000 Lm   Preset at: 310 watts.

5000K CCT, Excellent color rendition compared to HID/HPS with uniform 100° broad beam illumination.

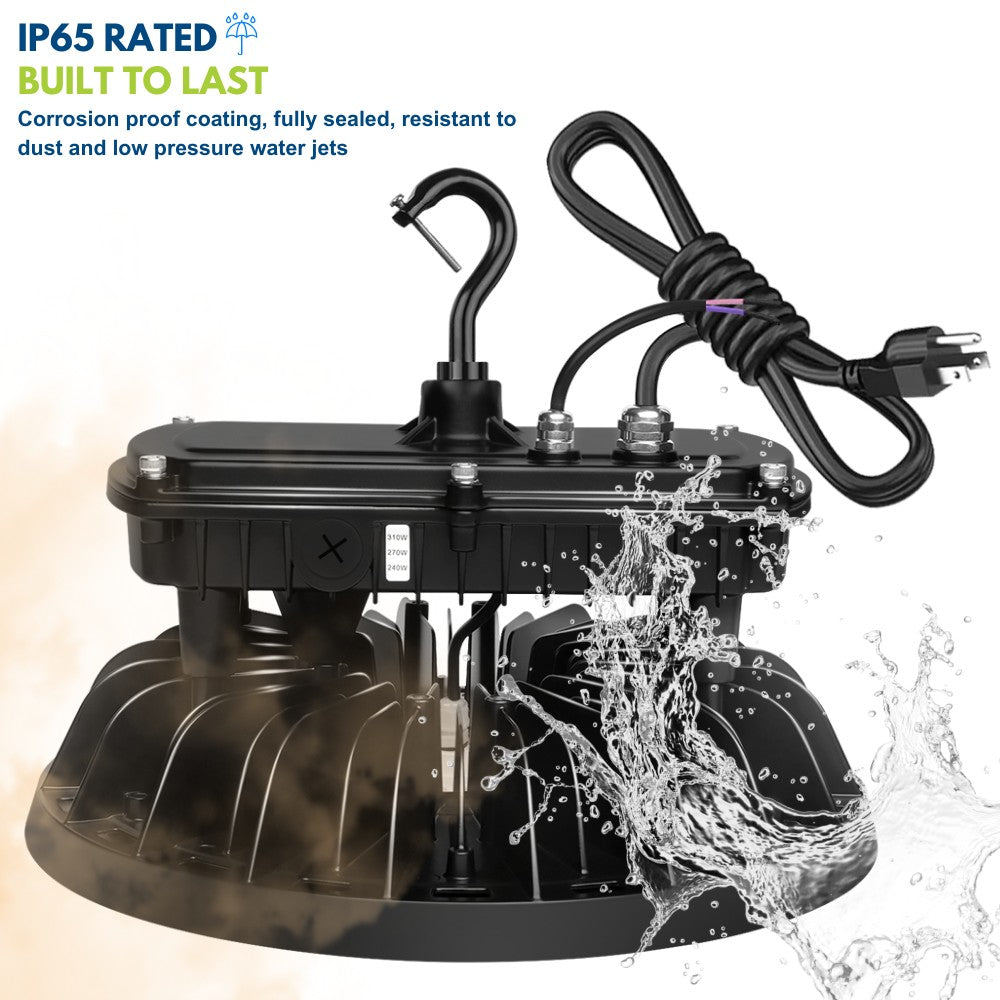

120-277V, Built in 4K surge protector, 8’ Quick Connect Cord, 0-10V Dimming, IP65 rated; Corrosion proof aluminum coating, fully sealed for dust and moisture intrusion.

Certified Quality: DLC 5.1 Premium and DLC NLC for eligible rebates, UL, 5 year warranty.

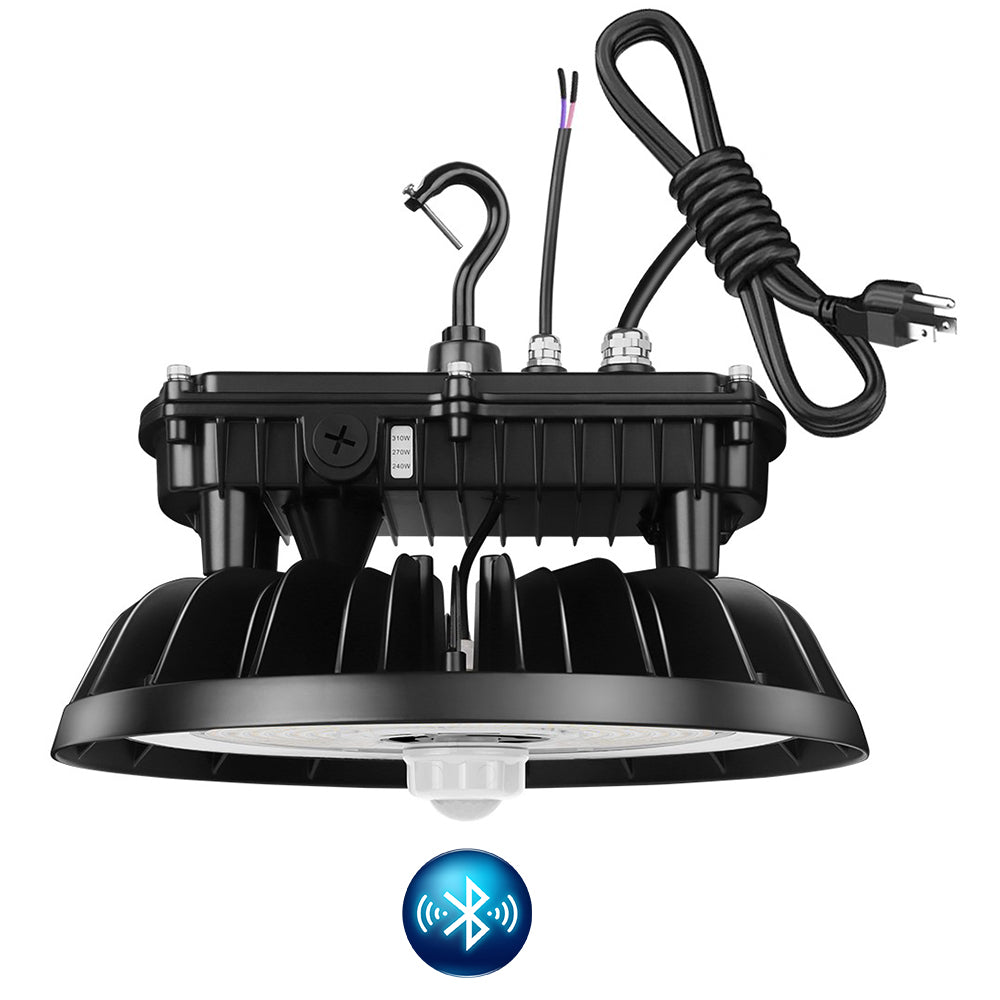

Upgrade your lighting control system with Haisen Blue Network Lighting Controls (NLC) and discover the ultimate in flexibility, affordability, and ease of use. Perfect for businesses and facilities of all sizes, the DLC qualified NLC system empowers you to take full command of your lighting environment, enhancing efficiency and ambiance with just a few simple clicks. Simply select NLC Bluetooth sensor with PAVO High Bay Lights, ensuring a smooth and efficient control experience right out of the box.

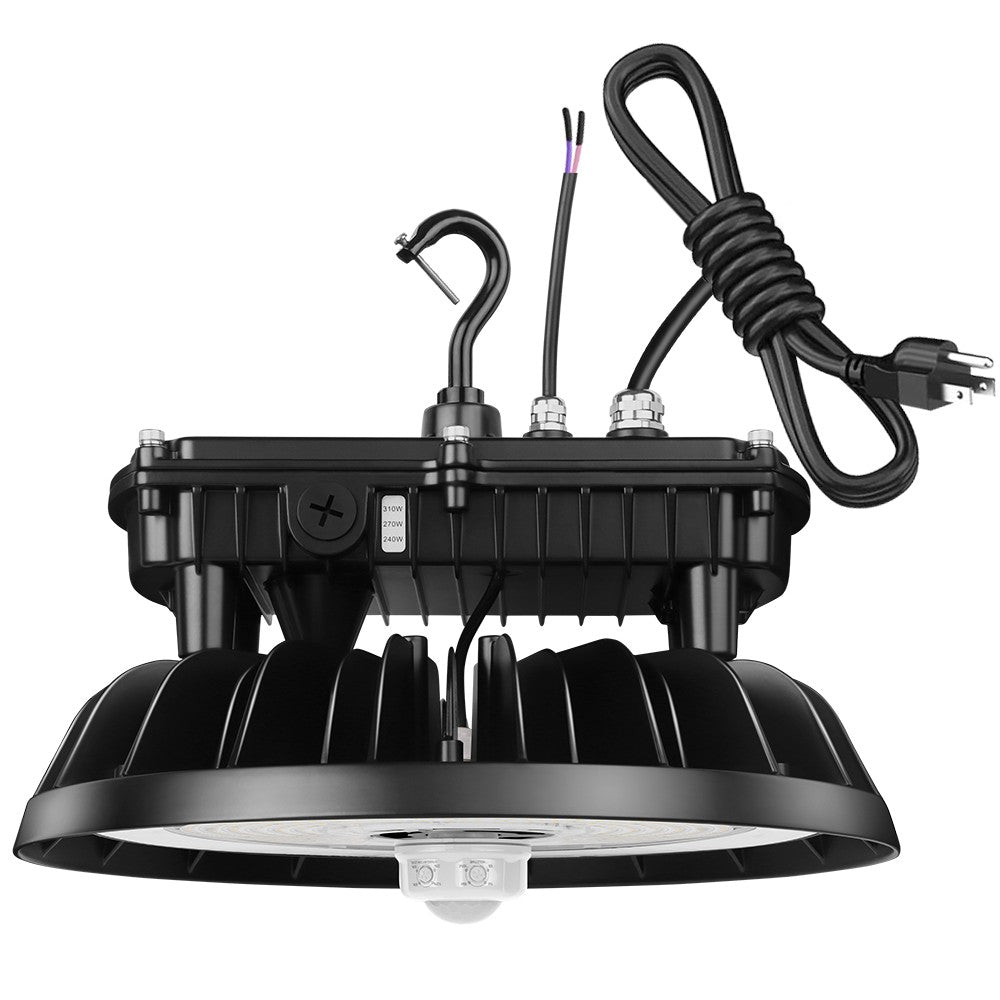

Increase savings with the optional integrated PIR sensor. Set and adjust the controls via Remote Control: Brightness, Sensitivity, Hold-time, Daylight Harvesting and Stand by dimming level. Requires (1) HD05R Remote.

Delivers top energy savings and maintenance free durability for a wide range of applications.

Applications

•Warehouses •Workshops
•Convention Centers •Automotive Centers
•Storage Facilities •Distribution Centers
•Factories •Supermarkets
•Retail •Gymnasiums
Color Temperature 5000K color temperature
Certifications
US company5 years warrantyUL listed0-10v dimmableDLC PremiumRoHS compliance IP65 rating

Specification

BrandKonliteMPNRKRH0302SMW5KDNLCB
WarrantyLimited 5 YearsUPC680660164269
Input Voltage120-277VBeam100°
Input Wattage310w/270w/240wEqual To750w/1000w

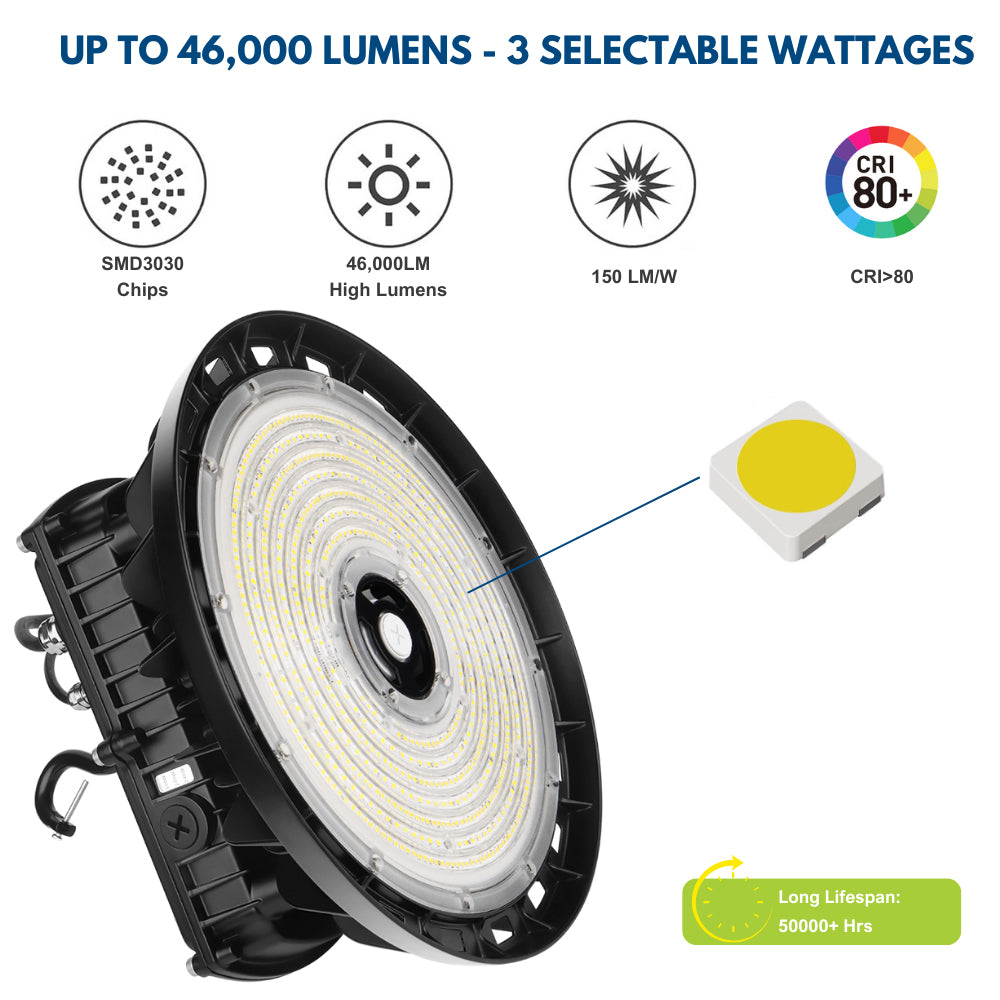

Lumens46,500/40,500/36,000/CRI>80
Efficacy150 LM/WAvailable CCT5000k
Rated Life>50,000 hrsPower Factor>0.88
THD≤20%IP RatingIP65
Dimmable0-10VControlsoptional PIR Sensor

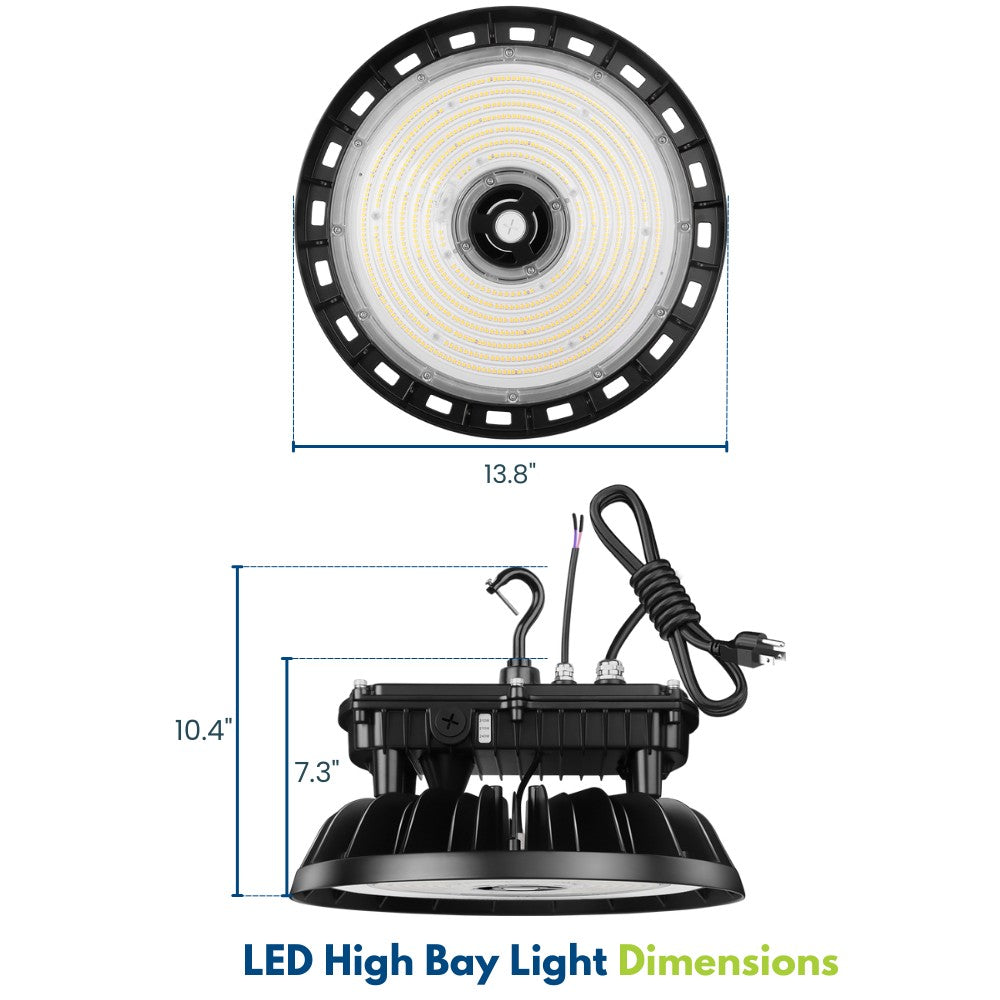

Operating Temperature-40F to 113FDiameter12.4"
CertificationsUL, Damp Locations, DLC PremiumWeight11.5 Lbs

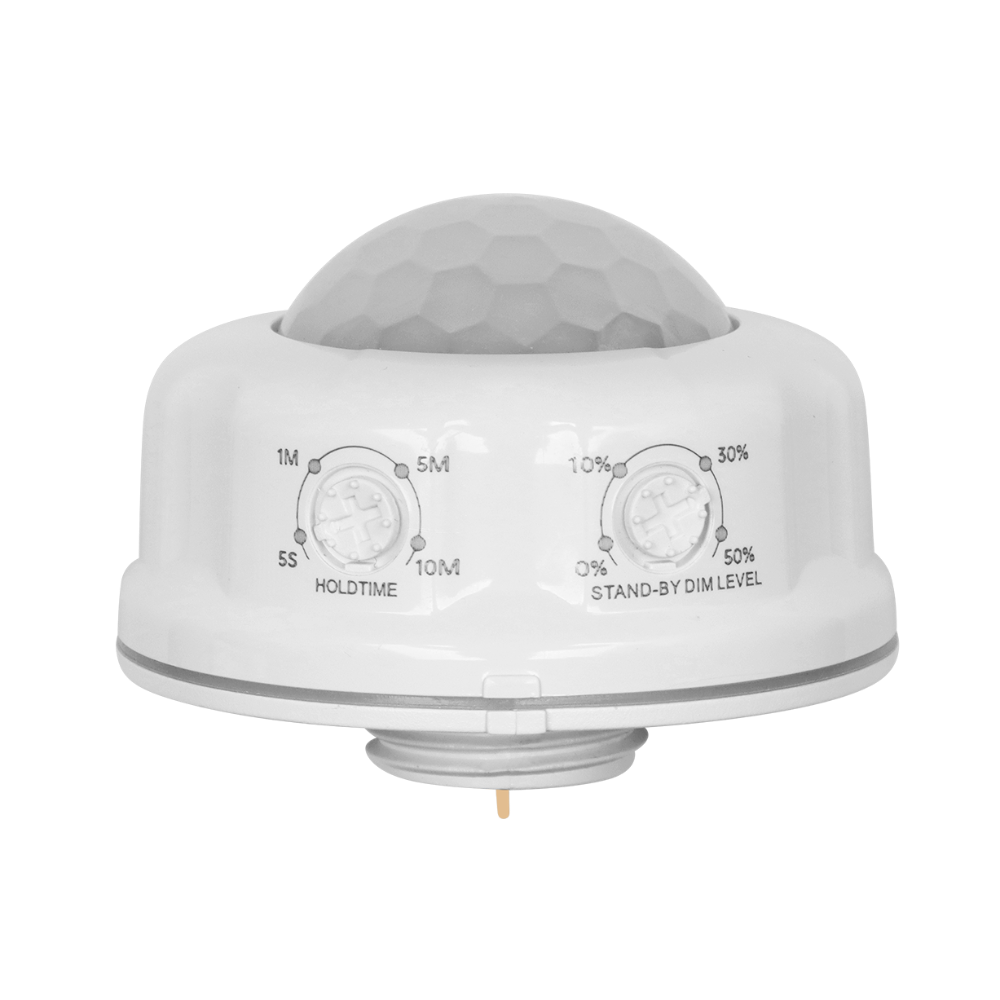

Occupancy Sensor Specification

BrandHaisenMPNHD09VCR-PH / HD09VCR-PHB ( Network Lighting Controls )
ControlOn/off / 1-10V DimmingSetting tools

Rotating Switch or Remote Control (HD05R).

For Network Lighting Controls (NLC),  controlled

with “Haisen Blue” APP at iOS or Android

smartphones

Detection area25%/50%/75%/100% (R.C)Hold time

5s/1min/5min/10min (Rotating Switch)

5s/30s/1min/3min/5min/10min/20min/30min (R.C)

Stand-by period0s/10s/30s/1min/5min/10min/30min/+∞ (R.C)Stand-by dimming level

0%/10%/30%/50% (Rotating Switch)

10%/20%/30%/50% (R.C)

Input Range12VDCDaylight thresholdDisable / 11 settings from 2Lux to 400Lux (R.C)
Operating Voltage10.5-15V DCDetection rangeMax. 45.92ft
Mounting heightMax. 39.37 ftIP ratingIP65

*Stand-By Period need to be set to 0s while using with dimmer switch.

Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.


Video

Video of Konlite RHB03 Series Round UFO Style LED Ceiling Lights

Accessories

Remote Control For Konlite LED Highbay Motion Sensor
Same day shipping from Atlanta WarehouseIN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.
Remote Control For Konlite LED Highbay Motion Sensor
SKU:HD05R
$29.95

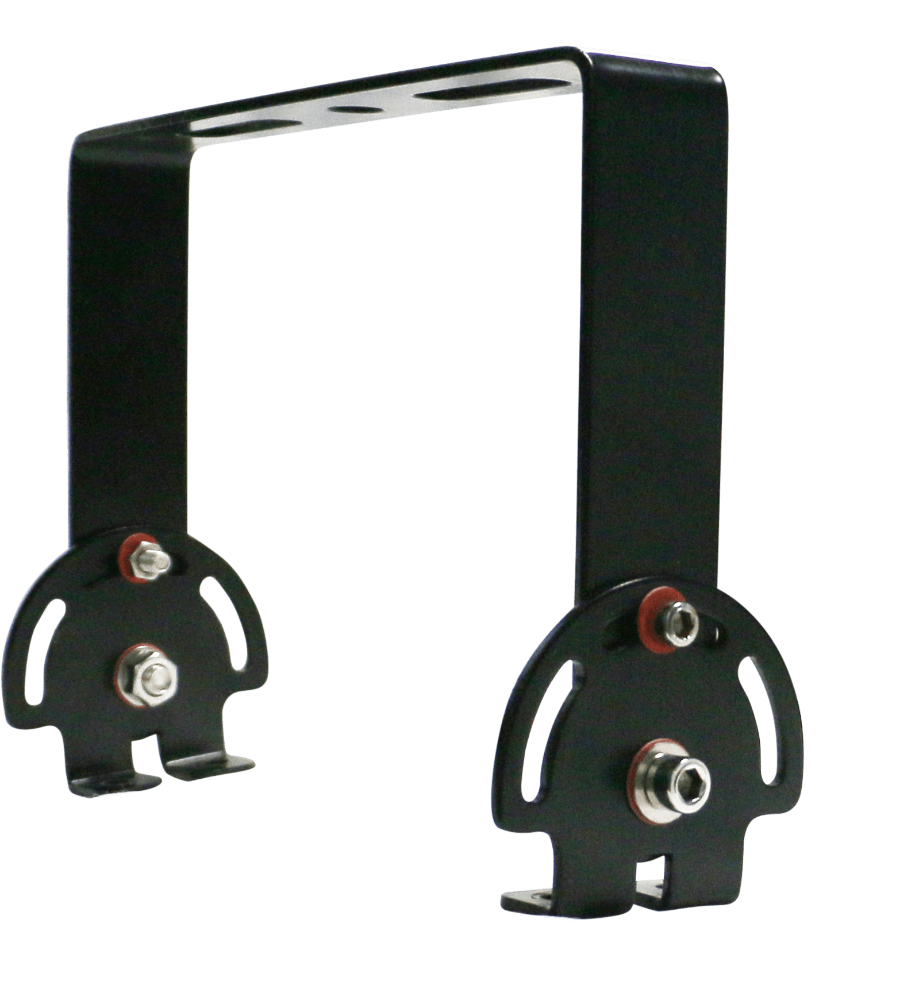

U Sharp mounting bracket for MAX UFO High bay lights
