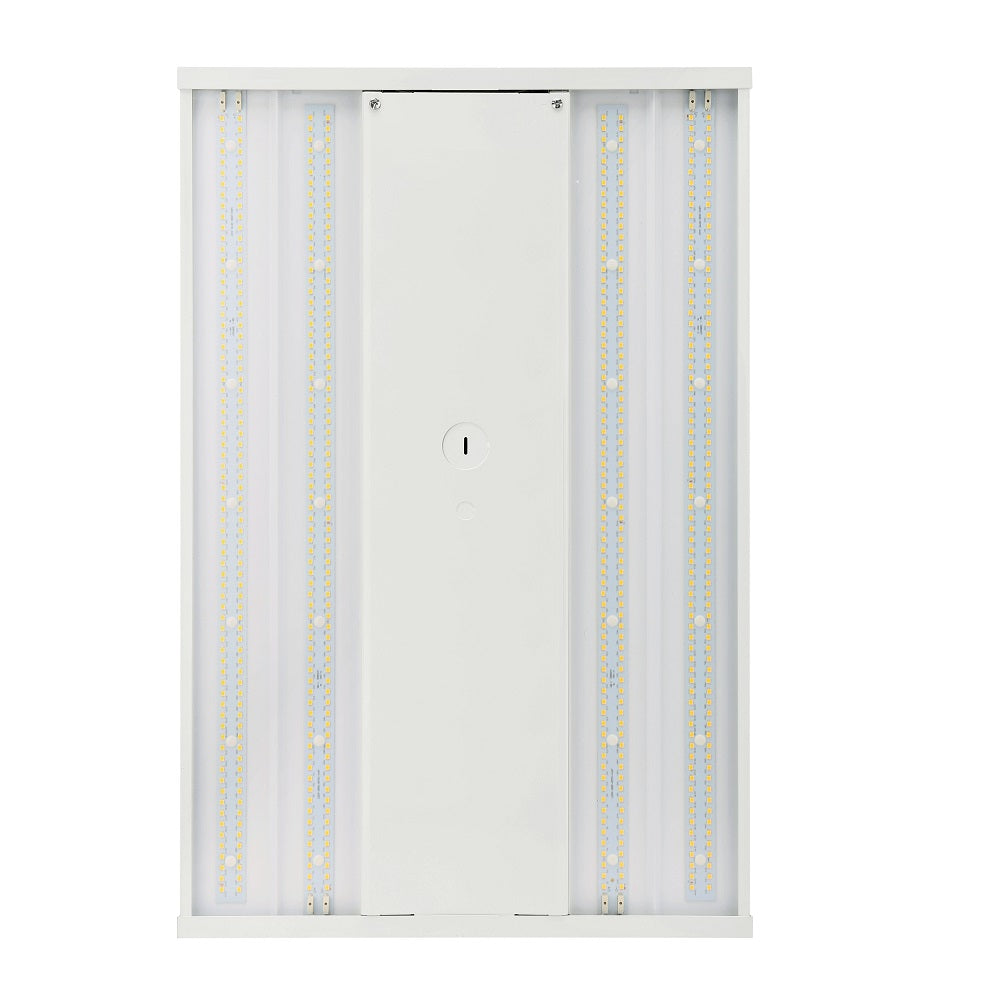

LED Highbay Light - 210W - 2X2 FT- 120-277V - 29000 Lumens - 5000K - 600W Equal

Product Search Code: 10-0217
KonliteSKU: RDLH02042105KDN22LC
$159.95 $152.95

  • Chain Mount Kit included
  • 1-10V dimmable

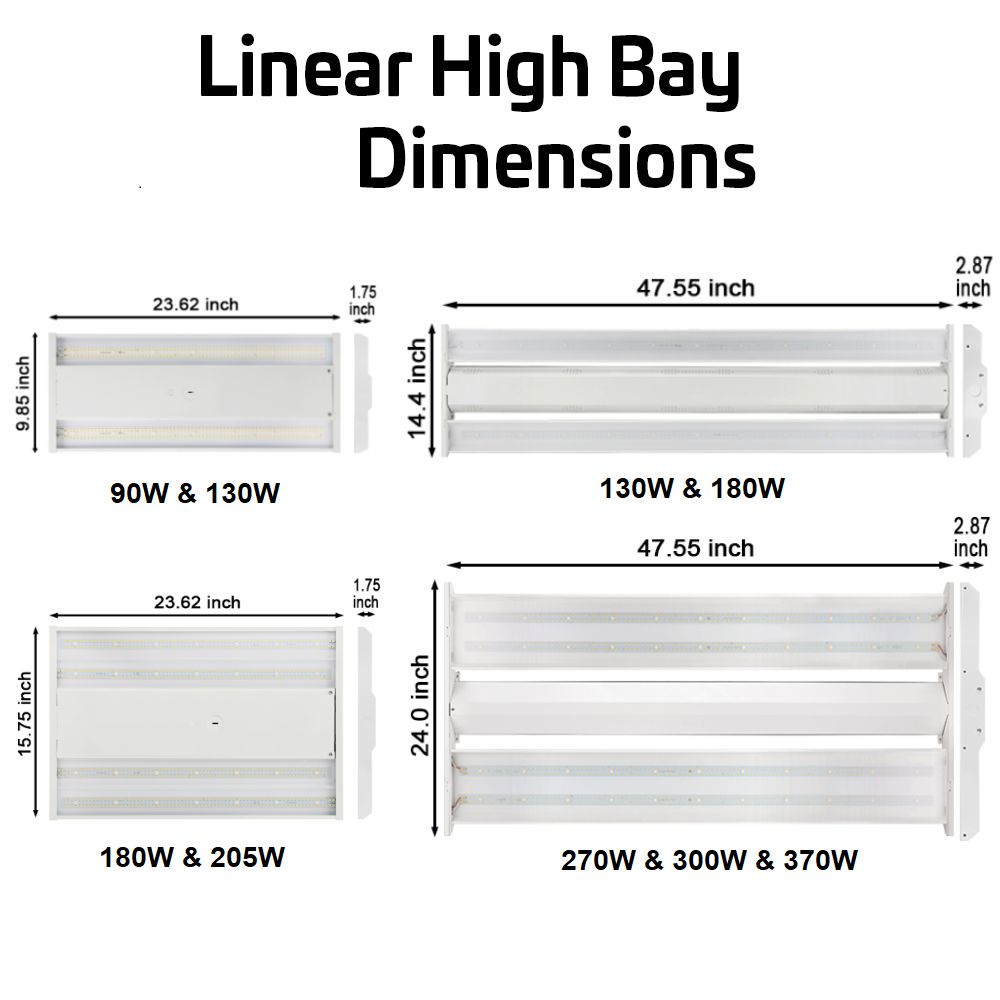

  • Dimensions: 23.62"L x 15.75"W x 1.75"H
  • Replaces: 6x54W T5HO, 600W HID/MH
  • Certificates: UL, DLC
  • Warranty: 5 Years
  • CCT: 5000K Daylight White

  • Chain Mount Kit included
  • 1-10V dimmable
  • Dimensions: 23.62"L x 15.75"W x 1.75"H
  • Replaces: 6x54W T5HO, 600W HID/MH
  • Certificates: UL, DLC
  • Warranty: 5 Years
  • CCT: 5000K Daylight White

The Konlite 210W LH0204 high bay ceiling fixture delivers versatility and durability. Replaces 6 lamp T5HO, 8 lamp T8 or 600W HID

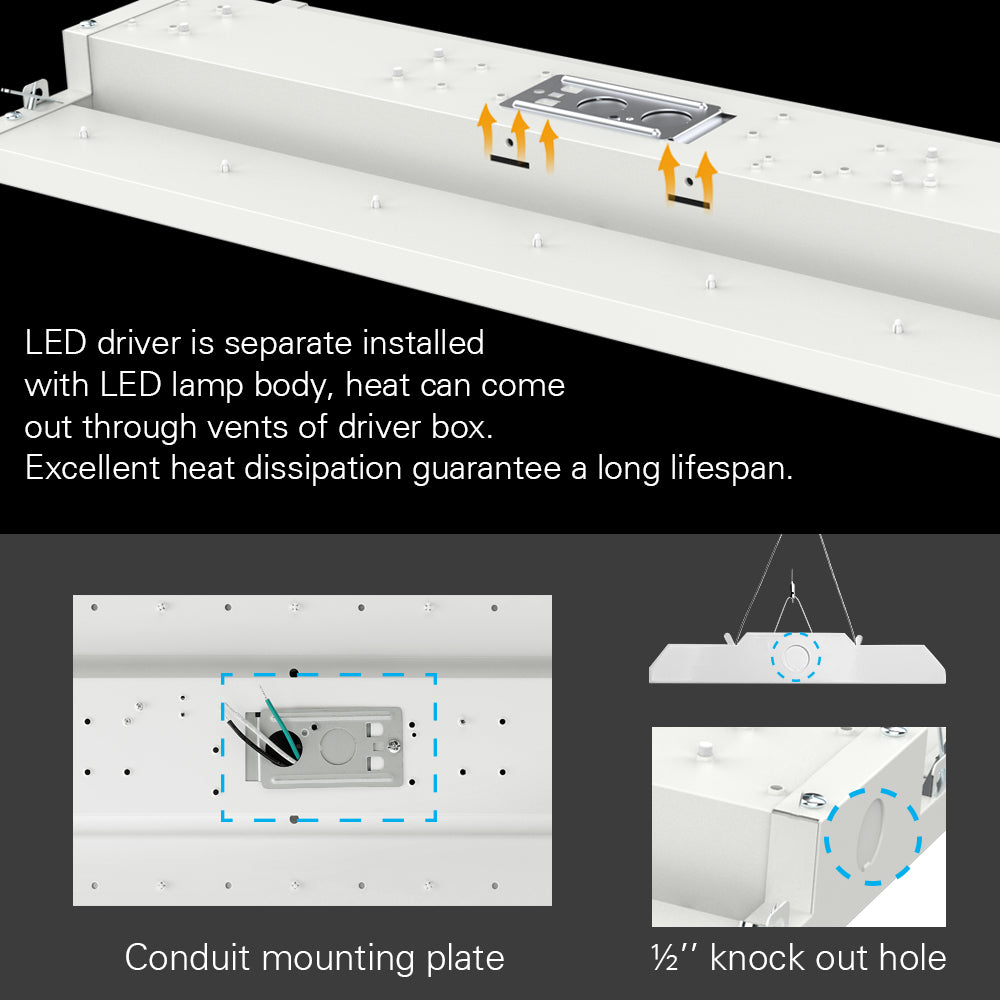

  • Superior performance with advanced thermal management
  • Reduces energy costs by up to 65% compared to high wattage traditional

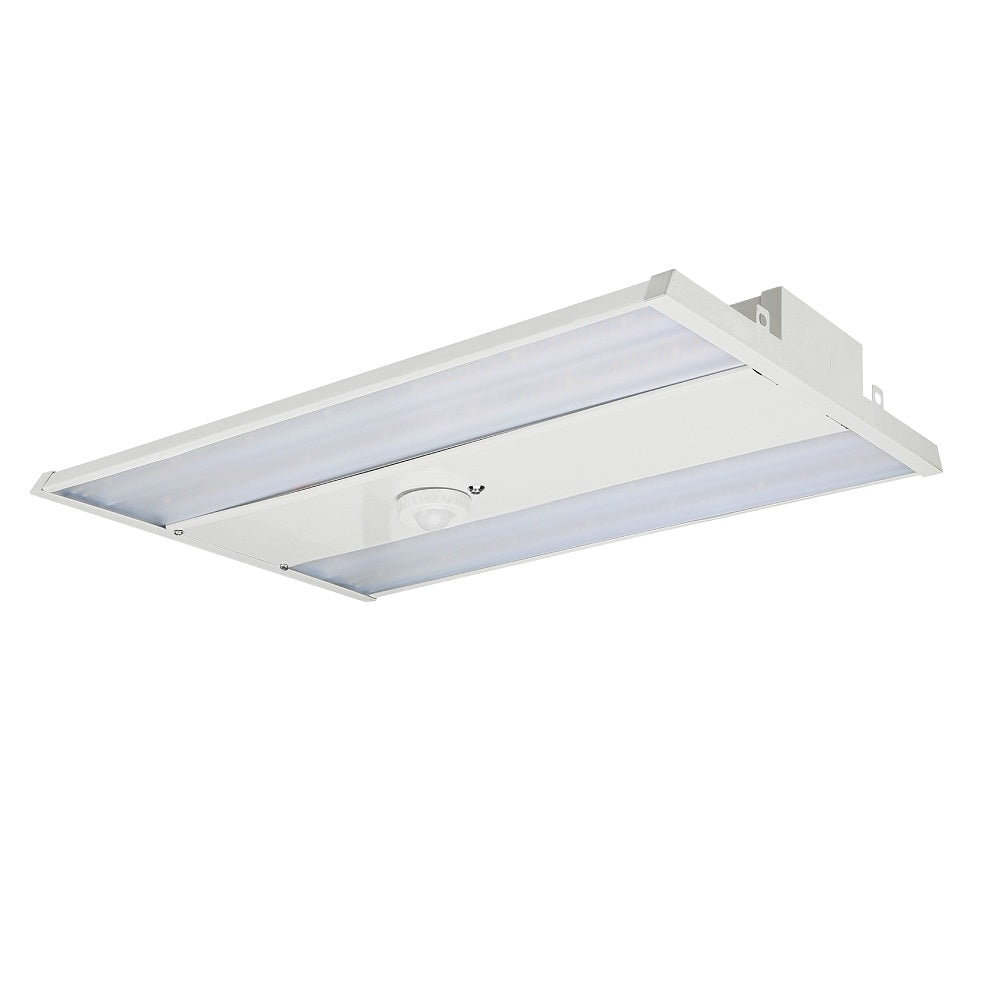

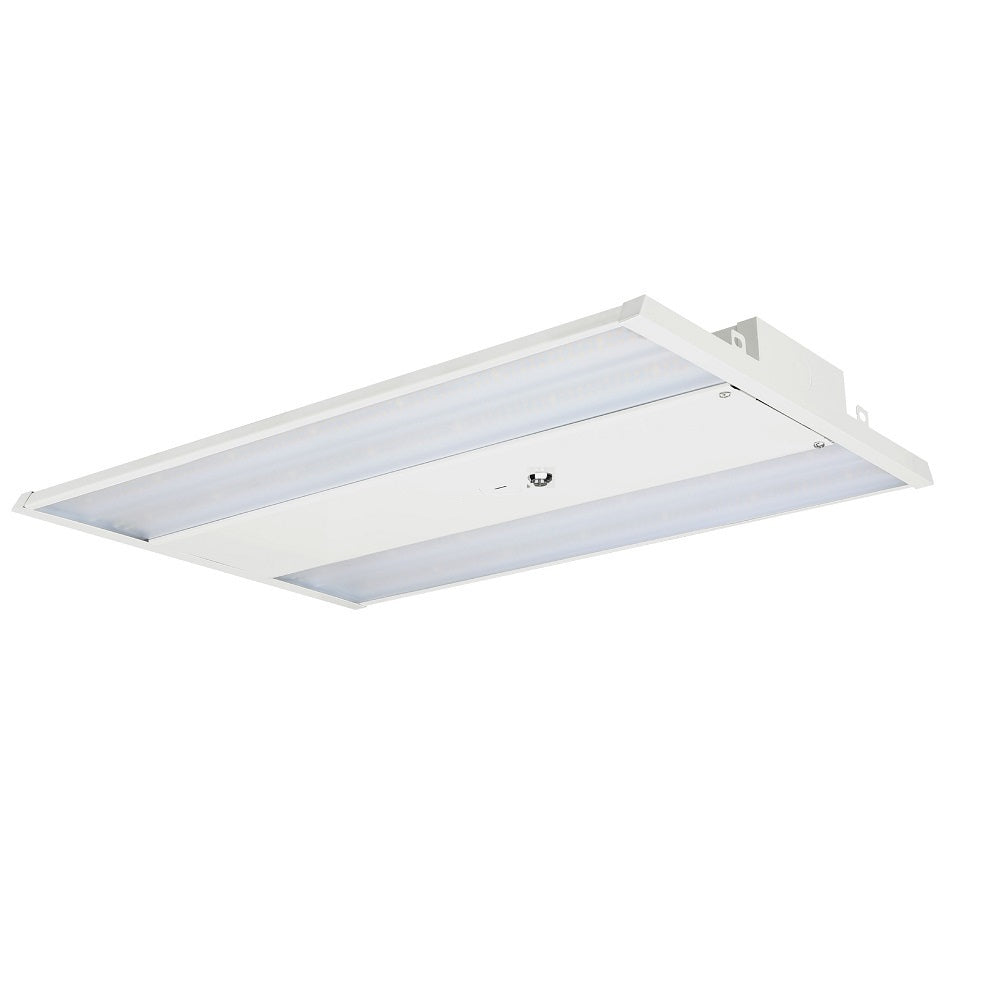

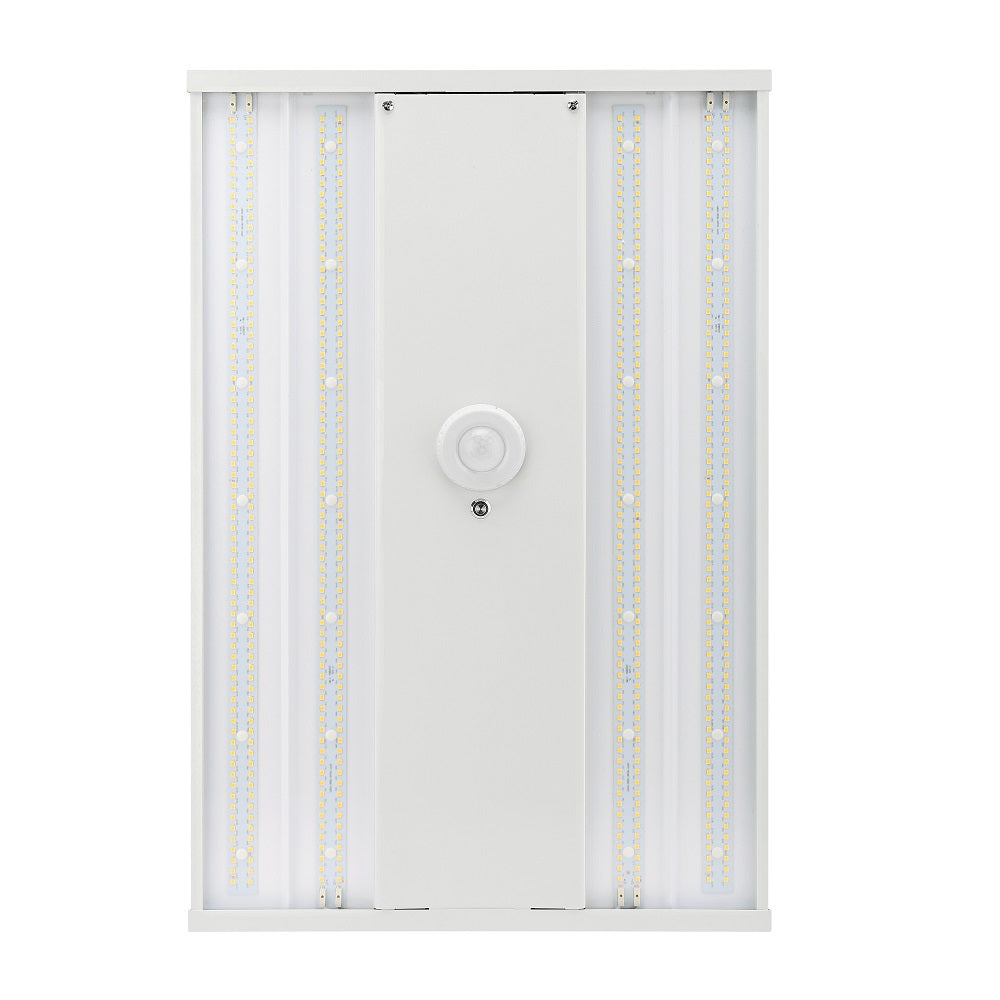

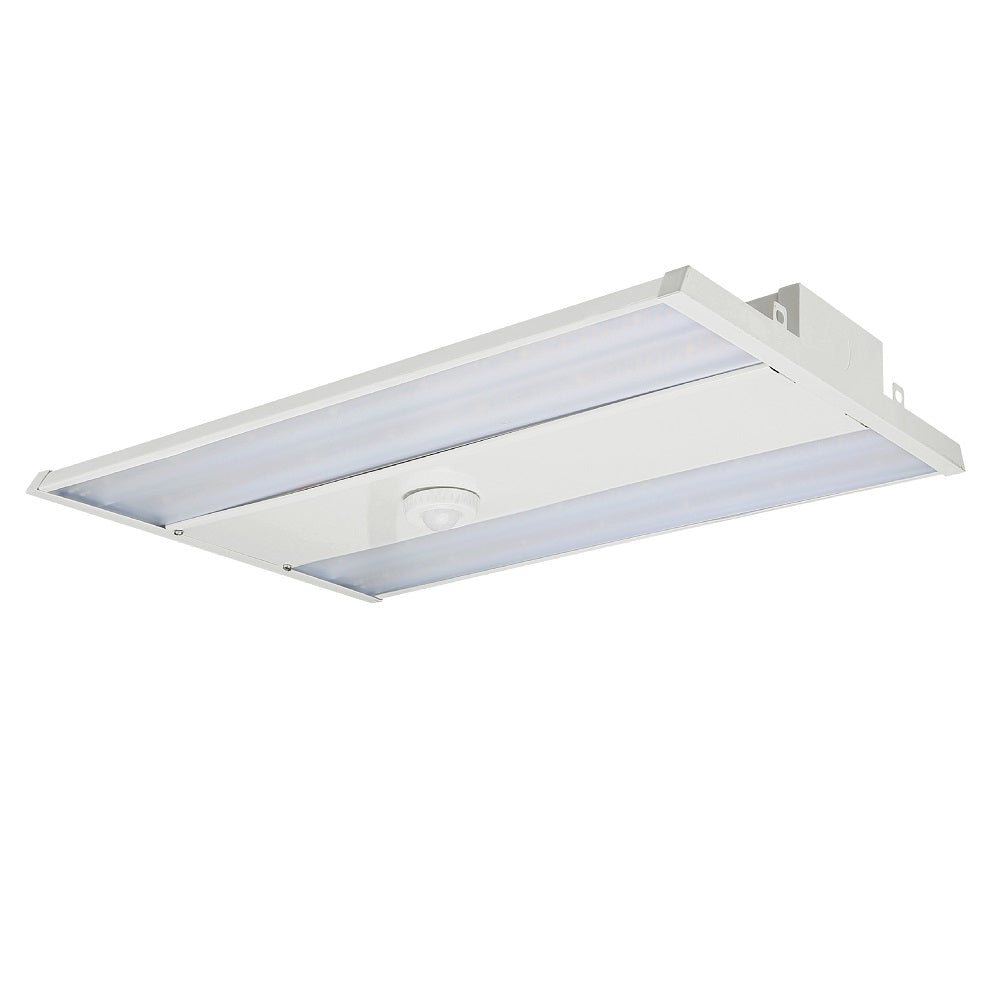

  • Optional Pre-installed Motion Sensor or Emergency Battery
show more
$159.95 $152.95


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

The Konlite 210W LH0204 high bay ceiling fixture delivers versatility and durability. Replaces 6 lamp T5HO, 8 lamp T8 or 600W HID

  • Superior performance with advanced thermal management
  • Reduces energy costs by up to 65% compared to high wattage traditional
  • Optional Pre-installed Motion Sensor or Emergency Battery
What's in the box
1 Highbay Light - 1 Chain Mount Kit - 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A
1 Highbay Light - 1 Chain Mount Kit - 1 Installation Guide

Product Overview

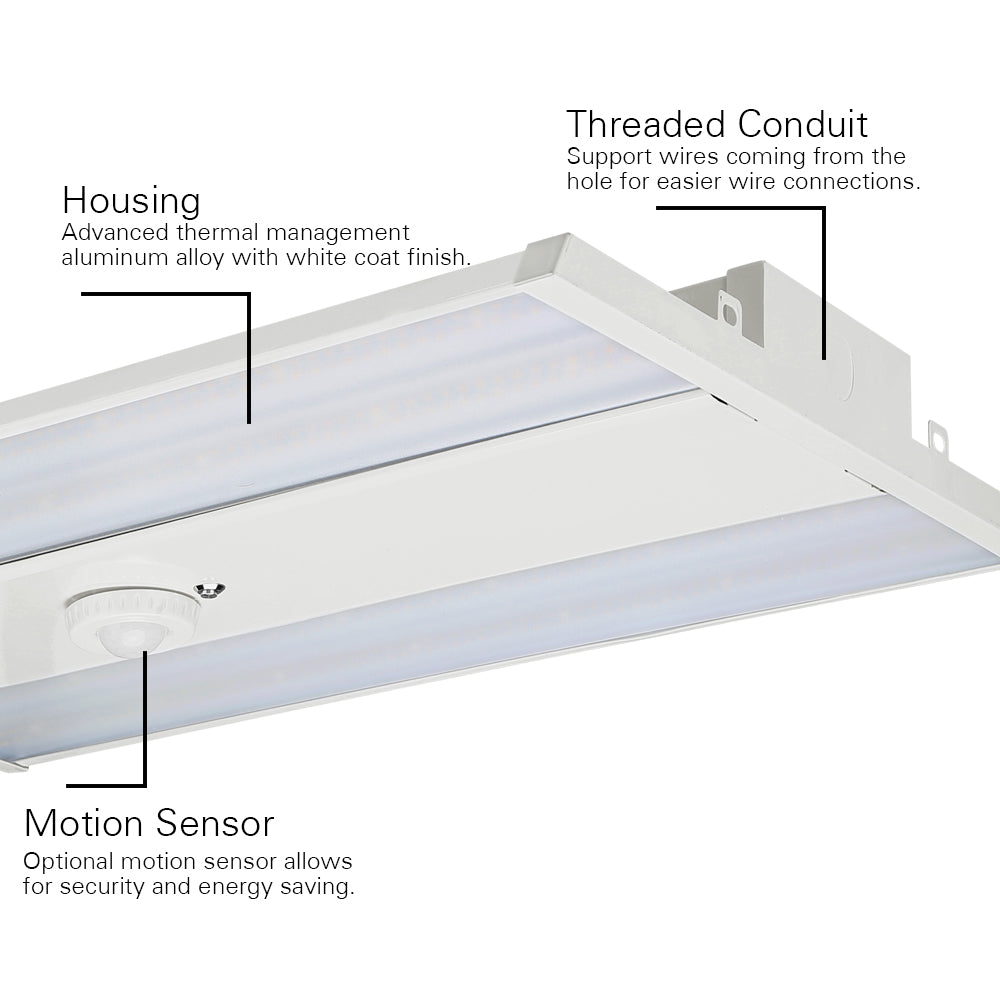

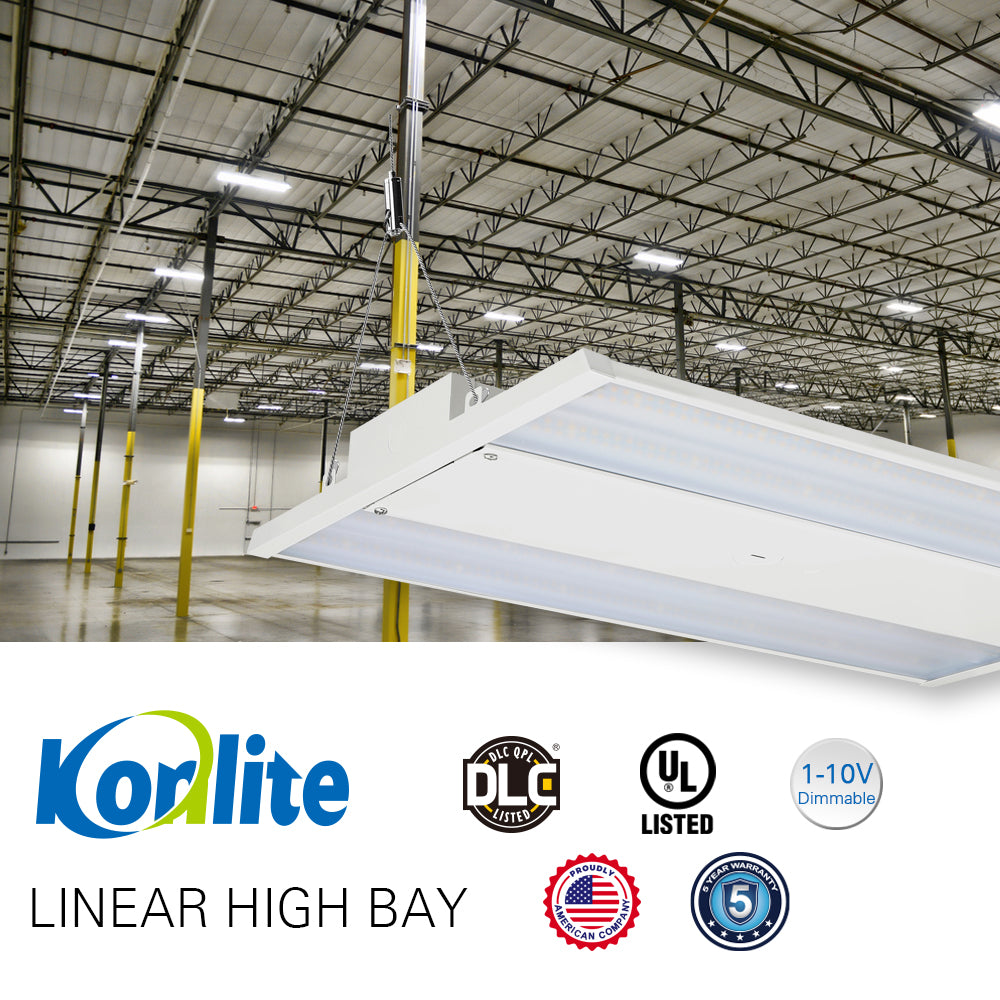

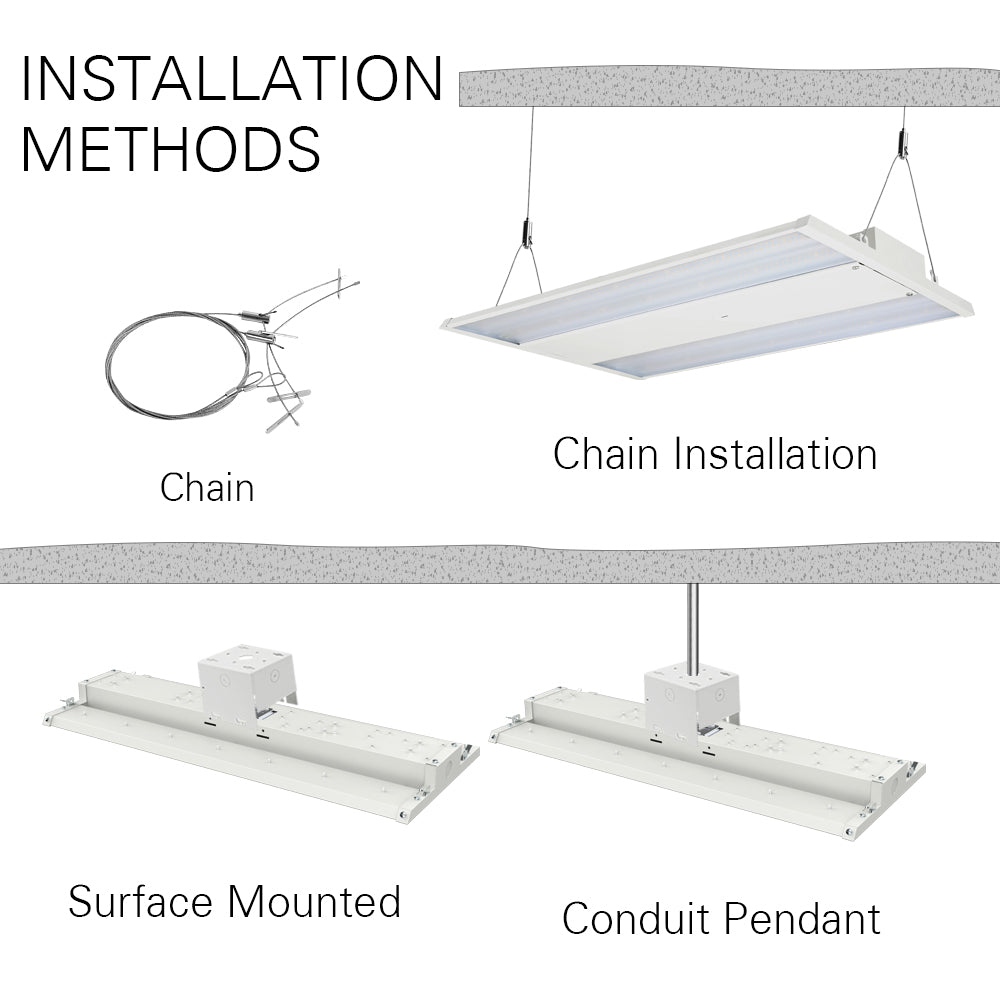

The RDLH0204 Linear LED bay light is a one to one replacement for Fluorescent T8, T5 or HID fixtures or new construction. Avoid safety concerns and maintenance cost of changing traditional bulbs, ballasts and disposal fees over the lifetime of this LED fixture. Extremely durable, constructed from advanced thermal management aluminum alloy with white coat finish. Low profile, seamless fit for bay rafters. Clear Lens, 1-10V Dimming. Easy to install, ships with steel suspension cables. This unit provides high efficiency, excellent color rendering, instant on, and consistent uniform light distribution for warehouse & storage, manufacturing, sports facilities, gyms and retail centers. DLC Energy rebate certified, 5 year warranty. Customize your space and increase security and energy savings with a PIR sensor for occupancy and daylight controls. Need to meet code or want another layer of protection? Pre-installed Emergency Battery backup is available.

Equivalent to: 6 lamp T5HO, 8 lamp T8, 600W HID

See similar 130-watt, 180-watt and 270-watt Highbay versions.

Applications

•Warehouses •Workshops
•Convention Centers •Low Bays
•Storage Facilities •Distribution Centers
•Factories •Supermarkets
•Retails •Gymnasiums
Color Temperature 5000K color temperature
Certifications
US company5 years warrantyUL listed1-10V dimmableDLC PremiumRoHS compliance FCC certification

Specification

BrandKonliteDLC Product IDP3RUSBLA
Warranty 5 YearsUPC752480733229
Input Voltage120-277VDimmable1-10V
Input Wattage210WEqual to 8x54W T5HO, 600W HID
Delivered Lumens29,000LMCRI>80
Efficacy138 LM/WAvailable CCT5000k
Rated Life>50,000 HrsTHD<20%
Power Fact>0.9ControlMotion Sensor Optional
Operating Temp-40°F to 131°FDimension23.62”x15.75”x1.75
CertificationsUL, Damp Locations, DLC PremiumWeight9.3 lbs
