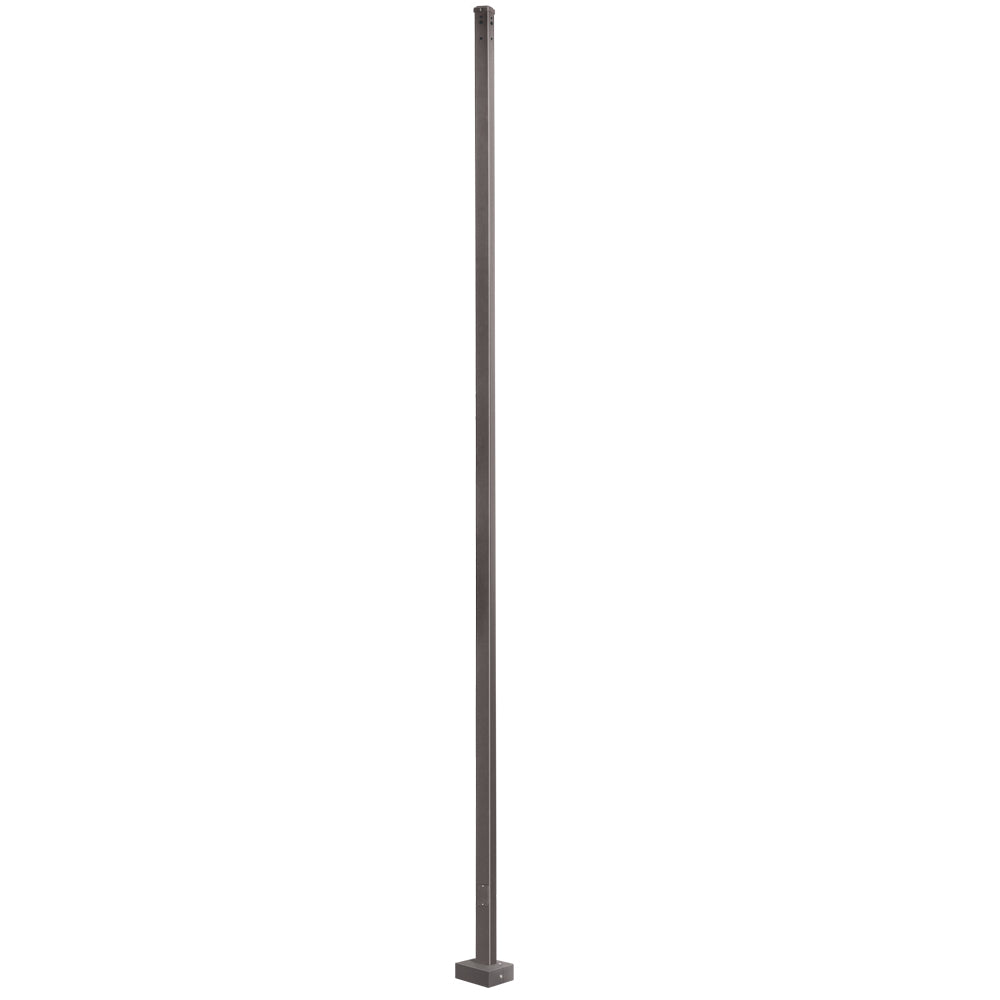

Konlite 30-Foot Square Steel Light Pole — Built for Professional Outdoor Lighting
Engineered for strength, stability, and clean aesthetics, the 30 ft Konlite straight square steel pole is a dependable mount for area lights, floodlights, and post-top luminaires in commercial, campus, and municipal sites. The heavy-duty steel shaft, architectural bronze powder coat, and complete anchor-bolt kit streamline installation and deliver long-term durability in demanding outdoor environments.
Key Features
-
Heavy-duty steel shaft: 5"x5" square, 10-gauge wall for exceptional rigidity and service life.
-
Architectural finish: Commercial-grade outdoor powder coat; standard color Dark Bronze for UV and corrosion resistance.
-
Mounting flexibility: Factory drill pattern on all four sides with removable plugs; compatible with arm-mounted area luminaires or top-tenon adapters for flood/post-top fixtures (pole cap included).
-
Service access: 2.99"×5" handhole located 18" above base with removable cover for wiring and maintenance.
-
Anchor system included: Set of four galvanized anchor bolts (with nuts, washers, and full-size template) for secure mounting and leveling; two-piece steel base cover provides a clean, finished look.
-
Wind load performance: Maximum EPA capacity for the 30 ft pole ranges from approximately 0.8 to 4.3 ft² across 140–90 mph (1.5 gust factor), depending on fixture configuration.
Available Models
|
Model |
Mounting Height |
Cross Section |
Gauge |
EPA (140 mph) |
Weight |
|---|---|---|---|---|---|
| RDP20F4NSQ | 20 ft | 4" x 4" | 11 ga | 1.3 ft² | 166 lbs |
| RDP25F4NSQ | 25 ft | 4" x 4" | 11 ga | 0.9 ft² | 205 lbs |
| RDP30F5NSQ | 30 ft | 5" x 5" | 10 ga | 0.8 ft² | 260 lbs |
Applications
-
Roadways & Parking Lots
-
Pedestrian Plazas
-
Parks & Campuses
-
Courtyards & Walkways
-
Residential & Commercial Developments
-
Recreational and Sports Areas
