Konlite Steel Light Pole. Built for Professional Outdoor Lighting Applications.
The Konlite Square Steel Light Poles are engineered for strength, stability, and performance in demanding outdoor environments. Constructed from high-strength, heavy-duty steel tubing, these poles provide a reliable mounting solution for area lights, flood lights, and post-top luminaires across a wide range of commercial and municipal applications.
Key Features
-
Premium Steel Construction:
Fabricated from 11-gauge (4") steel for exceptional rigidity and long-term durability. -
Architectural Bronze Finish:
Each pole is coated with a commercial-grade, outdoor-rated powder finish for superior resistance to corrosion and UV degradation. Standard color: Dark Bronze. -

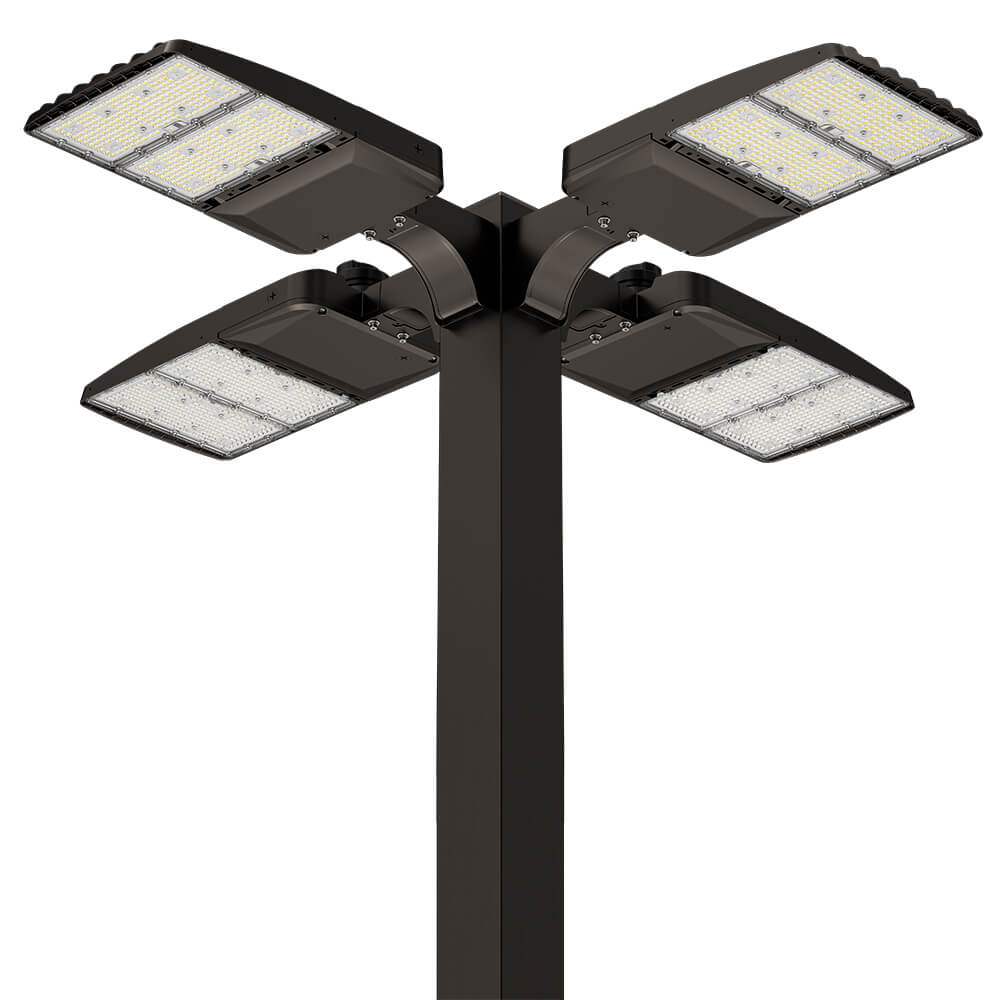

Mounting Flexibility:

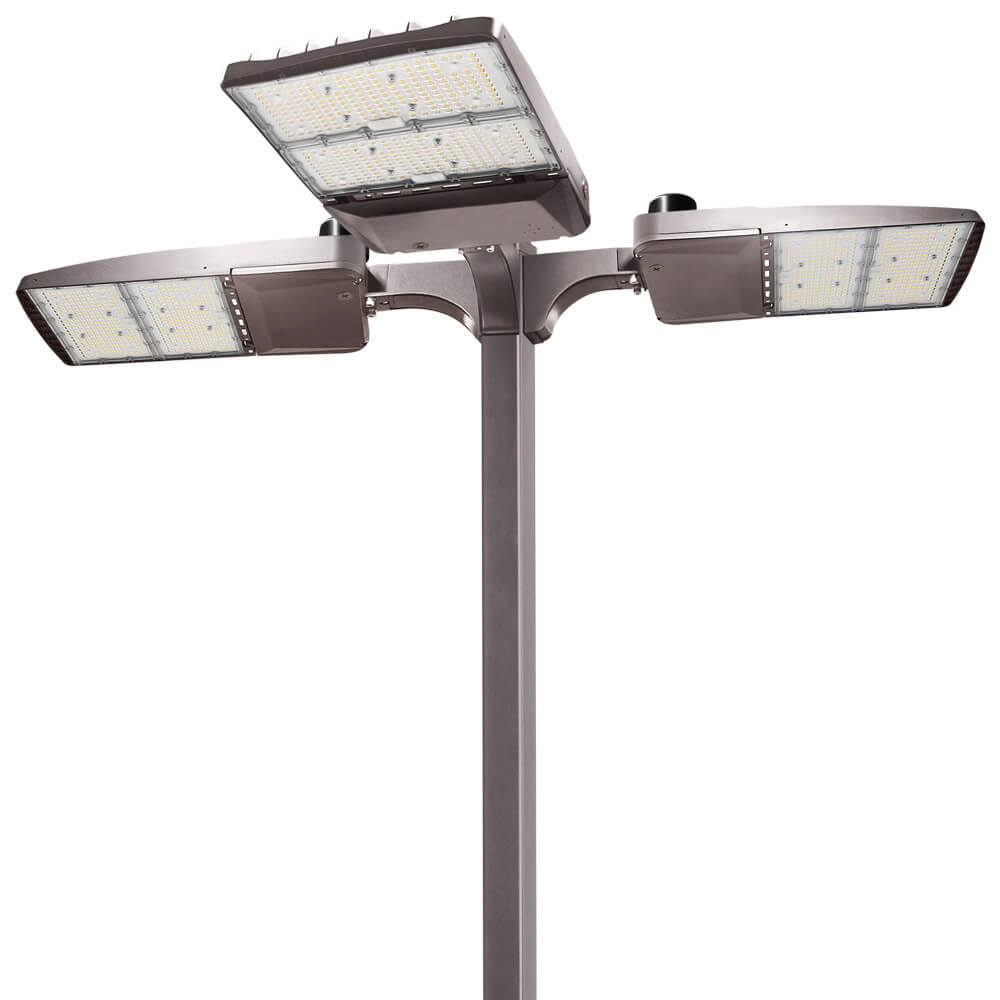

Compatible with arm-mounted area luminaires or tenon adapters for flood and post-top fixtures.

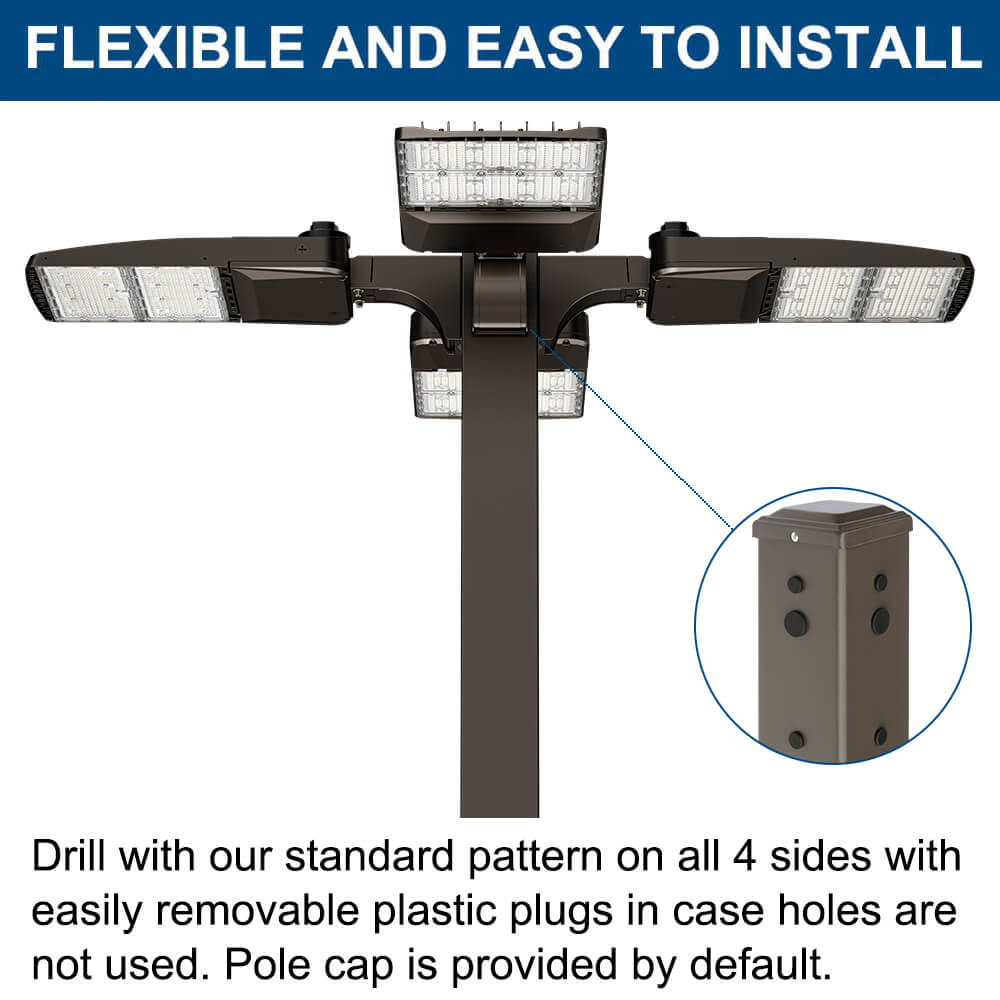

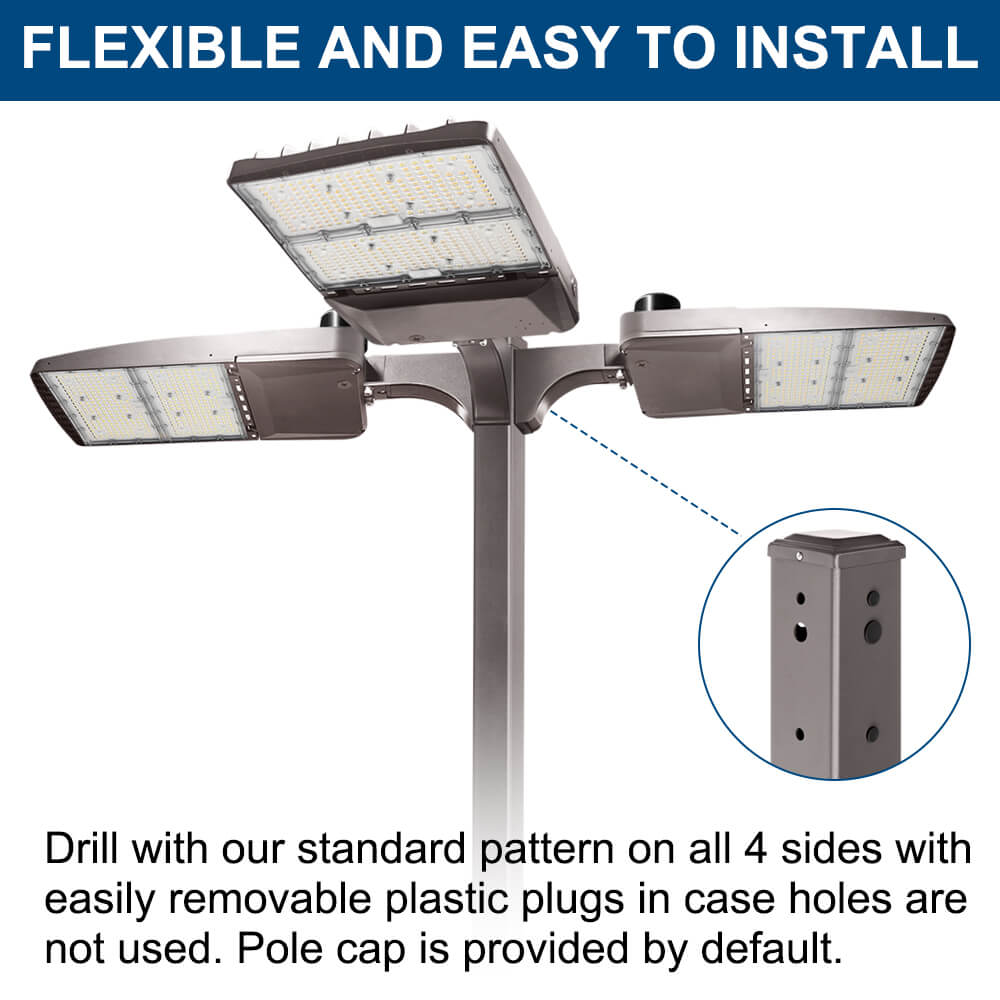

Standard drill patterns on all four sides with removable plastic plugs for unused holes. -
Handhole Access:

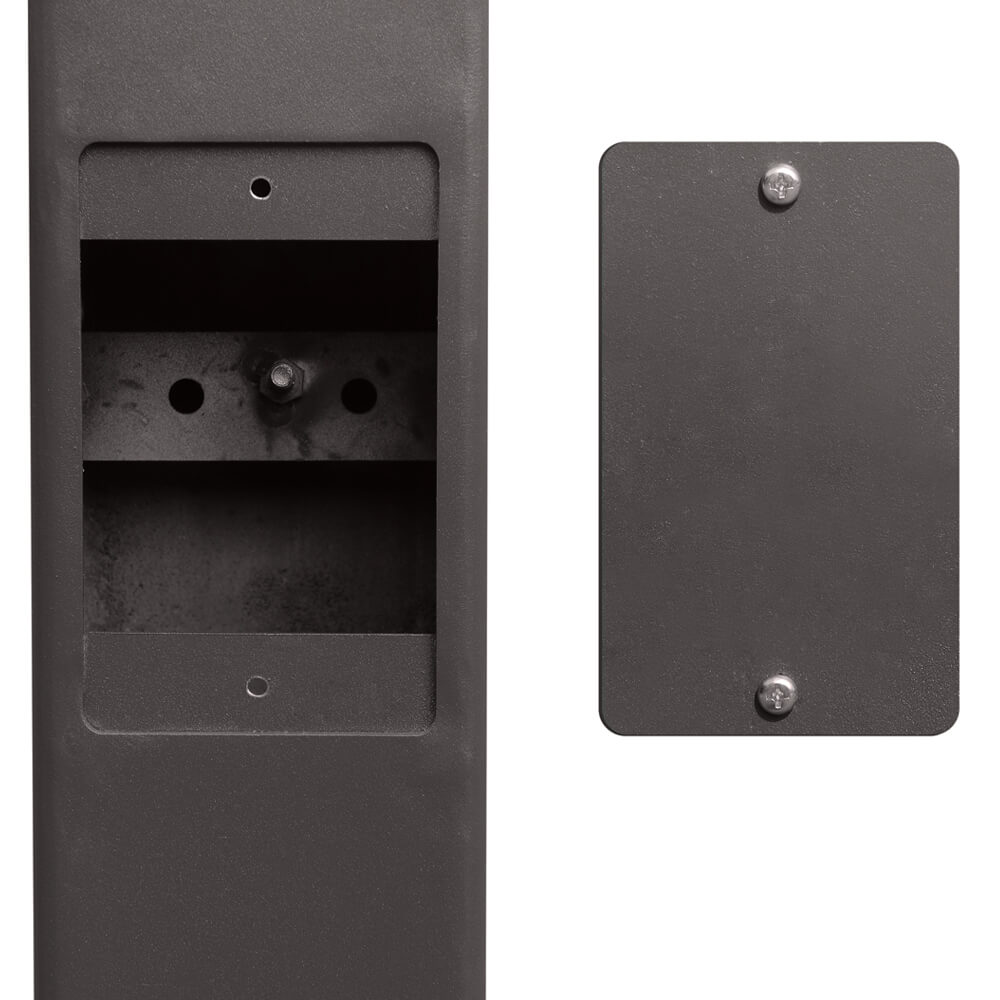

2.99" x 5" handhole located 18 inches from the base with a removable cover for easy wiring and maintenance. -
Anchor Bolt Set Included:

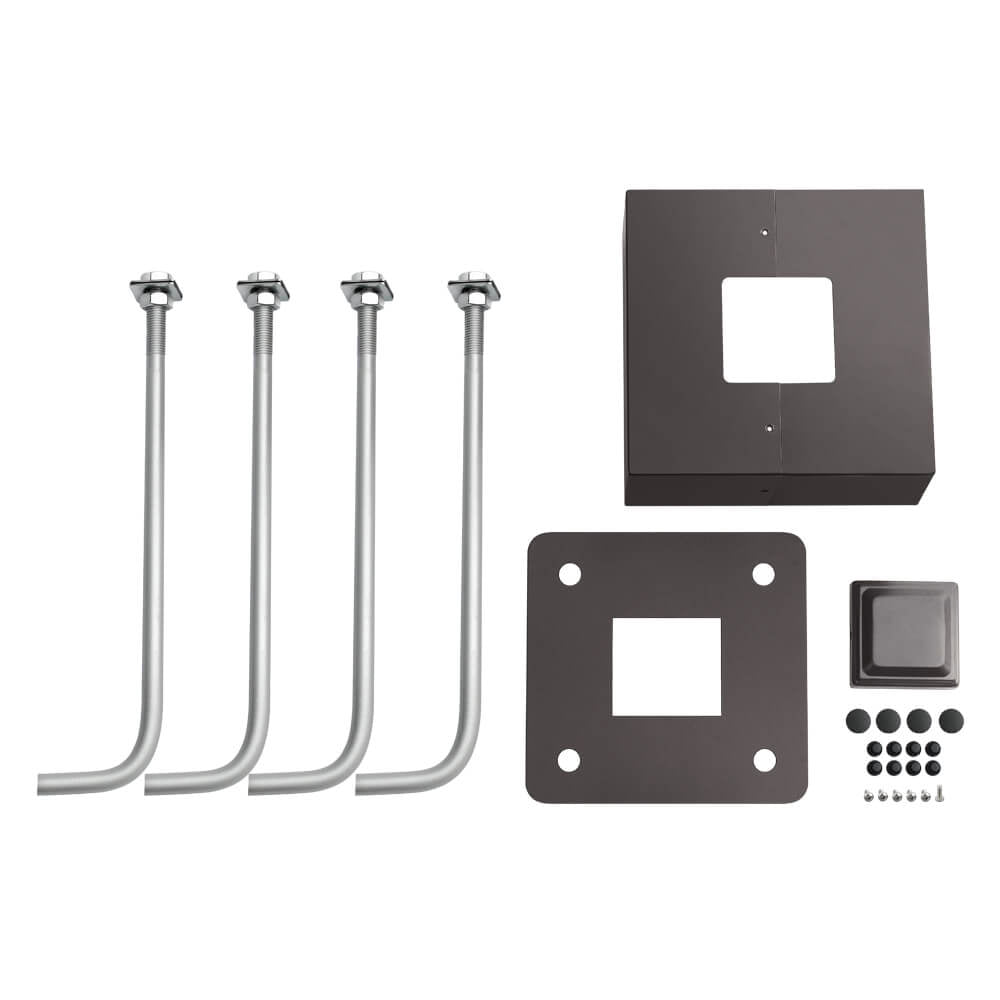

Each pole includes a galvanized anchor bolt kit (4 bolts with nuts, washers, and a full-size template) for stable installation and leveling. -
Base Protection Cover:

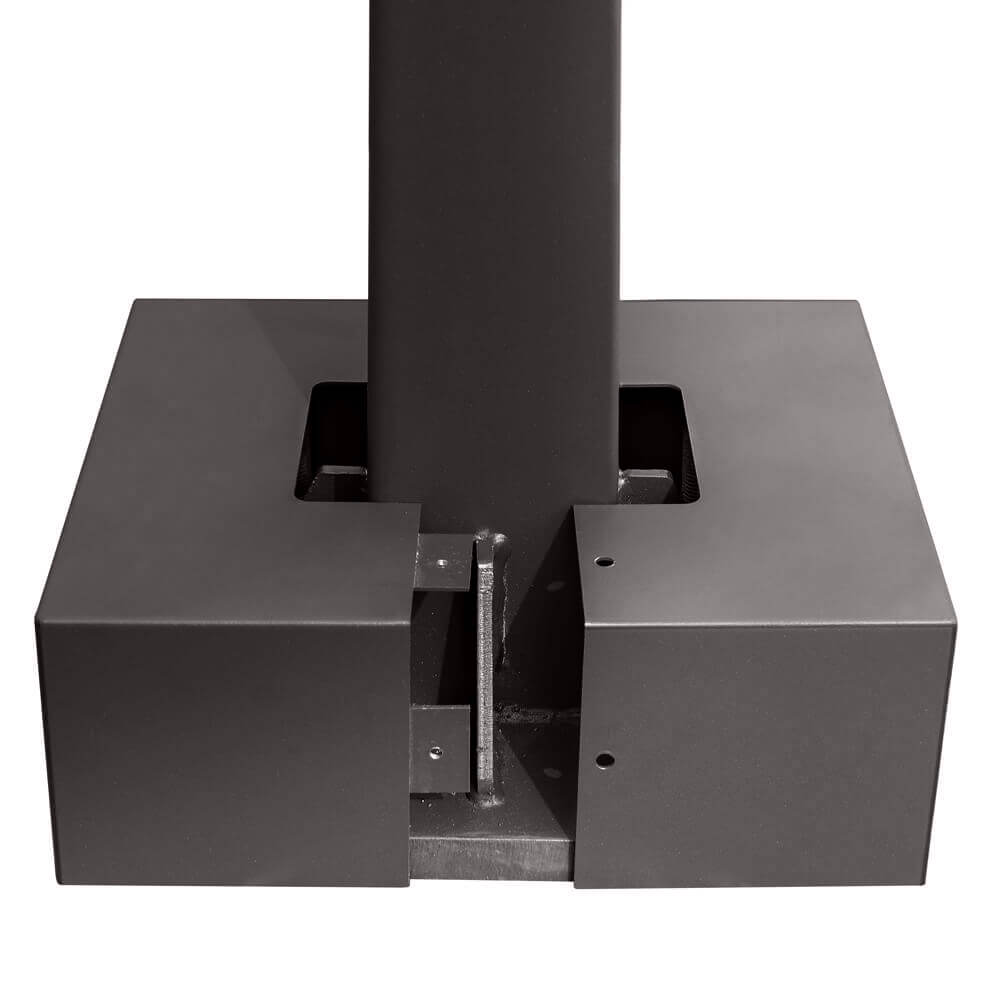

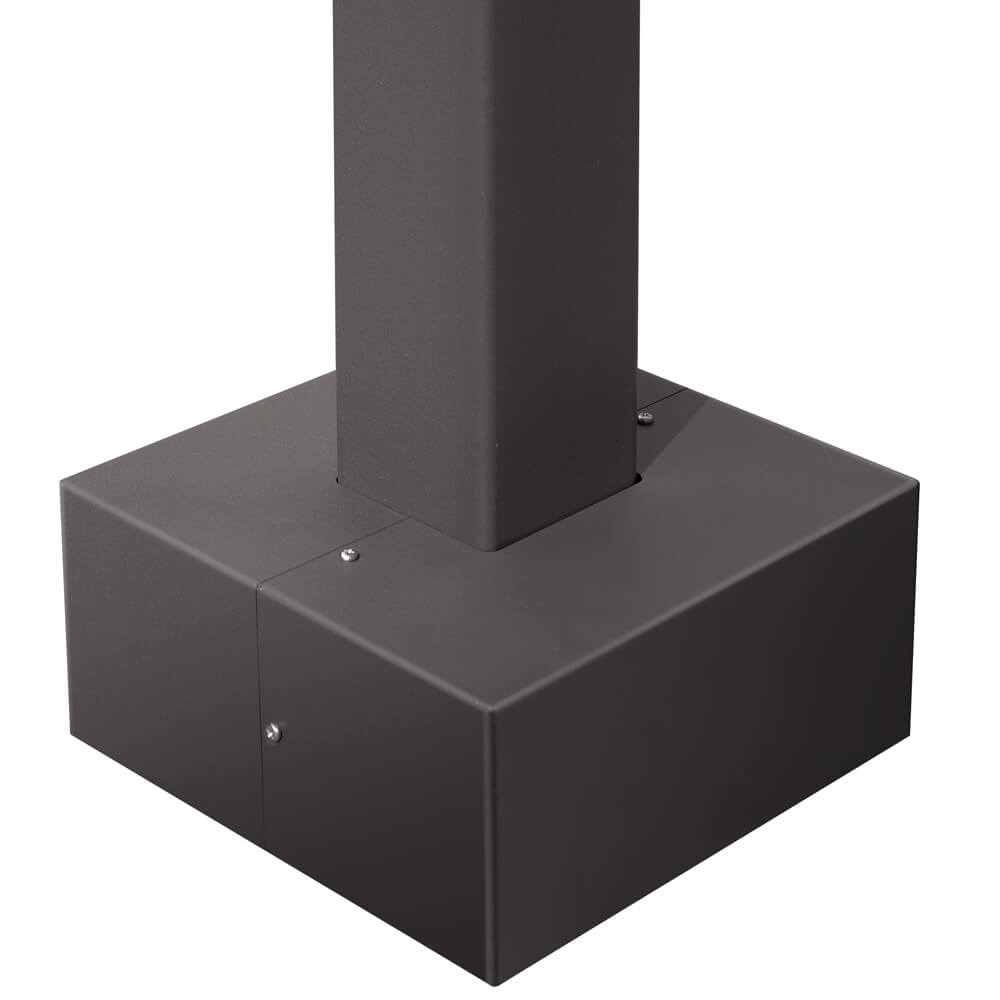

Comes with a two-piece steel base cover for a clean, professional finish. -
Wind Load Rated:
Tested up to 140 mph (1.5 gust factor) depending on model height and configuration.

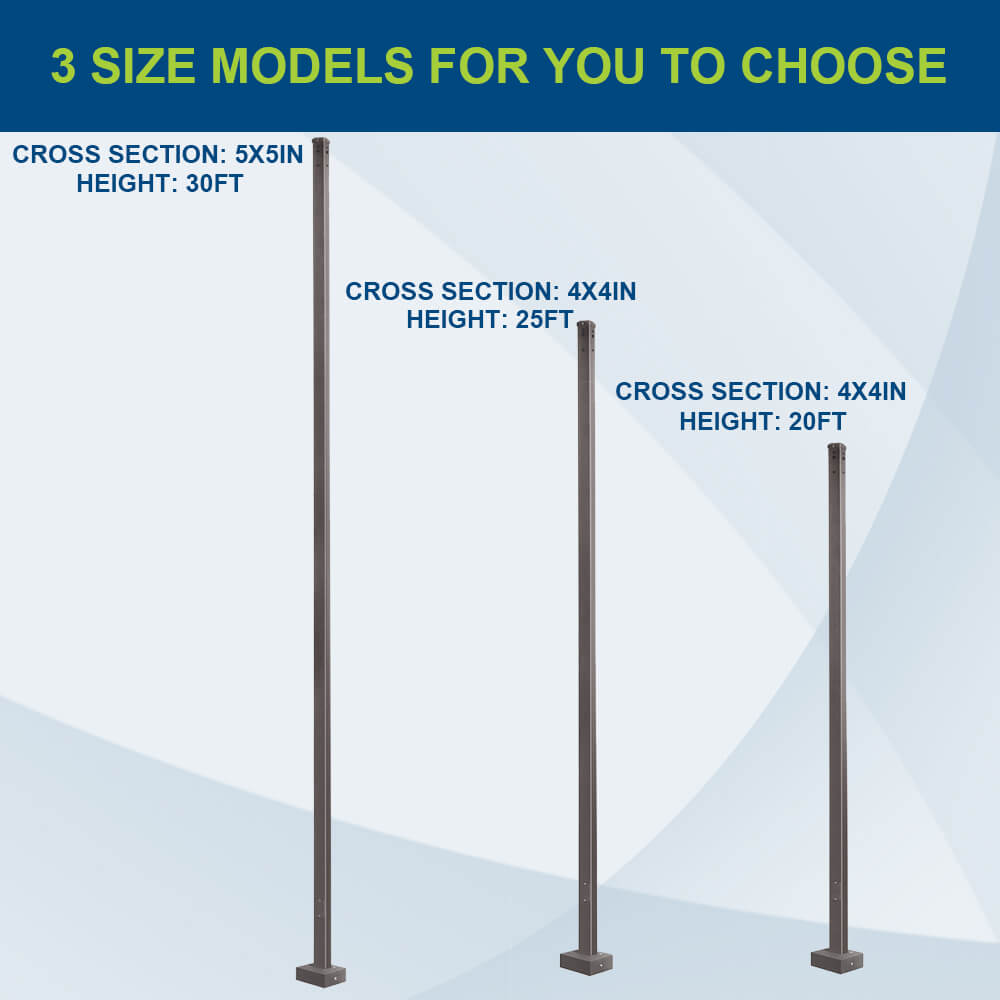

Available Models
|
Model |
Mounting Height |
Cross Section |
Gauge |
EPA (140 mph) |
Weight |
|---|---|---|---|---|---|

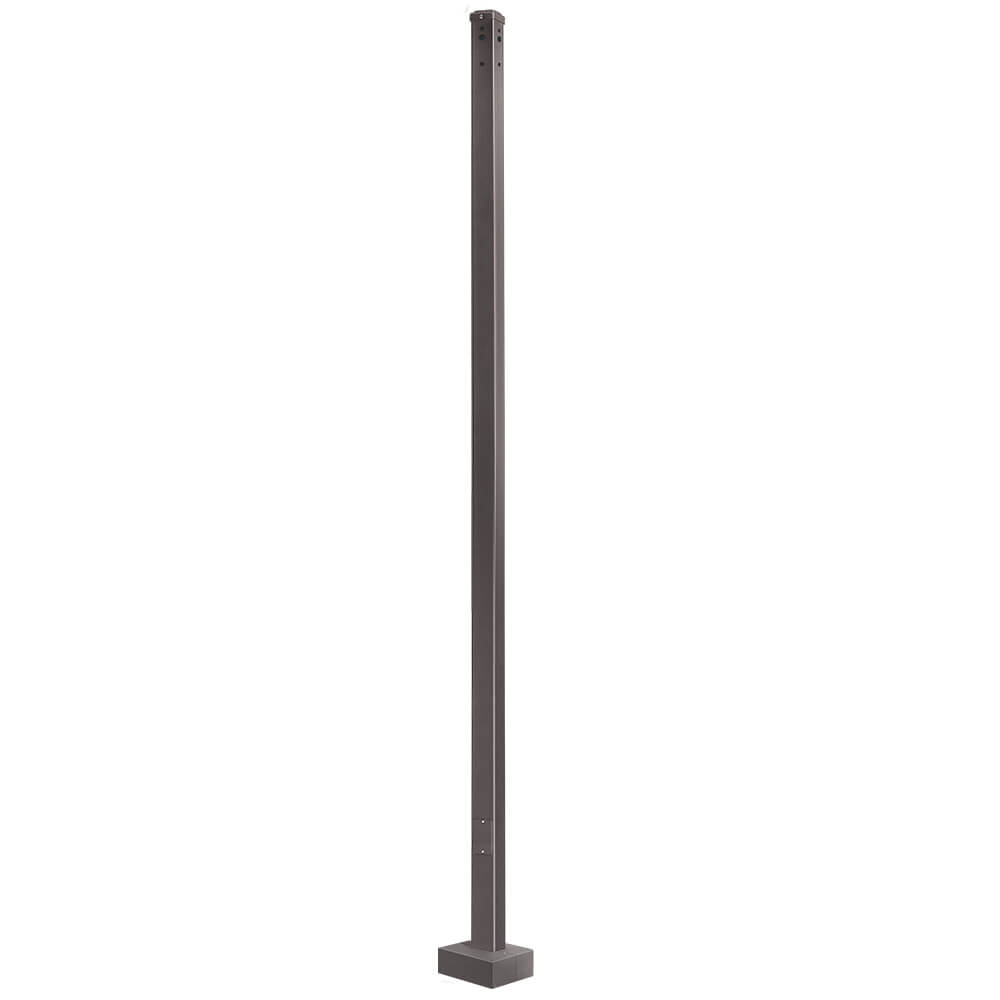

| RDP20F4NSQ | 20 ft | 4" x 4" | 11 ga | 1.3 ft² | 166 lbs |
| RDP25F4NSQ | 25 ft | 4" x 4" | 11 ga | 0.9 ft² | 205 lbs |
| RDP30F5NSQ | 30 ft | 5" x 5" | 10 ga | 0.8 ft² | 260 lbs |
Applications
-
Roadways & Parking Lots
-
Pedestrian Plazas
-
Parks & Campuses
-
Courtyards & Walkways
-
Residential & Commercial Developments
-
Recreational and Sports Areas
