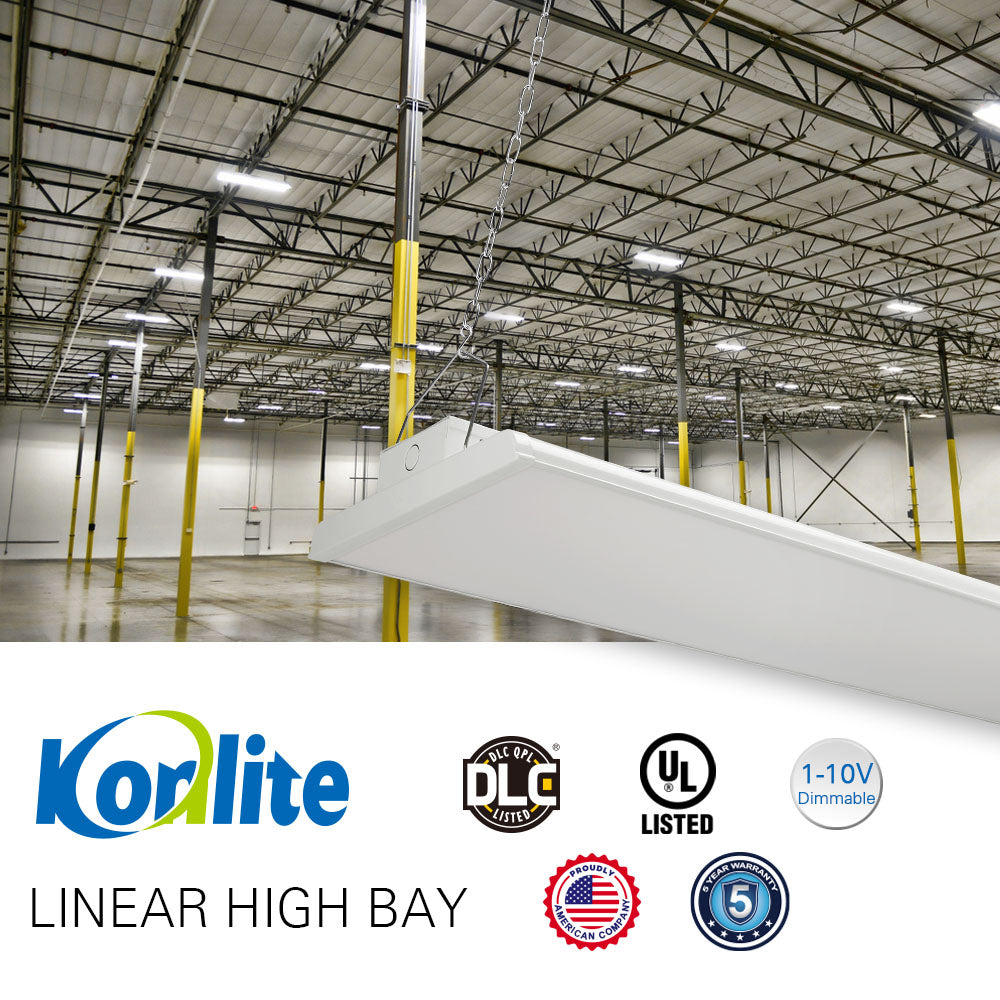

UL and DLC certified LED highbay installed in a warehouse

Roll over image to zoom in

Same day shipping from Atlanta Warehouse

IN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.

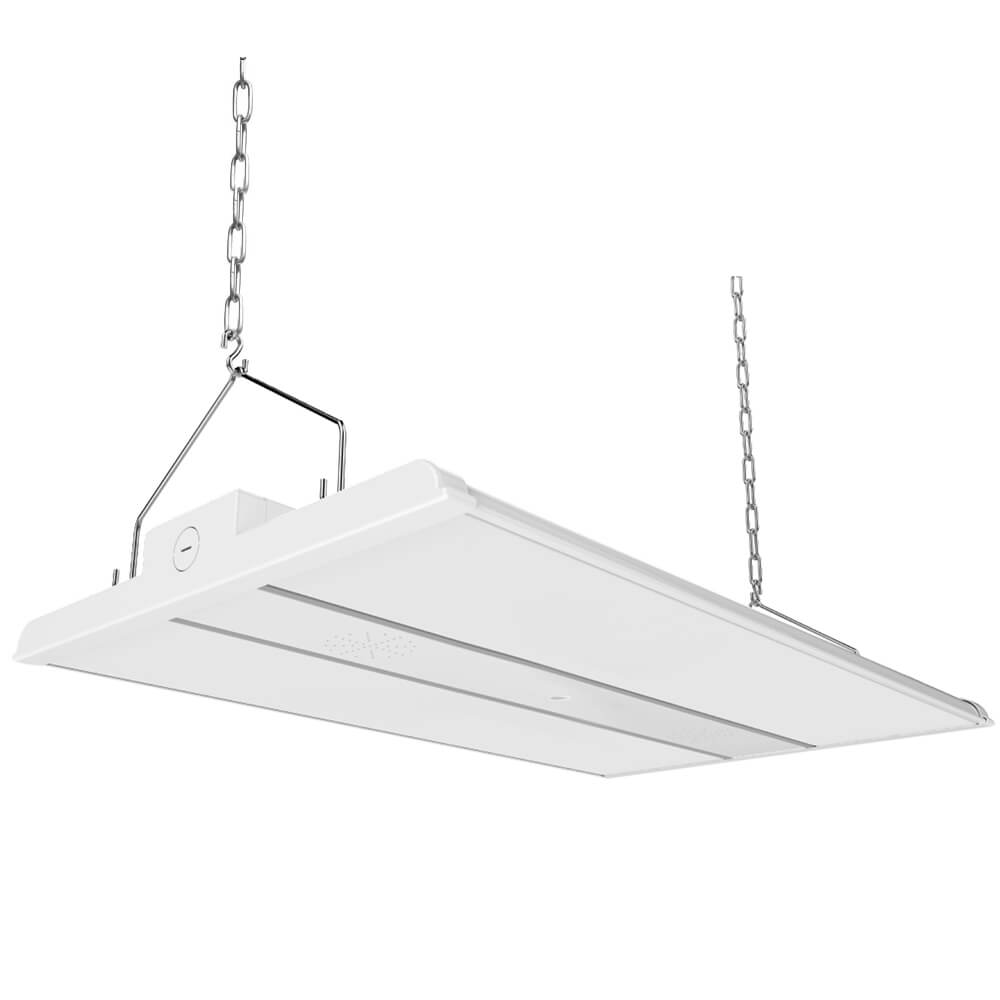

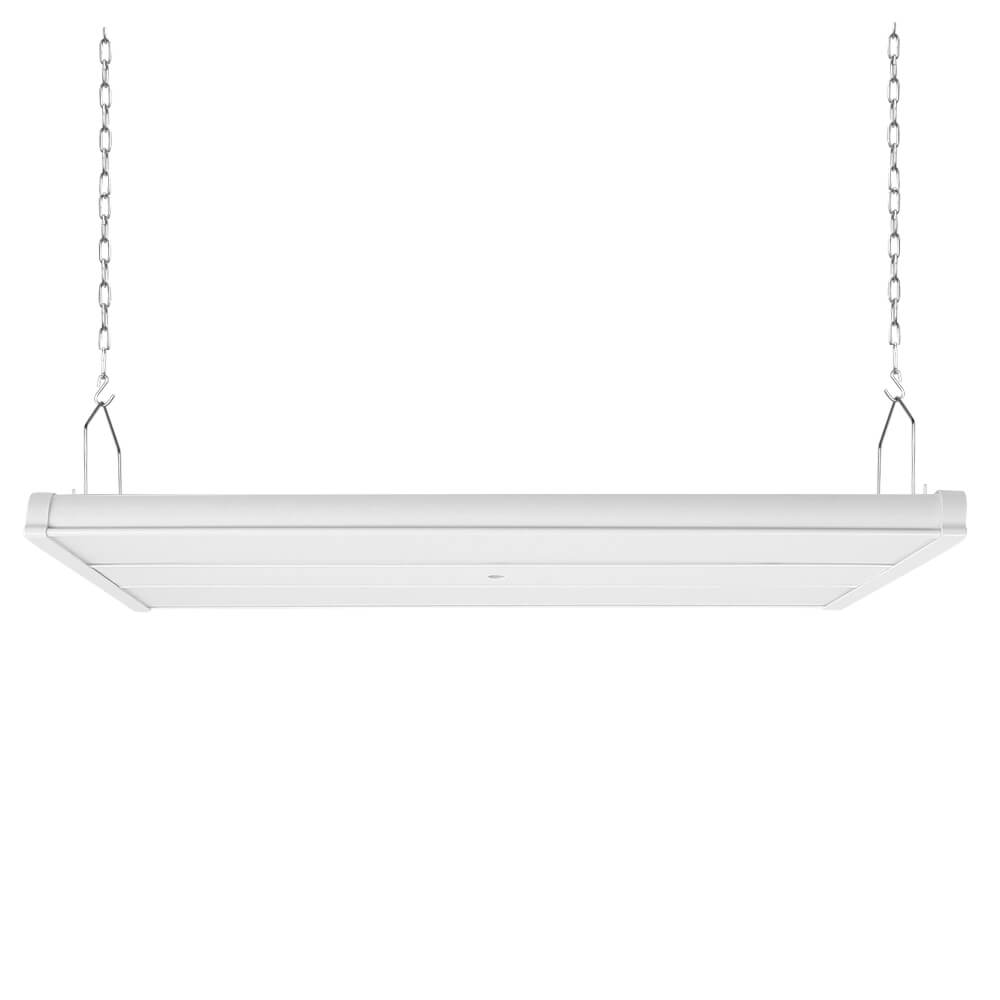

Konlite Linear LED High Bay Light - 300W - 4FT- 120-277V - 42000 Lumens - 5000K - 1000W Equal

Name: Konlite Linear LED High Bay Light - 300W - 4FT- 120-277V - 42000 Lumens - 5000K - 1000W Equal
Brand: Konlite
SKU: RKLH0309300W5KDNCHL
Price: 184.99 USD
Availability: InStock

Product Search Code: 10-0119

KonliteSKU: RKLH0309300W5KDNCHL

$229.95 $184.99

Mount Options:

Sensing Controls:

Variant

Quantity

(2)

This high-performance Konlite LED Linear High Bay Series is ideal for new construction or replacement of 1000W. Delivers top energy savings and maintenance free durability for a wide range of applications.

Designed for quick, easy installation-Each unit comes with V Hook and hanging chain
Assembly made of heavy duty gauge steel, rigidly designed to resist twisting and bowing
Optional motion sensor with daylight sensing function to maximize power savings
DLC Premium certified qualifying for maximum rebates where applicable

$229.95 $184.99

Mount Options:

Sensing Controls:

Variant

Quantity

Share this product

Secured payment methods. Revolve LED never stores nor has access to your card information.
90 days return without restocking fee*.
$199 Free Shipping on eligible products*
Availability: Usually Ships in one to three business days.

Designed for quick, easy installation-Each unit comes with V Hook and hanging chain
Assembly made of heavy duty gauge steel, rigidly designed to resist twisting and bowing
Optional motion sensor with daylight sensing function to maximize power savings
DLC Premium certified qualifying for maximum rebates where applicable

What's in the box

1 Lighting Fixture - 2 Set V-Hook & Chain -1 Installation Guide

Product Details

Downloads

Reviews

Q&A

1 Lighting Fixture - 2 Set V-Hook & Chain -1 Installation Guide

Product Overview

This 4ft LED Linear high bay ceiling light is an ideal replacement for aging T8, T5, 400-1000 watt HID retrofit or new construction general lighting applications. The high performance compact design allows for easy installation.

300 watts, 42,000 lumens, 120-277V, 5000K Commercial Bright White

Delivers top energy savings and maintenance free durability for a wide range of applications. Provides enhanced visibility and safety over traditional lighting.

Frosted polycarbonate diffuser creates even and glare free light distributed broadly at a 120° beam angle.

1-10V Dimming, Delivers top energy savings and maintenance free durability for a wide range of applications.

V Hook and hanging chain or Surface Mount Adapter, UL, DLC rebate eligible.

Available motion sensor has built-in daylight sensing capability. Remote control required to make sensor setting adjustments*.

Cost effective and quality solution for: Excellent for aisle optics, Warehouses and storage, Industrial facilities, Retail centers, Auto Centers, Manufacturing, Sports facilities and Gymnasiums.

*Default setting for optional motion sensor is set to turn off fixture after 5 seconds of inactivity, and daylight sensing disabled.

Applications

•Warehouses	•Workshops
•Convention Centers	•High Bays
•Storage Facilities	•Distribution Centers
•Factories	•Supermarkets
•Retail	•Gymnasiums

Color Temperature 5000K color temperature

Certifications

Specification

Brand	Konlite	MPN	RKLH0309300W5KDNCHL
Warranty	Limited 5 Years	UPC	752480733946
Input Voltage	120-277V	Beam	120°
Input Wattage	300W	Equal To	750-1000W or 6-8 lamp T8/T5
Delivered Lumens	42,000	CRI	80
Efficacy	140 LM/W	Available CCT	5000k
Rated Life	>54,000 hrs	Power Factor	0.9
THD	15%	IP Rating	IP20
Dimmable	1-10V	Mounting	V-Hook & Chain, Surface, Pendant

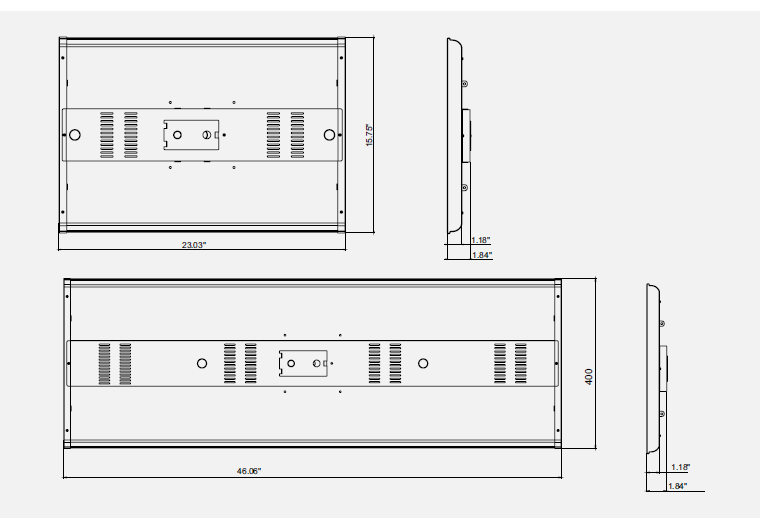

Operating Temperature	-30F to 122F	Dimensions	46.06”X12.6”X2.87
Certifications	UL, Damp Locations, DLC Premium

Motion Sensor Specification

Brand	Haisen	MPN	HD406VRH-D
Control	On/off / 1-10V Dimming	Setting tool	Remote control (HD05R)
Detection area	25%/50%/75%/100%	Hold time	5s/30s/1min/3min/5min/10min/20min/30min
Stand-by period	0s/10s/30s/1min/5min/10min/30min/+∞	Stand-by dimming level	10%/20%/30%/50%
Motion detection	0.5~1.5m/s	Daylight threshold	Disable /2Lux/10Lux/30Lux/50Lux/80Lux/120Lux
Mounting height	Max. 50ft	Detection range	Max. 45ft
Operating Voltage	120-277V, 50Hz/60Hz	IP rating	IP65

Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
