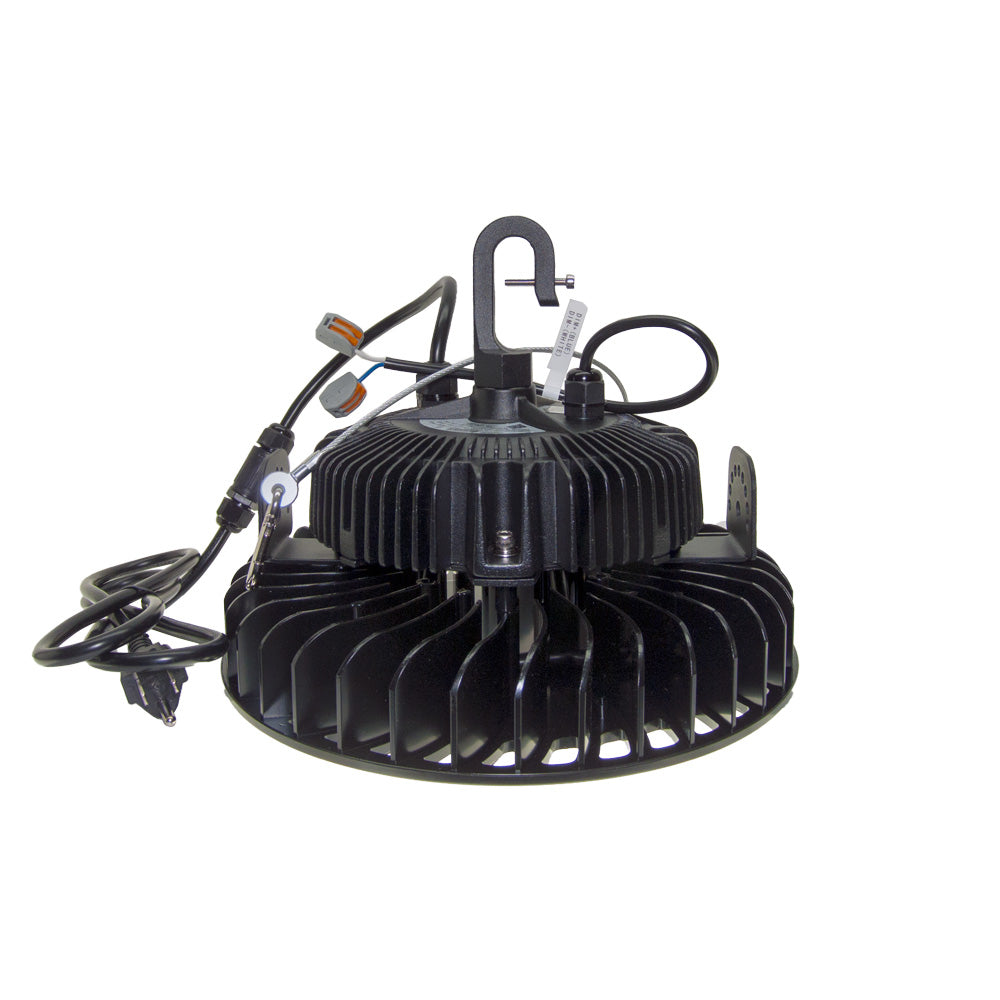

Konlite HB01 series UFO LED High Bay Light - 200W - 120-277V - 30000 lumens - 5000K - 0-10V Dimmable - 600W Equal

Product Search Code: 10-0903
KonliteSKU: GL-HB01-200W50K-W
$169.99 $119.99



  • The die cast aluminum housing is designed to allow air to pass through the spaces around the driver and LED array with ease effectively making the entire body of the fixture a heat sink.
  • Use the included eye hook to suspend this fixture. The included cored and plug can be removed where hardwiring is necessary. Additional leads for 0-10V dimming require no configuration if dimming is not used.
  • The 0-10V dimming compatibility allows for easy addition control devices such as motion and occupancy sensors.
show more
$169.99 $119.99


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.
  • The die cast aluminum housing is designed to allow air to pass through the spaces around the driver and LED array with ease effectively making the entire body of the fixture a heat sink.
  • Use the included eye hook to suspend this fixture. The included cored and plug can be removed where hardwiring is necessary. Additional leads for 0-10V dimming require no configuration if dimming is not used.
  • The 0-10V dimming compatibility allows for easy addition control devices such as motion and occupancy sensors.
What's in the box
1 Fixture, 1 Eye Hook, 1 Installation Guide
Product Details
Downloads
Reviews
Reviews
Q&A
1 Fixture, 1 Eye Hook, 1 Installation Guide

Product Overview

Upgrade your space and reduce operating costs with the HB01 high bay. This compact design is easy to install, meets any budget and a Contractor favorite. Excellent efficacy, maintenance free and 120° beam provides broad even illumination. IP65 rated and sealed for dust and moisture intrusion, 0-10V dimming. A smart DLC certified value choice, that will save big compared to HID.

Color Temperature 5000K color temperature
Certifications
US company5 years warrantyUL listed0-10v dimmableDLC PremiumFCC certification

Specification

Warranty
Limited 5 Years
MPN
GL-HB01-200W50K-B
Input Voltage
120-277V
Equal to
600W
Input Wattage
200W
Dimmable
0-10V
Lumens
30,000
CRI
>71.5
Efficacy
150 LM/W
Available CCT
5000K
Rated Life
>50,000 hrs
THD
<19.14%
Power Factor
>0.91
IP Rating
IP65
Operating Temperature
-40° to 122° F
Dimensions
11" x 7.5"
Certifications
UL, Damp Locations, DLC Premium
Weight
10 lbs

Accessories

Konlite Motion Sensor With Mounting Bracket For GL-HB01 Series UFO LED High Bay
