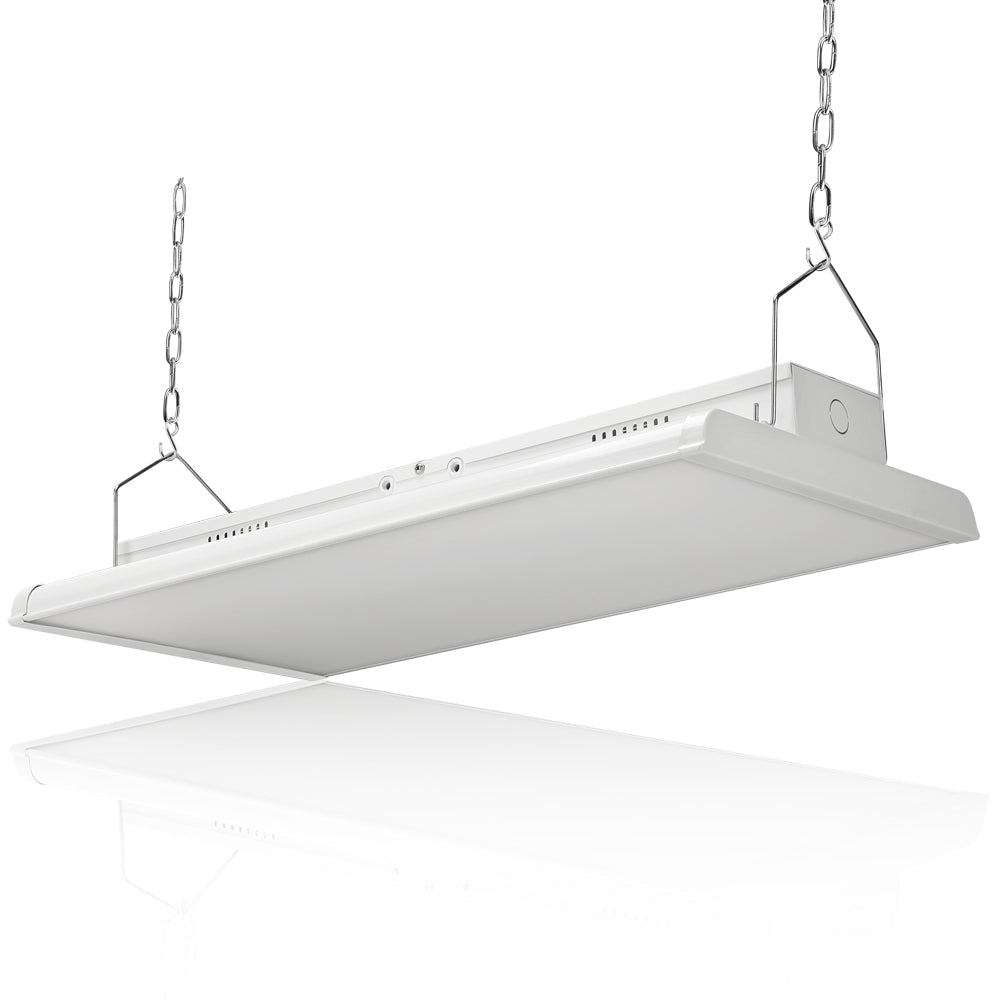

165W LED Highbay light with hanging chain

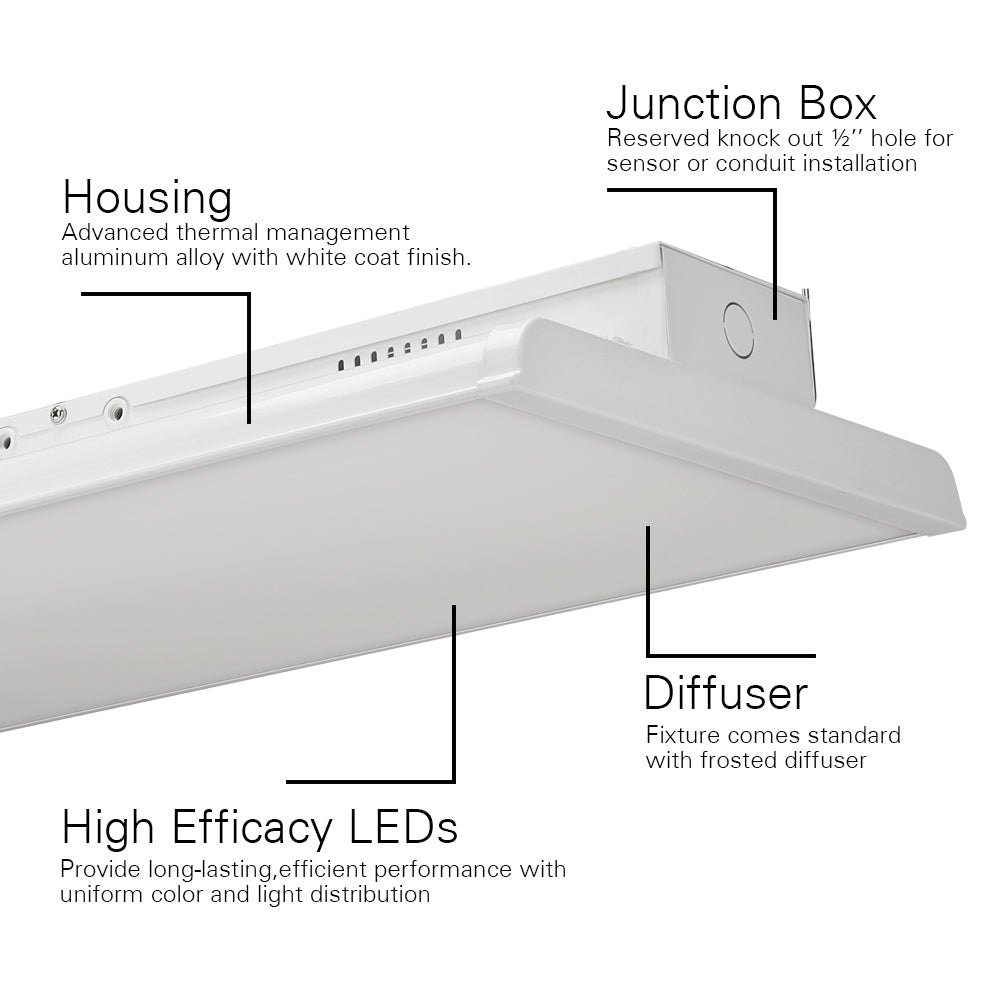

LED Linear Highbay light Product structure

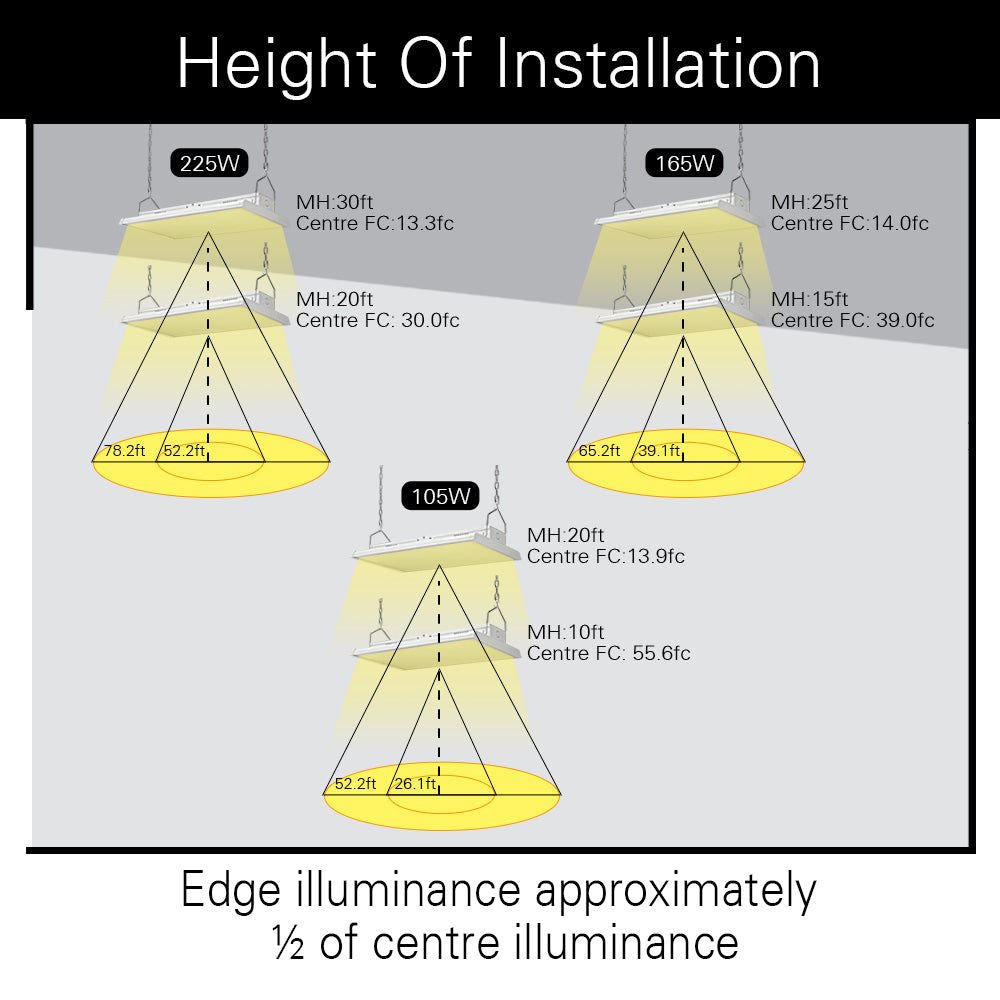

LED highbay installation Height recommendations

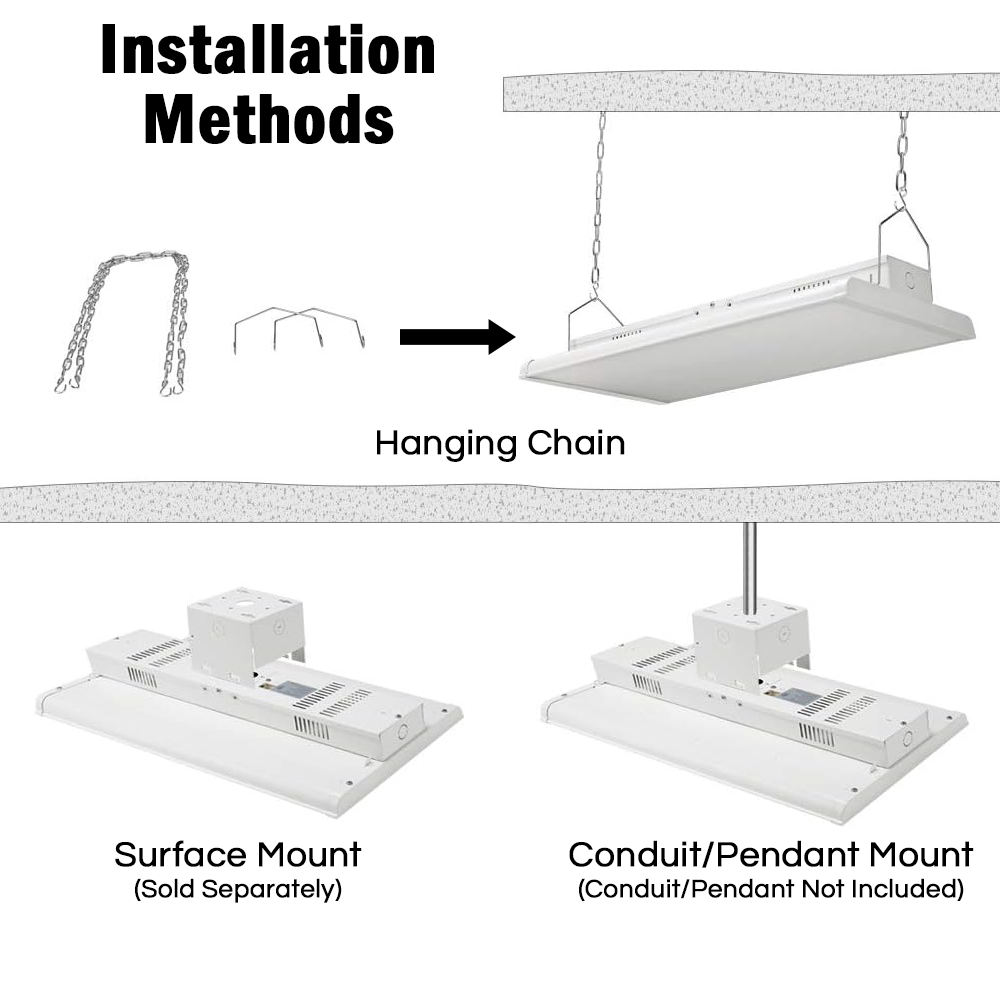

3 Installation Methods for Linear Bay Lights (Hanging Chain, Surface Mount, & Conduit/Pendant Mount)

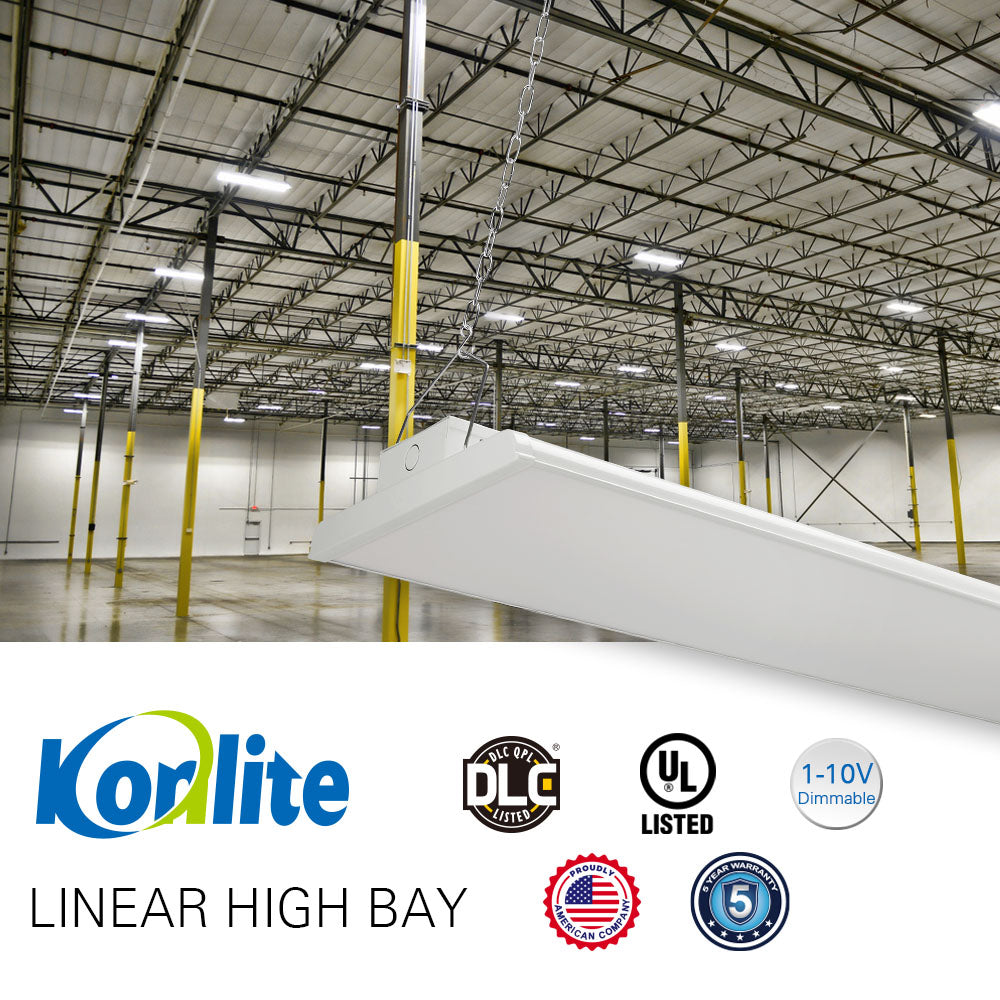

UL and DLC certified LED highbay installed in a warehouse

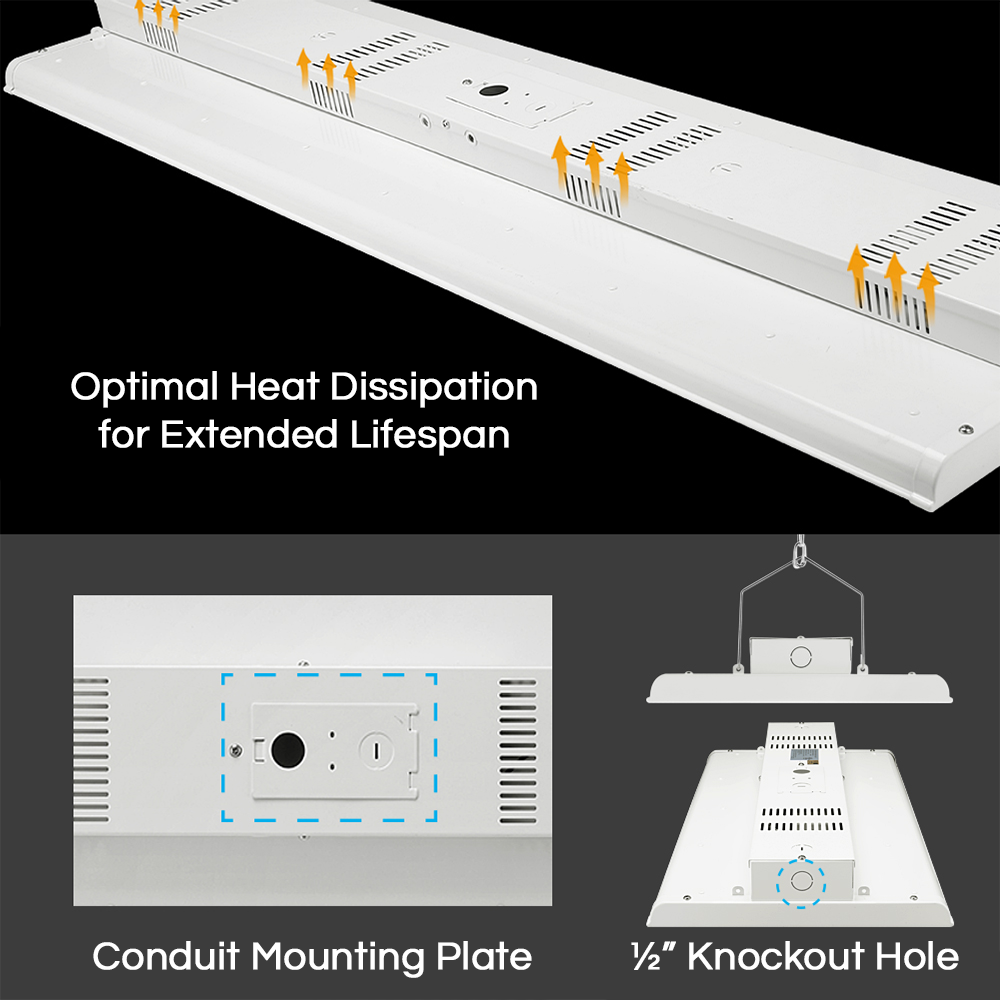

Linear Bay Light Features (Heat Dissipation, Conduit Mount Compatible, & 1/2 Knockout Hole)

Roll over image to zoom in Click on image to zoom

This high-performance Konlite LED Linear High Bay Series is ideal for new construction or replacement of 400W HID, 4-6 T8/T5 Lamp fixture. Delivers top energy savings and maintenance free durability for a wide range of applications.

Designed for quick, easy installation-Each unit comes with V Hook and hanging chain
Assembly made of heavy duty gauge steel, rigidly designed to resist twisting and bowing

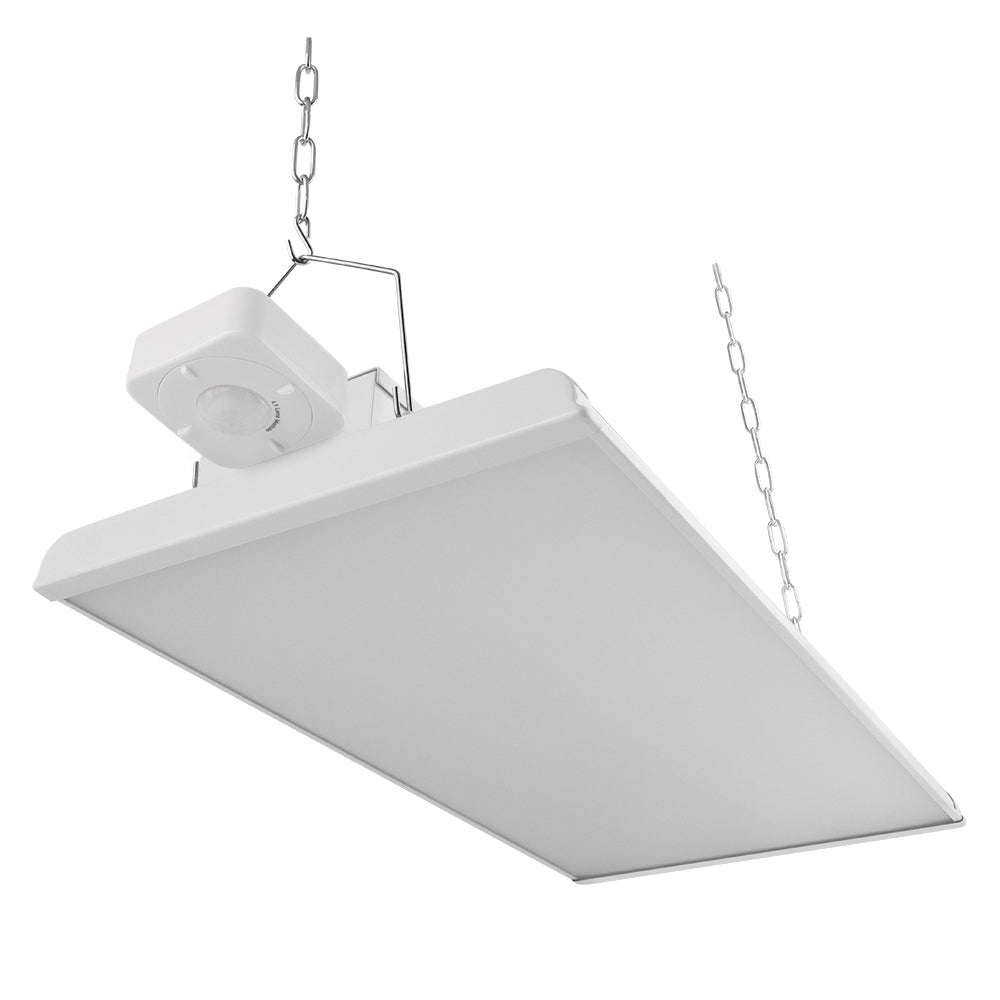

Optional motion sensor with daylight sensing function to maximize power savings
DLC Premium certified qualifying for maximum rebates where applicable

What's in the box

1 Lighting Fixture - 2 Set V-Hook & Chain -1 Installation Guide

IN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.

Konlite Linear LED High Bay Light - 165W - 1X2 FT - 120-277V - 23100 Lumens - 5000K - 400W Equal

Konlite SKU: RKLH0301165W5KDNSML SEARCH CODE: 10-0102

Replaces 6x54W T5HO, 250W HID/MH
1-10V dimmable

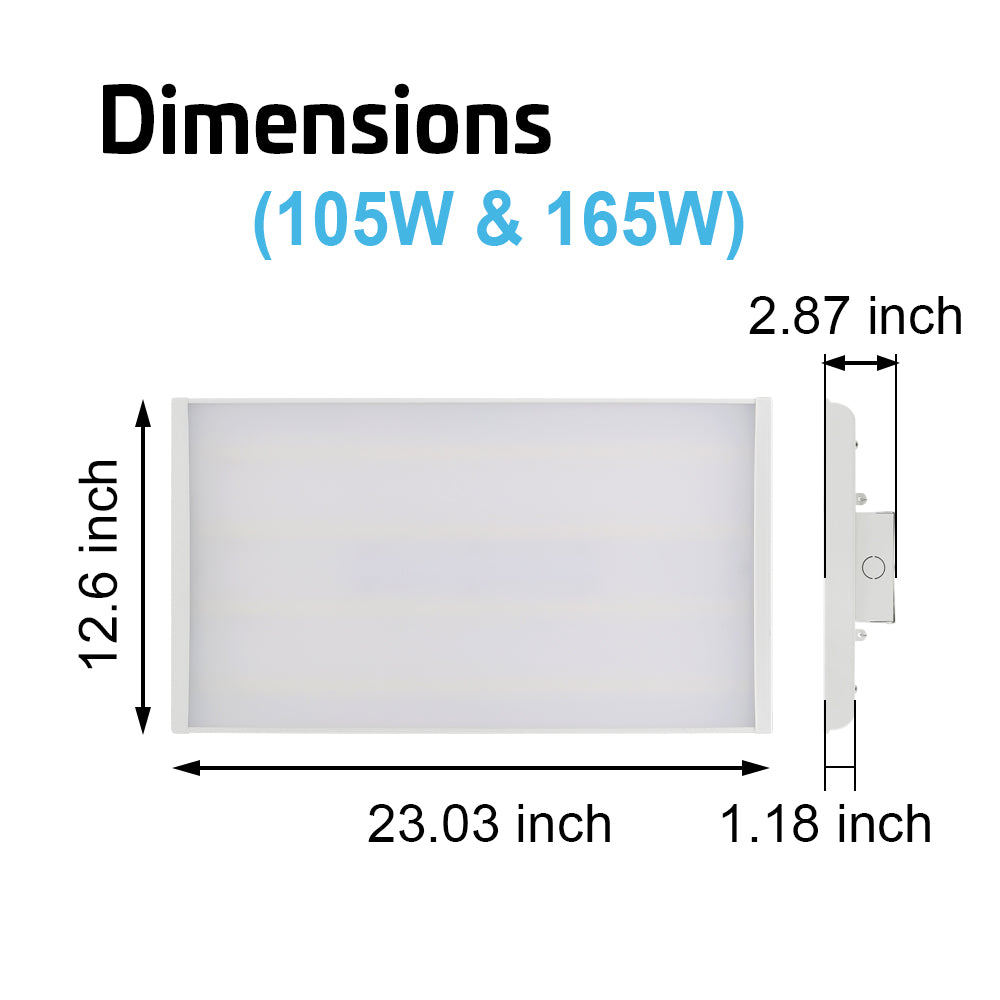

Dimensions: 23.03"x 12.6"x 2.87"
Certificates: UL, DLC 5.1
CCT: 5000K Day White
Lumen: 23,100
Hanging Chain Included
Warranty: 5 Years

$141.95 $121.99

Mount Options: Surface/Pendant Mount Kit +$12

Controls: Without Sensor

Variant

Quantity:

Secured payment methods. Revolve LED never stores nor has access to your card information.
90 days return without restocking fee*.
$199 Free Shipping on eligible products*
Availability: Usually Ships in one to three business days.

Designed for quick, easy installation-Each unit comes with V Hook and hanging chain
Assembly made of heavy duty gauge steel, rigidly designed to resist twisting and bowing
Optional motion sensor with daylight sensing function to maximize power savings
DLC Premium certified qualifying for maximum rebates where applicable

What's in the box

1 Lighting Fixture - 2 Set V-Hook & Chain -1 Installation Guide

Konlite Linear LED High Bay Light - 165W - 1X2 FT - 120-277V - 23100 Lumens - 5000K - 400W Equal

$141.95 $121.99

What's in the box

1 Lighting Fixture - 2 Set V-Hook & Chain -1 Installation Guide

Product Overview

This 2ft Linear LED High Bay light is ideal for replacement of 4-6 F32T8 / F54T5 HO, 400W watt HID or new construction general lighting applications. The high performance compact design allows for easy installation.

165 watts, 23,100 lumens, 120-277V, 5000K Commercial Bright White

Frosted polycarbonate diffuser creates even and glare free light distributed broadly at a 120° beam angle.

Available motion sensor has built-in daylight sensing capability.

1-10V Dimming, Delivers top energy savings and maintenance free durability for a wide range of applications.

V Hook and hanging chain or Surface Mount Adapter, UL, DLC rebate eligible.

Cost effective and quality solution for: Warehouses and storage, Industrial facilities, Retail centers, Manufacturing, Sports facilities and Gymnasiums.

See similar 105-watt, 225-watt versions.

*Default setting for optional motion sensor is set to turn off fixture after 10 seconds of inactivity.

Applications

•Warehouses	•Workshops
•Convention Centers	•Low Bays
•Storage Facilities	•Distribution Centers
•Factories	•Supermarkets
•Retails	•Gymnasiums

Color Temperature 5000K color temperature

Certifications

Specification

Brand	Konlite	MPN	KGL-LH02-165W50K-2V1
Warranty	Limited 5 Years	UPC	672975120825
Input Voltage	120-277V	Beam	120°
Input Wattage	165W	Equal To	400W or 4-6 lamp T8/T5
Delivered Lumens	23,100	CRI	80
Efficacy	140 LM/W	Available CCT	5000k
Rated Life	>50,000 hrs	Power Factor	0.9
THD	15%	IP Rating	IP54
Dimmable	1-10V	Mounting	V-Hook & Chain, Surface, Pendant
Operating Temperature	-30F to 122F	Dimensions	23.03”X12.6”X2.87
Certifications	UL, Damp Locations, DLC Premium	Weight	11 Lbs

Motion Sensor Specification

MPN	BRI819P-B-O	Setting tool	via DIP switch
Control	On/off with Daylight sensor	Hold time	10s/1min/5min/10min/30min
Detection range	20%/50%/75%/100%	Daylight threshold	Disable /10Lux/50Lux/300Lux
Mounting height	Max. 25ft	Operating Voltage	120-277V, 50Hz/60Hz
