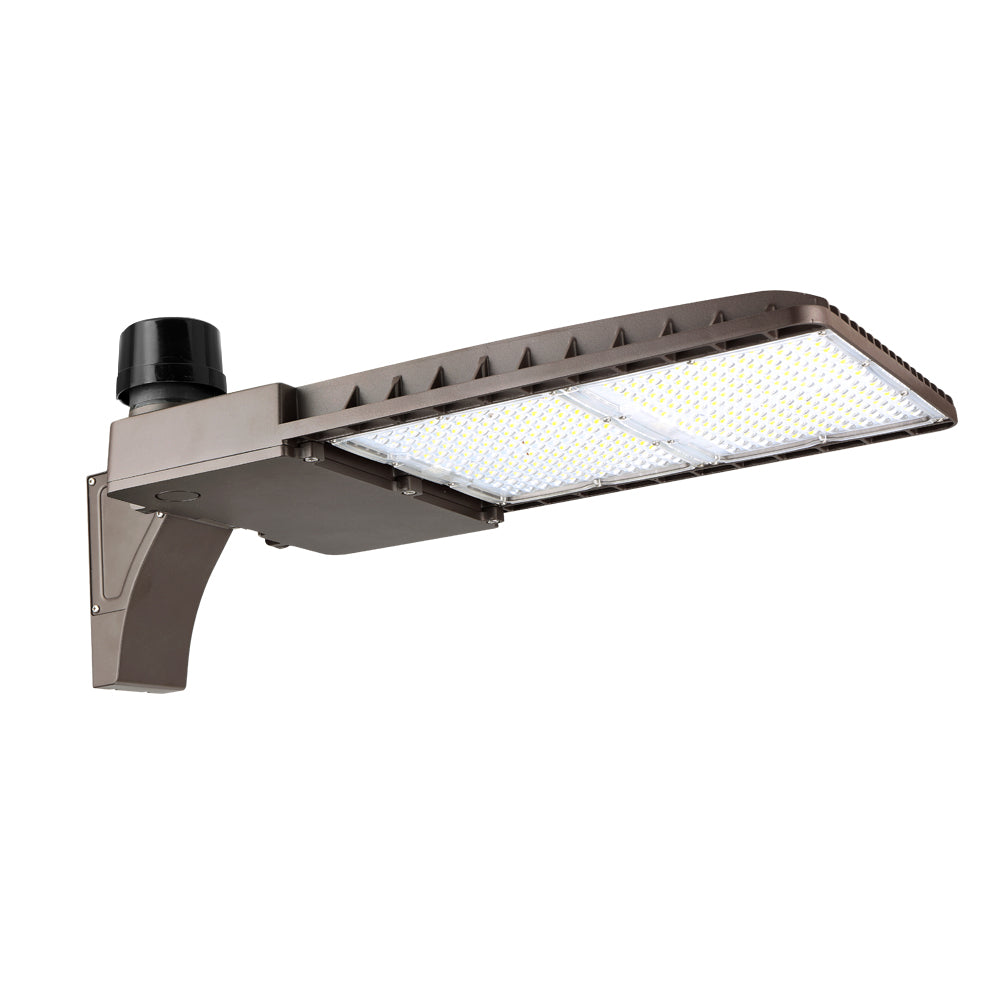

Konlite LED Outdoor Area Light - 300W - Type V - 120-277V - 41000 Lumens - 5000K - 1000W Equal

Product Search Code: 20-0221
KonliteSKU: RDAL02043005KDNSFL5D

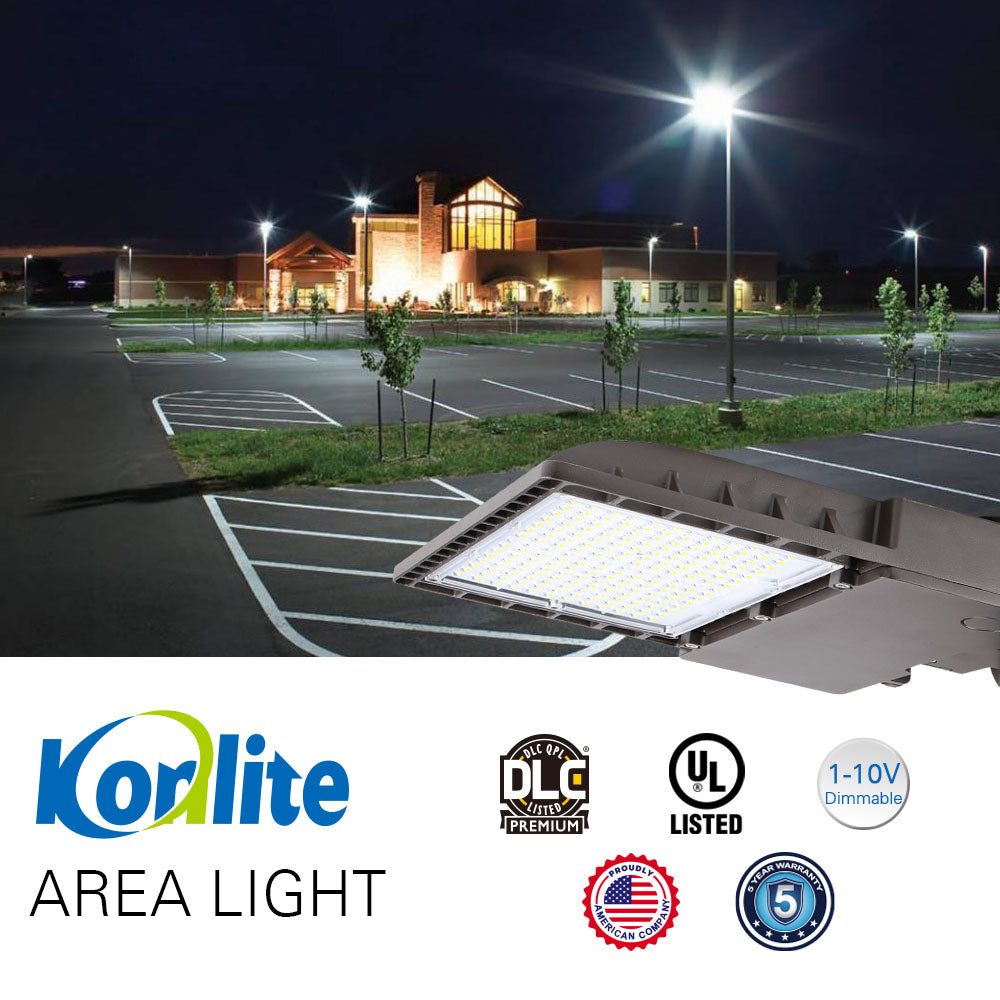

The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. It can be used as dusk to dawn light with optional photocell. Ideal for parking lot, street, flood and other outdoor area applications.

  • Designed for easy one person install
  • Precise optics designed to shape light distribution, maximizing spacing of fixtures
  • Low Profile 3G vibration and compact design minimizes wind load requirements
  • 100,000 hour lifespan
$349.95


  • Secured payment methods. Revolve LED never stores nor has access to your card information.
  • 90 days return without restocking fee*.
  • $199 Free Shipping*$199 Free Shipping on eligible products*
  • Availability: Usually Ships in one to three business daysAvailability: Usually Ships in one to three business days.

What's in the box

1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Instillation Guide

The Konlite RDAL02 LED Area light combines optical uniformity, energy efficiency and long term reliability. It can be used as dusk to dawn light with optional photocell. Ideal for parking lot, street, flood and other outdoor area applications.

  • Designed for easy one person install
  • Precise optics designed to shape light distribution, maximizing spacing of fixtures
  • Low Profile 3G vibration and compact design minimizes wind load requirements
  • 100,000 hour lifespan

What's in the box

1 Lighting Fixture - 1 Mounting Bracket with Screws - 1 Instillation Guide
Product Details
Downloads
Reviews
Reviews
Q&A

Product Overview

Ensure the safety of your patrons, employees and the security of your premises with the versatile Konlite AL04 Area Light.  Eliminate maintenance while reducing 65% energy consumption when replacing outdated Metal Halide - HPS fixtures or using in new construction. With a combination of performance, aesthetics, energy efficiency and light control the Konlite AL04 Area Light can be used as pole lights or surface mounts for parking lot (shoebox), street lights or outdoor security lights (floods).

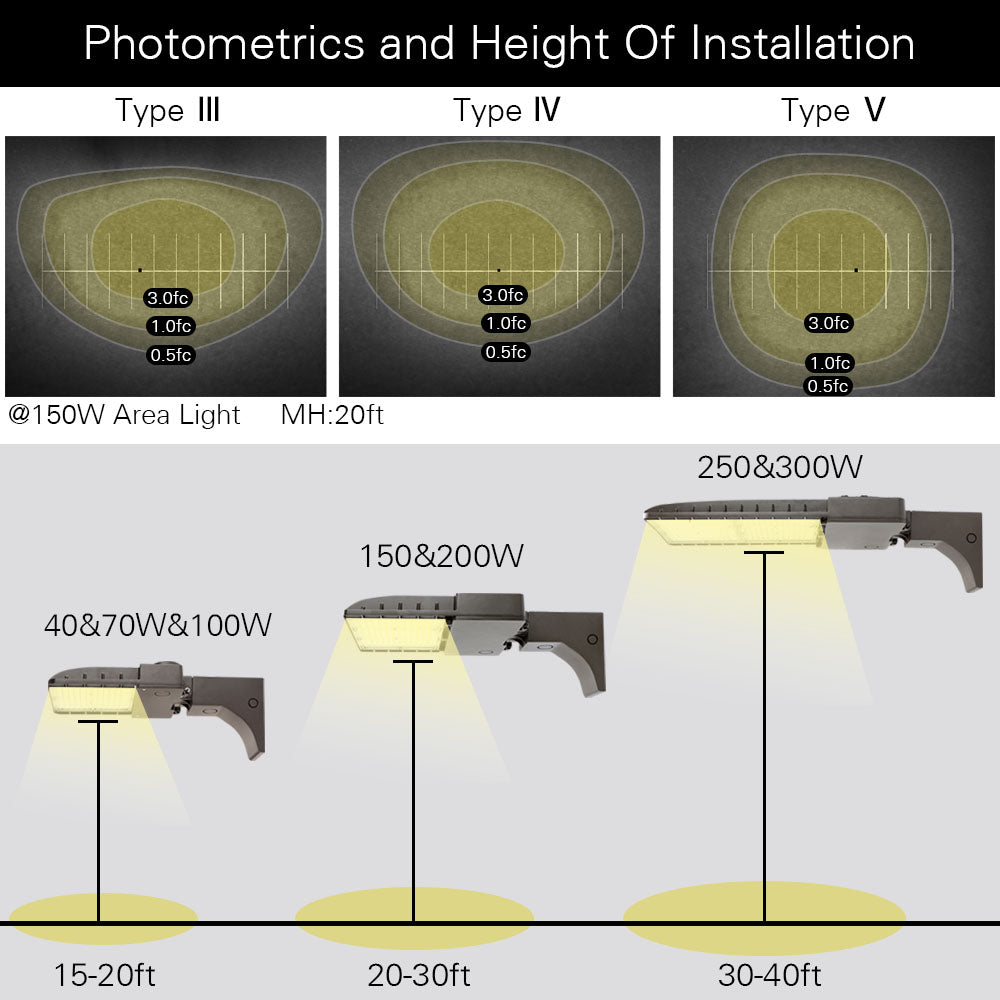

300 watt, 41,000 Lumens, 5000K, Type V Beam Distribution, 1-10V Dim, Optional Dusk to Dawn Photocell, 120-277V

Built to last and withstand harsh elements, the AL04 stylish housing offers separation between the LEDs, the driver circuitry and larger heat sink allowing for longer operating life. Compact and lightweight design with low EPA, 3G rated for vibration. Corrosion resistant, die-cast aluminum housing with powder coat paint finish. The visual comfort optics create a larger luminous surface area resulting in a low glare appearance.

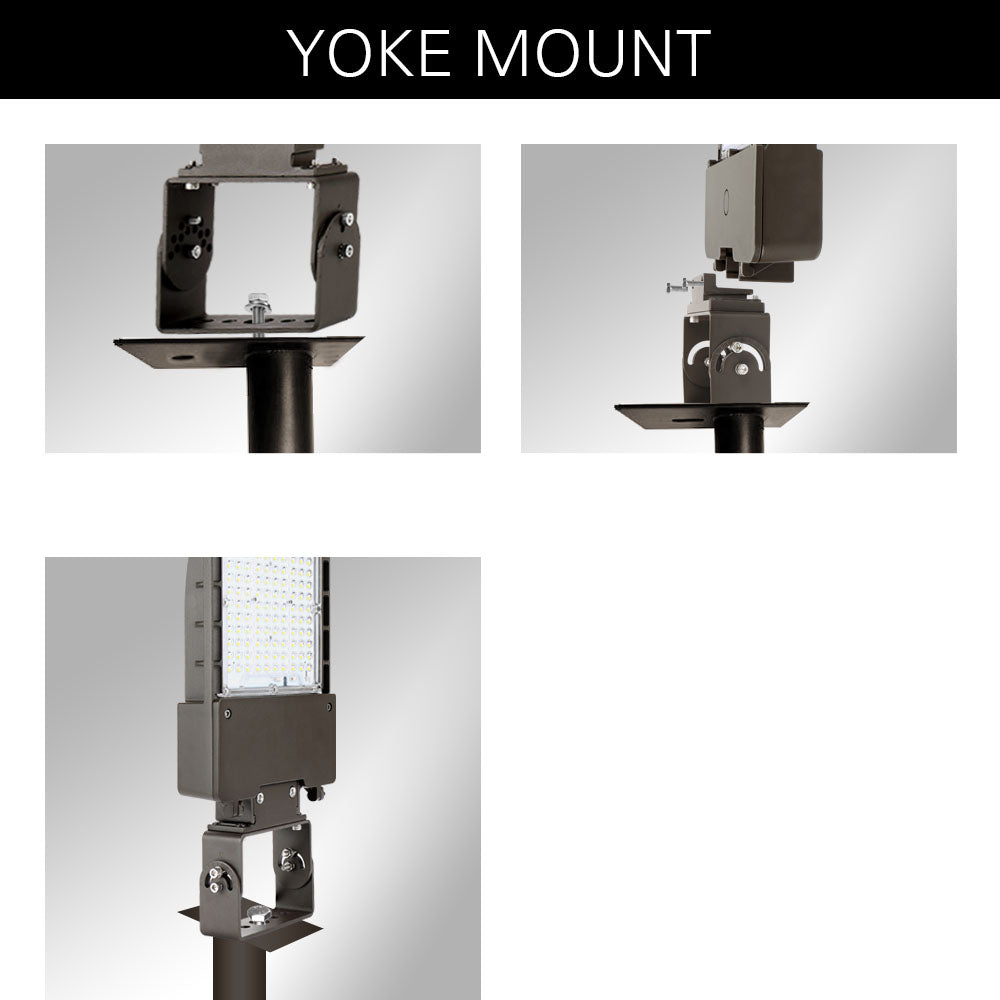

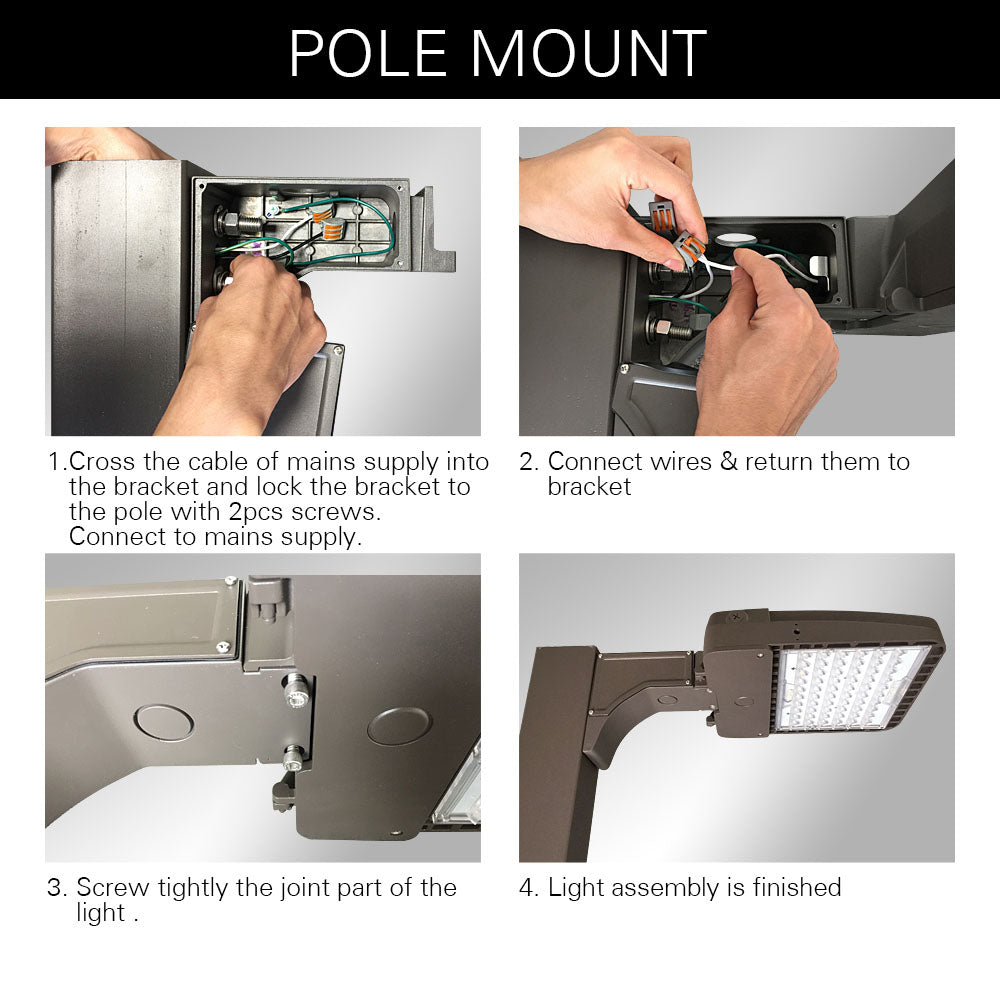

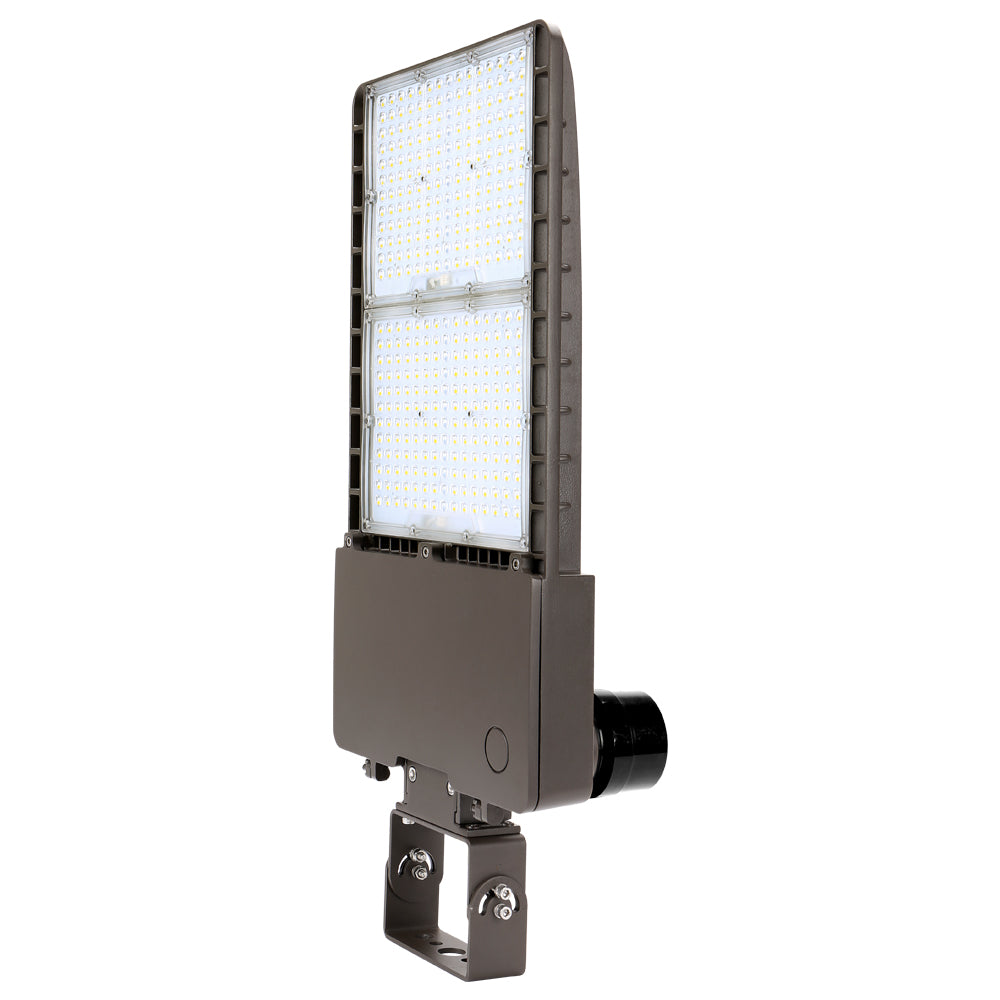

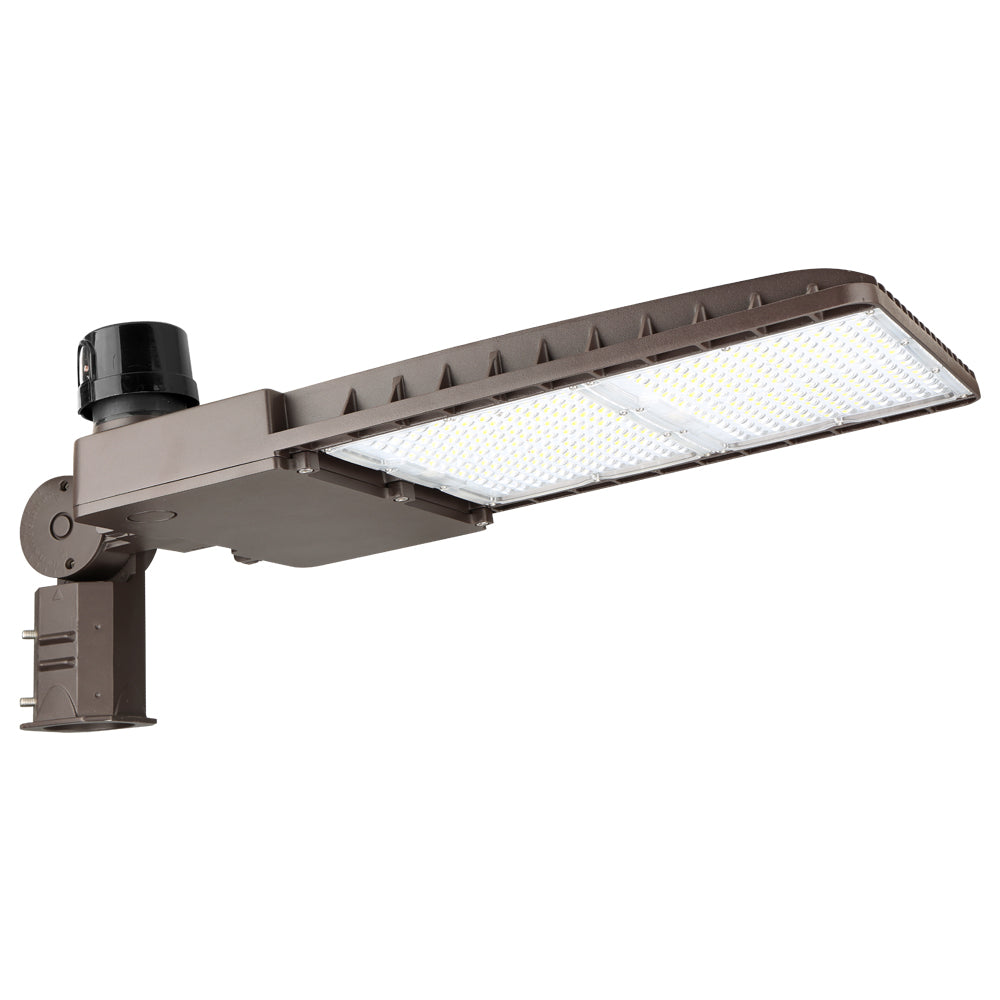

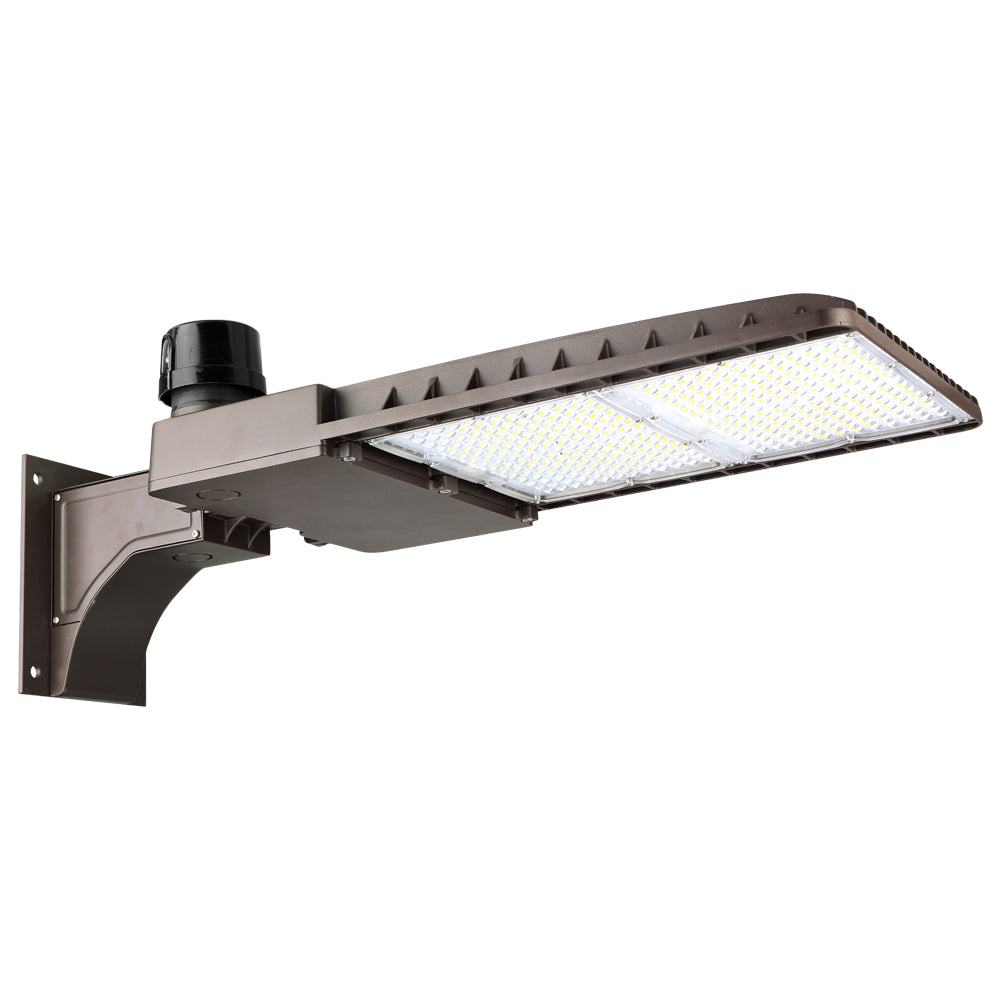

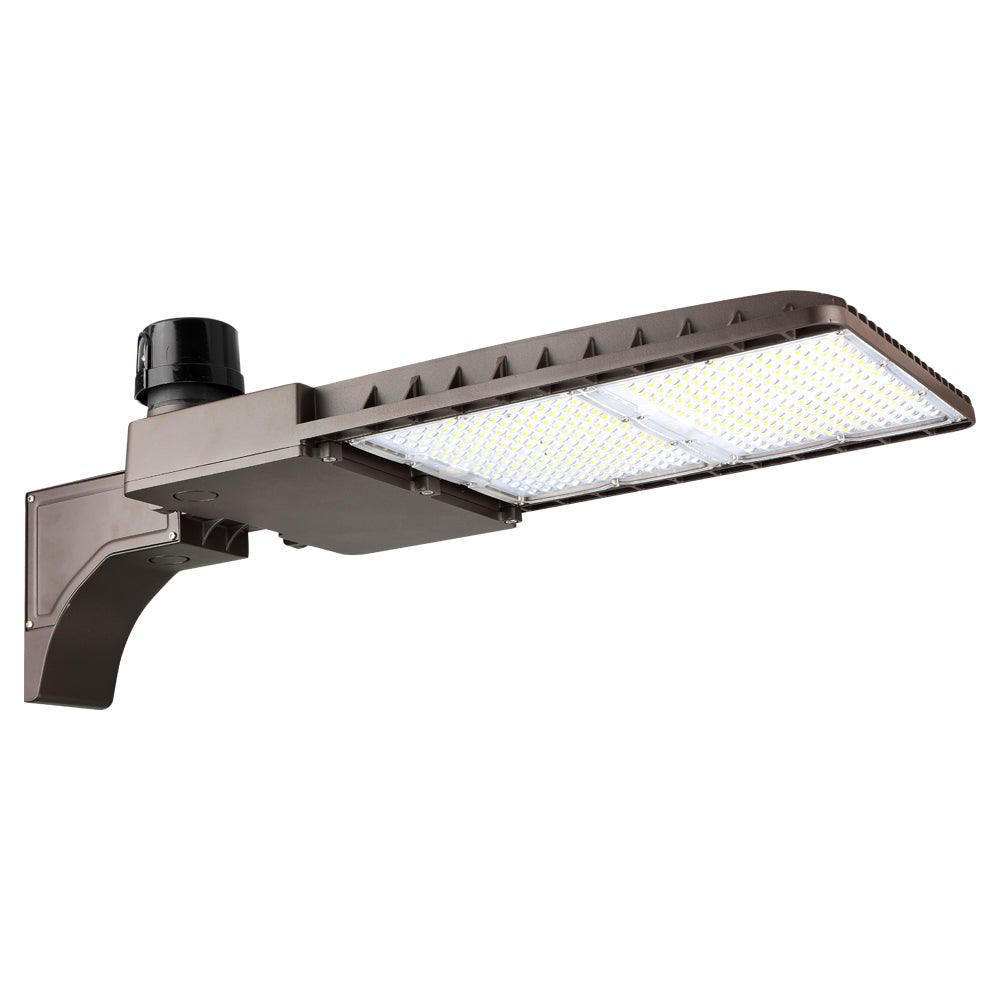

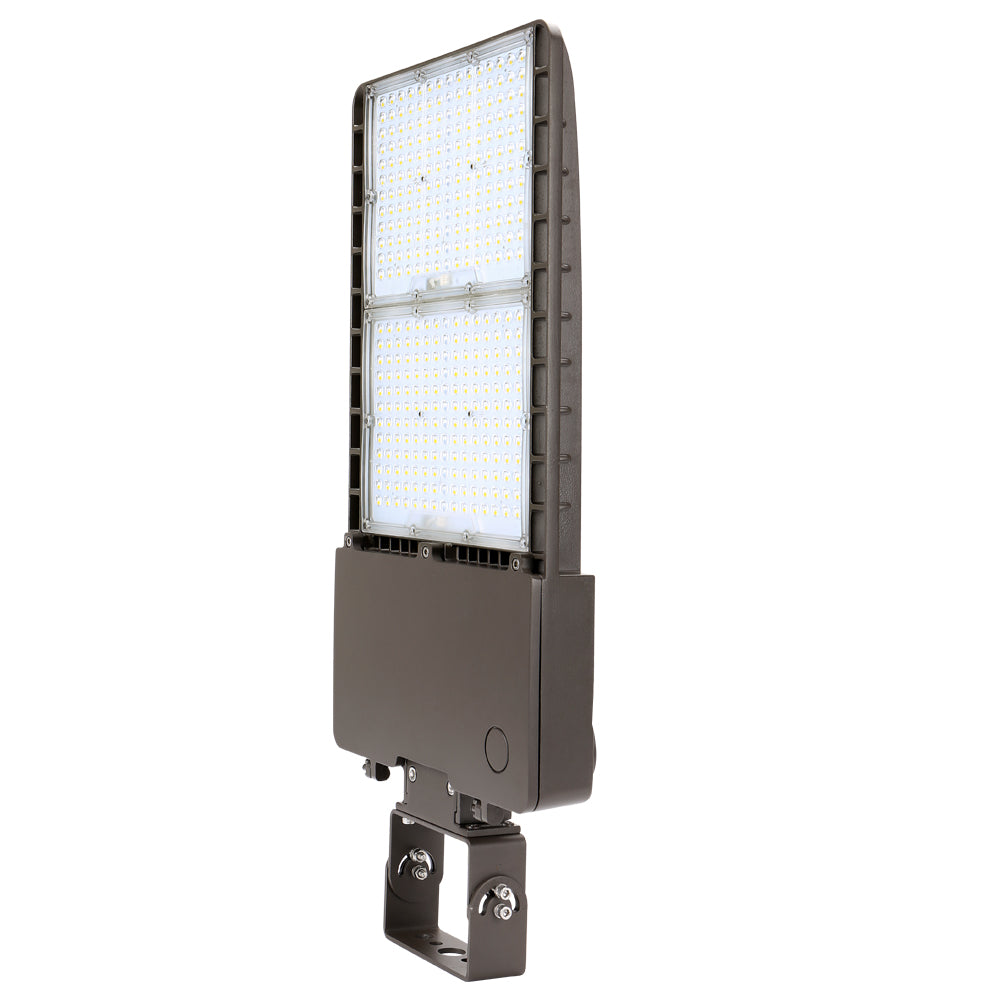

Mounting Options: Extrusion Arm for Round or Square Pole, Slipfitter, Trunnion/Yoke or Wall Mount

UL, DLC for eligible Rebates, 100,000 hour lifespan L70, 7 year warranty

See similar 100-watt, 150-watt200-watt versions.

Applications

•Area Lighting •Parking Lots
•Streets

•Building Façade

•Storage Facilities •Underpasses & Tunnel
•Boat Docks & Marinas • Billboards
•Warehouses •Metal Buildings
•Roadways & Pathways •Security Lighting
•Sports Complex •Schools & Universities
•Parks & Outdoor Recreation •Car Dealerships

Color Temperature5000K color temperature
Certifications
US company7 years warrantyUL listedRoHS compliance FCC certificationIP65 rating

Specifications

BrandKonliteDLC Part #MAL04300W27V50KXXXXT5
WarrantyLimited 7 YearsUPC752480730006
Input Voltage120-277VOpticalType V
Input Wattage300WEqual to1000W
Delivered Lumens41,000CRI>70
Efficacy137 LM/WAvailable CCT5000K/4000K
Rated Life>100,000 hrsTHD<20%
Power Factor>0.9IP RatingIP65
Dimmable1-10VControlsDusk to Dawn Photocell
Operating Temperature-40 F to 113 FDimensionsSee Specifications
CertificationsUL, Wet Locations, DLC PremiumWeight16.39 lbs
