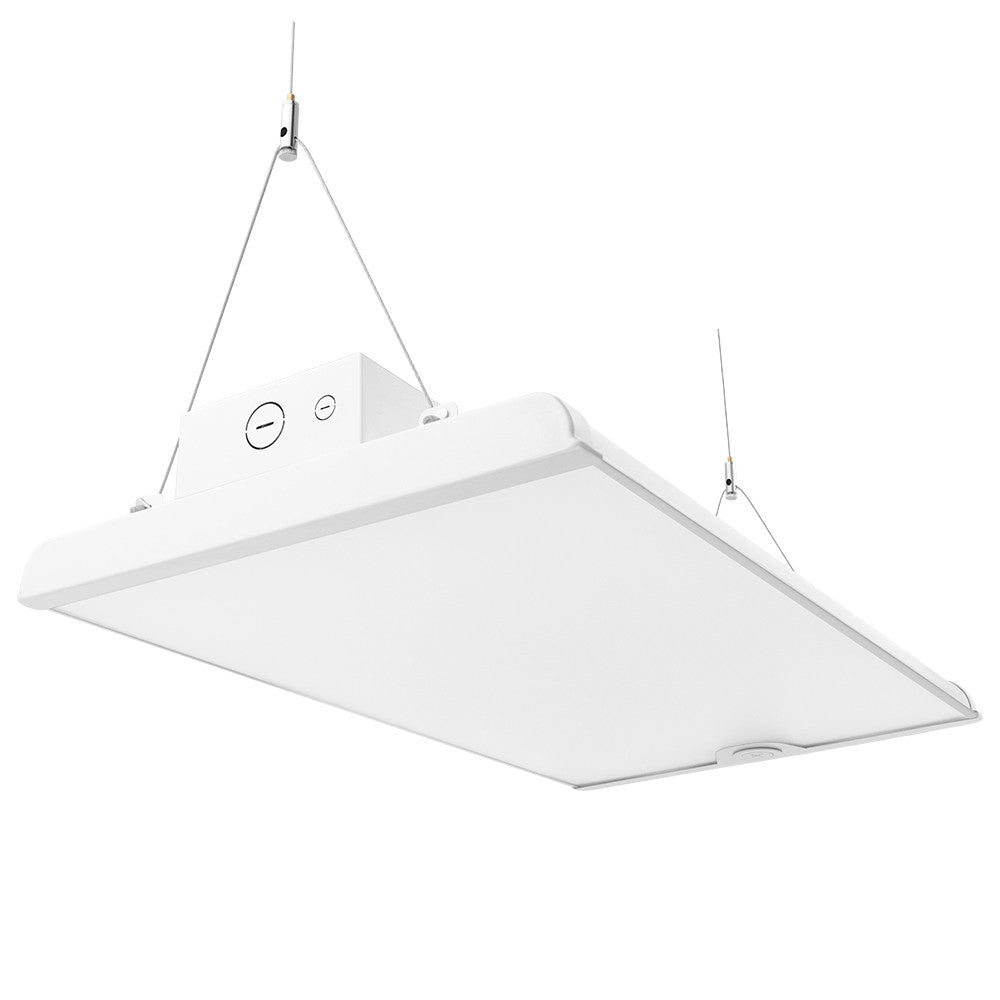

Product Overview
This 2ft LED Linear Low bay ceiling light is an ideal replacement for aging T8, T5, 250 watt HID retrofit or new construction general lighting applications. The high performance compact design allows for easy installation.

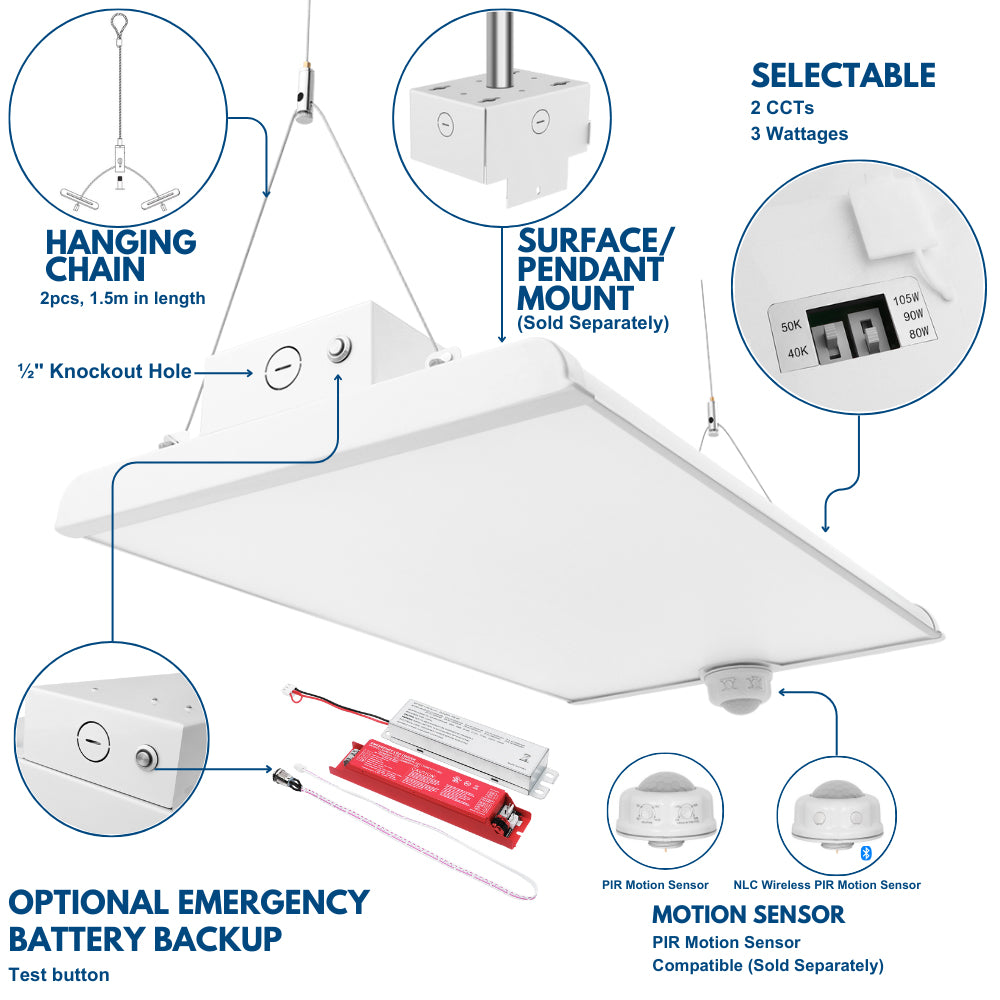

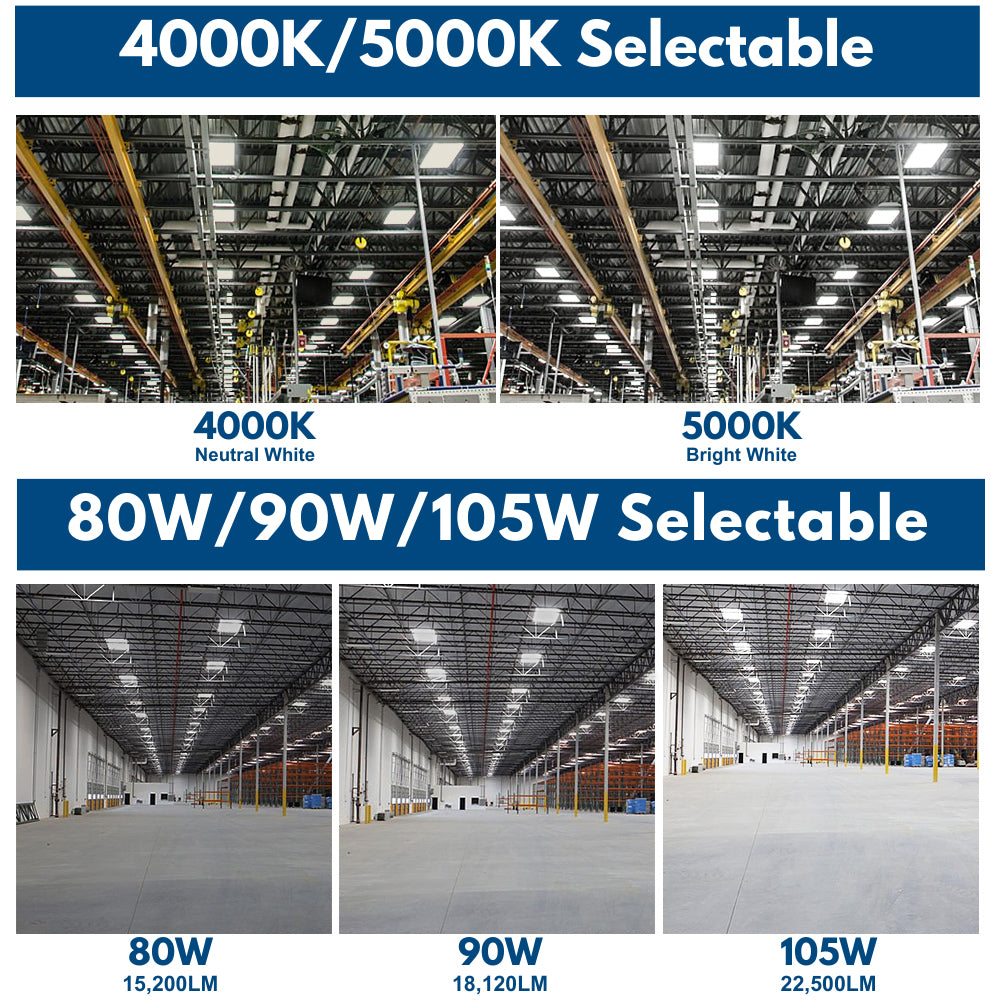

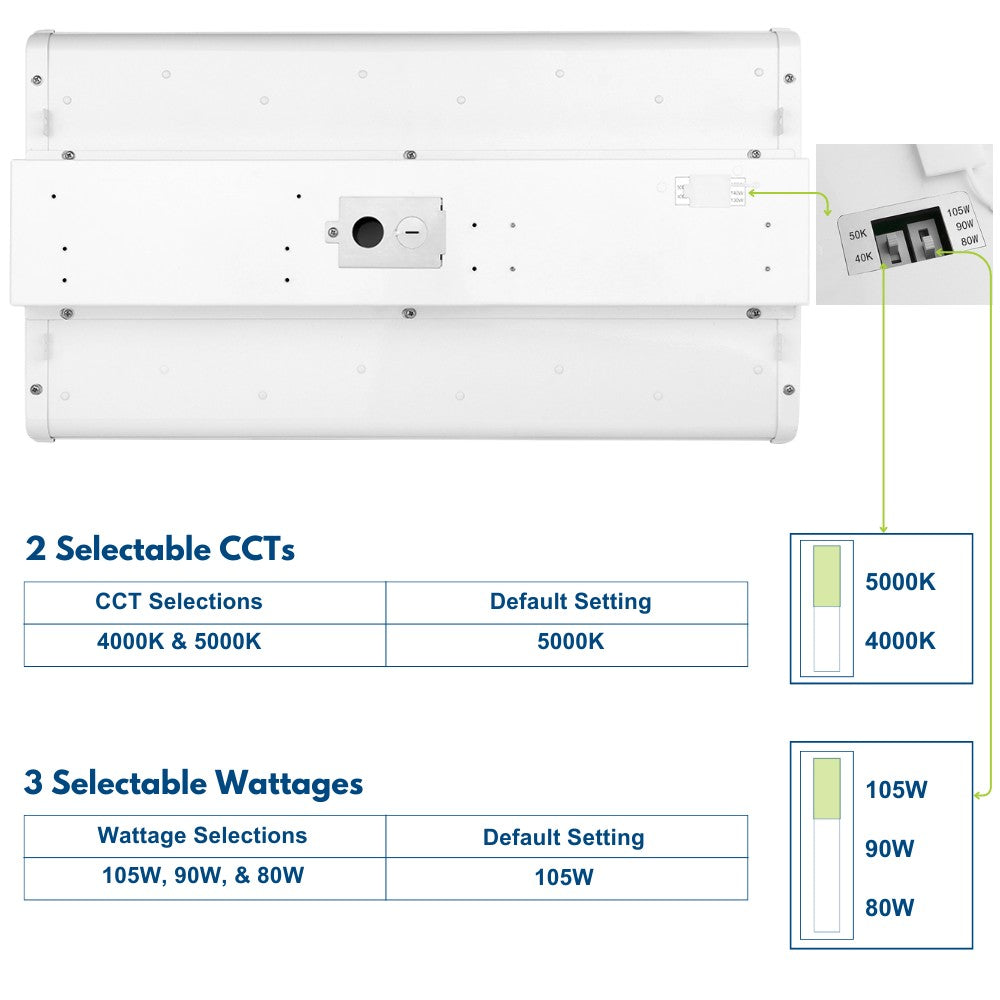

Multiple brightness and color options with the flip of a switch:
Wattage/Lumens ( 5000K Setting ) : 105W/16,100 90W/14,100 80W/12,800
Color CCT: 4000K Neutral White or 5000K Daylight White
Delivers top energy savings and maintenance free durability for a wide range of applications. Provides enhanced visibility and safety over traditional lighting.

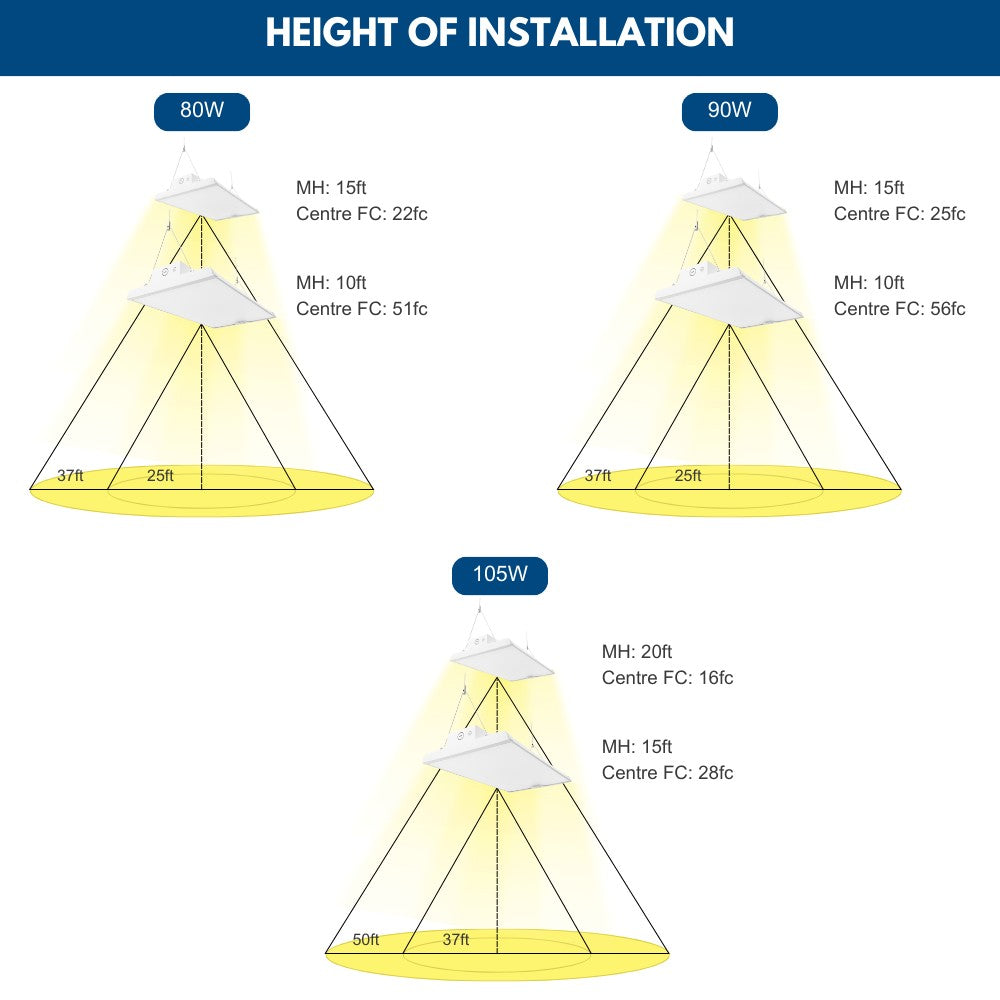

Frosted polycarbonate diffuser creates even and glare free light distributed broadly at a 120° beam angle.
0-10V Dimming, Delivers top energy savings and maintenance free durability for a wide range of applications.

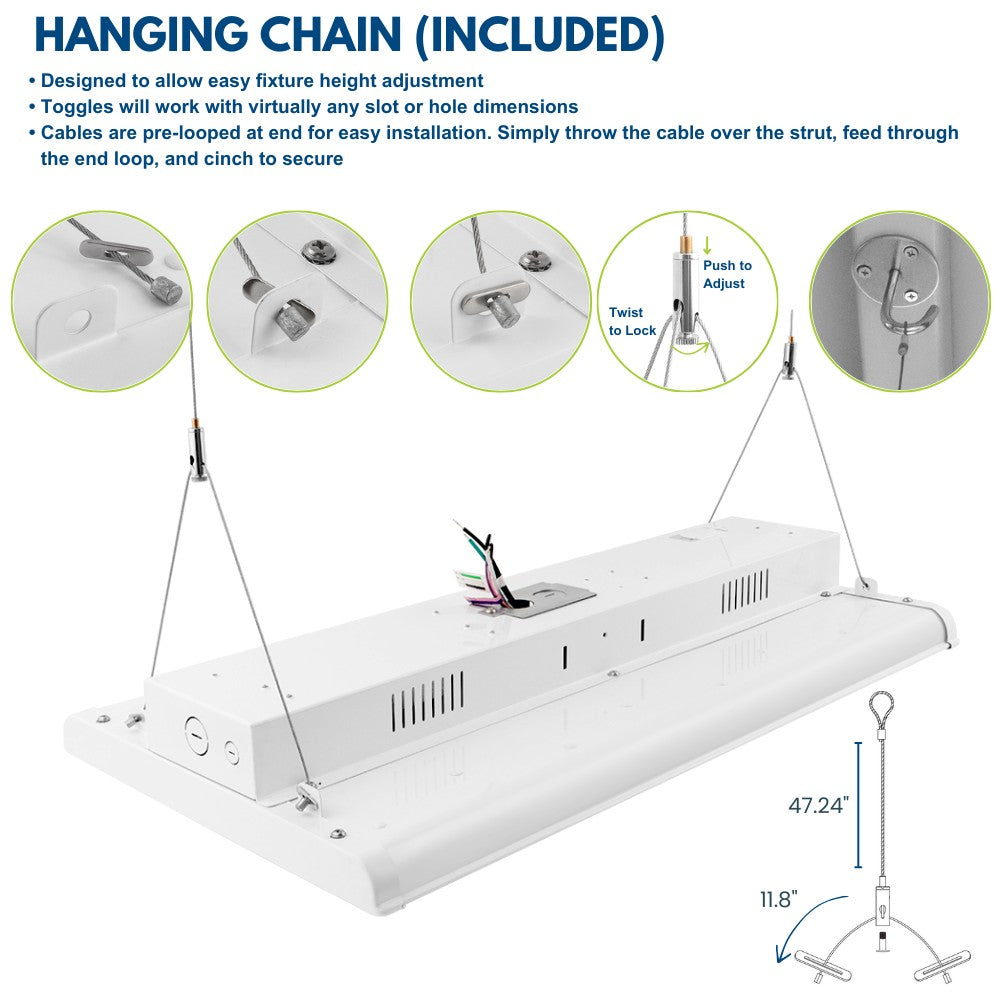

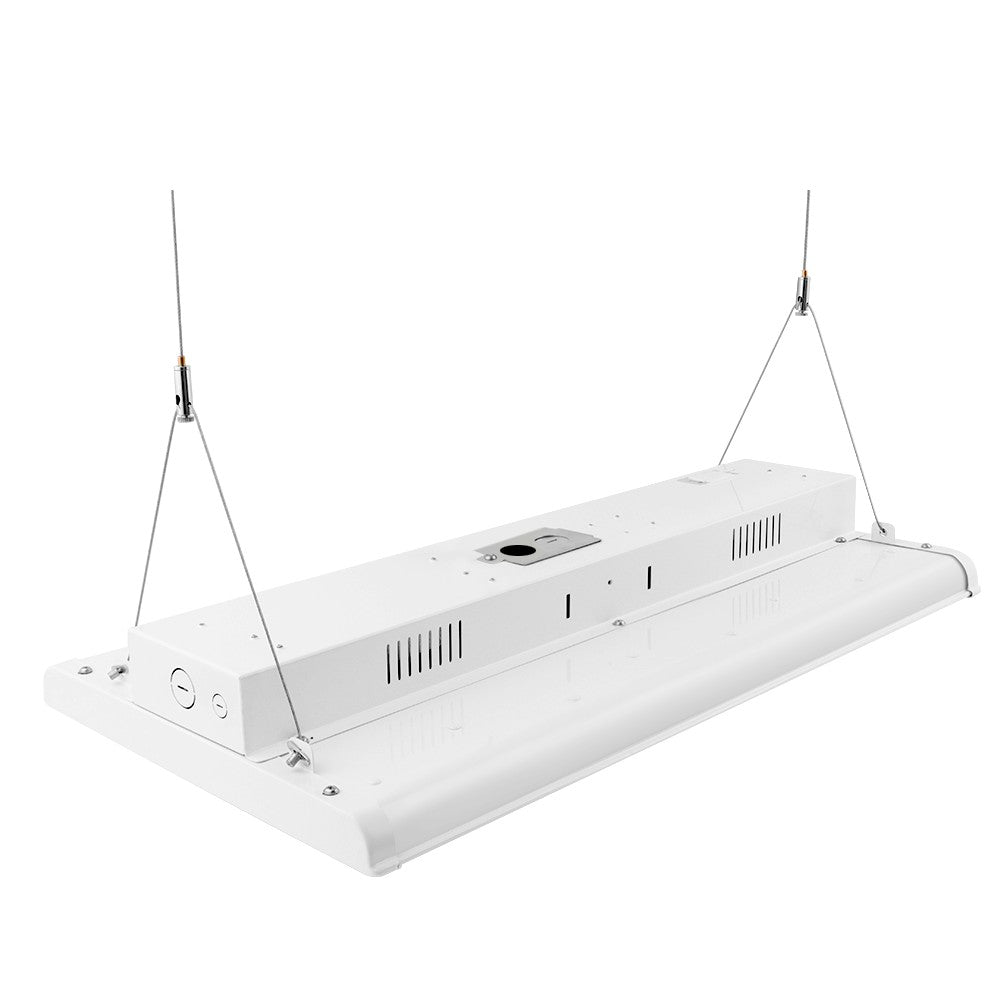

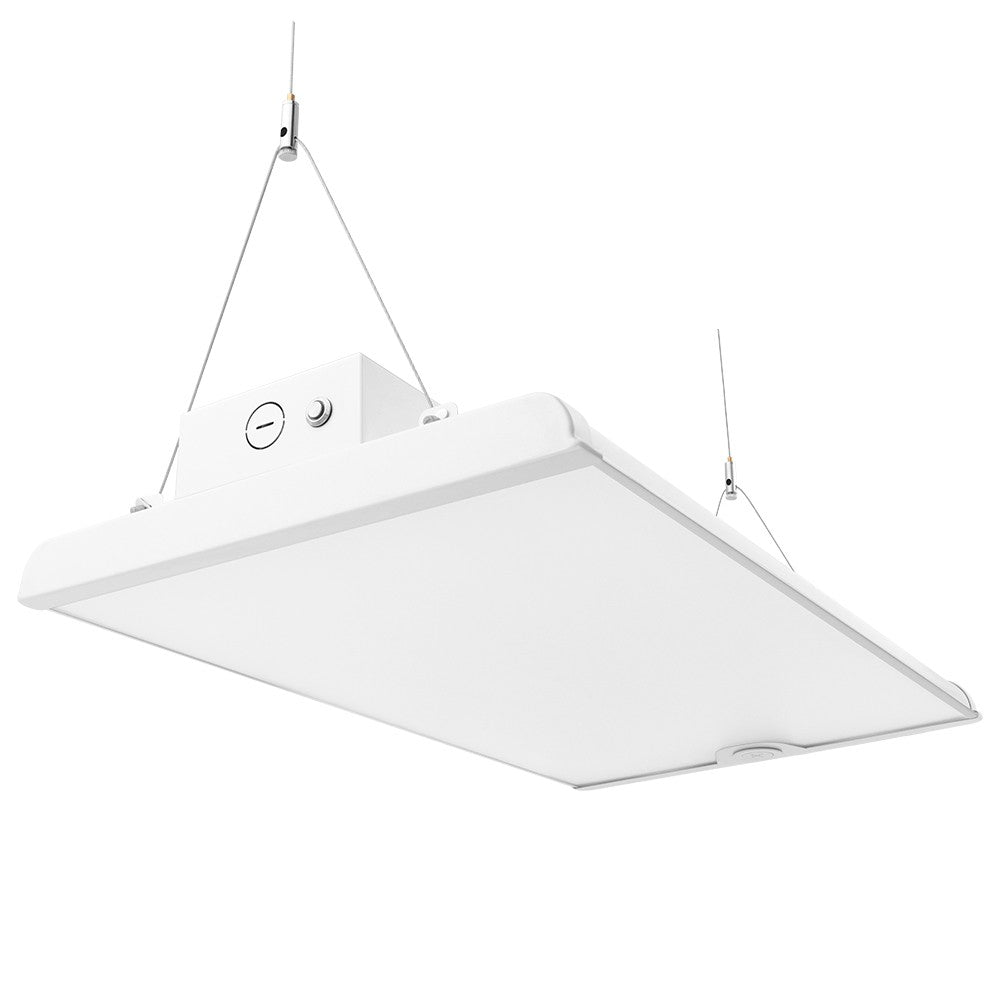

The light fixture comes with hanging chains.

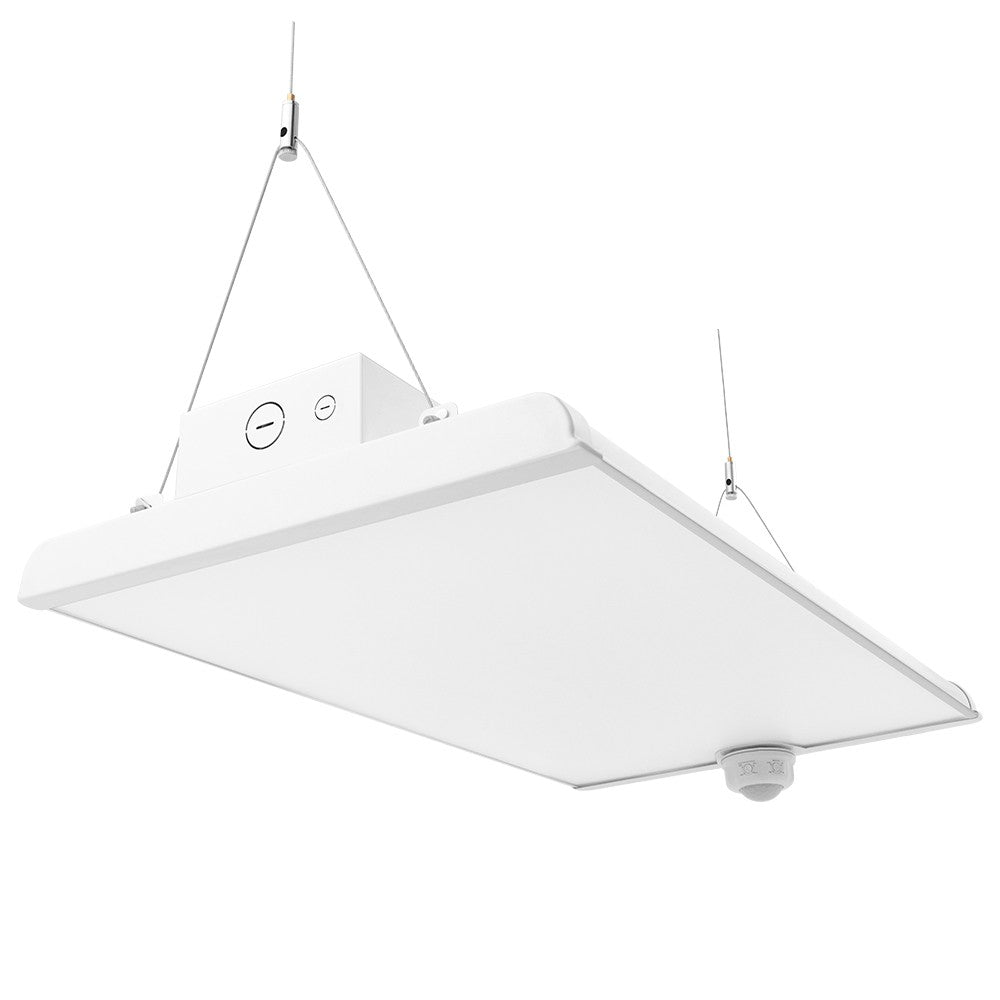

Optional Plug-N-Play motion sensor with Rotating Switch has built-in daylight sensing capability. Upgrade your lighting control system with Blue Tooth Network Lighting Controls (NLC) and discover the ultimate in flexibility, affordability, and ease of use. Perfect for businesses and facilities of all sizes, the DLC qualified NLC system empowers you to take full command of your lighting environment, enhancing efficiency and ambiance with just a few simple clicks. Please call to order NLC certified Sensing System.

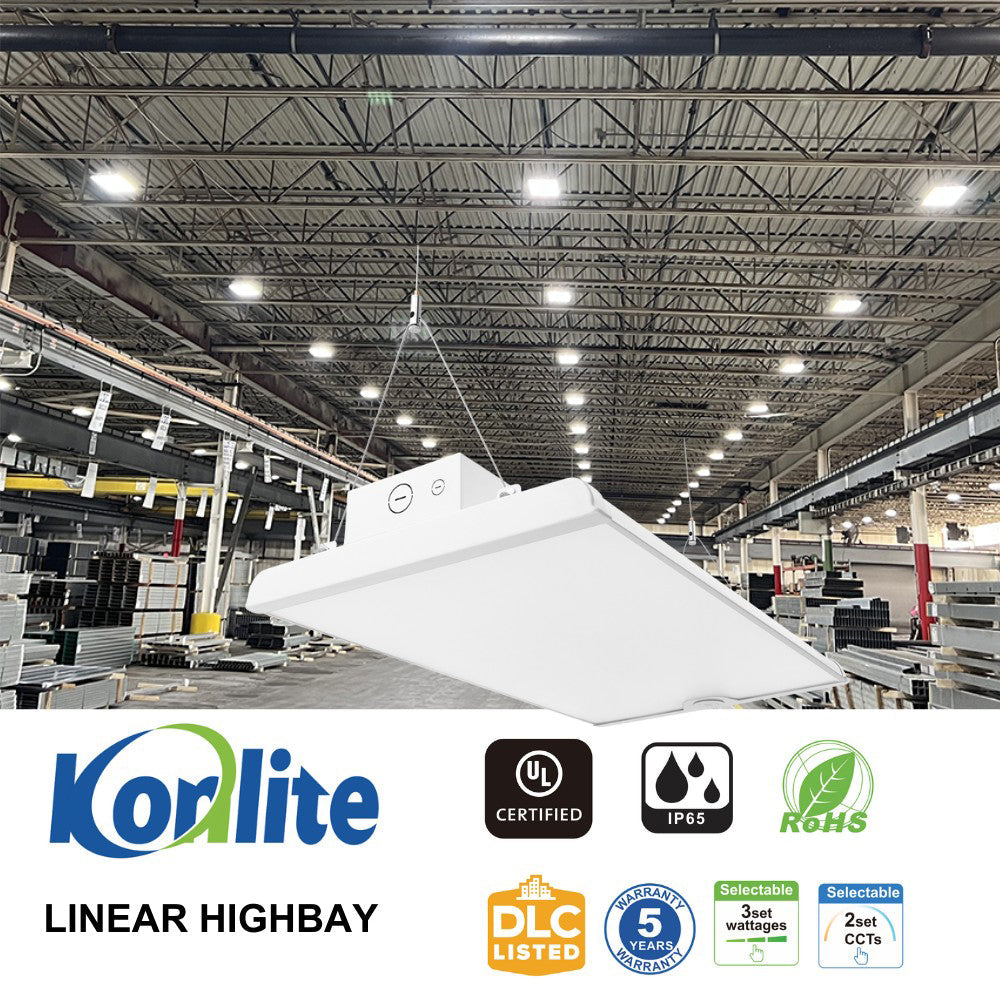

Cost effective and quality solution for: Excellent for aisle optics, Warehouses and storage, Industrial facilities, Retail centers, Auto Centers, Manufacturing, Sports facilities and Gymnasiums.
See similar 300-watt, 225-watt and 165-watt versions.
Applications
| •Warehouses | •Workshops |
| •Convention Centers |
•High Bays |
| •Storage Facilities | •Distribution Centers |
| •Factories | •Supermarkets |
| •Retail | •Gymnasiums |
Specification
| Brand | Konlite | MPN | KAT105MCLV2F |
| Warranty | Limited 5 Years | UPC | 659359813443 |
| Input Voltage | 120-277V | Beam | 120° |
| Input Wattage | 105W/90W/80W | Equal To | 250W or 2-4 lamp T8/T5 |
| Delivered Lumens | 16,100/14,100/12,800 (5000K) 16,500/14,450/13,100 (4000K) | CRI | 80 |
| Efficacy | 153-163 LM/W | Available CCT | 5000K/4000K |
| Rated Life | >50,000 hrs | Power Factor | 0.9 |
| THD | 15% | IP Rating | IP20 |

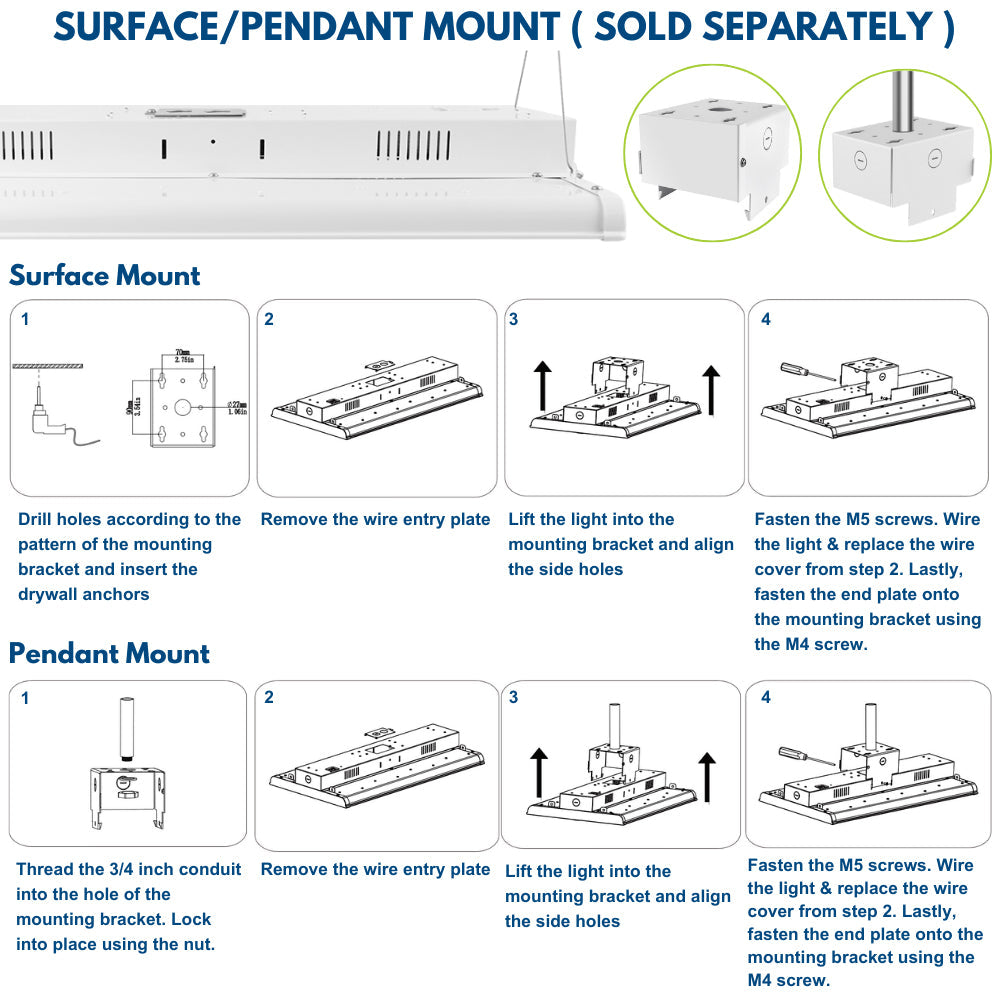

| Dimmable | 0-10V(Dimmer NOT included, Separate Wiring Required) | Mounting | Chain, Surface, Pendant |

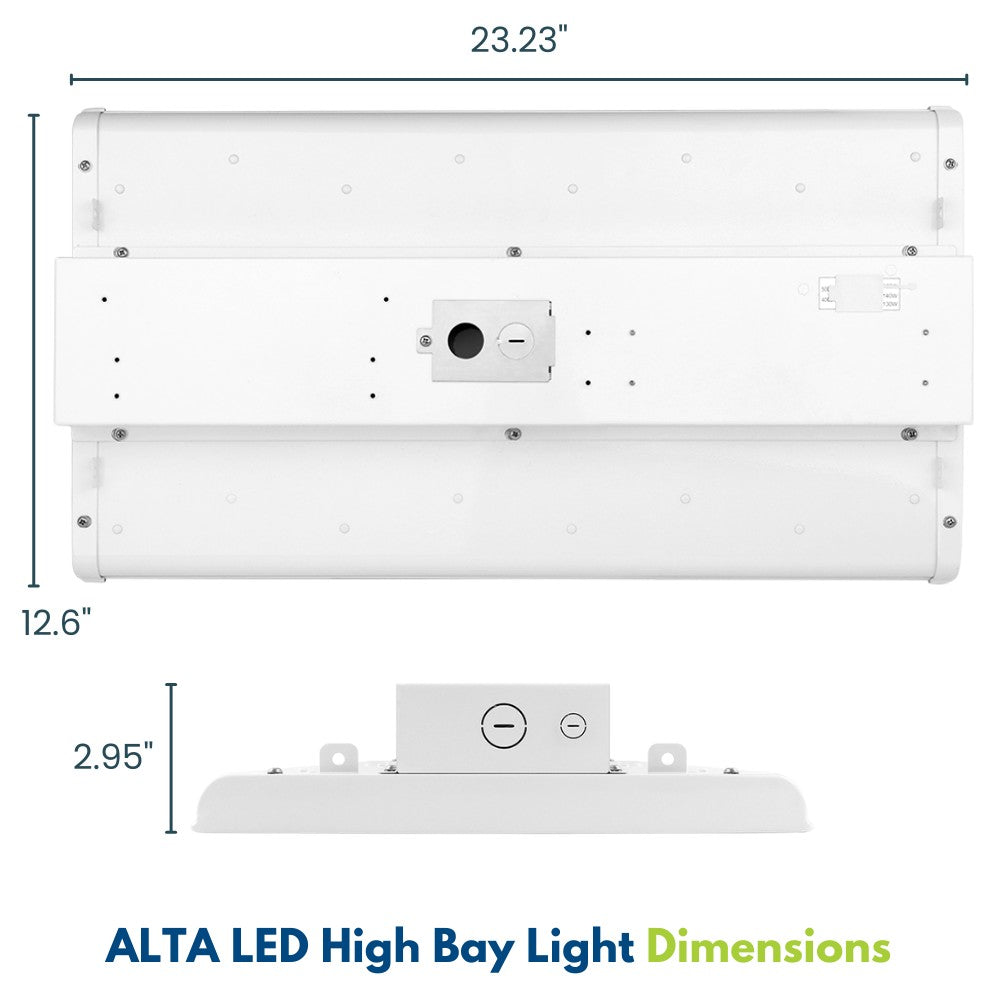

| Operating Temperature | -40F to 113F | Dimensions | 23.23”X12.6”X2.95" |
| Certifications | UL, Damp Locations, DLC Premium |
Motion Sensor Specification
| Brand | Haisen | MPN | HD09VR-PH |
| Control | On/off / 1-10V Dimming | Setting tool | Rotating Switch or Remote Control (HD05R). |
| Detection area | 25%/50%/75%/100% | Hold time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Stand-by period | 0s/10s/30s/1m/5m/10m/30m/60m/+∞ | Stand-by dimming level | 10%/20%/30%/50% |
| Motion detection | 0.5~1.5m/s | Daylight threshold | Disable / 8 settings from 2Lux to 400Lux |
| Mounting height | Max. 39ft | Detection range | Max. 45ft |
| Operating Voltage | 10-15V DC | IP rating | IP65 |
| Current | <15mA | Warranty | 3 Years |
*Stand-By Period need to be set to 0s while using with dimmer switch.
*Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by period 0s/Stand-by dimming level 10%. Use Remote Control (HD05R) to change the factory Default Setting.
