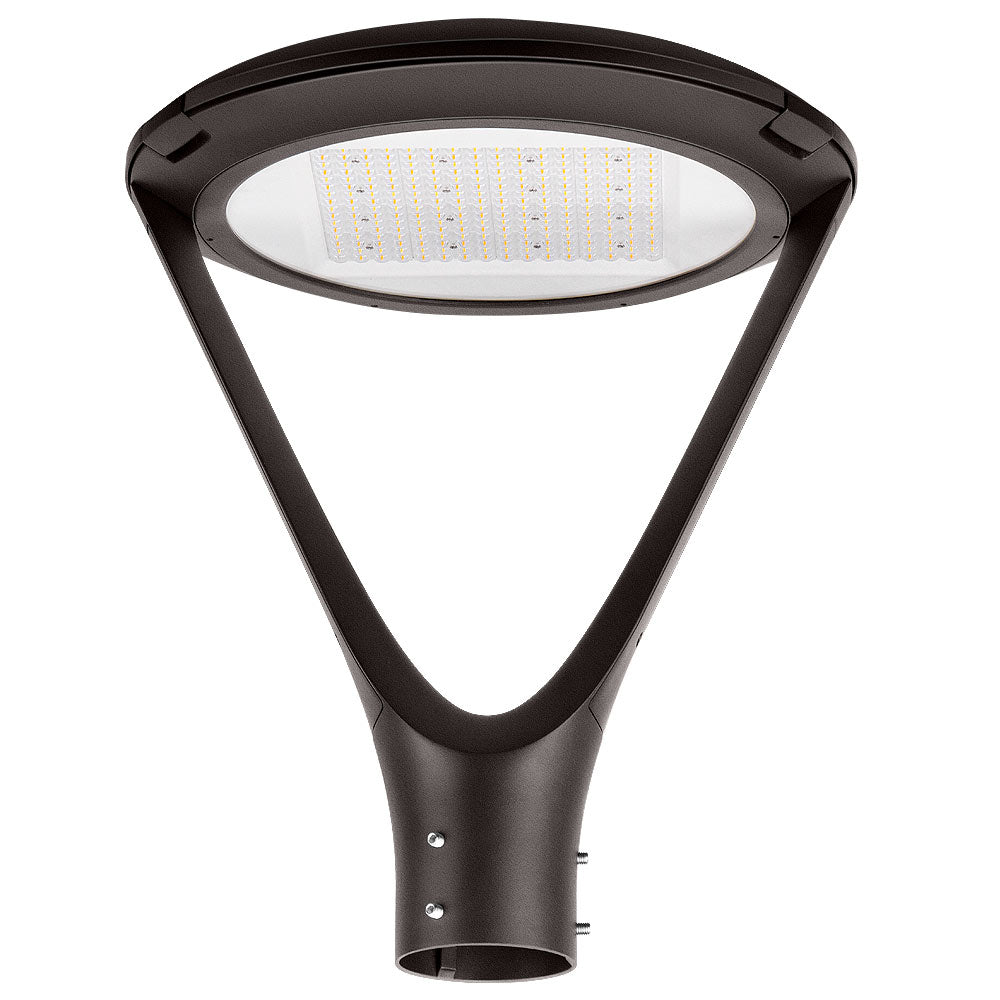

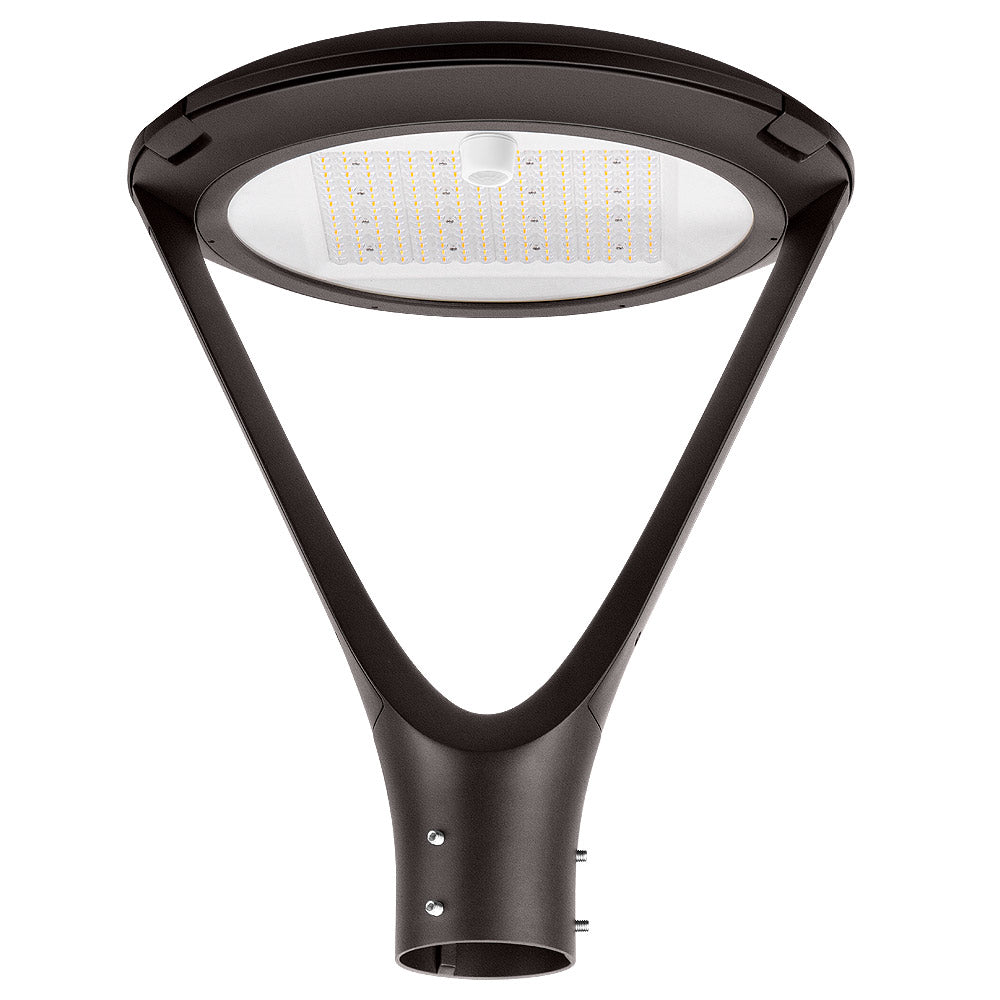

125W Konlite Atria LED Post Top Light

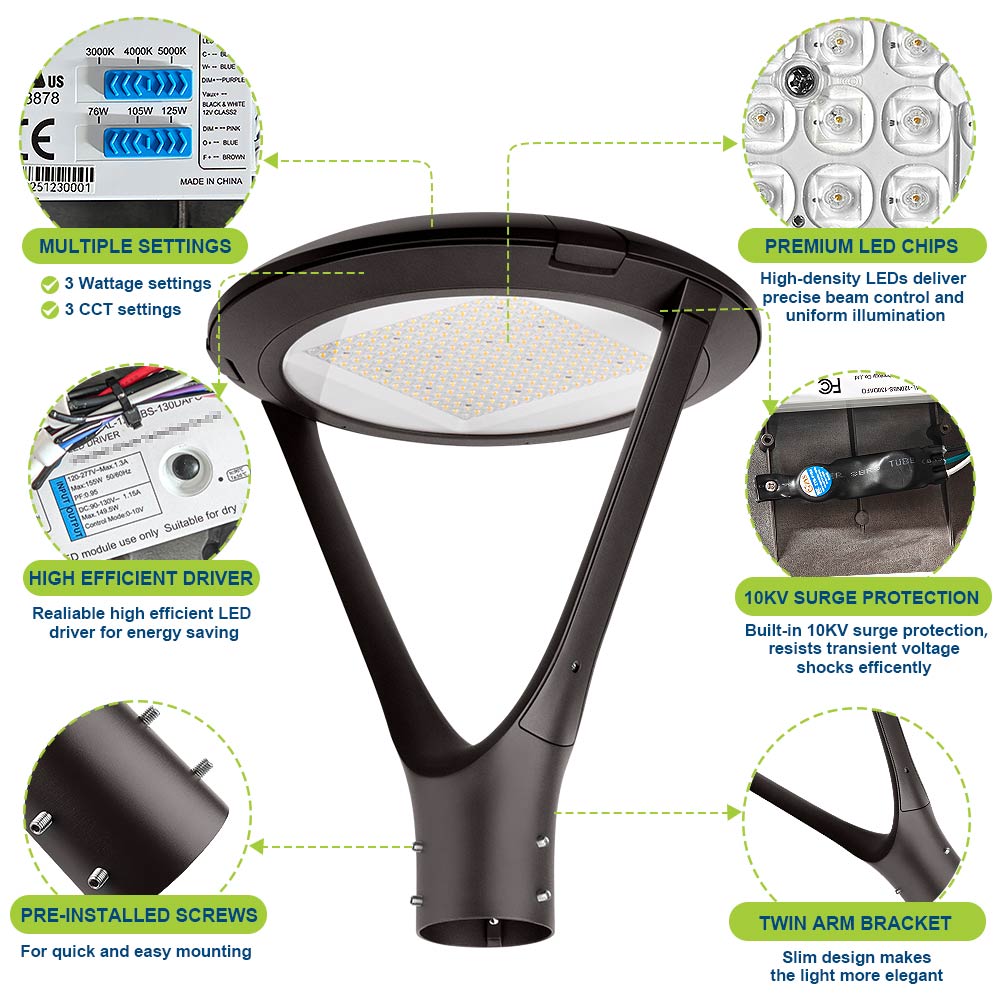

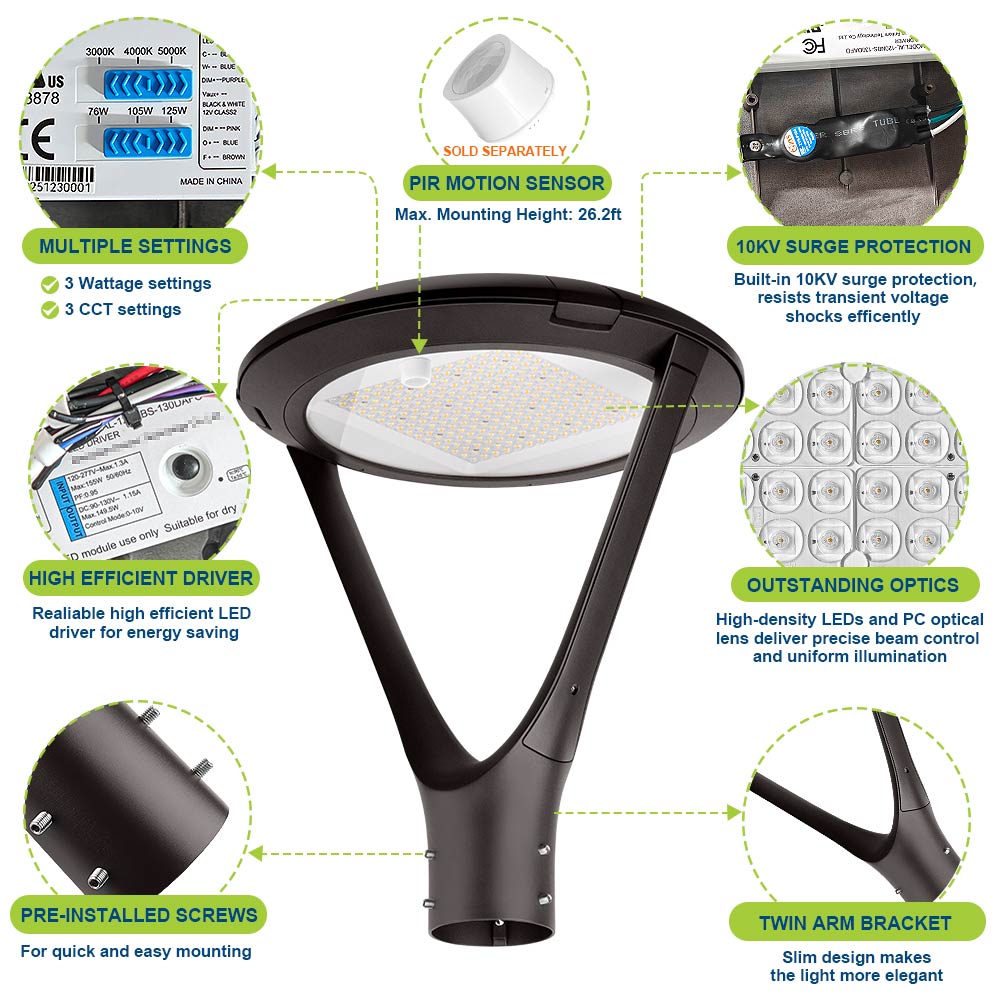

Konlite Atria LED Post Top Light with features highlighted

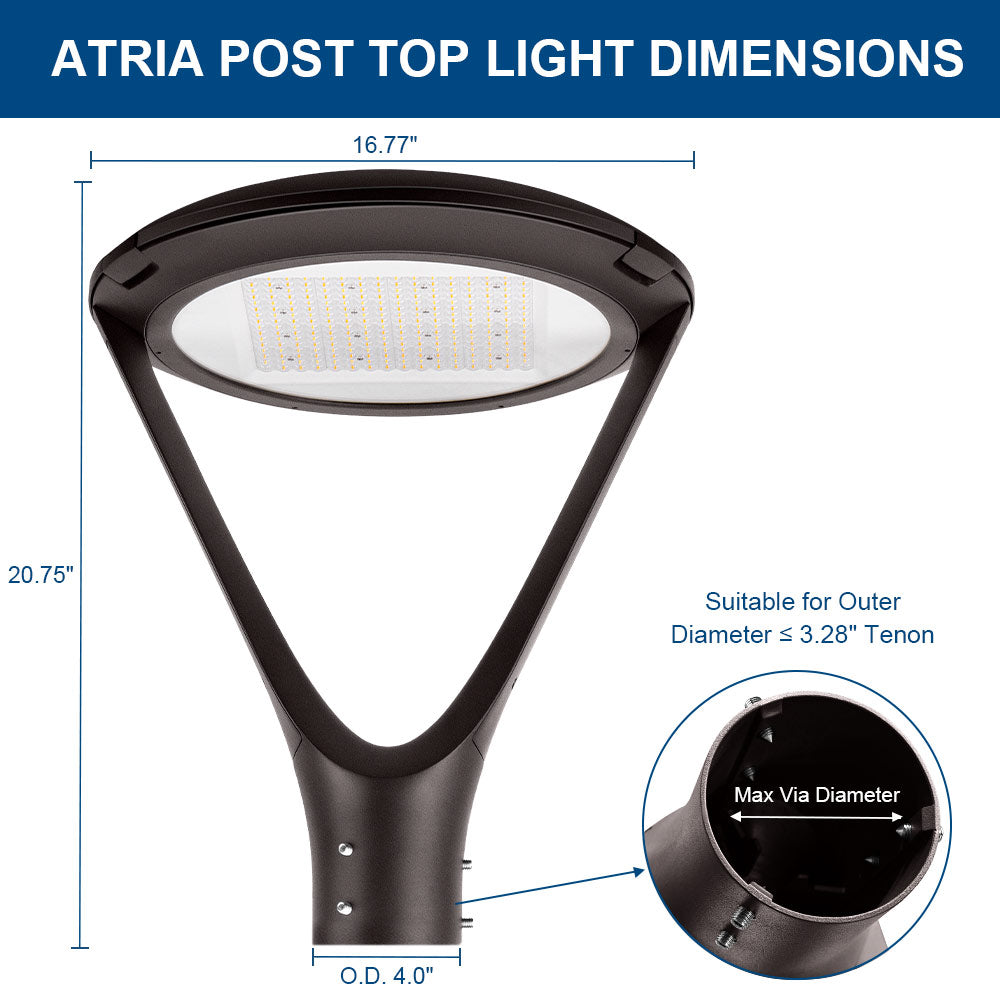

Atria post top light dimensions diagram with measurements and specifications.

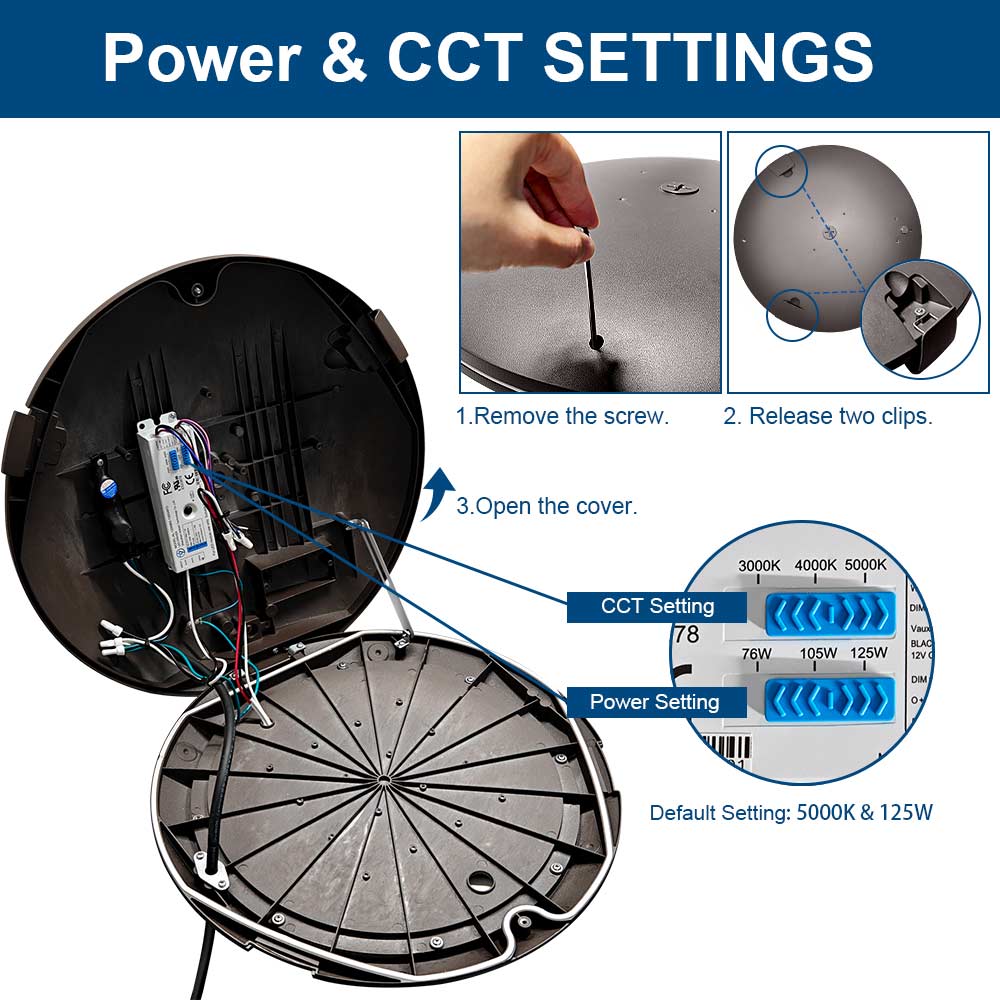

Step-by-step guide on how to adjust power and CCT settings on an Atria post top light

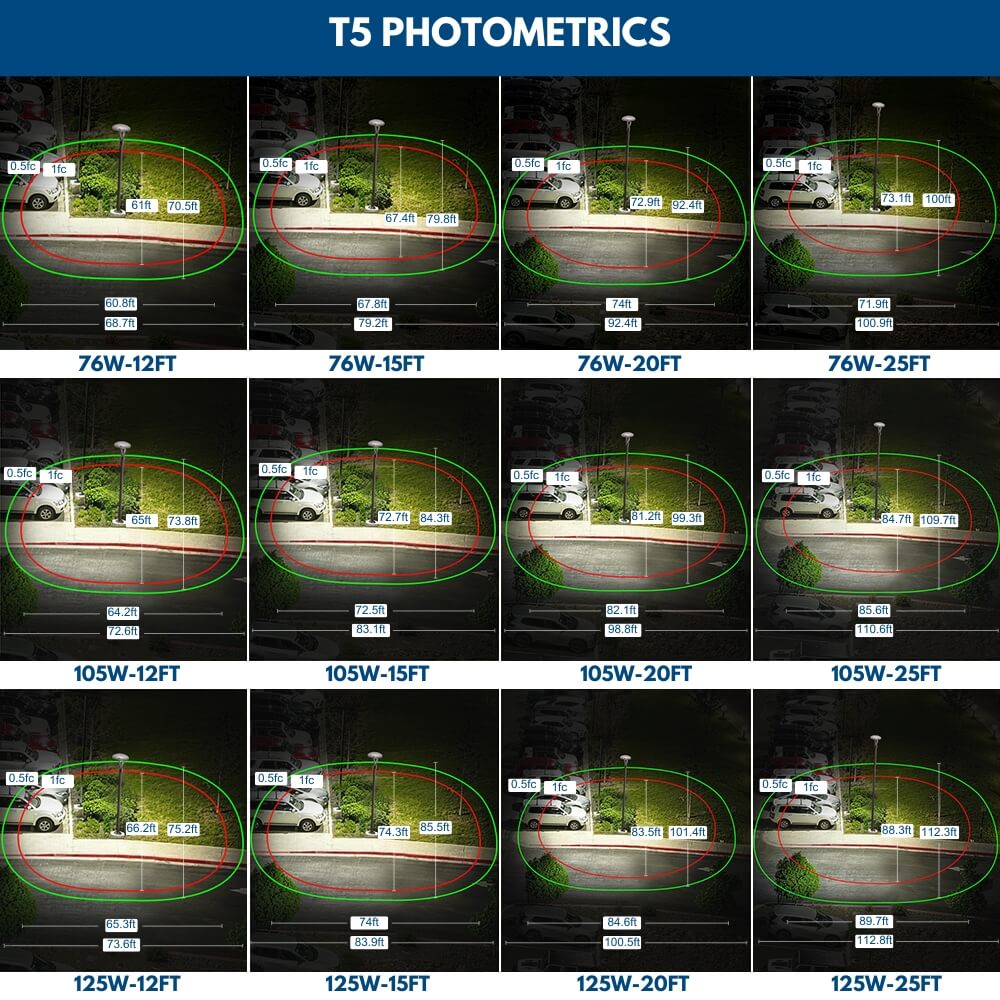

Comparison chart of T5 photometrics showing Konlite Post Top light coverage at different distances

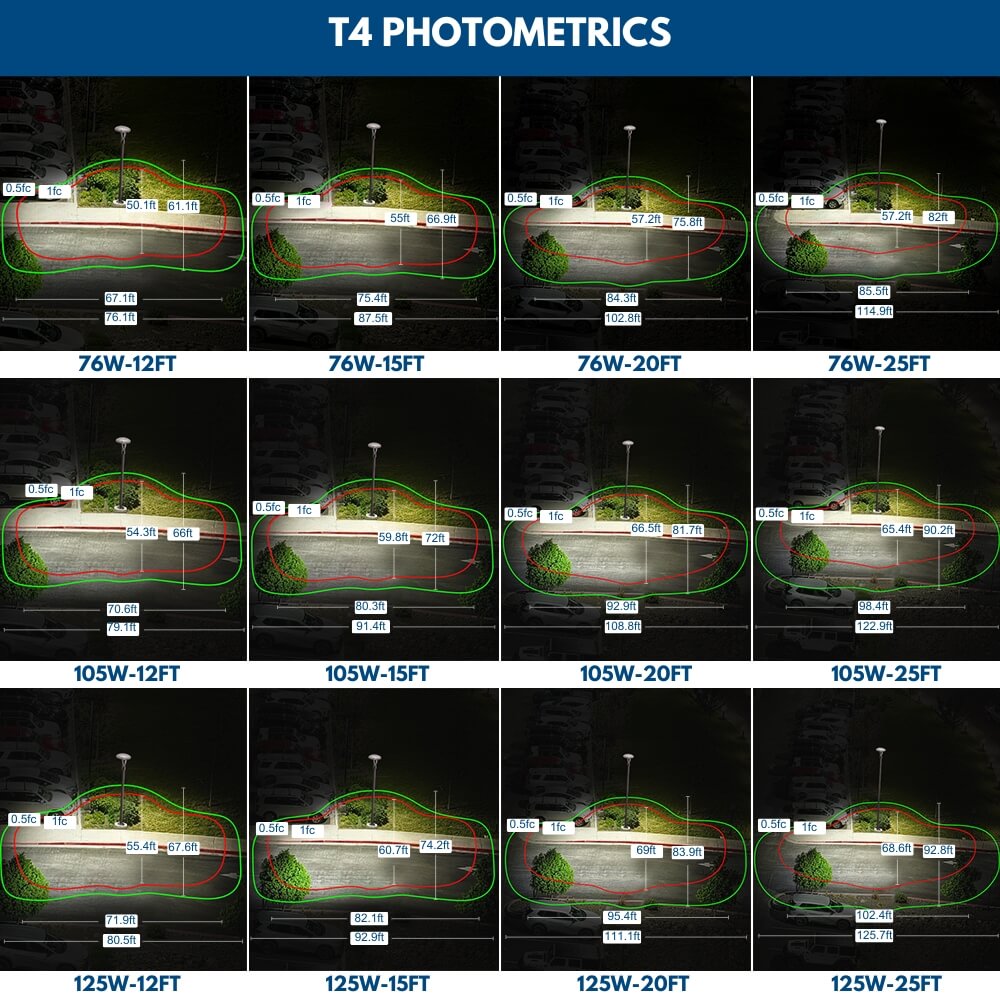

Comparison chart of T4 photometrics showing Konlite Post Top light coverage at different distances

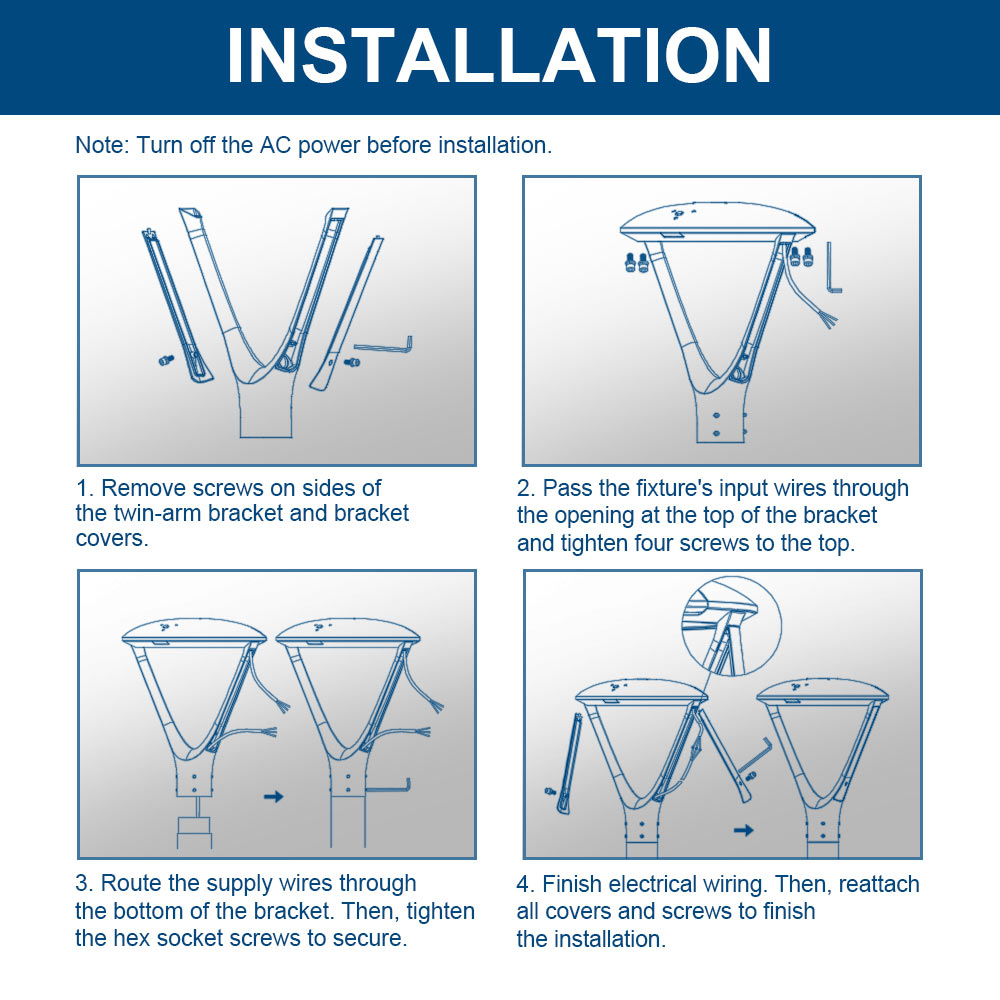

Step-by-step installation guide for a twin-arm bracket

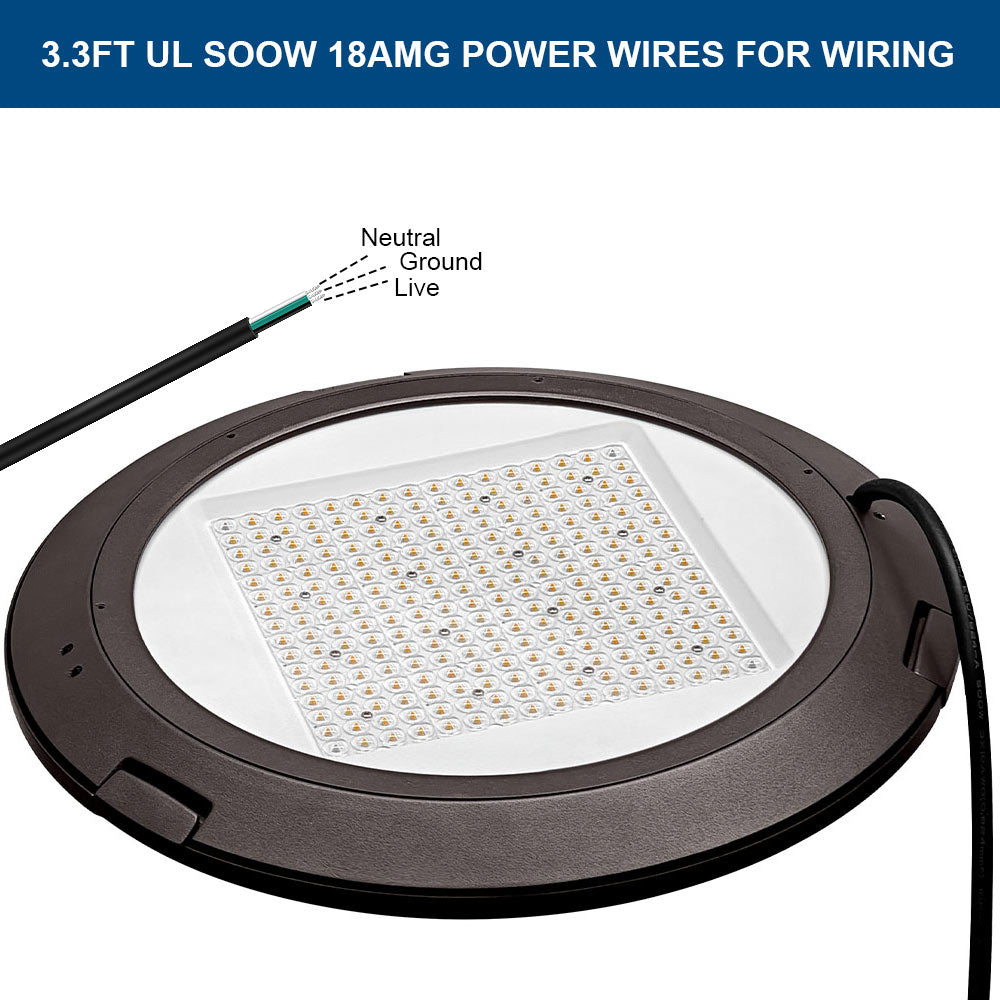

Konlite Atria LED Post Top Light with power wires labeled

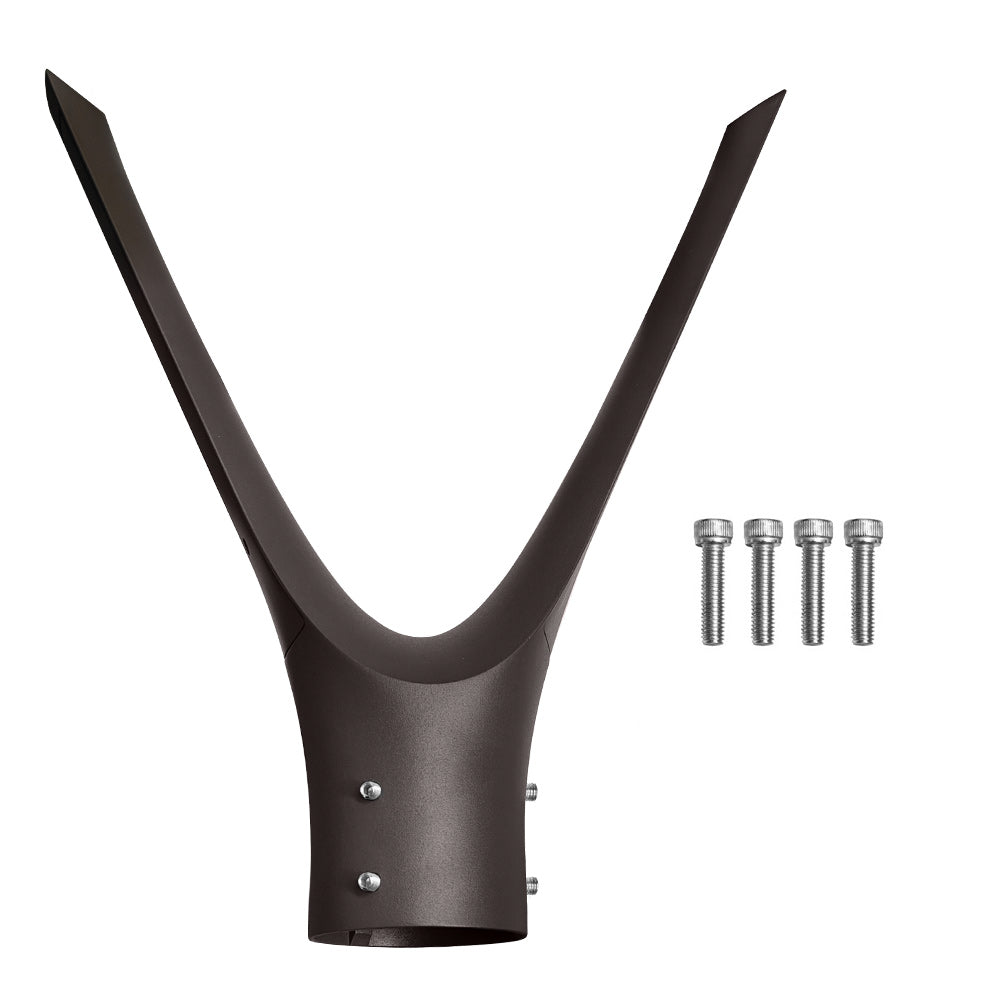

Dark Bronze metal bracket with four screws for a Konlite Atria LED Post Top Light

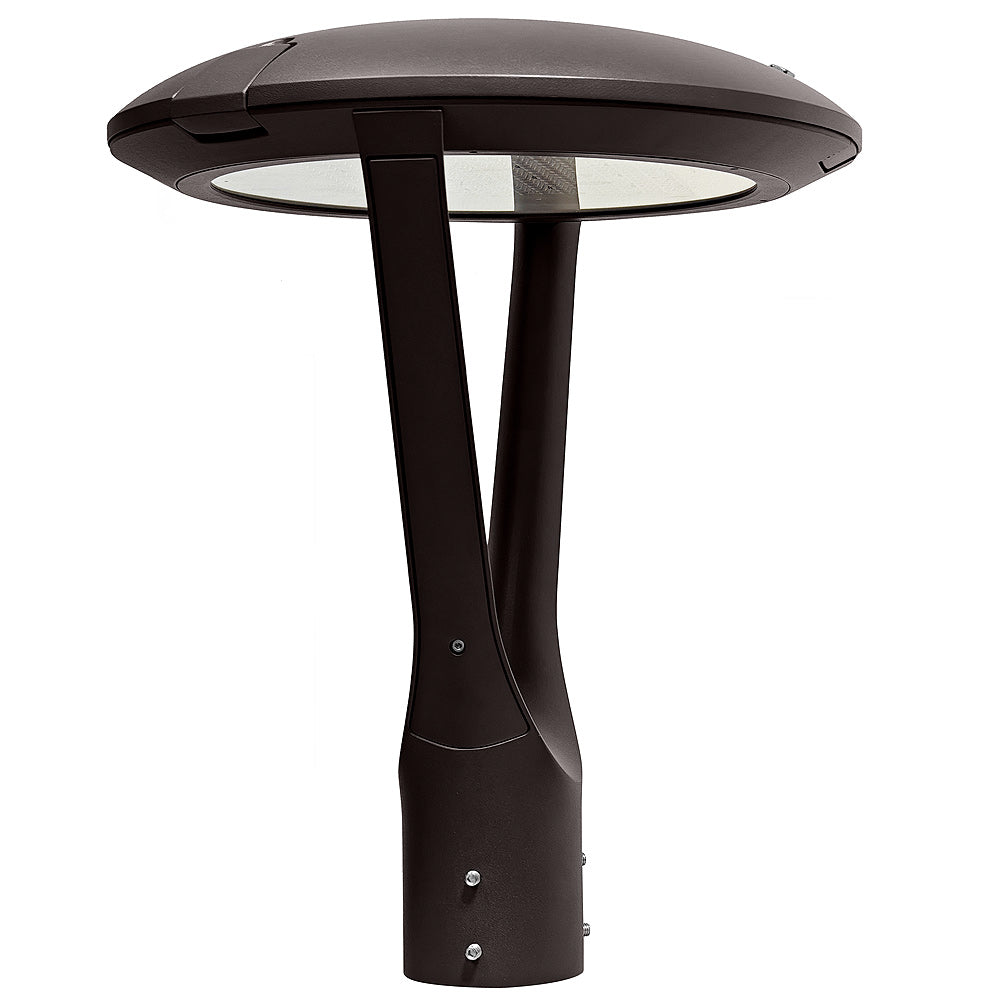

Size view of a Konlite Atria LED Post Top Light

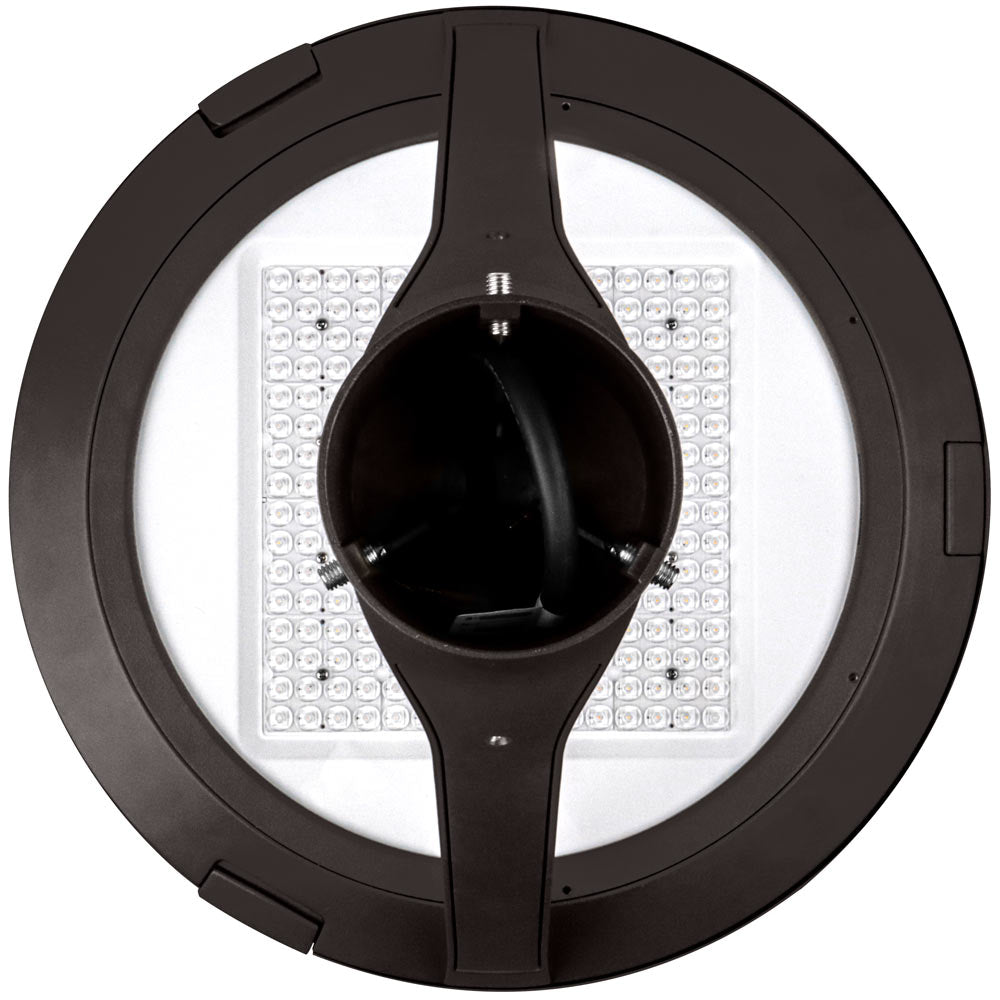

Button View of a Konlite Atria LED Post Top Light
Konlite Atria LED Post Top Light with selectable color temperatures and wattages
Konlite Atria LED Post Top Lights in various conditions

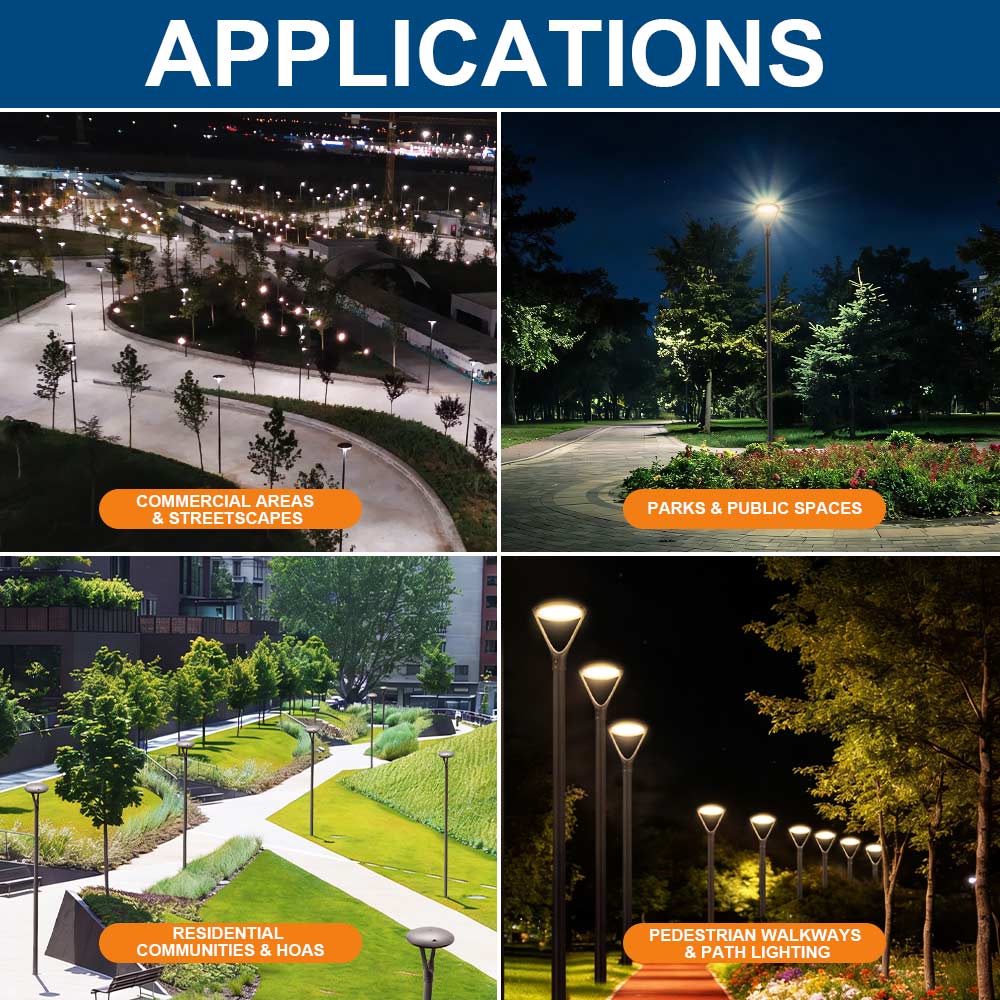

Wide range of applications for Konlite Atria LED Post Top Lights

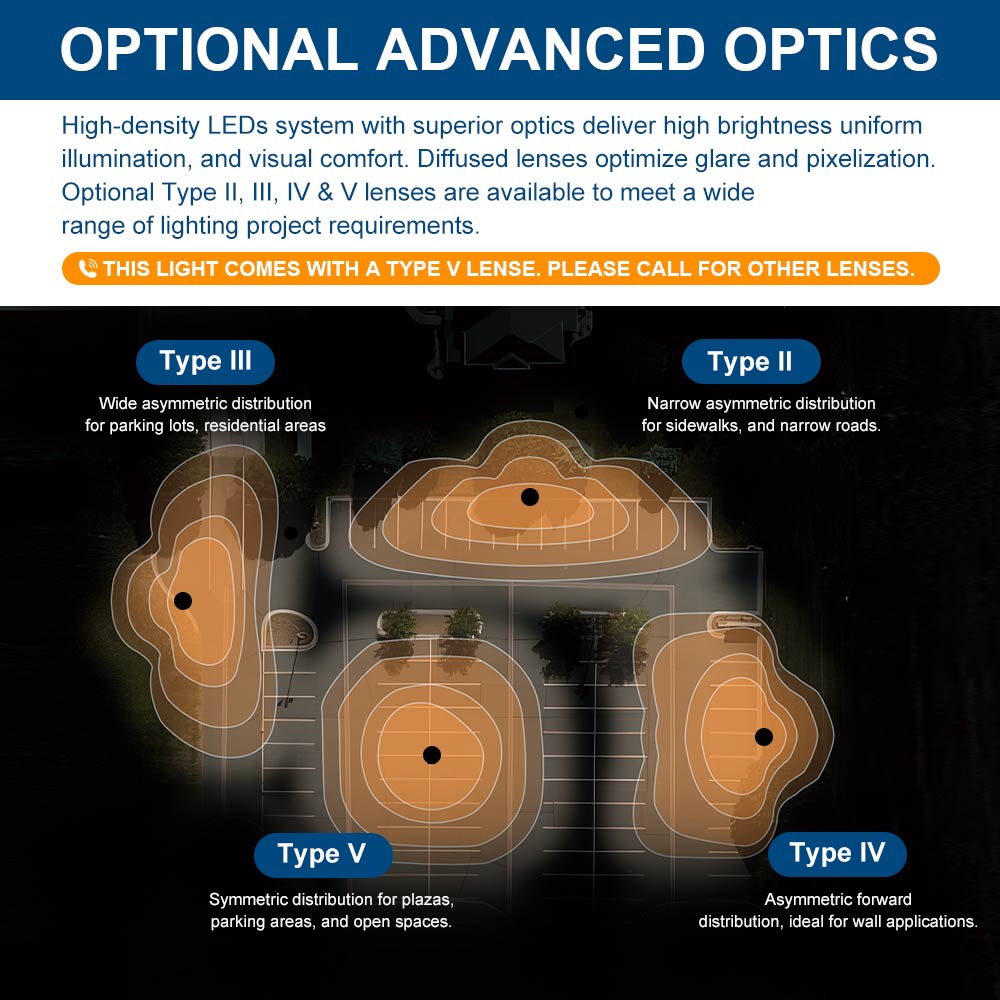

Different optics for a Konlite Atria LED Post Top Light

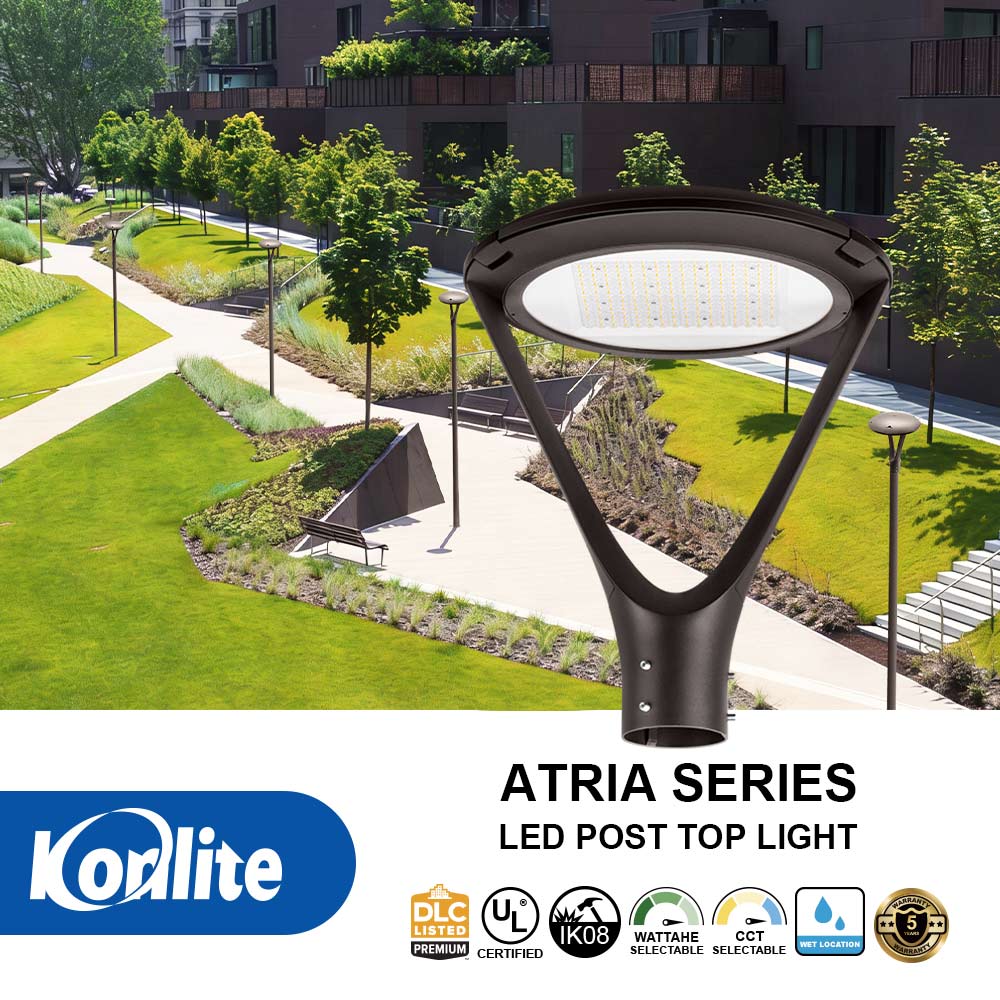

Korllite Atria Series LED post top light in an urban park setting

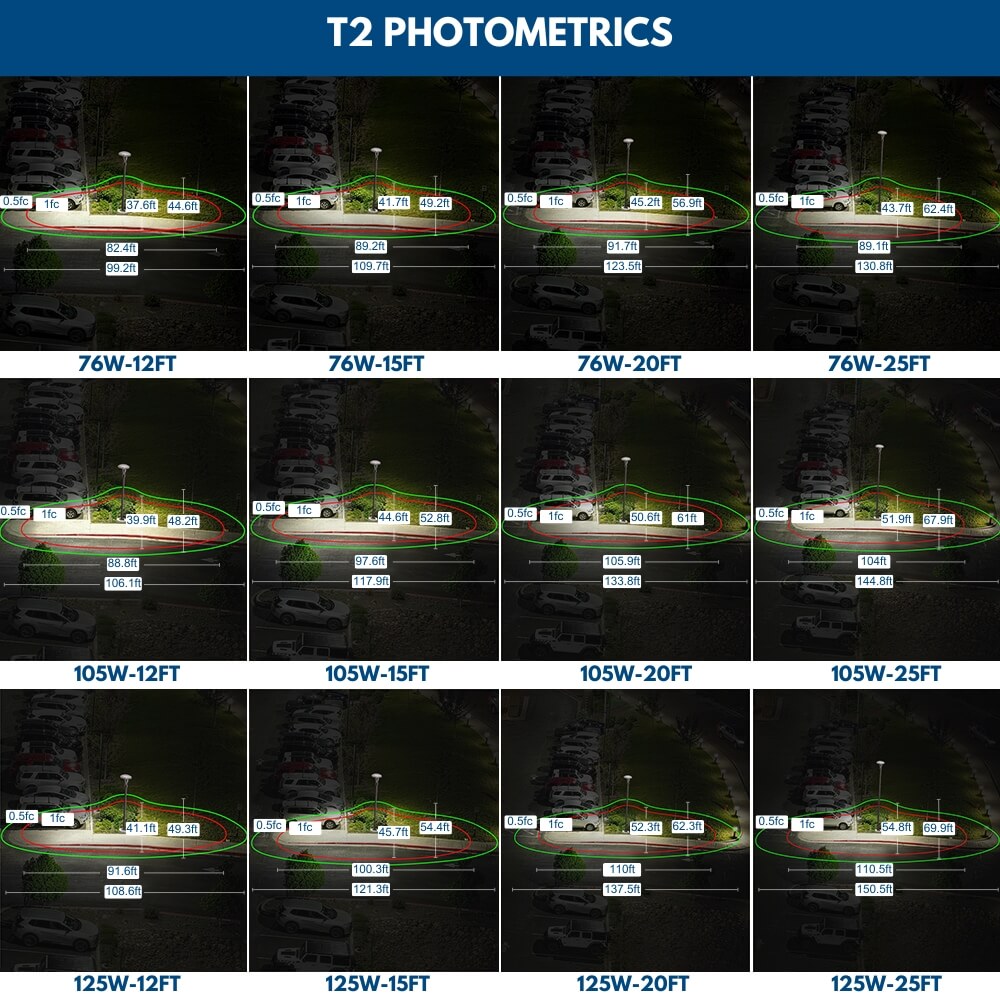

Comparison chart of T2 photometrics showing Konlite Post Top light coverage at different distances

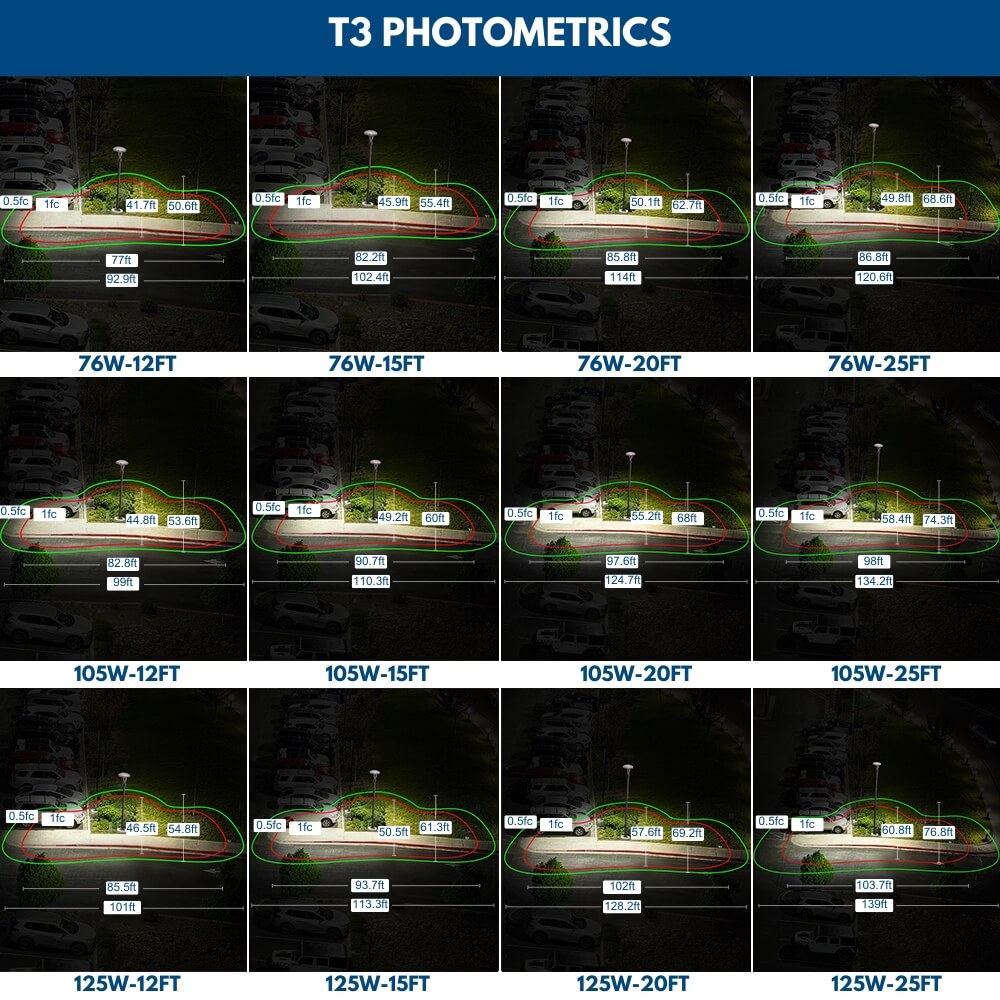

Comparison chart of T3 photometrics showing Konlite Post Top light coverage at different distances
Roll over image to zoom in Click on image to zoom
125W Konlite Atria LED Post Top LightKonlite Atria LED Post Top Light with features highlightedAtria post top light dimensions diagram with measurements and specifications.Step-by-step guide on how to adjust power and CCT settings on an Atria post top lightComparison chart of T5 photometrics showing Konlite Post Top light coverage at different distancesComparison chart of T4 photometrics showing Konlite Post Top light coverage at different distancesStep-by-step installation guide for a twin-arm bracketKonlite Atria LED Post Top Light with power wires labeled Dark Bronze metal bracket with four screws for a Konlite Atria LED Post Top LightSize view of a Konlite Atria LED Post Top LightButton View of a Konlite Atria LED Post Top LightKonlite Atria LED Post Top Light with selectable color temperatures and wattagesKonlite Atria LED Post Top Lights in various conditions Wide range of applications for Konlite Atria LED Post Top LightsDifferent optics for a Konlite Atria LED Post Top LightKorllite Atria Series LED post top light in an urban park settingComparison chart of T2 photometrics showing Konlite Post Top light coverage at different distancesComparison chart of T3 photometrics showing Konlite Post Top light coverage at different distances
  • The Konlite multi-use LED light for Poles combines advanced optics and modern profile design to deliver enhanced performance to any area lighting application. Reduce energy consumption up to 65% compared to HPS or HID. Replaces 400W metal-halide.
  • Rugged die-cast housing provides advanced thermal management for durability and weather-proof compartment to withstand outdoor environments.
  • Attractive ROI. Designed for low maintenance, long life and low cost of ownership while increasing security and safety.
What's in the box
Includes 1 fixture, 1 installation guide
Same day shipping from Atlanta WarehouseIN STOCK - Order Now.
Ships within 1 Business Day. Excludes LTL shipments.

KONLITE Atria LED Post Top Light - 18,700 lumens - 125W/105W/76W - 5000K/4000K/3000K - 120-277V - 400W Equal - Dark Bronze

Konlite SKU: KARHWMCLT5TPD SEARCH CODE: 20-0603
    • Replaces up to 400W M.H/HID
    • Dimensions: Ø16.77" x 20.75" H
    • Type 5 Lighting Distribution
    • Contact us for availability of T4, T3 or T2 Distribution
    • CCT: 3000K, 4000K or 5000K
    • Watts: 125W/105W/76W Selectable
    • Lumens: 18.7K/15.9K11.7K Selectable
    • Fits On 3" Poles
    • Dark Bronze Finish
    • 5 Years Warranty
$329.99 $264.65

  • Secured payment methods. Revolve LED never stores nor has access to your card information.

  • 90 days return without restocking fee*.

  • $199 Free Shipping on eligible products*

  • Availability: Usually Ships in one to three business days.
  • The Konlite multi-use LED light for Poles combines advanced optics and modern profile design to deliver enhanced performance to any area lighting application. Reduce energy consumption up to 65% compared to HPS or HID. Replaces 400W metal-halide.
  • Rugged die-cast housing provides advanced thermal management for durability and weather-proof compartment to withstand outdoor environments.
  • Attractive ROI. Designed for low maintenance, long life and low cost of ownership while increasing security and safety.
What's in the box
Includes 1 fixture, 1 installation guide
125W Konlite Atria LED Post Top Light
KONLITE Atria LED Post Top Light - 18,700 lumens - 125W/105W/76W - 5000K/4000K/3000K - 120-277V - 400W Equal - Dark Bronze
$329.99 $264.65
What's in the box
Includes 1 fixture, 1 installation guide

Product Overview

Upgrade your outdoor lighting with the Konlite Atria Series LED Post Top Light, a high-performance, energy-efficient solution designed for streets, parking lots, pathways, campuses, and commercial outdoor spaces. Featuring a sleek architectural design and advanced LED technology, this fixture delivers uniform illumination, long lifespan, and low maintenance, making it ideal for both retrofit and new construction projects.

Key  Features

🔹 Wattage Selectable (76W / 105W / 125W)

Easily adjust light output in the field to match your application needs, helping reduce energy consumption while maintaining optimal brightness.

🔹 CCT Selectable (3000K / 4000K / 5000K)

Switch between warm, neutral, and daylight color temperatures to achieve the perfect balance of visibility, comfort, and aesthetics.

🔹 High Efficiency up to 150 LM/W

Delivers powerful illumination with low glare optics , ensuring wide and uniform light coverage.

🔹 Durable Outdoor Construction

Built with die-cast aluminum housing and a harsh-environment-grade powder-coated finish, providing excellent corrosion resistance and long-term durability in demanding outdoor conditions.

🔹 Fully Sealed & Weather Resistant

Engineered to withstand moisture, dust, and environmental contaminants, ensuring reliable performance in all weather conditions.



Applications

• Area Lighting • Parking Lots
• Streets

• Roadways & Pathways
• Parks • Car Dealerships
• Outdoor Common Areas
Color Temperature Selectable 3,000K, 4,000k & 5,000k color temperature
Certifications
US company5 years warrantyDLC PremiumRoHS compliance FCC certificationIP65 rating

Specifications

BrandKonliteMPNKARHWMCLT5TPD
WarrantyLimited 5 YearsUPC605547992209
Input Voltage120-277VBeamType V
Input Wattage125W/105W/76WEqual to400W MH
Lumens18,700 Max.CRI>70
Efficacy150 LM/WAvailable CCT5000K/4000K/3000K
Rated Life>50,000 hrsTHD<18%
Power Factor>0.92IP RatingIP65
DimmableN/AControlsOptional
Operating Temperature-20 to 113 FDimensionsØ16.77" x 20.75"H
CertificationsUL, Wet Locations, DLC PremiumWeight13.2 lbs
