Product Overview

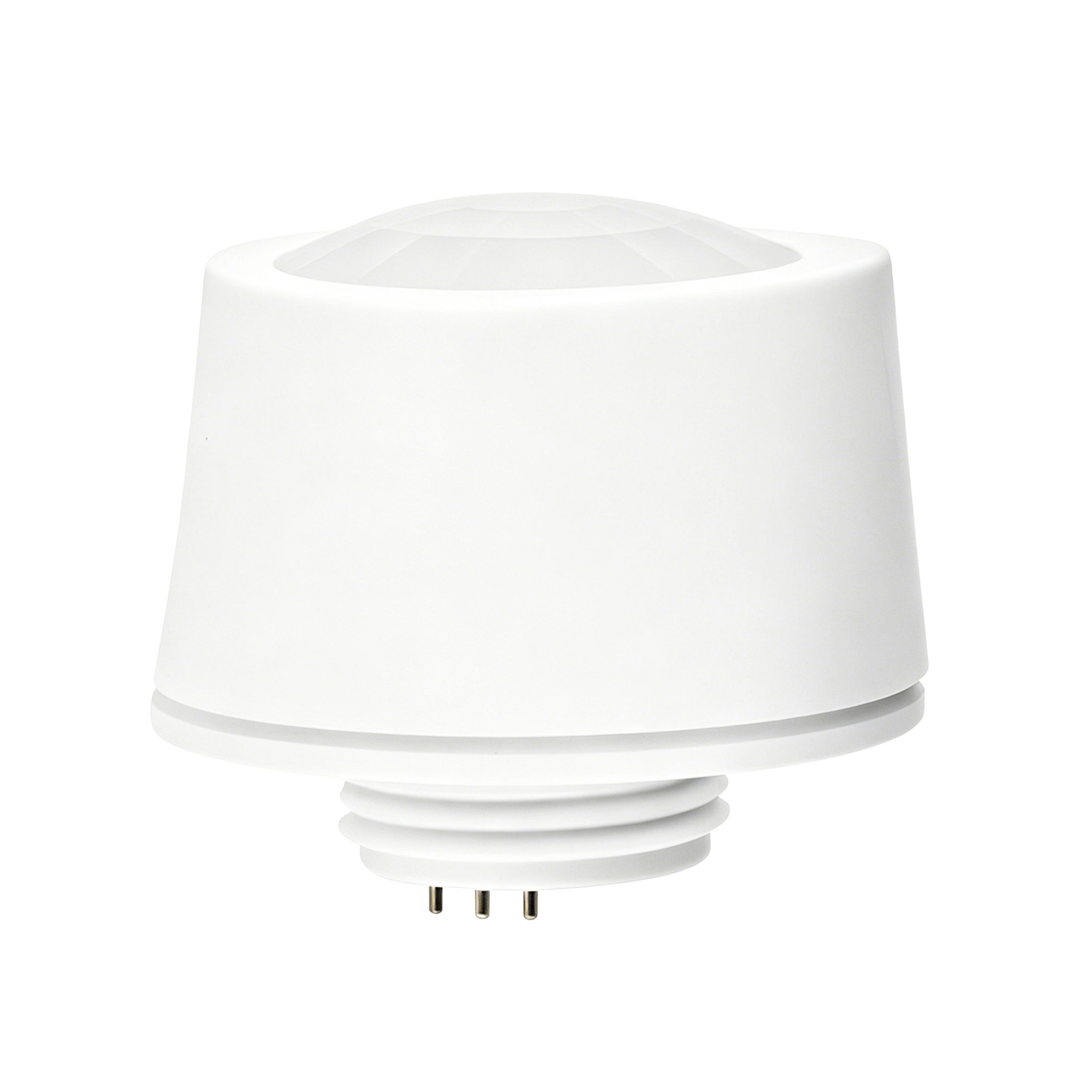

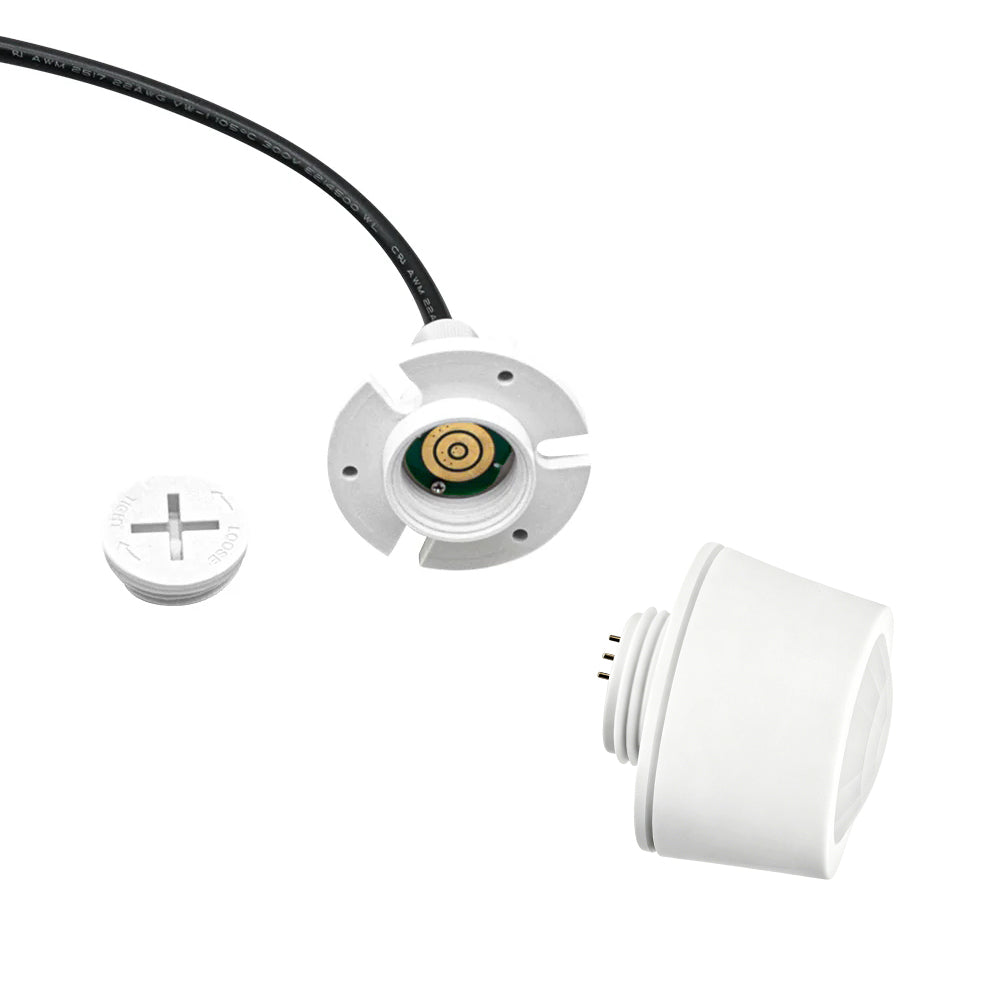

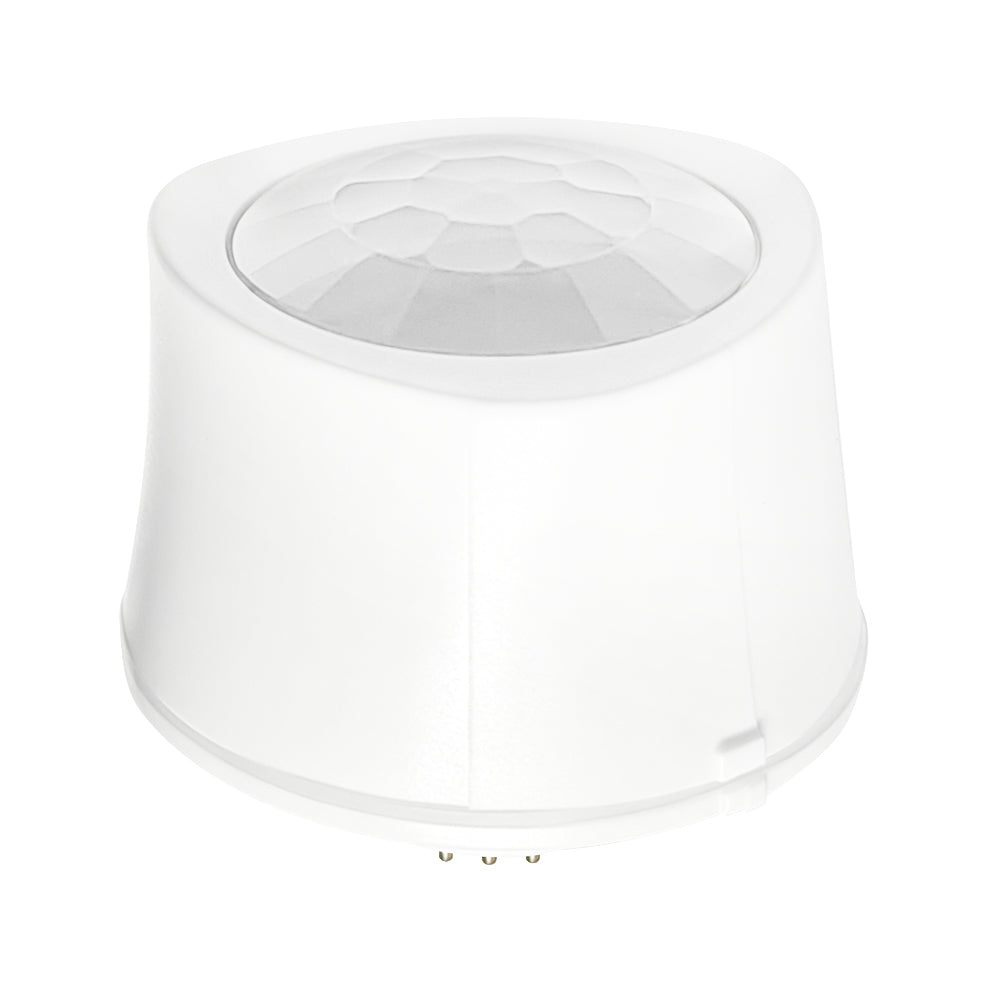

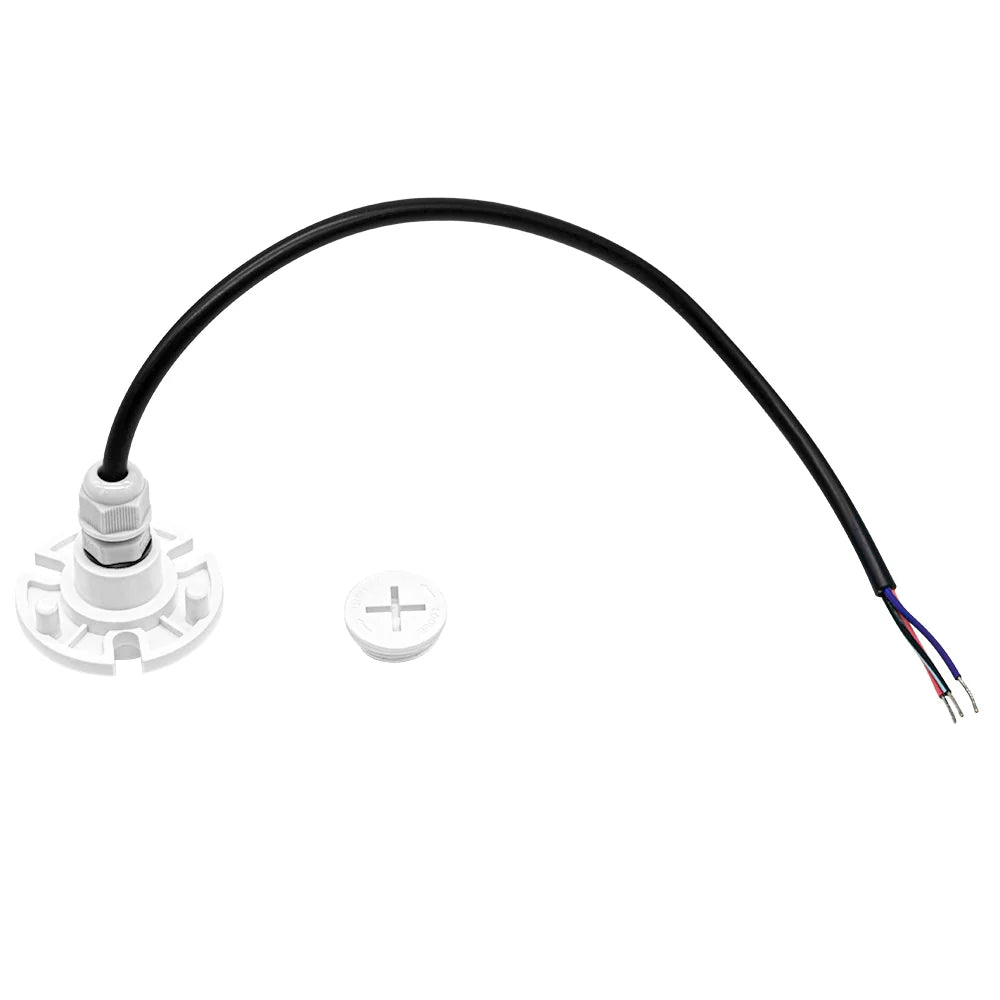

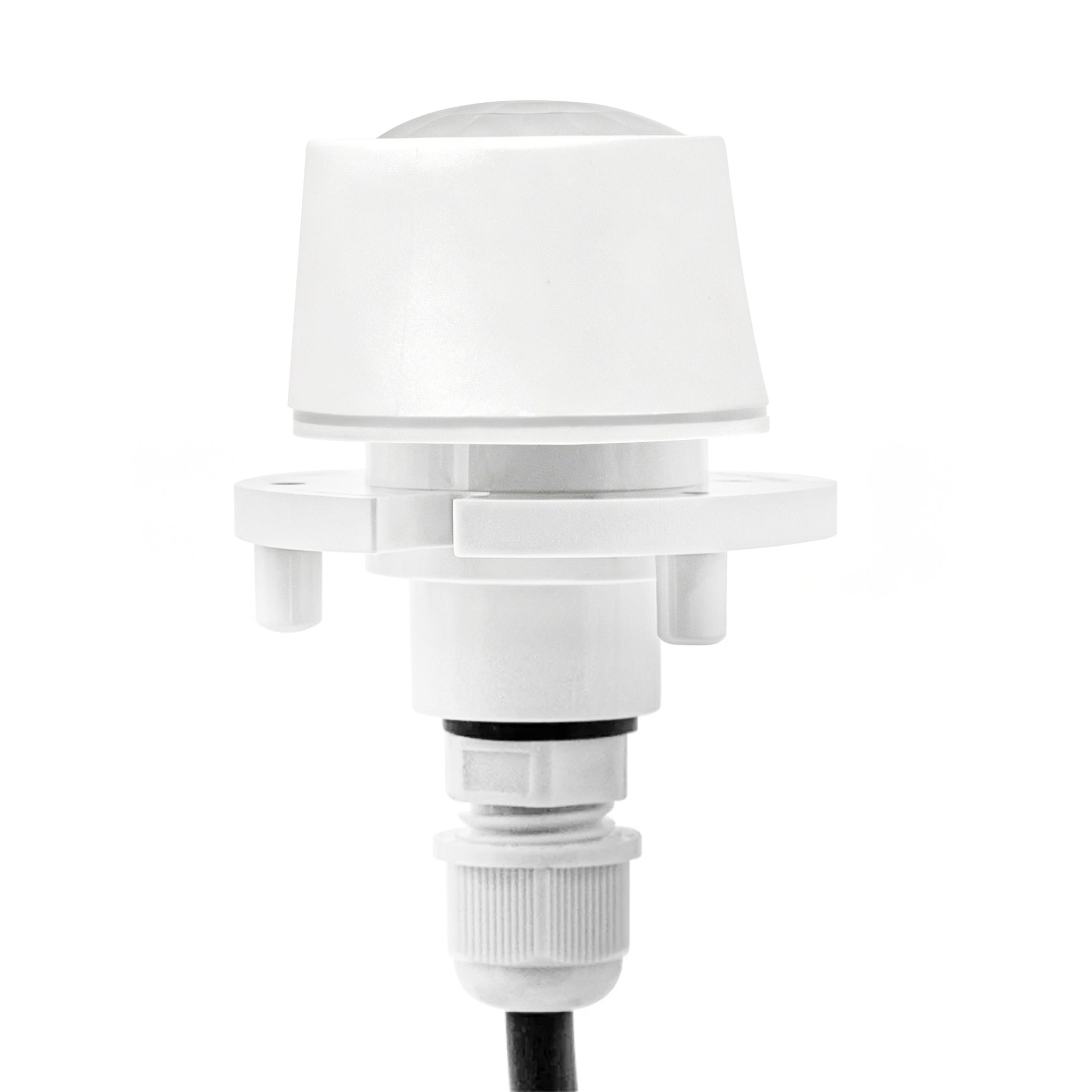

The Atria LED PIR Motion Sensor Kit is designed to add automatic motion control and daylight-based operation to compatible Atria LED lighting fixtures. This kit includes the Haisen PIR sensor and sensor base required for installation with Atria LED Post Top Lights, Area Lights, and Canopy Lights.
The sensor supports 0-10V dimming control, allowing the fixture to automatically turn on, dim down, or turn off based on motion detection and ambient light levels. With an IP65-rated design, the sensor is suitable for indoor and outdoor lighting applications where energy savings and automatic control are needed.
This sensor kit must be pre-installed before the light fixture ships. Please select this option when ordering your Atria fixture if motion sensor control is required.
Key Features:
- Precision Motion Detection: Equipped with advanced PIR (Passive Infrared) technology, this sensor detects the slightest movements, ensuring your parking lot is well-lit during vehicle and pedestrian movement, and conserves energy during inactive periods.
- Pre-Installed Convenience: To save you time and ensure perfect functionality from the start, the PIR motion sensor is pre-installed on your LED lighting fixtures. The installation process prior to shipping takes approximately 2-3 business days.
- Energy Efficiency: By lighting up only when required, this sensor significantly reduces electricity consumption, making your lighting solution both cost-effective and environmentally friendly.
- Robust Design: IP 65 rated. Designed for outdoor environments, it withstands various weather conditions, ensuring reliable performance year-round.

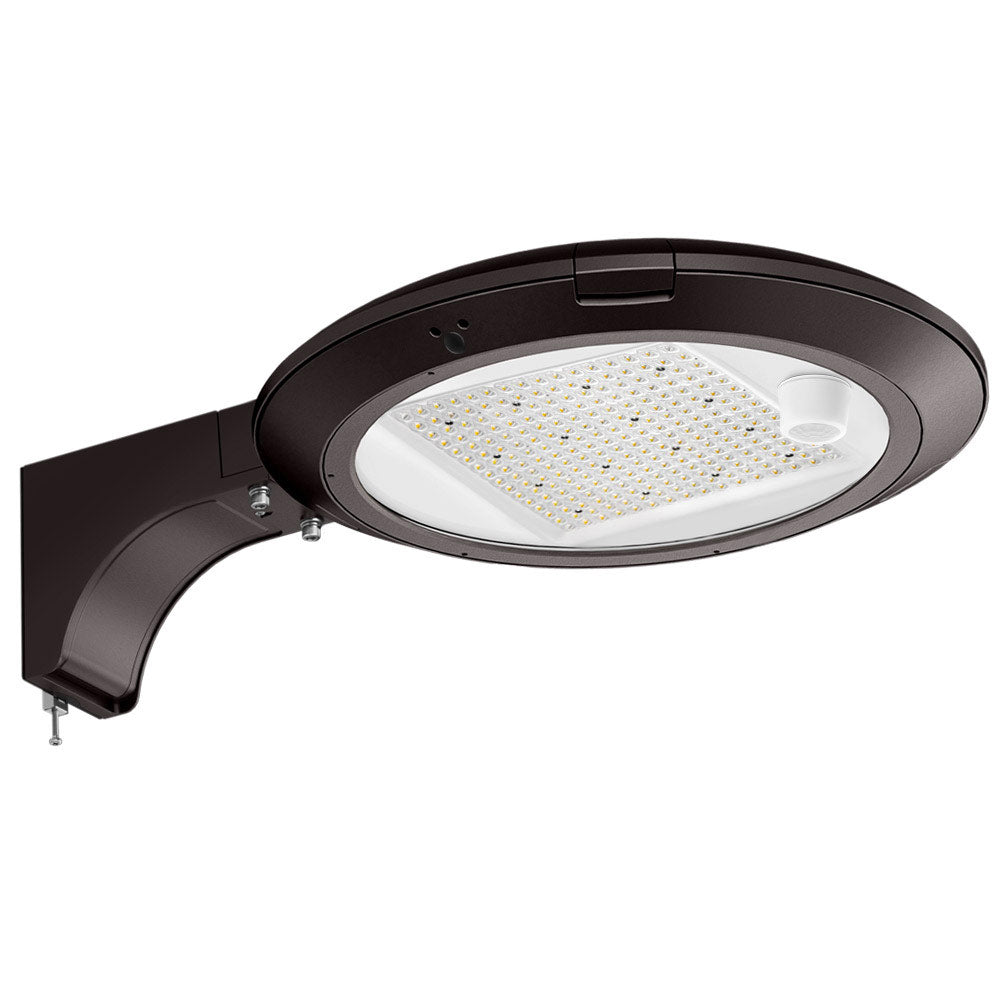

- Easy Integration: Compatible with Atria LED Post Top Lights, Area Lights, and Canopy Lights, this sensor integrates smoothly into your existing setups without the need for extensive modifications.
Upgrade your lighting system with the Atira LED lights with PIR Motion Sensor and benefit from increased security, enhanced energy efficiency, and overall improved functionality of your parking lot lighting solutions.
Specification
| Brand | Haisen | MPN | KAR-HSE-SP19L-1 |
| Control | On/off / 1-10V Dimming | Setting tool | Remote Control (HSE06R). |
| Detection area | 25%/50%/75%/100% | Hold time | 5s/30s/1min/3min/5min/10min/20min/30min |
| Stand-by period | 0s/10s/30s/1m/5m/10m/30m/60m/+∞ | Stand-by dimming level | 10%/20%/30%/50% |
| Motion detection | 0.5~1.5m/s | Daylight threshold | Disable / 8 settings from 2Lux to 400Lux |
| Mounting height | Max. 26ft | Detection range | Max. 23ft |
| Operating Voltage | 10.5-15V DC | IP rating | IP65 |
| Current | <10mA | Warranty | 5 Years |
*Stand-By Period need to be set to 0s while using with dimmer switch.
*Factory Default Setting: Detection area - 100%/ Hold time - 5s/ Daylight threshold - Disable/Stand-by period - 0s/Stand-by dimming level - 10%. Use Remote Control (HSE06R) to change the factory Default Setting.
