Product Overview

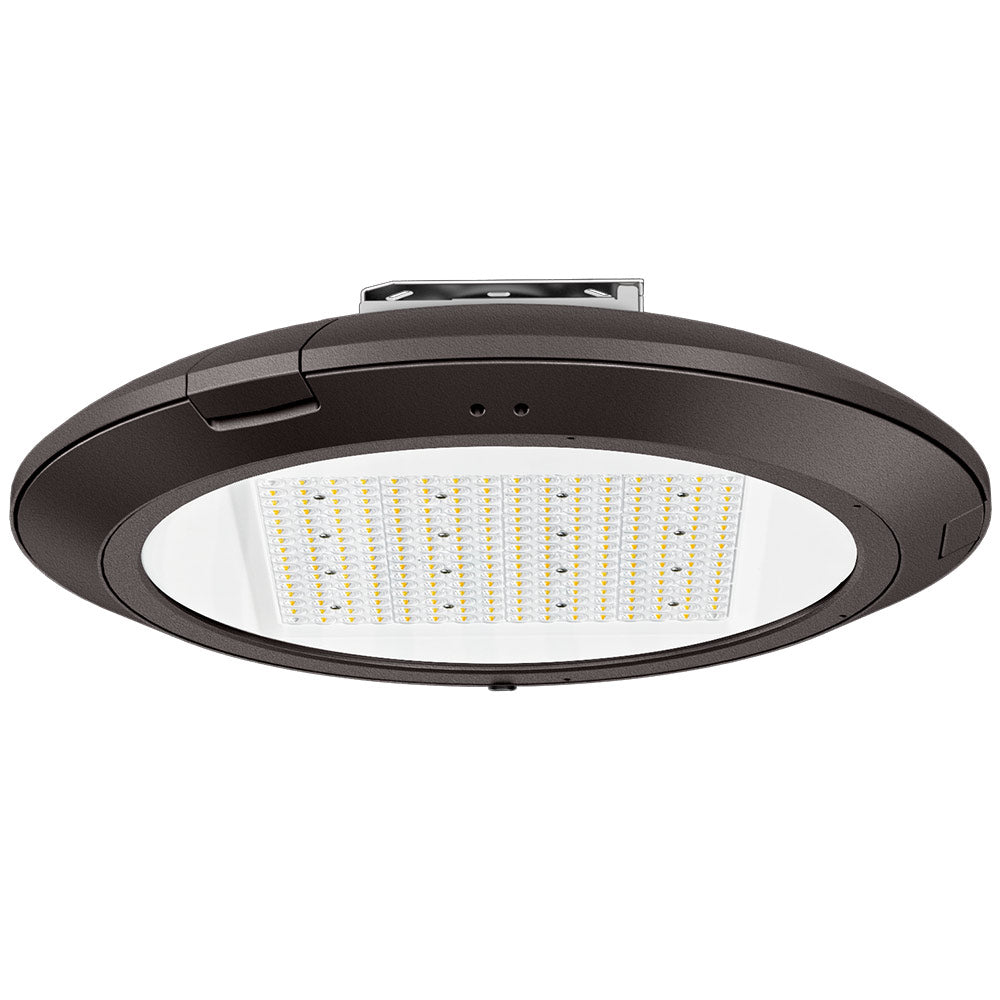

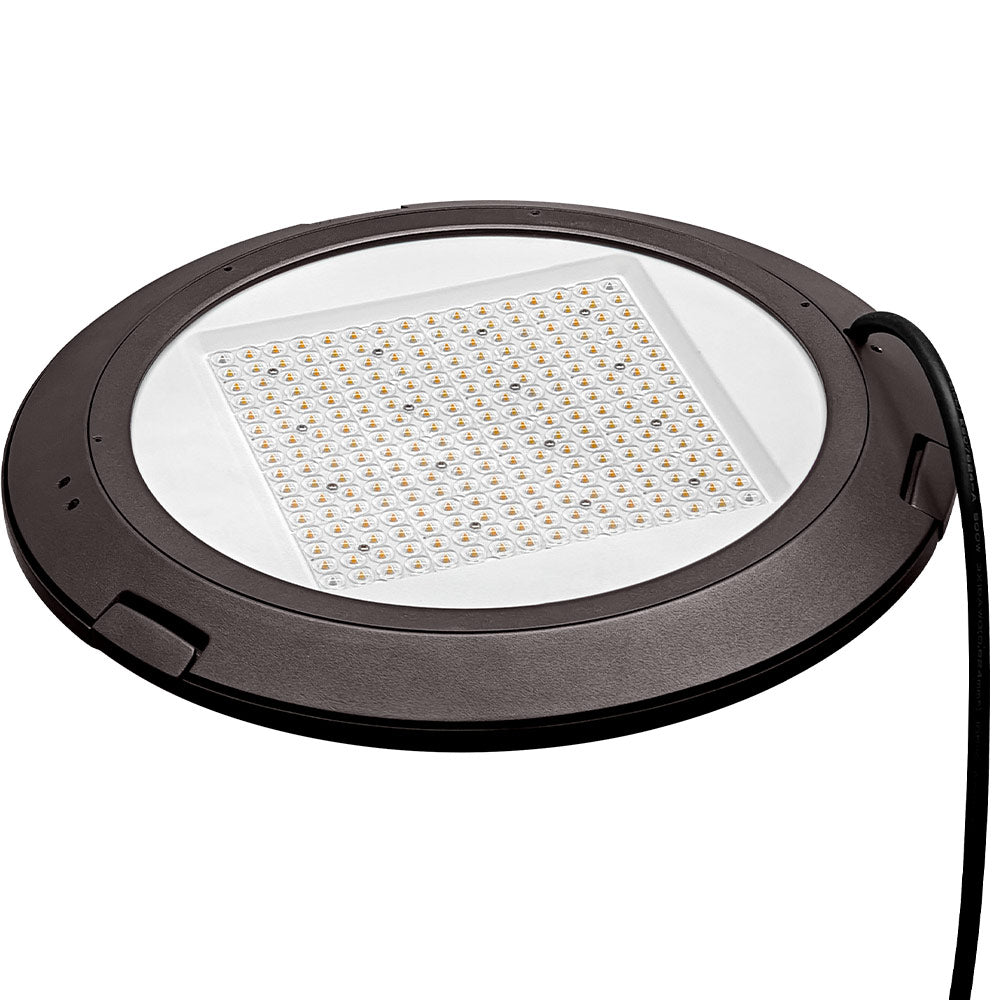

Upgrade your commercial canopy lighting with the Konlite Atria Series Premium LED Canopy Light — an architectural-grade lighting solution designed to combine modern aesthetics with high-performance illumination. Featuring a sleek low-profile design and durable die-cast aluminum housing, the Atria Series delivers reliable, energy-efficient lighting while enhancing the appearance of commercial properties.

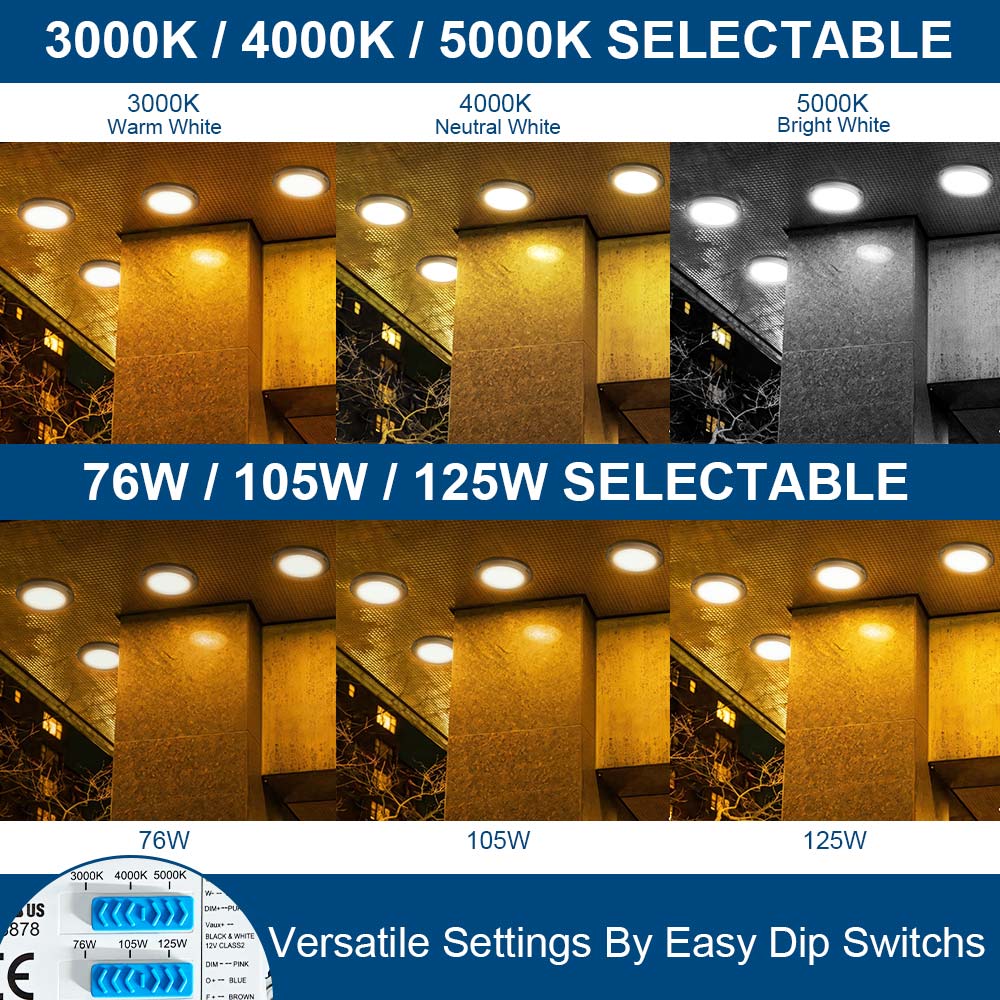

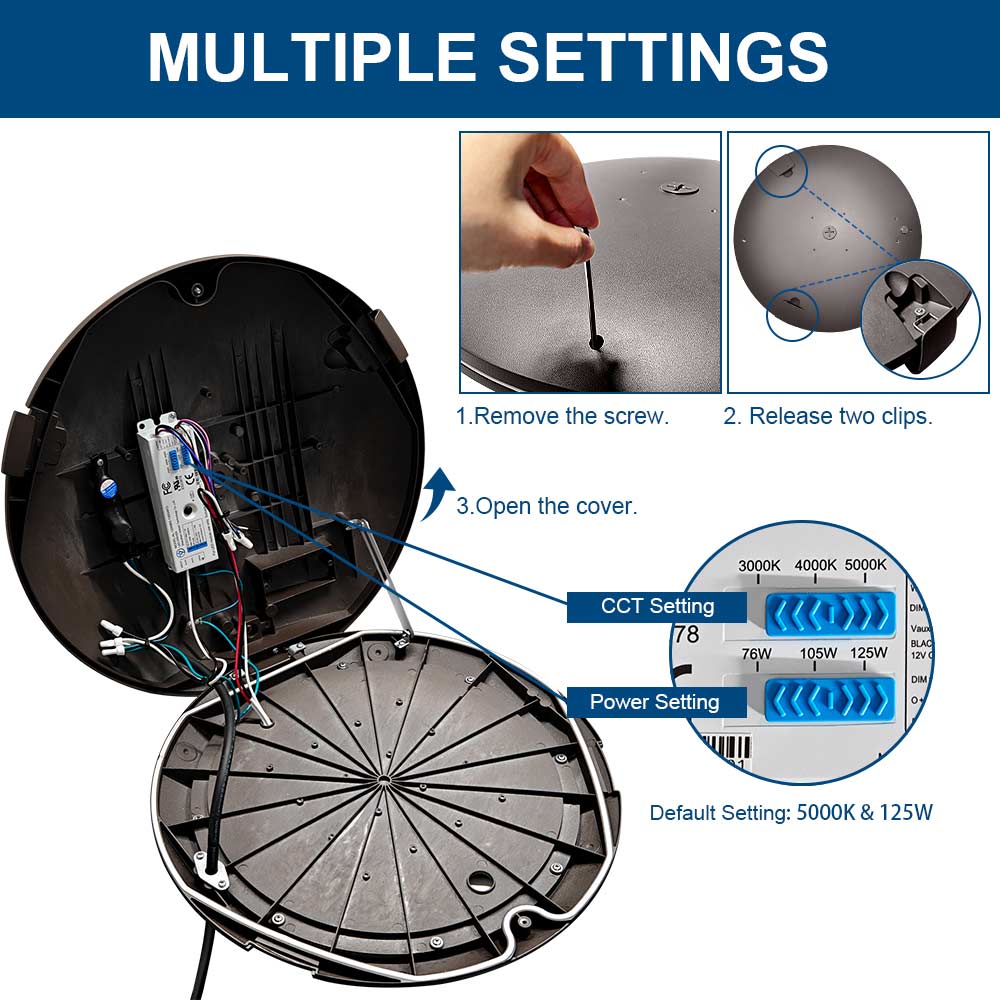

Designed for gas stations, parking garages, covered walkways, transit shelters, building entrances, and retail canopies, this premium LED canopy fixture provides excellent uniformity and wide Type V light distribution with reduced glare. The fixture features selectable wattage settings of 125W / 105W / 76W and selectable color temperatures of 5000K / 4000K / 3000K, allowing contractors and facility managers to customize brightness and light color directly in the field.

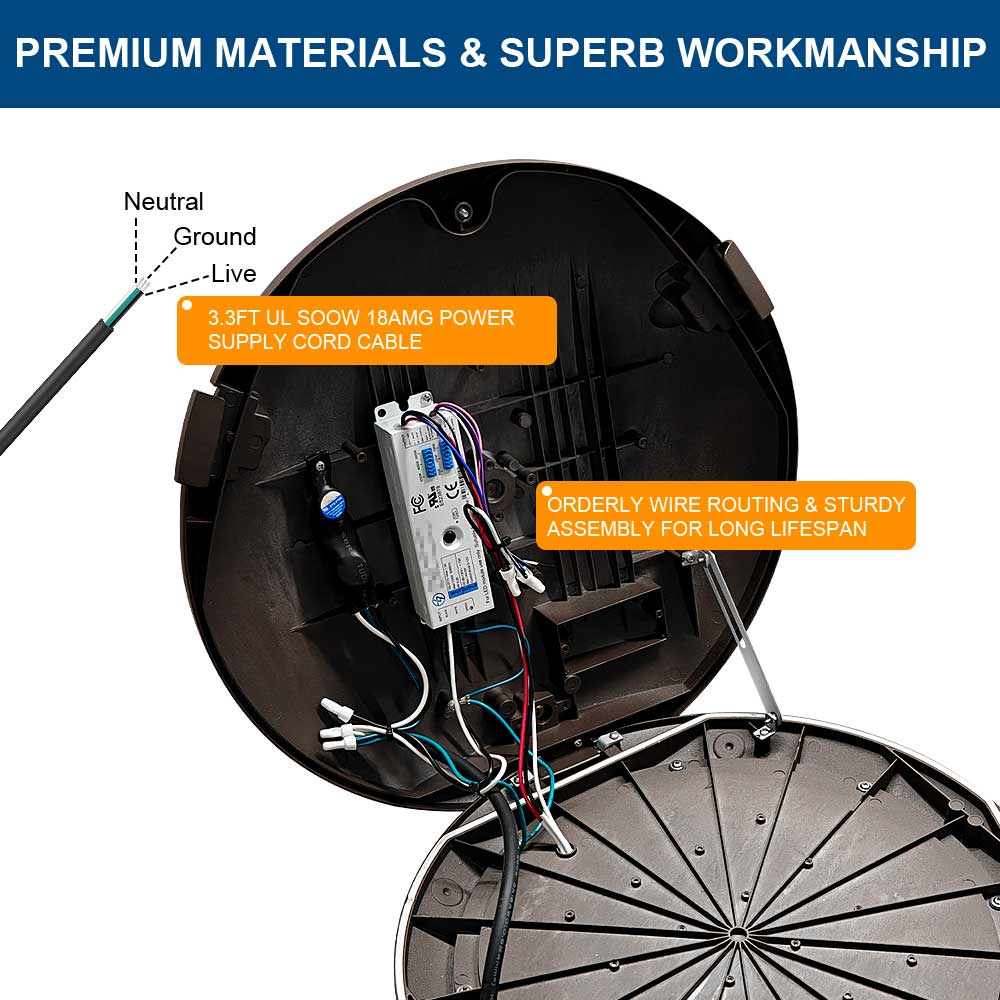

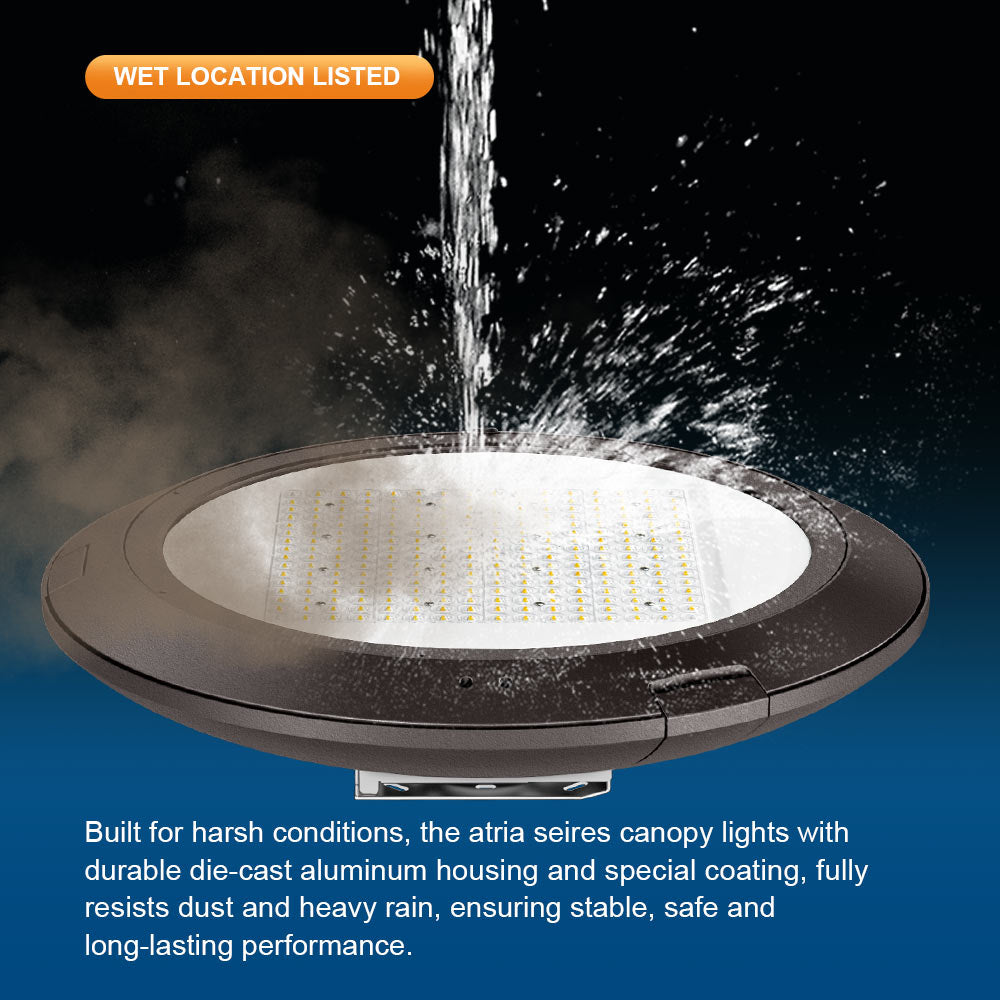

The Atria Series delivers up to 18,710 lumens while achieving up to 159 lumens per watt efficiency for significant energy savings compared to traditional HID canopy fixtures. Built with a fully sealed IP-rated housing, tempered glass diffuser, polycarbonate optical lens, and harsh-environment powder coating, this fixture is engineered for long-lasting performance in demanding indoor and outdoor environments.

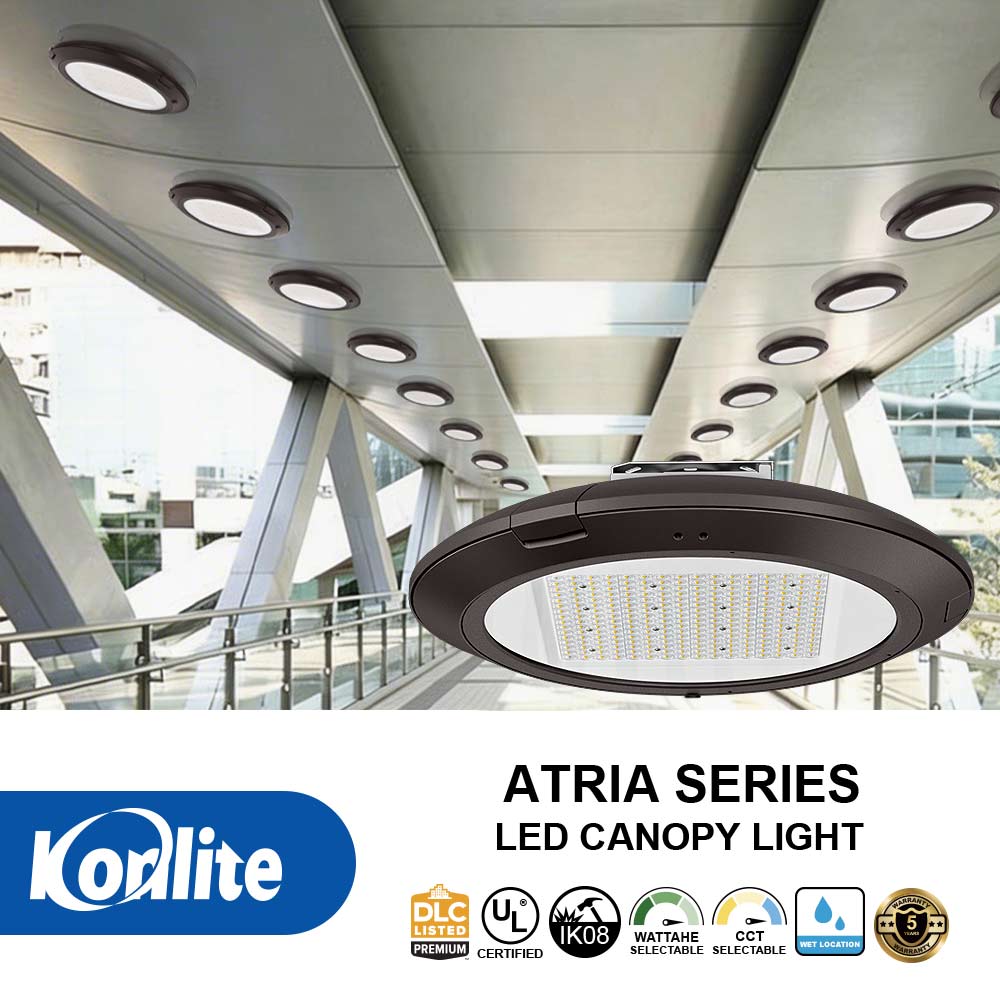

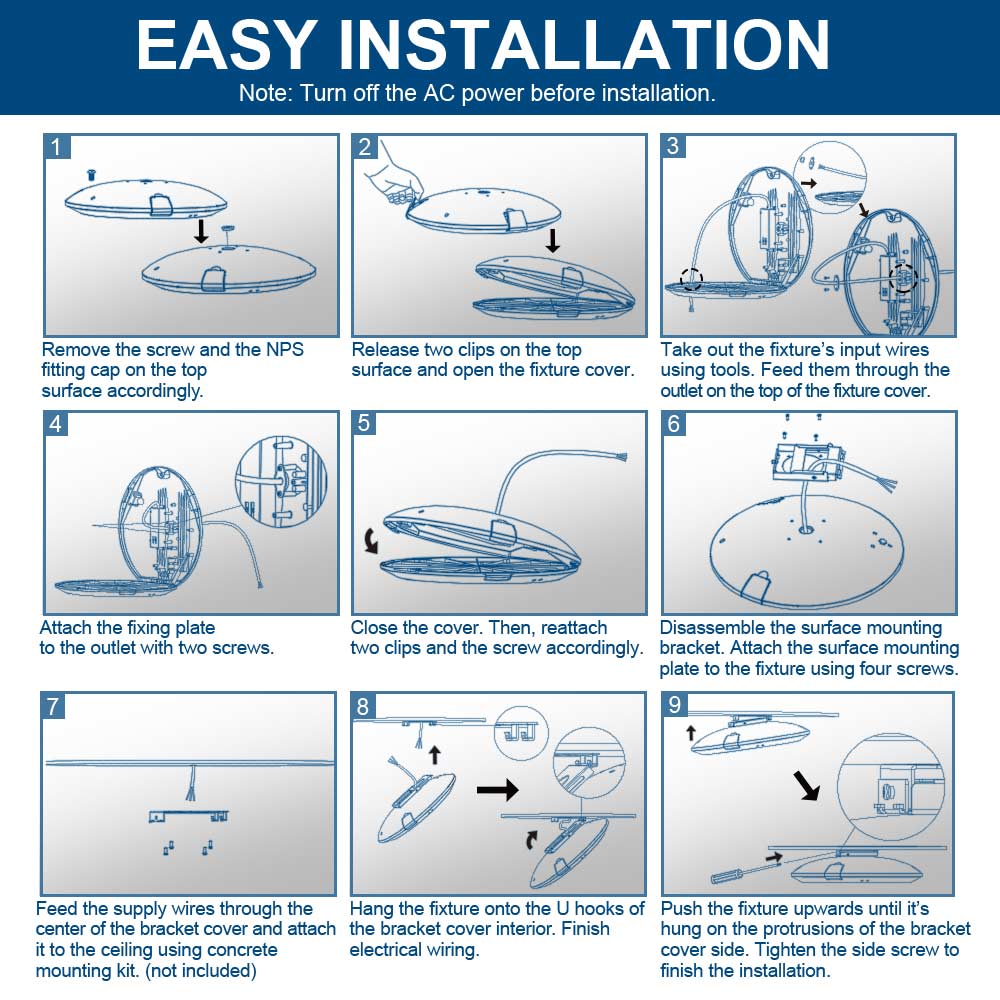

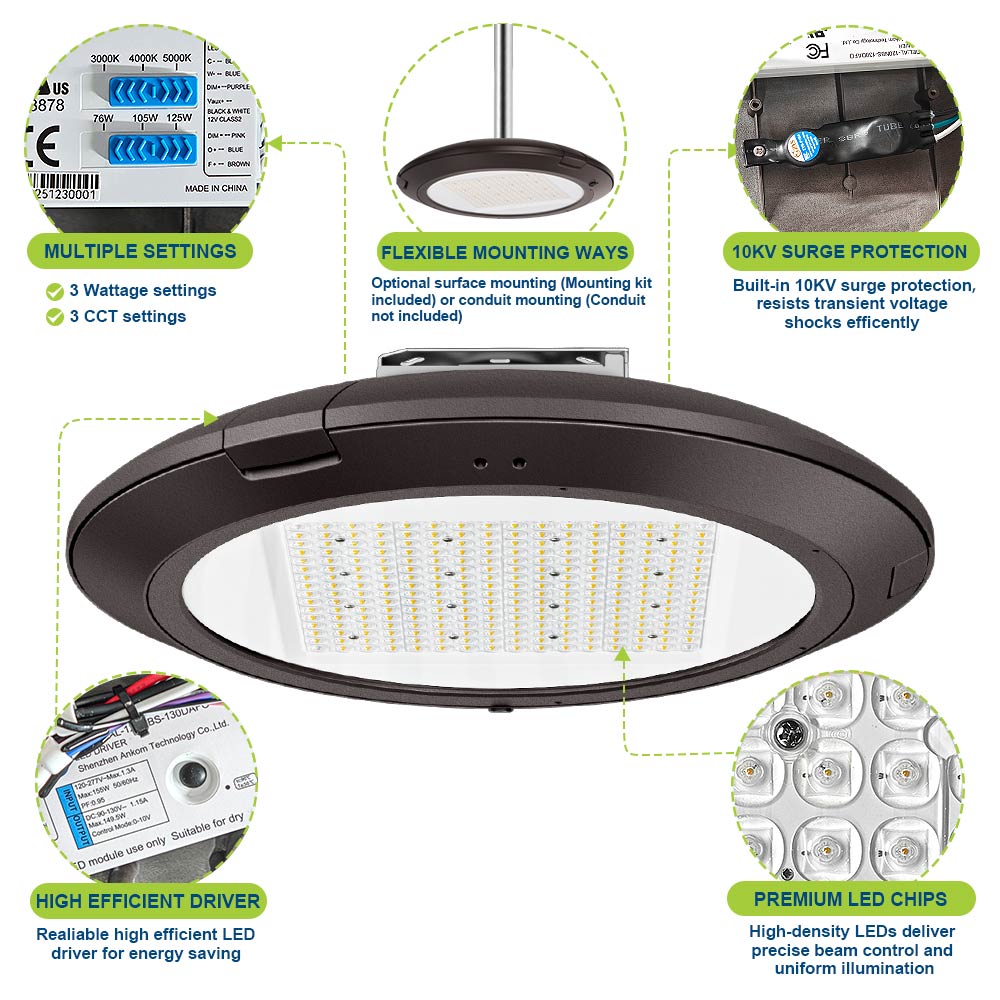

The fixture supports both surface mounting (included) and optional conduit pendant mounting for installation flexibility. Additional features include built-in 10kV surge protection, UL listing, DLC 6.0 Premium qualification, IK08 impact resistance, and a 5-year warranty.
Perfect for retrofit or new construction commercial lighting projects requiring premium appearance, durability, and high efficiency.
See similar 63-watt version.

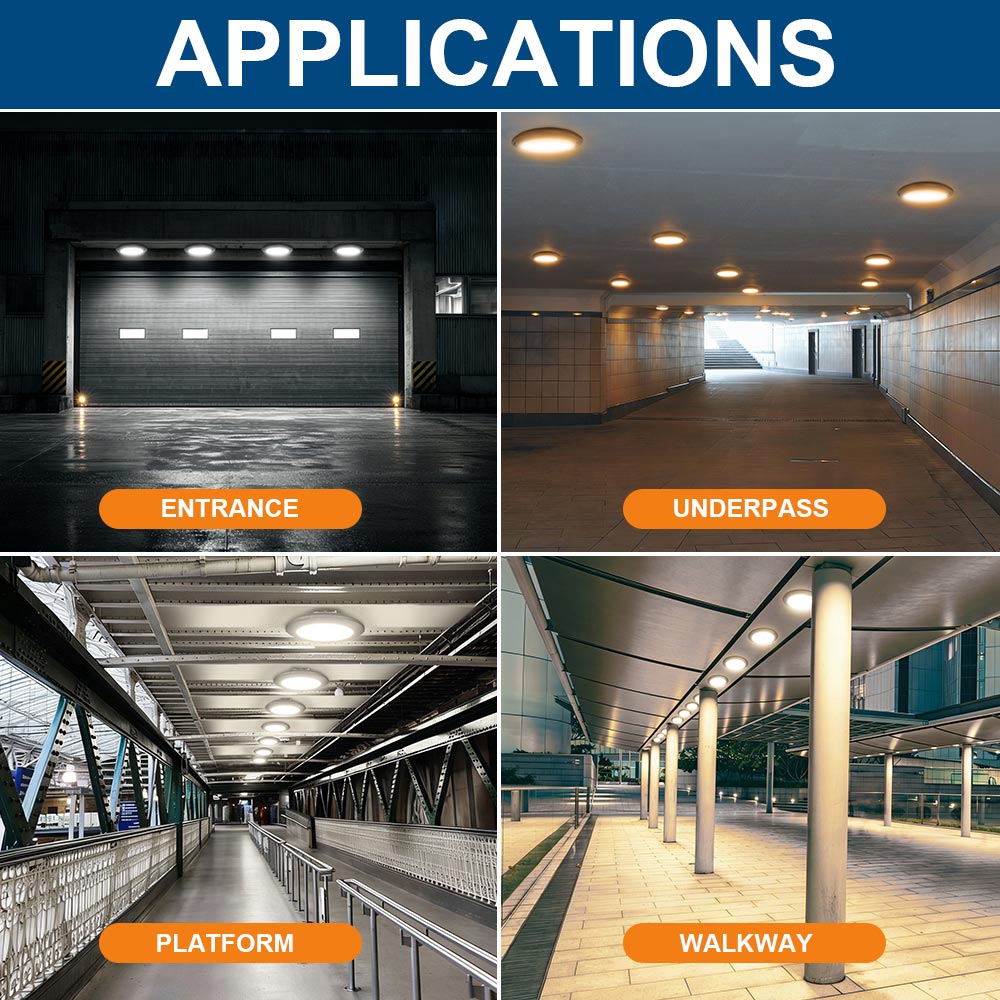

Applications
| • Gas station canopies | • Convenience store canopies |
| • Parking garages and parking structures | • Commercial building entrances |
| • Hotel and hospitality | • Retail store |
| • School and university covered areas | • Hospital and healthcare facility |
| • Outdoor shopping center walkways | • Public transportation platforms |
| • Covered walkways and breezeways | • Apartment and condominium |
| • Airport canopies | • Architectural outdoor lighting applications |
Specifications:
| Brand | Konlite | MPN | KARHWMCLT5SMD |
| Warranty | Limited 5 Years | UPC | 605547622236 |
| Input Voltage | 120-277V | Dimmable | N/A |
| Input Wattage | 125W/105W/76W | Equal to | 150W MH |
| Delivered Lumens | 18,700LM Max. | CRI | >70 |
| Efficacy | 150 LM/W | Available CCT | 5000K/4000K/3000K |
| Rated Life | >50,000 hrs | THD | <10% |
| Power Factor | >0.92 | IP Rating | IP65 |
| Operating Temp | -22°F to 113°F | EBB Option | 8W, Operate time 90 Minutes |
| Certifications | UL, Wet Locations, DLC Premium | Weight | 12 lbs |
