Product Overview

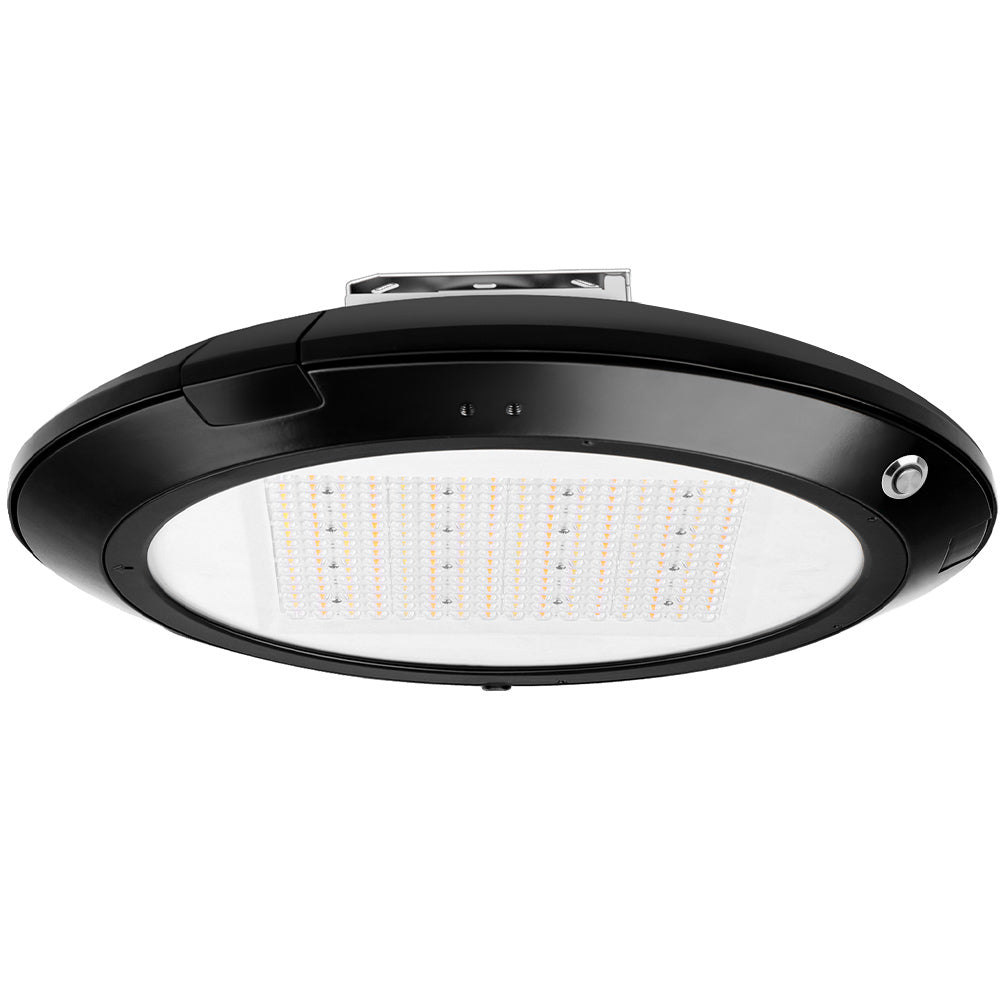

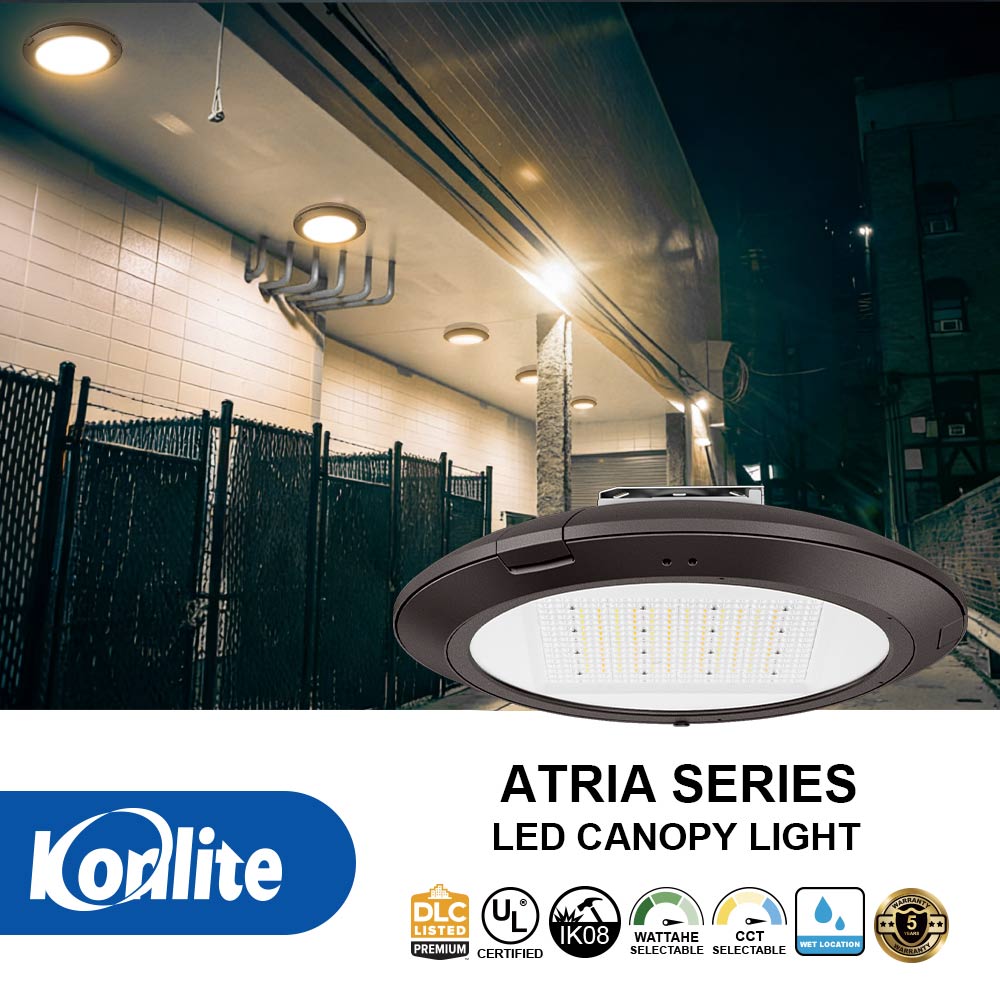

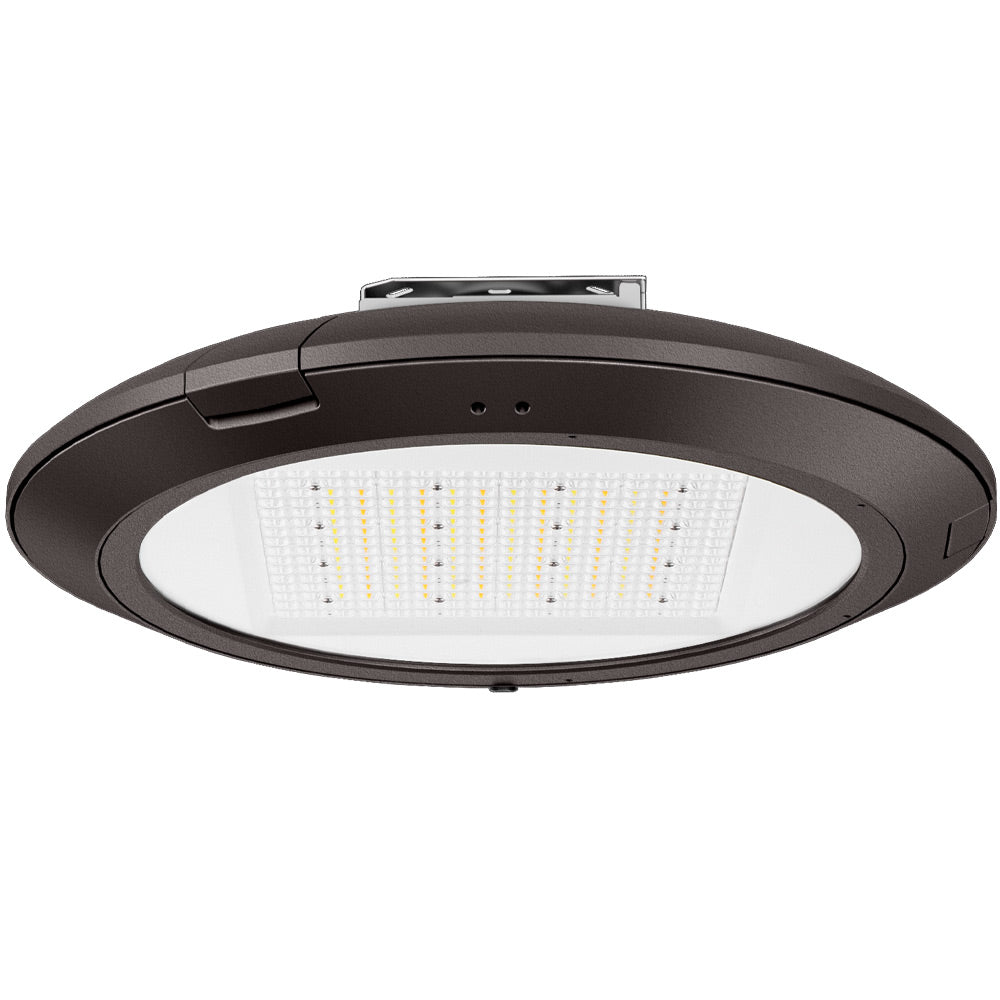

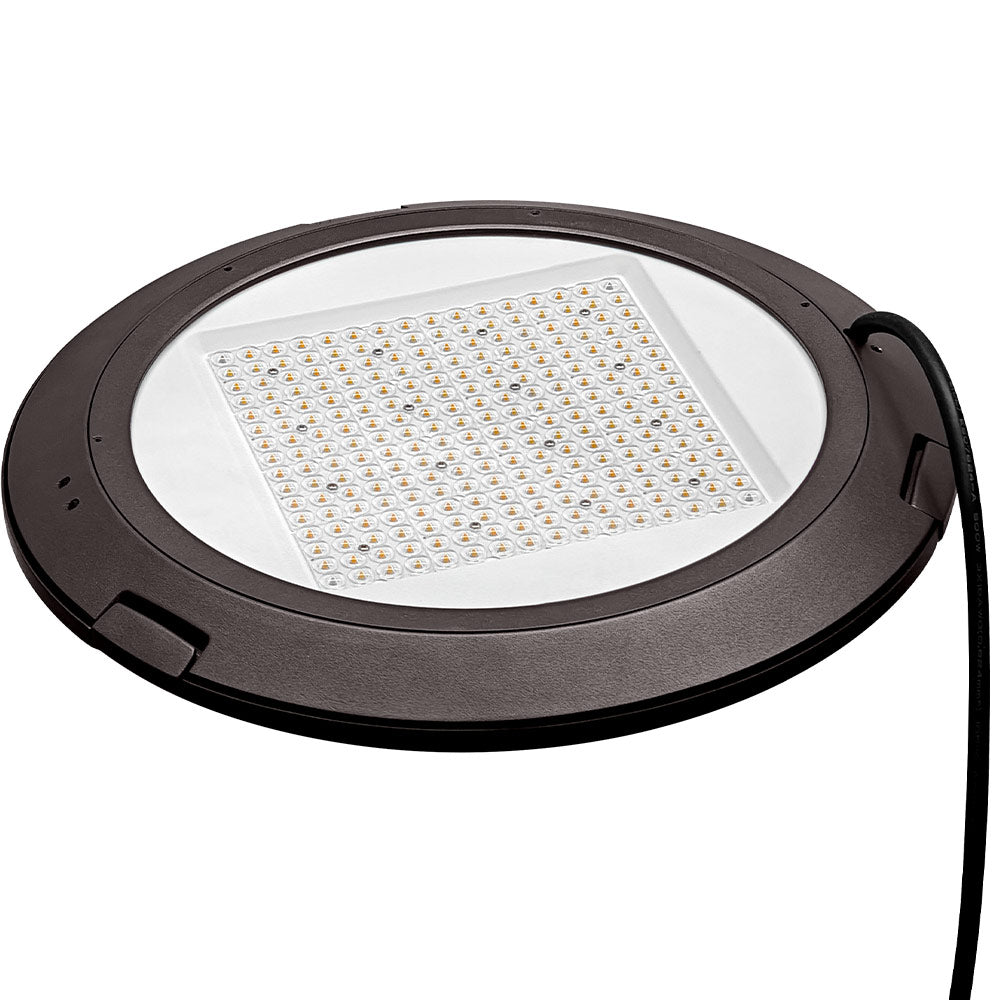

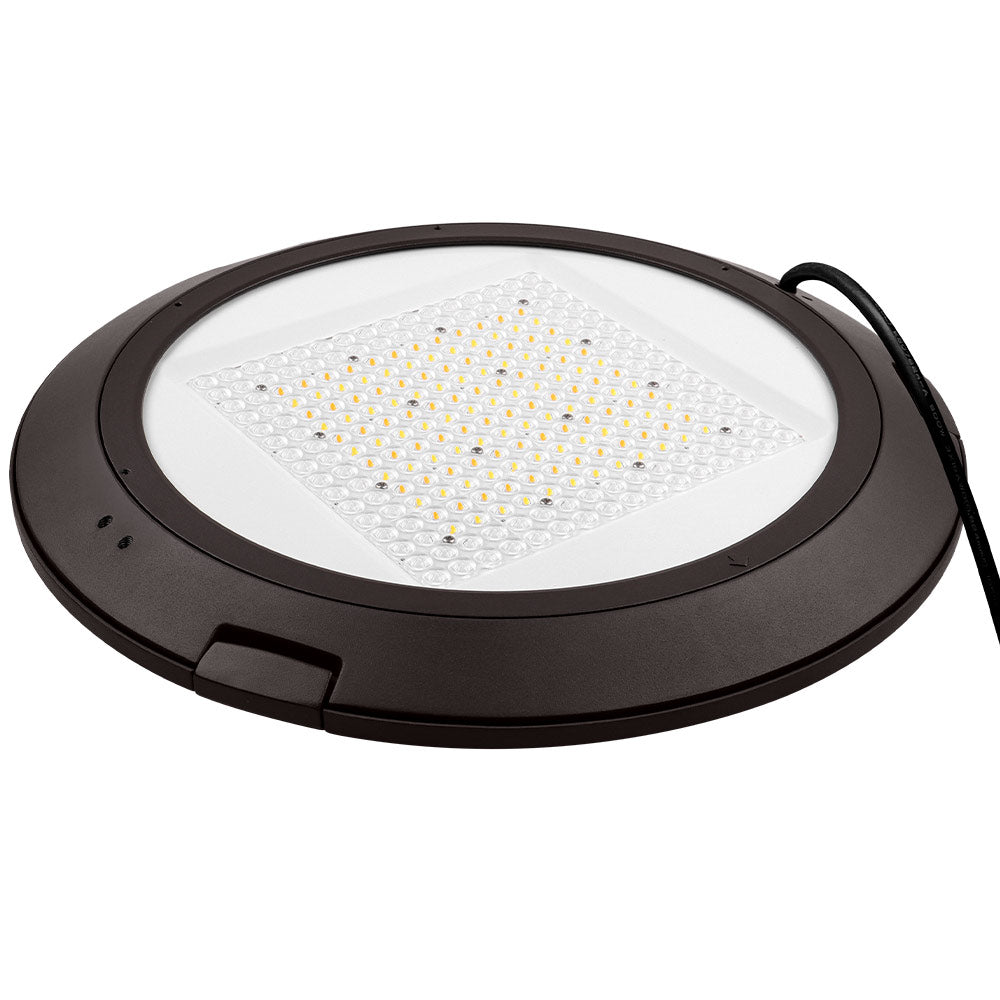

The Konlite Atria Series Premium LED Canopy Light delivers modern architectural styling, excellent lighting performance, and superior energy efficiency for commercial canopy and covered outdoor applications. Designed with a sleek low-profile housing and premium optical system, this fixture enhances safety, visibility, and property appearance while significantly reducing maintenance and operating costs.

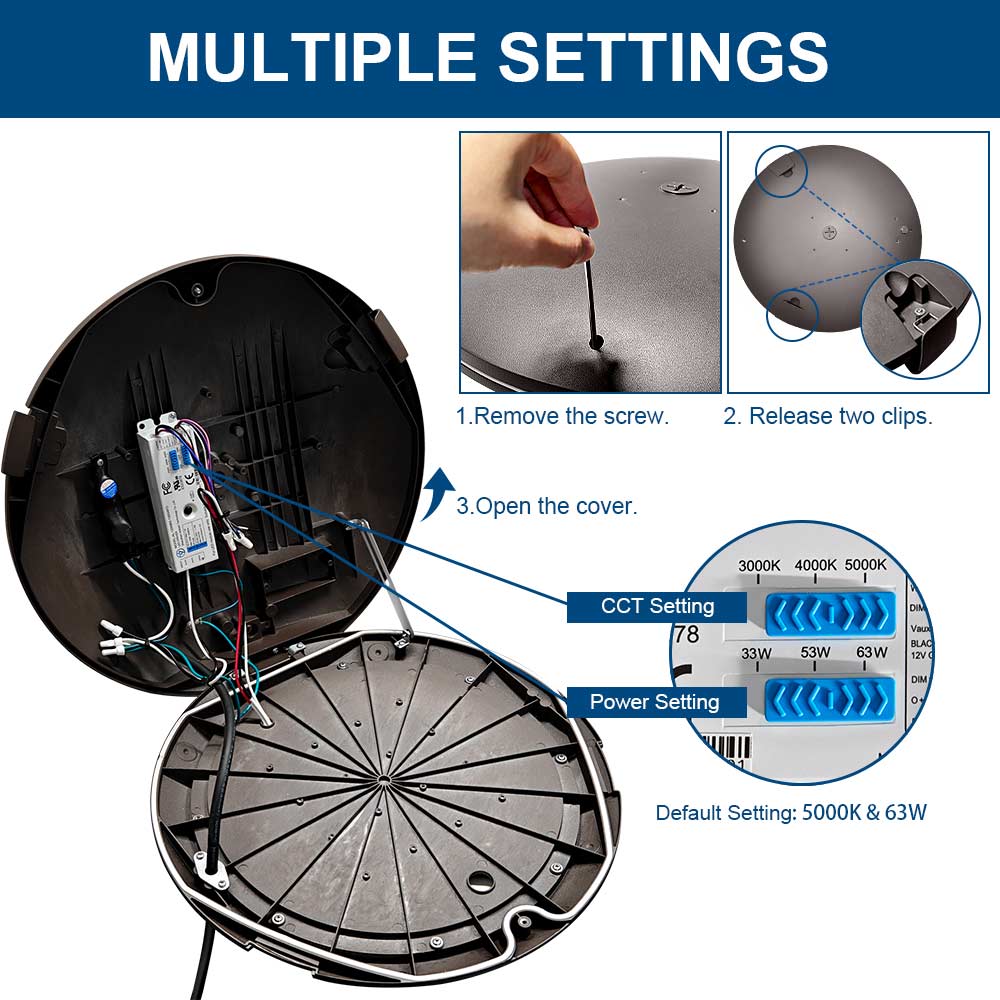

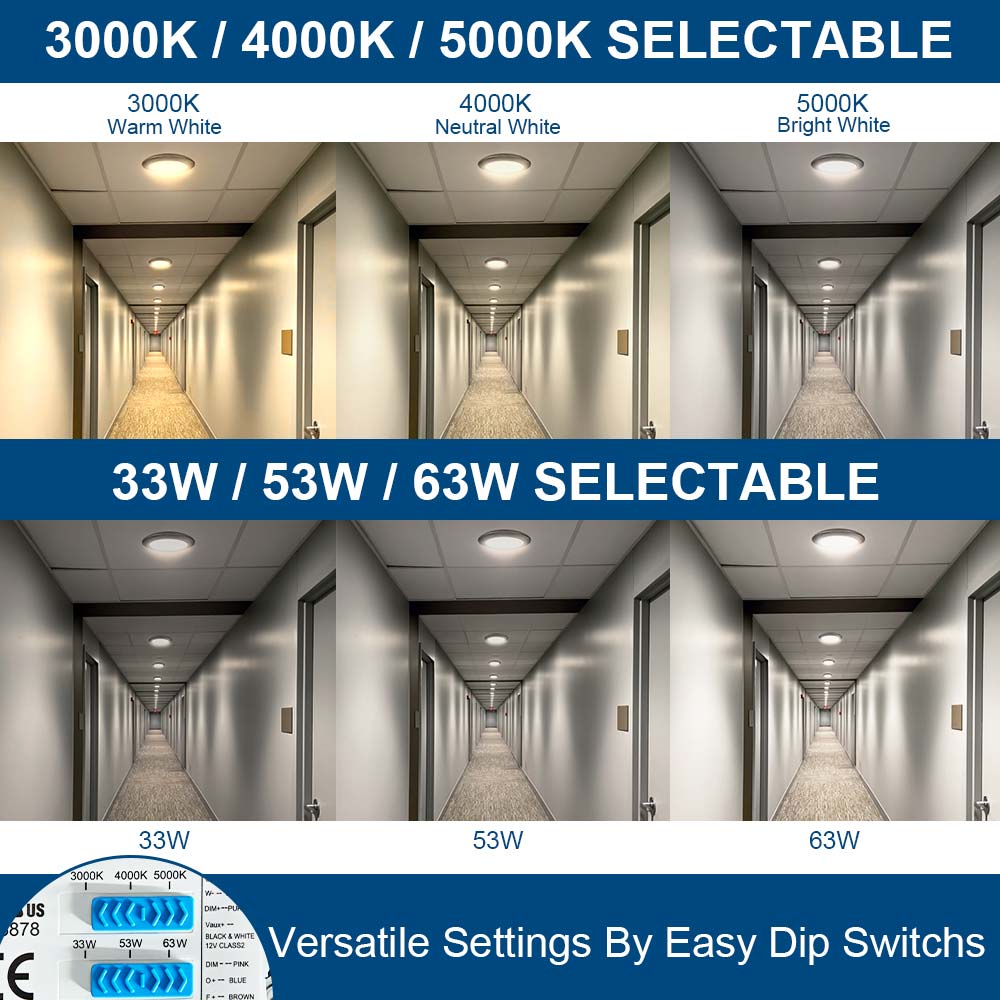

Ideal for entrances, covered walkways, transit stations, parking structures, convenience stores, and outdoor commercial spaces, the Atria Series features selectable wattage settings of 63W / 53W / 33W and selectable color temperatures of 5000K / 4000K / 3000K for maximum installation flexibility and inventory reduction.

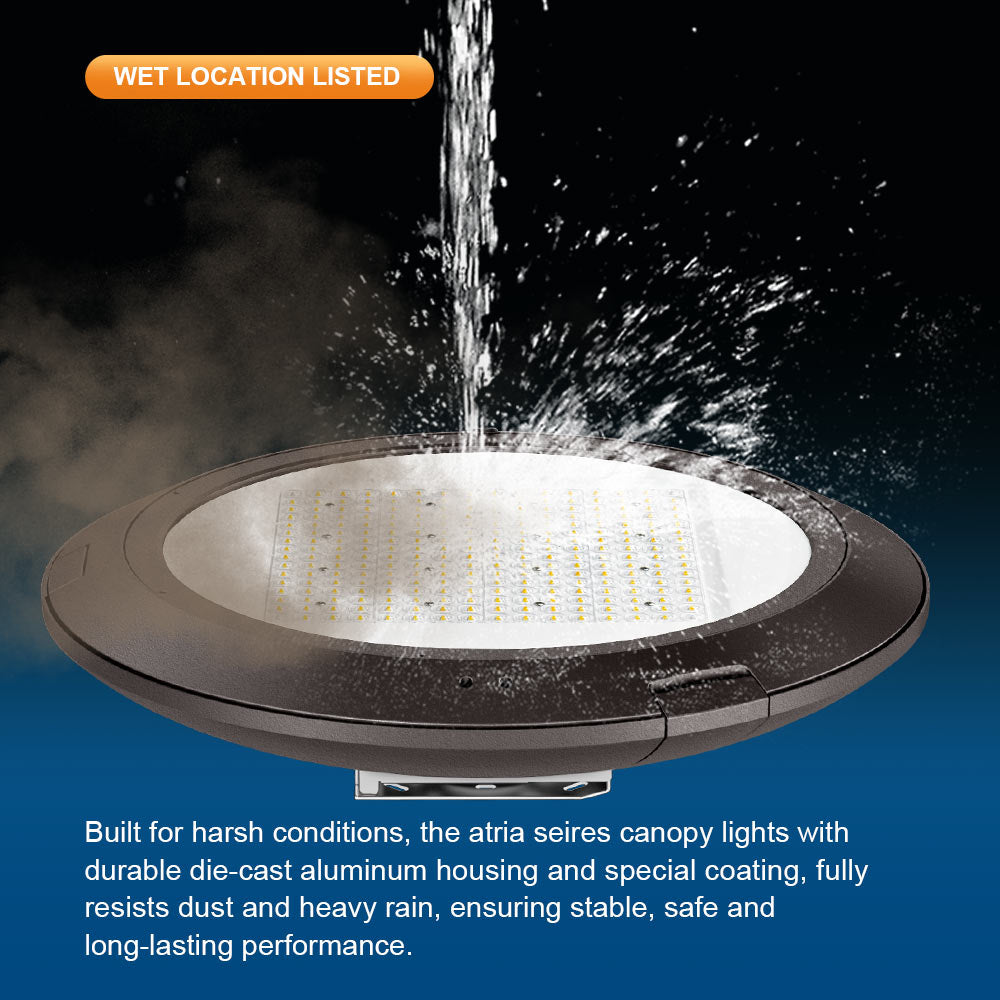

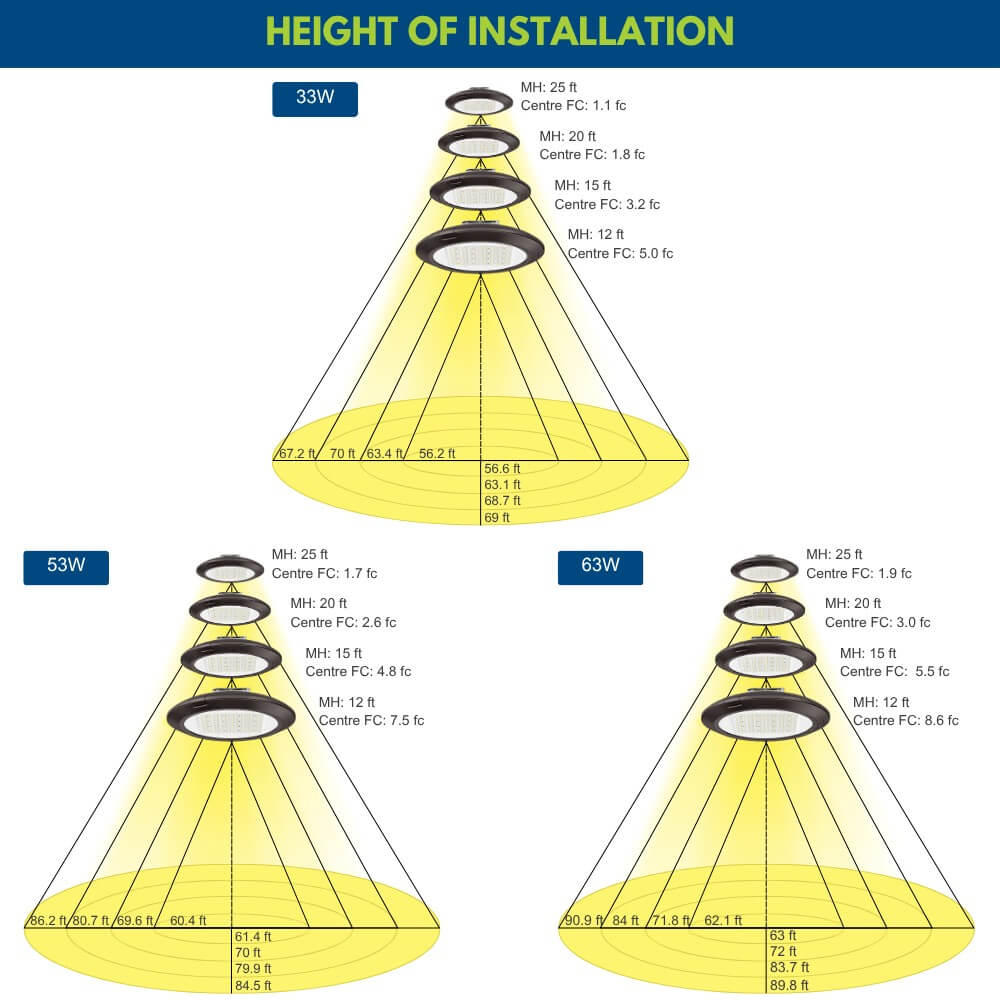

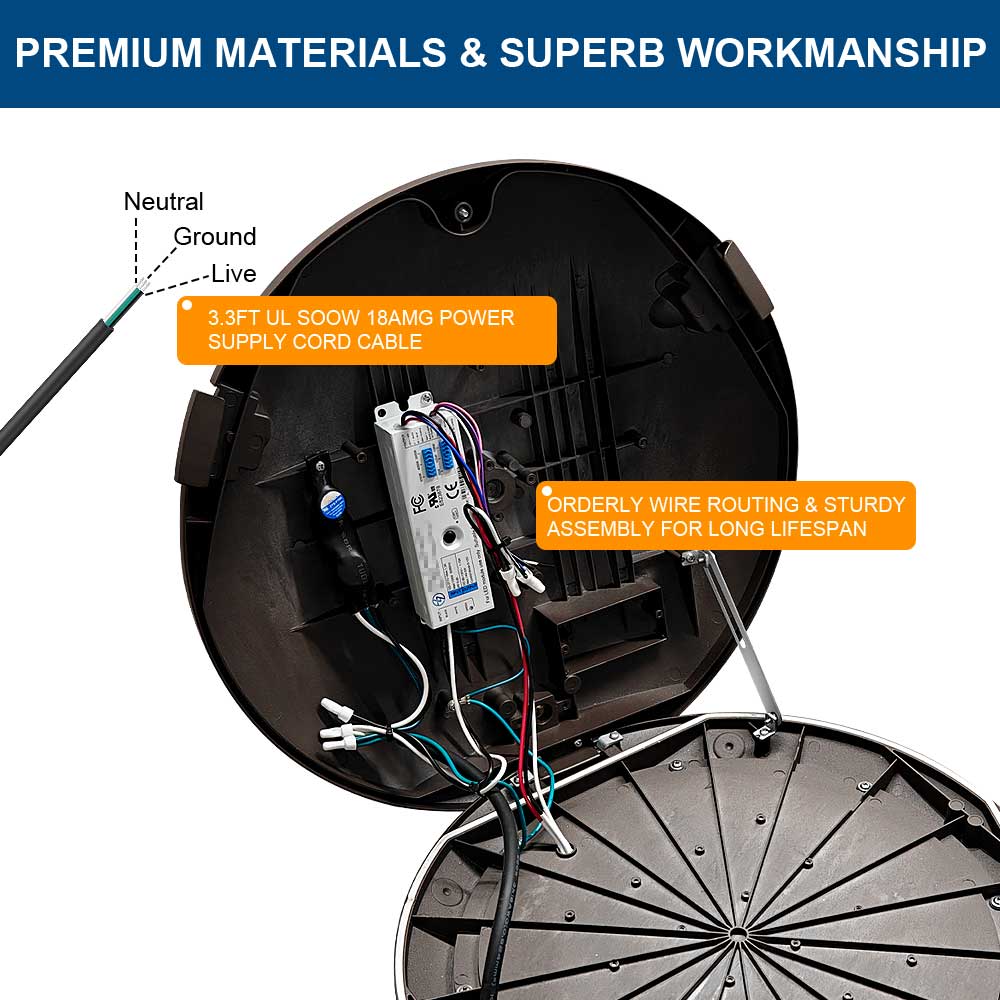

This compact LED canopy fixture delivers up to 9,450 lumens with up to 159 lumens per watt efficiency while providing smooth Type V light distribution for balanced illumination and reduced glare. The durable die-cast aluminum housing, tempered glass diffuser, and fully sealed construction help protect the fixture against moisture, corrosion, dust, and harsh environmental conditions.

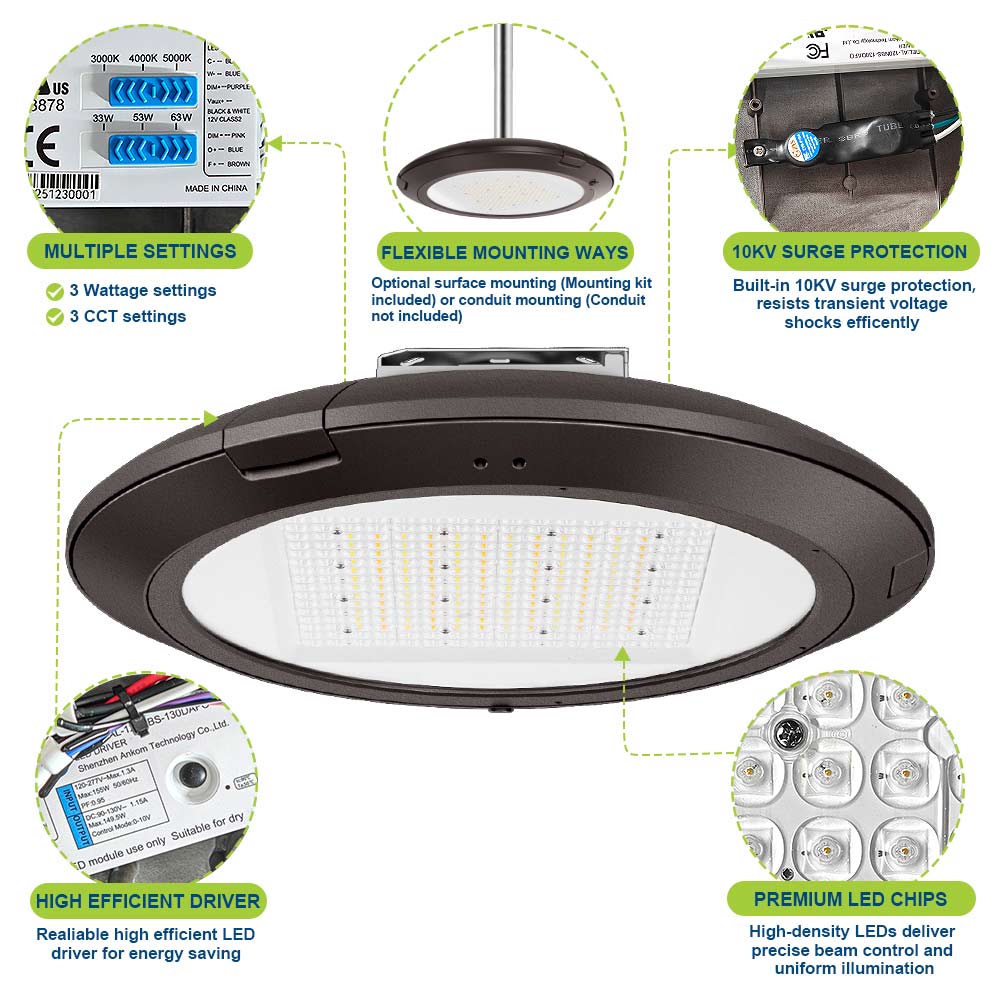

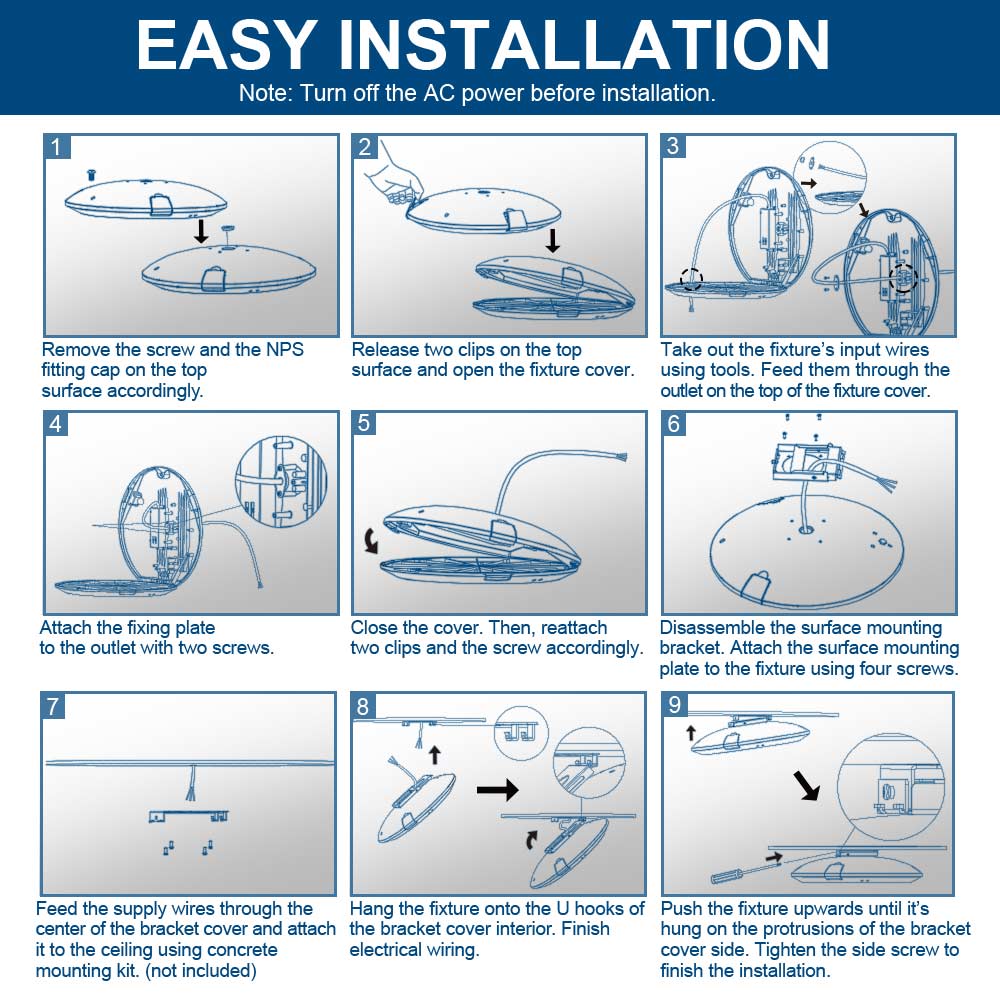

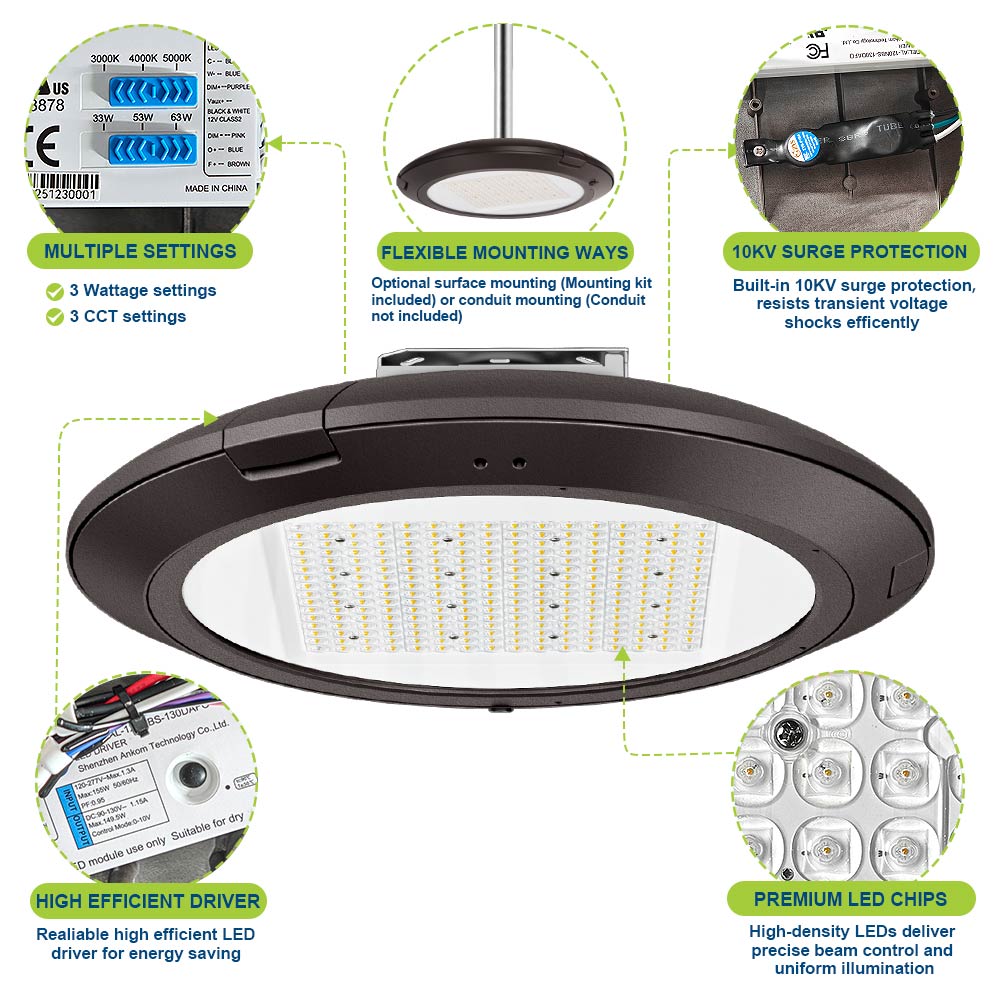

Designed for both retrofit and new construction projects, the fixture includes a surface mounting kit and supports optional conduit pendant mounting. Additional premium features include built-in 10kV surge protection, UL certification, DLC 6.0 Premium qualification, IK08 impact resistance, and a 5-year warranty.
The Atria Series is the perfect combination of architectural appearance, energy savings, and long-term reliability for commercial canopy lighting applications.
See similar 125-watt versions.

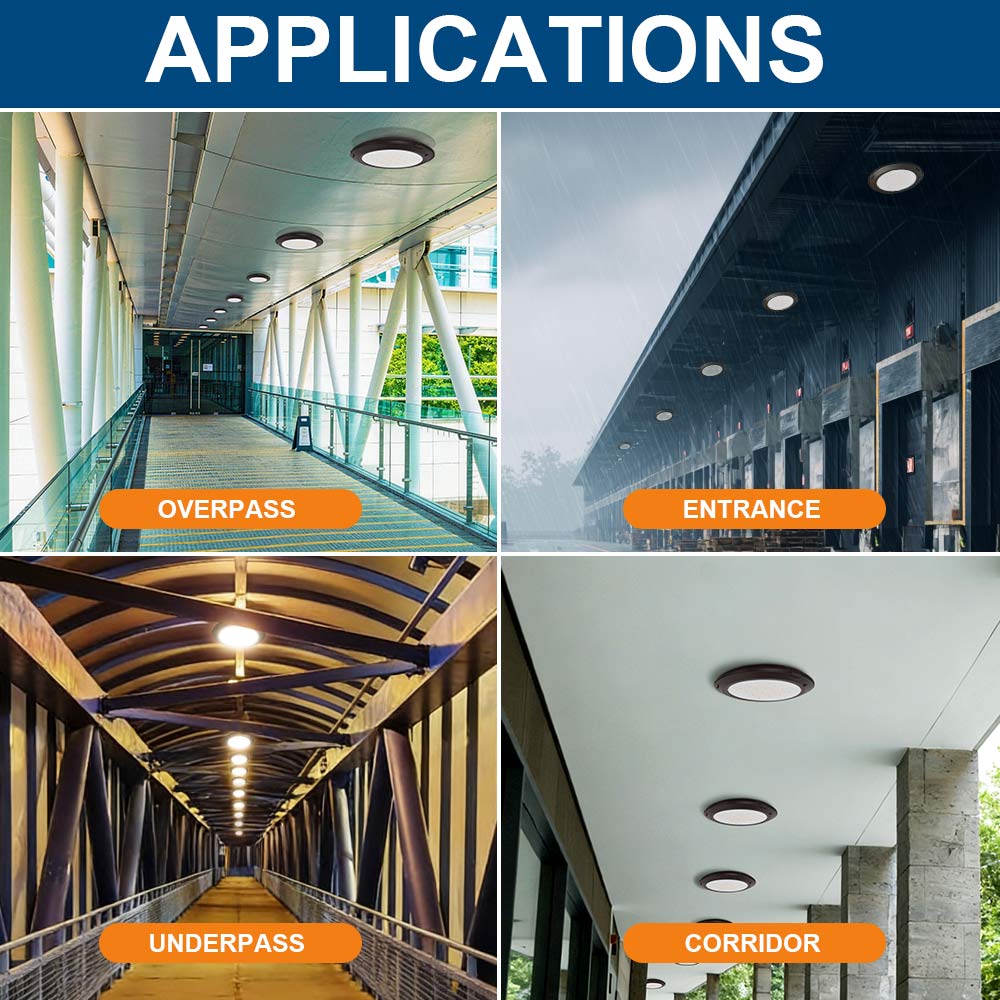

Applications
| • Gas station | • Convenience store canopies |
| • Parking garages and parking structures | • Commercial building entrances |
| • Hotel and hospitality | • Retail store |
| • School and university covered areas | • Public transportation platforms |
| • Shopping center walkways | • Apartment and condominium |
| • Covered walkways and breezeways | • Architectural outdoor lighting applications |
Color Temperature
Specification:
| Brand | Konlite | MPN | KARLWMCLT5SMD |
| Warranty | 5 Years | UPC | 605547651434 |
| Input Voltage | 120-277V | Dimmable | 1-10V |
| Input Wattage | 65W/53W/33W | Equal to | 250W MH |
| Delivered Lumens | 9,450LM Max. | CRI | 70 |
| Efficacy | 150 LM/W | Available CCT | 5000K/4000K/3000K |
| Rated Life | >50,000 hrs | THD | <10% |
| Power Factor | >0.92 | Controls | N/A |
| Operating Temp | -22°F to 113°F | EBB Option | 8W, Operate time 90 Minutes |
| Certifications | UL, Wet Locations, DLC Premium | Weight | 11 Lbs |
