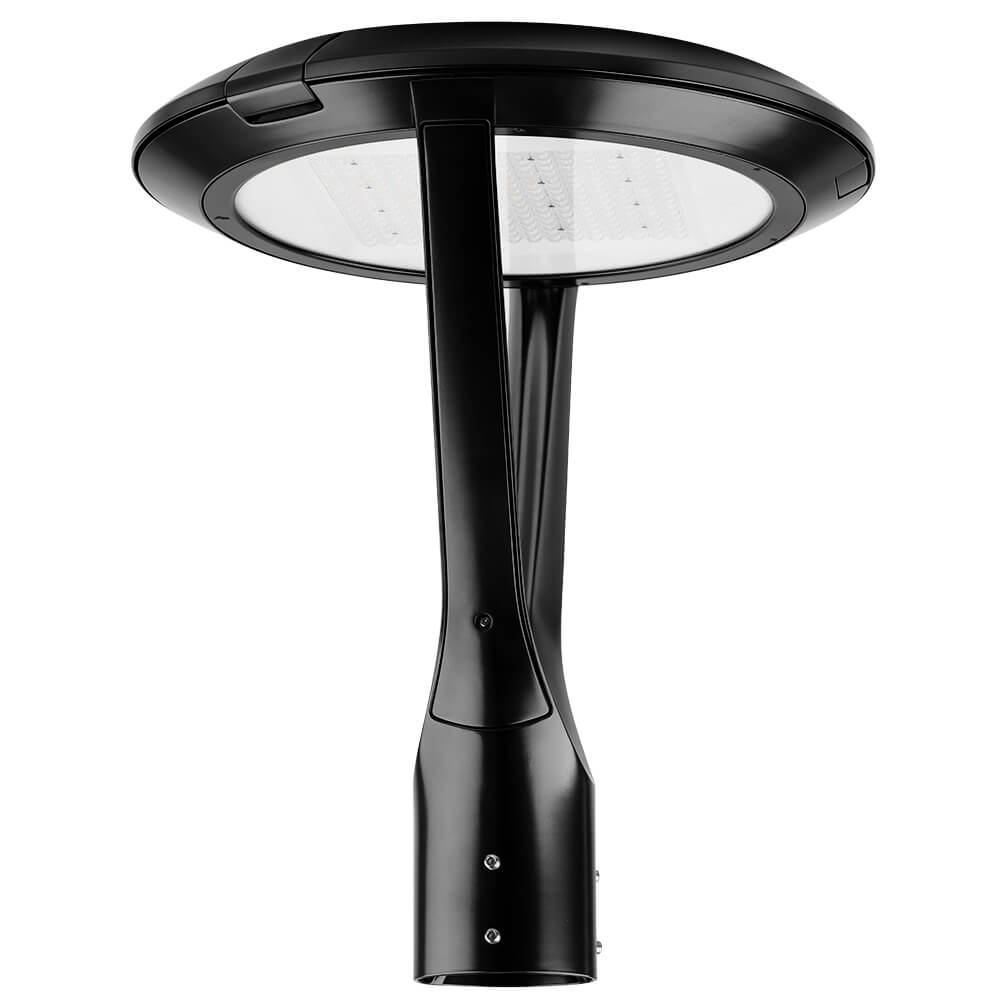

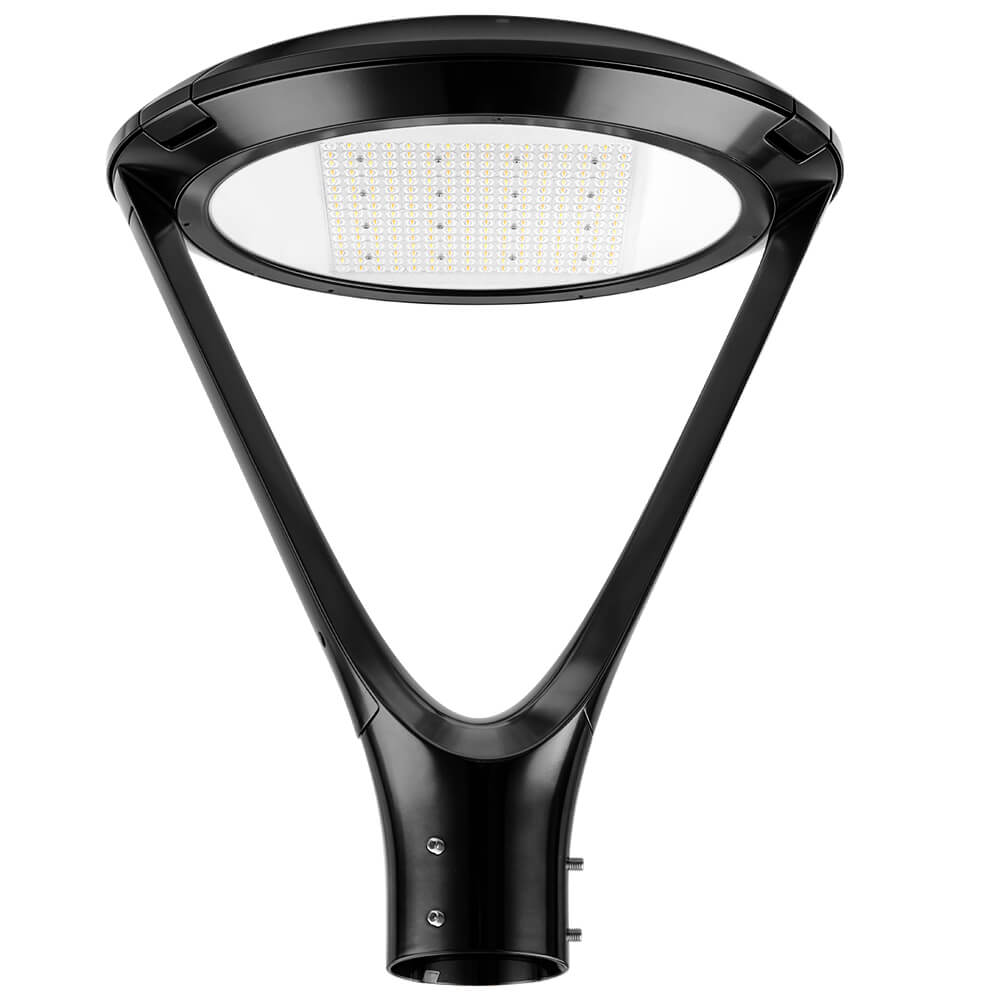

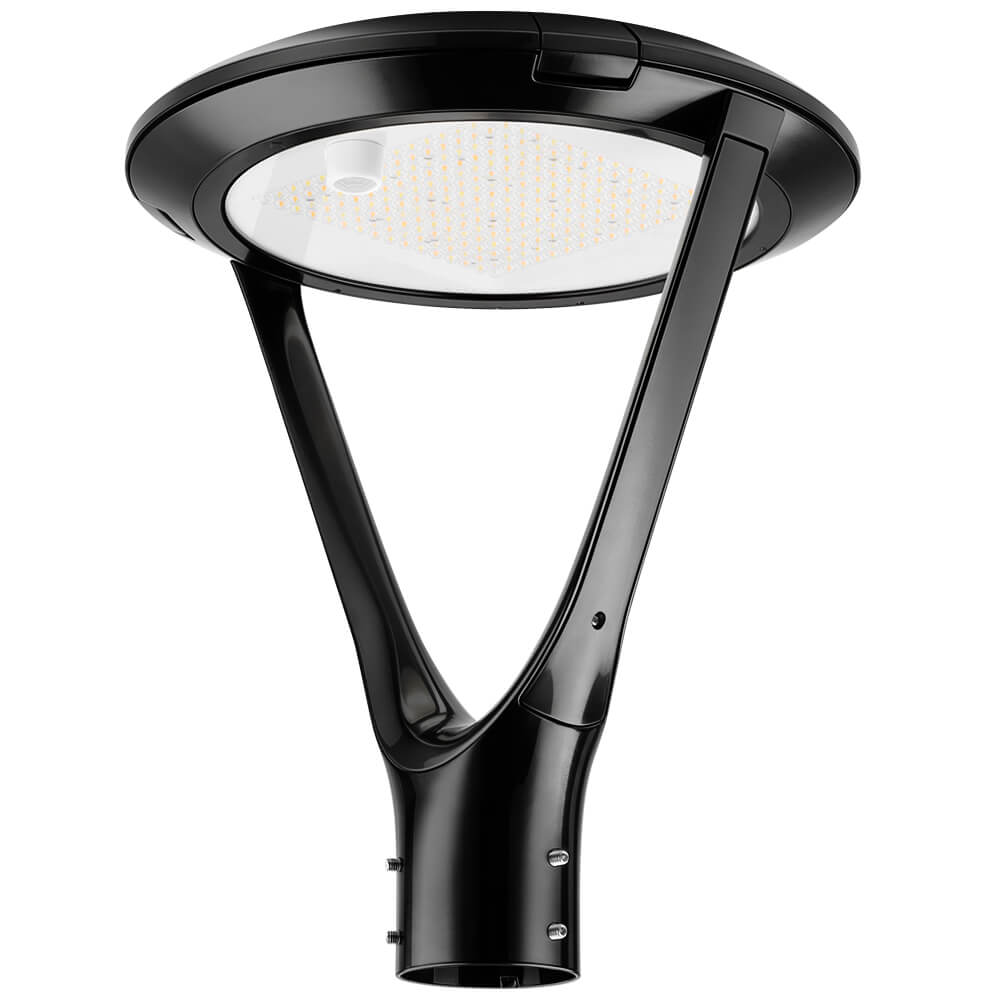

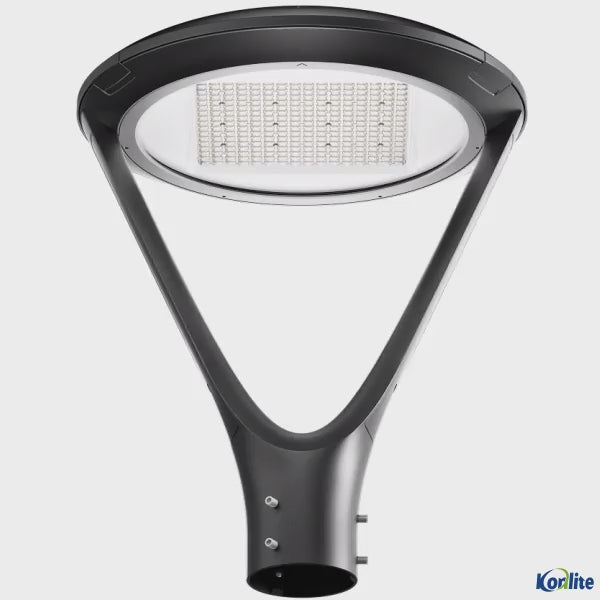

KONLITE Atria Black LED Post Top Light - 18,700 lumens - 125W/105W/76W - 5000K/4000K/3000K - 120-277V - 400W Equal

Product Overview

The 125W LED Post Top Light is part of Konlite's Atria Series, an architectural outdoor lighting family designed to combine contemporary styling with dependable commercial-grade performance. The Atria Series provides a cohesive aesthetic across post top, area, canopy, and bollard lighting, making it an excellent choice for projects requiring a consistent architectural appearance.

Designed for commercial, municipal, and public outdoor environments, the 125W Atria Post Top Light delivers high-performance illumination in a sleek, modern housing. It is ideal for pedestrian plazas, parks, pathways, streets, residential roadways, gardens, parking lots, campuses, public facilities, and other outdoor spaces where aesthetics, safety, and energy efficiency are priorities.

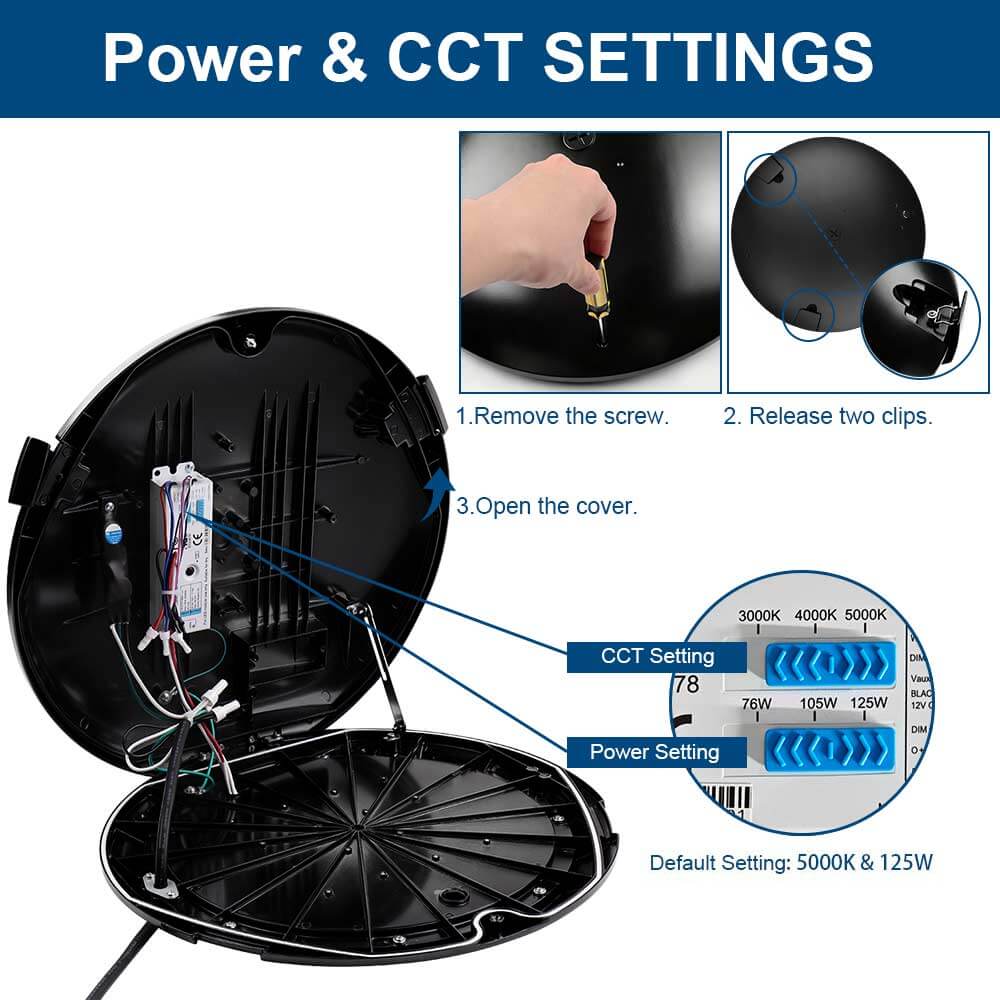

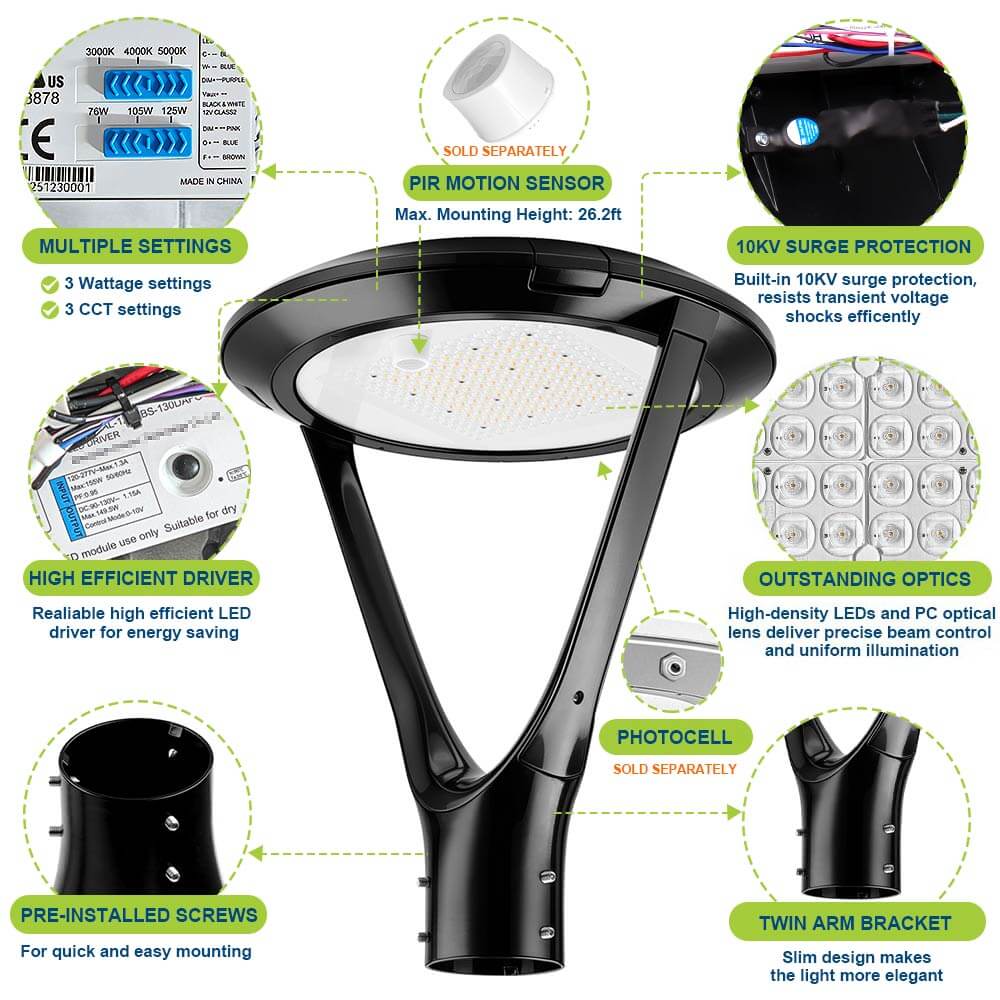

The fixture features both wattage-selectable and CCT-selectable technology, allowing a single fixture to adapt to a wide range of applications. Users can select output levels of 125W, 105W, or 76W (125W default) and color temperatures of 3000K, 4000K, or 5000K (5000K default). This built-in flexibility simplifies inventory management while giving contractors and facility managers greater control over lighting performance.

The 125W configuration produces up to 18,710 lumens, depending on the selected distribution and color temperature, with efficacy reaching 150 lumens per watt in tested configurations. In many applications, it provides an energy-efficient replacement for metal halide fixtures up to 400W.

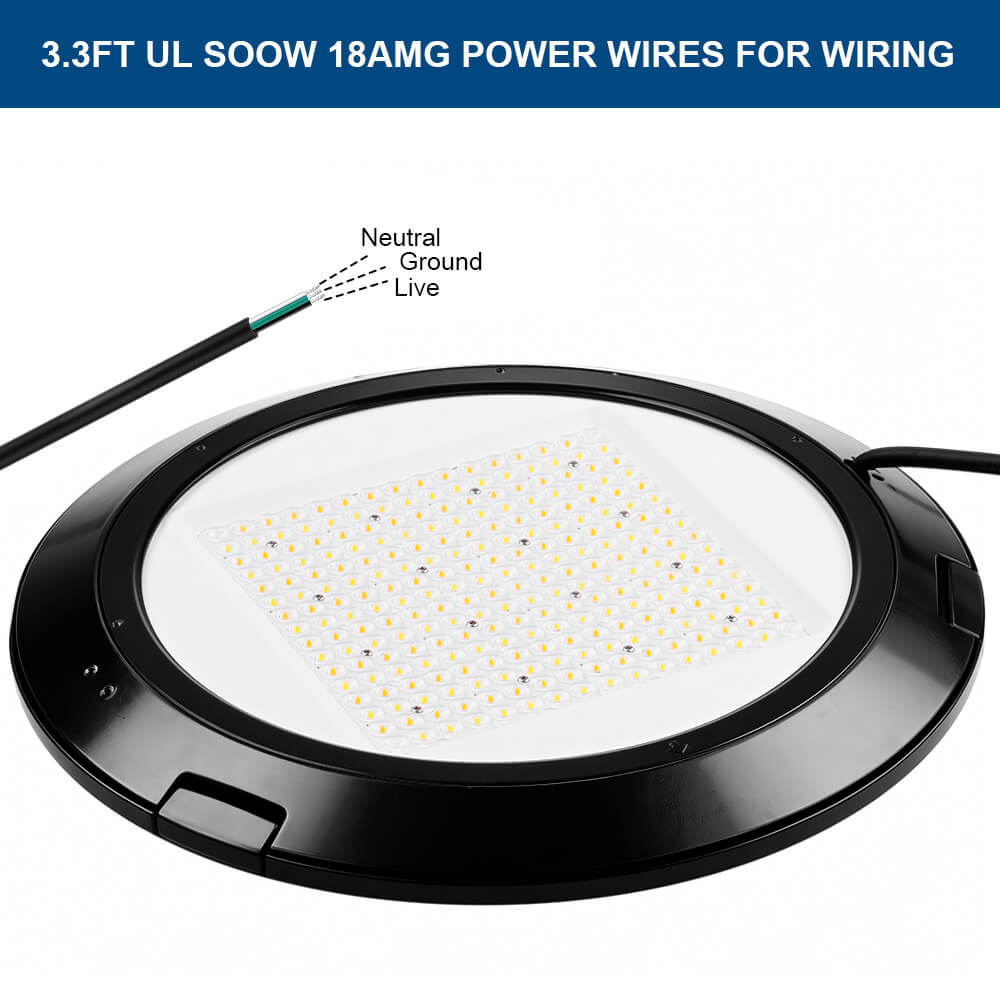

For dependable electrical performance, the fixture operates on 120–277V, includes 10kV surge protection, and comes equipped with a 3.3 ft UL-listed power cord. It is UL Listed, DLC Premium 6.0 Listed, Wet Location Rated and backed by a 5-year limited warranty.

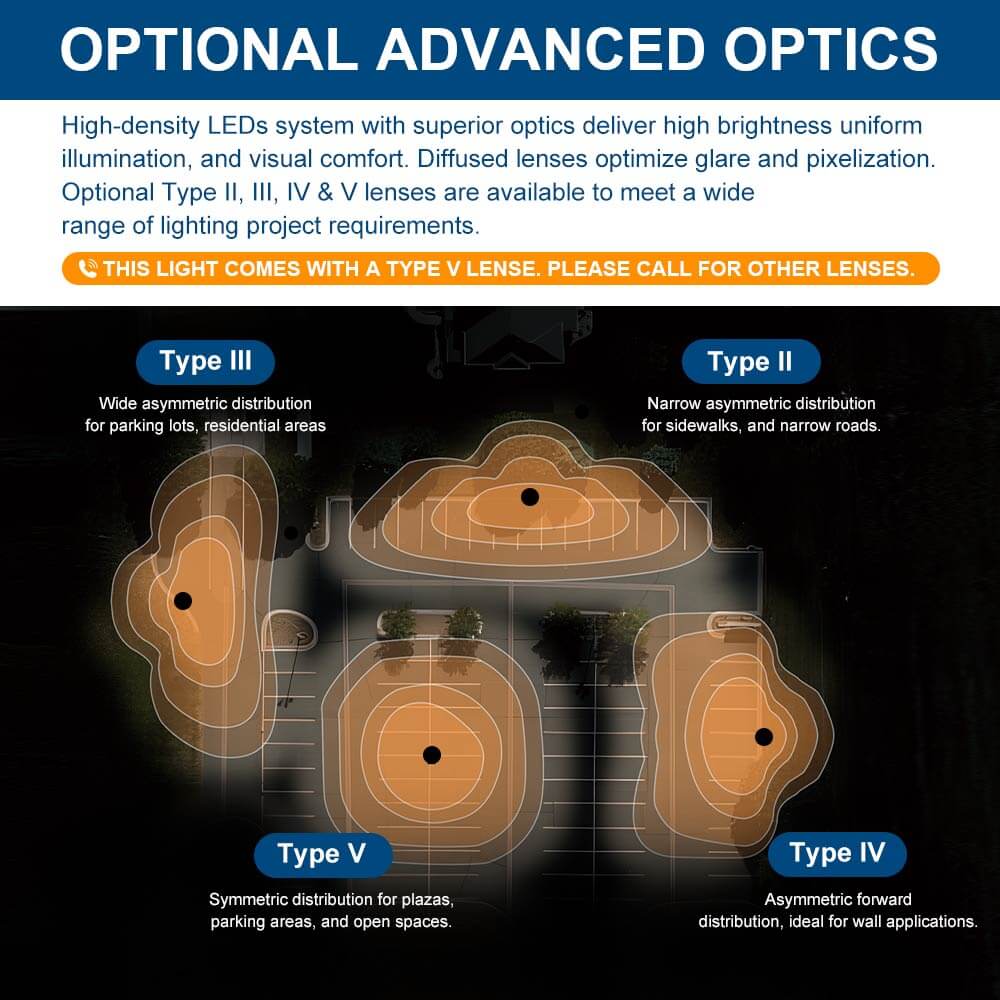

Light Distribution Options

Each Atria Post Top Light is supplied with one optical lens only. Please select the appropriate distribution before ordering, as each lens is designed for a specific lighting application. Revolve LED offers this fixture with Type V and Type III light distributions. If you are interested in availability for Type II and III, please give us a call.

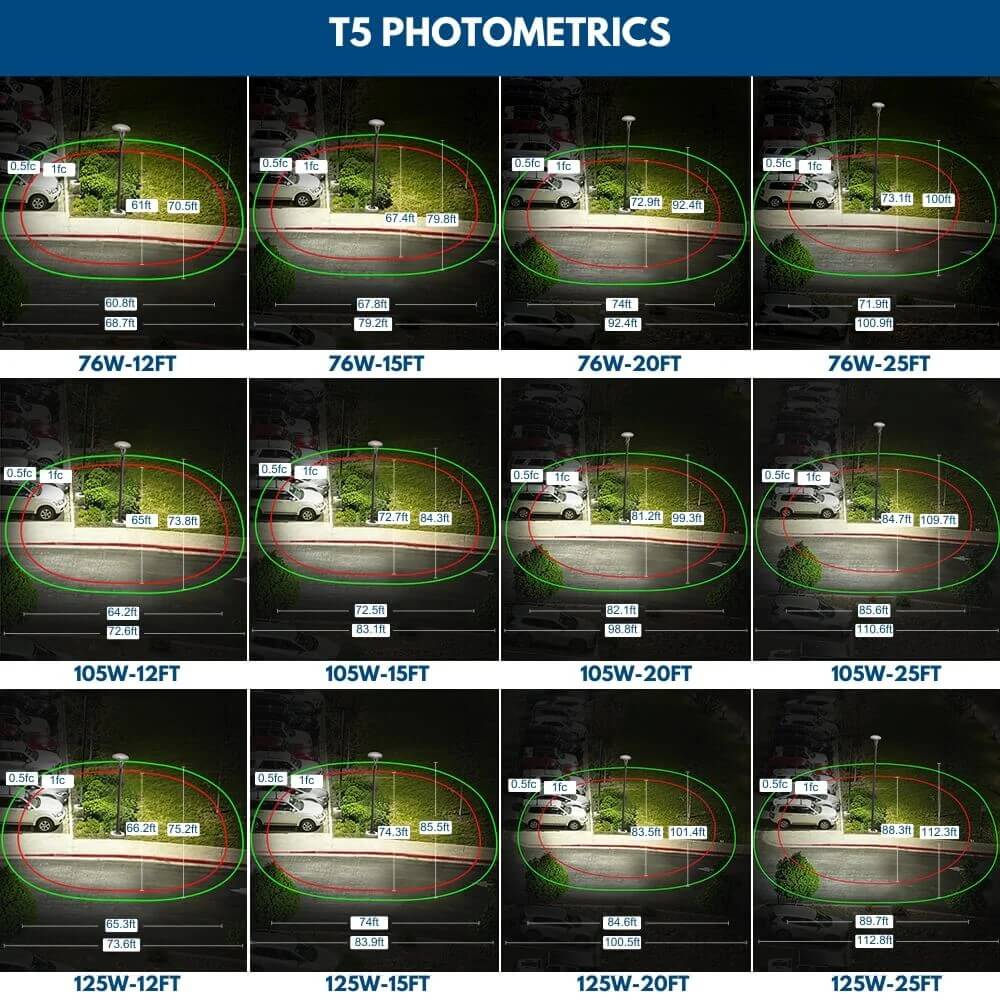

Type V Distribution

Type V optics provide a symmetrical 360-degree light pattern, distributing illumination evenly around the mounting location. This distribution is ideal for open outdoor spaces where uniform lighting coverage is desired, including parks, plazas, courtyards, pedestrian walkways, parking lots, and general site lighting.

T5 is the preferred choice for most post top lighting installations.

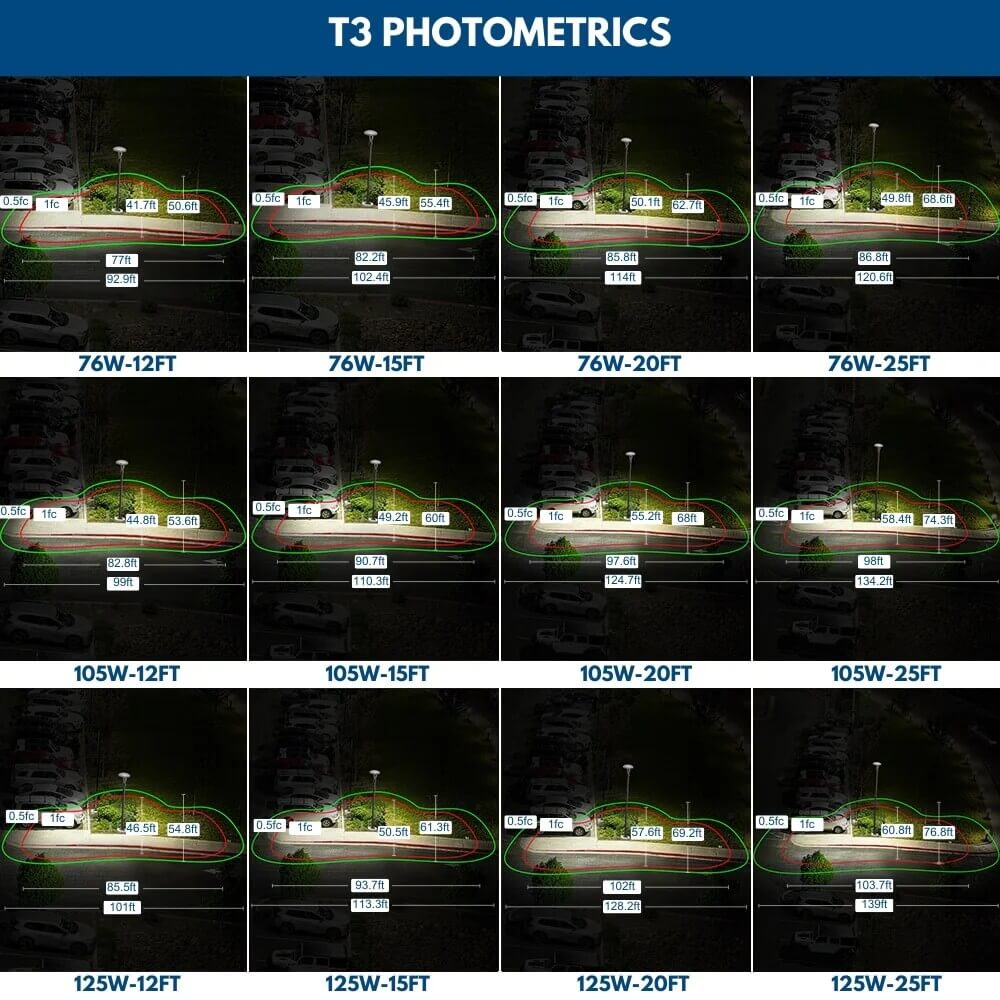

Type III Distribution

Type III optics create a forward-throw distribution that projects light outward and to the sides, making it well suited for fixtures installed along the perimeter of an area. Typical applications include roadways, sidewalks, pathways, parking lot perimeters, residential streets, and site boundaries

Choose T3 when a more directional beam pattern is needed to match the site's layout.

For detailed photometric performance, download the corresponding IES files for each lens option in the Downloads section.

Construction & Installation

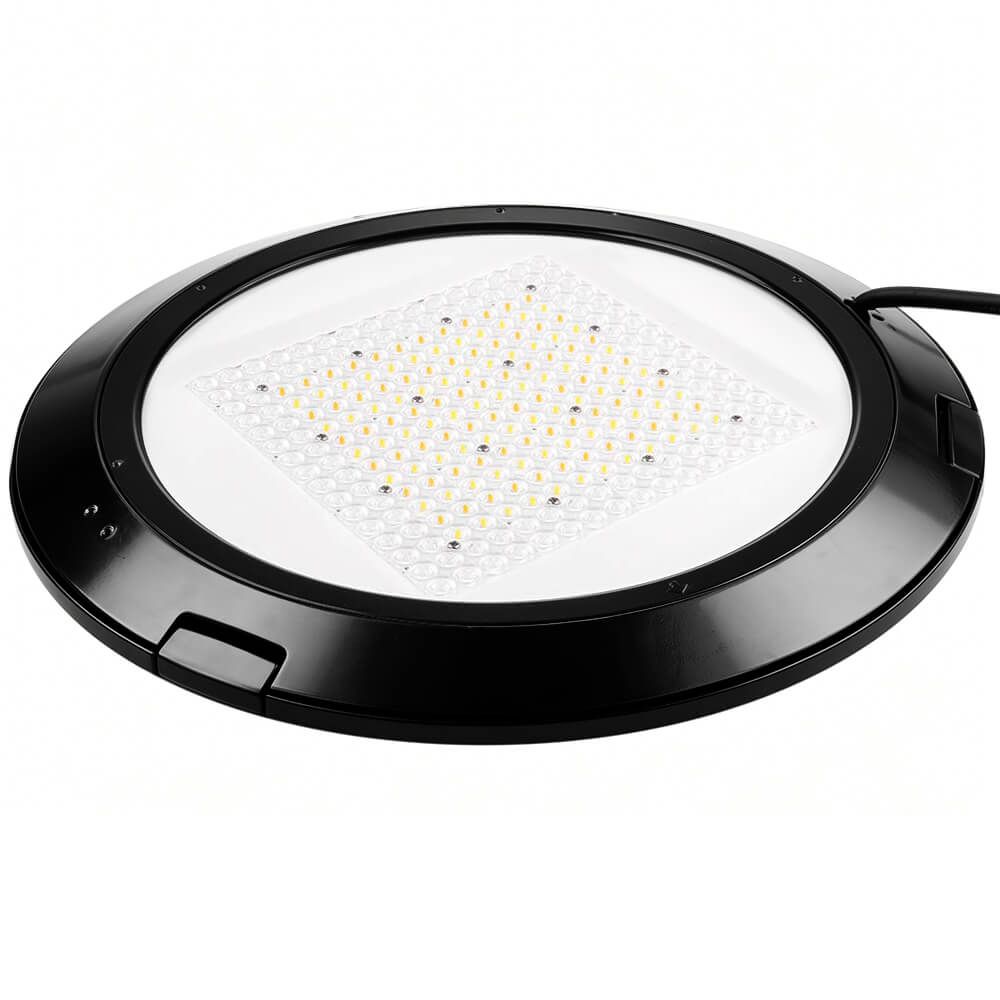

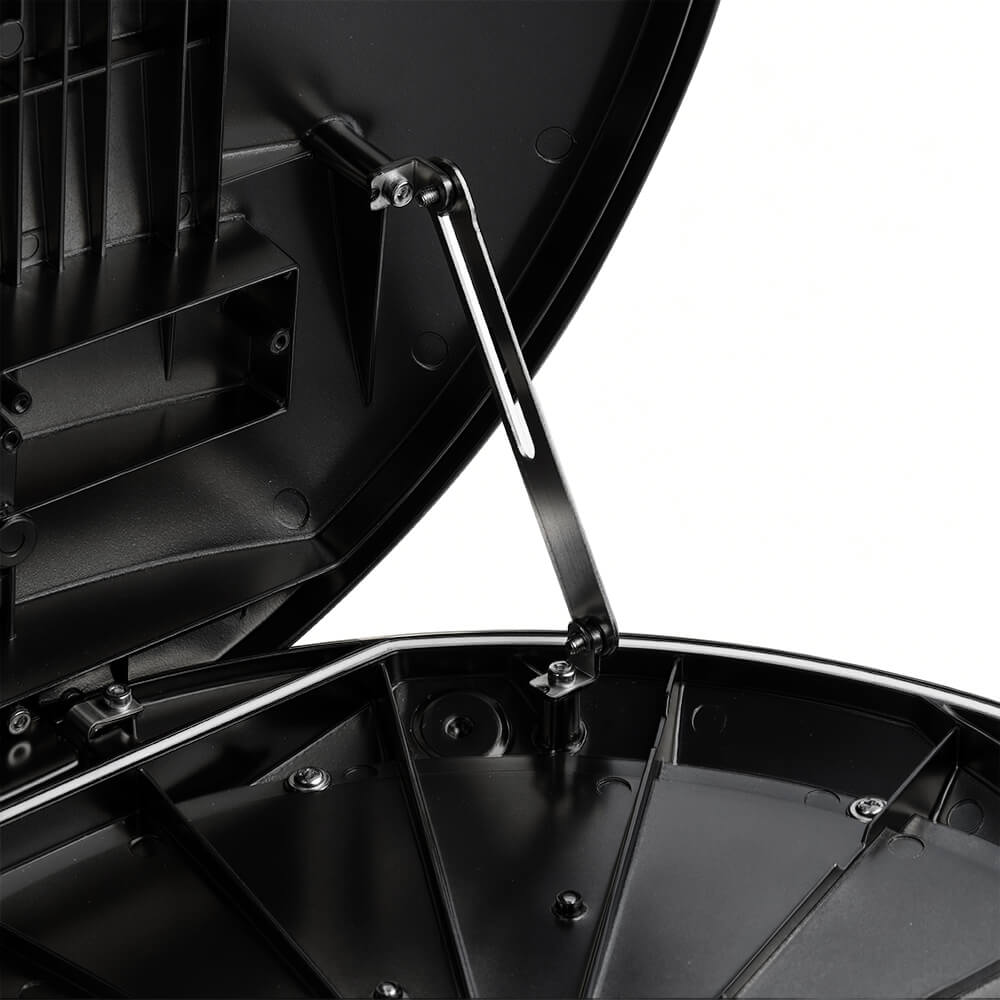

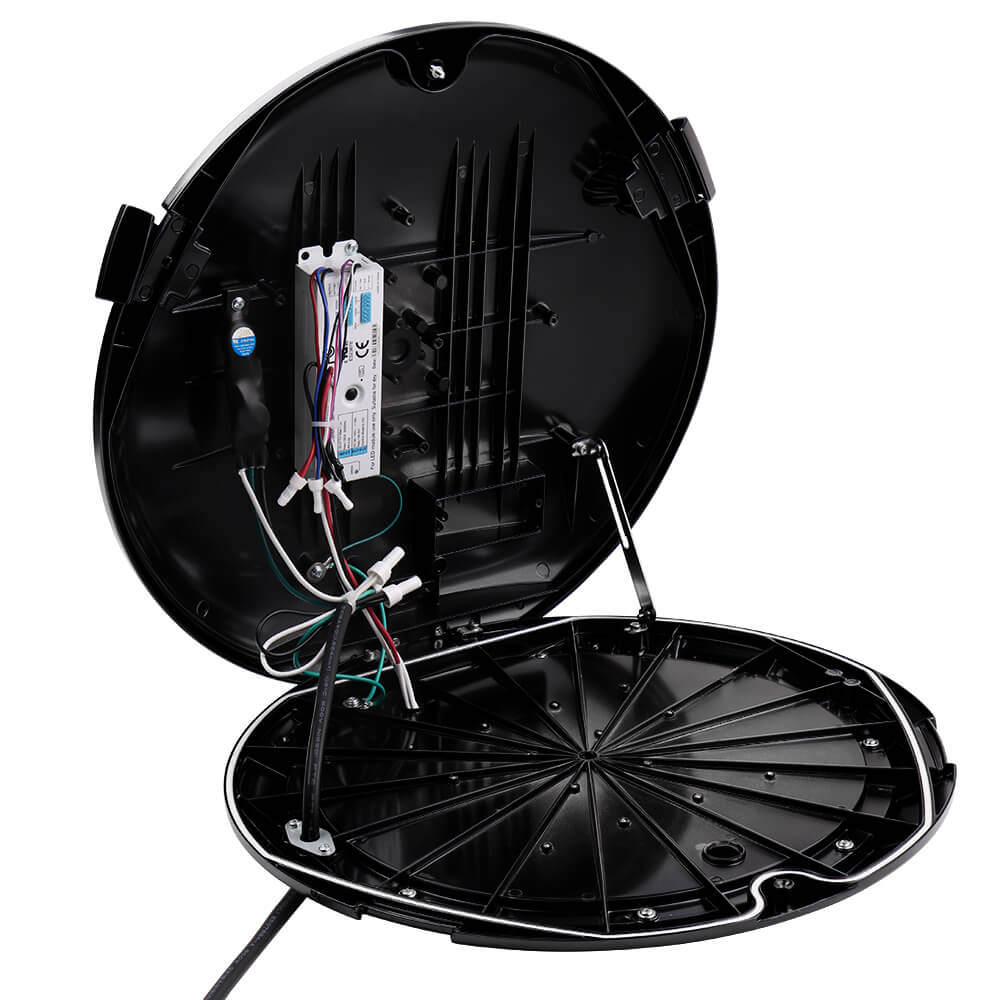

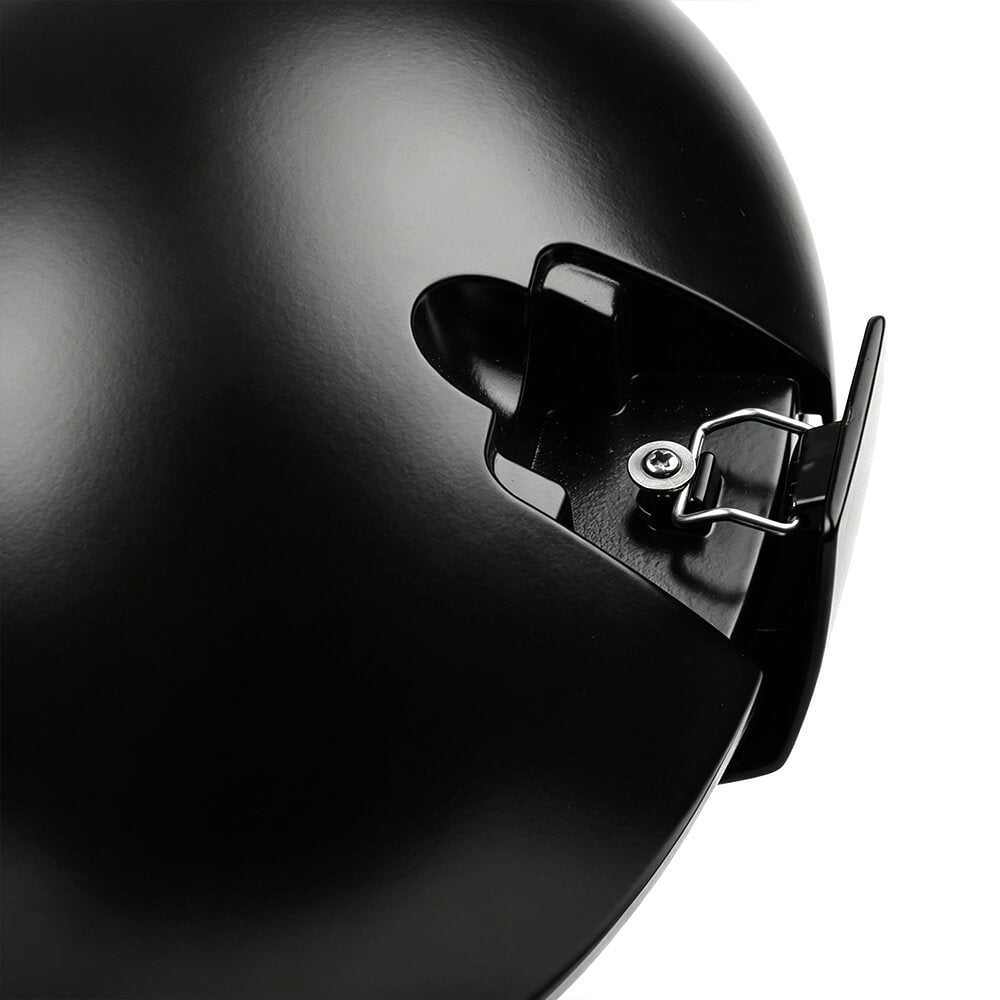

Built for long-term outdoor performance, the Atria Series features a rugged die-cast aluminum housing, a harsh-environment powder-coated finish, a tempered glass diffuser, and a precision polycarbonate optical lens. The fully sealed housing protects internal components from moisture and environmental contaminants, while the IK08 impact rating provides added durability in demanding installations.

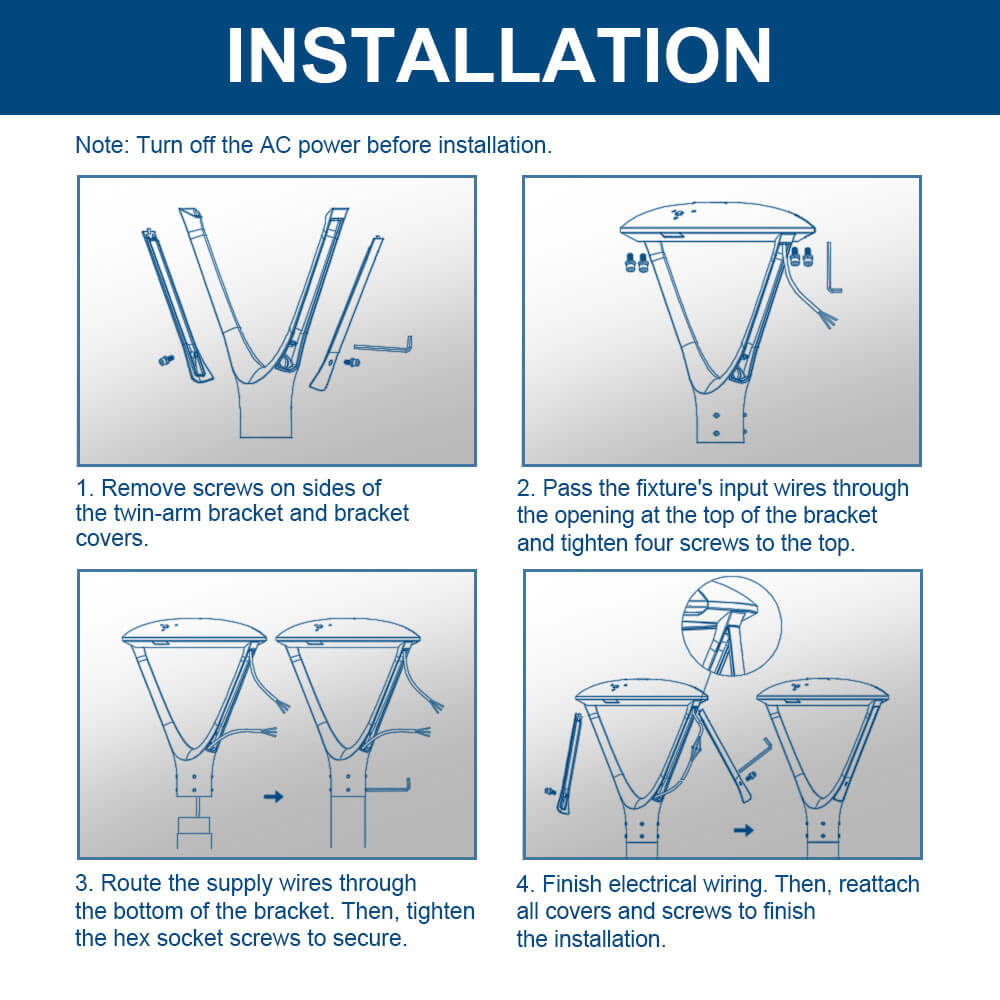

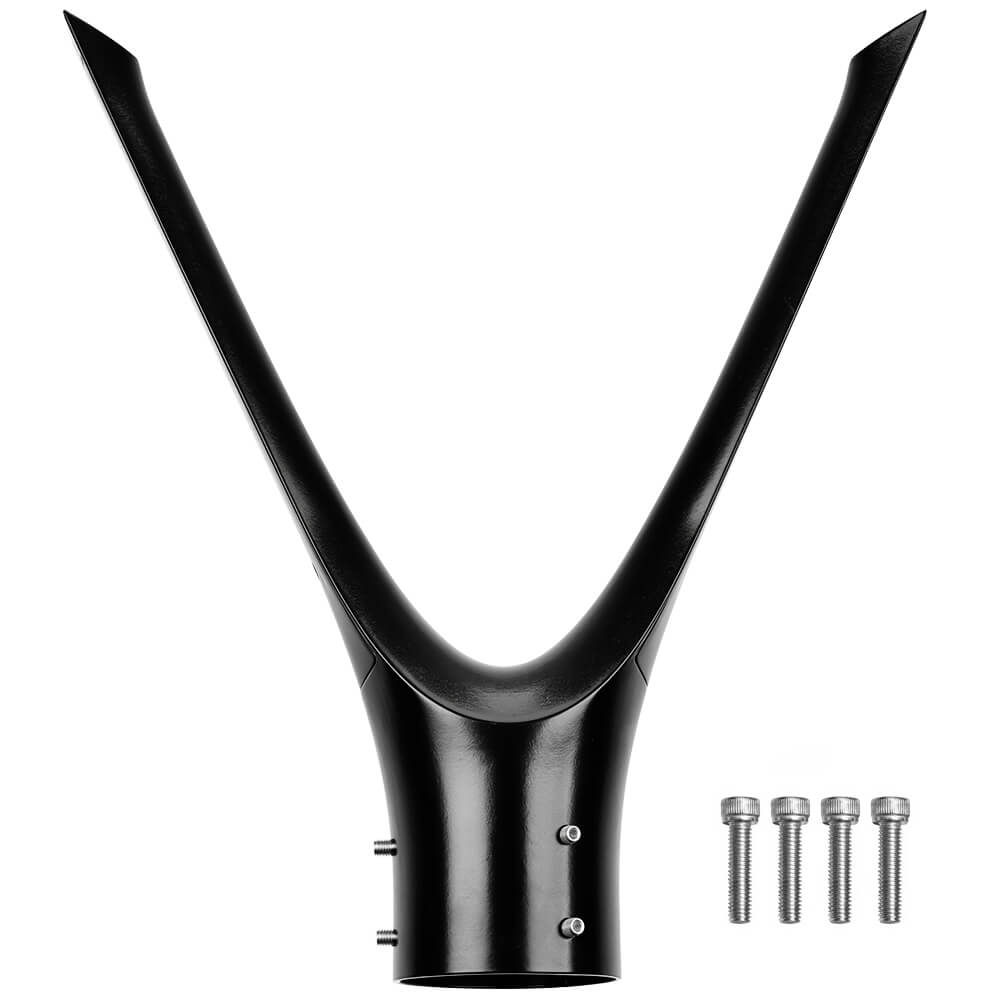

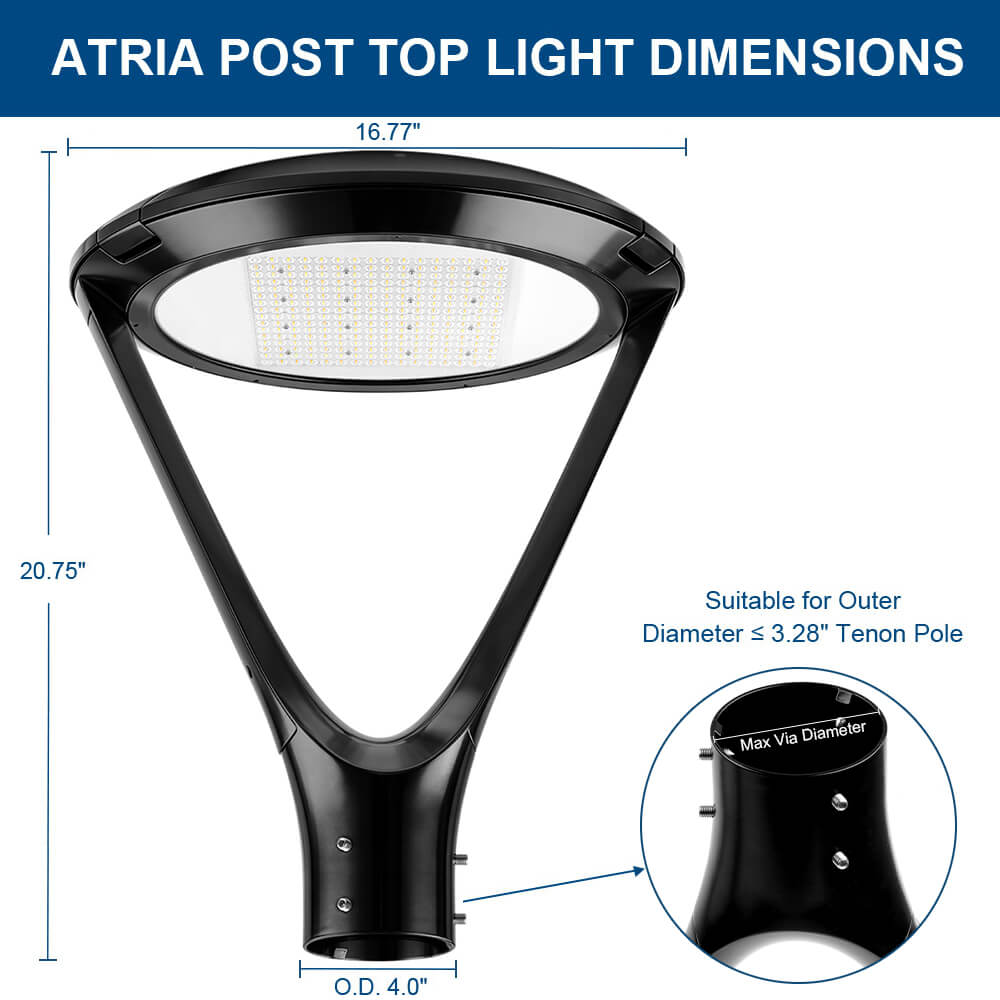

Installation is simple using the included twin-arm post top mounting kit. The fixture is designed to mount directly to a tenon with an outside diameter of up to 3.28 inches.

Combining modern architectural styling, selectable wattage and color temperature, high optical performance, and multiple light distribution options, the 125W Atria Series LED Post Top Light is an excellent solution for commercial and municipal outdoor lighting projects that demand both visual appeal and long-term reliability.

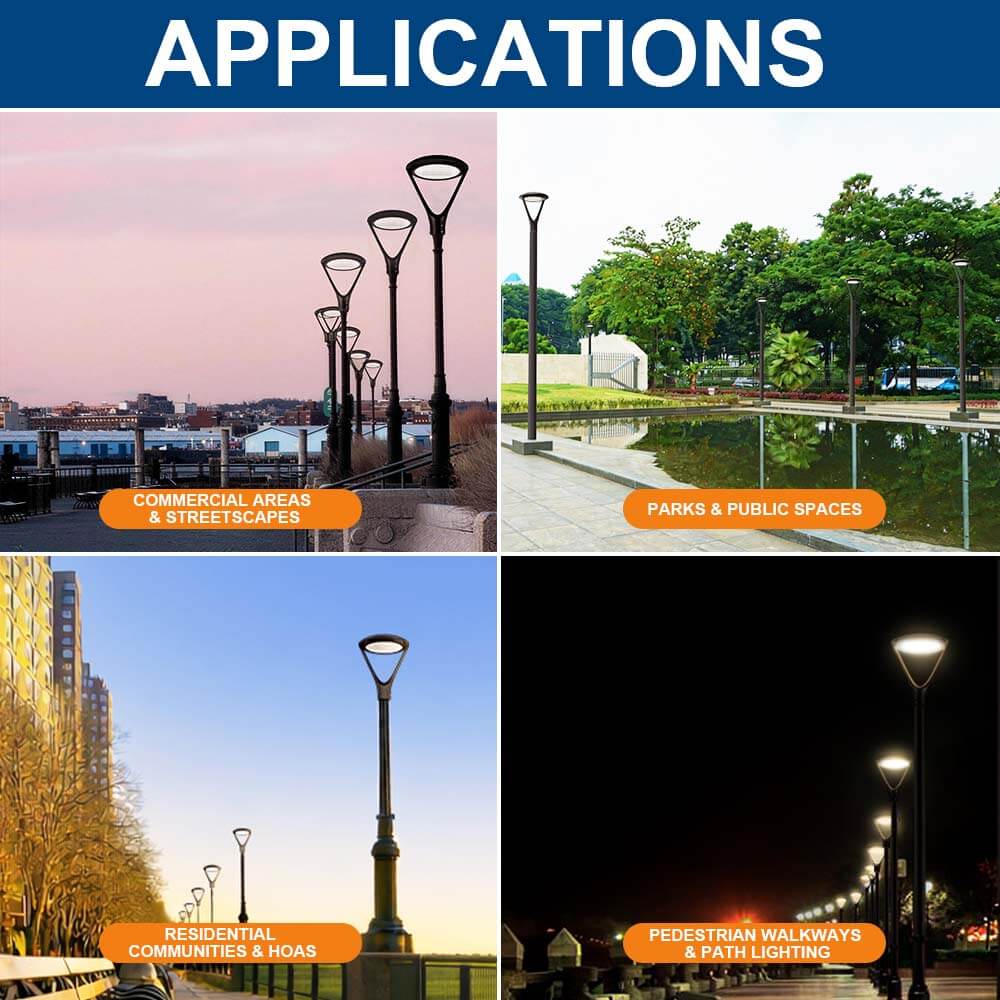

Applications
