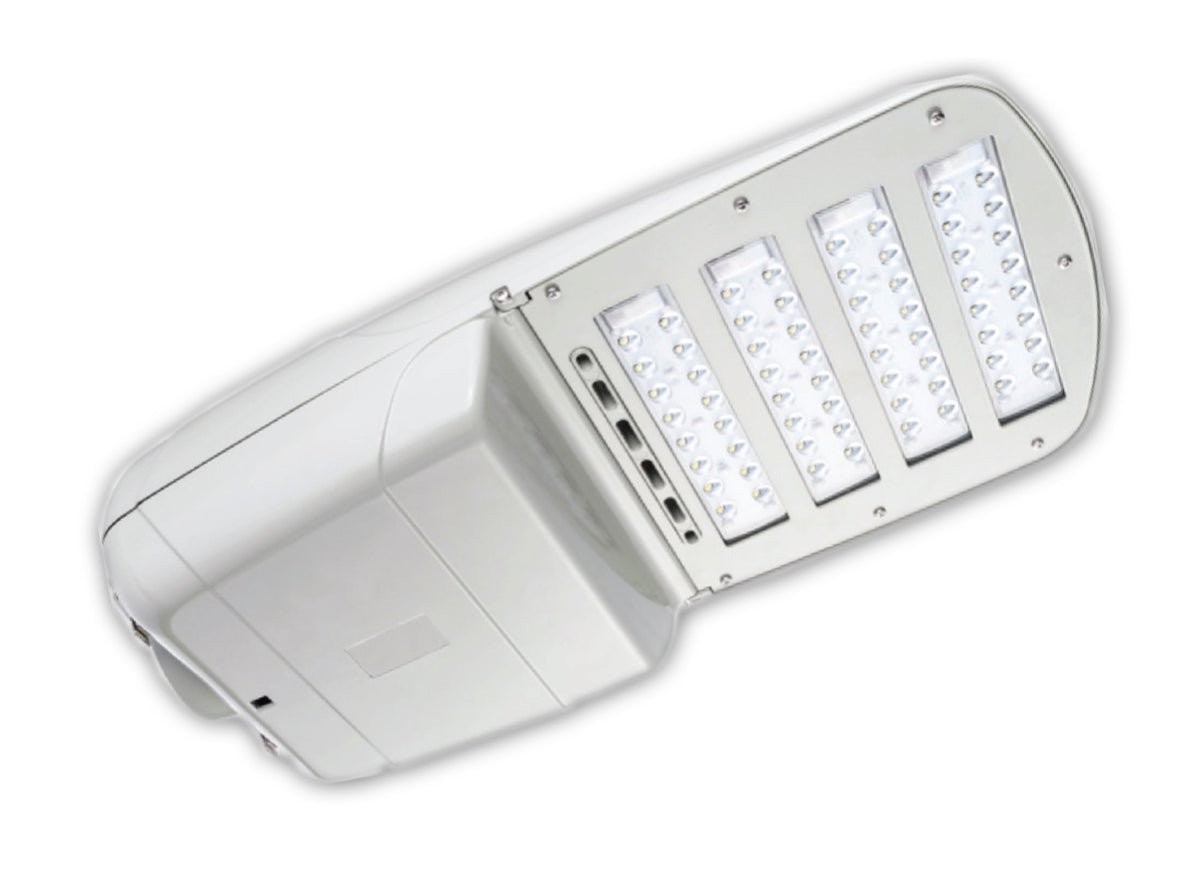

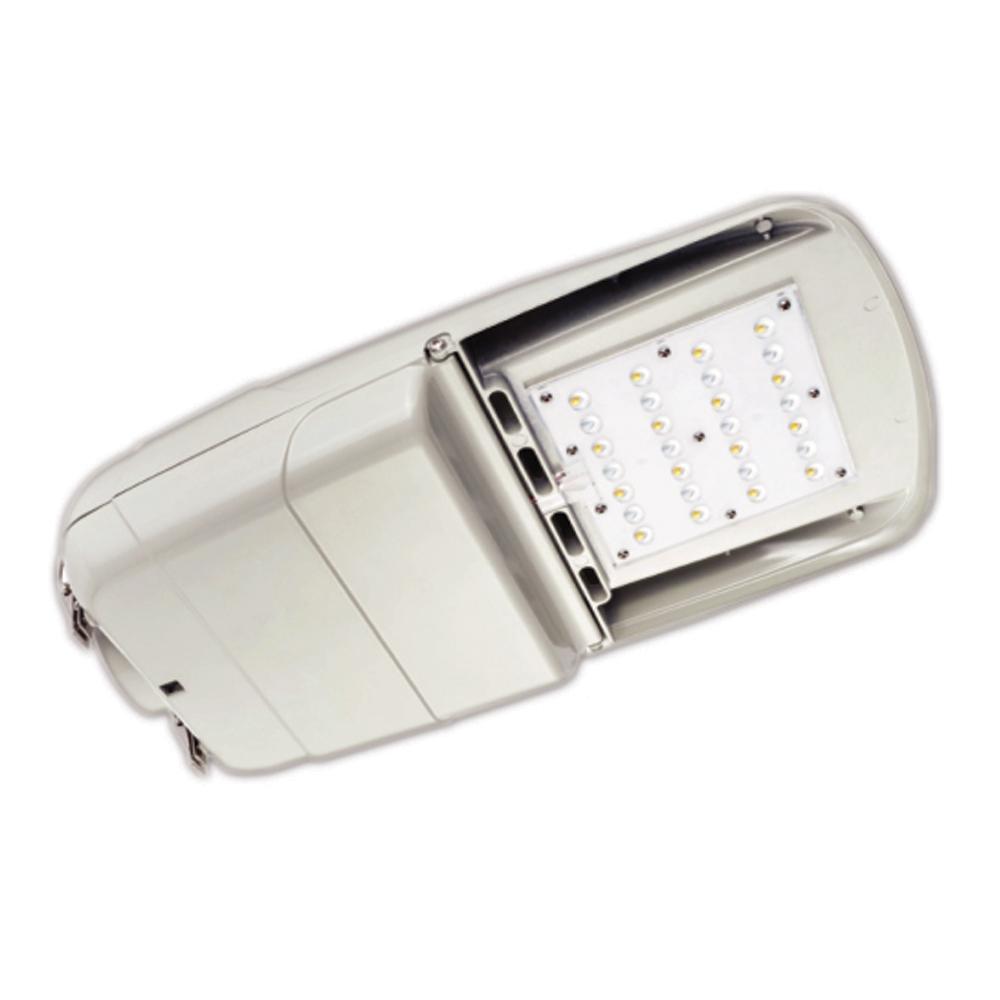

Howard Lighting L400 Series captures the benefits of the latest in LED technology into a high performance, high efficacy, long-life luminaire. The outstanding photometric performance results in sites with excellent uniformity, greater pole spacing and lower power density. The L400 Series is the better alternative for traditional street and area lighting with quick payback and improved performance.
Model Number |
L404L240W40KT310GRM |
L403L120W40KT310GRM |
L403L180W40KT310GRM |
L404L150W40KT310GRM |
Configuration |
with Optional Photocell |
With Optional Photocell |
with Optional Photocell |
with Optional Photocell |
Body Color/Finish |
Gray |
Gray |
Gray |
Gray |
Optical Distribution |
Type 3 |
Type 3 |
Type 3 |
Type 3 |
Lumen Output |
24837 LM |
13251 LM |
17989 LM |
17437 LM |
Luminous Efficacy |
103 LM/W |
110 LM/W |
100 LM/W |
116 LM/W |
Input Power |
240 W |
120 W |
180 W |
150 W |
Input Voltage |
120-277 Vac |
120-277 Vac |
120-277 Vac |
120-277 Vac |
Power Factor |
> 0.9 |
> 0.9 |
> 0.9 |
> 0.9 |
THD |
< 0.2 |
< 0.20 |
< 0.2 |
< 0.2 |
Color Temp (CCT) |
4000 K |
4000 K |
4000 K |
4000 K |
Color Rend (CRI) |
70 |
70 |
70 |
70 |
Lifetime Rating |
100000 hours |
100000 hours |
100000 hours |
100000 hours |
Warranty |
10 Years |
10 Years |
10 Years |
10 Years |
Dimmability |
0-10v |
0-10v |
0-10v |
0-10v |
Operating Temp |
-40 to 113 (°F) |
-40 to 113 (°F) |
-40 to 113 (°F) |
-40 to 113 (°F) |
Environment |
Wet Location |
Wet Location |
Wet Location |
Wet Location |
DLC |
YES |
YES |
YES |
YES |
Safety Cert |
UL |
UL |
UL |
UL |
